Communication

Oxidation-Active Radical TTM-DMODPA for Catalysis-Free Hydrogen Peroxide Colorimetric Sensing

by
Qingmei Zhong
*,
Xiaomei Rong
,
Tingting Wu
and
Chuan Yan
Hunan Engineering Research Center for Monitoring and Treatment of Heavy Metals Pollution in the Upper Reaches of Xiangjiang River, College of Chemistry and Materials Science, Hengyang Normal University, Hengyang 421008, China
*
Author to whom correspondence should be addressed.
Biosensors 2025, 15(8), 490; https://doi.org/10.3390/bios15080490
Submission received: 24 June 2025 / Revised: 22 July 2025 / Accepted: 28 July 2025 / Published: 29 July 2025
(This article belongs to the Section Optical and Photonic Biosensors)
Browse Figures
Versions Notes

Abstract

As a crucial reactive oxygen species, hydrogen peroxide (H2O2) serves as both a physiological regulator and a pathological indicator in human systems. Its urinary concentration has emerged as a valuable biomarker for assessing metabolic disorders and renal function. While conventional colorimetric determination methods predominantly employ enzymatic or nanozyme catalysts, we present an innovative non-catalytic approach utilizing the redox-responsive properties of organic neutral radicals. Specifically, we designed and synthesized a novel radical TTM-DMODPA based on the tris (2,4,6-trichlorophenyl) methyl (TTM) scaffold, which exhibits remarkable optical tunability and oxidative sensitivity. This system enables dual-mode H2O2 quantification: (1) UV-vis spectrophotometry (linear range: 2.5–250 μmol/L, LOD: 1.275 μmol/L) and (2) smartphone-based visual analysis (linear range: 2.5–250 μmol/L, LOD: 3.633 μmol/L), the latter being particularly suitable for point-of-care testing. Validation studies using urine samples demonstrated excellent recovery rates (96–104%), confirming the method’s reliability for real-sample applications. Our work establishes a portable, instrument-free platform for urinary H2O2 determination, with significant potential in clinical diagnostics and environmental monitoring.

1. Introduction

The concentration of hydrogen peroxide (H2O2) in urine has emerged as a potential biomarker for assessing both the redox homeostasis and microbial ecology within the urogenital tract [1,2,3,4,5,6]. Elevated or depleted urinary H2O2 levels may indicate pathological conditions, including but not limited to urinary tract infections and systemic metabolic dysregulation, owing to its dual role in antimicrobial defense and oxidative stress modulation [7,8,9,10].
Numerous analytical techniques have been developed for H2O2 determination, encompassing electrochemical [11,12,13,14,15], chromatographic [16], enzymatic [17,18], chemiluminescence [19], UV-vis [20], and fluorescence spectroscopic methods [21,22]. Among these, the colorimetric method has emerged as the technique of choice for routine analysis, owing to its operational simplicity, cost-effectiveness, and high-throughput capability, particularly in resource-limited settings [23,24,25,26,27]. Presently, the majority of H2O2 colorimetric assays rely on the TMB (3,3′,5,5′-tetramethylbenzidine) chromogenic reaction [25,26,28,29,30,31,32,33,34], necessitating the involvement of enzymes or enzyme mimics that inevitably complicate the sensing system. Notably, to the best of our knowledge, no non-catalytic colorimetric approach utilizing organic radicals has been reported for H2O2 determination.
Stable organic radicals exhibit unique electronic properties and a positive response to external oxidation stimulus originating from the intramolecular unpaired electrons [35,36,37]. Among reported organic radicals, tris (2,4,6-trichlorophenyl)methyl (TTM) radical derivatives possess excellent stability due to the effective steric hindrance around the center carbon radical [38,39,40]. Compared with other open-shell radicals, arylamine-substituted TTM radicals have a low band gap and fast conversion from a neutral state to a cation state under the applied electronic field or oxidation species because of the effective intramolecular charge transfer (ICT) interactions [41,42]. This provides accessibility to utilizing a TTM radical positive response to an oxidation stimulus to realize oxidation species determination.
In this study, we successfully synthesized a novel organic neutral radical, specifically the 4,4′-dimethoxydiphenylamine-substituted tris(2,4,6-trichlorophenyl)methyl radical (radical TTM-DMODPA). The oxidation process of radical TTM-DMODPA was found to be precisely regulated by H2O2, resulting in both a measurable increase in absorbance and a distinct colorimetric transition from grass green to blue (Scheme 1). Using UV-vis spectrophotometry, we established a well-defined linear correlation between H2O2 concentrations and corresponding absorbance changes. Furthermore, we successfully developed a parallel quantitative relationship between H2O2 concentrations and RGB color values through smartphone-based image analysis. This work presents a significant advancement in analytical methodology: a non-enzymatic, catalyst-free visual determination system for H2O2 that has been successfully validated in real urine samples. The developed approach offers promising potential for innovative applications in biological sensing and clinical diagnostics. Building upon the investigations of TTM derivatives in optoelectronic fields, this study represents an entirely novel research direction by strategically purposing these radical species for biomedical sensing applications [42,43]. Distinct from the established focus on OLEDs and photothermal conversion, we engineered a TTM-based platform that achieves catalyst-free H2O2 quantification through radical-specific chromogenic reactions, enabling dual-mode determination (UV-vis: 1.275 μmol/L LOD; smartphone: 3.633 μmol/L LOD). This breakthrough not only circumvents the stability limitations of enzymatic/metal catalysts but also demonstrates exceptional recovery in complex biofluids. By bridging the gap between organic radical chemistry and point-of-care diagnostics, our study establishes a new paradigm for TTM materials beyond their traditional optoelectronic roles, with direct implications for non-invasive disease monitoring and portable healthcare devices.

2. Materials and Methods

2.1. Chemicals and Reagents

All chemical reagents were obtained from commercial sources and used without further purification. Hydrochloric acid (HCl, 36–38%), hydrogen peroxide (H2O2, 30%), chloroform, sodium hypochlorite (NaClO), and toluene were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). 1,3,5-trichlorobenzene, aluminium chloride (AlCl3), 4,4′-dimethoxydiphenylamine, tetrahydrofuran (THF), potassium tert-butoxide (t-BuOK), and p-chloranil were acquired from Anhui Senrise Technology Co., Ltd. (Hefei, China). Catalytic reagents bis(dibenzylideneacetone)palladium (Pd(dba)2), 2,2′-bis(diphenylphosphino)-1,1′-binaphthalene (BINAP), sodium tert-butoxide (t-BuONa), and ferrous chloride tetrahydrate (FeCl2•4H2O), xanthine, and xanthine oxidase were sourced from Shanghai Titan Scientific Co., Ltd. (Shanghai, China). Analytical grade inorganic salts (KCl, NaCl, CaCl2, trisodium phosphate) and biological compounds (glucose, glycine, methionine, proline, histidine, uric acid, urea, cysteine) were obtained from Adamas Reagent Co., Ltd. (Shanghai, China).

2.2. Equipment and Characterization

All nuclear magnetic resonance (NMR) spectra were acquired using a Bruker Avance III HD spectrometer (Bruker Corporation, Billerica, MA, USA) operating at 500 MHz for 1H NMR and 125 MHz for 13C NMR measurements. The following abbreviations are used to describe signal splitting patterns: s (singlet), d (doublet), and m (multiplet). High-resolution mass spectrometry (HRMS) data were obtained using a Thermo Orbitrap Exploris 120 mass spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). Electron paramagnetic resonance (EPR) spectroscopy of radical species was performed at ambient temperature using a Bruker EMXPlus spectrometer (Bruker Corporation, Billerica, MA, USA). UV-vis absorption spectra were recorded on a 754PC spectrophotometer (Yixin Scientific Instrument Co., Shanghai, China).

2.3. Synthesis of Compound HTTM-DMODPA

Compound HTTM was synthesized following literature procedures [44].
The target compound HTTM-DMODPA was prepared through a Buchwald–Hartwig coupling reaction under inert conditions [44]. In a nitrogen-filled Schlenk tube, a reaction mixture containing HTTM (0.55 g, 0.99 mmol), 4,4′-dimethoxydiphenylamine (0.14 g, 0.59 mmol), Pd(dba)2 (0.10 g, 0.17 mmol), BINAP (0.11 g, 0.18 mmol), t-BuONa (0.29 g, 3.02 mmol), and anhydrous toluene (15 mL) was heated to 110 °C with vigorous stirring for 16 h. After cooling to room temperature, the reaction mixture was concentrated under reduced pressure, and the crude product was purified by silica gel column chromatography using a dichloromethane/petroleum ether (1:7 v/v) as eluent. The desired product HTTM-DMODPA was isolated as a white solid with a 42% yield (0.19 g).

2.4. Synthesis of Radical TTM-DMODPA

The transformation was carried out under strict oxygen-free and light-free conditions. A reaction flask charged with HTTM-DMODPA (0.08 g, 0.11 mmol), t-BuOK (0.49 g, 4.40 mmol), and anhydrous tetrahydrofuran (12 mL) was purged with nitrogen and stirred at an ambient temperature for 40 h. Subsequently, p-chloranil (0.54 g, 2.20 mmol) was added, and the resulting mixture was stirred for an additional 24 h. After completion, the reaction was concentrated in vacuo, and the residue was purified by flash chromatography on silica gel using a dichloromethane/petroleum ether mixture (1:9 v/v) as eluent. The target radial TTM-DMODPA was isolated as a dark green solid with a 51% yield (0.04 g).

2.5. Procedures for H2O2 Assay

The test solutions were prepared by sequentially mixing 40 μL radical TTM-DMODPA (640 μM), 7.5 μL HCl (8 mM), and 343 μL acetonitrile, followed by the addition of 10 μL H2O2 at varying concentrations. The reaction mixtures were incubated at 60 °C for 5 min, after which UV-vis spectra and images were acquired. Absorbance changes at 652 nm (ΔA) were calculated as ΔA = A − A0, where A and A0 represent the absorbance values of the determination system in the presence and absence of H2O2, respectively. These ΔA values served as the dependent variable for constructing the standard curve and optimizing determination parameters. All measurements were performed in triplicate to ensure data reproducibility.

2.6. Sample Preparation

The original urine samples were sourced from healthy adult volunteers in our research team under strict anonymization protocols to ensure donor confidentiality, with immediate post-collection refrigeration at 4 °C to maintain sample integrity. For analytical processing, a standardized 10-fold dilution with phosphate buffer (pH 7.4) was implemented, which simultaneously stabilizes H2O2 by reducing degradation from redox/pH effects, minimizes matrix interference with 96–104% recovery rates, and maintains consistency with literature-standard 5–100× dilution protocols for urinary biomarkers [45,46].

3. Results and Discussion

3.1. Synthesis and Characterization of the Radical TTM-DMODPA

The target radical TTM-DMODPA was synthesized through a two-step procedure involving dehydrogenation followed by oxidation of its precursor HTTM-DMODPA (Scheme S1). The precursor itself was prepared via a palladium-catalyzed C-N coupling reaction between HTTM and 4,4′-dimethoxydiphenylamine (Figure 1A), which was confirmed by nuclear magnetic resonance (NMR) spectra (collected and processed by TopSpin 4.5.0 software provided with the Bruker Avance III HD spectrometer) (Figure 1B,C, Figures S1 and S2). The assignments of hydrogen and carbon atoms in HTTM-DMODPA are as follows: 1H NMR (500 MHz, CDCl3) δ (ppm): 7.36 (d, J = 2.5 Hz, 1H), 7.33 (d, J = 2.0 Hz, 1H), 7.25 (d, J = 2.5 Hz, 1H), 7.20 (d, J = 2.5 Hz, 1H), 7.09–7.06 (m, 4H), 6.88–6.85 (m, 4H), 6.78 (d, J = 2.5 Hz, 1H), 6.65 (d, J = 2.5 Hz, 1H), 6.64 (s, 1H), and 3.80 (s, 6H). 13C NMR (125 MHz, CDCl3) δ (ppm): 157.0, 148.9, 139.1, 138.4, 138.0, 137.5, 137.4, 137.2, 137.0, 135.0, 135.0, 133.4, 130.2, 129.9, 128.5, 128.4, 127.7, 124.7, 119.2, 117.8, 115.2, 55.6, and 49.7. The NMR signals of hydrogen and carbon atoms were consistent with the corresponding molecular structure, which verified the successful synthesis of HTTM-DMODPA. Comprehensive characterization confirmed the successful synthesis of the radical species. High-resolution mass spectrometry (HRMS) analysis revealed a molecular ion peak at m/z 745.8936 (calcd. 745.8943), and the peaks adjacent to it originate from the isotopic peaks of carbon (12C, 13C) and chlorine (35Cl, 37Cl) atoms in the chemical structure (Figure 1D and Figure S3). The radical nature of TTM-DMODPA was unambiguously confirmed by electron paramagnetic resonance (EPR) spectra, which exhibited a characteristic signal at g = 2.0026 [47] (Figure 1E), indicating an open-shell structure with the unpaired electron. UV-vis spectroscopic analysis (Figure 2B(a)) displayed a prominent absorption maximum at 381 nm, corresponding to π-π* transitions characteristic of the triarylmethyl radical family [48]. These collective data provide conclusive evidence for the successful synthesis and structural verification of the target radical TTM-DMODPA.

3.2. Feasibility Analysis

The oxidative response of the radical TTM-DMODPA to H2O2 was systematically investigated. UV-vis spectroscopic analysis (Figure 2B) revealed that upon addition of H2O2, the characteristic radical absorption at 381 nm exhibited a progressive decrease in absorbance from 0.77 to 0.25. In the visible region, the radical displayed a maximum absorption wavelength at 652 nm. Subsequent introduction of H2O2 resulted in a pronounced absorbance enhancement at this wavelength, increasing from 0.32 to 0.99, corresponding to a 3.09-fold amplification. This spectral evolution was accompanied by a distinct colorimetric transition from grass green to deep blue, consistent with the formation of quinoid oxidation products (Figure 2A). The isosbestic point at 452 nm (Figure 2B) reflects the dynamic equilibrium between the radical TTM-DMODPA (compound a) and oxidized (compound c) forms of our system, with the constant absorbance (A = 0.395) at this wavelength serving as a built-in quality control parameter. It enhances measurement reliability by providing an internal reference: the invariant absorbance at the isosbestic point enables real-time correction for probe concentration variations (e.g., due to pipetting errors or sample matrix effects) [41]. Collectively, these spectroscopic and visual changes demonstrated the potential of radical TTM-DMODPA as a sensitive colorimetric probe for H2O2 determination.

3.3. Colorimetric Determination of H2O2

Building upon these findings, we proceeded to systematically optimize and validate the radical TTM-DMODPA oxidation assay for H2O2 determination. To establish optimal sensing conditions, we investigated three critical parameters: reaction time, temperature, and HCl concentration. First, the reaction time was examined by monitoring absorbance changes (ΔA) at 652 nm over time (Figure 3A). The radical solution containing TTM-DMODPA, H2O2, and HCl was incubated at 60 °C, revealing a rapid ΔA increase within the first 5 min followed by signal stabilization, suggesting complete reaction within this timeframe. Temperature optimization studies (Figure 3B) demonstrated progressive ΔA enhancement from 20 to 60 °C, with maximal and stable response achieved at 60 °C, which was consequently selected for all subsequent experiments. Finally, HCl concentration was found to significantly influence signal intensity, with ΔA showing a concentration-dependent increase up to 150 μmol/L (Figure 3C), beyond which the response plateaued. This optimal HCl concentration was therefore adopted for the developed sensing protocol. Additionally, the radical TTM-DMODPA system is designed for point-of-care testing of ex vivo urine analysis in resource-limited settings, with key advantages including instrument-free, cost-effective, and visual readout capability features specifically optimized for point-of-care testing in community clinics and home use scenarios. The in vitro radical TTM-DMODPA system’s experimental flexibility allows comprehensive parameter optimization beyond physiological constraints, while subsequent validation with pH 4–9 buffer systems (Figure S4) confirmed maintained detection efficiency across the full physiological pH.
Following the optimization of experimental parameters, we thoroughly assessed the analytical performance of the method by evaluating its reproducibility, linear dynamic range, determination limit, and selectivity. The radical TTM-DMODPA demonstrated excellent method reproducibility, as evidenced by consistently low relative standard deviations (RSD ≤ 4.80%) across multiple H2O2 concentration levels (Figure 4). This robust precision profile confirms the reliability of our developed assay for quantitative applications.
The quantitative analytical performance of the radical TTM-DMODPA-based determination system was systematically evaluated. Spectrophotometric analysis (Figure 4A) revealed a concentration-dependent absorbance enhancement at 652 nm proportional to H2O2 concentration, establishing ΔA652 nm as a reliable quantitative indicator. A linear calibration curve was obtained over the concentration range of 2.5–250 μmol/L (Figure 4B), with the regression equation ΔA652 nm = 0.0024CH2O2 + 0.0743 (R2 = 0.9994), demonstrating excellent correlation. The method exhibited high sensitivity with a calculated detection limit of 1.275 μmol/L (3σ/slope, where σ represents the standard deviation of 15 blank measurements). Comparative analysis with existing H2O2 determination methods (Table 1) confirmed that our radical TTM-DMODPA-based approach offered competitive or superior performance in terms of both linear range and determination sensitivity. Notably, the assay requires only radical TTM-DMODPA and acidic conditions (H+), eliminating the need for metal catalysts or precious metal components. This simplified reaction system provides distinct advantages in terms of operational simplicity and environmental friendliness. Collectively, these results establish radical TTM-DMODPA as an exceptional radical probe for sensitive and selective H2O2 quantification via UV-vis spectroscopy.
To assess the practical applicability of the radical TTM-DMODPA based determination system, we rigorously evaluated its anti-interference capability against 18 potentially competing substances, including biologically relevant ions (Na+, K+, Ca2+, Mg2+, Cl−, and PO43−), amino acids (Gly, Met, Cys, Pro, and His), metabolites (glucose, uric acid, urea, NO), and reactive oxygen species (O2•−, 1O2, and •OH) [59]. As clearly demonstrated in Figure 5, the system exhibited exceptional specificity for H2O2, with none of the tested interferents producing significant ΔA652 nm responses. These results confirm that radical TTM-DMODPA maintains high selectivity for H2O2 determination even in complex sample matrices containing multiple potential interferents.

3.4. Camera Photography Analysis

To validate the field applicability of our colorimetric assay, we developed a smartphone-based quantitative analysis platform. Following color development at varying H2O2 concentrations (Figure 6A), solution images were captured using a smartphone camera. Digital image processing was employed to extract RGB color values, which were subsequently converted to Euclidean distances (EDs = (ΔR2 + ΔG2 + ΔB2)1/2) for quantitative analysis. The EDs were selected to capture multidimensional hue shifts characteristic of our radical TTM-DMODPA system’s transition from grass green to deep blue, where all three RGB channels exhibit concentration-dependent changes (ΔR = 58%, ΔG = 44%, ΔB = 138%). Most critically, the EDs not only preserve linear correlations across the entire 28.8–152.5 ED range, but also resolve subtle hue variations through their vectorial quantification of triaxial chromatic shifts. This analytical superiority is further corroborated by the dose-dependent response to H2O2 concentrations (2.5–250 μmol/L) in Figure 6B, where EDs demonstrated exceptional linearity with a calculated detection limit of 3.633 μmol/L (3σ method)—outperforming conventional univariate metrics in both sensitivity and dynamic range coverage. This instrument-free approach combines the analytical performance of laboratory methods with the practicality required for field applications, establishing a robust platform for visual H2O2 quantification.

3.5. Urine Sample Sensing

As demonstrated in previous sections, the radical TTM-DMODPA system exhibits excellent linear response and high selectivity toward H2O2, demonstrating strong potential for real-sample analysis. Urinary H2O2 quantification provides valuable clinical information as it serves as a reliable oxidative stress biomarker, an indicator of systemic antioxidant capacity, a screening tool for environmental/occupational hazard exposure, and a potential diagnostic marker for disorders involving aberrant radical metabolism. To evaluate the analytical performance of our system in biological matrices, we conducted standard addition experiments using urine specimens collected from healthy adult volunteers (n = 3). In the unspiked urine samples, H2O2 concentrations were consistently below the method’s limit of detection (LOD: 1.275 μmol/L as specified in Section 3.3), with all measurements yielding signals indistinguishable from the blank controls. Given this undetectable baseline, recovery values were calculated by direct comparison between the measured H2O2 concentrations in spiked samples and the known amounts of added standard, following the equation: Recovery (%) = (Measured spiked/Added standard) × 100. The yielded recoveries ranged from 96% to 104% across tested concentrations, with all relative standard deviations (RSD) remaining below 4.2% (Table 2). In healthy individuals, urinary H2O2 concentrations are typically maintained at relatively low levels, while pathological conditions like infections, inflammation, or cancer can significantly elevate these levels through oxidative stress mechanisms [46,60,61,62]. Our optimized colorimetric method, based on the radical TTM-DMODPA, demonstrates excellent translation potential by offering simple, cost-effective detection of pathological H2O2 changes within the 2.5–250 μM range, suitable for diagnostic applications, treatment monitoring, and personalized medicine approaches, though standardized reference ranges remain important future directions to enhance diagnostic specificity and clinical utility. These robust validation results confirm the method’s reliability for quantitative H2O2 determination in complex biological samples, particularly for clinical urine analysis applications.

4. Conclusions

In conclusion, we have successfully developed a novel colorimetric determination platform based on the radical TTM-DMODPA system, which exploits the specific oxidation of the radical to quinoid oxidation products by H2O2. The optimized reaction conditions (5 min reaction time, 60 °C, and 150 μmol/L H+) demonstrate analytical performance parameters competitive with established methods. Validation studies using human urine samples yielded excellent recovery rates, confirming the method’s reliability for biological sample analysis. The integrated smartphone-based determination platform offers significant advantages for instrument-free, on-site H2O2 quantification, representing a portable and cost-effective solution for point-of-care testing applications. While this approach provides an innovative tool for biological monitoring and diagnostic purposes, its current implementation is limited to discrete measurements rather than continuous or in situ analysis.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/bios15080490/s1, Scheme S1: Synthetic Route for radical TTM-DMODPA; Figures S1 and S2: 1H and 13C NMR spectra of new compounds; Figure S3: HRMS spectrum (ESI) of radical TTM-DMODPA; Figure S4: Sensing efficiency across the full physiological pH.

Author Contributions

Conceptualization, Q.Z. and C.Y.; methodology, Q.Z.; validation, Q.Z. and X.R.; formal analysis and investigation, Q.Z. and T.W.; resources, Q.Z. and C.Y.; data curation, C.Y.; writing—original draft preparation, Q.Z.; writing—review and editing, Q.Z. and C.Y.; supervision, Q.Z. and C.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No. 22304048), the Natural Science Foundation of Hunan Province (No. 2023JJ40096), the Scientific Research Project of Hengyang Normal University (No. 2024QD07, No. 2022QD05), and the Foundation of Hunan Engineering Research Center for Monitoring and Treatment of Heavy Metals Pollution in the Upper Reaches of Xiangjiang River (No. 2023HSKFJJ014).

Institutional Review Board Statement

Ethical review and approval were waived for this study because the urine samples collected from laboratory staff were fully anonymized and did not involve any personal identifiers or sensitive health information.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
H2O2hydrogen peroxide
TTMtris(2,4,6-trichlorophenyl)methyl
TTM-DMODPA4,4′-dimethoxydiphenylamine-substituted tris(2,4,6-trichlorophenyl)methyl
HTTMtris(2,4,6-trichlorophenyl)methane
HTTM-DMODPA4,4′-dimethoxydiphenylamine-substituted tris(2,4,6-trichlorophenyl)methane
BINAP2,2′-bis(diphenylphosphino)-1,1′-binaphthalene
t-BuONasodium tert-butoxide
t-BuOKpotassium tert-butoxide

References

  1. Sadiq, Z.; Al-Kassawneh, M.; Tali, S.H.S.; Jahanshahi-Anbuhi, S. Dextran-Gold Nanoparticle-Based Tablets and Swabs for Colorimetric Detection of Urinary H2O2. ACS Appl. Nano Mater. 2025, 8, 1008–1020. [Google Scholar] [CrossRef]
  2. Pinon-Balderrama, C.I.; Leyva-Porras, C.; Conejo-Davila, A.S.; Estrada-Monje, A.; Maldonado-Orozco, M.C.; Reyes-Lopez, S.Y.; Zaragoza-Contreras, E.A. Electrochemical Perovskite-Based Sensors for the Detection of Relevant Biomarkers for Human Kidney Health. Chemosensors 2023, 11, 507. [Google Scholar] [CrossRef]
  3. Yuen, J.W.M.; Benzie, I.F.F. Hydrogen peroxide in urine as a potential biomarker of whole body oxidative stress. Free Radic. Res. 2003, 37, 1209–1213. [Google Scholar] [CrossRef] [PubMed]
  4. Masumoto, M.; Ohta, S.; Nakagawa, M.; Hiruta, Y.; Citterio, D. Colorimetric paper-based sarcosine assay with improved sensitivity. Anal. Bioanal. Chem. 2022, 414, 691–701. [Google Scholar] [CrossRef] [PubMed]
  5. Halliwell, B.; Long, L.H.; Yee, T.P.; Lim, S.; Kelly, R. Establishing biomarkers of oxidative stress: The measurement of hydrogen peroxide in human urine. Curr. Med. Chem. 2004, 11, 1085–1092. [Google Scholar] [CrossRef] [PubMed]
  6. Halliwell, B.; Clement, M.V.; Long, L.H. Hydrogen peroxide in the human body. FEBS Lett. 2000, 486, 10–13. [Google Scholar] [CrossRef]
  7. Stapleton, A.E. The Vaginal Microbiota and Urinary Tract Infection. Microbiol. Spectr. 2016, 4, UTI-0025-2016. [Google Scholar] [CrossRef]
  8. Zhang, X.; Yang, J.; Lu, Y.; Liu, Y.; Wang, T.; Yu, F. Human Urinary Kallidinogenase improves vascular endothelial injury by activating the Nrf2/HO-1 signaling pathway. Chem. Biol. Interact. 2024, 403, 111230. [Google Scholar] [CrossRef]
  9. Felisardo, R.J.A.; Magalha, C.H.; Santos, G.d.O.S.; Lanza, M.R.d.V. Unlocking the potential of in situ H2O2 generation in urine as a decentralized electro-sanitation strategy. Chem. Eng. J. 2025, 507, 160391. [Google Scholar] [CrossRef]
  10. Bhattacharyya, D.; LeVatte, M.A.; Singh, U.; Issac, F.; Karim, M.; Ali, S.; Sieben, A.; Huang, S.; Wishart, D.S. A novel colorimetric assay for the detection of urinary N1, N12-diacetylspermine, a known biomarker for colorectal cancer. Anal. Biochem. 2025, 697, 115717. [Google Scholar] [CrossRef]
  11. Zhou, M.; Sun, H.; Chen, S.; Yang, M.; Dong, R.; Yang, X.; Zang, L. Chemosensors for H2O2 Detection: Principles, Active Materials, and Applications. Chemosensors 2025, 13, 54. [Google Scholar] [CrossRef]
  12. Zhang, Y.; Liu, Y.; Offenhaeusser, A.; Mourzina, Y. Hydrogen Peroxide Fuel Cells and Self-Powered Electrochemical Sensors Based on the Principle of a Fuel Cell with Biomimetic and Nanozyme Catalysts. Biosensors 2025, 15, 124. [Google Scholar] [CrossRef] [PubMed]
  13. Kaur, G.; Ahmad, A.; Singh, I. Recent progress in nanomaterial-based electrochemical biosensors for hydrogen peroxide detection & their biological applications. Talanta 2025, 286, 127447. [Google Scholar] [CrossRef] [PubMed]
  14. Ino, K.; Mockaitis, T.; Shikuwa, R.; Oba, K.; Hiramoto, K.; Morkvenaite-Vilkonciene, I.; Abe, H.; Shiku, H. Recent advances in electrochemiluminescence sensing for in vitro cell analysis: A review. Anal. Sci. 2025, 41, 557–569. [Google Scholar] [CrossRef] [PubMed]
  15. Ghaedamini, H.; Kim, D.-S. Recent advances in electrochemical detection of reactive oxygen species: A review. Analyst 2025, 150, 1490–1517. [Google Scholar] [CrossRef]
  16. Pundir, C.S.; Deswal, R.; Narwal, V. Quantitative analysis of hydrogen peroxide with special emphasis on biosensors. Bioprocess. Biosyst. Eng. 2018, 41, 313–329. [Google Scholar] [CrossRef]
  17. Rigoletto, M.; Laurenti, E.; Tummino, M.L. An Overview of Environmental Catalysis Mediated by Hydrogen Peroxide. Catalysts 2024, 14, 267. [Google Scholar] [CrossRef]
  18. Li, M.; You, F.; Zhang, K.; Xu, J.; Zhuang, W.; Ge, J.; Wang, Z. Biomimetic mineralization materials for heterogeneous chemo-enzymatic cascade catalytic systems: Theaters and players. Chem. Eng. J. 2025, 509, 161282. [Google Scholar] [CrossRef]
  19. Galligan, J.J.; Baeumner, A.J.; Duerkop, A. Recent advances and trends in optical devices and sensors for hydrogen peroxide detection. TrAC Trends Anal. Chem. 2024, 180, 117948. [Google Scholar] [CrossRef]
  20. Modic, A.; Filip, L.; Jovanovski, V. Determination of Gaseous H2O2 Using UV-Vis Spectroscopy. Chemosensors 2025, 13, 157. [Google Scholar] [CrossRef]
  21. Sun, Y.; Xu, L.; Zhang, X.; Zhang, J.; Gao, M.; Xu, G. Fluorescent nanosensors for the detection of hydrogen peroxide: Materials, design strategies and applications. Dyes Pigm. 2025, 235, 112592. [Google Scholar] [CrossRef]
  22. Pirsa, S.; Purghorbani, F. An overview of hydrogen peroxide sensors and their applications in food quality control. Sens. Rev. 2024, 44, 159–170. [Google Scholar] [CrossRef]
  23. Guo, N.; Yang, J.; Li, Y.; Wang, W.; Liang, X.; Xu, Q.; Du, L.; Qin, J. A review of a colorimetric biosensor based on Fe3O4 nanozymes for food safety detection. Anal. Bioanal. Chem. 2025, 417, 1713–1730. [Google Scholar] [CrossRef]
  24. Liu, J.; Yang, D.; Hu, W.; Huang, N.; Rong, Y.; Long, Y.; Zheng, H. Piezoelectric BaTiO3 nanoparticles as oxidase mimics breaking pH limitation for colorimetric detection of glutathione reductase. Chem. Eng. J. 2024, 481, 148609. [Google Scholar] [CrossRef]
  25. Xu, L.; Yang, B.; Guo, L. Oxidized 3,3′,5,5′-tetramethylbenzidine nanobelts enhance colorimetric sensing of H2O2. Talanta 2024, 279, 126584. [Google Scholar] [CrossRef]
  26. Talapphet, N.; Huh, C.S. A Smartphone Colorimetric Development with TMB/H2O2/HRP Reaction System for Hydrogen Peroxide Detection and its Applications. J. Anal. Chem. 2024, 79, 57–64. [Google Scholar] [CrossRef]
  27. Liu, Q.; Zhu, J.; Wang, H.; Luan, Y.; Zhang, Z. Porphyrin-based covalent organic framework as oxidase mimic for highly sensitive colorimetric detection of pesticides. Microchim. Acta 2024, 191, 296. [Google Scholar] [CrossRef] [PubMed]
  28. Sairaj, V.; Poovethamkandiyil, A.S.; Hinder, S.J.; Pillai, S.C.; Vijayan, B.K. Enhanced photooxidation and colorimetric sensing application of praseodymium oxide-modified boron-doped g-C3N4. New J. Chem. 2025, 49, 7495–7505. [Google Scholar] [CrossRef]
  29. Ramgopal, N.C.; Mukherjee, P.; Kamilya, T.; Basavegowda, N.; Mahanthappa, M.; Aljarba, N.H.; Alqahtani, R.A.; Alkahtani, S.; Park, J.; Vishwanath, R.S. Etched Co-Fe Prussian blue analog nanozymes with superior peroxidase activity for colorimetric biosensing of hydrogen peroxide and dopamine. Int. J. Biol. Macromol. 2025, 288, 138766. [Google Scholar] [CrossRef]
  30. Li, Y.; Ma, Q.; Gong, H.; Gu, J.; Liu, T.; Wang, X. Superior oxidase-mimetic activity of FeCo-NC dual-atom nanozyme for smartphone-based visually colorimetric assay of organophosphorus pesticides. Microchim. Acta 2024, 191, 368. [Google Scholar] [CrossRef]
  31. Leili, Z.; Asadpour, S.; Saberi, Z. Exploring peroxidase mimetic activity of carbon nano-onions for colorimetric detection of H2O2 and glucose. J. Taiwan Inst. Chem. Eng. 2025, 170, 106029. [Google Scholar] [CrossRef]
  32. Deng, Z.; Cao, J.; Zhao, L.; Zhang, Z.; Yuan, J. Trimetallic FeCoNi Metal-Organic Framework with Enhanced Peroxidase-like Activity for the Construction of a Colorimetric Sensor for Rapid Detection of Thiophenol in Water Samples. Molecules 2024, 29, 3739. [Google Scholar] [CrossRef] [PubMed]
  33. Arshad, A.; Ding, L.; Akram, R.; Zhu, W.; Long, L.; Wang, K. Construction of a novel Au@Os mediated TMB-H2O2 platform with dual-signal output for rapid and accurate detection of ziram in food. Food Chem. 2025, 462, 140988. [Google Scholar] [CrossRef] [PubMed]
  34. Ali, M.; Singh, R.; Guin, D.; Tripathi, C.S.P. BaTiO3-MoS2 Nanocomposite as a New Peroxidase Mimic for the Colorimetric and Smartphone-Assisted Detection of H2O2. J. Cluster Sci. 2024, 35, 2393–2404. [Google Scholar] [CrossRef]
  35. Lu, X.; Gopalakrishna, T.Y.; Phan, H.; Herng, T.S.; Jiang, Q.; Liu, C.; Li, G.; Ding, J.; Wu, J. Global Aromaticity in Macrocyclic Cyclopenta-Fused Tetraphenanthrenylene Tetraradicaloid and Its Charged Species. Angew. Chem. Int. Ed. 2018, 57, 13052–13056. [Google Scholar] [CrossRef]
  36. Ballesteros, P.; Cuadrado, A.; Gilabert, A.; Fajarí, L.; Sirés, I.; Brillas, E.; Almajano, M.P.; Velasco, D.; Anglada, J.M.; Juliá, L. Formation of a stable biradical triplet state cation versus a closed shell singlet state cation by oxidation of adducts of 3,6-dimethoxycarbazole and polychlorotriphenylmethyl radicals. Phys. Chem. Chem. Phys. 2019, 21, 20225–20231. [Google Scholar] [CrossRef]
  37. Fajarí, L.; Papoular, R.; Reig, M.; Brillas, E.; Jorda, J.L.; Vallcorba, O.; Rius, J.; Velasco, D.; Juliá, L. Charge Transfer States in Stable Neutral and Oxidized Radical Adducts from Carbazole Derivatives. J. Org. Chem. 2014, 79, 1771–1777. [Google Scholar] [CrossRef]
  38. Abdurahman, A.; Hele, T.J.H.; Gu, Q.; Zhang, J.; Peng, Q.; Zhang, M.; Friend, R.H.; Li, F.; Evans, E.W. Understanding the luminescent nature of organic radicals for efficient doublet emitters and pure-red light-emitting diodes. Nat. Mater. 2020, 19, 1224–1229. [Google Scholar] [CrossRef]
  39. Bai, X.; Tan, W.; Abdurahman, A.; Li, X.; Li, F. Stable red nanoparticles loaded neutral luminescent radicals for fluorescence imaging. Dyes Pigm. 2022, 202, 110260. [Google Scholar] [CrossRef]
  40. Chen, L.; Arnold, M.; Kittel, Y.; Blinder, R.; Jelezko, F.; Kuehne, A.J.C. 2,7-Substituted N-Carbazole Donors on Tris(2,4,6-trichlorophenyl)methyl Radicals with High Quantum Yield. Adv. Opt. Mater. 2022, 10, 2102101. [Google Scholar] [CrossRef]
  41. Yan, C.; An, D.; Chen, W.; Zhang, N.; Qiao, Y.; Fang, J.; Lu, X.; Zhou, G.; Liu, Y. Stable Diarylamine-Substituted Tris(2,4,6-trichlorophenyl)methyl Radicals: One-Step Synthesis, Near-Infrared Emission, and Redox Chemistry. CCS Chem. 2022, 4, 3190–3203. [Google Scholar] [CrossRef]
  42. Yan, C.; Fang, J.; Zhu, J.; Chen, W.; Wang, M.; Chi, K.; Lu, X.; Zhou, G.; Liu, Y. Donor Engineering of Diphenylamine-substituted Tris(2,4,6-trichlorophenyl)methyl Radicals for Controlling the Intramolecular Charge Transfer and Near-infrared Photothermal Conversion. J. Mater. Chem. C 2023, 11, 2729–2736. [Google Scholar] [CrossRef]
  43. Gao, Y.; Xu, W.; Ma, H.; Obolda, A.; Yan, W.; Dong, S.; Zhang, M.; Li, F. Novel Luminescent Benzimidazole-Substituent Tris(2,4,6-trichlorophenyl)methyl Radicals: Photophysics, Stability, and Highly Efficient Red-Orange Electroluminescence. Chem. Mater. 2017, 29, 6733–6739. [Google Scholar] [CrossRef]
  44. Peng, Q.; Obolda, A.; Zhang, M.; Li, F. Organic Light-Emitting Diodes Using a Neutral π Radical as Emitter: The Emission from a Doublet. Angew. Chem. Int. Ed. 2015, 54, 7091–7095. [Google Scholar] [CrossRef] [PubMed]
  45. Zheng, Q.; Xiong, L.; Yu, L.; Wu, D.; Yang, C.; Xiao, Y. An enzyme-free fluorescent sensing platform for the detection of uric acid in human urine. J. Lumin. 2021, 236, 118076. [Google Scholar] [CrossRef]
  46. Mohan, B.; Virender; Kumar Gupta, R.; Pombeiro, A.J.L.; Ren, P. Advanced luminescent metal–organic framework (MOF) sensors engineered for urine analysis applications. Coord. Chem. Rev. 2024, 519, 216090. [Google Scholar] [CrossRef]
  47. Paul, F.; Patt, J.; Hartwig, J.F. Palladium-catalyzed formation of carbon-nitrogen bonds. Reaction intermediates and catalyst improvements in the hetero cross-coupling of aryl halides and tin amides. J. Am. Chem. Soc. 1994, 116, 5969–5970. [Google Scholar] [CrossRef]
  48. Ai, X.; Chen, Y.; Feng, Y.; Li, F. A Stable Room-Temperature Luminescent Biphenylmethyl Radical. Angew. Chem. Int. Ed. 2018, 57, 2869–2873. [Google Scholar] [CrossRef]
  49. Murto, P.; Li, B.; Fu, Y.; Walker, L.E.; Brown, L.; Bond, A.D.; Zeng, W.; Chowdhury, R.; Cho, H.-H.; Yu, C.P.; et al. Steric Control of Luminescence in Phenyl-Substituted Trityl Radicals. J. Am. Chem. Soc. 2024, 146, 13133–13141. [Google Scholar] [CrossRef]
  50. Nasir, M.; Rauf, S.; Muhammad, N.; Hasnain Nawaz, M.; Anwar Chaudhry, A.; Hamza Malik, M.; Ahmad Shahid, S.; Hayat, A. Biomimetic nitrogen doped titania nanoparticles as a colorimetric platform for hydrogen peroxide detection. J. Colloid Interface Sci. 2017, 505, 1147–1157. [Google Scholar] [CrossRef]
  51. Peng, L.-J.; Zhou, H.-Y.; Zhang, C.-Y.; Yang, F.-Q. Study on the peroxidase-like activity of cobalt phosphate and its application in colorimetric detection of hydrogen peroxide. Colloids Surf. A 2022, 647, 129031. [Google Scholar] [CrossRef]
  52. Xi, X.; Peng, X.; Xiong, C.; Shi, D.; Zhu, J.; Wen, W.; Zhang, X.; Wang, S. Iron doped graphitic carbon nitride with peroxidase like activity for colorimetric detection of sarcosine and hydrogen peroxide. Microchim. Acta 2020, 187, 383. [Google Scholar] [CrossRef]
  53. Chen, Y.; Zhong, Q.; Wang, Y.; Yuan, C.; Qin, X.; Xu, Y. Colorimetric detection of hydrogen peroxide and glucose by exploiting the peroxidase-like activity of papain. RSC Adv. 2019, 9, 16566–16570. [Google Scholar] [CrossRef] [PubMed]
  54. Zhang, C.-Y.; Peng, L.-J.; Chen, G.-Y.; Zhang, H.; Yang, F.-Q. Investigation on the Peroxidase-like Activity of Vitamin B6 and Its Applications in Colorimetric Detection of Hydrogen Peroxide and Total Antioxidant Capacity Evaluation. Molecules 2022, 27, 4262. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, F.; Liao, L.; Liu, X.; Zhang, J.; Wu, F. Porphyrin-based porous organic frameworks as efficient peroxidase mimics for selective detection of hydrogen peroxide and glucose. Inorg. Chem. Commun. 2023, 155, 111011. [Google Scholar] [CrossRef]
  56. Doan, V.-D.; Pham, Q.-H.; Huynh, B.-A.; Nguyen, T.-L.-H.; Nguyen, A.-T.; Nguyen, T.-D. Kinetic analysis of nitrophenol reduction and colourimetric detection of hydrogen peroxide based on gold nanoparticles catalyst biosynthesised from Cynomorium songaricum. J. Environ. Chem. Eng. 2021, 9, 106590. [Google Scholar] [CrossRef]
  57. Wang, Y.; Liu, Y.; Liu, B.; Yuan, Y.; Wei, L.; Wang, M.; Chen, Z. A Benzil- and BODIPY-Based Turn-On Fluorescent Probe for Detection of Hydrogen Peroxide. Molecules 2024, 29, 229. [Google Scholar] [CrossRef]
  58. Tang, J.; Li, F.; Liu, C.; Shu, J.; Yue, J.; Xu, B.; Liu, X.; Zhang, K.; Jiang, W. Attractive benzothiazole-based fluorescence probe for the highly efficient detection of hydrogen peroxide. Anal. Chim. Acta 2022, 1214, 339939. [Google Scholar] [CrossRef]
  59. Zhu, G.; Huang, D.; Liu, L.; Yia, Y.; Wu, Y.; Huang, Y. One-Step Green Preparation of N-Doped Silicon Quantum Dots for the on-off Fluorescent Determination of Hydrogen Peroxide. Anal. Lett. 2020, 53, 1834–1849. [Google Scholar] [CrossRef]
  60. Liu, Y.; Tao, Y.; An, X.; Jiang, X.; Li, D.; Xu, Q.; Zhang, X.; Zhang, J.; Xu, L.; Gao, M. High dispersibility ratiometric fluorescence sensor designed by functionalized mesoporous silica nanopraticles for sensing and imaging of hydrogen peroxide. Colloids Surf. A 2024, 683, 132971. [Google Scholar] [CrossRef]
  61. Jin, Z.; Yim, W.; Retout, M.; Housel, E.; Zhong, W.; Zhou, J.; Strano, M.S.; Jokerst, J.V. Colorimetric sensing for translational applications: From colorants to mechanisms. Chem. Soc. Rev. 2024, 53, 7681–7741. [Google Scholar] [CrossRef]
  62. Tomassetti, M.; Pezzilli, R.; Prestopino, G.; Di Natale, C.; Medaglia, P.G. Novel Electrochemical Sensors Based on L-Proline Assisted LDH for H2O2 Determination in Healthy and Diabetic Urine. Sensors 2022, 22, 7159. [Google Scholar] [CrossRef]
Biosensors 15 00490 sch001

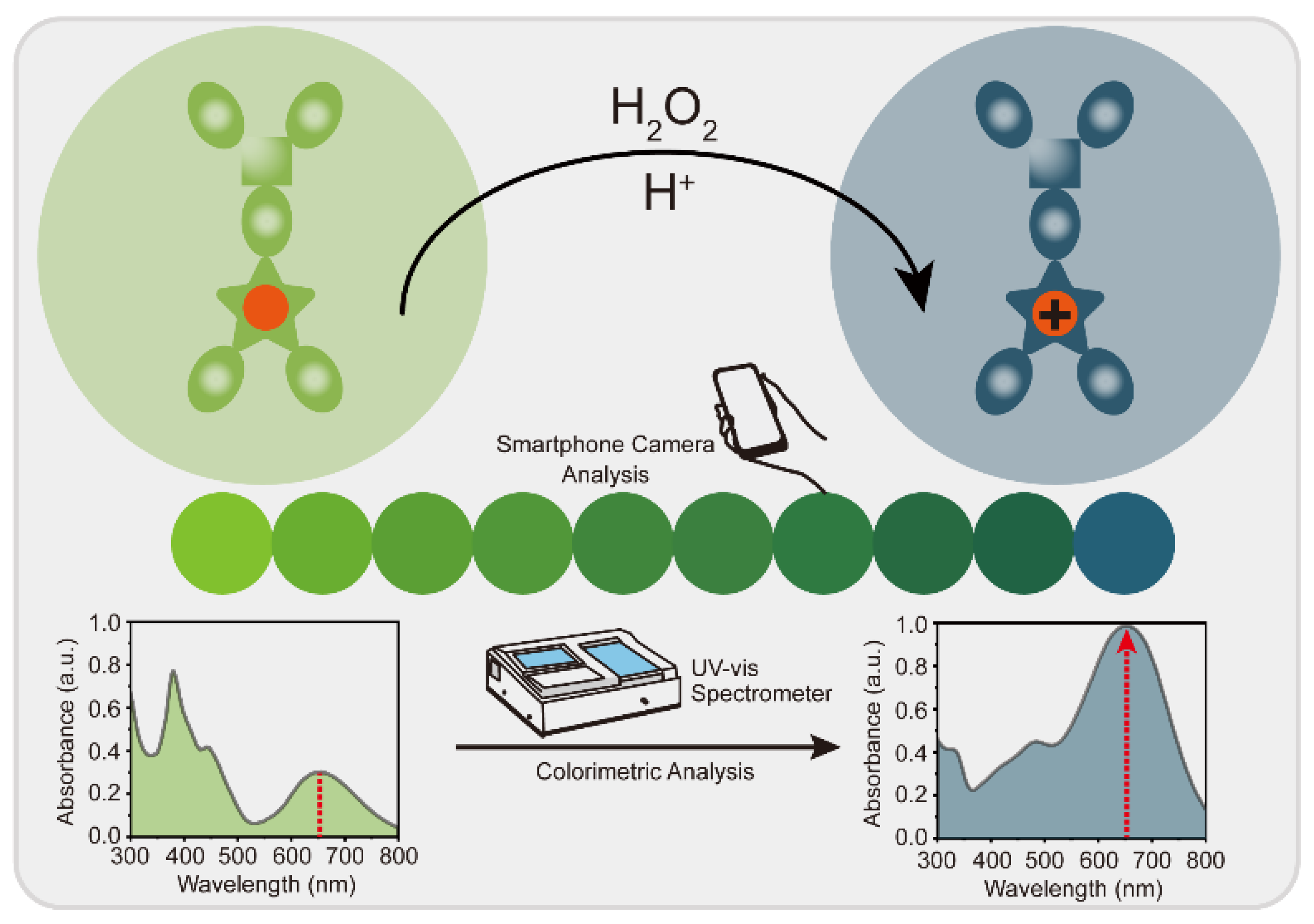

Scheme 1. Illustration for hydrogen peroxide visual determination.
Scheme 1. Illustration for hydrogen peroxide visual determination.
Biosensors 15 00490 sch001
Biosensors 15 00490 g001

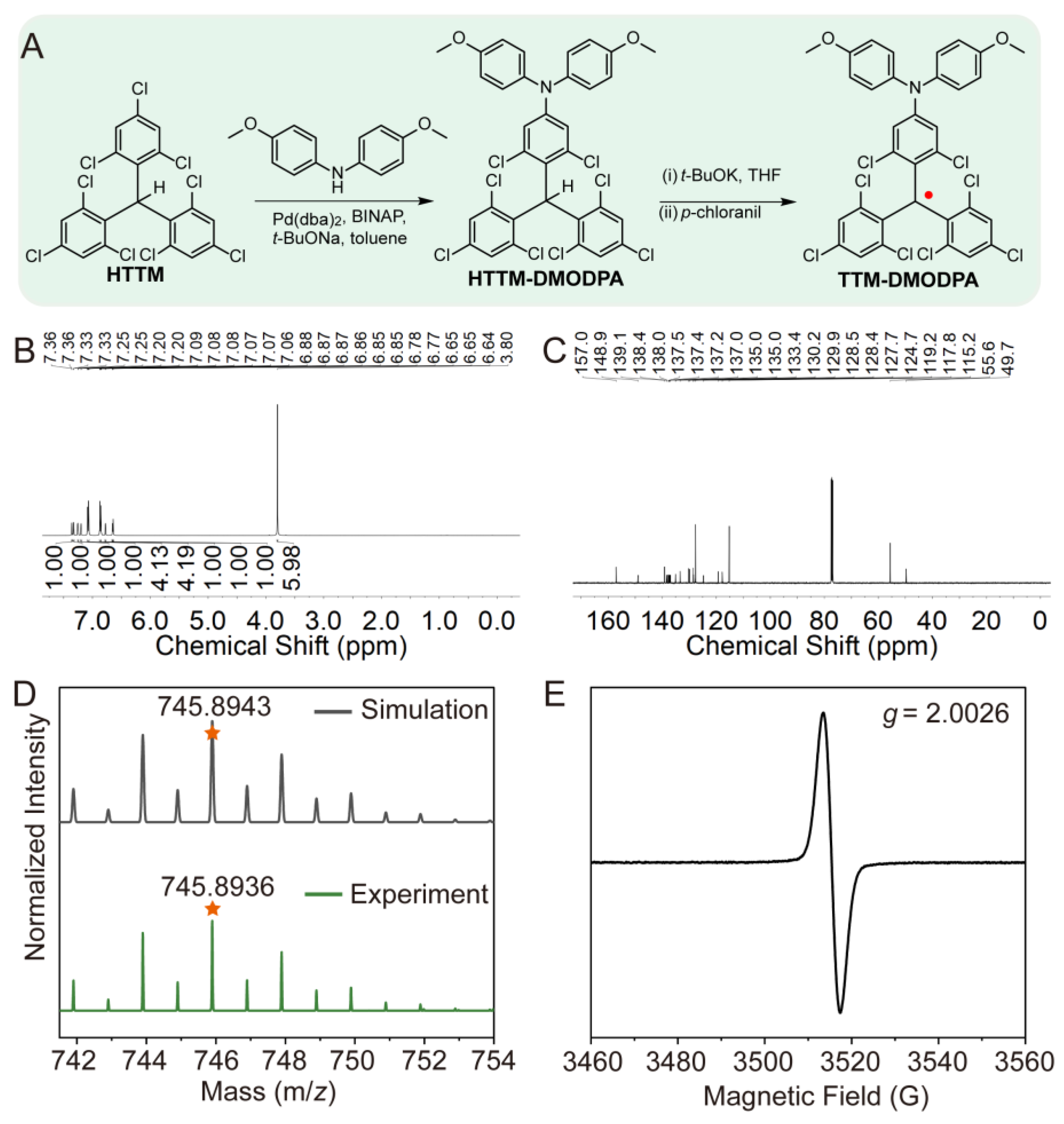

Figure 1. Radical TTM-DMODPA: (A) Synthetic route, (B) 1H NMR spectrum of HTTM-DMODPA in CDCl3. (C) 13C NMR spectrum of HTTM-DMODPA in CDCl3. (D) High resolution mass spectra (HRMS) of simulation and experiment, and (E) Electron paramagnetic resonance (EPR).
Figure 1. Radical TTM-DMODPA: (A) Synthetic route, (B) 1H NMR spectrum of HTTM-DMODPA in CDCl3. (C) 13C NMR spectrum of HTTM-DMODPA in CDCl3. (D) High resolution mass spectra (HRMS) of simulation and experiment, and (E) Electron paramagnetic resonance (EPR).
Biosensors 15 00490 g001
Biosensors 15 00490 g002

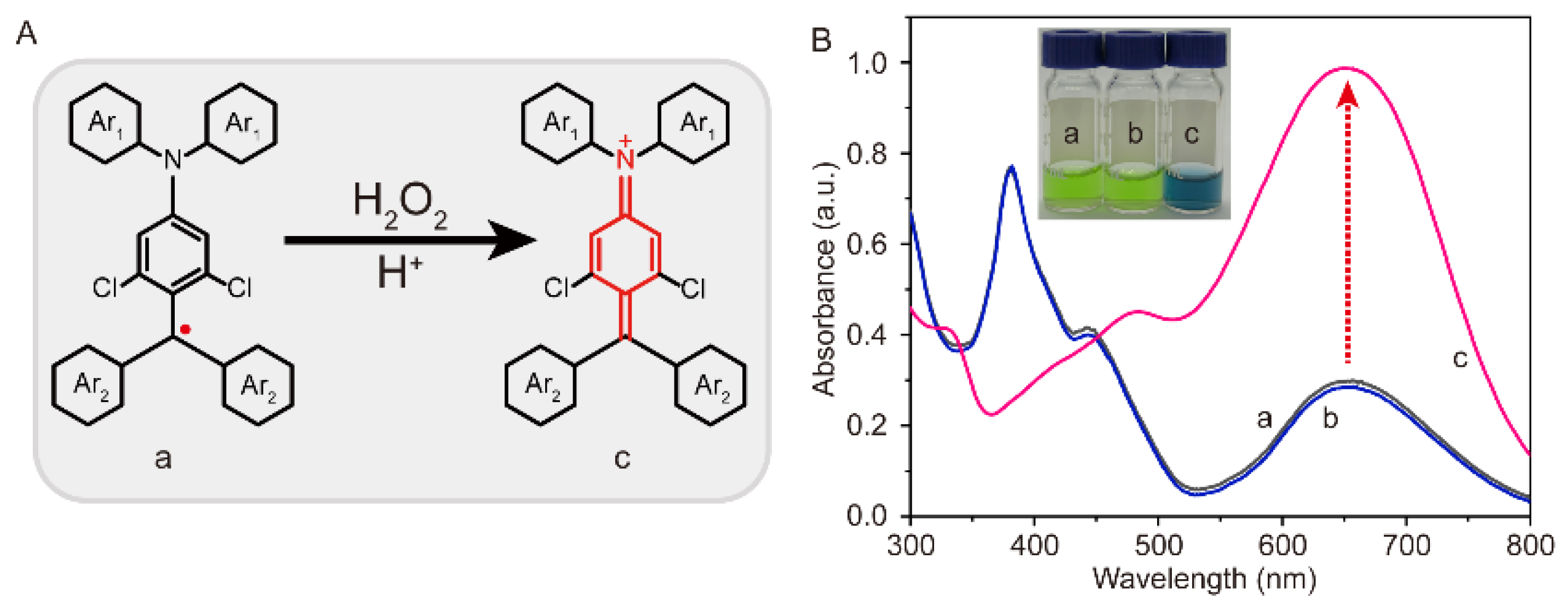

Figure 2. (A) Reaction diagram of H2O2 with radical TTM-DMODPA. (B) The UV-vis absorption spectra of different systems. Insert: the corresponding photograph. (a: radical TTM-DMODPA. b: radical TTM-DMODPA/H+. c: radical TTM-DMODPA/H+/H2O2).
Figure 2. (A) Reaction diagram of H2O2 with radical TTM-DMODPA. (B) The UV-vis absorption spectra of different systems. Insert: the corresponding photograph. (a: radical TTM-DMODPA. b: radical TTM-DMODPA/H+. c: radical TTM-DMODPA/H+/H2O2).
Biosensors 15 00490 g002
Biosensors 15 00490 g003

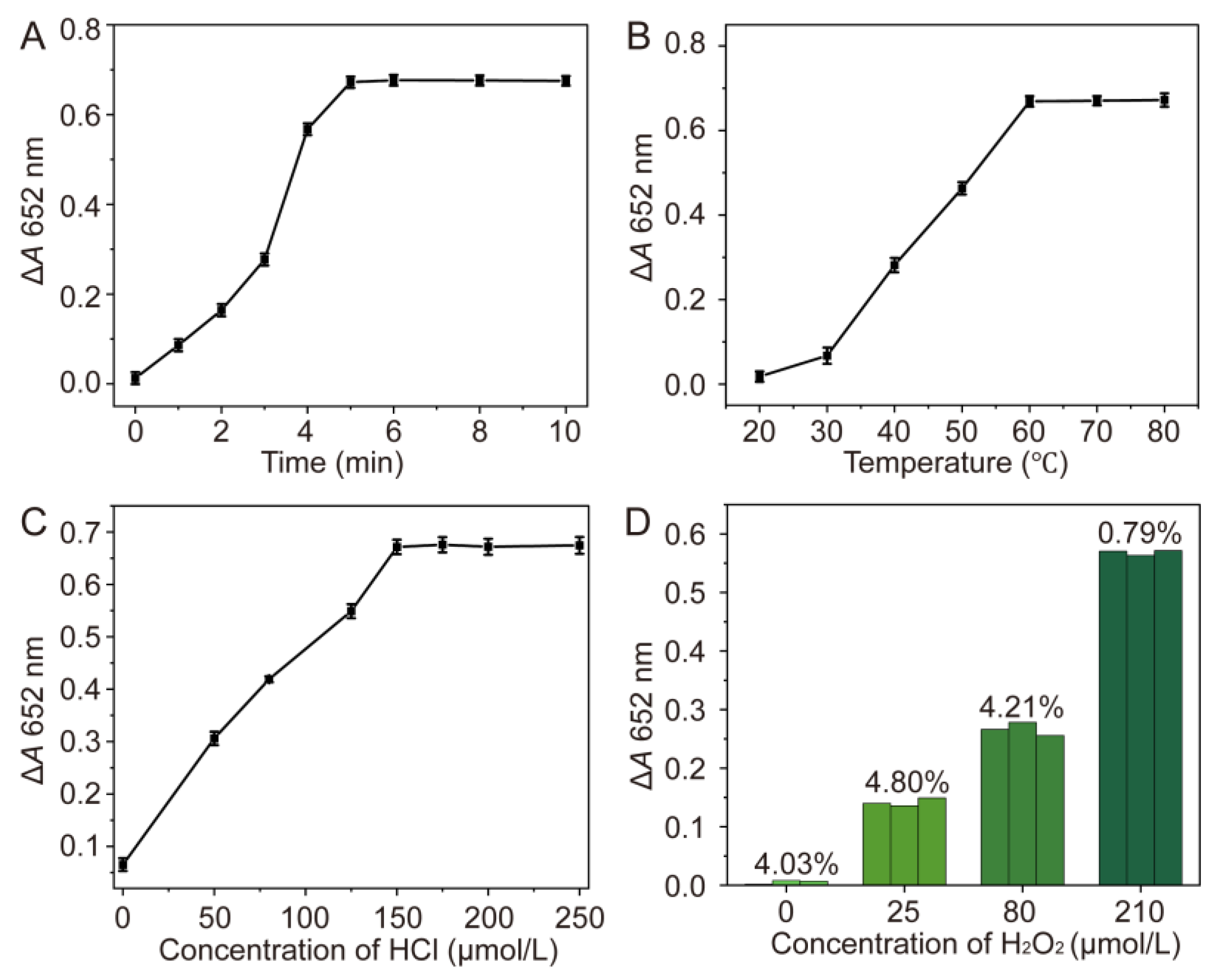

Figure 3. The optimizations of experimental conditions. Effect of (A) reaction time, (B) reaction temperature, and (C) concentration of HCl on the absorbance change at 652 nm. (D) Histogram of ΔA intensity with the concentration of H2O2 = 0, 25, 80, 210 μmol/L.
Figure 3. The optimizations of experimental conditions. Effect of (A) reaction time, (B) reaction temperature, and (C) concentration of HCl on the absorbance change at 652 nm. (D) Histogram of ΔA intensity with the concentration of H2O2 = 0, 25, 80, 210 μmol/L.
Biosensors 15 00490 g003
Biosensors 15 00490 g004
Figure 4. (A) UV-vis absorption spectra in the presence of various H2O2 concentrations. (B) The linear relationship between ΔA652 nm and H2O2 concentration.
Figure 4. (A) UV-vis absorption spectra in the presence of various H2O2 concentrations. (B) The linear relationship between ΔA652 nm and H2O2 concentration.
Biosensors 15 00490 g004
Biosensors 15 00490 g005

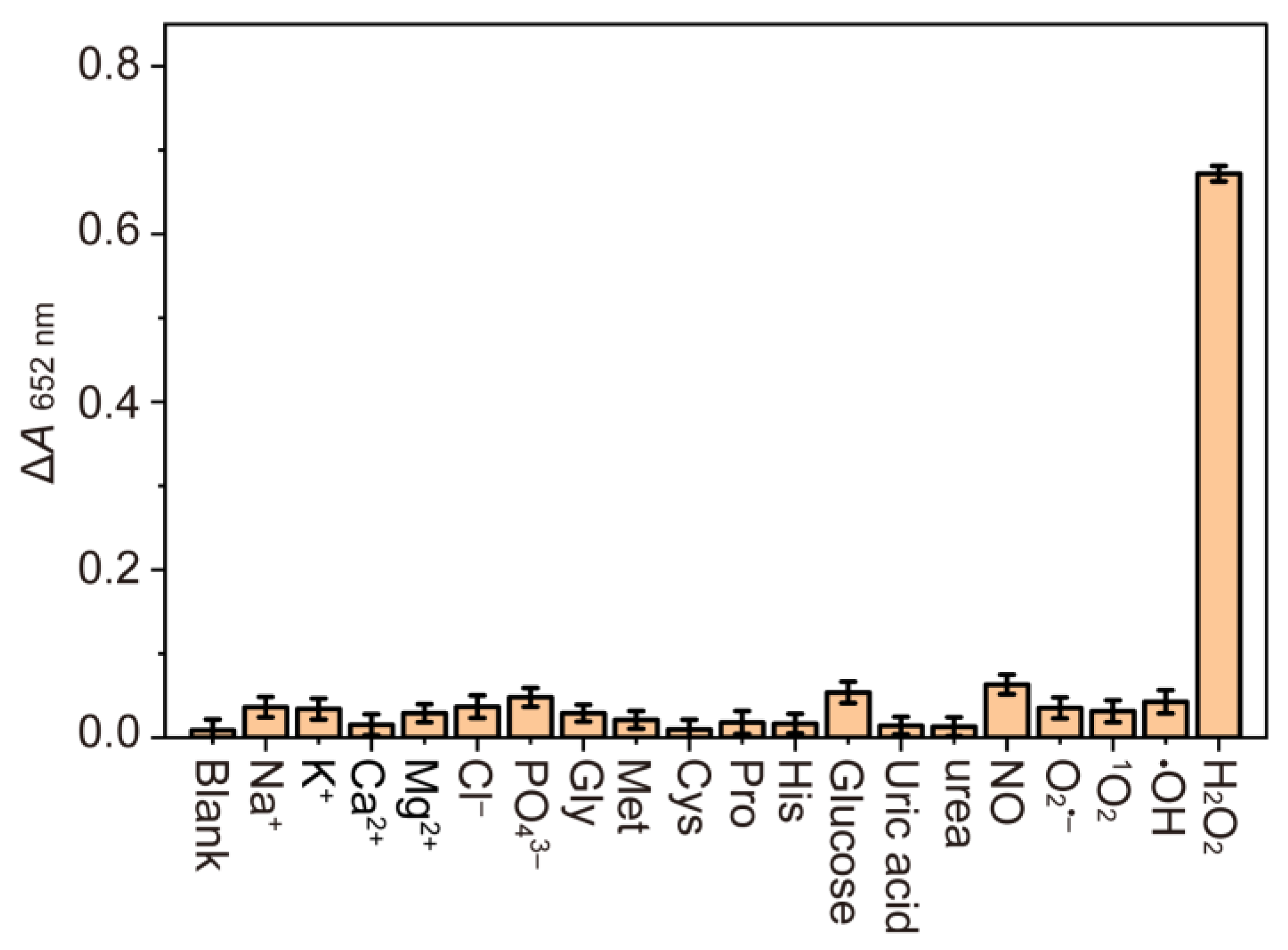

Figure 5. The selectivity of radical TTM-DMODPA system to H2O2 (H2O2 was 250 μmol/L, reactive oxygen species were 250 μmol/L, and other substances were 2.5 mmol/L).
Figure 5. The selectivity of radical TTM-DMODPA system to H2O2 (H2O2 was 250 μmol/L, reactive oxygen species were 250 μmol/L, and other substances were 2.5 mmol/L).
Biosensors 15 00490 g005
Biosensors 15 00490 g006

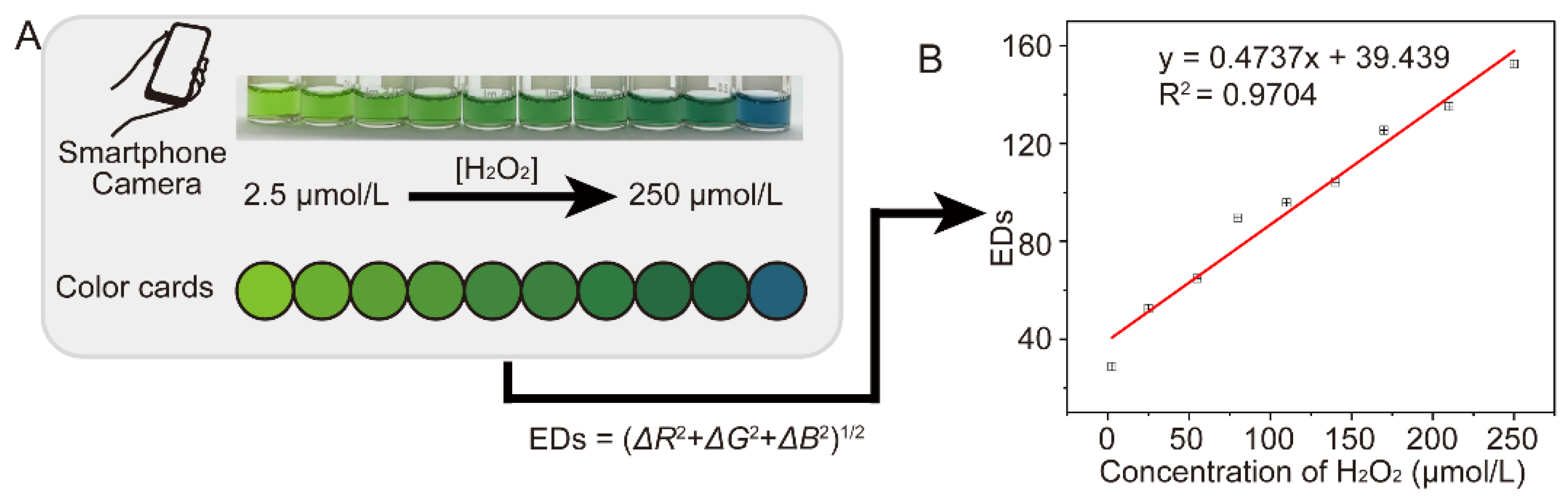

Figure 6. Analysis based on smartphone camera: (A) colorimetric picture taken by the camera. (B) The linear relationship between EDs value and the added H2O2 concentration.
Figure 6. Analysis based on smartphone camera: (A) colorimetric picture taken by the camera. (B) The linear relationship between EDs value and the added H2O2 concentration.
Biosensors 15 00490 g006
Table 1. Comparison of the present work for H2O2 determination with recently reported methods.
Table 1. Comparison of the present work for H2O2 determination with recently reported methods.
Determination SystemAnalytical
Method		Linear Range
(µM)		LOD
(µM)		References
N-TiO2 + TMBcolorimetric10–3002.5[49]
Co3(PO4)2•8H2O + TMBcolorimetric15–1004.385[50]
Fe-doped g-C3N4 + TMBcolorimetric2–1001.8[51]
Papain + TMBcolorimetric5–902.10[52]
VB6 + TMBcolorimetric50–60012.1[53]
Fe-POF + TMBcolorimetric5–1501.8[54]
CS-Au + TMBcolorimetric10–4002.25[55]
BODfluorometric25–1254.41[56]
TZ-BOfluorometric0–501.0[57]
N-SiQDs/Agfluorometric5–2001.5[58]
Radical TTM-DMODPAcolorimetric2.5–2501.275This work
Table 2. Measurements of H2O2 in human urine samples.
Table 2. Measurements of H2O2 in human urine samples.
Samples 1Added (µM)Found (µM)Recovery (%)RSD (n = 3, %)
15.04.8964.2
210.09.8983.3
350.051.61041.6
4100.0102.51032.9
1 The urine samples were diluted 10 times for determination.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhong, Q.; Rong, X.; Wu, T.; Yan, C. Oxidation-Active Radical TTM-DMODPA for Catalysis-Free Hydrogen Peroxide Colorimetric Sensing. Biosensors 2025, 15, 490. https://doi.org/10.3390/bios15080490

AMA Style

Zhong Q, Rong X, Wu T, Yan C. Oxidation-Active Radical TTM-DMODPA for Catalysis-Free Hydrogen Peroxide Colorimetric Sensing. Biosensors. 2025; 15(8):490. https://doi.org/10.3390/bios15080490

Chicago/Turabian Style

Zhong, Qingmei, Xiaomei Rong, Tingting Wu, and Chuan Yan. 2025. "Oxidation-Active Radical TTM-DMODPA for Catalysis-Free Hydrogen Peroxide Colorimetric Sensing" Biosensors 15, no. 8: 490. https://doi.org/10.3390/bios15080490

APA Style

Zhong, Q., Rong, X., Wu, T., & Yan, C. (2025). Oxidation-Active Radical TTM-DMODPA for Catalysis-Free Hydrogen Peroxide Colorimetric Sensing. Biosensors, 15(8), 490. https://doi.org/10.3390/bios15080490

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
