New Trimethoprim-Like Molecules: Bacteriological Evaluation and Insights into Their Action

Abstract

This work reports a detailed characterization of the antimicrobial profile of two trimethoprim-like molecules (compounds 1a and 1b) identified in previous studies. Both molecules displayed remarkable antimicrobial activity, particularly when combined with sulfamethoxazole. In disk diffusion assays on Petri dishes, compounds 1a and 1b showed synergistic effects with colistin. Specifically, in combinations with low concentrations of colistin, very large increases in the activities of compounds 1a and 1b were determined, as demonstrated by alterations in the kinetics of bacterial growth despite only slight changes in the fractional inhibitory concentration index. The effect of colistin may be to increase the rate of antibiotic entry while reducing efflux pump activity. Compounds 1a and 1b were susceptible to extrusion by efflux pumps, whereas the inhibitor phenylalanine arginyl β-naphthylamide (PAβN) exerted effects similar to those of colistin. The interactions between the target enzyme (dihydrofolate reductase), the coenzyme nicotinamide adenine dinucleotide phosphate (NADPH), and the studied molecules were explored using enzymology tools and computational chemistry. A model based on docking results is reported.

1. Introduction

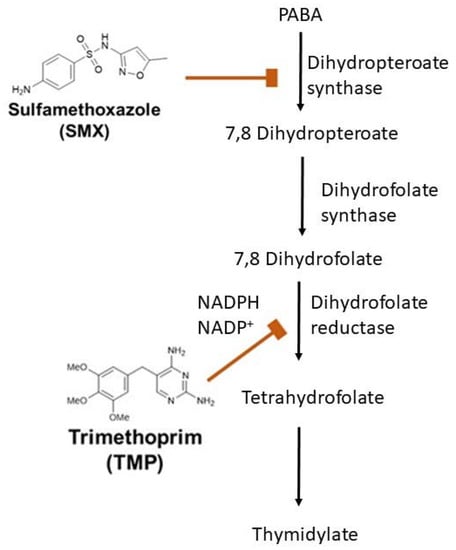

Unlike eukaryotes, prokaryotes must produce their own nucleotides. In bacteria, a prerequisite for the biosynthesis of thymidine is the production of folate. Trimethoprim (TMP), included in the World Health Organization’s Model List of Essential Medicines, was first used in 1962 and remains a first-line antibiotic in many countries, usually in combination with sulfamethoxazole (SMX), with which it acts synergistically. TMP and SMX target two key enzymes of the folate pathway, acting as inhibitors of dihydrofolate reductase (DHFR) and dihydropteroate synthetase (DHPS), respectively (Figure 1).

Antimicrobial resistance remains a major challenge for microbiologists and public health officials, as infections by multidrug-resistant bacteria have reached worrisome levels. Resistant bacteria include: (i) multi-resistant strains, which are resistant to antimicrobials from at least three different families, (ii) extremely resistant strains, which are resistant to all antimicrobials except colistin, and (iii) pan-drug-resistant strains, resistant to all available antimicrobials [1].

Among the lines of research aimed at overcoming antimicrobial resistance are: (i) the “green” approach, based on innovative eco-friendly antimicrobials [2], and (ii) the chemical approach, based on the synthesis of new molecules with antimicrobial action, including: (a) inhibitors of the resistance mechanisms to potentiate already existing antimicrobials [3]; (b) bioactive peptides [4], (c) the conjugation of different molecules to generate new ones with improved properties [5], and (d) a combination of two or more of these strategies. The interests of our laboratories include the synthesis of molecules whose active sites resemble those of already known antibiotics [6], the improvement of molecular delivery, such as the use of nanoparticles as antibiotics carriers in nano-medical devices [7], and the modification of natural molecules such that they acquire antimicrobial properties [8].

In this article we examine two TMP-like molecules that have been recently reported [6], focusing on their antibacterial effects and their mechanisms of action. TMP acts directly on dihydrofolate reductase (DHFR, EC 1.5.1.3), which catalyzes the reduction of 7,8-dihydrofolate (H₂F) to 5,6,7,8-tetrahydrofolate (H_1a) using NADPH as a cofactor. The conversion requires the transfer of a hydride from C4 of the NADPH cofactor to C6 of the pterin ring of H₂F, accompanied by the protonation of dihydrofolate on N5. This reaction is essential in the de novo synthesis of purines, thymidine, and certain amino acids [9,10]. Given the important role of DHFR, which is ubiquitously expressed by all kingdoms of life, the enzyme may be an effective therapeutic target in cells with a rapid DNA turnover and therefore both in bacteria and the treatment of cancer [11,12].

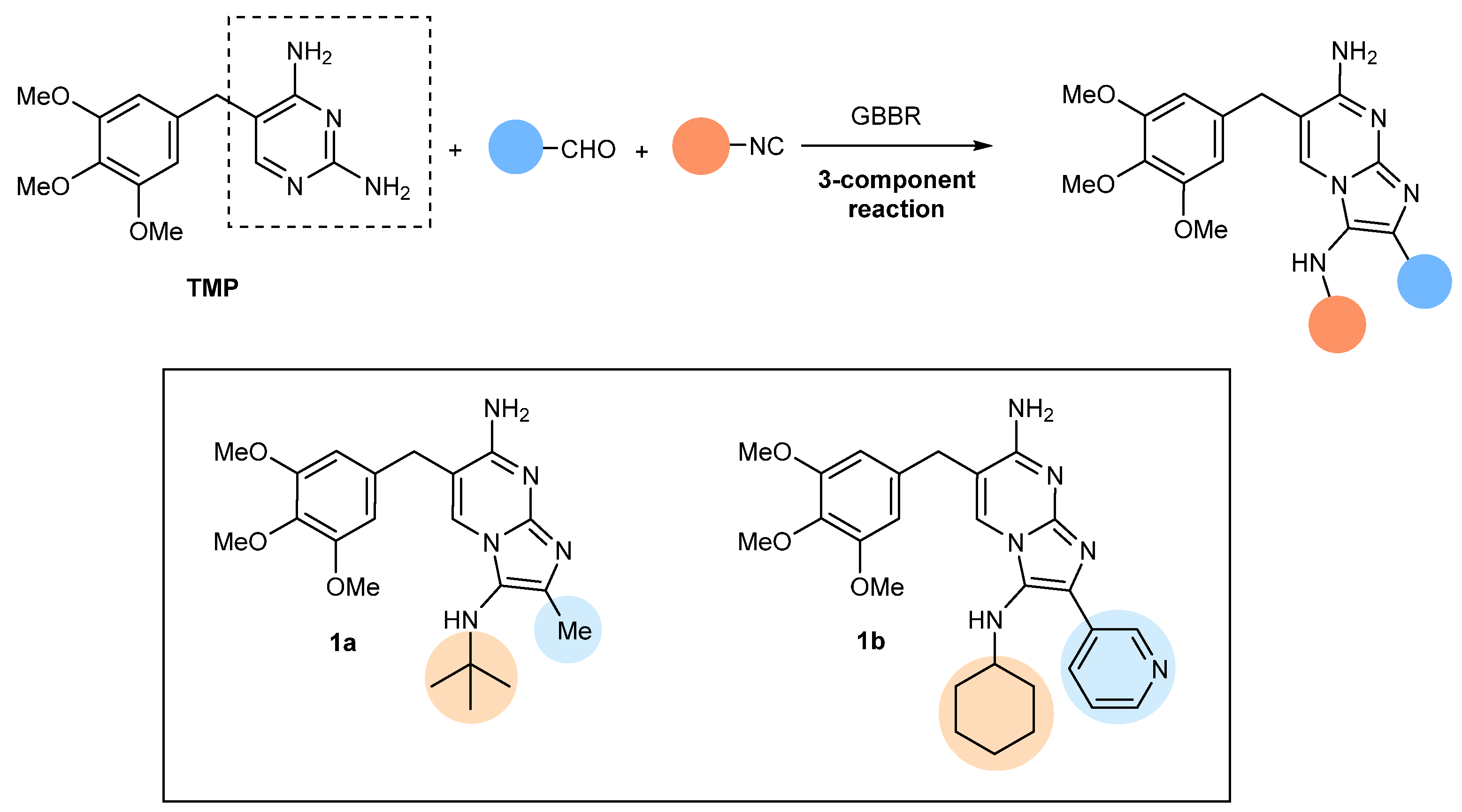

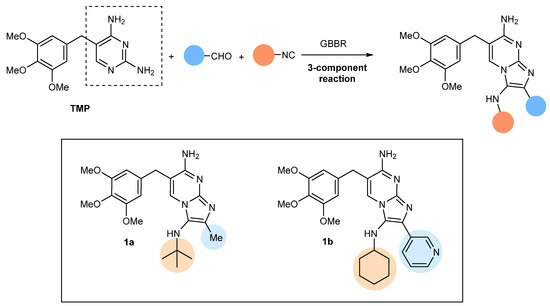

Based on the straightforward synthesis of compounds 1a and 1b, which were readily prepared through a Groebke-Blackburn-Bienaymé (GBBR) multicomponent reaction (Scheme 1), and the preliminary bacteriological profiles, which combine suitable antibiotic potency and kinetics [6], compounds 1a and 1b are explored in this study with respect to their mechanism of action and possible synergistic effects when used in combination with other antibacterial agents.

2. Results and Discussion

2.1. Antimicrobial Susceptibility of Planktonic Bacteria

The minimum inhibitory concentrations (MICs) of TMP, 1a and 1b, both alone and in combination with SMX and colistin, are shown in

Table 1. Minimum inhibitory concentration (MIC, µM) of trimethoprim (TMP) and compounds 1a and 1b tested alone and in combination with sulfamethoxazole (SMX) and colistin against Escherichia coli ATCC 25922, Pseudomonas aeruginosa PAO1, and Serratia marcescens NIMA. Data for P. aeruginosa PAO1 and E. coli ATCC 25922 were already reported [6].

	MIC (µM)
Antimicrobial	E. coli ATCC 25922	P. aeruginosa PA01	S. marcescens NIMA
TMP	0.43	>110.22	13.78
TMP (SMX)	0.11 (2.37)	13.78 (315.86)	0.86 (19.74)
1a	1.25	>80.10	80.10
1a (SMX)	0.63 (19.74)	40.05 (1263.43)	2.5 (78.96)
1b	1.02	>65.50	16.37
1b (SMX)	0.13 (3.95)	32.75 (1263.43)	1.02 (39.48)
Colistin	0.43	1.73	>886.23

. The E. coli ATCC 25922 strain was susceptible to TMP, 1a and 1b, and the activity was enhanced when the compounds were combined with SMX. The P. aeruginosa PAO1 strain was resistant to TMP, 1a and 1b, but susceptible to colistin. On the contrary, S. marcescens was colistin-resistant, but susceptible to the combined treatment of the compounds with SMX. Finally, 1a and 1b were also tested in TMP-resistant strains (E. coli 220560529 and S. epidermidis 220560752) but no significant effect was observed, suggesting that these compounds should share the target with TMP (data not shown).

2.2. Antimicrobial Susceptibility of Sessile Bacteria

Many microorganisms that cause infectious diseases normally grow attached to a surface or an interface, thus forming biofilms. These structured communities contain bacterial cells of one or more species, attached to a living or inert surface and immersed in a hydrated polymeric matrix [13]. Within the biofilm, bacteria grow as part of complex and dynamic systems that result in their ability to tolerate antimicrobials [14], leading to persistent infections. Thus, the efficacy of new antibiotics requires both conventional antimicrobial susceptibility tests against planktonic cells (e.g., MIC determinations) and tests against bacteria residing in biofilms. In this work, the activity of 1a and 1b was measured under both conditions and then compared with the corresponding activity of TMP.

The minimum biofilm eradication concentration (MBEC) and biofilm prevention concentration (BPC) for TMP and compounds 1a and 1b, alone and in combination with SMX (1:20), are shown in

Table 2. The minimum biofilm eradication concentration (MBEC, μM) and biofilm prevention concentration (BPC, μM) of TMP and the GBBR analogues 1a and 1b when tested alone and in combination with SMX (1:20) against E. coli ATCC 25922, S. aureus ATCC 29213, and S. aureus 8124825998.

Antimicrobial	E. coli ATCC 25922		S. aureus ATCC 29213		S. aureus 8124825998
	MBEC (μM)	BPC (μM)	MBEC (μM)	BPC (μM)	MBEC (μM)	BPC (μM)
TMP (SMX)	275.56 (6317.14)	275.56 (6317.14)	>2204.46 (50,537.15)	1102.23 (25,268.58)	>2204.46 (50,537.15)	>2204.46 (50,537.15)
1a (SMX)	>1602.06 (50,537.15)	200.26 (6317.14)	>1602.06 (50,537.15)	801.03 (25,268.58)	>1602.06 (50,537.15)	>1602.06 (50,537.15)
1b (SMX)	163.74 (6317.14)	81.87 (3158.57)	>1309.91 (50,537.15)	163.74 (6317.14)	>1309.91 (50,537.15)	327.48 (12,634.29)

. Antimicrobials that exhibited antibiofilm activity had higher MBECs than BPCs. This result reflects the fact that the MBEC is a measure of the antimicrobial activity on mature biofilms, while the BPC is the concentration at which biofilm formation is blocked by the antimicrobial. Compound 1b was highly active in biofilm prevention, whereas neither TMP nor compounds 1a and 1b were able to fully eradicate Staphylococcus aureus biofilms (neither S. aureus ATCC 29213 nor S. aureus 8124825998).

2.3. Synergism Studies

Table 3. Fractional inhibitory concentration index (FICi) of TMP-SMX (1:20) with colistin.

Strains	FICi
E. coli 220560529	2.0019
P. aeruginosa SJD536	1
P. aeruginosa VH023	1
P. aeruginosa SJD481	1.003

shows the results of TMP-SMX checkerboard assays in combination with colistin when tested in four clinical strains: E. coli 220560529, P. aeruginosa SJD 536, P. aeruginosa SJD VH023, and P. aeruginosa SJD 481. Synergistic effects between the two drugs were not found, as noted in the values of the fractional inhibitory concentration index (FICi), which is ≥0.5 and <4, in any of the studied strains.

By contrast, a strong synergism was observed with these drugs in TMP-susceptible/colistin-resistant S. marcescens (

Table 4. FICi of TMP and compounds 1a and 1b with SMX (1:20) when tested with colistin.

	FICi
Antimicrobial	E. coli ATCC 25922	P. aeruginosa PA01	S. marcescens NIMA
TMP + SMX	1.02	1.25	0.13
1a + SMX	1.02	1.00	0.25
1b + SMX	1.02	1.01	0.25

). This suggests that the susceptibility to TMP and TMP-like molecules in some gram-negative bacteria is due to limitations in TMP transport through the bacterial outer membrane. Colistin is unable to kill S. marcescens but it does adversely impact prodigiosin biosynthesis [15]. Effects on both the entry of antimicrobials as well as drug extrusion by efflux pumps have also been described [16]. Thus, as reported for antimicrobials such as linezolid and rifampin [17], colistin could be used to enhance bacterial susceptibility to TMP and TMP-like compounds. The use of very low concentrations of these drugs would limit their toxicity. It should be noted that in preliminary plate experiments, positive effects between colistin and TMP-SMX were observed in E. coli and P. aeruginosa (Figure 2), in agreement with the relatively low FICi (close to 1). In colistin-susceptible bacteria, however, the lethality of colistin masked any possible synergy.

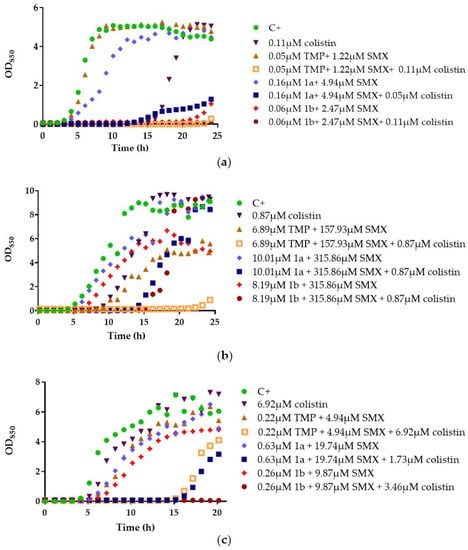

The effect of combining TMP, 1a and 1b with SMX and colistin in real-time were determined by plotting growth curves for E. coli ATCC 25922, P. aeruginosa PAO1, and S. marcescens NIMA using concentrations at which these strains were fully resistant (Figure 3). When TMP, 1a and 1b were used in combination with colistin, bacterial growth was nearly abolished, thus demonstrating synergism between these antibiotics. In the kinetics profile of E. coli (Figure 3a), although 0.11 µM colistin provoked a 10 h delay in growth, growth had resumed to the same level as the control at the end of the experiment. Following the addition of TMP + SMX (0.05 µM + 1.22 µM), however, growth was delayed for 20 h.

A similar effect was observed in P. aeruginosa, both with TMP and with compounds 1a and 1b (Figure 3b). At a colistin dose of 0.87 µM, the growth was delayed for 2 h and then reached the same level as the control. Similar curves were obtained with TMP + SMX (6.89 µM + 157.93 µM), whereas the growth delay was 4 h with 1a + SMX (10.01 µM + 315.86 µM) and 1b + SMX (8.19 µM + 315.86 µM). The addition of 0.87 µM colistin to 1a + SMX and 1b + SMX resulted in a delay of 10 h, whereas the addition of 0.87 µM colistin to TMP + SMX completely abolished the growth for 23 h after the start of the experiment. The results from the agar plates and the growth curves suggested an additive effect, even though it was not clearly reflected in the FICi values.

The effects of the antibiotics were also explored in S. marcescens (Figure 3c), which is intrinsically fully resistant to colistin. Thus, while colistin severely alters the bacterium’s outer membrane, it does not affect bacterial viability, as the cytoplasmic membrane remains intact. The effect of colistin on the outer membrane of Serratia can be readily seen by transmission electron microscopy [18]. The growth curve of S. marcescens in the presence of TMP + SMX and colistin exhibited a longer delay (up to 10 h) in the start of detectable growth compared to the delay observed in the presence of TMP + SMX. Similar results were obtained with 1a. Moreover, when testing 1b, a complete abolition of growth was obtained in the presence of colistin.

The nearly complete abolition or prolonged delay of growth in the studied bacteria suggested that colistin alters the hydrophobic permeability barrier of the lipopolysaccharide outer membrane and thus facilitates the internalization of the DHFR inhibitors, which then inhibit the bacterial growth. The demonstration of these synergistic effects in gram-negative bacteria should renew the interest for the use of TMP and TMP-like molecules.

2.4. The Role of Efflux Pumps

The TMP analogues were tested in combination with SMX (1:20) in the presence of 20 µg/mL of the efflux pump inhibitor phenylalanine arginyl ß-naphthylamide (PAßN). At this point, it is worth noting that previous studies demonstrated that they have no detectable effect on bacterial growth when used at concentrations up to 40 µg/mL [19]. The MIC values are shown in

Table 5. MIC values of TMP and compounds 1a and 1b in combination with SMX (1:20) as well as colistin in P. aeruginosa PAO1 in the presence or absence of the efflux pump inhibitor PAßN (20 µg/mL).

Antimicrobial	MIC (µM)
	With PAßN	Without PAßN
TMP (SMX)	1.72 (39.48)	27.56 (631.71)
1a (SMX)	5.01 (157.93)	80.10 (2526.86)
1b (SMX)	2.05 (78.96)	32.76 (1263.43)
Colistin	1.73	1.73

. Lower MIC values were obtained in the presence of PAßN compared to the assays performed in the absence of the efflux pump inhibitor.

A recent study demonstrated that colistin, even at low concentrations, has a direct effect on efflux pump functionality [16]. In the present study, the addition of 20 µg PAßN/mL resulted in a 16-fold reduction in the MICs of TMP and its analogues (Table 5). These results are consistent with the critical role of efflux pumps in bacterial susceptibility to these antimicrobials.

This work examined possible synergisms between colistin and TMP, 1a and 1b in enhancing the antimicrobial activity, following the positive results in preliminary experiments on Petri dishes (Figure 2). The synergistic effects of colistin and all three TMP molecules were confirmed (Figure 3 and Table 4) and a possible mechanism involving bacterial efflux pumps was demonstrated. Our findings suggest that DHFR inhibitors can be used in combination with low concentrations of colistin or similar molecules as a new approach for the treatment of infections caused by multidrug-resistant variants of gram-negative bacteria. The synergism between colistin and the TMP molecules in S. marcescens further suggested that peptides with the ability to facilitate antibiotic penetration by altering the bacteria outer membrane and inhibiting bacterial efflux pumps can be used to sensitize bacteria to a wide range of otherwise ineffective antimicrobials.

2.5. Enzymatic Assays

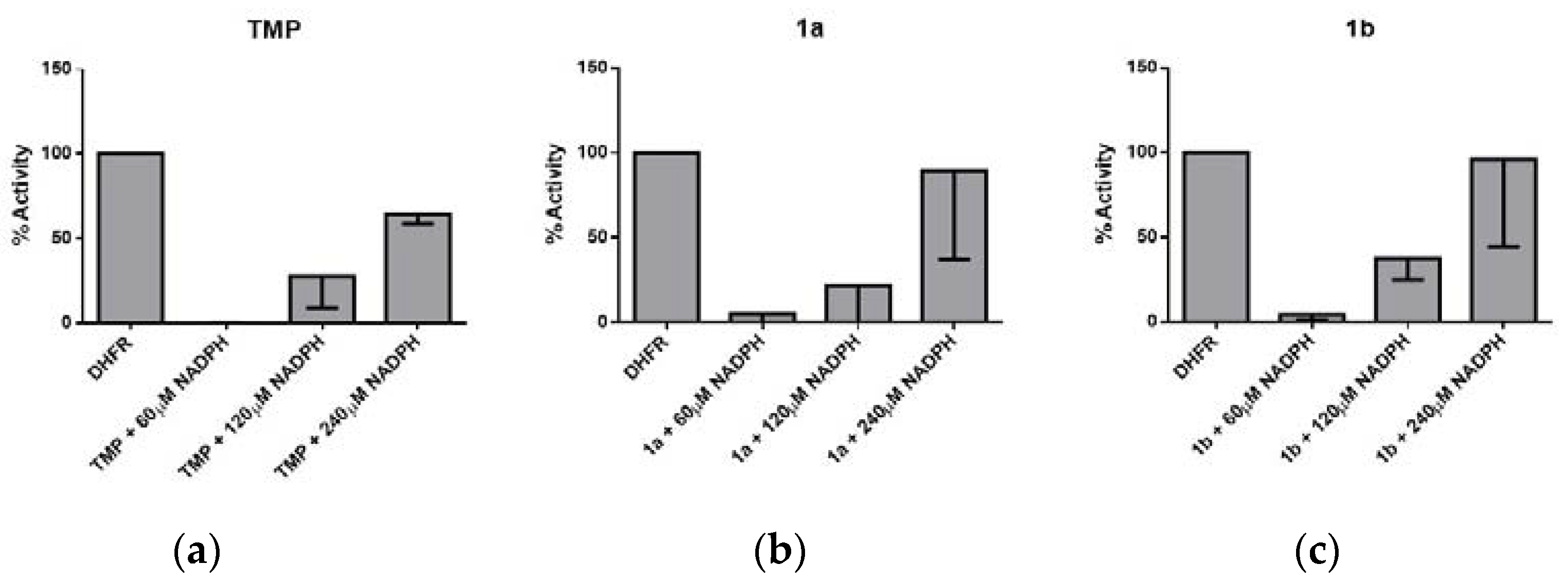

Like TMP, compounds 1a and 1b are potent inhibitors of DHFR. Both analogues inhibited the activity of this enzyme by >80%. All three inhibitors were then tested in E. coli supplied with increased concentrations of the DHFR cofactor NADPH and the substrate H₂F. The reaction without inhibitors served as the reference (100% activity). In the reactions with TMP or its analogues, increasing concentrations of NADPH resulted in the increased enzyme activity (Figure 4). The enzyme activity was the highest at the highest tested concentration of NADPH (240 µM).

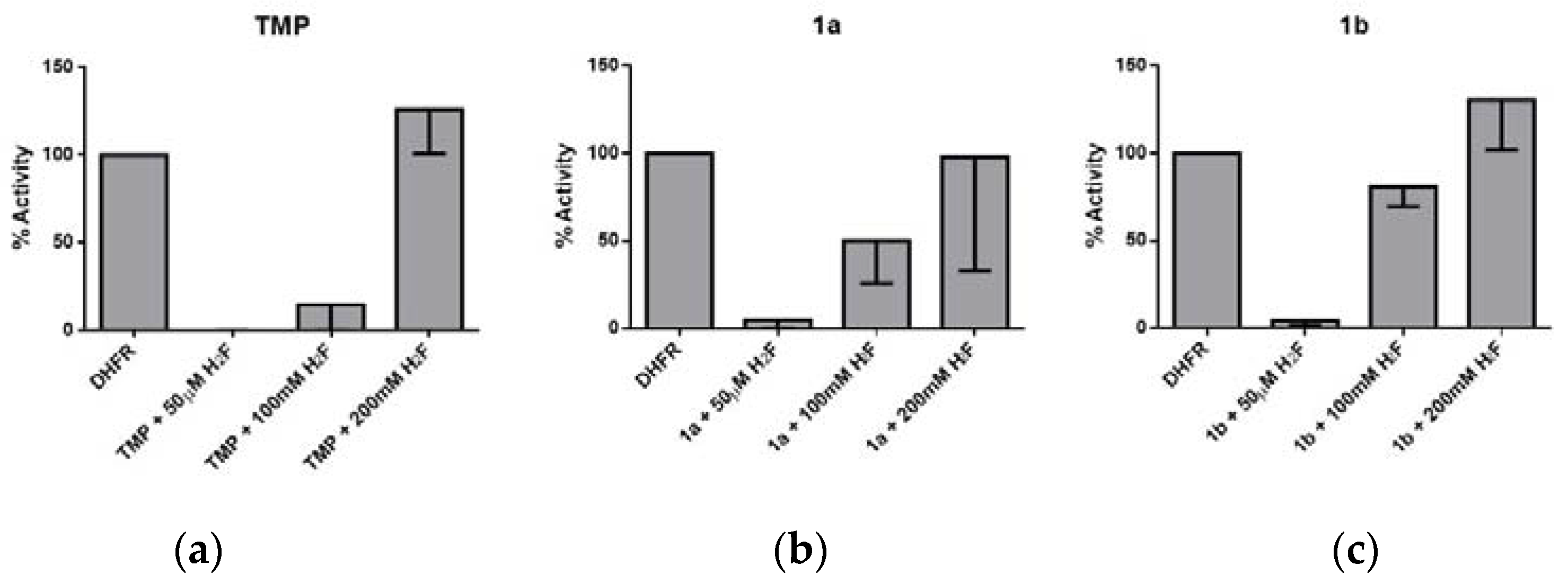

Similar results were obtained for the three antibiotics tested in the presence of increasing concentrations of H₂F (Figure 5) When the enzymatic assays were performed using a substrate concentration four times higher than the concentration used in the first assay (i.e., 50 μM H₂F), the inhibition was nearly reversed. Thus, as the concentrations of NADPH or H₂F were increased, the enzymatic activity was recovered as well, regardless of the presence of the antibiotics.

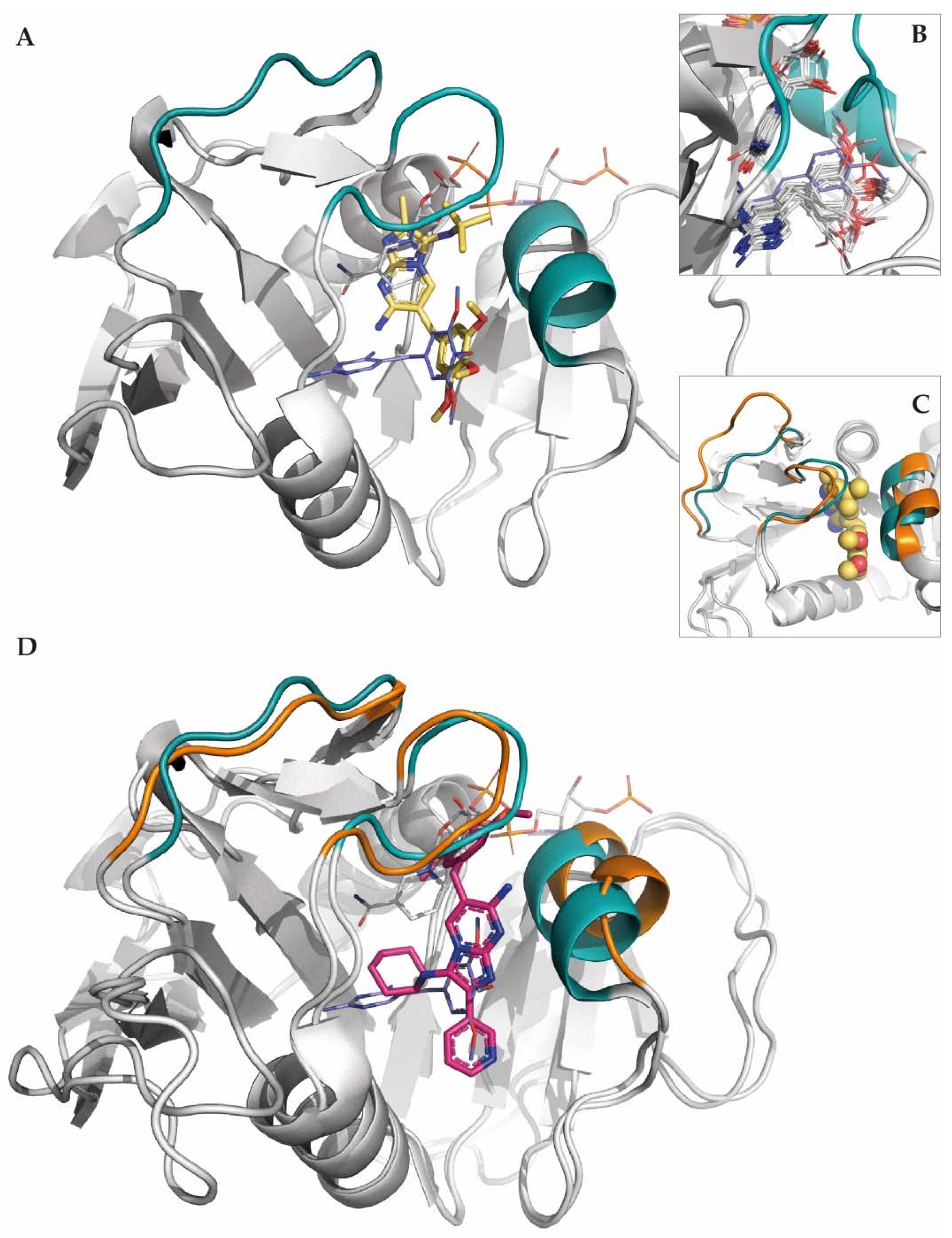

To explore the molecular basis of these results, we examined the binding of 1a to E. coli DHFR. According to the docking model, the heterocyclic ring of 1a fills the pocket occupied by the nicotinamide ring of NADPH, whereas the trimethoxybenzene ring overlaps the same moiety present in TMP (Figure 6A). Accordingly, the binding of 1a would compete with the substrate but would also affect the correct alignment of NADPH in its binding pocket.

This binding model is supported by the following experimental evidence. First, a comparison of the arrangements adopted by TMP in its interaction with human and E. coli DHFR showed the similar orientation of the diaminopyrimidine ring, which involves the formation of several hydrogen bonds with residues in the binding pocket (Asp27, Ile5, Ile94). By contrast, the position of the trimethoxybenzene ring is more variable and, in fact, it can adopt multiple arrangements, which often would sterically collide with NADPH when bound to the enzyme. Indeed, the most severe steric hindrance (PDB entry 2W9H; TMP, shown as blue sticks in Figure 6B) would occur in an X-ray structure that did not include NADPH. Furthermore, accommodation of compounds 1a and 1b was facilitated by the flexibility of the loops that shape the binding pocket. This was seen in the superposition of the X-ray structures 3DAU (E. coli) [20] and 4KM2 (M. tuberculosis) [21], which revealed the altered arrangement of loops Met20 and F-G (Figure 6C), as described in previous studies [22,23]. On the basis of this conformational flexibility, compound 1b was docked using a structural model of E. coli DHFR built using the open structure of the enzyme (PDB entry 4KM2) as a template. The open structure enabled the proper accommodation of 1b in the binding pocket of E. coli DHFR (Figure 6D), which would lead to steric hindrance with the nicotinamide ring of NADPH.

2.6. Cytotoxicity

At concentrations as high as 32 μg/mL, which was the maximal concentration considered in these assays, the cytoxicity of TMP, as well as compounds 1a and 1b in HepG2 and L-929 cells, was almost negligible (

Table 6. Cytotoxicity (%) of TMP, 1a and 1b in HepG2 and L-929 cells. The data are presented as the percentage of dead cells at maximal concentration tested of the compounds studied (32 µg/mL).

Compound	Cytotoxicity (%)
	HepG2	L-929
	32 μg/mL
TMP	0.35	0.8
1a	ND	0
1b	0.11	0

ND: Not determined.

). A drug is considered toxic when its cytotoxicity level exceeds 20% [24]. For all three compounds, the IC₅₀ (the drug concentration needed to inhibit cell growth by 50%) was >32 μg/mL.

3. Materials and Methods

3.1. Chemical Synthesis

Compounds 1a and 1b were prepared as previously reported [6], from the interaction of TMP with aldehydes and isocyanides in acetonitrile under Yb(OTf)₃ catalysis. The compounds were purified by chromatography and stored at −20 °C under an inert atmosphere. Stock solutions in DMSO were stable when kept in the cold. The integrity of these compounds and solutions thereof was confirmed by HPLC-MS (column: ZORBAX Extend-C18 3.5 μm 2.1 × 50 mm, Agilent; mobile phase A: H₂O + 0.05% HCOOH; mobile phase B: ACN + 0.05% HCOOH; 10 min; 35 °C). There were no signs of decomposition at least 1 year after their chemical synthesis.

3.2. Antimicrobial Susceptibility of Planktonic Bacteria

The minimum inhibitory concentrations (MICs) of colistin, TMP, 1a, and 1b were determined using the microdilution method, according to EUCAST recommendations [25].

3.3. Antimicrobial Susceptibility of Sessile Bacteria

TMP and its analogues were tested against biofilms by determining the minimal biofilm eradication concentration (MBEC) and the biofilm prevention concentration (BPC). Bacterial viability within the biofilm was assessed using the dye resazurin, which is reduced by metabolically active bacteria to the fluorescent compound resorufin. Both collection strains, E. coli ATCC 25922 and S. aureus ATCC 29213, and methicillin-resistant S. aureus 8124825998 were tested. All three strains were grown in tryptic soy broth (TSB) with shaking at 200 rpm for 24 h at 37 °C. Bacterial biofilms were formed and treated as follows. Overnight suspensions of each strain were diluted 1/100 in TSB. One hundred µL of each of the adjusted cell suspensions were transferred to the wells of flat-bottomed 96-well microtiter plates (Guangzhou Jet Bio-Filtration Co., Ltd., Mianyang, China) and incubated at 37 °C for 24 h. Eight wells filled only with sterile TSB served as the negative controls. All wells were then gently rinsed with 100 µL of Ringer ¼ solution. The biofilms were exposed to several concentrations of the antimicrobials (leaving 8 wells without antimicrobials as a positive control) and incubated at 37 °C for 24 h. After the wells were again rinsed with 100 µL of Ringer ¼ solution, 100 µL of resazurin (0.0015%) was added to each well. The plates were then incubated for 3–5 h, after which cell fluorescence (λ_ex = 530; λ_em = 590) was measured using a scanning multi-well spectrophotometer (FLUOstar OPTIMA, BMG Labtech, Ortenberg, Germany)). The MBEC was defined as the lowest concentration of antimicrobial activity that prevented bacterial regrowth from the treated biofilm.

3.4. Synergism Studies

The fractional inhibitory concentration (FIC) of TMP-SMX in combination with colistin was determined by the checkerboard method in four clinical bacterial strains: E. coli 220560529, P. aeruginosa SJD 536, P. aeruginosa SJD 481 (all three TMP resistant), and P. aeruginosa VH023. In addition, the FICs of colistin with TMP, 1a and 1b, and SMX (1:20) were determined in E. coli ATCC 25922, P. aeruginosa PAO1, and S. marcescens NIMA. The assays were performed in 96-well plates using serial dilutions of TMP and SMX (1:20). Serial dilutions of colistin starting from twice the previously determined MIC were prepared and added to plates inoculated with 5 μL of bacterial suspension. The plates were incubated overnight at 37 °C and read after at least 16 h of incubation.

The fractional inhibitory concentration index (FICi) was determined according to the formula FICi = FIC A + FIC B, where FIC A is the MIC of drug A (TMP + SMX) in combination/MIC of drug A alone and FIC B (colistin) is the MIC of drug B in combination/MIC of drug B alone. The combinations were defined as synergistic (FICi ≤ 0.5), indifferent (FICi > 0.5 and < 4), or antagonistic (FICi ≥ 4). An antimicrobial effect achieved at a drug concentration that was lower when the drug was used in combination with other drugs than alone was considered to be indicative of synergism between the tested antibiotics.

Additionally, the effect of TMP-SMX and the GBBR analogues in combination with sublethal concentrations of colistin was assessed in growth curves of E. coli ATCC 25922, P. aeruginosa PAO1, and S. marcescens NIMA. Exponential-phase cultures were adjusted to 5 × 10⁶ CFU/mL in a final volume of 10 mL of TSB and the antimicrobials were added at sublethal concentrations. Growth was monitored using RTS-1C real-time cell growth loggers (Biosan SIA, Riga, Latvia) in cells incubated for 24 h at 37 °C with shaking at 2000 rpm. Growth was measured every 10 min as the optical density (OD 850 nm).

3.5. Efflux Pumps Effect

The efflux pump inhibitor phenyl-arginyl-β-naphthylamide (PaβN) was purchased from Sigma-Aldrich Chemicals (Madrid, Spain). The MIC of the TMP analogues in combination with SMX in the presence of 20 µg PaβN/mL was determined in P. aeruginosa PAO1 using the microdilution method.

3.6. Dihydrofolate Reductase Assay

The DHFR assay is based on the reduction of 7,8-dihydrofolate to 5,6,7,8-tetrahydrofolate catalyzed by DHFR and using NADPH as a cofactor. Purified E. coli DHFR was kindly provided by E. Shakhnovich and J.V. Rodrigues (Harvard University, Cambridge, MA, USA). The DHFR assay kit (CS0340) was purchased from Sigma-Aldrich. The assay was performed in 96-well flat-bottom plates (Corning Costar 3606, NY, USA) with the protocol adjusted to accommodate a final reaction volume of 200 µL. DHFR was diluted to a final concentration of 0.03 µg/mL. The inhibitory effect of compounds 1a and 1b was tested, with TMP serving as the control. All three drugs were used at a concentration of 5 µM, which was higher than the respective MICs (Table 1). To determine the effect of the concentration of the DHFR cofactor NADPH on inhibition, a dilution series of NADPH in assay buffer was carried out to obtain a concentration range between 60 µM and 240 µM. A dilution series of H₂F was similarly carried out in assay buffer to obtain a concentration range from 50 µM to 200 µM. In all assays, the enzyme was mixed with the different inhibitors and incubated for 30 min before the enzymatic reaction was initiated by the addition of NADPH and H₂F. The reaction was conducted at 37 °C and monitored by the decrease in absorbance at 340 nm (indicative of a decrease in the NADPH concentration). Measurements were performed every minute for 40 min [26] using a scanning multi-well spectrophotometer (FLUOstar OPTIMA, BMG Labtech, Germany). All measurements were performed in duplicate with three technical replicates.

3.7. Computational Chemistry

Docking simulations were carried out to explore the binding mode of TMP, 1a and 1b to E. coli DHFR, using the 2019–2 release of Glide [27,28]. The crystal structure of E. coli DHFR, retrieved from the Protein Data Bank (PDB code 3DAU [20]), includes methotrexate and NADPH. The protein structure of DHFR was thus prepared by deleting both of these compounds, by assigning bond orders, adding hydrogen atoms, and restrained energy minimization, using the Protein Preparation Wizard module in Maestro [29]. Compounds were prepared using LigPrep [30]. The binding site was enclosed in a grid defined with an inner box of 10 Å × 10 Å × 10 Å; GlideScore (SP) was used to evaluate the quality of the configurations [31]. Default settings were used for all remaining parameters. The results of the docking simulations were visually examined with the aid of PyMOL software [32]. Docking of 1b was performed using a homology model of E. coli DHFR using the open structure from M. tuberculosis DHFR (PDB entry 4KM2) as a template.

3.8. Cytotoxicity

The cytotoxicity assay was carried out in the human hepatocellular carcinoma cell line Hep G2 ATCC and in murine L-929 fibroblasts (NCTC clone 929, ECACC 88102702), based on the experiments described by Vinuesa et al. [23]. The cells were obtained from Dr. Ricardo Pérez-Tomás (Cancer Cell Biology, University of Barcelona).

The cytotoxicity of TMP and compounds 1a and 1b was determined by measuring the intracellular reduction of resazurin sodium salt (Sigma-Aldrich, St. Louis, MO, USA). HepG2 and L-929 cells were grown in RPMI 1640 and MEM medium, respectively (Biochrom AG, Berlin, Germany), supplemented with 10% fetal bovine serum. Cells from pre-confluent cultures were harvested with trypsin-EDTA and maintained at 37 °C and 5% CO₂. HepG2 and L-929 cells (100 µL each) were seeded in 96-well flat-bottomed microplates to obtain concentrations of 1.5 × 10⁴ and 4 × 10³ cells/well, respectively, and incubated at 37 °C for 24 h. Afterwards, the medium was replaced with 200 µL of medium containing the antimicrobials at concentrations ranging from 32 to 0.016 µg/mL and the microplates were incubated at 37 °C for 24 h. Twenty µL of resazurin was then added to each well and the plates were incubated under the same conditions. Fluorescence was measured at an excitation wavelength of 530 nm and an emission wavelength of 590 nm using a scanning multi-well spectrophotometer (FLUOstar OPTIMA, BMG Labtech, Germany). Cytotoxicity was calculated as follows:

$$\%\mathrm{Cytotoxicity}=100-\frac{\left(\mathrm{AT}-\mathrm{ADB}\right)}{\left(\mathrm{AC}-\mathrm{AMB}\right)}\times 100$$

(1)

where AT is the absorbance of the treated cells, ADB the absorbance of the drug blank control, AC the absorbance of the untreated cells, and ACB the absorbance of the medium blank.

4. Conclusions

Two TMP derivatives (1a and 1b) showed antibacterial activity against E. coli, P. aeruginosa and S. marcescens similar to that of TMP and acted synergistically with SMX. They resulted to be active in biofilm prevention, whereas neither TMP nor compounds 1a and 1b were able to fully eradicate S. aureus biofilms (neither S. aureus ATCC 29213 nor S. aureus 8124825998). On the other hand, at concentrations at which the products behave as good antibacterials, the cytoxicity on HepG2 and L-929 cell lines was almost negligible. P. aeruginosa PAO1 was fully resistant to TMP and its derivatives as well as to the combination of TMP-SMX. Moreover, it can be suggested that blocking their efflux systems may influence the P. aeruginosa susceptibility to these antimicrobials. The combination of TMP, TMP-like molecules and SMX with colistin enhances their antimicrobial efficacy against E. coli, P. aeruginosa and S. marcescens by permeabilizing the cells.

Compounds 1a and 1b, like TMP, strongly inhibited the activity of the E. coli DHFR. The inhibition was reversed with increasing concentrations of NADPH and H₂F, suggesting that both molecules interact with the analogues during inhibition. As seen in the docking model, the heterocyclic ring of the compound 1a fills the pocket occupied by the nicotinamide ring of NADPH. Thus, the binding of 1a would compete with H₂F and would also prevent the correct recognition of NADPH.

As the search into new antimicrobial compounds is one of the main pathways to overtake bacterial resistance to antibiotics, it should be emphasized that all putative compounds should be tested in conditions in which the role of the outer membrane as a permeability barrier is inactivated. Their assay together with sublethal concentrations of colistin is proposed as one of the methods of election.
