The Antimicrobial Resistance Characteristics of Imipenem-Non-Susceptible, Imipenemase-6-Producing Escherichia coli

by
Reo Onishi
1,
Katsumi Shigemura
1,2,*,
Kayo Osawa
3,
Young-Min Yang
2,
Koki Maeda
2,
Shiuh-Bin Fang
4,5,
Shian-Ying Sung
6,
Kenichiro Onuma
7,
Atsushi Uda
7,
Takayuki Miyara
7 and
Masato Fujisawa
2
1
Department of Public Health, Division of Infectious Diseases, Kobe University Graduate School of Health Sciences, 7-10-2 Tomogaoka Suma-ku, Kobe 654-0142, Japan
2
Division of Urology, Kobe University Graduate School of Medicine, 7-5-2 Kusunoki-cho, Chuo-ku, Kobe 650-0017, Japan
3
Department of Medical Technology, Kobe Tokiwa University, 2-6-2 Otani-cho, Nagata-ku, Kobe 653-0838, Japan
4
Department of Pediatrics, Division of Pediatric Gastroenterology and Hepatology, Shuang Ho Hospital, Taipei Medical University, 291 Jhong Jheng Road, Jhong Ho District, New Taipei City 23561, Taiwan
5
Department of Pediatrics, School of Medicine, College of Medicine, Taipei Medical University, Taipei 11031, Taiwan
6
International Ph.D. Program for Translational Science, College of Medical Science and Technology, Taipei Medical University, Taipei 11031, Taiwan
7
Department of Infection Control and Prevention, Kobe University Hospital, 7-5-2 Kusunoki-cho, Chuo-ku, Kobe 650-0017, Japan
*
Author to whom correspondence should be addressed.
Antibiotics 2022, 11(1), 32; https://doi.org/10.3390/antibiotics11010032
Submission received: 29 November 2021 / Revised: 22 December 2021 / Accepted: 23 December 2021 / Published: 28 December 2021
(This article belongs to the Special Issue Carbapenemase-Producing Enterobacterales)
Browse Figures
Review Reports Versions Notes

Abstract

:
Imipenemase-6 (IMP-6) type carbapenemase-producing Enterobacteriaceae is regarded as dangerous due to its unique lack of antimicrobial susceptibility. It is resistant to meropenem (MEPM) but susceptible to imipenem (IPM). In addition to carbapenemase, outer membrane porins and efflux pumps also play roles in carbapenem resistance by reducing the antimicrobial concentration inside cells. Extended-spectrum β-lactamase (ESBL) is transmitted with IMP-6 by the plasmid and broadens the spectrum of antimicrobial resistance. We collected 42 strains of IMP-6-producing Escherichia coli and conducted a molecular analysis of carbapenemase, ESBL, porin, efflux, and epidemiological characteristics using plasmid replicon typing. Among the 42 isolates, 21 strains were susceptible to IPM (50.0%) and 1 (2.4%) to MEPM. Seventeen strains (40.5%) co-produced CTX-M-2 type ESBL. We found that the relative expression of ompC and ompF significantly correlated with the MIC of IPM (p = 0.01 and p = 0.03, respectively). Sixty-eight% of CTX-M-2-non-producing strains had IncI1, which was significantly different from CTX-M-2-producing strains (p < 0.001). In conclusion, 50.0% of our IMP-6-producing strains were non-susceptible to IPM, which is different from the typical pattern and can be attributed to decreased porin expression. Further studies investigating other types of carbapenemase are warranted.

1. Introduction

The prevalence of imipenemase-6 (IMP-6) type carbapenemase-producing Enterobacteriaceae (CPE) is increasing in Japan, and this is regarded as dangerous due to its unique lack of antimicrobial susceptibility [1,2]. They are generally resistant to meropenem (MEPM), although they are susceptible to imipenem (IPM) [2,3]. Carbapenemase is the enzyme that inactivates carbapenem. CPE can produce a variety of carbapenemases, which are divided into three groups as class A, class B, and class D according to the Ambler classification [4]. In Japan, the most common carbapenemase type is IMP, one of the class B carbapenemases. It exhibits metallo-β-lactamase and is able to decompose almost all β-lactam drugs, including carbapenems, by a wide range of instrumental specificity. IMP-6 exceptionally shows characteristic inactivation as described above [5]. CPE often co-produces extended-spectrum β-lactamase (ESBL), which inactivates penicillins, cephalosporins, and monobactams [3,6] for wider spectrum antimicrobial resistance. IMP-6 generally does not inactivate penicillins and monobactams [2,7], but if an IMP-6-producing strain co-produces ESBLs, it does inactivate these antimicrobials. Thus, the co-production of carbapenemase and ESBL should be considered as an important mechanism in antimicrobial resistance.
Outer membrane porins and efflux pumps are also important mechanisms of carbapenem resistance Enterobacteriaceae (CRE) by reducing the antimicrobial concentration inside cells [8]. Because carbapenem is one of the most effective wide-spectrum antimicrobials, CRE infections increase treatment difficulty and worsen prognosis [9].
Porins are small pores in the outer membrane of Gram-negative bacteria (GNB). Decrease or loss of porins hinders drug entry in GNB [10]. Carbapenems enter cells through porins such as OmpC and OmpF, encoded by porin genes ompC and ompF [11]. OmpC and OmpF are the two most important outer membrane porin proteins in Escherichia coli. The pore size of OmpF is larger than that of OmpC, allowing more solutes, including noxious agents, to diffuse into the cell through the OmpF channel [12]. A decrease in the relative expression of ompC and ompF indicates loss or disruption of OmpC and OmpF.
Efflux pumps are responsible for membrane transport and can discharge antibacterial drugs outside the cell. Hyperfunction of efflux pump proteins is one of the most important mechanisms in carbapenem resistance. Resistance-nodulation-division (RND) efflux pumps are a major mechanism of multidrug resistance in Enterobacteriaceae [13]. The AcrAB-TolC RND system is the most common among the different efflux systems, which catalyze substrate efflux by an H+ antiport mechanism [13,14]. Phenylalanine-arginine β-naphthylamide (PAβN, also called MC-207,110) is well known as a broad-spectrum efflux pump inhibitor [15]. PAβN binds to AcrB, leading to the inhibition of substrate efflux outside the cell [16,17]. In carbapenem resistance attributed to the overexpression of efflux pumps, the minimum inhibitory concentration (MIC) will decrease from the addition of PAβN because carbapenem cannot be effluxed out of the cell. Therefore, efflux pump activity in carbapenem resistance can be evaluated using PAβN [18,19].
Plasmids are extra-chromosomal circular fragments of DNA that replicate autonomously in host cells [20]. Plasmids are classified based on incompatibility (Inc) groups by Plasmid Replicon Typing [20]. Carbapenemase genes and ESBL genes are transferred easily by plasmids, contributing to the rapid spread of carbapenemase and ESBL-producing strains. IncN plasmid often carries IMP-6 with CTX-M-2 type ESBL and plays an important role in the spread of IMP-6 and CTX-M-2 co-producing strains [3,20]. Plasmid replicon typing facilitates the exploration of the epidemiological features of carbapenemase-producing strains.
Whether resistance mechanisms other than carbapenemase affect antimicrobial susceptibility in IMP-6-producing bacteria has rarely been investigated. An epidemiological analysis is also important for a comprehensive understanding of the spread of CPE. The purpose of this study was to assess antimicrobial susceptibility and the effects of the three carbapenem resistance mechanisms, ESBL production, and epidemiology in IMP-6-producing Escherichia coli.

2. Results

2.1. Antimicrobial Susceptibilities

Among the 42 IMP-6-producing isolates, 21 strains (50.0%) were susceptible to IPM, 1 strain (2.4%) to MEPM, no strains (0%) to ertapenem (ETP), and 11 strains (26.2%) to doripenem (DRPM). Minimum inhibitory concentrations (MIC)50 were 1.5 μg/mL, 16 μg/mL, 16 μg/mL, and 8 μg/mL, and MIC90 were 4 μg/mL, 32 μg/mL, 64 μg/mL, and 32 μg/mL for IPM, MEPM, ETP, and DRPM, respectively (Table 1) (Supplemental Table S1). Most strains were resistant to piperacillin (PIPC) (97.6%), ceftazidime (CAZ) (97.6%), cefepime (CFPM) (95.2%), ciprofloxacin (CPFX) (97.6%), and levofloxacin (LVFX) (97.6%). No strain was resistant to amikacin (AMK) (0%).

2.2. Phenotypic and Genotypic Detection of Carbapenemase and ESBL

Carbapenemase-associated genes other than blaIMP-6 were not detected in our strains. Twenty-nine strains (69.0%) had confirmed ESBL production and ESBL blaCTX-M-2 genes were detected in 17 strains (40.5%), blaCTX-M-14 in 1 strain (2.4%), and blaCTX-M-15 in 2 strains (4.8%) (Table 2) (Supplemental Table S2).

2.3. Relative Expression Level of ompC and ompF

Relative expression levels of ompC and ompF were measured by quantitative reverse transcription polymerase chain reaction (qRT-PCR). The relative expression levels of ompC significantly correlated with the MICs of IPM (r = −0.388, p = 0.0112) and DRPM (r = −0.501, p = 0.000734) (Figure 1A,D). Furthermore, the relative expression levels of ompF significantly correlated with the MICs of IPM (r = −0.332, p = 0.0318) and MEPM (r = −0.529, p = 0.00032) (Figure 2A,B).

2.4. Efflux Pump Activity and Carbapenem Resistance

To determine the effect of efflux on IPM resistance, the MICs of two representative carbapenems, IPM and MEPM, were measured with and without the addition of PAβN (Figure 3). If carbapenem resistance depends on the overexpression of efflux pumps, MICs of carbapenems will decrease with the addition of PAβN because carbapenem cannot be effluxed out of the cell. In this study, no isolates showed more than a four-fold decrease of MIC in the presence of PAβN compared with MICs when only IPM and MEPM were present. Therefore, no significant effect of efflux pump activity on carbapenem resistance was found in all 42 strains. It was confirmed by the control that PAβN did not inhibit bacterial growth (data not shown).

2.5. Plasmid Replicon Typing

IncF was the most prevalent plasmid replicon, identified in 40 of the 42 strains (95.2%) (Table 3). A variety of plasmids were found in our IMP-6-producing E. coli strains, including IncFIA in 37 strains (88.1%), IncN in 36 strains (85.7%), IncFIB in 28 strains (66.7%), IncI1 in 18 strains (42.9%), IncB/O in 4 strains (9.5%), and IncA/C in 2 strains (4.8%). There was a significant difference in the rates of carrying IncI1 between CTX-M-2 co-producing strains (n = 17) and the others (n = 25) (p < 0.001, Table 3). We found duplications of plasmids in the isolates. The details for individual strains are presented in Supplemental Table S2.

3. Discussion

IMP-6-producing CRE is frequently detected in Japan, especially in west Japan. A previous study from Osaka showed that 130 (97.0%) of 134 carbapenem-resistant E. coli produced IMP-6 [1]. Their susceptibility rates to MEPM and IPM were 0% and 100.0%, respectively, which is a typical pattern of IMP-6-producing CRE. Our IMP-6-producing E. coli strains were resistant to at least one of the carbapenems, and most of these strains were resistant to MEPM (92.9%). Although most previous studies indicated that IMP-6 does not inactivate IPM [2,3], 50.0% of our strains were non-susceptible to IPM. Thus, non-susceptibility to IPM may be due to a resistance mechanism other than the production of IMP-6. A few studies reported the susceptibility of IMP-6-producing Enterobacteriaceae to ETP and DRPM. A previous study in Korea reported that all of 10 IMP-6-producing strains were not susceptible to ETP [21], similar to our strains. Another study in Japan showed that all of 11 IMP-6-producing strains were not susceptible to DRPM [22], which is consistent with the low susceptibility (26.2%) in our strains. Altogether, these results demonstrated the non-susceptibility of IMP-6-producing strains to ETP and DRPM.
Previous studies reported that most IMP-6-producing strains co-produced CTX-M-2 [7,23], but less than half of our strains co-produced CTX-M-2. The form of transmission may have changed. Furthermore, most of our strains were resistant to PIPC with or without CTX-M-2 production, despite the fact that IMP-6-producing strain is generally susceptible to PIPC. Quite possibly, these strains co-produced another β-lactamase. For example, a previous study reported that IMP-6-producing strains co-produced TEM-1, a non-ESBL β-lactamase [2]. These strains were resistant to PIPC by co-producing TEM-1.
One of the main mechanisms for carbapenem resistance other than carbapenemase production is the decrease or loss of porin. A previous study in China showed low expression of either ompC or ompF in 46 (68.7%) of 67 carbapenemase-non-producing strains [24]. In that study, porin-related mechanisms were investigated only for carbapenemase-non-producing strains, not for carbapenemase-producing strains. Our study explored porin-related mechanisms in CPE and found that IMP-6-producing CRE had decrease or loss of porin according to the downregulation of two porin genes ompC and ompF as another resistance mechanism. Furthermore, statistical analysis showed a significant negative correlation between the expression levels of the two porin genes and MIC of some carbapenems, including ompC with IPM and DRPM (Figure 1A,D) as well as ompF with IPM and MEPM (Figure 2A,B). Although half of the IMP-6-producing CRE strains in our study were susceptible to IPM, we still found that the MICs of IPM were correlatively higher when the porin-related genes ompC and ompF were more downregulated. Thus, decreased porin expression can also affect antimicrobial resistance in IMP-6-producing strains, with altered antimicrobial susceptibility in some cases.
Efflux activity in carbapenem resistance has been reported using several methods for confirmation of efflux activity [19,24]. A previous study showed that 7 isolates of carbapenem-resistant Pseudomonas aeruginosa exhibited a significant reduction in meropenem MIC with PAβN, using the same methods as our study [25]. Similar to our study, another group investigated KPC-2-producing CRE and did not find any effect of efflux pump activity in carbapenem resistance [19]. Our strains also did not show a contribution by efflux pump activity to carbapenem resistance. Taken together, these results suggest the minor effect of efflux activity on carbapenem resistance in carbapenemase-producing bacteria.
Plasmid replicon typing is a useful assay to investigate horizontal gene transfer because carbapenemase genes and ESBL genes are generally encoded on plasmids [3,20]. As mentioned above, IMP-6-producing CRE strains often possess IncN plasmid and simultaneously produce CTX-M-2 [3]. A previous study showed that 80 strains (96.4%) possessed IncN, and 73 strains (88.0%) co-produced CTX-M-2 among 83 IMP-6-producing strains [7]. In contrast, a lower portion (40.5%, 17/42) of our strains co-produced IMP-6 and CTX-M-2 despite a high carriage rate (85.7%, 36/42) of IncN. Compared with CTX-M-2 co-producing strains, IMP-6 producing but not CTX-M-2 co-producing strains significantly possessed IncI1 (p < 0.001). So far, IncI1 has not been reported in IMP-6-producing CRE. Transmission and carriage of IncI1 type plasmids could reduce co-production of CTX-M-2 among IMP-6-producing CRE.
Our study confirmed that IMP-6-producing strains were resistant to MEPM, ETP, and DRPM as reported so far. However, the IPM non-susceptible strains appeared to differ from the typical pattern. We demonstrated that downregulation of porin-associated genes was responsible for this IPM non-susceptibility, suggesting evolving characteristics of IMP-6-producing CPE. It is necessary to update our knowledge of the antimicrobial susceptibility of IMP-6-producing CPE to facilitate appropriate treatment and clinical practice. Downregulated porin-related genes should also be taken into account when developing antimicrobials against IMP-6-producing CPE.
There are some limitations in this study, including the small number of isolates and the unavailability of full clinical data for investigation. In addition, phenotypic studies of porin and genotypic efflux pump analysis were not performed. Despite these limitations, our study contributes to preventing the further expansion of IMP-6-producing CRE.

4. Materials and Methods

4.1. Bacterial Collection

Forty-two strains of IMP-6-producing E. coli were collected from Hyogo prefecture and sent to Hyogo Clinical Laboratory Corporation, Himeji, Japan, from 2012 to 2018. They were isolated from urine, sputum, and other sources. IMP-6 production was confirmed using phenotypic and genotypic methods. Carbapenemase production was detected by three phenotypic methods, the carbapenem inactivation method (CIM), double disk synergy test (DDST) with sodium mercaptoacetic acid (SMA), and the modified Hodge test. We defined a strain as carbapenemase-producing if it was positive by at least one method. CIM and modified Hodge tests were carried out according to Clinical and Laboratory Standards Institute (CLSI) recommendations [26]. SMA-DDST was performed for CAZ and IPM as previously described [27]. We detected blaIMP-6 by PCR and DNA sequencing as previously described [28,29].

4.2. Antimicrobial Susceptibility Tests

Antimicrobial susceptibility testing was performed by broth microdilution methods according to the CLSI guidelines [26]. MIC of E. coli was tested for the following antimicrobials: MEPM (Wako, Fujifilm Wako Pure Chemical Corporation, Japan), IPM (Wako, Japan), ETP (Sigma-Aldrich, St. Louis, MO, USA), and DRPM (Wako, Japan), using E. coli ATCC 25922 as quality control. MicroScan (Beckman Coulter Inc., Brea, CA, USA) was used to determine the MIC of the antimicrobials PIPC, CAZ, CFPM, LVFX, CPFX, AMK, and GM. We determined susceptibility according to the current CLSI clinical breakpoint [26]. We defined non-susceptible as resistant or intermediate to each antimicrobial.

4.3. Phenotypic Detections of ESBL Production in E. coli Isolates

All isolates of E. coli were screened for ESBL production using cefotaxime (CTX) and CAZ disc diffusion testing, according to CLSI guidelines [26]. The confirmation tests were conducted by the double-disk synergy method using CTX and CAZ disks alone and in combination with clavulanic acid [26].

4.4. Detection of Carbapenemase Genes and ESBL Genes

The presence of carbapenemase genes blaIMP-1, blaIMP-2, blaKPC, blaNDM, blaOXA-48 blaGES, blaVIM-1, and blaVIM-2 was determined using PCR amplification, as previously described [28,30,31,32,33,34]. The presence of ESBL genes blaCTX-M, blaTEM, and blaSHV were also determined using PCR amplification, as previously described [35]. The PCR products were run on 1% agarose gel and stained with ethidium bromide (0.5 mg/mL) in a dark room. PCR purification was conducted by QIAquick PCR Purification Kit (Qiagen, Hilden, Germany) with sequencing by Eurofins Genomics, Inc. (Tokyo, Japan) [29].

4.5. q-RT-PCR for Porin Coding Genes ompC and ompF

The qRT-PCR for porin genes (ompC and ompF) was performed. RNA was extracted from bacterial pellets and DNase-treated using NucleoSpin RNA (Macherey-Nagel, Germany). cDNA was constructed using the ReverTra Ace qPCR RT Kit (Toyobo, Japan). The qRT-PCR was performed for porin genes ompC and ompF and the housekeeping gene rpoB using the primer previously described [11]. The reactions were run on a CFX Connect (Bio-Rad, Hercules, CA, USA) with the following cycling parameters: 95 °C for 5 min and 40 cycles of 95 °C for 15 s, 60 °C for 30 s, and 72 °C for 30 s, followed by melting with ramping from 60 °C to 95 °C in 0.2 °C increments. Melting curve analysis was performed to identify the amplicons. Each experiment was performed in triplicate, and results were presented as the mean value of three experiments. The relative expression levels were calculated by the 2−ΔΔCt method. Expression of porin genes was normalized using the housekeeping gene rpoB in the same sample. Fold change in porin expression was determined by calculating the ratio of normalized porin expression in IMP-6-producing isolates to the control strain of the same species, E. coli ATCC 25922 [11].

4.6. Efflux Pump Inhibitory Assay

To examine the influence of efflux pumps on carbapenem resistance, efflux inhibitory assays were performed using representative carbapenem, IPM, and MEPM. The MICs of imipenem and meropenem were measured with and without 25 mg/L of the efflux pump inhibitor PAβN (Sigma-Aldrich, St Louis, MI, USA) [36]. Efflux pump activity was evaluated by fold change from the MIC without PAβN to the MIC with PAβN. If carbapenem resistance depended on the overexpression of efflux pumps, the MIC of carbapenems would be reduced by the addition of PAβN because carbapenem does not efflux. More than a four-fold decrease of the MICs in the presence of PAβN compared with the MICs in the absence of PAβN was defined as positive.

4.7. Plasmid Replicon Typing

Plasmid DNA was extracted as previously described [29]. Plasmid replicon typing was performed to see the disseminating formulation and investigate for IncF (FIA, FIB, FIC, F, FII), H, I, L/M, N, P, W, T, A/C, K, B/O, X, and Y by PCR amplification. The temperature conditions were initial denaturing at 94 °C for 5 min, followed by 30 cycles of denaturation at 94 °C for 1 min, annealing at 60 °C for 30 s, extension at 72 °C for 1 min and final extension at 72 °C for 5 min [20].

4.8. Statistical Analysis

Correlations between the relative expression of porin genes (ompC and ompF) and the MIC for each carbapenem were analyzed by Spearman’s rank correlation coefficient using EZR (Saitama Medical Centre, Jichi Medical University, Saitama, Japan) [37]. The difference in plasmid carriage between CTX-M-2-producing strains and the others was analyzed by Fisher’s exact test using EZR. Statistical differences among mean values were considered significant when p < 0.05.

5. Conclusions

Half of our IMP-6-producing strains were non-susceptible to IPM, and only 40.5% of them co-produced CTX-M-2, unlike the well-known typical pattern. Downregulation of porin-associated genes is responsible for this alteration in IPM non-susceptibility, but efflux plays a minor role. Further studies are warranted for investigation in other types of carbapenemase.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antibiotics11010032/s1, Table S1: Minimum inhibitory concentrations against antimicrobials among 42 isolates of Escherichia coli. Table S2: The characteristics of carbapenemase and ESBL production among 42 isolates of Escherichia coli.

Author Contributions

Conceptualization, K.S. and K.O. (Kayo Osawa); methodology, R.O.; investigation, R.O.; resources, K.S. and K.O. (Kayo Osawa); data curation, K.S.; writing—original draft preparation, R.O.; writing—review and editing, R.O., K.S., K.O. (Kayo Osawa), Y.-M.Y., K.M., S.-B.F., S.-Y.S., K.O. (Kenichiro Onuma), A.U., T.M. and M.F.; supervision, M.F.; project administration, K.S. and M.F.; funding acquisition, K.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Japan Society for the Promotion of Science (JSPS) KAKENHI Grant Numbers 19K09670 and 21K10423.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the ethical committee on health research of the Kobe University Graduate School of Health Sciences (No. 472-6).

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this published article.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Yamamoto, N.; Asada, R.; Kawahara, R.; Hagiya, H.; Akeda, Y.; Shanmugakani, R.K.; Yoshida, H.; Yukawa, S.; Yamamoto, K.; Takayama, Y.; et al. Prevalence of, and risk factors for, carriage of carbapenem-resistant Enterobacteriaceae among hospitalized patients in Japan. J. Hosp. Infect. 2017, 97, 212–217. [Google Scholar] [CrossRef] [PubMed]
  2. Yano, H.; Kuga, A.; Okamoto, R.; Kitasato, H.; Kobayashi, T.; Inoue, M. Plasmid-Encoded Metallo-β-Lactamase (IMP-6) Conferring Resistance to Carbapenems, Especially Meropenem. Antimicrob. Agents Chemother. 2001, 45, 1343–1348. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kayama, S.; Shigemoto, N.; Kuwahara, R.; Oshima, K.; Hirakawa, H.; Hisatsune, J.; Jové, T.; Nishio, H.; Yamasaki, K.; Wada, Y.; et al. Complete Nucleotide Sequence of the IncN Plasmid Encoding IMP-6 and CTX-M-2 from Emerging Carbapenem-Resistant Enterobacteriaceae in Japan. Antimicrob. Agents Chemother. 2015, 59, 1356–1359. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Ambler, R.P. The structure of beta-lactamases. Philos. Trans. R. Soc. Lond. B Biol. Sci. 1980, 289, 321–331. [Google Scholar] [CrossRef] [PubMed]
  5. Doumith, M.; Ellington, M.J.; Livermore, D.M.; Woodford, N. Molecular mechanisms disrupting porin expression in ertapenem-resistant Klebsiella and Enterobacter spp. clinical isolates from the UK. J. Antimicrob. Chemother. 2009, 63, 659–667. [Google Scholar] [CrossRef]
  6. Schwaber, M.J.; Navon-Venezia, S.; Kaye, K.S.; Ben-Ami, R.; Schwartz, D.; Carmeli, Y. Clinical and economic impact of bacteremia with extended- spectrum-beta-lactamase-producing Enterobacteriaceae. Antimicrob. Agents Chemother. 2006, 50, 1257–1262. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Yonekawa, S.; Mizuno, T.; Nakano, R.; Nakano, A.; Suzuki, Y.; Asada, T.; Ishii, A.; Kakuta, N.; Tsubaki, K.; Mizuno, S.; et al. Molecular and Epidemiological Characteristics of Carbapenemase-Producing Klebsiella pneumoniae Clinical Isolates in Japan. mSphere 2020, 5, e00490-20. [Google Scholar] [CrossRef] [PubMed]
  8. Haidar, G.; Clancy, C.J.; Chen, L.; Samanta, P.; Shields, R.K.; Kreiswirth, B.N.; Nguyen, M.H. Identifying Spectra of Activity and Therapeutic Niches for Ceftazidime-Avibactam and Imipenem-Relebactam against Carbapenem-Resistant Enterobacteriaceae. Antimicrob. Agents Chemother. 2017, 61, e00642-17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Johnson, A.P.; Woodford, N. Global spread of antibiotic resistance: The example of New Delhi metallo-β-lactamase (NDM)-mediated carbapenem resistance. J. Med. Microbiol. 2013, 62, 499–513. [Google Scholar] [CrossRef]
  10. Hamzaoui, Z.; Ocampo-Sosa, A.; Fernandez Martinez, M.; Landolsi, S.; Ferjani, S.; Maamar, E.; Saidani, M.; Slim, A.; Martinez-Martinez, L.; Boutiba-Ben Boubaker, I. Role of association of OmpK35 and OmpK36 alteration and blaESBL and/or blaAmpC genes in conferring carbapenem resistance among non-carbapenemase-producing Klebsiella pneumoniae. Int. J. Antimicrob. Agents 2018, 52, 898–905. [Google Scholar] [CrossRef]
  11. Senchyna, F.; Gaur, R.L.; Sandlund, J.; Truong, C.; Tremintin, G.; Kültz, D.; Gomez, C.A.; Tamburini, F.B.; Andermann, T.; Bhatt, A.; et al. Diversity of resistance mechanisms in carbapenem-resistant Enterobacteriaceae at a health care system in Northern California, from 2013 to 2016. Diagn. Microbiol. Infect. Dis. 2019, 93, 250–257. [Google Scholar] [CrossRef]
  12. Lin, X.; Wang, C.; Guo, C.; Tian, Y.; Li, H.; Peng, X. Differential regulation of OmpC and OmpF by AtpB in Escherichia coli exposed to nalidixic acid and chlortetracycline. J. Proteom. 2012, 75, 5898–5910. [Google Scholar] [CrossRef] [PubMed]
  13. Weston, N.; Sharma, P.; Ricci, V.; Piddock, L.J.V. Regulation of the AcrAB-TolC efflux pump in Enterobacteriaceae. Res. Microbiol. 2018, 169, 425–431. [Google Scholar] [CrossRef]
  14. Van Dyk, T.K.; Templeton, L.J.; Cantera, K.A.; Sharpe, P.L.; Sariaslani, F.S. Characterization of the Escherichia coli AaeAB efflux pump: A metabolic relief valve? J. Bacteriol. 2004, 186, 7196–7204. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Lamers, R.P.; Cavallari, J.F.; Burrows, L.L. The Efflux Inhibitor Phenylalanine-Arginine Beta-Naphthylamide (PAβN) Permeabilizes the Outer Membrane of Gram-Negative Bacteria. PLoS ONE 2013, 8, e60666. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Tikhonova, E.B.; Yamada, Y.; Zgurskaya, H.I. Sequential mechanism of assembly of multidrug efflux pump AcrAB-TolC. Chem. Biol. 2011, 18, 454–463. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Lomovskaya, O.; Warren, M.S.; Lee, A.; Galazzo, J.; Fronko, R.; Lee, M.; Blais, J.; Cho, D.; Chamberland, S.; Renau, T.; et al. Identification and characterization of inhibitors of multidrug resistance efflux pumps in Pseudomonas aeruginosa: Novel agents for combination therapy. Antimicrob. Agents Chemother. 2001, 45, 105–116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Dupont, H.; Gaillot, O.; Goetgheluck, A.-S.; Plassart, C.; Emond, J.-P.; Lecuru, M.; Gaillard, N.; Derdouri, S.; Lemaire, B.; Girard de Courtilles, M.; et al. Molecular Characterization of Carbapenem-Nonsusceptible Enterobacterial Isolates Collected during a Prospective Interregional Survey in France and Susceptibility to the Novel Ceftazidime-Avibactam and Aztreonam-Avibactam Combinations. Antimicrob. Agents Chemother. 2015, 60, 215–221. [Google Scholar] [CrossRef] [Green Version]
  19. Vera-Leiva, A.; Carrasco-Anabalón, S.; Lima, C.A.; Villagra, N.; Domínguez, M.; Bello-Toledo, H.; González-Rocha, G. The efflux pump inhibitor phenylalanine-arginine β-naphthylamide (PAβN) increases resistance to carbapenems in Chilean clinical isolates of KPC-producing Klebsiella pneumoniae. J. Glob. Antimicrob. Resist. 2018, 12, 73–76. [Google Scholar] [CrossRef]
  20. Carattoli, A.; Bertini, A.; Villa, L.; Falbo, V.; Hopkins, K.L.; Threlfall, E.J. Identification of plasmids by PCR-based replicon typing. J. Microbiol. Methods 2005, 63, 219–228. [Google Scholar] [CrossRef]
  21. Lee, W.; Chung, H.-S.; Lee, Y.; Yong, D.; Jeong, S.H.; Lee, K.; Chong, Y. Comparison of matrix-assisted laser desorption ionization-time-of-flight mass spectrometry assay with conventional methods for detection of IMP-6, VIM-2, NDM-1, SIM-1, KPC-1, OXA-23, and OXA-51 carbapenemase-producing Acinetobacter spp., Pseudomonas aeruginosa, and Klebsiella pneumoniae. Diagn. Microbiol. Infect. Dis. 2013, 77, 227–230. [Google Scholar] [CrossRef]
  22. Okanda, T.; Matsumoto, T. In vitro effect of an antimicrobial combination therapy without colistin and tigecycline for CPE and non-CPE. J. Infect. Chemother. 2020, 26, 322–330. [Google Scholar] [CrossRef]
  23. Ohno, Y.; Nakamura, A.; Hashimoto, E.; Matsutani, H.; Abe, N.; Fukuda, S.; Hisashi, K.; Komatsu, M.; Nakamura, F. Molecular epidemiology of carbapenemase-producing Enterobacteriaceae in a primary care hospital in Japan, 2010–2013. J. Infect. Chemother. 2017, 23, 224–229. [Google Scholar] [CrossRef]
  24. Liu, S.; Huang, N.; Zhou, C.; Lin, Y.; Zhang, Y.; Wang, L.; Zheng, X.; Zhou, T.; Wang, Z. Molecular Mechanisms and Epidemiology of Carbapenem-Resistant Enterobacter cloacae Complex Isolated from Chinese Patients During 2004-2018. Infect. Drug Resist. 2021, 14, 3647–3658. [Google Scholar] [CrossRef] [PubMed]
  25. Ellappan, K.; Belgode Narasimha, H.; Kumar, S. Coexistence of multidrug resistance mechanisms and virulence genes in carbapenem-resistant Pseudomonas aeruginosa strains from a tertiary care hospital in South India. J. Glob. Antimicrob. Resist. 2018, 12, 37–43. [Google Scholar] [CrossRef]
  26. Melvin, P.W.; James, S.L.; April, M.B.; Shelley, C.; Sharon, K.C.; Marcelo, F.G.; Howard, G.; Romney, M.H.; Thomas, J.K.; Brandi, L.; et al. M100Ed31|Performance Standards for Antimicrobial Susceptibility Testing, 31st ed. Available online: https://clsi.org/standards/products/microbiology/documents/m100/ (accessed on 9 October 2021).
  27. Hattori, T.; Kawamura, K.; Arakawa, Y. Comparison of test methods for detecting metallo-β-lactamase-producing Gram-negative bacteria. Jpn. J. Infect. Dis. 2013, 66, 512–518. [Google Scholar] [CrossRef] [Green Version]
  28. Tada, T.; Miyoshi-Akiyama, T.; Shimada, K.; Shimojima, M.; Kirikae, T. IMP-43 and IMP-44 metallo-β-lactamases with increased carbapenemase activities in multidrug-resistant Pseudomonas aeruginosa. Antimicrob. Agents Chemother. 2013, 57, 4427–4432. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Yamasaki, S.; Shigemura, K.; Osawa, K.; Kitagawa, K.; Ishii, A.; Kuntaman, K.; Shirakawa, T.; Miyara, T.; Fujisawa, M. Genetic analysis of ESBL-producing Klebsiella pneumoniae isolated from UTI patients in Indonesia. J. Infect. Chemother. 2021, 27, 55–61. [Google Scholar] [CrossRef] [PubMed]
  30. Shibata, N.; Doi, Y.; Yamane, K.; Yagi, T.; Kurokawa, H.; Shibayama, K.; Kato, H.; Kai, K.; Arakawa, Y. PCR typing of genetic determinants for metallo-beta-lactamases and integrases carried by gram-negative bacteria isolated in Japan, with focus on the class 3 integron. J. Clin. Microbiol. 2003, 41, 5407–5413. [Google Scholar] [CrossRef] [Green Version]
  31. Mushi, M.F.; Mshana, S.E.; Imirzalioglu, C.; Bwanga, F. Carbapenemase Genes among Multidrug Resistant Gram Negative Clinical Isolates from a Tertiary Hospital in Mwanza, Tanzania. BioMed Res. Int. 2014, 2014, 303104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Hong, S.S.; Kim, K.; Huh, J.Y.; Jung, B.; Kang, M.S.; Hong, S.G. Multiplex PCR for Rapid Detection of Genes Encoding Class A Carbapenemases. Ann. Lab. Med. 2012, 32, 359–361. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Farajzadeh Sheikh, A.; Rostami, S.; Jolodar, A.; Tabatabaiefar, M.A.; Khorvash, F.; Saki, A.; Shoja, S.; Sheikhi, R. Detection of Metallo-Beta Lactamases Among Carbapenem-Resistant Pseudomonas Aeruginosa. Jundishapur J. Microbiol. 2014, 7, e12289. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Marchaim, D.; Navon-Venezia, S.; Schwaber, M.J.; Carmeli, Y. Isolation of imipenem-resistant Enterobacter species: Emergence of KPC-2 carbapenemase, molecular characterization, epidemiology, and outcomes. Antimicrob. Agents Chemother. 2008, 52, 1413–1418. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Shahada, F.; Chuma, T.; Kosugi, G.; Kusumoto, M.; Iwata, T.; Akiba, M. Distribution of extended-spectrum cephalosporin resistance determinants in Salmonella enterica and Escherichia coli isolated from broilers in southern Japan. Poult. Sci. 2013, 92, 1641–1649. [Google Scholar] [CrossRef]
  36. Peleg, A.Y.; Adams, J.; Paterson, D.L. Tigecycline Efflux as a Mechanism for Nonsusceptibility in Acinetobacter baumannii. Antimicrob. Agents Chemother. 2007, 51, 2065–2069. [Google Scholar] [CrossRef] [Green Version]
  37. Kanda, Y. Investigation of the freely available easy-to-use software “EZR” for medical statistics. Bone Marrow Transplant. 2013, 48, 452–458. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Antibiotics 11 00032 g001 550
Figure 1. Correlation between relative expression levels of ompC and MICs of four carbapenems, IPM (A), MEPM (B), ETP (C), and DRPM (D), among IMP-6-producing E. coli strains.
Figure 1. Correlation between relative expression levels of ompC and MICs of four carbapenems, IPM (A), MEPM (B), ETP (C), and DRPM (D), among IMP-6-producing E. coli strains.
Antibiotics 11 00032 g001
Antibiotics 11 00032 g002 550

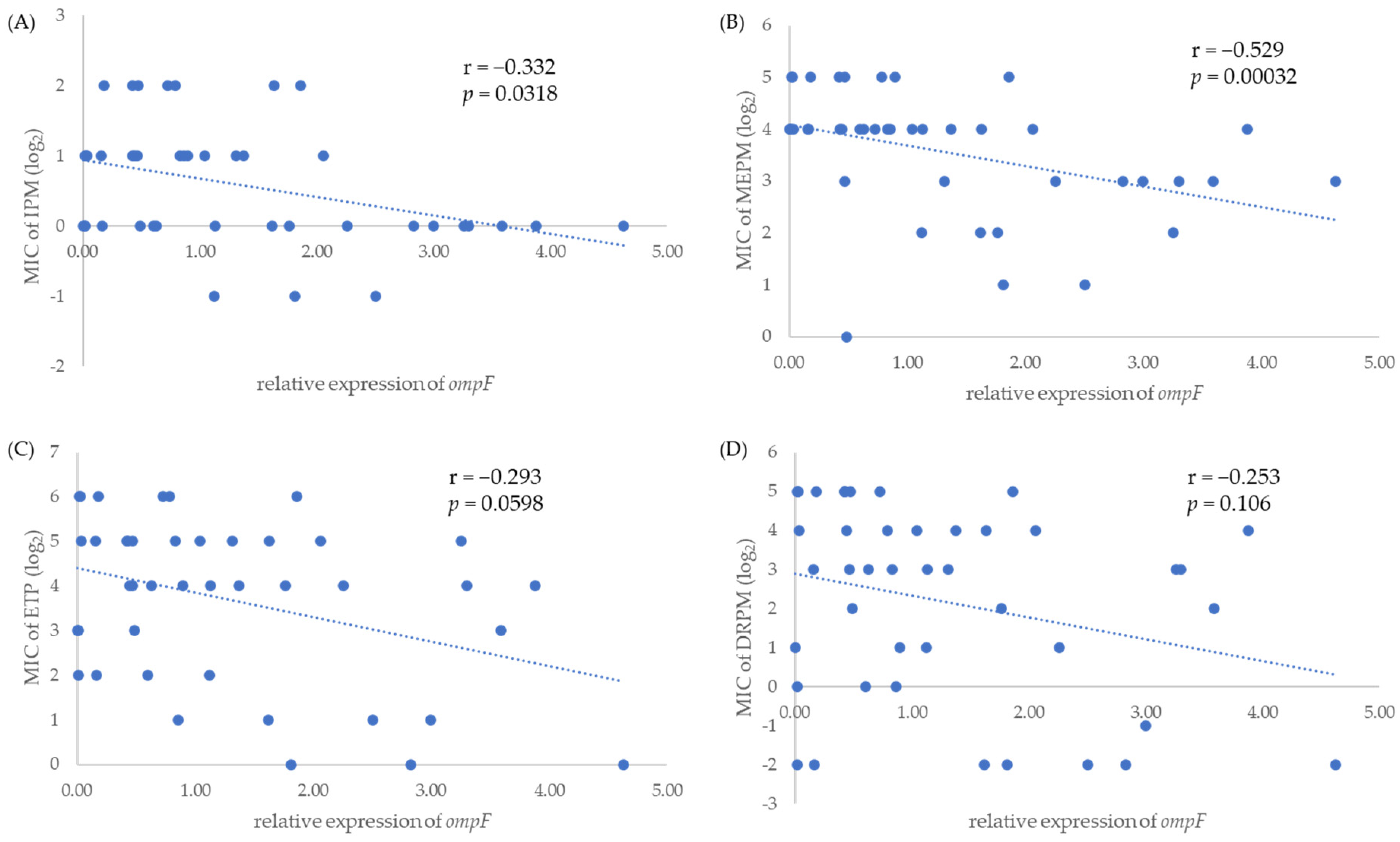

Figure 2. Correlation between relative expression levels of ompF and MICs of four carbapenems, IPM (A), MEPM (B), ETP (C), and DRPM (D), among IMP-6-producing E. coli strains.
Figure 2. Correlation between relative expression levels of ompF and MICs of four carbapenems, IPM (A), MEPM (B), ETP (C), and DRPM (D), among IMP-6-producing E. coli strains.
Antibiotics 11 00032 g002
Antibiotics 11 00032 g003 550
Figure 3. The MICs of IPM (A) and MEPM (B) with and without the addition of PAβN in IMP-6-producing E. coli strains.
Figure 3. The MICs of IPM (A) and MEPM (B) with and without the addition of PAβN in IMP-6-producing E. coli strains.
Antibiotics 11 00032 g003
Table
Table 1. Antimicrobial susceptibility among 42 strains of IMP-6-producing E. coli.
Table 1. Antimicrobial susceptibility among 42 strains of IMP-6-producing E. coli.
SusceptibleIntermediateResistantMIC50 (μg/mL)MIC90 (μg/mL)
IPM21 (50.0%)14 (33.3%)7 (16.7%)1.54
MEPM1 (2.4%)2 (4.8%)39 (92.9%)1632
ETP0 (0%)3 (7.1%)39 (92.9%)1664
DRPM11 (26.2%)4 (9.5%)27 (64.3%)832
PIPC1 (2.4%)0 (0%)41 (97.6%)>64>64
CAZ0 (0%)1 (2.4%)41 (97.6%)>16>16
CFPM1 (2.4%)1 (2.4%)40 (95.2%)>16>16
CPFX1 (2.4%)0 (0%)41 (97.6%)>2>2
LVFX1 (2.4%)0 (%)41 (97.6%)>4>4
AMK41 (97.6%)1 (2.4%)0 (0%)<416
GM11 (26.2%)20 (47.6%)11 (26.2%)8>8
Table
Table 2. Characteristics of carbapenemase and ESBL among 42 strains of IMP-6-producing E. coli.
Table 2. Characteristics of carbapenemase and ESBL among 42 strains of IMP-6-producing E. coli.
Carbapenemase ProducingCarbapenemase GenesESBL ProducingESBL Genes
blaIMP-6blaCTX-M-2blaCTX-M-14blaCTX-M-15
Number of isolates (n = 42)4242291712
(%)100.0100.069.040.52.44.8
Table
Table 3. Plasmid replicon typing among IMP-6-producing E. coli strains.
Table 3. Plasmid replicon typing among IMP-6-producing E. coli strains.
Total (n = 42)IMP-6 + CTX-M-2 (n = 17)IMP-6 (n = 25)p-Value
FIA37 (88.1%)15 (88.2%)22 (88.0%)1
FIB28 (66.7%)9 (52.9%)19 (76.0%)0.184
FIC0 (0.0%)0 (0.0%)0 (0.0%)N.A.
F40 (95.2%)17 (100.0%)23 (92.0%)0.506
FII0 (0.0%)0 (0.0%)0 (0.0%)N.A.
HI-10 (0.0%)0 (0.0%)0 (0.0%)N.A.
HI-20 (0.0%)0 (0.0%)0 (0.0%)N.A.
I118 (42.9%)1 (5.9%)17 (68.0%)<0.001 *
L/M0 (0.0%)0 (0.0%)0 (0.0%)N.A.
N36 (85.7%)16 (94.1%)20 (80.0)0.374
P0 (0.0%)0 (0.0%)0 (0.0%)N.A.
W0 (0.0%)0 (0.0%)0 (0.0%)N.A.
T0 (0.0%)0 (0.0%)0 (0.0%)N.A.
A/C2 (4.8%)0 (0.0%)2 (8.0)0.506
K0 (0.0%)0 (0.0%)0 (0.0%)N.A.
B/O4 (9.5%)2 (11.8%)2 (8.0)1
X0 (0.0%)0 (0.0%)0 (0.0%)N.A.
Y0 (0.0%)0 (0.0%)0 (0.0%)N.A.
N.A.: not applicable; * Statistical significance.
