The Triprenylated Anthranoid Ferruginin A, a Promising Scaffold for the Development of Novel Antibiotics against Gram-Positive Bacteria

by
Bruno Casciaro
1,
Francesca Ghirga
2,
Floriana Cappiello
1,
Valeria Vergine
2,
Maria Rosa Loffredo
1,
Silvia Cammarone
2,
Elena Puglisi
1,
Carola Tortora
2,
Deborah Quaglio
2,*,
Mattia Mori
3,
Bruno Botta
2 and
Maria Luisa Mangoni
1,*
1
Department of Biochemical Sciences, Laboratory Affiliated to Istituto Pasteur Italia-Fondazione Cenci Bolognetti, Sapienza University of Rome, 00185 Rome, Italy
2
Department of Chemistry and Technology of Drugs, “Department of Excellence 2018–2022”, Sapienza University of Rome, 00185 Rome, Italy
3
Department of Biotechnology, Chemistry and Pharmacy, “Department of Excellence 2018–2022”, University of Siena, 53100 Siena, Italy
*
Authors to whom correspondence should be addressed.
Antibiotics 2022, 11(1), 84; https://doi.org/10.3390/antibiotics11010084
Submission received: 8 December 2021 / Revised: 30 December 2021 / Accepted: 7 January 2022 / Published: 11 January 2022
(This article belongs to the Special Issue Antibiotics as Tool to Investigate Cell Functional State)
Browse Figures
Versions Notes

Abstract

:
In today’s post-antibiotic era, the search for new antimicrobial compounds is of major importance and nature represents one of the primary sources of bioactive molecules. In this work, through a cheminformatics approach, we clustered an in-house library of natural products and their derivatives based on a combination of fingerprints and substructure search. We identified the prenylated emodine-type anthranoid ferruginin A as a novel antimicrobial compound. We tested its ability to inhibit and kill a panel of Gram-positive and Gram-negative bacteria, and compared its activity with that of two analogues, vismione B and ferruanthrone. Furthermore, the capability of these three anthranoids to disrupt staphylococcal biofilm was investigated, as well as their effect on the viability of human keratinocytes. Ferruginin A showed a potent activity against both the planktonic and biofilm forms of Gram-positive bacteria (i.e., Staphylococcus aureus and S. epidermidis) and had the best therapeutic index compared to vismione B and ferruanthrone. In conclusion, ferruginin A represents a promising scaffold for the further development of valuable antimicrobial agents.

1. Introduction

The discovery of penicillin and the subsequent use of antibiotics in the treatment of bacterial infections has drastically changed human lifespan, increasing it by about 23 years [1]. However, the golden age of antibiotics is at the end; fewer and fewer compounds are being developed, while the onset of multidrug-resistant strains is increasing, making classic therapies mostly useless [2]. There is therefore an urgent need to discover new compounds capable of overcoming antimicrobial resistance (AMR). Although it is difficult to quantify and to predict the number of deaths per year due to AMR, it is estimated that in 2050 it will be 10 million [3]. These numbers are alarming, considering that many microorganisms can transition from a planktonic lifestyle to a sessile form, called biofilm. In biofilm communities, bacterial cells are surrounded by extra-cellular polymeric substances and DNA, which protect them from the antibiotic action, making their eradication even more difficult [4]. As the history of penicillin has taught us, nature is one of the primary sources of bioactive compounds [5,6]. A unique high-diversity library composed of around 1000 individual natural products, isolated mainly from indigenous plants collected in biodiversity-rich countries especially in the tropics and subtropics, is stored at the Organic Chemistry Laboratory of the Department of Chemistry and Technology of Drugs (Sapienza University of Rome, Rome, Italy) [7]. Complementarity between biogenetic enzymes and eukaryotic protein domains is the general molecular basis for the prominence of natural products in biomedical research and drug discovery [8]. Indeed, the structural and chemical diversity of natural products cannot be matched by any synthetically-based corporate screening library, and they remain the single most productive source of leads in modern drug discovery projects, often providing chemical structures as useful platforms for the development of drugs, or for the understanding of biological processes [9]. In recent years, the library has been enlarged with semi-synthetic and synthetic derivatives of several natural compounds, including up to 2000 components. Computer-aided methods have been efficiently exploited to screen this in-house library towards specific biological targets, and several hits and leads have been identified thanks to the wide range of pharmacophores and the high scaffold diversity of the library, which is continuously enlarged with compounds not available from other commercial or literature sources [10,11,12,13]. In the present study, compounds of the in-house library were clustered based on a combination of fingerprints and substructure search through a cheminformatics approach previously established [14,15], with the aim of grouping the library members into homogeneous chemical clusters. The representative compounds of the most populated clusters (1–25) have been screened for their strength in inhibiting and killing bacterial cells, as well as for their antibiofilm and cytotoxic activities. Interestingly, compound 7 showed a potent anti-Gram-positive activity, especially against the biofilm forms of Staphylococcus aureus and S. epidermidis, along with the better biological profile. Overall, our findings suggest molecule 7 as a novel antimicrobial candidate for further investigation and development.

2. Results

2.1. Screeening of Compounds: Structural Characterization and Preliminary Antibacterial Profile

Our in-house library is a valid source of chemotypes for the modulation of biomolecular targets, and it has been successfully screened in silico and in vitro for the identification of hit and lead compounds in previous early-stage drug discovery projects [7].
To focus experimental efforts on a relatively low number of molecules, and to explore the chemical and scaffold space of the library as much as possible, a cheminformatics approach was employed to identify new potential chemotypes of antibacterial agents. To this end, a diversity-oriented random selection (DORS) of compounds was performed by means of a clustering algorithm, which relies on a combination of fingerprints and common substructure search to group compounds endowed with chemical similarity index within a given threshold [14]. Thanks to the algorithm, compounds of the library were grouped, and the representative molecules of the most abundant clusters (1–25) were selected for biological assays (Table 1).
Compounds 1–25 were screened in vitro against reference Gram-negative (i.e., Escherichia coli) and Gram-positive (i.e., S. aureus and S. epidermidis) bacterial strains by evaluating their capability of inhibiting microbial growth through the inhibition zone assay. All compounds were not active against E. coli (data not shown), while only few of them were active against the Gram-positive bacterial strains (Table 2).
According to the literature, gallic acid (6) showed a significant antimicrobial activity against S. aureus, while usnic acid (17) and 2′,4-hydroxy-4′-methoxy-chalcone (18) showed activity against both S. aureus and S. epidermidis [52,53,54].
In addition, compound 7, ferruginin A, showed a good activity against both strains, with an inhibition zone ranging from 0.55 to 0.62 cm. Considering the limited number of studies performed on its biological activity to date, we decided to characterize its antimicrobial and cytotoxic activity. Ferruginin A is a prenylated emodine-type anthranoid, a polyphenols subclass, isolated from Vismia baccifera var. ferruginea and Vismia decipiens [22]. To thoroughly investigate the antibacterial activity of the emodine-type anthranoid scaffold, we also tested two other structurally-related compounds, ferruanthrone (26) and vismione B (27), reported in Table 3.
These anthranoids share the same biogenetic pathway and were isolated from the same plant. Compound 26 is classified as one of the unique compounds of the library, i.e., not available from other commercial or literature sources. It differs from compound 7 for the anthrone scaffold, a tricyclic aromatic ketone, and the position of the prenyl groups [22]. Compound 27 is a pre-anthraquinone non substituted with a γ, γ-dimethylallyl chain cyclized to form a chromane ring in pace of the C-prenyl group [55].

2.2. Antimicrobial Activity of Compounds 7, 26, and 27

The antimicrobial activity of 7, 26, and 27 was evaluated against different Gram-negative and Gram-positive bacterial strains and a yeast by determining their minimum inhibitory concentrations (MIC) by the microdilution assay in broth. After an incubation of about 18 h, the concentration of compounds able to totally inhibit microbial growth was detected and is reported in Table 4.
Compounds 26 and 27 were inactive against all the strains tested, with the only exception being B. megaterium Bm11 (MIC = 256 μM). Compound 7 was inactive against C. albicans and Gram-negative strains. In comparison, according to the results of the inhibition zone assay (Table 2), it showed a potent activity against Gram-positive microorganisms with MIC values of 8 μM against B. megaterium, 16 μM against S. epidermidis, and 64 μM against S. aureus.
As 7 was the only active compound, we investigated whether its antimicrobial activity was due to a bacteriostatic or bactericidal effect. To this aim, aliquots from the wells corresponding to MIC, 2 × MIC, and 4 × MIC were plated on agar plates for the counting of colony-forming units (CFU). As reported in Figure 1, compound 7 provoked about a 2-log reduction of viable S. aureus cells within 18 h treatment at its MIC and 2 × MIC and a total killing at its 4 × MIC. Differently, against S. epidermidis, 7 showed a bactericidal effect (about 2-log reduction of viable cells) at its 2 × MIC and 4 × MIC. Compound 7 also displayed the same antimicrobial efficacy against B. megaterium at all the concentrations tested.

2.3. Antibiofilm Activity

Staphylococci are recognized as the most frequent etiological agents of biofilm-associated infections [56], and for this reason, compounds 7, 26, and 27 were tested for their ability to eradicate preformed biofilm of S. aureus and S. epidermidis by evaluating the biofilm viability through the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT)-based assay.

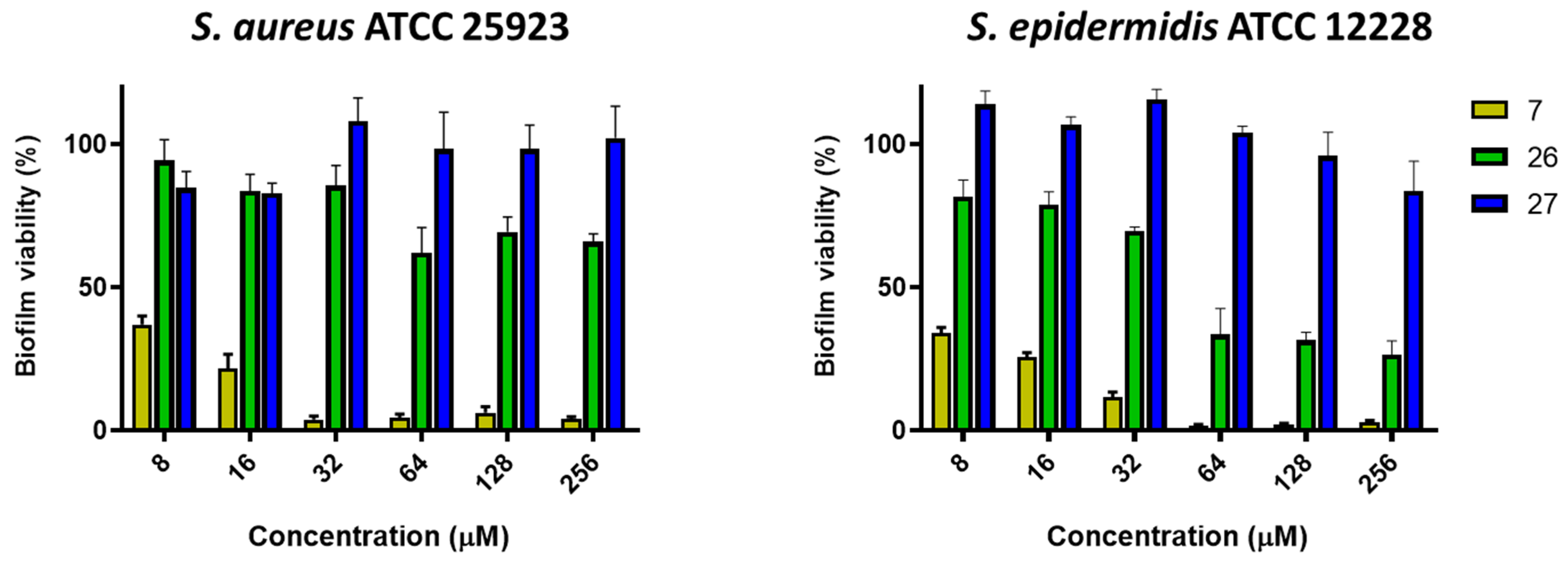

As reported in Figure 2, 27 was inactive (100% biofilm viability) against preformed biofilms of both strains at all concentrations. Differently, 26 showed only a weak activity at higher concentrations ranging from 64 to 256 μM against the S. aureus biofilm, while a more pronounced activity (about 60% of killing) was recorded against the S. epidermidis biofilm at the same concentrations. Considering its MIC values against both strains (i.e., >256 μM), these results have indicated a different activity of compound 26; despite it was not able to completely inhibit microbial growth after 18 h, it caused a significant reduction in the amount of viable biofilm cells within a short time (i.e., 2 h of treatment). Compound 7 revealed to be the most efficacious molecule causing more than 90% biofilm killing at the concentration range between 32 and 256 μM, and about 60% killing at lower concentrations of 16 and 8 μM, against both strains.

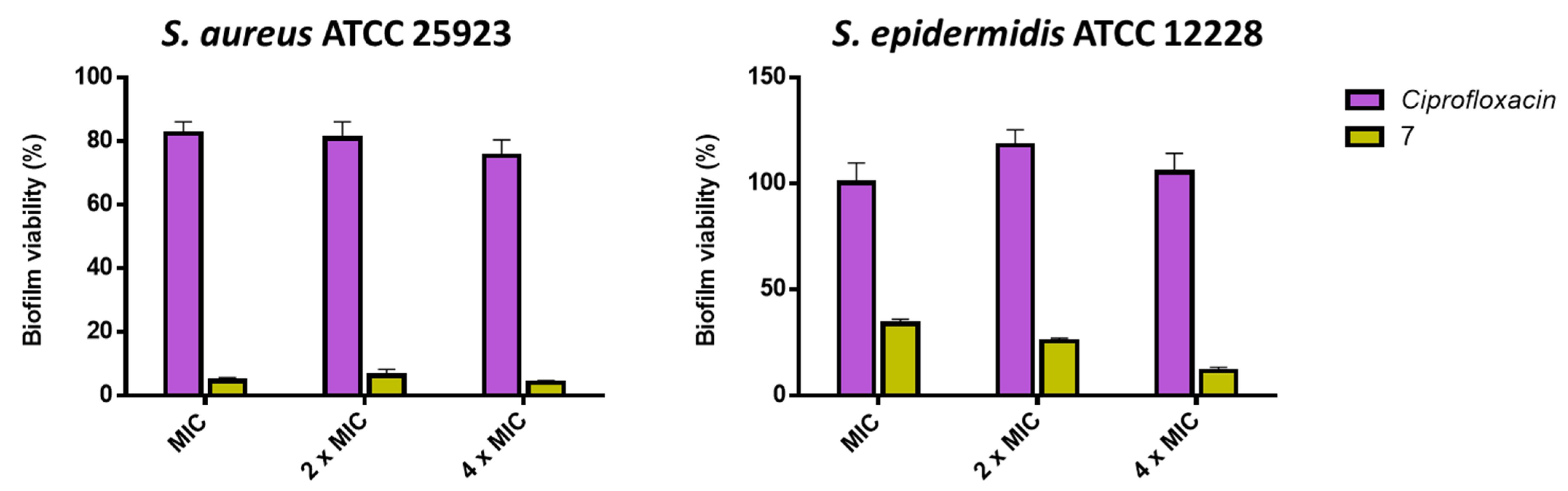

To better estimate the extent of the anti-biofilm activity of compound 7, we then compared our findings with the activity of a conventional antibiotic (i.e., ciprofloxacin) against the preformed biofilm of S. aureus ATCC 25923 and S. epidermidis ATCC 12228 at MIC, 2 × MIC, and 4 × MIC. As reported in Figure 3, ciprofloxacin was inactive against the S. epidermidis biofilm, while only 20% killing of biofilm cells (~80% of biofilm viability) was detected at all concentrations tested against S. aureus.

2.4. Cytotoxicity

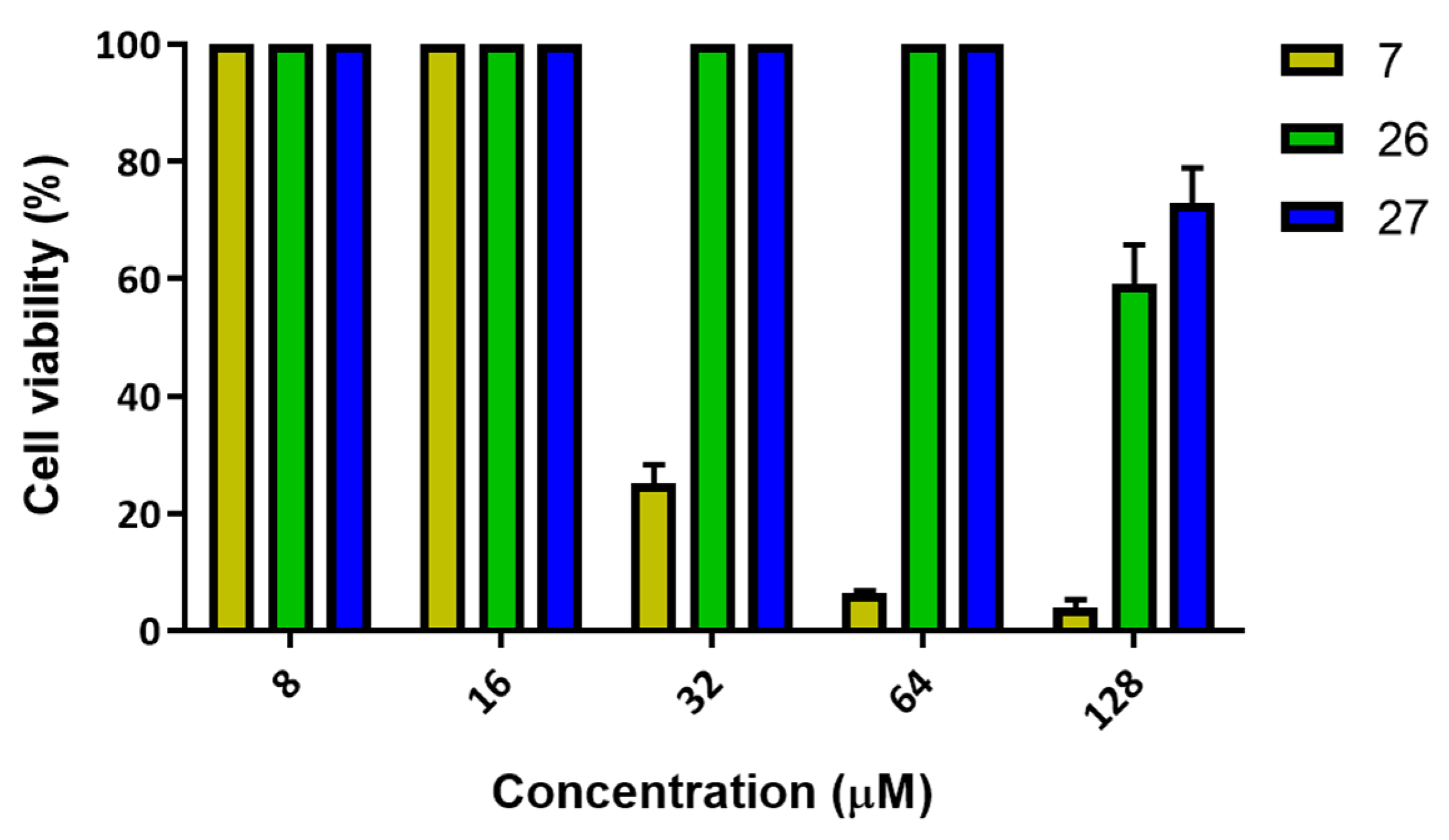

To investigate any potential harmful action of compounds 7, 26, and 27 on host tissues (a crucial aspect for clinical antimicrobial applications of drugs), we evaluated their effect on the viability of human immortalized HaCaT cells, the major cell type of human skin [57,58], using the MTT assay. After 24 h of treatment, compounds 26 and 27 did not induce any toxicity up to a concentration of 64 μM; at 128 μM, cell viability was approximately 60% and 72% for 26 and 27, respectively (Figure 4). A different trend was shown for compound 7, which was not toxic at 8 μM and 16 μM; however, incubation of HaCaT cells with increasing concentrations of this compound led to about 25% cell viability at 32 μM and less than 10% at 64 μM and 128 μM (Figure 4). All three compounds were strongly toxic at 256 μM (data not shown).
Based on the in vitro results of the antibiofilm and cytotoxic activities, we calculated the lethal concentration causing 50% cell death (LC50) and the minimum effective dose for 50% biofilm killing (ABC50) to evaluate the potential therapeutic index (TI) of the most active compounds (i.e., 7 and 26; Table 5).
As the TI value was calculated as the ratio between the toxic concentrations and the effective concentrations, the higher the value, the better the biological profile. Although compound 7 showed cytotoxicity compared to 26, its TI values (i.e., 25.81–6.19) were higher than those of 26, underlining compound 7 as the most promising new antibiofilm molecule.

3. Discussion

The demand for new antibiotic compounds is of major importance in the post-antibiotic era we are currently living. Investments by pharmaceutical companies are often directed to projects aimed at producing drugs for the treatment of chronic diseases that can bring greater revenues than antimicrobials [59]. However, microbial infections remain a challenge to keep under constant control. Indeed, the European Centre for Disease Prevention and Control has conservatively estimated that, in Europe alone, AMR can cause additional annual cost to health care systems of at least €1.5 billion [60].
Considering that biofilm formation is involved in 65–80% of bacterial infections in humans, new antibiotic compounds must have the ability to kill not only the planktonic but also the sessile form of microorganisms [56]. Conventional antibiotics are usually not efficacious against biofilms. Therefore, to prevent the onset of resistant and persistent bacterial cells, it would ideal to identify a molecule able to disrupt sessile bacterial communities within a short time. Here, through a clustering algorithm, we obtained a set of molecules that were firstly screened for their antimicrobial activity. Ferruginin A (7) was found to be the most interesting molecule, due to its anti-Gram-positive activity and the poor information available in the literature. The molecule was isolated in the 1979 from Vismia baccifera var. ferruginea [22], as well as from other Vismia species [61]. Over the years, ferruginin A (7) was also isolated from the leaves of Harungana madagascariensis; Tankeo and coworkers tested it, together with betulinic acid, madagascin, and Kaempferol-3-O-β-D-gluco-pyranoside, for its antimicrobial activity using ciprofloxacin as an antibiotic control, but also against a panel of Gram-negative bacteria (e.g., Enterobacter cloacae, Providencia stuartii, and Klebsiella pneunomaniae) [62,63]. Considering that Staphylococci, especially S. aureus and S. epidermidis, are common inhabitants of the human skin microbiota, as well as being the major microorganisms responsible for hospital-acquired infections, we characterized the capability of ferruginin A (7) to kill the biofilm cells of these pathogens [64]. Compound 7 showed a potent antimicrobial activity against Gram-positive bacteria (MIC values ranging from 8 to 64 μM) and a bactericidal rather than a bacteriostatic effect, as indicated by its ability to provoke a significant CFU reduction. In addition, compound 7 was found to possess a potent antibiofilm activity against both S. aureus and S. epidermidis, with an ABC50 of 1.08 and 4.5 μM, respectively. In comparison to the two related compounds ferruanthrone (26) and vismione B (27), ferruginin A (7) had the higher antibiofilm activity, but also the higher cytotoxicity against HaCaT cells. Despite this, its biological profile (evaluated as TI; Table 5) was better than compound 26 (25.81–6.19 vs. 0.26–2.65, respectively). It is worth noting that the antibiofilm activity was obtained only after 2 h of treatment, while ciprofloxacin, used as a control, was totally inactive against both staphylococcal biofilms within such short time. This fast kinetics is of high importance also for destroying biofilms associated with medical devices. The use of medical devices is rapidly increasing and, despite the multiple precautionary sterilization measures that are being followed in hospitals, staphylococcal colonization on these devices still happens quite frequently [65,66]. Although compound 7 exhibits cytotoxicity at concentrations greater than 32 μM, advances in nanotechnologies would likely help to overcome its noxious effects upon incorporation into appropriate nanoparticulate systems. In addition, it could be developed as an antibiofilm agent, only for disinfection of medical equipment and surgical tools. Furthermore, as even small changes in the chemical structure of ferruginin analogs (26 and 27) are sufficient to lead to a substantial modification of their activity /toxicity, this confirms ferruginin A as a novel promising scaffold for further development of valuable antimicrobial agents.

4. Materials and Methods

4.1. In-House Library Clustering

The algorithm has been described previously [14], and it is inspired by the work published by Stahl and Mauser [15]. Briefly, the custom Python script first performs a preliminary clustering based on maccs166 fingerprints, grouping compounds with a Tanimoto similarity equal or higher than 0.8. Then, isolated compounds are assigned to pre-formed clusters based on substructure comparison, if they have a substructure matching equal or higher than 0.85 according to the Raymond cutoff. Compounds not matching these criteria are classified as singletons and are not included in any of the existing clusters.

4.2. Chemistry

All of the tested compounds (namely, 1–27) are known structures belonging to our in-house library of natural products. The chemical identity of the compounds was assessed by re-running nuclear magnetic resonance spectroscopy (NMR) experiments and were proven to agree with the literature data reported below for each compound. The purity of all compounds, checked by reversed-phase high performance liquid chromatography (HPLC), was always higher than 95%.
Compound 1 (Ibogaine or (6R,7S,11S)-7-ethyl-2-methoxy-6,6a,7,8,9,10,12,13-octahydro-5H-6,9- methanopyrido[1′,2′:1,2]azepino[4,5-b]indole) showed NMR spectra identical to those reported in the literature.
Compound 2 (Serotonin or 3-(2-aminoethyl)-1H-indol-5-ol) was purchased from Sigma-Aldrich (CAS: 50-67-9, St. Louis, MO, USA) and was used without further purification.
Compound 3 (Caffeine or 1,3,7-trimethyl-3,7-dihydro-1H-purine-2,6-dione) was purchased from Sigma-Aldrich (CAS: 58-08-2, St. Louis, MO, USA) and was used without further purification.
Compound 4 (Veratric acid or 3,4-dimethoxybenzoic acid) was purchased from Sigma-Aldrich (CAS: 93-07-2, St. Louis, MO, USA) and was used without further purification.
Compound 5 (Cinnamic acid) was purchased from Sigma-Aldrich (CAS: 140-10-3, St. Louis, MO, USA) and was used without further purification.
Compound 6 (Gallic acid or 3,4,5-trihydroxybenzoic acid) was purchased from Sigma-Aldrich (CAS: 149-91-7, St. Louis, MO, USA) and was used without further purification.
Compound 7 (Ferruginin A or 4,5,10-trihydroxy-7-methyl-1,1,6-tris(3-methylbut-2-enyl)anthracen-2-one) showed NMR spectra identical to those reported in the literature.
Compound 8 (Trachyphone or 4,4’,5,5’-tetrahydroxy-2,2’-dimethoxy-3,3’,7,7’-tetramethyl-[1,1’-bianthracene]-9,9’,10,10’-tetraone) showed NMR spectra identical to those reported in the literature.
Compound 9 (Aloin or 1,8-dihydroxy-3-(hydroxymethyl)-10-(3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H-pyran-2-yl)anthracen-9(10H)-one) showed NMR spectra identical to those reported in the literature.
Compound 10 (Deguelin or (7aS,13aS)-9,10-dimethoxy-3,3-dimethyl-13,13a-dihydro-3H-pyrano[2,3-c:6,5-f’]dichromen-7(7aH)-one) was purchased from Sigma-Aldrich (CAS: 522-17-8, St. Louis, MO, USA) and used without further purification.
Compound 11 (Pongapin or 2-(benzo[d][1,3]dioxol-5-yl)-3-methoxy-4H-furo[2,3-h]chromen-4-one) showed NMR spectra identical to those reported in the literature.
Compound 12 (7-hydroxy-flavone or 7-hydroxy-2-phenyl-4H-chromen-4-one) showed NMR spectra identical to those reported in the literature.
Compound 13 (Glabrescione B or 3-(3,4-bis((3-methylbut-2-en-1-yl)oxy)phenyl)-5,7-dimethoxy-4H-chromen-4-one) showed NMR spectra identical to those reported in the literature.
Compound 14 (Osajin or 5-hydroxy-3-(4-hydroxyphenyl)-8,8-dimethyl-6-(3-methylbut-2-en-1-yl)-4H,8H-pyrano[2,3-f]chromen-4-one) showed NMR spectra identical to those reported in the literature.
Compound 15 (Sakuranetin or 5-hydroxy-2-(4-hydroxyphenyl)-7-methoxychroman-4-one) showed NMR spectra identical to those reported in the literature.
Compound 16 (Clusiacitran B or (3-hydroxy-6,6,9-trimethyl-6a,7,8,9,10,10a-hexahydro-6H-1,9-epoxybenzo[c]chromen-2-yl)(phenyl)methanone) showed NMR spectra identical to those reported in the literature.
Compound 17 (Usnic acid or (R)-1,1’-(1,7,9-trihydroxy-8,9b-dimethyl-3-oxo-3,9b-dihydrodibenzo[b,d]furan-2,6-diyl)bis(ethan-1-one) showed NMR spectra identical to those reported in the literature.
Compound 18 (2’,4-hydroxy-4’-methoxy-chalcone or (E)-1-(2-hydroxy-4-methoxyphenyl)-3-(4-hydroxyphenyl)prop-2-en-1-one) showed NMR spectra identical to those reported in the literature.
Compound 19 (4,4’-dimethoxy-chalcone or (E)-1,3-bis(4-methoxyphenyl)prop-2-en-1-one) showed NMR spectra identical to those reported in the literature.
Compound 20 (2-hydroxy-dihydrochalcone or 3-(2-hydroxyphenyl)-1-phenylpropan-1-one) showed NMR spectra identical to those reported in the literature.
Compound 21 (Xanthotoxin or 9-methoxy-7H-furo[3,2-g]chromen-7-one) showed NMR spectra identical to those reported in the literature.
Compound 22 (Columbianetin or (S)-8-(2-hydroxypropan-2-yl)-8,9-dihydro-2H-furo[2,3-h]chromen-2-one) showed NMR spectra identical to those reported in the literature.
Compound 23 (Borneol or (2S)-1,7,7-trimethylbicyclo[2.2.1]heptan-2-ol) showed NMR spectra identical to those reported in the literature.
Compound 24 (Ursolic acid or (1S,2R,4aS,6aS,6bR,8aR,10S,12aR,12bR,14bS)-10-hydroxy-1,2,6a,6b,9,9,12a-heptamethyl-1,3,4,5,6,6a,6b,7,8,8a,9,10,11,12,12a,12b,13,14b-octadecahydropicene-4a(2H)-carboxylic acid) was purchased from Sigma-Aldrich (CAS: 77-52-1, St. Louis, MO, USA) and was used without further purification.
Compound 25 (Bixin or (2E,4E,6E,8E,10E,12E,14E,16E,18E)-20-methoxy-4,8,13,17-tetramethyl-20-oxoicosa-2,4,6,8,10,12,14,16,18-nonaenoic acid) showed NMR spectra identical to those reported in the literature.
Compound 26 (Ferruanthrone or 1,6,8-trihydroxy-3-methyl-2,4,7-tris(3-methylbut-2-en-1-yl)anthracen-9(10H)-one) showed NMR spectra identical to those reported in the literature.
Compound 27 (Vismione B or 9,12-dihydroxy-5-methoxy-2,2,9-trimethyl-2,8,9,10-tetrahydro-11H-naphtho[2,3-h]chromen-11-one) showed NMR spectra identical to those reported in the literature.

4.3. Materials, Bacterial Strains and Cell Line

All reagents and antibiotics used were purchased from Sigma-Aldrich (St. Luis, MO, USA).
The bacterial strains used in the antimicrobial assays were, for Gram-negative, E. coli ATCC 25922 and P. aeruginosa ATCC 27853, and for Gram-positive, B. megaterium Bm11, S. aureus ATCC 25923, S. epidermidis ATCC 12228, and the yeast C. albicans ATCC 24433.
HaCaT cells were purchased from AddexBio (San Diego, CA, USA) and were cultured in Dulbecco’s modified Eagle’s medium supplemented with 4 mM glutamine (DMEMg), 10% heat-inactivated fetal bovine serum (FBS), and 0.1 mg/mL of penicillin and streptomycin at 37 °C and 5% CO2, in 25 cm2 or 75 cm2 flasks.

4.4. Antibacterial Screening: Inhibition Zone Assay

To screen the library for any antimicrobial activity, we tested all compounds against a reference Gram-negative (i.e., E. coli) and two Gram-positive bacterial strains (i.e., S. aureus and S. epidermidis) through the inhibition zone assay. Bacteria were grown at 37 °C in Luria−Bertani broth (LB) with gentle shaking until reaching an optical density (O.D.) of 0.8 at 590 nm. Then, the bacterial culture was diluted 1:2000 and plated in LB-agarose plates, and aliquots of 3 μL of each compound (5 mM) were loaded into holes previously made in the agarose plates. The plates were incubated overnight, and the diameters of the inhibition zone were measured and are reported in Table 2.

4.5. Antimicrobial Assays

The minimum inhibitory concentrations were determined by the microdilution assay in a 96-well plate. Aliquots of 50 μL of bacterial suspension in Mueller–Hinton broth (MH) in mid-log phase (at a concentration of 2 × 106 cells/mL) were added to 50 μL MH containing serial dilutions of the compounds (in a concentration range of 2–256 μM). The controls were vehicle-treated cells. After an incubation time of 16 h at 37 °C, the MIC was defined as the lowest concentration causing 100% visible inhibition of microbial growth. To determine the bactericidal activity of the tested compounds, aliquots from the wells corresponding to the MIC, 2 × MIC, and 4 × MIC were withdrawn and plated onto agar plates for colony forming unit (CFU) counting.
For the antibiofilm activity, S. aureus and S. epidermidis were grown as reported above; then aliquots of 100 µL of bacteria in LB (at a concentration of 1 × 106 CFU/mL) were dispensed into the wells of a 96-multiwell plate, which was incubated for 20 h at 37 °C to allow for biofilm formation. Subsequently, the medium containing planktonic cells was aspirated from the wells and the latter were rinsed twice with 150 µL of phosphate buffered saline (PBS) to remove any non-adherent cells. After washing, each well was filled with PBS supplemented with different two-fold serial dilutions of compounds 7, 26, and 27 (from 256 to 8 µM). For comparison, a conventional antibiotic (i.e., ciprofloxacin) was tested. The plate was then incubated for 2 h at 37 °C and, after treatment, the wells were rinsed twice with PBS, as indicated above. Aliquots of 150 µL of MTT (0.5 mg/mL) were dispensed in each well to evaluate biofilm cell viability after 4 h incubation at 37 °C. This colorimetric assay consisted in the conversion of the water-soluble yellow dye MTT to the insoluble purple formazan crystals by dehydrogenases. The higher intensity of purple color corresponds to a higher percentage of metabolically active cells and consequently to a higher cell viability. The reaction was stopped by adding sodium dodecyl sulfate (SDS) (at a final concentration of 5% v/v) and the absorbance of each well was recorded at 570 nm using a microplate reader (Infinite M200; Tecan, Salzburg, Austria). The percentage of biofilm viability was calculated with respect to the untreated samples.

4.6. Cytotoxicity Assays

Compounds 7, 26, and 27 were assayed for their potential in vitro toxicity against human keratinocytes (HaCaT cells), as already described in [67]. Cells resuspended in DMEMg supplemented with 2% FBS were seeded at a density of 4 × 104 per well in a 96-well plate and were incubated at 37 °C in a 5% CO2 atmosphere. After overnight incubation, the cells were treated with compounds at the indicated concentrations for 24 h. Controls were HaCaT cells treated with the vehicle. Afterwards, the medium of each well was replaced by 0.5 mg/mL of MTT in Hank’s buffer and the plate was incubated for further 4 h at 37 °C and 5% CO2. Acidified isopropanol was added to each well and absorbance was measured at 570 nm by the same microplate reader employed for the antimicrobial assays. The percentage of cell viability was calculated with respect to the control cells. The values of LC50 and ABC50 were calculated using the “Quest Graph™ LC50 Calculator (AAT Bioquest, Inc., Sunnyvale, CA, USA, Access date: 19 October 2021, https://www.aatbio.com/tools/lc50-calculator).

Author Contributions

B.C. and F.G. wrote the manuscript; B.C. and M.R.L. performed the antimicrobial assay and analyzed the data; F.C. and E.P. performed the cytotoxicity assay and analyzed the data; V.V., S.C. and C.T. performed the acquisition and interpretation of the magnetic resonance spectroscopy (NMR) spectra of bioactive compounds and the determination of purity by high performance liquid chromatography (HPLC); M.M. performed the bioinformatics analysis and revised the manuscript; B.B. provided overall guidance and critically reviewed the manuscript; D.Q. and M.L.M. conceived the project and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by grants from Sapienza University of Rome (RM11916B6A28725C) and MIUR (Art. 1, commi 314–337 Legge 232/2016) for the Excellence Departments grant to the Department of Chemistry and Technology of Drugs, and by PON (Piano Operativo Nazionale) Grant ARS01_00432 PROGEMA, “Processi Green per l’Estrazione di Principi Attivi e la Depurazione di Matrici di Scarto e Non”, March 2018–September 2020.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hutchings, M.I.; Truman, A.W.; Wilkinson, B. Antibiotics: Past, present and future. Curr. Opin. Microbiol. 2019, 51, 72–80. [Google Scholar] [CrossRef]
  2. Ventola, C.L. The antibiotic resistance crisis: Part 1: Causes and threats. Pharm. Ther. 2015, 40, 277–283. [Google Scholar]
  3. De Kraker, M.E.; Stewardson, A.J.; Harbarth, S. Will 10 Million People Die a Year due to Antimicrobial Resistance by 2050? PLoS Med. 2016, 13, e1002184. [Google Scholar] [CrossRef] [Green Version]
  4. Penesyan, A.; Paulsen, I.T.; Kjelleberg, S.; Gillings, M.R. Three faces of biofilms: A microbial lifestyle, a nascent multicellular organism, and an incubator for diversity. NPJ Biofilms Microbiomes 2021, 7, 80. [Google Scholar] [CrossRef]
  5. Tan, S.Y.; Tatsumura, Y. Alexander Fleming (1881–1955): Discoverer of penicillin. Singap. Med. J. 2015, 56, 366–367. [Google Scholar] [CrossRef] [Green Version]
  6. Newman, D.J.; Cragg, G.M. Natural products as sources of new drugs over the 30 years from 1981 to 2010. J. Nat. Prod. 2012, 75, 311–335. [Google Scholar] [CrossRef] [Green Version]
  7. Ghirga, F.; Quaglio, D.; Mori, M.; Cammarone, S.; Iazzetti, A.; Goggiamani, A.; Ingallina, C.; Botta, B.; Calcaterra, A. A unique high-diversity natural product collection as a reservoir of new therapeutic leads. Org. Chem. Front. 2021, 8, 996–1025. [Google Scholar] [CrossRef]
  8. Pollastro, F.; Fontana, G.; Appendino, G. Comprehensive Natural Products II Chemistry and Biology; Elsevier: Oxford, UK, 2009; pp. 205–236. [Google Scholar]
  9. Wright, G.D. Unlocking the potential of natural products in drug discovery. Microb. Biotechnol. 2019, 12, 55–57. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Quaglio, D.; Mangoni, M.L.; Stefanelli, R.; Corradi, S.; Casciaro, B.; Vergine, V.; Lucantoni, F.; Cavinato, L.; Cammarone, S.; Loffredo, M.R.; et al. ent-Beyerane Diterpenes as a Key Platform for the Development of ArnT-Mediated Colistin Resistance Inhibitors. J. Org. Chem. 2020, 85, 10891–10901. [Google Scholar] [CrossRef]
  11. Quaglio, D.; Zhdanovskaya, N.; Tobajas, G.; Cuartas, V.; Balducci, S.; Christodoulou, M.S.; Fabrizi, G.; Gargantilla, M.; Priego, E.M.; Carmona Pestana, A.; et al. Chalcones and Chalcone-mimetic Derivatives as Notch Inhibitors in a Model of T-cell Acute Lymphoblastic Leukemia. ACS Med. Chem. Lett. 2019, 10, 639–643. [Google Scholar] [CrossRef] [PubMed]
  12. Lospinoso Severini, L.; Quaglio, D.; Basili, I.; Ghirga, F.; Bufalieri, F.; Caimano, M.; Balducci, S.; Moretti, M.; Romeo, I.; Loricchio, E.; et al. A Smo/Gli Multitarget Hedgehog Pathway Inhibitor Impairs Tumor Growth. Cancers 2019, 11, 1518. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Iovine, V.; Benni, I.; Sabia, R.; D’Acquarica, I.; Fabrizi, G.; Botta, B.; Calcaterra, A. Total Synthesis of (+/−)-Kuwanol E. J. Nat. Prod. 2016, 79, 2495–2503. [Google Scholar] [CrossRef]
  14. Mori, M.; Tottone, L.; Quaglio, D.; Zhdanovskaya, N.; Ingallina, C.; Fusto, M.; Ghirga, F.; Peruzzi, G.; Crestoni, M.E.; Simeoni, F.; et al. Identification of a novel chalcone derivative that inhibits Notch signaling in T-cell acute lymphoblastic leukemia. Sci. Rep. 2017, 7, 2213. [Google Scholar] [CrossRef] [PubMed]
  15. Stahl, M.; Mauser, H. Database clustering with a combination of fingerprint and maximum common substructure methods. J. Chem. Inf. Model. 2005, 45, 542–548. [Google Scholar] [CrossRef]
  16. Alper, K.R. Ibogaine: A review. Alkaloids Chem. Biol. 2001, 56, 1–38. [Google Scholar] [CrossRef]
  17. Erland, L.A.; Turi, C.E.; Saxena, P.K. Serotonin: An ancient molecule and an important regulator of plant processes. Biotechnol. Adv. 2016, 34, 1347–1361. [Google Scholar] [CrossRef] [PubMed]
  18. Kihlman, B.A. Caffeine and Chromosomes; Elsevier Scientific Pub. Co.: Amsterdam, The Netherlands, 1977. [Google Scholar]
  19. Choi, W.S.; Shin, P.G.; Lee, J.H.; Kim, G.D. The regulatory effect of veratric acid on NO production in LPS-stimulated RAW264.7 macrophage cells. Cell. Immunol. 2012, 280, 164–170. [Google Scholar] [CrossRef] [PubMed]
  20. De, P.; Baltas, M.; Bedos-Belval, F. Cinnamic acid derivatives as anticancer agents-a review. Curr. Med. Chem. 2011, 18, 1672–1703. [Google Scholar] [CrossRef] [PubMed]
  21. Gnawali, G.R.; Acharya, P.; Rajbhandari, M. Isolation of Gallic Acid and Estimation of Total Phenolic Content in Some Medicinal Plants and Their Antioxidant Activity. Nepal J. Sci. Technol. 2013, 14, 95–102. [Google Scholar] [CrossRef] [Green Version]
  22. Delle Monache, F.; Mc Quhae, M.M.; Ferrari, F.; Marini-Bettolo, G.B. Ferruginin A and B and ferruanthrone, new triprenylated anthranoids from Vismia baccifera var. ferruginea. Tetrahedron 1979, 35, 2143–2149. [Google Scholar] [CrossRef]
  23. Delle Monache, F.; D’Albuquerque, I.L.; De Andrade Chiappeta, A.; De Mello, J.F. A bianthraquinone and 4′-O-methyl-ent-gallocatechin fromCassia trachypus. Phytochemistry 1992, 31, 259–261. [Google Scholar] [CrossRef]
  24. Patel, K.; Patel, D.K. Medicinal importance, pharmacological activities, and analytical aspects of aloin: A concise report. J. Acute Dis. 2013, 2, 262–269. [Google Scholar] [CrossRef] [Green Version]
  25. Delfel, N.E.; Tallent, W.H.; Carlson, D.G.; Wolff, I.A. Distribution of rotenone and deguelin in Tephrosia vogelii and separation of rotenoid-rich fractions. J. Agric. Food Chem. 1970, 18, 385–390. [Google Scholar] [CrossRef] [PubMed]
  26. Pavanaram, S.K.; Row, L.R. New Flavones from Pongamia pinnata (L.) Merr.: Identification of Compound D. Nature 1955, 176, 1177. [Google Scholar] [CrossRef]
  27. Anand, M.; Basavaraju, R. A review on phytochemistry and pharmacological uses of Tecoma stans (L.) Juss. ex Kunth. J. Ethnopharmacol. 2021, 265, 113270. [Google Scholar] [CrossRef]
  28. Li, Z.; Yang, Y.; Liu, M.; Zhang, C.; Shao, J.; Hou, X.; Tian, J.; Cui, Q. A comprehensive review on phytochemistry, bioactivities, toxicity studies, and clinical studies on Ficus carica Linn. leaves. Biomed. Pharm. 2021, 137, 111393. [Google Scholar] [CrossRef] [PubMed]
  29. Zhang, M.R.; Jiang, K.; Yang, J.L.; Shi, Y.P. Flavonoids as key bioactive components of Oxytropis falcata bunge, a traditional anti-inflammatory and analgesic Tibetan medicine. Nat. Prod. Res. 2020, 34, 3335–3352. [Google Scholar] [CrossRef]
  30. Wang, J.H.; Luan, F.; He, X.D.; Wang, Y.; Li, M.X. Traditional uses and pharmacological properties of Clerodendrum phytochemicals. J. Tradit. Complement. Med. 2018, 8, 24–38. [Google Scholar] [CrossRef]
  31. Delle Monache, F.; Cairo-Valera, G.; Zapata, D.; Marini-Bettolo, G. 3-aryl-4 methoxycoumarins and isoflavones from Derris glabrescens. Gazz. Chim. Ital. 1977, 107, 403. [Google Scholar]
  32. Delle Monache, G.; Scurria, R.; Vitali, A.; Botta, B.; Monacelli, B.; Pasqua, G.; Palocci, C.; Cernia, E. Two isoflavones and a flavone from the fruits of Maclura pomifera. Phytochemistry 1994, 37, 893–898. [Google Scholar] [CrossRef]
  33. Xue, L.L.; Wu, W.S.; Ma, X.; Pei, H.Y.; Tang, M.H.; Kuang, S.; Cai, X.Y.; Wang, L.; Li, Y.; Zhang, R.J.; et al. Modulation of LPS-induced inflammation in RAW264.7 murine cells by novel isoflavonoids from Millettia pulchra. Bioorganic Chem. 2020, 97, 103693. [Google Scholar] [CrossRef] [PubMed]
  34. Magalhaes, A.F.; Tozzi, A.M.; Magalhas, E.G.; de Souza Moraes, V.R. Prenylated flavonoids from Deguelia hatschbachii and their systematic significance in Deguelia. Phytochemistry 2001, 57, 77–89. [Google Scholar] [CrossRef]
  35. Stompor, M. A Review on Sources and Pharmacological Aspects of Sakuranetin. Nutrients 2020, 12, 513. [Google Scholar] [CrossRef] [Green Version]
  36. Gonzalez, J.G.; Martinez Olivares, E.; Delle Monache, F. Citrans and cyclols from Clusia multiflora. Phytochemistry 1995, 38, 485–489. [Google Scholar] [CrossRef]
  37. González, A.G.; Pérez, E.M.R.; Barrera, J.B. Biologically Active Compounds from the Lichen Ramalina hierrensis. Planta Med. 1991, 57, A2. [Google Scholar] [CrossRef]
  38. Yang, C.; Zhu, S.; Chen, Y.; Liu, Z.; Zhang, W.; Zhao, C.; Luo, C.; Deng, H. Flavonoid 4,4’-dimethoxychalcone suppresses cell proliferation via dehydrogenase inhibition and oxidative stress aggravation. Free Radic. Biol. Med. 2021, 175, 206–215. [Google Scholar] [CrossRef]
  39. Avila, H.P.; Smania Ede, F.; Delle Monache, F.; Smania, A., Jr. Structure-activity relationship of antibacterial chalcones. Bioorg. Med. Chem. 2008, 16, 9790–9794. [Google Scholar] [CrossRef] [PubMed]
  40. Fahmy, I.R.; Abu-Shady, H. Ammi majus Linn.; pharmacognostical study and isolation of a crystalline constituent, ammoidin. Q. J. Pharm. Pharmacol. 1947, 20, 281–291, discussion 426. [Google Scholar]
  41. Nielsen, B.E. Coumarins of Umbelliferous Plants; The Royal Danish School of Pharmacy: Copenhagen, Danmark, 1970. [Google Scholar]
  42. Mitchell, J.; Rook, A.; Sulzberger, M.B. Botanical Dermatology: Plants and Plant Products Injurious to the Skin; Greenglass: Vancouver, BC, Canada, 1979. [Google Scholar]
  43. Zorin, E.B.I.; Ivashchenko, N.V.; Perelson, M.E.; Pimenov, M.G. Coumarins from the Roots of Angelica Komarovii. Chem. Nat. Compd. 1984, 20, 365. [Google Scholar] [CrossRef]
  44. Han, H.Y.; Wen, P.; Liu, H.W.; Wang, N.L.; Yao, X.S. Coumarins from campylotropis hirtella (FRANCH.) SCHINDL. and their inhibitory activity on prostate specific antigen secreted from LNCaP cells. Chem. Pharm. Bull. 2008, 56, 1338–1341. [Google Scholar] [CrossRef] [Green Version]
  45. Chou, H.C.; Chen, J.J.; Duh, C.Y.; Huang, T.F.; Chen, I.S. Cytotoxic and anti-platelet aggregation constituents from the root wood of Melicope semecarpifolia. Planta Med. 2005, 71, 1078–1081. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Quader, M.A.; El-Turbi, J.A.; Armstrong, J.A.; Gray, A.I.; Waterman, P.G. Coumarins and their taxonomic value in the genus Phebalium. Phytochemistry 1992, 31, 3083–3089. [Google Scholar] [CrossRef]
  47. Wong, K.C.; Ong, K.S.; Lim, C.L. Compositon of the essential oil of rhizomes of kaempferia galanga L. Flavour Fragr. J. 1992, 7, 263–266. [Google Scholar] [CrossRef]
  48. Vazquez, A.; Aimar, M.; Demmel, G.; Cabalen, M.; Criado, S.; Cantero, J.; Velasco, M.; Rossi, L. Determination of volatile organic compounds of Tagetes filifolia Lag. (Asteraceae) from Córdoba (Argentina) using HS-SPME analysis. Boletín Latinoamericano Caribe Plantas Medicinales Aromáticas 2013, 12, 143–149. [Google Scholar]
  49. Ikeda, Y.; Murakami, A.; Ohigashi, H. Ursolic acid: An anti- and pro-inflammatory triterpenoid. Mol. Nutr. Food Res. 2008, 52, 26–42. [Google Scholar] [CrossRef] [PubMed]
  50. Leal, A.S.; Wang, R.; Salvador, J.A.; Jing, Y. Synthesis of novel ursolic acid heterocyclic derivatives with improved abilities of antiproliferation and induction of p53, p21waf1 and NOXA in pancreatic cancer cells. Bioorganic Med. Chem. 2012, 20, 5774–5786. [Google Scholar] [CrossRef] [PubMed]
  51. Jondiko, I.J.O.; Pattenden, G. Terpenoids and an apocarotenoid from seeds of Bixa orellana. Phytochemistry 1989, 28, 3159–3162. [Google Scholar] [CrossRef]
  52. Rajamanickam, K.; Yang, J.; Sakharkar, M.K. Gallic Acid Potentiates the Antimicrobial Activity of Tulathromycin Against Two Key Bovine Respiratory Disease (BRD) Causing-Pathogens. Front. Pharmacol. 2019, 9, 1486. [Google Scholar] [CrossRef] [PubMed]
  53. Francolini, I.; Norris, P.; Piozzi, A.; Donelli, G.; Stoodley, P. Usnic acid, a natural antimicrobial agent able to inhibit bacterial biofilm formation on polymer surfaces. Antimicrob. Agents Chemother. 2004, 48, 4360–4365. [Google Scholar] [CrossRef] [Green Version]
  54. Fang, X.; Yang, B.; Cheng, Z.; Zhang, P.; Yang, M. Synthesis and antimicrobial activity of novel chalcone derivatives. Res. Chem. Intermed. 2014, 40, 1715–1725. [Google Scholar] [CrossRef]
  55. Delle Monache, F.; Ferrari, F.; Marini-Bettolo, G.B.; Maxfield, P.; Cerrini, S.; Fedeli, W.; Gavuzzo, E.; Vaciago, A. Vismiones from Vismia baccifera var. dealdata (H.B.K.): Chemistry and x-ray structure determination. Gazz. Chim. Ital. 1979, 108, 301–310. [Google Scholar]
  56. Kranjec, C.; Morales Angeles, D.; Torrissen Marli, M.; Fernandez, L.; Garcia, P.; Kjos, M.; Diep, D.B. Staphylococcal Biofilms: Challenges and Novel Therapeutic Perspectives. Antibiotics 2021, 10, 131. [Google Scholar] [CrossRef]
  57. Barbieri, J.S.; Wanat, K.; Seykora, J. Skin: Basic Structure and Function. In Pathobiology of Human Disease; Elsevier: Oxford, UK, 2014; pp. 1134–1144. [Google Scholar] [CrossRef]
  58. Colombo, I.; Sangiovanni, E.; Maggio, R.; Mattozzi, C.; Zava, S.; Corbett, Y.; Fumagalli, M.; Carlino, C.; Corsetto, P.A.; Scaccabarozzi, D.; et al. HaCaT Cells as a Reliable In Vitro Differentiation Model to Dissect the Inflammatory/Repair Response of Human Keratinocytes. Mediat. Inflamm. 2017, 2017, 7435621. [Google Scholar] [CrossRef] [PubMed]
  59. Shlaes, D.M. The Economic Conundrum for Antibacterial Drugs. Antimicrob. Agents Chemother. 2019, 64, e02057-19. [Google Scholar] [CrossRef] [PubMed]
  60. Littmann, J.; Viens, A.M.; Silva, D.S. The Super-Wicked Problem of Antimicrobial Resistance. In Ethics and Drug Resistance: Collective Responsibility for Global Public Health; Springer International Publishing: Cham, Switzerland, 2020; pp. 421–443. [Google Scholar] [CrossRef]
  61. Hussein, A.A.; Bozzi, B.; Correa, M.; Capson, T.L.; Kursar, T.A.; Coley, P.D.; Solis, P.N.; Gupta, M.P. Bioactive constituents from three Vismia species. J. Nat. Prod. 2003, 66, 858–860. [Google Scholar] [CrossRef]
  62. Tankeo, S.B.; Damen, F.; Sandjo, L.P.; Celik, I.; Tane, P.; Kuete, V. Antibacterial activities of the methanol extracts, fractions and compounds from Harungana madagascariensis Lam. ex Poir. (Hypericaceae). J. Ethnopharmacol. 2016, 190, 100–105. [Google Scholar] [CrossRef] [PubMed]
  63. Johnson, O.O.; Zhao, M.; Gunn, J.; Santarsiero, B.D.; Yin, Z.Q.; Ayoola, G.A.; Coker, H.A.; Che, C.T. α-Glucosidase Inhibitory Prenylated Anthranols from Harungana madagascariensis. J. Nat. Prod. 2016, 79, 224–229. [Google Scholar] [CrossRef] [PubMed]
  64. Otto, M. Staphylococcal biofilms. Curr. Top Microbiol. Immunol. 2008, 322, 207–228. [Google Scholar] [CrossRef] [PubMed]
  65. Zheng, Y.; He, L.; Asiamah, T.K.; Otto, M. Colonization of medical devices by staphylococci. Environ. Microbiol. 2018, 20, 3141–3153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Agarwal, A.; Singh, K.P.; Jain, A. Medical significance and management of staphylococcal biofilm. FEMS Immunol. Med. Microbiol. 2010, 58, 147–160. [Google Scholar] [CrossRef]
  67. Casciaro, B.; Calcaterra, A.; Cappiello, F.; Mori, M.; Loffredo, M.R.; Ghirga, F.; Mangoni, M.L.; Botta, B.; Quaglio, D. Nigritanine as a New Potential Antimicrobial Alkaloid for the Treatment of Staphylococcus aureus-Induced Infections. Toxins 2019, 11, 511. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Antibiotics 11 00084 g001 550

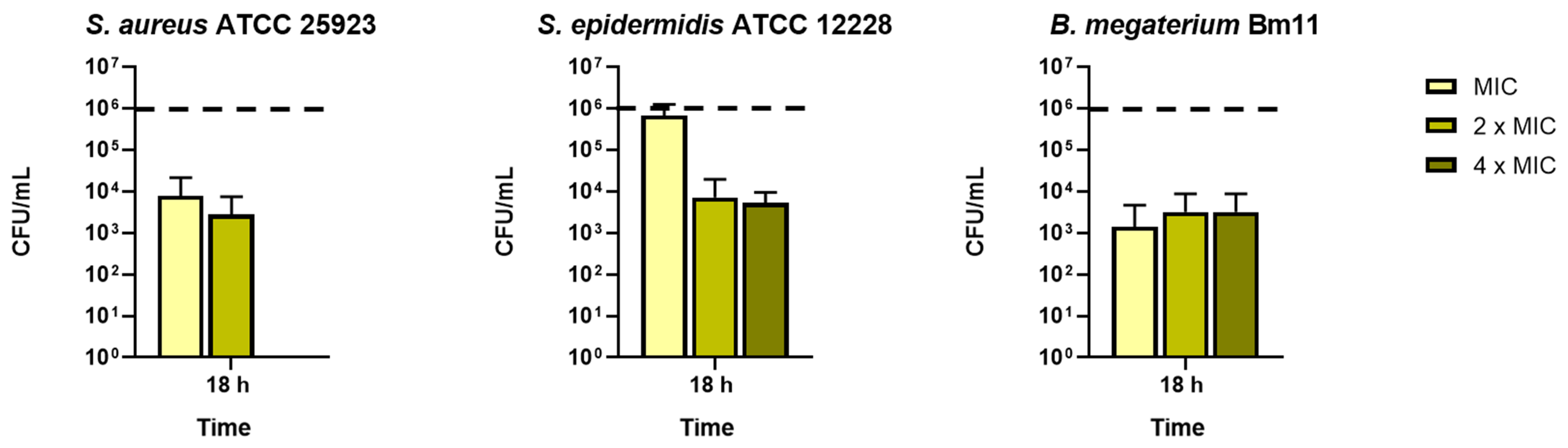

Figure 1. Bactericidal activity of compound 7 at its MIC, 2 × MIC, and 4 × MIC evaluated after 18 h of treatment by CFU counting. The values are the mean ± the standard error of the mean (SEM) obtained from at least three independent experiments. The dotted line indicates the initial number of bacterial cells (1 × 106 CFU/mL).
Figure 1. Bactericidal activity of compound 7 at its MIC, 2 × MIC, and 4 × MIC evaluated after 18 h of treatment by CFU counting. The values are the mean ± the standard error of the mean (SEM) obtained from at least three independent experiments. The dotted line indicates the initial number of bacterial cells (1 × 106 CFU/mL).
Antibiotics 11 00084 g001
Antibiotics 11 00084 g002 550
Figure 2. Activity of compounds 7, 26, and 27 against preformed S. aureus and S. epidermidis biofilms, evaluated after 2 h of treatment, compared to the untreated control cells, using the MTT assay. The values are the means ± SEM of triplicates of three independent experiments.
Figure 2. Activity of compounds 7, 26, and 27 against preformed S. aureus and S. epidermidis biofilms, evaluated after 2 h of treatment, compared to the untreated control cells, using the MTT assay. The values are the means ± SEM of triplicates of three independent experiments.
Antibiotics 11 00084 g002
Antibiotics 11 00084 g003 550
Figure 3. Activity of compound 7 and ciprofloxacin at MIC, 2 × MIC, and 4 × MIC against preformed S. aureus and S. epidermidis biofilms, after 2 h of treatment, compared to the untreated control cells, using the MTT assay. The values are the means ± SEM of the triplicates of three independent experiments.
Figure 3. Activity of compound 7 and ciprofloxacin at MIC, 2 × MIC, and 4 × MIC against preformed S. aureus and S. epidermidis biofilms, after 2 h of treatment, compared to the untreated control cells, using the MTT assay. The values are the means ± SEM of the triplicates of three independent experiments.
Antibiotics 11 00084 g003
Antibiotics 11 00084 g004 550
Figure 4. HaCaT cells viability after 24 h treatment with compounds 7, 26, and 27 compared to the untreated control cells, as determined by the MTT assay. Data are expressed as the mean of three independent experiments ± SEM.
Figure 4. HaCaT cells viability after 24 h treatment with compounds 7, 26, and 27 compared to the untreated control cells, as determined by the MTT assay. Data are expressed as the mean of three independent experiments ± SEM.
Antibiotics 11 00084 g004
Table
Table 1. List of the molecules tested in this work and their general features.
Table 1. List of the molecules tested in this work and their general features.
ClusterCommon
Name
(Library Code)		Chemical StructureM.W.Molecular FormulaSourceRef
Alkaloids
1Ibogaine (BBN236) Antibiotics 11 00084 i001310.43C20H26N2OTabernanthe iboga
(Apocynaceae family)		[16]
2Serotonin (BBN187) Antibiotics 11 00084 i002176.22C10H12N2OMucuna pruriens
(Fabaceae family);
Musa sapientum
(Musaceae family); pineapple
(Bromeliaceae family); strawberry and cherries
(Rosaceae family);
rice (Poaceae family)		[17]
3Caffeine (BBN195) Antibiotics 11 00084 i003194.19C8H10N4O2Camellia sinensis (Theaceae family);
Coffea arabica
(Rubiaceae family)		[18]
Phenolic compounds
Aromatic compounds
4Veratric Acid (BBN227) Antibiotics 11 00084 i004182.18C9H10O4Tabebuia impetiginosa
(Bignoniaceae family)		[19]
5Cinnamic Acid
(BBN232)		 Antibiotics 11 00084 i005148.16C9H8O2Ginseng
(Araliacee family), Xuanshen
(Scrophulariaceae family);
Danshen
(Lamiaceae family)		[20]
6Gallic Acid
(BBN241)		 Antibiotics 11 00084 i006170.12C7H6O5Terminalia chebula (Combretaceae family)[21]
Anthranoids
7Ferruginin A (BBN240) Antibiotics 11 00084 i007460.61C30H36O4Vismia baccifera var. ferruginea and
Vismia decipiens
(Hypericaceae family)		[22]
8Trachyphone (BBN242) Antibiotics 11 00084 i008594.6C34H26O10Cassia trachypus (Leguminosae family)[23]
9Aloin
(BBN36)		 Antibiotics 11 00084 i009418.40C21H22O9Aloe vera
(Asphodelaceae family)		[24]
Flavonoids
Rotenoids
10Deguelin
(BBN238)		 Antibiotics 11 00084 i010394.42C23H22O6Tephrosia vogelii
(Fabaceae family)		[25]
Furanoflavones
11Pongapin (BBN259) Antibiotics 11 00084 i011336.3C19H12O6Pongapia pinnata
(Fabaceae family)		[26]
Flavones
127-hydroxy-flavone
(BBN143)		 Antibiotics 11 00084 i012238.24C15H10O3Tecoma stans
(Bignoniaceae family)
Ficus carica Linn.
(Moraceae family); Oxytropis falcata
(Fabaceae family) Clerodendrum phlomidis
(Lamiaceae family)		[27,28,29,30]
Isoflavones
13Glabrescione B
(BBN234)		 Antibiotics 11 00084 i013450.53C27H30O6Derris glabrescens
(Leguminosae family)		[31]
14Osajin (BBN98) Antibiotics 11 00084 i014404.46C25H24O5Maclura pomifera
(Moraceae family);
Millettia pulchra
(Leguminosae family);
Deguelia genus
(Fabaceae family)		[32,33,34]
Flavanon
15Sakuranetin (BBN159) Antibiotics 11 00084 i015286.28C16H14O5Prunus puddum (Rosaceae family) Prunus spp.
(Rosaceae family);
Baccharis retusa
(Asteraceae family); Ribes nigrum L.
(Grossulariaceae family);
Iris milesii
(Iridaceae family); Eriodictyon californicum
(Boraginaceae family); Hyptis salzmanii
(Lamiaceae family); Bonnetia dinizii (Guttiferae family); Primula sieboldii (Primulaceae family); Prunus avium L. (Rosaceae family) 		[35]
Benzophenone
16Clusiacitran B (BBN38) Antibiotics 11 00084 i016364.44C23H24O4Clusia multiflora (Clusiaceae family)[36]
Dibenzofuran
17Usnic acid (BBN66) Antibiotics 11 00084 i017344.32C18H16O7Ramalina hierensis (Ramalinaceae family)[37]
Chalcone
182’,4-hydroxy-4’-methoxy-chalcone (BBN246) Antibiotics 11 00084 i018270.28C16H14O4Synthetic origin[14]
194,4’-dimethoxy-chalcone (BBN229) Antibiotics 11 00084 i019268.31C17H16O3Angelica keiskei koidzumi (Apiaceae family)[38]
Dihydrochalcone
202-hydroxy-dihydrochalcone (BBN86) Antibiotics 11 00084 i020226.28C15H14O2Synthetic origin[39]
Coumarine
21Xanthotoxin (BBN225) Antibiotics 11 00084 i021216.19C12H8O4Ammi majus and Heracleum genus (Apiaceae family)[40,41,42]
22Columbianetin (BBN133) Antibiotics 11 00084 i022246.26C14H14O4Angelica komarovii (Apiaceae family); Campylotropis hirtella (Onagraceae family); Melicope semecarpifolia and Phebalium stenophyllum (Rutaceae family)[43,44,45,46]
Terpenoids
23Borneol (BBN245) Antibiotics 11 00084 i023154.25C10H18OKaempferia galanga (Zingiberaceae family); Blumea balsamifera and Artemisia genus (Asteraceae family)[47]
24Ursolic Acid (BBN233) Antibiotics 11 00084 i024456.71C30H48O3Mimusops
caffra (Sapotaceae family); Ilex paraguarieni (Aquifoliaceae family); Glechoma hederaceaes (Lamiaceae family); Ichnocarpus frutescens (Apocynaceae family); Syzygium claviflorum (Myrtaceae family)		[48,49,50]
Apocarotenoid
25Bixin (BBN103) Antibiotics 11 00084 i025394.51C25H30O4Bixa orellana (Bixaceae family)[51]
Table
Table 2. Diameters of the inhibition zone of all the active compounds (15 nmol) against two Gram-positive bacterial strains.
Table 2. Diameters of the inhibition zone of all the active compounds (15 nmol) against two Gram-positive bacterial strains.
CompoundInhibition Zone (cm)
Gram-positive
S. aureusS. epidermidis
62.350n.a.
70.6200.550
171.0402.832
180.6220.590
210.420n.a.
241.0402.832
Data are from a single experiment representative of three independent experiments; n.a.: not active.
Table
Table 3. General features of the two structural related anthranoids, i.e., 26 and 27.
Table 3. General features of the two structural related anthranoids, i.e., 26 and 27.
CompoundCommon
Name
(Library Code)		Chemical StructureM.W.Molecular FormulaSourceRef
26Ferruanthrone (BBN257) Antibiotics 11 00084 i026460.61C30H36O4Vismia baccifera var. ferruginea and Vismia decipiens (Hypericaceae family)[22]
27Vismione B
(BBN239)		 Antibiotics 11 00084 i027354.40C21H22O5Vismia baccifera var. dealdata (Hypericaceae family)[55]
Table
Table 4. Antimicrobial activity of 7, 26, and 27 against a panel of Gram-negative and Gram-positive bacteria, and yeast.
Table 4. Antimicrobial activity of 7, 26, and 27 against a panel of Gram-negative and Gram-positive bacteria, and yeast.
MicroorganismMIC (μM)
72627
Gram-negative
E. coli ATCC 25922>256>256>256
P. aeruginosa ATCC 27853>256>256>256
Gram-positive
B. megaterium Bm118256>256
S. aureus ATCC 2592364>256> 256
S. epidermidis ATCC 1222816>256>256
Yeast
C. albicans ATCC 24433>256>256>256
Table
Table 5. LC50, ABC50, and TI of compounds 7 and 26.
Table 5. LC50, ABC50, and TI of compounds 7 and 26.
CompoundLC50 (μM)ABC50 (μM)TI (LC50/ABC50)
S. aureusS. epidermidis
727.881.084.525.81–6.19
26133.53501.850.320.26–2.65
LC50, lethal concentration 50; ABC50, anti-biofilm concentration 50; TI, therapeutic index.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Casciaro, B.; Ghirga, F.; Cappiello, F.; Vergine, V.; Loffredo, M.R.; Cammarone, S.; Puglisi, E.; Tortora, C.; Quaglio, D.; Mori, M.; et al. The Triprenylated Anthranoid Ferruginin A, a Promising Scaffold for the Development of Novel Antibiotics against Gram-Positive Bacteria. Antibiotics 2022, 11, 84. https://doi.org/10.3390/antibiotics11010084

AMA Style

Casciaro B, Ghirga F, Cappiello F, Vergine V, Loffredo MR, Cammarone S, Puglisi E, Tortora C, Quaglio D, Mori M, et al. The Triprenylated Anthranoid Ferruginin A, a Promising Scaffold for the Development of Novel Antibiotics against Gram-Positive Bacteria. Antibiotics. 2022; 11(1):84. https://doi.org/10.3390/antibiotics11010084

Chicago/Turabian Style

Casciaro, Bruno, Francesca Ghirga, Floriana Cappiello, Valeria Vergine, Maria Rosa Loffredo, Silvia Cammarone, Elena Puglisi, Carola Tortora, Deborah Quaglio, Mattia Mori, and et al. 2022. "The Triprenylated Anthranoid Ferruginin A, a Promising Scaffold for the Development of Novel Antibiotics against Gram-Positive Bacteria" Antibiotics 11, no. 1: 84. https://doi.org/10.3390/antibiotics11010084

APA Style

Casciaro, B., Ghirga, F., Cappiello, F., Vergine, V., Loffredo, M. R., Cammarone, S., Puglisi, E., Tortora, C., Quaglio, D., Mori, M., Botta, B., & Mangoni, M. L. (2022). The Triprenylated Anthranoid Ferruginin A, a Promising Scaffold for the Development of Novel Antibiotics against Gram-Positive Bacteria. Antibiotics, 11(1), 84. https://doi.org/10.3390/antibiotics11010084

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
