Article

A Convenient One-Pot Synthesis of Novel Benzimidazole–Thiazinone Derivatives and Their Antimicrobial Activity

1
Medicinal Chemistry Laboratory, Department of Chemistry, Jamia Millia Islamia, Jamia Nagar, New Delhi 110025, India
2
Department of Biochemistry, School of Chemical and Life Sciences (SCLS), Jamia Hamdard, New Delhi 110062, India
3
Department of Biosciences, Jamia Millia Islamia, Jamia Nagar, New Delhi 110025, India
4
Central Laboratories Unit, Qatar University, Doha 2713, Qatar
5
Department of Pharmacognosy, College of Pharmacy, King Saud University, Riyadh 11451, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Antibiotics 2024, 13(12), 1155; https://doi.org/10.3390/antibiotics13121155
Submission received: 10 October 2024 / Revised: 23 November 2024 / Accepted: 25 November 2024 / Published: 2 December 2024

Abstract

:
Background: The increasing prevalence of antimicrobial resistant highlights the urgent need for the new therapeutic agents. This study aimed to design and synthesize fused tricyclic benzimidazole–thiazinone derivatives (CS1CS10) through a convenient method and evaluate their antimicrobial activity against various microorganisms. Methods: A series of fused tricyclic benzimidazole–thiazinone derivatives was rationally designed and synthesized in one pot by the reaction between trans substituted acrylic acids and 1H-benzo[d]imidazole-2-thiol using coupling reagent TBTU (2-(1H-benzotriazol-1-yl)-1,1,3,3-tetramethyluronium tetrafluoroborate). The structure of these compounds was confirmed through various spectroscopic techniques like IR, 1H and 13C NMR, the DEPT and 2D-HMQC NMR techniques were also performed to confirm the relation of both carbon and proton. Further, the compounds were in vitro evaluated for their effectiveness against the Candida species and a panel of standard bacterial isolates. Results: The synthesized compounds showed moderate antimicrobial activity. Among all of the compounds, CS4 exhibited potent inhibition against Pseudomonas aeruginosa and Escherichia coli at 256 and 512 μg/mL concentrations, respectively. Additional research indicated that compound CS4 demonstrated a synergistic effect after combining with the standard antibacterial drug ciprofloxacin. Conclusions: These results suggest that CS4 is the best-synthesized antibacterial agent particularly in combination therapies. These findings highlight its promise for further development as a novel antibacterial agent.

1. Introduction

Communicable diseases pose a significant global challenge, resulting in substantial harm to both the well-being of individuals and the economies of impoverished and developing nations. According to the World Health Organization (WHO), over 3.5 million fatalities occur annually as a result of infectious diseases [1]. The global efficacy of medical therapies is jeopardized by the emergence of resistance. The improper or excessive utilization of antibiotics and antifungal medications contributes to the emergence of resistant strains, posing challenges in treating infections [2]. Finding an equilibrium between utilizing the advantageous functions of microorganisms in the environment and mitigating the potential hazards linked to diseases is essential for the long-term viability of ecosystems and for worldwide public health. In 2019, the Centers for Disease Control and Prevention (CDC) released a report about microbial infection and it was estimated that, in the United States, over 2.8 million people carried bacteria or fungi that are resistant to antibiotics. Additionally, the report stated that there were approximately 35,000 deaths annually as a result of these infections [3]. As per the 2022 CDC report, the COVID-19 pandemic exacerbated this scenario, leading to an increased prevalence of infection [4]. Thus, to combat this growing threat, ongoing research and collaborative efforts are essential to understand the dynamics of these diseases and to set up various strategies for the development of novel therapeutic agents.
Heterocyclic compounds exhibit substantial biological potential and serve as the nexus between chemistry and biology. Over 90% of novel medications have heterocyclic themes [5,6]. Sulfur-and-nitrogen-containing heterocyclic compounds such as thiazole [7], thienopyrimidine [8], thiomorpholine [9], thiazine and benzothiazines heterocycles exhibit distinct properties as biologically active agents and have captivated researchers for many years due to their historical significance in the field of organic synthesis [10]. Recently, thiazine has captured the interest of scientists as a significant structural motif in medicinal chemistry [11]. It is composed of sulfur (S) and nitrogen (N) atoms with four carbon atoms arranged in a six-membered ring and is categorized into three groups depending on the positions of the N and S atoms in the ring: 1,2-thiazine, 1,3-thiazine, and 1,4-thiazine [12]. Moreover, benzimidazole is described as a fused bicyclic heteroaromatic compound, composed of a benzene ring and imidazole ring. The presence of a nitrogen atom makes the benzimidazole ring more electron-rich, explaining why it can donate or accept electrons and also easily form weak interactions with different biological targets [13]. Both motifs have garnered significant attention due to their promising therapeutic potential, serving as antibacterial, antifungal, anti-inflammatory, antiviral, anticancer, anticonvulsant, antihistamine, and antidepressant agents [14,15].
The direct production of amide linkages by the interaction of an acid and an amine employing a coupling reagent is a well-established and preferable method in organic chemistry. Generally, 25% of pharmacophores contain an amide linkage [16]. Coupling reagents are used to facilitate the necessary link between two reagents that would not naturally react under mild conditions. Some common coupling reagents are dicyclohexylcarbodiimide (DCC), 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC), carbonyldiimidazole (CDI), 1-[Bis(dimethylamino)methylene]-1H-1,2,3-triazolo [4,5-b]pyridinium 3-oxid hexafluorophosphate (HATU), O-benzotriazole-N,N,N’,N’-tetramethyl-uronium hexafluorophosphate (HBTU), 2-(1H-benzotriazol-1-yl)-1,1,3,3-tetramethyluronium tetrafluoroborate (TBTU), etc., which vary in their mechanisms and application conditions [17,18]. TBTU is a benzotriazole coupling reagent and TBTU-based coupling reactions are documented in various scientific publications. Bianca C. Perez et al. published a study discussing the formation of a series of novel heterocycle−cinnamic conjugates by combining cinnamic acids and 8-aminoquinoline utilizing TBTU as a catalyst [19]. Further, a study has documented a reaction dealing with the formation of the amide bond of N-acetyl-L-phenylalanine utilizing TBTU as a means of synthesizing 2-(N-acetyl)-L-phenylalanylamido-2-deoxy-D-glucose, which exhibits anti-inflammatory properties [20]. Additionally, a comparable compound, 2-aryl-2,3-dihydro-4H-[1,3]thiazino[3,2,a]benzimidazoil-4-one, was synthesized using DCC [21]. However, the extraction of the compound proved to be a complex process due to the formation of a water-insoluble byproduct called dicyclohexylurea (DCU) [22]. These studies have aided the discovery of an alternative pathway for synthesizing benzimidazole–thiazinone derivatives by employing TBTU. Further, the structural resemblance of synthesized derivatives with several physiologically active heterocycles containing nitrogen and sulfur, exhibiting antifungal and antibacterial properties, is shown in Figure 1.

2. Results and Discussion

2.1. Chemistry

The detailed protocol for the synthesis of derivatives (CS1–CS10) is given in Scheme 1. Substituted benzimidazole–thiazinone derivatives were synthesized via a single-step multicomponent system utilizing TBTU at room temperature. A hypothetical mechanism of reaction [20] is given in Scheme 2. A coupling reaction was performed between (difluoromethoxy)-1H-benzo[d]imidazole-2-thiol C1 and different substituted trans acrylic acids C2 in the presence of coupling reagent TBTU and base N,N-diisopropylethylamine (DIPEA) using dry N,N-dimethylformamide (DMF) as a solvent. In the first step, TBTU facilitated the formation of an O-acylisourea intermediate followed by the formation of an active ester with the coupling reagent attached in the second step. In the third step, nucleophilic attack detached the benzotriazole group to generate the supposed intermediate, (E)-1-(5-(difluoromethoxy)-2-mercapto-1H-benzo[d]imidazol-1-yl)-3-phenylprop-2-en-1-one. Then, in the fourth step, the intermediate was cyclized via Michael addition reaction between the sulfur of the benzimidazole ring and the α,β-unsaturated carbonyl bond to produce a tricyclic benzimidazole–thiazinone derivative as the final product.
The structures of newly synthesized compounds were confirmed utilizing various spectroscopic techniques, such as FT-IR, 1D NMR (1H, 13C, DEPT experiments), 2D NMR (HMQC), and mass spectrometry. All the data were found to accord with the proposed structure. In the IR spectra of new benzimidazole–thiazinone derivatives, strong absorption peaks due to stretching vibrations appeared at 3048–3084 cm−1 (sp2 C-H), 2903–2970 cm−1 (sp3 C-H) and 1678–1718 cm−1 (C = O). The 1H NMR spectra of all of the synthesized compounds exhibited signals for the protons of the vicinal CH2 (two multiplet in the range of 3.19–3.88 ppm) and CH (multiplet around 5.34–5.45 ppm) groups. The signals with aromatic protons appeared in the expected region (6.5–8.0 ppm). In 13C NMR of these compounds, characteristic signals for carbonyl carbon appeared at 167.1–172.5 ppm and for aliphatic carbon (CH and CH2) in the 41.00–43.00 ppm range. Further, a full assignment of the 1H NMR peaks for compound CS1 is provided in Figure 2 and Figure 3. In Figure 2, a doublet peak at 8.15 ppm with a J value of 8.8 Hz might belong to the proton of the benzimidazole ring which was ortho coupled with an adjacent proton. The doublet peak at 7.95 ppm with a J value 2.4 Hz was also found to correspond with the proton of the benzimidazole ring, demonstrating meta coupling. Furthermore, the presence of a doublet signal at 7.53 with a coupling constant of 7.2 Hz might be related to two ortho protons of the benzene ring. A multiplet peak, appearing at 7.46–7.37 ppm, was also found to correspond with three protons of the benzene ring at meta and para positions. Another signal with a doublet (J = 6.8 Hz) appeared at 7.28 ppm for one proton of the benzimidazole ring, followed by a set of doublets with a small coupling constant in a unique environment, possibly corresponding with the proton of the difluorometoxy (CHF2) group at 7.22–7.17 ppm δ value. Further, Figure 3 shows the proton peaks in the aliphatic region. A peak, appearing at 5.44 ppm in multiplet, was found to belong to the proton of the methine (CH) group. Other multiplet signals, at 3.88–3.80 ppm and 3.43–3.37 ppm, were found to correspond with the protons of the methylene (CH2) groups. The chemical environment of these methylene protons was slightly different and so appeared at different δ values. Peaks at 3.32 ppm and 2.50 ppm were found to belong to H2O and DMSO-d6, respectively. An additional study, Distortionless Enhancement of Polarization Transfer (DEPT)-135, confirmed the presence of secondary carbon by showing a negative peak at 41.30 ppm. (Figure S1) Further, in a 2D heteronuclear multiple quantum coherence (HMQC) NMR spectrum, the carbon–proton relationship showed that the protons at 3.82 ppm and 3.43 ppm were directly attached to the same carbon atom at 41.18 ppm and the proton at 5.42 ppm was found to be attached to the carbon at 42.80 ppm. (Figure S2) The mass spectra of all of the compounds matched with calculated values, displaying [M + H] and [M + S] peaks. All of these spectral studies have confirmed the structure of the final compounds. Further, each final compound was verified to have a purity of ≥90% before conducting any biological assays.

2.2. Biological Evaluation

2.2.1. In Vitro Antifungal Screening of Synthesized Compounds

The antifungal efficacy of tested compounds (CS1CS10) was studied against different Candida strains (Candida albicans, Candida glabrata and Candida tropicalis) and reported while utilizing the two methods, disc diffusions and minimum inhibitory concentrations (MIC) (Table 1 and Table 2) (Figure S3). The standard used for comparison was fluconazole (FLC). In the study, using the disc diffusion method, zones of inhibition (ZOIs), showing the inhibition of microbial growth, were observed only in the cases of CS1, CS4, CS8 and CS10 when using a large dose. At MIC, CS1 gave ZOIs of diameters of 13 mm, 12.5 mm and 10.5 mm for C. albicans, C. glabrata and C. tropicalis, respectively, which further increased to 14 mm, 13 mm and 12 mm, respectively, at 2MIC. The diameters of the ZOIs for CS4 were 12 mm, 13.5 mm and 11.5 mm at MIC and 13.5 mm 14.5 mm and 13 mm at 2MIC against C. albicans, C. glabrata, C. tropicalis respectively. Next, the diameter of the ZOIs for CS8 were 13.5 mm, 13 mm and 12.5 mm, respectively, which further increased to 15.5 mm, 15 mm and 14 mm, respectively, at 2MIC. In the presence of CS10, the diameters of the ZOIs were 13.5 mm, 12 mm and 13 mm for C. albicans, C. glabrata and C. tropicalis, respectively, which further increased to 15 mm, 14.5 mm and 14 mm, respectively, at 2MIC. For fluconazole, ZOIs were found to be 21 mm at 10 μg/disc against all three Candida strains. The ZOIs formed in the presence of test compounds were not large in comparison with those formed by fluconazole but were clear, suggesting their fungicidal nature. Furthermore, for fluconazole, the MIC was 10 μg/mL MlC and indicated no resistance against Candida strains. Most of the tested compounds gave very high, more than 1000 μg/mL, MlCs and failed to show significant ZOIs. CS1 gave MICs of 820 μg/mL for C. albicans and 850 μg/mL for both C. glabrata and C. tropicalis. CS4 gave MICs of 870 μg/mL, 895 μg/mL, and 925 μg/mL and CS8 gave MICs of 830 μg/mL, 865 μg/mL, and 890 μg/mL. Further, CS10 gave MICs of 775 μg/mL, 820 μg/mL, and 850 μg/mL. Hence, our results show that the tested compounds, mainly CS1, CS4, CS8 and CS10, showed antifungal efficacy.

2.2.2. In Vitro Antibacterial Screening of Synthesized Compounds

Screening of the Synthesized Compounds

Utilizing the bacterial strains (Klebsiella pneumoniae, Pseudomonas aeruginosa, Salmonella typhimurium and Escherichia coli), the synthesized derivatives were examined as to whether or not they had efficacy in impeding the proliferation of bacteria. All of the compounds were screened by the following two methods: (A) disc diffusion and (B) percent inhibition with standard drug ciprofloxacin.
(A)
By disc
With the disc diffusion method, none of the compounds showed a zone of inhibition against K. pneumoniae and S. typhimurium. But two compounds, CS3 (p-Cl substituted) and CS4 (o-OCH3 substituted), showed respective ZOIs of 7 mm and 8 mm against E. coli. This suggests that the presence of the p-Cl and o-OCH3 substituents may enhance activity against E. coli, albeit to a low extent. However, these compounds displayed better activity against P. aeruginosa, with ZOI values of 10 (CS3) and 11 mm (CS4), indicating a higher sensitivity of P. aeruginosa to these specific structural modifications. Additionally, compounds CS2 (p-Br substituted) and CS7 (p-F substituted) showed ZOIs with diameters of 8 mm and 10 mm, respectively, though only against P. aeruginosa (Table S1). This finding suggests that halogen substitution (Br, Cl and F) at the para position and methoxy substitution at the ortho position may contribute to enhanced efficacy against P. aeruginosa. Other compounds did not show any ZOI.
(B)
By percent inhibition
Single concentration of 250 µg/mL was used for percent inhibition. The compounds exhibited selective antibacterial effects, particularly against P. aeruginosa. For E. coli, among the tested compounds, only two—CS3 (p-Cl substituted) and CS4 (o-OCH3 substituted)—showed inhibitions valued at 65 and 70 percent, respectively. However, four compounds—CS2 (p-Br substituted), CS3 (p-Cl substituted), CS4 (o-OCH3 substituted) and CS7 (p-F substituted)—exhibited substantial inhibition in the range of 73–88 percent against P. aeruginosa. (Table S2). The lower inhibition rates against E. coli compared with P. aeruginosa might be due to differences in cell wall structure and permeability between the two bacterial species. These findings suggest that antibacterial effectiveness may be influenced by the presence of the specific structural features of these compounds, such as halogen substitutions (e.g., Br in CS2, Cl in CS3, and F in CS7) and the presence of an ortho-methoxy group (-OCH3) in CS4, which might enhance their interaction with bacterial cell targets.

Determination of Minimum Inhibitory Concentration (MIC)

Further testing, based on their ability to inhibit bacterial growth (Table 3), focused on the potential of compounds CS2, CS3, CS4, and CS7 as antimicrobials against P. aeruginosa. These compounds showed moderate antibacterial activity against P. aeruginosa that produced a minimum inhibitory concentration (MIC) of 256 µg/mL to 512 µg/mL. However, their activity against E. coli was lower, with an MIC of 512 µg/mL to 1024 µg/mL. Notably, in the case of halogen substituted compounds, CS2 (p-Br substituted) and CS3 (p-Cl substituted) exhibited no significant inhibitory effect on either bacterium, as their MIC values were very high, above 256 µg/mL. However, only CS7 (p-F substituted) showed moderate inhibition of P. aeruginosa (MIC of 256 µg/mL). This might be because of the smaller size and higher electronegativity of the fluoro group, which might be attributed to hydrogen bond formation. However, it was not effective for E. coli as it gave an MIC of 1024 µg/mL. CS8, with fluoro substitution at the meta position was inactive. While CS4 (o-OCH3 substituted) demonstrated moderate efficacy against P. aeruginosa (MIC of 256 µg/mL), its effect on E. coli was limited (MIC of 512 µg/mL). The ortho-methoxy substitution might influence activity by its electron-donating ability through both resonance and inductive effect. However, neither CS5 (m-OCH3 substituted) nor CS6 (p-OCH3 substituted) showed any inhibition. Moreover, Both CS4 and CS7 lacked substantial inhibitory activity (MIC > 256 µg/mL) in the case of E. coli. Overall, these results suggest that CS4, with the lowest MIC against P. aeruginosa, is the most promising candidate for further investigation due to its moderate and potentially selective inhibitory properties.

Disk Diffusion Assay

The effectiveness of CS4 and CS7 against bacteria was further assessed using a disk diffusion assay on agar plates (Muller Hinton Agar) at the following three concentrations: half the minimum inhibitory concentration (MIC), the MIC itself, and double the MIC. Both bacterial cultures displayed clear zones of inhibition (ZOIs) around the discs containing CS4 and CS7, ranging from 6–10 mm in diameter. The specific zone sizes for each compound concentration are detailed in Table 4.

Combination Study

A combination study of compound CS4 was carried forward with CIP as a standard drug against P. aeruginosa and E. coli bacterial strains to detect the synergistic antimicrobial effect. The study found that CS4, when combined with the antibiotic CIP, displayed a significantly enhanced antibacterial effect against both E. coli and P. aeruginosa strains. This suggests a synergistic interaction between CS4 and CIP, meaning they work together more effectively than either compound alone (Table 5). In term of both strains, the FICI was more effective against P. aeruginosa, with 0.185, when compared with E. coli, which had a value of 0.25. This result suggests that compound CS4 possesses a promising synergistic effect with the established antibiotic CIP. This synergy, characterized by a significant substantial drop in the minimum inhibitory concentration (MIC) of the compound, indicates its potential usefulness in combination therapy for treating strains of bacteria resistant to standard antibiotics.
ADMET analysis and physicochemical properties of synthesized derivatives.
Evaluating the in silico analyses of the physicochemical, pharmacokinetic and cytotoxicity features is crucial for generating a new pharmacophore with good potency against a specific target [28]. ADMET studies were carried out on the ligands using Schrӧdinger’s QikProp module and another computational tool, pkCSM [29], to determine the possible lead likeliness of the active compounds. For the purpose of determining these features, molecular weight (MW), hydrogen bond acceptors (HBA), number of hydrogen bond donors (HBD), number of rotatable bonds (RB), topological polar surface area (TPSA), lipophilicity (Log P), solubility (Log S), skin permeability (Log Kp), and blood–brain barrier (BBB) were some of the variables [30] that had been evaluated and which are given in Table 6. The study demonstrated that all of the compounds had zero HBD and RB. The number of HBA varied slightly, mostly being around 4.5 to 5.5. TPSA values differed slightly, with the highest being 115.24 for CS10 (p-NO2 substituted) and the lowest being 69.42 for several compounds (CS1, CS2, CS3, CS7, CS8, CS9). Compounds CS4, CS5, CS6 were recorded with a TPSA value of 78.65. Compounds having lower TPSA indicated that they might have better membrane permeability and could be more easily absorbed through the gastrointestinal tract and potentially cross the blood–brain barrier. CS10 had the highest TPSA value, suggesting that it might have lower membrane permeability. Log P values ranged from 3.09 (CS10) to 4.27 (CS2), indicating moderate to high lipophilicity, which could aid in membrane diffusion but may reduce aqueous solubility, as reflected by the low Log S values of all compounds (e.g., −6.28 for CS10), indicating low aqueous solubility. Predicted skin permeability (Log Kp) was uniformly low across the data, suggesting low permeability through the skin, with CS10 having the lowest value (−5.74) and so indicating the poorest skin penetration. Further, the BBB parameter of the QikProp module indicates that a QPlogBB value greater than 0.5 suggests good penetration into the brain, a value between −1.0 to 0.5 suggests moderate penetration, and a value less than −1.0 indicates poor penetration. Thus, based on the QPlogBB value, most of the compounds showed moderate potential for crossing the blood–brain barrier, with a QPlogBB value between 0.073–0.33, with the exception of CS10, which had a negative QPlogBB value (−0.884), suggesting poor BBB penetration. Overall, none of the compounds violated the Lipinski rule.
Furthermore, in silico toxicity analysis was predicted using the pkCSM platform. The predicted dataset, shown in Table 7, provided insights into the safety and potential hazards of compounds (CS1CS10). All compounds were negative for AMES toxicity, suggesting a low mutagenic risk, except CS10 (having an electron-withdrawing nitro group at the para position). As an hERG I and II inhibitor, CS1 is the only compound that inhibits both hERG I and II channels, while the others only inhibit hERG II. hERG inhibition is crucial, as it can indicate potential cardiac toxicity. Further, the maximum tolerated dose (MTD) prediction in humans ranged from 0.037–0.102 log mg/kg/day, with CS7 showing the lowest value (0.037 log mg/kg/day). However, CS10 exhibited the highest value (0.102 log mg/kg/day), possibly correlating with its mutagenicity. Predicted acute toxicity (LD50) for rats ranged from 2.219–2.509 mol/kg, indicating a similar toxicity level across compounds, whereas chronic toxicity (LOAEL) prediction showed slightly more variation, ranging from 0.683–0.92 log mg/kg/day, reflecting differences in long-term exposure. Furthermore, predicted T. pyriformis toxicity, used as a proxy for environmental and aquatic toxicity, remained consistent across all compounds (0.285 log μg/L), suggesting uniform toxicity to protozoa, while predicted minnow toxicity (LC50) was more variable, ranging from −3.167–−1.344 log mM, with CS10 being more toxic (−3.167 log mM). Interestingly, according to the predictive model, none of the compounds exhibit hepatotoxicity or cause skin sensitization, indicating a favorable safety profile for liver toxicity and allergic skin reactions. Overall, this analysis underscored the variability in toxicity profiles among these synthesized compounds, emphasizing the need for careful consideration of their mutagenic, cardiac, and aquatic toxicities when evaluating their safety and therapeutic use.

3. Materials and Methods

3.1. Experimental Protocol

Merck (Rahway, NJ, USA) and Aldrich Chemical Company (Milwaukee, WI, USA), Spectrochem (Mumbai, India), and BLD Pharma (Shanghai, China) were preferred for purchasing the required chemicals with a purity of around 98%. All of the reagents were of synthesis grade and no further purification was needed before use. For thin layer chromatography (TLC), precoated aluminum sheets (silica gel 60 F254, Merck, Darmstadt, Germany) were utilized, while the visualization of spots was undertaken under UV light (λ = 254 nm). The melting point of all of the synthesized derivatives was captured on an uncorrected Veego (Mumbai, India) instrument with model specification REC-22038 A2. IR spectra (in cm−1) were captured through an Agilent Cary 630 FT-IR spectrophotometer (Santa Clara, CA, USA). 1H NMR and 13C NMR spectra were analyzed in DMSO-d6 solvent through a Brüker (Billerica, MA, USA) Spectrospin 400 MHz and with trimethyl silane as the internal standard. The designated splitting patterns were as follow: s: singlet; d: doublet; t: triplet; m: multiplet; Ar: aromatic. The chemical shift values are given in parts per million (ppm). In 1H NMR chemical shifts (δ) for DMSO-d6 appears at δ 2.54, whereas in 13C NMR, a chemical shift for DMSO-d6 is recorded at 39.5. Furthermore, the coupling constants (J) are stated in hertz (Hz). Mass spectra of all of the compounds were recorded using an Agilent Quadrupole-6150, which is an LC/MS spectrometer.

Synthesis Protocol for the Preparation of Substituted Benzimidazole–Thiazinone Derivatives (CS1CS10)

In a 100 mL dried round-bottomed flask, a mixture of substituted acrylic acids C2 (1.1 mmol), using TBTU as coupling reagent (1.1 mmol), DIPEA as base (3.0 mmol) and dry DMF as a solvent, was stirred at 0 °C for 15–20 min. Then, the solution of (difluoromethoxy)-1H-benzo[d]imidazole-2-thiol C1 (1.0 mmol) was added to the resulting mixture and the reaction mixture was stirred at room temperature for 36 h. The progression of reaction was tracked using TLC. When the reaction was completed, the mixture was worked up with ethyl acetate and water and then sodium bicarbonate and brine solution. Anhydrous Na2SO4 was used to dry the organic layer and evaporation of the solvent occurred under reduced pressure. Purification of synthesized derivatives was undertaken through recrystallization technique and column chromatography. The final compounds, CS1CS10, were obtained in good to moderate yield.
8-(difluoromethoxy)-2-phenyl-2,3-dihydro-4H-benzo[4,5]imidazo[2,1-b][1,3]thiazin-4-one (CS1)
Yellow solid, yield: 72%; M.p: 131–133 °C; Rf = 0.40 (EtOAc: hexane = 3:7); FT-IR (cm−1): 3064, 3051, 2940, 1714, 1611, 1465, 1404, 1344, 1278, 1214, 1115, 1033, 863, 812, 770, 740, 698 cm−1; 1H NMR (400 MHz, DMSO-d6) (δ, ppm): 8.15 (d, J = 8.8 Hz, 1H, Ar-H), 7.95 (d, J = 2.4 Hz, 1H, Ar-H), 7.53 (d, J = 7.2 Hz, 2H, Ar-H), 7.46–7.37 (m, 3H, Ar-H), 7.28 (d, J = 6.8 Hz, 1H, Ar-H), 722–7.17 (m, 1H, HCF2), 5.44–5.40 (m, 1H, CH), 3.87–3.81 ((m, 1H, CH2), 3.43–3.32 ((m, 1H, CH2). 13C NMR (100.6 MHz, DMSO-d6) (δ, ppm): 167.4, 153.3 (d, J = 120 Hz) 143.9, 140.5, 137.5, 132.8, 129.6 (t, J = 40 Hz) 127.9, 119.5, 117.7 (d, J = 215 Hz), 117.0, 116.1, 109.1, 43.0, 41.3. ESI-MS (m/z) calc. For C17H12F2N2O2S: 346.06: found: 347.11 [M + H +].
8-(difluoromethoxy)-2-(4-bromophenyl)-2,3-dihydro-4H-benzo [4,5]imidazo [2,1-b][1,3]thiazin-4-one (CS2)
Orange solid, yield: 69%; M.p: 147–149 °C; Rf = 0.44 (EtOAc: hexane = 3:7); FT-IR (cm−1): 3084, 2970, 2692, 1718, 1618, 1473, 1416, 1351, 1278, 1115, 1021, 974, 867, 815 cm−1; 1H NMR (400 MHz, DMSO-d6) (δ, ppm): 8.16 (d, J = 8.0 Hz, 1H, Ar-H), 7.66–7.45 (m, 4H, Ar-H), 7.25–7.19 (m, 1H, HCF2), 7.14 (m, 1H, Ar-H), 6.96 (d, J = 4.0 Hz, 1H), 5.44–5.39 ((m, 1H, CH), 3.81 ((m, 1H, CH2), 3.46–3.37 ((m, 1H, CH2). 13C NMR (101 MHz, DMSO-d6) (δ, ppm): 167.1, 153.0, 143.9, 136.9, 132.5 (d, J = 23 Hz), 130.5 (d, J = 36 Hz), 122.4, 120.6, 119.6, 117.0 (d, J = 250 Hz), 116.2, 110.5, 109.1, 42.3, 41.0; ESI-MS (m/z) calc. For C17H11BrF2N2O2S: 425.25: found: 427.03 [M + H +].
8-(difluoromethoxy)-2-(4-chlorophenyl)-2,3-dihydro-4H-benzo [4,5]imidazo [2,1-b][1,3]thiazin-4-one (CS3)
Cream solid, yield: 47%; M.p: 123–125 °C; Rf = 0.56 (EtOAc: hexane = 3:7), FT-IR (cm−1): 3059, 2903, 2652, 1713, 1628, 1590, 1436, 1360, 1278, 1098, 1033, 879, 818, 667 cm−1; 1H NMR (400 MHz, DMSO-d6) (δ, ppm): 8. 16 (d, J = 8.0 Hz, 1H, Ar-H), 7.95 (d, 1H, Ar-H), 7.66–7.26 (m, 5H, Ar-H), 7.23–7.18 (m, 1H, HCF2), 5.45–5.42 ((m, 1H, CH), 3.84–3.82 ((m, 1H, CH2), 3.46–3.41 ((m, 1H, CH2). 13C NMR (100 MHz, DMSO-d6) (δ, ppm): 167.4, 153.0 (d, J = 120 Hz), 143.9, 140.1, 136.5, 133.9, 129.9 (d, J = 32 Hz), 119.6, 117.7, 117.0 (d, J = 257 Hz), 116.1, 109.1, 106.8, 42.3, 41.2; ESI-MS (m/z) calc. For C17H11ClF2N2O2S: 380.02: found: 413.09 [M + S].
8-(difluoromethoxy)-2-(2-methoxyphenyl)-2,3-dihydro-4H-benzo [4,5]imidazo [2,1-b][1,3]thiazin-4-one (CS4)
Yellow solid, yield: 45%; M.p: 129–132 °C; Rf = 0.47 (EtOAc: hexane = 3:7), FT-IR (cm−1): 3048, 2945, 2841, 2705, 1678, 1617, 1460, 1425, 1328, 1243, 1217, 1101, 1024, 928, 875, 752 cm-1; 1H NMR (400 MHz, DMSO-d6) (δ, ppm): 7.87 (d, J = 16 Hz, 1H, Ar-H), 7.69 (d, 1H, Ar-H), 7.43–7.39 (m, 1H, Ar-H), 7.30–7.25 (m, 1H, HCF2), 7.18–6.96 (m, 4H, Ar-H), 5.61–5.57 (m, 1H, CH), 3.87 (m, 1H, CH2), 3.84 (s, 3H, OCH3), 3.31–3.25 (m, 1H, CH2); 13C NMR (100 MHz, DMSO-d6) (δ, ppm): 172.1, 169.7 (d, J = 141 Hz), 158.1, 146.8, 139.1, 133.2, 130.3, 128.8 (d, J = 25 Hz), 122.9, 121.1, 119.7, 114.5 (t, J = 260 Hz), 110.5, 101.4, 56.1, 56.0, 41.7. ESI-MS (m/z) calc. For C18H14F2N2O3S: 376.06: found: 377.37 [M + H +].
8-(difluoromethoxy)-2-(3-methoxyphenyl)-2,3-dihydro-4H-benzo [4,5]imidazo [2,1-b][1,3]thiazin-4-one (CS5)
Peach solid, yield: 61%; M.p: 135–137 °C; Rf = 0.46 (EtOAc: hexane = 3:7), FT-IR (cm−1): 3051, 2904, 2838, 1717, 1609, 1464, 1337, 1258, 1103, 1031, 958, 865, 783 cm−1; 1H NMR (400 MHz, DMSO-d6) (δ, ppm): 8.15 (d, J = 8.4 Hz, 1H, Ar-H), 7.94 (d, J = 2 Hz, 1H, Ar-H), 7.66–7.23 (m, 2H, Ar-H), 7.21–7.17 (m, 1H, HCF2) 7.09–6.95 (m, 3H, Ar-H), 5.39–5.35 (m, 1H, CH), 3.88–3.80 (m, 1H, CH2), 3.77 (s, 3H, OCH3), 3.42–3.32 (m, 1H, CH2). 13C NMR (100 MHz, DMSO-d6) (δ, ppm) 167.7, 160.1, 153.3, 148.9, 144.0, 139.0, 132.8, 130.8 (d, J = 79 Hz), 120.0, 117.1 (t, J = 244 Hz), 116.1, 113.8, 109.1, 55.7, 43.0, 41.4. ESI-MS (m/z) calc. For C18H14F2N2O3S: 376.06: found: 409.17 [M + S].
8-(difluoromethoxy)-2-(4-methoxyphenyl)-2,3-dihydro-4H-benzo [4,5]imidazo [2,1-b][1,3]thiazin-4-one (CS6)
Yellow solid, yield: 67%; M.p: 128–130 °C; Rf = 0.50 (EtOAc: hexane = 3:7), FT-IR (cm−1): 3063, 2943, 2841, 1713, 1607, 1511, 1464, 1344, 1251, 1117, 1027, 831, 726 cm−1; 1H NMR (400 MHz, DMSO-d6) (δ, ppm): 8.16 (d, J = 7.9 Hz, 1H, Ar-H) 7.96 (d, J = 4.0 Hz, 1H, Ar-H), 7.65–7.26 (m, 4H, Ar-H), 7.24–7.17 (m, 1H, HCF2), 7.00 (d, J = 8 Hz, Ar-H), 5.38–5.35 (m, 1H, CH), 3.83–3.79 (m, 1H, CH2), 3.77 (s, 3H, OCH3), 3.36 (d, 1H, CH2); 13C NMR (100 MHz, DMSO-d6) (δ, ppm): 167.7, 159.9, 153.4 (d, J = 129 Hz), 148.8, 144.0, 140.5, 132.8, 130.0 (d, J = 76 Hz), 119.5, 117.0 (d, J = 211 Hz), 116.0, 109.0, 106.8, 55.6, 42.6, 41.5; ESI-MS (m/z) calc. For C18H14F2N2O3S: 376.06: found: 377.12 [M + H].
8-(difluoromethoxy)-2-(4-fluorophenyl)-2,3-dihydro-4H-benzo [4,5]imidazo [2,1-b][1,3]thiazin-4-one (CS7)
Light brown solid, yield: 80%; M.p: 137–140 °C; Rf = 0.48 (EtOAc: hexane = 3:7), FT-IR (cm−1): 3076, 2932, 1713, 1603, 1509, 1466, 1341, 1232, 1145, 1118, 1031, 976, 838, 745, 696 cm−1; 1H NMR (400 MHz, DMSO-d6) (δ, ppm): 8.15 (d, 1H, Ar-H), 7.95 (d, 1H, Ar-H), 7.66–7.26 (m, 5H, Ar-H), 7.24–7.17 (m, 1H, HCF2), 5.45–5.42 ((m, 1H, CH), 3.87–3.80 ((m, 1H, CH2), 3.43–3.31 ((m, 1H, CH2). 13C NMR (100 MHz, DMSO-d6) (δ, ppm): 167.3, 153.2 (d, J =120 Hz), 144.0, 140.5, 133.7 (d, J = 90 Hz), 130.3 (d, J = 29 Hz), 119.6, 117.8, 117.1 (d, J = 257 Hz), 116.6, 116.4 (d, J = 39 Hz), 109.1, 106.9, 42.3, 41.3; ESI-MS (m/z) caled. For C17H11F3N2O2S: 364.05: found: 397.15 [M + S].
8-(difluoromethoxy)-2-(3-fluorophenyl)-2,3-dihydro-4H-benzo [4,5]imidazo [2,1-b][1,3]thiazin-4-one (CS8)
Cream solid, yield: 68%; M.p: 143–145 °C; Rf = 0.47 (EtOAc: hexane = 3:7), FT-IR (cm−1): 3075, 2948, 1713, 1618, 1591, 1468, 1342, 1257, 1137, 1032, 958, 877, 789, 689 cm−1; 1H NMR (400 MHz, DMSO-d6) (δ, ppm): 8.15 (d, 1H, Ar-H), 7.66–7.25 (m, 6H, Ar-H), 7.24–7.17 (m, 1H, HCF2), 5.43 ((t, J = 8.4 Hz, 1H, CH), 3.89–3.82 (m, 1H, CH2), 3.47–3.33 ((m, 1H, CH2). 13C NMR (100 MHz, DMSO-d6) (δ, ppm): 172.2, 158.1 (d, J = 120 Hz), 153.6, 148.7, 145.3, 142.2, 138.0 (d, J = 39 Hz), 134.4 (t, J = 32 Hz), 132.8, 122.5, 121.8 (t, J = 251 Hz), 121.0, 113.9, 47.8, 46.1. ESI-MS (m/z) caled. For C17H11F3N2O2S: 364.05: found: 365.09 [M + H].
8-(difluoromethoxy)-2-(p-tolyl)-2,3-dihydro-4H-benzo [4,5]imidazo [2,1-b][1,3]thiazin-4-one (CS9)
Off-white solid, yield: 50%; M.p: 140–142 °C; Rf = 0.49 (EtOAc: hexane = 3:7), FT-IR (cm−1): 3063, 2925, 2884, 1713, 1610, 1462, 1342, 1276, 1114, 1032, 909, 863, 818 cm−1; 1H NMR (400 MHz, DMSO-d6) (δ, ppm): δ 8.16 (d, J = 8.8 Hz, 1H, Ar-H), 7.95 (d, J = 2.4Hz, 1H, Ar-H), 7.66–7.24 (m, 5H, Ar-H) 7.22–7.17 (m, 1H, HCF2), 5.39–5.35 (m, 1H, CH), 3.86–3.79 (m, 1H, CH2), 3.37–3.34 (m, 1H, CH2), 2.31 (s, 3H, CH3). 13C NMR (101 MHz, DMSO-d6) (δ, ppm): 172.5, 157.0 (d, J = 120 Hz), 152.6, 145.3, 143.5, 139.2, 137.6, 134.9 (d, J = 12 Hz), 132.6, 124.3, 122.5, 121.87 (d, J = 256 Hz), 113.8, 47.4, 46.3, 25.9. ESI-MS (m/z) calc. For C18H14F2N2O2S: 360.07: found: 361.16 [M + H].
8-(difluoromethoxy)-2-(4-nitrophenyl)-2,3-dihydro-4H-benzo [4,5]imidazo [2,1-b][1,3]thiazin-4-one (CS10)
Brown solid, yield: 42%; M.p: 156–157 °C; Rf = 0.53 (EtOAc: hexane = 3:7), FT-IR (cm−1): 3077, 2936, 2711, 1679, 1595, 1516, 1469, 1342, 1266, 1162, 1106, 1036, 850, 756, 681 cm−1; 1H NMR (400 MHz, DMSO-d6) (δ, ppm): 8.16 (d, J = 8.0 Hz, 1H, Ar-H), 7.96–7.24 (m, 6H, Ar-H) 7.23–7.17 (m, 1H, HCF2), 5.46–5.42 (m, 1H, CH), 3.84–3.81 (m, 1H, CH2), 3.44–3.37 (m, 1H, CH2). 13C NMR (100 MHz, DMSO-d6) (δ, ppm): 169.7, 167.2, 161.3, 153.1 (d, J = 119 Hz), 143.9, 140.5, 133.7, 130.2, (d, J = 28 Hz), 119.6, 117.0 (d, J = 257 Hz), 116.6 (d, J = 22 Hz), 109.1, 106.8, 42.2, 41.3. ESI-MS (m/z) calc. For C17H11F2N3O4S: 391.35: found: 392.12 [M + H].

3.2. Biological Evaluation

3.2.1. In Vitro Antifungal Screening of Synthesized Derivatives

Materials and Methods

Media preparation and culture maintenance: The investigation of antifungal ability was performed against three Candida strains i.e., C. albicans ATTCC 90028, C. glabrata ATCC 90030 and C. tropicalis ATCC 750. These strains were maintained in a medical mycology lab using standard yeast extract peptone-dextrose (YPD), for which 1:2:2 ratio was taken along with 2.5% sugar medium at 4 °C. All chemicals (obtained from Merck-Bengaluru, India) used in the experiments were of analytical grade. Furthermore, the media components were bought from HiMedia (Thane, India).

Antifungal Susceptibility Assays

(A)
Agar Disc diffusion assay
We have assessed antifungal activity by incorporating Candida cells (105 cell/mL) into a growth medium. Discs (4 mm) containing various concentrations of the test compounds were placed on the medium [31,32,33]. After 48 h, the diameters of any clear zones surrounding the discs (indicating inhibited fungal growth) were measured. Fluconazole (10 µg/disc) was taken as a positive control.
(B)
Minimum Inhibitory Concentration
Further, we used the standardized broth dilution procedure to establish the minimum concentration for all compounds that inhibited fungal growth against the Candida strains. This was undertaken in accordance with the instruction provided in CLSI reference document M27-A320. This method defines the MIC as the lowest concentration that was able to minimize fungal activity by about 90% when compared with an untreated control.

3.2.2. In Vitro Antibacterial Screening of Synthesized Compounds

Methodology

Preparation of bacterial culture: For this, we cultured various bacterial strains on agar plates at 37 °C overnight. These strains include K. pneumoniae ATCC 13883, P. aeruginosa ATCC2453, S. typhimurium MTCC3224, and E. coli MTCC443. The bacterial colonies were carefully selected from the agar plate, and were then cultured in a broth medium for testing and examination of the synthesized derivatives.

In Vitro Antibacterial Screening of Synthesized Compounds

(A)
By disk diffusion
To evaluate the inhibitory potential of the synthesized derivatives, we examined them against a gram-positive bacterial strain S. typhimurium and three gram-negative bacterial strains, E. coli, K. pneumoniae and P. aeruginosa. In order to conduct the preliminary screening, Muller Hinton Agar (MHA) plates were utilized for the disk diffusion experiment. The disks, containing 10 mg/mL of each compound, were put onto MHA plates, and the zones of inhibition were evaluated the next day after overnight inoculation at 37 °C [34].
(B)
By percent inhibition
Compounds exhibiting noteworthy inhibition zones against the examined strains proceeded to the subsequent stage, wherein the percentage of inhibition was evaluated at a 250 µg/mL concentration. For this, the protocol was followed as per [35].

Estimation of Minimum Inhibitory Concentration (MIC)

Utilizing the broth micro-dilution method and adhering to the recommendations established by the National Committee for Clinical Laboratory Standards (NCCLS) guidelines, MICs of the synthesized derivatives were determined [36]. After growing secondary cultures of each bacterial isolate in LB medium, the concentration was adjusted to an OD of 0.4 (about 108 CFU/mL) at 600 nm, and further diluted to about 106 CFU/mL. Building on initial screenings, MIC values for the chosen compounds were established against the bacterial strains, with ciprofloxacin (CIP) as a positive control. Test compounds were taken in different concentrations, ranging from 1024 μg/mL to 2 μg/mL. Then, they were added to 96-well plates that contained the contained the solutions of 100 µL nutrient broth that were used for experiment. An amount of 100 µL of a bacterial suspension (about 5 × 106 cells/mL) was introduced in each well. Over the course of 24 h, the plates were shaken continuously at the speed of 120 rpm while being incubated at 37 °C. To guarantee precision, experiments were conducted in duplicate [37].

Disk Diffusion Assay

The disc diffusion experiment was carried out in compliance with NARMS guidelines and was conducted to assess the antibacterial qualities of various compounds, especially for those having low MIC values. The aforementioned bacterial strains were used to culture the bacterial cells overnight at 37 °C in liquid broth medium. This was followed by the inoculation of approximately 105 cells/mL into molten Muller Hinton Agar (MHA) medium. Then, the solution was poured into Petri plates measuring 90 mm. Once solidified, sterilized 4 mm diameter Whatman paper disks were placed on the agar surface. Compounds at concentrations of half the MIC, the MIC, and double the MIC were put onto these discs for testing purposes. Two controls were employed in this experiment, a standard drug as the positive control, and DMSO as the negative control. The ZOIs around the disks were measured in mm [38].

Fractional Inhibitory Concentration Index (FICI)

By using a 96-well plate, we measured the possible synergy between a drug and ciprofloxacin (CIP). For the method used for this demonstration we followed the protocol mentioned by Rand et al. [39]. In brief, 200 µL of sterile nutritional broth were taken in 96 well plates and a dilution of ciprofloxacin was made in serial manner with concentration ranges of 8–0.0625 μg/mL across the plate. However, the serial dilution ranges for the drug were from 256–0.5 μg/mL [40]. After inoculating the plates with roughly 2 × 104 freshly prepared strains, plates were incubated overnight at 37 °C. The next day, FICI was calculated using the following formula:
FICI = (MIC of drug A in combination with B)/(MIC of drug A alone) + (MIC of drug B in combination with A)/(MIC of drug B alone)
Synergy was defined by FIC indices of ≤0.5, antagonism by indices of ≥4, and results between >0.5 and <4 were considered indifferent.

4. Conclusions

This study successfully employed a one-pot, three-component protocol for the synthesis of novel benzimidazole–thiazinone derivatives, comprising a fused tricyclic system. This efficient method utilizes TBTU as a coupling agent and offers several advantages, including readily available starting materials, simple reaction conditions, straightforward workup procedures, and the absence of toxic catalysts. The structures of all synthesized derivatives were confirmed using various spectroscopic techniques that include LC-MS, IR, and NMR. The relation between carbon and proton was revealed by two-dimensional NMR that confirmed the formation of the desired thiazine ring. Evaluation of the antifungal and antibacterial activities of these derivatives revealed moderate antibacterial effects, particularly against E. coli and P. aeruginosa. Among all of the derivatives, the result revealed that CS4 exhibited better antibacterial activity against a strain of P. aeruginosa that had a minimum inhibitory concentration (MIC) of 256 μg/mL. Furthermore, CS4 demonstrated a synergistic effect with the established antibiotic ciprofloxacin against both E. coli and P. aeruginosa strains. These findings suggest the potential of CS4, particularly in combination therapy, for treating bacterial infections caused by these strains, which are becoming increasingly resistant to standard antibiotics. Future studies will focus on further optimizing the structure–activity relationship of these derivatives to enhance their potency and explore their mechanisms of action.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antibiotics13121155/s1, Synthetic procedure of substituted benzimidazole–thiazinone derivatives (CS1–CS10); Figure S1: NMR (DEPT) spectrum of compound CS1; Figure S2: Two-dimensional NMR (HMQC) spectrum of compound CS1; Figure S3: antifungal activity against Candida species; antibacterial screening of the compounds by measuring the zones of inhibition (ZOIs) (Tables S1 and S2); copy of NMR and mass spectra: Figures S4–S13: spectral data; copy of 1H NMR and 13C NMR; Figures S14–S23: LCMS spectra of synthesized compounds. Table S1: Screening of the compounds by measuring the zones of inhibition (ZOIs) in mm. Table S2: Percent inhibition at a single concentration of 250 µg/mL.

Author Contributions

Conceptualization, synthesis, methodology, formal analysis, writing—original draft preparation, S.S.; visualization, formal analysis, data analysis, writing-review and editing, A.A.; data validation, data analysis; writing—review and editing, S.A.; synthesis, M.R.; NMR studies, A.H. (Afzal Hussain); writing—review and editing, N.M.; docking, software, data curation, NMR studies, writing—review and editing, A.H. (Anzarul Haque); conceptualization, data curation, writing—review and editing, formal analysis, project administration, M.A.; supervision, conceptualization, data curation, data validation, writing—review and editing, and project administration, A.I. All authors have read and agreed to the published version of the manuscript.

Funding

The Research work was financially supported by Researchers Supporting Project number “RSPD2024R980”, King Saud University, Riyadh, Saudi Arabia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

S.S. acknowledges the University Grant Commission (UGC), government of India for providing JRF and SRF fellowships. A.A. acknowledges the Department of Health (DHR) (File no: R.12014/61/2011-HR) for the Young Scientist award. Authors acknowledge the generous support from the Researchers Supporting project number (RSPD2024R980), King Saud University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. World Health Organization Global Report for Infectious Diseases of Poverty; World Health Organization: Geneva, Switzerland, 2012; pp. 1–168.
  2. Prestinaci, F.; Pezzotti, P.; Pantosti, A. Antimicrobial Resistance: A Global Multifaceted Phenomenon. Pathog. Glob. Health 2015, 109, 309–318. [Google Scholar] [CrossRef]
  3. CDC. Antibiotic Resistance Threats in the United States, 2019; U.S. Department of Health and Human Services, CDC: Atlanta, GA, USA, 2019; Volume 10. [Google Scholar] [CrossRef]
  4. CDC. COVID-19: U.S. Impact on Antimicrobial Resistance, Special Report 2022; U.S. Department of Health and Human Services, CDC: Atlanta, GA, USA, 2022; Volume 399, pp. 629–655. [Google Scholar]
  5. Qadir, T.; Amin, A.; Sharma, P.K.; Jeelani, I.; Abe, H. A Review on Medicinally Important Heterocyclic Compounds. Open Med. Chem. J. 2022, 16, e187410452202280. [Google Scholar] [CrossRef]
  6. Kabir, E.; Uzzaman, M. A Review on Biological and Medicinal Impact of Heterocyclic Compounds. Results Chem. 2022, 4, 100606. [Google Scholar] [CrossRef]
  7. Lagardère, P.; Fersing, C.; Masurier, N.; Lisowski, V. Thienopyrimidine: A Promising Scaffold to Access Anti-Infective Agents. Pharmaceuticals 2022, 15, 35. [Google Scholar] [CrossRef] [PubMed]
  8. Petrou, A.; Fesatidou, M.; Geronikaki, A. Thiazole Ring—A Biologically Active Scaffold. Molecules 2021, 26, 3166. [Google Scholar] [CrossRef] [PubMed]
  9. Asirvatham, S.; Thakor, E.; Jain, H. Morpholine and Thiomorpholine: A Privileged Scaffold Possessing Diverse Bioactivity Profile. J. Chem. Rev. 2021, 3, 247–272. [Google Scholar] [CrossRef]
  10. Sharma, P.K.; Amin, A.; Kumar, M. A Review: Medicinally Important Nitrogen Sulphur Containing Heterocycles. Open Med. Chem. J. 2020, 14, 49–64. [Google Scholar] [CrossRef]
  11. Choudhary, S.; Silakari, O. Chapter 7—Thiazine: A Versatile Heterocyclic Scaffold for Multifactorial Diseases. In Key Heterocycle Cores for Designing Multitargeting Molecules; Elsevier Ltd.: Amsterdam, The Netherlands, 2018; ISBN 9780081020838. [Google Scholar]
  12. Badshah, S.L.; Naeem, A. Bioactive Thiazine and Benzothiazine Derivatives: Green Synthesis Methods and Their Medicinal Importance. Molecules 2016, 21, 1054. [Google Scholar] [CrossRef]
  13. Gaba, M.; Mohan, C. Development of Drugs Based on Imidazole and Benzimidazole Bioactive Heterocycles: Recent Advances and Future Directions. Med. Chem. Res. 2016, 25, 173–210. [Google Scholar] [CrossRef]
  14. Brishty, S.R.; Hossain, M.J.; Khandaker, M.U.; Faruque, M.R.I.; Osman, H.; Rahman, S.M.A. A Comprehensive Account on Recent Progress in Pharmacological Activities of Benzimidazole Derivatives. Front. Pharmacol. 2021, 12, 762807. [Google Scholar] [CrossRef]
  15. Ebenezer, O.; Oyetunde-Joshua, F.; Omotoso, O.D.; Shapi, M. Benzimidazole and Its Derivatives: Recent Advances (2020–2022). Results Chem. 2023, 5, 100925. [Google Scholar] [CrossRef]
  16. Lanigan, R.M.; Starkov, P.; Sheppard, T.D. Direct Synthesis of Amides from Carboxylic Acids and Amines Using B(OCH2CF3)3. J. Org. Chem. 2013, 78, 4512–4523. [Google Scholar] [CrossRef] [PubMed]
  17. Han, S.Y.; Kim, Y.A. Recent Development of Peptide Coupling Reagents in Organic Synthesis. Tetrahedron 2004, 60, 2447–2467. [Google Scholar] [CrossRef]
  18. Al-Warhi, T.I.; Al-Hazimi, H.M.A.; El-Faham, A. Recent Development in Peptide Coupling Reagents. J. Saudi Chem. Soc. 2012, 16, 97–116. [Google Scholar] [CrossRef]
  19. Pérez, B.C.; Teixeira, C.; Albuquerque, I.S.; Gut, J.; Rosenthal, P.J.; Gomes, J.R.B.; Prudeîncio, M.; Gomes, P. N-Cinnamoylated Chloroquine Analogues as Dual-Stage Antimalarial Leads. J. Med. Chem. 2013, 56, 556–567. [Google Scholar] [CrossRef] [PubMed]
  20. Sturabotti, E.; Vetica, F.; Toscano, G.; Calcaterra, A.; Martinelli, A.; Migneco, L.M.; Leonelli, F. N-Acetyl-l-Phenylalanine Racemization During TBTU Amidation: An In-Depth Study for the Synthesis of Anti-Inflammatory 2-(N-Acetyl)-l-Phenylalanylamido-2-Deoxy-d-Glucose (NAPA). Molecules 2023, 28, 581. [Google Scholar] [CrossRef] [PubMed]
  21. Ramos Rodríguez, O.A.; Magaña Vergara, N.E.; Mojica Sánchez, J.P.; Sumaya Martínez, M.T.; Gómez Sandoval, Z.; Cruz, A.; Ramos Organillo, Á. Synthesis, Crystal Structure, Antioxidant Activity and Dft Study of 2-Aryl-2,3-Dihydro-4H-[1,3]Thiazino[3,2-a]Benzimidazol-4-One. J. Mol. Struct. 2020, 1199, 127036. [Google Scholar] [CrossRef]
  22. Dunetz, J.R.; Magano, J.; Weisenburger, G.A. Large-Scale Applications of Amide Coupling Reagents for the Synthesis of Pharmaceuticals. Org. Process Res. Dev. 2016, 20, 140–177. [Google Scholar] [CrossRef]
  23. Sabatini, S.; Kaatz, G.W.; Rossolini, G.M.; Brandini, D.; Fravolini, A. From Phenothiazine to 3-Phenyl-1,4-benzothiazine Derivatives as Inhibitors of the Staphylococcus aureus NorA Multidrug Efflux Pump. J. Med. Chem. 2008, 51, 4321–4330. [Google Scholar] [CrossRef]
  24. Gayathri, B.; Hipparagi, S.M.; Ramjith, U.S.; Mathews Jacob, C. Microwave-Assisted Synthesis of Fluoro, Chloro 2-Substituted Benzimidazole Thiazine Derivatives for Antibacterial and Analgesic Activities. Int. J. Res. Pharm. Sci. 2012, 2, 146–158. [Google Scholar]
  25. Owolabi, B.J.; Iraoya, D.I.; Adepoju, T.S. Synthesis, Characterization and Biological Activities of 2,5-Dimethyl-4-Methoxy[5,6-b]Benzo[2,3-a]Pyrolo-4-Keto Thiazine-1,1-Dioxide. Sci. Res. J. (SCIRJ) 2019, 7. [Google Scholar] [CrossRef]
  26. Fringuelli, R.; Schiaffella, F.; Bistoni, F.; Pitzurra, L.; Vecchiarelli, A. Azole Derivatives of 1,4-Benzothiazine as Antifungal Agents. Bioorg. Med. Chem. 1998, 6, 103–108. [Google Scholar] [CrossRef] [PubMed]
  27. Karaburun, A.Ç.; Kaya Çavuşoğlu, B.; Acar Çevik, U.; Osmaniye, D.; Sağlık, B.N.; Levent, S.; Özkay, Y.; Koparal, A.S.; Kaplancıklı, Z.A. Synthesis and Antifungal Potential of Some Novel Benzimidazole-1,3,4-Oxadiazole Compounds. Molecules 2019, 24, 191. [Google Scholar] [CrossRef] [PubMed]
  28. Musa, M.S.; Miah, M.S.; Munni, Y.A.; Patwary, M.A.M.; Kazi, M.; Matin, M.M. Synthesis and Elucidation of Strained Galactopyronose Esters As Selective Cyclooxygenase-2 Inhibitor: A Comprehensive Computational Approach. RSC Adv. 2024, 14, 30469–30481. [Google Scholar] [CrossRef] [PubMed]
  29. Pires, D.E.V.; Blundell, T.L.; Ascher, D.B. PkCSM: Predicting Small-Molecule Pharmacokinetic and Toxicity Properties Using Graph-Based Signatures. J. Med. Chem. 2015, 58, 4066–4072. [Google Scholar] [CrossRef] [PubMed]
  30. Manzoor, S.; Prajapati, S.K.; Majumdar, S.; Raza, K.; Gabr, M.T.; Kumar, S.; Pal, K.; Rashid, H.; Kumar, S.; Krishnamurthy, S.; et al. Discovery of New Phenyl Sulfonyl-Pyrimidine Carboxylate Derivatives As the Potential Multi-Target Drugs with Effective Anti-Alzheimer’s Action: Design, Synthesis, Crystal Structure and In-Vitro Biological Evaluation. Eur. J. Med. Chem. 2021, 215, 113224. [Google Scholar] [CrossRef]
  31. Rex, J.H.; Alexander, B.D.; Andes, D.; Arthington-Skaggs, B.; Brown, S.D.; Chaturvedi, V.; Ghannoum, M.A.; Espinel-Ingroff, A.; Knapp, C.C.; Ostrosky-Zeichner, L.; et al. Reference Method for Broth Dilution Antifungal Susceptibility Testing of Yeasts, Approved Standard, 3rd ed.; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2008; Volume 28, ISBN 1-56238-666-2. [Google Scholar]
  32. Sharma, Y.; Khan, L.A.; Manzoor, N. Anti-Candida Activity of Geraniol Involves Disruption of Cell Membrane Integrity and Function. J. Mycol. Med. 2016, 26, 244–254. [Google Scholar] [CrossRef]
  33. Ahmedi, S.; Pant, P.; Raj, N.; Manzoor, N. Limonene Inhibits Virulence Associated Traits in Candida Albicans: In-Vitro and In-Silico Studies. Phytomedicine Plus 2022, 2, 100285. [Google Scholar] [CrossRef]
  34. Jorgensen, J.H.; Turnidge, J. Susceptibility Test Methods: Dilution and Disk Diffusion Methods. In Manual of Clinical Microbiology; Wiley: Hoboken, NJ, USA, 2015. [Google Scholar]
  35. Ali, A.; Hasan, P.; Irfan, M.; Uddin, A.; Khan, A.; Saraswat, J.; Maguire, R.; Kavanagh, K.; Patel, R.; Joshi, M.C.; et al. Development of Oxadiazole-Sulfonamide-Based Compounds as Potential Antibacterial Agents. ACS Omega 2021, 6, 27798–27813. [Google Scholar] [CrossRef] [PubMed]
  36. Karp, B.E.; Tate, H.; Plumblee, J.R.; Dessai, U.; Whichard, J.M.; Thacker, E.L.; Hale, K.R.; Wilson, W.; Friedman, C.R.; Griffin, P.M.; et al. National Antimicrobial Resistance Monitoring System: Two Decades of Advancing Public Health Through Integrated Surveillance of Antimicrobial Resistance. Foodborne Pathog. Dis. 2017, 14, 545–557. [Google Scholar] [CrossRef] [PubMed]
  37. Khan, S.A.; Asiri, A.M.; Basisi, H.M.; Asad, M.; Zayed, M.E.M.; Sharma, K.; Wani, M.Y. Synthesis and Evaluation of Quinoline-3-Carbonitrile Derivatives as Potential Antibacterial Agents. Bioorg. Chem. 2019, 88, 102968. [Google Scholar] [CrossRef] [PubMed]
  38. Abass, S.; Zahiruddin, S.; Ali, A.; Irfan, M.; Jan, B.; Haq, Q.M.R.; Husain, S.A.; Ahmad, S. Development of Synergy-Based Combination of Methanolic Extract of Andrographis Paniculata and Berberis Aristata Against E. coli and S. aureus. Curr. Microbiol. 2022, 79, 223. [Google Scholar] [CrossRef] [PubMed]
  39. Rand, K.H.; Houck, H.J.; Brown, P.; Bennett, D. Reproducibility of the Microdilution Checkerboard Method for Antibiotic Synergy. Antimicrob. Agents Chemother. 1993, 37, 613–615. [Google Scholar] [CrossRef] [PubMed]
  40. Quan, H.; Cao, Y.-Y.; Xu, Z.; Zhao, J.-X.; Gao, P.-H.; Qin, X.-F.; Jiang, Y.-Y. Potent in Vitro Synergism of Fluconazole and Berberine Chloride Against Clinical Isolates of Candida Albicans Resistant to Fluconazole. Antimicrob. Agents Chemother. 2006, 50, 1096–1099. [Google Scholar] [CrossRef] [PubMed]

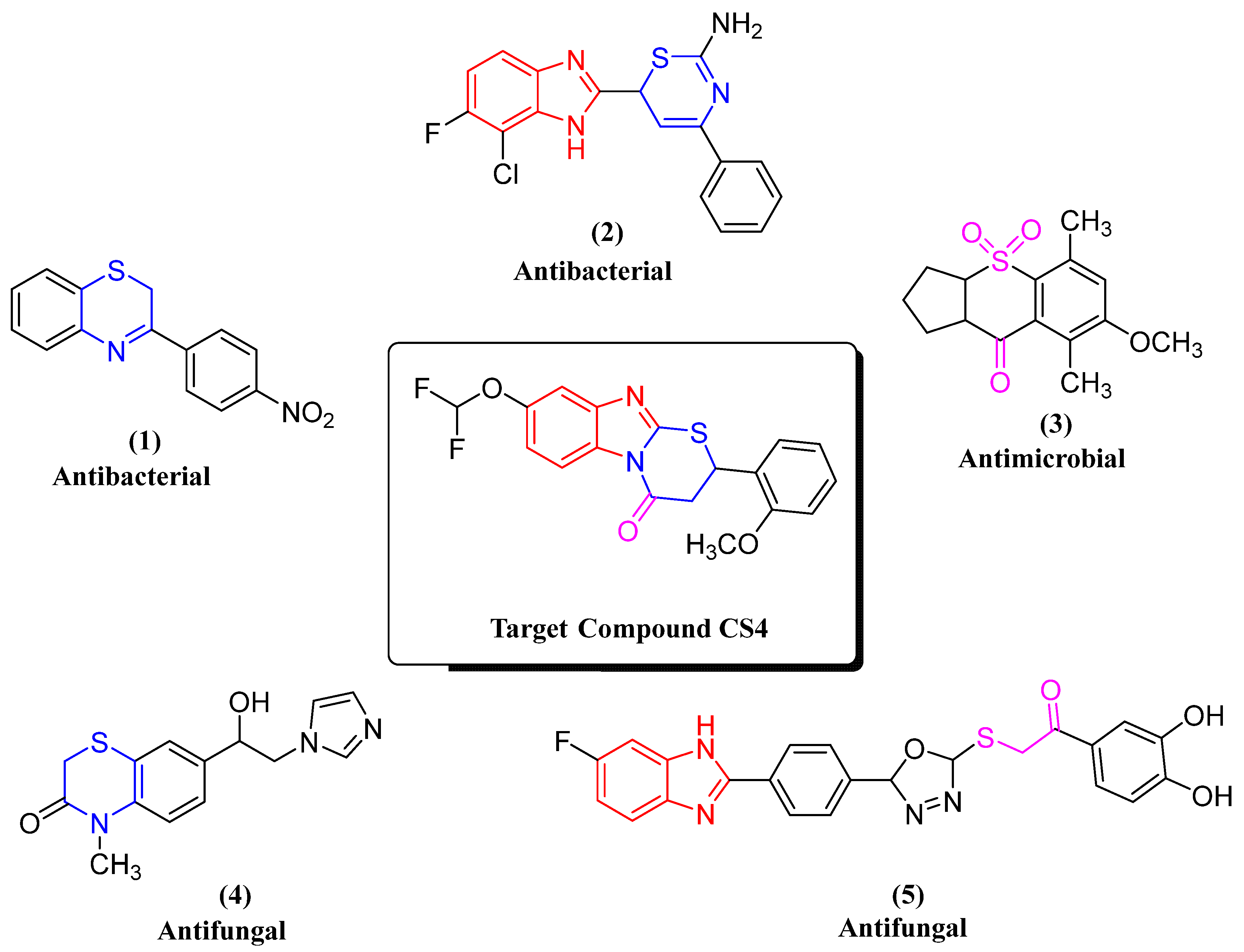

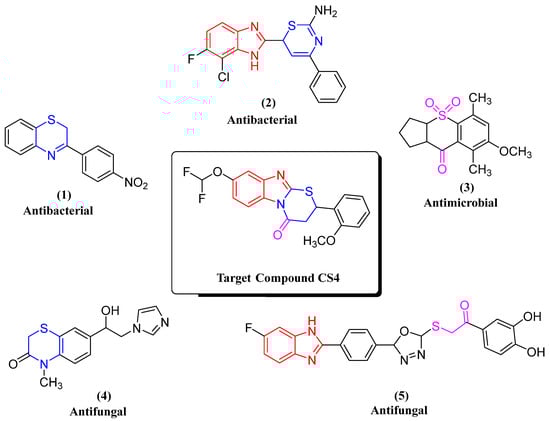

Figure 1. Rational design of the proposed compound [23,24,25,26,27].
Figure 1. Rational design of the proposed compound [23,24,25,26,27].
Antibiotics 13 01155 g001

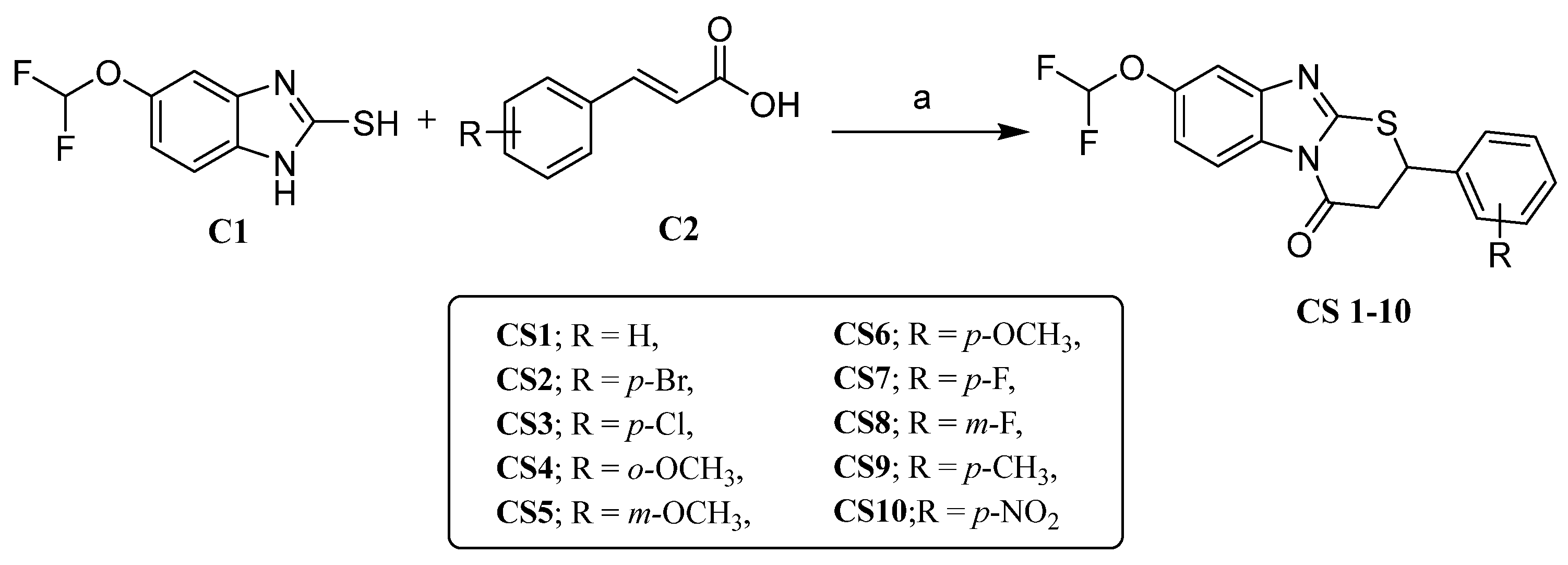

Scheme 1. Reagents and conditions: (a) TBTU, DIPEA, dry DMF, stirred at room temperature for 36 h.
Scheme 1. Reagents and conditions: (a) TBTU, DIPEA, dry DMF, stirred at room temperature for 36 h.
Antibiotics 13 01155 sch001

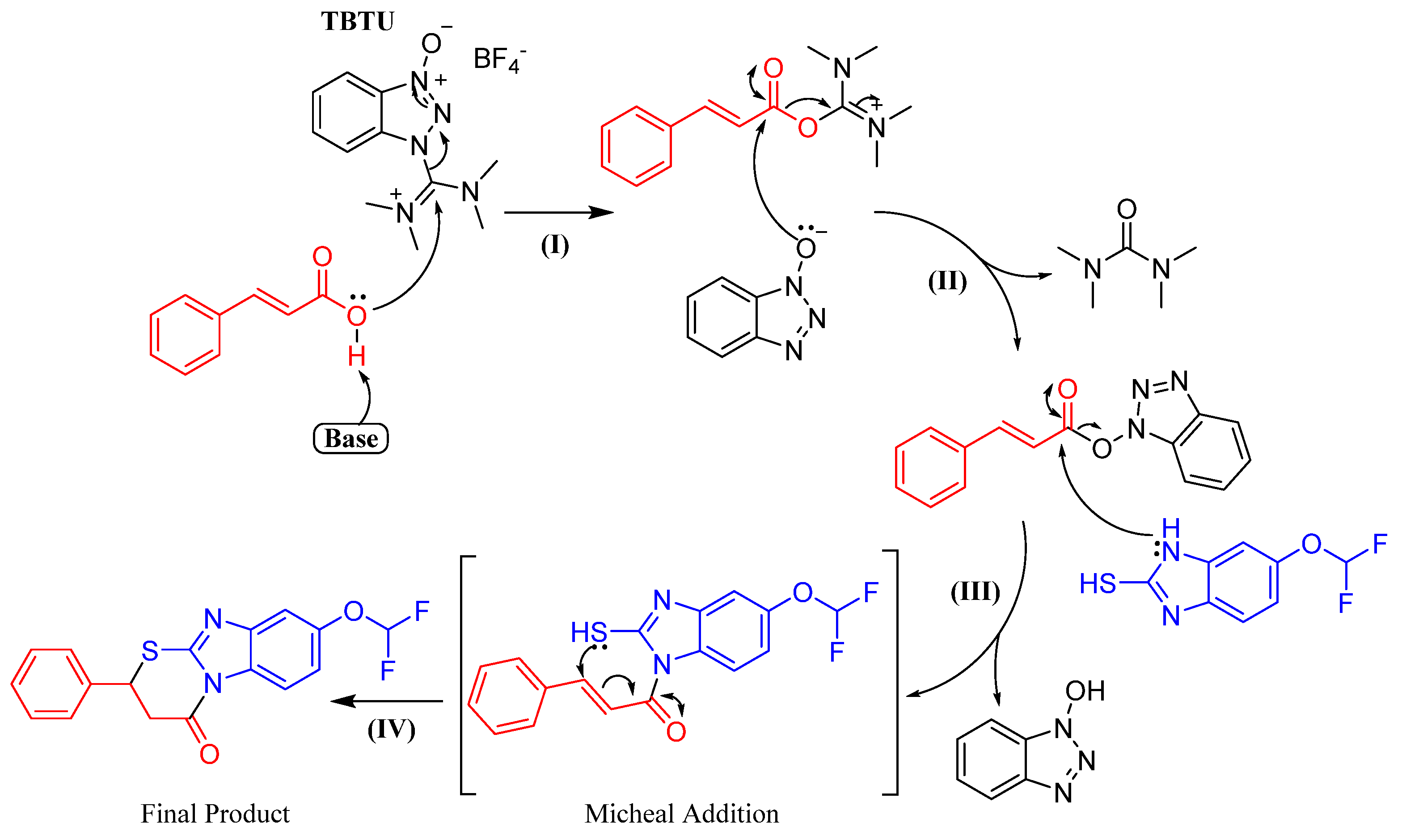

Scheme 2. Proposed mechanism for the formation of benzimidazole–thiazinone derivatives.
Scheme 2. Proposed mechanism for the formation of benzimidazole–thiazinone derivatives.
Antibiotics 13 01155 sch002

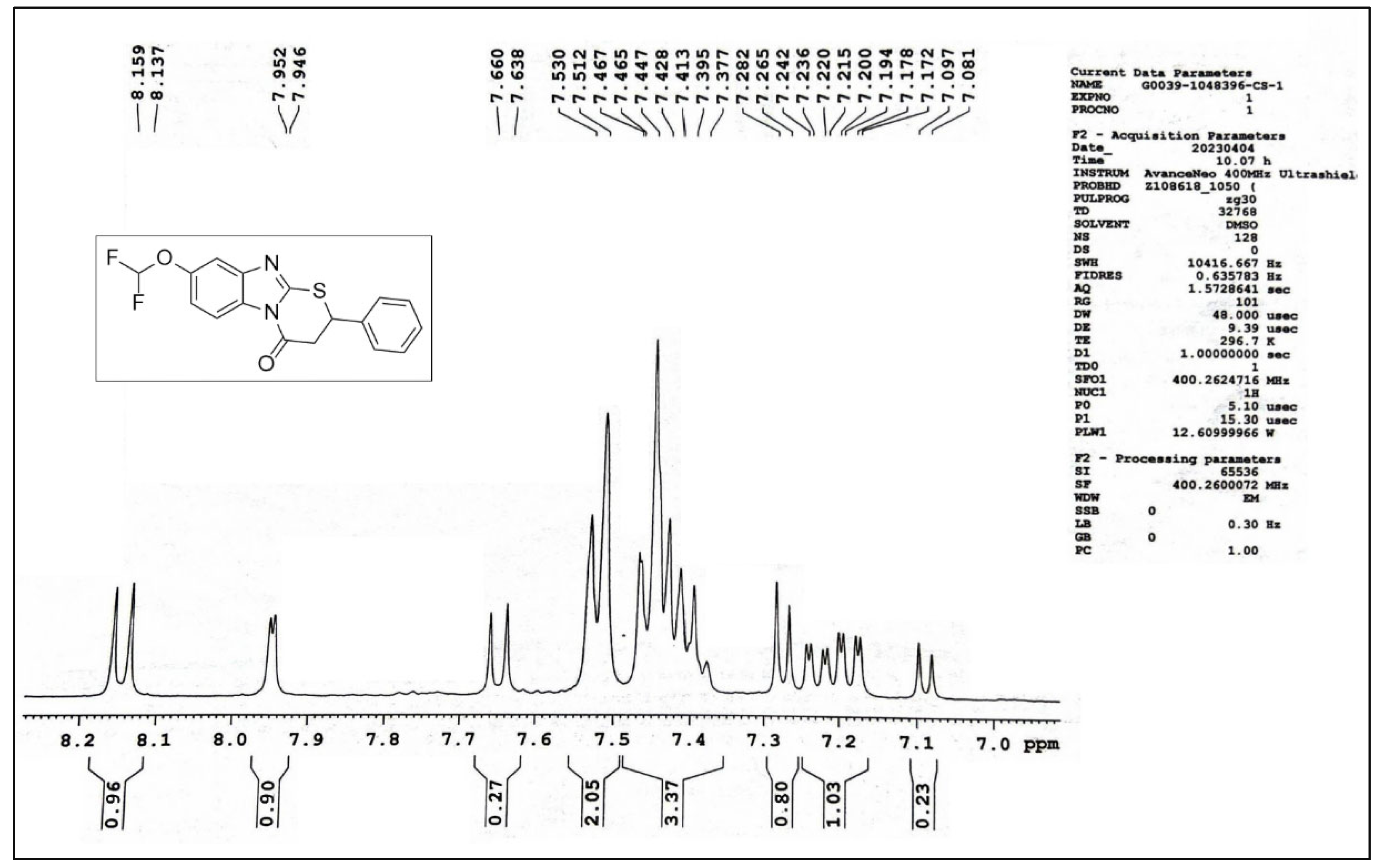

Figure 2. 1H NMR spectrum of compound CS1, representing the aromatic region.
Figure 2. 1H NMR spectrum of compound CS1, representing the aromatic region.
Antibiotics 13 01155 g002

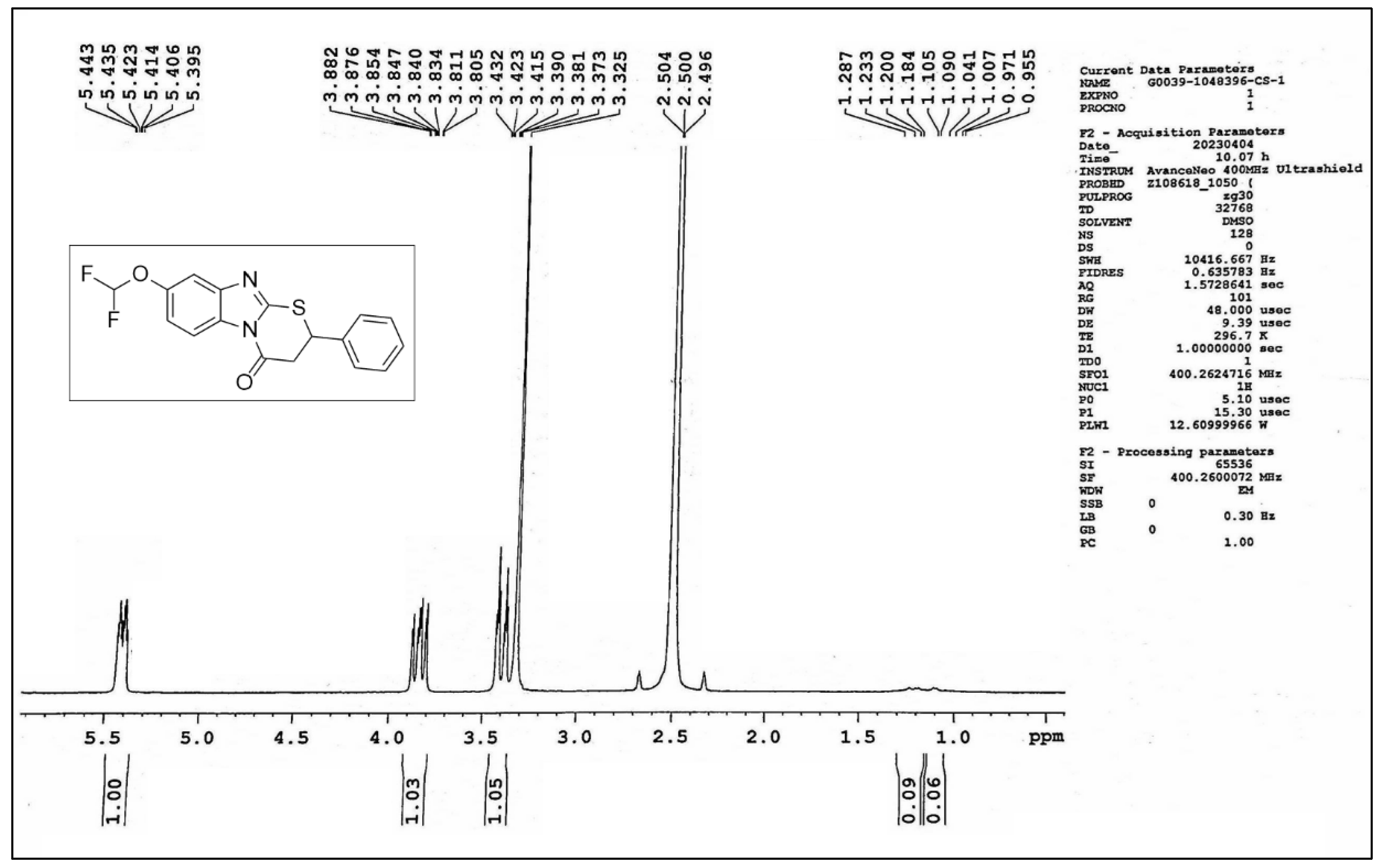

Figure 3. 1H NMR spectrum of compound CS1, representing the aliphatic region.
Figure 3. 1H NMR spectrum of compound CS1, representing the aliphatic region.
Antibiotics 13 01155 g003
Table 1. ZOIs of test compounds against examined fungal strains. Fluconazole (FLC) as a positive control gave a ZOI of 21 mm.
Table 1. ZOIs of test compounds against examined fungal strains. Fluconazole (FLC) as a positive control gave a ZOI of 21 mm.
S. No.Code Diameter of Zone of Inhibition
C. albicans ATCC 90028C. glabrata ATCC 90030C. tropicalis ATCC 750
MIC/2 MIC 2MIC MIC/2 MIC 2MIC MIC/2 MIC 2MIC
1.CS1 12 13 14 11 12.5 13 9 10.5 12
2.CS4 11 12 13.5 11 13.5 14.5 10 11.5 13
3.CS8 12 13.5 15.5 11 13 15 10 12 14
4.CS10 11.3 13.5 15 10 12 14.5 12 13 14
5.FLC 21 22 21
Table 2. MICs of test compounds against examined fungal strains. With FLC as a positive control, the MIC was 10 µg/mL.
Table 2. MICs of test compounds against examined fungal strains. With FLC as a positive control, the MIC was 10 µg/mL.
S. No.CodeMIC (µg/mL)
C. albicans ATCC 90028C. glabrata ATCC 90030C. tropicalis ATCC 750
1.CS1 820 850 850
2.CS2 >1000 >1000 >1000
3.CS3 >1000 >1000 >1000
4.CS4 870 895 925
5.CS5 >1000 >1000 >1000
6.CS6 >1000 >1000 >1000
7.CS7 >1000 >1000 >1000
8.CS8 830 865 890
9.CS9 >1000 >1000 >1000
10.CS10 775 820 850
11.FLC10 12 10
Table 3. MIC values in µg/mL.
Table 3. MIC values in µg/mL.
S. No.CodeE. coliP. aeruginosa
1.CS21024512
2.CS3512512
3.CS4512256
4.CS71024256
5.CIP0.50.5
Table 4. Disk diffusion assay of compounds CS4, CS7 and standard drug CIP.
Table 4. Disk diffusion assay of compounds CS4, CS7 and standard drug CIP.
CompoundsIsolatesZone of Inhibition (ZOI) in mm
½ MICMIC2MIC
CS4E. coli060708
P. aeruginosa070910
CS7E. coli--06
P. aeruginosa-0607
CIPE. coli183842
P. aeruginosa153138
Table 5. Determination of fractional inhibitory concentration indices of the compound with ciprofloxacin.
Table 5. Determination of fractional inhibitory concentration indices of the compound with ciprofloxacin.
Bacterial StrainsMIC Alone (μg/mL)MIC in Combination (μg/mL)FICIMode of Interaction
CS4CIPCS4CIP
E. coli5120.5640.060.25Synergistic
P. aeruginosa2560.5320.030.185Synergistic
CIP: ciprofloxacin.
Table 6. Predicted in silico physiochemical and pharmacokinetic properties of target compounds (CS1–CS10).
Table 6. Predicted in silico physiochemical and pharmacokinetic properties of target compounds (CS1–CS10).
CodeMWRBHBAHBDTPSALog PLog SLog KpBBBLipinski Violations
CS1 346.0604.5069.423.65−5.49−5.350.160
CS2 423.9704.5069.424.27−6.21−5.340.330
CS3 380.0204.5069.424.22−6.15−5.110.320
CS4 376.0605.25078.653.73−5.65−5.550.0730
CS5 376.0605.25078.653.73−5.65−5.550.0820
CS6 376.0605.25078.653.73−5.65−5.550.0810
CS7 364.0504.5069.423.96−5.6−5.380.2690
CS8 364.0504.5069.423.98−5.6−5.382680
CS9 360.0704.5069.424.05−5.88−5.170.140
CS10 391.0405.50115.243.09−6.28−5.74−0.8840
Table 7. Predictive in silico toxicity profile of target compounds (CS1–CS10).
Table 7. Predictive in silico toxicity profile of target compounds (CS1–CS10).
CodeAMES ToxicityMax. Tolerated Dose (Human)hERG I InhibitorhERGII InhibitorOral Rat Acute Toxicity (LD50)Oral Rat Chronic Toxicity (LOAEL)HepatotoxicitySkin SensitizationT. Pyriformis ToxicityMinnow Toxicity
(LC50)
CS1 No0.051YesYes2.2190.901NoNo0.285−1.712
CS2 No0.083NoYes2.2360.683NoNo0.285−2.489
CS3 No0.082NoYes2.2350.693NoNo0.285−2.343
CS4 No0.068NoYes2.2220.791NoNo0.285−1.465
CS5 No0.068NoYes2.2220.791NoNo0.285−1.465
CS6 No0.068NoYes2.2220.791NoNo0.285−1.465
CS7 No0.037NoYes2.2410.821NoNo0.285−1.796
CS8 No0.039NoYes2.2330.801NoNo0.285−1.344
CS9 No0.075NoYes2.2240.92NoNo0.285−2.126
CS10 Yes0.102NoYes2.5090.835NoNo0.285−3.167
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Samreen, S.; Ali, A.; Ahmedi, S.; Raghib, M.; Haque, A.; Manzoor, N.; Hussain, A.; Abid, M.; Inam, A. A Convenient One-Pot Synthesis of Novel Benzimidazole–Thiazinone Derivatives and Their Antimicrobial Activity. Antibiotics 2024, 13, 1155. https://doi.org/10.3390/antibiotics13121155

AMA Style

Samreen S, Ali A, Ahmedi S, Raghib M, Haque A, Manzoor N, Hussain A, Abid M, Inam A. A Convenient One-Pot Synthesis of Novel Benzimidazole–Thiazinone Derivatives and Their Antimicrobial Activity. Antibiotics. 2024; 13(12):1155. https://doi.org/10.3390/antibiotics13121155

Chicago/Turabian Style

Samreen, Sabahat, Asghar Ali, Saiema Ahmedi, Mohammad Raghib, Anzarul Haque, Nikhat Manzoor, Afzal Hussain, Mohammad Abid, and Afreen Inam. 2024. "A Convenient One-Pot Synthesis of Novel Benzimidazole–Thiazinone Derivatives and Their Antimicrobial Activity" Antibiotics 13, no. 12: 1155. https://doi.org/10.3390/antibiotics13121155

APA Style

Samreen, S., Ali, A., Ahmedi, S., Raghib, M., Haque, A., Manzoor, N., Hussain, A., Abid, M., & Inam, A. (2024). A Convenient One-Pot Synthesis of Novel Benzimidazole–Thiazinone Derivatives and Their Antimicrobial Activity. Antibiotics, 13(12), 1155. https://doi.org/10.3390/antibiotics13121155

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
