Article

On the Role of γ-Fe2O3 Nanoparticles and Reduced Graphene Oxide Nanosheets in Enhancing Self-Cleaning Properties of Composite TiO2 for Cultural Heritage Protection

by
Maryam Mokhtarifar
1,
Reyhaneh Kaveh
2,
Marco Ormellese
1,
Mojtaba Bagherzadeh
2,
Maria Vittoria Diamanti
1,* and
MariaPia Pedeferri
1
1
Department of Chemistry, Materials and Chemical Engineering, Politecnico di Milano, 20124 Milano, Italy
2
Department of Chemistry, Sharif University of Technology, Tehran 145888-9694, Iran
*
Author to whom correspondence should be addressed.
Coatings 2020, 10(10), 933; https://doi.org/10.3390/coatings10100933
Submission received: 7 September 2020 / Revised: 24 September 2020 / Accepted: 25 September 2020 / Published: 29 September 2020
(This article belongs to the Special Issue Photocatalytic Thin Films)
Browse Figures
Versions Notes

Abstract

:
The durability of novel metallic artifacts and buildings is an open issue, and the role of smart protecting coatings in extending these artifacts’ lifetimes is crucial. In this paper, the role of γ-Fe2O3 nanoparticles and reduced graphene oxide (rGO) nanosheets on enhancing the self-cleaning properties of composite TiO2 films and reducing metal alterations due to contact with acid rain and pollutants is investigated. The photocatalytic assessment of the TiO2 based films indicates that there are optimum contents for γ-Fe2O3 and rGO, which confer the film lower bandgap and tune the TiO2 anatase/rutile ratio. By adding a proper content of γ-Fe2O3, wettability is reduced both in dark and under illumination, which could be related to higher roughness. γ-Fe2O3 overloading causes increasing crack density and eventually a fully cracked structure. Adding an appropriate amount of rGO causes a sharp increase in roughness, due to the stacking of rGO nanosheets, while simultaneously avoiding cracking. At higher contents of rGO, wettability further decreases due to higher amounts of hydroxyl groups bound onto rGO; also in this case, overloading causes film cracking. Evaluation of self-cleaning performance and discoloration resistance under soiling and acid rain simulated tests demonstrates that proper loadings of γ-Fe2O3 and rGO present higher efficiency thanks to higher superhydrophilic tendency and higher photocatalytic activities, as well as an efficient barrier effect.

1. Introduction

When it comes to preserving structural integrity and the aesthetic properties of metallic artifacts and cultural heritage, hydrophilic self-cleaning coatings can erect a barrier with significant physicochemical properties to protect them from harsh environments [1]. Indeed, a deep understanding of the structure–function relationship of self-cleaning surfaces is necessary to achieve a suitable wettability and high capability of pollutant photodegradation of the engineered artifacts surfaces. A smart hydrophilic surface could clean a surface by two different approaches: the formation of a sheet of water that washes away dirt (i.e., superhydrophilicity) and the chemical breakdown of adsorbed contaminants on the sunlight irradiated surface (i.e., photocatalysis). The combination of these two effects is what is generally referred to as self-cleaning. An efficient self-cleaning mechanism can directly lead to prolonged service life as well as to a significant reduction in maintenance costs [2,3]. These considerations apply to all surfaces; the present work focuses specifically on metallic ones, where not only soiling can impair surface aesthetic properties, but also corrosion can damage, irreversibly, the metallic artifact exposed to the atmosphere, especially in polluted environments where acid rains are present.
The role of these protecting coatings becomes more notable when it comes to the protection of valuable metallic based artifacts made by novel metals such as aluminum, stainless steel, and titanium exposed to environmental pollution with a heavy impact on their surface conditions, including discoloration. Although discoloration does not necessarily affect the metal mechanical stability, it impairs the aesthetic appearance of metallic buildings and artifacts, hence posing a limit to their functionality, which is strongly related to their appearance [4]. In the case of titanium sheets exposed to the outdoor environment, atmospheric discoloration mainly occurs because of the reaction of acid rain with impurities introduced in the titanium surface during the manufacturing process, resulting in the oxidation of titanium and consequent thickening of the natural oxide layer, responsible for the appearance of various surface colors [5,6,7]. Figure 1 shows different parts of a gray color titanium sheet exposed to exterior cladding; a building located in Taiwan. As it is clear, the sheet lost its color originality through oxidizing in the harsh environment resulting in a variety of colors and thicknesses on the surface.
Some general features desired in the design of smart hydrophilic coatings to preserve artifacts are the following: low number of additives, wettability, durability, proper adhesion, chemical stability, as well as transparency to maintain the original surface aesthetic characteristics [1,8].
In the case of metal oxide coatings, an effective protection to the metal substrate can be provided upon the implementation of SiO2, ZrO2, Al2O3, CeO2, and TiO2 due to their high chemical stability. Among them, the optically transparent, superhydrophilic, and photocatalytic TiO2-based coatings are widely used in buildings and artifacts preservation as TiO2 exhibits significantly high physical and chemical stability, low cost, easy availability, low toxicity, and excellent photoactivity [8,9,10]. Moreover, the photoactivity of TiO2 could be improved by shifting the light absorption spectra from UV to the longer wavelengths of visible light range, which is achieved by doping with metals [11,12,13,14], or by forming heterojunctions between TiO2 and a lower bandgap semiconductor [15,16,17]. Moreover, high surface area materials, such as carbon-based materials, can be used to boost photoactivity performance through increasing available surface sites [18,19].
In our previous work, the synthesis and characterization of a novel composite containing (optimized) TiO2/SiO2/γ-Fe2O3/rGO was reported, and its efficiency in discoloration resistance of metallic artifacts was discussed [20]. Since it is critical to understand the role and appropriate content of γ-Fe2O3 nanoparticles and rGO nanosheets, in this work, we analyzed the optimal content of both additions, discussing mechanisms activated by insufficient loading or overloading in the enhancement of self-cleaning properties, morphology, and protection of metallic cultural heritage.

2. Materials and Methods

2.1. Materials

All chemicals—iron chloride tetrahydrate (FeCl2, 4H2O), propylene oxide, tetraethyl orthosilicate (TEOS), tetrabutyl titanate (TBT), sulfuric acid (H2SO4), ethanol (C2H5OH), and methylene blue (MB)—were purchased from Sigma–Aldrich and used as received. Gamma Fe2O3 (γ-Fe2O3) nanoparticles were prepared by dissolving FeCl2·4H2O (5 mmol) in ethanol (0.3 M) and then adding propylene oxide (50 mmol), sonicating for 15 min and stirring for 6 h. The resulting solution was heated at around 100 °C to evaporate the solvents, leaving a brown powder.
Silica (SiO2) was prepared by adding TEOS (40 mmol) to 65% HNO3 and stirring the solution for 1 h (molar ratio of TEOS and H+ was kept 2.4) followed by centrifugation and drying at room temperature for 10 h. The obtained powder was dissolved in 10 mL of ethanol under sonification for 1 h, and then propylene oxide (400 mmol) and TBT (40 mmol) were added to the solution to form Solution A, that was then aged for 72 h. Finally, the solution was mixed with different contents of as prepared γ-Fe2O3 nanoparticles (0.016, 0.032, and 0.063 g), and the mixtures were sonicated for 1 h. To prepare rGO sol-gels, different loadings (0.01, 0.02, and 0.03 g) of rGO were added to the TiO2/SiO2/Fe2O3 with 0.032 g γ-Fe2O3, followed by stirring for 2 h. For the sake of comparison, two separate solutions, including only TiO2 and TiO2/SiO2, were prepared as well.
To evaluate the coating characteristics, metallic titanium specimens, grade 2 following ASTM classification, were coated with the TiO2, TiO2/SiO2, TiO2/SiO2/γ-Fe2O3, TiO2/SiO2/γ-Fe2O3 (0.032 g)/rGO sols (with abbreviation names TS, TSF, and TSF32G for three last sols, respectively) by dip-coating. The number of dips was always set to be two, and the immersion rate was kept at 200 mm/min while the withdrawal rate was modulated at 100 mm/min with dipping angles of 90 degrees. To have coated substrates with the same geometric area, a selected area of 1.7 × 1.9 cm2 was exposed by covering the rest of the sample with Kapton tape. Drying was done in ambient conditions for 24 h between the two dipping steps, followed by calcination at 600 °C for 2 h (Figure 2a). FESEM morphology images of a TSF32G thin film (as an example) are presented in Figure 2b. The TSF32G thin film shows a clearly uniform structure with average thickness 340 nm.

2.2. Characterization Techniques

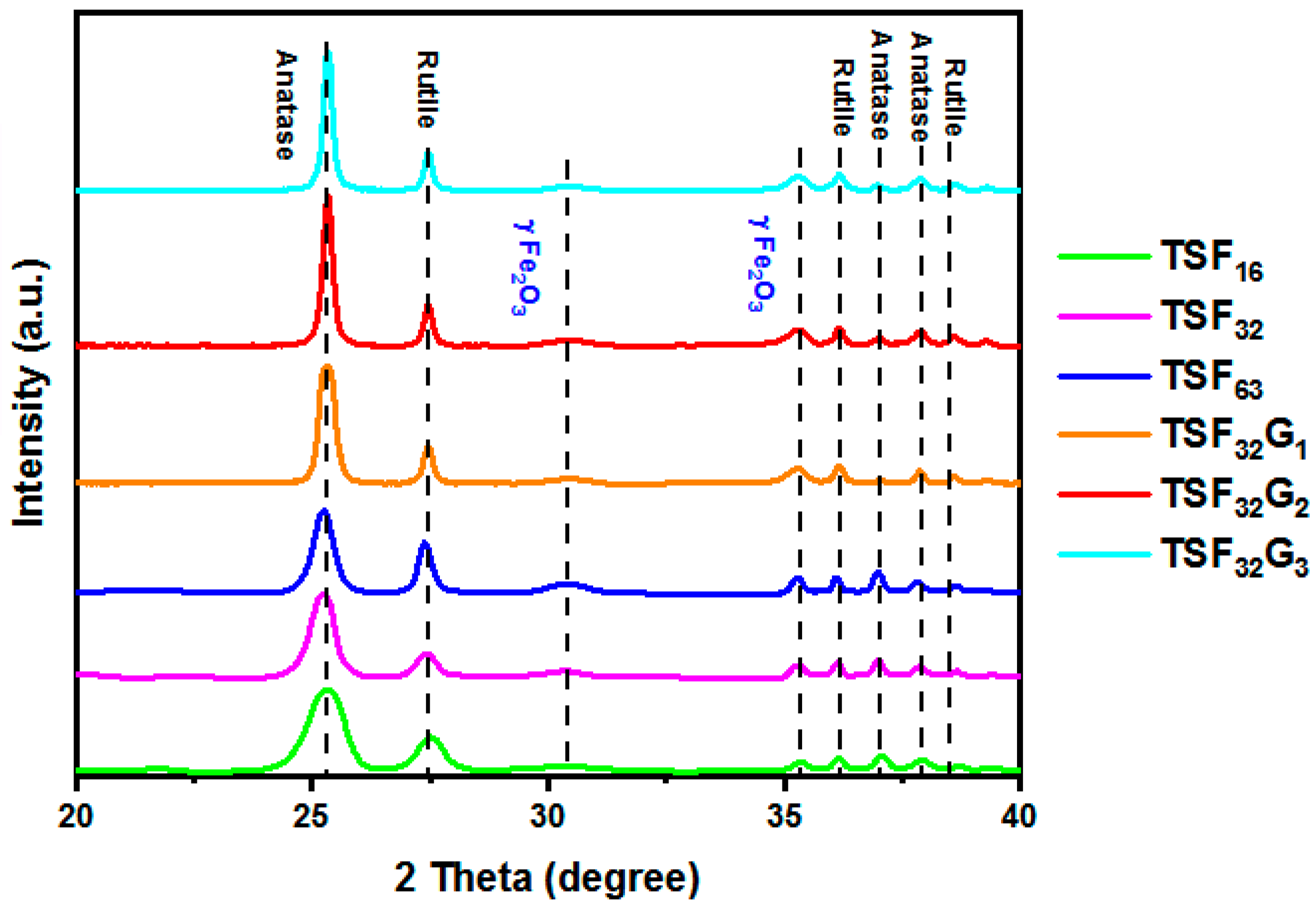

The sol-gel coated samples were characterized using X-ray diffraction analyses (XRD), Fourier transform infrared (FTIR) spectra, atomic force microscopy (AFM), and UV-Vis-NIR diffuse reflectance spectra to understand their structures and optical properties, which influence photocatalytic performances.
Specifically, XRD was used to investigate the coating crystallinity; diffraction patterns were recorded on a Philips PW1830 powder diffractometer (Amsterdam, The Netherlands) operating at 40 kV voltage and 40 mA filament current. Spectra were acquired at the scanning rate of 2.5° per minute with Cu Kα1 radiation in the 2θ range 20°–60°. Optical properties were investigated by UV–Vis-NIR diffuse reflectance. Spectra were recorded in the 220–2600 nm range with a Shimadzu UV 3600 Plus spectrophotometer (Shimadzu, Kyoto, Japan) equipped with an ISR-603 integrating sphere, and BaSO4 was used as reference material. The bandgap was calculated after Kubelka–Munk conversion using the Tauc plot method [21,22]. FTIR spectra of the prepared samples were recorded on a Bruker Tensor 27 spectrometer (Billerica, MA, USA) using a KBr pellet for sample preparation at room temperature. Surface roughness of the coated samples was studied by atomic force microscopy (AFM) using an NT-MDT AFM (Zelenograd, Moscow, Russia) Solver Pro apparatus operating in contact scanning mode by means of 60 × 60 mm2 AFM images. Photocatalytic activity was evaluated in the degradation of Methylene Blue (MB), observed as the variation of its absorbance upon exposure to UV light in presence of the photoactive coating. MB absorbance was measured at given time intervals of irradiation by spectrophotometry (UV–vis spectrophotometer, Thermo scientific Spectronic 200E) at l = 668 nm, where MB has its maximum absorbance. Before photodegradation, the specimens were kept in the dark for 50 min to reach adsorption–desorption equilibrium. The samples were then illuminated for 330 min in an aqueous MB solution (10−5 M, 40 mL) under UV LED (450 mW, 500 mA, 3.8 V, 300–400 nm) and visible LED (4.62 W, 700 mA, 3 V, 400–800 nm) at a 3 cm distance with the light sources.
The onset of superhydrophilic behavior was evaluated by measuring surface contact angle; this was performed by placing a droplet of distilled water on the surface on five predefined positions on the coating substrates and recording the resulting image by a CCD camera connected to the computer via a PCI card. Before measurements, the plates were kept in the dark for 24 h to ensure that contact angles in dark were not affected by ambient light. Then, the specimens were put under irradiation with a simulated solar light (intensity ~4500 μW/cm2) for 30 min, and their contact angles were measure immediately. Contact angles were measured both before and after simulated solar light exposure.

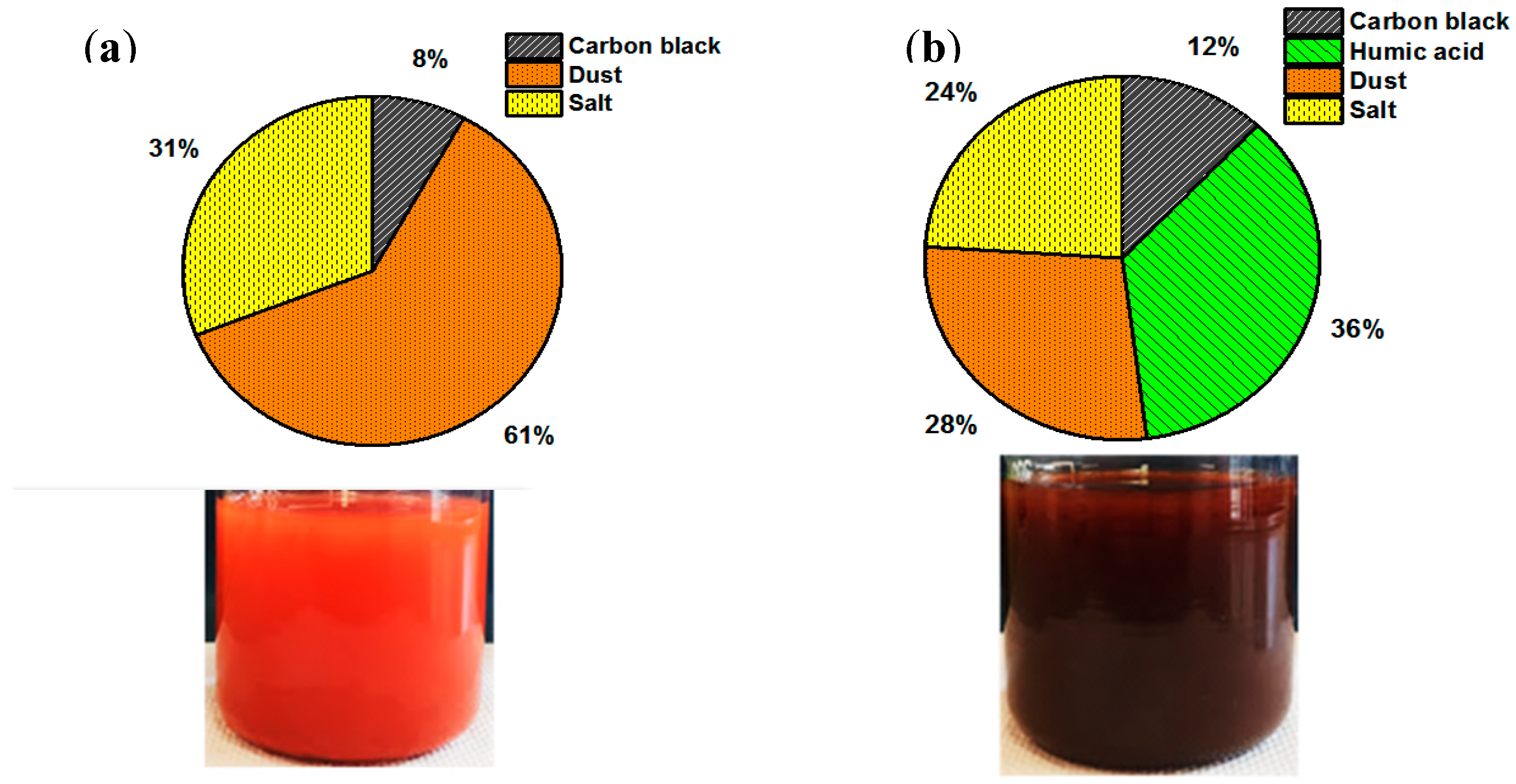

Four soiling agents, presented on urban surfaces, were selected to mimic natural soiling, including black carbon, mineral dust, humic acids (organics), and inorganic salts. These soiling agents were mixed in different ratios in an aqueous mixture and applied on the bare and coated surfaces by dip deposition with a 45° dipping angle. These individual components were optimized to reproduce roofing products exposed in marine and urban polluted environments [22,23] (Figure 3).
Before starting the process, specimens were put under simulated solar light for 1 h to induce photoactivation and then dipped in the soiling components immediately. Then, the soiled plates were left to be entirely dried, and their color changes due to soiling were measured by spectrophotometry (Konica Minolta spectrophotometer CM-2500d, Tokyo, Japan) to evaluate their self-cleaning ability. Colorimetric measurements were analyzed in terms of color difference (ΔE = √((ΔL*)2 + (Δa*)2 + (Δb*)2)) to study the coated films color variation, according to the CIEL*a*b* color system.
To estimate the discoloration resistance of the coated titanium pieces, the samples were immersed and kept in solution with pH 4—adjusted with certain amounts of sulfuric acid and sodium hydroxide—(at 65 °C temperature for 7 days) as an accelerated acid rain simulation.

3. Results

3.1. Structural Study of the Coated Films

As presented in our previous work, the starting morphology of the sol before the addition of iron and graphene oxides is represented by the TS samples, where TiO2 nanoparticles with mixed anatase–rutile phases distribute over the larger amorphous SiO2 particles. XRD patterns of the TSF and TSF32G coated samples calcined at 600 °C are presented in Figure 4. With increasing γ-Fe2O3 content, anatase TiO2 peaks decrease while peaks for the rutile phase are clearer. This observation indicates that at certain threshold Fe(III) ions have a substantial influence on the anatase TiO2 phase at the interface of (TiO2/SiO2) and γ-Fe2O3 compounds, facilitating the anatase–rutile phase transformation [24,25,26]. Indeed, since the ionic radius of Fe3+ (0.64 Å) is similar to the ionic radius of Ti4+ (0.68 Å), the incorporation of Fe in the matrix of TiO2 is possible, and the presence of such defects in TiO2 crystals might have facilitated the anatase–rutile transition (Table 1) [27,28].
On the other hand, an opposite effect was found in TSF32G films, as the anatase/rutile ratio increased by adding rGO in the sol; hence the presence of carbon retarded the anatase–rutile transformation (Table 1). This may be attributed to the high surface area of rGO, as well as to a reduction in acidity and promotion of the dehydration of Ti4+ complex by forming edge shared bonds [29,30,31]. Indeed, a variation in the number of OH ligands in the Ti complex produced from Ti4+ hydrolysis was observed to change acidity [32,33,34].

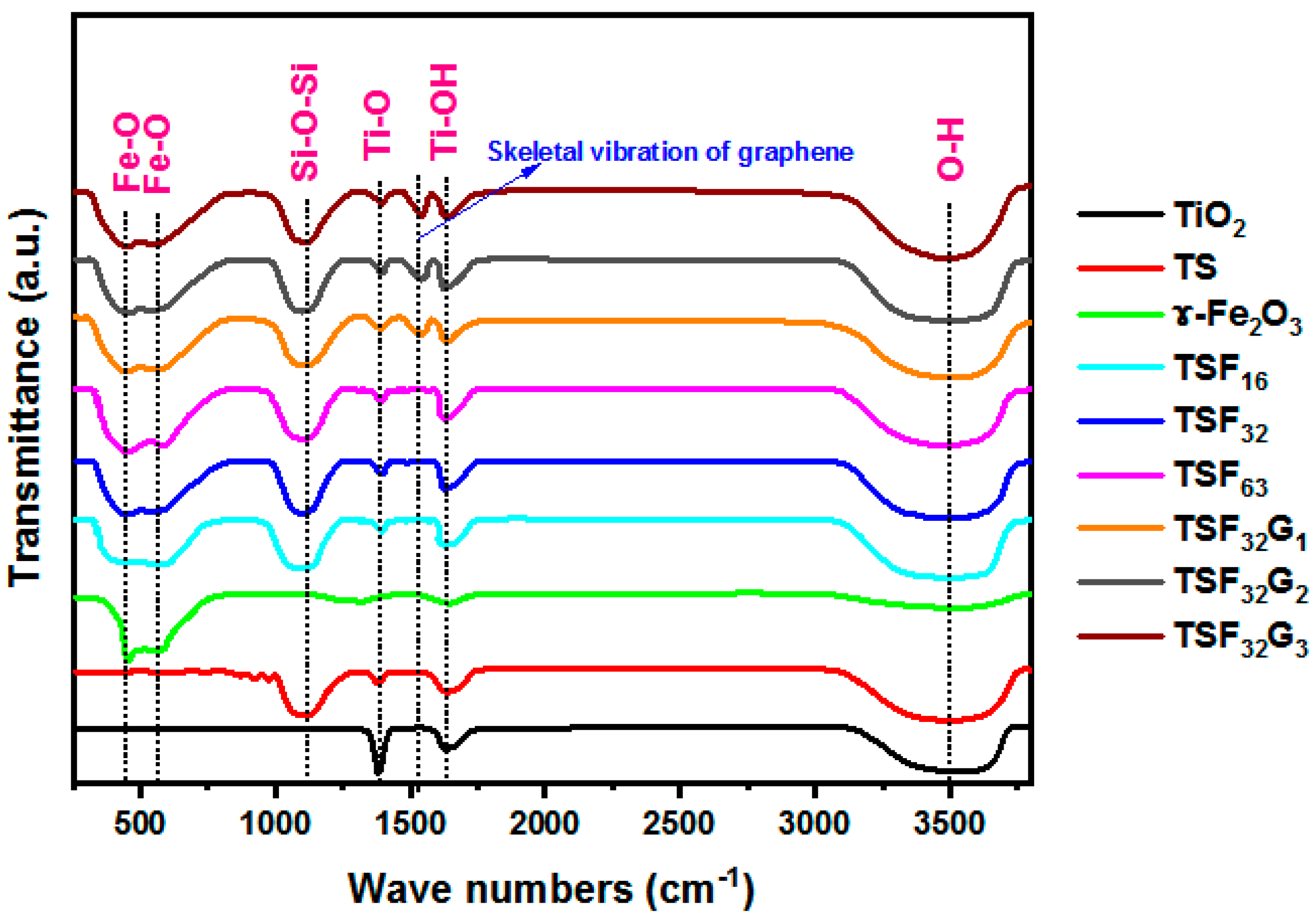

Figure 5 shows the FT-IR spectra of the TSF, and TSF32G coated films in the wavenumber range from 300 to 4000 cm−1. As observed in our previous work, the TiO2 sample shows three bands: the first broad absorption band at around 3500 cm−1 corresponding to the stretching vibration of the hydroxyl group O–H of TiO2. The second absorption band at 1627 cm−1, related to bending modes of Ti–OH, indicates surface hydroxylation of nanoparticles, and another band at 1381 cm−1 is attributed to Ti–O modes. The interaction between TiO2 and SiO2 in the TS was exhibited in the Ti–O–Si bond (∼970 cm−1) [35,36,37]. The absorption band at 1104 cm−1 correlated to Si–O–Si, corresponding to its asymmetric stretching vibration. Furthermore, two peaks at around 453 and 544 cm−1 can be observed for the γ-Fe2O3 sample, corresponding to Fe–O groups, which exhibited a slight blue shift in the case of the TSF and TSF32G films, possibly due to surface augmentation by γ-Fe2O3and rGO [25,36]. Eventually, in the TSF32G films, the absorption peak at 1542 cm−1 could be assigned to the skeletal vibration of unoxidized graphitic domains or bending vibration of the H2O molecule present in GO [35,36]. Furthermore, with increasing the loading of rGO from 0.01 to 0.03 g, relative intensities of these peaks also increased.

3.2. Monitoring Self–Cleaning Properties through Photoactivity Variations under UV and Visible Lights

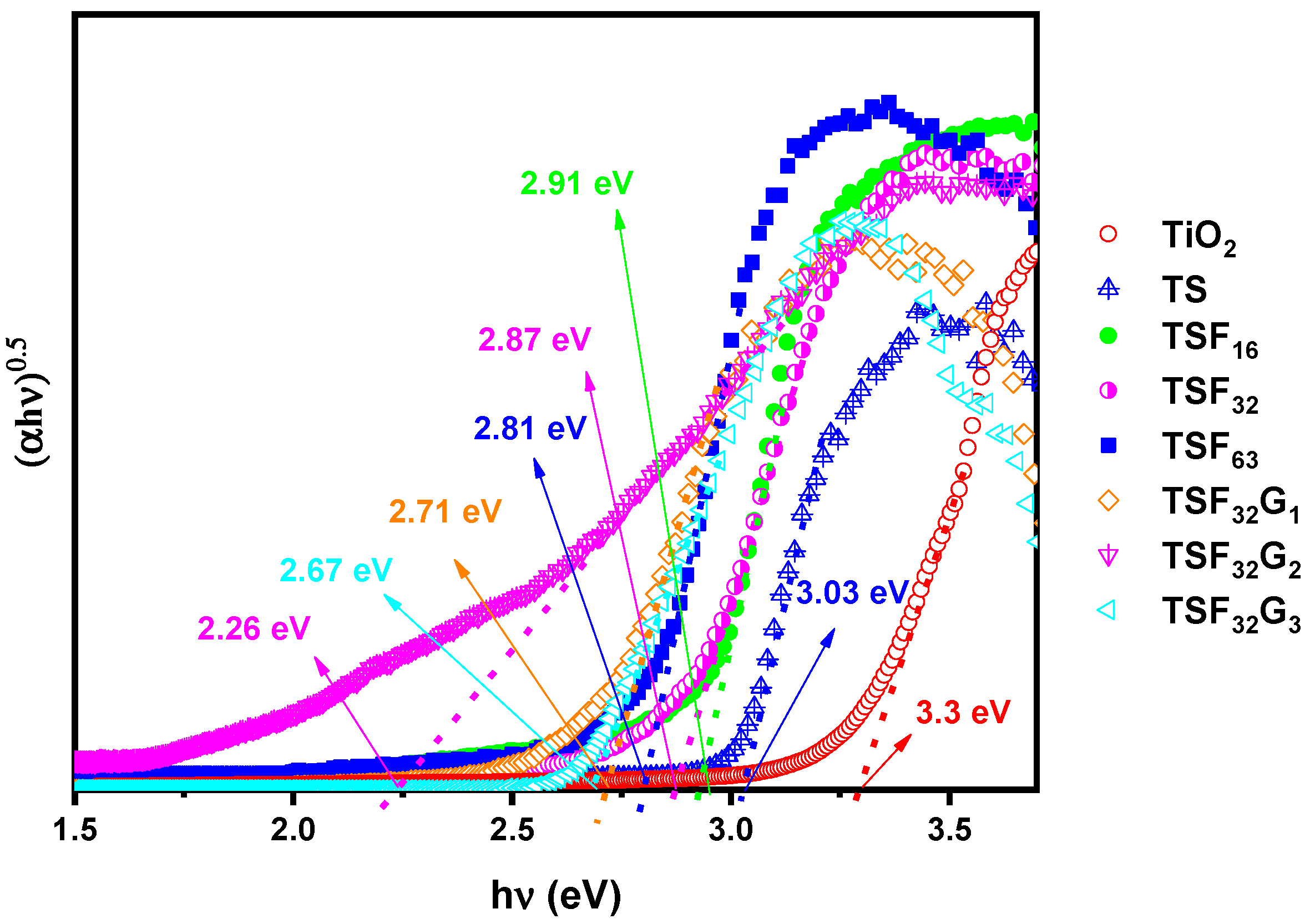

A plot of the transformed Kubelka–Munk function as a function of energy of light is shown in Figure 6, by which the roughly estimated band gaps were 2.91, 2.87, 2.88, and 2.81 eV corresponding to TSF16, TSF32, and TSF63, respectively. The bandgap values are decreased to 2.71, 2.26, and 2.67 eV by adding rGO with 0.01, 0.02, and 0.03 g. It means that the addition of rGO (especially up to 0.02 g) induced a redshift to higher wavelengths in the absorption edge in the UV and visible light regions. This result indicated that a narrowing of the bandgap in the TSF32G2 sample than TiO2. The narrowing should be attributed to the chemical bonding, including the formation of the Ti–O–C bond between TiO2 and rGO [37,38].

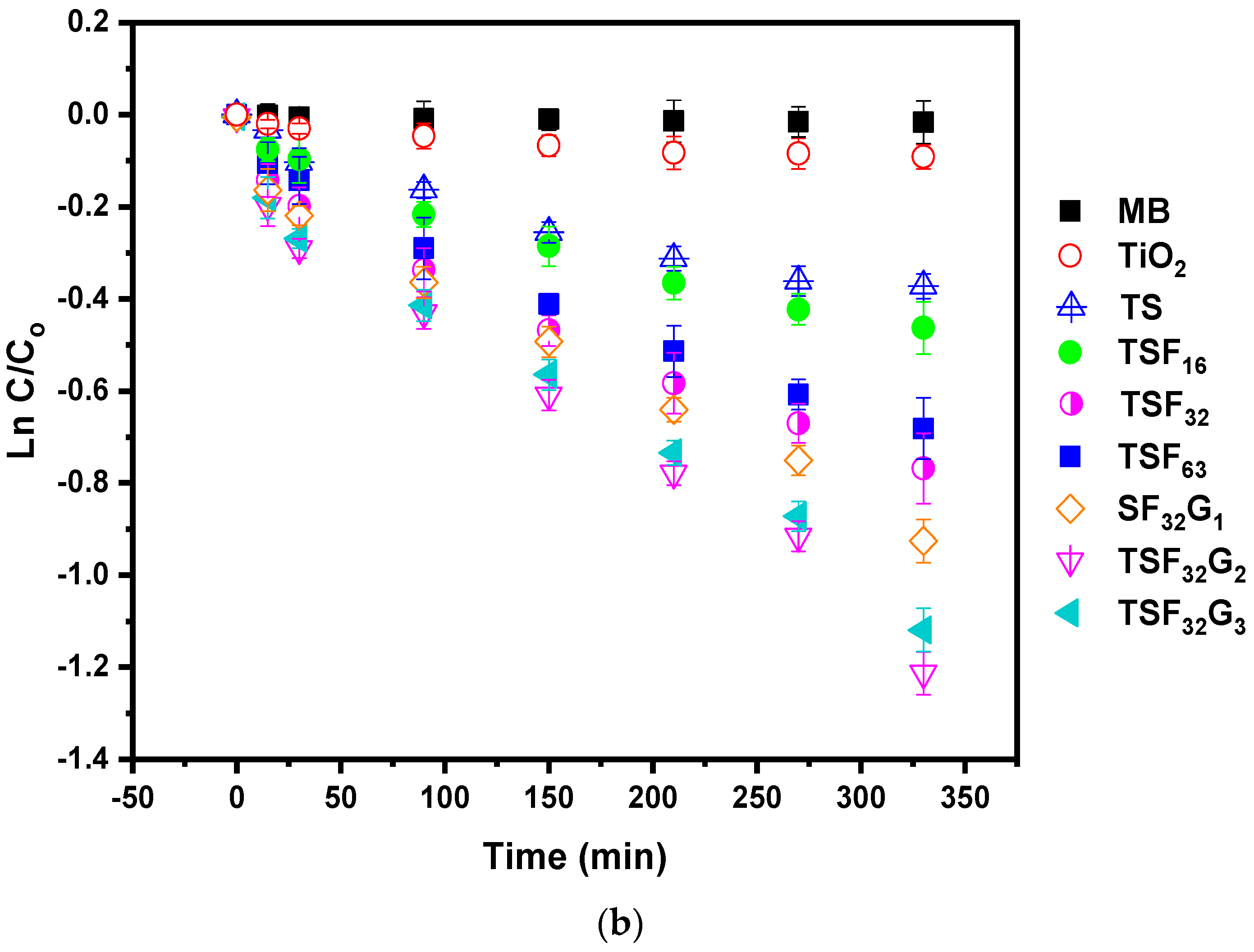

To explore the influence of Fe2O3 and rGO on TiO2 composite films, the photocatalytic activity of TSF and TSFG-coated films for UV and visible-light-driven degradation of MB was performed at room temperature and under ambient pressure (Figure 7a,b). For comparison, the direct photolysis of MB and photocatalysis with pure TiO2 and TS coated films were also performed. The equilibrium adsorption state in dark confirmed that MB adsorption on all the samples was negligible. A control experiment in the absence of any photocatalyst under otherwise identical conditions shows that negligible activity was observed under light irradiation. The results demonstrated good linearity of ln C/C0 vs. time, with R-squared values (R2) higher than 0.9, confirming the correct choice of pseudo-first-order kinetics model for the photocatalytic reactions [38,39]. The kinetic constants (k) and degradation extents of the TiO2, TS, TSF, and TSF32G films deposited on titanium substrate are reported in Table 2. As depicted in Figure 7a, pure TiO2 degraded only 32% of MB after 6 h under UV irradiation, while TiO2–Si degraded about 53% of MB in the same condition. The addition of γ-Fe2O3 led to a significant improvement, increasing the final degradation extent to 66% at the minimum iron oxide content and 76% at the optimal content of 0.032 g. The further addition of an optimal content of rGO—i.e., 0.02 g—also improved the photocatalytic behavior, reaching a photocatalytic degradation of 83%. Under visible light, excellent improvements were obtained compared to pure TiO2 (5%), reaching 53% and 70% in the same optimized compositions (Figure 7b). Indeed, among TSF coated films, TSF32 demonstrates a higher photoactivity, in spite of no significant differences between the bandgaps in 0.032 and 0.063 g γ-Fe2O3 contents. Hence, the better performance should be related not only to proper bandgap, but also to optimal anatase/rutile ratio (60:40) [39,40,41,42]. Moreover, in comparison with the pure TiO2 and TS films, adding a proper amount of γ-Fe2O3 could improve charge separation and reduce recombination, since the conduction band (CB) potential of γ-Fe2O3 is more negative than that of TiO2, hence photo-generated electrons in TiO2 could transfer to the surface of γ-Fe2O3 and photo-generated holes in the valence band (VB) of γ-Fe2O3 could migrate to TiO2, simultaneously [42,43,44,45].
The presence of rGO further improved photocatalytic performances compared to the TSF films. The formation of the Ti–O–C bond resulted in a redshift in the absorbance edge of TiO2, causing an increase in bandgap (Figure 6). Moreover, the two-dimensional structure of the rGO nanosheet and its electrical transport property could boost light absorption and electron transfer in the TSF32G films, improving the separation of the electron-hole pairs. More specifically, the photocatalytic degradation ratio of MB under both UV and visible lights followed the order TSF32G2 > TSF32G3 > TSF32G1. Indeed, at higher rGO loading (0.03 g), the black rGO sheets would increase photo absorption and scattering and, at the same time, reduce the contact surface of TiO2 with light irradiation, leading to a decrease in photodegradation [39,40]. For comparison, recent reports on the self-cleaning properties of different coated films are listed in Table 3.

3.3. Self-Cleaning and Discoloration Resistance Evaluations

3.3.1. Roughness, Transparency, Color Changing, and Coated Film Integrity

The average roughness (Ra) of the substrates coated with TiO2, TS, TSF, and TSF32G films are presented in Table 3. It is confirmed that Ra has an intense enhancement in the case of TS and TSF with respect to pure TiO2 films, especially with the addition of the optimal amount of γ-Fe2O3, where Ra has a peak value of about 69 nm, while this parameter is about 51 and 57 nm for TSF16 and TSF63, respectively. Adding 0.02 g rGO causes a sharp increase in roughness due to the sloppy stacking of rGO sheets, which creates some large channels around the rGO stacks, while a lower amount of rGO does not have significant impact. The presence of stacks may be correlated to the fact that rGO sheets assemble in random order, inconsistent with the change in surface roughness [51,52,53,54]. However, overloading rGO in the TSF32G3 coated film resulted in a decrease in roughness probably due to channels covering around the rGO stacks (Figure 8).
Transmittance in the range 300 to 800 nm was measured on coated glass slides, as presented in Table 2. Except for TSF63 and TSF32G3 coated films, all other specimens show a high transparency of up to 80%. Although transmittance slightly decreased, with the addition of γ-Fe2O3 and rGO, samples are still satisfactory from an aesthetic viewpoint. Generally, the increased surface roughness in TSF32 and TSF32G2 coated films could be responsible for the slight loss in optical transmission compared with TiO2 and TS coatings, together with the possible absorption in visible light for both γ-Fe2O3 and rGO, which both present dark colors when considered in bulk.
To further analyze this aspect, colorimetric measurements were carried out on the uncoated and coated glasses with TiO2, TS, TSF, and TSF32G coated films (Table 4). The pure TiO2 coating did not alter the aesthetic appearance of the specimen, with ΔE < 1, meaning it is not perceivable by human eyes. By adding other compounds, SiO2 and particularly γ-Fe2O3 up to 0.032 g, ΔE values increased to about 2 (ΔE ≤ 2), still indicating differences negligible to human eyes. However, adding the highest amount of γ-Fe2O3 caused a significant increase in ΔE to 4.6, which is perceivable through close observation. On the other hand, also rGO up to 0.02 g does not have significant effects on color, while at its highest amount ΔE exceeded 3, meaning that differences could actually be observed.

3.3.2. Monitoring of Self-Cleaning Property through Contact Angle Changing

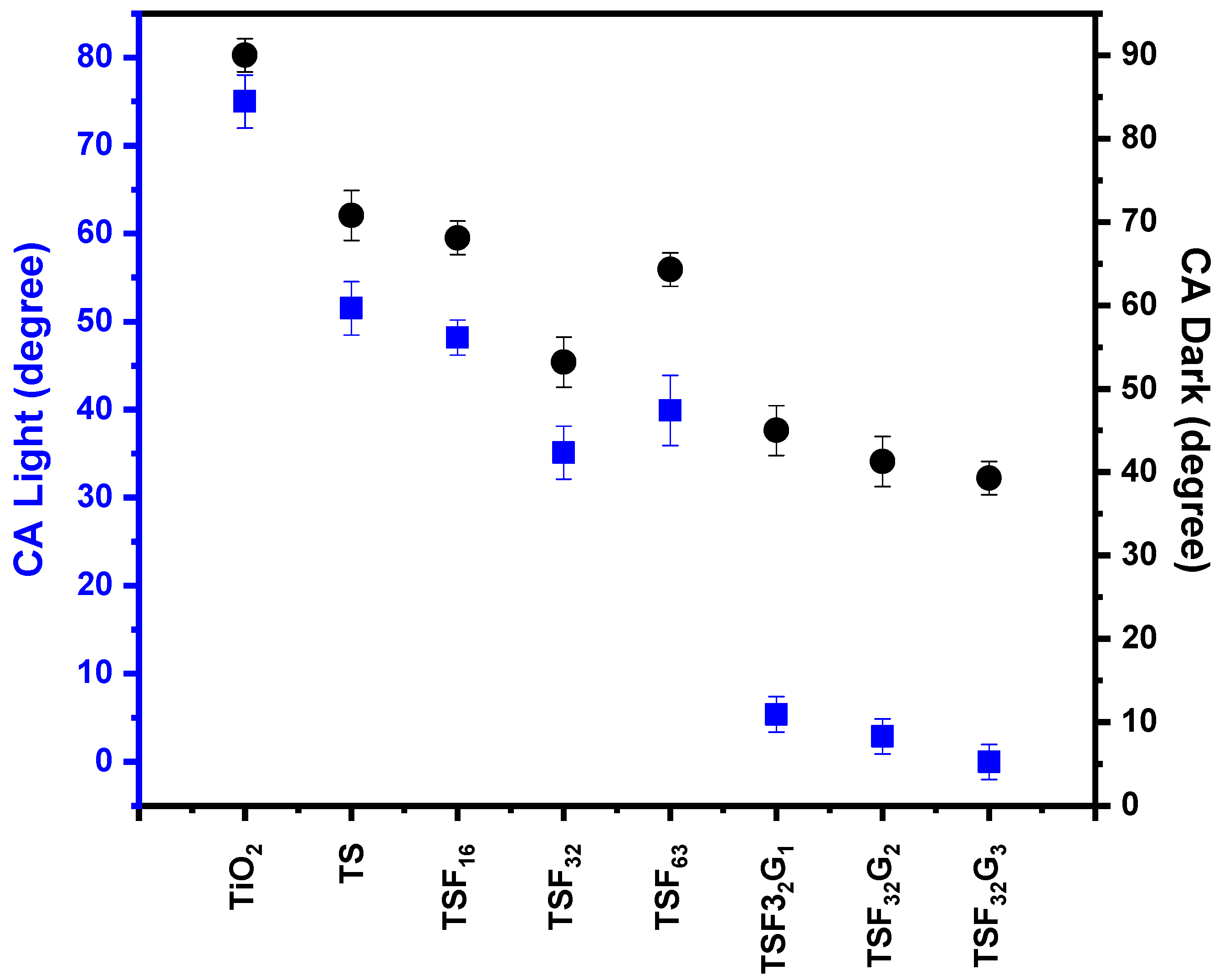

As a key parameter in self-cleaning, wettability was analyzed by measuring water contact angle (CA) on the coated surfaces. Wettability is highly dependent on chemical composition and structure of the coated surfaces [55,56,57]. Water CAs of TiO2, TS, TSF, and TSF32G coated surfaces were measured in the dark and after 30 min light irradiation. CA values are given in Figure 9. In particular, the TiO2 film shows a CA above 90°, which is kept almost constant even after illumination, confirming a poor wetting due to a slightly hydrophobic surface. However, by adding SiO2 both in the dark and after exposure to light hydrophilicity increased, due to the Si−O−Ti bonds (present in the FTIR spectrum (Figure 5)) at the interfaces, whose acid character may induce a higher amount of hydroxyl groups at the film surface [58,59,60,61]. In addition, the hydrophilic tendency in the TS thin film could be due to a retarding effect on anatase-to-rutile phase transformation and the crystal growth of anatase by adding SiO2, as discussed above (Figure 4), as it is known that anatase can accommodate more OH groups compared with rutile [62].
By adding γ-Fe2O3 up to 0.032 g, wettability was improved both in the dark and under illumination (CAlight: CADark 50°: 68° and 35°: 55° for 0.016 and 0.032 g, respectively). However, these values both increased again by adding γ-Fe2O3 up to 0.063 g. Indeed, Fe3+ ions act as both photo-generated holes and electron traps and to impede the hole–electron recombination (see Figure 10; Equations (1) and (2)) [63]. The products of these two reactions (Fe4+ and Fe2+ ions) are relatively unstable oxide forms of Fe than Fe3+ ions, so that trapped charges can transfer from Fe4+ and Fe2+ to the interface to participate in redox reactions [64,65] (Equations (3) and (4)), resulting in the oxidation of lattice O2− anions by more photo-generated holes, following more oxygen vacancies. Consequently, these oxygen vacancy sites may be coordinated by water molecules and lead to their adsorption on the TSF thin film surfaces [66]. By adding different contents of rGO to the TSF32 sol, CAs decrease even more, both in the dark and under light, changing from hydrophilic to superhydrophilic. The enhancement of the hydrophilic conversion rate is ascribable to hydrophilic functional groups bound onto rGO [67], to the improvement in charge separation efficiency as the rGO layer may work as an electron acceptor, and to the increased roughness, typical of a Wenzel state, which leads to higher –OH adsorption sites from water molecules [68,69,70,71,72]. The rGO nanosheets could turn wettability to superhydrophilicity, as oxygen on graphene have a higher energy state [73,74], resulting in a depletion of a large number of oxygen atoms, which in turn results in a continuous diffusion of oxygen vacancies on the rGO surface. Consequently, water molecules in air capture the oxygen vacancies and generate OH radicals binding to the graphene carbon atom in a supramolecular form [74,75] (Figure 10, Equations (5)–(8)).

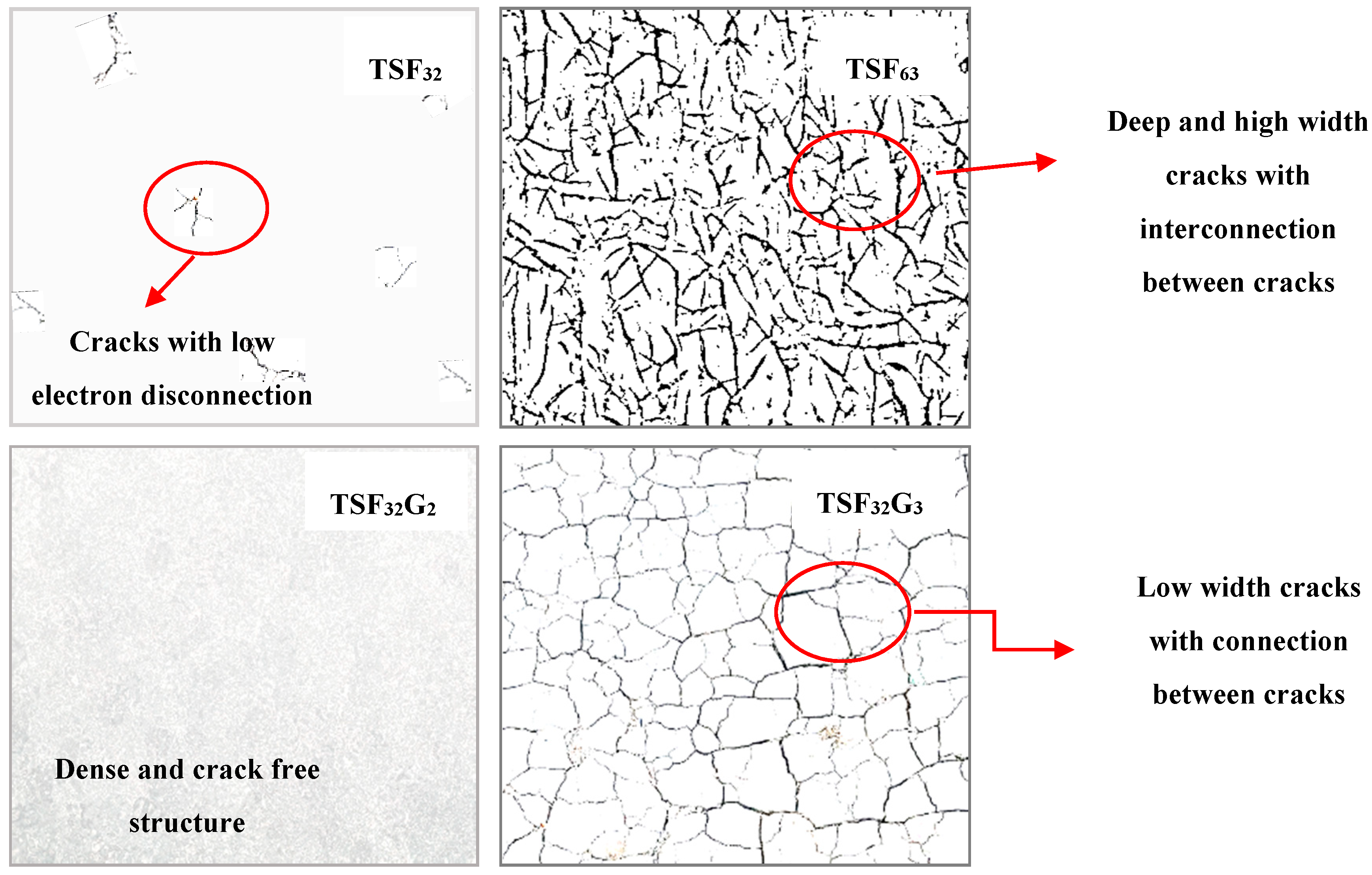

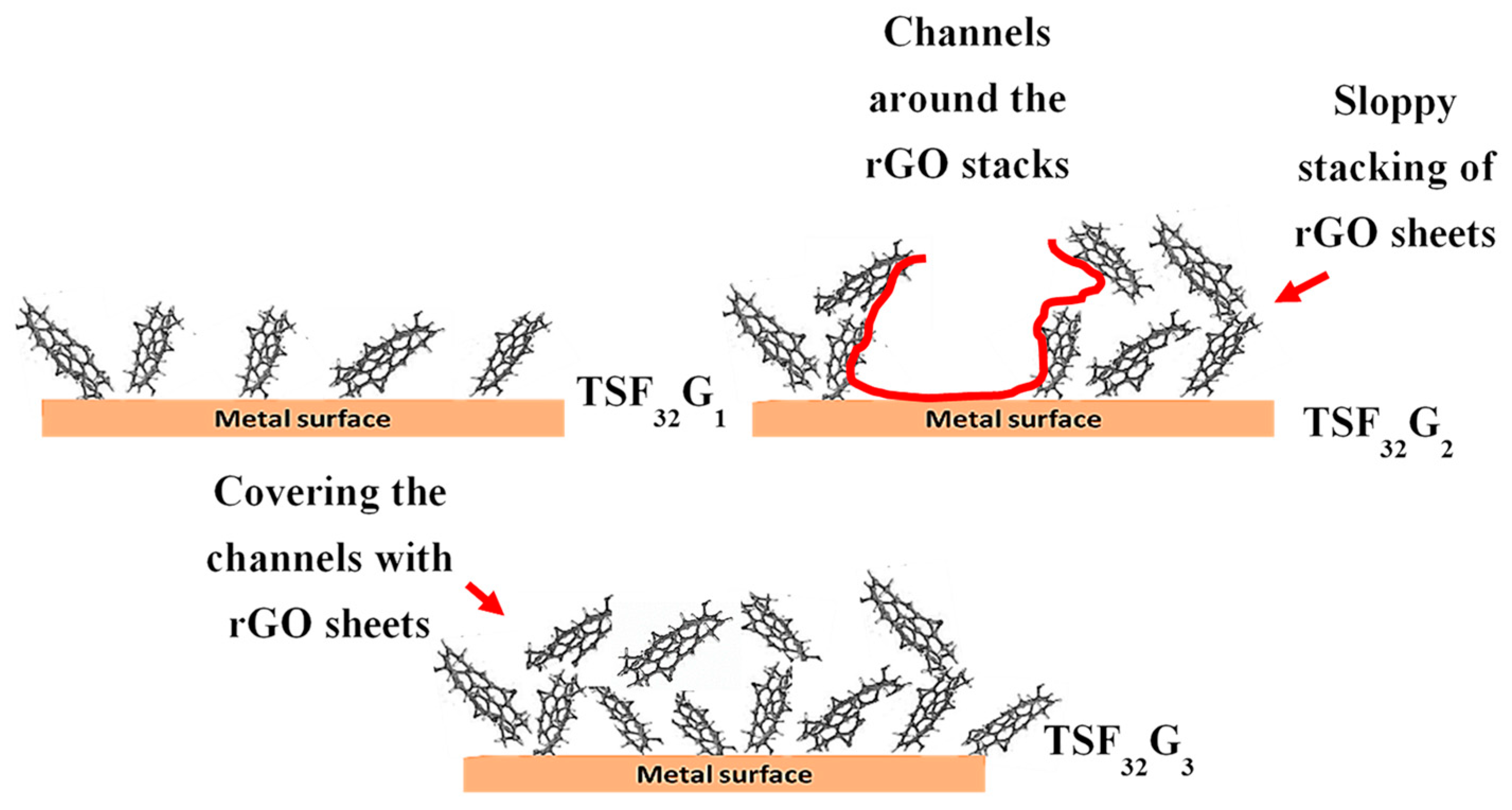

The morphological changes observed during dip coating and then drying of a film are due to the combined effects of the capillary stress and the presence of the lowermost layer of the particles near the substrate that oppose to the relaxation of the generated stress. This leads to the dissipation of the stress through the creation of cracks. Generally, the improvement in interfacial adhesion stability of a film could be related to better interactions between coated layers and substrate. It is confirmed that adding SiO2, Fe2O3, and GO to TiO2 thin films could improve adhesion [76,77,78,79,80,81,82,83]. Moreover, it is widely accepted that the presence of the cracks can have a negative impact on photoactivity and wettability properties, and so crack-free coated films are highly appreciated. However, it is very important to consider the effect of different crack characteristics, such as density, number, homogeneity, orientation, and connection between cracks in thin films [84]. Consequently, the connection of nanoparticles in the coated films is affected by the cracks’ characteristics in terms of width, density, and morphology through the reduction in the path lengths of electron transport within the nanoparticle networks. Generally, thin films with several cracking directions and connections show an electron disconnection in a relevant part of the film, which drastically reduce the photocatalyst efficiency. Conversely, cracks that do not electronically separate film parts have a minor effect on the efficiency [85,86].
In Figure 11, it can be seen clearly that loading more γ-Fe2O3 in the TSF films showed increasing crack density in a way that crack growth in the TSF63 cause a fully cracked structure. Conversely, adding rGO upon 0.02 g resulted in crack free coatings, improving the stability of the thin film through making a dense structure. However, increasing rGO content to 0.03 g adversely affects the stability of the TSF32G3 film, leading to crack propagation in the structure. On the other hand, if the structure of the coated films is considered, crack characteristics are completely different for the prepared films (see schematic Figure 12). It could be useful and interesting to understand how different loadings of γ-Fe2O3 and rGO consequently affect propagation and type/shape of cracks and self-cleaning properties. In the TSF32 film (also in the TSF16), cracks’ characteristics are different in terms of small width and both are interconnected and isolated cracks. In this case, cracks’ characteristics do not promote electron disconnection in the photoactive TSF32 film. For the TSF63 coated film, the cracks’ widths are very polydisperse, and their density is high with intersections leading to interconnected cracks. Additionally, the large crack widths reduce the probability of the pollutants to come into contact with the coated substrate, reducing efficiency as well [87]. Crack connections may also promote the formation of large dense domains, helping light scattering and reducing light harvesting. Conversely, a dense structure limits the electron path transport toward the substrate, which reduces the probability of the recombination process to occur [83,88]. The balance between all abovementioned phenomena contribute to obtain lower efficiency in the TSF63 film, and better efficiency in the dense, crack-free TSF32G1 and TSF32G2 coated films.

3.3.3. Effect of γ-Fe2O3 and rGO in Maintaining the Original Color of the Coated Films in Harsh Environments

As previously mentioned, the original color of a metallic substrate could easily be changed through exposure to aggressive environments, such as acidic media or due to deposition of dust, fly ash, soot, or other particulate matter suspended in air. Here, we examine how γ-Fe2O3 and rGO loading could preserve the surface by using both simulated acid rain and soiling tests.

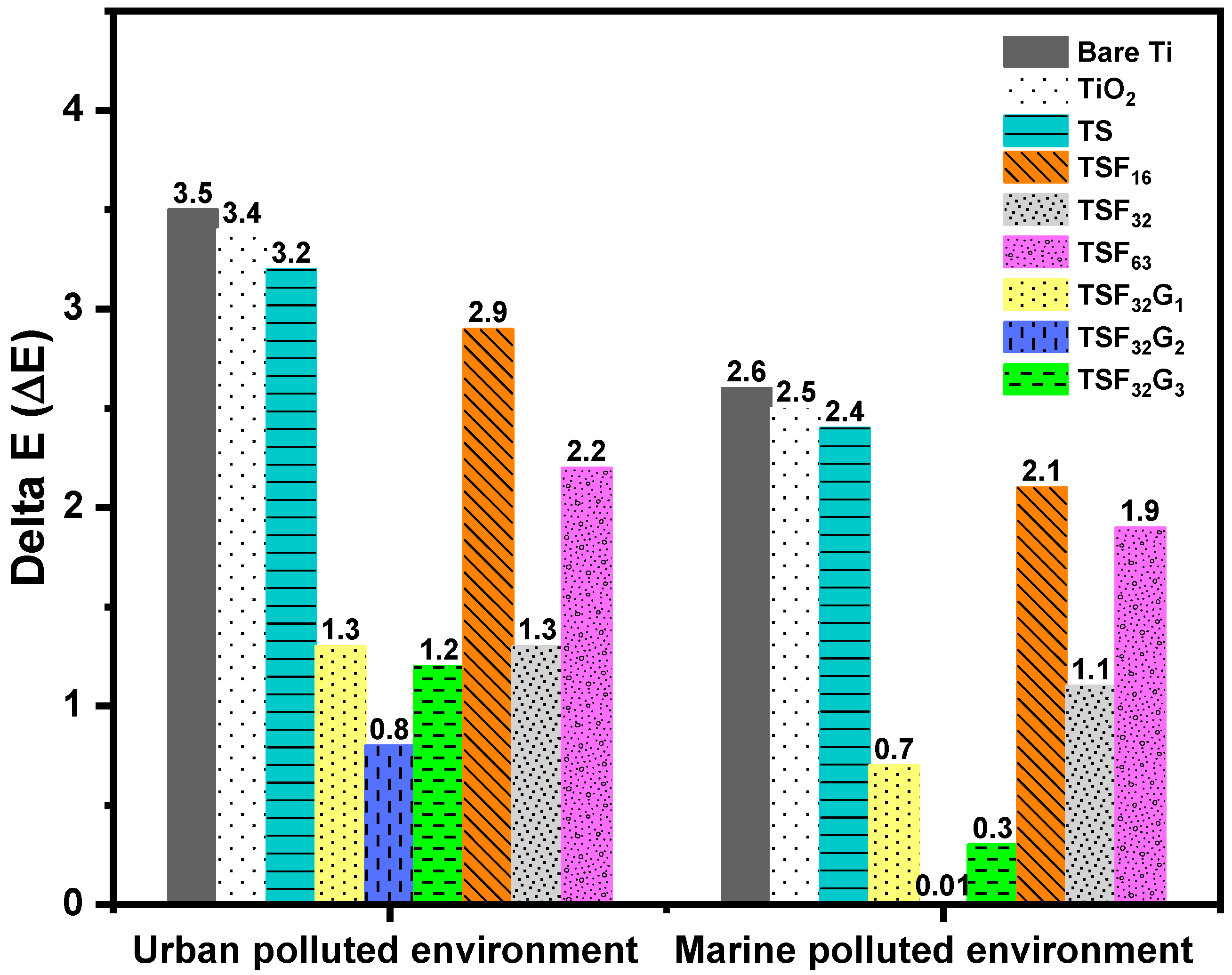

Figure 13 shows the effect of the artificial acid rain solution with pH 4 on titanium specimens discoloration after 7 days immersion. The original color of bare Ti was strongly affected, with a ΔE value of 11, meaning severe discoloration after one week and then a stabilization, which might be attributed to a slower dissolution of TiC as the main contribution to discoloration in acid environments [7]. On the other hand, coated specimens showed a lower ΔE. Only in TSF16 and TSF63 coated specimens, the color differences were close to 5 and 4, respectively, meaning that their color changes due to discoloration could be seen by the naked eye. The optimized content of γ-Fe2O3 (0.032 g) showed a ΔE below 3. Moreover, rGO could protect the metal surface from discoloration significantly, even at low amounts. Only in case of a too high amount of rGO some discoloration could take place, as the coating is likely damaged by rGO overloading.

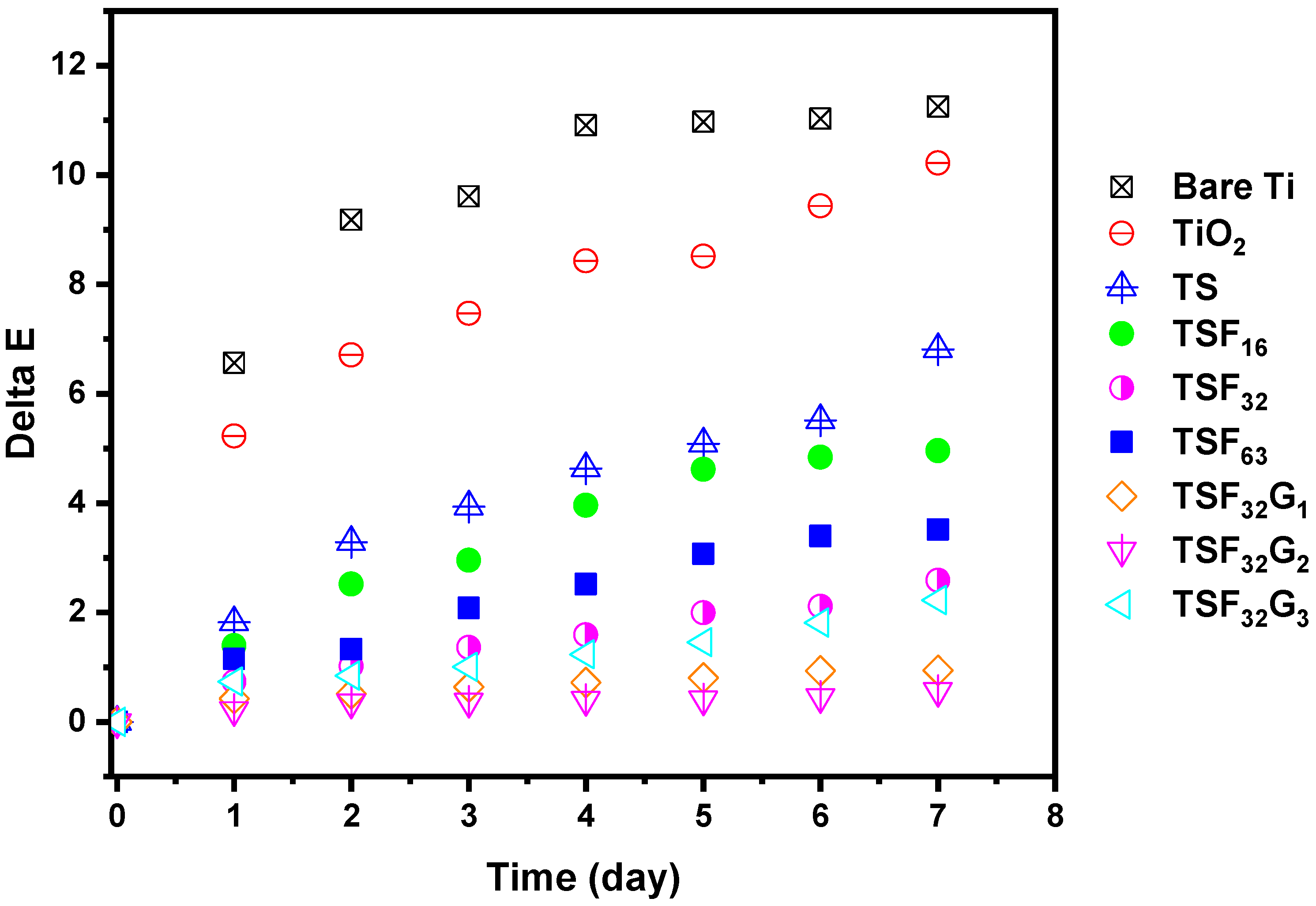

The color difference caused by applying the simulated soiling test is presented in Figure 14. As expected, all the coated specimens showed lower ΔE than the bare one; specifically, the TSF32 coated film better preserved the surface conditions compared to other TSF thin films, and TSF32G2 exhibited minimum ΔE. These results were expected, considering their superhydrophilic tendency and higher photocatalytic activity, as discussed above.

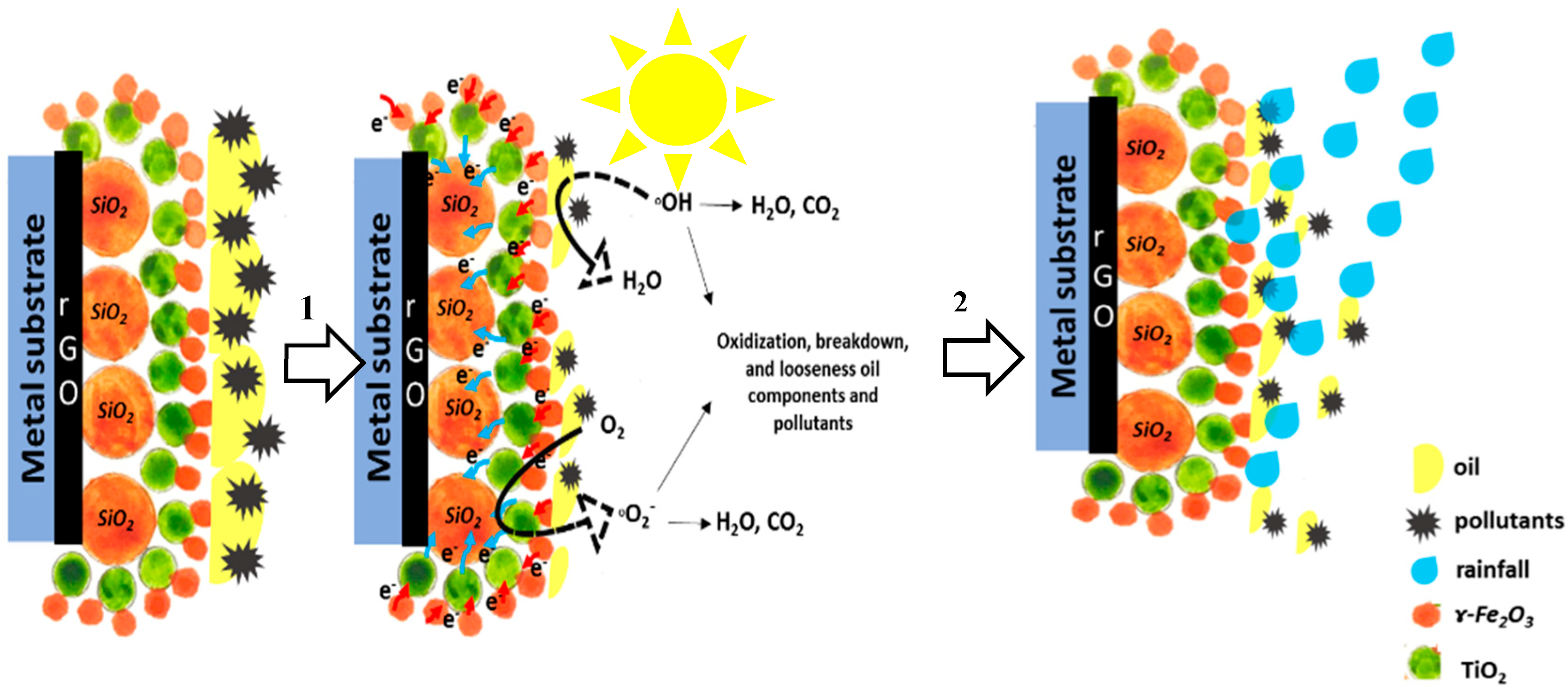

Figure 15 demonstrates how a smart coating—for example, the TSF32G2 here presented—could clean the surface from dust and pollutants. Oil content from smog can adhere to the surface easily, and dust particles or contaminants are consequently attracted by the oil and deposit on the surface. After light irradiation (either indoor light or sunlight), the photoactivated surface oxidizes and breaks down the oil components and loosens dust deposits (step 1). In the case of outdoor exposure, then the surface could benefit from rainfall as well to carry away the particles and clean the surface (step 2).

4. Conclusions

Different concentrations of γ-Fe2O3 and rGO in composite titanium dioxide-silicon dioxide films were synthesized by the sol-gel method and deposited on titanium substrates. The photocatalytic assessment of the TSF and TSF32G coated films indicated that there are optimum contents for γ-Fe2O3 and rGO, which are affected by proper anatase/rutile ratio, bandgap and better film morphology with no crack formation; these optimum values were confirmed by wettability analyses, showing the onset of superhydrophilicity only in the composite film also containing rGO. All coated films ensured satisfying transmittance and no appreciable color difference was visible when applied on the substrate. The enhancement of the hydrophilic behavior is ascribable to their Ra, increasing OH groups, and improvement in charge separation efficiency as the rGO layer has an electron acceptor function, improving light harvesting and consequent light-induced wettability conversion. Eventually, the evaluation of self-cleaning performance and discoloration resistance under soiling and acid rain simulations demonstrated that the TSF32 and TSF32G2 coated specimens efficiently protect the underlying surface thanks to their excellent self-cleaning performances (resulting from their higher superhydrophilicity and photocatalytic activity) and efficient barrier effect.

Author Contributions

M.M.: Methodology, Investigation, Writing; R.K.: Investigation, Writing; M.B.: Supervision, Resources; M.O.: Investigation; M.V.D.: Project administration, Validation, Writing—review/editing; M.P.: Supervision, Resources. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by MIUR, PRIN 2015WBEP3H “Monitoraggio, Consolidamento, Conservazione e Protezione di Beni Culturali”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mokhtarifar, M.; Pedeferri, M.P.; Diamanti, M.V. Towards a better preservation of current and future outdoor architectural heritage; maximum suppression of discolouration in anodized and non-anodized titanium sheets. Environ. Technol. Rev. 2020. [Google Scholar] [CrossRef]
  2. Quan, Y.Y.; Zhang, L.Z.; Qi, R.H.; Cai, R.R. Self-cleaning of Surfaces: The role of surface wettability and dust types. Sci. Rep. 2016, 6. [Google Scholar] [CrossRef] [PubMed]
  3. Kisch, H. Semiconductor photocatalysis-Mechanistic and synthetic aspects. Angew. Chem. Int. Ed. 2013, 52, 812–847. [Google Scholar] [CrossRef] [PubMed]
  4. Kaneko, M.; Kimura, M.; Tokuno, K. Effects of titanium carbide (TiC) and anodizing voltages on discoloration resistance of colored-titanium sheets. Corros. Sci. 2010, 52, 1889–1896. [Google Scholar] [CrossRef]
  5. Diamanti, M.V.; Garbagnoli, P.; Curto, B.; Pedeferri, M.P. On the Growth of Thin Anodic Oxides Showing Interference Colors on Valve Metals. Curr. Nanosci. 2015. [Google Scholar] [CrossRef]
  6. Diamanti, M.V.; Aliverti, S.; Pedeferri, M.P. Decoupling the dual source of colour alteration of architectural titanium: Soiling or oxidation? Corros. Sci. 2013, 72, 125–132. [Google Scholar] [CrossRef]
  7. Kaneko, M.; Takahashi, K.; Hayashi, T.; Muto, I.; Tokuno, K.; Kimura, K. Environmental and metallurgical factors affecting discoloration of titanium sheets in atmospheric environments. Tetsu-To-Hagane/J. Iron Steel Inst. Jpn. 2003, 89, 833–840. [Google Scholar] [CrossRef]
  8. Pelaez, M.; Nolan, N.T.; Pillai, S.C.; Seery, M.K.; Falaras, P.; Kontos, A.G.; Dunlop, P.S.M.; Hamilton, J.W.J.; Byrne, J.A.; O’Shea, K.; et al. A review on the visible light active titanium dioxide photocatalysts for environmental applications. Appl. Catal. B Environ. 2012, 125, 331–349. [Google Scholar] [CrossRef] [Green Version]
  9. Keane, D.A.; McGuigan, K.G.; Ibáñez, P.F.; Polo-López, M.I.; Byrne, J.A.; Dunlop, P.S.M.; O’Shea, K.; Dionysiou, D.D.; Pillai, S.C. Solar photocatalysis for water disinfection: Materials and reactor design. Catal. Sci. Technol. 2014, 4, 1211–1226. [Google Scholar] [CrossRef] [Green Version]
  10. Qu, Y.; Duan, X. Progress, challenge and perspective of heterogeneous photocatalysts. Chem. Soc. Rev. 2013, 42, 2568–2580. [Google Scholar] [CrossRef]
  11. Seery, M.K.; George, R.; Floris, P.; Pillai, S.C. Silver doped titanium dioxide nanomaterials for enhanced visible light photocatalysis. J. Photochem. Photobiol. A Chem. 2007, 189, 258–263. [Google Scholar] [CrossRef] [Green Version]
  12. Linic, S.; Christopher, P.; Ingram, D.B. Plasmonic-metal nanostructures for efficient conversion of solar to chemical energy. Nat. Mater. 2011, 10, 911–921. [Google Scholar] [CrossRef] [PubMed]
  13. Di Paola, A.; García-López, E.; Ikeda, S.; Marc, G.; Ohtani, B.; Palmisano, L. Photocatalytic degradation of organic compounds in aqueous systems by transition metal doped polycrystalline TiO2. Catal. Today 2002, 75, 87–93. [Google Scholar] [CrossRef]
  14. Weng, K.W.; Huang, Y.P. Preparation of TiO2 thin films on glass surfaces with self-cleaning characteristics for solar concentrators. Surf. Coat.Technol. 2013, 231, 201–204. [Google Scholar] [CrossRef]
  15. Xiao, F.X. Construction of highly ordered ZnO-TiO2 nanotube arrays (ZnO/TNTs) heterostructure for photocatalytic application. ACS Appl. Mater. Interfaces 2012, 4, 7055–7063. [Google Scholar] [CrossRef] [PubMed]
  16. Etacheri, V.; Michlits, G.; Seery, M.K.; Hinder, S.J.; Pillai, S.C. A highly efficient TiO2−xCx nano-heterojunction photocatalyst for visible light induced antibacterial applications. ACS Appl. Mater. Interfaces 2013, 5, 1663–1672. [Google Scholar] [CrossRef] [Green Version]
  17. Etacheri, V.; Seery, M.K.; Hinder, S.J.; Pillai, S.C. Nanostructured Ti1−xSxO2−yNy heterojunctions for efficient visible-light-induced photocatalysis. Inorg. Chem. 2012, 51, 7164–7173. [Google Scholar] [CrossRef] [Green Version]
  18. Nguyen, P.T.N.; Salim, C.; Kurniawan, W.; Hinode, H. A non-hydrolytic sol-gel synthesis of reduced graphene oxide/TiO2 microsphere photocatalysts. Catal. Today 2014, 230, 166–173. [Google Scholar] [CrossRef]
  19. Rezaei, M.; Salem, S. Photocatalytic activity enhancement of anatase-graphene nanocomposite for methylene removal: Degradation and kinetics. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2016, 167, 41–49. [Google Scholar] [CrossRef]
  20. Mokhtarifar, M.; Kaveh, R.; Bagherzadeh, M.; Lucotti, A.; Pedeferri, M.P.; Diamanti, M.V. Heterostructured TiO2/SiO2/γ-Fe2O3/rGO Coating with Highly Efficient Visible-Light-Induced Self-Cleaning Properties for Metallic Artifacts. ACS Appl. Mater. Interfaces 2020. [Google Scholar] [CrossRef]
  21. Murphy, A.B. Band-gap determination from diffuse reflectance measurements of semiconductor films, and application to photoelectrochemical water-splitting. Sol. Energy Mater. Sol. Cells 2007, 91, 1326–1337. [Google Scholar] [CrossRef]
  22. Sleiman, M.; Kirchstetter, T.W.; Berdahl, P.; Gilbert, H.E.; Quelen, S.; Marlot, L.; Preble, C.V.; Chen, S.; Montalbano, A.; Rosseler, O.; et al. Soiling of building envelope surfaces and its effect on solar reflectance—Part II: Development of an accelerated aging method for roofing materials. Sol. Energy Mater. Sol. Cells 2014, 122, 271–281. [Google Scholar] [CrossRef]
  23. Favez, O.; Cachier, H.; Chabas, A.; Ausset, P.; Lefevre, R. Crossed optical and chemical evaluations of modern glass soiling in various European urban environments. Atmos. Environ. 2006, 40, 7192–7204. [Google Scholar] [CrossRef]
  24. Abbas, N.; Shao, G.N.; Haider, M.S.; Imran, S.M.; Park, S.S.; Kim, H.T. Sol–gel synthesis of TiO2–Fe2O3 systems: Effects of Fe2O3 content and their photocatalytic properties. J. Ind. Eng. Chem. 2016, 39, 112–120. [Google Scholar] [CrossRef]
  25. Beydoun, D.; Amal, R.; Low, G.K.C.; McEvoy, S. Novel photocatalyst: Titania-coated magnetite. activity and photodissolution. J. Phys. Chem. B 2000, 104, 4387–4396. [Google Scholar] [CrossRef]
  26. Tobaldi, D.M.; Pullar, R.C.; Gualtieri, A.F.; Seabra, M.P.; Labrincha, J.A. Sol-gel synthesis, characterisation and photocatalytic activity of pure, W-, Ag- and W/Ag co-doped TiO2 nanopowders. Chem. Eng. J. 2013, 214, 364–375. [Google Scholar] [CrossRef]
  27. Ghorai, T.K.; Chakraborty, M.; Pramanik, P. Photocatalytic performance of nano-photocatalyst from TiO2 and Fe2O3 by mechanochemical synthesis. J. Alloys Compd. 2011, 509, 8158–8164. [Google Scholar] [CrossRef]
  28. Hung, W.H.; Chien, T.M.; Tseng, C.M. Enhanced photocatalytic water splitting by plasmonic TiO2–Fe2O3 cocatalyst under visible light irradiation. J. Phys. Chem. C 2014, 118, 12676–12681. [Google Scholar] [CrossRef]
  29. Xu, Y.J.; Zhuang, Y.; Fu, X. New insight for enhanced photocatalytic activity of TiO2 by doping carbon nanotubes: A case study on degradation of benzene and methyl orange. J. Phys. Chem. C 2010, 114, 2669–2676. [Google Scholar] [CrossRef]
  30. Xiong, Z.; Wu, H.; Zhang, L.; Gu, Y.; Zhao, X.S. Synthesis of TiO2 with controllable ratio of anatase to rutile. J. Mater. Chem. A 2014, 2, 9291–9297. [Google Scholar] [CrossRef]
  31. Wang, D.; Li, X.; Chen, J.; Tao, X. Enhanced photoelectrocatalytic activity of reduced graphene oxide/TiO2 composite films for dye degradation. Chem. Eng. J. 2012, 198–199, 547–554. [Google Scholar] [CrossRef]
  32. Sher Shah, M.S.A.; Park, A.R.; Zhang, K.; Park, J.H.; Yoo, P.J. Green synthesis of biphasic TiO2-reduced graphene oxide nanocomposites with highly enhanced photocatalytic activity. ACS Appl. Mater. Interfaces 2012, 4, 3893–3901. [Google Scholar] [CrossRef] [PubMed]
  33. Cheng, H.; Ma, J.; Zhao, Z.; Qi, L. Hydrothermal preparation of uniform nanosize rutile and anatase particles. Chem. Mater. 1995, 7, 663–671. [Google Scholar] [CrossRef]
  34. Mohamed, H.H. Biphasic TiO2 microspheres/reduced graphene oxide for effective simultaneous photocatalytic reduction and oxidation processes. Appl. Catal. A Gen. 2017, 541, 25–34. [Google Scholar] [CrossRef]
  35. Botelho, G.; Andres, J.; Gracia, L.; Matos, L.S.; Longo, E. Photoluminescence and photocatalytic properties of Ag3PO4 microcrystals: An experimental and theoretical investigation. Chempluschem 2016. [Google Scholar] [CrossRef] [PubMed]
  36. Bagherzadeh, M.; Kaveh, R. New magnetically recyclable reduced graphene oxide rGO/MFe2O4 (M = Ca, Mg)/Ag3PO4 nanocomposites with remarkably enhanced visible-light photocatalytic activity and stability. Photochem. Photobiol. 2018. [Google Scholar] [CrossRef]
  37. Ren, W.; Ai, Z.; Jia, F.; Zhang, L.; Fan, X.; Zou, Z. Low temperature preparation and visible light photocatalytic activity of mesoporous carbon-doped crystalline TiO2. Appl. Catal. B Environ. 2007. [Google Scholar] [CrossRef]
  38. Liu, Y. Hydrothermal synthesis of TiO2–RGO composites and their improved photocatalytic activity in visible light. RSC Adv. 2014. [Google Scholar] [CrossRef]
  39. Zhang, H.; Lv, X.; Li, Y.; Wang, Y.; Li, J. P25-graphene composite as a high performance photocatalyst. ACS Nano 2010, 4, 380–386. [Google Scholar] [CrossRef]
  40. Xiang, Q.; Yu, J.; Jaroniec, M. Graphene-based semiconductor photocatalysts. Chem. Soc. Rev. 2012. [Google Scholar] [CrossRef]
  41. Anandan, S.; Narasinga Rao, T.; Sathish, M.; Rangappa, D.; Honma, I.; Miyauchi, M. Superhydrophilic graphene-loaded TIO2 thin film for self-cleaning applications. ACS Appl. Mater. Interfaces 2013. [Google Scholar] [CrossRef] [PubMed]
  42. Powell, M.J.; Quesada-Cabrera, R.; Taylor, A.; Teixeira, D.; Papakonstantinou, I.; Palgrave, R.G.; Sankar, G.; Parkin, I.P. Intelligent multifunctional VO2/SiO2/TiO2 coatings for self-cleaning, energy-saving window panels. Chem. Mater. 2016. [Google Scholar] [CrossRef]
  43. Uddin, M.J.; Cesano, F.; Scarano, D.; Bonino, F.; Agostini, G.; Spoto, G.; Bordiga, S.; Zecchina, A. Cotton textile fibres coated by Au/TiO2 films: Synthesis, characterization and self cleaning properties. J. Photochem. Photobiol. A Chem. 2008. [Google Scholar] [CrossRef]
  44. Kesmez, Ö.; Erdem Çamurlu, H.; Burunkaya, E.; Arpaç, E. Sol-gel preparation and characterization of anti-reflective and self-cleaning SiO2–TiO2 double-layer nanometric films. Sol. Energy Mater. Sol. Cells 2009. [Google Scholar] [CrossRef]
  45. Munafò, P.; Quagliarini, E.; Goffredo, G.B.; Bondioli, F.; Licciulli, A. Durability of nano-engineered TiO2 self-cleaning treatments on limestone. Constr. Build. Mater. 2014. [Google Scholar] [CrossRef]
  46. Yamashita, H.; Nakao, H.; Takeuchi, M.; Nakatani, Y.; Anpo, M. Coating of TiO2 photocatalysts on super-hydrophobic porous teflon membrane by an ion assisted deposition method and their self-cleaning performance. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2003. [Google Scholar] [CrossRef]
  47. Graziani, L.; Quagliarini, E.; Bondioli, F.; D’Orazio, M. Durability of self-cleaning TiO2 coatings on fired clay brick façades: Effects of UV exposure and wet & dry cycles. Build. Environ. 2014. [Google Scholar] [CrossRef]
  48. Calia, A.; Lettieri, M.; Masieri, M. Durability assessment of nanostructured TiO2 coatings applied on limestones to enhance building surface with self-cleaning ability. Build. Environ. 2016. [Google Scholar] [CrossRef]
  49. Lettieri, M.; Colangiuli, D.; Masieri, M.; Calia, A. Field performances of nanosized TiO2 coated limestone for a self-cleaning building surface in an urban environment. Build. Environ. 2019. [Google Scholar] [CrossRef]
  50. Shakeri, A.; Yip, D.; Badv, M.; Imani, S.M.; Sanjari, M.; Didar, T.F. Self-cleaning ceramic tiles produced via stable coating of TiO2 Nanoparticles. Materials 2018, 11, 1003. [Google Scholar] [CrossRef] [Green Version]
  51. Daryaei, E.; Reza Rahimi Tabar, M.; Moshfegh, A.Z. Surface roughness analysis of hydrophilic SiO2/TiO2/glass nano bilayers by the level crossing approach. Phys. A Stat. Mech. Appl. 2013, 392, 2175–2181. [Google Scholar] [CrossRef] [Green Version]
  52. Dhoke, S.K.; Khanna, A.S. Electrochemical behavior of nano-iron oxide modified alkyd based waterborne coatings. Mater. Chem. Phys. 2009, 117, 550–556. [Google Scholar] [CrossRef]
  53. Wei, Y.; Zhang, Y.; Gao, X.; Ma, Z.; Wang, X.; Gao, C. Multilayered graphene oxide membrane for water treatment: A review. Carbon N. Y. 2018, 139, 964–981. [Google Scholar] [CrossRef]
  54. Tsou, C.H.; An, Q.F.; Lo, S.C.; De Guzman, M.; Hung, W.S.; Hu, C.C.; Lee, K.R.; Lai, J.Y. Effect of microstructure of graphene oxide fabricated through different self-assembly techniques on 1-butanol dehydration. J. Memb. Sci. 2015, 477, 93–100. [Google Scholar] [CrossRef]
  55. Wang, J.; Zhang, Y.; Wang, S.; Song, Y.; Jiang, L. Bioinspired colloidal photonic crystals with controllable wettability. Acc. Chem. Res. 2011, 44, 405–415. [Google Scholar] [CrossRef]
  56. Wang, J.; Wen, Y.; Hu, J.; Song, Y.; Jiang, L. Fine control of the wettability transition temperature of colloidal-crystal films: From superhydrophilic to superhydrophobic. Adv. Funct. Mater. 2007, 17, 219–225. [Google Scholar] [CrossRef]
  57. Li, Q.; Guo, Z. Lubricant-infused slippery surfaces: Facile fabrication, unique liquid repellence and antireflective properties. J. Colloid Interface Sci. 2019, 536, 507–515. [Google Scholar] [CrossRef]
  58. Eshaghi, A.; Dashti, A.; Eshaghi, A.; Mozaffarinia, R. Photo-induced superhydrophilicity of nanocomposite TiO2–SiO2 thin film. Mater. Sci. Pol. 2011. [Google Scholar] [CrossRef]
  59. Houmard, M.; Riassetto, D.; Roussel, F.; Bourgeois, A.; Berthomé, G.; Joud, J.C.; Langlet, M. Enhanced persistence of natural super-hydrophilicity in TiO2–SiO2 composite thin films deposited via a sol-gel route. Surf. Sci. 2008. [Google Scholar] [CrossRef]
  60. Houmard, M.; Riassetto, D.; Roussel, F.; Bourgeois, A.; Berthomé, G.; Joud, J.C.; Langlet, M. Morphology and natural wettability properties of sol-gel derived TiO2–SiO2 composite thin films. Appl. Surf. Sci. 2007. [Google Scholar] [CrossRef]
  61. Fateh, R.; Dillert, R.; Bahnemann, D. Preparation and characterization of transparent hydrophilic photocatalytic TiO2/SiO2 thin films on polycarbonate. Langmuir 2013. [Google Scholar] [CrossRef] [PubMed]
  62. Diamanti, M.V.; Gadelrab, K.R.; Pedeferri, M.P.; Stefancich, M.; Pehkonen, S.O.; Chiesa, M. Nanoscale investigation of photoinduced hydrophilicity variations in anatase and rutile nanopowders. Langmuir 2013, 29, 14512–14518. [Google Scholar] [CrossRef]
  63. Yu, J.C.; Ho, W.; Lin, J.; Yip, H.; Wong, P.K. Photocatalytic activity, antibacterial effect, and photoinduced hydrophilicity of TiO2 films coated on a stainless steel substrate. Environ. Sci. Technol. 2003, 37, 2296–2301. [Google Scholar] [CrossRef]
  64. Choi, W.; Termin, A.; Hoffmann, M.R. Effects of metal-ion dopants on the photocatalytic reactivity of quantum-sized TiO2 particles. Angew. Chem. Int. Ed. Engl. 1994, 33, 1091–1092. [Google Scholar] [CrossRef]
  65. Choi, W.; Termin, A.; Hoffmann, M.R. The role of metal ion dopants in quantum-sized TiO2: Correlation between photoreactivity and charge carrier recombination dynamics. J. Phys. Chem. 1994, 98, 13669–13679. [Google Scholar] [CrossRef]
  66. Yu, J.; Zhou, M.; Yu, H.; Zhang, Q.; Yu, Y. Enhanced photoinduced super-hydrophilicity of the sol-gel-derived TiO2 thin films by Fe-doping. Mater. Chem. Phys. 2006, 95, 193–196. [Google Scholar] [CrossRef]
  67. Jin, F.; Lv, W.; Zhang, C.; Li, Z.; Su, R.; Qi, W.; Yang, Q.H.; He, Z. High-performance ultrafiltration membranes based on polyethersulfone- graphene oxide composites. RSC Adv. 2013. [Google Scholar] [CrossRef]
  68. Sakai, N.; Kamanaka, K.; Sasaki, T. Modulation of photochemical activity of titania nanosheets via heteroassembly with reduced graphene oxide. enhancement of photoinduced hydrophilic conversion properties. J. Phys. Chem. C 2016. [Google Scholar] [CrossRef]
  69. Bharti, B.; Kumar, S.; Kumar, R. Superhydrophilic TiO2 thin film by nanometer scale surface roughness and dangling bonds. Appl. Surf. Sci. 2016, 364, 51–60. [Google Scholar] [CrossRef]
  70. Wang, R.; Hashimoto, K.; Fujishima, A.; Chikuni, M.; Kojima, E.; Kitamura, A.; Shimohigoshi, M.; Watanabe, T. Light-induced amphiphilic surfaces. Nature 1997, 388, 431–432. [Google Scholar] [CrossRef]
  71. Lee, H.Y.; Park, Y.H.; Ko, K.H. Correlation between surface morphology and hydrophilic/hydrophobic conversion of MOCVD-TiO2 films. Langmuir 2000, 16, 7289–7293. [Google Scholar] [CrossRef]
  72. Sakai, N.; Wang, R.; Fujishima, A.; Watanabe, T.; Hashimoto, K. Effect of ultrasonic treatment on highly hydrophilic TiO2 surfaces. Langmuir 1998, 14, 5918–5920. [Google Scholar] [CrossRef]
  73. Feng, X.; Zhai, J.; Jiang, L. The fabrication and switchable superhydrophobicity of TiO2 nanorod films. Angew. Chem. Int. Ed. 2005, 44, 5115–5118. [Google Scholar] [CrossRef] [PubMed]
  74. Kim, S.B.; Hwang, H.T.; Hong, S.C. Photocatalytic degradation of volatile organic compounds at the gas-solid interface of a TiO2 photocatalyst. Chemosphere 2002, 48, 437–444. [Google Scholar] [CrossRef]
  75. Luo, Z.; Pinto, N.J.; Davila, Y.; Charlie Johnson, A.T. Controlled doping of graphene using ultraviolet irradiation. Appl. Phys. Lett. 2012, 100. [Google Scholar] [CrossRef]
  76. Duong, D.L.; Han, G.H.; Lee, S.M.; Gunes, F.; Kim, E.S.; Kim, S.T.; Kim, H.; Ta, Q.H.; So, K.P.; Yoon, S.J.; et al. Probing graphene grain boundaries with optical microscopy. Nature 2012, 490, 235–239. [Google Scholar] [CrossRef]
  77. Zhang, X.; Fan, X.; Yan, C.; Li, H.; Zhu, Y.; Li, X.; Yu, L. Interfacial microstructure and properties of carbon fiber composites modified with graphene oxide. ACS Appl. Mater. Interfaces 2012. [Google Scholar] [CrossRef]
  78. Da, S.X.; Wang, J.; Geng, H.Z.; Jia, S.L.; Xu, C.X.; Li, L.G.; Shi, P.P.; Li, G. High adhesion transparent conducting films using graphene oxide hybrid carbon nanotubes. Appl. Surf. Sci. 2017. [Google Scholar] [CrossRef]
  79. Lu, H.; Yao, Y.; Huang, W.M.; Hui, D. Noncovalently functionalized carbon fiber by grafted self-assembled graphene oxide and the synergistic effect on polymeric shape memory nanocomposites. Compos. Part B Eng. 2014. [Google Scholar] [CrossRef]
  80. Ning, H.; Li, J.; Hu, N.; Yan, C.; Liu, Y.; Wu, L.; Liu, F.; Zhang, J. Interlaminar mechanical properties of carbon fiber reinforced plastic laminates modified with graphene oxide interleaf. Carbon N. Y. 2015. [Google Scholar] [CrossRef] [Green Version]
  81. Son, G.C.; Hwang, D.K.; Jang, J.; Chee, S.S.; Cho, K.; Myoung, J.M.; Ham, M.H. Solution-processed highly adhesive graphene coatings for corrosion inhibition of metals. Nano Res. 2019. [Google Scholar] [CrossRef]
  82. Moon, I.K.; Kim, J., II; Lee, H.; Hur, K.; Kim, W.C.; Lee, H. 2D graphene oxide nanosheets as an adhesive over-coating layer for flexible transparent conductive electrodes. Sci. Rep. 2013. [Google Scholar] [CrossRef] [Green Version]
  83. Akimov, G.Y.; Chaika, E.V.; Marinin, G.A. Wear and fracture toughness of partially stabilized zirconia ceramics under dry friction against steel. J. Frict. Wear 2009. [Google Scholar] [CrossRef]
  84. Paggi, M.; Reinoso, J. An anisotropic large displacement cohesive zone model for fibrillar and crazing interfaces. Int. J. Solids Struct. 2015. [Google Scholar] [CrossRef]
  85. Kajari-Schröder, S.; Kunze, I.; Köntges, M. Criticality of cracks in PV modules. Energy Procedia 2012. [Google Scholar] [CrossRef] [Green Version]
  86. Paggi, M.; Berardone, I.; Infuso, A.; Corrado, M. Fatigue degradation and electric recovery in Silicon solar cells embedded in photovoltaic modules. Sci. Rep. 2014. [Google Scholar] [CrossRef] [Green Version]
  87. Taleb, A.; Mesguich, F.; Hérissan, A.; Colbeau-Justin, C.; Yanpeng, X.; Dubot, P. Optimized TiO2 nanoparticle packing for DSSC photovoltaic applications. Sol. Energy Mater. Sol. Cells 2016. [Google Scholar] [CrossRef]
  88. Akimov, G.Y.; Chaika, E.V.; Timchenko, V.M.; Marinin, G.A.; Burkhovetskii, V.V. Wear of ceramics based on magnesia- and ceria-stabilized zirconia in dry friction against steel. J. Frict. Wear 2009. [Google Scholar] [CrossRef]
Coatings 10 00933 g001 550

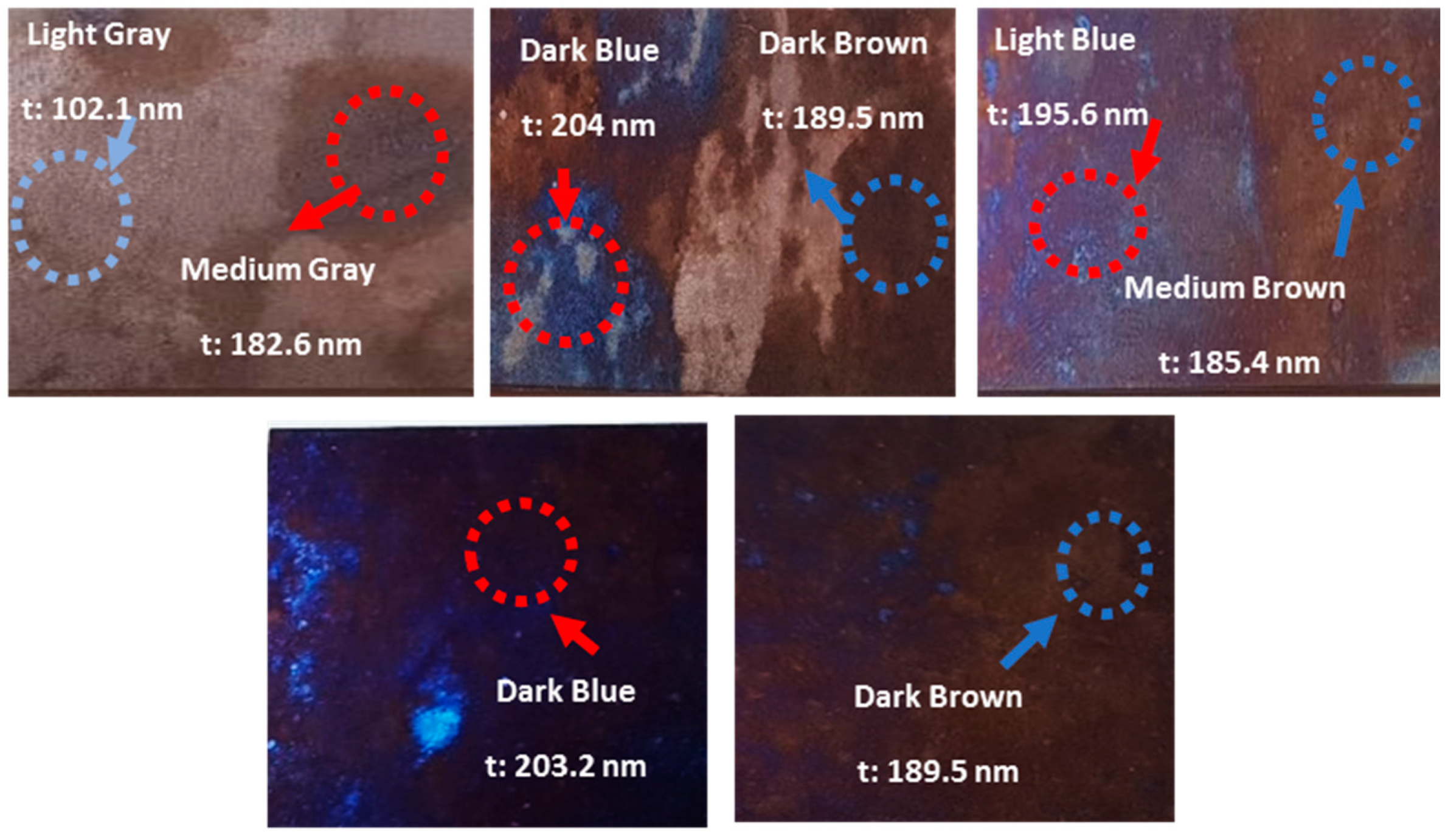

Figure 1. Color changing due to the formation of oxide films with a variety of thicknesses (t) in different parts of a titanium sheet used as exterior cladding of a building located in Taiwan.
Figure 1. Color changing due to the formation of oxide films with a variety of thicknesses (t) in different parts of a titanium sheet used as exterior cladding of a building located in Taiwan.
Coatings 10 00933 g001
Coatings 10 00933 g002a 550Coatings 10 00933 g002b 550

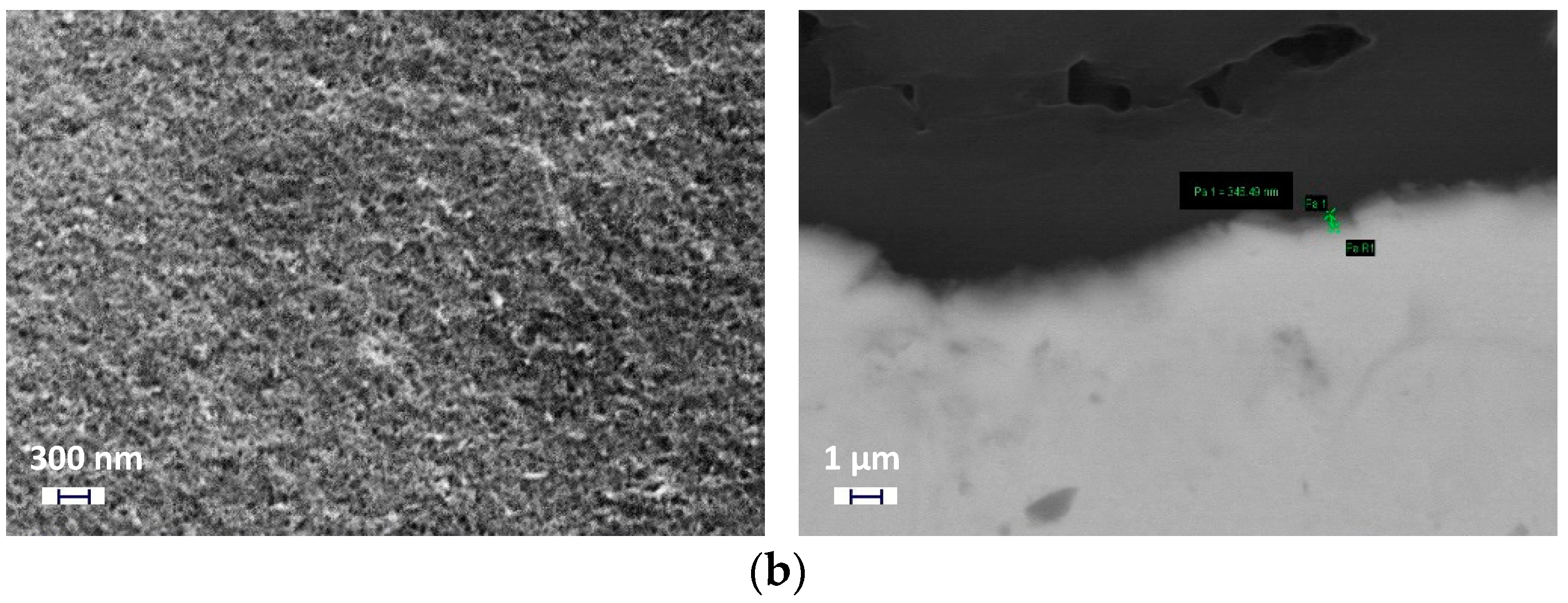

Figure 2. (a) Schematic illustration of the synthesis of the sol gels and preparation of the coated films, (b) SEM images of structure and thickness of the TSF32G thin film.
Figure 2. (a) Schematic illustration of the synthesis of the sol gels and preparation of the coated films, (b) SEM images of structure and thickness of the TSF32G thin film.
Coatings 10 00933 g002aCoatings 10 00933 g002b
Coatings 10 00933 g003 550
Figure 3. Volume fractions and their color of artificial soiling mixtures including carbon black, humic acid, dusts, and salts used to mimic the soiling of roofing materials, (a) marine, and (b) urban polluted environments.
Figure 3. Volume fractions and their color of artificial soiling mixtures including carbon black, humic acid, dusts, and salts used to mimic the soiling of roofing materials, (a) marine, and (b) urban polluted environments.
Coatings 10 00933 g003
Coatings 10 00933 g004 550
Figure 4. XRD pattern of the TSF and TSF32G coated films after heat treatment at 600 °C.
Figure 4. XRD pattern of the TSF and TSF32G coated films after heat treatment at 600 °C.
Coatings 10 00933 g004
Coatings 10 00933 g005 550
Figure 5. FT-IR spectra of the TiO2, TS, γ-Fe2O3, TSF, and TSF32G coated films in the wavenumber range from 300 to 4000 cm−1.
Figure 5. FT-IR spectra of the TiO2, TS, γ-Fe2O3, TSF, and TSF32G coated films in the wavenumber range from 300 to 4000 cm−1.
Coatings 10 00933 g005
Coatings 10 00933 g006 550
Figure 6. Tauc plots of (αhν)0.5 versus hν were employed to estimate the band gaps of the TiO2, TS, TSF, and TSF32G coated films with different loadings.
Figure 6. Tauc plots of (αhν)0.5 versus hν were employed to estimate the band gaps of the TiO2, TS, TSF, and TSF32G coated films with different loadings.
Coatings 10 00933 g006
Coatings 10 00933 g007a 550Coatings 10 00933 g007b 550
Figure 7. The photocatalytic activity for degradation of MB under (a) UV and (b) UV-Vis lights for TiO2, TS, TSF, and TSF32G coated films.
Figure 7. The photocatalytic activity for degradation of MB under (a) UV and (b) UV-Vis lights for TiO2, TS, TSF, and TSF32G coated films.
Coatings 10 00933 g007aCoatings 10 00933 g007b
Coatings 10 00933 g008 550
Figure 8. A schematic of the effect of rGO loading on the roughness of the TSF32G coated films.
Figure 8. A schematic of the effect of rGO loading on the roughness of the TSF32G coated films.
Coatings 10 00933 g008
Coatings 10 00933 g009 550
Figure 9. Water contact angle (CA) images of the coated films on the titanium substrate in the dark and under illumination.
Figure 9. Water contact angle (CA) images of the coated films on the titanium substrate in the dark and under illumination.
Coatings 10 00933 g009
Coatings 10 00933 g010 550
Figure 10. The proposed mechanisms for turning to hydrophilicity in TiO2 affected by (a) γ-Fe2O3, (b) rGO.
Figure 10. The proposed mechanisms for turning to hydrophilicity in TiO2 affected by (a) γ-Fe2O3, (b) rGO.
Coatings 10 00933 g010
Coatings 10 00933 g011 550
Figure 11. The optical microscopy images of the structure of the TSF and TSF32G coated films.
Figure 11. The optical microscopy images of the structure of the TSF and TSF32G coated films.
Coatings 10 00933 g011
Coatings 10 00933 g012 550
Figure 12. Schematic presentation of type and density of cracks in the TSF32: island structure, TSF63: branch structure, TSF32G2: dense structure, and TSF32G3: honeycomb structure coated films.
Figure 12. Schematic presentation of type and density of cracks in the TSF32: island structure, TSF63: branch structure, TSF32G2: dense structure, and TSF32G3: honeycomb structure coated films.
Coatings 10 00933 g012
Coatings 10 00933 g013 550
Figure 13. The discoloration test results of the bare and coated titanium specimens with the TiO2, TS, TSF, and TSF32G samples in an acid solution of pH 4 at 65 °C.
Figure 13. The discoloration test results of the bare and coated titanium specimens with the TiO2, TS, TSF, and TSF32G samples in an acid solution of pH 4 at 65 °C.
Coatings 10 00933 g013
Coatings 10 00933 g014 550
Figure 14. The color difference due to the simulated soiling test for the bare and coated titanium specimens with the mimic urban and marine soils.
Figure 14. The color difference due to the simulated soiling test for the bare and coated titanium specimens with the mimic urban and marine soils.
Coatings 10 00933 g014
Coatings 10 00933 g015 550
Figure 15. Schematical description of self-cleaning from oil, soil, and pollutants by the photoactive TSF32G (or TSF) coated layers.
Figure 15. Schematical description of self-cleaning from oil, soil, and pollutants by the photoactive TSF32G (or TSF) coated layers.
Coatings 10 00933 g015
Table
Table 1. Anatase/rutile percentage and particle size (nm) in the TSF and TSF32G coated films.
Table 1. Anatase/rutile percentage and particle size (nm) in the TSF and TSF32G coated films.
SampleAnatase/Rutile (%)Particle Size (nm)
TSF1680/2022.8
TSF3260/4024.1
TSF6353/4725.5
TSF32G167/3323.9
TSF32G270/3023.3
TSF32G375/2524.5
Table
Table 2. Kinetic constants of photocatalytic MB degradation under UV and vis lights for TiO2, TS, TSF, and TSF32G coated films, plus degradation extent after 330 min test.
Table 2. Kinetic constants of photocatalytic MB degradation under UV and vis lights for TiO2, TS, TSF, and TSF32G coated films, plus degradation extent after 330 min test.
SampleUVUV-Vis
K (min−1)R2Degradation (%)K (min−1)R2Degradation (%)
MBn/a0.951.7n/a0.931.6
TiO2−0.00130.9332.0n/a0.915.2
TS−0.00240.9853.2−0.00120.9431.1
TSF16−0.00280.9966.4−0.00130.9637.1
TSF32−0.00380.9576.1−0.00210.9653.6
TSF63−0.00340.9969.0−0.00190.9749.4
TSF32G1−0.00420.9977.9−0.00230.9960.4
TSF32G2−0.00530.9883.0−0.00320.9870.3
TSF32G3−0.00470.9980.9−0.00260.9967.3
Table
Table 3. Self-cleaning performance of different coated films.
Table 3. Self-cleaning performance of different coated films.
CompositeLight SourceSoiling MethodDegradation Extent and Time RequiredConcentration
Graphene-loaded TiO2 [41]UV lightMB85%-20 h0.01 mM
VO2/SiO2/TiO2 [42]UV lightStearic acid40%-50 hDip-coated of a layer of stearic acid onto the films from a chloroform solution (0.05 M)
Au/TiO2-covered cellulose fiber [43]Solar lightMB95%-10 h4.0 mg/g of cotton fiber
SiO2–TiO2 [44]UV lightRhB80%-35 h15 mL, 1 ppm
TiO2 [45]UV lightRhB80%-24 h0.1 mmol/L
TiO2 [46]UV lightRhB100%-9 h2.6 × 10−3 M
TiO2 [47]UV lightMB40%-24 h0.5 mL, 100 μmol/L
TiO2 [48]SunlightRhB90%-7½ h 0.05 g/L
TiO2 [49]Xenon lampRhB85%-7½ h0.05 g/L
TiO2 [50]UV lightOrganic dye100%-25 h1 mg/mL
Table
Table 4. Average surface roughness Ra, transmittance in the region 380–740 nm, and ΔE caused by TiO2, TS, TSF, and TSF32G coated films with different loadings.
Table 4. Average surface roughness Ra, transmittance in the region 380–740 nm, and ΔE caused by TiO2, TS, TSF, and TSF32G coated films with different loadings.
ParameterGlassTiO2TSTSF16TSF32TSF63TSF32G1TSF32G2TSF32G3
Average Roughness (Ra) (nm)-404751695767200177
Transmittance (%)989593898771848141
Color difference (ΔE)00.51.281.562.164.692.392.653.2

Share and Cite

MDPI and ACS Style

Mokhtarifar, M.; Kaveh, R.; Ormellese, M.; Bagherzadeh, M.; Diamanti, M.V.; Pedeferri, M. On the Role of γ-Fe2O3 Nanoparticles and Reduced Graphene Oxide Nanosheets in Enhancing Self-Cleaning Properties of Composite TiO2 for Cultural Heritage Protection. Coatings 2020, 10, 933. https://doi.org/10.3390/coatings10100933

AMA Style

Mokhtarifar M, Kaveh R, Ormellese M, Bagherzadeh M, Diamanti MV, Pedeferri M. On the Role of γ-Fe2O3 Nanoparticles and Reduced Graphene Oxide Nanosheets in Enhancing Self-Cleaning Properties of Composite TiO2 for Cultural Heritage Protection. Coatings. 2020; 10(10):933. https://doi.org/10.3390/coatings10100933

Chicago/Turabian Style

Mokhtarifar, Maryam, Reyhaneh Kaveh, Marco Ormellese, Mojtaba Bagherzadeh, Maria Vittoria Diamanti, and MariaPia Pedeferri. 2020. "On the Role of γ-Fe2O3 Nanoparticles and Reduced Graphene Oxide Nanosheets in Enhancing Self-Cleaning Properties of Composite TiO2 for Cultural Heritage Protection" Coatings 10, no. 10: 933. https://doi.org/10.3390/coatings10100933

APA Style

Mokhtarifar, M., Kaveh, R., Ormellese, M., Bagherzadeh, M., Diamanti, M. V., & Pedeferri, M. (2020). On the Role of γ-Fe2O3 Nanoparticles and Reduced Graphene Oxide Nanosheets in Enhancing Self-Cleaning Properties of Composite TiO2 for Cultural Heritage Protection. Coatings, 10(10), 933. https://doi.org/10.3390/coatings10100933

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
