Porous Carbonated Hydroxyapatite-Based Paraffin Wax Nanocomposite Scaffold for Bone Tissue Engineering: A Physicochemical Properties and Cell Viability Assay Analysis

Abstract

Porosity is one of the parameters of scaffold pore structure that must be developed using paraffin wax as a synthetic polymer for making porous bioceramics carbonated hydroxyapatite (CHA). This study fabricated CHA based on abalone mussel shells (Halioitis asinina); CHA/paraffin wax nanocomposite scaffolds were synthesized using paraffin wax with concentration variations of 10, 20, and 30 $\mathrm{wt}.\%$. The energy-dispersive X-ray spectroscopy (EDS) results showed that the Ca/P molar ratio of CHA was 1.72, which approaches the natural bone. The addition of paraffin wax in all concentration variation treatments caused the crystallographic properties of the CHA/paraffin wax nanocomposite scaffolds to decrease. The results of pore analysis suggest that the high concentration of paraffin wax in the CHA suspension is involved in the formation of more pores on the surface of the scaffold, but only CHA/paraffin wax 30 $\mathrm{wt}$.% had a scaffold with potential to be used in media with a cellular growth orientation. The micropore analysis was also supported by the cell viability assay results for CHA/paraffin wax 30 $\mathrm{wt}$.% nanocomposite scaffold, where serial doses of scaffold concentrations to mouse osteoblast cells were secure. Overall, based on this analysis, the CHA/paraffin wax scaffold can be a candidate for bone tissue engineering.

1. Introduction

Bioceramic materials, such as hydroxyapatite (HA) from the calcium phosphate family, are new alternative materials in orthopedic applications owing to their advantages over commonly used alloy materials. They can also promote bone tissue’s ability to renew itself [1,2]. Bone consists of the mineral carbonate ${{(\mathrm{CO})}_3}^{2-}$, which ranges from 2–8% by total weight, based on age [3,4]. The combination of HA and carbonate minerals from exterior sources and natural bone is called CHA. CHA exhibits better biological properties due to its low crystallinity and increased surface area; consequently, it shows superior bioactivity, which is usable in biomedical applications [5].

The application of CHA to tissue engineering has attracted significant research interest concerning the replication and reconstruction of synthetic bone for scaffold applications [4]. Bone tissue engineering has been widely developed to ameliorate bone defects by recovering and maintaining the natural function of bone tissues. One type of artificial bone tissue engineering that is widely used is bone scaffolds, which can be either polymer- or ceramic-based. [1].

Synthetic CHA can be obtained via reaction of synthetic compounds and the reaction of natural compounds. Biogenic materials as natural compounds used in the synthesis of CHA must contain calcium, such as shells and bones [4]. In this work, the CHA was produced using abalone mussel shells as the natural calcium precursor because of the high content of calcium carbonate (CaCO₃) in these shells, which is 90–95% [6], and can also easily be found in Indonesia [2,3,4]. The benefits of using calcium oxide (CaO) derived from calcinated abalone shells, include its being locally sourced and that it can be used in green synthesis, producing only natural and nontoxic waste. A variety of techniques have been used to synthesize CHA, including co-precipitation [3,4,7,8], nano-emulsion [9,10], sol-gel [11,12], mechanical alloying [13], and hydrothermal [14]. In this research, fabrication of CHA used co-precipitation as a cost-effective method [15].

Scaffold composite materials are biodegradable and biocompatible, essential for cellular growth orientation, differentiation, and proliferation [4,16]. The synthesis of scaffolds to promote bone growth has to consider the scaffold’s porosity because this can increase the bioactivity of the scaffolds [17]. In particular, porosity increases the osteoconductivity of scaffolds. This property facilitates attachment, migration, proliferation, and phenotypic expression of bone cells for new bone formation [1,18]. Many procedures have been developed to fabricate bone scaffolds, consist of porogen leaching [4,17], gas foaming [19], electrospinning [20,21], sponge templating [22], and freeze-drying [23,24]. In this study, nanocomposite scaffolds were fabricated using the porogen leaching method. The benefit of this simple procedure is that it generates traces of vaporized porogen particles in the mold of pores on the scaffold. Moreover, this procedure has high synthesis efficiency and a wide variety of natural polymeric availability [4,17].

Scaffold pores enable cell mobility and metabolic processes [2]. Therefore, to increase the efficacy of bone tissue engineering, several vital parameters of the scaffold’s pore structure have to be carefully developed, which are pore size, geometry, orientation, uniformity, interconnectivity, and porosity [25,26]. Macroporous scaffolds have generally been synthesized by mixing appropriate amounts of transient polymers with powders and then evaporating, burning out, or dissolving the polymer [4,27]. Furthermore, microporous structure plays an essential role in cell growth and differentiation of scaffolds [28].

In previous studies [2,4], the porous structure of composite bioceramics using honeycomb (HCB) wax as a pore-forming agent was fabricated using the porogen leaching method. HCB wax has been synthesized from original and natural HCB from Indonesia. In this study, the pore-forming agent of the scaffold was fabricated using paraffin wax as the synthetic polymer. Paraffin wax is a potential polymer for making porous ceramics because of its good hydrophobicity and easy removal [29,30]. The quantity of wax also affects porosity. In porous ceramics, low porosity results from the lack of wax [30].

In this work, CHA was fabricated via co-precipitation using a precursor of CaO from Abalone shells. The physicochemical properties of this CHA are observed, consist with its effect on the crystallographic properties, morphology, molar ratio of Ca/P, thermal properties, and chemical compositions of CHA products. Paraffin wax porogen at concentrations of 10, 20, and 30 $\mathrm{wt}.\%$ was used for the synthesis of the scaffold in order to obtain comparative data on the use of the pore agent scaffold using HCB in previous research and the potential of paraffin wax. Furthermore, the addition of paraffin wax in the nanocomposite structure in this study is expected to be a candidate pore scaffold agent for bone tissue engineering applications. Several parameters that were given a concentration variation treatment for the nanocomposite scaffold are decreased crystallite size, increased porosity and pore structure, and attachment of mouse osteoblast cells on its surface [2,4,31,32]. The physicochemical properties of the scaffold were analyzed using scanning electron microscopy-energy dispersive X-ray spectroscopy (SEM-EDS), X-ray diffractometer (XRD), differential scanning calorimetry (DSC), and Fourier transform infrared spectroscopy (FTIR). The in-vitro test of the sample was characterized by cell viability assay.

2. Materials and Methods

The fabrication process is divided into two steps: synthesis and characterization of nano-CHA and CHA/Paraffin wax nanocomposite scaffolds by varying paraffin wax concentration at 10, 20, and 30 $\mathrm{wt}$.%. The schematic procedures for this work can be seen in Figure 1.

2.1. Materials

The materials for this study consist of the abalone mussel shells as a natural precursor of CaCO₃, the precursors of diammonium hydrogen phosphate ((NH4)₂ HPO₄), ammonium bicarbonate (NH₄HCO₃), and ammonium hydroxide (NH₄OH) 25% solution, and the reagent for cell viability assay used the same materials as previous research [2,4], except that the paraffin was purchased from Semarang, Indonesia. The percentage composition of the nanocomposite scaffold CHA/paraffin wax is shown in

Table 1. The percentage composition of the nanocomposite scaffold CHA/paraffin wax.

Scaffold with Paraffin Wax Concentrations Variation	CHA Mass (gr)	Paraffin Wax Mass (gr)
CHA/paraffin wax 10 $\mathrm{wt}.\%$	0.4	0.044
CHA/paraffin wax 20 $\mathrm{wt}.\%$	0.4	0.100
CHA/paraffin wax 30 $\mathrm{wt}.\%$	0.4	0.171

.

The concentration of nanocomposite scaffold was calculated by the following equation:

$$\mathrm{wt}.\% of paraffin wax= \frac{paraffin wax mass}{paraffin wax mass+CHA mass}$$

(1)

2.2. Synthesis of Carbonated Hydroxyapatite

CaO and CHA have been synthesized in the preliminary research [2,4], so this study utilized those samples. In this study, the CHA solutions were stirred using a magnetic stirrer (Thermo Fisher Scientific, Waltham, MA, USA) at a velocity of 350 rpm for 60 min at a temperature of 60 $°\mathrm{C}$. CHA was sintered at a heat of 1050 $°\mathrm{C}$ for 2 h using a furnace (Vulcan, Yucaipa, CA, USA).

2.3. Synthesis of CHA/Paraffin Wax Nanocomposite Scaffolds

The fabricated CHA was mixed with a paraffin to process the sample fabrication. To obtain a porous structure, nanocomposite scaffolds were produced using CHA and paraffin wax at porogen concentrations of 10, 20, and 30 wt.%. The extraction of paraffin wax and the fabrication process of the scaffold followed the methods of previous research [4]. After sonication, the solution of paraffin wax and CHA was undertaken to an aging process for 24 h and then stirred at a temperature of 60 $°\mathrm{C}$ at a velocity of 300 rpm until it changed into a gel. Then, the gel was heated at a temperature of 110 °C for 5 h, and then calcined at 900 °C for 2 h.

2.4. Characterization of CHA Particles and CHA/Paraffin Wax Nanocomposite Scaffolds

The physicochemical properties of the CHA and CHA/paraffin wax nanocomposite scaffolds were analyzed using SEM, EDS, XRD, and FTIR. The SEM (Joel JSM-6510LA-1400, Tokyo, Japan) was used to determine the morphology and particle size distribution. All CHA/paraffin wax samples were attached to a sample holder made of pure copper under vacuum to a pressure of 2.5 MPa and then coated with platinum using an ion coater. The sample was entered in the SEM, and then an image pattern was generated in the form of the topography of the sample surface. The particle size distribution of CHA based on the measurements of 100 randomly selected, the pores size, and percentage of porosity of the nanocomposite scaffolds were calculated using ImageJ software version 2006 (National Institutes of Health (NIH), Bethesda, MD, USA).

EDS, incorporated in the SEM, was used to analyze the percentage of minerals elements of the CHA samples. These products were applied to analyze the molar ratio of Ca/P in the CHA samples. Calculation of the Ca/P ratio used the following equations:

$$rati{o}_{Ca/P}=\frac{\frac{Ca mass}{relative atomic mass of Ca}}{\frac{P mass}{relative atomic mass of P}}=0.775\frac{\mathrm{wt}.\%{ }_{Ca}}{\mathrm{wt}.\%{ }_P}$$

(2)

In this study, the analysis of the distribution of Ca and P atoms as CHA markers on the scaffold using the elemental mapping feature on EDS was not carried out.

Crystallographic properties, such as lattice parameters, crystallite size, and microstrain, functional groups, and thermal properties of CHA samples and CHA/paraffin wax nanocomposites, were specified by XRD (PAN analytical Type X’Pert Pro, Tokyo, Japan) and FTIR (Thermo Nicolet iS10, Tokyo, Japan), respectively. The XRD data were recorded in the range 2θ: 10°–80° using $\mathrm{Cu}-\mathrm{K}\mathsf{\alpha }$ radiation at $\lambda =0.154 \mathrm{nm}$ [4]. The FTIR equipment was performed in the range of 400–4000 ${\mathrm{cm}}^{-1}$. Measurements of the thermal properties of samples were conducted by DSC (DSC-60 Plus Shimadzu, Tokyo, Japan) and taken using a flow rate of 20 mL/min, beginning from room temperature up to 600 °C [4]. The XRD pattern, FTIR spectra, and thermal properties spectra data were analyzed using OriginPro software version 2018 (OriginLab Corporation, Northampton, MA, USA). FTIR spectra were also analyzed based on reference data using proper spectroscopy nomenclature.

The cell viability assay of the CHA/paraffin wax nanocomposite scaffolds, including the scaffold’s extraction solution, followed the previous research [4]. In the extraction solution for the scaffolding process, CHA/paraffin wax was initially not mixed with cell culture media but with distilled water because the scaffold sample could be made into a gel even though its solubility in water was low. Then, a CHA/paraffin wax scaffold could be made serially in the cell seeding process, for which distilled water solvent would be more efficient. The scaffold extract was not added to the cell culture medium. During cell seeding, the scaffold solution was kept in the refrigerator.

Cell viability was determined using the MTT assay for an incubation periods of 24 h and 48 h. Measurements were done on the CHA/paraffin wax 30 $\mathrm{wt}.\%$ scaffold and control (the well without the scaffold). The medium was discarded, and 2 mL of MTT solution with a concentration of 0.5 mg/mL was added to the well and incubated for 4 h at 37 $°\mathrm{C}$ in 5% ${\mathrm{CO}}_2$. Then, DMSO was added to the well at 100 $\mathsf{\mu }\mathrm{L}/$well. The absorbance of MTT assay (3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) was recorded by Tecan Spark^® (Tecan Trading AG, Switzerland) at 570 nm [4,20,33]. The cell viability percentage was computed by the adhering equation:

$$\begin{array}{cc}Cell Viability (\%)\hfill & \\ = \frac{absorbance of scaffold-absorbance of control media}{absorbance of control-absorbance of control media}\times 100\hfill & \end{array}$$

(3)

Then, the half maximal inhibitory concentration (IC₅₀) value was investigated using non-linear regression.

2.5. Statistical Analysis

All cell viability assay data were performed as means $\pm$ standard deviation (SD), and one-way analysis of variance (ANOVA) was applied to elaborate the results, followed by Tukey’s test ($p \mathrm{values}<0.05$). These data were statistically analyzed using OriginPro software version 2018 (OriginLab Corporation, Northampton, MA, USA).

3. Results

3.1. Analysis of the Physicochemical Properties of CHA

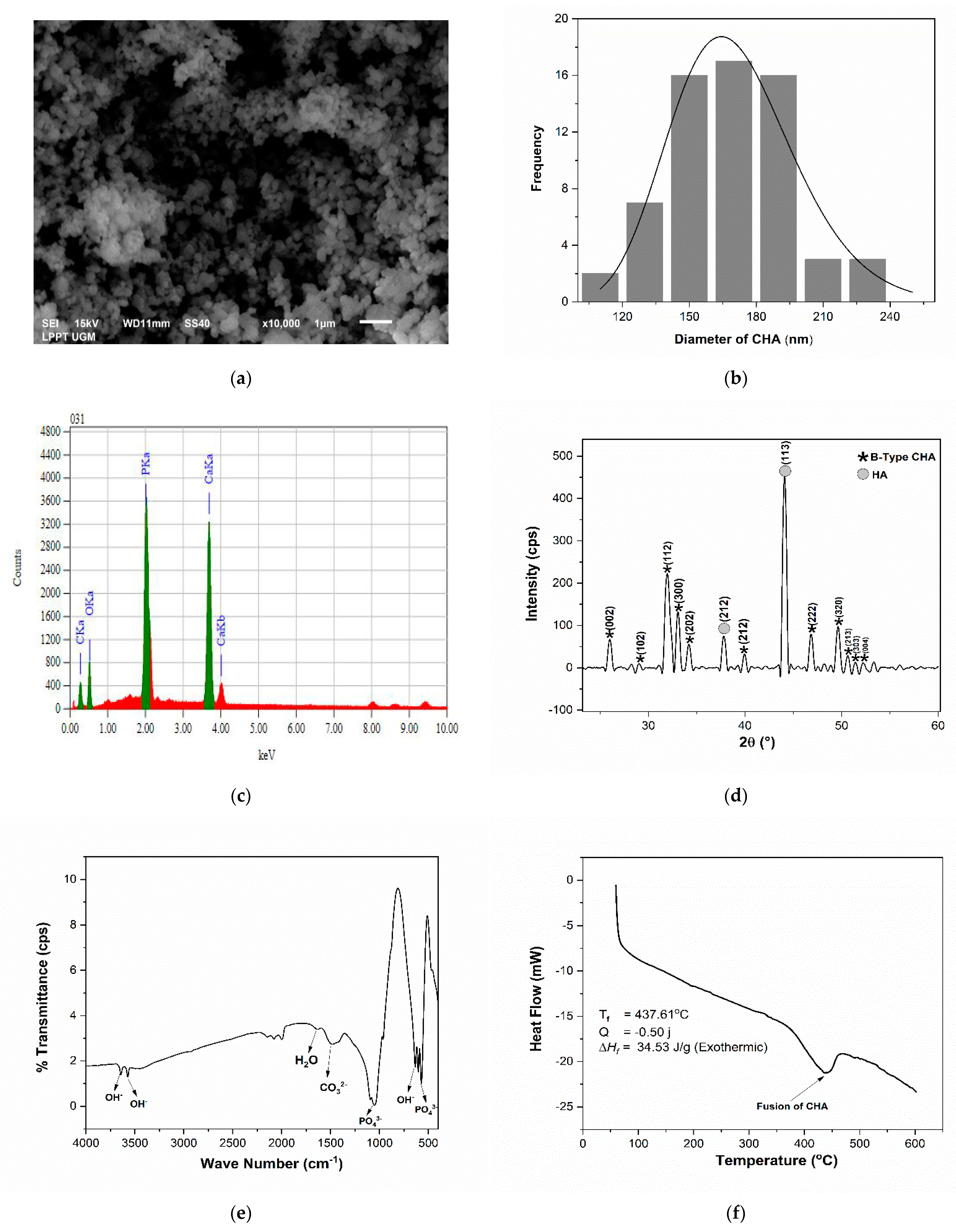

The physicochemical properties of CHA are shown in Figure 2. Based on the morphology, shown in Figure 2a, CHA had small agglomerate lines and a solid structure. Based on Figure 2b, the CHA had an average particle size of $168.91\pm$ 3.77 $\mathrm{nm}$ with the polydispersity at 0.02. The EDS analysis for CHA produced a Ca/P molar ratio of 1.72, as shown in Figure 2c, which approaches the natural bone, i.e., 1.71.

According to the XRD analysis (Figure 2d), the pattern formed had attributes of B-type CHA and HA. The properties of HA and CHA peaks were recognized according to previous research [2,4]. They produced three attribute peaks at diffraction angles of 31.97$°$, 33.06$°$, and 34.18$°$ with diffraction planes of (112), (300), and (202), respectively. The lattice parameters were computed to be a = 9.68 Å and c = 6.85 Å. CHA resulted in crystallite size (s), microstrain ($\epsilon$), and X-ray density (d_x) of 15 $\pm$ 3 nm, 0.008, and 7.34 gr/cm³, respectively.

FTIR analysis was used to identify the functional groups in CHA, namely, PO₄³, CO₃²⁻, and OH⁻. The FTIR test spectra exhibited that the fabricated CHA was the B-type CHA phase, as ensured by the appearance of CO₃²⁻ stretching at 1479 cm⁻¹ (Figure 2e). PO₄³⁻ bending and stretching were observed at 603–571 and 1092–962 cm⁻¹, respectively. The proceeds of the FTIR spectra show OH⁻ stretching at 3643–3572 cm⁻¹. The absorption of H₂O and OH⁻ bending was inspected at 1633 cm⁻¹ and 634 cm⁻¹, respectively. The analysis of the DSC pattern can be seen in Figure 2f: CHA generated a fusion temperature of 437.61 $°\mathrm{C}$ and an enthalpy of 34.53 j/g.

3.2. Analysis of the Physicochemical Properties of the CHA-Based Paraffin Wax Nanocomposite Scaffolds

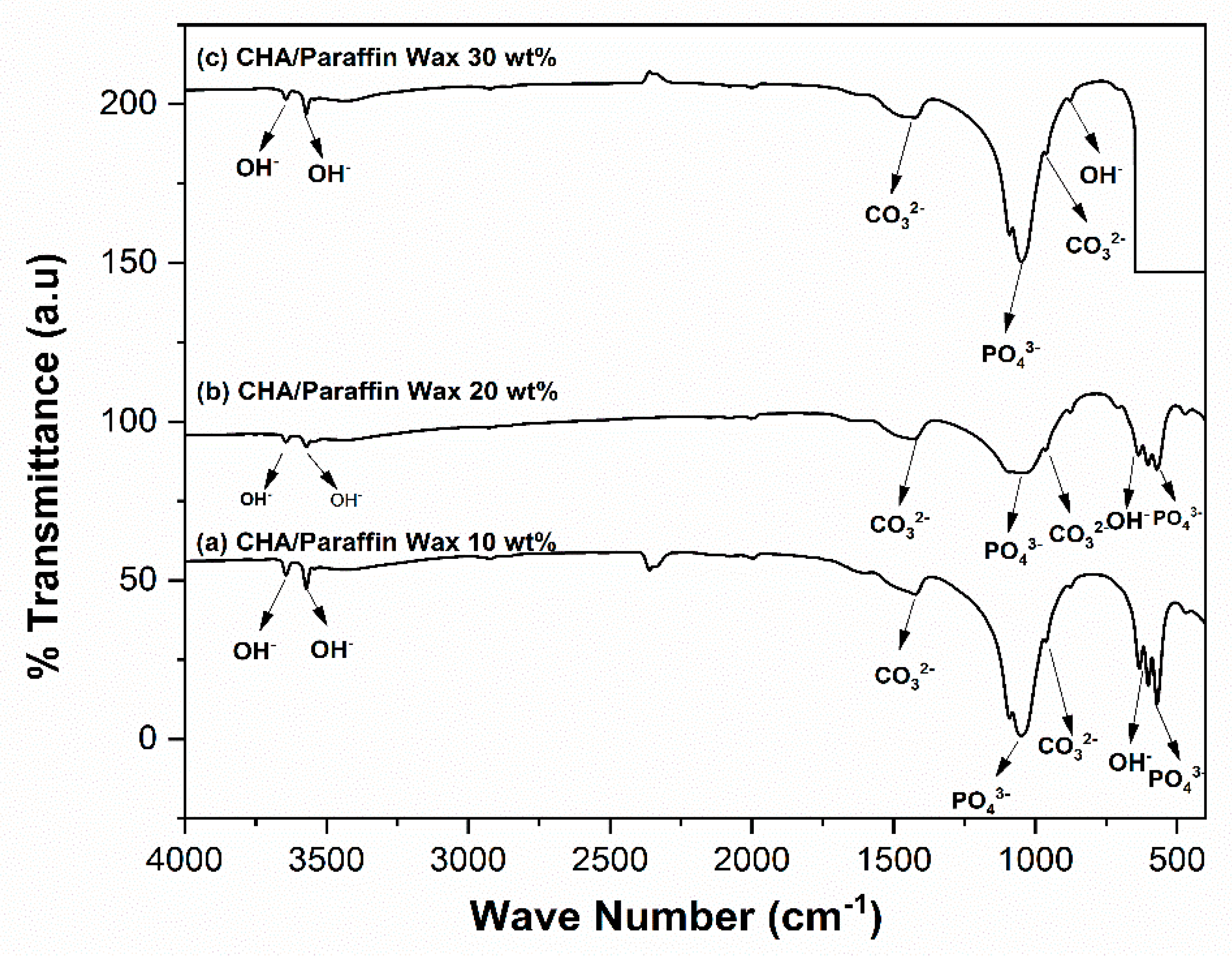

FTIR was applied to analyze the functional groups of the samples. According to the FTIR results (Figure 3), CHA with the supplemental paraffin wax at concentrations of 10, 20, and 30 $\mathrm{wt}.$% indicated the functional groups of B-type CO₃ stretching at 877–876 cm⁻¹ and 1429–1423 cm⁻¹. PO₄³⁻ bending was exhibited at 603–570 cm⁻¹ for paraffin wax concentrations of 10 and 20 $\mathrm{wt}.$%. Meanwhile, PO₄³⁻ stretching was displayed at 1050–962 cm⁻¹ for all concentration variations of paraffin wax. On the spectrum of all variations in scaffold fabrications, the OH⁻ stretching was indicated at 3643–3570 cm⁻¹.

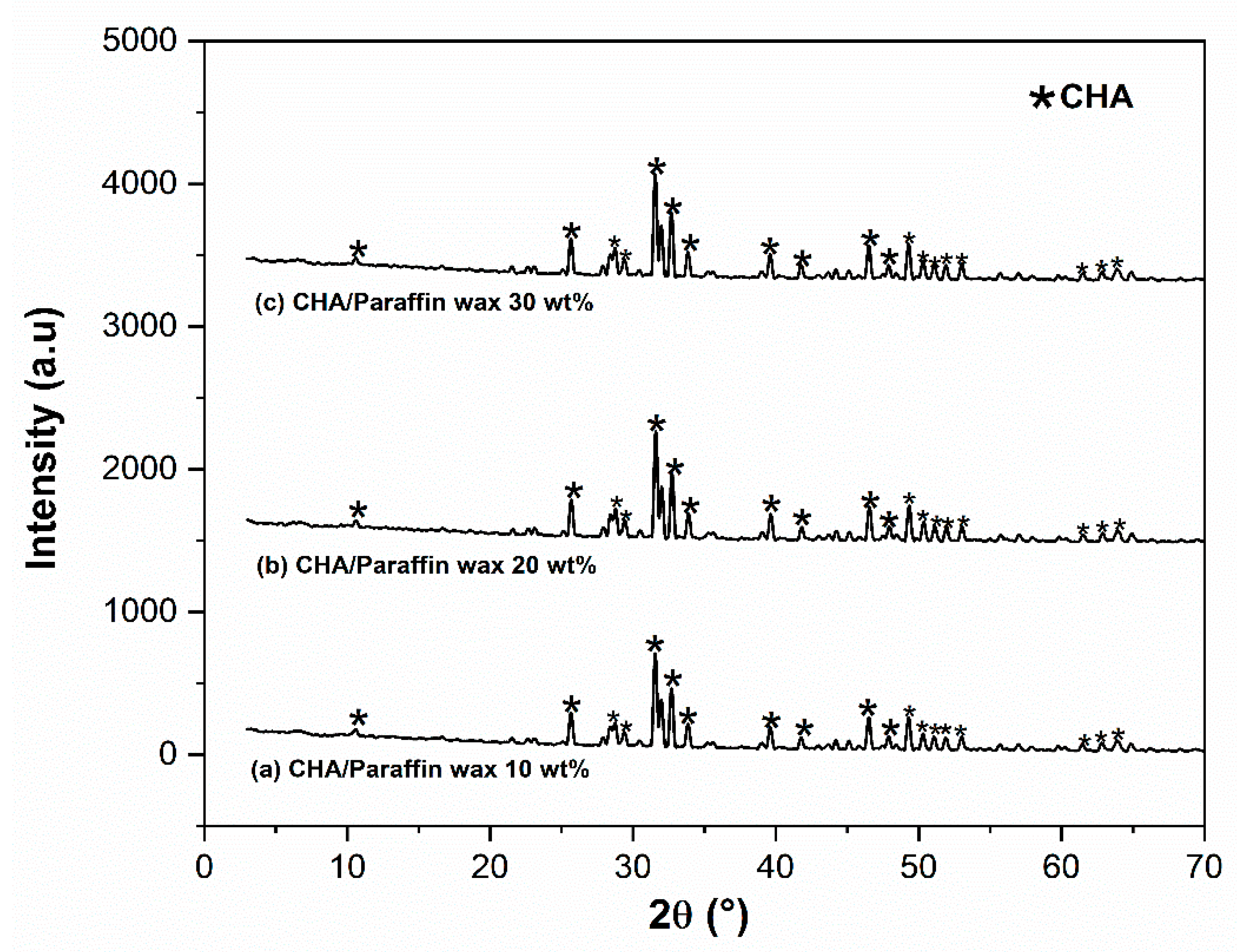

The results of the XRD pattern data for the scaffold are shown in Figure 4. As shown in Figure 4, the diffraction pattern can be recognized as the X-ray diffraction pattern of CHA. Contrasted with the diffraction pattern of the synthesized CHA, no other diffraction peaks emerged in any of the CHA/paraffin wax nanocomposite fabrications.

The calculated crystallographic properties of scaffolds are shown in

Table 2. Calculation of the cystallographic properties of the CHA/paraffin wax nanocomposite scaffolds.

Scaffold with Paraffin Wax Concentrations Variation	Crystallite Size (nm)	Microstrain $(\mathit{\epsilon })$	$\mathbf{Lattice}\mathbf{Parameter}(\mathbf{\AA })$
			a	c	c/a
$\mathrm{CHA}/\mathrm{paraffin}\mathrm{wax}10\mathrm{wt}.\%$	15 $\pm$ 2	0.0086	9.79	6.93	0.707
$\mathrm{CHA}/\mathrm{paraffin}\mathrm{wax}20\mathrm{wt}.\%$	14 $\pm$ 2	0.0088	9.76	6.92	0.709
$\mathrm{CHA}/\mathrm{paraffin}\mathrm{wax}30\mathrm{wt}.\%$	14 $\pm$ 2	0.0093	9.67	6.84	0.707

. Based on these data, the addition of paraffin wax in all concentration variation treatments generated the crystallite size to decrease. In addition, the lattice parameters of the CHA/paraffin wax nanocomposite scaffolds effected a change in the scaffold’s a and c lattice parameters (Table 2). The X-ray density of the scaffold also increased because of the addition of paraffin wax in all concentration variation treatments. This indicates that the crystallinity also declined. The CHA/paraffin wax 30 $\mathrm{wt}.$% scaffolds generated the most negligible atomic density per unit cell, having the smallest crystallinity among the samples.

According to the SEM results and

Table 3. The pores size of the scaffolds.

Scaffold with Paraffin Wax Concentrations Variation	$\mathbf{Macropore}\mathbf{Size}(\mathsf{\mu }\mathbf{m})$	$\mathbf{Micropore}\mathbf{Size}(\mathsf{\mu }\mathbf{m})$	Porosity (%)
$\mathrm{CHA}/\mathrm{paraffin}\mathrm{wax}0\mathrm{wt}.\%$	No pore	No pore	No pore
$\mathrm{CHA}/\mathrm{paraffin}\mathrm{wax}10\mathrm{wt}.\%$	57 $\pm$ 3	0.5 $\pm$ 0.03	62.44
$\mathrm{CHA}/\mathrm{paraffin}\mathrm{wax}20\mathrm{wt}.\%$	80 $\pm$ 3	0.6 $\pm$ 0.02	75.93
$\mathrm{CHA}/\mathrm{paraffin}\mathrm{wax}30\mathrm{wt}.\%$	100 $\pm$ 1	1.0 $\pm$ 0.02	64.86

, CHA 0 $\mathrm{wt}.\%$ did not form a pore structure (Figure 5a). The micropore structures when the pore size was below 5 $\mathsf{\mu }\mathrm{m}$ are depicted in the insets of Figure 5. According to Figure 5b–d, the high concentration of paraffin wax as a synthetic porogen in the CHA suspension effected the formation of more pores on the surface of the scaffold.

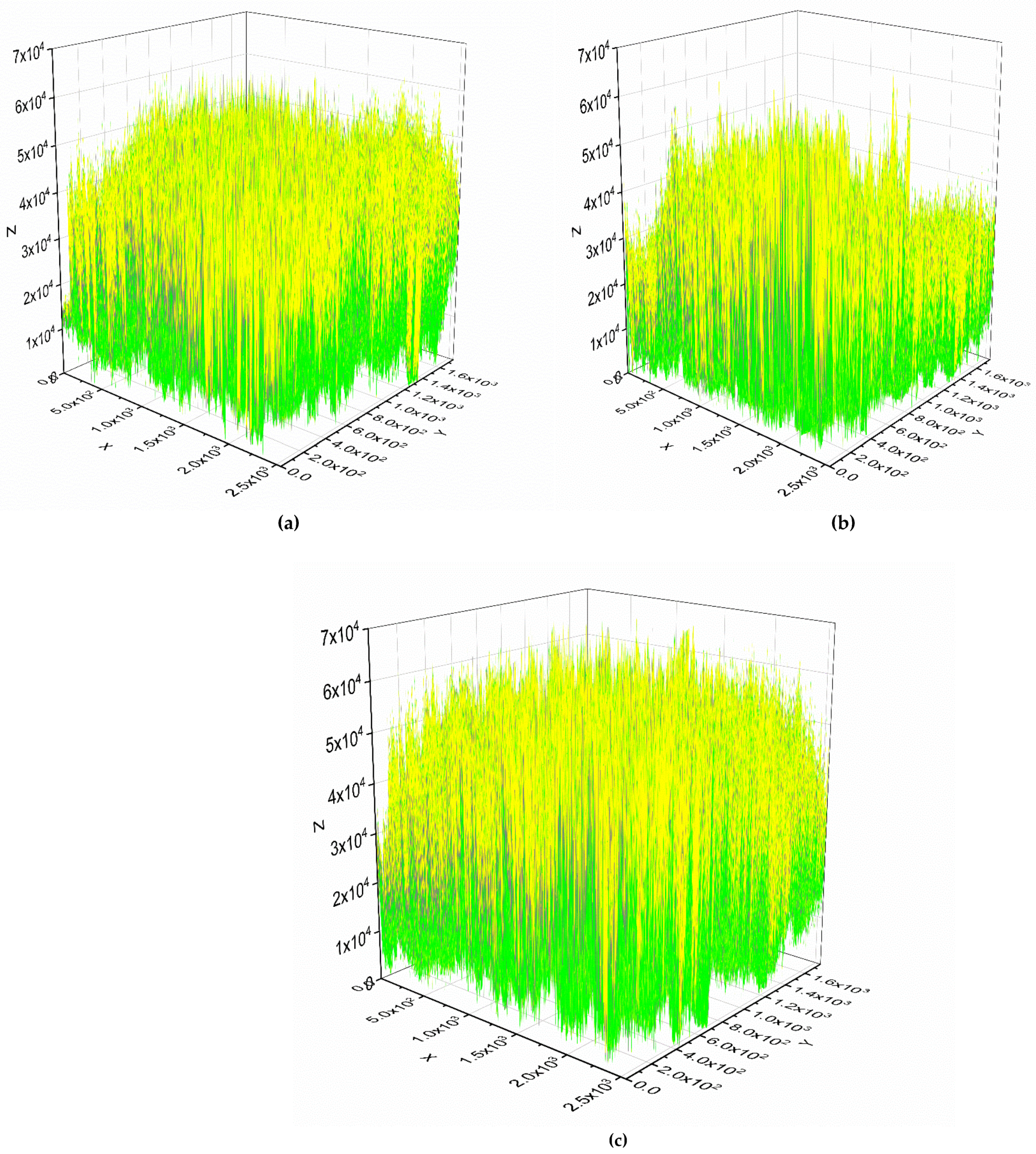

The addition of paraffin wax 10$\mathrm{wt}.\%$(Figure 6a) resulted in a uniform pore distribution, represented in green, and yielded a porosity of 62.44%. The scaffold’s porosity increased to 75.93% with the supplemental paraffin wax 20 $\mathrm{wt}.\%$; the allocation of pores was still uniform, and the allocation of solid particles decreased (Figure 6b). By the supplemental paraffin wax 30$\mathrm{wt}.\%$, the porosity decreased to 64.86%, the pore allocation was not homogeneous, and the allocation of solid particles decreased (Figure 6c).

The morphology of MC3T3E1 cells attached to the scaffold surface is shown in Figure 7a,b. The cells were found to be well-connected to the cell network [33]. Particularly, the outcome of the cells’ morphology indicated that the scaffolds’ surfaces were appropriate for cells to attach. The cells attached to the scaffold surface for an incubation time of 48 h were mainly clustered and produced some sub-confluent structures, in contrast with samples with an incubation of 24 h.

The results of the cell viability assay on the CHA/paraffin wax 30 $\mathrm{wt}.$% nanocomposite scaffold show that all serial doses of scaffold concentrations to cells were secure. Based on Figure 7c and

Table 4. Average cell viability of the CHA/paraffin wax 30 $\mathrm{wt}.\%$ nanocomposite scaffold.

Concentration Serial of Scaffold Solution $\left(\mathsf{\mu }\mathbf{g}/\mathbf{mL}\right)$	Cell Viability (%)		p-Value
	Mean $\pm$ SD
	24 h	48 h
15.625	91 $\pm$ 12	110 $\pm$ 24	0.002
31.25	88 $\pm$ 15	115 $\pm$ 12
62.5	89 $\pm$ 7	114 $\pm$ 14
125	86 $\pm$ 12	110 $\pm$ 8
250	84 $\pm$ 17	108 $\pm$ 10
500	83 $\pm$ 2	98 $\pm$9
1000	75 $\pm$ 6	81 $\pm$ 4

, the cell viability after incubation of 24 h showed that the CHA/paraffin wax 30 $\mathrm{wt}.\%$ nanocomposite scaffold was viable for cell attachment because the cell viability was ~75–91%. The cell viability increased to 80–115% after incubation for 48 h. A one-way ANOVA test of the effect of incubation time on the cell viability value yielded a p-value of 0.002 (p $<$0.05). This result showed a significant difference in the average cell viability values between the seven groups. These results were also promoted by analyzing the IC₅₀ value of MC3T3E1 cells in the CHA/paraffin wax 30 $\mathrm{wt}.$% nanocomposite scaffold with incubation times of 24 h and 48 h at 1196 and 1221 $\mathsf{\mu }\mathrm{g}/\mathrm{mL}$, respectively.

4. Discussion

4.1. Analysis of the Physicochemical Properties of CHA

In this research, the co-precipitation method was chosen according to specific benefits: many CHA synthesis approaches do not involve any organic solvent; the co-precipitation method is cost-effective and straightforward with a high throughput (87%), which makes it appropriate for large-scale production, as mentioned in the introduction section [4]. It needs generous reagents and Ca/P products with suitable phase contexture. While this method relies on pH, stirring, and temperature, it is cheaper to carry out than the sol−gel procedure [15].

The physicochemical properties of CHA can be seen in Figure 2. The CHA particles were rounded and more regular shapes began to appear at sizes below 1 $\mathsf{\mu }\mathrm{m}$ as shown in the insets of Figure 2a. The EDS analysis for CHA indicated a Ca/P molar ratio approaching that of natural bone, i.e., 1.71 [34], as shown in Figure 2c. This result was anticipated for CHA because the carbonate ions switched with phosphate ions in its crystal structure [4,25]. According to the XRD pattern shown in Figure 2d, the exchange of carbonate ions into the HA lattice structure decreased the lattice parameter a [4]. In addition, the X-ray density value was appropriated to the lattice parameters of the CHA that displayed the atomic density per unit cell [15]. The FTIR test results show that the fabricated CHA was the B-type CHA (Figure 2e), which was established when carbonate ions substituted phosphate ions in the HA phase, as analyzed by EDS performed [3,4]. CO₃²⁻ groups in the FTIR data were due to calcium oxide’s reaction with carbon dioxide in free air through fabrication [2]. DSC analysis (Figure 2f) corroborated the OH⁻ stretching in CHA shown in the FTIR data.

4.2. Analysis of the Physicochemical Properties of the CHA-Based Paraffin Wax Nanocomposite Scaffolds

The chemical shifts through the synthesis process of scaffolds were also analyzed by FTIR [4]. The FTIR spectra of the CHA/paraffin wax nanocomposite scaffold and fabricated CHA did not show chemical decomposition in the CHA/paraffin wax nanocomposite scaffold fabrication process, as shown in Figure 3.

Interactions between the CHA particles and the paraffin wax at their interfaces can also cause the formation of an amorphous layer of paraffin wax. These interactions are affected by hydrogen bonding between the exposed OH⁻ groups on the CHA particle surfaces and the polymers. This could reduce the crystallinity of the CHA/paraffin wax composite, as shown in Table 2 [20,35]. As shown in Figure 4, the paraffin wax was absolutely degraded from the scaffold [4,17]. The crystallite size was also reduced. These observations were due to because of the use of a suspension of a dry scaffold in the calcination treatment. The fluid in the compound affected the forming of dihedral angles between the particles and produced repulsive forces between the particles that prevented the CHA particle accretion [4,17].

The addition of paraffin wax in all concentration variation treatments caused a lower crystallinity, which is very conducive to bone growth because low crystallinity induces dislocations, making it easier for cells to attach and differentiate [36]. The increasing microstrain identified the low crystallinity because of the addition of paraffin wax. The microstrain was a shape of crystal defect that showed as a dislocation [15]. A transformation in the microstrain on the scaffold represented that the paraffin wax used experienced the allocation of CHA particle ions in the crystal lattice spaces [4]. In addition, the a and c lattice parameters of the scaffold were more significant than the lattice parameters of CHA sample. Alterations in the lattice parameters happened because of the calcination during the CHA densification process. This was also shown in the shortening of the lattice in CHA [4].

An nice pore scaffold for biomedical application has a macropore size $>$ 100 $\mathsf{\mu }\mathrm{m}$ and a micropore size $<$ 20 $\mathsf{\mu }\mathrm{m}$ [37]. As shown in Table 3 and Figure 5, only the CHA/paraffin wax 30 $\mathrm{wt}.$% was a potential scaffold for media-to-cell placement and cellular growth orientation because the micropore size was $~1 \mathsf{\mu }\mathrm{m}.$ Commonly, when the micropore size is 1–20$\mathsf{\mu }\mathrm{m},$ it can act as a medium for cellular growth [4,38]. Moreover, microporosity has a critical role in providing effective surface area for protein and ion exchange [25]. In this study, macropores with smaller sizes (<100 $\mathsf{\mu }\mathrm{m}$) were assumed to be generated because of the gases released by the decomposition of residual paraffin wax in the scaffolds [32]. The macropore size was smaller than 100 $\mathsf{\mu }\mathrm{m}$. However, several works have revealed that the macropore size of polymeric scaffolds can be smaller than 100 $\mathsf{\mu }\mathrm{m}$ [2,4,39,40]. In addition, pores smaller than 100 $\mathsf{\mu }\mathrm{m}$ promote nutrient adsorption on their surface so that the cell differentiation phase can proceed properly [41].

The particles that volatilized from the porogen in the CHA and paraffin wax mixture through the calcination process left the porous scaffold surfcace. The splitting of impurities from materials affected the frontier action of the particles [2,17]. The paraffin wax utilized in the CHA scaffold production process had the same effect as an impurity in the CHA particles [4]. The pores on the scaffold are intended to serve as points of entry of nutrients for the bone tissue [4,17].

In previous studies [2,4], 3D graphics and porosity have been plotted by analyzing the scaffold’s two-dimensional porosity through SEM images using the Origin software version 2018 (OriginLab Corporation, Northampton, MA, USA). The percentage of porosity can be analyzed using volume values, consist of solid volume, integral volume, and pore volume according to 3D graphics. The pore allocation and solid particles can be determined through the forecast of their color allocation. In this study, the pore allocation on the CHA/paraffin wax nanocomposite scaffolds is performed in green and the solid particles can be seen in yellow, as shown in Figure 6.

Porosity is an essential parameter of scaffolds because an extremely porous scaffold could offer more space for nutrient take away and cell ingrowth [37,42]. Generally, the presence of porosity in the scaffolds can play a significant role in the quality of bone formation [43]. The decrease in porosity is affected by scaffold mass gain [31]; the mass percentage of CHA in the nanocomposite at each concentration was the same. If the porosity of the scaffolds were $>$60%, the osteoblast activity would accelerate and support in the formation of new bone in the pores [37].

MTT assay has supported qualitatively significant cell viability results for nanocomposite scaffolds [44]. Cell viability is one of the preliminary tests carried out to test for possible cytotoxicity effects of scaffolds candidates in bone tissue engineering [45]. Based on the cell viability analysis as shown in Figure 7 and Table 4, the higher concentration of CHA in the scaffolds was associated with more frequent clusters of MC3T3E1 cells, proportional to cell viability outcomes. A higher CHA composition in a scaffold may lead to higher osteoconductivity in the scaffold [46].

From the analysis of porous structure, crystallographic properties, chemical composition, and cell viability tests, extracted paraffin wax as a synthetic polymer can be used as a pore-forming agent in making porous bioceramic scaffolds. This is supported by the results of micropore size on CHA/Paraffin wax 30 wt.%. It is a potential scaffold for media-to-cell placement and cellular growth orientation. This follows the results of a previous study showing that wax extraction from HCB biopolymer can also be a scaffold pore agent, even though the HCB must reach a concentration of 40 wt.% to reach the ideal macropore and micropore size for bone tissue engineering applications. Therefore, extraction wax from HCB and paraffin wax can be used as a pore-forming agent of the scaffold.

This study has some limitations due to principal and technical challenges. Further experiments should be carried out to refine the findings of this research in the future, such as a morphological analysis at the nanoscale level and 3D porosity analysis. Smaller crystallite size causes apparent broadening of the peaks in XRD diffraction. However, the intensity of the peaks can give an idea about the crystallinity of the samples. The value of identification by high-resolution transmission electron microscopy (HRTEM) should also be studied. Mechanical properties, biocompatibility, osteoconductivity, and cell viability should also be analyzed to compare control groups and scaffolds with the addition of all paraffin wax concentrations at 10, 20, and 30 $\mathrm{wt}.\%$. The scaffold CHA/paraffin/wax 30 wt.% may also be tested for coating on titanium (Ti) alloy for bone implant applications.

5. Conclusions

This study provides a successful fabrication of CHA with a molar ratio of Ca/P 1.72, which approaches the Ca/P molar ratio of natural bone. The synthesized CHA produced the same condition as B-type CHA, ensured by FTIR, XRD, and DSC tests. CHA is used for fabrication scaffolds. Fabrication of CHA/paraffin wax nanocomposite scaffold used paraffin wax as a pore-forming agent at concentrations of 10, 20, and 30 $\mathrm{wt}.\%$. Based on the FTIR spectra results, there was no significant difference in the peaks of the samples. The addition of paraffin wax in all concentration variation treatments caused the crystallographic properties of the CHA/paraffin wax nanocomposite scaffolds to decrease, including crystallite size, microstrain, and lattice parameters. The results of pore analysis suggest that the high concentration of paraffin wax as a synthetic porogen in the CHA suspension produced more pores on the surface of the scaffold. Results of cell viability assay studies on the CHA/paraffin wax 30 $\mathrm{wt}.\%$ nanocomposite scaffold confirm the non-toxicity of the material.
