Prediction for Dilution Rate of AlCoCrFeNi Coatings by Laser Cladding Based on a BP Neural Network
Abstract
:1. Introduction
2. Experimental Procedures and Methods

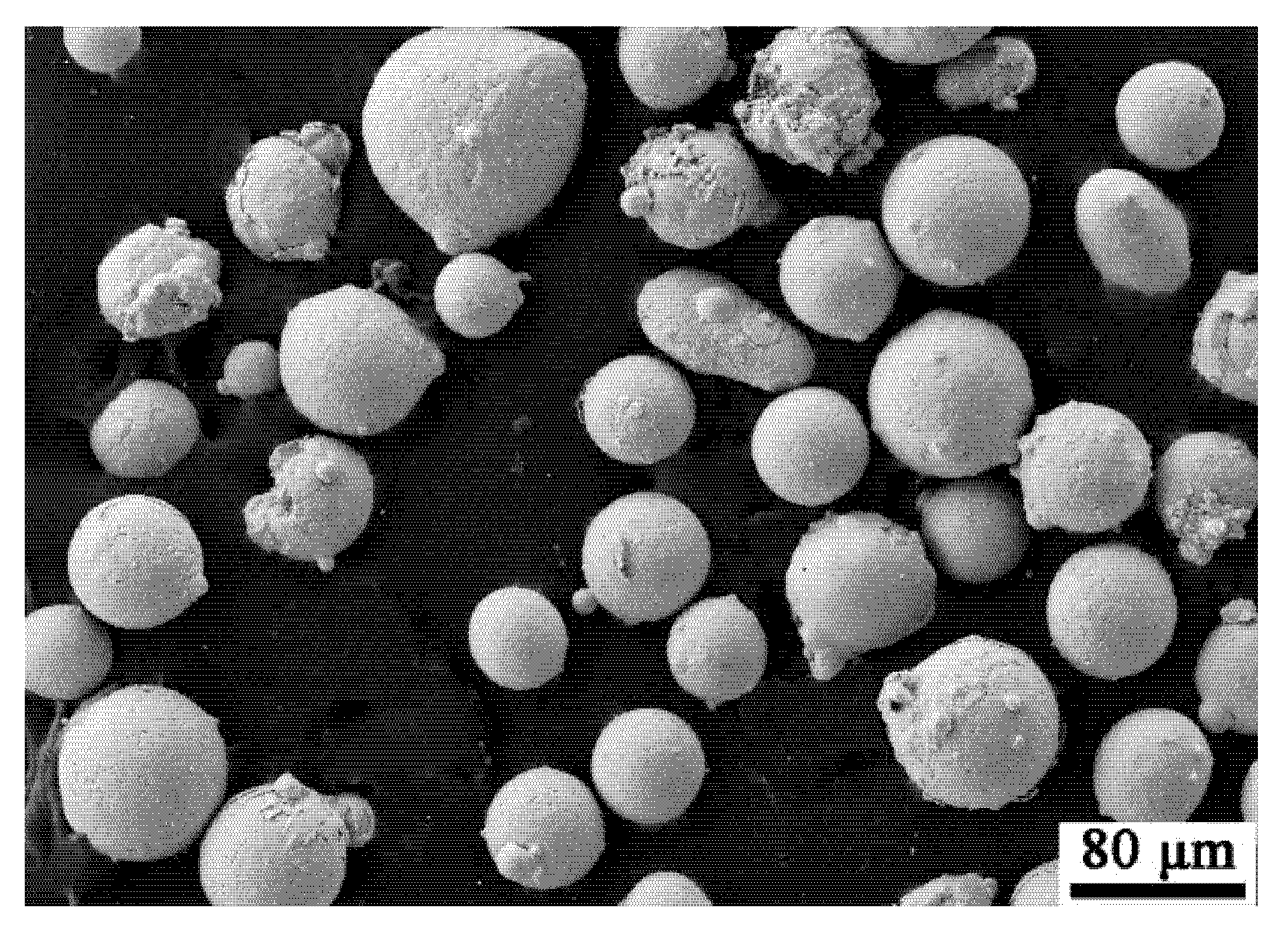

2.1. Experimental Materials

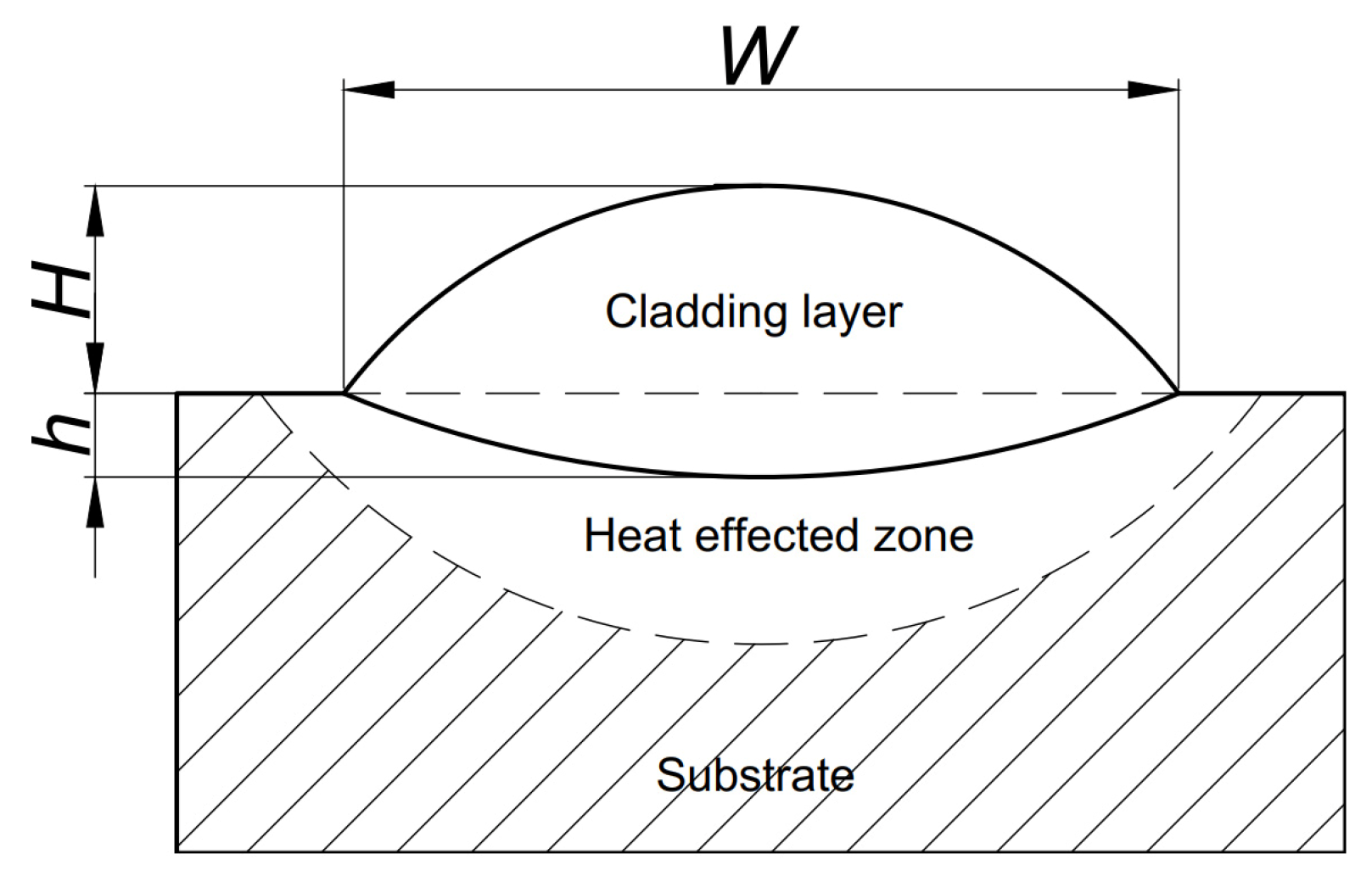

2.2. Design of Orthogonal Experiment
2.3. Microhardness Measurement
2.4. Microstructure Characterization

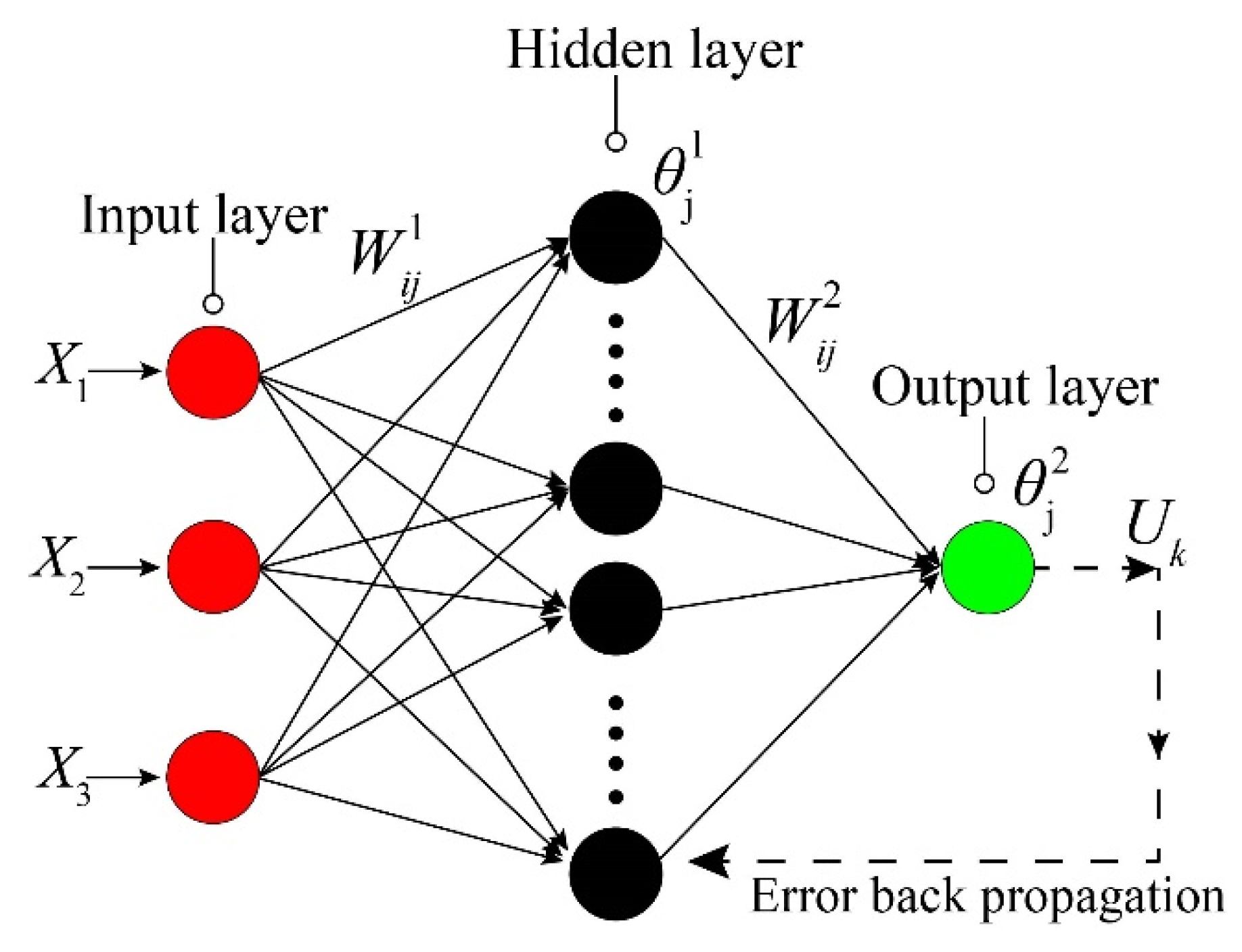

2.5. Design of BP Neural Network
3. Results and Discussion

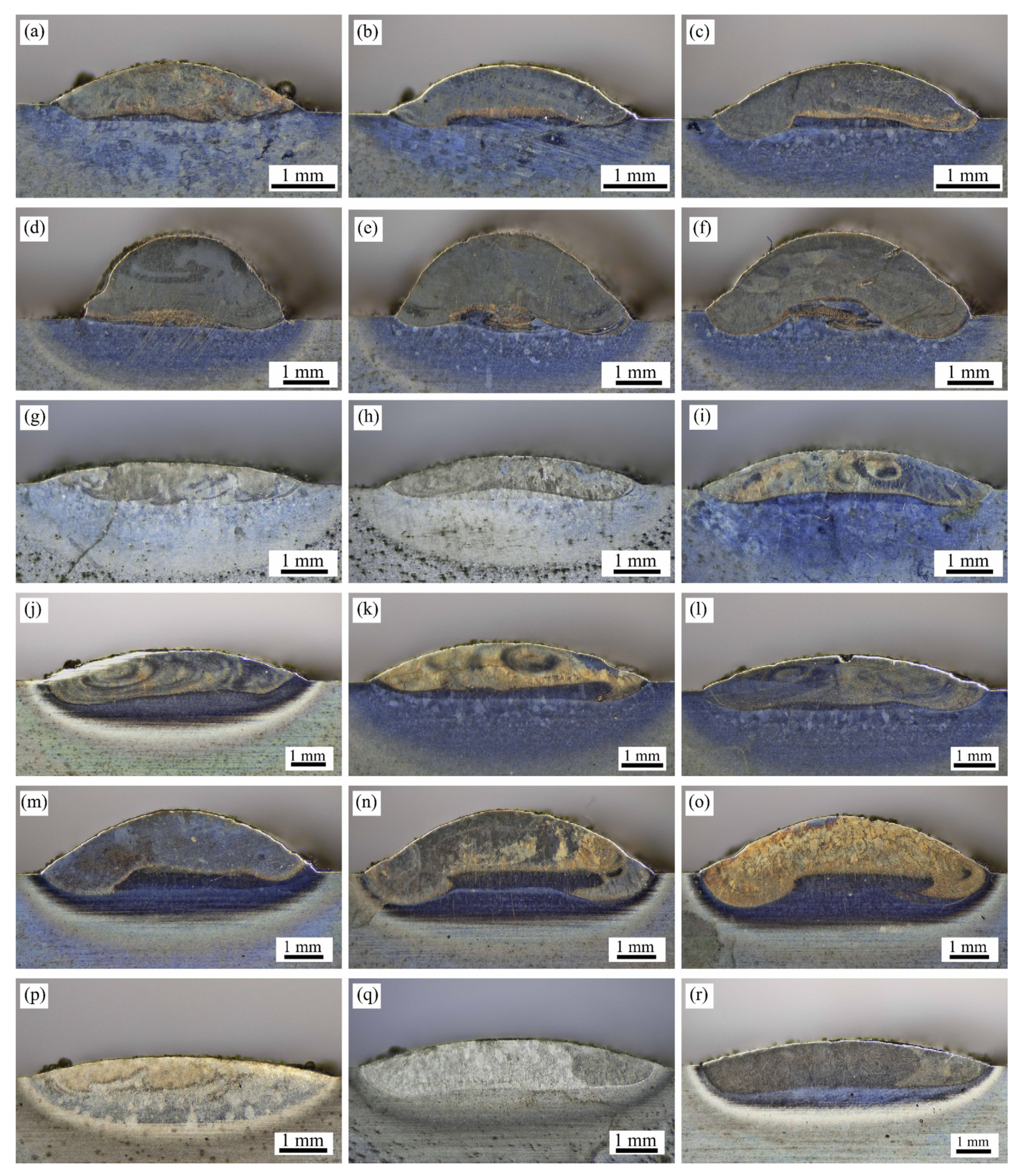

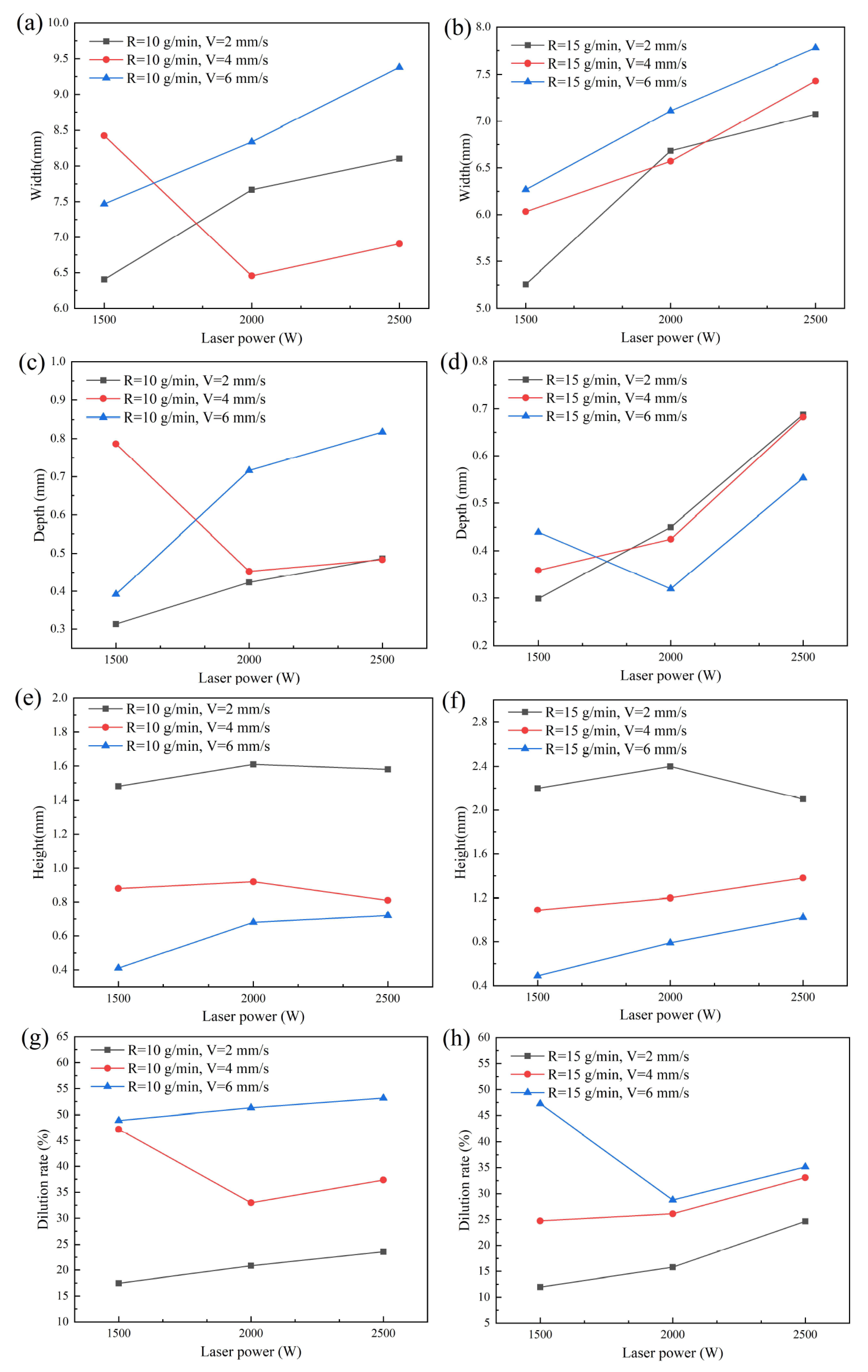

3.1. The Effect of Process Parameters on the Dilution Rate

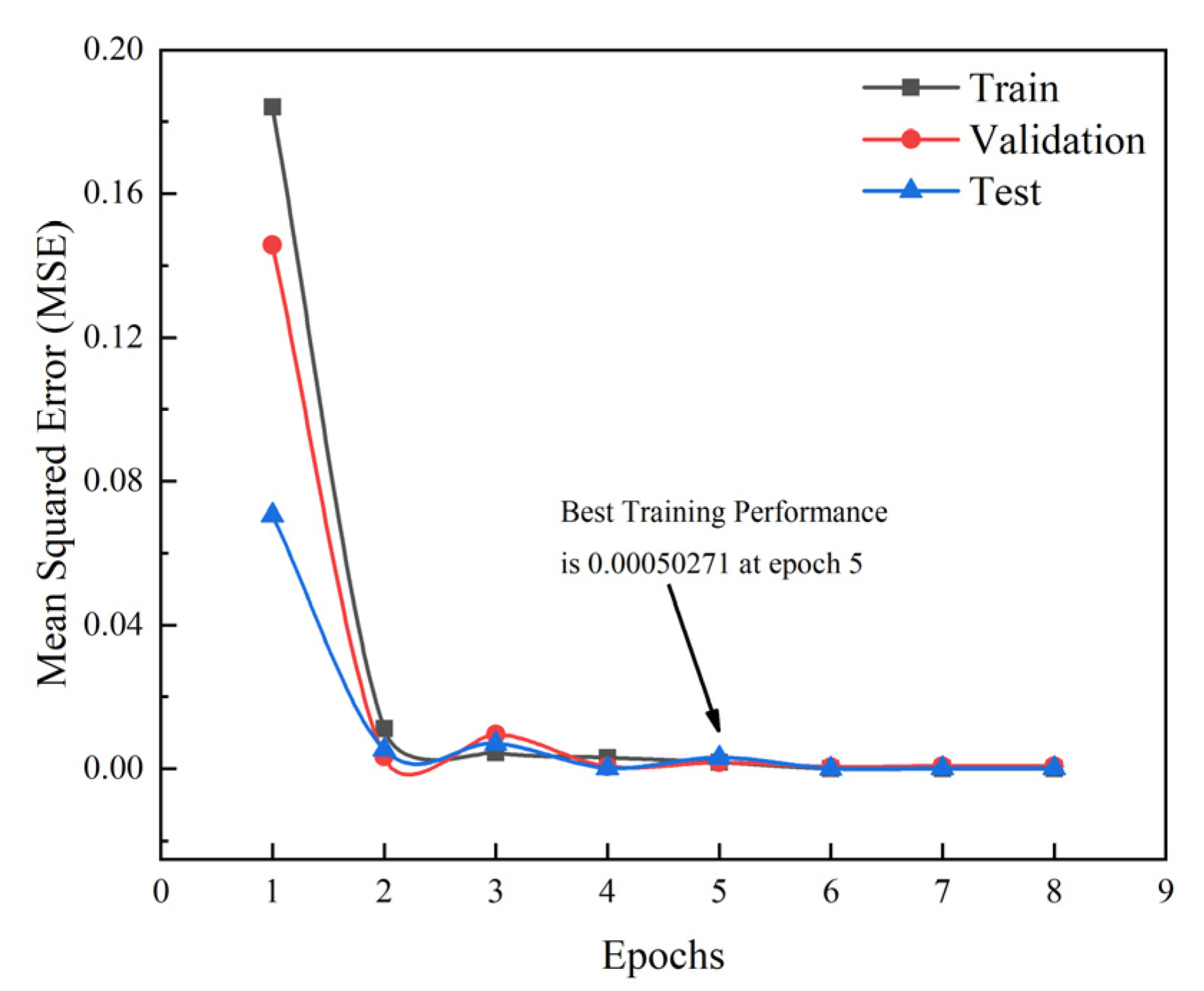

3.2. Analysis of Performance of BP Model

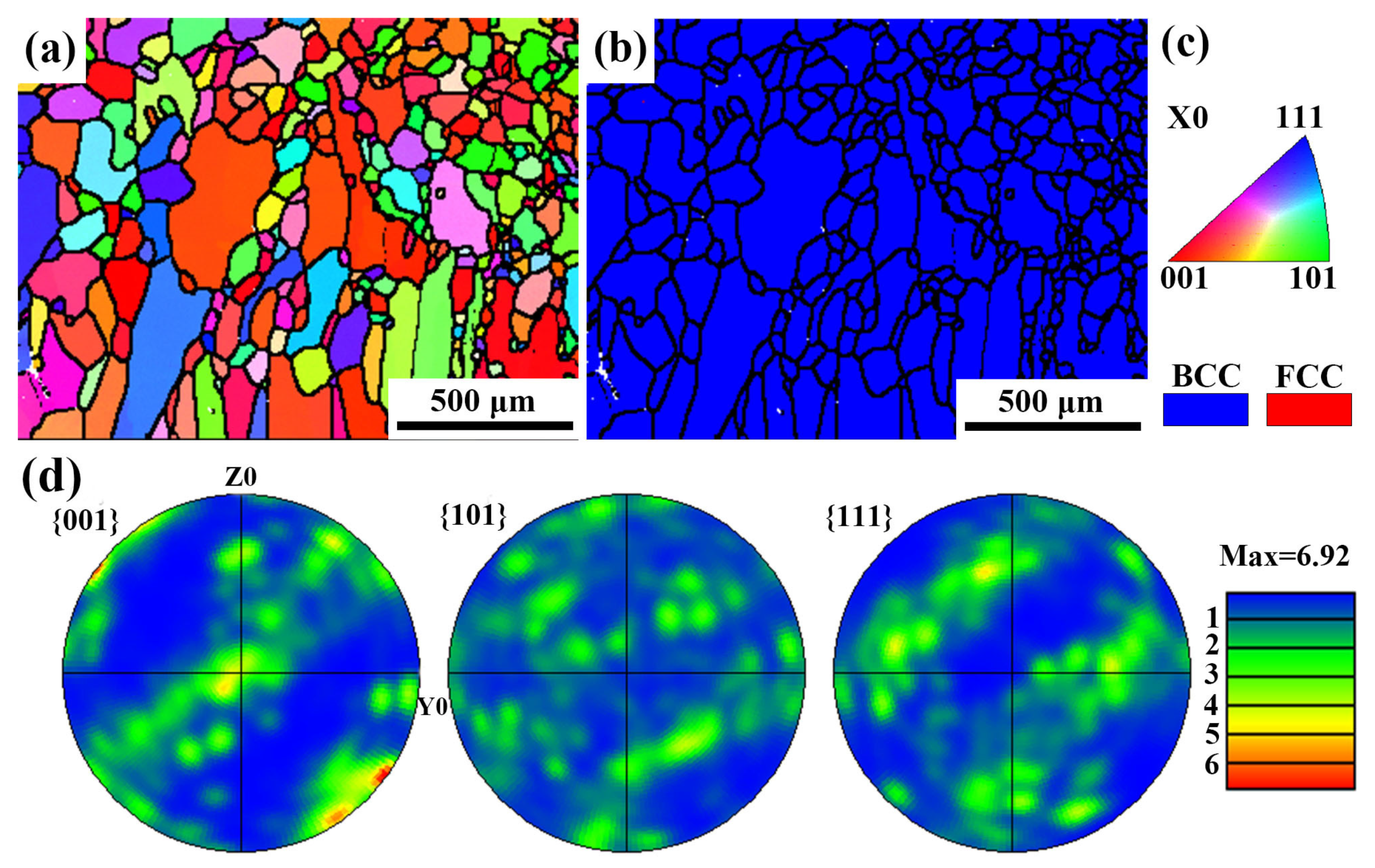

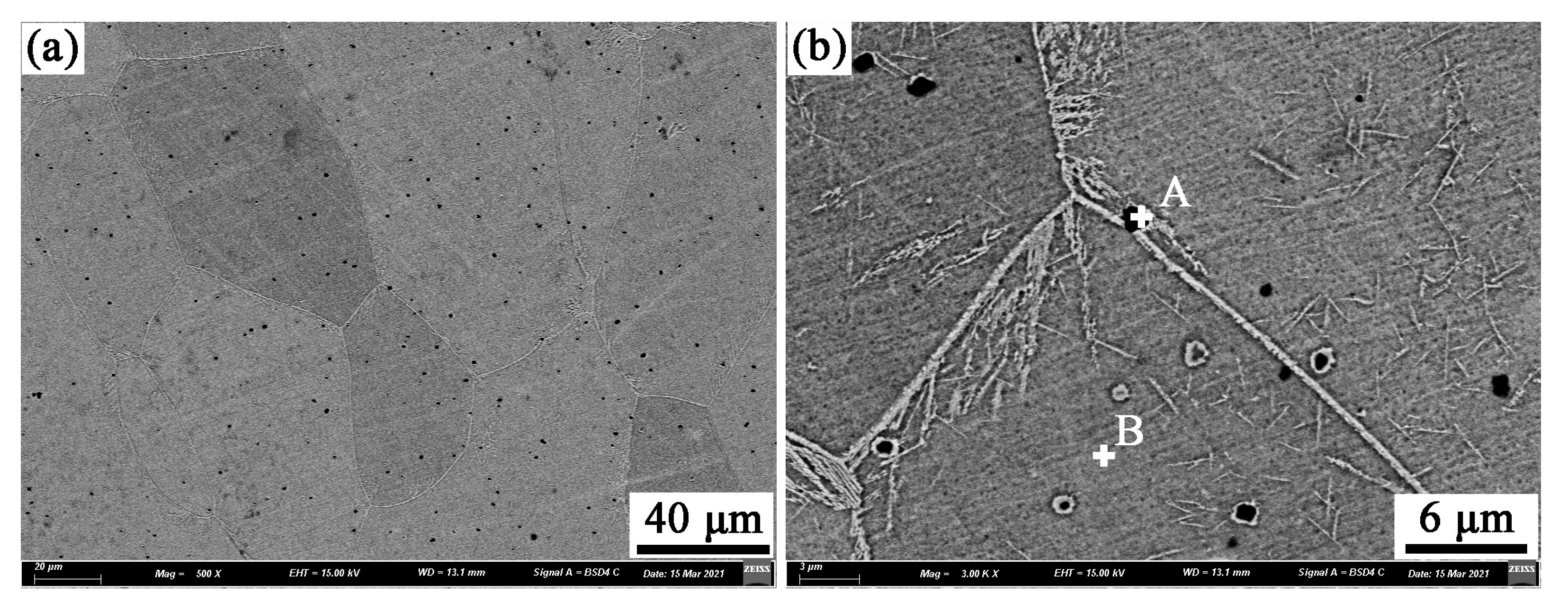

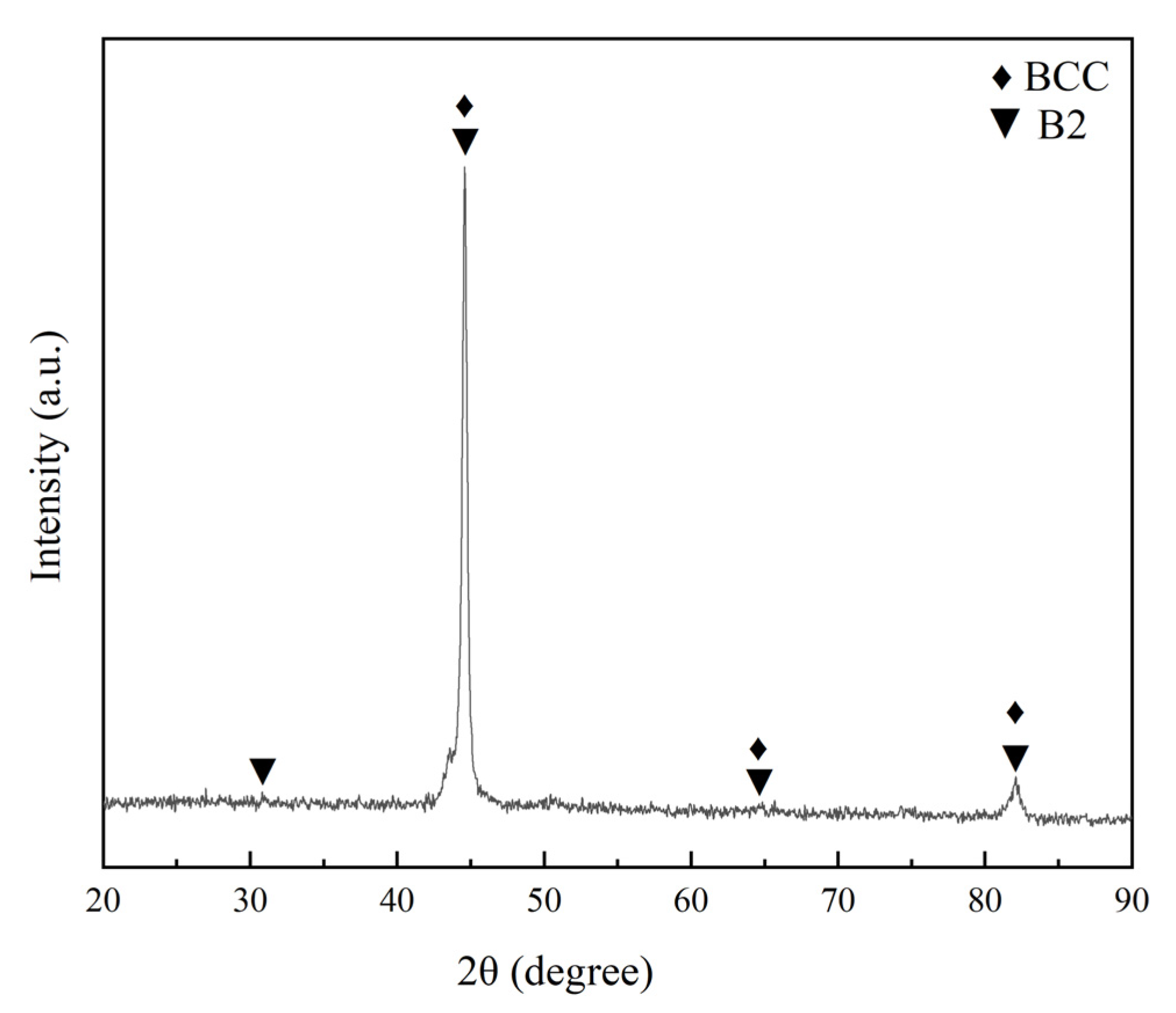

3.3. Microstructure of the AlCoCrFeNi HEA Coating
4. Conclusions
- (1)

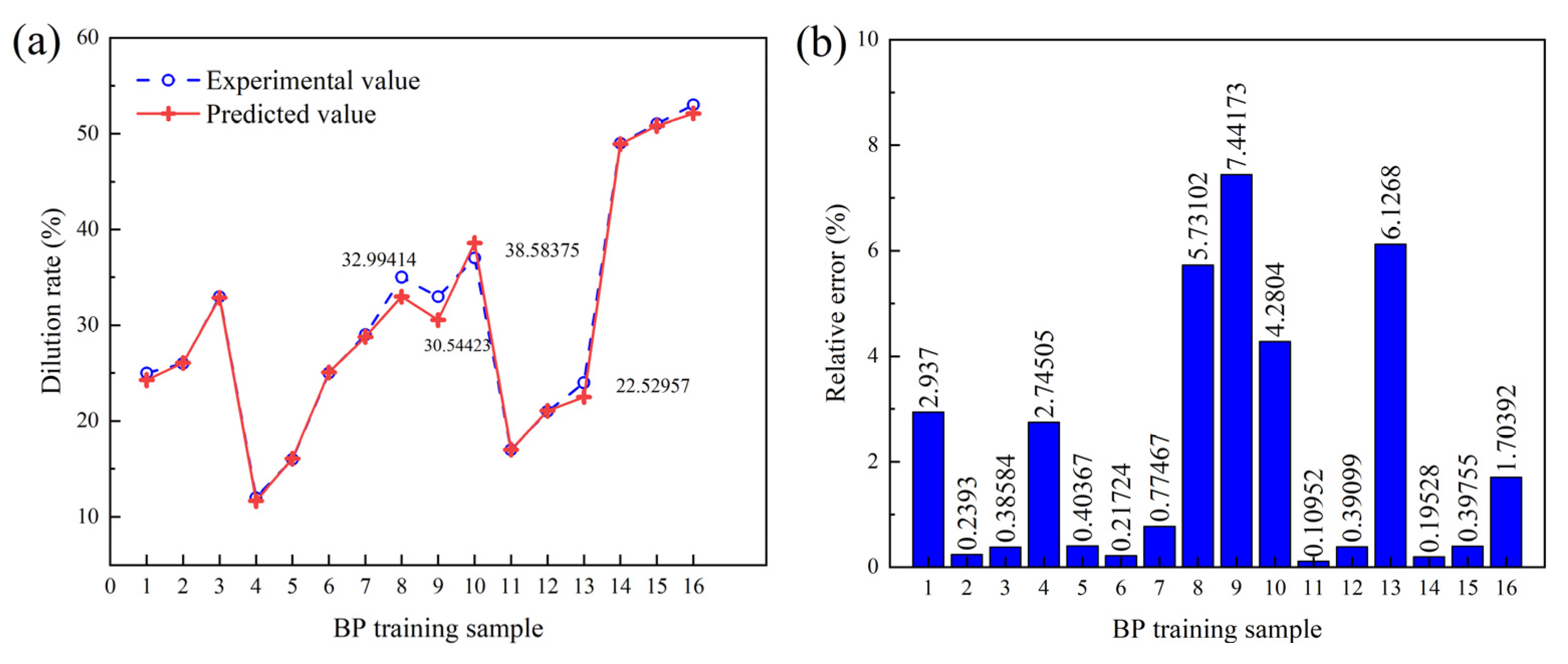

- The training performance of the established BP neural network was outstanding, and the maximum relative error between the training value and the predicted value was 1.70%. The prediction performance was excellent, with an average relative error of only 5.89% between the predicted value and the experimental value.
- (2)
- The optimal process parameters were as follows: laser power of 2000 W, a scanning speed of 2 mm/s, and a powder feeding rate of 15 g/min. The dilution rate was 16%, and the microhardness value was 521.6 HV0.3.
- (3)
- The grains of the coatings under this process parameter were equiaxed, with uniform composition distribution, and no serious composition segregation occurred. The microstructure of coatings was still composed of the BCC phase solid solution. The FCC phase does not form in the microstructure due to the excessive Fe element content. These results also prove that the dilution rate under the process parameters does not have a major impact on the microstructure and properties of the AlCoCrFeNi coatings.
