Preparation of Surface-Modified Nano Zinc Sulfide/Polyurethane Inorganic-Organic Transparent Coating and Its Application in Resin Lens

Abstract

The surface modified hydrophilic zinc sulfide nano powder was prepared by hydrothermal method, and the corresponding zinc sulfide/polyurethane organic-inorganic composite transparent coating via in-situ polymerization. The structure of ZnS Nanoparticles and organic-inorganic composite coating were characterized by Infrared Spectroscopy, X-Ray Diffraction, Laser Particle Size Analyzer and Scanning Electron Microscopy. The optical properties were measured by Ultraviolet-Visible spectrophotometer and ellipsometry. The results show that the monodisperse hydrophilic nano zinc sulfide powder with a particle size of about 70 nm can be obtained by thioglycolic acid (TGA) modification, which has good compatibility with waterborne polyurethane. Nano zinc sulfide increased the refractive index of the coating significantly and the refractive index of the coatings could be controlled in the region of 1.46–1.71 organic-inorganic composite coating by adding ZnS. When the amount of nano ZnS added was 30%, the refractive index of the hybrid coating can reach 1.71, and the transmittance was more than 90%. The cured coatings were smooth and no agglomeration between nano ZnS particles could be found. After application on the surfaces of resin lens, the coatings presented better impact resistance, which indicated that the coating has application prospects in the field of fine processing of lens’ surfaces.

1. Introduction

Resin materials are widely used in optics, aviation, transportation, construction and other fields. Because of their light weight and excellent optical performance, high refractive resin lenses are more and more popular. In order to improve the service life of the optical resin lens, a functional coating on the surface has become a common method adopted by lens enterprises [1,2]. The organic-inorganic composite coating takes organic matter as the matrix component and inorganic nanoparticles as the reinforcement component. By adjusting the proportion, an organic-inorganic composite functional coating with both hardness and flexibility can be prepared. Clément Sanchez et al. [3] have studied organic-inorganic hybrid materials in detail, including their classification, composition, mechanism and wide application in optics, electronics, biology, medicine, for example, as membranes and separation devices, functional smart coatings, fuel and solar cells, sensors, etc. Qian et al. [4] controlled the aggregation of inorganic colloid particles by polymerization and ultrasonic vibration. Super-hydrophobicity and transparency of the coating can be controlled by adjusting the initial concentration of monomer and the size of aggregates in the sol-gel. Thus, super-hydrophobicity and a high transparency coating can be simultaneously achieved. Salleh et al. [5] prepared ultraviolet (UV) curable acrylate modified by nano silica. The test showed that the material has high transparency, high scratch resistance and high wear resistance. Sangermano et al. [6] added zirconia, modified by methacrylic acid into acrylic resin, to initiate polymerization and prepared organic-inorganic composite optical film. The result shows that the addition of nano zirconia improves the heat resistance and stability of the coating. Zhou et al. [7] used an in-situ polymerization method to disperse the surface modified nano silica in acrylic resin, and mixed this with isocyanate to initiate the solidified into membrane. The hardness and scratch resistance of the coating are obviously improved after modification. Hakan et al. [8] prepared silicone modified hard coatings with methyl orthosilicate and diethylenetriamine by gel sol method. The result shows that an effectively polymerized hybrid coating rich in silica content, as realized for high tetramethyl-silo-silicate or abundant water containing sols, resulted in defective films with microcracking and adhesion problems. Pavlovsak et al. [9] prepared an organic-inorganic composite optical coating by controlling hydrolysis condensation of tetraethyl silicate in a polymethylmethacrylate, polyvinyl alcohol and vinyl acetate polymer monomer. The coating has excellent scratch resistance and high hardness. Liu et al. [10] prepared a composite optical film using methyl methacrylate and titanium dioxide by organic-inorganic synchronous polymerization. The result showed that the hybrid film had good mechanical properties, surface smoothness and high refractive index.

Inorganic nanoparticles have a series of advantages, such as excellent scratch resistance and hardness, UV resistance and high refractive index. The hybrid coatings prepared by introducing modified nanoparticles into polymer solution is an important way to improve the performance of optical lenses [11,12,13]. Zinc sulfide (ZnS) is one of the highly refractive index semiconductor materials (refractive index is 2.47 at 625 nm wavelength) and the optical absorption is low in the range 400–1400 nm, which has a significant effect on improving the refractive index of the coating [14,15]. Nano ZnS has a high refractive index and wide light transmission range in common nanoparticles. The application of nano ZnS to modify the optical coating can not only improve the refractive index, wear resistance and hardness of the coating, but also can enhance the density of polymers and improve transmittance, heat resistance, aging resistance, barrier property and water resistance. In the field of nanocomposite optical materials, quantum size effect is an important factor of the refractive index. It is not necessary to consider the influence of quantum size effect on the refractive index due to the Bohr exciton radius of ZnS is 5.5 nm, and the size of its nanoparticles is not much smaller than 5.5 nm. Chaudhuri et al. [16] added thioglycolic acid (TGA) to modify nano-ZnS into polyvinylpyrrolidone by in-situ polymerization to prepare high transmittance optical film with a refractive index of 1.65. H. Althues et al. [17] prepared ZnS:Mn nanoparticles by a chemical precipitation method, and an organic-inorganic composite film with a refractive index of 1.65 was prepared by polyreaction which used the in-situ polymerization method to join the methyl methacrylate.

The nanocomposite coating applied to the optical lens should have good refractive index, transparency, better impact resistance, heat resistance and thermo-optical stability. In addition, in order to prolong the service life of the material, the composite coating should be able to improve the wear resistance and toughness of the material. Polyurethane coating is used in the impact resistance of resin lenses [18,19]. The coating is prepared by polycondensation of hard segment isocyanate containing a urea group and amino group with polyester, polyether or other polyols [20,21,22]. However, rainbow lines will appear when a polyurethane coating with low refractive index is applied to a high refractive index lens substrate, which will greatly affect the quality of the lens [23]. The modification of waterborne polyurethane coating with high refractive index inorganic nano particles can significantly enhance the refractive index, as well as solvent resistance, impact resistance and anti-aging properties of the coating [24,25]. High refractive index nanocomposite optical materials are widely used in antireflection coatings, optical lenses, optical waveguides, etc. In this paper, aqueous dispersed ZnS nanoparticles were prepared first, with surface modification by TGA at room temperature. Then the nanoparticles were added into waterborne polyurethane and the organic-inorganic composite coatings were prepared by in-situ polymerization. The structure and properties of the coating and its application in resin lens were studied.

2. Materials and Methods

2.1. Experimental Reagents

The following materials were used as purchased. Zinc chloride (ZnCl₂, analytical reagent (AR)) was obtained from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China); sodium hydroxide (NaOH, analytical reagent AR) was obtained from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China); sodium sulfide (Na₂S, analytical reagent AR) was obtained from Shanghai Lingfeng Chemical Reagent Co., Ltd. (Shanghai, China); thioglycolic acid (C₂H₄O₂S, analytical reagent AR) was obtained from McLean Reagent Co., Ltd. (Shanghai, China); anhydrous ethanol (C₂H₆O, analytical reagent AR) was obtained from Aladdin Reagent Co., Ltd. (Shanghai, China); two component waterborne polyurethane (grade I) was obtained from SDC Technology Co., Ltd. (Irvine, CA, USA); isopropanol (C₃H₈O, analytical reagent AR) was obtained from McLean Reagent Co., Ltd. (Shanghai, China); piranha cleaning solution (grade I) was obtained from Shanghai Huiyun Chemical Co., Ltd. (Shanghai, China); deionized water was self-made.

2.2. Preparation of Modified Nano ZnS

The modified nano ZnS particles were prepared by hydrothermal method with zinc chloride as zinc source, sodium sulfide as sulfur source and TGA as surface modifier. 0.8 mL sodium hydroxide solution was added into the mixed solution of zinc chloride and mercapto-acetic acid, and the pH of the system was adjusted to 6–7. A certain proportion of sodium sulfide solution was added and continued to react for 24 h at 30 °C. The original solution was centrifuged on a high-speed centrifuge at 1500 R/min for 10 min. The solid was dissolved in 50 mL absolute ethanol and ultrasound for 30 min. The cleaning steps were repeated four times. The prepared nano-ZnS was placed in a vacuum drying oven and dried at 60 °C for 24 h, then it was grinded for use.

2.3. Preparation of Zinc Sulfide/Polyurethane Transparent Coating

In this paper, two-component waterborne polyurethane was adopted: A component was isocyanate, B component was polyol and catalyst. The modified nano-ZnS aqueous solution was added into component A. After 30 min of ultrasonic dispersion, 160 mesh gauze was used for vacuum filtration three times. Under the protection of nitrogen, the modified components A and B were mixed at a ratio of 0.9:1 and let stand for 10 min. After surface cleaning, the substrates (glass slide or resin lens) were fixed by dip coater and immersed in ZnS/polyurethane composite coating solutions. The substrates were drawn at a rate of 1 cm/min after 5 min. They were dried at room temperature for 24 h and then heated up to 60 °C at a heating rate of 0.25 °C/min in an oven. After curing for 2 h, the transparent coating was obtained.

2.4. Structure Test and Characterization

The structure of the surface modified nano-ZnS and composite coating were characterized by Nicolet NEXUS-670 FT-IR Raman spectrometer (Thermo Nicolet Corporation, Madison, WI, USA). The crystal structure of ZnS powder was analyzed by Bruker D2 phaser powder X-ray diffractometer (Bruker Daltonics, Karlsruhe, Germany). The particle size and potential of the aqueous dispersed nano-ZnS were measured by Malvern ZS particle analyzer (Malvern Instruments, Westborough, MA, USA). HITACHI s-4800 field emission Scanning Electron Microscopy (SEM) (Hitachi, Tokyo, Japan) was used to observe the coatings’ section structure. The surface morphology of the coating was observed by Agilent 5500 atomic force microscope (Agilent Technologies, Chandler, AZ, USA).

2.5. Performance Characterization of ZnS/Polyurethane Transparent Coating

The transmittance of the cured coating was measured by Lambda 950 UV-Vis spectrophotometer (Perkin Elmer, Waltham, MA, USA). The refractive index of the coating was measured by M-2000UI ellipsometry from the J.A. Woollam company (Lincoln, NE, USA) in the wavelength range 300–800 nm and at a 65° incident angle. Pencil hardness of the coating was measured according to GB/T6739-2006 [26]. The impact resistance, water resistance, alkali resistance, extreme temperature resistance and adhesion performance of the coatings on lenses were tested according to QB/T2506-2017 [27], GB/T1733-1993 [28], GB/T9265-2009 [29] and GB/T9286-1998 [30], respectively.

3. Results

3.1. Preparation of Surface Modified Nano-ZnS

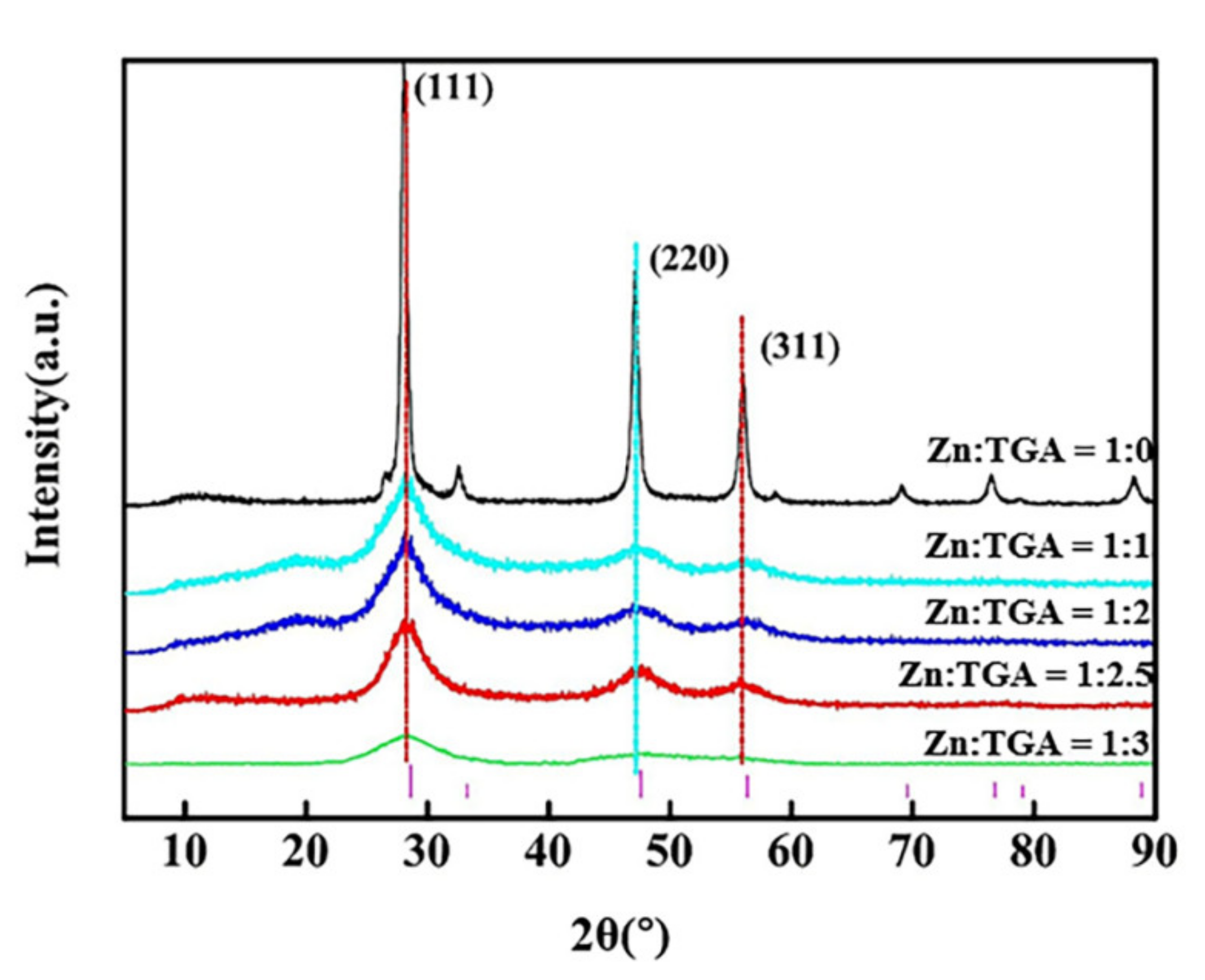

The effects of modifier content and reaction temperature on the preparation process of ZnS nanoparticles were studied to prepare well dispersed nanoparticles. Five experiments were carried out at 30 °C with the molar ratio of Zn/TGA being 1:0, 1:1, 1:2, 1:2.5 and 1:3, respectively. The solution concentration was 0.4 mol/L and the molar ratio was 0.9. The structure of the samples was characterized by XRD, as shown in Figure 1. It can be seen that the nano-ZnS prepared by hydrothermal method had a complete crystal structure. All samples display the same patterns as sphalerite ZnS, due to 2θ characteristic diffraction peaks at 28.7°, 47.7° and 56.6°, respectively. With an increased amount of TGA, the width of diffraction peak increased, while the strength and particle size decreased. This is because the adding of TGA destroyed the crystal integrity of nano-ZnS and made the crystallinity decrease. Moreover, with the increase of TGA, the dispersion of particle size became more obvious. The spectral lines of diffraction peaks with different particle sizes overlapped, resulting in the broadening of peaks.

The grain size could be calculated by Scherrer formula—Equation (1) (select (111) crystal plane for calculation) [31], as shown in

Table 1. Grain size and dispersion of modified nano-ZnS.

Sample	Half Width (°)	Grain Size (nm)	Zeta Potential (mV)	Dispersity	Average Particle Size (nm)
Zn:TGA = 1:0	0.676	12.72	20.8	double-peak	75.15
Zn:TGA = 1:1	2.214	3.89	31.4	single-peak	46.7
Zn:TGA = 1:2	2.345	3.67	46.7	single-peak	31.5
Zn:TGA = 1:2.5	3.014	2.85	32.5	double-peak	77.6
Zn:TGA = 1:3	4.120	1.70	25.4	double-peak	111.4

.

d = kλ/βcosθ

(1)

where the constant k is 0.94, β is the full width of the peak at half maximum height (FWHM), d is the average diameter of the crystallite, and λ represents the wavelength of the incident radiation.

It can be seen from the calculation that the grain size was 12.72 nm without TGA. Adding TGA limited the growth of grains, and the grain size gradually decreased to 1.7 nm. The zeta potential and particle size distribution of five samples in deionized water were observed, as seen in Table 1. The average particle size of nano-ZnS was 75.15 nm and showed a bimodal distribution in the absence of TGA. Due to the surface modification of TGA on the formation of nano-ZnS, the nano particles were evenly dispersed and the size was reduced. When Zn:TGA = 1:2, the particle size was 31.5 nm. With further increase of TGA, the particle size increased and showed a double peak distribution, due to the aggregation of nano-ZnS caused by the bridge effect of excessive TGA.

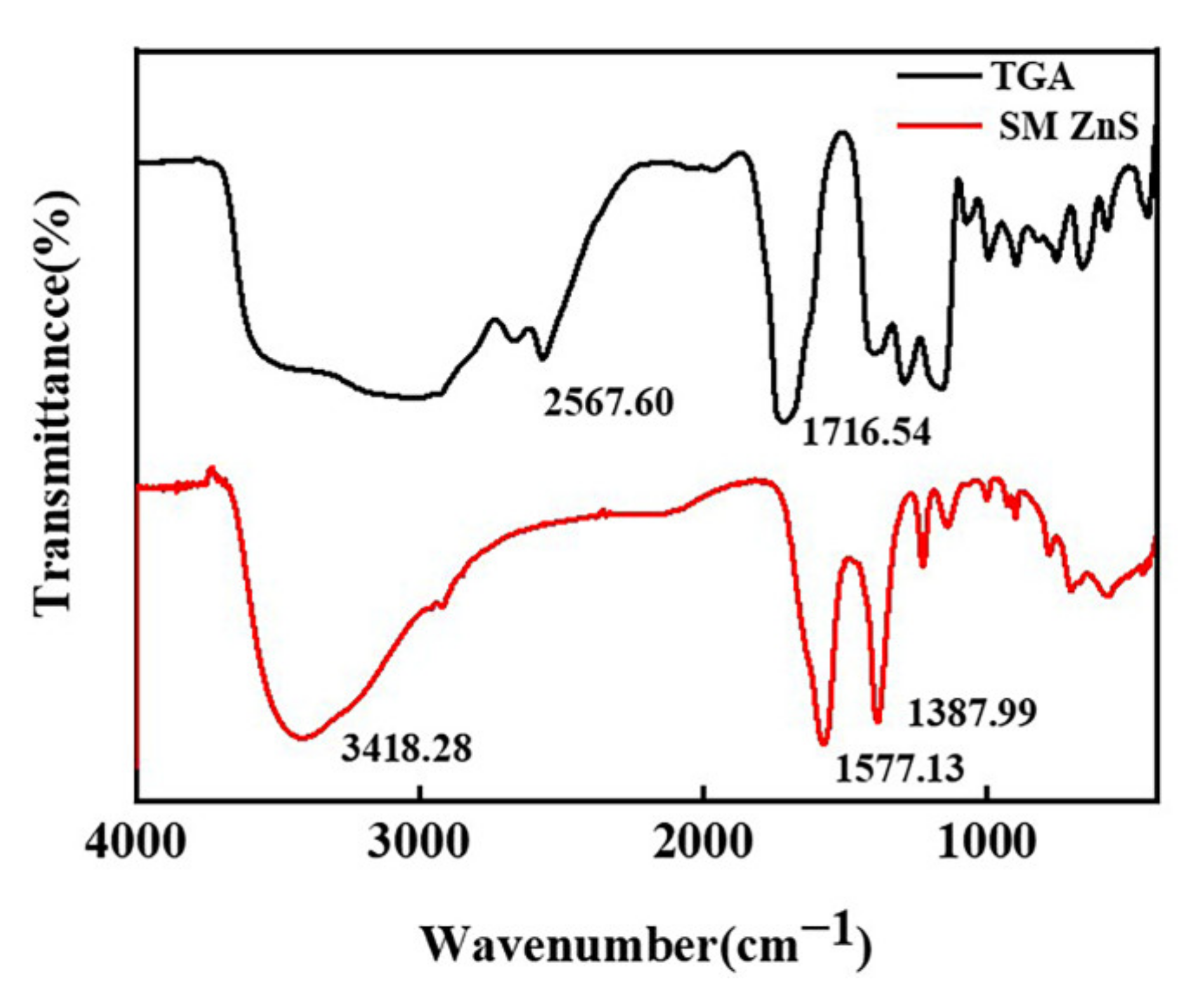

The surface modification effect of TGA was studied by infrared spectrum, as seen in Figure 2. The –OH stretching vibration peak was at the range of 3600.00–3000.00 cm⁻¹, the –SH stretching vibration peak was at 2567.60 cm⁻¹, and the –COOH antisymmetric and symmetric stretching vibration peaks were at 1716.54 cm⁻¹ and 1403.41 cm⁻¹, respectively. The –C=O expansion vibration peak was at 1293.14 cm⁻¹, and the –OH in-plane bending vibration peak was at 1154 cm⁻¹. The –CS characteristic peak was at the range of 800.00–600.00 cm⁻¹. It can be seen from the infrared spectrum of the modified nano-ZnS that the –OH stretching vibration peak was at 3418.28 cm^–1, and the corresponding –COOH antisymmetric and symmetric stretching vibration peaks shifted to 1577.13 cm⁻¹ and 1387.99 cm⁻¹, 574.90 cm⁻¹, respectively, the peaks corresponding to the characteristic absorption peaks of nano-ZnS. –SH stretching vibration peak at 2567.60 cm⁻¹ disappeared, showing that –SH had been successfully bonded with ZnS. TGA was grafted onto the surface of nano-ZnS and the surface was modified effectively, so that nano-ZnS could be stably dispersed in aqueous solution.

The effect of hydrothermal temperature on the morphology of ZnS particles was studied. The concentration of the reaction solution was 0.40 mol/L, the molar ratio of Zn/TGA was 1:2, the molar ratio of Zn/S was 0.9, and the reaction temperature was set at 30 °C, 60 °C and 90 °C, respectively. The morphological section was observed by SEM, as shown in Figure 3. The prepared nanoparticles distributed uniformly and no obvious agglomeration could be found. It can be seen from the electron micrograph that, with the increase of temperature, the shape of nanoparticles changed obviously, from quasi-circular structure to hexagonal sheet structure. This is due to the fact that the TGA was grafted onto the nano-ZnS, which made the grains grow, and there were many twins and dislocations in the grains. With the increase of temperature, the grains inside the particles grew into polycrystalline aggregates. The mutual exclusion of the hydrophilic groups of grafting particles with TGA results in the crystal nucleus of wurtzite structure, and finally the irregular hexagonal sheet structure was formed [32]. At 90 °C, the size of hexagonal sheet nano-ZnS was about 70 nm, which had better heat stability.

3.2. Waterborne Polyurethane Coating Modified by Nano-ZnS

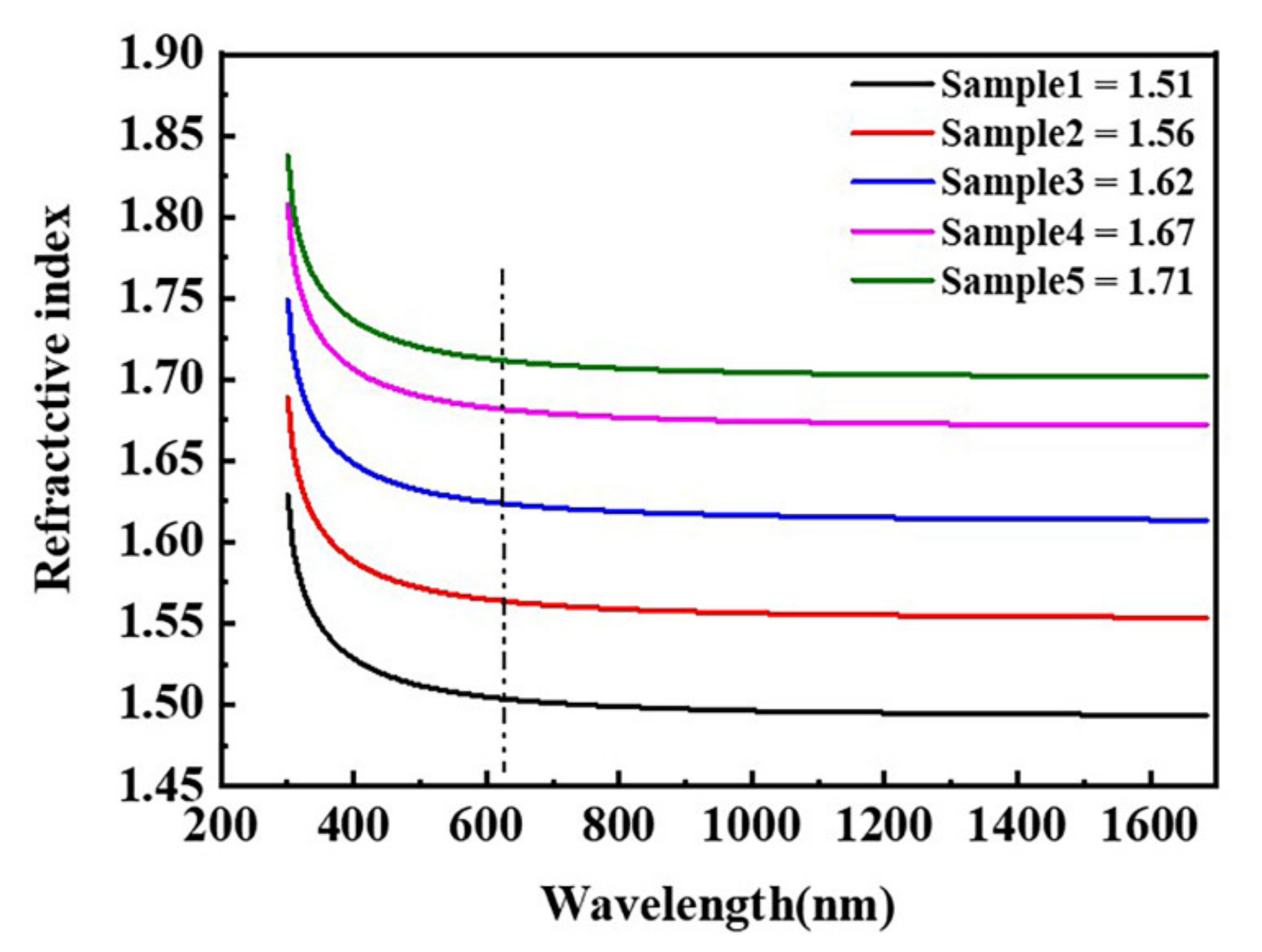

The prepared 70 nm ZnS was added to the two-component waterborne polyurethane via in-situ polymerization and five experiments were carried out with a nano-ZnS content of 10%, 15%, 20%, 25% and 30%, respectively. The above coating was put onto the silicon substrate by spin coating, and the refractive index was measured after curing, as shown in Figure 4.

The refractive index of waterborne polyurethane coating was only 1.46. This indicates that the refractive index increased from 1.51 to 1.71 (at the wavelength of 625 nm) with the increase in ZnS content. This is due to the significantly improved refractive index of nano-ZnS, going up to 2.47.

The transmittance of nano-ZnS/waterborne polyurethane composite coating with different contents was studied to explore the influence of nano-ZnS on the optical properties of the coating with a ZnS content of 0%, 10%, 15%, 20%, 25% and 30%, respectively, and the results are shown in Figure 5. It can be seen that the transmittance was 93.6% without nano-ZnS by analyzing the different transmittances of the coating. The transmittance reduced slightly with the increase of nano-ZnS, but the transmittance of all samples was higher than 90%. This indicates that the nano-ZnS/polyurethane composite coating has higher transmittance.

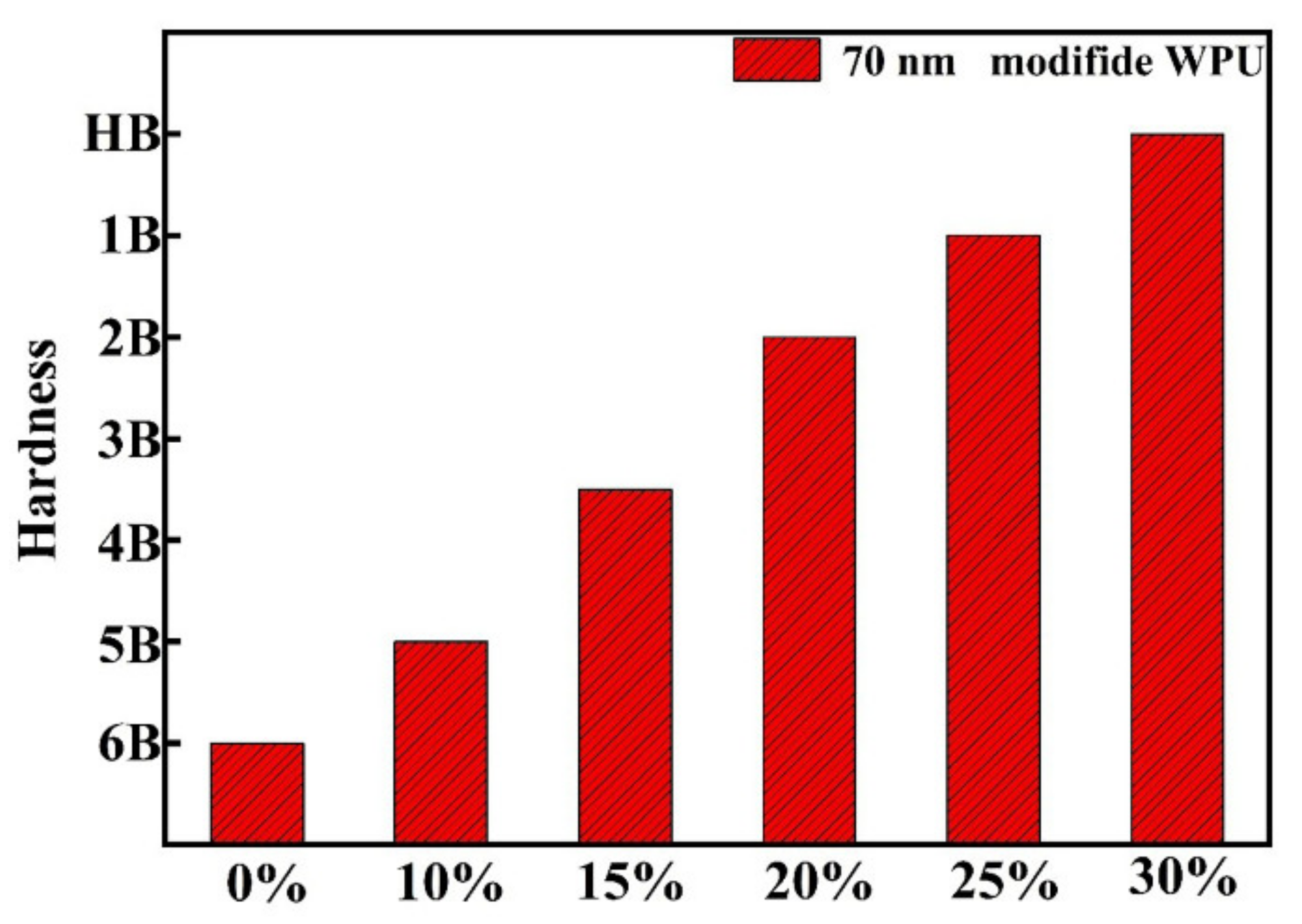

The hardness of the coating with different contents of nano-ZnS on the glass substrate was measured, as shown in Figure 6. According to the tests, the hardness of waterborne polyurethane coating was lower, due to the higher content of flexible polymer segments. The hardness of the coating increased from 6B to HB with the increase of nano-ZnS content. The reason is that nano-ZnS has higher hardness by itself. The modified nano zinc sulfide can provide active sites to form chemical bonds between the isocyanate groups of the PU chains and hydroxyl groups on the nano particles, which increased the hardness of the coating [33]. The addition of nano zinc sulfide made the composite coating retain the impact resistance of the waterborne polyurethane coating and increased the hardness, to some extent, at the same time.

The particle size distribution of the composite coating (a) and the cross-section SEM (b) of the solidified coating were studied to further research the distribution of nano-ZnS in composite coating, as shown in Figure 7. From the size and potential tests, we know that the two-component composite aqueous polyurethane solution showed a single peak distribution, the average particle size was about 80 nm, and there was no settling phenomenon. The average Zeta potential of the coating was 46.3 mV, which indicates that the coating had good stability. The section morphology of the coating was observed after quenching in liquid nitrogen. It can be seen from the SEM photograph that the section of the material was smooth without serious cracks. Nano-ZnS was evenly distributed on the section, the particle size was about 70 nm, and there was no significant aggregation. This is due to the fact that the nano-ZnS modified by TGA was grafted with organic chain segments, which prevented the agglomeration of nano particles and had a good dispersing effect.

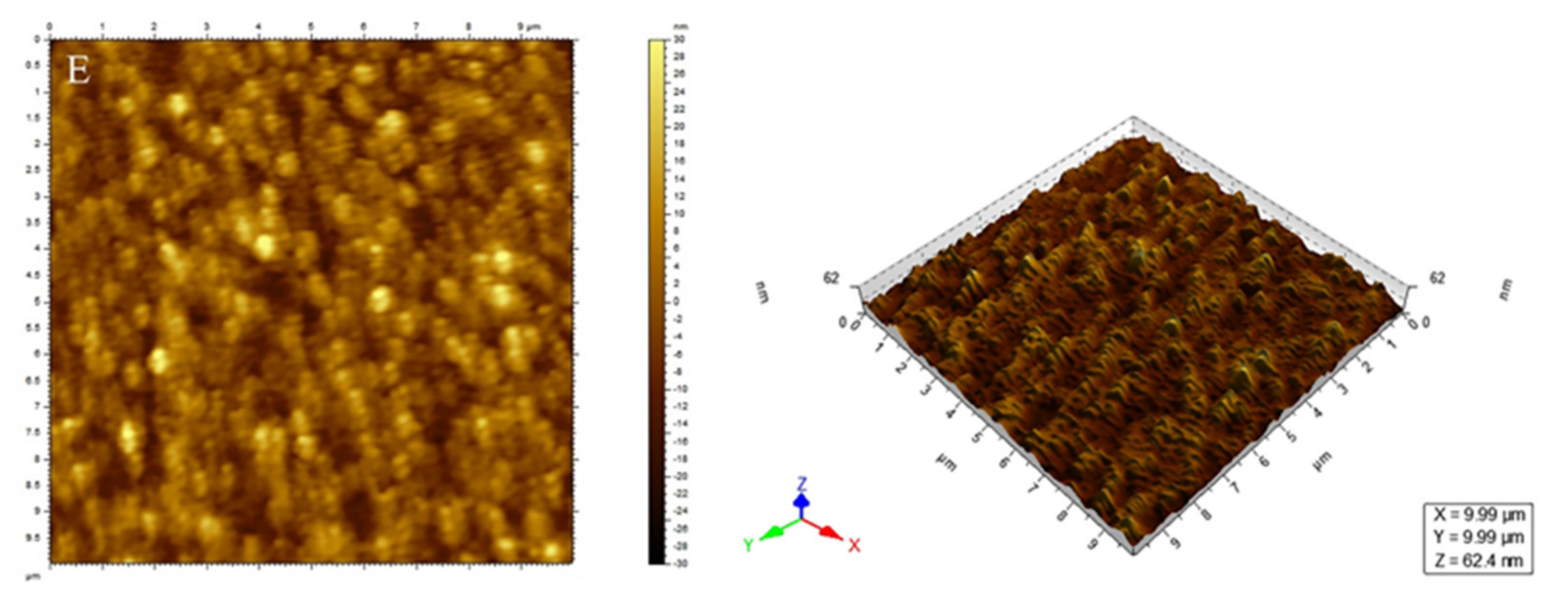

The waterborne polyurethane with different nano ZnS content was coated on the silicon substrate. The surface morphology of the coating was characterized by Atomic Force Microscopy (AFM), and the surface roughness was analyzed, as shown in Figure 8 and Figure 9. The fluctuation of the coating changed at the range of 10–45 nm and the roughness increased with the increase in nano ZnS content, as shown in Figure 8. The average roughness of the coating was 3.47 nm when the nano ZnS content was 10%. When the content of nano ZnS increased to 30%, the roughness of the coating increased to 6.7 nm, as shown in Figure 9. With the increase of nano ZnS content, the waterborne polyurethane component in the coating decreased, which made the network cross-linking structure of the coating more compact; the average roughness of the coating increased significantly and the transmittance decreased.

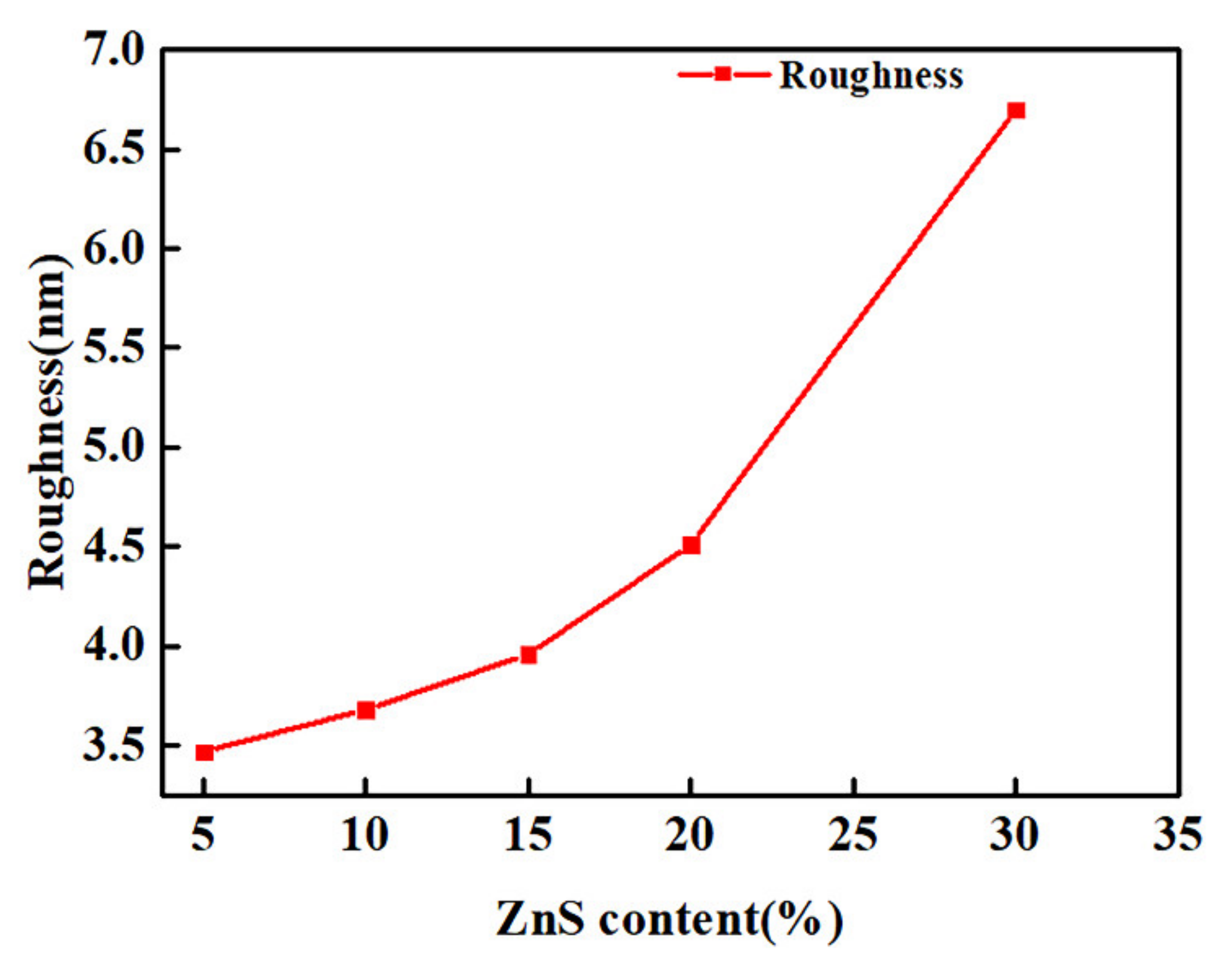

The fluctuation of the coating changed at the range of 10-45 nm and the roughness increased with the increased of nano ZnS content, as shown in Figure 8. The average roughness of the coating was 3.47 nm when the nano ZnS content was 10%. When the content of nano ZnS increased to 30%, the roughness of the coating increased to 6.7 nm, as shown in Figure 9. With the increase of nano ZnS content, the waterborne polyurethane component in the coating decreased, the average roughness of the coating increased significantly and the transmittance decreased.

3.3. Application of ZnS/Polyurethane composite Coating on Resin Lens

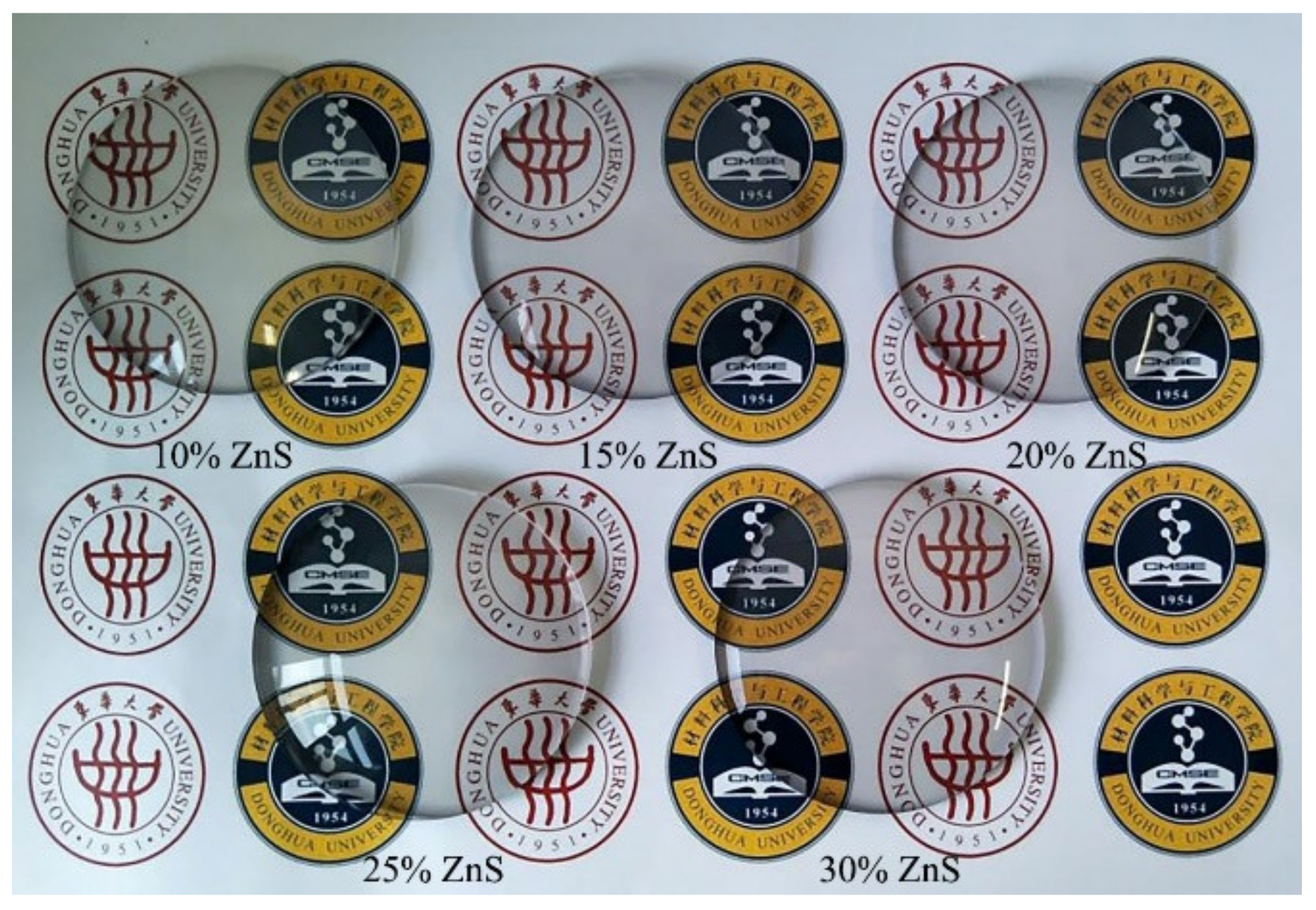

The application of nano-ZnS/polyurethane composite coating was studied with ZnS addition contents of 10%, 15%, 20%, 25% and 30%, respectively. The impact resistance of samples was tested after film curing, as shown in Figure 10. A steel ball with a mass of 16 g fell freely from a height of 1.27 m and impacted the convex surface of the lens. By observing whether the lens was cracked or broken, the impact resistance of the lens could be judged. From Figure 10, we know that the composite coating had good impact resistance and there were no cracks, because of a large number of flexible segments in polyurethane molecules linking to each other, which providing resin lenses with excellent impact resistance.

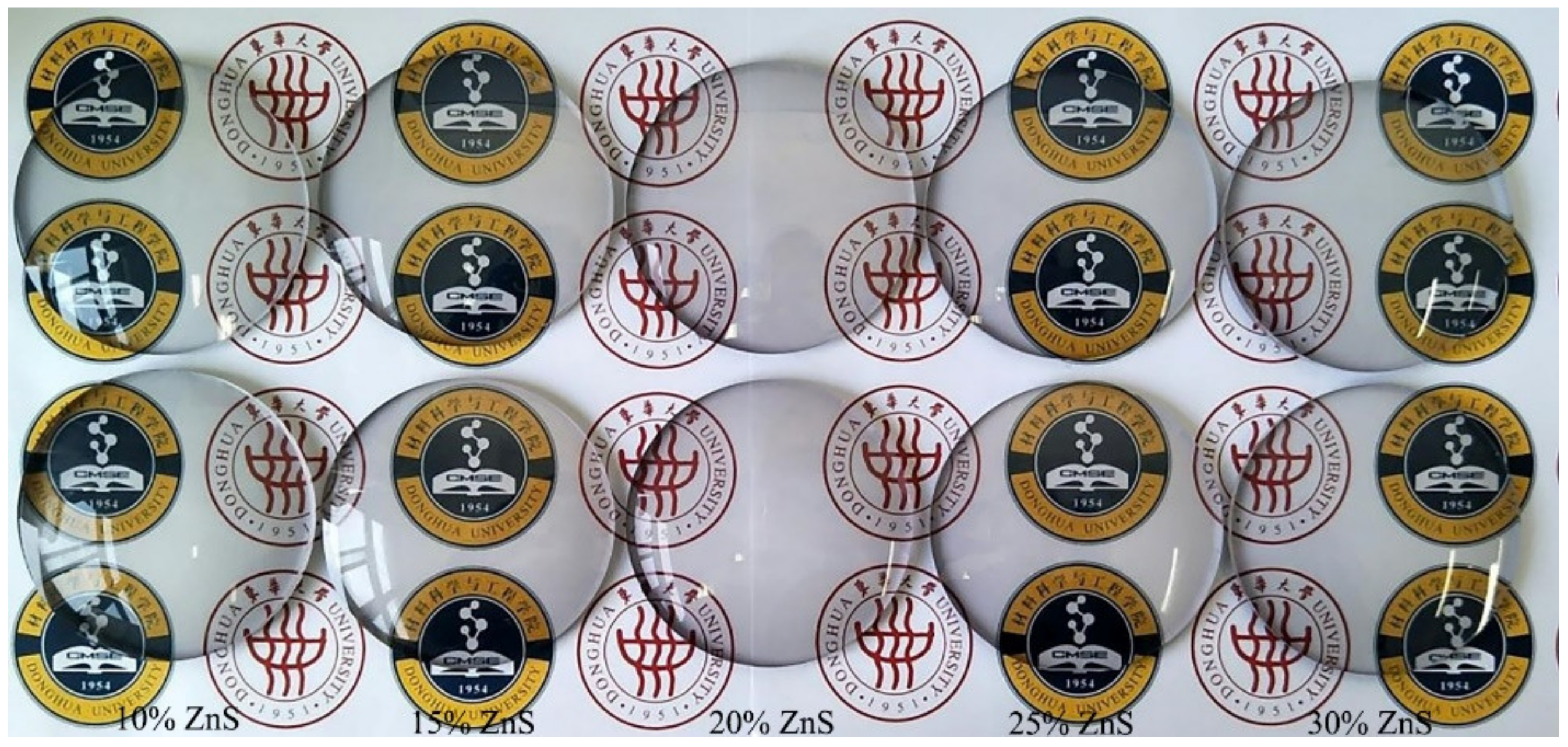

The extreme temperature tests and water resistance tests of the composite coating were carried out, as shown in Figure 11. This indicates that the composite coating had better temperature resistance and water resistance. The coating had no cracks, shedding and blistering, and the addition of nano-ZnS did not damage the molecular structure of waterborne polyurethane.

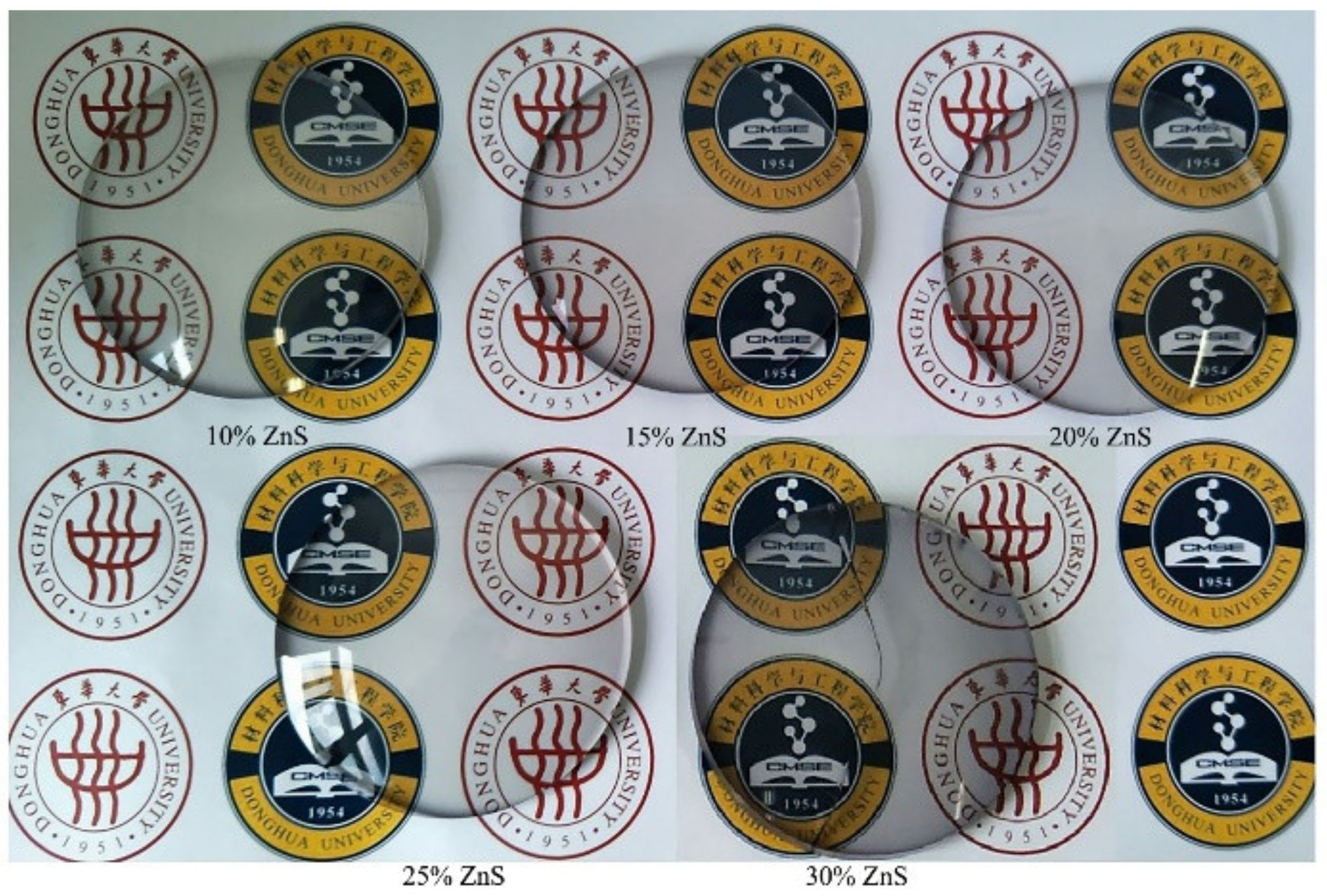

The alkali resistance tests were carried out as shown in Figure 12. The composite coating had good alkali resistance without cracks and shedding phenomenon with the content of ZnS at less than 30%. However, when the content reached 30%, the coating cracked. This is mainly because the high content of nano particles made the cross-linking density of the coating decrease, so that the alkali resistance decreased.

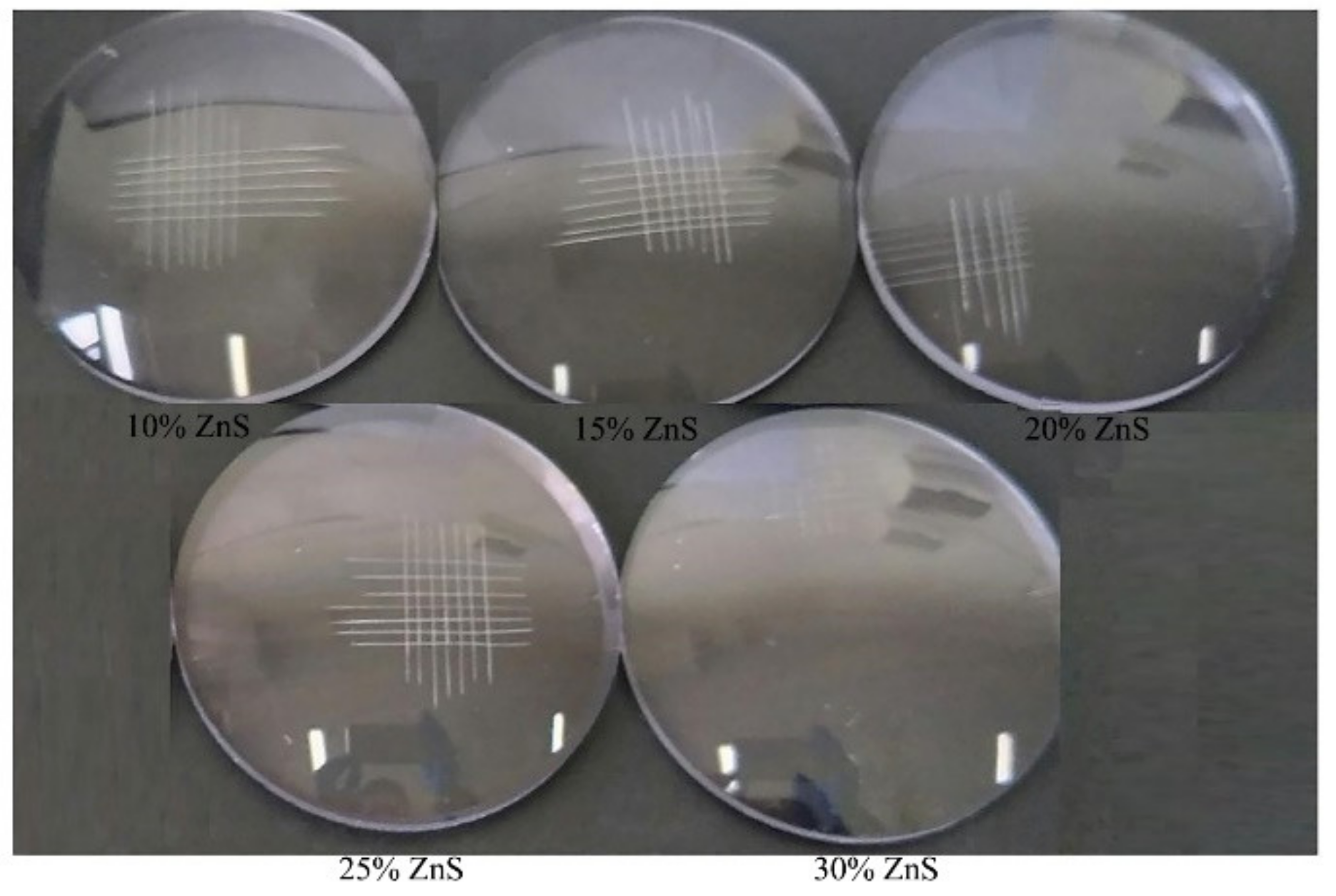

The adhesion was also tested, as shown in Figure 13. The composite coating had better adhesion with no shedding, reaching the optimal level of 0 when the content of ZnS was less than 30%. When the content reached 30%, the edge of the incision crossing slightly fell off, the falling area was less than 5%, and the adhesion level was 1. According to the application test of the composite coating for the resin lens, when the content of ZnS was less than 30%, the coating had better practicability and met the business requirements of lens manufacturers.

4. Conclusions

The hydrophilic nano-ZnS powder was prepared via one-step homogeneous precipitation with TGA as modifier. The particle size of nano-ZnS powder was 70 nm and the dispersibility was stable. The dispersed uniformly ZnS/polyurethane composite impact resistant coating solution was prepared via in-situ polymerization. Nano-ZnS was uniformly dispersed in waterborne polyurethane without agglomeration. Modified nano-ZnS had excellent compatibility with waterborne polyurethane. We know from the structure and performance characterizations that the refractive index (1.46–1.71) and the heat resistance of the composite coating could be significantly improved and the coating had better light transmittance (>90%) after the addition of nano-ZnS powder, meeting the demands of the high refractive index resin lens. The experiments showed that when the content of nano-ZnS was less than 30%, the coating had excellent impact resistance, water resistance, alkali resistance and extreme temperatures resistance, and provided more effective and lasting protection for lenses, suggesting that this environmentally friendly coating with high refractive index has considerable application potential in the field of resin lens fine processing.
