Self-Cleaning Performance of Super-Hydrophilic Coatings for Dust Deposition Reduction on Solar Photovoltaic Cells

Abstract

Dust deposition on solar photovoltaic (PV) cell surface will significantly decrease the PV power efficiency, as the transmittance of the solar cells would be greatly decreased by the deposited dust particles. This paper aims to study the anti-dust performance of super-hydrophilic coatings for the solar PV cells with water spraying condition. The solar cell covering glass was treated to be super-hydrophilic and compared with the bare glass sample. It was found that many dust particles adhere and aggregate on the uncoated glass while the particles deposited on the super-hydrophilic glass surface are densely distributed. When the water spraying process was conducted, the dust deposition mass for the bare and the coated glass samples are both reduced obviously with the increase time of water spraying. In addtion, dust deposition mass is significantly reduced with the increase of deposition and spraying tilt angles. The self-cleaning efficiency of super-hydrophilic coating on dust deposition is 92% higher than the bare glass cases. The spectral transmittance of glass samples for all the coated cases are significantly higher than that for all the bare cases. The maximum transmittance improvement can reach 26.5% when the deposition tilt angle is 30° and the spraying tilt angle is 60°.

1. Introduction

Solar photovoltaic (PV) technology is a kind of promising and clean energy application and widely applied all around the world. However, the output efficiency of the solar PV panels can be greatly reduced due to dust deposition [1,2,3]. This is due to the fact that the transmittance of solar cell covering glass is reduced by deposited dust particles. Water washing is the common way to reduce the dust deposition problem. Nevertheless, the direct water cleaning method has a high cost and is not efficient. Thus, new cleaning methods are needed to be developed to reduce dust deposition on solar cells.

The effects of dust deposition on the solar PV system have been well studied and it was found that the power loss of photovoltaic panels can reach up to 70% due to the deposition of dust [4,5,6]. Goossens et al. [7] studied the effect of wind velocity on the dust accumulation rates on photovoltaic cells. They found that the PV efficiency decreases with the increase of gas flow due to the larger dust deposition rate. Lu et al. [8,9,10] studied dust deposition behaviours on solar cells by CFD simulation. The results showed that medium dust has the highest deposition rate on solar cess. However, the effective solutions for the dust deposition problem were not proposed in the above studies.

Self-cleaning materials including super-hydrophobic and super-hydrophilic coatings have been applied for solar PV panels due to their surface wettability and surface micro-structure [11,12,13,14]. Piliougine et al. [15] prepared a super-hydrophobic coating to reduce dust deposition on photovoltaic systems. They found that the self-cleaning coating can significantly improve the performance of photovoltaic power generation reduction caused by dust deposition. Quan et al. [16] proposed a kind of hydrophobic coating for solar photovoltaic cover glass. The low adhesion force of hydrophobic coatings can result in the decrease of dust deposition. Recently, the authors [17,18] investigated the effect of super-hydrophobic surface on dust deposition for different surface structures and dust properties. It was found that the super-hydrophobic surface can significantly decrease the dust deposition rate even without water due to the low surface energy and surface micro-structure.

For super-hydrophilic coating, Prabhu et al. [19] prepared super-hydrophilic and self-cleaning coatings for solar PV cells. The coating can decontaminate the adsorbed pollutants under experimental conditions. Moreover, Lei et al. [20] proposed highly transparent and super-hydrophilic coatings on glass by modified α-zirconium phosphate nanoplatelets. The results showed that the contact angle of the coating can reach nearly 0°and can be used on the solar cell. Centeno et al. [21] developed photonic front-coatings to improve the output efficiency of thin-film solar cells due to the self-cleaning property. The coating was developed by structuring parylene-C transparent encapsulants using a low-cost and highly-scalable colloidal-lithography methodology. The short-circuit current density of nanocrystalline silicon solar cells is improved up to 23.6% when using the self-cleaning coating, compared to planar reference cells. This is due to the fact that the optimized coatings present high water contact angles and extremely low adhesion. Moreover, the nano/micro-structures of the coatings show strong anti-reflection and light scattering effects. Khan et al. [22] developed an automatic self-cleaning mechanism (ASCM), which is efficient and low-cost. The experimental results showed that the PV output efficiency can be improved for 35% by the ASCM. Lebbi et al. [23] proposed a new hybrid system PV/T Bi-fluid that combines both active cooling and self-cleaning technique simultaneously to improve the solar panel electrical performance. The average temperature of the new hybrid system can be decreased by 15 °C, compared to the reference case. Moreover, the electrical efficiency is also improved for about 5.7%, compared to the reference case. Allouhi et al. [24] developed a new multi-objective optimization approach to optimize economically and environmentally the implementation of solar photovoltaic systems for self-consumption under the scenario of zero export injection. This optimized design leads to the best compromise between economic and environmental aspects. The corresponding self-sufficiency and self-consumption ratios are estimated at 41.41 and 79.14%, respectively. Roslizar et al. [25] induced super-hydrophobicity by hot-embossing random micro textures on a highly transmissive and photostable fluorinated ethylene propylene (FEP) film. The self-cleaning properties of the textured FEP films result in a recovery ratio of 93.6%, which is greatly higher than that of the reference glass encapsulated PV mini-module (61.1%). Liu et al. [26] developed a new superhydrophobic PVDF/SiO₂ composite film based on a well-constructed PVDF surface. The results showed that the self-cleaning property of the coating can be regenerated and maintained easily. Mouchaal et al. [27] fabricated transparent thin films of Ag+1-In+3 co-doped SnO₂ using robotic spray pyrolysis. The optical transmittance reaches from 90.3 to 82.7%, when the Ag+1 doping ranges from 0 to 12 at%. The best stable generated photocurrent can be achieved for samples with 12 at% Ag+1. Sangchay [28] prepared TiO₂ doped with SnO₂ thin films using the sol-gel approach. They found that photocatalytic and self-cleaning performances of TiO₂ doped with 1 mol% of SnO₂ thin films are maximum under fluorescent irradiation. Yiu et al. [29] developed a convenient method of depositing a stainless steel-like hydrophilic coating. The textured film deposited at 12 mTorr shows high hydrophilicity and low contact angle hysteresis (CAH).

Self-cleaning surfaces for solar PV panels have been investigated by the researchers. However, most studies focused on super-hydrophobic surface performance on dust deposition reduction on solar PV panels. The self-cleaning performance and mechanism of the super-hydrophilic coating under the water spraying condition have not been investigated. Rainfall or artificial water cleaning is the common way to enhance the cleaning performance of super-hydrophilic surface. Therefore, this paper aims to study the self-cleaning performance of super-hydrophilic coatings on dust deposition reduction on solar PV cells under the water spraying condition. The solar cell covering glass was treated to be super-hydrophilic and compared with the bare glass sample. The micro-patterns of deposited dust, the dust deposition density, and the transmittance of covering glass for bare and coated glass samples were investigated, which may be helpful for the self-cleaning technology on solar PV soiling.

2. Experiments

2.1. Experimental Methodology

The test schematic of dust deposition on solar cell covering glass can be seen in Figure 1. The solar cell covering glass samples were placed in the chamber. The size of test chamber is 0.8 × 0.5 × 0.5 m³. The dust was generated from a particle generator and then released to the chamber. A fan was used to simulate the natural wind. The dust particles will naturally fall on the solar cell surface. The total deposition time was 60 min and the total spraying time was 9 min during the spraying experiment. Dust deposition density was measured per 3 min while the volume water of spraying was 1.5 mL/s. The tilt angle is 30 or 60° in the study, respectively. Coated and bare glass samples were used for comparison in the experiment. The detailed experimental cases can be seen in

Table 1. Experimental cases.

Number	Surface	Tilted Angle for Dust Deposition	Tilted Angle for Water Spraying
A	bare	θ = 30°	θ = 30°
A*	coated	θ = 30°	θ = 30°
B	bare	θ = 30°	θ = 60°
B*	coated	θ = 30°	θ = 60°
C	bare	θ = 60°	θ = 30°
C*	coated	θ = 60°	θ = 30°
D	bare	θ = 60°	θ = 60°
D*	coated	θ = 60°	θ = 60°

.

A contact angle meter (OCA20, Dataphysics, Filderstadt, Germany) was adopted to measure the contact angles of glass samples. A precious balance (FX-2001IWP, Guangzhou, China) was used to measure the dust deposition density of glass samples. A scanning electron microscope (SEM, S-8820, HITACHI, Tokyo, Japan) was used to scan the surface morphology of glass samples to obtain the micro patterns. Moreover, a UV spectrometer (U-3010, Tokyo, Japan) was adopted to examine the transmittance of the glass samples before and after dust deposition.

2.2. Super-Hydrophilic Coating

The TiO₂ and SiO₂ sol were prepared with tetrabutyl titanate and ethyl silicate, respectively. The substance purities of the tetrabutyl titanate and ethyl silicate are greater than 98%. Tetrabutyl titanate was mixed with ethanol and stirred for 0.5 h. Then, the acetic acid, distilled water, and ethanol were added to the mixture of Tetrabutyl titanate and ethanol. After that, the mixture solution was stirred at room temperature and the TiO₂ sol can be obtained. Meanwhile, the SiO₂ sol was fabricated by the mixture of ethyl silicate, ethanol, and polyethylene glycol. The prepared TiO₂ and SiO₂ sol were mixed and continuously stirred for 4 h. Finally, the sol was evenly coated on the bare glass sample and dried at the temperature of 40 °C for 3 h. Figure 2 shows the contact angle of the glass sample with and without super-hydrophilic coatings. The contact angle of the bare glass was about 42° while that of the glass sample with the super-hydrophilic coating was about 5°. The droplet can be spread more widely on the coated glass sample. Thus, it is easier to form a water film flow to take away the deposited dust on the surface by super-hydrophilic coating.

2.3. Test Dust

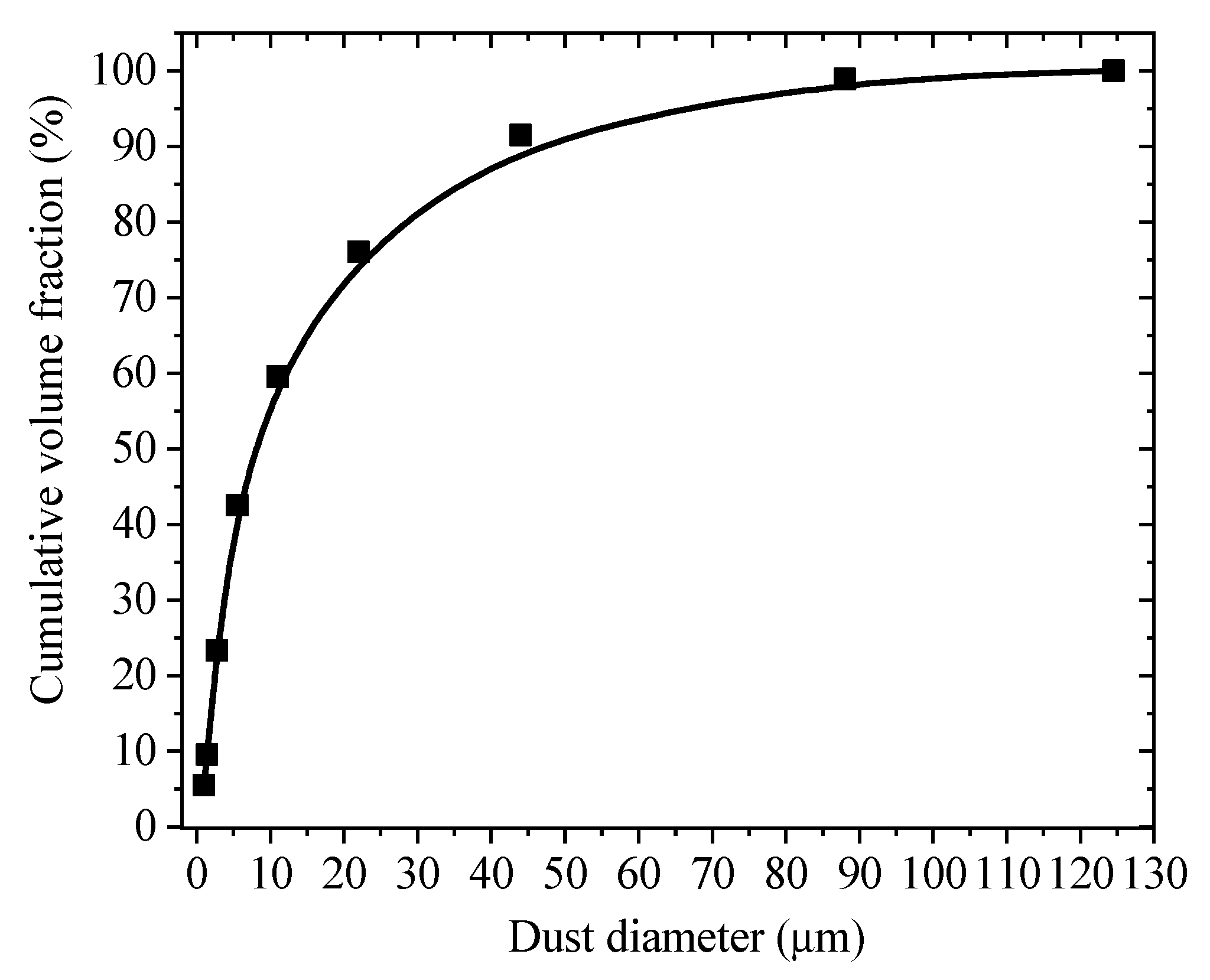

The test dust (ISO 12103-1 A2, Powder Technology Inc., Arden Hills, MN, USA) was used in the experiment. The cumulative volume fraction of dust particle size is shown in Figure 3. The cumulative volume fraction of particles less than 22 μm is 75%.

Table 2. Chemical components of test dust.

Chemical	% of Weight	Chemical	% of Weight
SiO2	69–77	CaO	2.5–5.5
Al2O3	8–14	MgO	1.0–2.0
Fe2O3	4–7	TiO2	0–1.0
Na2O	1–4	K2O	2.0–5.0

provides a list of dust particles chemical components.

3. Results and Discussion

3.1. Dust Deposition Patterns

The scanning electron microscope (SEM) was used to measure the micro-patterns of dust particles on the glass surface. The results were shown in Figure 4. A large amount of dust particles adhere and aggregate on the surface of the bare glass. In addition, the diameter of dust particles deposited on the bare glass samples is larger than 200 nm. However, the particles deposited on the glass sample with super-hydrophilic coatings are densely distributed on the surface. It seems that no very large particles are adhered on the super-hydrophilic surface. It indicates that the dust particles are easier to deposit on the super-hydrophilic coating due to the high surface energy, especially for small dust particles.

3.2. Effects of Super-Hydrophilic Coating on Dust Deposition

When water droplets contact the super-hydrophilic surface, the water film will be formed on the surface due to the super-hydrophilic property and the water film flow will take the deposited dust particles away from the surface due to gravitation. Thus, the super-hydrophilic surface has a self-cleaning performance on the dust deposition. In the present study, the dust particles were naturally deposited on the glass samples. Then, the water spraying was used to wet the glass sample surfaces. The dust deposition time was 60 min and the total spraying time was 9 min. The tilt angle is 30° or 60° in the deposition process and water spray process, respectively. The detailed experimental cases can be found in Table 1. During the spraying experiment, the dust deposition density was measured every 3 min and the flow rate of spraying was 1.5 mL/s.

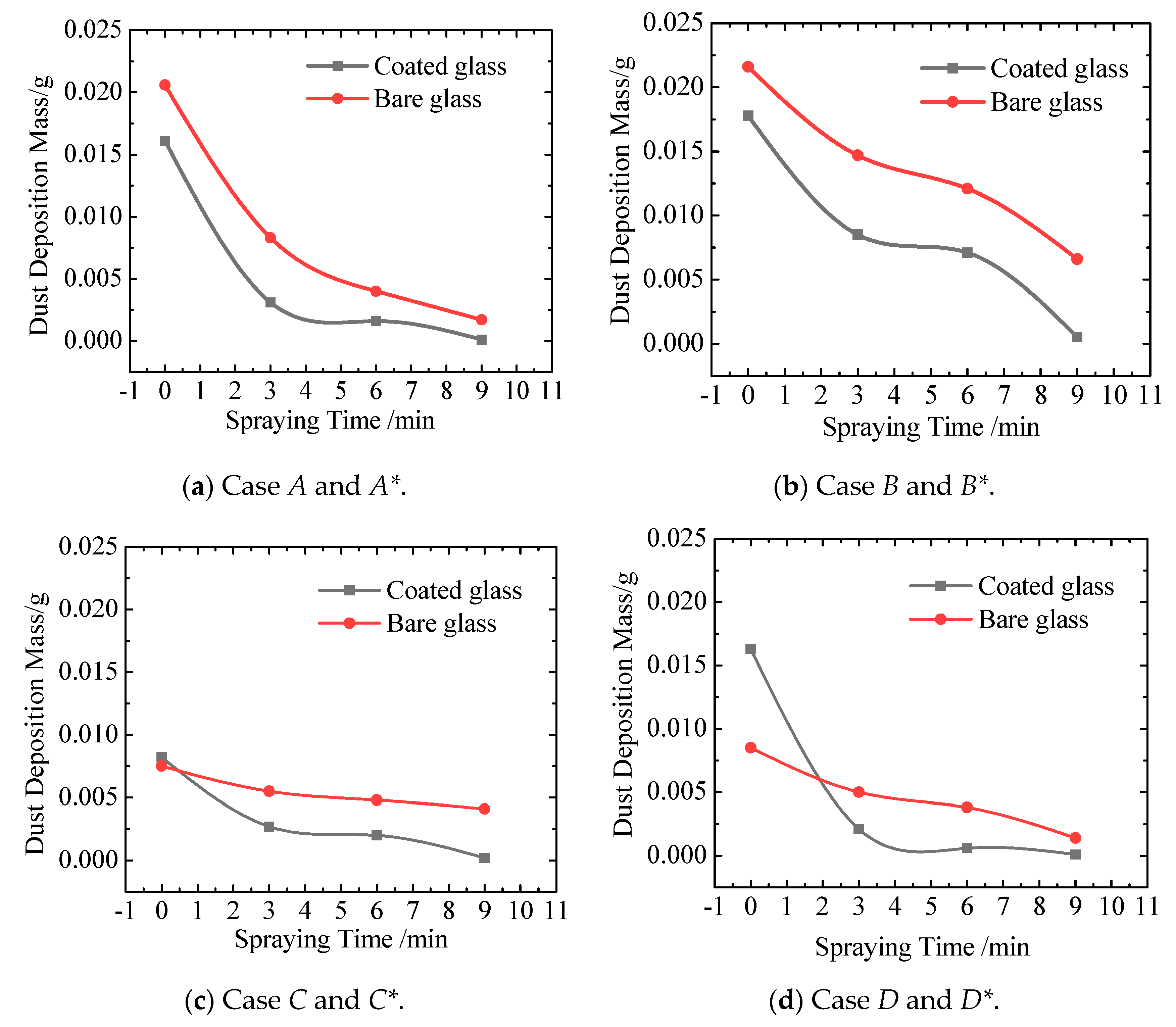

The dust deposition mass on the glass samples was obtained, as shown in Figure 5. As can be seen from Figure 5a,b, the dust deposition mass on the glass sample with super-hydrophilic coating is obviously less than that on the bare glass sample before the water spraying, when the tilt angle is 30°. It indicates that the super-hydrophilic surface could decrease dust deposition to a certain degree without water. It may be caused by the micro-nano structures on the super-hydrophilic surface. However, when the tilt angle is 60°, the dust deposition mass on the glass sample with super-hydrophilic coatings is more than that on the bare glass sample before water spraying, as shown in Figure 5c,d. This is due to the fact that the dust particles on the bare glass sample are easier to roll down from the surface, compared with the coated glass sample. When the water spraying was conducted, the dust deposition mass for bare and coated glass samples are both reduced obviously with the increased time of water spraying. The dust deposition mass on the coated glass sample is obviously lower compared with the bare glass sample. This indicates that the super-hydrophilic coating has a significantly self-cleaning ability.

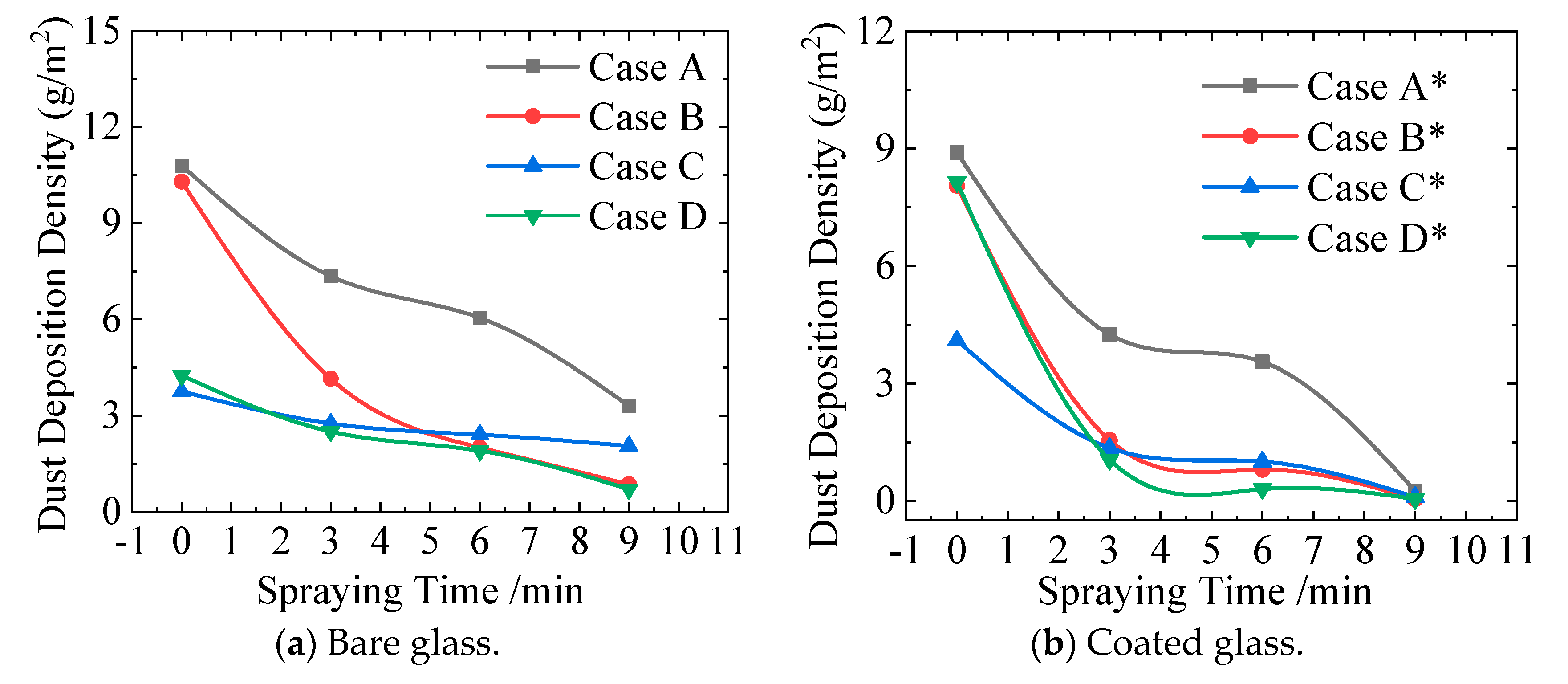

Figure 6a shows the influence of tilt angle on the dust deposition mass on solar cells without using the super-hydrophilic coating. When the tilt angle of dust deposition is 30°, the dust deposition mass for the bare glass cases is 6.6 and 1.7 mg for the water spraying of 30° and 60°, respectively. When the tilt angle of dust deposition increases to 60°, the dust deposition mass for the bare glass cases is 4.1 and 1.4 mg for the water spraying of 30° and 60°, respectively. Therefore, the tilt angles of the dust deposition and water spraying can both reduce the dust deposition due to the gravitation. Figure 6b shows the dust deposition mass on the glass samples with super-hydrophilic coating. When the tilt angle of dust deposition is 30°, the dust deposition mass for the coated glass cases is 0.5 and 0.1 mg for the water spraying of 30° and 60°, respectively. When the tilt angle of dust deposition increases to 60°, the dust deposition mass for the coated glass samples is 0.2 and 0.1 mg for the water spraying of 30° and 60°, respectively. The dust deposition mass is obviously decreased by the super-hydrophilic coating, compared with the bare glass cases. In addition, the dust deposition mass is obviously decreased with the increasing of deposition and spraying tilt angles.

When the tilt angle is 30°, the dust deposition density on the coated glass is just about 5.9% and 7.6% of that on the bare glass after the water spraying for the spraying angle of 30° and 60°, respectively. When the tilt angle is 60°, the dust deposition density on the coated glass is just about 4.9% and 7.1% of that on the bare glass after the water spraying for the spraying angle of 30° and 60°, respectively. Therefore, the self-cleaning efficiency of the super-hydrophilic coating is 92% higher than the bare glass cases. Moreover, the dust deposition reduction between the bare and coated glass samples is a little lower when the water spraying angle is higher. This is due to the fact that more deposited particles will be taken away by the water droplet from the surface of the bare glass sample.

3.3. Spectral Transmittance

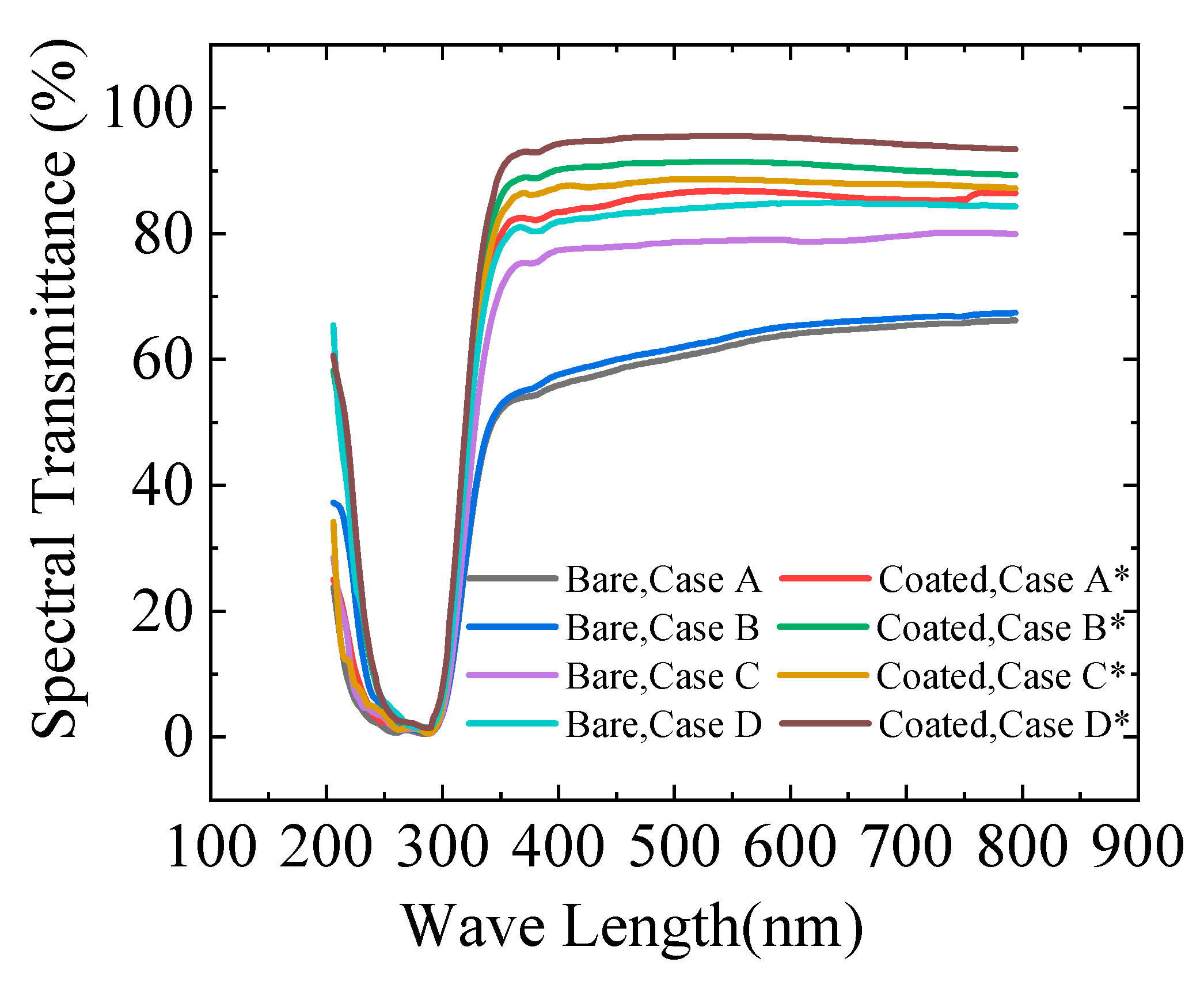

The main mechanism of dust deposition to reduce the efficiency of solar PV cells is the spectral transmittance degradation of the solar cell covering glass. Therefore, the effect of the deposited dust particles on the glass transmittance was examined in this study. As seen from Figure 7, the average spectral transmittance of the super-hydrophilic coated glass samples (A*, B*, C*, D*) is higher than that of the bare glass cases (A, B, C, D). For the coated glass cases, the transmittance of A*, B*, C*, and D* is 85.80%, 90.62%, 87.99%, and 94.72%, respectively. Thus, the glass samples with a large tilt angle generally have a higher spectral transmittance. Moreover, the spectral transmittance of the sample B* is 2.62% higher than that of sample C*.

For the bare glass sample cases, the spectral transmittance of the four groups A, B, C, and D is 62.75%, 64.12%, 78.95%, and 84.16%, respectively. The transmittance of the glass sample reaches the highest when the tilt angles of the dust deposition and water spraying are both 60°. However, different from the coated glass cases, the spectral transmittance of Case B is higher than that of Case C. It means that the influence of spraying tilt angle on bare glass is smaller than the deposition tilt angle, which is due to the fact that the mechanism of dust deposition reduction for the bare glass case and the coated glass case is quite different. The former is mainly caused by the gravitation and the latter is due to the water film flow. More importantly, the spectral transmittance for all coated cases is significantly higher than that for all the bare cases, as shown in Figure 8. The maximum transmittance improvement can reach 26.5% when the deposition tilt angle is 30° and the spraying tilt angle is 60°. For the influence of dust deposition density on the PV output efficiency, the relationship of efficiency of the generation and deposition density was obtained by Jiang et al. [30]. It can be found that the PV efficiency reduction is generally linear with the dust deposition density.

4. Conclusions

The self-cleaning performance of the super-hydrophilic coating on dust deposition of solar cells was studied experimentally. Dust particles were first dryly deposited on the glass sample with and without a super-hydrophilic coating and then the water spraying was conducted to remove the deposited dust particles. The micro-patterns of dust deposition, dust deposition mass, and transmittance of glass samples after water spraying were studied in the present study. The conclusions are as follows:

• Many dust particles adhere and aggregate on the bare glass sample, while the particles deposited on the super-hydrophilic glass surface are densely distributed on the surface. In addition, the diameter of dust particles deposited on the bare glass samples are obviously larger than the coated glass cases.
• When the water spraying was conducted, the dust deposition mass for bare and coated glass samples are both reduced obviously with the increased time of water spraying. The dust deposition mass on the coated glass sample is significantly lower compared with the bare glass sample. The self-cleaning efficiency of super-hydrophilic coating can reach more than 92%, compared with the bare glass cases.
• The dust deposition mass on the coated glass is 0.5, 0.1, 0.2, and 0.1 mg after the water spraying for Case A*, B*, C*, and D*, respectively. The dust deposition mass is obviously decreased with the increase in deposition and spraying tilt angles.
• The spectral transmittance for all the coated cases is significantly higher than that for all the bare cases. The maximum transmittance improvement can reach 26.5% when the deposition tilt angle is 30° and the spraying tilt angle is 60°.
