Oxidation Protection of High-Temperature Coatings on the Surface of Mo-Based Alloys—A Review

by
Tao Fu
,
Fuqiang Shen
,
Yingyi Zhang
*,
Laihao Yu
,
Kunkun Cui
,
Jie Wang
and
Xu Zhang
School of Metallurgical Engineering, Anhui University of Technology, Maanshan 243002, China
*
Author to whom correspondence should be addressed.
Coatings 2022, 12(2), 141; https://doi.org/10.3390/coatings12020141
Submission received: 18 December 2021 / Revised: 18 January 2022 / Accepted: 21 January 2022 / Published: 25 January 2022
(This article belongs to the Special Issue Strengthening, Corrosion and Protection of High Temperature Structural Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Molybdenum and its alloys, with high melting points, excellent corrosion resistance and high temperature creep resistance, are a vital high-temperature structural material. However, the poor oxidation resistance at high temperatures is a major barrier to their application. This work provides a summary of surface modification techniques for Mo and its alloys under high-temperature aerobic conditions of nearly half a century, including slurry sintering technology, plasma spraying technology, chemical vapor deposition technology, and liquid phase deposition technology. The microstructure and oxidation behavior of various coatings were analyzed. The advantages and disadvantages of various processes were compared, and the key measures to improve oxidation resistance of coatings were also outlined. The future research direction in this field is set out.

1. Introduction

With the rapid development of aerospace, national defense and the military industry, electronics, and so on, increasing attention has been paid to the research and application of refractory metals [1,2,3,4]. Molybdenum and molybdenum-based alloys have a high melting point (2620 °C), good high-temperature mechanical properties and high conductivity and thermal conductivity, and are widely used in high-temperature structures [5,6,7,8,9,10]. However, the alloys have a poor oxidation resistance, and the “Pesting oxidation” at 400–800 °C and oxidation decomposition above 1000 °C are the main factors that limit their application [11,12,13,14]. At present, the alloying and surface-coating technology are the main methods to increase the oxidation resistance of the basal materials [15,16]. The types of molybdenum alloys and the various surface coating technologies of Mo and its alloys are shown in Figure 1 [17,18,19,20]. It can been seen that the Ti, Zr, W, Re, Si, B, Hf, C and rare earth oxides are often added to pure Mo as beneficial elements to prepare molybdenum alloys. However, the result of alloying is not satisfactory when considering the mechanical properties and high-temperature oxidation resistance of the alloys [21,22]. For example, adding a certain amount Ti element to the alloy can enhance its strength, but it will further accelerate the oxidation of the alloy [23]. Mo–Si–B alloys have satisfactory high temperature oxidation resistance, but their fracture toughness is poor. Mo–Ti–Si–B alloys are considered as a promising ultra-high temperature material. However, their oxidation resistance and mechanical properties need to be further studied [24]. In contrast, the surface-coating technology can improve the oxidation resistance of the alloy at high temperature with as little impact on the mechanical properties as possible. Therefore, it is favored by the majority of researchers [25].
In past work, we discussed the composition, structure and oxidation characteristics of HAPC coating on the surface of molybdenum and its alloys in detail [26]. However, there are almost no reviews reporting on research about other methods in this field [27]. In this work, the latest research progress of high-temperature oxidation resistance coatings on the surface of molybdenum and its alloys is reviewed. The characteristics of different surface-coating preparation technologies are summarized and analyzed, including slurry sintering, plasma spraying, chemical vapor deposition, and liquid-phase deposition. As an important physical vapor deposition technology, magnetron sputtering technology is also widely used in metal surface coating [28]. In addition, the molten salt and laser cladding technologies are also mentioned [29,30,31,32,33,34,35,36,37,38,39]. The composition, structure and oxidation characteristics of all kinds of coatings have been given in relevant figures and tables [40]. Moreover, the process characteristics of various methods and key measures to improve the oxidation resistance of coatings are pointed out. The future research and development direction in this field will be outlined.

2. Microstructure and Oxidation Behavior of Coatings

2.1. Coatings Prepared by Slurry Sintering (SS)

2.1.1. Microstructure and Growth Mechanism of SS Coatings

The slurry sintering (SS) method mixes alloy or silicide powder with binder in a certain proportion and then dissolves it in organic solvent to obtain the mixture. The mixture was evenly coated on the surface of the substrate, and then heated for a certain time in vacuum or Ar atmosphere, so that the substrate and mixture could be fully combined to form a coating on the surface [41,42]. As described in Table 1, the chemical composition and particle size of the mixture and process conditions have important effects on the composition, thickness, surface roughness and mechanical properties of silicide coatings [43,44,45,46]. Li et al. [43] investigated the influence of particle sizes of mixtures on surface grain sizes of the coatings. The reports show that the smaller the particle sizes of the mixture, the finer the grain size of the coatings, and they obtained coatings with surface grain size of only 1 to 5 µm by decreasing the particle size of the mixture. Similar results were reported by Wu et al. [44]. However, the surface roughness of the above two kinds of coating is still high. The surface roughness of most areas of the coating is above 15 µm, and the average roughness is 16.36 µm to 18.45 µm, as shown in Figure 2. The authors believe that the higher sintering temperature is the main reason for this result. It is worth noting that the interface layer of the two above coatings is relatively thin, only about 1 µm. In addition, the bonding strength and surface hardness of the coatings are not mentioned. Chakraborty et al. [45] successfully prepared a silicide coating on TZM surface with an interface thickness of 5 µm, a bonding strength of 25 MPa and a surface hardness of 2.00 GPa by slurry sintering technology, which has excellent mechanical properties. This is mainly due to the longer sintering time promoting the interdiffusion between the coating and the substrate, effectively. In addition, the surface quality of the coating will not decrease due to a sintering temperature that is too high.
The surface and corresponding cross-sectional images of the slurry coatings are shown in Figure 3. A great number of micro-cracks and holes are observed on the coating surface, and the volatilization of flux and binder during sintering is the main reasons for this result. Meanwhile, the high-temperature sintering shrinkage further aggravates the crack propagation and the increase of hole size [47], as shown in Figure 3a–d. However, the inner coatings are relatively dense and compact-bonded with the substrate. A thin interdiffusion zone (IDZ) can be clearly observed between the coating and the substrate. EDS analysis show that the atom ratio of Mo to Si is close to 5:3, which indicate that the inner coatings are a Mo5Si3 layer, as shown in Figure 3e,f. This is due to the decrease of diffusion rate with the decrease of silicon concentration during coating preparation, and finally a Mo5Si3 layer with lower Si concentration forms at the interface [48].
The growth mechanism of the SS coatings and the main equations involved in the reaction process are shown in Figure 4. With the mutual diffusion between mixture and substrate, a dense MoSi2 layer formed on the molybdenum alloys substrate. The content of Si element gradually decreased in the process of diffusion into substrate, and finally a thin interface layer (Mo5Si3 and Mo3Si) formed with low silicon concentration between MoSi2 and substrate. The results show that the growth mechanism of the interface layer in the MoSi2 coating system is the same as that in MoSi2/Mo diffusion couple, but the growth rate of Mo5Si3 is much higher than that of Mo3Si [49,50]. In addition, an appropriate amount of beneficial elements (M), such as Zr, Ti and Y are usually added to the slurry mixture to optimize coating structure [51,52,53].

2.1.2. Oxidation Behavior and Mechanism of SS Coatings

The microstructure evolution and mass gain of the SS coatings before and after oxidation are shown in Table 2. It is observed that an oxide layer forms on the surface after oxidation, which is mainly composed of SiO2, TiO2, Mo5Si3, etc. Compared with the original coating, the thickness of the oxidized coating increases significantly, which is due to the volume of the coating expanding and the interface migration caused by the inter-diffusion reaction. However, the thickness of the MoSi2 layer decreases significantly due to the growth of the oxide film and the migration of the interface layer. By contrast, the interdiffusion between the coating and the substrate becomes more sufficient with the increase of exposure time, resulting in a significant increase in the thickness of the interface layer dominated by Mo5Si3 [43,44,45,46]. The micro-structure and phase composition evolution during the high-temperature (above 1400 °C) oxidation is shown Figure 5. Relevant scholars believe that the integrity of the coating structure and the compactness of the oxide film are the key factors affecting the oxidation service life of the coating [48].

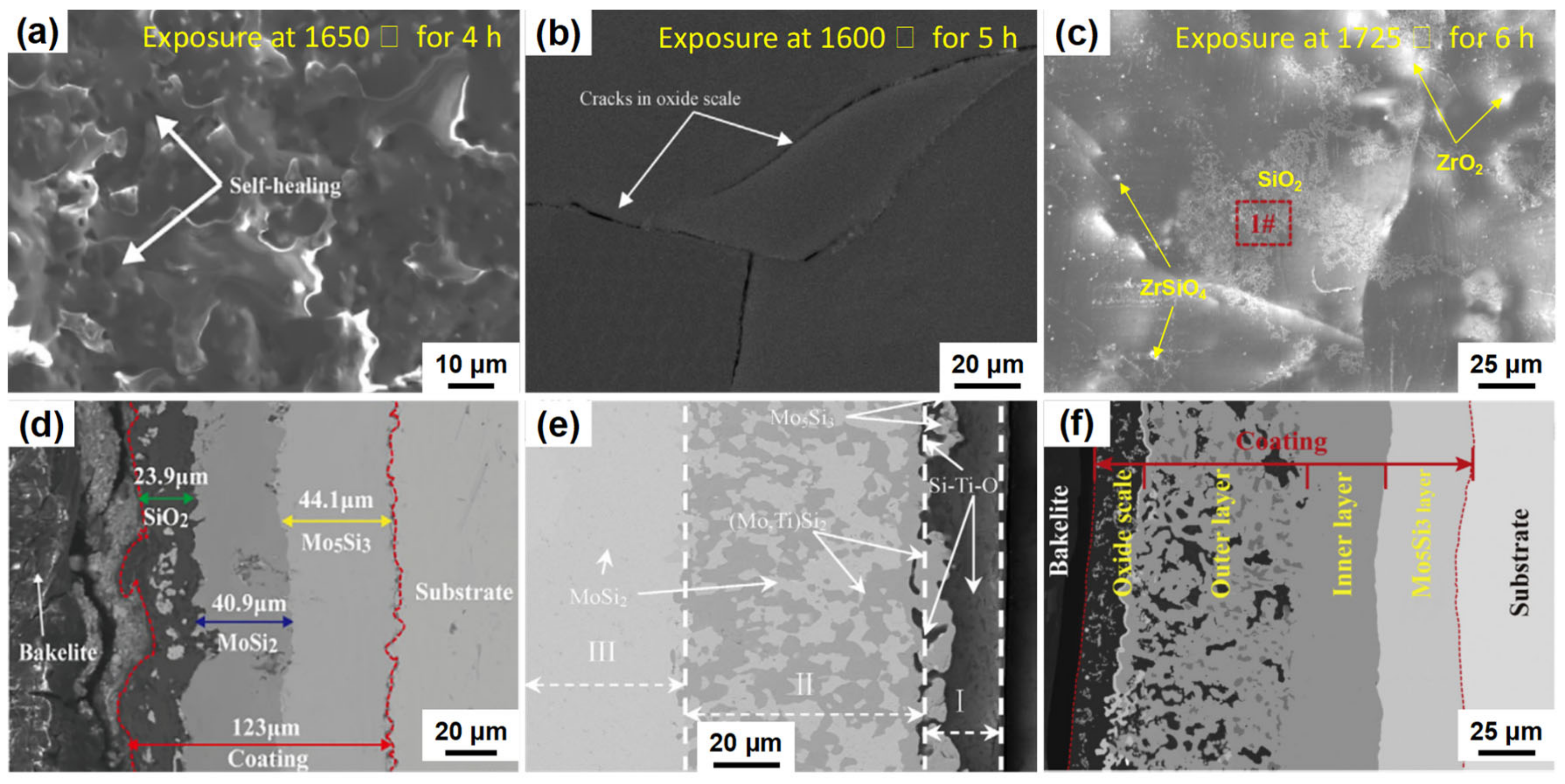

The BSE images of the oxidized SS coatings are shown in Figure 6. The oxidation resistance of pure MoSi2 coating is obviously poorer than that of composite coatings. We can clearly see from Figure 6a,d that the oxide layer of the pure MoSi2 coating is very rough with a high porosity, and a large number of holes are observed. The addition of Ti can replace Mo atoms in the MoSi2 coating, which changes the crystal structure of MoSi2 and improves the coating density, as shown in Figure 6e. However, obvious cracks are still observed on the surface of the oxidized MoSi2-(Mo,Ti)Si2 composite coating [44]. This is due to the generation of SiO2 partially crystallized as cristobalite during oxidation, and its phase transformation is accompanied by a volume change, which reduces the adhesion of SiO2 [47], as shown in et al. Figure 6b. Wu [46] report a Si-Mo-10YSZ coating with excellent oxidation performance at high temperature, and the mass gain after oxidation at 1725 °C for 6 h was only 1.00 mg·cm−2. As Figure 6c reveals, ZrO2 and ZrSiO4 oxide particles are dispersed in the oxide film on the surface of the coating, which optimizes the structure of the oxide film and enhances its compactness.

2.2. Coatings Prepared by Plasma-Spraying Technique

2.2.1. Microstructure and Growth Mechanism of Plasma-Spraying Coatings

The plasma-spraying technique is one of the most widely used coating preparation in thermal-spraying technology. Its principle is heating and ionizing a certain gas (N2, H2, Ar, He or their mixture) by an electric arc. The generated high-energy plasma arc can heat powdery materials to molten or semi-molten state and spray them onto the substrate surface at high speed to form a coating [54,55,56]. Among them, the air plasma spraying technique (APS), plasma-transferred arc (PTA) and spark plasma sintering (SPS) are widely used in the surface oxidation protection of Mo and its alloys. The growth mechanism and main reaction equations involved in the preparation of silicide coatings by the plasma-spraying technique are shown in Figure 7 [57,58,59,60,61]. Generally, the spraying material consists of Si, Mo, MoSi2, MoB, B4C, and ZrO2, etc. The MoSi2 particles are formed by silicon powder and molybdenum powder at high temperature, which are attached to the surface of the substrate. At high temperature, the Si element in MoSi2 further diffuses into the substrate, and finally an interface layer dominated by Mo5Si3 is formed between the coating and the substrate [62,63].
Table 3 summarizes the process conditions and characteristics of antioxidant coatings prepared by the plasma-spraying technique. The microstructure and characteristics of coatings are mainly affected by powder feeding rate, spray gun power, vacuum degree, carrier gas flow rate, spraying distance, plasma gas composition [57,58,59,60,61]. Wang et al. [57] obtained a MoSi2 coating on Mo substrate surface by the APS method, which had a high porosity and poor mechanical properties. The surface hardness, bonding strength, and porosity were 1.00 GPa, 10.00 MPa, and 28.73%, respectively. However, Deng et al. [58] prepared Mo–Si–B composite coating by the PTA process, and the surface hardness and porosity of the coating were 9.00 GPa and 18.00%, respectively. This was mainly due to the addition of element B, which improved the fluidity of Si and reduced the porosity of the coating. However, the coatings above have almost no interface layer, which results in very low bonding strength between the coating and the substrate. Chakraborty et al. [60] prepared a MoSi2/Mo5Si3 gradient coating with a bonding strength of 40.00 MPa on TZM substrate by APS technology. A thicker interface layer formed between the coating and the substrate, which was due to the longer sintering time that makes the mutual diffusion between the coating and the substrate more sufficient. Baris et al. [61] obtained a Mo2BC/MoB coating on TZM with surface hardness of 21.00 GPa by SPS technology. A large number of fine granular boron and carbide dispersed phases were generated during sintering, which was the main reason for the increase of coating hardness.

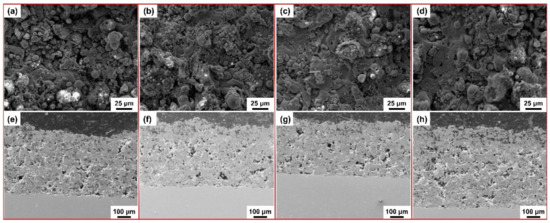

The SEM images and the process conditions of plasma-spraying coatings are shown in Figure 8 and Table 4, respectively [52]. It is obvious that the coatings have a very rough surface, with a large number of pores and a wide diameter. In addition, the coating surface contains a great deal of spherical particles, which is the result of “splashing” liquid droplets generated when the mist particles collide with the coating surface during the spraying process, then deposited on the coating surface again and cooled, as shown in Figure 8a–d. The densification of the cross-sectional coatings is very poor with many pores and uneven distribution, as shown in Figure 8e–h. The uneven particle size and melting degree of sprayed powder during spraying are the main reasons for this result. Meanwhile, the carrier gas remaining inside the coating also exacerbates this result [64,65]. The research shows that the microhardness and bonding strength of the coating can be improved by appropriately increasing the spray gun power or reducing the Ar gas flow rate [57].

2.2.2. Oxidation Behavior and Mechanism of Plasma-Spraying Coatings

The micro-structure evolution and oxidation behavior of plasma-spraying coatings before and after oxidation are shown in Table 5. It should be noted that except for Mo2BC coating, the mass of the other coatings increases compared with that before oxidation. This is mainly due to the strong affinity force between C and oxygen. During oxidation, the volatilization rate of CO is greater than the formation rate of B2O3, resulting in the reduction of the overall quality of the coating. The oxidation mechanism and structural evolution of the plasma-spraying coatings is shown in Figure 9. The coating surface is gradually covered by a layer of SiO2 with the volatilization of MoO3. However, the strong oxidizing volatilization and volume expansion will further aggravate the surface defects. Finally, the coating fails due to the rapid consumption of the main part. The images of plasma-sprayed coatings after oxidation are shown in Figure 10 [57,58,59]. It can be seen that the surface of the oxidized coating is very smooth without obvious cracks and holes, which is mainly composed of SiO2 protective film, as shown in Figure 10a–c. Meanwhile, the results of Figure 10d–f show that the holes and cracks in the coating were filled by SiO2 [57,58]. The 3MoSi2-MoB-3ZrO2 composite coating shows good oxidation resistance compared to pure MoSi2 coating. The analysis shows that the oxidized composite coating has dense structure, uniform composition and obvious layered structure, as shown in Figure 10f [59]. The mass gain (Δ m/S) of the coating is only 4.00 × 10−2 mg·cm−2 after oxidizing at 1400 °C for 80 h. By contrast, the MoSi2 coating has failed to oxidize under the same conditions. This is due to the fact that a crack-free oxide film composed of ZrSiO4 and SiO2 phases forms on the surface of the composite coating, which effectively prevents further diffusion of oxygen, as shown in Figure 10c [59]. In addition, during coating preparation, the process parameters, surface roughness and substrate temperature will also have certain effects on the oxidation performance of the coating [66,67,68].

2.3. Coatings Prepared by Chemical Vapor Deposition (CVD) Technology

2.3.1. Microstructure and Growth Mechanism of CVD Coatings

The principle behind chemical vapor deposition (CVD) technology is the process of using gaseous substances reacting with a solid substrate to generate solid deposits [69,70]. The process conditions and mechanical properties of the oxidation-resistant coatings prepared on molybdenum by the CVD technique as shown in Table 6 [71,72,73,74,75]. It is obvious that H2 is often used as a carrier gas in the preparation of coatings. The images of the CVD coatings are shown in Figure 11 [71,72,75]. It can be seen that the coatings have a dense and homogeneous surface morphology with a granular structure, as shown in Figure 11a,b. However, the mismatch of thermal expansion coefficients (CTE) between MoSi2 coating and Mo substrate makes obvious vertical cracks sprout inside the coating, as shown in Figure 11c,d. Huang et al. [73] prepared a TiB2 coating on an Mo substrate with an average surface hardness of 28 GPa by CVD technology. However, the average surface hardness of MoSi2 coating obtained under similar conditions is only 13 GPa. The author holds that the finer grains and lower surface roughness of the TiB2 coating are the main reasons for this result.

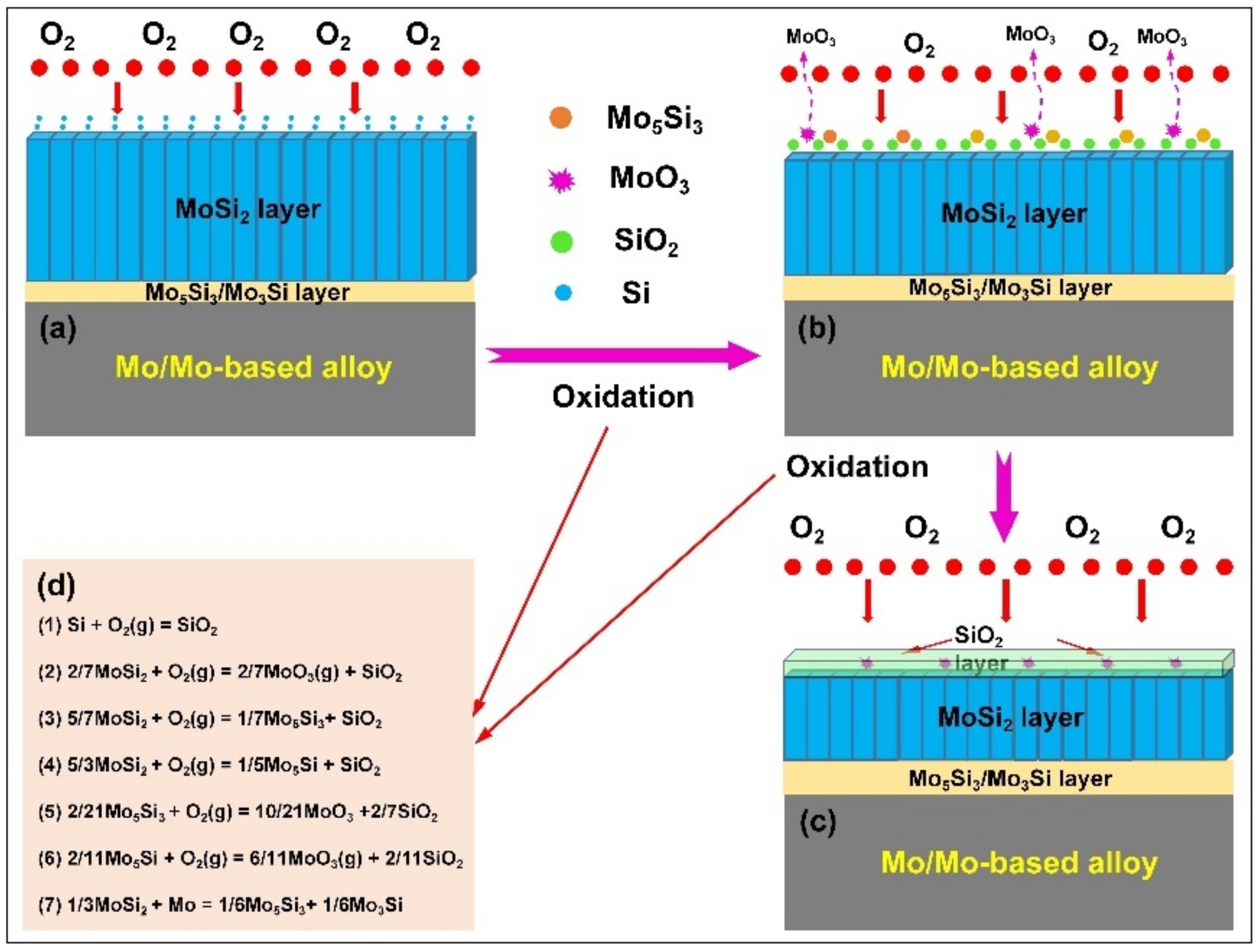

The growth mechanism of the oxidation-resistant protective coatings on molybdenum and its alloys prepared by CVD technology is summarized as shown in Figure 12. Si element decomposed from the mixed gas is deposited on substrate and reacts to generate a MoSi2 coating at high temperature [71]. In order to enhance the low-temperature cyclic oxidation resistance of MoSi2 coating, nitriding or carburizing treatment is usually carried out on the substrate before Si deposition. NH3, CH4, etc. are often used as nitrogen sources and carbon sources in this process to deposit on the substrate surface [76,77]. Then, a thinner Mo2N or Mo2C layer forms on the substrate surface, as shown in Figure 12b. The Mo2N or Mo2C layer will gradually consumed in the process of silicon deposition, most of them are replaced by a MoSi2 layer with dispersed Si3N4 and SiC particles on the outer layer. The dispersed phase particles (such as Si3N4, SiC, etc.) can refine the grain size of MoSi2, which significantly improves the mechanical properties and oxidation resistance of the coating, as shown in Figure 12c,d [72,77].

2.3.2. Oxidation Behavior and Mechanism of CVD Coatings

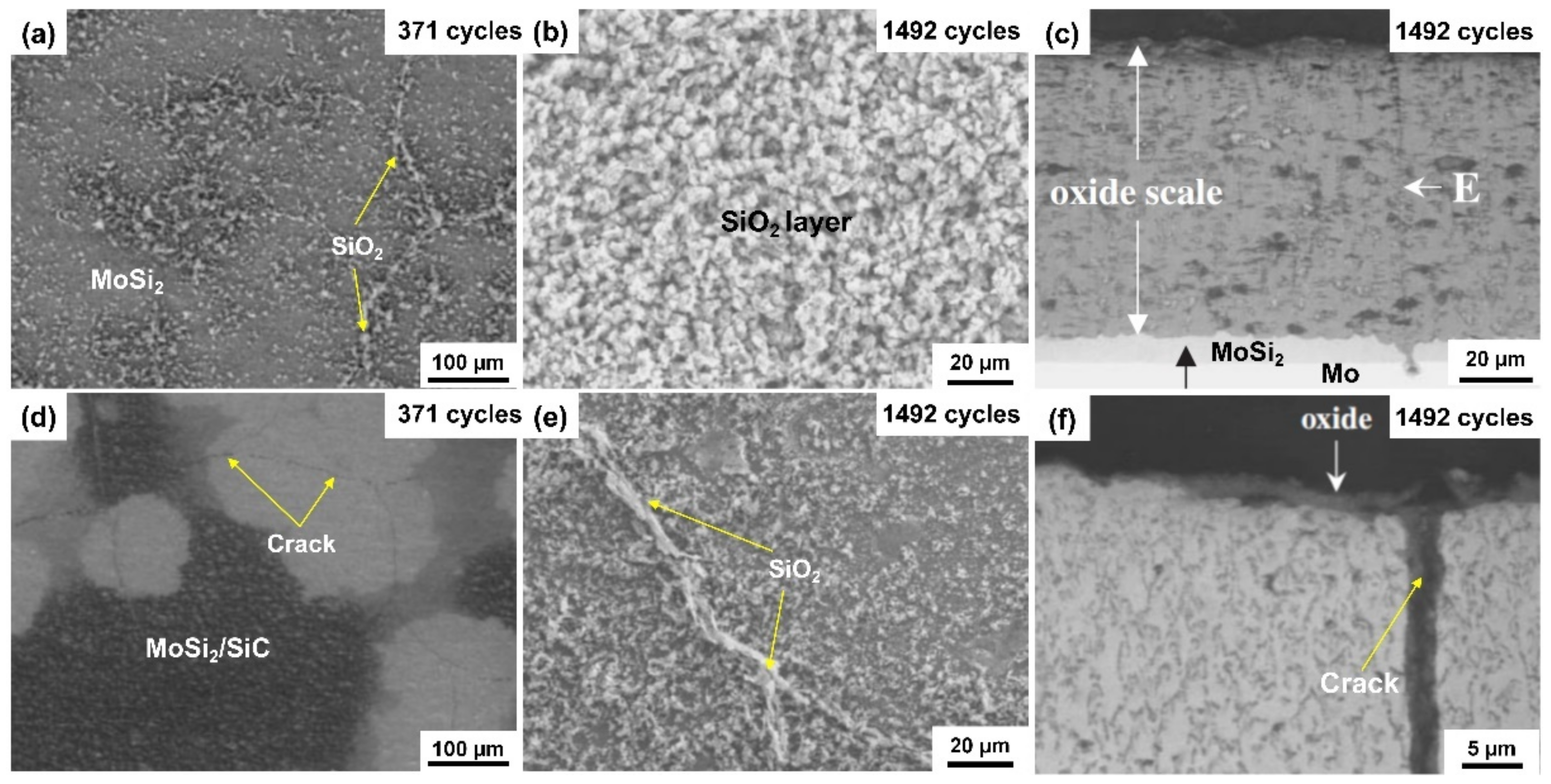

Table 7 shows the microstructure evolution and mass gain of CVD coatings before and after oxidation under different conditions. Obviously, researchers mainly reported the oxidation of the coating at low temperature (500 °C to 1000 °C), and the oxidized coatings mainly consist of an oxide layer, intermediate layer and interface layer [71,72,73,74,75,78]. The images of CVD coatings after low-temperature cyclic oxidation are shown in Figure 13. At the initial oxidation stage, oxygen reacts violently with MoSi2 at the crack and holes on the coating surface, and the generated granular SiO2 spreads along the crack, as shown in Figure 13a. The coating surfaces are gradually covered by SiO2 with the increase of cycle number. The thickness of oxide layer reaches 90 µm with a high porosity, as shown in Figure 13b,c. However, the oxidized MoSi2/β-SiC nanocomposite coating remains intact, with only a small amount of SiO2 attached to the coating surface. The oxide layer thickness is only 2 to 3 μm on average, as shown in Figure 13e,f respectively. This is mainly due to the preferential oxidation of SiC particles, which inhibits the oxidation of MoSi2 and reduces the generation of volatile MoO3. Meanwhile, CO generated during the oxidation process reduces the oxidation pressure in the system, which further reduces the oxidation rate [72]. The author believes that volume expansion caused by low-temperature oxidation causes the failure of the coating. Figure 14 shows the oxidation behavior and mechanism of CVD coating. It can be seen that the longitudinal cracks inside the coating further increase and expand due to the mismatch of thermal expansion coefficient between coating and substrate during the oxidation process [75]. In addition, Anton et al. Prepared Mo–Si thin film coating on the surface of Mo–Si–B alloy by magnetron sputtering. The oxidation test shows that the coating can be used for 300 h at 1200 °C, while the inhibition time of medium temperature pulverization can reach 100 h at 800 °C. Moss- Mo3Si-Mo5SiB2 phase is formed on the coating surface, which significantly improved its antioxidation activity [79,80,81].

2.4. Coatings Prepared by LiquidPhase Deposition Technology

2.4.1. Microstructure and Growth Mechanism of Liquid-Phase Deposition Coatings

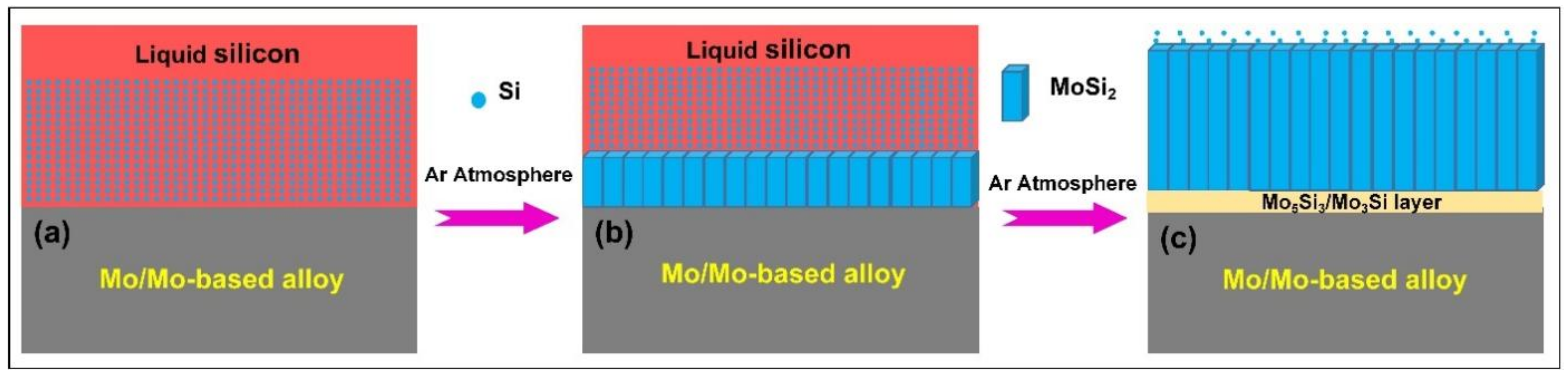

Liquid-phase deposition technology inserts the refractory metal alloy into the alloy melt and prepares the intermetallic compound coating by a thermal diffusion reaction in a vacuum or inert gas atmosphere [82,83]. It is considered to be a promising surface coating technology for the oxidation protection of refractory metals [84]. The process details of liquid deposition technology for the preparation of Mo surface Si/Al coatings are shown in Table 8. It can be seen that hot dip time and temperature have important effects on coating composition, thickness and surface grain size [85,86,87,88,89]. Under high temperature and an Ar protection atmosphere, an intense diffusion reaction occurs between liquid silicon and substrate, and columnar MoSi2 grains rapidly grow on the substrate’s surface, as shown in Figure 15b. The thickness and surface grain size of the coating increase gradually with the increase of hot dip temperature and time. A thin interface layer (Mo5Si3/Mo3Si layer) with low silicon concentration is observed at the bottom of MoSi2 grain, as shown in Figure 15c. Zhang et al. [90]. reported a Si-MoSi2 coating on Mo substrate by the liquid deposition Si technology. The coating mainly consists of a MoSi2 outer layer and Mo5Si3/Mo3Si interface layer, and the outer layer coating has a high surface silicon concentration and low roughness surface. It is worth noting that the surface of the coating has no cracks, holes and other defects. They find that the surface silicon concentration and grain size increase with the increase of deposition temperature and holding time, and the same conclusion has been reached by Wang et al. [89]. They report Al–Mo coatings with excellent oxidation resistance on the surface of Mo by the liquid-phase deposition Al technology. The Al–Mo coatings are mainly composed by out layer (Al-Al12Mo or Al-Al4Mo layer) and interface layer (Al8Mo3-Al4Mo or Al8Mo3 layer), and the interface layer is thicker than the outer layer. The SEM images of the liquid-phase deposition coatings are shown in Figure 16 [87]. The coatings surface are very smooth and dense, almost no cracks and holes are observed. In addition, high silicon concentration has been observed at MoSi2 grain boundaries, as shown in Figure 16a–c. The cross-sectional morphology shows that the silicide coatings are composed of MoSi2 columnar crystals with a thin transition layer (Mo5Si3 and Mo3Si), as shown in Figure 16d–f.
In addition, Zhang et al. [91] also report a liquid deposition Si coating on TZM substrate. The results show that the surface roughness of the coating does not simply decrease with the increase of deposition time, as shown in Figure 17e–h. The surface of the sample deposited for 10 min is the roughest, and its Sa and Sq are 0.498 and 0.676 μm, respectively, as shown in Figure 17i. In addition, the surface roughness of the samples with deposition time of 15 min and 20 min is relatively low and close to each other, as shown in Figure 17j,k. However, their surface morphology are very different, as shown in Figure 17f,g. During the hot-dipping process, a great deal of molten silicon penetrated into the gap between the MoSi2 particles, and it covered the grain surface during the cooling process. This gives the coatings obtained a smoother and more compact surface structure. It is worth noting that many banded textures were observed on the surface of the samples deposited for 25 min. This is due to the long deposition time reducing the Si viscosity, and the flow direction of the surface silicon changes during the extraction and cooling process of the sample, as shown in Figure 17d.

2.4.2. Oxidation Behavior and Mechanism of Liquid-Phase Deposition Coatings

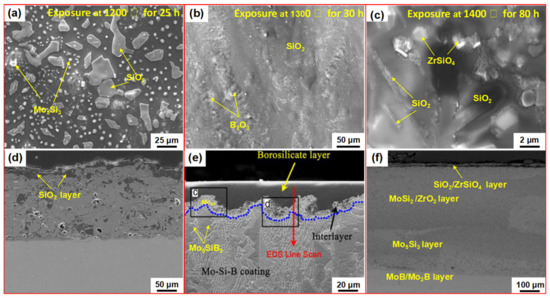

The images of oxidized liquid-phase deposition coatings on Mo substrate are shown in Figure 18. After oxidation at 1200 °C for 2 h, the surface of Si-MoSi2 coating is relatively rough with a small amount of pores, composed of SiO2, Mo5Si3 and MoSi2, as shown in Figure 18a [85]. However, a smooth and dense SiO2 protective film forms on the coating surface when the oxidation temperature is 1600 °C, as shown in Figure 18d [89]. This is due to the good fluidity of SiO2 at high temperature (above 1400 °C), which can fill the defects on the coating surface [90]. The oxidation mechanism and microstructure evolution of the coatings are shown in Figure 19. Compared with MoSi2 phase, Si has a stronger affinity with oxygen in a high-temperature oxidation environment. Therefore, the silicon preferentially is oxidized to SiO2, reducing the formation of volatile MoO3. In order to improve the oxidation resistance of the Al–Mo coating, the coatings obtained at different hot dip temperatures are subjected to micro-arc oxidation (MAO) treatment (pre-oxidation). There are a lot of holes on the oxidized coating surface, which has typical MAO process characteristics, as shown in Figure 18b,c. The outer layer of the coatings is composed of Al2O3, the middle layer is an unoxidized aluminum dipping layer, and the inner layer is a diffusion layer of hot-dip aluminum, as shown in Figure 18e,f. The formation of the structure has great significance for delaying the diffusion of oxygen and prolonging the oxidation service life of the coating [88].

3. Conclusions and Prospects

As an important high-temperature structural material, the oxidation protection of Mo and its alloys has been of wide interest to relevant scholars. In this paper, the applications of various surface-coating preparation technologies in this field are reviewed, and the composition and oxidation characteristics of the coatings are shown in Figure 20. In addition, the characteristics of different coating preparation processes have also been analyzed and compared, and the details are shown in Table 9. During slurry sintering, due to volatilization of solvent and binder, the prepared coating has poor surface quality and high porosity. Reducing sintering temperature and prolonging sintering time can optimize coating structure and improve coating quality to a certain extent. The lower process temperature of CVD makes the preparation efficiency of the coating low and the preparation time long. However, the technology is suitable for workpieces with complex shapes and the coatings obtained have a good low temperature oxidation resistance. In contrast, plasma spraying and the hot-dip silicon method presented a high deposition efficiency due to high diffusion temperature. After 5 to 25 min of treatment, coatings several tens to several hundred microns thick can be obtained on the substrate surface. However, the plasma-spraying coatings have a high surface roughness and porosity because the spraying material is still mixed with a small quantity of residual gas and solid particles. It is worth noting that liquid-phase deposition coatings have a dense and smooth surface. This is conducive to the formation of protective oxide film on the coating surface in the oxidation process. However, the structure of the coatings are relatively simple, and the oxidation resistance of the coatings needs to be further studied. In addition, the molten salt method and laser-cladding technology have also been widely applied in the preparation of oxidation protective coatings on Mo and Mo-based alloys.
The addition of appropriate beneficial elements in MoSi2 coating has a great significance for improving the antioxidant properties of the coating. Ti element can replace Mo in MoSi2 to form TiSi2 solid solution, which improves the strength and hardness of the coating. In addition, a continuous and dense Si–Ti–O protective film is easy to form on the coating surface during the oxidation process. B element can not only reduce the viscosity of SiO2 at high temperature (above 1400 °C) and improve the self-healing ability of the coating, it can also combine with Si element to form Mo5SiB2 with a lower diffusion coefficient and maintain the coating structure. N element is dispersed in the coating with a granular Si3N4, which improves its mechanical properties. In addition, Si3N4 distributed on the coating surface is preferentially oxidized, which reduces the oxygen partial pressure in the system and alleviates the oxidation of MoSi2. Similarly, element C exists in the coating in the form of SiC and plays a similar role. With the addition of YSZ/Y, a continuous and dense SiO2 protective film with ZrO2 and ZrSiO4 particles forms in the outer layer of the coating, which is conducive to stabilizing the oxide film structure and prolongs the oxidation service life of the coating.
Therefore, oxidation resistance and mechanical properties of the coating can be advanced in the following two ways. On the one hand, the preparation process of the coating should be optimized to ensure the coatings obtained have uniform compositions, compact structures and smooth surfaces. On the other hand, by introducing appropriate amounts of modified elements and the second phases, the structure of the coating can be optimized, the consumption of the coating can be slowed down, and the formation of the continuous and uniform protective oxide film formed on its surface can be accelerated. Furthermore, we can also organically combine the preparation process of a single coating to overcome the problems existing in its single application. This will be the future research and development direction in this field.

Author Contributions

The manuscript was written through contributions of all authors. Y.Z.: Conceptualization, Investigation, and Supervision. Y.Z. and T.F.: Writing original draft and image processing. T.F., K.C. and J.W.: Validation, Resources, Investigation, Writing—review and editing. X.Z., L.Y. and F.S.: Visualization, Writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Anhui Province Science Foundation for Excellent Young Scholars (2108085Y19) and the National Natural Science Foundation of China (No.51604049).

Institutional Review Board Statement

Not applicable for studies not involving humans or animals.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chaudhuri, A.; Behera, A.N.; Sarkar, A.; Kapoor, R.; Ray, R.K.; Suwas, S. Hot deformation behaviour of Mo-TZM and understanding the restoration processes involved. Acta Mater. 2019, 164, 153–164. [Google Scholar] [CrossRef]
  2. Tuzemen, C.; Yavas, B.; Akin, I.; Yucel, O.; Sahin, F.; Goller, G. Production and characterization of TZM based TiC or ZrC reinforced composites prepared by spark plasma sintering (SPS). J. Alloys Compd. 2019, 781, 433–439. [Google Scholar] [CrossRef]
  3. Pint, B.A. Critical Assessment 4: Challenges in developing high temperature materials. Mater. Sci. Technol. 2013, 30, 1387–1391. [Google Scholar] [CrossRef] [Green Version]
  4. Majumdar, S.; Kale, G.B.; Sharma, I.G. A study on preparation of Mo–30W alloy by aluminothermic co-reduction of mixed oxides. J. Alloys Compd. 2005, 394, 168–175. [Google Scholar] [CrossRef]
  5. Xu, J.J.; Yang, T.T.; Yang, Y.; Qian, Y.H.; Li, M.S.; Yin, X.H. Ultra-high temperature oxidation behavior of micro-laminated ZrC/MoSi2 coating on C/C composite. Corros. Sci. 2018, 132, 161–169. [Google Scholar] [CrossRef]
  6. Khlyustova, A.; Sirotkin, N.; Titov, V.; Agafonov, A. Comparison of two types of plasma in contact with water during the formation of molybdenum oxide. Curr. Appl. Phys. 2020, 20, 1396–1403. [Google Scholar] [CrossRef]
  7. Kong, H.; Kwon, H.S.; Kim, H.; Jeen, G.S.; Lee, J.; Lee, J.; Heo, Y.S.; Cho, J.; Jeen, H. Reductive-annealing-induced changes in Mo valence states on the surfaces of MoO3 single crystals and their high temperature transport. Curr. Appl. Phys. 2019, 19, 1379–1382. [Google Scholar] [CrossRef]
  8. Bahamonde, J.P.; Wu, C.Z.; Louie, S.M.; Bao, J.M.; Rodrigues, D.F. Oxidation state of Mo affects dissolution and visible-light photocatalytic activity of MoO3 nanostructures. J. Catal. 2020, 381, 508–519. [Google Scholar] [CrossRef]
  9. Smolik, G.R.; Petti, D.A.; Schuetz, S.T. Oxidation and volatilization of TZM alloy in air. J. Nucl. Mater. 2000, 283-287, 1458–1462. [Google Scholar] [CrossRef] [Green Version]
  10. Majumdar, S.; Kapoor, R.; Raveendra, S.; Sinha, H.; Samajdar, I.; Bhargava, P.; Chakravartty, J.K.; Sharma, I.G.; Suri, A.K. A study of hot deformation behavior and microstructural characterization of Mo–TZM alloy. J. Nucl. Mater. 2009, 385, 545–551. [Google Scholar] [CrossRef]
  11. Amakawa, K.; Wang, Y.Q.; Kröhnert, J.; Schlögl, R.; Trunschke, A. Acid sites on silica-supported molybdenum oxides probed by ammonia adsorption: Experiment and theory. Mol. Catal. 2019, 478, 110–580. [Google Scholar] [CrossRef]
  12. Mannheim, R.L.; Garin, J.L. Structural identification of phases in Mo–Re alloys within the range from 5 to 95% Re. J. Mater. Process. Technol. 2003, 143-144, 533–538. [Google Scholar] [CrossRef]
  13. Cui, K.K.; Zhang, Y.Y.; Fu, T.; Hussain, S.; Algarni, T.S.; Wang, J.; Zhang, X.; Ali, S. Effects of Cr2O3 Content on Microstructure and Mechanical Properties of Al2O3 Matrix Composites. Coatings 2021, 11, 234. [Google Scholar] [CrossRef]
  14. Cui, Y.C.; Derby, B.; Li, N.; Misra, A. Fracture resistance of hierarchical Cu–Mo nanocomposite thin films. Mater. Sci. Eng. A 2021, 799, 139–891. [Google Scholar] [CrossRef]
  15. Pan, Y.; Zhang, J. Influence of noble metals on the electronic and optical properties of the monoclinic ZrO2: A first-principles study. Vacuum 2021, 187, 110112. [Google Scholar] [CrossRef]
  16. Li, J.C.; Wei, L.L.; He, J.; Chen, H. The role of Re in improving the oxidation-resistance of a Re modified PtAl coating on Mo-rich single crystal superalloy. J. Mater. Sci. Technol. 2020, 58, 63–72. [Google Scholar] [CrossRef]
  17. Paul, B.; Kishor, J.; Majumdar, S.; Kain, V. Studies on growth mechanism of intermediate layer of (Mo,W)5Si3 and interdiffusion in the (Mo,W)-(Mo,W)Si2 system prepared by pack cementation coating. Surf. Interfaces 2020, 18, 100–458. [Google Scholar] [CrossRef]
  18. Pan, Y. The structural, mechanical and thermodynamic properties of the orthorhombic TMAl (TM=Ti, Y, Zr and Hf) aluminides from first-principles calculations. Vacuum 2020, 181, 109742. [Google Scholar] [CrossRef]
  19. Lu, Y.; Watanabe, M.; Miyata, R.; Nakamura, J.; Yamada, J.; Kato, H.; Yoshimi, K. Microstructures and mechanical properties of TiC-particulate-reinforced Ti–Mo–Al intermetallic matrix composites. Mater. Sci. Eng. A 2020, 790, 139–523. [Google Scholar] [CrossRef]
  20. Cui, K.K.; Fu, T.; Zhang, Y.Y.; Wang, J.; Mao, H.B.; Tan, T.B. Microstructure and mechanical properties of CaAl12O19 reinforced Al2O3-Cr2O3 composites. J. Eur. Ceram. Soc. 2021, 41, 7935–7945. [Google Scholar] [CrossRef]
  21. Niu, F.X.; Wang, Y.X.; Wang, Y.Y.; Ma, L.R.; Liu, J.J.; Wang, C.G. A crack-free SiC nanowire-toughened Si-Mo-W-C coating prepared on graphite materials for enhancing the oxidation resistance. Surf. Coat. Technol. 2018, 344, 52–57. [Google Scholar] [CrossRef]
  22. Zhang, Y.Y.; Fu, T.; Cui, K.K.; Shen, F.Q.; Wang, J.; Yu, L.H.; Mao, H.B. Evolution of surface morphology, roughness and texture of tungsten disilicide coatings on tungsten substrate. Vacuum 2021, 191, 110297. [Google Scholar] [CrossRef]
  23. Jiang, C.; Mariani, R.D.; Adkins, C.A. Ab initio investigation and thermodynamic modeling of the Mo–Ti–Zr system. Materialia 2020, 10, 100–701. [Google Scholar] [CrossRef]
  24. Zhao, M.; Xu, B.Y.; Shao, Y.M.; Zhu, Y.; Wu, J.; Wu, S.S.; Yan, Y.W. Microstructure and oxidation mechanism of multiphase Mo–Ti–Si–B alloys at 800 °C. Corros. Sci. 2021, 187, 109518. [Google Scholar] [CrossRef]
  25. Huang, L.; Pan, Y.F.; Zhang, J.X.; Du, Y.; Luo, F.H.; Zhang, S.Y. CALPHAD-type modeling of the C–Hf–Mo system over the whole composition and temperature ranges. Thermochim. Acta 2020, 692, 178–716. [Google Scholar] [CrossRef]
  26. Fu, T.; Cui, K.K.; Zhang, Y.Y.; Wang, J.; Zhang, X.; Shen, F.Q.; Yu, L.H.; Mao, H.B. Microstructure and Oxidation Behavior of Anti-Oxidation Coatings on Mo-Based Alloys through HAPC Process: A Review. Coatings 2021, 11, 883. [Google Scholar] [CrossRef]
  27. Hu, P.; Zhou, Y.H.; Chang, T.; Yua, Z.T.; Wang, K.S.; Yang, F.; Hua, B.L.; Cao, W.C.; Yu, H.L. Investigation on compression behavior of TZM and La2O3 doped TZM Alloys at high temperature. Mater. Sci. Eng. A 2017, 687, 276–280. [Google Scholar] [CrossRef]
  28. Lange, A.; Braun, R.; Heilmaier, M. Oxidation behavior of magnetron sputtered double layer coatings containing molybdenum, silicon and boron. Intermetallics 2014, 48, 19–27. [Google Scholar] [CrossRef]
  29. Suzuki, R.O.; Ishikawa, M.; Ono, K. MoSi2 coating on molybdenum using molten salt. J. Alloys Compd. 2000, 306, 285–291. [Google Scholar] [CrossRef]
  30. Kuznetsov, S.A.; Kuznetsova, S.V.; Rebrov, E.V.; Mies, M.J.M.; de Croon, M.H.J.M.; Schouten, J.C. Synthesis of molybdenum borides and molybdenum silicides in molten salts and their oxidation behavior in an air–water mixture. Surf. Coat. Technol. 2005, 195, 182–188. [Google Scholar] [CrossRef]
  31. Anton, R.; Laska, N.; Schulz, U.; Obert, S.; Heilmaier, M. Magnetron Sputtered Silicon Coatings as Oxidation Protection for Mo-Based Alloys. Adv. Eng. Mater. 2020, 22, 7. [Google Scholar] [CrossRef]
  32. Mao, H.; Shen, F.; Zhang, Y.; Wang, J.; Cui, K.; Wang, H.; Lv, T.; Fu, T.; Tan, T. Microstructure and Mechanical Properties of Carbide Reinforced TiC-Based Ultra-High Temperature Ceramics: A Review. Coatings 2021, 11, 1444. [Google Scholar] [CrossRef]
  33. Huang, C.; Zhang, Y.Z.; Vilar, R. Microstructure and anti-oxidation behavior of laser clad Ni–20Cr coating on molybdenum surface. Surf. Coat. Technol. 2010, 205, 835–840. [Google Scholar] [CrossRef]
  34. Zhang, H.A.; Lv, J.X.; Wu, Y.H.; Gu, S.Y.; Huang, Y.; Chen, Y. Oxidation behavior of (Mo,W)Si2–Si3N4 composite coating on molybdenum substrate at 1600 °C. Ceram. Int. 2015, 41, 14890–14895. [Google Scholar] [CrossRef]
  35. Yoon, J.K.; Lee, J.K.; Byun, J.Y.; Kim, G.H.; Paik, Y.H.; Kim, J.S. Effect of ammonia nitridation on the microstructure of MoSi2 coatings formed by chemical vapor deposition of Si on Mo substrates. Surf. Coat. Technol. 2002, 160, 29–37. [Google Scholar] [CrossRef]
  36. Pu, R.; Sun, Y.A.; Xu, J.W.; Zhou, X.J.; Li, S.; Zhang, B.; Cai, Z.Y.; Liu, S.N.; Zhao, X.J.; Xiao, L.R. Microstructure and properties of Mo-based double-layer MoSi2 thick coating by a new two-step method. Surf. Coat. Technol. 2020, 394, 125840. [Google Scholar] [CrossRef]
  37. Zhang, Y.Y.; Yu, L.H.; Fu, T.; Wang, J.; Shen, F.Q.; Cui, K.K. Microstructure evolution and growth mechanism of Si-MoSi2 composite coatings on TZM (Mo-0.5Ti-0.1Zr-0.02 C) alloy. J. Alloys Compd. 2021, 894, 162403. [Google Scholar] [CrossRef]
  38. Fu, T.; Cui, K.K.; Zhang, Y.Y.; Wang, J.; Shen, F.Q.; Yu, L.H.; Qie, J.M.; Zhang, X. Oxidation protection of tungsten alloys for nuclear fusion applications: A comprehensive review. J. Alloys Compd. 2021, 884, 161057. [Google Scholar] [CrossRef]
  39. Pint, B.A. Invited Review Paper in Commemoration of Over 50 Years of Oxidation of Metals: Addressing the Role of Water Vapor on Long-Term Stainless Steel Oxidation Behavior. Oxid. Met. 2021, 95, 335–357. [Google Scholar] [CrossRef]
  40. Cui, K.K.; Zhang, Y.Y.; Fu, T.; Wang, J.; Zhang, X. Toughening Mechanism of Mullite Matrix Composites: A Review. Coatings 2020, 10, 672. [Google Scholar] [CrossRef]
  41. Zheng, X.Q.; Liu, Y. Slurry erosion–corrosion wear behavior in SiC-containing NaOH solutions of Mo2NiB2 cermets prepared by reactive sintering. Int. J. Refract. Met. Hard Mater. 2019, 78, 193–200. [Google Scholar] [CrossRef]
  42. Gao, J.S.; Liu, Z.M.; Yan, Z.Q.; He, Y. A novel slurry blending method for a uniform dispersion of carbon nanotubes in natural rubber composites. Results Phys. 2019, 15, 102–720. [Google Scholar] [CrossRef]
  43. Li, W.; Fan, J.L.; Fan, Y.; Xiao, L.R.; Cheng, H.C. MoSi2/(Mo, Ti)Si2 dual-phase composite coating for oxidation protection of molybdenum alloy. J. Alloys Compd. 2018, 740, 711–718. [Google Scholar] [CrossRef]
  44. Cai, Z.Y.; Liu, S.N.; Xiao, L.R.; Fang, Z.; Li, W.; Zhang, B. Oxidation behavior and microstructural evolution of a slurry sintered Si-Mo coating on Mo alloy at 1650 °C. Surf. Coat. Technol. 2017, 324, 182–189. [Google Scholar] [CrossRef]
  45. Chakraborty, S.P. Development of Protective Coating of MoSi2 over TZM Alloy Substrate by Slurry Coating Technique. Mater. Today Proc. 2016, 3, 3071–3076. [Google Scholar] [CrossRef]
  46. Cai, Z.Y.; Wu, Y.H.; Liu, H.Y.; Tian, G.Y.; Pu, R.; Piao, S.M.; Tang, X.Y.; Liu, S.N.; Zhao, X.J.; Xiao, L.R. Formation and oxidation resistance of a new YSZ modified silicide coating on Mo-based alloy. Mater. Des. 2018, 155, 463–474. [Google Scholar] [CrossRef]
  47. Alam, M.Z.; Venkataraman, B.; Sarma, B.; Das, D.K. MoSi2 coating on Mo substrate for short-term oxidation protection in air. J. Alloys Compd. 2009, 487, 335–340. [Google Scholar] [CrossRef]
  48. Farje, J.A.V.; Matsunoshita, H.; Kishida, K.; Inui, H. Microstructure and mechanical properties of a MoSi2-Mo5Si3 eutectic composite processed by laser surface melting. Mater. Charact. 2019, 148, 162–170. [Google Scholar] [CrossRef]
  49. Yang, T.; Guo, X.P. Oxidation behavior of Zr-Y alloyed Mo-Si-B based alloys. Int. J. Refract. Met. Hard Mater. 2020, 88, 105–200. [Google Scholar] [CrossRef]
  50. Alam, M.S.; Shafirovich, E. ShafirovichE. Mechanically activated combustion synthesis of molybdenum silicides and borosilicides for ultrahigh-temperature structural applications. Proc. Combust. Inst. 2015, 35, 2275–2281. [Google Scholar] [CrossRef]
  51. Goodfellow, A.J.; Galindo-Nava, E.I.; Christofidou, K.A.; Jones, N.G.; Boyer, C.D.; Martin, T.L.; Bagot, P.A.J.; Hardy, M.C.; Stone, H.J. The effect of phase chemistry on the extent of strengthening mechanisms in model Ni-Cr-Al-Ti-Mo based superalloys. Acta Mater. 2018, 153, 290–302. [Google Scholar] [CrossRef]
  52. Pint, B.A.; Unocic, K.A. Steam Oxidation Evaluation of Fe–Cr Alloys for Accident Tolerant Nuclear Fuel Cladding. Oxid. Met. 2017, 87, 515–526. [Google Scholar] [CrossRef]
  53. Müller, F.; Gorr, B.; Christ, H.J.; Chen, H.; Kauffmann, A.; Laube, S.; Heilmaier, M. Formation of complex intermetallic phases in novel refractory high-entropy alloys NbMoCrTiAl and TaMoCrTiAl: Thermodynamic assessment and experimental validation. J. Alloys Compd. 2020, 842, 2515–5726. [Google Scholar] [CrossRef]
  54. Vaunois, J.R.; Poulain, M.; Kanouté, P.; Chaboche, J.L. Development of bending tests for near shear mode interfacial toughness measurement of EB-PVD thermal barrier coatings. Eng. Fract. Mech. 2017, 171, 110–134. [Google Scholar] [CrossRef]
  55. Gupta, M.; Li, X.H.; Markocsan, N.; Kjellman, B. Design of high lifetime suspension plasma sprayed thermal barrier coatings. J. Eur. Ceram. Soc. 2020, 40, 768–779. [Google Scholar] [CrossRef]
  56. Gorr, S.M.B.; Christ, H.J.; Schliephake, D.; Heilmaier, M. Oxidation mechanisms of lanthanum-alloyed Mo–Si–B. Corros. Sci. 2014, 88, 360–371. [Google Scholar] [CrossRef]
  57. Wang, Y.; Wang, D.Z.; Yan, J.H.; Sun, A.K. Preparation and characterization of molybdenum disilicide coating on molybdenum substrate by air plasma spraying. Appl. Surf. Sci. 2013, 284, 881–888. [Google Scholar] [CrossRef]
  58. Deng, X.K.; Zhang, G.J.; Wang, T.; Ren, S.; Shi, Y.; Bai, Z.L.; Cao, Q. Microstructure and oxidation resistance of a multiphase Mo-Si-B ceramic coating on Mo substrates deposited by a plasma transferred arc process. Ceram. Int. 2019, 45, 415–423. [Google Scholar] [CrossRef]
  59. Zhu, L.; Zhu, Y.S.; Ren, X.R.; Zhang, P.; Qiao, J.H.; Feng, P.Z. Microstructure, properties and oxidation behavior of MoSi2-MoB-ZrO2 coating for Mo substrate using spark plasma sintering. Surf. Coat. Technol. 2019, 375, 773–781. [Google Scholar] [CrossRef]
  60. Chakraborty, S.P. Studies on the development of TZM alloy by aluminothermic coreduction process and formation of protective coating over the alloy by plasma spray technique. Int. J. Refract. Met. Hard Mater. 2011, 29, 5623–5630. [Google Scholar] [CrossRef]
  61. Yavas, B.; Goller, G. A novel approach to boriding of TZM by spark plasma sintering method. Int. J. Refract. Met. Hard Mater. 2019, 78, 273–281. [Google Scholar] [CrossRef]
  62. Shao, F.; Zhao, H.Y.; Liu, C.G.; Zhong, X.H.; Zhuang, Y.; Ni, J.X.; Tao, S.Y. Dense yttria-stabilized zirconia coatings fabricated by plasma spray-physical vapor deposition. Ceram. Int. 2017, 43, 2305–2313. [Google Scholar] [CrossRef]
  63. Gao, L.H.; Guo, H.B.; Wei, L.L.; Li, C.Y.; Gong, S.K.; Xu, H.B. Microstructure and mechanical properties of yttria stabilized zirconia coatings prepared by plasma spray physical vapor deposition. Ceram. Int. 2015, 41, 8305–8311. [Google Scholar] [CrossRef]
  64. Ganvir, A.; Calinas, R.F.; Markocsan, N.; Curry, N.; Joshi, S. Experimental visualization of microstructure evolution during suspension plasma spraying of thermal barrier coatings. J. Eur. Ceram. Soc. 2019, 39, 470–481. [Google Scholar] [CrossRef]
  65. Ganvir, A.; Curry, N.; Markocsan, N.; Nylén, P.; Toma, F.L. Comparative study of suspension plasma sprayed and suspension high velocity oxy-fuel sprayed YSZ thermal barrier coatings. Surf. Coat. Technol. 2015, 268, 70–76. [Google Scholar] [CrossRef]
  66. Yavas, B.; Goller, G. Investigation the effect of B 4 C addition on properties of TZM alloy prepared by spark plasma sintering. Int. J. Refract. Met. Hard Mater. 2016, 58, 182–188. [Google Scholar] [CrossRef]
  67. Zhao, Y.L.; Wen, J.H.; Wen, J.H.; Peyraut, F.; Planche, M.P.; Misra, S.; Lenoir, B.; Ilavsky, J.; Liao, H.L.; Montavon, G. Porous architecture and thermal properties of thermal barrier coatings deposited by suspension plasma spray. Surf. Coat. Technol. 2020, 386, 125462. [Google Scholar] [CrossRef]
  68. Gizynski, M.; Chen, X.; Dusautoy, N.; Araki, H.; Kuroda, S.; Watanabe, M.; Pakiela, Z. Comparative study of the failure mechanism of atmospheric and suspension plasma sprayed thermal barrier coatings. Surf. Coat. Technol. 2019, 370, 163–176. [Google Scholar] [CrossRef]
  69. Zhang, Y.; Pint, B.A.; Cooley, K.M.; Haynes, J.A. Effect of nitrogen on the formation and oxidation behavior of iron aluminide coatings. Surf. Coatings Technol. 2005, 200, 1231–1235. [Google Scholar] [CrossRef]
  70. Pochet, L.F.; Howard, P.; Safaie, S. Practical aspects of deposition of CVD SiC and boron silicon carbide onto high temperature composites. Surf. Coat. Technol. 1996, 86-87, 135–141. [Google Scholar] [CrossRef]
  71. Nyutu, E.K.; Kmetz, M.A.; Suib, S.L. Formation of MoSi2–SiO2 coatings on molybdenum substrates by CVD/MOCVD. Surf. Coat. Technol. 2006, 200, 3980–3986. [Google Scholar] [CrossRef]
  72. Yoon, J.K.; Kim, G.H.; Han, J.H.; Shon, I.J.; Doh, J.M.; Hong, K.T. Low-temperature cyclic oxidation behavior of MoSi2/Si3N4 nanocomposite coating formed on Mo substrate at 773 K. Surf. Coat. Technol. 2005, 200, 2537–2546. [Google Scholar] [CrossRef]
  73. Huang, X.X.; Sun, S.C.; Lu, S.D.; Li, K.H.; Tu, G.F.; Song, J.X. Synthesis and characterization of oxidation-resistant TiB2 coating on molybdenum substrate by chemical vapor deposition. Mater. Lett. 2018, 228, 53–56. [Google Scholar] [CrossRef]
  74. Du, J.H.; Li, Z.X.; Liu, G.J.; Zhou, H.; Huang, C.L. Surface characterization of CVD tungsten coating on molybdenum substrate. Surf. Coat. Technol. 2005, 198, 169–172. [Google Scholar] [CrossRef]
  75. Yoon, J.K.; Lee, K.H.; Kim, G.H.; Han, J.H.; Doh, J.M.; Hong, K.T. Low-Temperature Cyclic Oxidation Behavior of MoSi2/SiC Nanocomposite Coating Formed on Mo Substrate. Mater. Trans. 2004, 45, 2435–2442. [Google Scholar] [CrossRef] [Green Version]
  76. Céspedes, E.; Wirz, M.; Sánchez-García, J.A.; Fraga, L.A.; Galindo, R.E.; Prietoa, C. Novel Mo–Si3N4 based selective coating for high temperature concentrating solar power applications. Sol. Energy Mater. Sol. Cells 2014, 122, 217–225. [Google Scholar] [CrossRef]
  77. Jung, Y.I.; Kim, S.H.; Kim, H.G.; Park, J.Y.; Kim, W.J. Microstructures of diffusion bonded SiC ceramics using Ti and Mo interlayers. J. Nucl. Mater. 2013, 441, 510–513. [Google Scholar] [CrossRef]
  78. Huang, X.X.; Sun, S.C.; Tu, G.F. Investigation of mechanical properties and oxidation resistance of CVD TiB2 ceramic coating on molybdenum. J. Mater. Res. Technol. 2020, 9, 282–290. [Google Scholar] [CrossRef]
  79. Anton, R.; Hüning, S.; Laska, N.; Weber, M.; Schellert, S.; Gorr, B.; Christ, H.J.; Schulz, U. Graded PVD Mo-Si interlayer between Si coating and Mo-Si-B alloys: Investigation of oxidation behaviour. Corros. Sci. 2021, 192, 109–843. [Google Scholar] [CrossRef]
  80. Lange, A.; Braun, R.; Schulz, U. PVD thermal barrier coating systems for M-Si-B alloys. Mater. High. Temp. 2017, 35, 195–203. [Google Scholar] [CrossRef]
  81. Krüger, M.; Franz, S.; Saage, H.; Heilmaier, M.; Schneibel, J.H.; J´ehanno, P.; B¨oning, M.; Kestler, H. Mechanically alloyed Mo–Si–B alloys with a continuous α-Mo matrix and improved mechanical properties. Intermetallics 2008, 16, 933–941. [Google Scholar] [CrossRef]
  82. Zhang, Y.Y.; Hussain, S.; Cui, K.K.; Fu, T.; Wang, J.; Javed, M.S.; Lv, Y.; Aslam, B. Microstructure and Mechanical Properties of MoSi2 Coating Deposited on Mo Substrate by Hot Dipping Processes. J. Nanoelectron. Optoelectron. 2019, 14, 1680–1685. [Google Scholar] [CrossRef]
  83. Zhang, Y.Y.; Cui, K.K.; Fu, T.; Wang, J.; Qie, J.M.; Zhang, X. Synthesis WSi2 coating on W substrate by HDS method with various deposition times. Appl. Surf. Sci. 2020, 511, 145551. [Google Scholar] [CrossRef]
  84. Zhang, Y.Y.; Qie, J.M.; Cui, K.K.; Fu, T.; Fan, X.L.; Wang, J.; Zhang, X. Effect of hot dip silicon-plating temperature on microstructure characteristics of silicide coating on tungsten substrate. Ceram. Int. 2020, 46, 5223–5228. [Google Scholar] [CrossRef]
  85. Zhang, Y.Y.; Li, Y.G.; Bai, C.G. Microstructure and oxidation behavior of Si–MoSi2 functionally graded coating on Mo substrate. Ceram. Int. 2017, 43, 6250–6256. [Google Scholar] [CrossRef]
  86. Zhang, Y.Y.; Li, Y.G.; Qi, Y.H.; Zou, Z.S. The Characters of Mo-MoSi2 Functionally Graded Coating. High Temp. Mater. Process. 2014, 33, 239–244. [Google Scholar] [CrossRef]
  87. Zhang, Y.Y.; Zhao, J.; Li, J.H.; Lei, J. Effect of hot-dip siliconizing time on phase composition and microstructure of Mo–MoSi2 high temperature structural materials. Ceram. Int. 2019, 45, 5588–5593. [Google Scholar] [CrossRef]
  88. Wang, S.P.; Zhou, L.; Li, C.J.; Li, Z.X.; Li, H.Z.; Yang, L.J. Morphology of composite coatings formed on Mo1 substrate using hot-dip aluminising and micro-arc oxidation techniques. Appl. Surf. Sci. 2020, 508, 144–761. [Google Scholar] [CrossRef]
  89. Zhang, Y.Y.; Cui, K.K.; Gao, Q.J.; Hussain, S.; Lv, Y. Investigation of morphology and texture properties of WSi2 coatings on W substrate based on contact-mode AFM and EBSD. Surf. Coat. Technol. 2020, 396, 125966. [Google Scholar] [CrossRef]
  90. Zhang, Y.Y.; Yu, L.H.; Fu, T.; Wang, J.; Shen, F.Q.; Cui, K.K.; Wang, H. Microstructure and oxidation resistance of Si-MoSi2 ceramic coating on TZM (Mo-0.5Ti-0.1Zr-0.02C) alloy at 1500 °C. Surf. Coat. Technol. 2021, 431, 128037. [Google Scholar] [CrossRef]
  91. Zhang, Y.Y.; Cui, K.K.; Fu, T.; Wang, J.; Shen, F.Q.; Zhang, X.; Yu, L.H. Formation of MoSi2 and Si/MoSi2 coatings on TZM (Mo–0.5Ti–0.1Zr–0.02C) alloy by hot dip silicon-plating method. Ceram. Int. 2021, 47, 23053–23065. [Google Scholar] [CrossRef]
Coatings 12 00141 g001 550

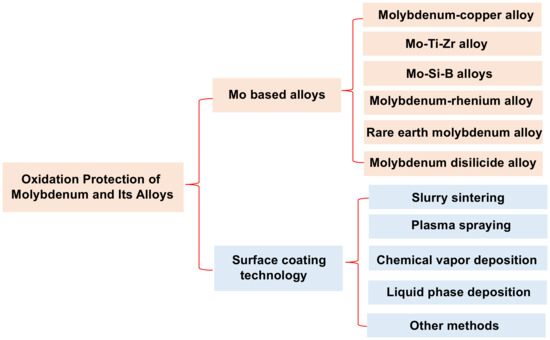

Figure 1. Overview of Mo alloy types and Mo and its alloy surface-coating technology.
Figure 1. Overview of Mo alloy types and Mo and its alloy surface-coating technology.
Coatings 12 00141 g001
Coatings 12 00141 g002 550

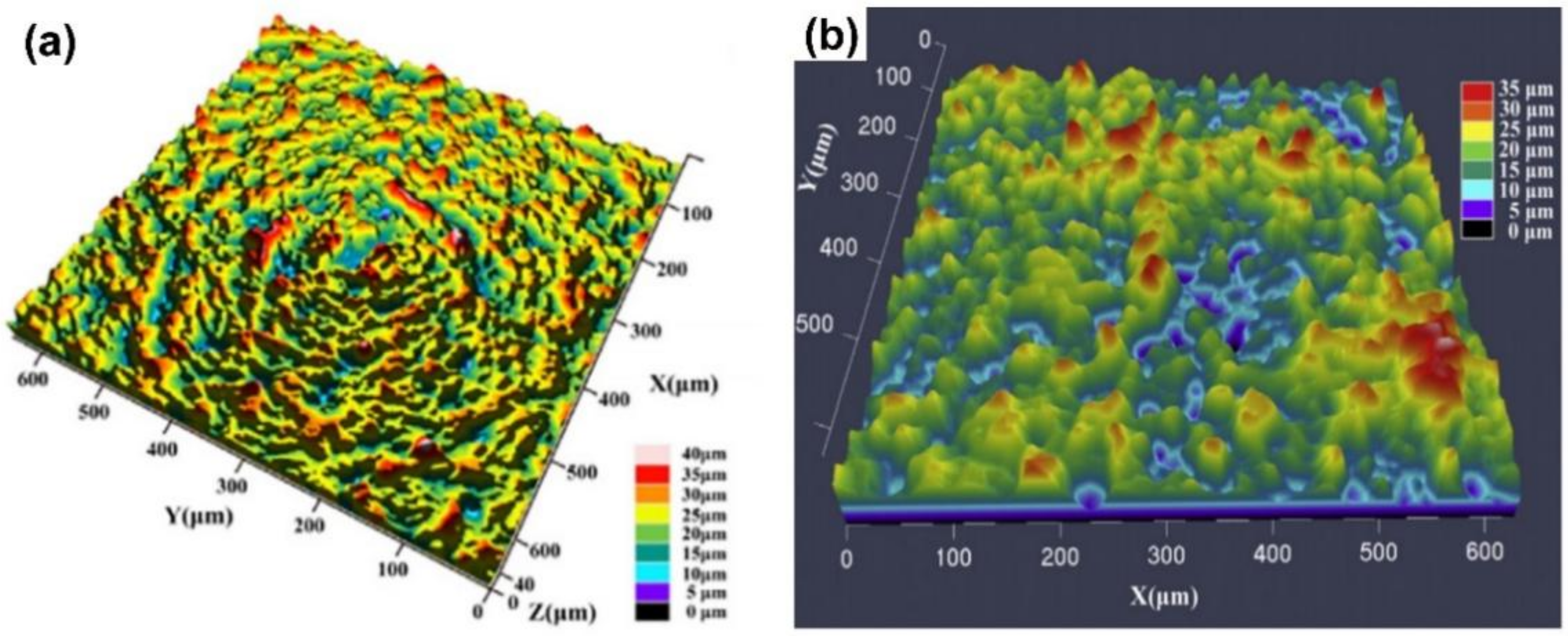

Figure 2. Roughness evolution of the Si-Mo coating (a) Reprinted with permission from [46]; reproduced from (Cai et al., 2017). surface roughness of the Si-Mo-5YSZ coating (b) Reprinted with permission from [44]; reproduced from (Cai et al., 2018).
Figure 2. Roughness evolution of the Si-Mo coating (a) Reprinted with permission from [46]; reproduced from (Cai et al., 2017). surface roughness of the Si-Mo-5YSZ coating (b) Reprinted with permission from [44]; reproduced from (Cai et al., 2018).
Coatings 12 00141 g002
Coatings 12 00141 g003 550
Figure 3. The images of surface and cross-sectional with different coating compositions. (a,e) MoSi2/(Mo, Ti)Si2 coating, Reprinted with permission from [43]; reproduced from (Li et al., 2018). (b,f) Si-Mo coating, Reprinted with permission from [46]; Reproduced from (Cai et al., 2017). (c,g) Si-Mo-5YSZ coating, (d,h) Si-Mo-10YSZ coating, Reprinted with permission from [44]; reproduced from (Cai et al., 2018).
Figure 3. The images of surface and cross-sectional with different coating compositions. (a,e) MoSi2/(Mo, Ti)Si2 coating, Reprinted with permission from [43]; reproduced from (Li et al., 2018). (b,f) Si-Mo coating, Reprinted with permission from [46]; Reproduced from (Cai et al., 2017). (c,g) Si-Mo-5YSZ coating, (d,h) Si-Mo-10YSZ coating, Reprinted with permission from [44]; reproduced from (Cai et al., 2018).
Coatings 12 00141 g003
Coatings 12 00141 g004 550

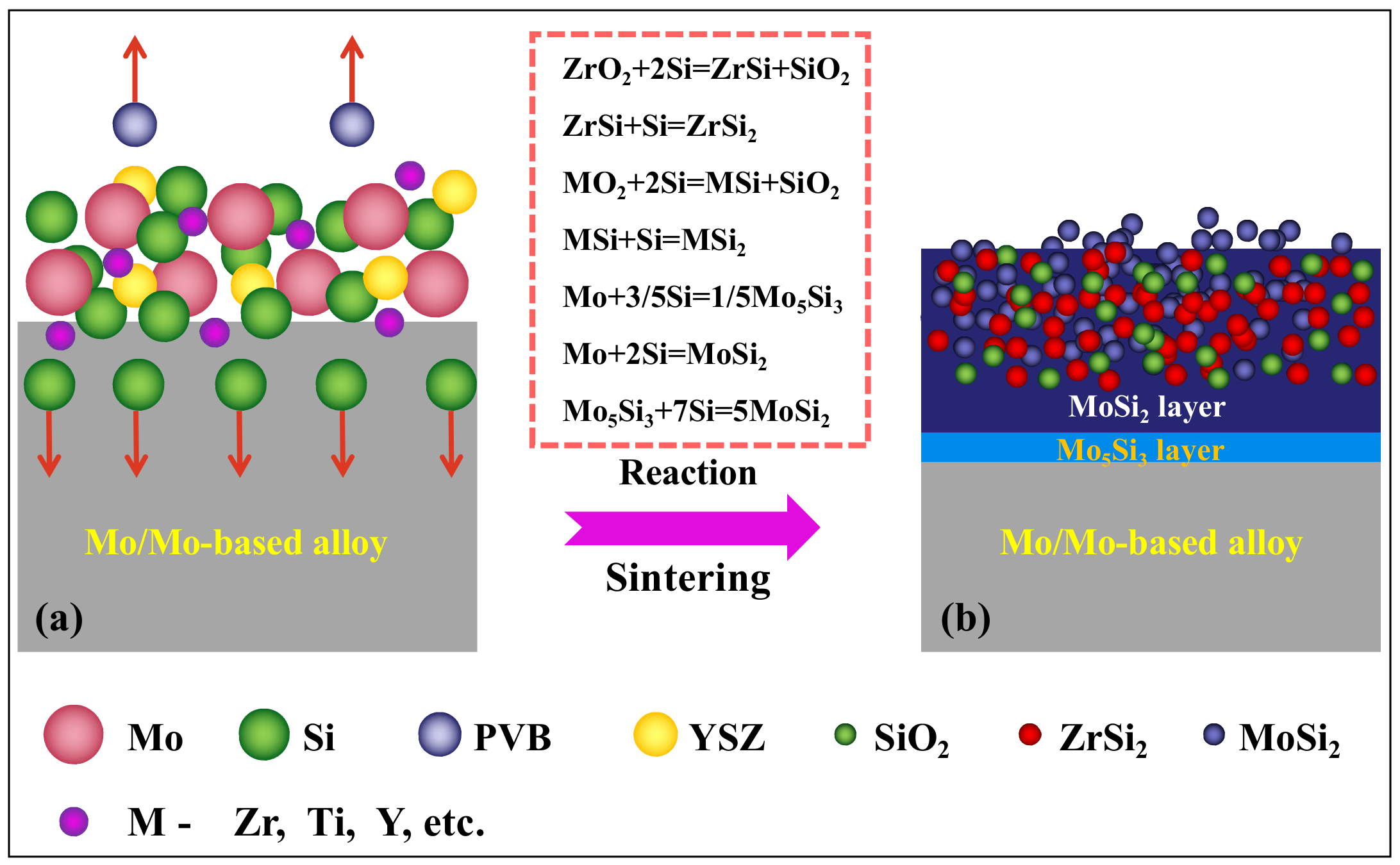

Figure 4. The diagram of growth mechanism of slurry sintering (SS) coating on molybdenum and Mo-based alloys. (a) Mixture composition and its diffusion law; (b) Structure of the coating after sintering reaction.
Figure 4. The diagram of growth mechanism of slurry sintering (SS) coating on molybdenum and Mo-based alloys. (a) Mixture composition and its diffusion law; (b) Structure of the coating after sintering reaction.
Coatings 12 00141 g004
Coatings 12 00141 g005 550

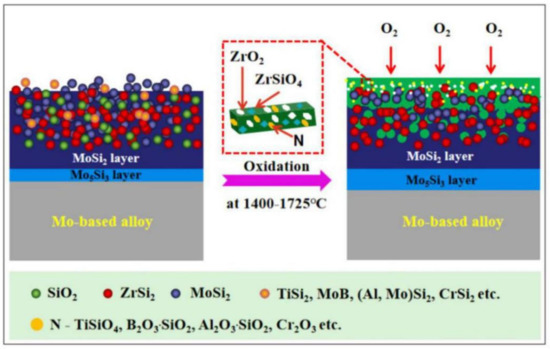

Figure 5. The diagram of oxidation mechanism of the SS coatings on molybdenum and its alloys.
Figure 5. The diagram of oxidation mechanism of the SS coatings on molybdenum and its alloys.
Coatings 12 00141 g005
Coatings 12 00141 g006 550
Figure 6. Surface and cross-sections images of SS coatings under different exposure conditions; (a,d) pure MoSi2 coating, reprinted with permission from [45]; reproduced from (Chakraborty et al., 2016). (b,e) MoSi2-(Mo, Ti)Si2 coating, reprinted with permission from [46]; reproduced from (Cai et al., 2017). (c,f) Si-Mo-10YSZ coating, reprinted with permission from [44]; reproduced from (Cai et al., 2018).
Figure 6. Surface and cross-sections images of SS coatings under different exposure conditions; (a,d) pure MoSi2 coating, reprinted with permission from [45]; reproduced from (Chakraborty et al., 2016). (b,e) MoSi2-(Mo, Ti)Si2 coating, reprinted with permission from [46]; reproduced from (Cai et al., 2017). (c,f) Si-Mo-10YSZ coating, reprinted with permission from [44]; reproduced from (Cai et al., 2018).
Coatings 12 00141 g006
Coatings 12 00141 g007 550

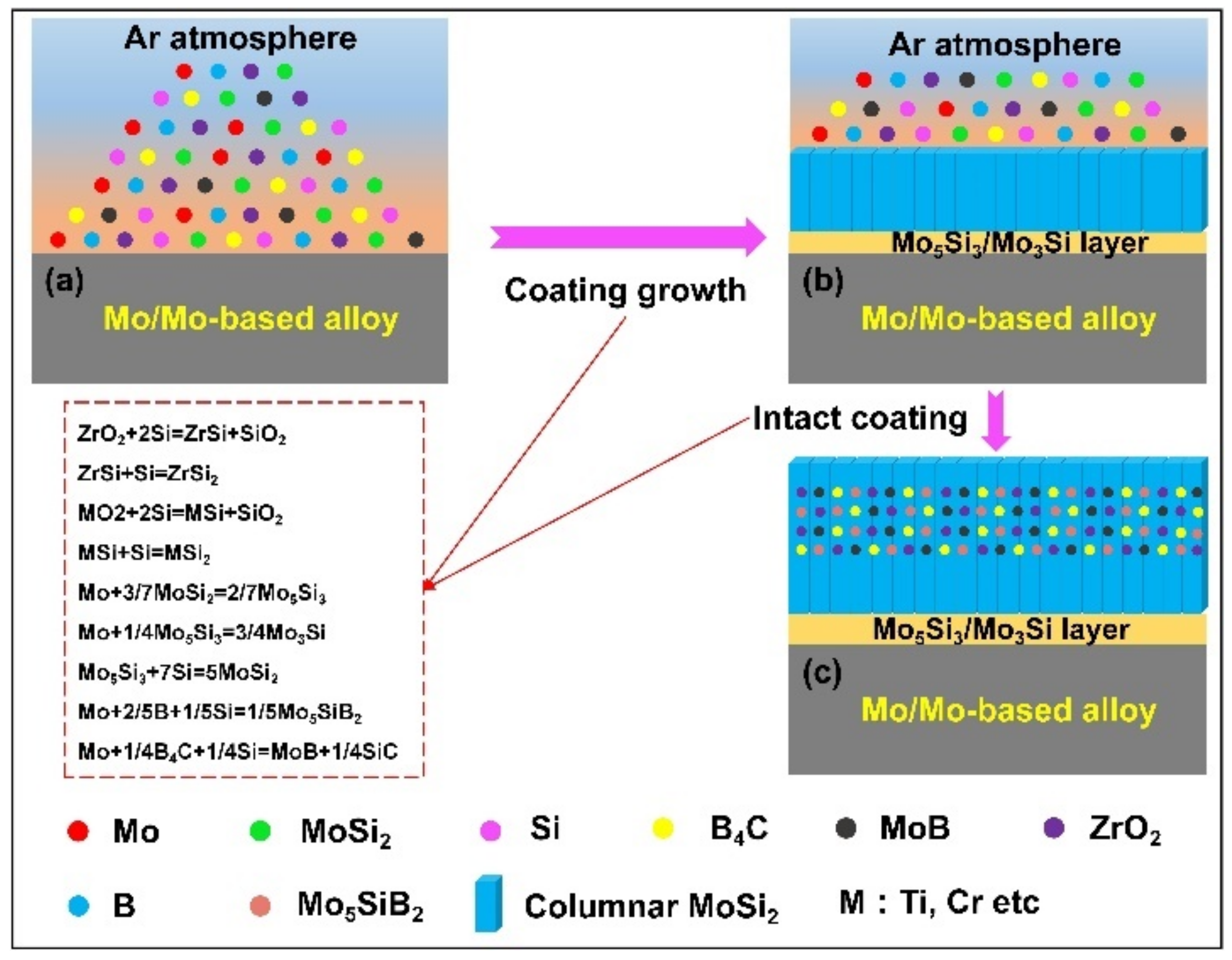

Figure 7. Diagram of the growth mechanism in plasma-spraying coating on molybdenum and its alloys. (a) Before spraying reaction (b) Coating structure at the initial stage of spraying (c) Structure of the coating after spraying.
Figure 7. Diagram of the growth mechanism in plasma-spraying coating on molybdenum and its alloys. (a) Before spraying reaction (b) Coating structure at the initial stage of spraying (c) Structure of the coating after spraying.
Coatings 12 00141 g007
Coatings 12 00141 g008 550
Figure 8. Surface (a–d) and cross-sectional (e–h) scanning electron microscopy (SEM) images of the MoSi2 coatings on Mo with different process conditions. (a–d) represent MSi-1 to MSi-4, respectively. Reprinted with permission from [57]; reproduced from (Wang et al., 2013).
Figure 8. Surface (a–d) and cross-sectional (e–h) scanning electron microscopy (SEM) images of the MoSi2 coatings on Mo with different process conditions. (a–d) represent MSi-1 to MSi-4, respectively. Reprinted with permission from [57]; reproduced from (Wang et al., 2013).
Coatings 12 00141 g008
Coatings 12 00141 g009 550

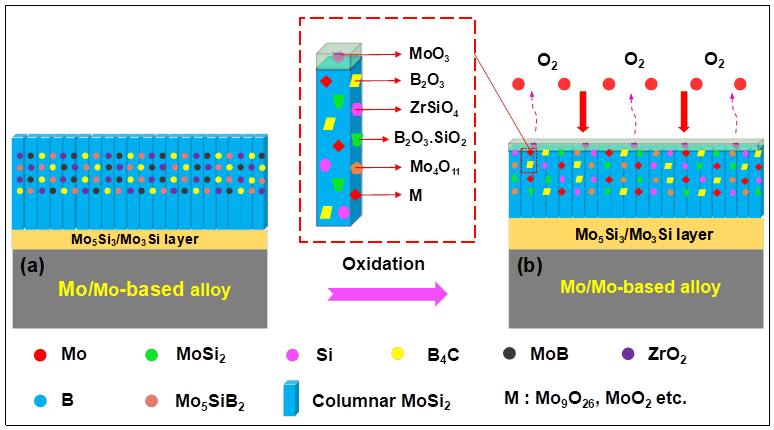

Figure 9. The diagram of oxidation mechanism of the plasma-spraying coatings on molybdenum and its alloys. (a) Coating structure before oxidation (b) Oxidized coating structure.
Figure 9. The diagram of oxidation mechanism of the plasma-spraying coatings on molybdenum and its alloys. (a) Coating structure before oxidation (b) Oxidized coating structure.
Coatings 12 00141 g009
Coatings 12 00141 g010 550
Figure 10. SEM image of surface and cross-section plasma spraying coatings after oxidation under different conditions. (a,d) Pure MoSi2 coating, reprinted with permission from [57]; reproduced from (Deng et al., 2019). (b,e) Mo–Si–B coating, reprinted with permission from [58]; reproduced from (Zhu et al., 2019). (c,f) MoSi2-MoB-ZrO2 coating [59]. Reprinted with permission from [59]; reproduced from (Chakraborty et al., 2011).
Figure 10. SEM image of surface and cross-section plasma spraying coatings after oxidation under different conditions. (a,d) Pure MoSi2 coating, reprinted with permission from [57]; reproduced from (Deng et al., 2019). (b,e) Mo–Si–B coating, reprinted with permission from [58]; reproduced from (Zhu et al., 2019). (c,f) MoSi2-MoB-ZrO2 coating [59]. Reprinted with permission from [59]; reproduced from (Chakraborty et al., 2011).
Coatings 12 00141 g010
Coatings 12 00141 g011 550

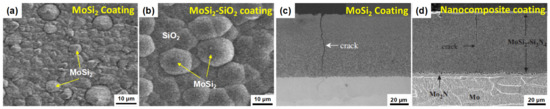

Figure 11. SEM images of different chemical vapor deposition (CVD) coatings on surface of Mo substrate. (a,b) Reprinted with permission from [71]; reproduced from (Nyutu et al., 2006). (c) Reprinted with permission from [72]; reproduced from (Yoon et al., 2005). (d) Reprinted with permission from [75]; reproduced from (Yoon et al., 2004).
Figure 11. SEM images of different chemical vapor deposition (CVD) coatings on surface of Mo substrate. (a,b) Reprinted with permission from [71]; reproduced from (Nyutu et al., 2006). (c) Reprinted with permission from [72]; reproduced from (Yoon et al., 2005). (d) Reprinted with permission from [75]; reproduced from (Yoon et al., 2004).
Coatings 12 00141 g011
Coatings 12 00141 g012 550

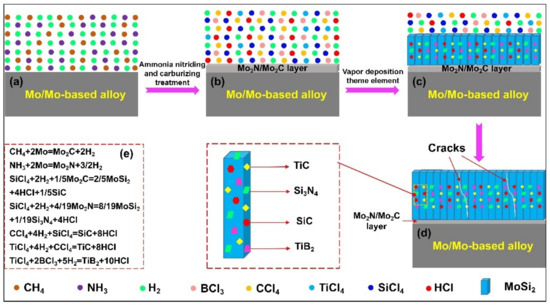

Figure 12. The diagram of growth mechanism of CVD coating on molybdenum and Mo-based alloys. (a–d) are the different stages of diffusion reaction, (e) is the equations involved in the reaction.
Figure 12. The diagram of growth mechanism of CVD coating on molybdenum and Mo-based alloys. (a–d) are the different stages of diffusion reaction, (e) is the equations involved in the reaction.
Coatings 12 00141 g012
Coatings 12 00141 g013 550
Figure 13. Surface and cross-sections images of oxidized coatings with different types and different cyclic oxidation times at 500 °C. (a–c) MoSi2 coating; (d–f) MoSi2/β-SiC nanocomposite coating. Reprinted with permission from [75]; reproduced from (Yoon et al., 2004).
Figure 13. Surface and cross-sections images of oxidized coatings with different types and different cyclic oxidation times at 500 °C. (a–c) MoSi2 coating; (d–f) MoSi2/β-SiC nanocomposite coating. Reprinted with permission from [75]; reproduced from (Yoon et al., 2004).
Coatings 12 00141 g013
Coatings 12 00141 g014 550

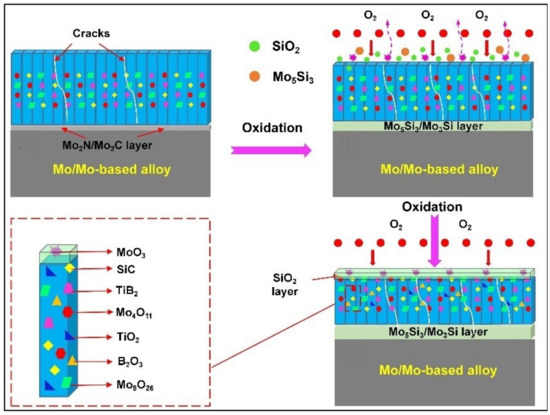

Figure 14. The mechanism diagram of oxidation of CVD coatings on Mo and Mo-based alloys.
Figure 14. The mechanism diagram of oxidation of CVD coatings on Mo and Mo-based alloys.
Coatings 12 00141 g014
Coatings 12 00141 g015 550
Figure 15. The growth mechanism diagram of liquid-phase deposition coating on molybdenum and its alloys. (a) is before reaction, (b) is the initial stage of the reaction, (c) is the late stage of reaction.
Figure 15. The growth mechanism diagram of liquid-phase deposition coating on molybdenum and its alloys. (a) is before reaction, (b) is the initial stage of the reaction, (c) is the late stage of reaction.
Coatings 12 00141 g015
Coatings 12 00141 g016 550

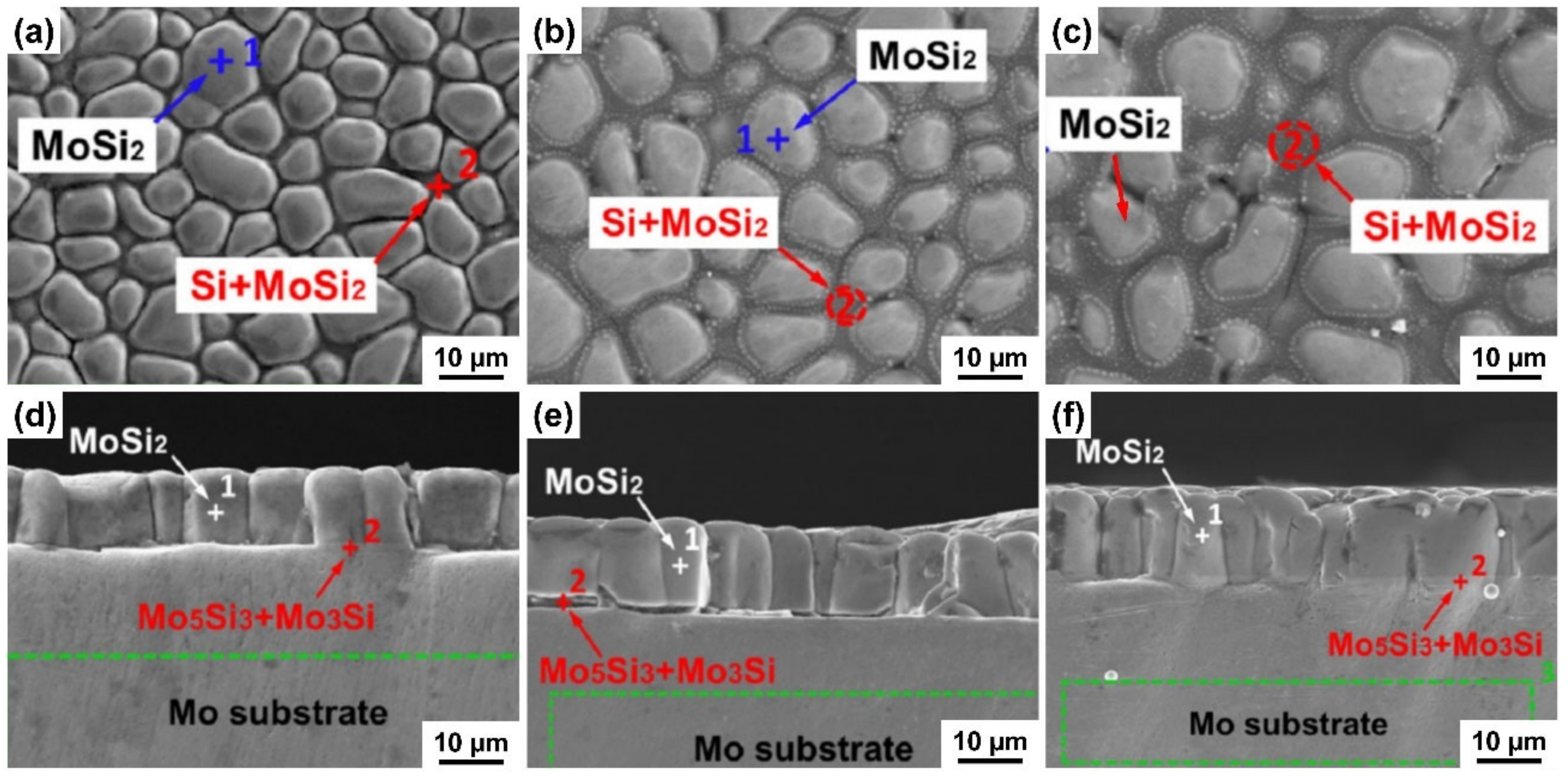

Figure 16. The surface and cross-section micrographs of Si-MoSi2 functionally coatings obtained at different temperature for 15 min. 1460 °C (a,d), 1490 °C (b,e), 1520 °C (c,f). Reprinted with permission from [87]; reproduced from (Zhang et al., 2019).
Figure 16. The surface and cross-section micrographs of Si-MoSi2 functionally coatings obtained at different temperature for 15 min. 1460 °C (a,d), 1490 °C (b,e), 1520 °C (c,f). Reprinted with permission from [87]; reproduced from (Zhang et al., 2019).
Coatings 12 00141 g016
Coatings 12 00141 g017 550

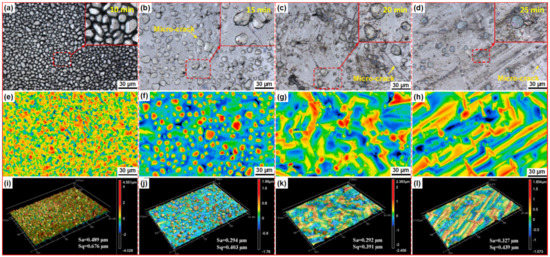

Figure 17. The CLSM (a–d), height distribution (e–h) and 3D images (i–l) of the coating obtained at 1480 °C for different times. Reprinted with permission from [91]; reproduced from (Zhang et al., 2021).
Figure 17. The CLSM (a–d), height distribution (e–h) and 3D images (i–l) of the coating obtained at 1480 °C for different times. Reprinted with permission from [91]; reproduced from (Zhang et al., 2021).
Coatings 12 00141 g017
Coatings 12 00141 g018 550

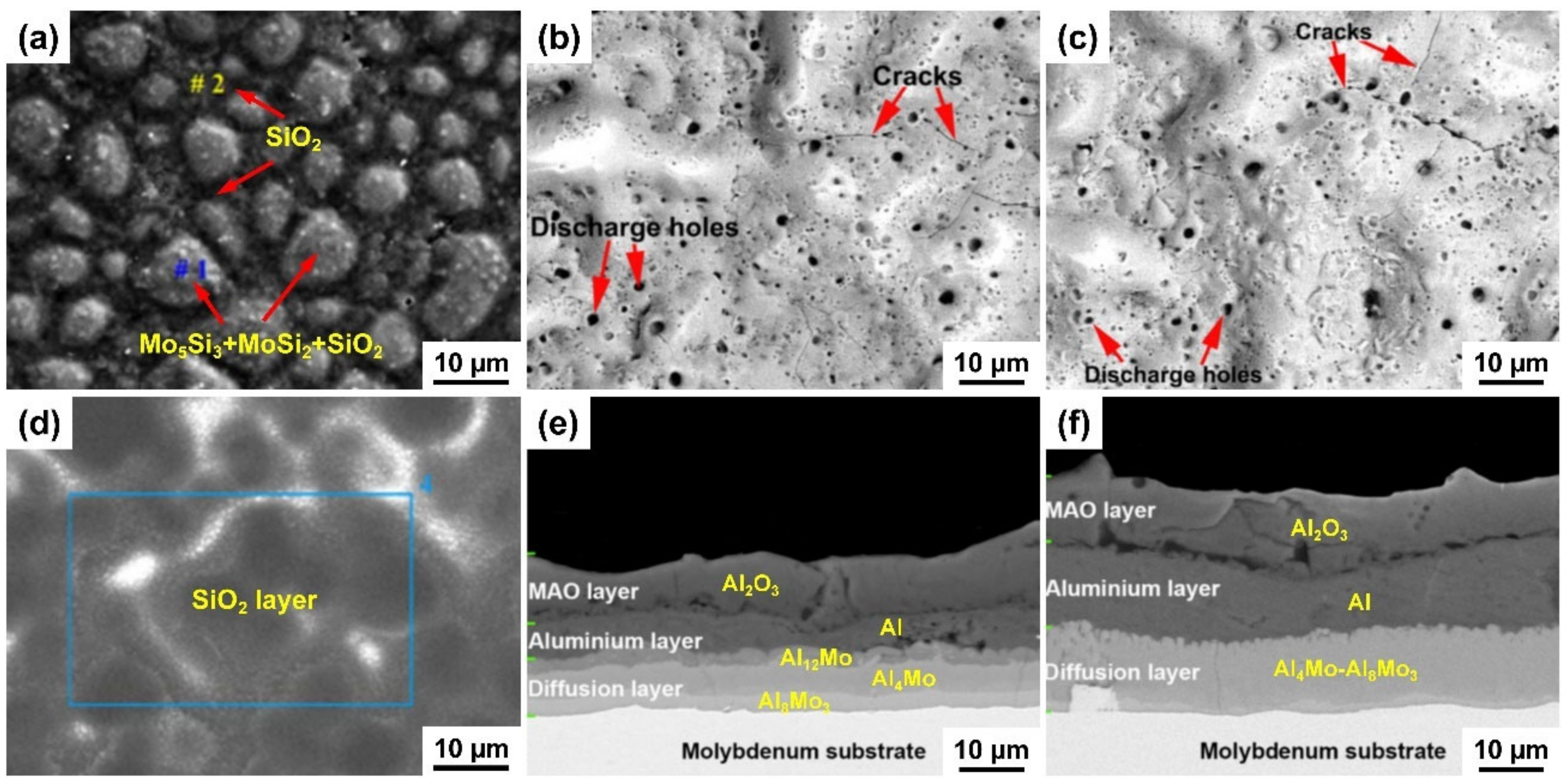

Figure 18. Surface topography of the oxidized Si-MoSi2 coatings at different temperatures for 2 h, (a) 1200 °C, (d) 1600 °C. Reprinted with permission from [85]; reproduced from (Zhang et al., 2017). Images of Al–Mo coatings prepared at different temperature after MAO for 20 min; (b,e) 710 °C, (c,f) 750 °C. Reprinted with permission from [88]; reproduced from (Wang et al., 2020).
Figure 18. Surface topography of the oxidized Si-MoSi2 coatings at different temperatures for 2 h, (a) 1200 °C, (d) 1600 °C. Reprinted with permission from [85]; reproduced from (Zhang et al., 2017). Images of Al–Mo coatings prepared at different temperature after MAO for 20 min; (b,e) 710 °C, (c,f) 750 °C. Reprinted with permission from [88]; reproduced from (Wang et al., 2020).
Coatings 12 00141 g018
Coatings 12 00141 g019 550
Figure 19. The diagram of oxidation mechanism of liquid-phase deposition coatings on Mo and its alloys. (a–c) are the coating structures before, during and after the oxidation reaction. (d) is the reaction equation involved in the oxidation process.
Figure 19. The diagram of oxidation mechanism of liquid-phase deposition coatings on Mo and its alloys. (a–c) are the coating structures before, during and after the oxidation reaction. (d) is the reaction equation involved in the oxidation process.
Coatings 12 00141 g019
Coatings 12 00141 g020 550

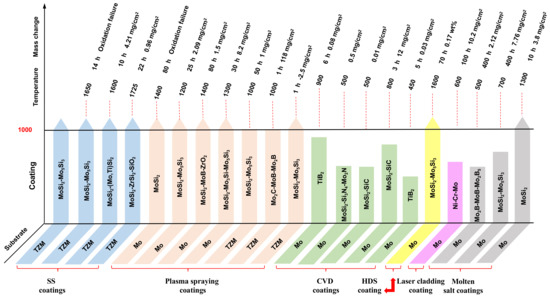

Figure 20. Overview of the composition and oxidation characteristics of silicide coating on molybdenum and its alloys.
Figure 20. Overview of the composition and oxidation characteristics of silicide coating on molybdenum and its alloys.
Coatings 12 00141 g020
Table
Table 1. Summary of preparation process, coating composition and surface properties of TZM surface slurry coating.
Table 1. Summary of preparation process, coating composition and surface properties of TZM surface slurry coating.
SubstrateSlurry Composition and Particle SizeProcess ConditionsCoating Composition and Thickness (µm)Bond Strength (MPa)Surface Hardness (GPa)Grain Size (µm)Refs.
Composition (wt%)Particle Size (µm)AtmosphereTreatment Time and TemperatureOuter LayerInterface Layer
TZM75Si-10Mo-15Ti CN, EAC1.00–3.00Vacuum1450 °C, 15.00 minMoSi2-(Mo,Ti) Si2 (120.00)(Mo,Ti)5Si3 (1.00)--1.00–5.00[43]
60Si-30Mo-10YSZ-SiO2-PVB-NH4F1.00 × 10−1Ar1450 °C, 1.00 hMoSi2-ZrSi2-SiO2 (120.00)Mo5Si3 (1.00)--2.00–5.00[44]
MEK-PVB-10 to 20Si45.00Ar1200 °C, 2.00 hMoSi2 (60.00)Mo5Si3 (5.00)25.002.0010.00–20.00[45]
69.5Si-30Mo-0.5PVB-EA-Ar1450 °C, 1.00 hMoSi2 (96.00)Mo5Si3 (3.00)--2.00–4.00[46]
Table
Table 2. Overview of the microstructure evolution and mass gain of SS coating on TZM alloy before and after oxidation.
Table 2. Overview of the microstructure evolution and mass gain of SS coating on TZM alloy before and after oxidation.
SubstrateComposition and Thickness of Coatings (µm)ExposureComposition and Thickness of Oxidized Coatings (µm)Mass Gain (mg·cm−2)Refs.
Outer LayerInterface LayerOxide LayerIntermediate LayerInterface Layer
TZMMoSi2-(Mo, Ti) Si2 (120.00)(Mo,Ti)5Si3 (1.00)1600 °C, 5.00 hSiO2, Mo5Si3, TiO2 (20.00–30.00)MoSi2-(Mo,Ti) Si2 (70.00–75.00)Mo5Si3 (53.00)4.00[43]
MoSi2-ZrSi2-SiO2 (120.00)Mo5Si3 (1.00)1725 °C, 6.00 hSiO2, ZrO2, ZrSiO4 (77.00)MoSi2 (41.00)Mo5Si3 (37.00)1.00[44]
MoSi2 (60.00)Mo5Si3 (5.00)1000 °C, 5.00 h---Negligible[45]
MoSi2 (96.00)Mo5Si3 (3.00)1650 °C, 4.00 hSiO2 (24.00)MoSi2 (41.00)Mo5Si3 (44.00)5.00 × 10−1[46]
Table
Table 3. Summary of process, composition and properties of plasma spraying coatings on molybdenum and its alloys.
Table 3. Summary of process, composition and properties of plasma spraying coatings on molybdenum and its alloys.
SubstrateSpraying MaterialProcess ConditionsComposition and Thickness of Coatings (µm)Bond Strength (MPa)Surface Hardness (GPa)Porosity (%)Refs.
Gas Flow (L·min−1)Powder (kW)Distance (mm)Treatment Temperature and TimePressure (MPa)Outer LayerInterface Layer
MoMoSi2Ar: 40.00
H2: 5.00		32.0080.00--MoSi2, Mo5Si3 (600.00)0.0010.001.0029.00[57]
Si, Mo, BAr: 6.0047.0020.00--Mo3Si- Mo5Si3-Mo5SiB2 (6000.00)0.00-9.0018.00[58]
MoSi2---1500 °C, 5.00 min30.00MoSi2 (500.00)Mo5Si3 (20.00)-10.00-[59]
MoSi2, ZrO2, MoB---1500 °C, 5.00 min30.00MoSi2, ZrO2, MoB, Mo5Si3 (300.00)Mo5Si3 (10.00)-11.00-
TZMSi-15.00100.001100–1300 °C, 3.00 h-MoSi2 (150.00)Mo5Si3 (10.00)40.001.00-[60]
B4C---1420 °C, 10.00 min60.00Mo2BC (214.00)MoB (12.00)-21.00-[61]
Table
Table 4. Plasma-spraying conditions and the results of the characterization.
Table 4. Plasma-spraying conditions and the results of the characterization.
Sample No.Power (kW)Primary Gas (Ar) Flow (L/min)Second Gas (H2) Flow (L/min)Powder Feed Rate (g·min−1)Distance (mm)Hardness (HV50)Porosity (%)
MSi-130.0040.005.0032.00120.001302.0030.00
MSi-230.0050.005.0032.00120.001264.0033.00
MSi-332.0040.005.0032.00120.001303.0030.00
MSi-432.0050.005.0032.00120.001228.0034.00
Table
Table 5. Micro-structure evolution and mass gain of spark plasma sintering (SPS) coatings on molybdenum and its alloys before and after oxidation.
Table 5. Micro-structure evolution and mass gain of spark plasma sintering (SPS) coatings on molybdenum and its alloys before and after oxidation.
SubstrateComposition and Thickness of Coatings (µm)ExposureComposition and Thickness of Oxidized Coatings (µm)Mass Gain (mg·cm−2)Refs.
Outer LayerInterface LayerOxide LayerIntermediate LayerInterface Layer
MoMoSi2, Mo5Si3 (600.00)-1200 °C, 25.00 hSiO2MoSi2 (215.00)Mo5Si3 (10.00)2.00[57]
Mo3Si, Mo5Si3, Mo5SiB2 (6000.00)Moss, Mo3Si, Mo5SiB2 (80.00)1300 °C, 30.00 hSiO2, B2O3, MoO2 (30.00)Moss, SiO2 (15.00)Mo3Si,Mo5SiB28.00[58]
MoSi2 (500.00)Mo5Si3 (20.00)1400 °C, 80.00 hSiO2MoSi2Mo5Si3Failure[59]
MoSi2, ZrO2, MoB, Mo5Si3 (300.00)Mo5Si3 (10.00)1400 °C, 80.00 hSiO2, ZrSiO4 (2.00)MoSi2, ZrO2 (396.00)Mo5Si3, MoB (88.00)4.00 × 10−2
TZMMoSi2 (150.00)Mo5Si3 (10.00)1000 °C, 50.00 hSiO2 (10.00)MoSi2 (100.00)Mo5Si3 (68.00)1.00[60]
Mo2BC (214.00)MoB, Mo2B (12.00)1000 °C, 1.00 hB2O3 (10.00)Mo2BCMoB, Mo2B−12.00[61]
Table
Table 6. Summary of process, composition and properties of CVD coatings on Mo surface.
Table 6. Summary of process, composition and properties of CVD coatings on Mo surface.
SubstrateComposition of Gas MixtureProcess ConditionsComposition and Thickness of Coatings (µm)Bond Strength (MPa)Hardness (GPa)Surface Grain Size (μm)Refs.
Gas Flow Rate (ml·min−1)Deposition Temperature (°C)Deposition Time (h)OuterlayerInterface Layer
MoSiCl4, H2SiCl4: 50.00
H2: 100.00		620.003.00SiO2 (3.00)MoSi2 (5.00)--15.00[71]
NH3, SiCl4, H2NH3: 100.00
H2: 990.00
SiCl4: 10.00		1100.00NH3: 2.00
SiCl4: 5.00		MoSi2, Si3N4 (72.00)Mo2N (5.00)--3.00 × 10−1[72]
BCl3, TiCl4, H2BCl3: 195.00
TiCl4: 130.00
H2: 635.00		1000.002.00TiB2 (13.00)-7.0028.002.00[73]
WCl2, H2-1800.002.00W (160.00)---20.00[74]
CH4, SiCl4, H2CH4, H2:200.00
SiCl4: 10.00
H2: 990.00		1200.00, 1100.00CH4: 65.00
SiCl4: 10.00		SiC, MoSi2 (60.00)MO2C (25.00)--3.00 × 10−1[75]
Table
Table 7. Microstructure evolution and mass gain of CVD coatings on molybdenum before and after oxidation.
Table 7. Microstructure evolution and mass gain of CVD coatings on molybdenum before and after oxidation.
SubstrateComposition and Thickness of Coatings (µm)ExposureCommentsComposition and Thickness of Oxidized Coatings (µm)Mass Gain (mg·cm−2)Refs.
Outer LayerInterface LayerOxide LayerIntermediate Layer
MoSiO2 (3.00)MoSi2 (5.00)1000 °C, 3.00 h-SiO2, MoO3MoSi2-Mo5Si312.00[71]
MoSi2-Si3N4 (72.00)Mo2N (5.00)500 °C, 1492.00 h1.00 h cyclesSi2ON2, SiO2, MoO3Mo4O11, Mo9O26, (3.00)MoSi2-Si3N4 (100.00)5.00 × 10−1[72]
TiB2 (13.00)-900 °C, 6.00 h-TiO2, B2O3-8.00 × 10−2[73]
TiB2 (13.00)-450 °C, 5.00 h-TiO2, B2O3-3.00 × 10−2[78]
W (160.00)W/Mo (2.00)-----[74]
MoSi2-SiC (60.00)MO2C (25.00)500 °C, 1492.00 h1.00 h cyclesSiO2, MoO3Mo4O11, Mo9O26 (8.00)MoSi2-SiC (80.00)1.00 × 10−2[75]
Table
Table 8. Overview of process, composition and surface properties of hot-dip coating on a molybdenum surface.
Table 8. Overview of process, composition and surface properties of hot-dip coating on a molybdenum surface.
SubstrateOsmotic Source and PurityProcess ConditionsComposition and Thickness of Coatings (µm)Si/Al Content on Coating Surface (wt%)Coating Surface Grain Size (µm)Refs.
InfiltratesourcePurity (wt%)AtmosphereHot Dip Temperatureand Time MinOuter LayerInterface Layer
MoSi99.00Ar1460 °C, 20 minSi-MoSi2 (20.00)Mo5Si3-Mo3Si (3.00)47.00-[85]
Si99.001500 °C, 20 minSi-MoSi2 (22.00)Mo5Si3-Mo3Si (2.00)--[86]
1460 °C, 15 minSi-MoSi2 (15.00)Mo5Si3-Mo3Si (2.00)45.009.00[87]
1520 °C, 15 minSi-MoSi2 (20.00)Mo5Si3-Mo3Si (4.00)56.007.00
Si99.001490 °C, 5 minSi-MoSi2 (12.00)Mo5Si3-Mo3Si (1.00)42.0012.00[88]
1490 °C, 15 minSi-MoSi2 (19.00)Mo5Si3-Mo3Si (4.00)56.007.00
Al99.00No oxygen710 °C, 3 minAl-Al12Mo (30.00)Al8Mo3-Al4Mo (41.00)90.0030.00[89]
750 °C, 3 minAl-Al4Mo (35.00)Al8Mo3 (51.00)81.0055.00
Table
Table 9. Summary of preparation methods and process characteristics of oxidation resistance coatings on molybdenum and its alloys.
Table 9. Summary of preparation methods and process characteristics of oxidation resistance coatings on molybdenum and its alloys.
Method CategoryProcess TemperatureTimeAdvantagesDisadvantagesRefs.
SS method1200–1450 °C15.00–120.00 min1. Simple preparation process, easy operation and low production cost.
2. That process adaptability is strong and the source materials are widely source.
3. That composition of the obtain coating is uniform.		1. The surface quality of the coating is poor, and there are many cracks and holes on the surface of the coating. [43,44,45,46]
SPS method>10,000 °C5.00–10.00 min1. High spraying temperature
2. That operation is simple and the application range is wide.
3. That deposition rate is high, and the coat preparation cost is low		1. That bond strength between the coating and the substrate is low.
2. High porosity of that coat		[57,58,59,60,61]
CVD method500–1000 °C2.00–10.00 h1. The application range is wide and is not limited by the shape of the substrate.
2. The coating composition has uniform thickness and good bonding with the substrate.		1. The deposition temperature is low and the reaction time is long.[71,72,73,74,75]
HD method1430–1560 °C10.00–25.00 min1. High hot dip temperature, short permeation time and high deposition efficiency.
2. The surface of the coating is smooth, the density is high, and the adhesion between the coating and the substrate is good. 		1. The structure of the coating is simple, and research on the oxidation resistance of the coating is relatively rare. [85,86,87,88,89,90,91]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Fu, T.; Shen, F.; Zhang, Y.; Yu, L.; Cui, K.; Wang, J.; Zhang, X. Oxidation Protection of High-Temperature Coatings on the Surface of Mo-Based Alloys—A Review. Coatings 2022, 12, 141. https://doi.org/10.3390/coatings12020141

AMA Style

Fu T, Shen F, Zhang Y, Yu L, Cui K, Wang J, Zhang X. Oxidation Protection of High-Temperature Coatings on the Surface of Mo-Based Alloys—A Review. Coatings. 2022; 12(2):141. https://doi.org/10.3390/coatings12020141

Chicago/Turabian Style

Fu, Tao, Fuqiang Shen, Yingyi Zhang, Laihao Yu, Kunkun Cui, Jie Wang, and Xu Zhang. 2022. "Oxidation Protection of High-Temperature Coatings on the Surface of Mo-Based Alloys—A Review" Coatings 12, no. 2: 141. https://doi.org/10.3390/coatings12020141

APA Style

Fu, T., Shen, F., Zhang, Y., Yu, L., Cui, K., Wang, J., & Zhang, X. (2022). Oxidation Protection of High-Temperature Coatings on the Surface of Mo-Based Alloys—A Review. Coatings, 12(2), 141. https://doi.org/10.3390/coatings12020141

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
