Bio-Inspired Proanthocyanidins from Blueberries’ Surface Coating Prevents Red Blood Cell Agglutination on Urinary Silicon-Based Catheters

Abstract

Thrombosis can cause the occlusion of implantable medical devices, leading to the rejection of the device and subsequent mortality. Thrombosis is primarily induced by red blood aggregation and coagulation. The administration of anticoagulant drugs is generally used as a treatment to avoid these processes. Adverse effects such as bleeding in the event of an anticoagulant overdose, osteoporosis associated with prolonged use, hypersensitivity, and hives have been reported. New strategies such as biomolecule surface functionalization have recently been studied to overcome these problems. In this study, we report a novel coating composed of polydopamine (PDA) and proanthocyanidins (PACs) from blueberry extract to avoid red blood aggregation in short-term use medical devices such as silicone catheters. We showed that PDA formed stable films on silicone surfaces and PACs could be immobilized on PDA layers using laccase as a catalyst. The PDA–PACs films decreased surface hydrophilicity, increased surface roughness, and decreased plasma protein adsorption. The films were stable in phosphate buffer saline (PBS) and cell culture media. Furthermore, red blood cell adsorption and aggregation decreased. These effects are attributed to changes in the membrane fluidity that influences adhesion, the steric hindrance of the layers, and the low adsorption of plasma proteins on the PAC layer.

1. Introduction

The use of medical grade silicone has increased over the years, and its market value is projected to reach USD 16.04 billion by 2022, at a compound annual growth rate of 6.1% between 2017 and 2022 [1]. However, blood-contact silicone-based devices present a significant challenge due to their hydrophobic nature, since they promote the adsorption of nonspecific proteins, leading to platelet adhesion and the eventual formation of thrombi, which can cause blood flow obstruction and facilitate bloodstream infections, one of the leading causes of patient death [2,3]. Thrombi can also migrate to pulmonary circulation, causing a pulmonary embolism [4]. Venous thromboembolism is a global problem, with about 10 million cases annually, representing the third most crucial vascular disease after myocardial infarction and cerebrovascular events [5]. Thrombus formation is a common cause of failure of medical devices exposed to blood; it is believed that the rapid adsorption of plasma proteins on artificial surfaces initiates thrombus formation, as they provide continuous stimuli for platelet adhesion and activation [6,7]. Virchow’s triad describes the three main conditions for medical device-induced thrombosis to occur: blood hypercoagulability, hemodynamic factors, and medical device materials. In medical devices, the amount and conformation of adsorbed plasma proteins depend on the material’s surface properties, such as wettability, surface charge, chemistry, and topography [8].

The interaction of plasma proteins with artificial surfaces activates an intrinsic clotting pathway known as contact activation, which occurs through three serine proteinases and non-enzymatic cofactors, von Willebrand factor (vWF), immunoglobulins, and complement proteins, leading to complex protein–biomaterial and protein–protein interactions [8,9]. Circulating blood platelets irreversibly bind to adsorbed proteins through highly expressed receptors, including integrin membrane glycoprotein (GP) and the GPIb and GPIIb-IIIa (αIIbβ3) complexes bind to fibrinogen, one of the first plasma proteins to be deposited on artificial surfaces, as well as fibronectin, vitronectin, and vWF [6,7]. Red blood cells (RBC) passively adhere to proteins adsorbed on the material and contribute to platelet activation by releasing a low molecular weight compound that acts as a platelet agonist identified as adenosine diphosphate (ADP) [7,10,11]. It is believed that fibrinogen is the most potent aggregator of RBCs in plasma, while some studies describe the enhancement of fibrinogen-induced RBC aggregation by albumin [6,7].

The techniques historically used to prevent thrombosis include the administration of anticoagulant drugs such as heparin or warfarin and acetylsalicylic acid, which inhibit platelet aggregation [11,12,13]. Although oral anticoagulants have been used to prevent thrombosis, they cause adverse effects such as fever and bleeding, among others [13,14,15]. To reduce the side effects derived from the oral consumption of anticoagulants, alternatives such as the creation of venous catheters with anticoagulant coatings have been proposed [16]. Even so, these are commonly used in conjunction with oral or injectable coagulants prophylactically to increase their effectiveness and reduce the risk of bleeding and clot formation at the catheter site [17]. Another recent modification of catheters involves superhydrophilicity of their surface, which prevents RBC adhesion [18]. As therapeutic measures, other mechanisms have been developed, such as filters designed to collect the thrombi and experimental drugs injected into the bloodstream that have the capacity to undo the thrombi [19]. Various studies have linked the consumption of polyphenols in the diet with low platelet activation induced by oxidative stress due to the high oxidative activity of these compounds [20,21]. Grape seed extracts contain polyphenols such as gallic acid, falvan-3-ols, and proanthocyanidins (PACs) that interact with various platelet activation pathways [22]. Nevertheless, the consumption of PACs, anthocyanins, and tannins has produced inconsistent effects in investigations on platelet aggregation, showing, in some cases, the inhibition of ADP-induced platelet aggregation and the formation of arterial thrombi [23], with no effect on platelet aggregation, or even an increase in ADP-induced platelet aggregation by almost 10% [21].

A more recent strategy to introduce plant polyphenols such as PACs in devices in contact with blood is the direct impregnation of polyphenols on the polymer’s surface [24,25]. Recently, a new platelet repellent surface was reported. Tannic acid (TA) was used to represent the polyphenol and the Fe³⁺ ion as a metal cross-linking agent through the metal coordination interaction (Fe³⁺ ions)-AT. The results showed lower platelet adhesion events on the silicon substrates with the coating compared to the original substrate, demonstrating that platelet adhesion on the Fe-TA film surfaces can be effectively repelled. Furthermore, the repellent effect was significantly better than that of the more commonly used poly (ethylene glycol) (PEG) [26].

Proanthocyanidins (PACs) are the primary polyphenols present in berries. PACs are biopolymers of flavanols-3 and are also known as condensed tannins [27]. In this study, a commercial silicone-coated catheter is functionalized with the PAC from blueberry from Vaccinium corymbosum. For this purpose, the catheter surface must be modified or activated before further functionalization due to the low stability of the PACS on the silicone surface. Polydopamine (PDA) has proven itself to be a feasible coating for catheters and acts as a platform for different binding agents [27,28]. PDA is a highly versatile, bio-inspired material due to its catechol and amine-adhesive functional groups, which mimic the natural bioadhesion properties of the mussel [29,30].

The immobilization of the PACs using laccase on the catheter-polydopamine surface is also studied. The laccase enzyme (polyphenol oxidase, EC 1.10.3.2) catalyzes various phenolic compounds such as PAC and polyphenols in aerated solutions [29]. In this study, an ethanolic extract was obtained and characterized by attenuated total reflection Fourier Transform infrared spectroscopy (FTIR), its polyphenol content was measured using the Folin-Ciocalteu method [31], and proanthocyanidins content was established using the butanol–HCl method [32]. The enzymatic reaction of the laccase from Trametes versicolor and the natural extract was evaluated using isothermal titration calorimetry (ITC). The formation of thin films on the catheter surface was studied by FTIR, contact angle, and atomic force microscopy (AFM). The FTIR, contact angle, and AFM analyses were performed again after washing the substrates with phosphate-buffered saline (PBS) and physiological medium for four hours; these washes were performed to characterize the stability of the coatings. We evaluated the effect of the coating on the agglutination of red blood cells on the surface by quantifying the number of plasma proteins and bovine serum albumin (BSA) adhering to the surface of the catheters using a BCA test [33], as well as by studying the adhesion of RBC after contact with a human blood solution for one hour and under shaking. We prepared a SYLGARD™ 184 silicone elastomer model [Dow Corning., USA] to mimic the catheter surface and to measure the Young’s Modulus of the cells adhered to the surface by AFM.

2. Materials and Methods

The extract was produced from Vaccinium Corymbosum blueberries (BerryTico brand, Costa Rica). The sterile Catheter FOLEYCATH^®NR Latex Balloon, composed primarily of natural rubber latex with a silicone coating, was used. This product meets the conformities of BS EN 1616: 1997, ASTM F623, and MS1369: 1995. Dopamine hydrochloride (98%, Sigma Aldrich, Darmstadt, Germany) was used to form the PDA film. The laccase enzyme from Trametes versicolor was purchased from Sigma Aldrich, Germany. 99.7% Iron ammonium sulfate (III) (98.5% Merck, Darmstadt, Germany), 99.8% butanol, and 99.37% iron oxide (III) (Sigma Aldrich, Darmstadt, Darmstadt, Germany) reagents were used to carry out the Folin-Ciocalteu method for polyphenol quantification and to carry out the butanol–HCl assay to detect proanthocyanidins. Sodium acetate, acetic acid, and Tris-base were purchased from Sigma Aldrich, Germany. Voluntary donors donated the blood used in this research (Project protocols revised and approved by the ethical commission of the UCIMED Costa Rica, CEC-0488-2021).

2.1. Blueberry Extract Preparation

Frozen Vaccinium corymbosum blueberries were crushed using a mortar and pestle and then extracted using ethanol (70%) at room temperature for eight hours. The supernatant liquid was filtered, and the filtration was concentrated under a vacuum by a rotary evaporator. The resulting solid extract was dried on the stove for five days at 45 °C.

2.2. Extract Characterization

2.2.1. Total Polyphenol Content

Solutions with a concentration of 400 µg/mL were prepared to perform a calibration curve. Each standard solution was prepared by mixing 0.25 mL of Folin-Ciocalteu reagent previously diluted with distilled water (1:10) with an aliquot of the tannic acid solution. Then, 0.85 mL of Na₂CO₃·10H₂O (20% m/v) solution was added to the mixture and placed in a 4 mL volumetric flask. The flask was filled with distilled water. The mixtures were incubated for 20 min at room temperature in the dark. After the reaction period, the absorbance of the solutions was measured at a wavelength of 735 nm in a Shimadzu UV-Vis spectrophotometer (model UV-1800, Shimadzu Corporation, Kyoto, Japan). Three replications were performed with three independent replicas.

2.2.2. Butanol-HCl Assay for Detection of Proanthocyanidins

Extract samples were dissolved in methanol to obtain 1 mL of solution with a concentration of 0.1 mg/mL of polyphenols (according to previous results of the Folin-Ciocalteu method for each extract sample) and then mixed with 6 mL of a butanol-HCl solution (95:5 v/v), and 0.2 mL of iron reagent solution (2% w/v NH₄Fe(SO₄)₂ 12 H₂O in 2M HCl). The resulting solution was heated in a boiling water bath for 40 min and then cooled down to room temperature. The UV-Vis spectrum was recorded from 400 to 700 nm. Proanthocyanidins were detected with a characteristic absorbance maximum around 550 nm. For the specific detection of proanthocyanidins present in the extract, the method of Liu et al., 2007 was used, in which the proanthocyanidins were isolated and then quantified by means of a butanol-HCl assay through ultraviolet-visible spectrophotometry (UV-Vis).

2.2.3. Attenuated Total Reflection Fourier Transform Infrared Spectroscopy (ATR-FTIR)

A Nicolet 6700 ATR-FTIR spectrophotometer (Thermo Scientific, Waltham, MA, USA) was used, scanning through wavenumbers from 4000 to 400 cm⁻¹ with a standard resolution of 0.09 cm⁻¹ and a scanning speed of 32 cm⁻¹/s. The peak intensity ratios were calculated using the absorbance values.

2.2.4. Isothermal Titration Calorimetry (ITC)

ITC experiments were performed with a NanoITC2G (T. A. Instruments, New Castle, DE, USA). An extract solution of 15.3 mg/mL was titrated over a laccase solution of 0.1 mg/mL. A volume of 1200 μL solution was loaded in the cell and titrated with 19 titrant aliquots of 5 µL, the temperature was kept constant at 25 ± 0.1 °C during the experiments, and the system was continuously stirred (250 rpm) with the syringe. Blank experiments were carried out by titrating water on the extract and the laccase suspension on water. All experiments were carried out at least in triplicate.

2.3. Catheter Surface Modification and Stability Test

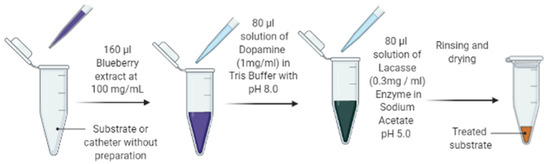

Catheter substrates of 1 cm × 0.5 cm were introduced into 1.5 mL Eppendorf tubes containing 160 µL of 0.5 mg/mL of dopamine hydrochloride in Tris Buffer (pH 8.0) for 30 min or 3 h to form PDA films. Then, the samples were gently rinsed with Milli-Q water. Then, 160 µL of 30 mg/mL Vaccinium Corymbosum extract and 20 µL of a 0.3 mg/mL solution of Lacasse enzyme sodium acetate (pH 5.0) were added to the Eppendorf, and the reaction was carried out for 24 h. Finally, the samples were gently rinsed with Milli-Q water. Figure 1 shows the samples preparation diagram. The stability test was performed by submerging the samples in phosphate buffer 1 mM and physiological medium for 24 h.

2.4. Contact Angle Measurements

The apparent water contact angles were measured using a goniometer (OCA15 Plus, Data Physics Instruments, Filderstadt, Germany) and applying the sessile drop technique. For each measurement, 10 μL drops were formed using HPLC-grade water (Acros Organics, Geel, Belgium), and the subsequently reported contact angles were taken as an average of at least three measurements.

2.5. Protein Adsorption Assay

To make the calibration curve, diluted BSA standard solutions were prepared from the stock solution, a 100 μL aliquot was taken from each solution and 1 mL of the BCA reagent was added; each standard was incubated for 10 min at 60 °C in the oven, and the absorbance was measured at 562 nm. For the treatment of substrates, a 250 µg/mL BSA (Sigma Aldrich, Darmstadt, Germany) solution was prepared, 400 μL of BCA solution was added in each vial (prepared as shown in Section 3) and left to stand for three h, an aliquot of 100 μL of each vial was taken and mixed with 1 mL of the BCA reagent (Sigma Aldrich, Darmstadt, Germany), each one was incubated for 10 min at 60 °C in an oven, and the absorbance was measured at 562 nm in a Shimadzu UV-Vis spectrophotometer (model UV-1800, Shimadzu Corporation, Kyoto, Japan). Three replications were performed with three independent experiments. Plasma proteins were isolated by centrifugation of the two-times diluted blood in PBS at 5000 rpm. The supernatant diluted 45 times with PBS was used for the protein adsorption quantification analysis.

2.6. Red Blood Cells’ Agglutination on the Catheter Surface

To evaluate effects on red blood cells’ agglutination, the catheter was exposed to human blood for 30 min. The application methodology of this experiment was formulated with reference to [33,34,35]. The procedure was performed on sterilized catheter fragments with a 1 cm × 1 cm area (or substrate). Therefore, three replicates of each sample and three independent experiments were produced. The cells were fixed in Karnovsky solution (5% glutaraldehyde, 4% paraformaldehyde, 0.1 M phosphate buffer) for 15 min. Then, they were dehydrated through an increasing gradient of 30%, 50%, 70%, 90%, 95% v/v, and 100% ethyl alcohol for 15 min each. The samples’ surfaces were imaged by SEM. A flat A model substrate was prepared using a SYLGARD™ 184 silicone elastomer to determine the changes in the Young’s modulus of cross-linked red blood cells adhered on the functionalized and non-functionalized surface substrate.

2.7. Scanning Electron Microscopy (SEM)

The samples were analyzed using a SEM JSM-5900 LV (JEOL, Tokyo, Japan), voltage 20 kV, pressure of 1 × 10⁻⁴ Pa. The samples were coated with a 5 nm gold layer by sputtering. The images were analyzed using Inca JEOL software.

2.8. Amplitude-Modulated Atomic Force Microscopy (AFM)

The substrates were dried under environmental conditions. The sample topography was analyzed using an AFM operated in tapping mode (Asylum Research, Santa Barbara, CA, USA) in air. Silicon probes (Nanosensors with Al-covered cantilever backsides) with a resonance frequency of 13 kHz and force constant of 0.2 N/m were used. Nanoscope software (version AR 16.26.229) was used to analyze the data. The cantilever’s deflection and spring constant was calibrated before each measurement using the Thermal Get Real tool (tutorial https://www.youtube.com/watch?v=Wp-U5HXbMys, access on 9 December 2021). The data obtained during retraction were used to model and estimate the Young’s modulus. The cells adhered to the surface after contact for one hour with the surface were fixed using Kartnosky and dehydrated using an ethanol series. The fitting of slope of the force-distance curve was performed using the Hertz model. Five cells per substrate were analyzed. Six substrates of each type—sample or control—were analyzed.

3. Results

A purple ethanolic extract from blueberries was obtained; the amount of solid extract obtained was 2.8 µg/mg of fresh blueberry and the amounts of quantified polyphenols and proanthocyanidins were 34 µg/per mg of dried purple extract and 0.2 mg/mg of dried purple extract, respectively.

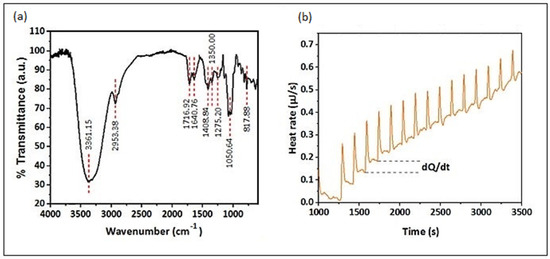

Figure 2a shows the FTIR spectra of the blueberry extract. The peak at 3361 cm⁻¹ corresponds to the O–H stretching vibrations of the CH₂–OH groups, at 2935 cm⁻¹ to the antisymmetric stretching vibrations C–H of the CH₂ groups, and the bending vibrations C–H of the same functional group at 1408 cm⁻¹. The peaks at 1640, 1275, and 1716 cm⁻¹ are associated with the vibration of the C–C bonds of the phenolic groups, C–O, and C=O bonds of the aromatic groups, respectively. The peaks at 817 and 1050 cm⁻¹ correspond to the C–O stretching vibrations of the aromatic group –O–. According to the FTIR spectra, peaks corresponding to the characteristic functional groups of phenolic compounds such as condensed tannins were observed in the extract spectra [36,37]. Figure 2b shows the multiple injections of ITC enzyme kinetic data. The displacement, following each injection, of the horizontal baseline relative to the initial baseline (dQ/dt), is associated with an active enzyme, and this value is proportional to the enzyme velocity [38].

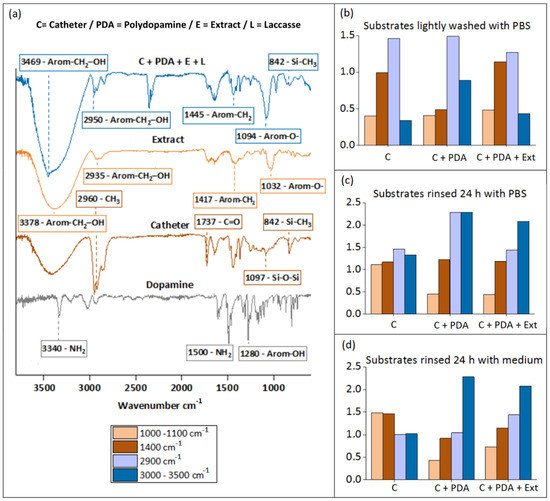

Figure 3a shows the extract, catheter, and dopamine FTIR spectra with their characteristic peaks highlighted. The silicone-coated catheter presents distinct peaks at 824 cm⁻¹, 1097 cm⁻¹, 1737 cm⁻¹, and 2960 cm⁻¹, corresponding to the Si–C bond of Si–CH₃ stretching vibrations, Si–O, C=O bonds, and the stretching vibrations of the CH bonds of CH₃ functional groups, respectively [39,40]. The dopamine spectra show peaks at 3340, 1598, 1280 cm⁻¹, corresponding to the symmetric stretch mode of NH₂, the bending vibrations of NH₂, and the OH stretching vibrations, respectively. The peaks at the 1315 and 1186 cm⁻¹ bands correspond to the O–H bending [41,42]. Figure 2 also shows the spectra of the functionalized catheter. The intensity decreases in the silicone represent peaks of 800 and 2900 cm⁻¹, with the intensity of the bands close to 1100, 1400, and 3500 cm⁻¹, suggesting a successful functionalization and film formation with PDA and PDA extract. Figure 3b–d show a plot of the values obtained from the peak intensity correlation within 800 cm⁻¹ in each spectrum, with their respective peaks close to 1000–1100, 1400, 2900 cm⁻¹, and 3000 to 2500 cm⁻¹, when the substrates were lightly washed with PBS, rinsed 24 h with PBS, and rinsed 24 h with medium, respectively. This correlation was calculated according to the following formula: (peak intensity (x cm⁻¹))/(Peak intensity (800 cm⁻¹)).

The greater values are attributed to the contribution of the aromatic- CH₂, OH, and CH₂ groups, as highlighted in Figure 3 [43]. The greater intensity of the bands in the rinsed substrates may be due to the contribution of proteins present in the physiological medium, and to the elimination of contaminants on the surface that are not removed with light washing.

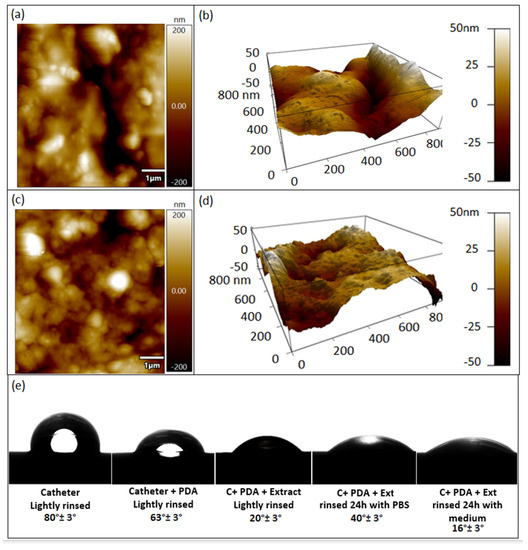

Figure 4a,c, show the AFM images of the pristine catheter surface in 2D and 3D, respectively; likewise, Figure 4b,d, show the surface of the functionalized catheter. When comparing the 2D images, it is not possible to observe changes due to the irregularities of the surface at the microscale. However, at the nanoscale and analyzing areas of 1 µm, the functionalized surface showed that there were significant changes in the root mean square roughness (RMS) [44,45]. An average RMS was 9.2 nm for the pristine catheter and 24.6 nm for the functionalized catheter, suggesting a thin layer formation due to an increase in roughness. Figure 4c shows a water drop on the pristine catheter and functionalized substrate surfaces. There is a reduction in the surface hydrophobicity and a decrease in the contact angle when the surface is coated with PDA; the change from 80° ± 4° to 63° ± 3° suggests PDA coating formation. The presence of the extract compounds on the surface is suggested by a further increase in the hydrophilicity of the surface with respect to that of the substrate functionalized only with PDA from 63° ± 3° to 20° ± 3°. The aromatic –OH and aromatic-O groups could improve the affinity of the surface with the water and change its wettability [46]. To test the stability of the PDA-Ext coating, the functionalized surfaces were rinsed with PBS and physiological medium for 24 h, the apparent contact angles on the surface were 40° ± 3° and 16° ± 3°, respectively, the permanence in reducing wettability on the surface suggests that the coating is stable.

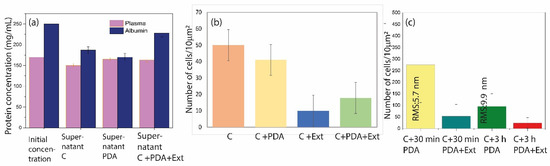

We performed a BCA test to quantify the amount of BSA and plasma proteins once the solution was exposed to samples of pristine catheter and catheter functionalized with the PDA-Ext; the initial BSA concentration was 0.250 mg/mL and, after contact with the surfaces, it was 0.187 mg/mL and 0.228 mg/mL, respectively. This is the result of the amount of protein remaining in the solution supernatant. The difference in BSA concentrations shows that protein adsorption on the catheter surface functionalized with PDA-Ext was lower. This result may be due to the polymeric forms of tannins, such as macromolecular-condensed tannins, which exhibit greater steric hindrance, and their available reactive sites are widely separated; therefore, BSA protein would interact less with the surface due to steric effects [47]. Similar results were obtained for plasma proteins, as can be seen in Figure 5.

BSA is used as a fouling agent to be adhered to surfaces and to be able to make a quantification of the adhesion of proteins to the surface. However, in the literature it is described that BSA can be an adhesion inhibitor agent. Increased surface roughness can increase dirt by trapping dirt in the valley formed on the surface of the membrane. Soiling can be trapped in the valleys of the membrane. In addition, the masking of the by the polymer chain during the membrane precipitation can also cause the fouling decrease by minimizing the nanocomposite membrane to 5% by weight due to the high concentration of antifouling filler on the surface of the membrane [48].

In Figure 5b, to determine the amount of red blood cells adhered to the catheter alone and to the catheter modifying the surface, SEM images were taken; the red blood cell count was performed by counting an area of 10 µm × 10 µm. Figure 5c shows the amount of RBC adhered on the surface of PDA-Ext films with different PDA thicknesses. The roughness of the PDA film formed on the PDMS surface after 30 min and 3 h in contact with the dopamine solution were 5.7 nm and 9.9 nm, respectively.

As can be seen in the graph, the amount of RBC adhered to the surface in the PDA + extract samples decreased. While in contrast to what was found by Dang et al. 2015, it is observed that with a greater thickness of PDA, the amount of RBC that adheres is less. [49].

The changes in the roughness of the surface are not significant, so another type of analysis must be done to measure the thicknesses because it may be that instead of thickening the thickness of the layer, only the spaces available on the surface have been filled. and there are not as many sites of interaction due to the roughness of the surface [49]. PDA increases the hydrophilicity of the surface by exposing more -OH groups on the surface, forcing the RBCs to adhere to the surface, forming hydrophilic interactions, which makes it easier for red blood cells to adhere less strongly.

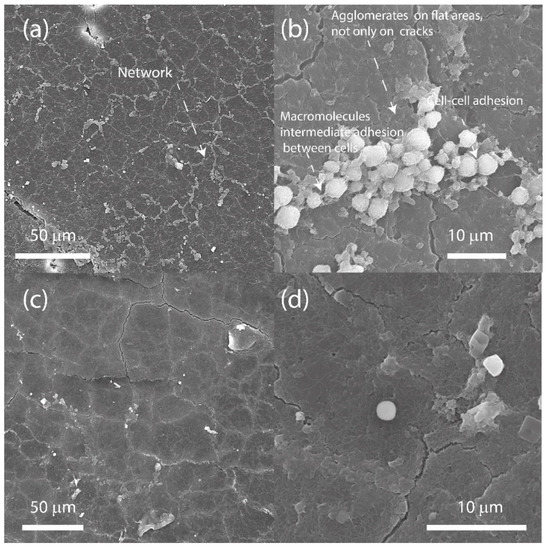

Figure 6a shows a graphical distribution of adhered RBC on the samples. Figure 6d which corresponds to the functionalized catheter exposed to red blood cells, it can be clearly seen that there is a smaller number of clusters of red blood cells on the surface compared to the catheter only corresponding to Figure 6b.

The adhesion of the RBCs occurs in the flattest parts as we can see in the SEM microscopies, while the cracks are exposed and do not promote the adhesion of the RBCs. Additionally, as occurs in circulation, platelets and other blood components adhere to collagen, fibronectin, laminin, vitronectin, and thrombospondin in the subendothelium to form conglomerates of RBC on the surface. In addition, RBC adhesion can occur between them, or it can be mediated by macromolecules or there is intervention of the extracellular matrix as can be seen in Figure 6. The morphology of the red blood cells in Figure 6 is described as discocyte, which corresponds to the normal form of RBCs. Additionally, spherocytes can be seen that can be caused by a hypotonic environment that could be caused by the treatment that was given to the sample [50].

We prepared a SYLGARD™ 184 silicone elastomer model in an attempt to mimic a flat catheter surface for a better measurement by AFM and to avoid the influence of roughness. Contact angle measurements were carried out to verify that the model and the catheter had similar wettability. They were also verified to have similar functional groups by FTIR. The model substrate was functionalized under the same conditions as the catheter.

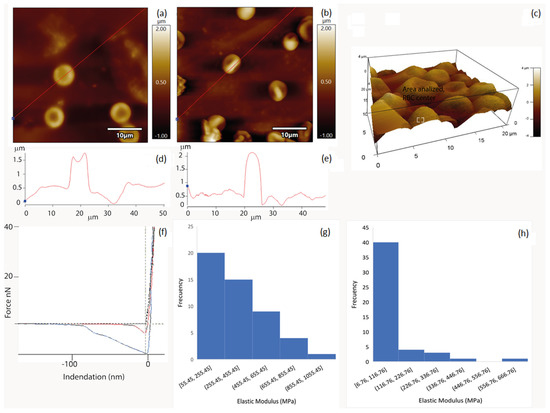

Figure 7a,b shows the morphology of the RBC adhered to the control, and functionalized substrate, respectively. Figure 7c,d shows the line cross-section shown in Figure 7a,b, respectively. Figure 7e,f shows the area where the indentation was done and a representative force vs indentation curve obtained for the cells adhered to the control surface. The RBC attached to the control surface shows a flat discoid morphology and a diameter and height average of of 6.8 ± 1 µm and 1.5 ± 5 µm, respectively. The RBC adhered to the functionalized surface shows a rounder morphology than the adhered to the control surface and a diameter and height average of 7.6 ± 0.8 µm and 1.7 ± 5 µm, respectively. In Figure 7g,h, it is possible to notice the frequency distribution of the EC values in the RBCs found on the pristine surface and functionalized substrate model substrate, respectively. It is possible to observe a decrease in the EC values of the RBCs presented on the functionalized model surface compared to the RBCs presented on the model surface without treatment.

4. Discussion

Previous studies identified and quantified anthocyanins, flavonoids, and PACs in blueberry crops and have suggested that ethanolic extractions are highly capable of solubilizing tannins covalently attached to the fruit’s cell wall [51,52], as also demonstrated in this study. According to the FTIR spectra, peaks corresponding to the characteristic functional groups of phenolic compounds such as condensed tannins were observed in the extract spectra.

For stabilizing the PACs on the catheter surface, phenol oxidizing laccase was added to the reaction media to improve the formation of covalent bonds. For this purpose, a calorimetric study was carried out to determine whether the enzyme could oxidize polyphenolic compounds in the extract. The results shown in Figure 2b suggest that the enzyme could oxidize the phenolic compounds of the extract that could further react with the PDA coating. The presence of new functional groups on the surface is corroborated by measuring the increase in roughness and decrease in water contact angle in comparison with the control surface. The aromatic –OH and aromatic-O groups could improve the affinity of the surface with the water and change its wettability [47]. Polydopamine (PDA) is produced from the oxidative polymerization or self-assembly of catecholamines in alkaline aqueous solutions; it is characterized by a strong adhesion on varied substrates through covalent bonds and intermolecular interactions. This property has been used as an interfacial adhesion medium for biomedical applications. [53,54]. PDA treatment has been applied to PDMS substrates, as well as PDMS-based closed microfluidic systems that are used in in vitro studies of cell physiology. [53] Park et al. performed a chemical modification on the surface of a polydimethylsiloxane (PDMS) substrate using polydopamine (PDA), which was spontaneously deposited through an immersion process coating to form a thin, biocompatible film that favored adhesion of the extracellular matrix (ECM) hydrogel scaffolds. Under dynamic conditions, the hydrogel matrix in the PDA-treated substrate remained intact without gel shedding [54]. Chuah et al. modified the surface of a PDMS substrate with PDA to improve biocompatibility for the culture of bone marrow stromal cells (BMSC), determining that the modification of the PDMS surface chemistry due to PDA could have predominant effects in BMSC culture regardless of surface hydrophobicity changes. [55] Similarly, Dabaghi et al. compared a static and dynamic PDA coating for PDMS microfluidic devices. These PDA coatings were used to bind collagen within devices and enhance cell adhesion of human bronchial epithelial cells. [55] PDA’s adhesion strength is provided by these catechol groups that form hydrogen bonds with the silicone surface [30]. Generally, PDA films are heterogeneous and encompass oligomeric segments and supramolecular aggregates assembled by van der Waals interactions and hydrogen bonds [31]. The deposition and adhesion behavior of the polydopamine on different surfaces is not yet well understood. Zhang et al. reported that the wettability has a significant influence on the adhesion and that hydrophobic surface enhances the PDA adhesion [56]

When it comes to interfacial applications between components and tissues for the medical industry, the interfaces are often weak, which can lead to delamination during long-term implantation and biological sequelae. Within efforts to improve this problem, Xue et al. designed and manufactured a hydrogel bio adhesive that is capable of instant and robust adhesion and enables release triggered by on-demand stimuli. This adhesion of the hydrogel arises from the fact that it is given by biomimetic interfacial water drainage, synergistic hydrogen bonds and chemical crosslinking. [57] Similarly, Liu et al. developed a strategy for fatigue-resistant adhesion of hydrogels on various engineering materials by joining ordered nanostructures in hydrogels from engineering materials. [58] We believe that our coating can also serve as a possible base for low tack hydrogels that are used in removable hydrogel adhesives for bioelectronics.

After the PDA layer formation, the extract was in contact with the surface substrate for 24 h for PAC immobilization. There is an increase in the hydrophilicity of the surface with respect to that of the substrate functionalized only with PDA from 63° ± 3° to 20° ± 3°. When the functionalized substrate was rinsed for 24 h with PBS and culture media, the functionalization partially remained due to the lower contact angle and ATR-FTIR peak intensity changes. The higher hydrophilicity in the substrate rinsed with cell culture media-enriched BSA may be due to the protein adsorption on the surface.

Figure 6 shows the RBC agglomerates formed on the pristine and functionalized catheter. Figure 6c,d shows fewer clusters of RBC are found on the functionalized surface than in the pristine catheter. The adhesion of the RBCs on the catheter surface occurred on the flat areas and within the cracks. However, few clusters of RBC were found on the functionalized catheter. The organic material surrounding the cells suggests that platelets and other blood components such as collagen, fibronectin, laminin, vitronectin, and thrombospondin adhered to the surface and form part of the clusters as it happens during blood circulation Figure 6b shows cell-cell binding and cells bound by an intermediary macromolecule or intervention of the extracellular matrix. The morphology of the red blood cells in Figure 6 is described as discocyte, which corresponds to the normal form of RBCs. Additionally, spherocytes can be seen that can be caused by a hypotonic environment that could be caused during the cross-linking of the cells or even due to the friction during the blood pipetting [50].

Adhesion of thrombocytes to the surfaces of materials and coagulation cascade are mediated by surface-bound proteins, including Von Willebrand factor (vWB), fibrinogen, vitronectin, and albumin. These proteins present in the extracellular medium (ECM) are immediately adsorbed on the surface of materials to form a layer that promotes cell adhesion [59]. Lower adsorption of blood proteins may represent the higher capacity of the functionalized catheter to inhibit RBC and thrombocytes’ adhesion to the surface [60]. Lower albumin adsorption means that adhesive proteins such as fibrinogen could interact more directly with the substrate and be de-natured, decreasing the probability of fibrin formation [61].

To analyze the adhesion behavior of RBC on the catheter surface, we followed the experiment proposed by Leslie D et al. [35]. We added a 3% RBC solution on different samples of the catheter for one hour and then rinsed. When the catheter is functionalized with PDA-Ext, the amount of RBC adhered to the surface decreases when compared to the catheter with extract alone. This result suggests that the coating is effective against blood agglutination on the catheter surface.

Dang et al. showed that the platelet adhesion was dependent on the PDA layer thickness due to the formation of aggregates that increase the surface contact area and, consequently, protein adsorption. However, further immobilization of these layer with phosphorylcholine copolymer decreased platelet adhesion by 99%. To determine whether the PDA film influences the coating performance, we produced PDA films with two different roughness, and then these samples were in contact with the extract for 24 h, as described previously. The results suggest that PDA thickness does have an influence RBC adhesion. Our results show that thicker PDA layers were formed on the catheter surface when the contact time with the dopamine solution increased. Furthermore, thicker PDA layers decreased the RBC adhesion. Dang et al. 2015 reported an opposite result for adhesion on thicker PDA layers for platelets [49]. We hypothesize that the RBC adhesion reduction with PDA is due to higher interaction with the cell membrane inhibiting the interaction between cells and other blood cell components as suggested by the antigenic shielded effect of the PDA on RBC [62]. A layer roughness increased indicates a thicker layer. Thicker layers could increase the density of the OH groups on the surface, enhancing the interfacial adhesion of the proteins and cells based on hydrophilic interactions, making it easier for red blood cells to adhere less strongly than when they profit from hydrophobic interactions. The film maintained similar morphology, and no other nanostructures that increased the surface area were detected. Further studies are necessary to determine the reason for PDA film thickness on the RBC adhesion.

This research has focused on evaluating changes in the membrane of red blood cells caused by polyphenols and how these changes can modify the mechanical properties of the cell membrane. The polyphenolic structure of flavonoids gives them the ability to interact with biological membranes, eliminating free radicals; thus, they also act directly as transition metal chelators on the membranes. Such interactions could result in an alteration in the arrangement of the lipids of the membrane at different depths of the lipid bilayer. This interaction has been shown to be concentration dependent, increasing the fluidity of the membrane near the surface [63]. This result is also reaffirmed in the research proposed by Visser, J et al. in which it was shown that the protective antioxidant properties of PACs increased the elasticity of the membrane [63]. It was experimentally verified that blueberry extract in solution can agglomerate RBC, but only at very high concentrations (≥160 mg/mL). Additionally, at low concentrations (≤80 mg/mL), this effect was not observed.

The fluidity of the membrane has been shown to play a decisive role in the efficiency of the cell’s binding to the ligand; this fluidity depends on the freedom of mobility of the membrane components [64]. Several studies have suggested a direct proportional correlation between red blood cell deformability and membrane fluidity [65]. In this sense, greater deformability of the membrane is correlated with a lower elastic modulus (EC) and greater fluidity in the membrane. Classical studies have revealed that surfactants fluidized the cell membrane, weakening cell adhesion. Recently, polyphenols such as tannic acid (TA) have been used as surfactants for different purposes due to environmental concerns and the high availability of polyphenols in nature [66,67]. Research proposed by Takahisa M et al. used natural polyphenols as surfactants to modulate the membrane fluidity of stem cells and reduce cell adhesion without toxic effects relative to their early differentiated progeny [68].

Morphological AFM analysis of the cells adhered to the samples showed that the few cells adhered to the PDA-Ext were larger in height and width than the cells adhered to the native surface, suggesting that the larger cells adhered to the catheter by increasing the adhesion points with the surface [51]. Nanoindentation has become a useful tool to determine properties such as the elastic modulus (EC) of biological samples. Cantilevers serve as nano-introducers that allow for the testing of small, inhomogeneous samples such as cells. Various models are used to calculate EC, but most of them are based on the Hertz model [69]. For our indentation experiment, we performed measurements to obtain force-distance curves in the central region of the RBC. This information is provided by mechanical mapping using AFM, in which curves are obtained in each pixel of the image of the central cell region. The quantification of the elasticity of the cells was measured from a central region. Central and peripherals regions of the cell show elasticity differences of up to four orders of magnitude, from tens of Pa to hundreds of kPa [70], and the area should be set before the experiment. Cell adhesion determines cell elasticity; consequently, the structures formed by cells differ and the actin cytoskeleton reorganizes in a pattern-dependent manner. Non-adherent cell areas are generally softer than adherent cells [70]. It is possible to observe a decrease in the EC values of the RBCs presented on the treated model’s surface compared to the RBCs presented on the model’s surface without treatment.

Other studies reported that red blood cells loosely attached to the substrate show a decrease in EC given the presumption of the Hertz model [69]. The lower EC could be associated with the membrane state [71]. The cell adhesion determines the cell elasticity that is correlated with the reorganization of the actin cytoskeleton. Non-adherent cell areas are generally softer than adherent cells [72]. Our results suggest that the blueberry extract coating can repel the adhesion of red blood cells to the surface due to changes in the fluidity of the RBC membrane, which influences adhesion to the substrate.

5. Conclusions

The ethanolic extract of blueberry contained polyphenols and PACs. We consider that the use of ethanol is a viable option for the extraction of PACs, as described by previous research. We achieved a stable functionalization of the silicone catheter with the PDA + Ext on the originally hydrophobic surface. The RMS on the surface of the functionalized catheter was greater than that of the original. This finding, paired with an increase in surface wettability and the presence of hydroxyl groups, demonstrates the presence of the PDA + Ext coating on the surface. Furthermore, functionalization prevails after rinsing with bacteria and cell culture media. The PDA + Ext coating on the catheter surface was able to reduce blood protein adhesion compared to the original catheter surface; the percentage of reduction in albumin and plasma protein adhesion to the surface was approximately 15.2% and 7.65%, respectively. We suggest that the decrease in the adhesion of blood proteins to the surface could have a decreasing effect on the adhesion and aggregation of red blood cells on the surface. In this regard, we observed a reduction of approximately 60% in the adhesion of RBC when the catheter surface had the PDA + PAC coating, compared with the adhesion of RBC to the original surface; furthermore, the SEM images showed an RBC agglutination effect on the surface of the pristine catheter, which was not observed on the functionalized surface. We also consider that the molecular size of the PACs may cause a steric hindrance effect that could contribute to the RBC repellent effect of the coating. AFM indentation experiments showed a distribution of Young’s modulus measurements of red blood cells adhered to the original catheter, in which most of the values were between 55.45 and 655.45 MPa, while the few RBCs found adhered to the PDA-PAC-coated catheter showed that most of the measurements shifted between 6.76 and 116.76 MPA. This lower Young’s modulus indicates that the RBCs were not well adhered to the coated surface. Since a decrease in the fluidity of the RBC membrane is directly related to a decrease in its stiffness, and a low stiffness is correlated with a lower Young’s modulus, we suggest that PACs are capable of modifying adhesion to the functionalized surface, first modifying the RBC membrane in contact with the hydroxyl groups and thus changing the biomechanical properties of the cell toward the substrate.

Our findings on changes in the adhesion of RBC to a silicone surface due to PDA + Ext coating could be important in the development of surfaces that inhibit thrombus formation in silicone medical devices that come into contact with blood. For further experiments, it might be useful to expose the substrates to autoclaving processes, emulating the sterilization that medical devices would undergo at the industrial production level, and thus evaluate the stability of the coating after exposure to higher temperatures.
