Facile Fabrication of F-Doped SnO₂ Nanomaterials for Improved Photocatalytic Activity

Abstract

Non-metal doping introduces structural defects, which alter the metal oxide band gap, resulting in high photocatalytic performance. Herein, a F doped SnO₂ was synthesized via a simple solvothermal method. Through adjusting the solvothermal time, surfactants and F doping ratio, the optimal sample was prepared. In addition, the as-prepared nano-powder was characterized and analyzed by X-Ray-Diffraction (XRD), Scanning Electron Microscope (SEM), Energy Disperse Spectroscopy (EDS) and Fourier Transform Infrared Spectrum (FT-IR). Interestingly, the results of photocatalytic degradation showed that the degradation rate of rhodamine B (Rh B) reached 92.9% in 25 min after a 5-hour solvent heat treatment with polyethylene glycol (PEG) surfactant and F doping ratio of n(F):n(Sn) = 1:15. Through the study of photocatalytic performance, we found that F-doped SnO₂ has high photocatalytic activity during a short time and its development potential in the field of photocatalysis, which provides a strong support for our further study of its practical application.

1. Introduction

In today’s era, facing the increasingly serious environmental crisis and energy shortage, solar photocatalytic technology based on semiconductor has attracted strong research interest all over the world [1]. Currently, it is mainly applied in photocatalytic hydrogen production [2], photocatalytic CO₂ conversion [3], and photocatalytic degradation of environmental pollution [4]. Up to now, it is a key scientific problem to broaden the light response range and improve the quantum efficiency of semiconductor photocatalysts that increase its practical application [3]. Therefore, it is urgent to explore novel efficient photocatalysts with high light performance, economy and good stability to further promote the development of photocatalytic degradation technology [5].

SnO₂ is an economical and non-toxic oxide semiconductor material [6]. At present, it is widely applied in the field of sodium ion or lithium ion batteries [7], solar cells [8], sensors [9] and photocatalysis [10] due to its excellent stability, excellent electrical properties and high photosensitivity [11]. Many studies have been carried out during the last years to improve the photocatalytic performance of SnO₂, such as the preparation of structures with special morphology and doping of other substances. Lu et al. [12] synthesized flower-like SnO₂ with a simple template-free hydrothermal method. After the photocatalytic degradation process of methyl orange (MB) and rhodamine B (Rh B), the flower-like SnO₂ showed better performance than commercial SnO₂ particles. SnO₂ nanorods was synthesized by Hou et al. [13] via an interfacial hydrothermal method. For the degradation of methyl orange, the photocatalytic efficiency reached 99.3% of SnO₂ nanorods and only spent 60 min under UV light irradiation.

At present, SnO₂ was modified with non-metallic elements to improve their photocatalytic activity. Generally, doping non-metal (C, B, I, F, S, and P) will introduce structural defects, altering the band gap of metal oxide and resulting in higher absorption [14,15]. Tuan et al. [16] modified SnO₂ using reduced graphene oxide. The photocatalytic activity for MB has been improved because of the raised specific surface area. Vitiello et al. [17] prepared effective photocatalysts using low F doped ZnO, thus making the catalyst safer and more environmentally sustainable. In addition, these ZnO: F catalysts showed better photocatalytic properties and had shorter Diclofenac (DCF) degradation and mineralization times when compared to other ZnO-based materials. Chen et al. [18] improved visible light photocatalytic activity through modified SnO₂ composites with N-doped carbon quantum dots. Comparing with pure SnO₂, the SnO₂/NCQDs showed enhanced photocatalytic performance, which increased from 20.1% to 99.0% within 120-minute degradation of Rh B. The enhanced photocatalytic performance may be due to the addition of quantum dots—it can interact with SnO₂ to increasing the response of the composite under visible light by reducing the band gap.

Inspired by the F-doped ZnO and N-doped SnO₂, in this paper, we fabricated optimally F-doped SnO₂ nanomaterials via a simple Solvothermal method, and the photocatalytic activity for degradation of Rh B was investigated. At the same time as photocatalytic Rh B, the structural and functional relations of different proportions of F-doped SnO₂ samples were studied, such as XRD, SEM, EDS and FTIR, in order to evaluate the influence of F doping on the structure and photocatalytic effect of SnO₂.

2. Experimental Part

2.1. Instruments and Reagents

Experimental instruments and equipment include: Electronic balance (JJ224BC, Changshu Shuangjie Test Instrument Factory, Changshu, China), electric constant temperature air blowing drying oven (101A-2, Shanghai Experimental Instrument Co. Ltd., Shanghai, China), centrifuge (TDZ5-WS, Hunan Xiangyi Instrument Development Co. Ltd., Changsha, China), UV-Visible spectrophotometer (UV-5100, Shanghai Yuanxi Instrument Co. Ltd., Shanghai, China), digital display heat collection stirrer (DF101B, Jintan Dadi Automatic Instrument Factory, Jintan, China), ultrasonic cleaning machine (KQ3201B, Kunshan Ultrasonic Instrument Co. Ltd., Suzhou, China) and magnetic heating stirrer (CJJ78-1, Jintan Baita Xinbao Instrument Factory, Jintan, China). Experimental reagents mainly included: stannic chloride pentahydrate (SnCl₄·5H₂O), polyethylene glycol (HO(CH₂CH₂O)_nH, PEG), sodium fluoride (NaF), anhydrous ethanol, sodium dodecyl sulfate (C₁₂H₂₅NaO₄S, SDS), sodium dodecyl benzene sulfonate (C₁₈H₂₉NaO₃S, SDBS), polyvinyl pyrrolidone ((C₆H₉NO)_n, PVP), lauryl amine and oleic acid, all of the drugs were analytical pure (AR).

2.2. Preparation of F-doped SnO₂

SnO₂ with different conditional parameters were prepared by solvothermal method. Mixed the oleic acid and lauryl amine in a 250-milliliter beaker and heat to 80 °C. Then, weigh 1.4 g SnCl₄·5H₂O dissolve in the above mixture and stir until it dissolves. Then, transferred to a high-pressure reactor and solve-heated at 200 °C for 5, 10, 15 and 20 h, respectively. After the reaction, the product was washed several times with anhydrous ethanol and deionized water. Finally, the product was dried at 90 °C. On the other hand, SnO₂ was prepared by adding different surfactants (1 mmol PEG (6000), 1 mmol PVP, 1 mmol SDBS and 1 mmol SDS, respectively) under the same conditions (as shown in

Table 1. Different experimental parameters of SnO₂ prepared by solvothermal method.

Conditions	Reagent	Time	Surfactant
Different solvent–thermal times	48 mL oleic acid; 32 mL lauryl amine; 1.4 g SnCl4·5H2O	5 h	None
		10 h
		15 h
		20 h
Different surfactants	48 mL oleic acid; 32 mL lauryl amine; 1.4 g SnCl4·5H2O	5 h	1 mmol PEG (6000)
			1 mmol PVP
			1 mmol SDBS
			1 mmol SDS

).

The preparation method of F-doped SnO₂ nano-powders is basically the same as SnO₂; the key is to add different qualities of NaF and, finally, get different ratios of F-doped SnO₂ nano-powders. The n(F)/n(Sn) = 0:1 was named S0, n(F)/n(Sn) = 1:1 was named S1, n(F)/n(Sn) = 1:5 was named S2, n(F)/n(Sn) = 1:10 was named S3 and n(F)/n(Sn) = 1:15 was named S4, respectively. Related conditions and parameters are shown in

Table 2. Preparation of SnO₂ powders with different F doping ratios.

Samples	SnCl4·5H2O (g)	NaF (g)	n(F)/n(Sn)	F (wt.%)
S0	1.4	0.0000	0:1	0.00
S1	1.4	0.1680	1:1	12.70
S2	1.4	0.0336	1:5	2.50
S3	1.4	0.0168	1:10	1.70
S4	1.4	0.0112	1:15	0.84

.

2.3. Characterization

The crystal phase structure of the samples was analyzed by X-Ray Diffractometer (XRD, D8 Advance, Bruker AXS GmbH, Karlsruhe, Germany). The sample morphology was observed by Scanning Electron Microscope (SEM, SU-8010, HITACHI, Tokyo, Japan). The SEM-based Energy Disperse Spectroscopy (EDS, American IXRF Model 550I, Austin, TX, USA) was used to study the elemental composition of the samples. Fourier Transform Infrared Spectroscopy (FTIR, Nicolet 5700, American Thermoelectric, Chicago, IL, USA) was used to reflect the molecular structure characteristics of nanomaterials.

2.4. Photocatalytic Study

The specific method of photocatalytic experiment is as follows: weigh 50 mg samples prepared under different conditions, transfer into 50 mL photocatalytic quartz tube, add 40 mg/L Rh B 6.25 mL to constant volume to 50 mL by deionized water and put them into the photocatalytic reactor. In the light reaction instrument, the magnetic stirring lasted 30 min at first; the SnO₂ nano-powders was dispersed evenly in Rh B solution, keeping the balance between adsorption and desorption.

Transfer 5 mL of solution from quartz tube to centrifugal tube, take supernatant after centrifugation and use UV-visible spectrophotometer to measure absorbance. 1000 W high-pressure mercury lamp (λ Max = 365 nm) was selected as the light source, and magnetic stirring was continued during the irradiation. Take a sample every 5 min as an observation point and determine the degree of photocatalytic degradation of Rh B by referring to the standard curve of Rh B.

The calculation of degradation % for Rh B as following:

$$\eta =\frac{C-C_0}{C_0}\times 100\%$$

(1)

In this formula, η- degradation % for Rh B, C-concentrations after degradation, C₀-Initial concentration of Rh B.

In order to explore the photocatalytic mechanism of F-doped SnO₂ photocatalyst for degradation of Rh B, different trapping agents were added to the reaction system to capture different active substances. The same amount of photocatalyst was added with KI to capture hole (h⁺ and ·OH), Isopropyl alcohol (IPA) to capture hydroxyl radical (·OH) and P-benzoquinone (BQ) to capture superoxide anion (·O₂⁻), and the experiment was compared with that without trapping agent [19,20].

3. Results and Discussion

3.1. Crystal Structure

XRD patterns of samples prepared at different reaction times are shown in Figure 1a. The patterns of as-prepared samples were well-matched with JCPDS 77-0452, the strong peaks at 26.5°, 33.8°, and 51.6° belonged to the (110), (101), and (211) planes of SnO₂. When the solvothermal time is 5 h, the half peak width of the diffraction peak is narrow and the intensity is relatively high, indicating good crystallization. Due to the long time reaction with 20 h, the product may have formed some complex peaks which at ~25° and ~33°. The crystallite sizes of the products were 14, 12.2, 10.8 and 9.2 nm at solvothermal times of 5, 10, 15 and 20 h, respectively, according to the Scherrer equation.

Figure 1b shows the XRD patterns of different surfactants at 5 h of solvothermal. Through comparative analysis, the XRD patterns of as-prepared samples with the addition of SDBS and SDS showed some miscellaneous peaks, indicating that other substances may appear in the prepared powder. Compared with the XRD patterns as-prepared samples by adding PEG and PVP, the powder diffraction peak of as-prepared sample by PEG as dispersant was stronger.

From the XRD patterns of S0 and S1, S2, S3, and S4 samples (Figure 1c), it could be found that the F-doped sample is consistent with the standard card of pure SnO₂, indicating that the obtained particles have the structure of SnO₂. The crystallite sizes of the samples were calculated by Scherrer equation: S0, S1, S2, S3 and S4 was 18.8, 20.1, 22.2, 23 and 23.2 nm, respectively. Compared with S0, the XRD peaks have shifted to left at 26.5°, 33.8°, and 51.6° of S1, S2, S3 and S4. It is proven that the F has incorporated into the SnO₂ structure. When the proportion of F exceeds 1.7%, the crystal size of SnO₂ increases gradually. When the doping ratio of F less than 1.7%, the crystallite size of SnO₂ does not change significantly. When n(F)/n(Sn) = 1:1(S1), the amount of F may be too high, causing F to compound with SnO₂ rather than doping, resulting in the formation of hybrid peaks in Figure 1c-S1.

3.2. Functional Group Analysis

The FTIR spectra of as-prepared nanoparticles are illustrated in Figure 1d. All samples showed a characteristic peak between 400 and 650 cm⁻¹, which was assigned to the O-Sn-O bridge of the SnO₂ nanoparticles [21]. The O-H stretching vibration peak appears at about 1600 cm⁻¹, which may be caused by the adsorption of water molecules or -OH groups on the sample surface [22]. The peak at 2919 and 2848 cm⁻¹ was ascribed to the C-H stretching and bending vibrations. The absorption peak in 400–700 cm⁻¹ region has a higher intensity when n(F)/n(Sn) = 1:15(S4), indicating that the crystal structure of SnO₂ has been synthesized.

3.3. Morphology Analysis

Scanning electron microscope (SEM) images of SnO₂ samples prepared by adding different surfactants are shown in Figure 2a–d. According to the SEM micrographs, all the materials prepared with surfactants (SDS, PVP, PEG, and SDBS) does not have much difference for particle size and dispersion.

The SEM of SnO₂ samples prepared with different F doping ratios are shown in Figure 2e–i. From Figure 2e, pure SnO₂ products have uniform morphology and small particle size distribution, and the average particles diameter of SnO₂ is 9–12 nm. The morphology of the SnO₂ sample after F doping was mainly showed spherical. When n(F)/n(Sn) = 1:1(S1), it can be seen from Figure 2f that the product is partially condensed into particles of larger diameter. The average diameter is about 26 nm with poor dispersion and a small amount of slag on the surface of the microsphere. When n(F)/n(Sn) = 1:1(S1), the product may reach the composite state. When n(F)/n(Sn) = 1:5(S2), it can be seen from Figure 2g that the product is spherical, with an average particle diameter about 10 nm. A small number of microspheres are damaged on the surface and the product contains a large number of aggregation spheres. When n(F)/n(Sn) = 1:10(S3), it can be seen from Figure 2h that when the number of the microsphere increases, the average particles diameter of the microsphere changes little, and the products are mostly small particles that gather and adsorb on the surface of the microsphere. When n(F)/n(Sn) = 1:15(S4), it can be seen from Figure 2i that the sample contains a large number of microspheres with a small average particle diameter of about 14 nm, among which many particles are clustered together, and the average particles diameter of microspheres is small.

In summary, it indicates that F doping promotes the particle growth of SnO₂ in a certain sense, which is consistent with the XRD analysis in Figure 1c. As the amount of F doping decreased, the morphology of the microspheres did not change significantly, but the surface of S4 sample was a small aggregate without overall assembly structure, which was larger than other F-doped SnO₂ samples. Therefore, the specific surface area was increased and the active sites of photocatalytic reaction were increased, which promoted the photocatalytic degradation of Rh B.

3.4. Elemental Analysis

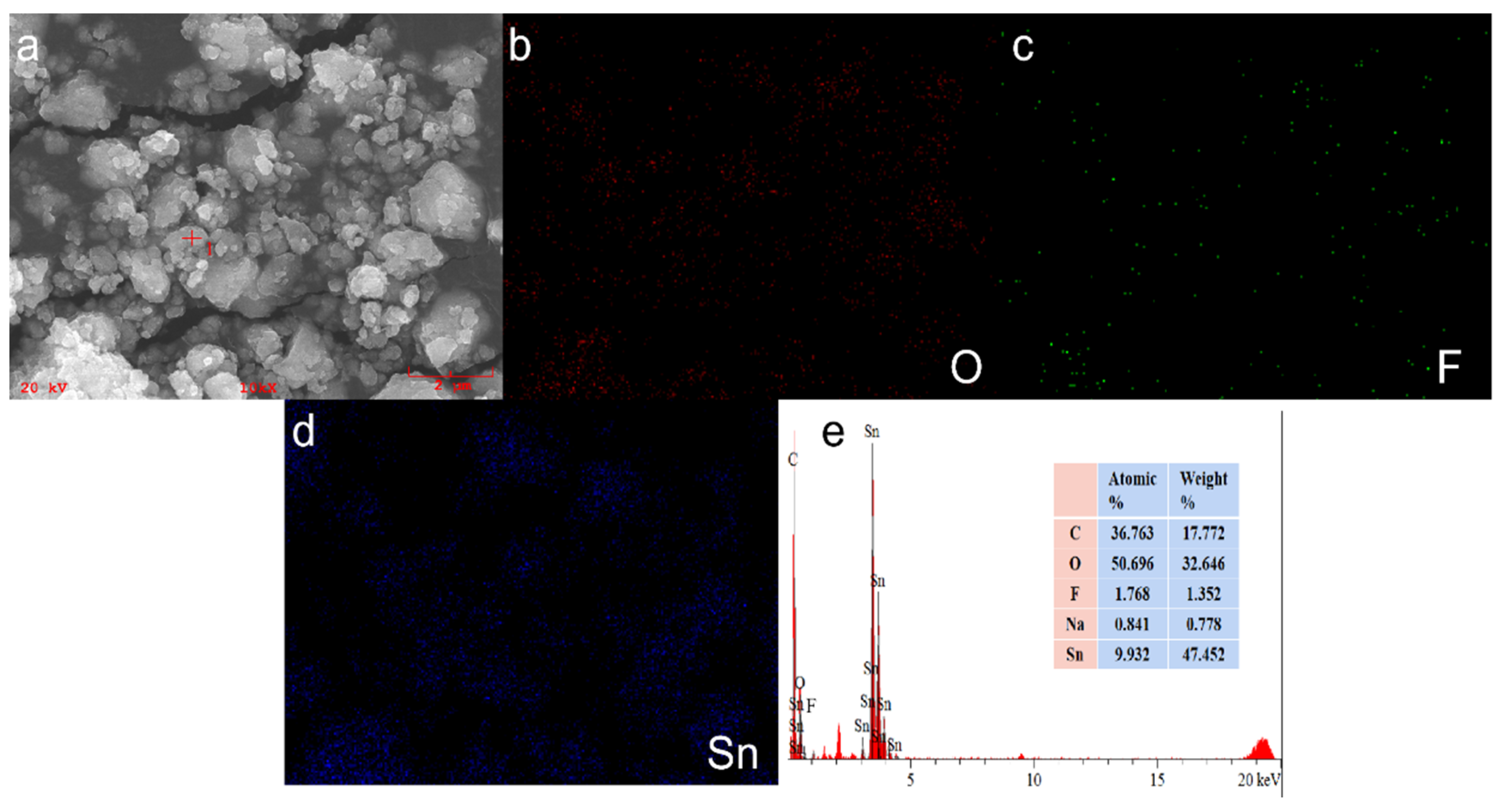

The mapping points diagram of elements in Figure 3a–c effectively reflects the approximate proportion of elements and proves the successful doping of F element. The energy line used for O, F, and Sn element map, such as O-Kα, F-Kα, and Sn-Lβ.

EDS spectrum of S2 sample is shown in Figure 3d. The characteristic peak of F element is shown in the energy spectrum, indicating that F ion has been doped into SnO₂ particles. Among them, the occurrence of C peak may be caused by the substance containing C was plated to increase the conductivity of the conductive film during EDS detection. The quantitative analysis of the content ratio diagram of S2 sample shows that the molar ratio of n(F)/n(Sn) = 1:5.6 is similar to that of n(F)/n(Sn) = 1:5(S2).

3.5. Photocatalytic Activity

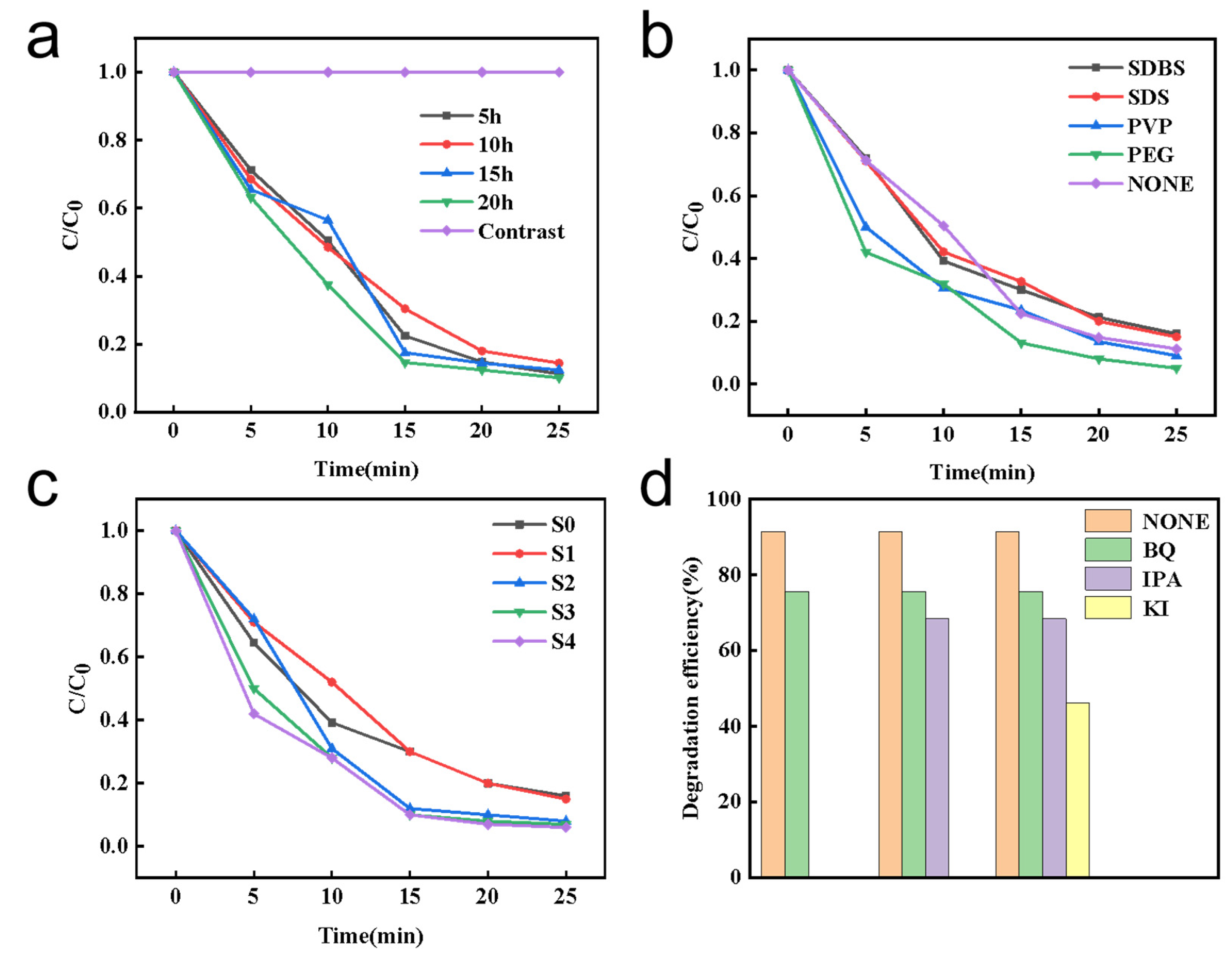

Figure 4a shows the photocatalytic degradation effect of Rh B on SnO₂ samples under different solvothermal time control. As can be seen from the figure, the content of Rh B solution is still about 99% without catalyst after 25 min under ultraviolet light. After the addition of SnO₂ powder, the concentration of Rh B decreased gradually with the increase in time. After UV irradiation for 25 min, the degradation rate of Rh B in the sample (solvothermal for 20 h) was close to 90%. It can be clearly seen from the figure that the (solvothermal for 20 h) has the highest photocatalytic activity. Other photocatalytic activities and degradation rate are basically similar. Solvothermal time affects the photocatalytic activity under certain conditions and can promote photocatalysis.

Figure 4b shows the photocatalytic effect of the sample on Rh B obtained by adding different surfactants and reacting at 200 °C for 5 h. As shown in the figure, the PEG photocatalytic effect is better than other surfactants and the photocatalytic degradation rate is exceeded 90%. According to the above phase and appearance analysis, the as-prepared sample which added PEG with high crystallinity, small particle size and good dispersion effect can be obtained. The analysis was verified by photocatalytic test.

Figure 4c shows the photocatalytic effect of SnO₂ samples on Rh B at 200 °C for 5 h after adding polyethylene glycol with different F doping ratios. As can be seen clearly from the comparison in the figure, Rh B concentration in the glass tube with SnO₂ powder gradually decreases with the extension of time, that is, Rh B gradually degrades into colorless. The degradation rate of Rh B in S4 samples reached 92.9% after 25 min of UV irradiation. As can be seen from the comparative analysis in the figure, the photocatalytic performance of samples treated with F doping is significantly better than that of pure SnO₂ powder; it is possible that the F doped increased the concentration of oxygen vacancy and improved the oxidation ability. Compared with other samples, S4 sample has the highest photocatalytic activity, followed by S3, S2, S1 and S0 samples.

The pseudo-first-order kinetics reaction concerning Rh B degradation were showed in supplementary Figure S1, and the fitted curves were introduced in Tables S1–S3. According to the result of first-order kinetics reaction, under light conditions, the S4 sample had a higher reaction rate (0.11234 min⁻¹) than the samples with different solvothermal times and different surfactants, which means that the degradation rate of Rh B in S4 sample was higher than that in S0, S1, S2 and S3.

For the study of repeatability, we conducted 5 repeatability tests on S4 in the same conditions. With the increase of photocatalytic times, the degradation effect of F-doped SnO₂ on Rh B also decreased from 92.9% to 83.9% (Figure S2). This indicates that the catalyst is relatively stable.

3.6. Free Radical Capture Experiment

Figure 4d shows the influence of different trapping agents on degradation of Rh B. After 1 h of photocatalysis, the photocatalytic activity was suppressed to varying degrees compared with that without trapping agents. The degradation of Rh B for BQ, IPA, and KI was 75.6%, 68.34%, and 46.2%, respectively. KI influence was the strongest among them, shown that hole is the main active substances; this is due to the redox reaction of Rh B, which adsorbed on the SnO₂ surface and can be directly oxidized by h⁺ into degradation products. On the other hand, the optical holes migrated to the surface of the catalyst can oxidize and degrade the pollutants attached to the surface of the catalyst or react with the water on the semiconductor surface to generate a relatively high activity of ·OH. Hydroxyl radical was the secondary active substance. O₂ is reduced to superoxide radical (·O₂⁻) by e⁻, and BQ has little effect on superoxide anion. Therefore, it is clear that the free radicals affecting the degradation rate of Rh B in the experiment of F-doped SnO₂ photocatalytic degradation are h⁺, ·OH and ·O₂⁻ in sequence.

3.7. The Mechanism of the Rh B Degradation

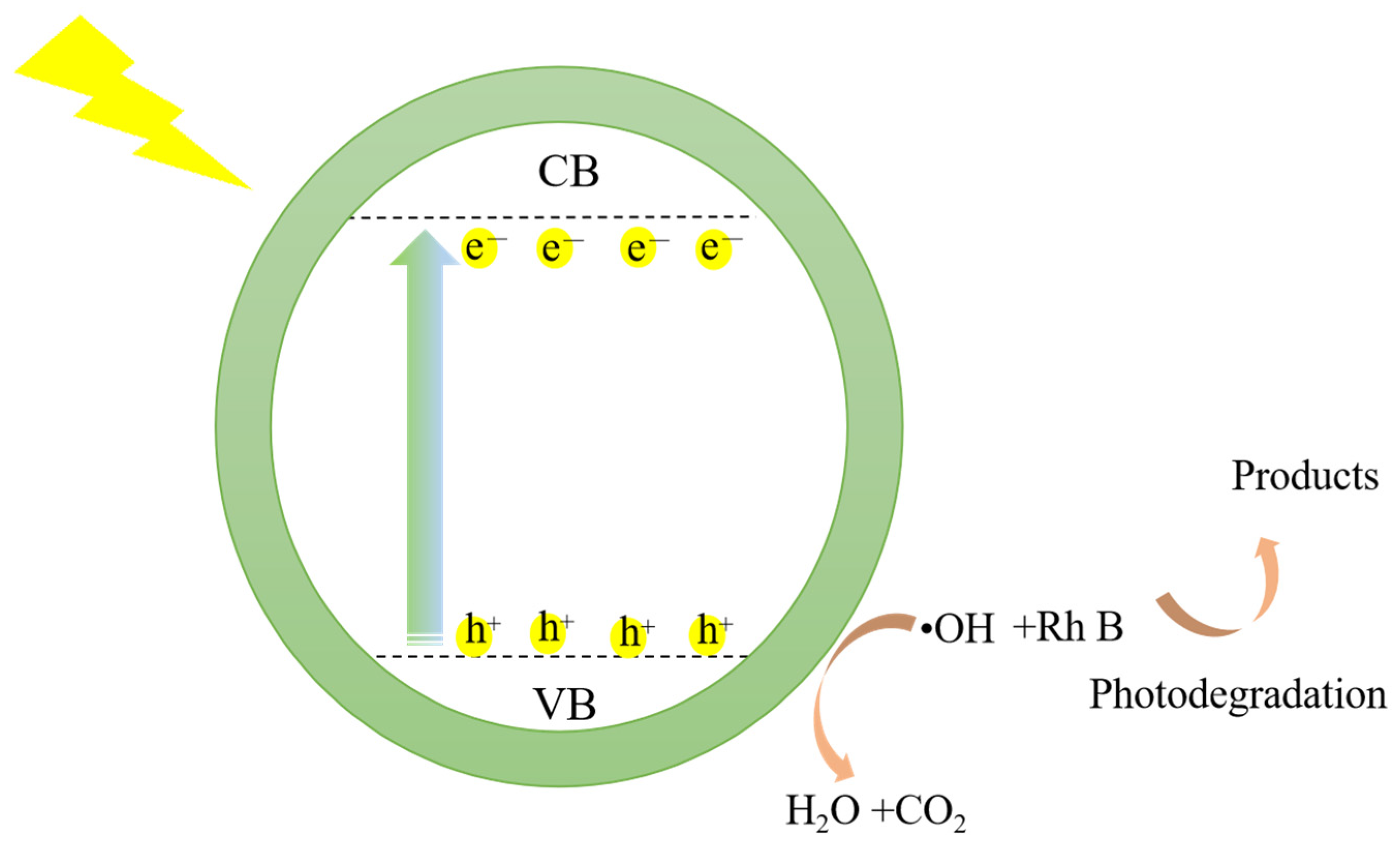

The degradation mechanism of Rh B is shown in Figure 5. Through free radical capture experiments, it was confirmed that hydroxyl radicals and holes were the main active substances in photocatalytic degradation of Rh B. When the organic dye Rh B is exposed to light, it eventually forms non-toxic small molecular products such as H₂O and CO₂.

3.8. Comparison of the Photocatalytic Degradation Efficiency of SnO₂ Nanoparticles

In the literature, there are many studies using SnO₂ nanoparticles as catalysts for photodegradation of different dyes. This study the prepared F-doped SnO₂ nano-powder on the degradation of Rh B. We compiled earlier work on degradation of Rh B and other dyes using different SnO₂ methods in UV, visible and sunlight and compared it with the current work in

Table 3. Comparison of the photocatalytic degradation efficiency of SnO₂ nanoparticles.

Year	Sample	Pollutant	Degradation/Time	Reference
2015	SnO2	Phenolsulfonphthalein	100% (120 min)	[23]
2019	SnO2	Rh B	95% (90 min)	[12]
2019	SnO2	MB	90% (5 h)	[24]
2017	SnO2	Rh B	93.6% (120 min)	[25]
2018	SnO2	Malachite green	90% (60 min)	[26]
2016	SnO2	MB	97.1% (200 min)	[27]
2021	SnO2	Rh B	100% (60 min)	[28]
2021	SnO2/NCQDs	Rh B	99% (120 min)	[18]
2022	F doped SnO2	Rh B	92.9% (25 min)	This study

. Although the degradation rate and reaction time were lower than/higher than in earlier studies. The catalyst synthesis method used in the present study is very simple and inexpensive as compared to the other methods.

4. Conclusions

Using solvothermal method to control different solvothermal time, F doped SnO₂ nano-powder was prepared by adding different kinds of surfactants and using sodium fluoride as fluorine source. Through the analysis and characterization of the prepared samples and the photocatalytic performance experiment. The results showed that with the increase of solvothermal time, the grain size of the product changed and the grain size of SnO₂ became smaller, but the prolongation of solvothermal time did not affect the chemical reaction process. SnO₂ powder was prepared by adding different surfactants. It was found that the SnO₂ powder prepared by adding PEG had uniform distribution, better dispersibility and smaller particle size. The XRD peaks have shifted to left of other samples which doped F with different ratios, it is suggested that the F has incorporated into the SnO₂ structure. The EDS mapping image can also confirm that F element has been successfully incorporated into the structure of SnO₂. In the experiment of F doped SnO₂, the addition of F promoted the growth of SnO₂ particles, increased the concentration of oxygen vacancy and improved the photocatalytic performance of SnO₂ powder. When n(F)/n(Sn) = 1:15(S4), the crystal structure of the obtained sample was more complete and the photocatalytic activity of Rh B was the highest, reaching 92.9%. The influence of different trapping agents on degradation of Rh B showed that electron hole is the main active substances, the reduction of electron holes directly affects the photocatalytic performance. After the study of photocatalytic performance, it is proven that F-doped SnO₂ has high photocatalytic activity during a short time and its development potential in the field of photocatalysis, which provides a strong support for our further study of its practical application.
