Novel Terahertz Properties of Nanostructured Mn_3+0.53Sn Films with Different Crystalline Orientations Driven by Ostwald Ripening on (0001) c-Al₂O₃

Abstract

The characteristic energies of elementary excitations and collective modes in many quantum materials lie mostly in the terahertz (THz) frequency range, which provides a wide space for the development of THz optical materials and devices. In particular, topological Weyl semimetal Mn₃Sn is a noncollinear antiferromagnet with anomalous THz properties, which is strongly affected by thermal energy and external magnetic fields. Despite the explosive growth of the research on magnetic Weyl semimetals recently, its nanoscale structure for applications in THz optical devices remains to be explored. Here, we fabricated nanostructured Mn_3+0.53Sn films with different crystal orientations, driven by Ostwald Ripening (OR) on (0001) c-Al₂O₃. A huge anisotropic THz response manifested a firm link between the optical properties of Weyl antiferromagnet Mn₃Sn and its contrivable spin structures. The topological properties of Mn₃Sn are robustly protected in its nanostructures. This work can provide a new horizon for the fabrication of a nanostructured magnetic Weyl alloy and for its potential applications in subwavelength high-performance THz devices.

1. Introduction

The emergence of topological properties with quantum phases in an electronic material can provide an entirely new opportunity for the development of novel optoelectronic materials and devices. Particularly, Weyl semimetals (WSM) can break either the time-reversal or the inversion symmetry. Strongly correlated Weyl semimetals such as Mn₃Sn are topological materials incorporated with an exquisite magnetism [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18]. It theoretically suggests that a broadband absorption can be observed for Mn₃Sn in terahertz (THz) to the midinfrared range [1]. Experimentally, either large anomalous Hall conductivity at room temperature [2] or resonance-enhanced Faraday rotation at low temperature [3] has indisputably demonstrated the fascinating features of Mn₃Sn in the THz domain.

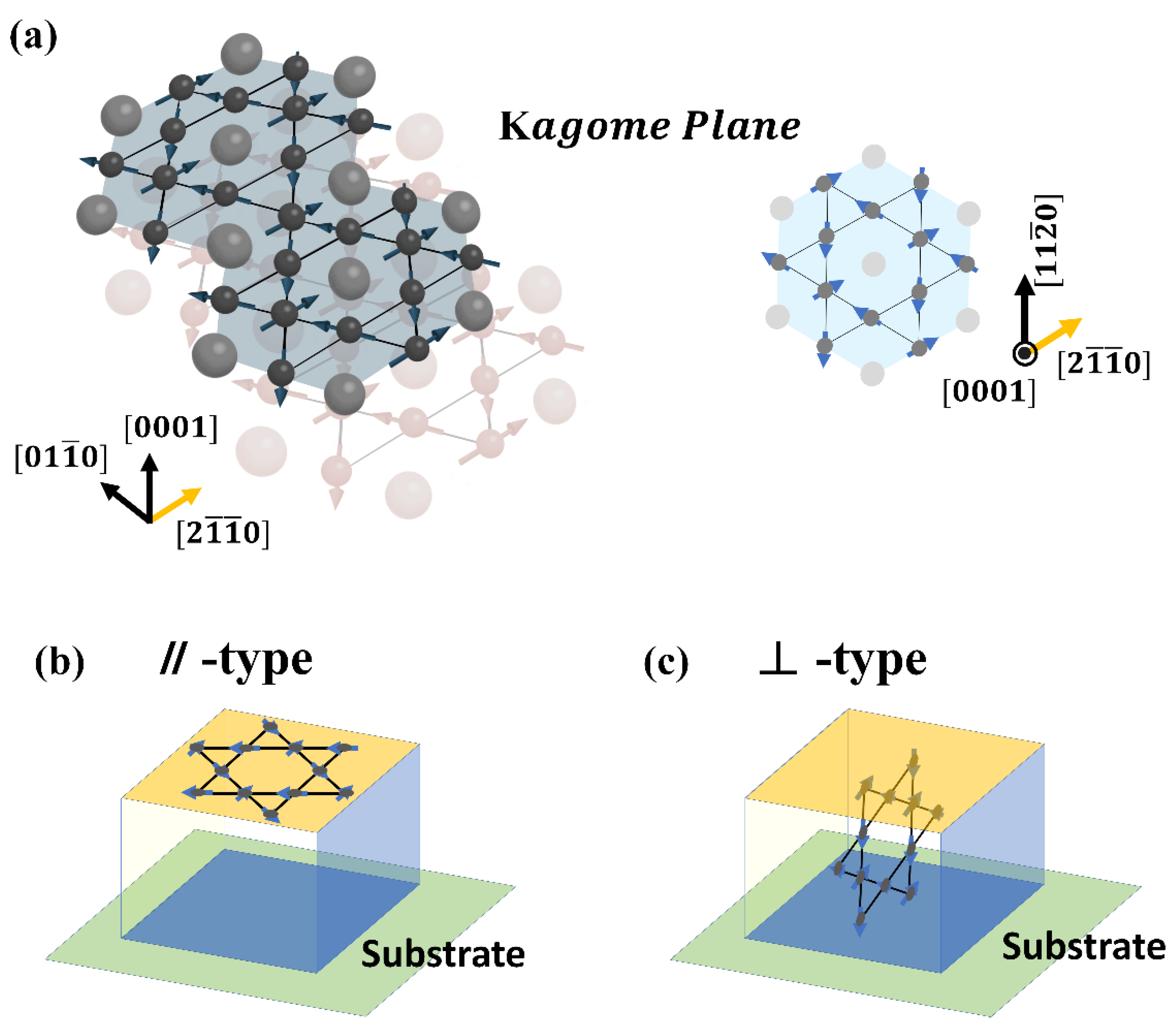

Mn₃Sn is a hexagonal antiferromagnet with the ABAB stacking sequence of the kagome plane with the inverse triangular spin configuration of Mn (Figure 1a), which engenders a strong anomalous Hall response [4]. It has been shown that this response is linked to the magnetic order and can be manipulated through it [5]. The small net ferromagnetic moment of magnetic octupoles is essential for the external magnetic field to control the spin structure of Mn₃Sn on the kagome plane and hence the associated electronic states around the Weyl nodes [6,7,8]. In Mn₃Sn, the density of states can be extremely low and even vanishes at the Weyl points, which results in a very low charge-carrier density. The Berry phase and the Berry curvature, that is, the magnetic flux and field in the momentum space, respectively, strongly govern the high anisotropic anomalous transport and optical properties Mn₃Sn [4,7]. It is also known that the topological property of Mn₃Sn is protected, and its responses are robust against composition variations, impurities, lattice imperfections and thermal fluctuation [19]. Mn₃Sn based nanodevices with a given crystal orientation and a specific nanostructure thus urgently need to be explored and examined from a viewpoint of the application.

To exploit the unique properties of Mn₃Sn for spintronic/optoelectronic devices, it is significant and important to fabricate the nanostructured Mn₃Sn films with two distinct orientations, //-type and ⊥-type, as shown in Figure 1b,c. These two types of Mn₃Sn samples have been the focus in recent years. By selecting the facets of a single-crystal oxide substrate (such as MgO or Al₂O₃), either the (0001) or (11$\overline{2}$0) plane epitaxial growth of Mn₃Sn films at elevated temperatures has been revealed [3,9,10]. Although the majority of the work on Mn₃Sn to date has focused on its single crystal [4,6,7,13,14], polycrystalline Mn₃Sn film is a subject in current experimental studies, although it has a certain atomic disorder [17]. In the present work, nanostructured Mn_3+0.53Sn films with different crystalline orientations were firstly fabricated on (0001) c-Al₂O₃ substrate without metallic seed/buffer layers. A large anisotropic THz transmittance in the samples with different spin textures was demonstrated experimentally in a wide temperature range, which is consistent with the unique kagome physics of Mn₃Sn and implies the promising potential for its application in THz materials and devices.

2. Experiment

Nanostructured Mn_3+0.53Sn films (40–330 nm) were fabricated on single-crystal (0001) c-Al₂O₃ by molecular beam epitaxy, under an ultrahigh vacuum in a confocal configuration. The base vacuum reached 1 × 10⁻⁷ Pa and the deposition pressure was maintained at ≤10⁻⁶ Pa. The deposition rate of Mn and Sn were well controlled at 0.1 Å/s and 0.165 Å/s, respectively, for all samples. The nominal atomic ratio of Mn and Sn was 3.53:1. The Mn₃Sn layers with different thicknesses were deposited at a substrate temperature in the range of room temperature (RT) to 420 °C, and the in situ post annealing was performed at 100–450 °C for 1–10 h, according to the predetermined objectives. The crystallography of the films was examined using a Bruker D8 X-ray diffractometer (XRD, Bruker, Billerica, MA, USA). The surface nanomorphology and cross-section images of the samples were acquired by a Hitachi S-4800 scanning electron microscope (SEM, Hitachi, Tokyo, Japan). A hexagonal D019 Mn₃Sn phase was confirmed by the XRD and selected area electron diffraction using a high-resolution transmission electron microscope (HRTEM-SAED, TiTan ETEM, Thermofisher Scientific, Waltham, MA, USA) in the Mn_3+0.53Sn thin films. The large-scale surface morphology was scanned by a Multimode-8 atomic force microscope (AFM, Bruker, Billerica, MA, USA).

Home-built THz time-domain spectroscopy (THz-TDS) was used for the terahertz measurements in a transmission setup over a range of temperatures. The THz pulse is generated by a ZnTe photoconductive antenna and detected by a ZnTe crystal via electro-optic sampling. During the measurements, a magnetic field provided by a closed-cycle 7 T superconducting magnet is applied along the direction perpendicular to the membrane surface. The temperature-dependent THz transmission through the Mn₃Sn sample was measured via increasing temperature from 1.5 K. The effect of the magnetic field was examined after a field cooling down to 1.5 K. All measurements were performed obeying a low-to-high temperature sequence. To avoid THz absorption by air moisture and dust during testing, the main part of the THz system was housed in the dried nitrogen-filled box.

3. Results and Discussions

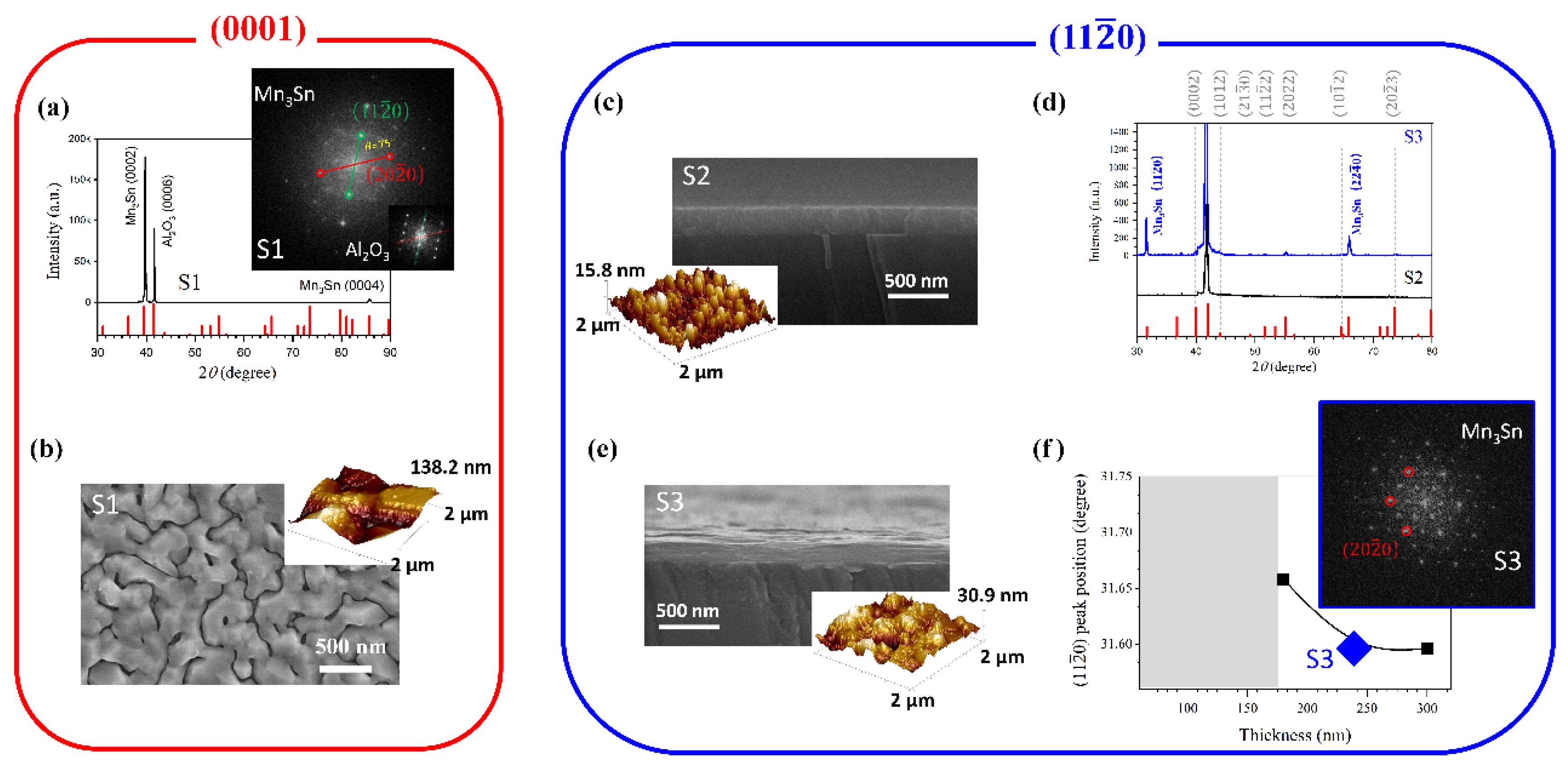

We first present in Figure 2, (0001) and (11$\overline{2}$0) Mn_3+0.53Sn films (240 nm thick) on the (0001) c-Al₂O₃ substrate without the metal seed layer. The preparation parameters for all the samples are summarized in Table S1 of a Supplementary File. A strong (0002) Mn₃Sn peak accompanied by a (0004) peak are observed in the XRD for S1, without any noticeable impurity peaks (Figure 2a). The insert in Figure 2a shows the corresponding electron diffraction (SAED) pattern in the selected area of S1 and the c-Al₂O₃ substrate. This SAED pattern confirms that S1 is crystallized, and the individual crystal grains possess a hexagonal D0₁₉-type structure, supporting the interpretation of the epitaxial growth mode since there is a small lattice mismatch (~1.7%) between (0001) c-Al₂O₃ and (0001) Mn₃Sn. Nevertheless, the Debye–Scherrer ring in the electron diffraction patterns clearly reveals the polycrystalline nature of S1. Polycrystalline S1 has a complex surface state (Figure 2b), that is, there is a regular geometric structure in each local region, but they fuse with each other forming a wormlike morphology.

Binary alloy Mn₃Sn has weak binding energy [20]. The melting points of Mn and Sn are 1244 °C and 232 °C, respectively, while the phase formation temperature of the Mn₃Sn films is ~300–500 °C [3,8,21]. Different from Stranski-Krastanow (SK) mode [22], atoms flow from steps with high curvature to steps with low curvature during the film growth driven by OR: small islands shrink, while large islands grow at their expense [23,24,25,26,27,28]. The migration of the Mn and Sn component is different during the growth at 420 ℃. This prevents the uniform thin film deposition although the epitaxial growth criterion is satisfied, which may provide an alternative way for controlling the growth of nano Mn₃Sn films with new and tunable topological properties. More details are provided in Figures S1 and S2 in the supplementary file. In that case, the migration of atoms can be effectively suppressed at a lower deposition temperature. A 240 nm thick Mn_3+0.53Sn film grown at 100 °C on a (0001) c-Al₂O₃ substrate sample possesses a continuous morphology, which is named as S2 in Figure 2c. However, there is no XRD diffraction peak belonging to a Mn₃Sn phase except for a Al₂O₃ (0006) diffraction peak and some weak unknown peaks in S2 (Figure 2d). On the basis of S2, S3 is acquired by an in situ post annealing (PA) with a continuous morphology. As shown in Figure 2d (a solid blue line), there are two obvious peaks at 31.59° and 65.94° in the XRD pattern of S3, which correspond to (11$\overline{2}$0) and (22$\overline{4}$0) in PDF@21-0558, respectively. Although the cross-section SAED pattern identifies the crystallization with a hexagonal structure, the appearance of (20$\overline{2}$0) structure in the SAED reveals the polycrystalline nature of S3. It is noted that in such a polycrystalline case, a sample with a (11$\overline{2}$0) orientation can only be acquired while its thickness is larger than 180 nm, as illustrated in Figure 2f, which also indicates a non-negligible role of OR in the film growth.

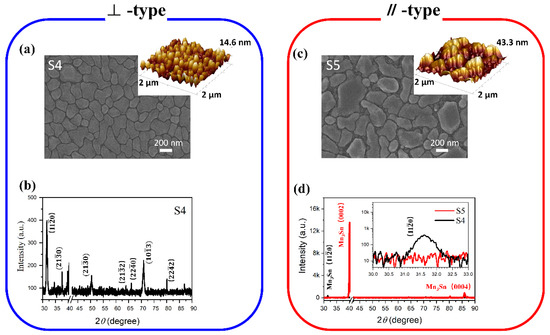

Approaching a thin film limitation, a two-dimensional island feature emerges as displayed in Figure 3a. The nanostructured Mn_3+0.53Sn film (40 nm thickness, S4) was deposited at 420 °C on a c-Al₂O₃ substrate (more information is provided in Figure S2 in the supplementary file). The multiple peaks in the XRD pattern indicate that S4 belongs to a ⊥-type film (Figure 3b), with the average grain size of ~20 nm and lattice parameters of ~2.83Å, rather than a //-type sample as discussed in S1 (Figure 2a). A post annealing at 450 °C for 10 h prompts OR of the Mn₃Sn islands. As shown in Figure 3c, islands with lateral dimensions over 500 nm appear and the spacing between them increases. The grain size of Mn_3.53Sn expands to ~40 nm, which is twice as large as that of S4. The lattice parameters are ~4.30Å. The microstrain ε of S4 and S5 are ~1.71 × 10⁻³ and 3.5 × 10⁻⁴, respectively, which suggests that S4 suffers a higher stain than S5. It is speculated that the density of lattice dislocation in S4 may be much larger that of S5 [29]. Significantly, as displayed in Figure 3d, the disappearance of the (11$\overline{2}$0) peak as well as the strong intensity of the (0002) peak in the XRD profile of the sample suggest that a (0001) orienting nanostructured Mn₃Sn film is formed, which is named as S5, belonging to a //-type sample.

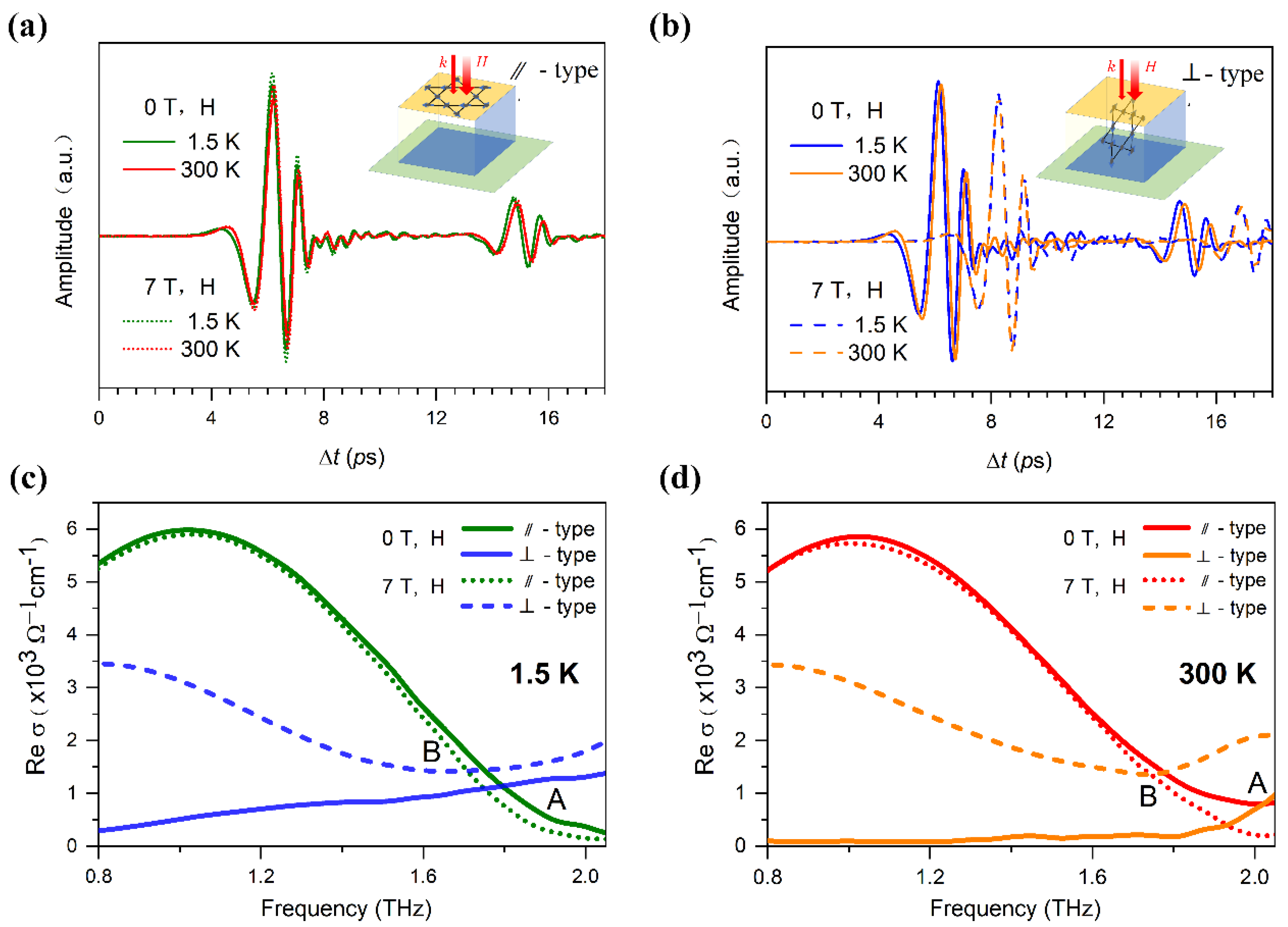

In this study, we applied the standard THz-TDS technique to examine the basic optoelectronic properties of Mn_3+0.53Sn thin films. The THz transmittance of both S4 and S5 are larger than 0.6, while that of S1 or S3 is much lower than 0.1. Both the main echo peaks and the first echo peaks are detected in all measurements (Figure 4a,b). In the case of //-type film, S4 (Figure 4a), the time delay between the signals measured at low and high temperatures is small. In contrast, the time delay difference is noticeable in the case of ⊥-type sample, S5 (Figure 4b). The relationships of different quantities in the Faraday geometry are also illustrated schematically by the inserts in Figure 4a,b. The spectra of the real parts of THz optical and magneto-optical conductivities, Reσ(ω), under thin film approximation, are shown at 1.5 K in Figure 4c and at 300 K in Figure 4d, where the results measured at H = 0 and H = 7 T are presented. The following features can be noticed in these spectra. (i) For both //- and ⊥-type samples, Reσ(ω) does not decrease monotonously with increasing ω at H = 0 and 7 T, and at 1.5 K and 300 K. This effect indicates that the conducting carriers in Mn₃Sn thin films do not respond to the THz radiation in a conventional way of Drude-like optical conductivity. (ii) Temperature has a relatively weak influence on Reσ(ω) for both //- and ⊥-type samples. (iii) The presence of the external magnetic field H can affect Reσ(ω) for ⊥-type samples, whereas relatively, Reσ(ω) for //-type samples depends on H indistinctly. (iv) More interestingly, Reσ(ω) for //- and ⊥-type samples shows a clear feature of anisotropy, not only for frequency dependence but also for the strength of the optical absorption (noting that Reσ(ω) is proportional to the optical absorption coefficient). At H = 0 and T = 1.5 K, Reσ(ω) for //- and ⊥-type samples at 0.80 THz are 5.36 × 10³ Ω⁻¹·cm⁻¹ and 0.28 × 10³ Ω⁻¹·cm⁻¹, respectively. Two curves for Reσ(ω) intersect at 1.1 × 10³ Ω⁻¹·cm⁻¹@1.80 THz (labelled as A). At H = 0 and T = 300 K, the two curves for Reσ(ω) intersect at 0.8 × 10³ Ω⁻¹·cm⁻¹@2.02 THz (Point A); namely blue shifting can be observed in comparison with the case of T = 1.5 K. (v) The presence of a magnetic field can reduce the difference of Reσ(ω) for //- and ⊥-type samples in the low THz regime. At H = 7 T and T = 1.5 K, the two curves of Reσ(ω) for //- and ⊥-type samples meet at 1.4 × 10³ Ω⁻¹·cm⁻¹@1.71 THz (labelled as B). At H = 7 T and T = 300 K, Reσ(ω) for ⊥-type samples reaches 3.34 × 10³ Ω⁻¹·cm⁻¹ at 0.80 THz. The point B locates at 1.34 × 10³ Ω⁻¹·cm⁻¹@1.74 THz without an obvious shift in comparison with that measured at T = 1.5 K in Figure 4c. The results shown in Figure 4c and 4d imply that a huge anisotropic THz response can remain in a wide temperature range.

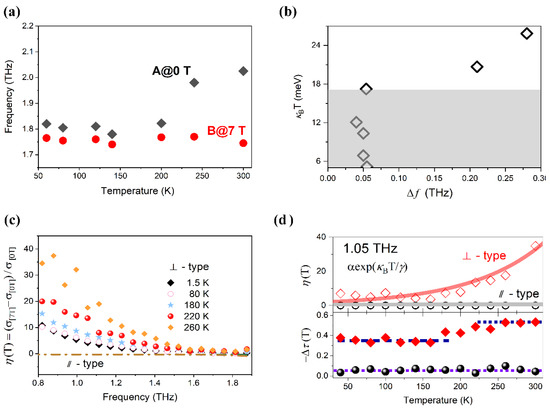

Now, we examine the temperature- and magnetic-field-dependent optical coefficients obtained from the THz-TDS measurements for the 40 nm thick Mn_3+0.53Sn films. The temperature dependence of the intersection points A and B are shown in Figure 5a. As mentioned above (see Figure 4), the two points A (0 T) and B (7 T) are critical points for the observation of anisotropic optical conductivity along different crystal directions. From Figure 5a, we see that point A does not depend markedly on temperature when T < 200 K, while it blue shifts with increasing temperature when T > 200 K, whereas point B remains roughly constant over a wide temperature range. This effect can be more vividly observed in Figure 5b, where the relationship between the thermal energy $k_{B}T$ and Δf (the frequency difference between A and B points) is plotted. We find that Δf remains nearly a constant of ~0.05 THz up to 17.2 meV (or 200 K) and then sharply shifts to larger values when $k_{B}T$ > 17.2 meV.

It is known that the inverse triangular spin structure of magnetic octupoles breaks the macroscopic time-reversal symmetry, which leads to a novel Weyl antiferromagnetic state of Mn₃Sn at room temperature. Below a temperature T_M (~260–280 K), Mn₃Sn enters into the helical state in which the anomalous Hall effect can be quenched [30,31,32]. This is due to the break in the translational symmetry along the c-axis in Mn_3+0.53Sn films. At a lower critical temperature T₁ (~180–200 K), the nature of spin glass state with a weak ferromagnetism (spin canting towards the c-axis) is also exhibited [2,33,34]. The results shown in Figure 5a and 5b suggest that an onset of transition may start from ~200 K, which corresponds to a transition temperature of T₁ rather than T_M. A similar effect has been reported very recently via the observation of the THz anomalous Hall effect [2]. In nanostructured Mn₃Sn films, the intrinsic thermal evolution of spin texture inevitably encounters a disordered surface spin structure. It is allowable since the surface spin structure exists in the higher energy state, deviated from the perfect ground state, which blocks the appearance of pure magnetic octupoles in nanostructured Mn₃Sn. The mechanism of field cooling can establish a magnetic-field-induced surface spin texture (ferromagnetic), which exerts an influence on the spin texture in the kagome plane through the weak magnetization. Hence, the anisotropic behaviors in the optoelectronic properties become more distinct at room temperature due to the enhancement of the polarization of magnetic octupoles.

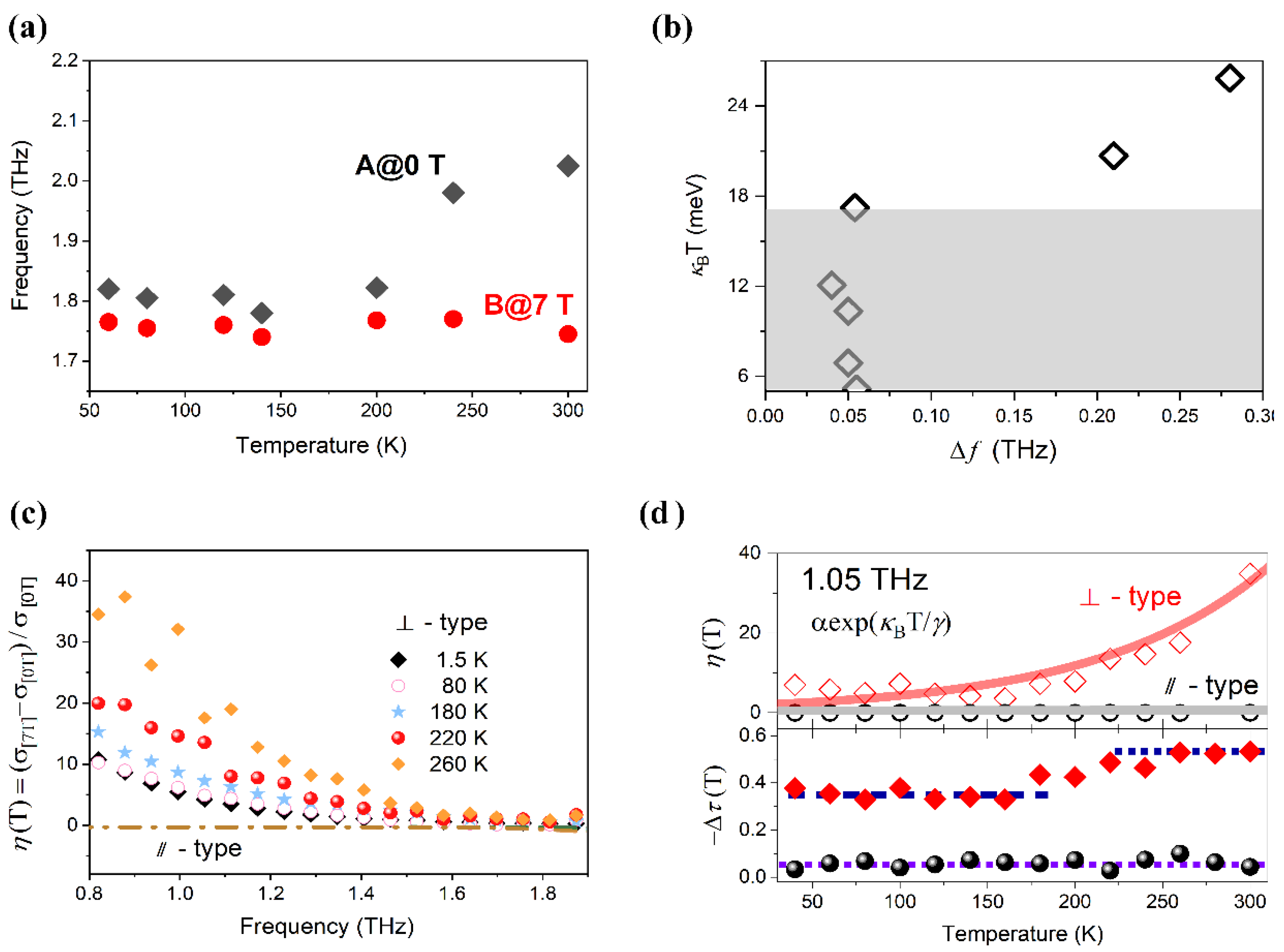

Finally, in Figure 5c we show the ratio η(T) = [Reσ(7 T) − Reσ(0 T)]/Reσ(0 T) in the 0.8–1.9 THz range at different temperatures for both //- and ⊥-type samples to evaluate the effect of the presence of the magnetic field. η(T) for //-type samples shows a surprisingly weak dependence on frequency or temperature. In sharp contrast, in the case of the ⊥-type samples, η(T) decreases monotonically with increasing f in the frequency range of 0.8–1.9 THz and converges at ~1.6 THz, with a relatively small variation at the high THz bandwidth (1.6–1.9 THz). The two sets of data, η(1.5 K) and η(80 K), almost overlap, while there is a remarkable difference between η(220 K) and η(260 K). The main feature of the temperature dependence of η(T) is emphasized in Figure 5d (Top). In a wide temperature range, η(T) for //-type film remains roughly the same, while η(T) has an abrupt increase starting from ~180–200 K and η(300 K) reaches 35 (corresponding to a 35 times change in THz conductivity) for ⊥-type samples. The experimental data can be fitted nicely by a simple empirical formula: $\eta \left(T\right)=\alpha e^{k_{B}T/\gamma }$, with α and γ being the fitting parameters. The value of dimensionless quantity $\alpha$ in the two cases is similar, which reflects that the difference between //- and ⊥-type samples is relatively small at low temperature. However, the physical quantity γ with a dimension of energy differs by one order of magnitude for //- and ⊥-type samples. The former one is ~100 meV and the latter one is less than 10 meV, implying the existence of a huge difference in the thermal spin excitation in the kagome physics of Mn₃Sn. Furthermore, as shown in Figure 5d (Bottom), the −Δτ of //-type samples has a weak dependence upon temperature. In contrast, the absolute value of Δτ reaches 0.6 at room temperature in ⊥-type samples, which manifests the recovery of the spin texture of the kagome plane in nanostructured Mn₃Sn films.

4. Conclusions

In this study, we demonstrated firstly that OR can be applied to acquire either //- or ⊥-type nanostructured Mn₃Sn samples on (0001) c-Al₂O₃. It not only enabled us to investigate the fascinating kagome physics of Mn₃Sn, but also sheds light on a method for the fabrication of nanodevices. Most significantly, a huge magnetic-field-induced difference in THz transmittance in ⊥-type thin films was confirmed experimentally in a wide temperature range. The distinct anisotropic THz properties of the samples with different spin textures were also confirmed. Moreover, these phenomena involve the exquisite magnetic dynamics of kagome physics under the influence of surficial spin structures, which embraces an entirely new territory for topological manipulation through the marriage between surface spin structures and topological states. The important and interesting findings from our work demonstrate that topological THz devices based on the elegant kagome physics of Mn₃Sn are worthy of exploration.
