Development and Application of a Nano-Gas Sensor for Monitoring and Preservation of Ancient Books in the Library

Abstract

Monitoring the gas composition in library environments is crucial for the preservation of ancient books. In this study, TiO₂ NTs/CNTs composites were synthesized via a hydrothermal method and utilized as nano-gas sensors for NO₂ detection. The surface morphology and element composition of the samples were characterized using scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS). Additionally, the gas sensitivity of the prepared TiO₂ nanocomposites was evaluated at different temperatures, both with and without ultraviolet light irradiation. The results demonstrate that the synthesized TiO₂ NTs/CNTs samples exhibit a large specific surface area due to their titanium dioxide nanotubes (TiO₂ NTs) and carbon nanotubes (CNTs) composition. Moreover, these samples display excellent gas sensitivity under ultraviolet light irradiation at temperatures of 120 °C. Compared to uncomposited and non-ultraviolet light irradiated samples, the sensor response rate is significantly improved, enabling effective monitoring of NO₂ gas in library environments conducive to preserving ancient books. Overall, our findings highlight that the developed TiO₂ NTs/CNTs nano gas sensor holds great potential for monitoring and safeguarding ancient books.

1. Introduction

As a crucial component of cultural heritage, ancient books and literature embody the legacy and evolution of exceptional traditional culture. To ensure their continuous preservation, significant time and effort must be invested [1]. Comprehensive protection of ancient bookstores necessitates monitoring internal corrosive and oxidizing gases. NO₂ dissolves in water to form nitric acid, which not only exhibits acidity but also strong oxidation potential. Acidic conditions can degrade paper cellulose, leading to book acidification, while the potent oxidizing properties of NO₂ can cause oxidative decomposition of paper cellulose [2]. Detection methods for these gases encompass selected ion flow tube mass spectrometry, gas chromatography–mass spectrometry, proton transfer reaction mass spectrometry, and gas sensor detection technology [3,4]. Among these, gas sensor detection technology is gaining popularity due to its affordability and ease of use [5]. Therefore, developing rapid and accurate NO₂ gas sensors with low cost, low power consumption, and excellent sensitivity is critical for gas-monitoring equipment in ancient bookstores.

The types of gas sensors primarily include electrochemical, contact combustion, light reaction, and metal-oxide semiconductor (MOS) gas sensors. Among these, MOS gas sensors have garnered significant attention due to their advantageous features such as portability, high sensitivity, good stability, and low preparation cost [6]. MOS sensors have been used to detect toxic and harmful gases in libraries, but the problems of low sensitivity and high operating temperature have not been completely solved. TiO₂ exhibits ultra-high chemical stability, non-toxicity, and excellent thermal stability at elevated temperatures. It finds extensive application in the field of gas-sensitive sensor research; however, TiO₂ suffers from a wide band gap (3.2 eV) and low efficiency when utilizing natural light [7]. Carbon nanotubes (CNTs) possess remarkable chemical stability, mechanical durability, exceptional electrical properties, and an extremely high specific surface area. Moreover, the electrical characteristics of CNTs are easily influenced by favorable changes in surface adsorption [8], while their gas sensitivity can be enhanced under ultraviolet light irradiation [9]. Consequently, employing CNTs as sensing materials in gas sensors can yield heightened sensitivity towards electrons or gases with strong electron-withdrawing properties (e.g., NH₃ gas and NO₂ gas) even at room temperature. Zhao et al. synthesized In₂O₃ nanowires through solvothermal method, which showed a high response value of 54.6 to 1 ppm NO₂ at 150 °C [10]. Liu et al. utilized the atomic layer deposition to prepare sensor fabricated on nanotubes, which exhibited good response and acceptable response time of 65 s to 0.5 ppm NO₂ under UV illumination [11]. However, the above reported methods for nanostructured materials have weaknesses of intricate manipulation, the usage of UV illumination and noble metals also increases in sensor costs [12]. Hence, It is necessary to invent the NO₂ sensor that can quickly and sensitively detect the trace amount of NO₂ in the air at low operating temperature.

In this manuscript, we employed a low-cost hydrothermal method and non-metallic doping technique to synthesize composite products of TiO₂ nanotubes/C nanotubes (TiO₂ NTs/CNTs). The gas sensing properties of the composite products were systematically investigated under different temperatures and ultraviolet light irradiation. By incorporating heterostructures and employing photoactivation techniques, significant improvements in the gas sensing performance are achieved [13,14]. Moreover, we developed a gas sensor based on multidimensional nanostructures to improve its sensitivity and lower the detection temperature for NO₂ gas, thereby effectively reducing the risk of damage to ancient books stored in libraries.

2. Materials and Methods

2.1. Preparation of TiO₂NTs and TiO₂NTs/CNTs

To start, 2 g TiO₂ nanoparticles and 80 mL 10 M NaOH solution were added to the beaker, and they were transferred to the reaction kettle for hydrothermal reaction at 130 °C for 24 h with ultrasonic stirring for 30 min each. The solution was washed to neutral and the precipitation was taken out and stirred in 5% HCl solution for 1 h. The white precipitation was washed to neutral, dried at 70 °C for several hours, and calcined at different temperatures to obtain TiO₂ NTs. The CNTs were ultrasonically dissolved in an alcohol solution and magnetically stirred for 30 min to form a uniform CNT solution (0.1 mg/mL). TiO₂ nanoparticles, HCl solution, CNTs, sodium hydroxide (NaOH), and absolute ethanol (CH₃CH₂OH) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China) without further purification.

Deionized water was added to the beaker, followed by the addition of titanium dioxide, carbon nanotubes, and sodium hydroxide in sequence. To achieve homogeneity, the solution was stirred using a magnetic stirrer for 30 min. Subsequently, ultrasonic treatment was conducted on the solution for 30 min to obtain a mixed solution which was then transferred into a 100 mL liner and placed inside a reaction kettle. The reaction kettle was positioned in a drying oven set at 150 °C for hydrothermal reaction. After 24 h, the reaction concluded and the bottom layer of the liner was extracted as the first composite product [15]. Subsequently, it was soaked in 30 mL of dilute hydrochloric acid with pH adjusted to 1 for another 24 h. Further centrifugal cleaning ensured neutralization before drying and grinding were carried out. The ground powder underwent calcination in a muffle furnace set at 400 °C for two hours, resulting in obtaining a TiO₂ NTs/CNTs composite product. The final product contained about 3% carbon nanotubes, and experimental tests have shown that it exhibits excellent gas sensing properties.

2.2. Characterization of TiO₂ NTs/CNTs

The morphology of the sample was observed and analyzed using scanning electron microscopy (SEM/EDS, SU3800, Hitachi-Hightech, Tokyo, Japan). X-ray diffraction (XRD, RINT2000) was employed to analyze the phase of TiO₂ NTs/CNTs. In XRD measurements, a Ni-filtered Cu source with a wavelength of 1.54 nm (Kα) was used to generate X-rays and the measurements were taken between 10° and 90° with a step size of 0.01°.

2.3. Fabrication of Gas Monitoring Sensors

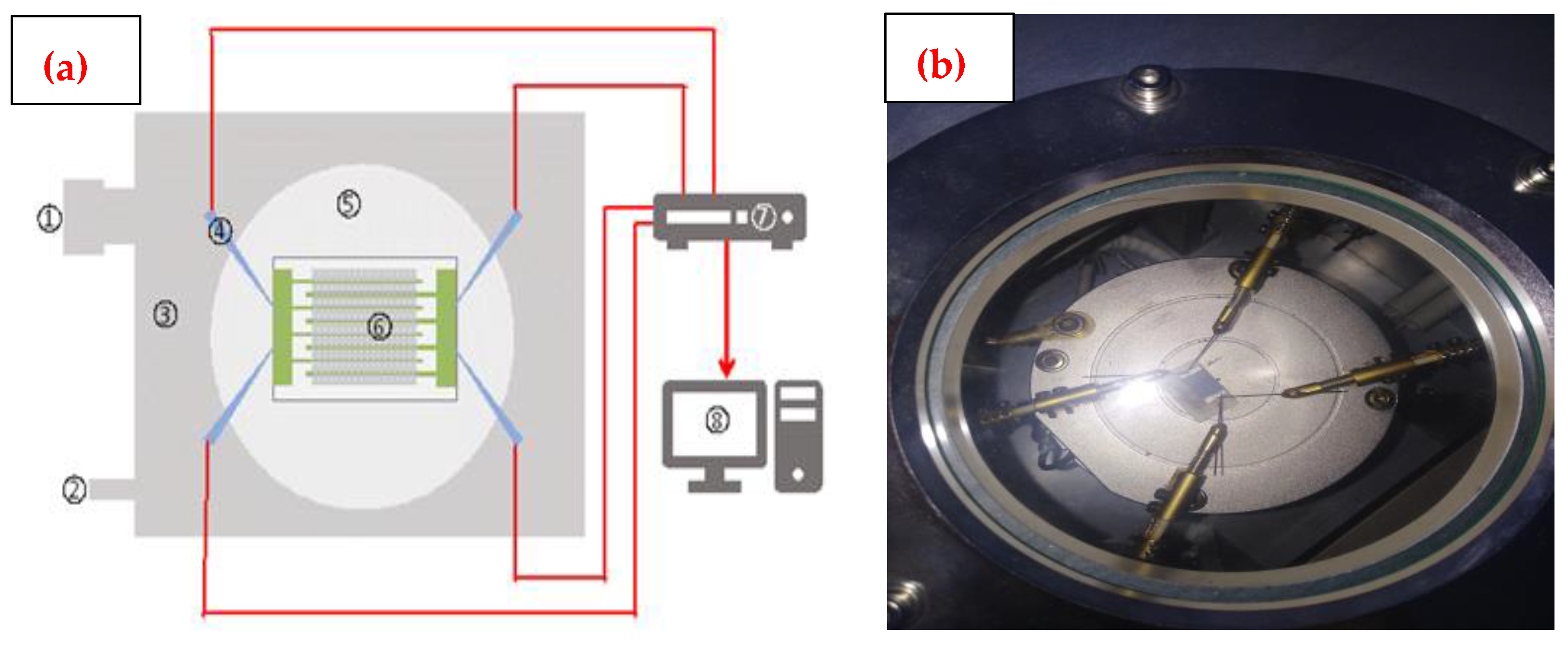

The gas-sensing device was custom-built based on the description provided in a previous publication [14]. Firstly, grind the sample and set it aside. Next, place the fork finger electrode into the sample bottle and extract 10 g of the ground sample. Add anhydrous ethanol to the sample bottle and subject it to ultrasonic treatment for 10 min, resulting in a suspension of the sample in anhydrous ethanol. Subsequently, heat the sample in a water bath to evenly precipitate it onto the fork finger electrode. The resistance of the sample is measured using a multi-function electricity meter, with only components exhibiting resistance at MΩ level considered as gas-sensitive components. We employed a self-built gas-sensitive test bench consisting of an air-expelling system, an air-filling system, a test chamber, tungsten steel needles, a heating table, gas-sensitive components, a resistance tester, and a computer (Figure 1). To initiate testing procedures, insert the fork finger electrode into the vacuum chamber while crossing pairs of tungsten steel needles.

The central gas-sensitive element is irradiated with UV light (365 nm), and a temperature controller controls the experimental environment. The test gas from the gas source is controlled for flow rate and total input using a D07–19BM mass flow controller (sevenstar, Beijing, China) and a D08–8CM flow meter (sevenstar, Beijing, China). The change in the resistance value is received and transmitted using the Keithley Model 2450 digital source meter (Tektronix Inc., Beaverton, OR, USA) by the vacuum four-probe resistance testing system. After the set parameters reach a stable value, the gas-sensitive material is tested for gas sensing. The resistance change curve is obtained by detecting the resistance value before and after introducing the gas. The measurement was conducted at room temperature (T = 25.0 ± 0.5 °C) and dry air (relative humidity (RH) = 15.5 ± 1.7%) during the test.

3. Results and Discussion

3.1. Morphology and Phase Analysis of TiO₂ NTs/CNTs

Figure 2 illustrates the surface morphology of the sample at different calcination temperatures. As depicted, at a calcination temperature of 300 °C, the TiO₂ NTs/CNTs product exhibits a disordered tubular structure with some unformed accumulations still present. At a calcination temperature of 400 °C, compared to the product calcined at 300 °C, a significant number of intertwined TiO₂ NTs and CNTs and are observed in the product, forming numerous pore structures that result in a larger specific surface area for TiO₂ NT/CNTs. However, when the temperature reaches 500 °C, the nanotube morphology of TiO₂ NTs/CNTs completely disappears and the sample transforms into nanoparticles with a diameter above 30 nm. As can be seen from EDS images shown in Figure 3, the weight ratio of carbon nanotubes to TiO₂ was found to be 3%.

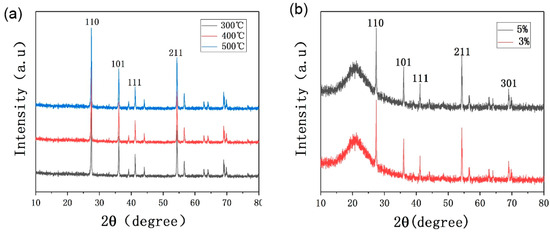

As depicted in Figure 4, TiO₂ NTs exhibit a prominent diffraction peak at 2θ = 27.45° [16], corresponding to the crystal structure of TiO₂ (110). Notably, as illustrated in the figure, an increase in calcination temperature leads to a progressively sharper characteristic diffraction peak for anatase, indicating enhanced crystallization with elevated calcination temperatures. Simultaneously, it can be observed from the figure that when calcination temperature is below 500 °C, hydrothermally treated TiO₂ NTs lack the rutile diffraction peak. This suggests that rutile-phase formation does not occur in TiO₂ NTs under calcination temperatures below 500 °C and implies complete destruction of the rutile–anatase (P90) structure of raw material by strong alkali solution. Energy spectrum analysis of the composite product comprising TiO₂ NTs/CNTs reveals presence of titanium (Ti), carbon (C), and oxygen (O), confirming stoichiometric proportionality within the composite product. In Figure 4b, all diffraction peaks are consistent with the peak positions of TiO₂ nanotubes. The sharpness of the diffraction peaks indicates that the crystallinity of TiO₂ remains high in the presence of carbon nanotubes. However, no distinct characteristic peaks of carbon nanotubes are observed in the figure, indicating that in cases where the content is only 3% and 5%, the disorderly accumulation of carbon nanotubes causes significant damage, resulting in relatively small or even absent diffraction peaks.

3.2. Gas-Sensitive Properties of TiO₂ NTs/CNTs

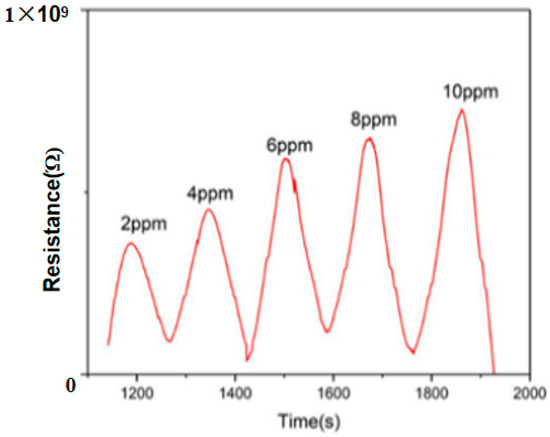

The gas-sensing response of the devices to oxidizing gases can be defined as S = R_g/R_a, where R_g and R_a represent the resistance of the gas sensor in the detected gas and air, respectively. The response time and recovery time were defined by the time for the gas sensor to achieve 90% of the total response change with the exposure and evacuation of the detected gases, respectively. The response recovery curves of TiO₂ material with NO₂ gas concentrations of 2, 4, 6, 8, and 10 ppm are presented in Figure 5. The resistance of the material shows minimal change after exposure to NO₂ gas. The sensor exhibits a gas-sensing response of approximately 1. At 10 ppm, the sensor demonstrates maximum gas-sensing response with a response time of 91 s and a recovery time of 84 s. This study selected this as the research basis to test whether the response time and recovery time of TiO₂ NTs/CNTs nanocomposites to NO₂ gas at different temperatures were improved, and whether the gas-sensitive response of the sensor was improved.

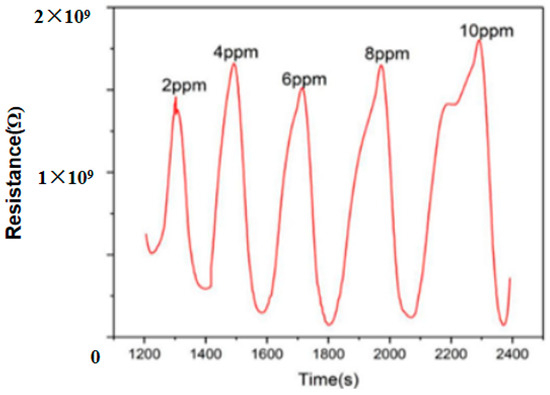

The response recovery curves of the TiO₂ NTs/CNTs nanocomposites following exposure to 2, 4, 6, 8, and 10 ppm NO₂ gas at 120 °C exhibited an enhanced gas-sensing response compared to Figure 5. As shown in Figure 6, the nanocomposites displayed the best response to 8 ppm NO₂ gas with a gas-sensing response of 2.28, a response time of 97 s, and a recovery time of 225 s. In comparison to pure TiO₂ materials without nanocomposites products, both the response time and recovery time are prolonged by about 6 s and 171 s, respectively, compared to Figure 5. However, the gas-sensing response of the sensor is increased by 1.3 times.

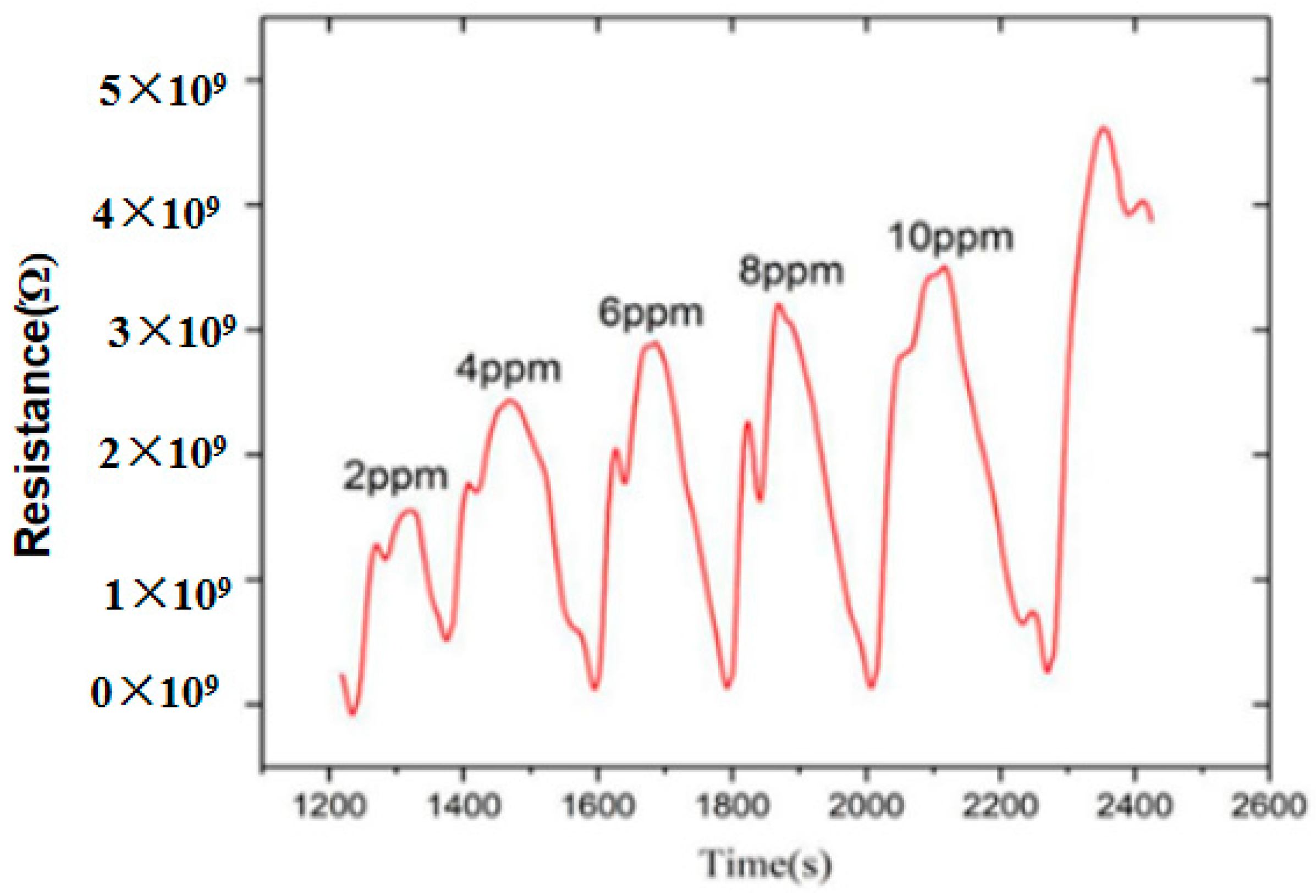

Figure 7 shows the gas response recovery curve of TiO₂ NTs/CNTs in response to NO₂ with concentrations of 2, 4, 6, 8, and 10 ppm at 200 °C. With the increase in NO₂ gas concentrations, the gas-sensing response of the sensor reaches the maximum value of 12 at 10 ppm, and the response time is 163 s. The response time is extended by 66 s and the recovery time is 107 s compared with that at 120 °C, and the recovery time is reduced by 85 s. Compared with pure TiO₂ materials, although the response time and recovery time are slightly longer, the gas-sensing response of the sensor is greatly improved.

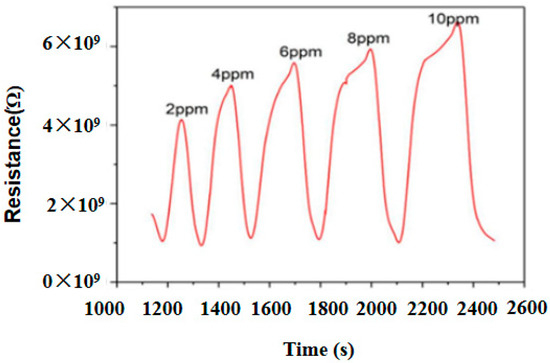

Figure 8 shows the response recovery curve of TiO₂ NTs/CNTs materials at 120 °C with NO₂ gas concentrations of 2, 4, 6, 8, and 10 ppm under ultraviolet irradiation. As can be seen from the figure, the gas-sensing response of the sensor increases with the increase in NO₂ gas concentrations, and reaches the maximum value when the gas concentration is 10 ppm (S = R_a/R_g = 6.57). The response time of the sensor is 234 s, and the recovery time is 133 s. Compared with sensors without UV irradiation at 120 °C, the gas-sensing performance is significantly improved, and the gas-sensing response is increased by about six times, although the response time and recovery time are prolonged. Compared with sensors without ultraviolet irradiation at 200 °C, the gas-sensing response decreased, and the response time and recovery time were relatively long. The response time and recovery time were extended by 71 s and 26 s compared with 200 °C without ultraviolet irradiation, which failed to achieve good gas-sensitive performance under low temperature and ultraviolet irradiation at the same time. This shows that at the same temperature, the gas sensitive performance of the sensor can be improved under ultraviolet irradiation, but the response recovery time cannot be shortened by ultraviolet irradiation [17].

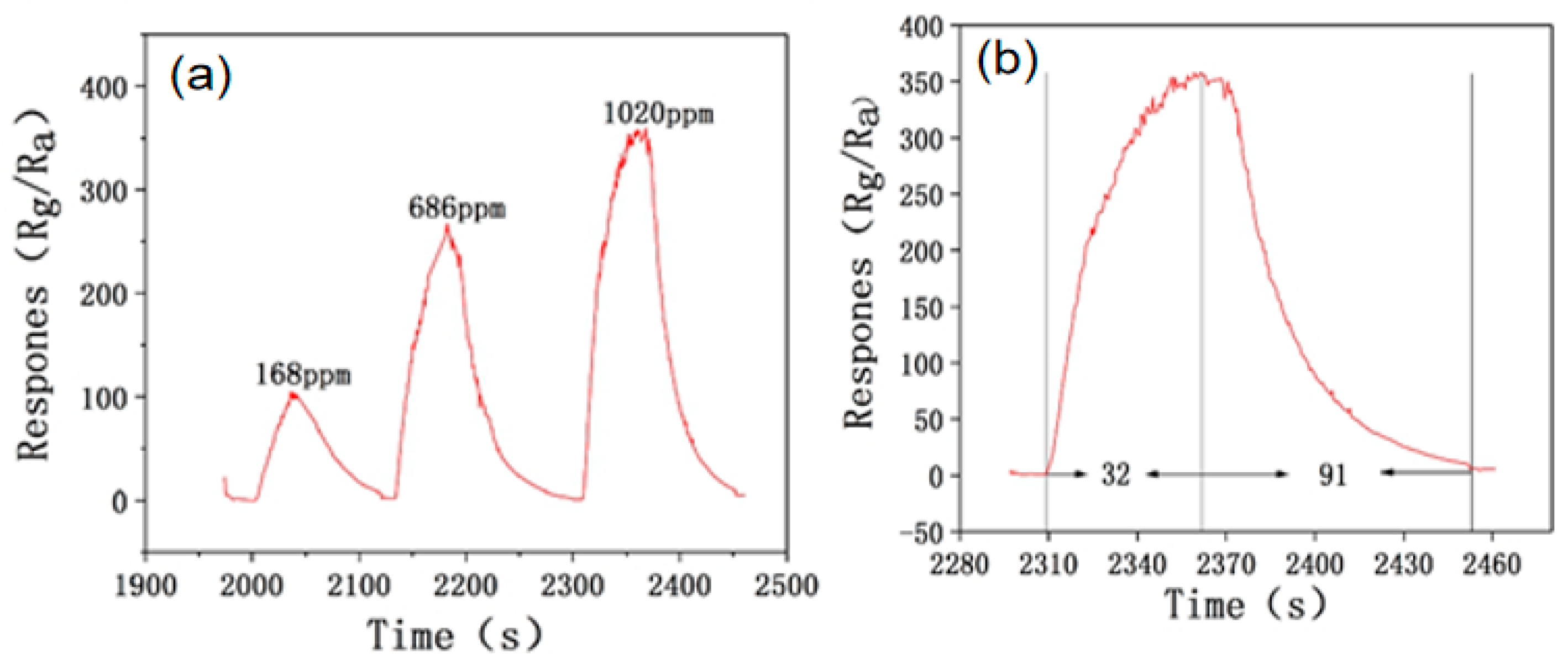

The continuous transient response recovery of the TiO₂ NTs array to NO₂ at different temperatures is shown in Figure 9. The test demonstrates that the TiO₂ NTs array exhibits excellent selectivity for NO₂ at a temperature of 320 °C [18]. As depicted in Figure 9a, when the temperature is set at 320 °C and the concentration of NO₂ increases from 168 to 1020 ppm, the response value of the TiO₂ NTs array to NO₂ rises from 100 to 400. Upon removal of the NO₂, the resistance of the TiO₂ NTs array increases and returns to its original state. This not only suggests that higher concentrations enhance sensitivity for detecting NO₂ gas but also highlights good reversibility exhibited by TiO₂ NTs. Even after multiple repeated operations, the response value can still return to its initial level. As illustrated in Figure 9b, when exposed to a concentration of 1020 ppm of NO₂, it takes approximately 32 s for TiO₂ NTs to respond, indicating a favorable response value towards NO₂ gas at both a temperature of 320 °C and this particular concentration level. However, it requires around 90 s for complete recovery due to a strong linear correlation between the resistance of the nanocomposites and NO₂ gas concentration during this process [19].

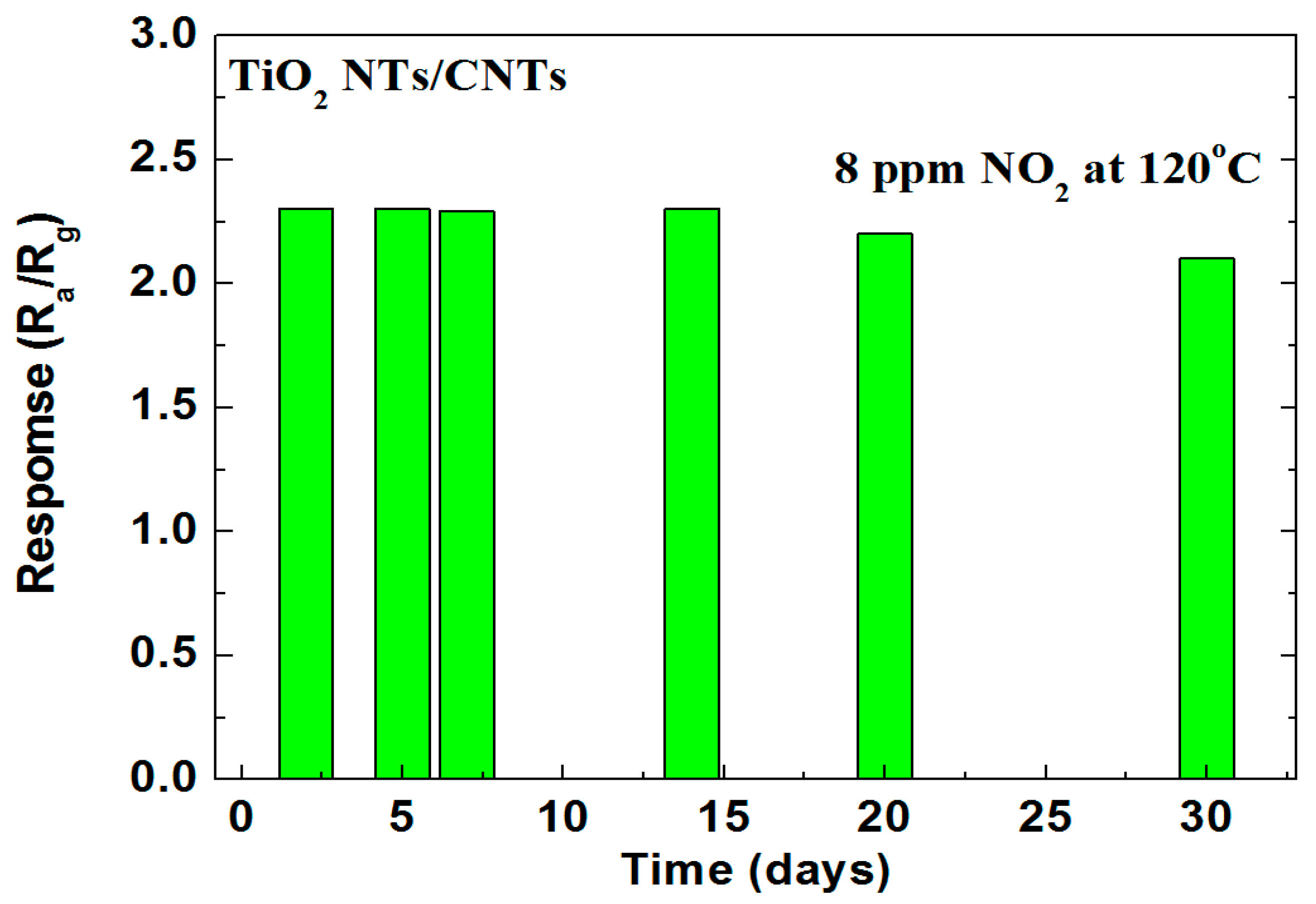

As shown in Figure 10, the curve showed a relatively stable trend during a long-term stability measurement of 30 days toward 8 ppm NO₂ gas. Moreover, after 30 consecutive tests, no apparent decrease trend in response was observed for detecting 8 ppm NO₂. These results demonstrate that the TiO₂ NTs/CNTs-based sensor possesses good repeatability and long-term stability. In addition, the effects of environmental factors such as humidity, temperature fluctuations, and light exposure on the sensors are currently in the process for optimizing experimental parameters. The properties of TiO₂ NTs/CNTs heterojunction nanostructure are potentially superior to their individual component because of greater active sites for adsorption of the target gas, which means a higher response.

4. Gas-Sensitive Reaction Mechanism

The gas monitoring can be explained by the combination of the adsorption–desorption model [20] and the energy band theory [21]. Firstly, TiO₂ NTs array acts as an N-type semiconductor. In this study, a non-metallic material P-type semiconductor material CNT is selected for doping on the basis of a TiO₂ NTs array. After doping, a heterojunction PN junction is formed at the interface of these two materials [21]. Moreover, electrons are carriers in N-type semiconductors and participate in conduction while holes are carriers in P-type semiconductors and also participate in conduction. As electrons move from an N-type semiconductor TiO₂ NTs to P-type semiconductor CNTs, TiO₂ NTs become positively charged whereas holes move from P-type semiconductor CNTs to N-type semiconductor TiO₂ NTs resulting in negative charge accumulation on CNTs. Consequently, an electric field is established at the heterojunction which increases the Schottky barrier leading to the excellent gas-sensitive performance of the TiO₂ NTs/CNT composite [22]. Owing to the relative position of the CNT and TiO₂ CB edge [19], the electrons injected into the oxide can be shuttled into the graphitic network, as proposed for photo-injected carriers in TiO₂/CNTs catalysts [23]. Such a process finally brings about a reduction in the h+ concentration in the CNTs, thus causing the electrical resistance of the nanocomposite to increase [24]. Upon contact with oxidizing gases (such as NO₂), strong electron absorption occurs on the surface of CNTs causing tilting effect towards oxidizing gases. On a macroscopic scale, this results in a charge transfer between gas molecules and CNT surfaces, increasing hole carrier concentration and conductivity while losing electrons, thus enhancing sensitivity of CNT towards oxidizing gases [25].

5. Conclusions

In this study, TiO₂ NTs/CNTs composites were synthesized via a hydrothermal method and utilized as nano gas sensors for NO₂ detection. A heterojunction junction is formed at the interface of hydrothermal synthesis of TiO₂ NTs and CNT nanocomposites, which increases the Schottky barrier leading to an excellent gas-sensitive performance. This improves the power and sensitivity of the sensor. Increasing calcination temperature enhances the crystal structure of TiO₂ NTs, resulting in increased sensitivity towards NO₂ gas detection with higher concentrations. At 200 °C, the sensor exhibits a 12-fold increase in power compared to 120 °C. Furthermore, under UV irradiation conditions, significant improvements are observed in the material’s gas-sensing performance compared to non-irradiated conditions at similar temperatures. However, increasing temperature and adding UV irradiation prolong both response and recovery times relative to initial values for this gas-sensitive sensor. This study has the potential to decrease production expenses and this sensor can be potentially applied for rapidly and precisely detecting NO₂ in air quality monitoring. Future work will focus on optimizing test parameters for real-time monitoring of ancient book environments to enable timely and efficient protective measures.
