Atomic Layer Deposition Growth and Characterization of Al₂O₃ Layers on Cu-Supported CVD Graphene

Abstract

The deposition of thin uniform dielectric layers on graphene is important for its successful integration into electronic devices. We report on the atomic layer deposition (ALD) of Al₂O₃ nanofilms onto graphene grown by chemical vapor deposition onto copper foil. A pretreatment with deionized water (DI H₂O) for graphene functionalization was carried out, and, subsequently, trimethylaluminum and DI H₂O were used as precursors for the Al₂O₃ deposition process. The proper temperature regime for this process was adjusted by means of the ALD temperature window for Al₂O₃ deposition onto a Si substrate. The obtained Al₂O₃/graphene heterostructures were characterized by Raman and X-ray photoelectron spectroscopy, ellipsometry and atomic force and scanning electron microscopy. Samples of these heterostructures were transferred onto glass substrates by standard methods, with the Al₂O₃ coating serving as a protective layer during the transfer. Raman monitoring at every stage of the sample preparation and after the transfer enabled us to characterize the influence of the Al₂O₃ coating on the graphene film.

1. Introduction

Graphene, a single sheet of honeycomb-like arranged carbon atoms, has been in the spotlight of scientific interest for almost two decades due to its excellent physical properties [1,2,3,4,5]. This is a genuine two-dimensional material with high carrier mobility [6], extraordinary ballistic-transport distances [7] and over 97% transparency for visible light [8], which make it applicable to novel electronic and optoelectronic devices. The implementation of graphene in such integrated devices requires a technology for wafer-scale synthesis with a controllable number of layers. The experience from recent years shows that chemical vapor deposition (CVD) onto a copper catalyst is the most promising synthesis approach that yields large-area and high-quality graphene with a low density of structural defects [9]. Furthermore, this method is scalable without worsening the quality of the produced graphene [10]. Despite the problems arising from the surface morphology and the different grain orientations of the Cu foil [11,12] most commonly used as the CVD substrate/catalyst, it seems that this production technology may be able to satisfy the complex requirements for industrial applications of graphene. However, many of these applications require the graphene sheet to be coated with a conformal and ultrathin dielectric layer, which is a technological challenge due to the chemical inertness of graphene [13].

In many instances, atomic layer deposition (ALD) is the preferred technique for growing ultrathin metal oxide layers [14] as it exhibits a number of advantages, such as high-precision thickness control and excellent conformal covering of complex surfaces. However, ALD is a surface-reaction-limited process and the lack of out-of-plane functional groups in sp²-bonded graphene prevents its receptivity to an ALD reaction. For instance, combined theoretical and experimental investigations [15] showed that the adsorption of the ALD alumina precursor onto pristine graphene was kinetically and thermodynamically unfavorable, leading to nucleation, mainly at defect sites and grain boundaries, and an overall nonuniform coverage. To overcome this obstacle, various graphene pretreatment and functionalization methods have been applied [16], and intensive research has been carried out to optimize the ALD process parameters [17]. Such methods can include the chemical functionalization of graphene with NO₂ and O₃ [18,19], or the deposition of an additional seed [20] or interfacial protective [21] layer. Such pretreatments may have undesirable side effects, such as problems with scaling the dielectric thickness, unintentional doping or the creation of defects in the graphene lattice [22,23]. Therefore, it is important to find a way to increase the wetting of ALD dielectrics on the graphene surface without using a seed layer and without disrupting the graphene lattice. Recently, water-dipping pretreatment of graphene was suggested as such an approach [24]. According to ref. [24], the physisorbed water molecules act as nucleation sites for the metal precursor trimethylaluminum (TMA) to form continuous Al₂O₃ dielectric films. The use of water pretreatment as a preliminary step in the ALD process was studied in detail by Zheng et al. [25], who concluded that it generally improves Al₂O₃ ALD growth on graphene. The importance of physisorbed H₂O molecules for the subsequent ALD Al₂O₃ growth was also highlighted by the results of Zhang et al. [26]. On the other hand, in ref [13], it was shown that a metal catalyst substrate of as-grown graphene can also facilitate the deposition of conformal and continuous ALD dielectric coatings. This effect was attributed to better wettability and the presence of polar sites in graphene when it is in intimate contact with its metallic substrate [13]. Recently, an improvement of graphene’s Young modulus upon deposition of an ultrathin ALD Al₂O₃ layer at room temperature [27] was reported.

The utilization of the outstanding electronic and optical properties of graphene includes its integration with other isolating and semiconducting layers or 3D phases, which requires refined and precise transfer procedures. Despite advancements in transfer methods for lattice disruptions, doping from contamination impurities and wrinkles are the most often occurring transfer-induced defects [28]. If deposited onto Cu-supported as-grown graphene, an ALD oxide layer could also be potentially helpful as a protective interface and support layer during the transfer process [29]. This approach avoids transfer-polymer contamination of the graphene, thus protecting it also from possible doping, which could worsen the subsequent performance of this graphene in integrated devices [29,30].

In this work, the deposition of dielectric Al₂O₃ thin films by ALD onto CVD-grown graphene is investigated. We deposited the Al₂O₃ coating with water pretreatment or directly onto the Cu-supported graphene prior to its transfer to a dielectric substrate. Besides characterization of the specimens with structural and imaging methods, we performed an on-spot Raman investigation of the graphene interaction with the Cu substrate and the impact of the ALD process.

2. Materials and Methods

2.1. Synthesis of the Al₂O₃/Graphene Heterostructure

The graphene film (predominantly single-layer or double-layer graphene) was deposited onto commercially obtained copper foil (99.8%, Alfa Aesar, Haverhill, MA, USA, 25 µm thick) that was electropolished prior to the CVD process. Electropolishing was performed in 85% concentrated H₃PO₄ solution with the polished copper foil as the anode and a copper plate as the counter electrode at a polarization voltage of 1.98–2.02 V at room temperature. Thus, two Cu foil substrates were prepared, which will hereafter be referred to as samples S1 and S2.

The graphene was grown in a cold-wall Plasmalab System 100 research reactor from Oxford Instruments (Abingdon, Oxfordshire, UK) using low-pressure chemical vapor deposition in a high-purity hydrogen (99.9999%) and methane (99.9995%) gas flow. Prior to the growth stage, the Cu foil underwent annealing in an argon/hydrogen atmosphere at a temperature near its melting point to activate its surface catalytic properties. Subsequently, a mixture of reaction and carrier gases CH₄/H₂/Ar was introduced into the reaction chamber according to the corresponding recipes for single-layer graphene (applied to sample S1) and bilayer graphene (applied to sample S2). Details are given in the Supplementary Materials. Afterwards, the sample was quenched to 300 °C at 15 °C/min in a hydrogen/argon atmosphere. Cooling to room temperature was performed in a high-purity argon atmosphere. The grown graphene layers were checked by Raman spectroscopy, and representative spectra are shown in Figure S1 (Supplementary Material), indicating predominantly single-layer graphene for sample S1 and predominantly bilayer graphene for sample S2.

The deposition of Al₂O₃ was performed in a Beneq TFS-200 ALD system (Beneq Oy, Espoo, Finland) onto the graphene coating of the as-obtained samples S1 and S2 and an accompanying Si wafer with native oxide as the reference substrate. The ALD temperature window for the deposition of Al₂O₃ onto a Si substrate with TMA and deionized water (DI H₂O) precursors was examined, and deposition at 200 °C was selected as the optimal thermal regime [31]. Deposition at lower temperatures leads to non-uniform, opaque and non-transparent Al₂O₃ films, while higher deposition temperatures create non-stoichiometric films and, particularly, increases the amount of chemisorbed oxygen [31].

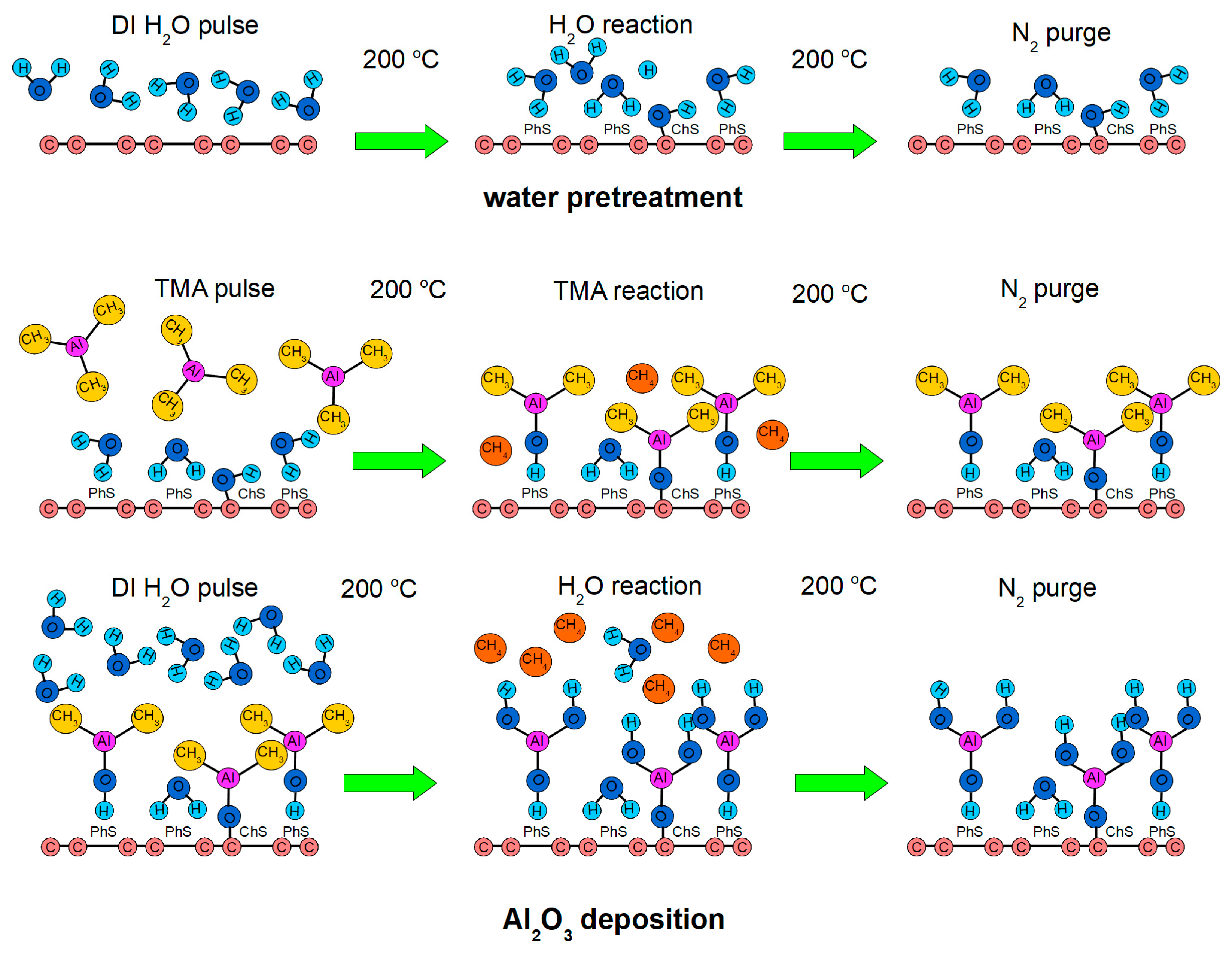

The ALD process is schematically depicted in Figure 1. First, the graphene surface was pretreated in situ at 200 °C by 10 cycles of DI H₂O with a 200 ms pulse duration separated by a pure nitrogen purge of 2 s. This preliminary step is needed to create hydroxyl groups (-OH) on the sp²-hybridizated graphene surface. This is assumed to be accomplished by the massive adsorption of water molecules onto the graphene surface facilitated by the Cu-induced polar traps [13]. The predominant bonding type of these water molecules is assumed to be physisorption [24], with a small amount of covalently bonded -OH groups. Estimates of the rates of these bonding types will be made in the next section.

Thereafter, a TMA and DI H₂O ALD with durations of 180 ms each and separated by a 3 s nitrogen purge was performed. The nitrogen flow used as the purging and carrier gas was kept at 300 sccm during the whole deposition process. The TMA/DI H₂O ALD cycle was repeated 352 times on sample S1 and 950 times on sample S2, leading to approximately 40 and 100 nm thick Al₂O₃ films, respectively. The growth rate of Al₂O₃ deposited at 200 °C with water pretreatment was estimated to be around 1.1–1.2 Å/s [31]. The thicker Al₂O₃ coating for sample S2 was chosen to prevent poorer ALD coverage due to the screened Cu-substrate effect upon increasing the graphene layer number [32].

2.2. Characterization

The Raman spectra were measured by backscattering geometry in the range of 100–3000 cm⁻¹ in a HORIBA Jobin Yvon Labram HR visible spectrometer (HORIBA Scientific, Kyoto, Japan) [33] with a Peltier-cooled CCD detector and entrance slits set to 1.5 cm⁻¹ spectral width. The 632.8 nm line of a He–Ne laser was used for the excitation using a 600 grooves/mm grating, the absolute accuracy being about 1 cm⁻¹. The laser beam was focused on a spot of about 2 µm in diameter on the sample surface, using microscope optics with an objective of 50× magnification. The measured frequencies were calibrated using a Si standard and the line corresponding to the stretching vibrations of air nitrogen [34] at 2331 cm⁻¹, which is contained in the spectra of Cu-supported graphene samples. In addition, the N₂ line provides an internal standard for the intensity of the graphene peaks, because in the same focusing conditions, its intensity is more or less the same in all spectra of the examined Cu-supported graphene samples.

The X-ray photoelectron spectroscopy (XPS) studies were performed in a Kratos AXIS Supra spectrometer (Kratos Analytical Ltd., Manchester, UK) using achromatic AlKα radiation with an energy of 1486.6 eV. The binding energies (BEs) were determined utilizing the C 1s line with an energy of 285.0 eV as a reference. The accuracy of the measured BE was 0.1 eV. The photoelectron lines of constituent elements on the surface were recorded and corrected by subtracting a Shirley-type background and quantified using the peak area and Scofield’s photoionization cross-sections. Spectral deconvolution was performed with the XPSPEAK 4.1 software [35].

XRD measurements were performed using an Empyrean system manufactured by PANalytical, Almelo, The Netherlands. The diffractometer was configured with a Cu Ka tube, a parallel-beam mirror and a PIXcel3D detector (PANalytical, Almelo, The Netherlands). Obtained diffraction data were processed using the HighScore Plus 4.5 software and the ICSD database (Inorganic Crystal Structure Database).

The ellipsometry measurements were performed using a Woollam M2000D rotating compensator spectroscopic ellipsometer (J. A.Woollam Co. Inc., Lincoln, NE, USA) with a wavelength range from 193 nm to 1000 nm in the reflection mode. The data acquisition and analysis software involved was CompleteEASE 5.10 J. A.Woollam Co. Inc. (Lincoln, NE, USA). The spectroscopic ellipsometry data of Y and D were taken at room temperature at an angle of incidence of 60°.

The surface morphology quality was characterized by scanning electron microscopy (SEM). We used the state-of-the-art scanning electron microscope JEOL IT800SHL (Kyoto, Japan), with both in-chamber and in-lens detectors for secondary and backscattered electrons.

The microscope used for the atomic force microscopy (AFM) studies was Asylum Research’s MFP-3D Origin. The scan was run in the AC repulsion mode. The topographic images were taken on an area of 2 × 2 µm, with a line scan rate of 1Hz and a resolution of 256 × 256 points. The probes used are made of silicon (Opus-160AC-NA, OPUS by µmasch, Innovative Solutions Bulgaria Ltd., Sofia, Bulgaria), with an aluminum reflective coating and a cantilever length of 160 µm. The cantilever has a typical resonant frequency of 300 kHz, a force constant of 26 N/m, and a tip radius of 7 nm. Gwyddion 2.59 software was used for image analysis.

3. Results and Discussion

3.1. Surface Chemical Composition (XPS Analysis)

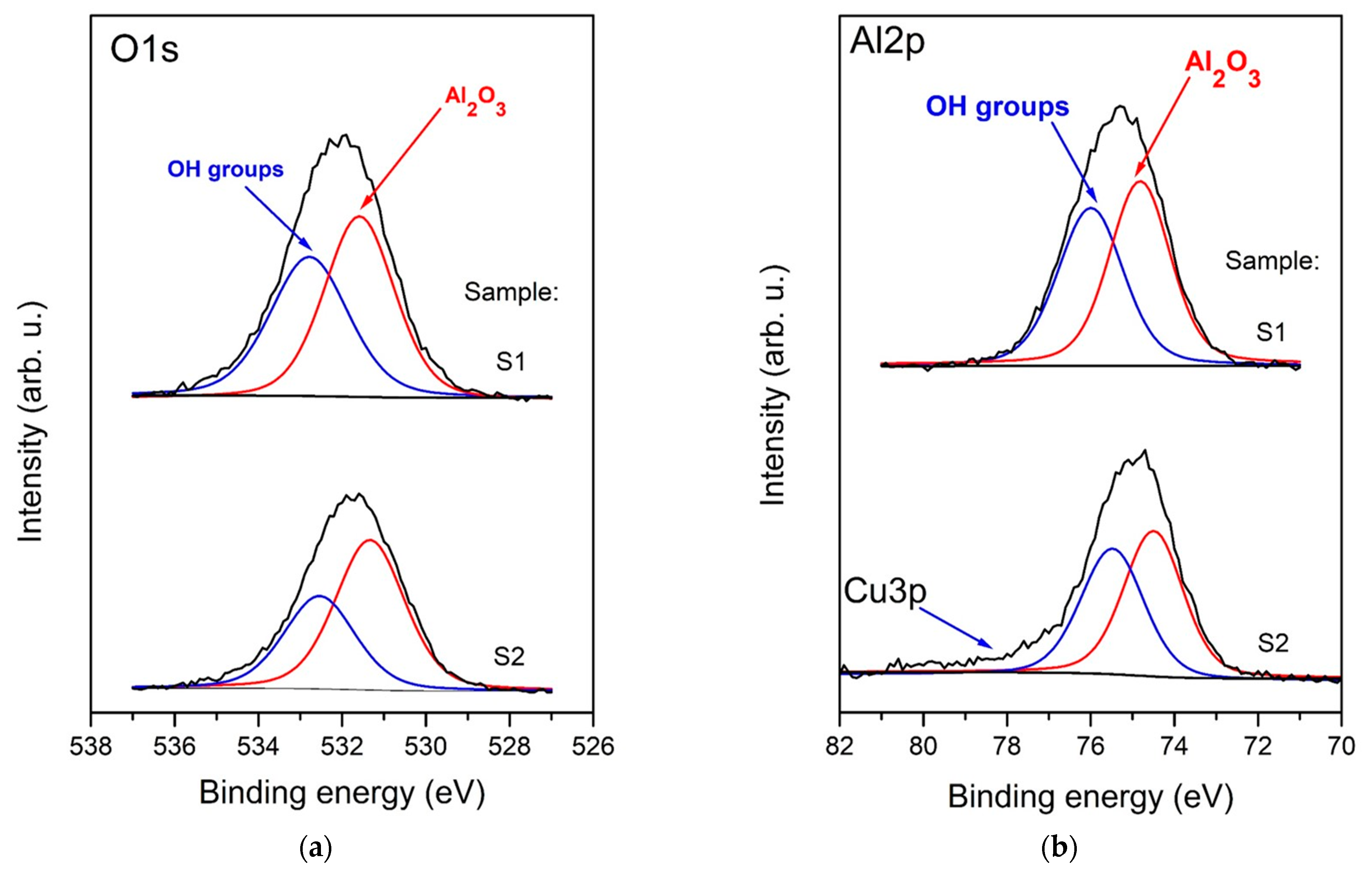

To examine the formation of the Al₂O₃ coating, the two samples, S1 and S2, were checked by XPS. Fitted Al2p and O1s spectral bands are displayed in Figure 2. C1s spectra were recorded; however, they do not stem from the underlying graphene film, as the XPS signal is collected from the first 10 nm beneath the surface, but from a thin surface layer of adventitious carbon instead. This C1s signal was utilized as a reference with an energy of 285.0 eV for the determination of the binding energies (BEs). From the relative intensity of the fitting components, the chemical composition of the surface region of the Al₂O₃ layers was also determined, and the content of the constituent elements are given in

Table 1. Chemical composition at the surface of the two Al₂O₃/graphene/Cu samples.

Sample	C, at. %	O, at. %	Cu, at. %	Al, at. %	Al/O Ratio
S1	15.4	49.0	-	35.6	0.7
S2	29.8	40.5	0.4	29.3	0.7

.

The O1s photoelectron spectra (Figure 2a) contain one main peak with binding energy at around 531.5 eV, typical for Al₂O₃, and an additional one (at 532.5 eV) appearing as a result of hydroxide and other adsorbed species on the surface of the studied samples. The Al2p photoelectron spectra (Figure 2b) are also found to have two peaks, associated with aluminum oxide and hydroxide. The main peak at around 74.5 eV is assigned to Al₂O₃ and the second one to adsorbed OH or other type oxygen-containing groups over the surface. Trace quantities of Cu are detected near the surface of sample S2 with the thicker Al₂O₃ layer. This could be due to a penetration of Cu atoms through the layer due to the occasional presence of cracks in the thicker layer. Correspondingly, in the Cu2p region, a faint peak is detected for sample S2, and a trace feature of Cu3p is also barely visible in the energy region of its Al2p band.

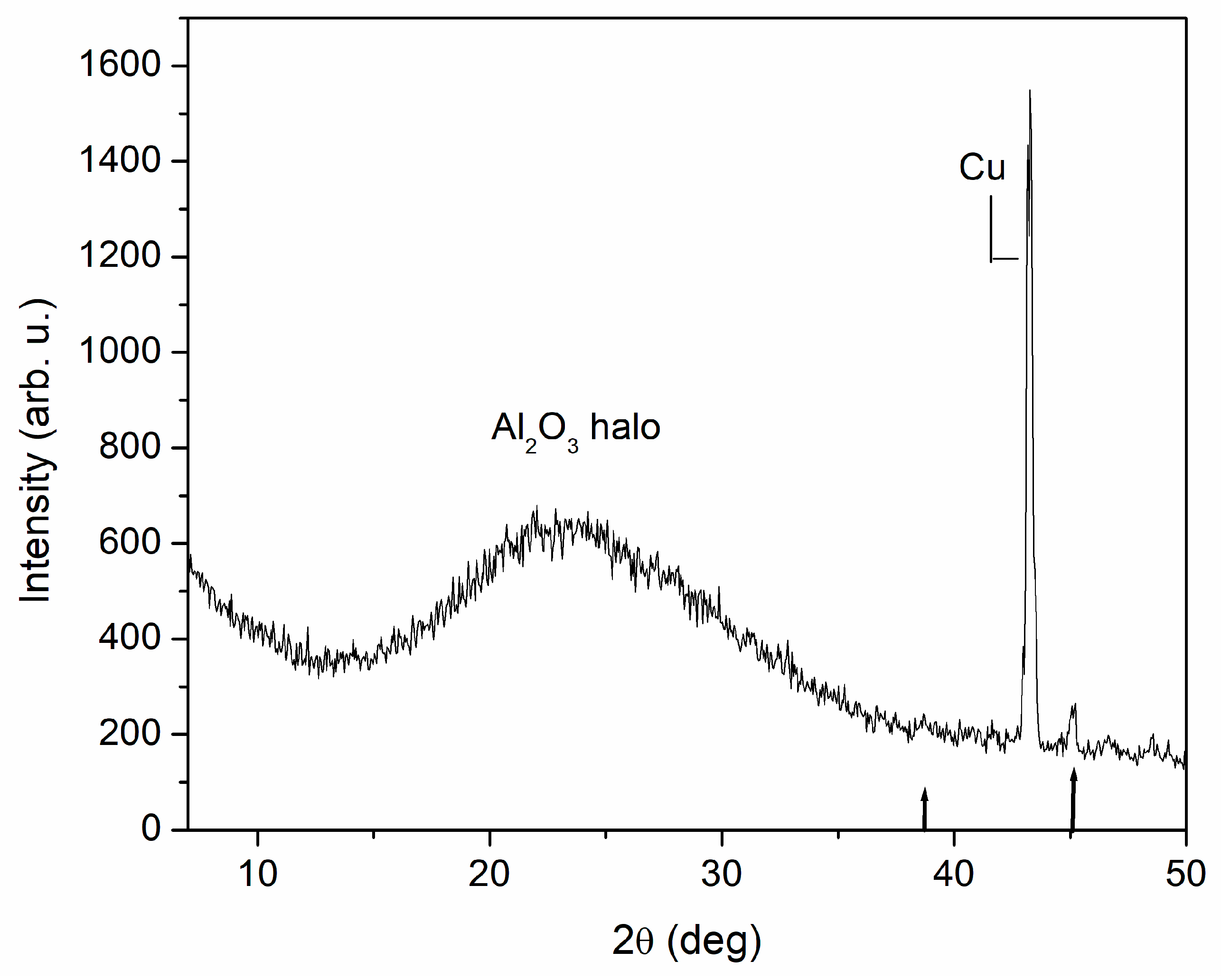

The binding energy separation between the O1s and Al2p core levels is 456.80 eV, in agreement with reported values for fully oxidized amorphous aluminum oxide [36,37]. Indeed, thermal ALD is known to yield amorphous Al₂O₃ layers for deposition temperatures up to 250 °C [38]. To verify this, we performed a structural characterization of sample S1 by X-ray diffraction, and Figure 3 presents the obtained diffraction pattern. Besides the copper substrate peak at ≈ 43° (2θ), it contains a very broad halo in the range of 13–36° (2θ) due to diffuse scattering from amorphous Al₂O₃. In addition, a weak signal is registered at ≈45° (2θ), which most likely arises from a trace quantity (1%–2%) of γ-Al₂O₃, considering the difference in intensities. The obtained spectrum in Figure 3 thus confirms the amorphous state of the Al₂O₃ layer, which is valid for both samples S1 and S2 due to the same growth conditions.

3.2. Study of the Al₂O₃/Graphene/Cu Heterostructures by Ellipsometry

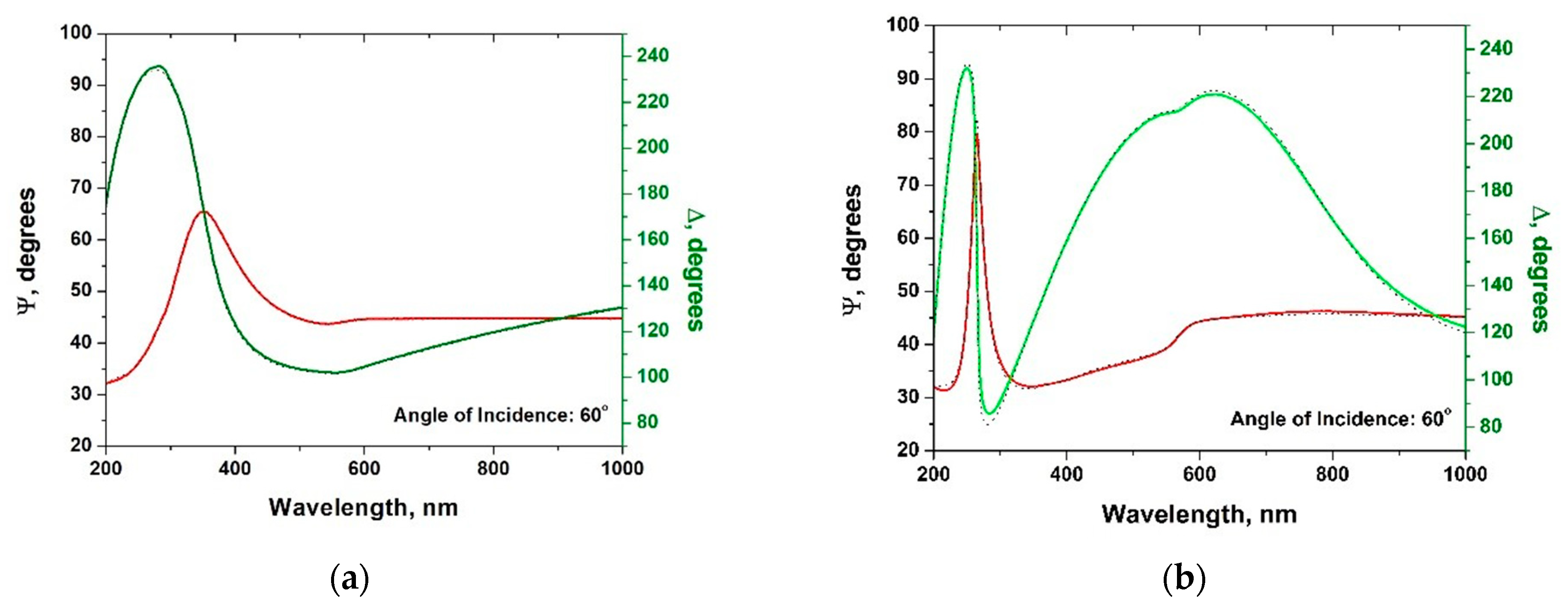

To determine the thickness of the Al₂O₃ layer for the two samples, S1 and S2, spectroscopic ellipsometry (SE) measurements were carried out. The ellipsometric data for Ψ and Δ were fitted within a model consisting of three consecutive layers. The first layer is a semi-infinite oblique copper substrate, whose optical constants were determined from measurements on a freshly prepared two-component Cu/graphene system [39]. The second layer is graphene, with the optical constants of graphite taken from Palik’s Handbook of Optical Constants [40] (CompleteEASE 5.10 software). It participates in the model with two different thicknesses: 0.35 nm for sample S1 and 0.7 nm for sample S2, according to the initial Raman results for the two samples. The Al₂O₃ ALD layer was represented by the Cauchy dispersion. The thickness of the third component—the Al₂O₃ layer—was thus found to be 42 nm for sample S1 and 116 nm for sample S2. To corroborate our model, we carried out SE measurements on analogous Al₂O₃ layers deposited onto accompanying silicon substrates with 2.5 nm thick native oxide in the same ALD experiment. The same Al₂O₃ thicknesses were found, which confirms the reliability of the obtained results. The experimental Ψ and Δ data for both the 42 and 116 nm thick Al₂O₃ layers are presented in Figure 4a and Figure 4b, respectively. The theoretical model is represented by a dotted line.

3.3. AFM and SEM Analysis

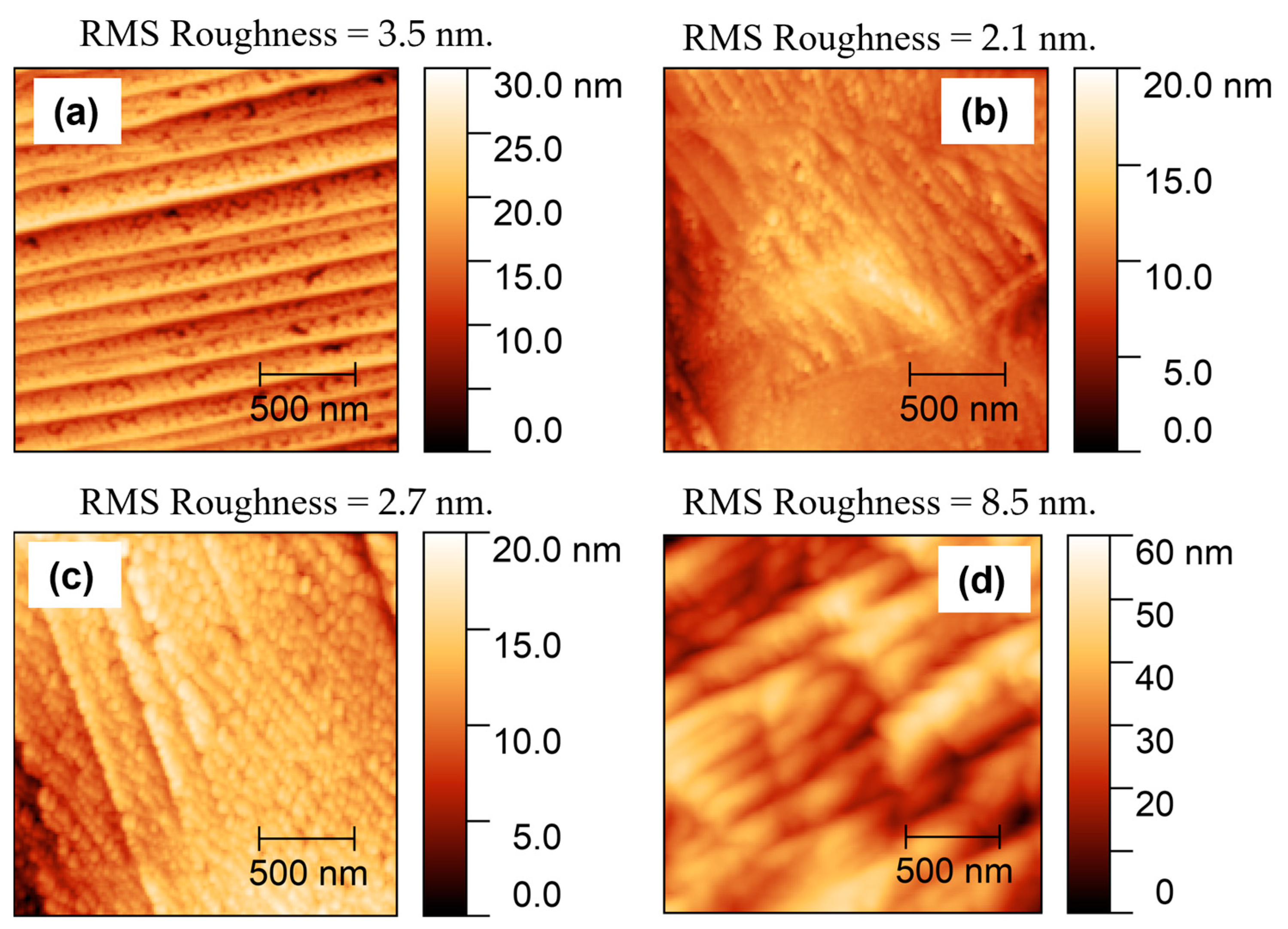

The surface morphology of the obtained Al₂O₃ layers was studied by AFM and SEM. AFM images of samples S1 and S2 are shown in Figure 5a–c and Figure 5d, respectively. They reveal relatively smooth Al₂O₃ surface for both thicknesses. Root mean square (RMS) roughness was estimated by calculating the square root of the second central moment in the data. The average RMS roughness for the three images displaying the morphology of sample S1 (Figure 5a–c) is about 2.7 nm, while for the thicker Al₂O₃ layer of S2 (Figure 5d), a roughness of ≈8.5 nm was found. More detailed AFM and SEM data for S2 are given in the Supplementary Materials.

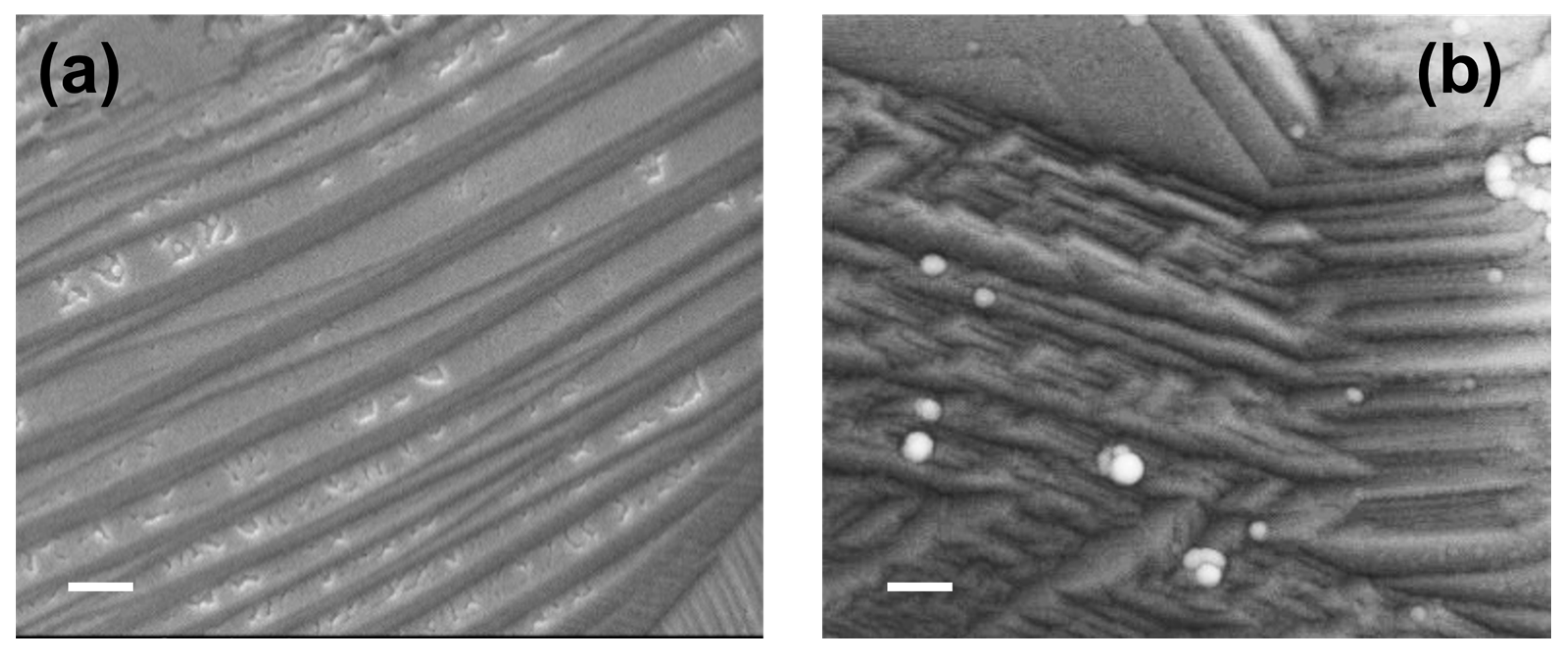

SEM images from the Al₂O₃-coated surfaces of the studied samples are displayed in Figure 6. They show a complete and rather uniform coverage of the underlying graphene by the oxide film without pinholes, consistent with the AFM data.

3.4. Raman Analysis

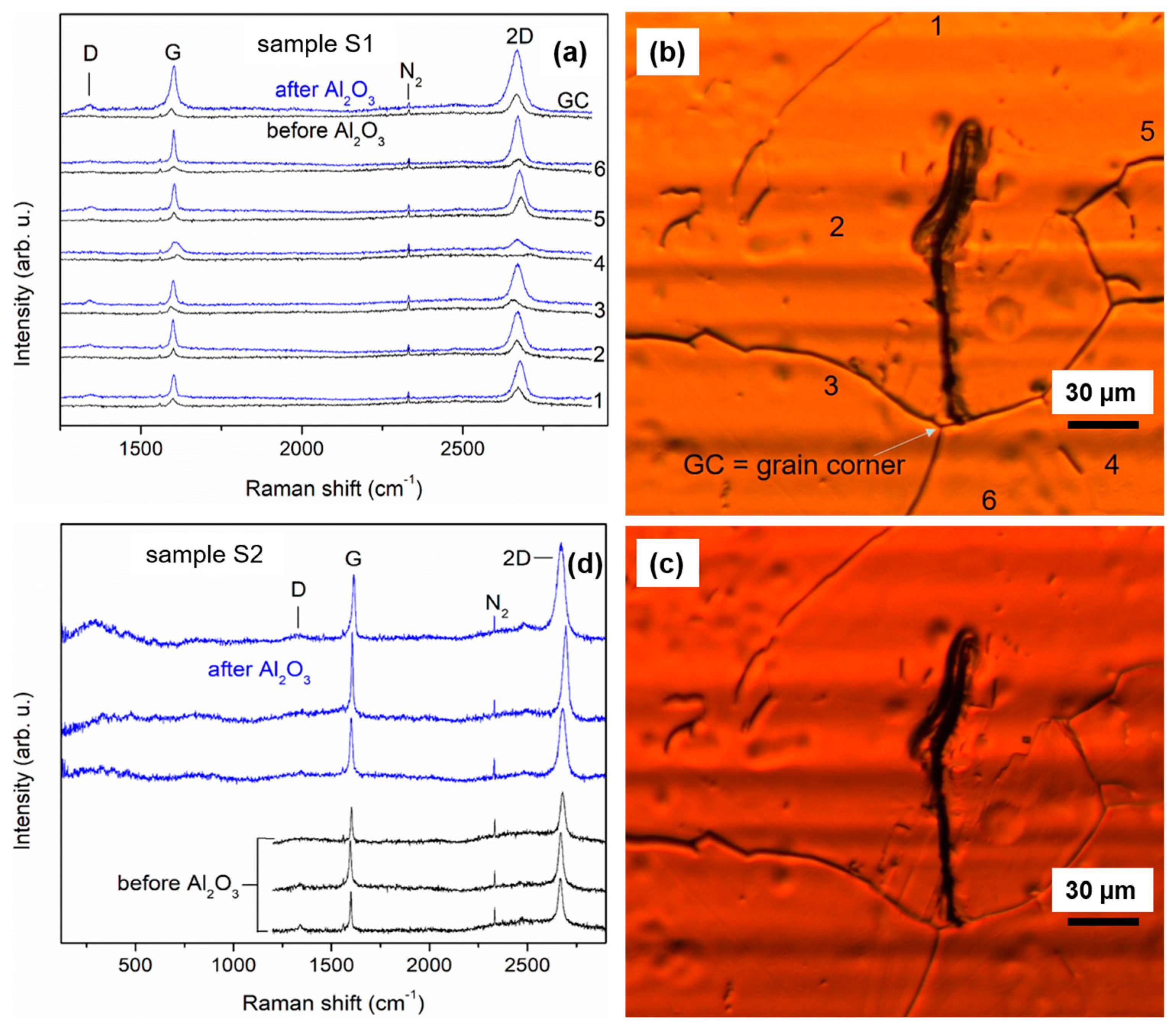

Raman monitoring of both samples was carried out at every stage of the sample preparation and after the transfer. On sample S1, we encountered a region containing a characteristic defect that could be repeatedly located under an optical microscope. We were thus able to measure Raman spectra on the same selected spots with a spatial precision of about 5 μm after each processing step. Figure 7a contains such spectra measured at six smooth spots and a Cu grain boundary crossing point, which are shown in the optical micrographs in Figure 7b (before the ALD deposition) and Figure 7c (after the ALD deposition). The spectra are grouped in couples to illustrate, for each examined spot, the change in the Raman response caused by the Al₂O₃ ALD deposition. Figure 7d presents Raman spectra illustrating this effect for sample S2. Further details of the Raman characterization are given in the Supplementary Materials.

The spectra taken from the as-grown graphene reflect a uniform picture of strong coupling to the Cu substrate [41], manifested by suppressed Raman intensity and a strong blue shift of the G and the 2D bands (≈10 and ≈35 cm⁻¹, respectively [39,42]). Multiple enhancement of the intensity of all Raman bands of the graphene in sample S1 is observed as an immediate consequence of the ALD process; however, the blue shift largely remains the same. The same effect is established also for sample S2; however, the ALD-induced intensity enhancement there is much weaker and only reaches, at most, 50%. We attribute these effects to the complex interplay of interactions to which graphene is subjected in the obtained sandwich structure. The intimate contact with copper creates polar traps [13], making graphene more susceptible to the adsorption of H₂O and, probably, TMA molecules. The massive adsorption of such species during ALD, in turn, slightly modifies the graphene–Cu coupling but does not relax it. A further indication that the coupling is largely preserved is the lack of Cu₂O-related spectral bands in the region of 100–650 cm⁻¹ [43] in the Raman spectra measured after the ALD process (see Figure 7d and Figure S4). Because this is a 200 °C process with water pretreatment, we conclude that even the single-layer graphene in sample S1 effectively prevents the penetration of ALD-related species toward the Cu surface, in contrast to other oxide deposition processes that oxidize the substrate [44]. As can be appreciated from the relatively symmetric shape of the 2D band in the spectra of sample S2 in Figure S1 and Figure 7d, its graphene layer consists mostly of twisted bilayer graphene. In this case, the two monolayers do not strongly interact [45], and the coupling to the Cu substrate may have a weaker impact on the upper layer. This may explain the weaker Raman intensity enhancement in sample S2 after the ALD process.

Now, we discuss the possible bonding types between graphene and the adsorbed water molecules during the ALD pretreatment step. We consider the predominant bonding type to be physisorption [24], with a small amount of covalently bonded -OH groups. A covalent bond constitutes a zero-dimensional point-like defect, and the D peak provides information on such defects in the graphene lattice. The ratio of its intensity to that of the G peak, I_D/I_G, is typically used as measure for the defect density [46]. We found the increase in this ratio caused only by the ALD process to be in the range 0.1–0.2 for the spectra in Figure 7a. Using the defect quantification model proposed in ref. [46] and assuming that the impact of the ALD process was the creation of a certain number of covalent C-OH bonds, we estimate the average distance between two neighboring C-OH bonds to be 30–50 nm, which yields a surface density of about 10³ per µm². On the other hand, the surface density of all adsorbed H₂O molecules can be assumed to be approximately equal to the surface density of Cu-induced polar traps, which, according to ref. [13], reaches 10⁵–10⁶ per µm². Thus, the rate of covalent C-OH bonds can be roughly estimated to be ≈1%. However, our Raman data from aged samples presented in the Supplementary Materials (Figure S4) shows a broadening of the G peak and a sharp increase in I_D/I_G over larger timescales, which imply that oxidation reactions may slowly advance at the Al₂O₃/graphene interface over time. This raises concerns about the long-term stability of such heterostructures and, especially, the performance sustainability of devices into which they are integrated.

Parts of both samples were transferred to microscope glass slides using poly-methyl-methacrylate (PMMA)-assisted wet transfer. The presence of nanoscale Al₂O₃ allows for a much thinner PMMA film than typically used (about 150 nm). It further protects the graphene from PMMA contamination and facilitates subsequent removal of the backbone polymer [47]. The PMMA (2% in anisole) was spin coated at ~4000 rpm, resulting in about a 50–70 nm layer. Then, the samples were cured for 2 min at 180 °C and floated on a Fe(NO₃)₃•9H₂O solution to etch the Cu foil. Finally, after a few cycles of rinsing in DI water, the PMMA was dissolved in acetone at 80 °C for few hours.

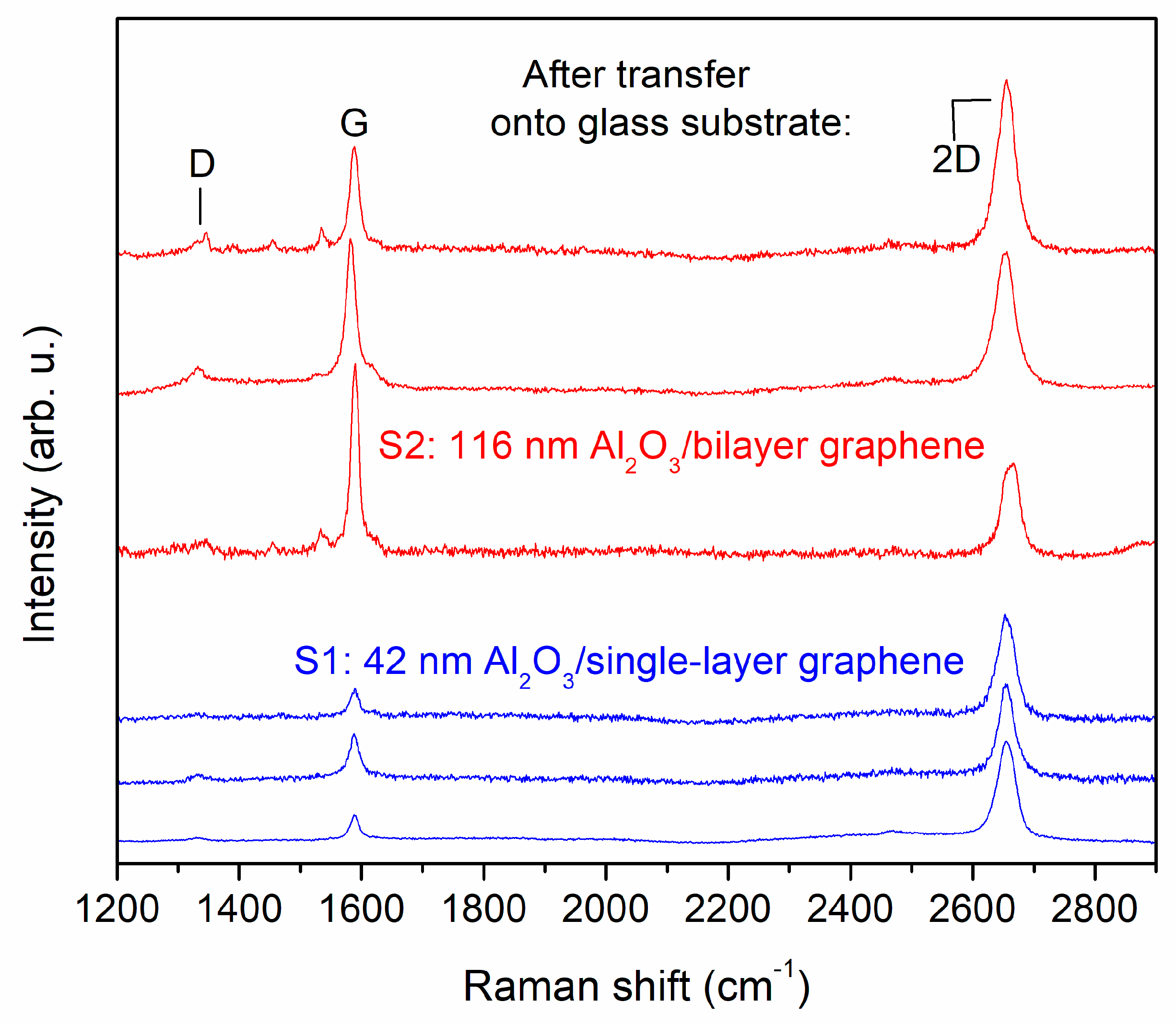

Raman spectra from the two transferred Al₂O₃/graphene heterostructures are displayed in Figure 8. The values of the 2D-to-G peak intensity ratio I(2D)/I(G) obtained from these spectra of about 1 for sample S2 and 2–3 for sample S1 confirm that they represent bi- and monolayer graphene, respectively (see also Figure S1). For both transferred heterostructures, we found typical I_D/I_G values in the range between 0.05 and 0.1, indicating that the ALD process used for Al₂O₃ growth does not damage the underlying graphene. The full width at half-maximum (FWHM) of the 2D peak was found to be in the range of 30–35 cm⁻¹ for sample S1 and 35–38 cm⁻¹ for S2, which is only insignificantly higher than the typical values for CVD graphene. The FWHM of the 2D peak is informative for the local strain variations in the graphene layer [48]. Furthermore, after transfer, the G and 2D peak frequencies are around 1588 and 2650 cm⁻¹, respectively, thus exhibiting a slight residual blue shift, especially for the single-layer graphene sample. We attribute this blue shift to a compressive strain imposed by the oxide layer [20], which, on the other hand, indicates a strong and reliable adhesion of the Al₂O₃ layer on the underlying graphene. The spectra are almost free of Raman signals from transfer residues, especially those stemming from sample S1 with the thinner and smoother Al₂O₃ layer, thus confirming its protecting function during the transfer. Such a layer of 30–40 nm thickness, which is still relatively smooth and crack-free, according to the XPS results, seems to be optimal for wet-chemistry transfer.

In summary, we performed ALD Al₂O₃ deposition with water pretreatment on as-grown Cu-supported CVD graphene. After characterization of the specimens by structural and imaging methods, we carried out a detailed on-spot Raman investigation of the graphene interaction with the Cu substrate, the impact of the ALD process and the post-ALD time evolution of the Al₂O₃/graphene/Cu system. Our results indicate possible problems in the practical use of Al₂O₃/graphene heterostructures prepared by ALD with water pretreatment.

4. Conclusions

We prepared Al₂O₃/graphene heterostructures by the chemical vapor deposition of graphene onto copper foil and subsequent atomic layer deposition of Al₂O₃ onto the Cu-supported graphene. Characterization of the obtained heterostructures by X-ray photoelectron spectroscopy, ellipsometry and atomic force and scanning electron microscopy revealed smooth Al₂O₃ coatings with complete coverage and controllable thickness. Samples of these heterostructures were transferred onto glass substrates by standard methods, with the Al₂O₃ coating serving as a protective layer during the transfer. On-spot Raman monitoring at every stage of the sample preparation and after the transfer confirmed that graphene endures the Al₂O₃ ALD growth without significant defect formation and effectively prevents the penetration of ALD-related species toward the Cu-substrate surface. However, our results indicate that after ALD Al₂O₃ deposition with water pretreatment, oxidation reactions may slowly advance at the Al₂O₃/graphene interface with time. Therefore, special care should be taken to block these reactions when integrating such heterostructures into electronic devices.
