Article

Microstructure and Tribological Properties of HVOF-Sprayed Nanostructured WC-12Co/Fe3O4 Coatings

1
Faculty of Mechatronics and Mechanical Engineering, Kielce University of Technology, Tysiąclecia Państwa, Polskiego 7, 25-314 Kielce, Poland
2
Institute of Metallurgy and Materials Science, Polish Academy of Sciences, 30-059 Kraków, Poland
3
Department of Materials Engineering and Research Centre, Faculty of Mechanical Engineering, University of Zilina, 010 26 Zilina, Slovakia
4
Faculty of Management and Computer Modelling, Kielce University of Technology, Tysiąclecia Państwa, Polskiego 7, 25-314 Kielce, Poland
*
Author to whom correspondence should be addressed.
Coatings 2024, 14(6), 752; https://doi.org/10.3390/coatings14060752
Submission received: 30 April 2024 / Revised: 28 May 2024 / Accepted: 11 June 2024 / Published: 14 June 2024
(This article belongs to the Special Issue The Present Status of Thermally Sprayed Composite Coatings)

Abstract

:
Due to wear and improper operation, many machine parts become useless, which is why issues of friction and wear remain constantly relevant across all industrial sectors. This paper presents the results of research on the microstructure and properties of a nanostructural composite coating containing solid lubricant. The coating was deposited from a mixture of nanostructural WC-12Co powder and nanostructural Fe3O4 powder using HVOF spraying. Despite significant differences in grain size and density of both powders, the deposited coating consisted of WC-12Co matrix containing evenly distributed Fe3O4. The XRD analysis of the coating confirmed the presence of both components and the presence of W2C, which resulted from the decarburization of WC due to the high temperature during the spraying process. Furthermore, the microstructure analysis of the coatings confirmed that they contained both nanostructural WC and Fe3O4 grains that were present in the feedstock. The coefficients of friction, microhardness, and wear of the nanostructured composite coatings were determined using an experimental binomial program. Based on the ANOVA conducted, it was determined that the most significant impact on the friction coefficient is the Fe3O4 content in the sprayed mixture, while the oxygen to propane ratio affects the microhardness. For the wear of nanostructural composite coatings, the most important parameter is the spraying distance.

1. Introduction

The problems of friction and wear are constantly essential in all branches of industry because they largely determine efficiency. Properly constructed friction nodes should be characterized by high wear resistance, which allows for significant material savings, and a low friction coefficient, which in turn reduces the amount of energy used to overcome resistance to movement. Meeting these requirements is possible by appropriate selection of materials for the friction pair and the introduction of a lubricant that is delivered to places where friction occurs. The lack of direct contact between the surfaces of the friction pair elements allows for the elimination of pathological wear processes such as adhesive and abrasive wear. The separation of these surfaces can be achieved using liquid lubricants [1,2,3]. However, this requires introducing an appropriate lubrication system into the structure, often with seals and heat exchangers. Service is also necessary to control the quantity and quality and to replenish the necessary amount of lubricant. If the lubrication system fails, accelerated wear occurs and then the device fails. Another possibility of separating the mating surfaces is to introduce solid lubricant into the friction pair. This refers to solid bodies that have relatively low cohesive forces and can therefore be easily plastically deformed. They may have a crystalline or amorphous structure. Low cohesion may either characterize the entire body or occur only in certain preferred slip directions, and in terms of cohesion, it has an anisotropic character. Thanks to this property, these materials are resistant to compression and susceptible to shearing, i.e., shifting of sheets [4,5]. The advantages of solid lubricants include much greater mechanical and thermal resistance than liquid and plastic lubricants, which allows them to be used in a much wider range of operating conditions. They are used especially where there are high specific pressures, low or high temperatures, vacuum, and aggressive environments. The use of solid lubricants is also beneficial where the presence of liquid lubricants is undesirable, e.g., in the electronics, food, or printing industries, and in places where access to a working device may be difficult, e.g., orbital stations. Simplifying the structure of the friction pair and reducing its weight is also of great importance. The ecological aspect is also important, because the elimination of the lubricant excludes the possibility of environmental contamination. The advantages of materials with solid lubricant properties requires the development of technologies for their application. Therefore, it is necessary to analyze their properties, working conditions in which we want to use them, and technological possibilities [6,7]. Various types of CVD and PVD methods [8,9], electro-spark [10,11] and laser technology [12,13] offer greater possibilities of applying thin coatings of many materials that are solid lubricants. They allow coatings of precisely defined thickness to be obtained, very well bonded to the substrate, without the need for expensive finishing processing. However, these technologies are expensive and the application possibilities are limited by the size of a given part. A completely different group of methods for introducing solid lubricant into the friction pair is based on the concept of creating composite structures containing solid lubricant using various thermal spraying techniques [14,15]. One of them is HVOF spraying, which has enabled the deposition of composite coatings containing various solid lubricants for many years [16,17,18]. The next stage is the use of nanostructured materials, which have much better properties [19,20,21]. In most cases, the share of solid lubricant is set arbitrarily and the coatings are deposited using the same parameters [16,18,22,23,24,25]. Therefore, knowledge of the influence of spraying parameters on the properties of coatings is very important. Therefore, the use of statistical methods for optimizing spraying parameters is a very effective solution to this issue [26,27]. This is particularly interesting in the case of composite coatings consisting of both a nanostructured matrix and a nanostructured solid lubricant. In the studies carried out, nanostructured WC-Co with very good mechanical and anti-wear properties [21,26] and nanostructured Fe3O4, which has the properties of a solid lubricant [28,29], were used. In recent years, various forms of nanostructured Fe3O4 have been used as nano-lubricant additives in various oils, resulting in significant reductions in friction coefficient and wear [30,31,32,33]. Therefore, the next step and novelty is the use of nanostructured Fe3O4 as a solid lubricant in a nanostructured matrix under dry friction conditions. The purpose of this study is to investigate the microstructure and tribological properties of nanostructured WC-12Co/Fe3O4 composite coatings deposited by HVOF based on the DOE experiment. The experiment presented in this article includes the following stages: developing a binomial experiment plan, the identification of nanostructures in powder materials, the identification of nanostructures in HVOF-sprayed coatings, the determination of optimal HVOF spraying parameters, a verification experiment, an analysis of the results, and a discussion.

2. Experiment

2.1. Materials and Methods

A coating material made from a composite of nanostructured WC-12Co (Nanox S7412, Inframat Corp., Manchester, CT, USA) with added nanostructured Fe3O4 (Nanox 26FE23, Inframat Corp., Manchester, CT, USA) was prepared by mixing measured quantities of the components in a V-type mixer for one hour in reference to the data in Table 1. The particle size distribution was determined by means of a Sympatec Gmbh Helios laser analyzer. Coatings were deposited using the Hybrid Diamond Jet (Sulzer Metco) supersonic spray system with specified parameters (Table 2). Before spraying, samples made of C45 steel were degreased and sandblasted with EB14 electrocorundum under 0.5 MPa air pressure. Samples for metallographic studies were cut using an “ISOMET—low-speed saw” (BUEHLER) equipped with a diamond blade, and microsections of the coatings were prepared on a “LaboPol—5” (STRUERS) polishing machine. Coating examinations were conducted using JSM Jeol 7100F and Jeol JSM 5400 scanning microscopes equipped with an ISIS 300 Oxford (EDS) microprobe for chemical composition analysis. The FEI E-SEM XL 30 (FEI Company, Hillsboro, OR, USA) and TEM: FEI Tecnai G2 SuperTWIN 200 kV (FEI Company, Hillsboro, OR, USA) equipped with an SIS MegaView III CCD camera were applied for microstructure analysis. The chemical composition investigation was performed using an energy-dispersive X-ray spectrometer produced by EDAX. An FIB: ThermoFisher Scios 2 Dual Beam microscope (Thermo Fisher Scientific Inc., Waltham, MA, USA) and EasyLift lift-out system were applied to cut out the thin foils using the focused ion beam (FIB) technique. Phase composition was analyzed using a Bruker D8 Discover X-ray diffractometer (Bruker AXS GmbH, Karlsruhe, Germany) with CoK alfa radiation (wavelength of 1.7903 Å). The phase composition was analyzed using Diffrac.EVA V3.0 and HighScore Plus 4.8 software with the ICDD PDF-4+ crystallographic database. Measurements were performed on the coating surface area for each sample without prior preparation. Samples were weighed on a Denver Instrument Company scale with an accuracy of 0.0001 g. HV0.1 microhardness tests of coatings were conducted using an MMT-X3 hardness tester (Matuzawa Co., Ltd., Akita, Japan) with automatic microhardness reading, averaged from 10 measurements. Tests of the friction coefficient and the wear of HVOF-sprayed coatings were carried out with the use of a ball-on-disk T-01 tribotester (The Institute for Sustainable Technologies, Radom, Poland). The counter body was a ¼” diameter ball made of 100Cr6 steel. The ring’s rotational speed and mass were set before testing. Continuous friction force measurement was collected by a computer during the one-hour test. The investigations were performed under 4.9 N load and at a linear speed of 0.5 m/s and temperature of 25 °C. Each coating was tested three times. The surface of the coatings was ground and polished on diamond polishing suspensions with a finishing gradation of 1 µm. After polishing, all samples had a rough surface roughness (Ra) equal to 0.012 ÷ 0.016 µm.

2.2. Design of Experiment

In the experiment, the spraying parameters were changed on two levels (upper and lower), where η—percentage weight of Fe3O4 Nanox in the mixture with WC-12Co Nanox; λ—the ratio of oxygen to propane in the flammable mixture; d—spraying distance; Q—air flow (Table 1).
In the conducted research, a binomial distribution was utilized, and measurements were carried out according to the binomial plan shown in Table 2 to determine the effect of spraying parameters on the coefficient of friction (CoF), microhardness, and coating wear.
The collected results from Table 2 were analyzed statistically using ANOVA and 2(k-p). In HVOF spraying processes, it is assumed that the coating property (output parameter) is related to the input factors of the spraying process by a mathematical relationship (1) [34,35]:
y = f(xn)
where xn refers to the input factors. It is important to plan the experiment with a minimum number of input factors so that the process of selecting the best output value is not complicated. It seems that the following linear function meets our expectations (2) [36]:
y = a0 + a1x1 + … + anxn
where a0 is the mean value, a1, an is the linear regression coefficient, and n is the number of input parameters.
In the first-order two-level programs, the input factors are normalized to two levels, upper (1) and lower (−1), and the central values are calculated as the arithmetic mean of the input factor. The significance of the coefficients was assessed with the use of ANOVA, F and p tests. The quality of the obtained results is presented in Pareto diagrams or profiles of approximated values and utility.
The new values of the input factors were estimated in proportion to coefficients of the linear Equation (2), determined for the output parameters of friction, HV0.1 microhardness, and coating wear. On the basis of the coefficients of Equation (2), new input parameter values were estimated. For instance, the new value of Q was calculated based on the weight proportion expressed in Equation (3).
QN = QD + (QU + QD) ∗ akN
akN = (akh + akF + akW)/Σi(aiH + aiF + aiW)
where QN—the new value estimated based on the carried out research; QN and QN—lower and upper values of the input parameter. Coefficient akN determines the influence of the estimated coefficient on the value of the examined output parameters, which are friction, HV0.1 microhardness, and coating wear. In the applied statistical optimization analysis, an important part is the analysis of variance and the study of the utility function, the geometric equivalent of which is called profiles of approximated values. The analysis of the graphical presentation itself shows the average value for the examined output quantity along with the effect (influence) of the input values. For the selected analyzed input value, its influence on the output value is determined by the slope of the line. If the slope of the line is negative, an increase in the value of the input parameter reduces the analyzed output value. And of course, when the coefficient is positive, the input parameter associated with the line affects the input value proportionally. If the slope coefficient is close to zero, it means that the impact of the input value (or rather its change) is insignificant. The Pareto diagram systematically reflects the contribution of individual input quantities to the value of the output quantity. The parameter p = 0.05 is marked on the charts, indicating the statistical significance of the selected parameter [36,37].

3. Results and Discussion

3.1. Microstructure of Nanostructured WC-12Co Nanox Powder

Figure 1a presents the shape of the grains of WC-12Co Nanox. The grains are of irregular shape but some of them are spherical. This grain structure is usually created in the agglomeration and sintering process. This method of producing powder is usually associated with significant porosity which is visible in the microsection of powder grains (Figure 1b). The manufacturer of the powder declares that a single grain of the powder consists of wolfram carbide sized 100 to 500 nm. The analysis of grain surface makes it possible to confirm this declaration (Figure 1c). Tungsten carbide particles in this size range can be specified on the powder grain surface, at very high magnification (Figure 1d). The measurement of the powder grain size distribution (Figure 2a) showed a fairly wide range of their diameters, reaching an almost three-fold difference in value (d10 = 22.72 µm, d50 = 34.50 µm, d90 = 51.72 µm). The X-ray diffraction pattern of the powder confirmed the phase composition declared by the manufacturer, a clearly visible WC phase and much smaller peaks of cobalt, the share of which is only 12 wt.% (Figure 3a).

3.2. Microstructure of Nanostructured Fe3O4 Nanox Powder

The morphology of Fe3O4 Nanox grains is shown in Figure 4a. A very large difference in grain size is visible, which was confirmed by the analysis of the grain size distribution (Figure 2b). Analysis of the obtained powder parameters (d10 = 1.08 µm, d50 = 5.95 µm, d90 = 17.41 µm) indicates that it consists of very fine grains compared to WC-12Co Nanox powder. Moreover, powder grains are characterized by an irregular and spherical shape resulting from the agglomeration and sintering process. Analysis of the grain cross-section revealed their significant porosity (Figure 4b). Additionally, each grain consists of smaller particles of very different size, from submicrons to several microns (Figure 4c). Further analysis of these small particles showed that they all have a very homogenous structure and consist of Fe3O4 nanograins of a very similar size (Figure 4d). Microstructure images in bright field, dark field, and corresponding electron diffraction highlight the crystallite structure, estimating the crystallite size to be around 13 nm ± 3 nm (Figure 5). The XRD analysis confirmed that this nanostructured powder does not contain any impurities and consists only of pure magnetite (Figure 3b).

3.3. Microstructure of Nanostructured WC-12Co/Fe3O4 Coating

Figure 6a presents the microstructure of the deposited WC-12Co Nanox powder mixture with 15 wt.% Fe3O4 Nanox powder. A uniform distribution of the Fe3O4 phase in the form of thin bands that are several micrometers thick in the WC-Co matrix is visible. At higher magnification, the presence of pores is noticeable, which are the result of the significant porosity of the sprayed powders (Figure 6b and Figure 7a). Deformed WC-12Co grains (light phase) together with deformed Fe3O4 grains (dark phase) are visible on the coating surface (Figure 6c). As in the case of the cross-section of the coating, at high magnification, the pores between the lamellas are visible (6d).
The linear analysis of the microstructure of the nanocomposite coating confirmed the presence of ingredients contained in the feedstock (Figure 7a,b). The high iron content of the substrate drops sharply in the coating where an increase in tungsten and cobalt is seen. The increase in iron presence in the coating coincides with increased oxygen counts, confirming the presence of Fe3O4 in this area. Figure 7c shows the nanostructured WC grains in the deposited nanocomposite coating. The nanostructured Fe3O4 was also preserved during HVOF process. The very small spherical Fe3O4 nanograins present in the starting powder were also retained in the deposited coating (Figure 7d). The analysis of phase composition of the nanostructured composite coating confirmed the presence of all components in the sprayed mixture (Figure 8).
Small ditungsten carbide (W2C) peaks are also visible. This is the result of decarburization of monotungsten carbide (WC) under the influence of high temperature of the combustible mixture during the HVOF spraying process.
During flight towards the substrate, these grains are subjected to heating and then, after impact onto the substrate, undergo solidification and cooling. The decarburization process is the result of the thermal history of the particles in flight, because powder consists of smaller and larger grains that can be found in the core of the spray jet as well as on its edges. The high temperature of the process causes the decarburization of tungsten carbide grains to tungsten dicarbide and the appearance of metallic tungsten. These phenomena can be described by the following reactions: 2WC → W2C + C, W2C →2W + C. Additionally, the significant decrease in the amount of carbon as a result of flame oxidation of the coating can be illustrated by the reaction 2C + O2 → 2CO (gas). Other phases can also be created, e.g., Co3W3C and Co6W6C, which occurred when the WC-Co powder was exposed to high temperatures exceeding its melting point, causing decomposition of WC and its reaction with cobalt. The final phase composition of the coating depends on the spraying technique and operating parameters [38,39]. The HVOF process should be carried out in a such a way as to minimize the presence of the hard and brittle W2C phase which reduces the tribological properties of the coating [40]. Taking into account the trace amount of this phase in the obtained nanocomposite WC-12Co/Fe3O4 coating, it can be assumed that its impact on the wear process was negligible.

3.4. Analysis of Binomial Experiment for CoF of Nanostructured WC-12Co/Fe3O4 Coatings

The first parameter subjected to the study is friction. The obtained results were subjected to ANOVA, indicating the input parameter with the highest significance. The analysis showed a statistically significant effect of η on the friction value. The function F took the value of 61.8, with a p-value of 0.004. Other input parameters do not have such an influence, as the function F takes values below 1 and the p-value is significantly greater than 0.05. It was found that the remaining parameters do not have a statistically significant impact on the measured property. The actual impact of these parameters requires further investigation under different experimental conditions. Standardized results were depicted on the Pareto diagram (Figure 9) and profiles of approximated values (Figure 10).
In the diagram (Figure 10), the range of variability of the utility function (profiles of approximated values) for Eta changes quite dramatically. The slope is negative, so an increase in Eta causes a decrease in the CoF. The remaining parameters do not show significant changes. The influence of the utility function is visible in Equation (5). The assessment of the statistical effect of individual input parameters generated regression coefficients associated with Equation (2), and ultimately, we obtain
CoF = 0.271 − 0.062η + 0.009λ − 0.016d + 0.011Q

3.5. Analysis of Binomial Experiment for Hardness of Nanostructured WC-12Co/Fe3O4 Coatings

A statistical test for microhardness, HV0.1, was conducted for two samples, considering 5 wt.% and 15 wt.% of Fe3O4 admixture, and the mean values are shown in Table 2. Based on the measurement points, hardness values were compiled to create maps. These maps are presented in Figure 11 and Figure 12.
In the examined microhardness area, it was 863 ± 21 and 899 ± 25 for samples with Fe3O4 admixtures of 5 wt.% and 15 wt.%, respectively. The difference in microhardness values is not statistically significant. Similarly to the friction coefficient, the obtained microhardness results were subjected to ANOVA. The analysis showed no dominant influence of any input parameter on the examined microhardness. Only the parameter η (Eta) from the group of input parameters has the greatest influence on microhardness. For each investigated input parameter, the function F took values below 1, and the parameter p took values exceeding 0.7, confirming the lack of statistically significant influence of any of the input parameters. A graphical presentation of the contribution of individual factors to the hardness of the coating is presented in a Pareto diagram (Figure 13).
The diagrams in Figure 14 emphasize the meaning of the input quantity values. The diagram of the utility of the microhardness differs the most from the level; thus, it provides information about the significant influence on the value of the microhardness. Similarly to the diagram (Figure 10), the range of variability of the utility function for Eta changes quite dramatically. The slope is positive this time, so an increase in Eta causes an increase in the CoF value. The remaining parameters do not show significant changes. The influence of the utility function is visible in Equation (6).
The results of the above analysis reflect the coefficients in (6):
HV0.1 = 870.33 + 27.35η − 3.17λ + 4.45d + 5.42Q

3.6. Analysis of Binomial Experiment for Wear of Nanostructured WC-12Co/Fe3O4 Coatings

The next parameter under investigation is coating wear. Similar to previous analyses, the obtained results were subjected to ANOVA to identify the input parameter with the highest significance. The analysis revealed the absence of a dominant input parameter affecting the coating wear value. The remaining input parameters do not have such an influence, as the function F takes values below 1 and the p-value is in the range from 0.2 to 0.7. The standardized results are depicted in a Pareto diagram (Figure 15).
The diagram of profiles of approximated values illustrates the distribution of the influence of input parameters on the studied output parameter, which is coating wear (Figure 16). As in the previous diagrams (Figure 10 and Figure 11), the range of variability of the utility function for Eta changes quite dramatically. The slope is positive this time, so Eta causes an increase in the CoF value. The remaining parameters do not show significant changes. The influence of the utility function is visible in Equation (7). The average value of coating wear is equal to 0.00118 g.
As a result of the conducted 2(k-p) binomial analysis, regression coefficients were obtained (7):
Coating wear = 0.00118 + 0.00044η − 0.00002 Q + 0.000036λ + 0.0000d
Based on the obtained results of eight experiments, in accordance with the plan included in Table 2, new values of the input parameters were estimated in accordance with the applied methodology defined by Equations (3) and (4). The bases for calculating the new input values were the coefficients defined in Equations (5)–(7). These parameters were used to spray the verification sample (Table 3). The obtained sample was characterized by the following parameters: CoF—0.1907, hardness—867.4 HV0.1, and coating wear—0.00054.
Friction joints with solid lubricants, especially in nanostructured form, are an interesting subject of research, as it is necessary to explain all the processes that occur between moving elements. Particular attention is paid to the microstructure of the surface, its composition and phase distribution, and the amount of solid lubricant, which have a significant impact on the coefficients of friction and wear. There is an optimal composite composition that ensures minimum values of the coefficients of friction and wear [41]. Analyzing the surface of the HVOF-sprayed coating, it was assumed that the coating consists mainly of WC grains in a cobalt matrix and a solid lubricant (Fe3O4). Based on the phase analysis of the composite coating (Figure 8), it can be stated that the W2C peaks are negligibly small compared to the other components of the coating. Therefore, in this case, the influence of this component can be neglected in the further analysis of the lubrication process. In the next step, analyzing the surface of the HVOF-sprayed coating, it can be assumed that the coating consisted mainly of WC grains in a cobalt matrix and a solid lubricant in the form of Fe3O4. The processes of sliding friction and wear of the sprayed nanostructured WC-12Co/Fe3O4 HVOF composite coatings were responsible for the formation of grains containing WC and Fe3O4. The particles are fragmented, combined, and distributed in the coating–surface interface. Their dimensions decreased as a result of the development of shear stresses. It can be assumed that the most important aspect in this process seem to be very small, nanostructured WC grains (Figure 7), which contributed to the wear of the coating and the cooperating surface. On the other hand, the presence of nanograins of Fe3O4 in them, i.e., Co and especially Fe3O4, caused a decrease in static stresses, and consequently, a decrease in the coefficients of friction and wear. This mechanism also occurs when other solid lubricants are used [16,42,43,44]. The wear analysis confirmed this lubrication and wear mechanism (Figure 17).
In this nanostructured composite coating, a low-strength protective film (Fe3O4 layer) was formed during the sliding of the ball on the disk. The counter body pressing against the HVOF spray composite coating caused the particles of the solid lubricant, Fe3O4, to fill in the coating pores. The lubricant was spread over the tungsten carbide grains and the cobalt matrix. The smooth surface was able to retain the effectiveness of the lubricating layer (Figure 17). Iron oxide, Fe3O4, is a material with a lamellar structure in the direction (001). At the interface of the coating and the counter body, there were layers varying in thickness. The light WC grains were grey in color varying in intensity. The thin films of nanostructured Fe3O4 formed during friction on the surface of tungsten carbides and the cobalt matrix indicated that the HVOF spray nanostructured solid lubricants were characterized by high adhesion. The nanostructured layers of Fe3O4 were not regular in shape, which was due to their deformations at the interface in relation to the direction of movement. The nano-lubricating Fe3O4 coating formed during collaboration in the friction joint leads to a reduced coefficient of friction and wear.

4. Conclusions

Nanostructured composite WC-12Co/Fe3O4 coatings were deposited by HVOF spraying using a binomial experiment. The microstructure and phase composition of the powders used and sprayed coatings were analyzed by XRD, SEM, and TEM. An analysis of the influence of spraying parameters on the friction coefficient, microhardness, and wear of nanostructured composite coatings was carried out. Based on the research conducted, the following conclusions were drawn:
  • The HVOF-sprayed nanostructured composite coating WC-12Co/Fe3O4 contains nanocrystalline grains, both WC and Fe3O4, which were contained in the nanostructured feedstock.
  • The phase composition of the nanostructured composite coating included the same phases that occurred in the starting powders. However, the high temperature of the HVOF process resulted in the decarburization of WC and the appearance of trace amounts of W2C.
  • The conducted studies on the influence of input parameters (η, λ, d, Q) on the coefficient of friction, microhardness, and coating wear showed that the greatest influence on the coating properties was the content of Fe3O4. The remaining input parameters did not indicate a significant impact on the tested values.
  • Optimization of the spraying parameters as a result of the binomial experiment allowed for reduction in the friction coefficient by 7% and coating wear by 11%.

Author Contributions

Conceptualization, W.Ż., A.G., O.B. and M.M.; formal analysis, W.Ż., A.G. and M.M.; funding acquisition, W.Ż. and M.M.; investigation, M.M., A.G. and M.V.; methodology, W.Ż., M.M., A.G., O.B. and M.V.; project administration, W.Ż.; resources, W.Ż. and M.M.; supervision, W.Ż., A.G., O.B. and M.M.; validation, W.Ż., A.G. and M.M.; visualization, M.M. and A.G.; writing—original draft, W.Ż., M.M. and A.G.; writing—review and editing, W.Ż., A.G. and M.M. All authors have read and agreed to the published version of the manuscript.

Funding

The work reported herein was supported by project No. 01.1.05.00/1.02.001/ SUBB.MCKE.24.003 funded by the Ministry of Education and Science, Poland.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Somers, A.E.; Howlett, P.C.; MacFarlane, D.R.; Forsyth, M. A Review of Ionic Liquid Lubricants. Lubricants 2013, 1, 3–21. [Google Scholar] [CrossRef]
  2. Kałdoński, T.; Wojdyna, P.P. Liquid Lubricants for Space Engineering and Methods for their Testing. J. KONES Powertrain Transp. 2011, 18, 163–184. [Google Scholar]
  3. Milewski, K.; Kudliński, J.; Madej, M.; Ozimina, D. The interaction between diamond like carbon (DLC) coatings and ionic liquids under boundary lubrication conditions. Metalurgija 2017, 56, 55–58. [Google Scholar]
  4. Shengyu, Z.; Jun, C.; Zhuhui, Q.; Jun, Y. High temperature solid-lubricating materials: A review. Tribol. Int. 2019, 133, 206–223. [Google Scholar]
  5. Mazumder, S.; Metselaar, H.S.C.; Sukiman, N.L.; Zulkifli, N.W.M. An overview of fluoride-based solid lubricants in sliding contacts. J. Eur. Ceram. Soc. 2020, 40, 4974–4996. [Google Scholar] [CrossRef]
  6. Zamani, P.; Valefi, Z.; Mirjani, M. Effect of grinding and lubricating post-treatment on wear performance of plasma sprayed Cr2O3–Al2O3 composite coatings. Surf. Interfaces 2019, 16, 206–214. [Google Scholar] [CrossRef]
  7. Niemczewska-Wójcik, M.; Madej, M.; Kowalczyk, J.; Piotrowska, K.A. A comparative study of the surface topography in dry and wet turning using the confocal and interferometric modes. Measurement 2022, 204, 112144. [Google Scholar] [CrossRef]
  8. Seynstahl, A.; Kobrich, M.; Rosnitschek, T.; Goken, M.; Tremmel, S. Enhancing the lifetime and vacuum tribological performance of PVD-MoS2 coatings by nitrogen modification. Surf. Coat. Technol. 2024, 477, 130343. [Google Scholar] [CrossRef]
  9. Jinbin, Z.; Jiaqing, G.; Xingyao, W.; Xusheng, D. Corrosion and wear resistance improvements in NiCu alloys through flame-grown honeycomb carbon and CVD of graphene coatings. Surf. Coat. Technol. 2023, 473, 130040. [Google Scholar]
  10. Antoszewski, B.; Gaponova, O.P.; Tarelnyk, V.B.; Myslyvchenko, O.M.; Kurp, P.; Zhylenko, T.I.; Konoplianchenko, I. Assessment of Technological Capabilities for Forming Al-C-B System Coatings on Steel Surfaces by Electrospark Alloying Method. Materials 2021, 14, 739. [Google Scholar] [CrossRef]
  11. Tongkun, C.; Shuting, L.; Meng, Z. The friction and wear behavior of Cu/Cu-MoS2 self-lubricating coating prepared by electrospark deposition. Surf. Coat. Technol. 2015, 270, 24–32. [Google Scholar]
  12. Krahmer, D.M.; Egea, A.J.S.; Celentano, D.; Martynenko, V.; Cruchaga, M. Friction characterization when combining laser surface texturing and graphite-based lubricants. J. Mater. Res. Technol. 2019, 9, 1759–1767. [Google Scholar] [CrossRef]
  13. Antoszewski, B.; Kurp, P. Effect of Surface Texture on the Sliding Pair Lubrication Efficiency. Lubricants 2022, 10, 80. [Google Scholar] [CrossRef]
  14. Marcinauskas, L.; Mathew, J.S.; Milieška, M.; Thanigachalam, B.; Kupec, A.; Česnavičius, R.; Kėželis, R.; Kalin, M. Microstructure and tribological properties of plasma sprayed alumina and alumina-graphite coatings. Surf. Coat. Technol. 2018, 350, 401–409. [Google Scholar] [CrossRef]
  15. Scendo, M.; Żórawski, W.; Staszewska, K.; Makrenek, M.; Góral, A. Influence of Surface Pretreatment on the Corrosion Resistance of Cold Sprayed Nickel Coatings in Acid Chloride Solution. J. Mater. Eng. Perf. 2018, 27, 1725–1737. [Google Scholar] [CrossRef]
  16. Ganvir, A.; Jahagirdar, A.R.; Mulone, A.; Ornfeldt, L.; Bjorklund, B.; Klement, U.; Joshi, S. Novel utilization of liquid feedstock in high velocity air fuel (HVAF) spraying to deposit solid lubricant reinforced wear resistant coatings. J. Mater. Proc. Tech. 2021, 295, 117203. [Google Scholar] [CrossRef]
  17. Federici, M.; Menapace, C.; Mancini, A.; Straffelini, G.; Gialanella, S. Pin-on-disc study of dry sliding behavior of Co-free HVOF coated disc tested against different friction materials. Friction 2021, 9, 1242–1258. [Google Scholar] [CrossRef]
  18. Liu, Y.L.; Jeng, M.C.; Hwang, J.R.; Chang, C.H. A Study on Wear Resistance of HVOF-Sprayed Ni-MoS2 Self-Lubricating Composite Coatings. J. Therm. Spray Technol. 2015, 24, 489–495. [Google Scholar] [CrossRef]
  19. Asgari, H.; Saha, G.; Mohammadi, M. Tribological behavior of nanostructured high velocity oxy-fuel (HVOF) thermal sprayed WC-17NiCr coatings. Ceram. Int. 2017, 43, 2123–2135. [Google Scholar] [CrossRef]
  20. Myalska-Głowacka, H.; Bolelli, G.; Lusvarghi, L.; Cios, G.; Godzierz, M.; Talaniuk, V. Influence of nano-sized WC addition on the microstructure, residual stress, and tribological properties of WC-Co HVAF-sprayed coatings. Surf. Coat. Technol. 2024, 473, 130040. [Google Scholar] [CrossRef]
  21. Lekatou, A.G.; Sioulas, D.; Grimanelis, D. Corrosion and wear of coatings fabricated by HVOF-spraying of nanostructured and conventional WC–10Co-4Cr powders on Al7075-T6. Int. J. Ref. Met. Hard Mater. 2023, 112, 106164. [Google Scholar] [CrossRef]
  22. Gautam, R.K.S.; Tripathi, V.M.; Jha, P.; Sahab, S.; Tyagi, R.; Nautiyal, H. Investigations of high temperature synergetic tribological behavior of HVOF deposited Ni-based metallic coating with self-lubricating ceramic phase (h-BN). Surf. Coat. Technol. 2023, 473, 130041. [Google Scholar] [CrossRef]
  23. Kumar, V.; Verma, R.; Shrivastava, S. Microhardness and dry sliding wear behaviour of HVOF sprayed WC-Co-Cr+ graphene nanoplatelets coating. Mater. Today Proc. 2023, in press. [CrossRef]
  24. Zhu, X.; Ma, G.; Ding, Z.; Mu, H.; Piao, Z.; Liu, M.; Guo, W.; Xing, Z.; Wang, H. Tribological properties of the WC-10Co-4Cr-4CaF2 wear-resistant self-lubricating coating at different temperatures. Surf. Coat. Technol. 2023, 475, 130129. [Google Scholar] [CrossRef]
  25. Bastakys, L.; Marcinauskas, L.; Milieška, M.; Kalin, M.; Keželis, R. Tribological Properties of Cr2O3, Cr2O3–SiO2-TiO2 and Cr2O3–SiO2-TiO2-Graphite Coatings Deposited by Atmospheric Plasma Spraying. Coatings 2023, 13, 408. [Google Scholar] [CrossRef]
  26. Bauman, I.; Hagen, L.; Tillmann, W.; Hollingsworth, P.; Stangier, D.; Schmidtmann, G.; Tolan, M.; Paulus, M.; Sternemann, C. Process characteristics, particle behavior and coating properties during HVOF spraying of conventional, fine and nanostructured WC-12Co powders. Surf. Coat. Technol. 2021, 405, 126716. [Google Scholar] [CrossRef]
  27. Sienicki, J.; Żórawski, W.; Dworak, A.; Koruba, P.; Jurewicz, P.; Reiner, J. Cold spraying and laser cladding in the aircraft coating production as an alternative to harmful cadmium and chromium electroplating processes. Aircr. Eng. Aerosp. Technol. 2019, 91, 205–215. [Google Scholar] [CrossRef]
  28. Panpan, T.; Xin, Z.; Bin, S.; Hao, C.; Yuzhuang, Z.; Jincan, Y.; Yuan, X.; Hualin, L.; Sheng, H.; Tianhui, R.; et al. Enhancedanticorrosion and tribological properties of Ti6Al4V alloys with Fe3O4/HA coatings. Surf. Coat. Technol. 2022, 433, 128118. [Google Scholar]
  29. Park, J.O.; Rhee, K.Y.; Park, S.J. Silane treatment of Fe3O4 and its effect on the magnetic and wear properties of Fe3O4/epoxy nanocomposites. Appl. Surf. Sci. 2010, 256, 6945–6950. [Google Scholar] [CrossRef]
  30. Guanghong, Z.; Yufu, Z.; Xiangming, W.; Mujian, X.; Yue, Z.; Hongyan, D. Sliding tribological properties of 0.45% carbon steel lubricated with Fe3O4 magnetic nano-particle additives in base oil. Wear 2013, 301, 753. [Google Scholar]
  31. Yufu, X.; Jian, G.; Yubin, P.; Zhichao, L.; Jingyuan, Y.; Xianguo, H. Lubricating mechanism of Fe3O4@MoS2 core-shell nanocomposites as oil additives for steel/steel contact. Trib. Int. 2018, 121, 241. [Google Scholar]
  32. Jian, H.; Yong, L.; Xiaohua, J.; Haojie, S. Preparation and tribological properties of core-shell Fe3O4@C microspheres. Trib. Int. 2019, 129, 427. [Google Scholar]
  33. Xiangling, W.; Xiangyuan, Y. Effect of morphology on tribological properties of Fe3O4 as lubricant additive: Nanospheres, nanowires and nanosheets. Trib. Int. 2024, 191, 109201. [Google Scholar]
  34. Thiruvikraman, C.; Balasubramanian, V.; Sridhar, K. Optimizing HVOF Spray Parameters to Maximize Bonding Strength of WC-CrC-Ni Coatings on AISI 304L Stainless Steel. J. Therm. Spray Technol. 2014, 23, 860. [Google Scholar] [CrossRef]
  35. Rajendran, P.R.; Duraisamy, T.; Seshadri, R.C.; Mohankumar, A.; Ranganathan, S.; Balachandran, G.; Murugan, K.; Renjith, L. Optimisation of HVOF Spray Process Parameters to Achieve Minimum Porosity and Maximum Hardness in WC-10Ni-5Cr. Coatings 2022, 12, 339. [Google Scholar] [CrossRef]
  36. Polański, Z. Metodyka Badań Doświadczalnych; Politechnika Krakowska: Kraków, Poland, 1978. (In Polish) [Google Scholar]
  37. Derringer, G.; Suich, R. A Quarterly Journal of Methods, Applications and Related Topics. J. Qual. Technol. 1980, 12, 214–219. [Google Scholar] [CrossRef]
  38. Kear, B.H.; Skandan, G.; Sadangi, R.K. Factors Controlling Decarburization in HVOF Sprayed Nano-WC/Co Hardcoatings. Scripta Mater. 2001, 44, 1703. [Google Scholar] [CrossRef]
  39. García-Rodríguez, S.; López, A.L.; Bonache, V.; Torres, B.; Rams, J. Fabrication, Wear, and Corrosion Resistance of HVOF Sprayed WC-12Co on ZE41 Magnesium Alloy. Coatings 2020, 10, 502. [Google Scholar] [CrossRef]
  40. Zhe, G.; Sihan, H.; Gaolian, S.; Deli, D.; Shu, L. Tribological behaviour at various temperatures of WC-Co coatings prepared using different thermal spraying techniques. Tribol. Int. 2016, 104, 36. [Google Scholar]
  41. Yunxin, W.; Fuxing, W.; Yinqian, C.; Nanping, C. A study of the optimisation mechanism of solid lubricant concentration in Ni/MoS2 self-lubricating composite. Wear 1997, 205, 64. [Google Scholar]
  42. Hauchan, H.R.; Saladi, S.; Variya, S.; Solanki, A.; Tailor, S.; Sooraj, K.P.; Ranjan, M.; Joshi, S. Role of micro- and nano-CeO2 reinforcements on characteristics and tribological performance of HVOF sprayed Cr3C2-NiCr coatings. Surf. Coat. Technol. 2023, 467, 129684. [Google Scholar]
  43. Afsous, M.; Shafyei, A.; Soltani, M.; Eskandari, A. Characterization and Evaluation of Tribological Properties of NiCrBSi-Gr Composite Coatings Deposited on Stainless Steel 420 by HVOF. J. Therm. Spray Technol. 2020, 29, 773. [Google Scholar] [CrossRef]
  44. Roy, A.; Sharifi, N.; Munagala, V.N.V.; Alidokht, S.A.; Patel, P.; Makowiec, M.; Chromik, R.R.; Moreau, C.; Stoyanov, P. Microstructural evolution and tribological behavior of suspension plasma sprayed CuO as high-temperature lubricious coatings. Wear 2023, 524–525, 204874. [Google Scholar] [CrossRef]

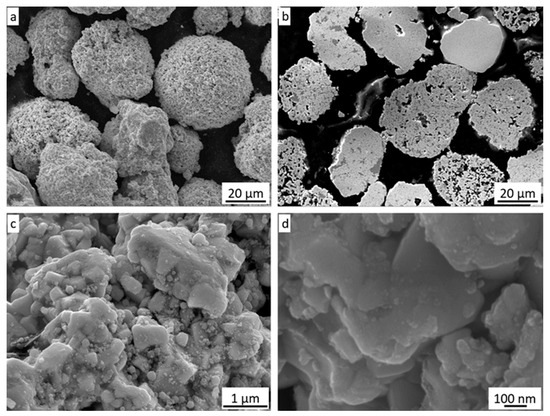

Figure 1. WC-12Co Nanox powder: (a) grain morphology, (b) grain cross-section, (c) grain surface morphology, and (d) nanograins at grain surface.
Figure 1. WC-12Co Nanox powder: (a) grain morphology, (b) grain cross-section, (c) grain surface morphology, and (d) nanograins at grain surface.
Coatings 14 00752 g001

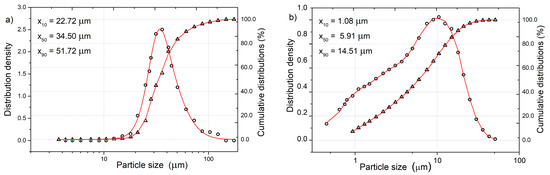

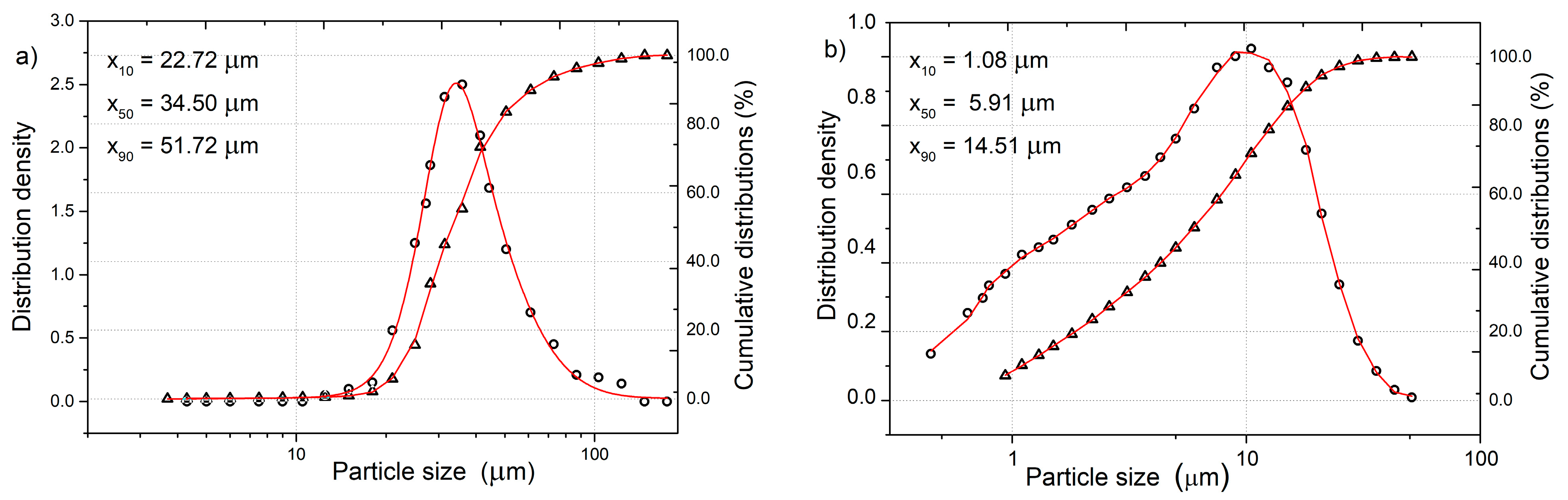

Figure 2. Particle size distribution of powder, showing (o) distribution density and (Δ) cumulative distribution (%): (a) WC-12Co Nanox; (b) Fe3O4 Nanox.
Figure 2. Particle size distribution of powder, showing (o) distribution density and (Δ) cumulative distribution (%): (a) WC-12Co Nanox; (b) Fe3O4 Nanox.
Coatings 14 00752 g002

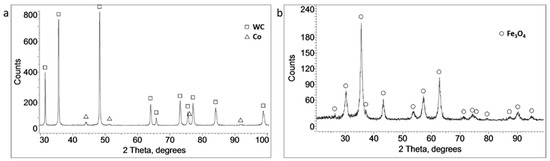

Figure 3. X-ray diffraction pattern of powder: (a) WC-12Co Nanox; (b) Fe3O4 Nanox.
Figure 3. X-ray diffraction pattern of powder: (a) WC-12Co Nanox; (b) Fe3O4 Nanox.
Coatings 14 00752 g003

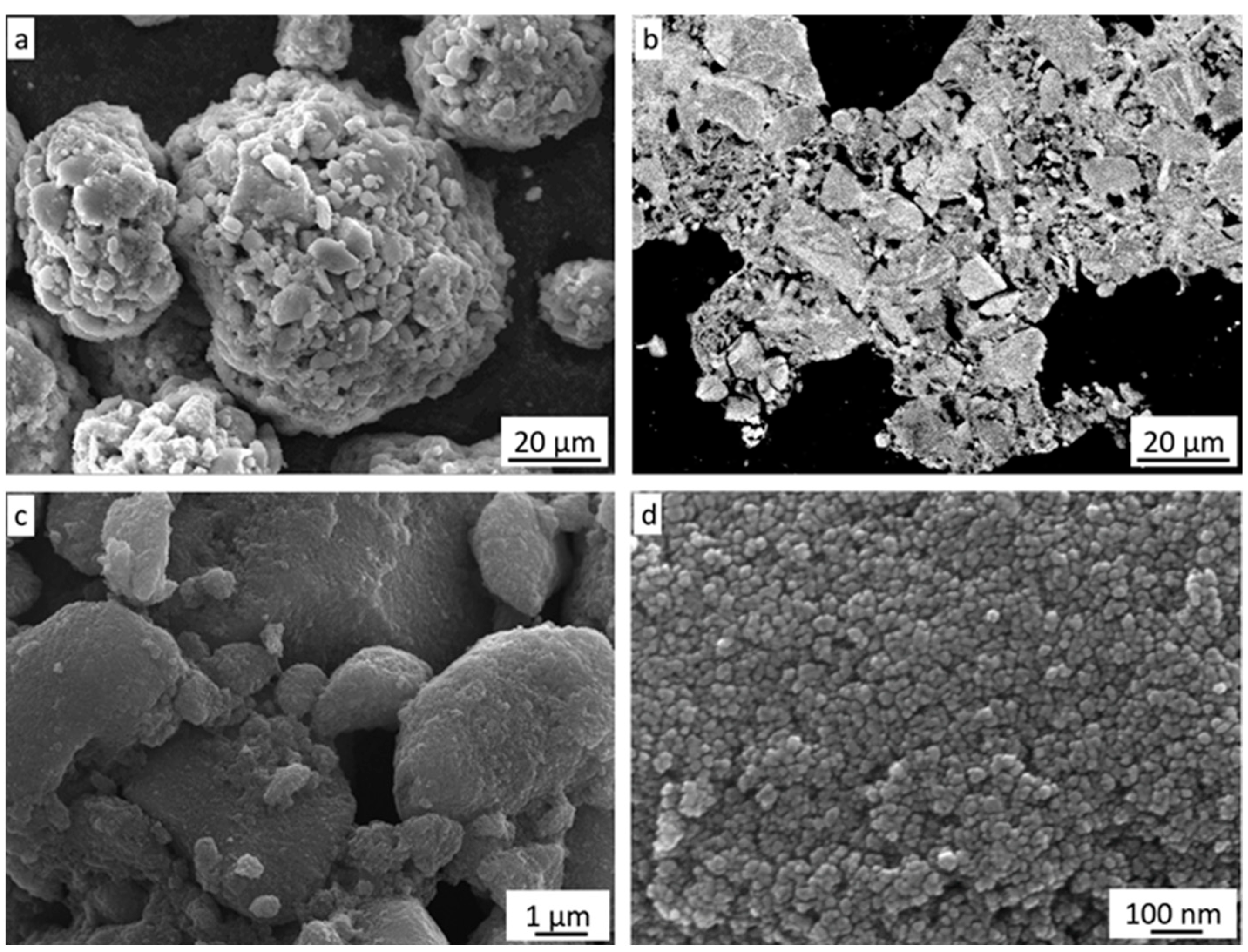

Figure 4. Fe3O4 Nanox powder: (a) grain morphology, (b) grain cross-section, (c) grain surface morphology, and (d) nanograins at grain surface.
Figure 4. Fe3O4 Nanox powder: (a) grain morphology, (b) grain cross-section, (c) grain surface morphology, and (d) nanograins at grain surface.
Coatings 14 00752 g004

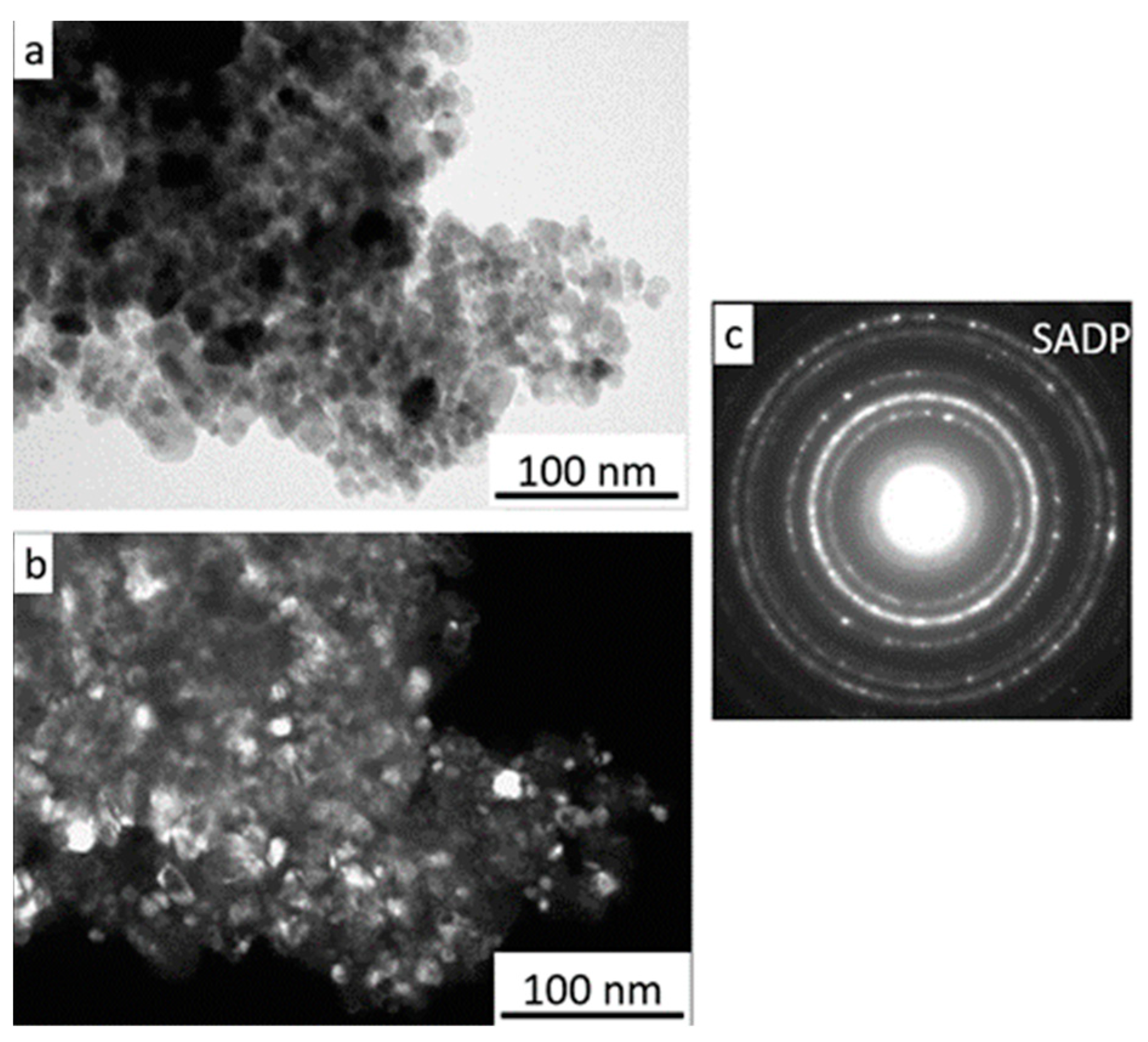

Figure 5. Nanostructure of Fe3O4 Nanox powder: (a) in the bright field (BF), (b) in the dark field (DF), and (c) electron diffraction (SADP).
Figure 5. Nanostructure of Fe3O4 Nanox powder: (a) in the bright field (BF), (b) in the dark field (DF), and (c) electron diffraction (SADP).
Coatings 14 00752 g005

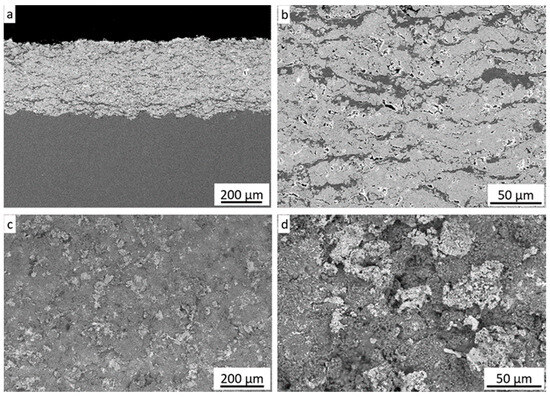

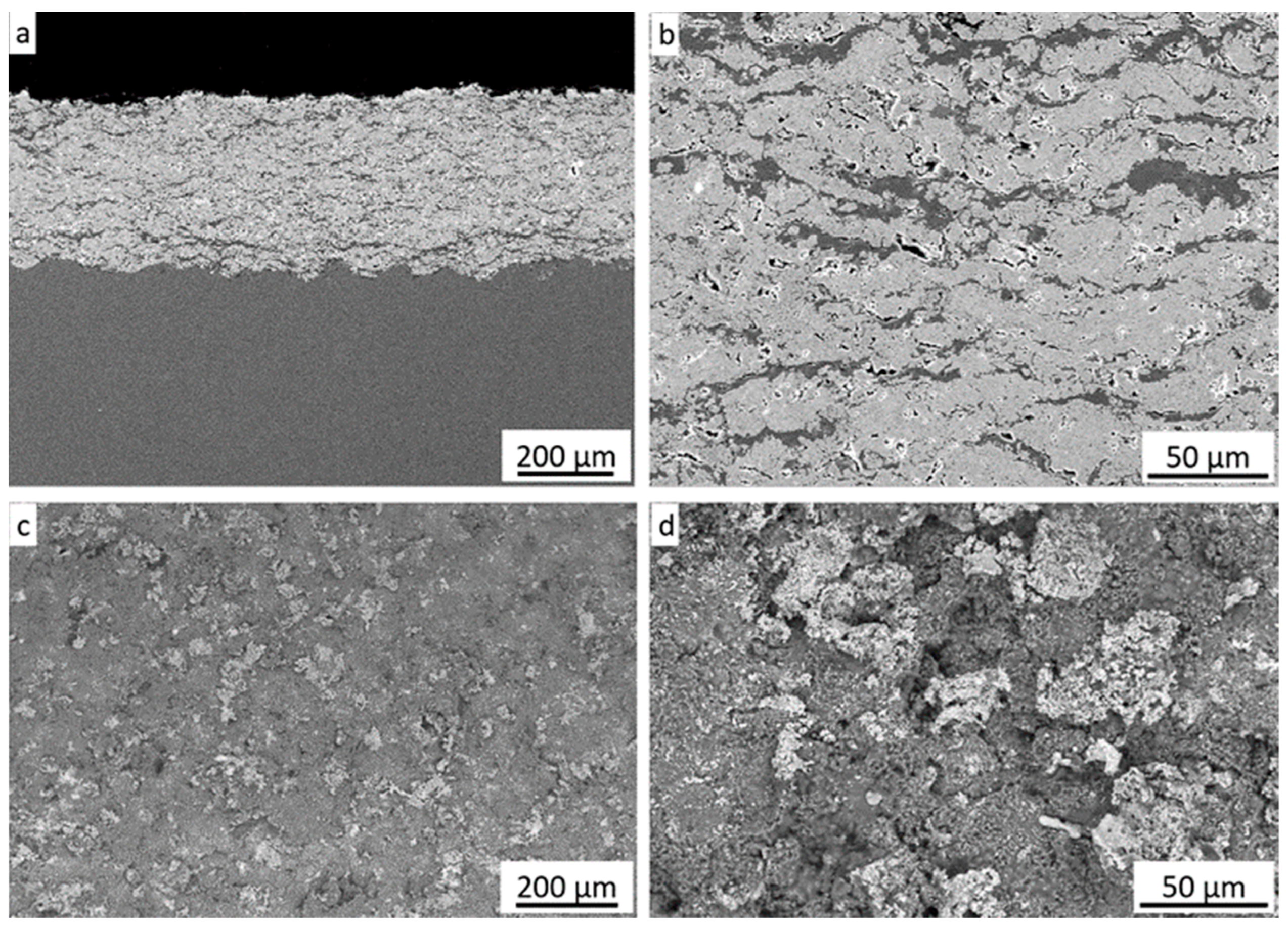

Figure 6. Microstructure of nanostructured WC-12Co/Fe3O4 coating: (a) mag. 100× and (b) mag. 500×; (c) morphology of surface: mag. 100× and (d) mag. 500×.
Figure 6. Microstructure of nanostructured WC-12Co/Fe3O4 coating: (a) mag. 100× and (b) mag. 500×; (c) morphology of surface: mag. 100× and (d) mag. 500×.
Coatings 14 00752 g006

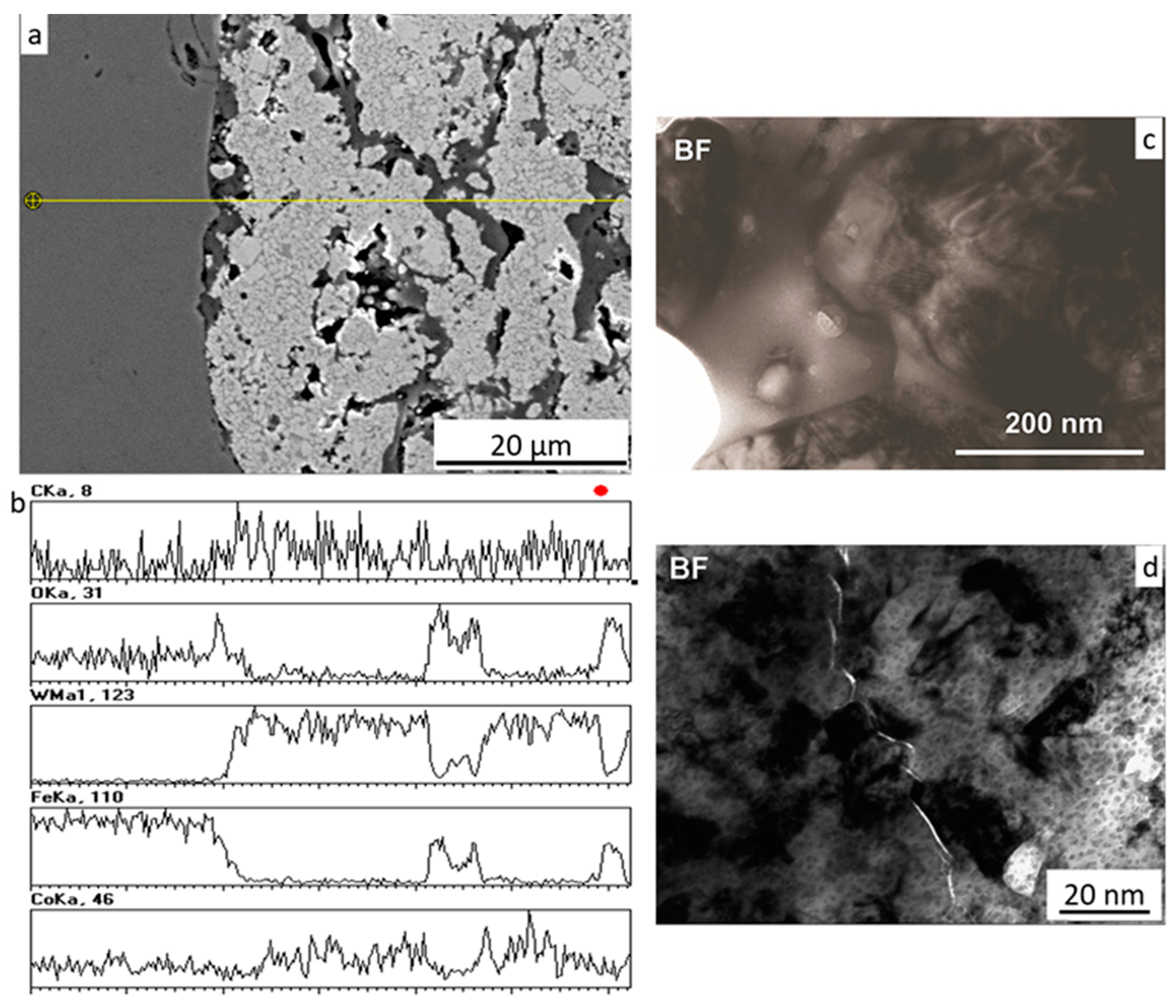

Figure 7. Nanostructured WC-12Co/Fe3O4 coating; (a) microstructure, (b) linear analysis, (c) nanograins of WC, and (d) nanograins of Fe3O4.
Figure 7. Nanostructured WC-12Co/Fe3O4 coating; (a) microstructure, (b) linear analysis, (c) nanograins of WC, and (d) nanograins of Fe3O4.
Coatings 14 00752 g007

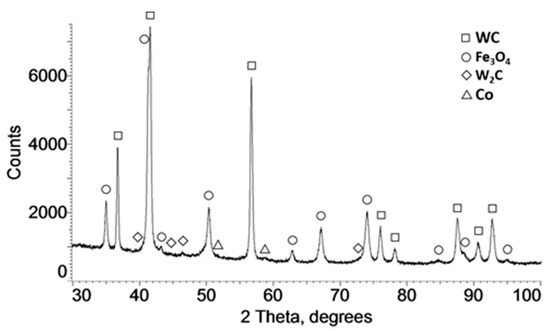

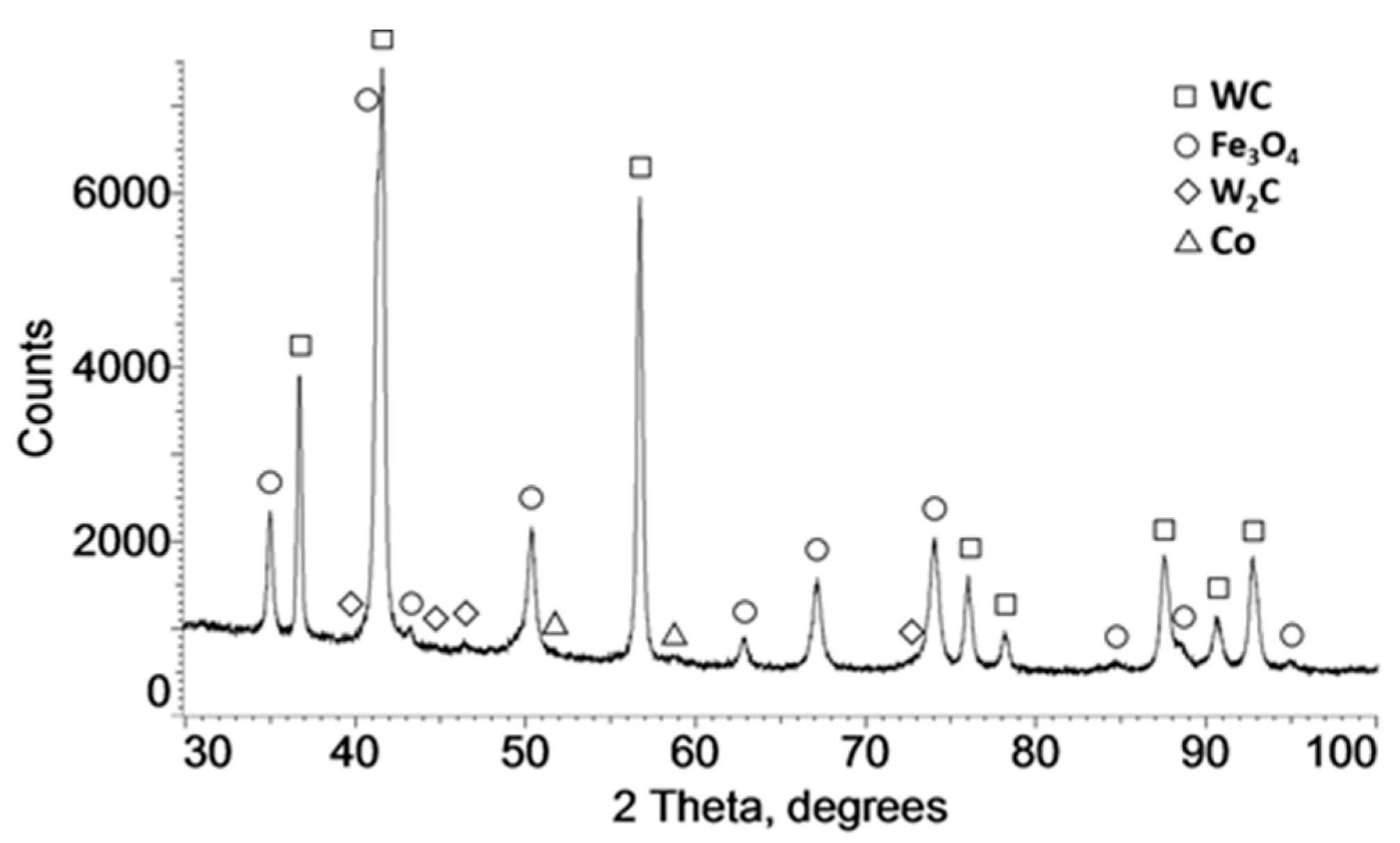

Figure 8. X-ray diffraction pattern of nanostructured WC-12Co/Fe3O4 coating.
Figure 8. X-ray diffraction pattern of nanostructured WC-12Co/Fe3O4 coating.
Coatings 14 00752 g008

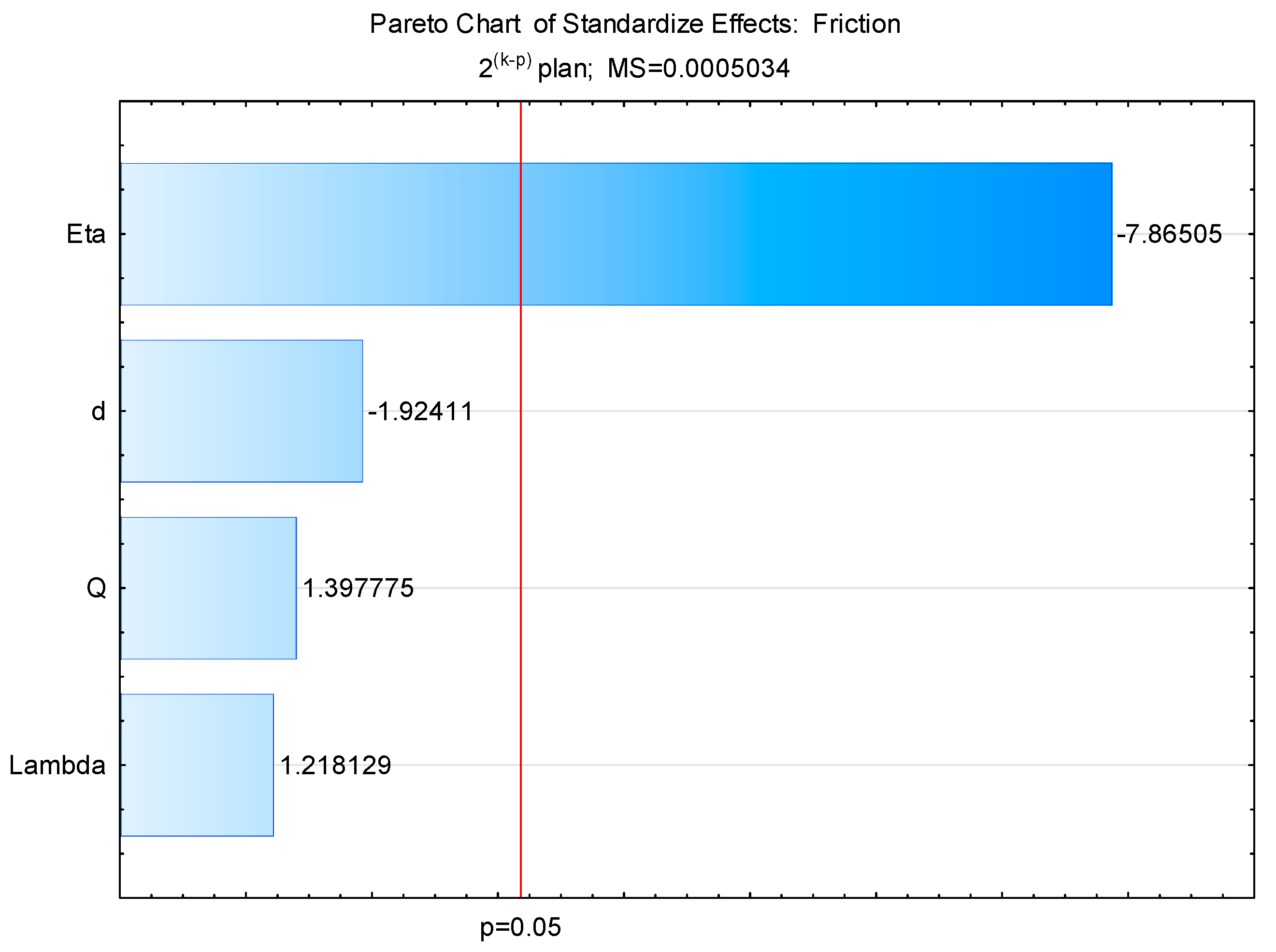

Figure 9. Influence of input parameters on the value of the CoF.
Figure 9. Influence of input parameters on the value of the CoF.
Coatings 14 00752 g009

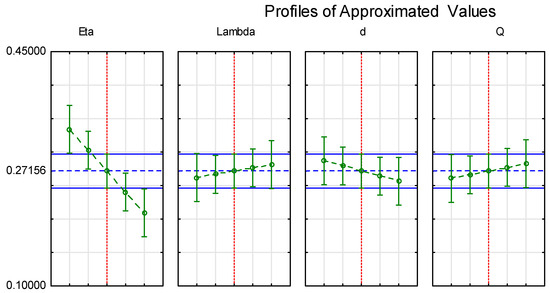

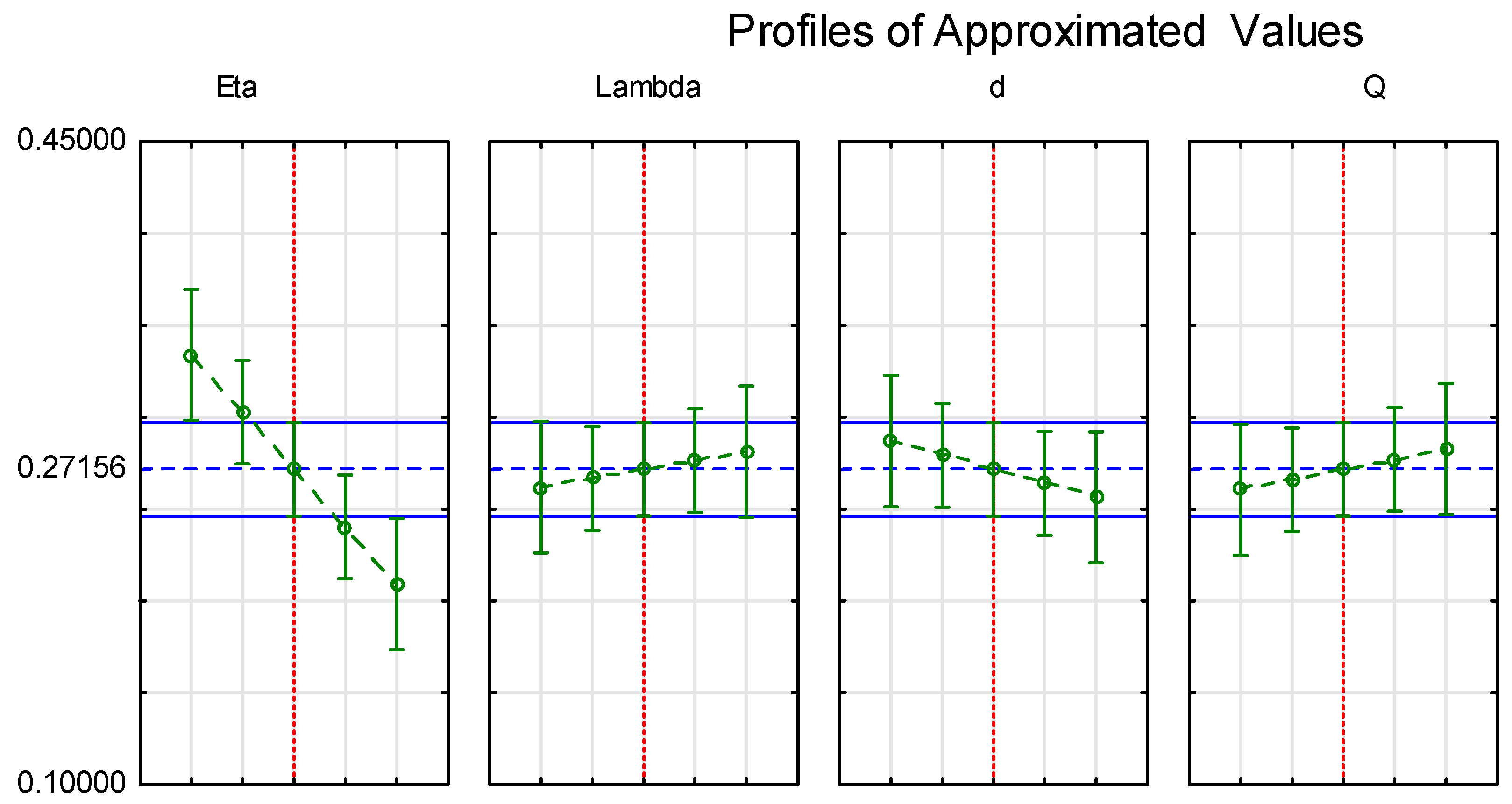

Figure 10. Profiles of approximate values for the CoF.
Figure 10. Profiles of approximate values for the CoF.
Coatings 14 00752 g010

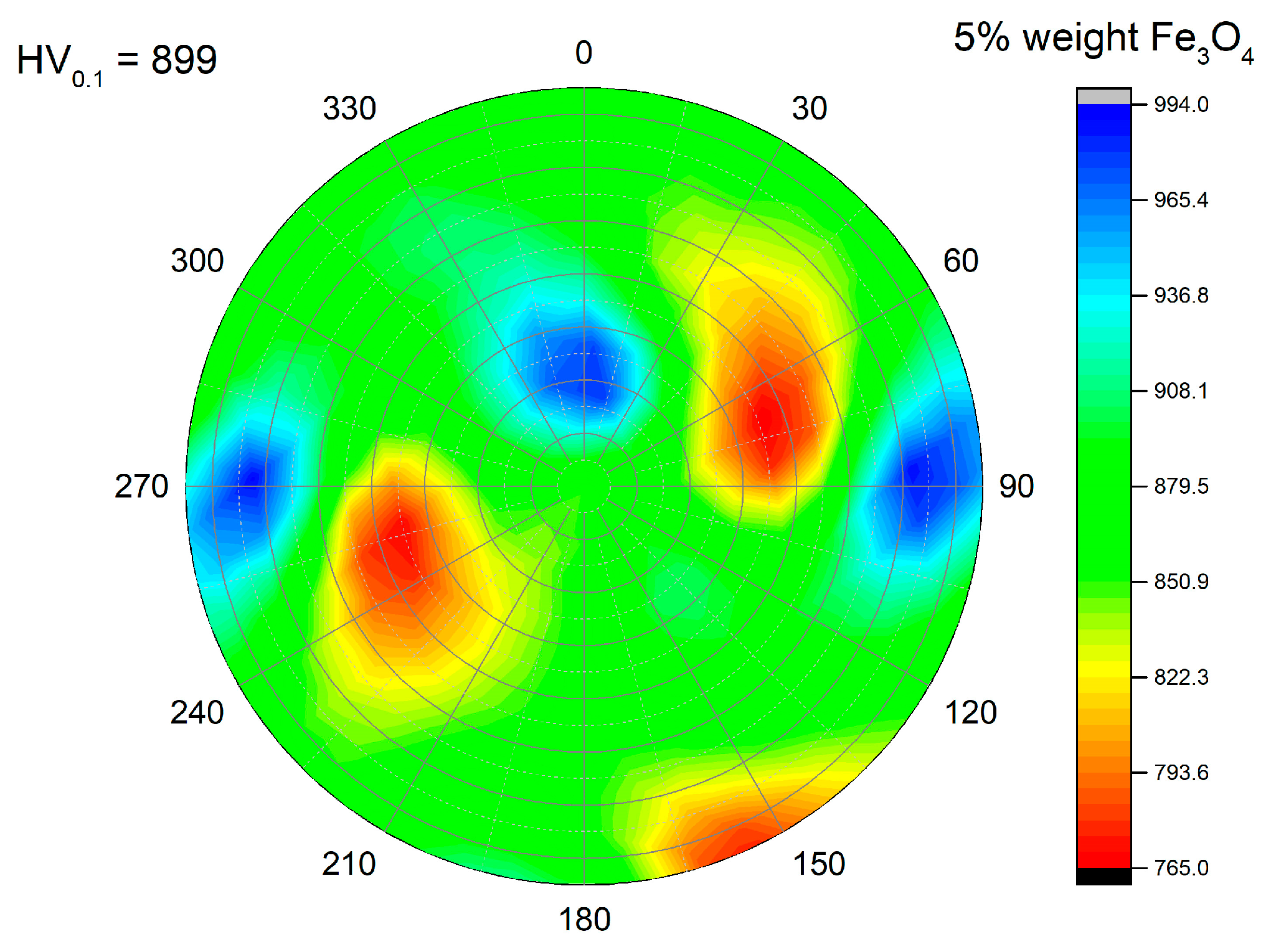

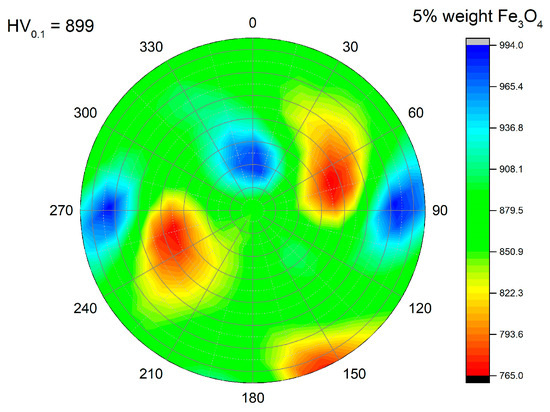

Figure 11. Distribution of microhardness obtained for 5 wt.% Fe3O4 content.
Figure 11. Distribution of microhardness obtained for 5 wt.% Fe3O4 content.
Coatings 14 00752 g011

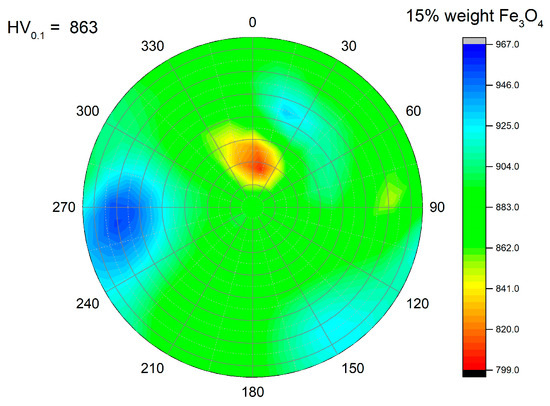

Figure 12. Distribution of microhardness obtained for 15 wt.% Fe3O4 content.
Figure 12. Distribution of microhardness obtained for 15 wt.% Fe3O4 content.
Coatings 14 00752 g012

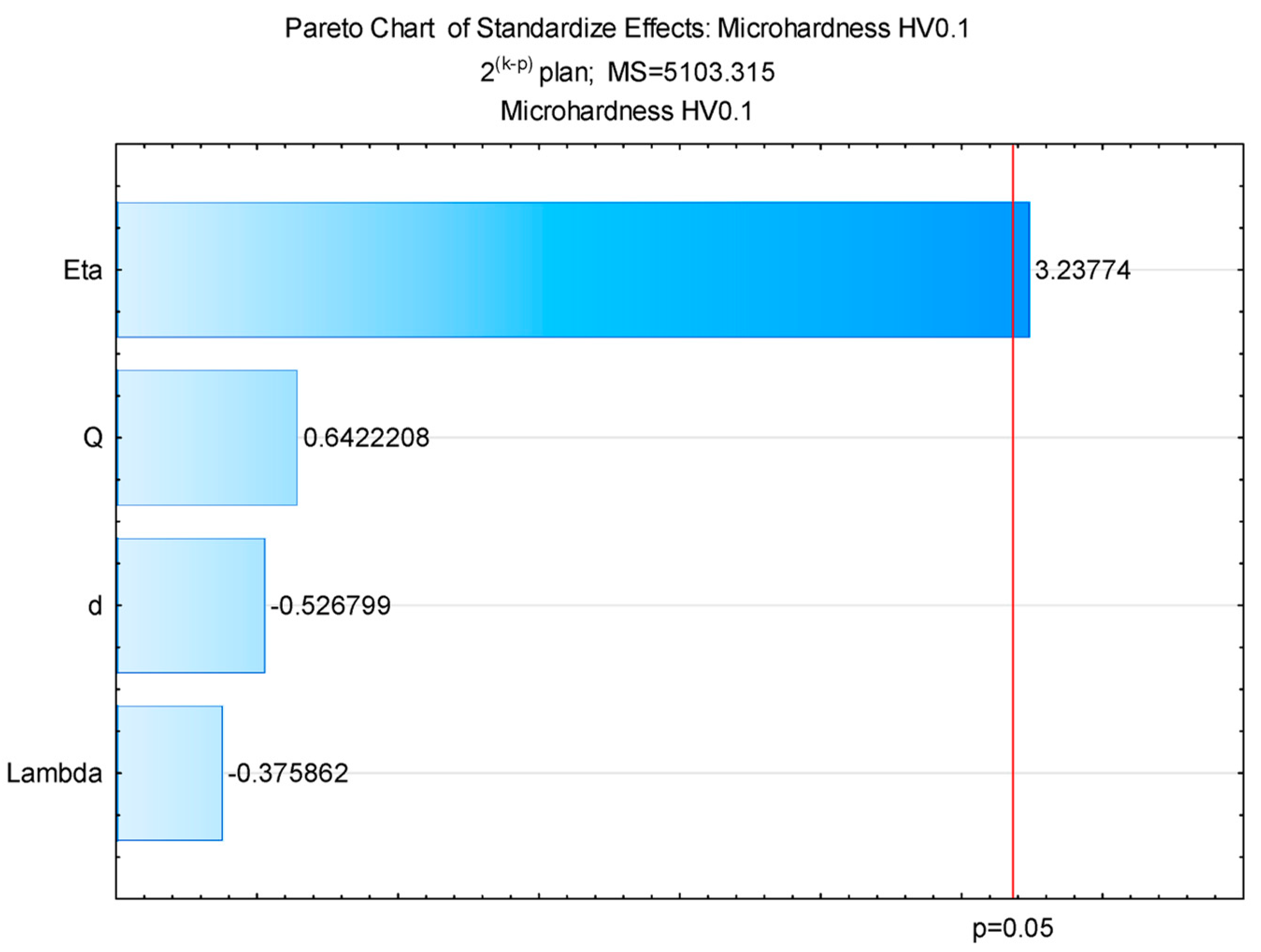

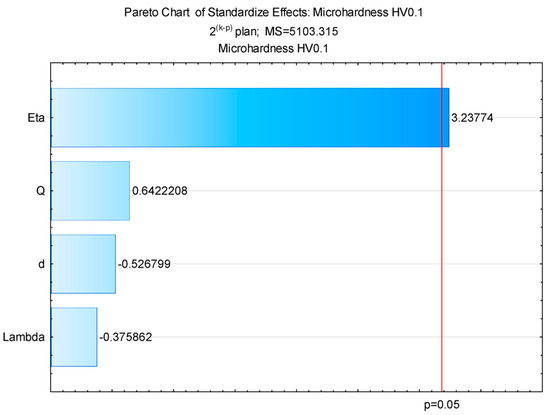

Figure 13. The influence of input parameters on the microhardness value.
Figure 13. The influence of input parameters on the microhardness value.
Coatings 14 00752 g013

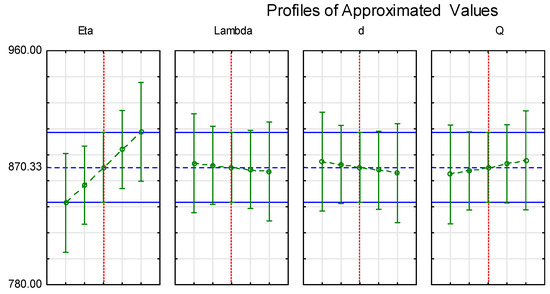

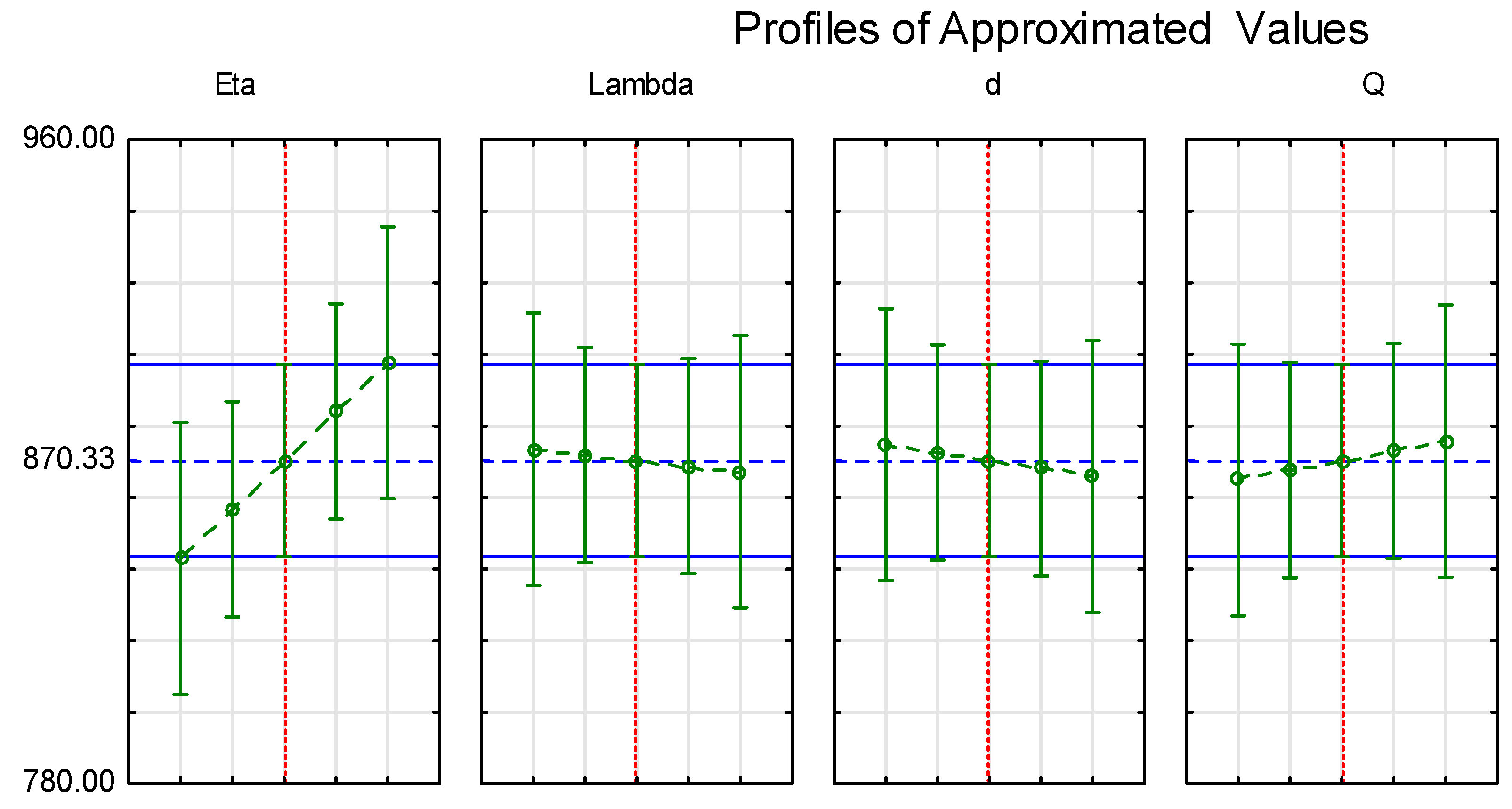

Figure 14. Profiles of approximate values for the microhardness.
Figure 14. Profiles of approximate values for the microhardness.
Coatings 14 00752 g014

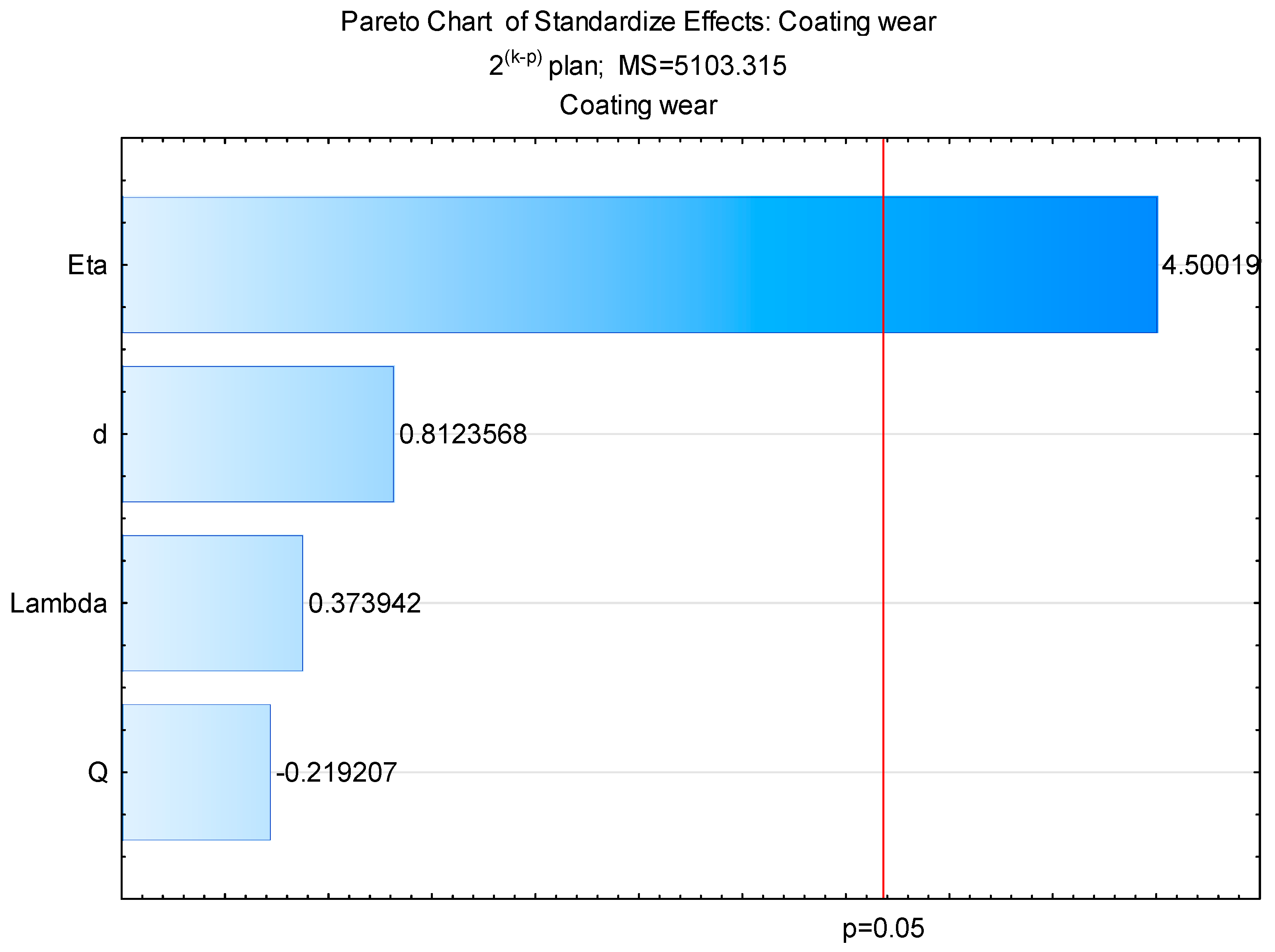

Figure 15. The influence of input parameters on the coating wear value.
Figure 15. The influence of input parameters on the coating wear value.
Coatings 14 00752 g015

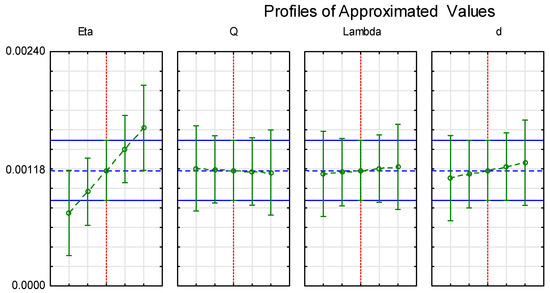

Figure 16. Profiles of approximate values for the coating wear.
Figure 16. Profiles of approximate values for the coating wear.
Coatings 14 00752 g016

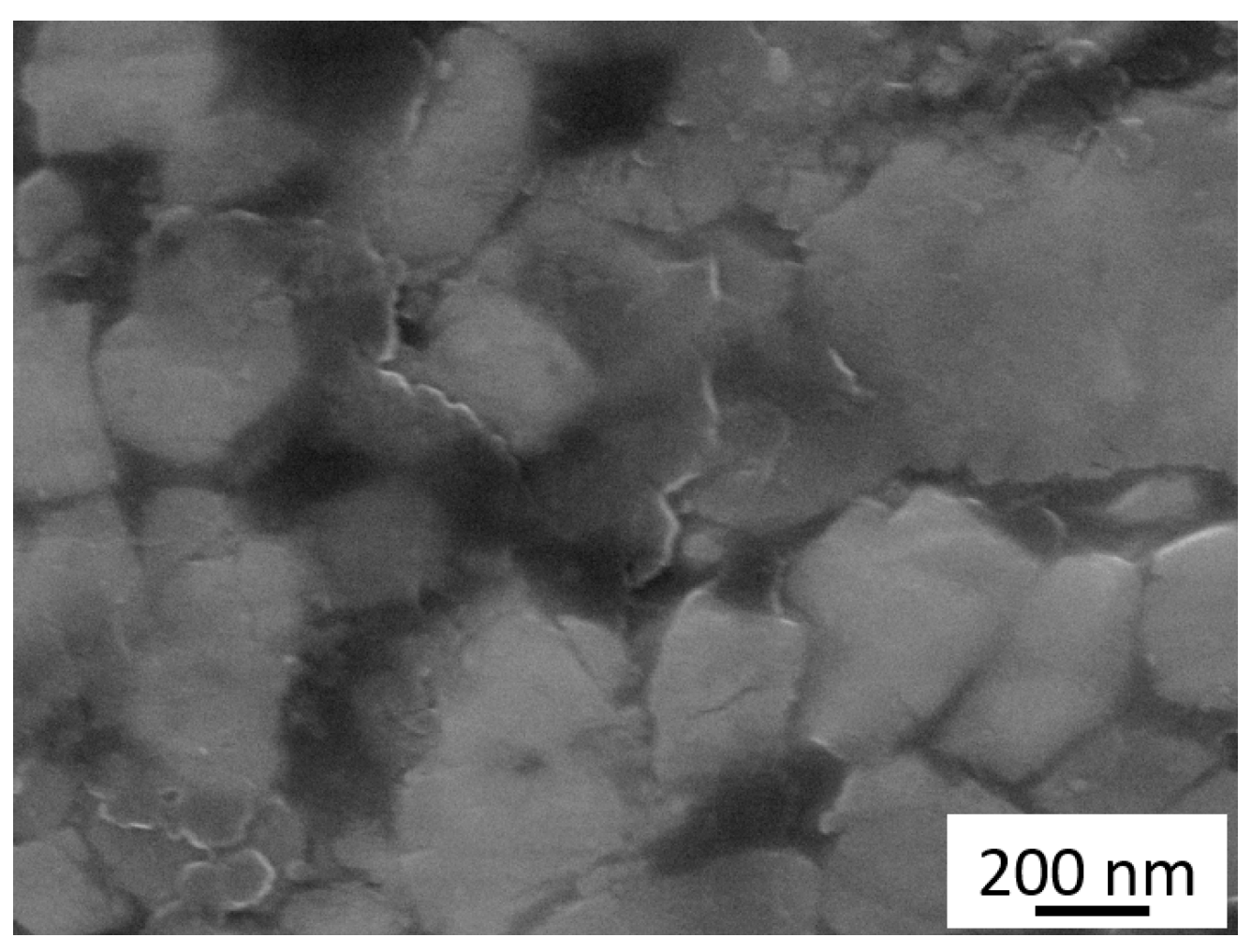

Figure 17. Morphology of the nanostructured Fe3O4 films on the nanostructured WC-12Co/Fe3O4 coating.
Figure 17. Morphology of the nanostructured Fe3O4 films on the nanostructured WC-12Co/Fe3O4 coating.
Coatings 14 00752 g017
Table 1. Parameters for HVOF spraying.
Table 1. Parameters for HVOF spraying.
LevelParameter
η, wt.% Fe3O4λ, O2/C3H8d, mmQ, L/min
Lower54.4180336
Upper155.0230414
Table 2. Binomial plan for HVOF experiment.
Table 2. Binomial plan for HVOF experiment.
Experimentη
wt.% Fe3O4
λ
O2/C3H8
d
mm
Q
L/min
CoF, µMicrohardness HV0.1Coating Wear, g
154.71803360.2642867.40.00089
254.72003750.3133993.50.00143
355.01803750.3934845.90.00061
455.02003360.3057873.20.00071
5154.71803750.2143907.40.00131
6154.72003360.1966899.90.00161
7155.01803360.2162874.20.00157
8155.02003750.2096 864.20.00199
Table 3. Summary of optimal input values and obtained output values.
Table 3. Summary of optimal input values and obtained output values.
Experimentη
wt.% Fe3O4
λ
O2/C3H8
d
mm
Q
l/min
Coefficient
of Friction, µ
Microhardness HV0.1Coating Wear, g
915.94.6175344.40.1907867.40.00054
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Żórawski, W.; Góral, A.; Bokuvka, O.; Makrenek, M.; Vicen, M. Microstructure and Tribological Properties of HVOF-Sprayed Nanostructured WC-12Co/Fe3O4 Coatings. Coatings 2024, 14, 752. https://doi.org/10.3390/coatings14060752

AMA Style

Żórawski W, Góral A, Bokuvka O, Makrenek M, Vicen M. Microstructure and Tribological Properties of HVOF-Sprayed Nanostructured WC-12Co/Fe3O4 Coatings. Coatings. 2024; 14(6):752. https://doi.org/10.3390/coatings14060752

Chicago/Turabian Style

Żórawski, Wojciech, Anna Góral, Otakar Bokuvka, Medard Makrenek, and Martin Vicen. 2024. "Microstructure and Tribological Properties of HVOF-Sprayed Nanostructured WC-12Co/Fe3O4 Coatings" Coatings 14, no. 6: 752. https://doi.org/10.3390/coatings14060752

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
