Fracture Mechanics Solutions for Interfacial Cracks between Compressible Thin Layers and Substrates
Abstract
:1. Introduction
2. Materials and Methods

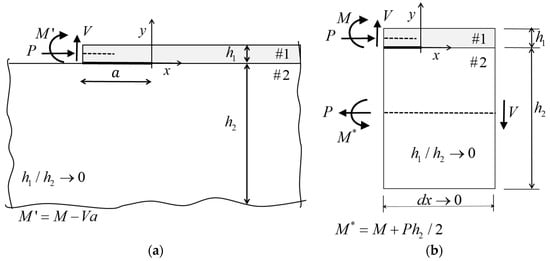

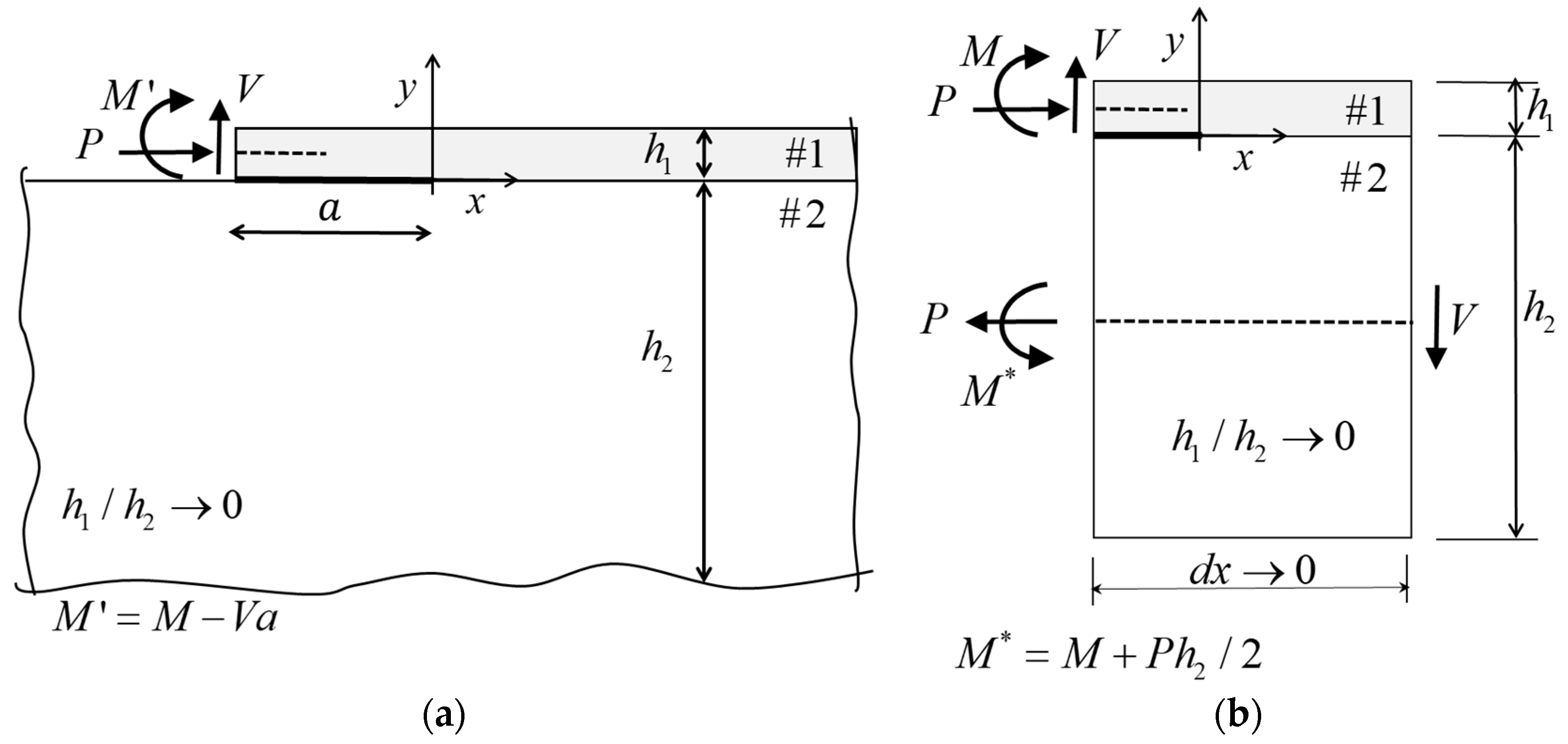

2.1. Analytical Model: Materials with
2.2. Computational Model
2.3. Semi-Analytical Model—General Material Mismatch
3. Results

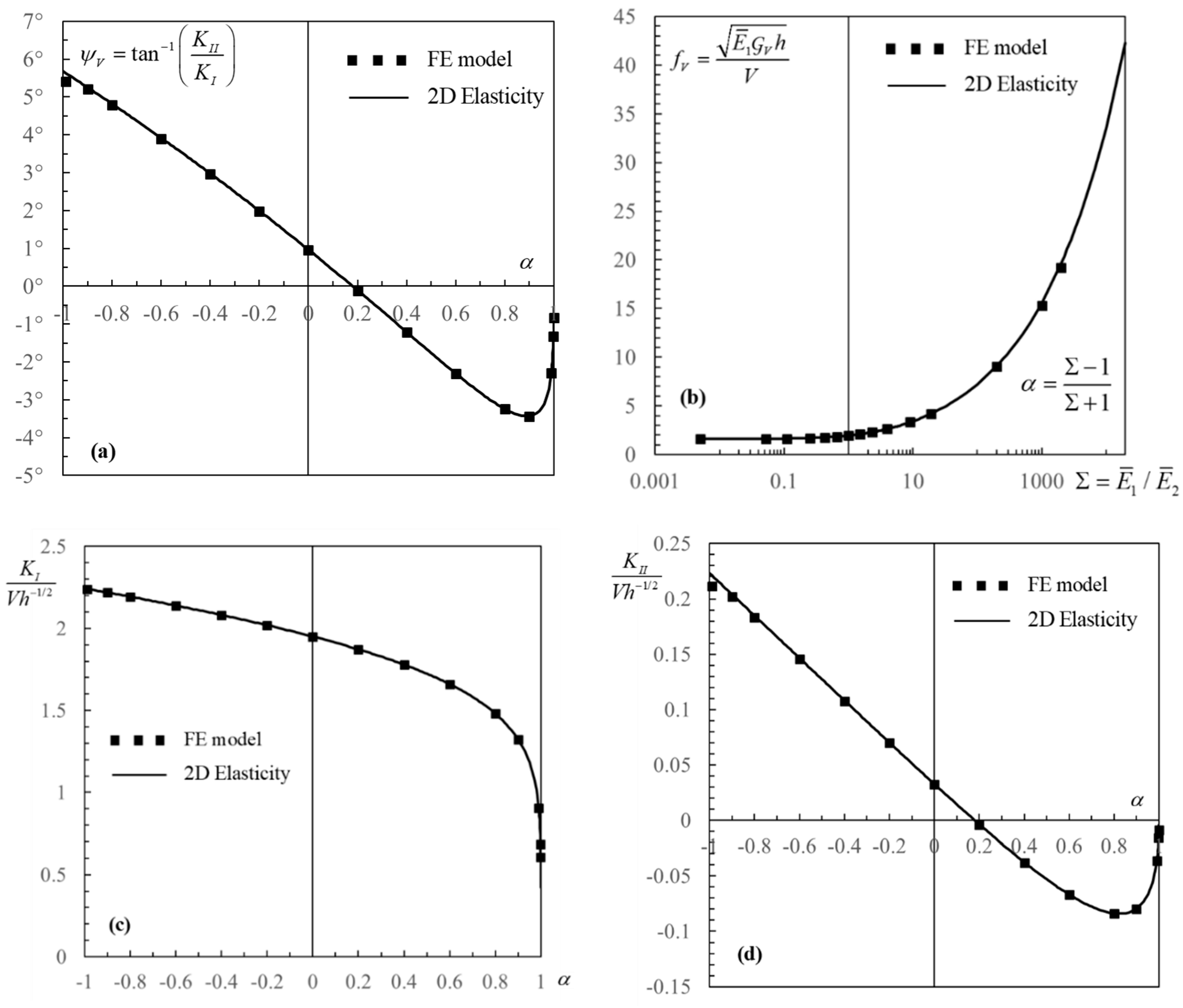

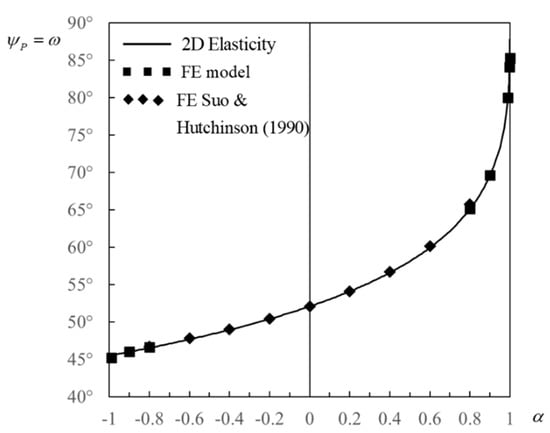

3.1. Finite Element Results for Materials with

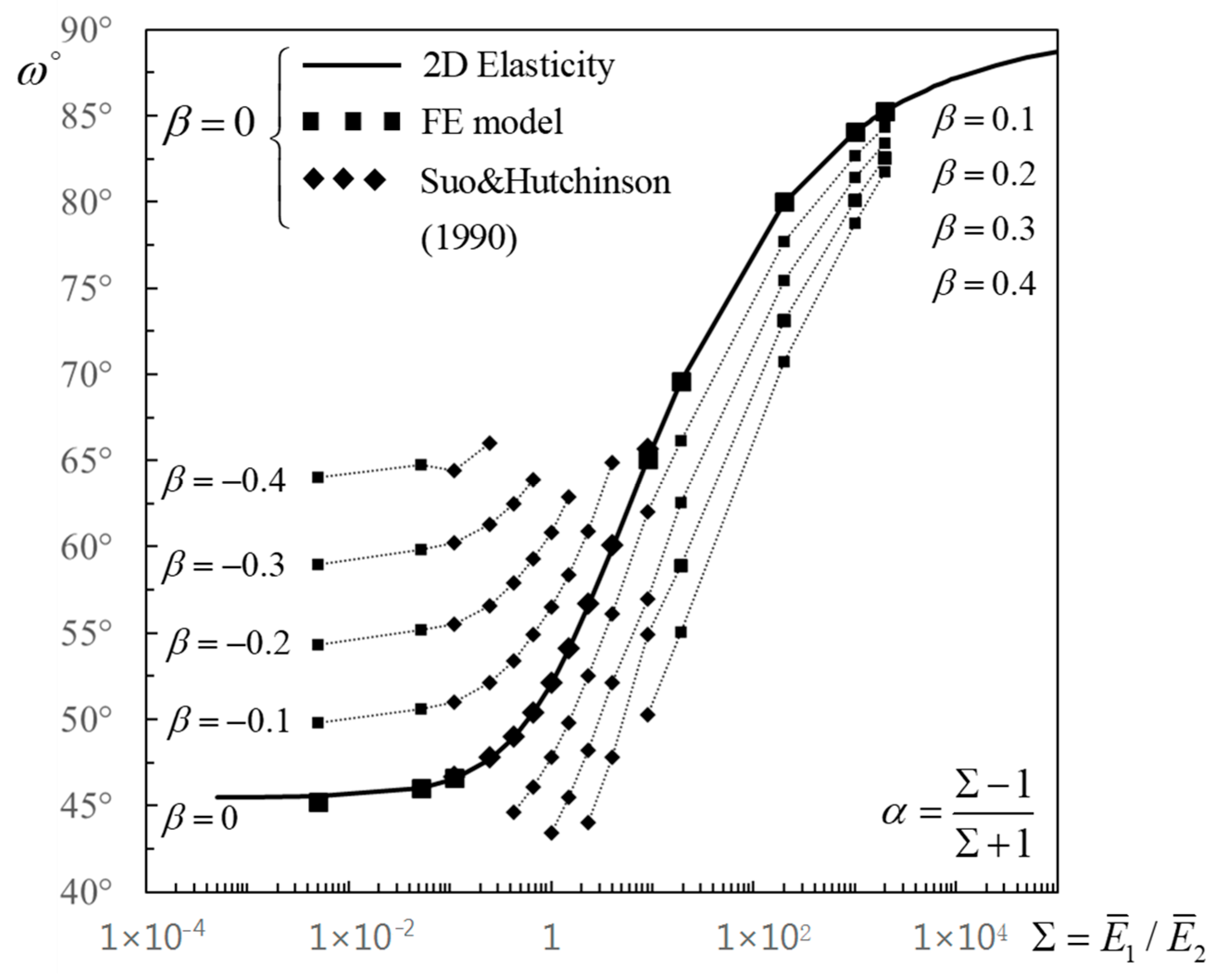

3.2. Tabulated Coefficients for the Semi-Analytic Solutions in Equation (13)—Materials with

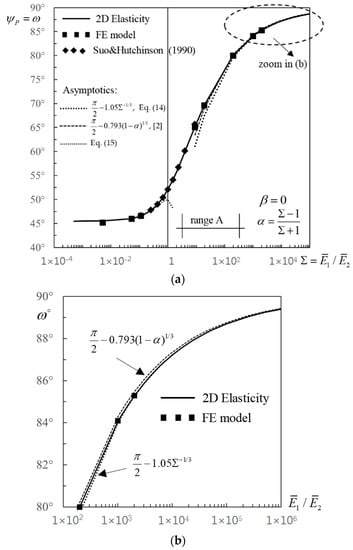

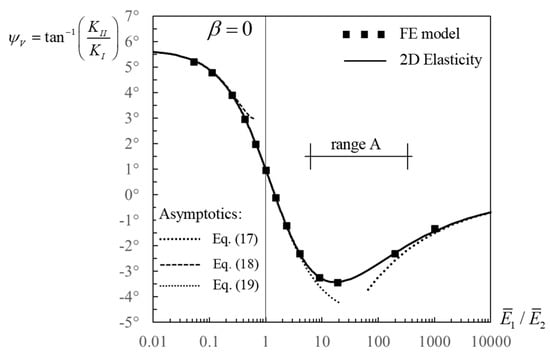

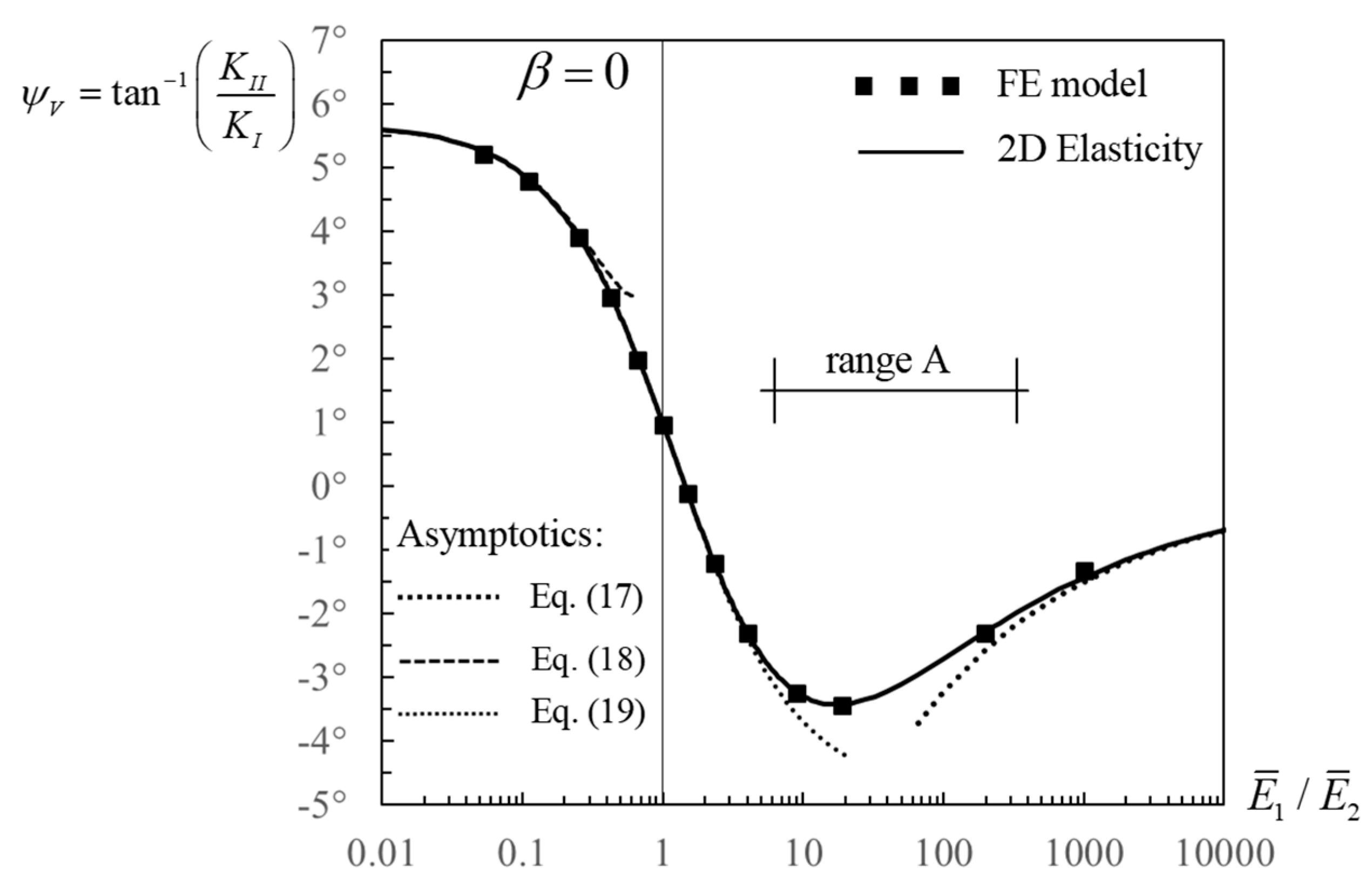

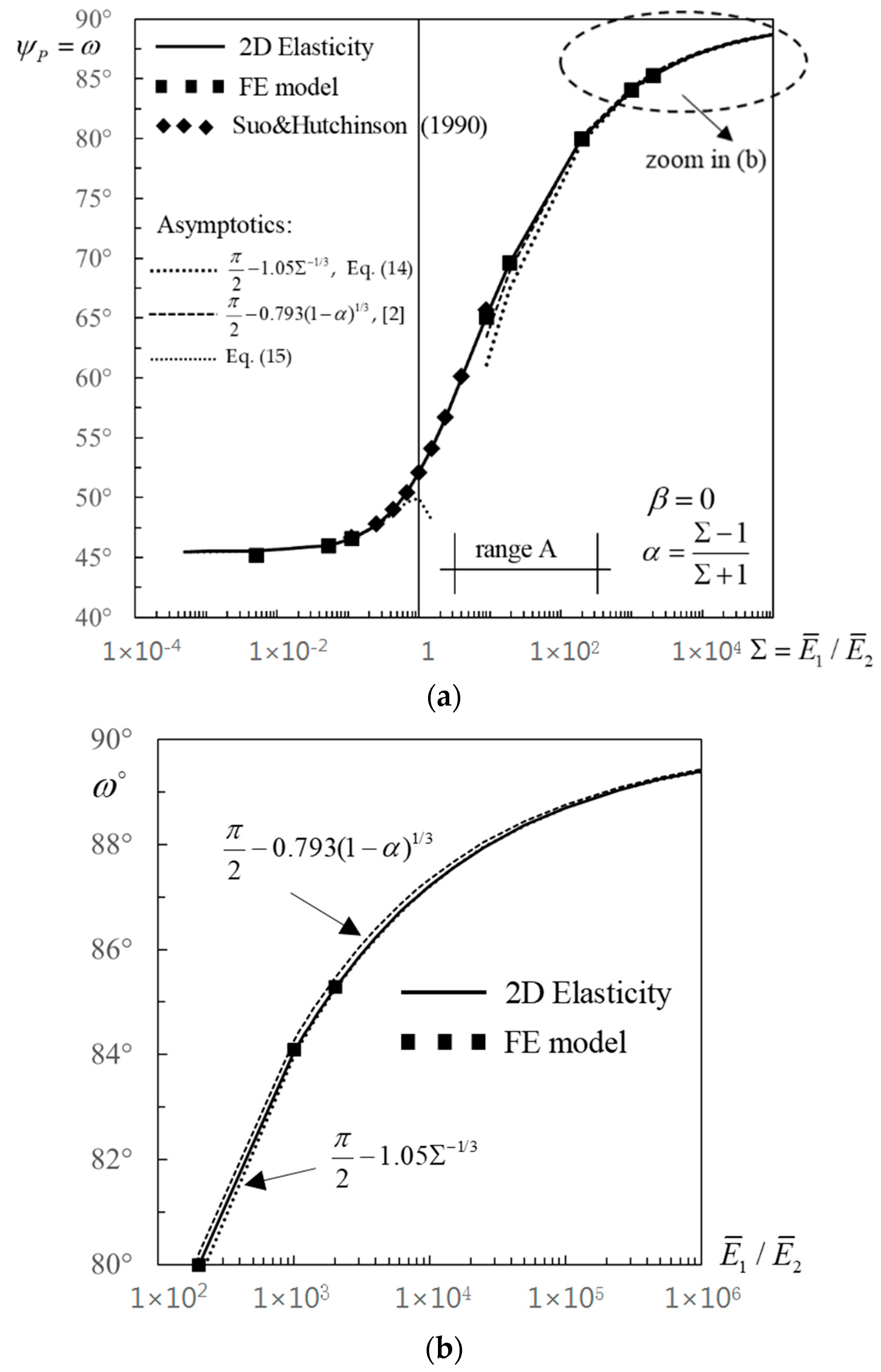

3.3. Explicit Solutions for Soft/Stiff Material Substrates and Nearly Homogeneous Systems—
- Phase angle associated with the axial force, (in radians) [28]:
- Phase angle associated with shear, (in radians):
- The dimensionless function which defines the energy release rate associated with shear, :
4. Discussion
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
Appendix A

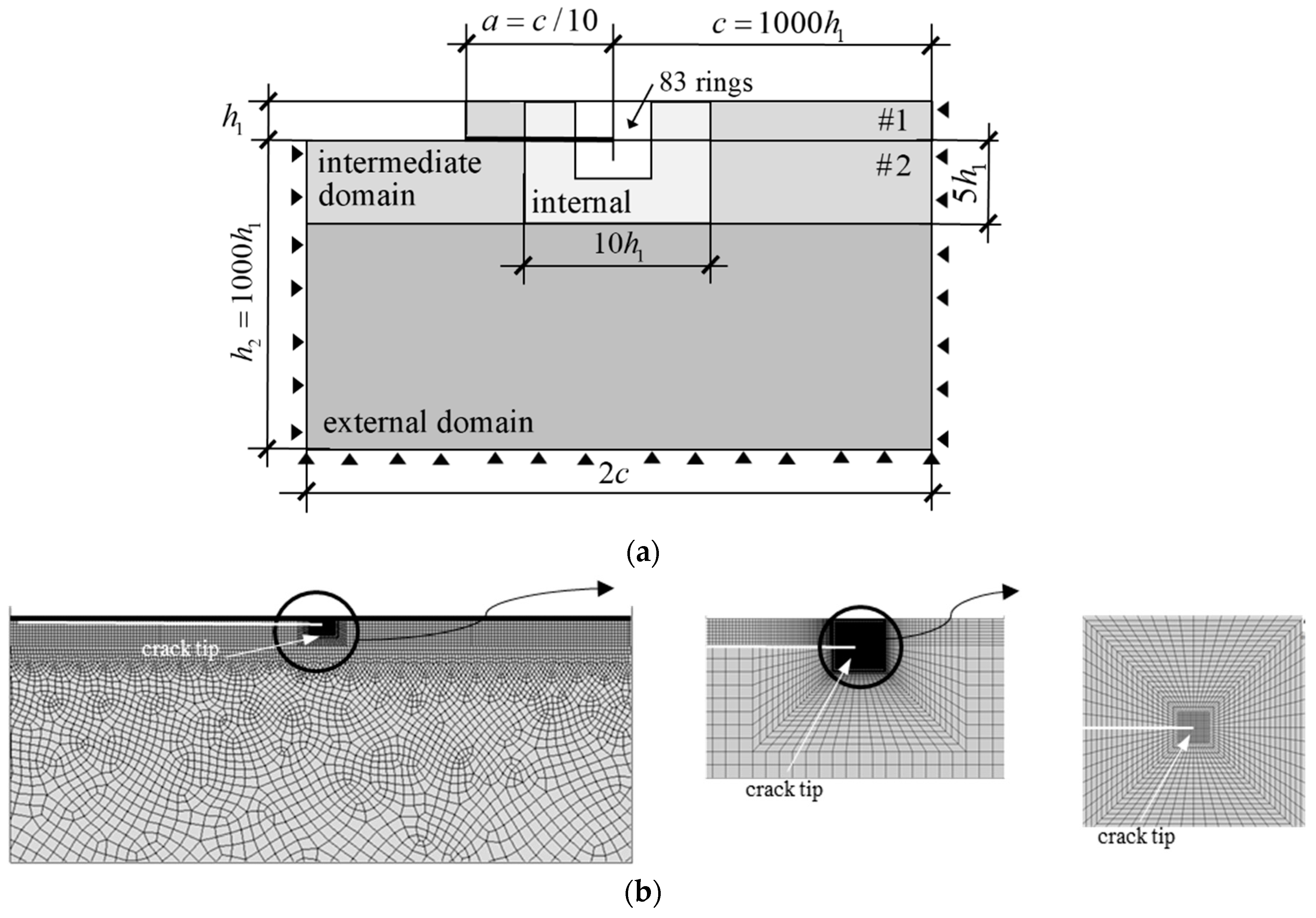

Appendix B. Finite Element Model
References
- Hutchinson, J.W.; Suo, Z. Mixed Mode Cracking in Layered Materials. Adv. Appl. Mech. 1991, 29, 63–191. [Google Scholar]
- Begley, M.R.; Hutchinson, J.W. The Mechanics and Reliability of Films, Multilayers and Coatings; Cambridge University Press: Cambridge, UK, 2017; ISBN 9781316443606. [Google Scholar]
- Freund, L.B.; Suresh, S. Thin Film Materials: Stress, Defect Formation, and Surface Evolution; Cambridge University Press: Cambridge, UK, 2003; ISBN 9780511165658. [Google Scholar]
- Carlsson, L.A.; Kardomateas, G.A. Structural and Failure Mechanics of Sandwich Composites; Springer: Dordrecht, The Netherlands, 2011; ISBN 9781402032240. [Google Scholar]
- Rinker, M.; Krueger, R.; Ratcliffe, J. Analysis of an Aircraft Honeycomb Sandwich Panel with Circular Face Sheet/Core Disbond Subjected to Ground-Air Pressurization; NASA/CR-2013-217974; NASA Center for AeroSpace Information: Hanover, MD, USA, 2013. [Google Scholar]
- Chen, Z.M.; Krueger, R.; Rinker, M. Face Sheet/Core Disbond Growth in Honeycomb Sandwich Panels Subjected to Ground-Air-Ground Pressurization and In-Plane Loading. In Proceedings of the NAFEMS World Congress 2015, San Diego, CA, USA, 21–24 June 2015. NF1676L-19962. [Google Scholar]
- Farshidi, A.; Berggreen, C. Analysis of disbonded aircraft sandwich panels with unvented honeycomb cores. Int. J. Rev. 2018. under review. [Google Scholar]
- Østergaard, R.C.; Sørensen, B.F. Interface crack in sandwich specimen. Int. J. Fract. 2007, 143, 301–316. [Google Scholar] [CrossRef]
- Balaguru, P.N.; Nanni, A.; Giancaspro, J. FRP Composites for Reinforced and Prestressed Concrete Structures: A Guide to Fundamentals and Design for Repair and Retrofit; Taylor & Francis: Abingdon, UK, 2009; ISBN 9780415448543. [Google Scholar]
- Yu, H.; Bai, Y.-L.; Dai, J.-G.; Gao, W.-Y. Finite element modeling for debonding of FRP-to-concrete interfaces subjected to mixed-mode loading. Polymers 2017, 9, 438. [Google Scholar] [CrossRef]
- Vaunois, J.-R.; Poulain, M.; Kanouté, P.; Chaboche, J.-L. Development of bending tests for near shear mode interfacial toughness measurement of EB-PVD thermal barrier coatings. Eng. Fract. Mech. 2017, 171, 110–134. [Google Scholar] [CrossRef]
- Hutchinson, R.G.; Hutchinson, J.W. Lifetime assessment for thermal barrier coatings: Tests for measuring mixed mode delamination toughness. J. Am. Ceram. Soc. 2011, 94, S85–S98. [Google Scholar] [CrossRef]
- Evans, A.G.; Mumm, D.R.; Hutchinson, J.W.; Meier, G.H.; Pettit, F.S. Mechanisms controlling the durability of thermal barrier coatings. Prog. Mater. Sci. 2001, 46, 505–553. [Google Scholar] [CrossRef]
- Di Leo, C.V.; Luk-Cyr, J.; Liu, H.; Loeffel, K.; Al-Athel, K.; Anand, L. A new methodology for characterizing traction-separation relations for interfacial delamination of thermal barrier coatings. Acta Mater. 2014, 71, 306–318. [Google Scholar] [CrossRef] [Green Version]
- Cotterell, B.; Chen, Z. Buckling and cracking of thin films on compliant substrates under compression. Int. J. Fract. 2000, 104, 169–179. [Google Scholar] [CrossRef]
- Yu, H.-H.; Hutchinson, J.W. Influence of substrate compliance on buckling delamination of thin films. Int. J. Fract. 2002, 113, 39–55. [Google Scholar] [CrossRef]
- Volinsky, A.A.; Moody, N.R.; Gerberich, W.W. Interfacial toughness measurements for thin films on substrates. Acta Mater. 2002, 50, 441–466. [Google Scholar] [CrossRef]
- Pelassa, M.; Massabò, R. Explicit solutions for multi-layered wide plates and beams with perfect and imperfect bonding and delaminations under thermo-mechanical loading. Meccanica 2015, 50, 2497–2524. [Google Scholar] [CrossRef] [Green Version]
- Thouless, M.D.; Evans, A.G.; Ashby, M.F.; Hutchinson, J.W. The edge cracking and spalling of brittle plates. Acta Metall. 1987, 35, 1333–1341. [Google Scholar] [CrossRef]
- van den Bosch, M.J.; Schreurs, P.J.G.; Geers, M.G.D. Identification and characterization of delamination in polymer coated metal sheet. J. Mech. Phys. Solids 2008, 56, 3259–3276. [Google Scholar] [CrossRef]
- Jiménez-Pardo, I.; van der Ven, L.; van Benthem, R.; de With, G.; Esteves, A. Hydrophilic self-replenishing coatings with long-term water stability for anti-fouling applications. Coatings 2018, 8, 184. [Google Scholar] [CrossRef]
- Xiao, J.; Gong, C.; Qi, M.; Jiag, A.; Wang, Z.; Li, M.; Ma, J. Effect of TiN/C microstructure composite layer on the adhesion of FDLC film onto silicon substrate. Coatings 2018, 8, 18. [Google Scholar] [CrossRef]
- Rao, J.; Sharma, A.; Rose, T. Titanium aluminium nitride and titanium boride multilayer coatings designed to combat tool wear. Coatings 2018, 8, 12. [Google Scholar] [CrossRef]
- Collino, R.R.; Philips, N.R.; Rossol, M.N.; McMeeking, R.M.; Begley, M.R. Detachment of compliant films adhered to stiff substrates via van der Waals interactions: Role of frictional sliding during peeling. J. R. Soc. Interface 2014, 11. [Google Scholar] [CrossRef] [PubMed]
- Suo, Z.; Hutchinson, J.W. Interface crack between two elastic layers. Int. J. Fract. 1990, 43, 1–18. [Google Scholar] [CrossRef]
- Li, S.; Wang, J.; Thouless, M.D. The effects of shear on delamination in layered materials. J. Mech. Phys. Solids 2004, 52, 193–214. [Google Scholar] [CrossRef]
- Andrews, M.G.; Massabò, R. The effects of shear and near tip deformations on energy release rate and mode mixity of edge-cracked orthotropic layers. Eng. Fract. Mech. 2007, 74, 2700–2720. [Google Scholar] [CrossRef]
- Ustinov, K. On separation of a layer from the half-plane: Elastic fixation conditions for a plate equivalent to the layer. Mech. Solids 2015, 50, 62–80. [Google Scholar] [CrossRef]
- Obreimoff, J.W. The splitting strength of mica. Proc. R. Soc. A Math. Phys. Eng. Sci. 1930. [Google Scholar] [CrossRef]
- Zlatin, A.N.; Khrapkov, A.A. Semi-infinite crack parallel to the boundary of an elastic half-plane. Sov. Phys. Dokl. 1986, 31, 1009. [Google Scholar]
- Jensen, H.M.; Thouless, M.D. Effects of residual stresses in the blister test. Int. J. Solids Struct. 1993, 30, 779–795. [Google Scholar] [CrossRef]
- Sundaram, S.; Lipkin, D.M.; Johnson, C.A.; Hutchinson, J.W. The influence of transient thermal gradients and substrate constraint on delamination of thermal barrier coatings. J. Appl. Mech. Trans. ASME 2013, 80. [Google Scholar] [CrossRef]
- Parry, G.; Colin, J.; Coupeau, C.; Foucher, F.; Cimetière, A.; Grilhé, J. Effect of substrate compliance on the global unilateral post-buckling of coatings: AFM observations and finite element calculations. Acta Mater. 2005, 53, 441–447. [Google Scholar] [CrossRef]
- Suga, T.; Elssner, G.; Schmauder, S. Composite parameters and mechanical compatibility of material joints. J. Compos. Mater. 1988, 22, 917–934. [Google Scholar] [CrossRef]
- Liechti, K.M.; Chai, Y.S. Asymmetric shielding in interfacial fracture under in-plane shear. J. Appl. Mech. Trans. ASME 1992, 59, 295–304. [Google Scholar] [CrossRef]
- Ratcliffe, J.G.; Reeder, J.R. Sizing a single cantilever beam specimen for characterizing facesheet-core debonding in sandwich structure. J. Compos. Mater. 2011, 45, 2669–2684. [Google Scholar] [CrossRef]
- Dundurs, J. Discussion: Edge-bonded dissimilar orthogonal elastic wedges under normal and shear loading. J. Appl. Mech. Trans. ASME 1969, 36, 650–651. [Google Scholar] [CrossRef]
- Williams, M.L. The stresses around a fault or crack in dissimilar media. Bull. Seismol. Soc. Am. 1959, 49, 199–204. [Google Scholar]
- Salganik, R.L. The brittle fracture of cemented bodies. J. Appl. Math. Mech. 1963, 27, 1468–1478. [Google Scholar] [CrossRef]
- Rice, J.R. Elastic fracture mechanics concepts for interfacial cracks. J. Appl. Mech. 1988, 55, 98–103. [Google Scholar] [CrossRef]
- Malyshev, B.M.; Salganik, R.L. The strength of adhesive joints using the theory of cracks. Int. J. Fract. Mech. 1965, 1, 114–128. [Google Scholar] [CrossRef]
- Banks-Sills, L. Interface fracture mechanics: Theory and experiment. Int. J. Fract. 2015, 191, 131–146. [Google Scholar] [CrossRef]
- Suo, Z. Delamination specimens for orthotropic materials. J. Appl. Mech. 1990, 57, 627–634. [Google Scholar] [CrossRef]
- Brandinelli, L.; Massabò, R. Mode II weight functions for isotropic and orthotropic double cantilever beams. Int. J. Fract. 2006, 139, 1–25. [Google Scholar] [CrossRef]
- Massabò, R.; Brandinelli, L.; Cox, B.N. Mode I weight functions for an orthotropic double cantilever beam. Int. J. Eng. Sci. 2003, 41, 1497–1518. [Google Scholar] [CrossRef]
- Gakhov, F.D. Boundary Value Problems; Pergamon Press: Oxford, UK, 1966; Volume 85. [Google Scholar]
- Rogosin, S.; Mishuris, G. Constructive methods for factorization of matrix-functions. IMA J. Appl. Math. 2016, 81, 365–391. [Google Scholar] [CrossRef]
- Berggreen, C.; Simonsen, B.C.; Borum, K.K. Experimental and numerical study of interface crack propagation in foam-cored sandwich beams. J. Compos. Mater. 2007, 41. [Google Scholar] [CrossRef]
- Beuth, J.L. Separation of crack extension modes in orthotropic delamination models. Int. J. Fract. 1996, 77, 305–321. [Google Scholar] [CrossRef] [Green Version]
- Rybicki, E.F.; Kanninen, M.F. A finite element calculation of stress intensity factors by a modified crack closure integral. Eng. Fract. Mech. 1977, 9, 931–938. [Google Scholar] [CrossRef]
- Berggreen, C. Damage Tolerance of Debonded Sandwich Structures. Ph.D. Thesis, Technical University of Denmark, Lyngby, Denmark, 2004. [Google Scholar]
- Salganik, R.L.; Ustinov, K.B. Deformation problem for an elastically fixed plate modeling a coating partially delaminated from the substrate (Plane Strain). Mech. Solids 2012, 47, 415–425. [Google Scholar] [CrossRef]
- Shield, T.W.; Kim, K.S. Beam theory models for thin film segments cohesively bonded to an elastic half space. Int. J. Solids Struct. 1992, 29, 1085–1103. [Google Scholar] [CrossRef]
- Ustinov, K.B. On influence of substrate compliance on delamination and buckling of coatings. Eng. Fail. Anal. 2015, 47, 338–344. [Google Scholar] [CrossRef] [Green Version]
- Barbieri, L.; Massabò, R.; Berggreen, C. The effects of shear and near tip deformations on interface fracture of symmetric sandwich beams. Eng. Fract. Mech. 2018, 201, 298–321. [Google Scholar] [CrossRef]
- Thouless, M.D. Shear forces, root rotations, phase angles and delamination of layered materials. Eng. Fract. Mech. 2018, 191, 153–167. [Google Scholar] [CrossRef]
- Andrews, M.G.; Massabò, R. Delamination in flat sheet geometries with material imperfections and thickness variations. Compos. Part B Eng. 2008, 39, 139–150. [Google Scholar] [CrossRef]
- Kardomateas, G.A.; Berggreen, C.; Carlsson, L.A. Energy-release rate and mode mixity of face/core debonds in sandwich beams. AIAA J. 2013, 51, 885–892. [Google Scholar] [CrossRef]
- Yu, H.-H.; He, M.Y.; Hutchinson, J.W. Edge effects in thin film delamination. Acta Mater. 2001, 49, 93–107. [Google Scholar] [CrossRef]
- Suo, Z.; Bao, G.; Fan, B.; Wang, T.C. Orthotropy rescaling and implications for fracture in composites. Int. J. Solids Struct. 1991, 28, 235–248. [Google Scholar] [CrossRef] [Green Version]
- Ustinov, K. On semi-infinite interface crack in bi-material elastic layer. Eur. J. Mech. A Solids 2019, 75, 56–69. [Google Scholar] [CrossRef]
- Massabó, R.; University of Genoa, Genova, Italy; Barbieri, L.; University of Genoa, Genova, Italy; Berggreen, C.; Technical University of Denmark, Lyngby, Denmark. The influence of shear on an interface crack between two elastic layers: Large mismatch of the elastic constants. Personal communication, 2019. [Google Scholar]
Dundurs’ Parameters | ||
---|---|---|
Glass-epoxy/polymer foam | 0.99 | 0.28 |
Glass/epoxy | 0.94 | 0.19 |
Al/PMMA. | 0.91 | 0.23 |
ITO/PET. | 0.97 | 0.2 |
Ni/Polycarbonate | 0.975 | 0.2 |
Al/Alfoam. | 0.82 | 0.23 |
Y2O3-ZrO2/β-(Ni,Pt)Al. | 0.63 | 0.31 |
Au/PDMS | ≈1 | ≈0 |
SiO2/Epoxy | 0.89 | 0.21 |
SiC/SiO2 | 0.72 | 0.38 |
−1 | −0.999 | −0.99 | −0.9 | −0.8 | −0.6 | −0.4 | −0.2 | 0 | |
0.794183 | 0.794268 | 0.795042 | 0.802955 | 0.812157 | 0.832039 | 0.854295 | 0.879592 | 0.908934 | |
0.416984 | 0.417119 | 0.418335 | 0.430885 | 0.445719 | 0.478693 | 0.517208 | 0.563241 | 0.619981 | |
0.2 | 0.4 | 0.6 | 0.8 | 0.9 | 0.99 | 0.998 | 0.999 | 1 | |
0.943943 | 0.987518 | 1.045755 | 1.136137 | 1.214548 | 1.395760 | 1.466932 | 1.48809 | π/2 | |
0.693045 | 0.793630 | 0.949054 | 1.258612 | 1.637033 | 3.676521 | 6.33202 | 7.98856 | – |
β = −0.4 | β = −0.3 | β = −0.2 | β = −0.1 | β = 0 | β = 0.1 | β = 0.2 | β = 0.3 | β = 0.4 | |
---|---|---|---|---|---|---|---|---|---|
α = −0.99 | 64.0° | 59.0° | 54.3° | 49.8° | 45.2° (45.553°) | ||||
α = −0.9 | 64.7° | 59.8° | 55.2° | 50.6° | 46° (46.006°) | ||||
α = −0.8 | 64.4° | 60.2° | 55.5° | 51.0° | 46.7° (46.533°) | ||||
α = 0.8 | 65.7° (65.096°) | 62.0° | 57.0° | 54.9° | 50.3° | ||||
α = 0.9 | 69.6° (69.588°) | 66.1° | 62.6° | 58.9° | 55.1° | ||||
α = 0.99 | 80° (79.971°) | 77.7° | 75.4° | 73.1° | 70.7° | ||||
α = 0.998 | 84.1° (84.049°) | 82.7° | 81.4° | 80.1° | 78.8° | ||||
α = 0.999 | 85.3° (85.261°) | 84.3° | 83.4° | 82.6° | 81.8° |
β = −0.4 | β = −0.3 | β = −0.2 | β = −0.1 | β = 0 | β = 0.1 | β = 0.2 | β = 0.3 | β = 0.4 | |
---|---|---|---|---|---|---|---|---|---|
α = −0.99 | 18.4° | 15.0° | 11.7° | 8.6° | 5.4° (5.634°) | ||||
α = −0.9 | 17.9° | 14.6° | 11.4° | 8.3° | 5.2° (5.252°) | ||||
α = −0.8 | 17.2° | 14.0° | 10.9° | 7.8° | 4.8° (4.818°) | ||||
α = −0.6 | 12.7° | 9.7° | 6.8° | 3.9° (3.920°) | |||||
α = −0.4 | 11.3° | 8.5° | 5.7° | 3.0° (2.978°) | 0.2° | ||||
α = −0.2 | 7.2° | 4.6° | 2.0° (1.993°) | −0.7° | |||||
α = 0 | 5.8° | 3.4° | 1.0° (0.963°) | −1.5° | −4.1° | ||||
α = 0.2 | 2.1° | −0.1° (−0.107°) | −2.4° | −4.8° | |||||
α = 0.4 | 0.7° | −1.2° (−1.208°) | −3.2° | −5.4° | −7.6° | ||||
α = 0.6 | −2.3° (−2.301°) | −4.0° | −5.8° | −7.7° | |||||
α = 0.8 | −3.2° (−3.238°) | −4.4° | −5.7° | −7.0° | −8.5° | ||||
α = 0.9 | −3.4° (−3.427°) | −4.1° | −4.8° | −5.7° | −6.6° | ||||
α = 0.99 | −2.3° (−2.284°) | −1.5° | −0.7° | 0.2° | 1.0° | ||||
α = 0.998 | −1.3° (−1.436°) | 0.4° | 2.2° | 4.1° | 6.0° |
β = −0.4 | β = −0.3 | β = −0.2 | β = −0.1 | β = 0 | β = 0.1 | β = 0.2 | β = 0.3 | β = 0.4 | |
---|---|---|---|---|---|---|---|---|---|
α = −0.99 | 1.444 | 1.489 | 1.528 | 1.563 | 1.593 (1.597) | ||||
α = −0.9 | 1.465 | 1.510 | 1.550 | 1.585 | 1.616 (1.617) | ||||
α = −0.8 | 1.487 | 1.533 | 1.573 | 1.609 | 1.640 (1.641) | ||||
α = −0.6 | 1.586 | 1.627 | 1.663 | 1.695 (1.696) | |||||
α = −0.4 | 1.650 | 1.692 | 1.729 | 1.762 (1.762) | 1.791 | ||||
α = −0.2 | 1.773 | 1.811 | 1.844 (1.845) | 1.874 | |||||
α = 0 | 1.878 | 1.916 | 1.951 (1.951) | 1.981 | 2.007 | ||||
α = 0.2 | 2.058 | 2.093 (2.093) | 2.123 | 2.150 | |||||
α = 0.4 | 2.261 | 2.297 (2.298) | 2.328 | 2.355 | 2.378 | ||||
α = 0.6 | 2.627 (2.628) | 2.658 | 2.685 | 2.708 | |||||
α = 0.8 | 3.316 (3.317) | 3.347 | 3.374 | 3.395 | 3.411 | ||||
α = 0.9 | 4.190 (4.193) | 4.222 | 4.247 | 4.266 | 4.279 | ||||
α = 0.99 | 9.1 (9.089) | 9.1 | 9.1 | 9.1 | 9.1 | ||||
α = 0.998 | 15.3 (15.559) | 15.6 | 15.6 | 15.5 | 15.5 |
