1. Introduction
Covert channels are communication channels used to transmit information. In chip-level security, covert channels are types of attacks that can create the capability of transferring data and information between processes that are not allowed to communicate by the system security policy. Two parties with the aim to exchange covert information can easily communicate and transfer information over a shared network without being detected. Therefore, it is hard to identify covert channels, which hence can contribute to very serious damage to security approaches if they are used for malicious purposes. In many communication media, the covert channel information is seen, such as timing, heat, or indistinct sounds. There is a wide range of side channels that may exist in a multi-core system, however, a covert channel, which uses heat as a way to transmit information and data, can be particularly dangerous.
The heat transfers are known as thermal covert channels (TCC) [

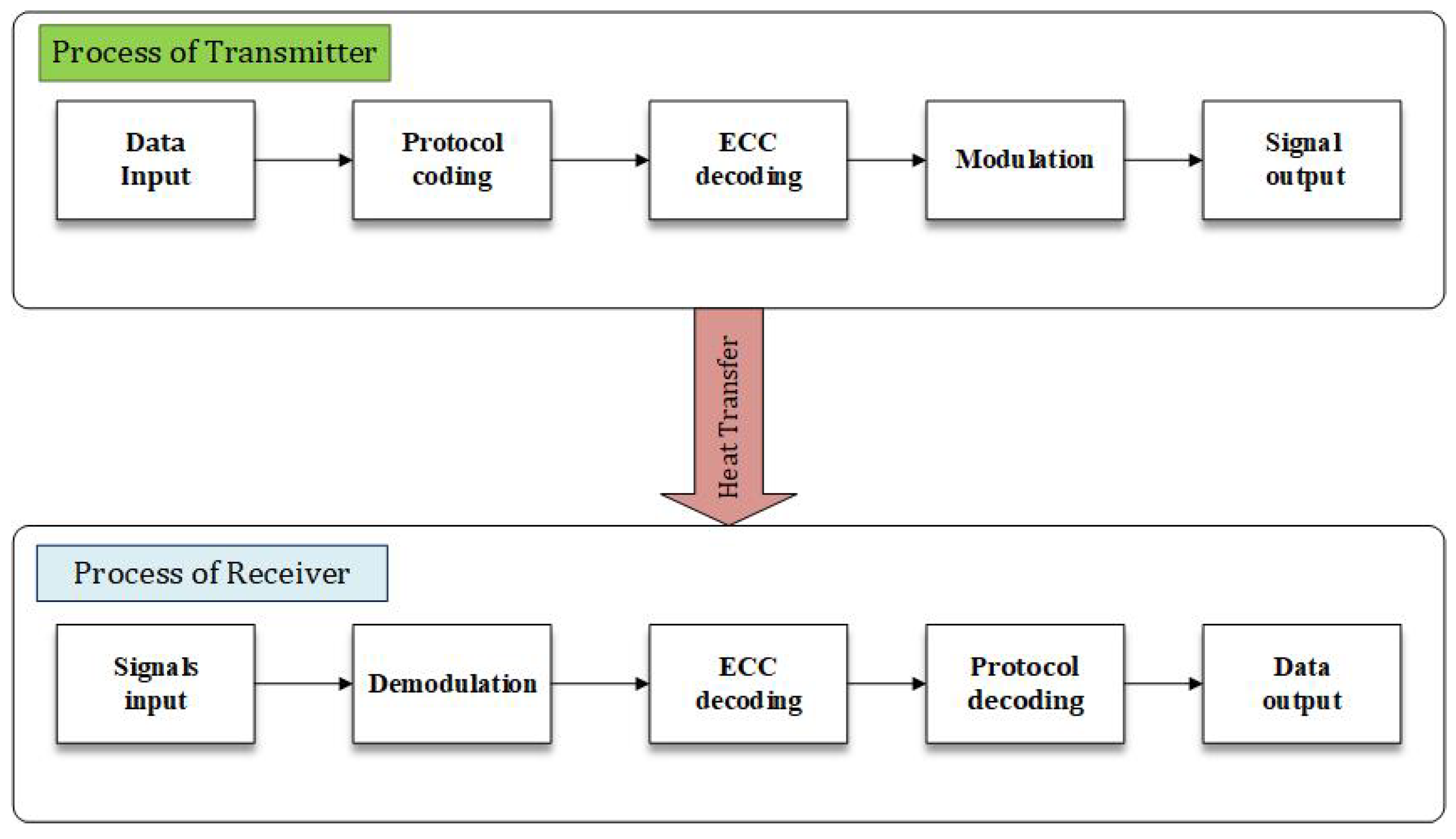

1]. Thermal covert channels can be traced in multi-core systems. As in any communication system, a thermal covert channel includes a pair consisting of a transmitter and a receiver [
2]. On the transmitter side, the temperature signals are generated from sensitive data such as user passwords by manipulating other activities like power consumption. The receiver’s side, which is on the other end of the data transmission, reads its thermal sensor and recovers the original sensitive information or data transmitted [
3].
Figure 1 illustrates an eight-core chip example, which assumes that there is a covert channel between core A and core B. It should be noted that core A is placed in a secured zone, where sensitive information does not have permission to be shared with the other cores outside this zone, and core B is located in a non-secured zone [
4]. The temperature signal can move around the chip by heat transfer among processor cores until it reaches the destination (receiver) [
3,
5]. In such cases, the bit “1” shows as a range of rising and is full of the temperature signal, while a bit “0” shows no changes. While thermal signals are committed to transferring temperature signals over a chip, it is highly likely to be degraded or disrupted by the environment temperature variations or the thermal noise [
5]. An advanced countermeasure against the thermal covert channel needs to position affected cores and fight the TCC attacks.
In recent years, some new designs of thermal covert channels have been proposed. For instance, Masti et al. [
4] introduced a new design of thermal covert channels that has improved noise immunity and throughput. They showed the feasibility of side channels and especially thermal channels on multi-core systems for the first time, e.g., they created a 1-hop TCC channel (a channel of transmitter and receiver are 1-hop apart from each other) that could reach a throughput of 1.33 bps along with a BER of 11%. In this study, researchers did not consider power consumption and high BER.
In separate research [
6] it was confirmed that a TCC channel has a throughput of more than 45 bps, and it also showed a TCC channel with a throughput of more than 5 bps with a BER less than 1%. Apparently, the ever-growing performance of the thermal covert channels pose serious risks and dangers to sensitive information or data security in today’s many-core/multicore systems [
7]. However, it is stated in [
3,
5] that TCC can be countered by decreasing the frequency of the system by Dynamic Voltage Frequency Scaling (DVFS) technology, producing jamming noise with the same transmission frequency as TCC [
8] or as in [
9] by limiting the accessibility to thermal information, etc.
The increase in operating temperature of an embedded system results in a bad experience and reliability problems. Reliability issues through system design are being extensively examined. It seems that in today’s digital world, TCC attacks are posing an increasingly big security threat to multi-core/many-core systems, however, there have been little works done to improve the defence strategy or countermeasure against them.
In this paper, we focus on thermal covert channel attacks and propose a novel selective noise-based countermeasures. We have aimed to consider the weakness of previous works and propose a new countermeasure in a way that is undetectable by the attackers. For instance, Huang et al. [
3,
5] introduced a detection based on signal frequency scanning, positioning affected cores, and blocking to thwart possible TCC attacks, as shown in
Figure 2. All experiments are performed using a simulator, Sniper-v7.2 [
10,
11], and more details of the simulator are provided in
Section 5. However, it seems that the temperature signal is still at risk because the attackers can come up with a new method and find the thermal signal’s pattern. Jiachen W et al. [
12] suggested a countermeasure strategy based on scanning frequency spectrum rapidly to detect any possible attack. When a thermal covert channel is detected and its frequency of transmission is found, a strong noise source is applied to the transmission frequency band for targeted jamming. These examples [
3,
5,
12] have motivated us to propose a new countermeasure scheme based on recording temperature and adding extra noise (extra thread), in fact, selective noise, that changes the pattern of the thermal signal. The purpose of adding a selective noise is to generate more temperature when the bit is “1”, which results in increasing the duration of bit “1”. For instance, if the bit was “1” just for 2 ms, by the proposed method we increased it to 5 ms and modified the behaviour of the temperature signal.
The rest of this paper is structured as follows. In
Section 2, we survey the previous works.
Section 3 presents the system and threat model thermal of covert channels.
Section 4, introduces the security scenario for our TCC.
Section 5 discusses the results and our contribution. The final section (
Section 6) concludes this paper.
2. Related Works
Covert channel attacks pose a security threat against any aspect or part of the computer and information systems to multi/many-core chips [
13].
They have been studied for different purposes, such as operating systems [
13], multi-core chips [
1,
14], and cloud systems [
15]. Covert channels can be set up using a large number of communication media that span from inaudible sound [
16], inter-arrival timing of packets [
17,
18], magnetic field [
19,
20], inter-light [
21,
22] to voltage [
23].
At the chip level, covert channels can use dynamic frequency scaling [
24], exploit cache-timing [
25,
26], etc., for data and information transmissions. For example, Darwish et al. [
26] introduced a new online streaming methodology for the mitigation of covert timing channels. This method eliminates covert timing channels while having an impact on the Quality of Service (QoS). To test the performance of the proposed model, the classification-based strategy was applied. They confirmed that the classification accuracy of this model flow fell down to 50%. However, in this work, the main focus was on the timing of the covert channel and performances, while our paper relies on the temperature, power consumption, and BER of the thermal covert channel in the multi-core system.
The term covert channel is explored, when the source and the sink transfer the data or information actively against the term side-channel, which is utilized, where attackers recognized an unaware system to deduce sensitive data and information, e.g., a user password or a cryptographic key, and change them into the temperature signals [
6]. Researching the security issues related to isolation and separation in computing systems is a well-defined area of study. In 1973, Lampson et al. [
27] analysed this issue and mentioned the possibility of using covert channels, i.e., detecting system properties not designed for communication, with the aim of leaking restricted data. These attacks pose a significant security threat against any aspect or part of our system, from cloud systems to operating systems and multi/many-core chips, etc. [
5].
Such as any countermeasure strategies, the TCC countermeasures include two main steps, detection and defence, which are summarized below.
2.1. Detection
In any countermeasure strategy, the first and most important step is detection. There are different methods to detect attacks introduced. For instance, the experiments by Kean et al. [
28] illustrated that one system can include different tags with several codes, which can all be detected in a relatively short time, during the normal operation of the system. Experiments presented by Murdoch et al. [
29] illustrated those changes in clock skews resulting from modest temperature changes, which can be remotely identified through network packet timestamps, even over tens of router hops [
30]. Huang et al. [
3,
5] and Jiachen W et al. [
12] showed that for the detection step, each core can measure the spectrum of its CPU workload traces that are recorded through a few fixed time intervals, and then use it as a frequency scanning technique to detect if there exist any thermal covert channel attacks.
2.2. Defence
The thermal covert is not similar to many types of covert channels. It does not rely on any shared sources such as catch or memory, which supports it in easily circumventing the system’s defence. TCC, which uses a simple on-off keying line coding strategy to encode bit “0” and bit “1”, is presented in [
4]. Recis et al. [
31] researched thermal-related attacks where sensitive information (e.g., a user password) is transmitted by reading the duration and speed of the fan. The angular speed of the fan changes based on the chip temperature to intercept it from overheating. A thermal covert channel over an x86-based scheme could transmit data with an average BER of 13.22% [
4]. A different encoding platform based on return-to-zero was proposed in [
14]. In this method, it was illustrated that a high transmission frequency could prevent thermal noise from participation with other active cores. Furthermore, Jiachen W et al. [
12] suggested a countermeasure strategy based on scanning frequency spectrum rapidly to detect any possible attack. When a thermal covert channel is detected, and its frequency of transmission is found, a strong noise source is applied to the transmission frequency band for targeted jamming, so that a thermal covert channel could be blocked with a packet error rate (PER) of 85%. In this strategy, by adding strong scours noise, the systems may face overheating during the transmission process or result in increased power consumption. Another method that can be used to fight the TCC attacks is Dynamic Voltage Frequency Scaling (DVFS) [
3,
5]. In this countermeasure, after detecting the TCC attack and finding its position, it is attempted to block and fight the possible attacks. In the scheme, Huang et al. [
3,
5] confirmed that this approach could cause TCC attacks to suffer extremely high BER (>92%), by applying the DVFS strategy. In all of these strategies, the sensitive data is still in danger. For instance, in [
4] BER is very low, in [
12] devices may face overheating and high power consumptions, and in [
3,
5] thieves can have access to the thermal signal’s pattern. By considering these issues, we proposed a novel countermeasure to address them.
4. Countermeasures against Thermal Covert Channel Attacks
Our proposed work has different steps to detect and fight against such thermal covert channel attacks. For the detection step, we used frequency scanning-based detection, which was presented by Huang et al. [
3,
5].
Step 1 (Detection): The detection algorithm uses the module of bandpass filtering to filter out the thermal signals that are out of every band of interest. The detection algorithm is also designed in a way that it can manage TCC, whose receiver and transmitter runs through two different channels. While designing the countermeasure method, we consider that the receiver and the transmitter have access to the same thermal data files, and also that the transmitter and the receiver threads are both sited in the same physical core and share the same thermal sensors, known as Intra-core channel [
3,
5]. The frequency scanning process is used to detect any existing TCC channels.
In addition, each core specifies the signal’s maximum amplitude from the frequency scanning process and leads it into a module known as the decision-making module. The decision-making module compares the signal’s amplitude against a threshold
(
is the pre-set threshold for the signal amplitude in a detection cycle.) and decides whether a signal (e.g., 1 0 1 0) is from a covert channel or not. If the amplitude of the signal is higher than
, an attack is present; otherwise, there is no attack happening. Statistically, the threshold
is selected experimentally to be 0.02 dB [
5].
Based on frequency scanning, if the defender, denoted as, global manager, identified the TCC channel exists, the proposed countermeasure is applied;
Step 2 (Classify bits): For applying the proposed countermeasure, we need to classify bits into “1” and “0” according to the thermal signal changes. In our work, the bit “1” represents changes in the thermal signal, while the bit “0” illustrates no changes;
Step 3 (Check bits): For this step, the system checks if the bit is “1” or not by considering the changes in the thermal signal. Then, if the bit is “1” the operation will start;
Step 4 (Adding an extra noise): The last step is adding an extra noise to the temperature signal, which results in generating more heat to the system where the bit is “1”, therefore, there is no bit change for a long duration, as

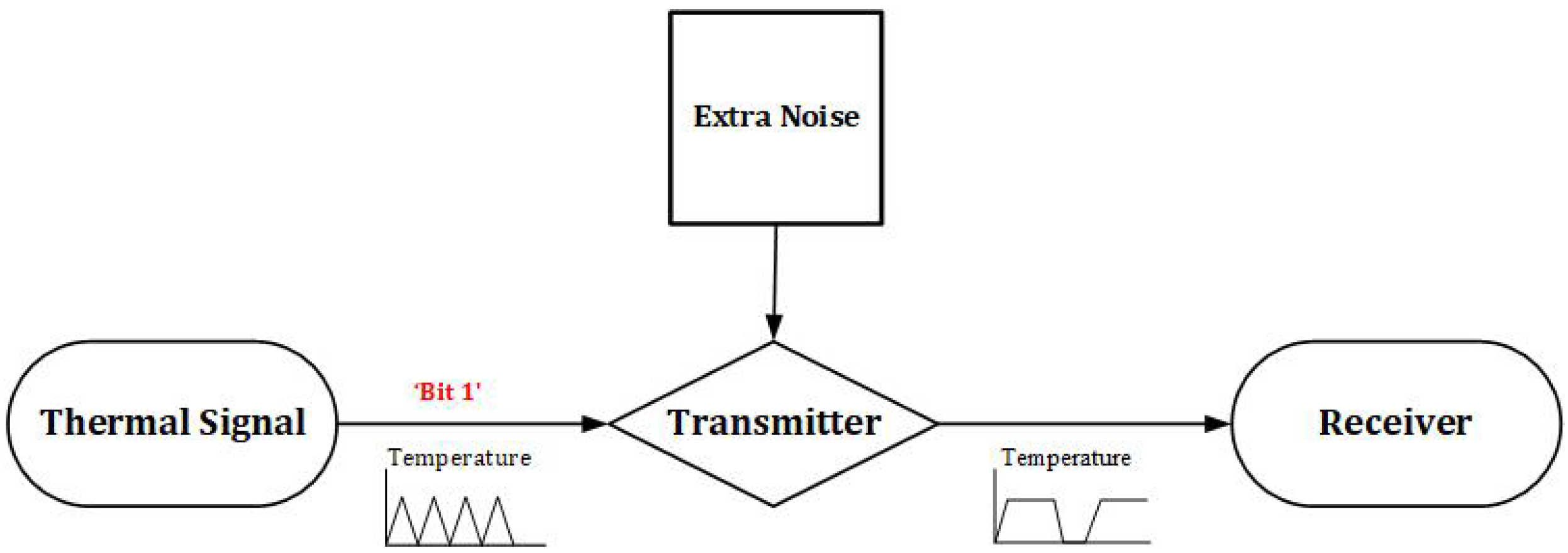

Figure 4 shows.
Figure 4.
Proposed countermeasure process.
Figure 4.
Proposed countermeasure process.
In the proposed method, once a core is determined to be associated with a thermal covert channel, a countermeasure shall apply to fight any future thermal covert channel transmission. Here we assume that a thermal covert channel thread is running on a dedicated logical core all over a full communication session.
We add extra noise to the thermal signal to generate more temperature when the thermal signal is at high temperature , which results in increased duration of and changing the pattern of the thermal signal and making it secure.
Note that the global manager cannot immediately apply countermeasure to control the suspicious core. First, the global manager scales down the temperature of the suspicious core for a few seconds (e.g., 0.5 s) to decrease the risk, and then a countermeasure is implemented to block any future TCC transmission [
3,
5]. As for the simulation results, from
Figure 5, one can see that the average temperature of a thermal signal without countermeasure is around 72
C (
Figure 5a) and when the countermeasure is applied the average temperature increases to 76
C (
Figure 5b).
4.1. Extra Noise Generation by Random Numbers
There are different methods introduced to generate random numbers. Some of them are very simple and some of them are very complicated. However, our purpose to use this operation is to create some extra temperature in a very simple method that does not require special types of equipment or lab to implement, and all researchers and designers can have very easy access to it [
45,
46]. Therefore, for implementing our idea, we used C/C++ programming and
int rolldie(int rand_ number) function to create some random numbers. Algorithm 1 illustrates the process of generating random numbers. In the first step, the system gets two different random numbers (known as X1 and X2), then sums them to achieve the final results.
Algorithm 1 Psuedorandom Number Generator |
Input: Two random numbers X1 and X2 |
Output: Psuedorandom sequence period of X1 + X2 |
1: for n = 100, do |
2: if then |
3: X1 = rollDie(); |
4: X2 = rollDie(); |
5: Count n = X1 + X2 |
6: return |
7: end if |
8: end for |
We started our experiment with 20 random numbers, however, it did not have any effect on our system, as the duration of this process was too short and did not generate significant temperature. Hence, we increased these numbers until we achieved the best results. The best result was reached when 100 random numbers were generated, and we got high BER and low power consumption. We considered this operation (generating random numbers) as one extra noise and then applied it to the transmission process. The results are shown in
Table 1.
During our work, we considered two important metrics: bit error rate and power consumption. In our proposed countermeasure, it can be difficult for the attackers to identify or guess the temperature signal pattern, so the sensitive information cannot easily leak. Consider that a system has a thermal covert channel with a transmission frequency of 100 Hz.
Figure 5 shows the temperature signal without and with the proposed countermeasure. As
Figure 5b illustrates, when the proposed countermeasure is applied, it shows a significantly different thermal profile.
In our proposed countermeasure, the BER of the TCC reaches 94%, and the power consumption did not increase significantly. A high BER indicates that our proposed countermeasure can be utilized to fight TCC attacks. On the other hand, system overheating leads to increased power consumption throughout the transmission process. Consequently, this issue is addressed in this paper.
4.2. Selective Noise
To fight TCC attacks and address the system’s overheating issue, we proposed a new countermeasure, which essentially consists of selective noise. In other words, this operation is designed based on the recorded current temperature of bit “1”. If the current temperature shows any changes or fluctuation, then the system decides to add extra noise or not, which is known as selective noise. We will discuss it in more detail in the next section. By adding selective noise, we could first change the pattern of the thermal signal, and then avoid increasing the unnecessary temperature, which results in high power consumption.
4.3. Selective Noise Countermeasure
The methodology is illustrated in
Figure 6 and has the following main steps:
Step 1 (Record temperature): This step consists of monitoring and recording the temperature. The extra noise is added when the bit is “1”. The current temperature is then recorded by the temperature sensor and used for the next step;
Step 2 (Temperature monitoring of processors and adding selective noise): In the last step, the next bit’s temperature is compared with the recorded temperature (TR) from the previous step. If the temperature of the current bit is less than TR or starting to decrease, the selective noise is added to keep the temperature at the same level, otherwise it is moved to the next bit. This progress continues until the end of the transmission process.
Here, we adopt different countermeasure strategies that take into account both security requirements and power consumption. Specifically, adding selective noise effectively can change the pattern of the temperature signal. To compare with our previous method, the BER of the receiver does not show significant changes (94%) but the power consumption will not be extremely high. As

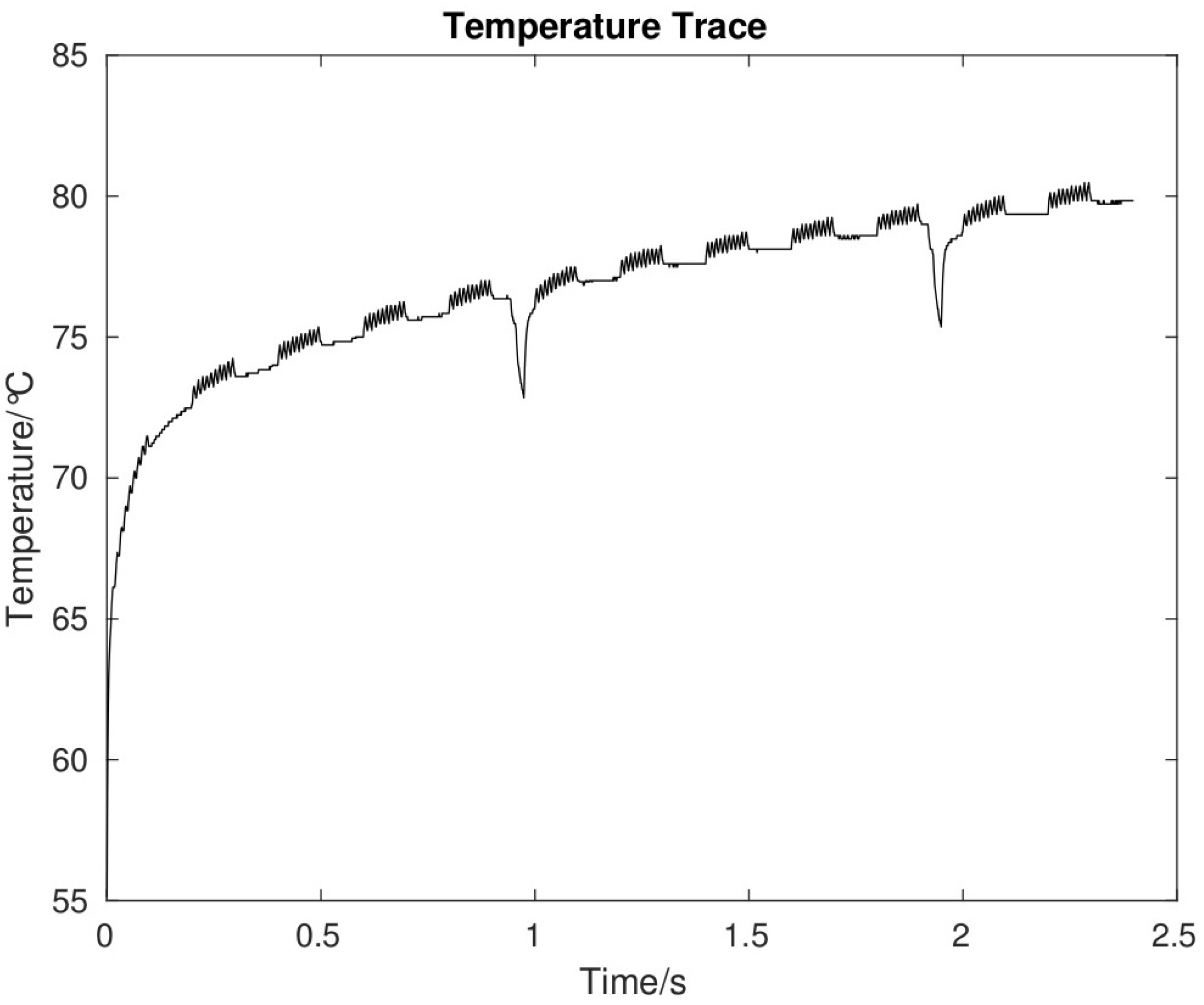

Figure 7 shows, by adding selective noise, the thermal signal shows different behaviour. The temperature fluctuation is decreased, and we could keep it at the same level, which results in avoiding system overheating and low power consumption. When the transmission process is complete, at the receiver side, the receiver reads the temperature sensor and records the thermal signal, and then decodes the signal to recover the original data. Next, if the received packet is specified to be uncompromised and includes a special preamble field during the transmission, the receiver extracts the data fields from the packet, otherwise, the receiver drops the binary bitstreams and waits for retransmission [
5].
5. Experimental Evaluation
Two sets of experiments have been performed, first, adding extra noise to every bit 1 and adding selective noise. Mostly, these experiments are implemented by using a multi-core simulator, Sniper-v7.2 [
10,
11], as a fast and reliable simulator for multi-core [
47]. McPAT-v1.0 is integrated as the power model. McPAT is an integrated power, area, and timing modelling framework for multithreaded, and many-core/multi-core architectures [
48]. This analysis has been done in order to thwart the covert thermal channel attack of our targeted device. To covertly transmit sensitive information from a secured zone to a non-secured one, the thermal covert channel programs require generating and measuring temperature signals by using the HotSpot simulator. We chose the Hotspot-v6.0 thermal model to dynamically produce temperatures for all the cores. We adopt a few benchmarks from PARSEC and SPLASH-2 and their temperature signals will be treated as the thermal noise to a thermal covert channel. The experimental setup uses Sniper and Hotspot simulation tools and TCC programs. Their configuration details are now tabulated in
Table 2. The floor plan of the processor cores follows the one reported in [
3,
5].
As
Table 2 shows, the transmission frequency of the TCC dynamically changes with a range of 10 Hz, 50 Hz, 150 Hz, and 200 Hz, etc., and the working CPU frequency of the transmitter/receiver core is 2000 MHz. In addition, it is identified whether there is a TCC attack or not. If an attack is found, the position of the transmitters/receivers associated with the thermal covert channels are required to be found. This positioning accuracy is referred to as
.
where:
Table 3 shows the average accuracy of positioning the transceiver in different multi-core systems, which is around 97%. By using this detection strategy, we can almost always identify a TCC attack.
Table 4 illustrates that the proposed countermeasure strategy can efficiently fight TCC attacks, up to the point that with this proposed countermeasure, the average BER of the TCC attacks across 8 × 8 systems can be higher than 94%. An interesting fact is that the average power consumption when the selective noise is in effect does not increase significantly. The formula that is used for computing the average power consumption is as follows [
47]:
where:
- :
The number of cores.
- :
The number of functional units within a core.
- :
The average power consumption for functional unit u from core c.
Table 4.
Experimental results.
Table 4.
Experimental results.
Countermeasures | Bit Error Rate | Avg. Power Consumption (w) |
---|
TCC with periodically scanning the frequency and add a strong noise source [12]. | 85% | 22.27 |
TCC with DVFS (Figure 2b) [3,5]. | 92% | 22.31799 |
TCC with One Extra Noise (Figure 4b) | 94% | 23.74631 |
TCC with Selective Noise (Figure 6) | 94% | 22.81277 |
Figure 8 shows that the average BER’s of our proposed countermeasure is always higher than that of the DVFS countermeasure for different system sizes.
We also determined that the average power consumption increased, along with the number of extra noises. The average and maximum temperatures also follow this trend. As shown in
Table 5, by increasing the number of noises we are able to reach a high BER, but it may cause a rise in the temperature average power consumption of the systems, which is not good for the systems.
Table 6 indicates different aspects of considerations in TCC attacks. In thermal covert channel attacks, most of the existing methodologies did not consider high BER, low power consumption, and performance along with countermeasure. However, in the proposed work, we examine the thermal covert channel attacks in multi-core systems with the goals of optimizing two metrics: bit error rate (BER) and power consumption. We have also performed evaluations for various system sizes. This paper is intended to help the researchers and system designers in gaining deep insight into designing power efficient and secure multi-core systems in the future.
Experimental results have confirmed that TCC attacks are possible in case of the leakage of sensitive information and data through several seconds or milliseconds. So, it seems that an application must repeatedly check the data and information that thwart such attacks, which may be costly or result in overheating of the devices.
The proposed work has a wide range of benefits, which are summarised below:
The first and most important advantage of this work is the high bit error rate, which means that the vulnerability of the system will decrease significantly. Therefore, any possible TCC attacks can hardly happen in this methodology;
Low power consumption: one of the most important metrics of any embedded system is power consumption [
51]. This is mainly because the increase in power consumption is a significant factor for elevated temperatures. Therefore, low power consumption can affect the systems’ temperatures;
Last, but not least, is easy implementation. Some of the proposed countermeasure methods may need special types of equipment or labs, which may be costly or hard to implement, such as [
32,
37,
52]. However, the proposed countermeasure can easily be employed for any device or system.
Despite all the benefits, the proposed approach has drawbacks., If the pattern of the main thermal signal is, e.g., 1 1 0 0 1 1 1 instead of 1 0 1 0 1 0 1, this strategy cannot work very well, as the proposed approach is based on both recording and monitoring the temperatures and then applying countermeasures, as mentioned in
Section 4.3. Thus, when the temperature of the current bit (e.g., 1 1 1) is higher than the previous bit (e.g., 1 1), the system cannot decide to apply the selective-noise countermeasure. Hence, the multi-core system will be at risk.
Furthermore, the power spectrum of the temperature signals of a core when a normal application (e.g., Blackscholes from PARSEC) runs falls into three bands: band A, which ranges DC to 50 Hz, band B from 50 Hz to 400 Hz, and band C, which is higher than 400 Hz (cut-off frequency), and detection is not performed in band A and band C. The TCC signal in Band A can be easily damaged or disrupted by the thermal signal generated by a typical application [
5] and band C is considered unavailable for data transmission. Therefore, in the aspect of countermeasure thermal covert channel attack, only possible TCC channels within band B have been detected [
3]. Hence, if the transmission frequency is less than 50 Hz, the system cannot detect the possible attacks. All of these issues are taken into account for future work.
