Trap-Related Reliability Problems of Dielectrics in Memory Cells

Abstract

A basic mechanism for storing data in memory cells is to record changes in electronic charges, material phases, resistivities, magnetic properties, and so forth. The change in electronic charge has been widely used in the majority of mass-produced memories, such as dynamic random-access memory (DRAM), static random-access memory (SRAM), NOR Flash, and NAND Flash. Other emerging memories have collected widespread attention for acquiring extra advantages which cannot be achieved using the change in electronic charge. Many years of studies have told us that reliability problems are critically important in the development of both conventional and emerging memories, in order to improve the product yield. However, the topics related to these problems are too wide to cover in these limited pages. In this review chapter, we address several interesting examples of trap-related problems in dielectrics for use in various memory cells. For engineering purposes, it is very important to grasp the relation of the achieved physical intuitions and electronic characteristics of dielectrics.

1. Introduction

There are two major innovations that human being have made since the appearance of mankind. One is the improvement of energy conversion efficiency. The other is the improvement of information communication efficiency. In the past few decades before 2020, semiconductor memory technologies have been regarded as belonging to the latter. However, as the energy that integrated circuit (IC) chips consume in data centers increases rapidly, the reduction of IC power consumption is also becoming meaningful for the global environmental problem. By multiplying the absolute temperature ($T$) to Shannon’s entropy, we can obtain the equality of energy and information quantity, where $p_i$ is the probability for state-$i$ (that is, $0\le p_i\le 1$ for each $i$) and $k_B$ is the Boltzmann constant,

$${\left|\Delta E\right|}_{min}=-k_{B}T{\displaystyle \sum }_i{p}_{i}lnn{p}_i.$$

(1)

During the period that we process information by ${\displaystyle \sum }_i{p}_{i}ln{p}_i$ at $T$, we consume energy at least by ${\left|\Delta E\right|}_{min}$. By shortening this period following device scaling [1], we have so far improved the efficiency of information communication. However, this also tells us that the minimum energy that we consume per time unit, named the lower bound of power consumption, increases with the efficiency of information communication. If this continues, then the improvement in communication efficiency may surpass the improvement in energy conversion efficiency. From 2010 to 2020, the worldwide energy use of data centers stayed around 1% [2]. However, in the next decade, there will be a risk of breaking the balance of efficiency improvement and the growth in energy use demands. This may be due to emerging applications in data intensive technologies such as artificial intelligence, automotive, and the internet-of-things. In response to this, memory technologies are being aggressively studied to reduce the power consumption of data centers [3]. From a similar viewpoint of power consumption, as well as big data accessibility [3], storage class memory is being extensively investigated [3,4,5]. In general, some part of the quantity of information must be noise in the wide range of electronic systems. The information entropy not related to the signal must be involved in the power consumption of memory systems. Therefore, basic research of the fluctuation sources caused by memory cells is critically important. In this chapter, we discuss electronic perturbations regarding dielectric films for use in memory cells.

2. Electronic Perturbation Is Very Small and Discrete

Following the law of large numbers, the average dominates fluctuations as the number of events increases. If the leakage current through a gate dielectric film is composed of tunneling events of electrons (depicted by the red and black arrows in Figure 1), then we can expect that the summed tunneling events turn out a continuous gate leakage current, as follows [6]: where $q$ is the elementary charge $, \hslash$ is Dirac’s constant, $A$ is the gate area, $g\left(E\right)$ is the density-of-state for a given energy $E$, $D\left(E\right)$ is the tunneling probability, $f\left(E\right)$ is the Fermi distribution function, and $V_g$ is the gate voltage applied to the top electrode, while the bottom electrode is grounded,

$$I=\frac{2\pi q}{\hslash }{{\displaystyle \int }}^{\text{}}dA{{\displaystyle \int }}^{\text{}}dEg\left(E\right)D\left(E\right)\left(f\left(E+q{V}_g\right)-f\left(E\right)\right).$$

(2)

In this equation, according to [6], the energy level in the cathode (bottom electrode) is higher by $q{V}_g$, because the energy level in the anode (top electrode) is lowered by $q{V}_g$. The Fermi distribution function is written as follows, where $\mu$ is the chemical potential,

$$f\left(E\right)=\frac{1}{1+exp\left(\frac{E-\mu }{k_{B}T}\right)}.$$

(3)

In this figure, we assumed that there is an electronic perturbation, which is a local trap depicted by the yellow square. The trap-assisted tunneling may substantially enhance the tunneling, as depicted by the black bulk arrow. The red arrows depict the tunneling events without the trap-assistance. While the gate area ($A$) is large, we can regard the number of tunneling events as very large. If the tunneling events without the trap-assistance prevail, then (2) is valid.

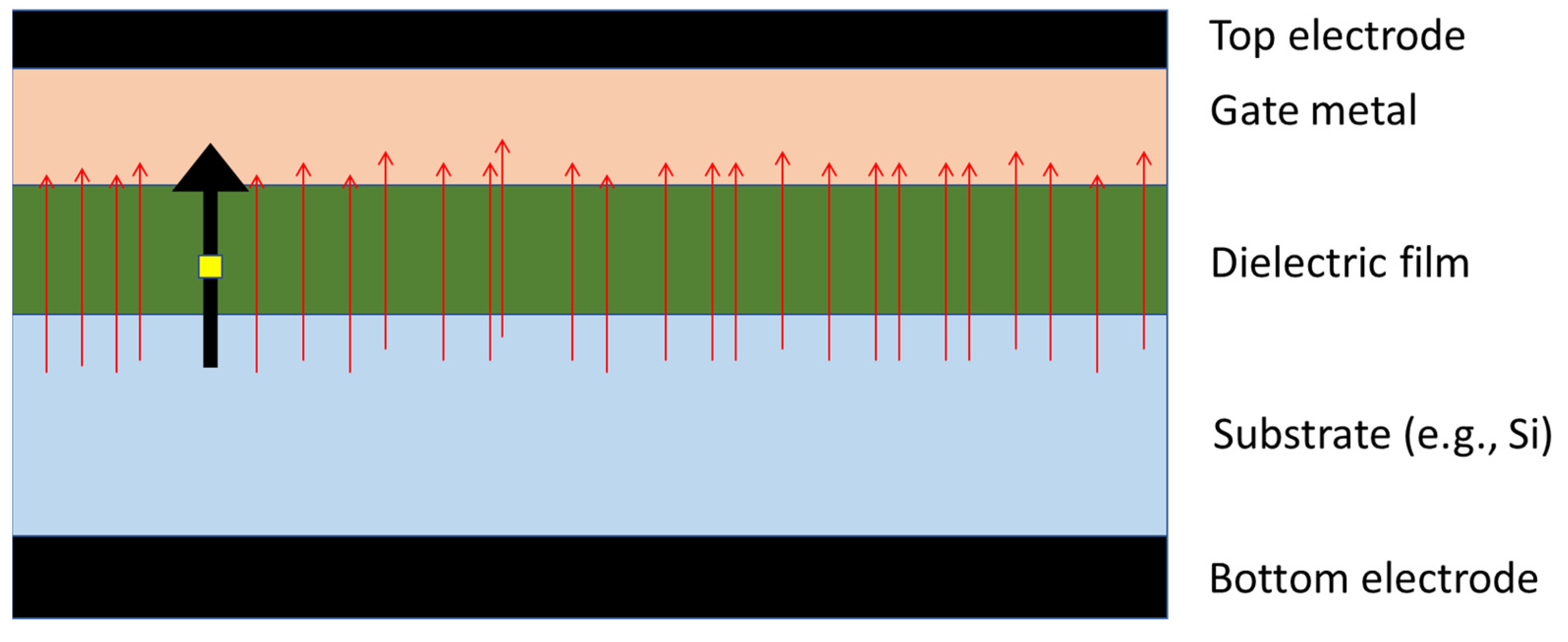

However, in real engineering, we divide cells by etching, as illustrated in Figure 2. If most of cells have no local trap, then the trap-assisting can substantially increase the leakage only in the cell with a local trap. With device scaling, the geometry of the memory cells is shrunk so that the leakage through the cell with a local trap can be described by a discrete formula, as follows: where $M_{i,f}$ is the transition matrix element from the initial state-$i$ to the final state-$f$, and $E_i$ and $E_f$ are the energies of tunneling electrons at the initial state-$i$ and the final state-$f$, respectively,

$$I={\displaystyle \sum }_{i,f}\frac{2\pi q}{\hslash }{\left|M_{i,f}\right|}^2\delta \left(E_i-E_f+\mathsf{\Delta }E\right).$$

(4)

The $E_i$ and $E_f$ correspond to the energy levels in the cathode and anode electrodes in (2), respectively. If $\mathsf{\Delta }E\ne 0$, then it is an inelastic process with the energy loss being $\mathsf{\Delta }E$. If $\mathsf{\Delta }E=0$, then it is an elastic process. The $\mathsf{\Delta }E$ is not the applied voltage.

What is important is that a smaller memory cell is more affected by a local event. Thus, it turns out to be easier to investigate a discrete electronic perturbation by using smaller memory cells than larger ones. For either two-dimensional (2D) or three-dimensional (3D) integration, with or without specific dielectric films, this is the common nature of the electronic perturbation. In order to investigate a discrete electronic perturbation by using a larger memory cell, a higher precision is necessary in the measurement. This, however, is usually difficult.

3. Discrete Electronic Perturbation Is Unstable

To carefully investigate a discrete electronic perturbation, a reliable oxide film is convenient for excluding non-targeted fluctuation factors, as far as possible. In [8], we prepared such a convenient sample using a 130 nm standard complementary metal-oxide-semiconductor (CMOS) process. Figure 3 contains an illustration and transmission electron microscope (TEM) images describing the sample geometry. The left-hand side (a) is a cross-sectional view along the cigar-shaped polysilicon above the substrate. The substrate surface is divided into two parts, labeled “S/D” and “G” by using the shallow trench isolation (STI). C1 is the capacitance between the cigar-shaped polysilicon and the substrate surface G. C2 is the capacitance between the cigar-shaped polysilicon and the substrate surface S/D. If the width of S/D is larger than that of G, then C2 is greater than C1, then the following capacitance coupling ratio ($CR$) becomes greater than 0.5.

$$CR=\frac{C2}{C1+C2}>0.5$$

(5)

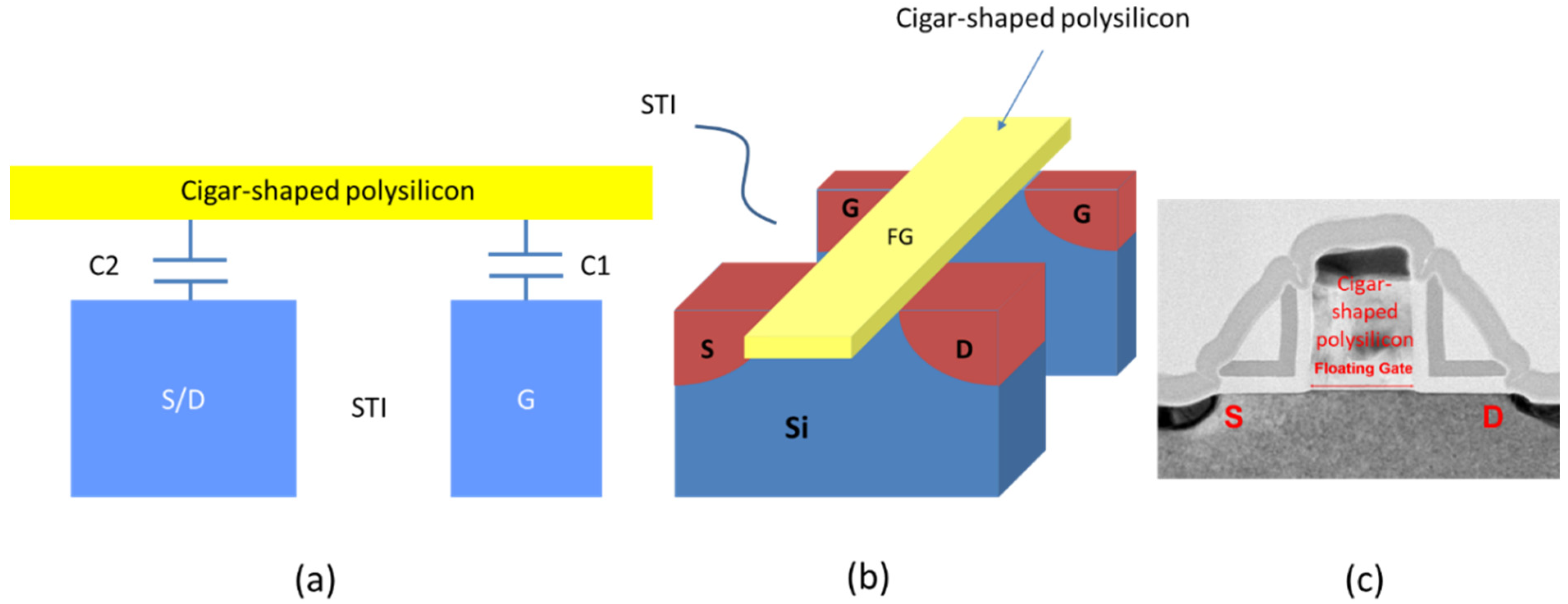

The center (b) is a bird’s eye view of this sample. Along the perpendicular to (a), we have the source and drain diffusion layers, labeled “S” and “D”, respectively, on the substrate surface S/D. These diffusion layers sandwich the channel. We have two diffusion layers labeled “G” on the substrate surface G. The diffusion layers, G, can connect to each other by the back-end of line (BEOL). The gate lengths on both substrate surfaces are the same as the width of the cigar-shaped polysilicon (130 nm). Thus, we can easily design $CR$ by tuning the gate width of both substrate surfaces (S/D and G). In this geometry, the gate oxide on the substrate surface G can serve as a tunnel oxide, while $CR>0.5$. If a positive voltage is applied to the diffusion layers S/D, then the vertical electric field is concentrated above the substrate surface G. When the voltage is large enough, an inversion layer is generated between the two diffusion layers G. Electrons coming from the diffusion layers G to the inversion layer can be injected into the cigar-shaped polysilicon by Fowler–Nordheim tunneling (FNT).

The righthand side image (c) is a TEM image of a cross-section in the plane perpendicular to the cigar-shaped polysilicon. It is the same as the cross-sectional view of the metal-oxide-semiconductor field effect transistor (MOSFET) of the 130 nm standard CMOS process, except for having no contact with the cigar-shaped polysilicon. Since the cigar-shaped polysilicon can in this way serve as the floating gate (FG), this sample is useful for various experiments of embedded type non-volatile memories (e.g., a battery-less timer [8]). Since the standard CMOS process is used to fabricate it, the quality of oxide and the substrate interface is within the scope of mass-production. Furthermore, we can obtain a sufficient number of sample cells in a mass-production line in which the cell-to-cell variation is under control.

We investigated the current flow of electrons from the diffusion layers, G to FG. The measurement scheme is as follows. We chose a sample cell with the gate lengths of 0.52 µm and 0.4 µm in the substrate surface S/D and the substrate surface G, respectively. This means that $CR=0.52/\left(0.4+0.52\right)\cong 0.565$. We applied a voltage to the source and drain diffusion layers S/D, while the substrate and the diffusion layers G were grounded. The substrate voltage was actually applied to the well contact, which is far from the channel between the diffusion layers S/D. Thus, we observed that $CR\times \left(applied voltage\right)-Vt$ approximates the FG potential to the inversion layer being generated between the diffusion layers G. While sweeping the voltage from zero to a voltage at which an abrupt increase appears (i.e., stopped by the ampere limiter), we measured the current flowing to the diffusion layers G by subtracting the substrate current from it. This procedure was repeated multiple times in succession for each cell. However, between any two sequential measurements of each cell, the voltage became zero once. The breakdown voltage of a 130 nm node is about 7.2 V [9]. The repeated applications of nearly $7 \mathrm{V}$ to the tunnel oxide may generate an electronic perturbation. The oxide thickness is 3 nm or less in a 130 nm node [9]. This is a little bit thinner than necessary to generate the FNT at 10 MV/cm, which could cause the FNT in flash memories. The FNT is not caused by damage to the oxides. The tunnel gate area was about 0.052 µm² (=400 nm $\times$ 130 nm). The number of repetitions of voltage application was 30 for the measurement of each cell.

In Figure 4a, we show the results of the first measurement of a chosen cell (along the vertical axis) over the electric field until 11.3 MV/cm (along the horizontal axis). The signal of the measured current was lower than the measurement limit. This limit was due to the equipment noise, and not of interest in this work. The leakage, if it exists, can be regarded as direct tunneling with no trap-assistance, that is, tunneling not assisted by traps (i.e., direct tunneling), as illustrated in Figure 4b. Since we were interested in a discrete electronic perturbation in the oxide, we further continued the sequential measurement of this cell.

In Figure 5a, we show the results of the 2nd to 18th measurements of the same cell as the first measurement. The vertical axis is for current and the horizontal is for electric field. A moderate increase of the current occurs from 5 MV/cm. This moderate increase may be attributable to 1-trap process in a local trap having been generated in the previous measurement (stressing by more than 10 MV/cm), as illustrated in Figure 5b. This is called the stress-induced leakage current (SILC) [10]. The leakage current is sensitive to the location and the energy level of the traps. Therefore, if the location and level of traps vary over the sequential measurement of the same cell, then the leakage current may vary in proportion to the fluctuation of the trap location and level. In (c), we consider the appearance of a second trap. If the location of the second trap is in a different tunnel path from that of the first trap, then it can increase the leakage current by about two-fold. Thus, the current of the 2nd to 18th measurements makes a bundle, as in Figure 5a. We, furthermore, continued the sequential measurement of the same cell.

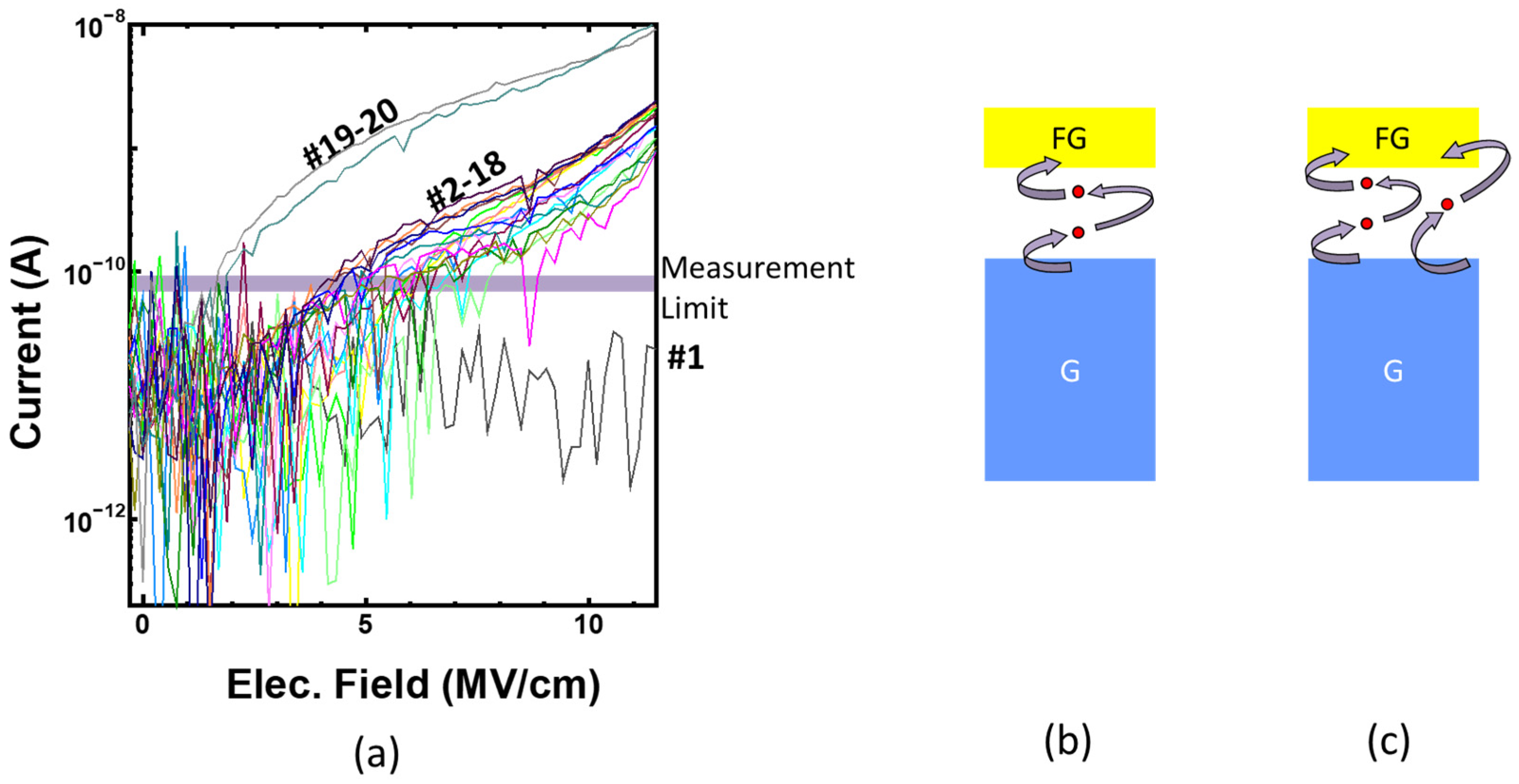

In Figure 6a, we show the results of the 19th and 20th measurements of the same cell (along the vertical axis) over the electric field (along the horizontal axis). There was a discontinuous increase from the moderate increase by ten-fold in the current level in the 19th and 20th measurements of the same cell from 2 MV/cm. Ielmini et al. found that it is hard to explain this by using two traps which are in different tunnel paths [11]. Following them, we can regard this phenomenon as related to the two-trap process (i.e., two traps existing in a tunnel path [11]), as illustrated in Figure 6b. Accordingly, a second trap may be generated due to the stressing in the 18th measurement of the same cell. This implies that a local trap is a discrete perturbation. In (c), we can consider that there is another trap in a different tunnel path. However, the two-trap process may dominate it. We, furthermore, continued the sequential measurement of the same cell.

In Figure 7a, we show the results of the 19th and 20th measurements of the same cell along the vertical axis over the electric field along the horizontal axis. What is surprising is that the current became lower than the measuring limit in the 21st to 30th measurements of the same cell. It is possible that the traps (i.e., discrete electronic perturbations) became inactivated or vanished. Therefore, we can regard the current in the 21st to 30th measurements as tunneling not assisted by traps (i.e., returning back to #1), as illustrated in Figure 7b.

4. What Is a Local Trap?

This is a fairly difficult question because no one has observed (watched) one by a physical inspection method. As described in the above, the traps are unstable. It sometimes becomes activated, as shown in Figure 5a and Figure 6a. On another occasion, it becomes inactivated, as shown in the 21st to 30th measurements of the same cell in Figure 7a. Suppose that one tries to inspect a sample having shown a discrete increase in the leakage current; how can we acquire a spot to be clipped for obtaining a cross-section wherein a trap exists? Even if we could successfully know in which cross-section a trap exists, can unstable traps still exist after segmenting the cross-section? Or will another trap be generated by the segmentation of the cross-section? If someone succeeds in solving this problem, then he or she could win the Nobel prize.

The difficulty in the above can increase as the size of sample cells decreases, because the average number of traps decreases. If the gate area increases, then the number of traps may increase. Is it helpful to solve this problem? As mentioned above, a higher precision in the measurement is necessary if the gate area increases. In [12], the atto-ampere measurement is demonstrated. Such a method may be helpful for inspecting what is veiled under the measurement limit. It can be investigated if more trapping processes are hidden below the measurement limit [13]. If yes, the leakage process, which has been considered as tunneling not assisted by traps in Figure 7, could be further divided into several trapping processes. In this event, the one-trap and two-trap processes may turn out to be three-trap and four-trap processes, respectively, for example. Nevertheless, the basic research of such unstable and discrete electronic perturbations is critically important for memory device technologies.

5. Trap-Related Phenomena

From experience, we have found that transient phenomena are more sensitive to discrete electronic perturbations. However, the phenomena due to discrete electronic perturbations are not always detectable. It may be observed occasionally while repeating the same measurement of the same cell, as mentioned above. In addition, if it is seen as an electric current change, it may accompany the continuous current with no relation to the electronic perturbations. A little ingenuity is necessary to study it.

There is a possible situation which is able to distinguish discrete electronic perturbations from a continuous current. In Figure 8, we illustrate stacked oxides with an interface layer (IL) sandwiched by two electrodes under a moderate electric field across the stacked oxides. The z-axis expands horizontally, and the conduction band edge is drawn on the vertical axis. The left electrode is the cathode that emits electrons to the right one (anode) due to direct tunneling (DT) along the z-axis. The IL expands over the X-Y plane perpendicular to the z-axis between the stacked oxides. In this exemplary illustration, the IL is composed of multiple interface traps having shallow trap levels. In (a), many electrons are stored in the IL, and thus the trap levels are piled up in the energy diagram. This increases the tunnel barrier and then suppresses the DT from the cathode to the anode, which is depicted by the red-dotted arrow. In this way, the tunnel barrier is modulated by stored charge in the traps [14]. The electric field across the oxide is enhanced on the anode side and weakened on the cathode side. The electrons likely are emitted from the IL to the anode in some way (e.g., Poole-Frenkel process [15]), while a sufficient amount of electrons are stored in the interface layer. In (b), the amount of electron charge in the IL was reduced as a result of the leakage, so that the trap levels became lower. The electric field was weakened on the anode side. In other words, the emission current reduces over time due to the emission itself, which is depicted by the red-bulk arrow. The transient current is composed of the emissions from the IL. The saturation current may be due to the DT with the reduced pile-up of the trap levels.

In Figure 9a, we can observe that the trap levels are lower than in Figure 8b. In such a case, trap-assisted tunneling (TAT) may likely occur. TAT is composed of the capture of electrons from the cathode by the IL due to DT, and the emission from the IL to the anode due to DT or FNT. The emission may be accompanied with energy loss if the TAT process is inelastic [16,17] (See $\mathsf{\Delta }E$ in (2)). While the number of stored electrons in the IL is small, the emission is suppressed, and the capture is enhanced. When the number of stored electrons in the IL is large, the capture is suppressed, and the emission is enhanced. However, the emission may increase with the number of stored electrons and decrease with the decrease of stored electrons. This leads to a transient current due to the TAT. The saturation of TAT is achieved by the balance of the capture and the emission. The saturated TAT current, if it exists, must be much higher than the saturated DT current. The TAT can likely occur if the trap levels lower as the electric field increases.

6. Power Spectrum Analysis of Discrete Electronic Perturbations

As we can understand from the discussion of Figure 8 and Figure 9, the emission from the cathode or the IL is the key aspect that we have to analyze. The emission rate must be dependent of the electric field across the oxides, however, in this chapter, we a-priori assume that the emission rate is not explicitly dependent on time. The time dependence of the leakage current is assumed to be attributable only to the time-varying charge in the IL. In other words, we assume that the emission process is a stationary process. The autocorrelation of transient leakage current, $J_g\left(t\right)J_g{}^{*}\left(t-u\right)$, can be thus regarded as independent of time ($t$), where $u$ is the lag. We can depict it as $r_{JJ}\left(u\right)$. We apply the Wiener–Khinchin theorem (6a) to analyze the power spectrum of the measured transient current, $S\left(f\right)$, where $f$ is the frequency, $E[\cdots ]$ depicts the expectation value of $\cdots$ [18,19,20]. In (6b), $S\left(f\right)$ is proportional to $1/f^{1+\alpha }$, where $1+\alpha$ is the spectral index, and ranges from 0.8 to 1.45 [21,22]. It was observed that the spectral index is sensitive to the location of electronic perturbations; at the interface or inside oxides [21,23].

$$S\left(f\right)={{\displaystyle \int }}_{-\infty }^{\infty }E\left[r_{JJ}\left(u\right)\right]exp\left(-2\pi ifu\right)du$$

(6a)

$$S\left(f\right)~ f^{-\left(1+\alpha \right)}$$

(6b)

When $\alpha =0$, it is the $1/f$-fluctuation, i.e., Flicker noise [24,25,26,27,28]. When $\alpha =1$, it is the $1/f^2$-fluctuation, i.e., Brownian noise [29]. In general, the transient current varies over the samples to be measured. Therefore, it is indispensable to exclude the sample variations from the measured transient leakage current [30]. In Figure 10a, there is an illustration of the measured sample of a metal/high-K stack/metal (MIM) capacitor. The top and bottom electrodes are composed of metal (TiN). The top electrode is applied with a gate voltage ($V_g$) to measure the current, while the bottom electrode is grounded. The high-K oxide stack is composed of a 5 nm TiO₂ layer and 10 nm ZrO₂ layer from the bottom. There may be an interface between the 10 nm ZrO₂ and the 5 nm TiO₂, which corresponds to the IL in Figure 8 and Figure 9. The gate area is 2500 µm². The open probe fluctuation is about ${10}^{-10}$ A, which is equivalent to the measuring limit in Figure 4, Figure 5, Figure 6 and Figure 7. Both the 10 nm ZrO₂ and the 5 nm TiO₂ are polycrystalline, as shown in the TEM image of Figure 10b. It was found that ZrO₂ is cubic or tetragonal and TiO₂ is rutile (tetragonal). Some of the grains inside the polycrystalline may face the IL. The distributions of grain orientations, grain sizes, and grain boundary geometry inside the oxide stack may cause the sample variations to be an obstacle for the power spectrum analysis.

In Figure 11a,b, we plotted the transient current measured using nine samples (labeled #1–#9) having the same geometry as Figure 11a. The vertical axis is the measured current density and the horizontal is time. In (a), the transient current of the samples was measured under a positive fixed electric field (+0.5 MV/cm). In (b), the transient current of the samples was measured under a negative fixed electric field (−0.5 MV/cm). First of all, the plot shows that the sample-to-sample variation (named, the sample variation) was quite large. Next, we can see an uneven fluctuation (discrete electronic perturbations) in the data of the sample #1 under −0.5 MV/cm and so forth.

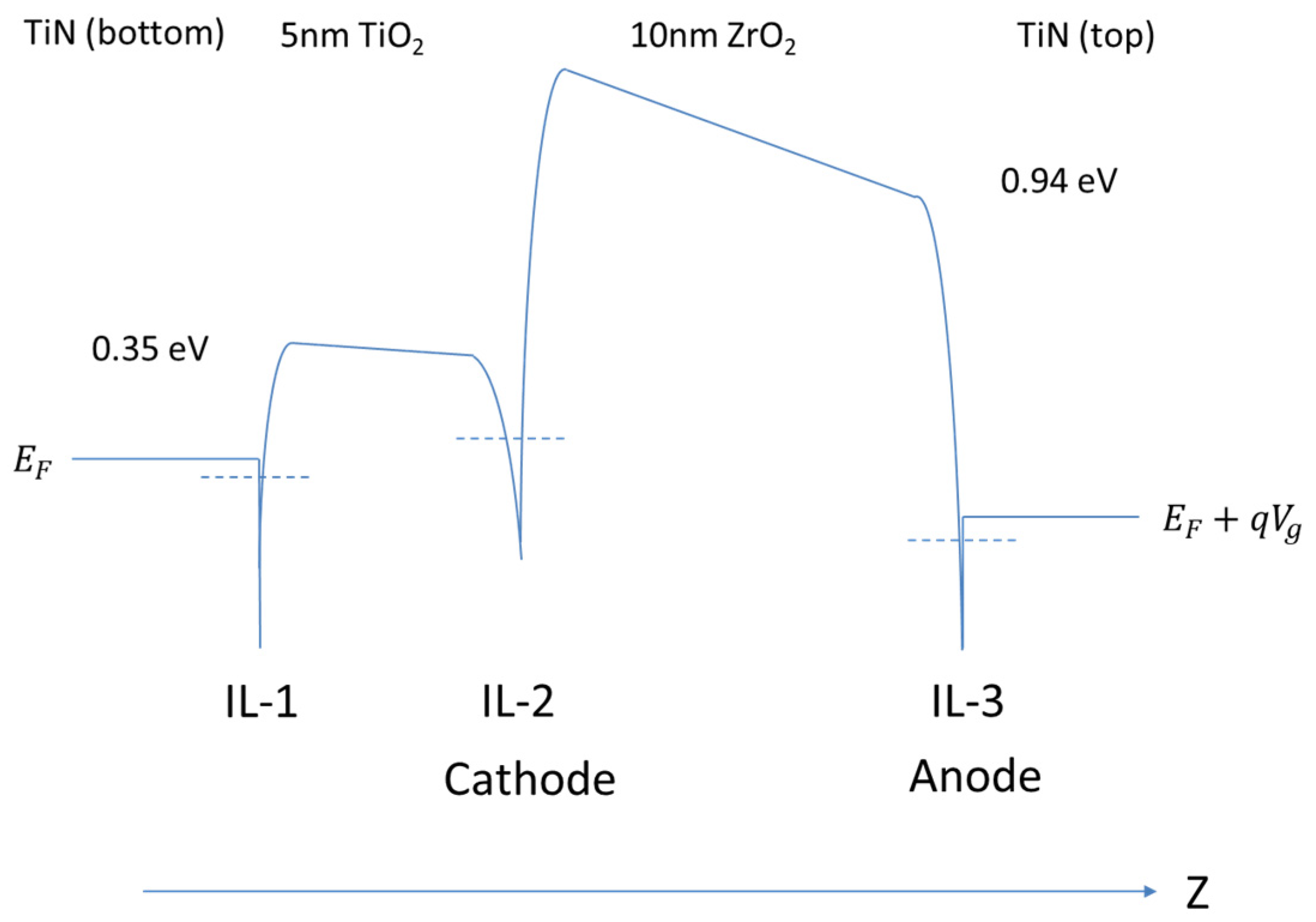

To analyze the electronic perturbation appropriately, we have to exclude the sample variation. In Figure 12, we illustrate the band diagram of Figure 10 with a moderate positive $V_g$ applied, which corresponds to +0.5 MV/cm. The horizontal axis is the z-axis (depth direction) and the vertical axis is the conduction band edge of the stacking film sandwiched by the electrodes. From the bottom, there are three interface layers (IL-1, IL-2, and IL-3) at the interfaces between the bottom electrode (TiN) and the 5 nm TiO₂, between the 5 nm TiO₂ and the 10 nm ZrO₂, and between the 10 nm ZrO₂ and the top electrode (TiN), respectively. In this figure, we assumed no electrons were stored in the interface layers (i.e., the IL-1, the IL-2, and the IL-3). The barrier height of the 5 nm TiO₂ is 0.35 eV from the bottom electrode [31,32,33,34]. The barrier height of the 10 nm ZrO₂ from the top electrode is 0.94 eV [31,32,33,34]. In general, the dielectric constant decreases with the band gap (or tunnel barrier). Therefore, the electric field across the 10 nm ZrO₂ is higher than the 5 nm TiO₂, while we can ignore the stored electrons in the interface layers.

In a usual analysis, the IL-1 and IL-3 may be ignored by supposing that the electrons come from an electrode to the other electrode passing through homogenous oxides (having no sample variations). However, both the oxide stack and the interface layers must have sample variations due to grain-related distributions. In other words, for +0.5 MV/cm, an electron can be emitted from the IL-1 to the IL-2 through the 5 nm TiO₂ with sample variations and then be emitted to the IL-3 through the 10 nm ZrO₂ with sample variations. Due to the higher barrier and the thicker width, the 10 nm ZrO₂ dominates the serial resistance of this oxide stack. Therefore, for a positive electric field, to analyze the transient current, we must consider the emission of electrons from the IL-2 (i.e., the cathode interface) to the IL-3 (i.e., the anode interface). For a negative electric field, we must consider the emission of electrons from the IL-3 (i.e., the cathode interface) to the IL-2 (i.e., the anode interface). That is, the IL-2 and IL-3 are the cathode interfaces for a positive and negative electric field, respectively. The IL-2 and IL-3 are the anode interfaces for a negative and positive electric field, respectively. The DT may likely occur between the IL-2 and the IL-3 due to the high tunnel barrier under a moderate electric field. Thus, we have the sample variations (see Figure 11) that may be attributable to the distribution of grains inside the 10 nm ZrO₂ sandwiched by the IL-2 and IL-3. If we have a sufficient number of stored electrons in the IL-2, the band diagram is modulated to Figure 13. This corresponds to Figure 9b.

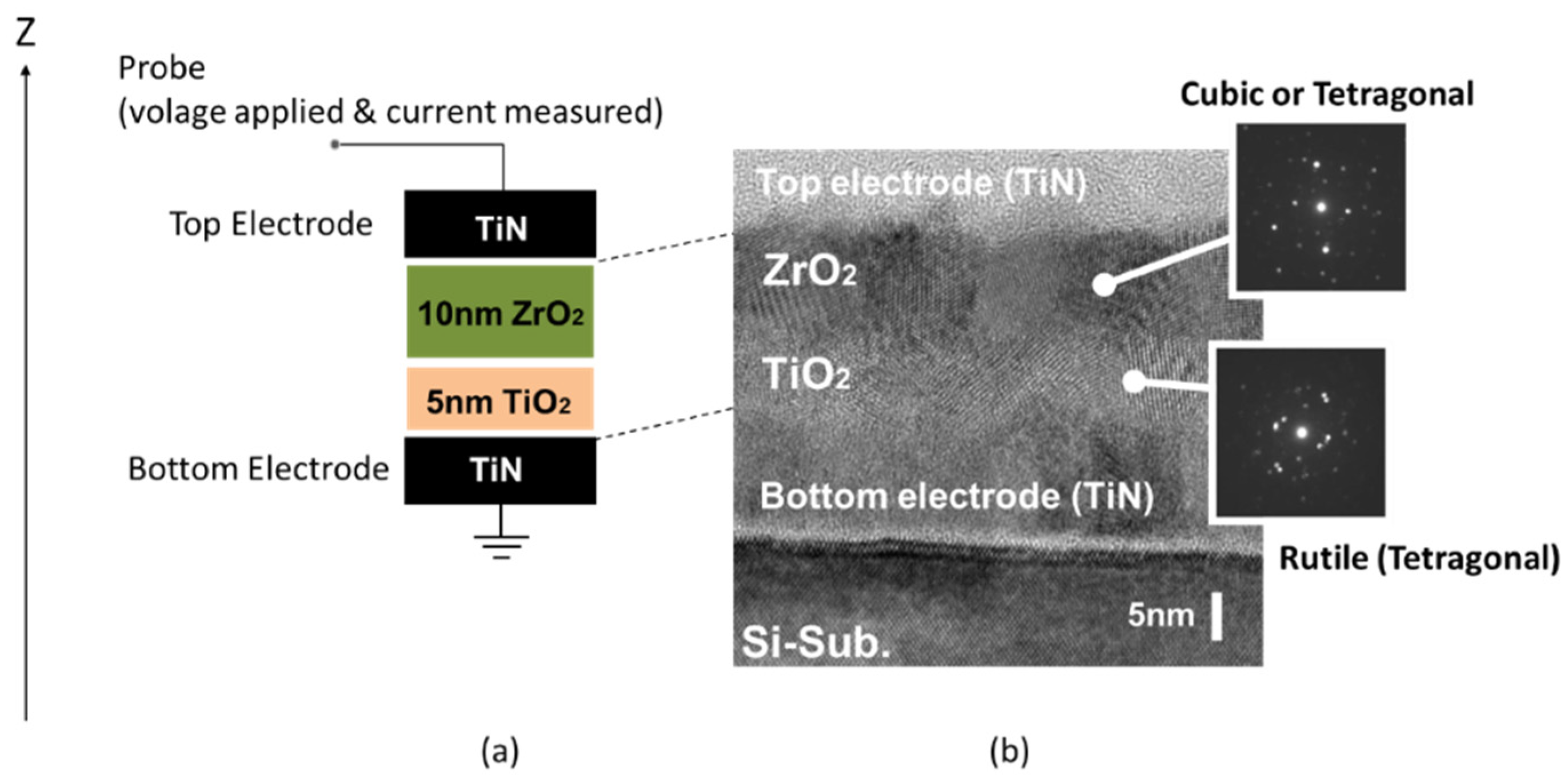

The 10 nm ZrO₂ is a polycrystalline having variations of grain orientation, grain sizes, and the grain boundary patterns inside. The IL-2 and IL-3 may also be affected by the orientations, the sizes, and the boundary patterns of the grains facing the interfaces. This may be the source of the sample variations. In [30], we regulated these complex sources of sample variation and then obtained a formula to analyze the transient DT current density, as follows: where $J_{g,\infty }$ is the stationary DT current density between the IL-2 and the IL-3.

$$J_{DT}\left(t\right)\approx J_{g,\infty }{\left(1-s exp\left(-\frac{t}{\tau }\right)\right)}^{-1}$$

(7)

We, a-priori, ignore the influence of the anode interface on the sample variations and then consider the grain-related variations in the cathode interface and the 10 nm ZrO₂. However, $s$ is the average of surface roughness, which varies over grains facing the cathode interface, and $\tau$ is the average of the longest dwell time of electrons which are emitted from the cathode interface over the grains. The $s$ is always positive and less than unity. As $s$ is close to unity, the surface roughness reduces at the cathode interface.

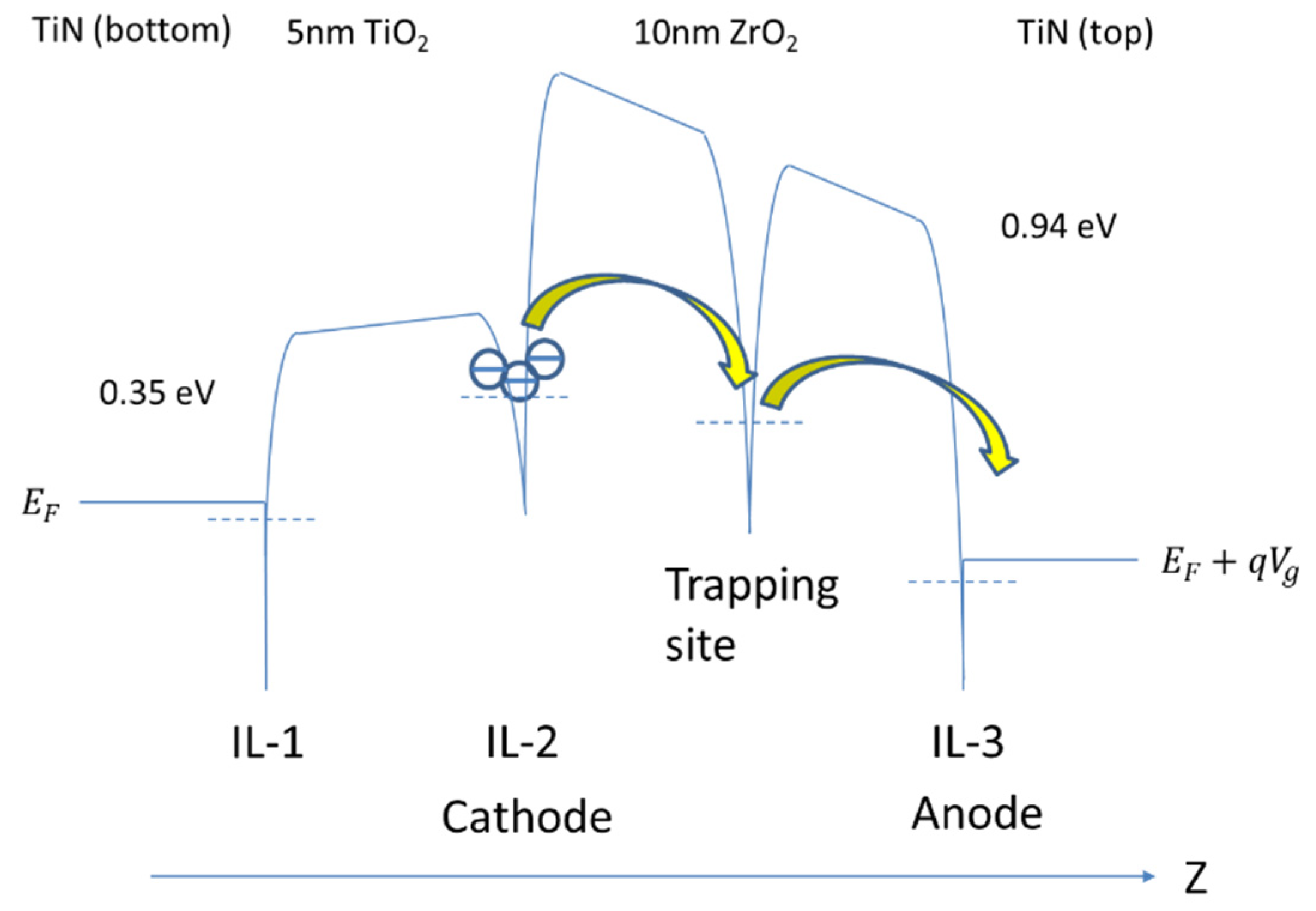

Subsequently, suppose there is a trapping site inside the 10 nm ZrO₂, as illustrated in Figure 14. The horizontal axis is the z-axis (depth direction) and the vertical axis is the conduction band edge of the stacking film sandwiched by the electrodes. If the energy levels of the trapping sites are low enough, then the TAT may likely occur from the cathode interface (IL-2) to the anode interface (IL-3) via the trapping site. This may dominate the direct tunneling between the IL-2 and the IL-3. In a similar way to the derivation of (7), we obtained the formula to analyze the transient TAT current density, as follows: where $J{\prime }_{g,\infty }$ is the stationary TAT current density, $\tau \prime$ is the dwell time of electrons emitted from the trapping sites for the TAT process, and $s\prime$ is a positive number.

$$J_{TAT}\left(t\right)\approx J{\prime }_{g,\infty }{\left(1-s\prime exp\left(-\frac{t}{\tau \prime }\right)\right)}^{-1}$$

(8)

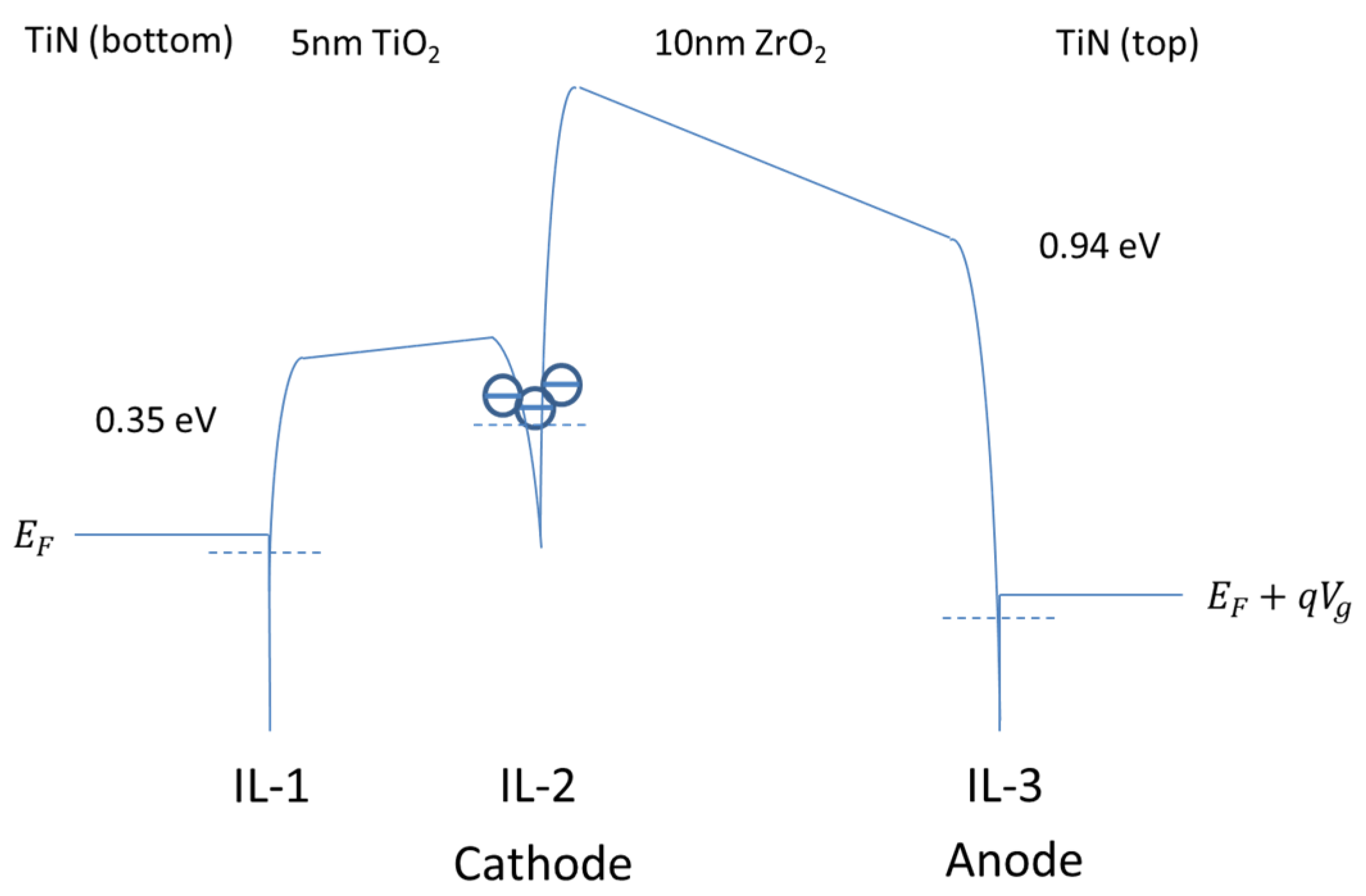

However, the trapping sites may also vary in depth in the energy diagram between samples. In one case, the electrons are stuck in the trapping sites. This cannot contribute to the measured leakage current. If $s\prime$ is smaller than unity, the TAT dominates. Otherwise, the electron is stuck as a fixed charge there.

The parameters ($J_{g,\infty }$, $\tau$, $s$, $J{\prime }_{g,\infty }$, $\tau \prime$, $s\prime$) characterize the sample variations and not the discrete electronic perturbations. By tuning these parameters, we obtained an excellent agreement with the measured data, without uneven fluctuations (i.e., discrete electronic perturbations). An example is sample No. 6 (#6), shown in Figure 15. In (a), the vertical axis is the current density and the horizontal one is time. The measured data under the electric fields (0.5 MV/cm, 0.7 MV/cm, and 1 MV/cm) are depicted by black open circles. The lowest current can be excellently reproduced only by using (7) (i.e., DT only). The others can be excellently reproduced by using both (7) and (8) (i.e., both DT and TAT). The TAT can become involved as the electric field increases. In (b), the vertical axis is for the power spectrum densities and the horizontal one is for frequency. The black, red and blue open circles depict the power spectrum densities converted from the measured transient current densities at +0.5 MV/cm, +0.7 MV/cm, and +1.0 MV/cm using (6a), respectively. The calibrated $\alpha$ is 0.224, 0.321, and 0.408 at +0.5 MV/cm, +0.7 MV/cm, and +1.0 MV/cm using (6b), respectively. It increases as TAT becomes involved. The calibrated parameters are shown in

Table 1. Calibrated fitting parameters for Figure 15 and Figure 16. See Table 1 in [30]. In the lowest electric field (+0.5 MV/cm), the leakage current is dominated by the direct tunneling (DT). When increasing the electric field, trap-assisted tunneling (TAT) can become involved.

Sample No.	Field (MV/cm)	${\mathit{J}}_{\mathit{g},\mathbf{\infty }}$ (pA/cm2)	$\mathit{\tau }$(s)	$\mathit{s}$	$\mathit{J}{\mathbf{\prime }}_{\mathit{g}\mathbf{,}\mathbf{\infty }}$ (pA/cm2)	$\mathit{\tau }\mathbf{\prime }$ (s)	$\mathit{s}\mathbf{\prime }$	Note	$\mathit{\alpha }$
#2	0.5	17.5	120	0.9580	N/A	N/A	N/A	DT	0.813
#6	0.5	51	48	0.9885	N/A	N/A	N/A	DT	0.224
	0.7	56	75	0.9962	390	0.5	0.5	DT + TAT	0.321
	1.0	140	70	0.9920	860	0.1	0.1	DT + TAT	0.408
#8	0.5	87.5	32	0.9920	N/A	N/A	N/A	DT	0.108

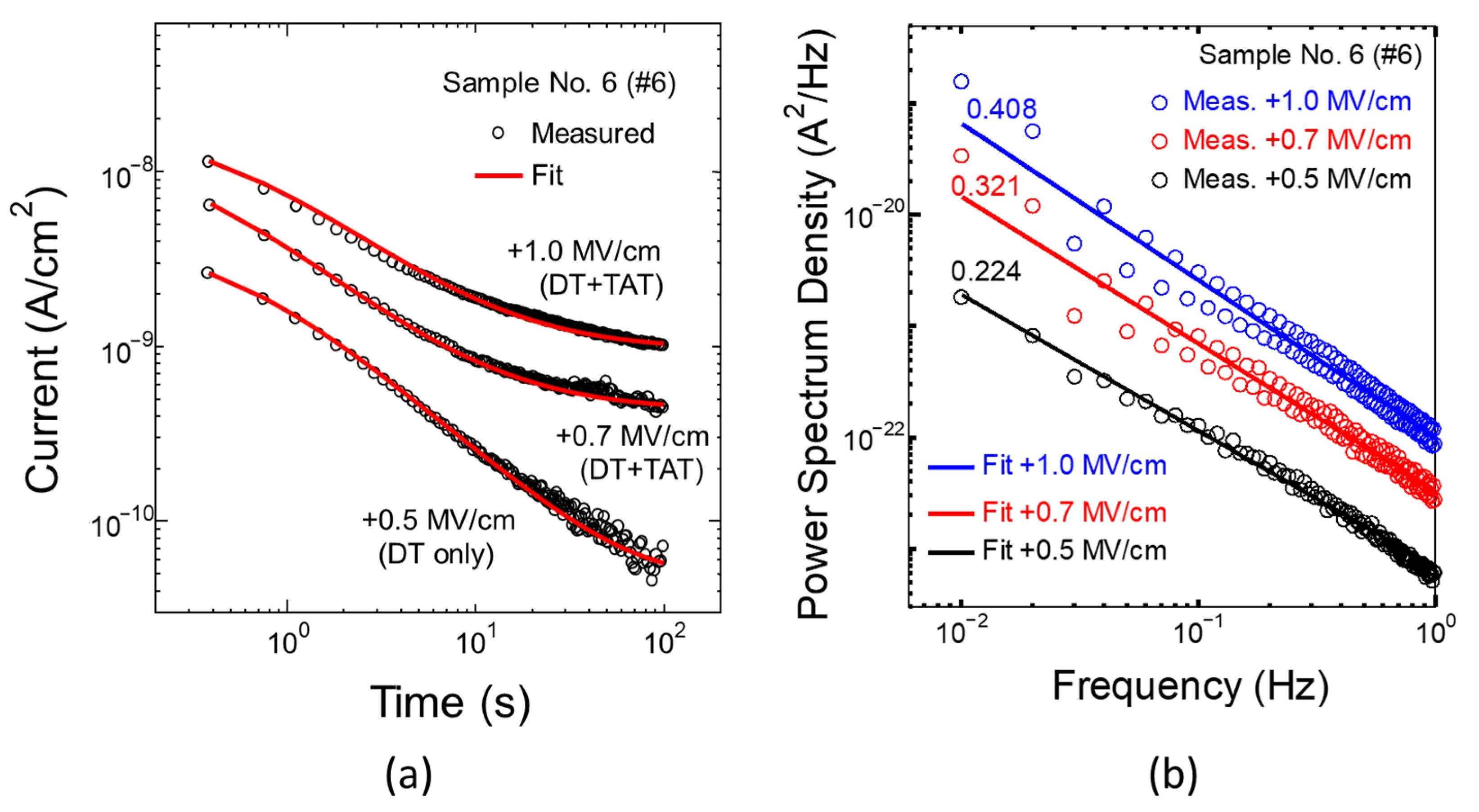

. In Figure 16a, the measured transient current of samples No. 2 (#2), No. 6 (#6), and No. 8 (#8) under +0.5 MV/cm are depicted by black open circles. The vertical axis is the current density and the horizontal one is time. We obtained an excellent agreement by using only (7) (i.e., DT). In (b), the vertical axis is the power spectrum densities and the horizontal one is frequency. The red, black, and blue open circles depict the power spectrum densities converted from the measured transient current densities of samples #2, #6, and #8 at +0.5 MV/cm using (6a), respectively. The black open circles are the same as in Figure 15b. In addition, we observed that $\alpha =0.813$ and $0.108$ for #2 and #8 at +0.5 MV/cm using (6b), respectively. The calibrated parameters are also shown in Table 1.

In Figure 17, the vertical axis is $\alpha$ and the horizontal is the surface roughness index ($s$). The open dots depict those calibrated using sample #6 at +0.5 MV/cm, +0.7 MV/cm, and +1.0 MV/cm in Figure 16a,b, respectively. Since these transient currents can only be fit using (7) (i.e., DT only), the number of fitting parameters is three ($J_{g,}$, $\tau$, and $s$). See Table 1. Let us choose $J_{g,\infty }=51$ pA/cm² and $\tau =48$ s from the sample #6 at +0.5 MV/cm in Table 1 (fit by DT). Regarding $s$ as a variable, we can calculate the transient DT current using (7). Substituting it for (6a), we can calibrate $\alpha$ using (6b) for a given $s$, as plotted using the line in Figure 17. It is thus found that $\alpha$ increases as $s$ decreases from unity (i.e., no surface roughness). We can thus find that the surface roughness violates the power law of the Flicker noise ($\alpha =0$). See Table 1 again. In sample #2 at +0.5 MV/cm, the transient current was reproduced using only (7) (i.e., only DT) and $\alpha =0.813$, which is very high. However, $s=0.9580$, which is very small compared with the others. This means that #2 has a larger surface roughness. According to the trend in Figure 17, we can assume that $\alpha$ would reduce from 0.813, as the surface roughness could have been suppressed in sample #2. If we can reduce the surface roughness, then $\alpha$ may also have decreased in samples #6 and #8 at +0.5 MV/cm from 0.224 and 0.108, respectively. Thus, we can observe that $\alpha \cong 0$ (i.e., the spectral index is 1) when the electrons are directly emitted from the cathode to the anode interfaces (i.e., DT). The DT turns out the Flicker noise and the surface roughness violates the power of the Flicker noise. In sample #6, furthermore, $\alpha$ increases due to the TAT as the electric field increases. The TAT also violates the power law of the Flicker noise.

As mentioned above, we can observe a fluctuation which may be discrete and subject to neither (7) nor (8). For example, there is an uneven transient current for sample No. 1 (#1) under −0.5 MV/cm in Figure 11b. This measured data is replotted using lines and dots in Figure 18a. The vertical axis is the current density and the horizontal one is time. There are three discrete perturbations. In (b) of this figure, by tuning the fitting parameters of (7) and (8), we can obtain the continuous transient current depicted by the red dash line, with the calibrated fitting parameters shown in

Table 2. Calibrated fitting parameters with uneven fluctuation. See Table 2 in [30]. The trap-assisted tunneling (TAT) can be involved in a cell and not in another cell at the same electric field. See #1 and #3 at −0.5 MV/cm. In #1, the TAT is involved, but not in #3. It may be observed that the trap levels of the interface layer are lower in #1 than in #3.

Sample No.	Field (MV/cm)	${\mathit{J}}_{\mathit{g},\mathbf{\infty }}$ (pA/cm2)	$\mathit{\tau }$(s)	$\mathit{s}$	$\mathit{J}{\mathbf{\prime }}_{\mathit{g}\mathbf{,}\mathbf{\infty }}$ (pA/cm2)	$\mathit{\tau }\mathbf{\prime }$ (s)	$\mathit{s}\mathbf{\prime }$	Note	$\mathit{\alpha }$
#1	−0.5	160	9.6	0.9880	798	0.1	0.1	DT + TAT	1.284
#3	−0.5	25.5	74.6	0.9950	N/A	N/A	N/A	DT	1.322
#4	1.0	114	50	0.9950	343	0.1	0.1	DT + TAT	1.289
#7	0.7	184	21.8	0.9870	2020	1	0.8	DT + TAT	0.927
#8	−0.7	47.1	85	0.9960	588	12	0.2	DT + TAT	1.367

. By subtracting it from the measured transient current (depicted dot and line), we obtained the red line. It appears as the summation of a stationary current ($\cong {10}^{-8}$ A) and the uneven component of the fluctuating current with no continuous decay. The calibration of the parameters was carried out to exclude the continuous decay from the red line. That is, we can deduce the uneven component from the measured data. We considered the uneven components as random-telegraph noise (RTN) in the transient leakage current [35]. Machlup assumed bi-states (i.e., discrete) and used (6a) and (6b) to study RTN [18]. Its origin has been considered to be related to number fluctuation [24], to mobility fluctuation [36,37,38], to both number and mobility fluctuations [39,40,41], and phonon scattering [42].

Let us remember that multiple grains of the 10 nm ZrO₂ may face either of the cathode or anode interfaces. Accordingly, there may be grain boundary patterns at the interfaces. Some traps are on the grain boundaries and others are out of the grain boundaries at the interfaces. We can suppose that the details of trap states are more complicated on the grain boundaries. This may cause the barrier height fluctuations ($\mathsf{\Delta }{\phi }_c$ and $\mathsf{\Delta }{\phi }_a$) in the cathode and anode interfaces, respectively. The electrons captured by the trap sites on the grain boundaries may change the trap states by emitting and absorbing the phonon energy ($\mathsf{\Delta }{E}_p$). For the phonon absorption, $\mathsf{\Delta }{E}_p$ is positive. For the phonon emission, $\mathsf{\Delta }{E}_p$ is negative. Thus, the dwell time of electrons stored in the cathode interface may fluctuate, as follows: where the suffixes of $\pm$ depict the positive and negative electric fields, respectively, and ${\tau }_{\pm 0}$ is the dwell time without the uneven component.

$${\tau }_{\pm }={\tau }_{\pm 0}\exp \left(\frac{-\mathsf{\Delta }{\phi }_c+\mathsf{\Delta }{E}_{\mathrm{p}}}{{\mathsf{\Delta }}_c}+\frac{-\mathsf{\Delta }{\phi }_a+\mathsf{\Delta }{E}_{\mathrm{p}}}{{\mathsf{\Delta }}_a}\right)$$

(9)

The denominators of the terms in the exponent of (9) are written as follows: where $m^{*}$ is the effective tunnel mass and assumed to be half the rest of the electron mass, $t_I$ is the thickness of the insulator (10 nm in this case), $E{C}_c$ and $E{C}_a$ are the conduction band edges in the cathode and anode interfaces, respectively, and $u^{*}$ is the compensation of $u$.

$${\mathsf{\Delta }}_u=-\frac{3}{2}\frac{\hslash }{\sqrt{m^{*}}}\frac{1}{t_I}\frac{{\left(E{C}_u-E{C}_{u^{*}}\right)}^2}{E{C}_u^{3/2}-3E{C}_u^{1/2}E{C}_{u^{*}}+E{C}_{u^{*}}^{3/2}}$$

(10)

If $u^{*}=a$, then $u=c$ and vice versa. In the bottom plot of Figure 18c, by using these parameters related to phonon scattering, we can extract $\mathsf{\Delta }{E}_p$ in the vertical axis over time in the horizontal axis. The upper is the replot of the uneven component depicted by the red line in (b). However, for the calibration of parameters in (9) and (10), we synchronized the occurrence of phonon scattering in our model and that of discrete perturbations in the extracted uneven component (i.e., in the measurement). In (d) of this figure, we obtained an excellent agreement with the measurement by using (7)–(10) with the phonon scattering (i.e., RTN), as depicted by the blue line. The calibrated parameters for phonon scattering are shown in

Table 3. Calibrated parameters related to phonon scattering. See Table 3 in [30]. The barrier height fluctuation varies over samples around 100 meV.

Sample No.	Field (MV/cm)	$\mathsf{\Delta }{\mathit{\phi }}_{\mathit{c}}$ (meV)	$\mathsf{\Delta }{\mathit{\phi }}_{\mathit{a}}$ (meV)	${\mathsf{\Delta }}_{\mathit{c}}$	${\mathsf{\Delta }}_{\mathit{a}}$
#1	−0.5	58.22	104.74	29.47	206.57
#3	−0.5	109.22	74.6	29.47	206.57
#4	1.0	153.87	185.41	30.59	179.50
#7	0.7	85.59	143.39	29.73	205.42
#8	−0.7	134.90	119.21	29.73	205.42

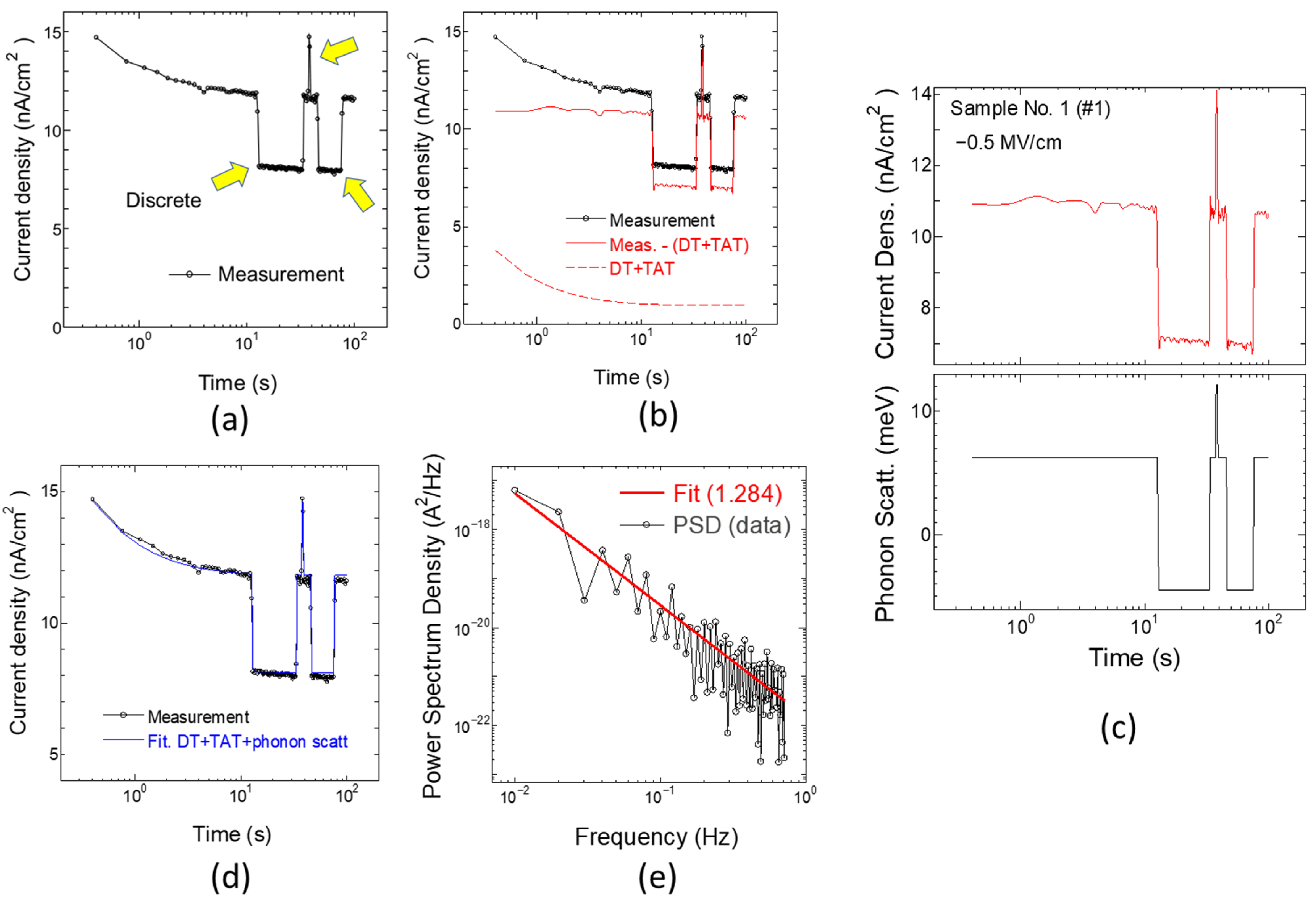

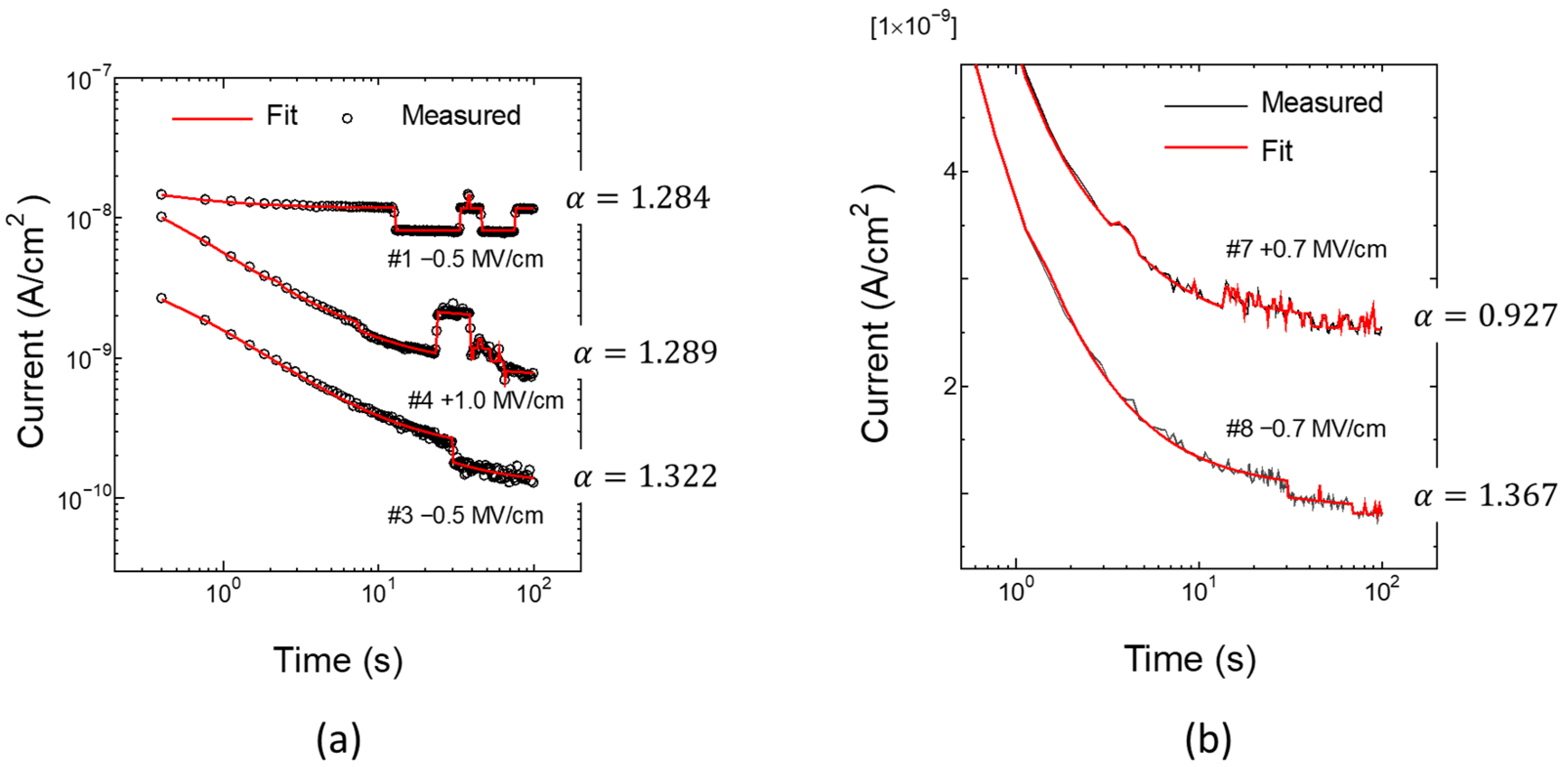

(see #1 therein). In (e), furthermore, we can convert this measurement to the power spectrum density in the frequency domain using (6a). We can thus extract $\alpha =1.284$ using (6b).

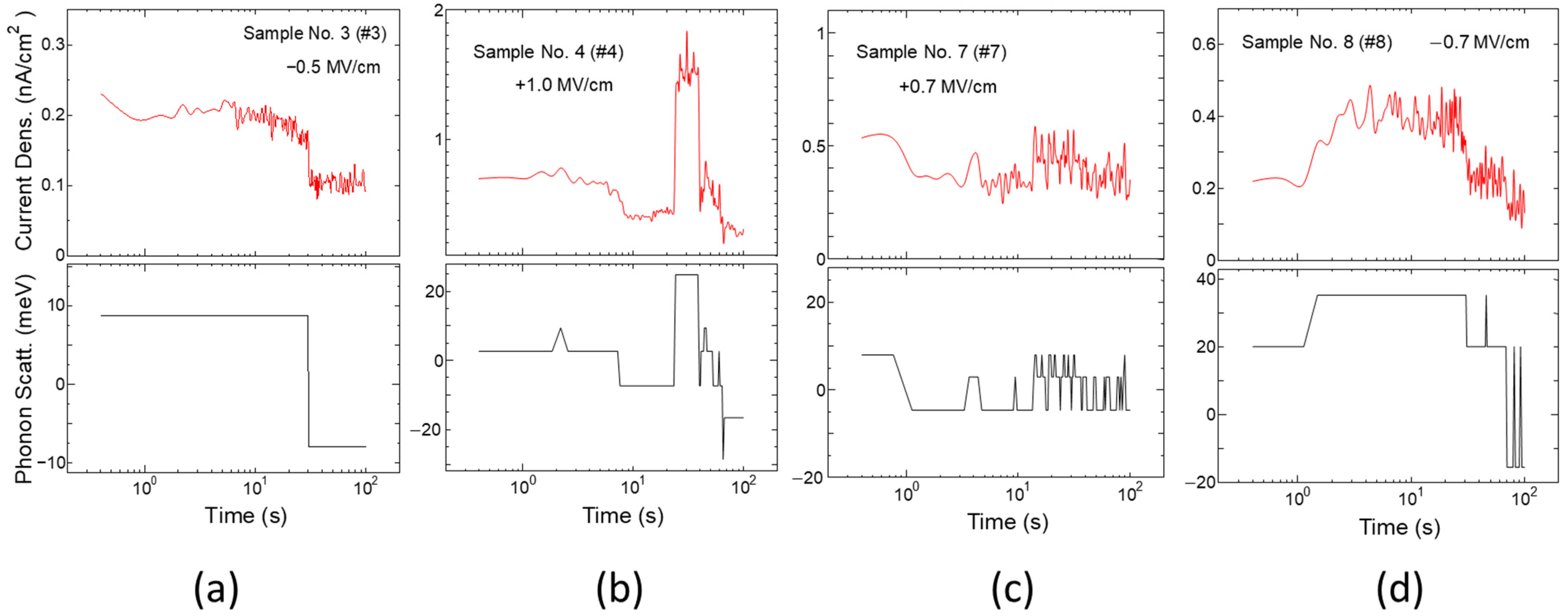

We also observed an uneven transient current with samples #3 at −0.5 MV/cm, #4 at +1.0 MV/cm, #7 at +0.7 MV/cm, and #8 at −0.7 MV/cm. In a similar manner, using (7)–(10), we obtained an excellent agreement for the measured transient current densities, as shown in Figure 19. The vertical axis is current density and the horizontal one is time. In (a), we plot the fitting results of #1 at −0.5 MV/cm (replot of Figure 18d), #3 at −0.5 MV/cm, and #4 at +1.0 MV/cm. In (b), we plot the fitting result of #7 at +0.7 MV/cm and #8 at −0.7 MV/cm. The calibrated parameters are shown in Table 2 and Table 3. Subsequently, using the same method to obtain Figure 18c, we extracted phonon energies using these samples, as shown in Figure 20. In the upper plots, we show the discrete perturbation (i.e., uneven component) over time. In the bottom plot, we show the extracted $\mathsf{\Delta }{E}_p$ over time. However, for the calibration of parameters in (9) and (10), we synchronized the occurrence of discrete electronic perturbations and phonon scattering. The $\alpha$ extracted using the same method to obtain Figure 18e was around 1.0, as shown in Table 2. Thus, we can find that phonon scattering generates randomness due to the $1/f^2$-fluctuation, that is, Brownian noise.

By comparing with the theoretical infrared phonon scattering [43], we can suppose that if $\mathsf{\Delta }{E}_p>10 \mathrm{meV}$ then grains are cubic or tetragonal, which is consistent with the 10 nm ZrO₂ of the samples used in the present measurement. See Figure 10b. Otherwise, they are monoclinic grains. In this way, we can deduce some physical intuitions from the phonon scattering analysis. By repeating the measurement of the same samples with the same conditions, sometimes we could obtain such uneven fluctuations. On other occasions, we could not obtain it since the discrete electronic perturbations were unstable, as we have shown in Figure 4, Figure 5, Figure 6 and Figure 7.

However, it may be still an open problem how phonons scatter with a discrete local trap. Grasser et al. reported a time-dependent analysis of metastable defect states [44] and Ielmini et al. performed a structure relaxation due to trapped holes [45]. It would be interesting to know how or if such details are related to phonon scattering, as we could extract some more detailed physical intuitions from phonon scattering energies.

Nowadays, there are many kinds of semiconductor memory. As conventional ones with MIM capacitors, we have static random-access memory (SRAM), dynamic random-access memory (DRAM), NOR flash, and NAND flash. As emerging types, we have phase-change random access memory (PCRAM), magnetic random access memory (MRAM), resistivity random access memory (RRAM), and so forth. The analysis of spectral index will be critically important for investigating various kinds of reliability issues, not only in the conventional ones, but also in the emerging ones. For example, a complex RTN was reported in RRAM [23,46].

7. Conclusions

We consider that sample variation is attributable to grain distributions in stacking oxide films. We thus proposed the formulae to eliminate sample variations from measured transient gate leakage current flowing through stacking oxide films. Thanks to this, we could analyze the discrete electronic perturbations which are seen in measured transient gate leakage current.

The transient gate leakage current has unstable discrete electronic perturbations that are related to local traps existing at the interfaces of the gate stack and inside. By repeatedly measuring the same samples with the same conditions, sometimes we could observe this, but not on other occasions. By assuming that the emission from traps is a stationary process, power spectrum analysis shows that the direct tunneling is subject to the $1/f$-fluctuation, that is, the Flicker noise. However, the trap-assistance and the interface roughness break the power law of the $1/f$-fluctuation. The random telegraph noise due to phonon-scattering shows a $1/f^2$-fluctuation, that is the Brownian noise. Even though it is hard to observe a local trap by physical inspection, we may have a chance to characterize it by using transient analysis.
