An Analysis and Modeling of the Class-E Inverter for ZVS/ZVDS at Any Duty Ratio with High Input Ripple Current

by
Ratil H. Ashique
1,*,
A. S. M. Shihavuddin
1,
Mohammad Monirujjaman Khan
2,
Aminul Islam
3,
Jubaer Ahmed
4,
M. Saad Bin Arif
5,
Md Hasan Maruf
1,
Ahmed Al Mansur
1,
Mohammad Asif ul Haq
1 and
Ashraf Siddiquee
1
1
Department of Electrical and Electronic Engineering, Green University of Bangladesh, Dhaka 1207, Bangladesh
2
Department of Electrical and Computer Engineering, North South University, Dhaka 1229, Bangladesh
3
Department of Mechanical Engineering, Technical University of Denmark, 2800 Kgs. Lyngby, Denmark
4
Department of Electrical and Electronic Engineering, Swinburne University of Technology Malaysia, Sarawak 93350, Malaysia
5
Department of Electrical and Electronic Engineering, Aligarh Muslim University, Uttar Pradesh 202002, India
*
Author to whom correspondence should be addressed.
Electronics 2021, 10(11), 1312; https://doi.org/10.3390/electronics10111312
Submission received: 30 April 2021 / Revised: 23 May 2021 / Accepted: 25 May 2021 / Published: 30 May 2021
(This article belongs to the Section Power Electronics)
Browse Figures
Versions Notes

Abstract

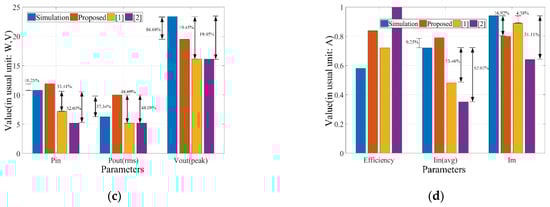

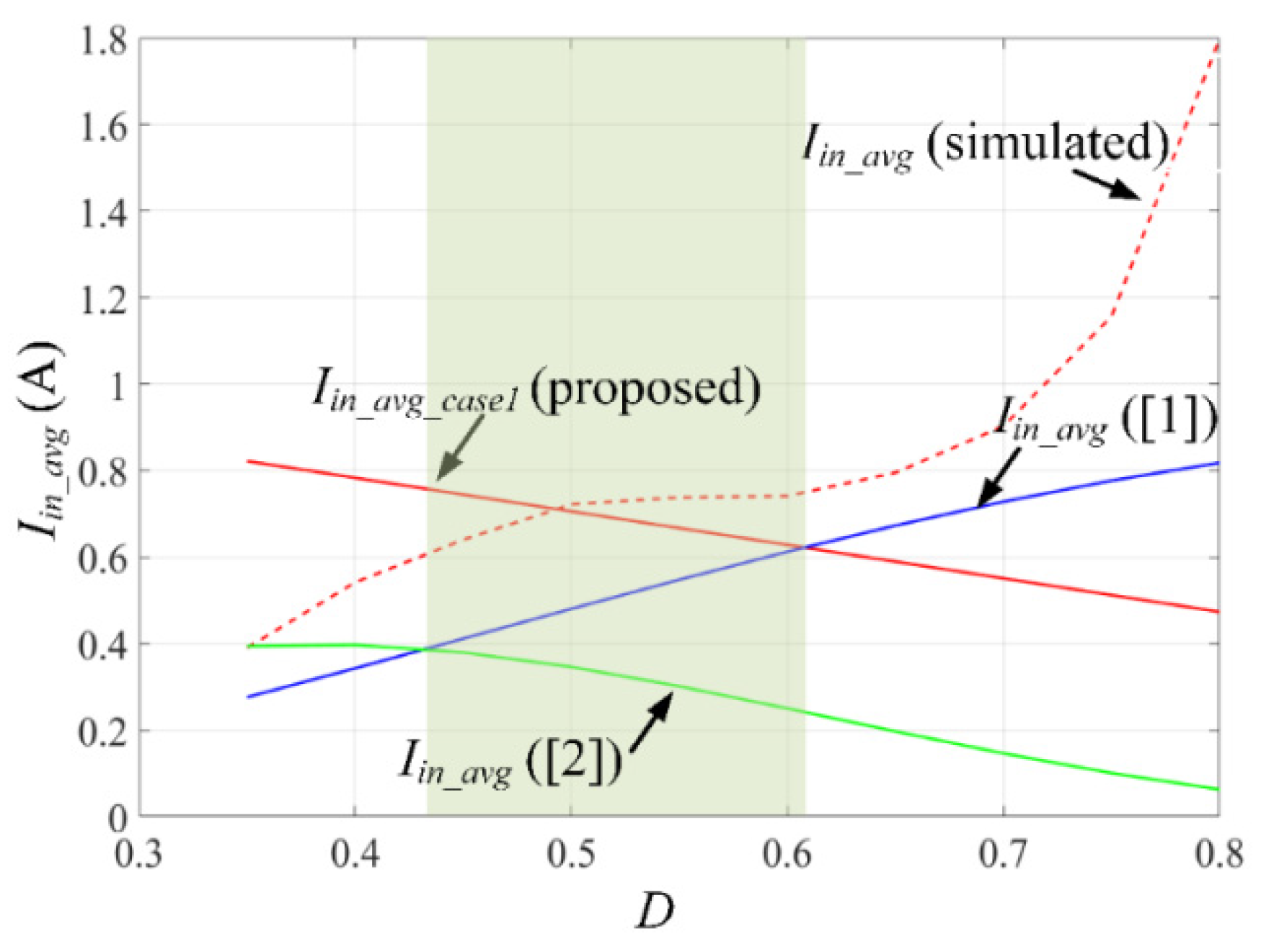

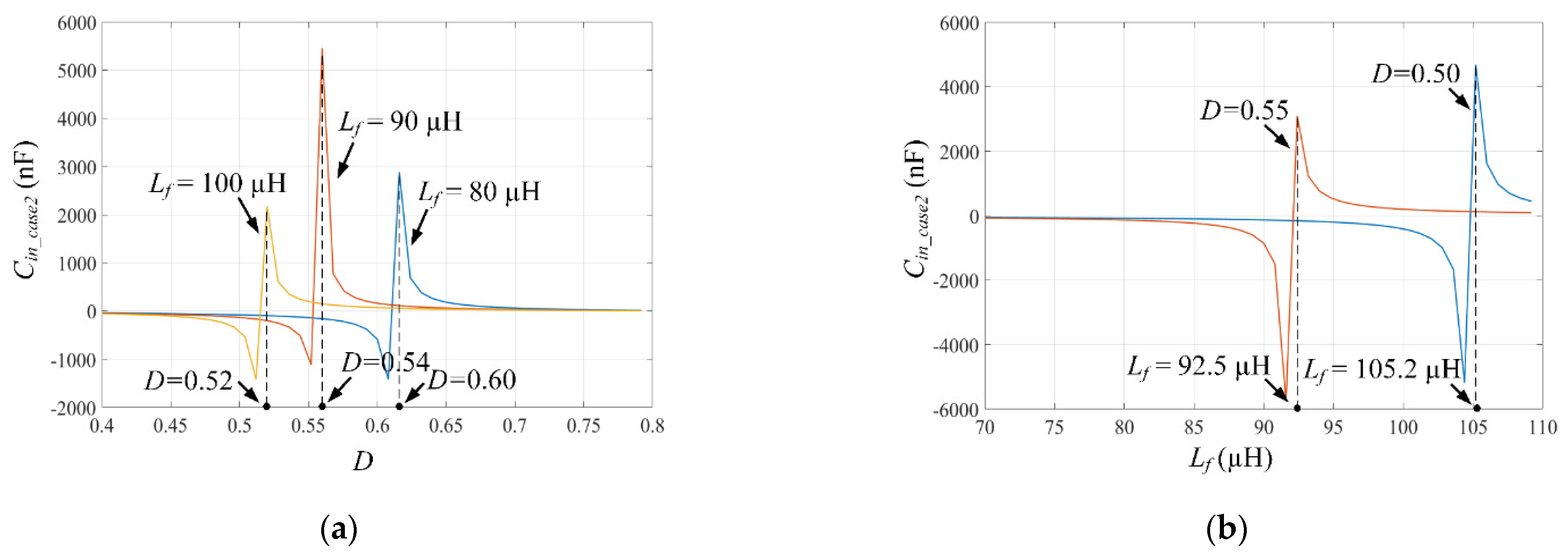

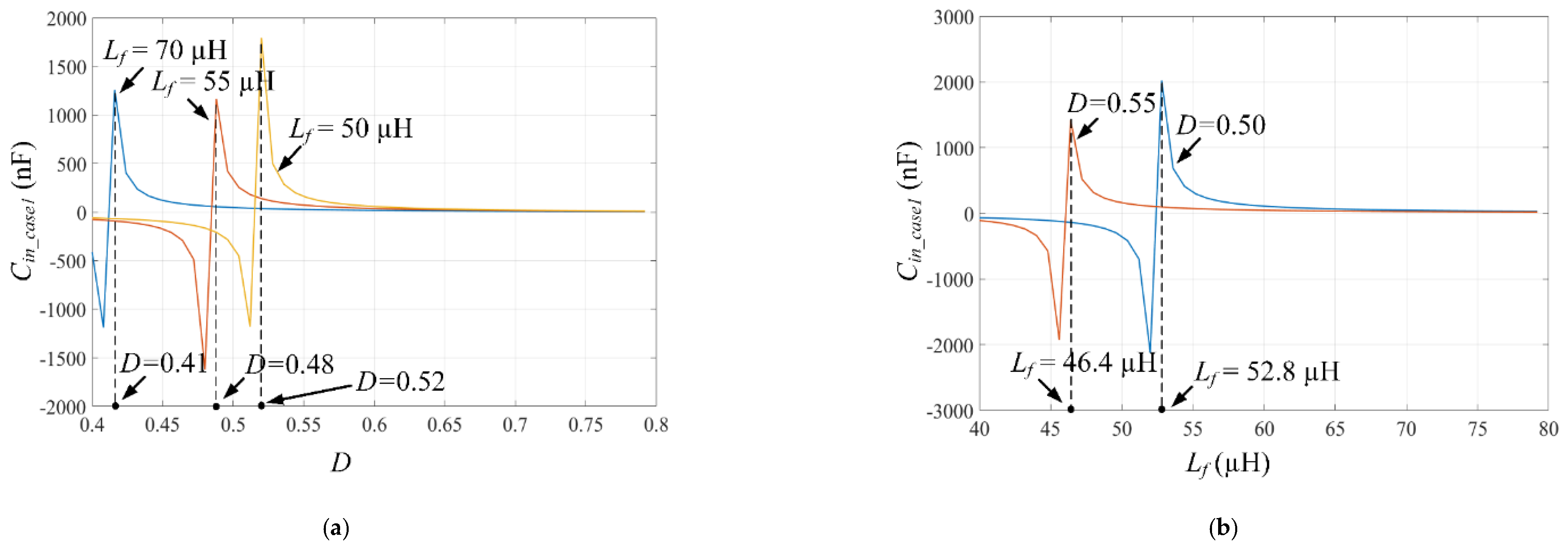

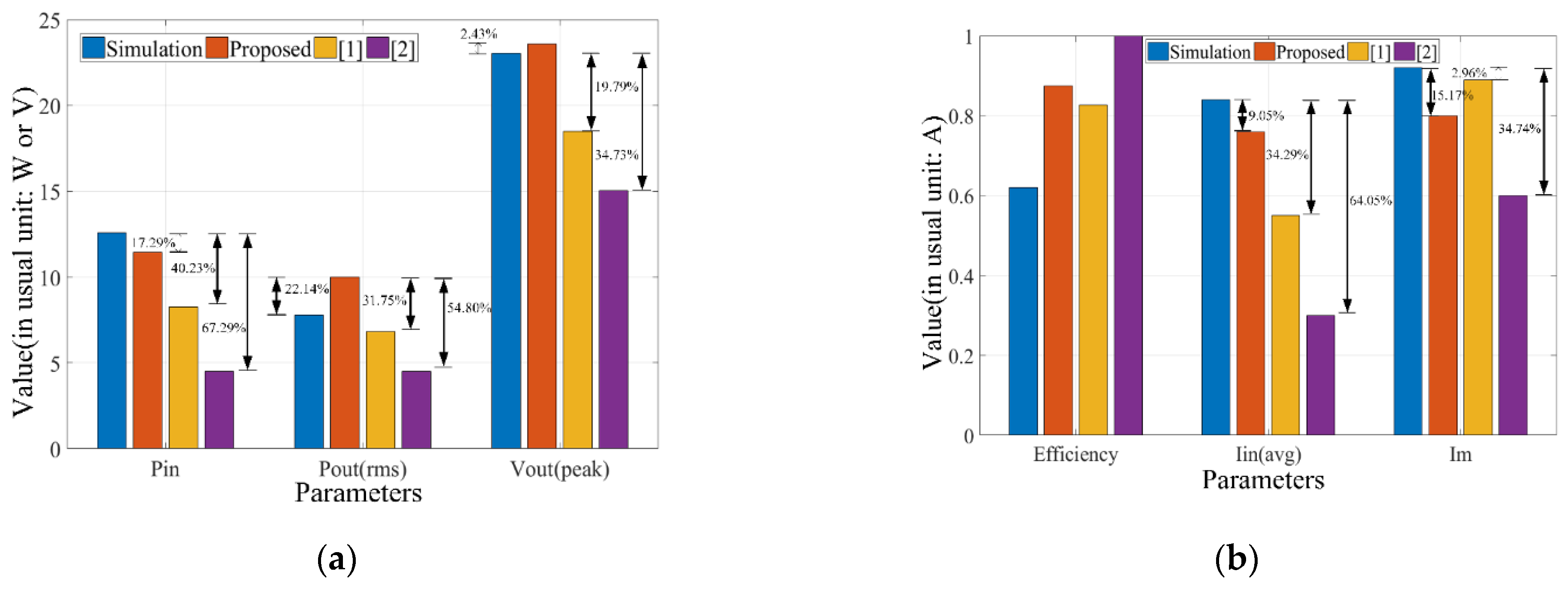

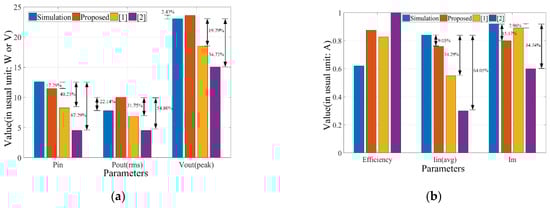

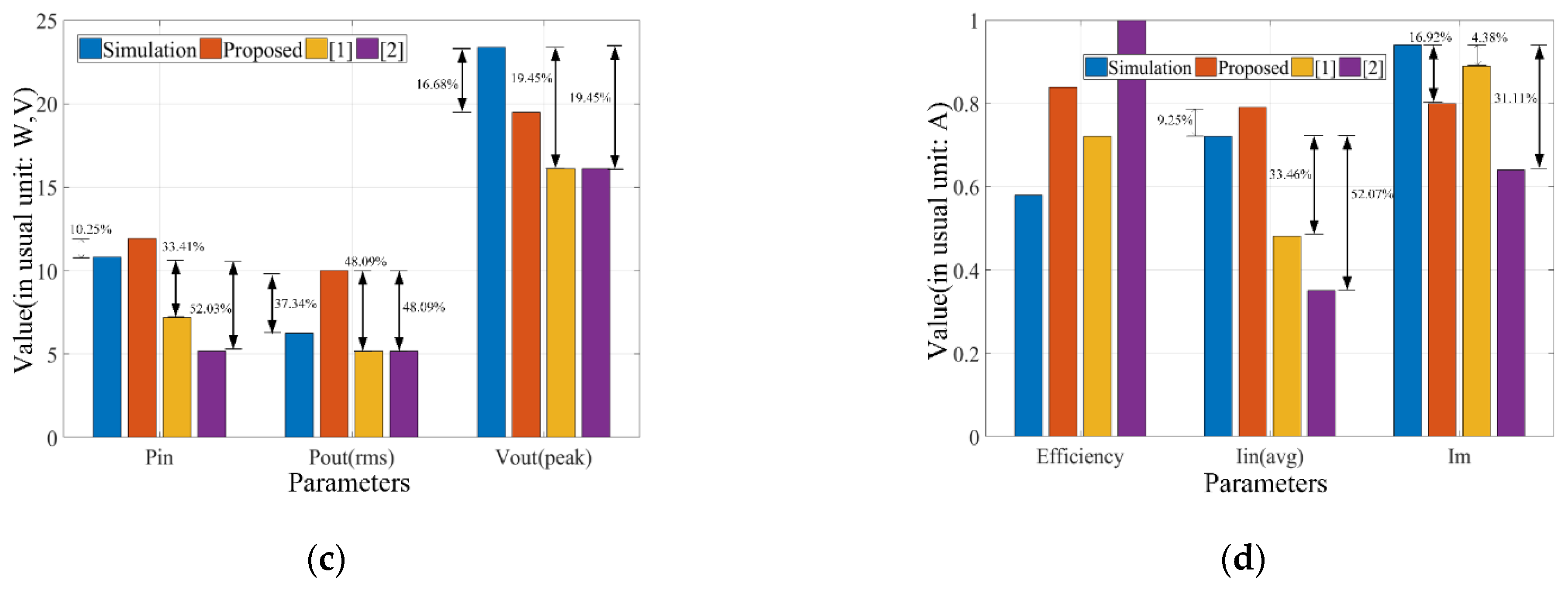

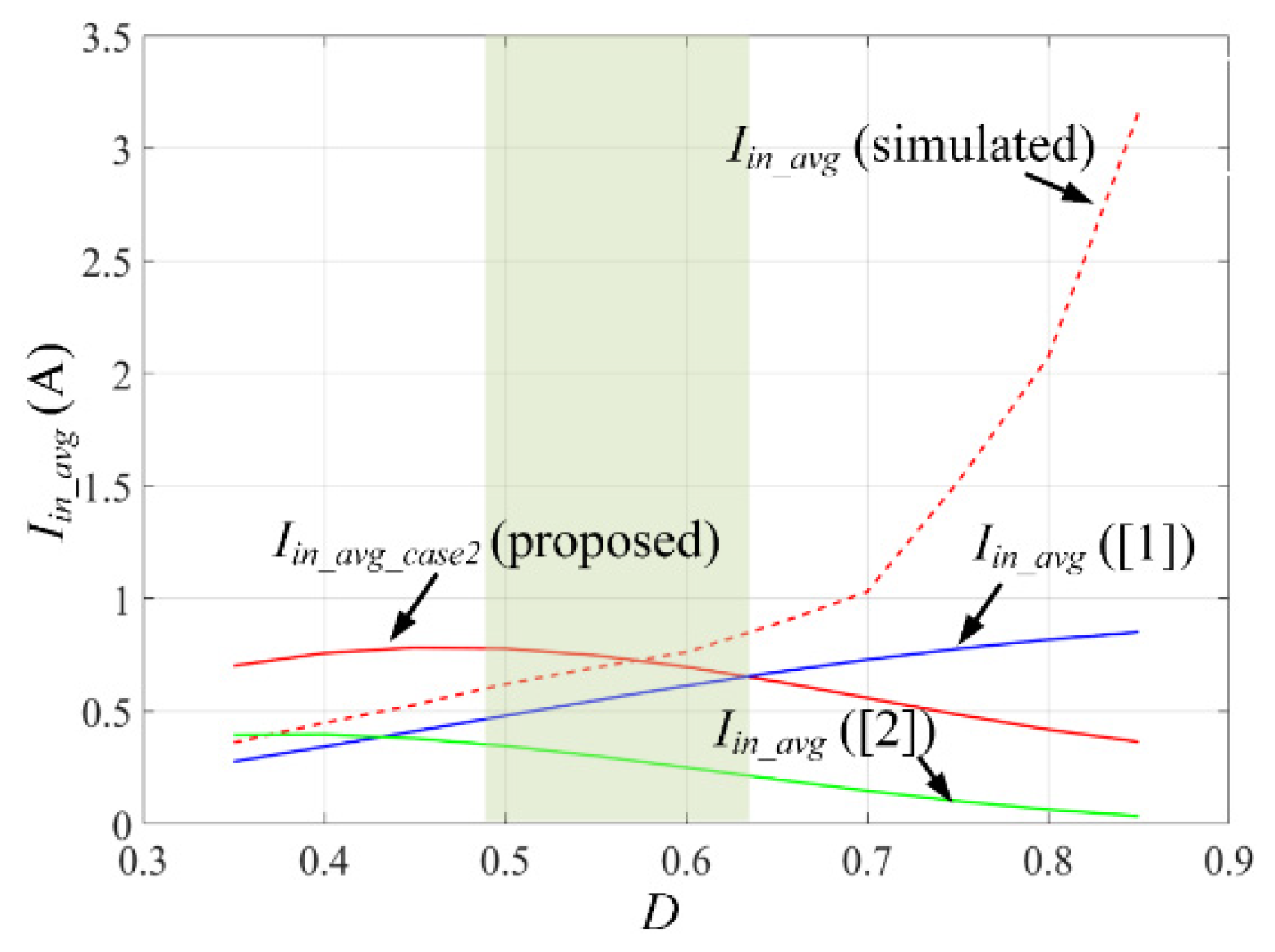

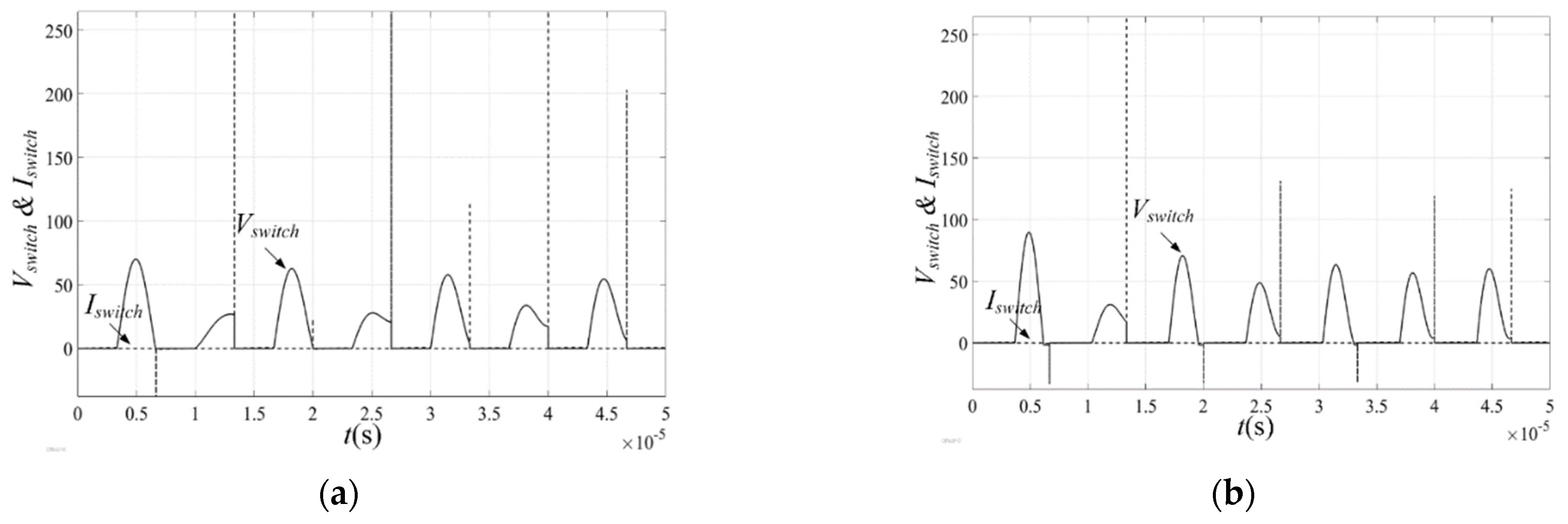

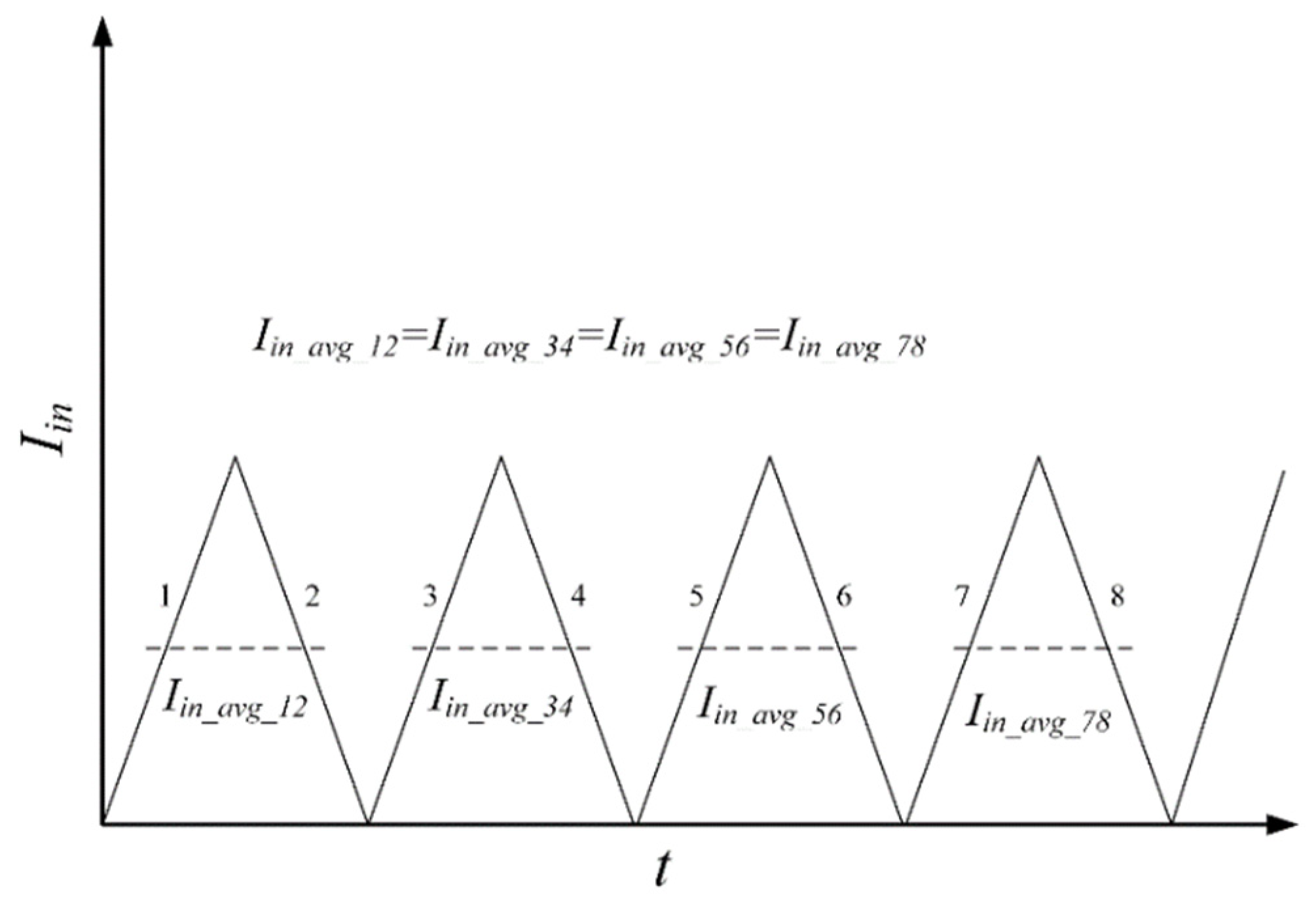

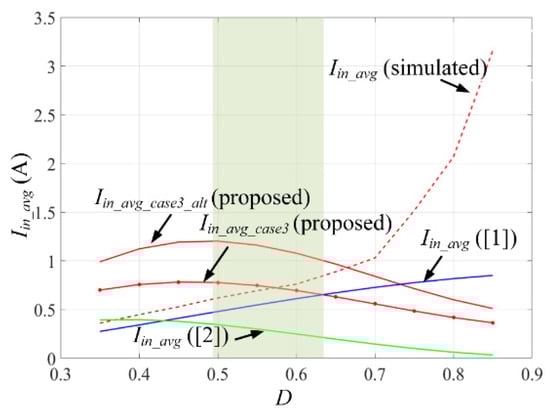

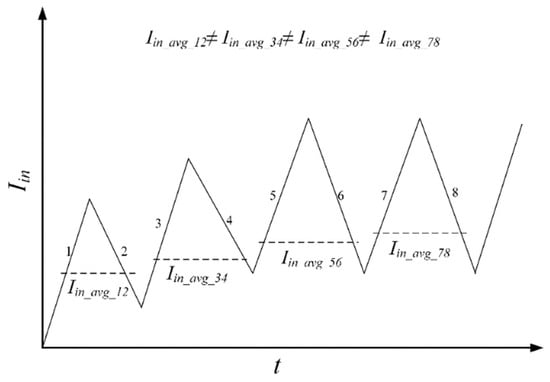

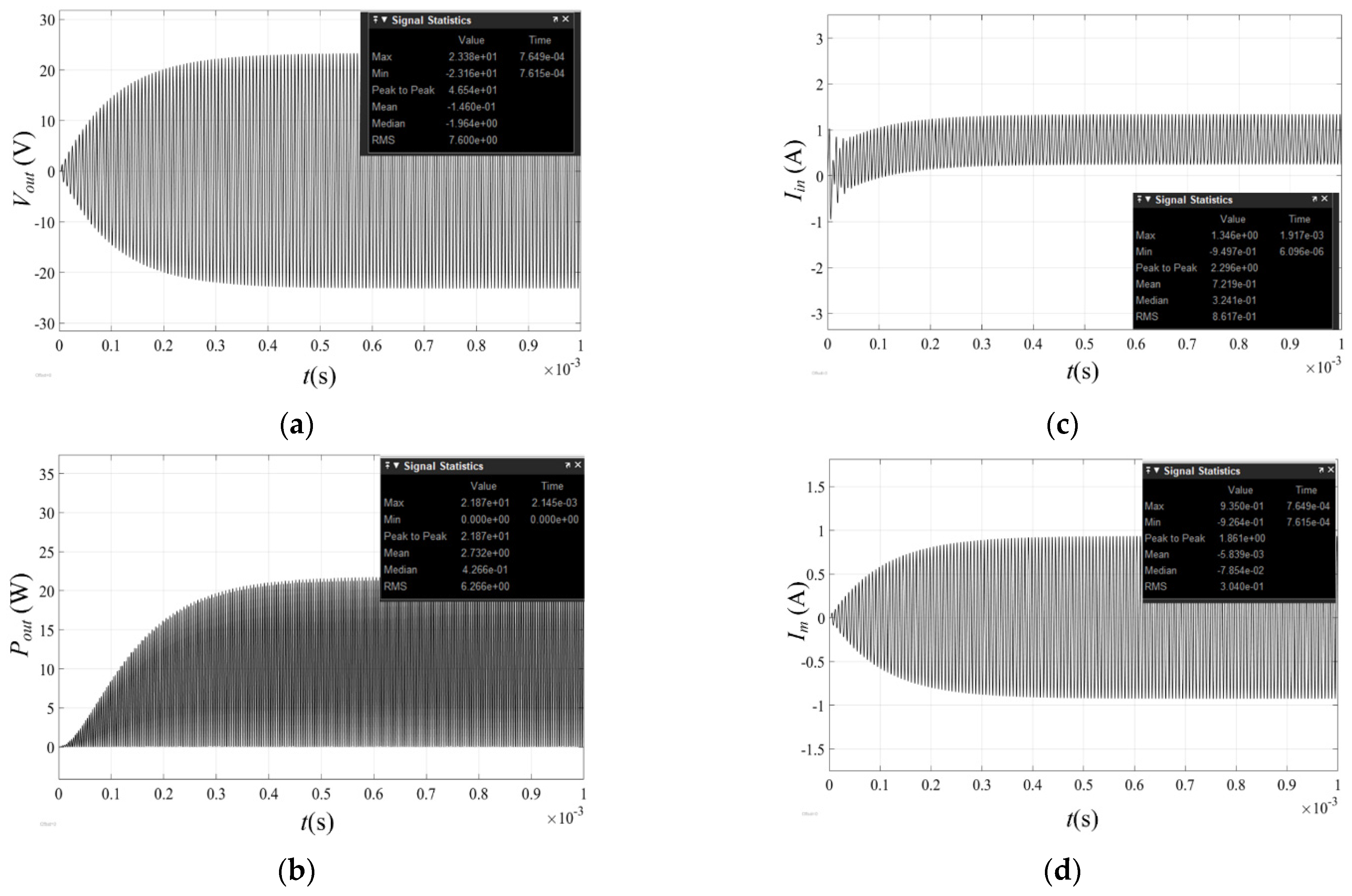

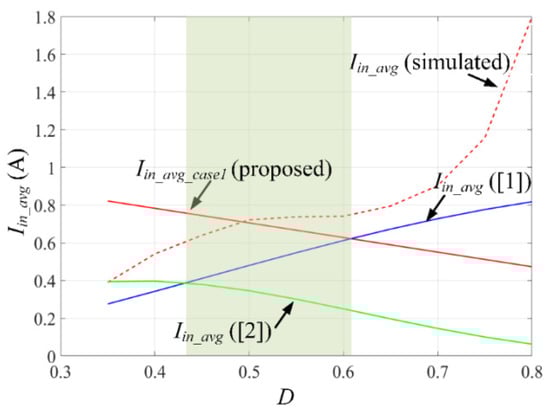

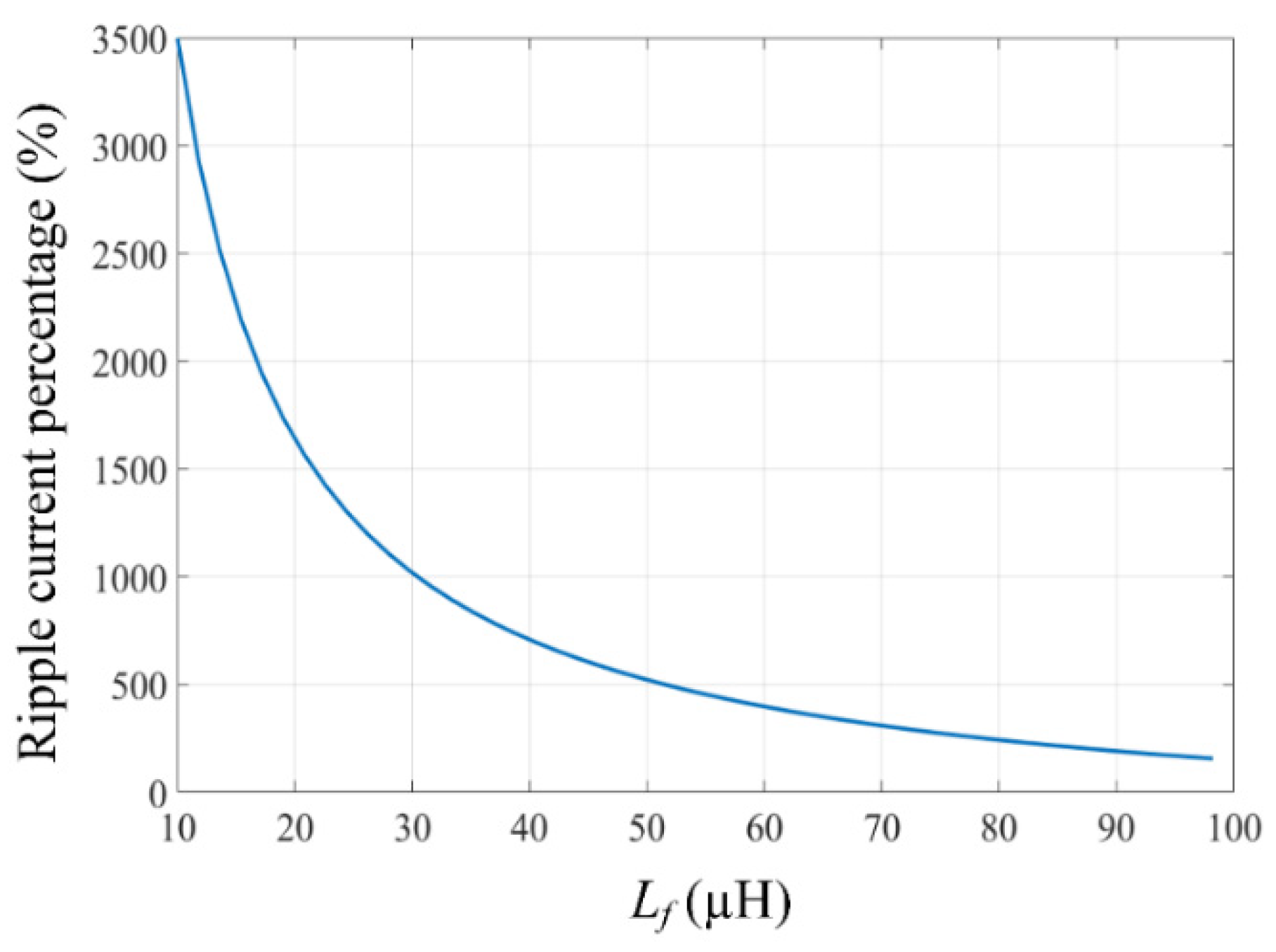

This paper presents an analysis and modeling of the class-E inverter for ZVS/ZVDS execution at any duty ratio. The methodology is to determine the input current to the inverter analytically under the assumption that it always remains positive. The latter is ensured by proper selection of the input inductance such that the inverter always operates either in (1) the border condition mode or in (2) the continuous conduction mode regardless of the input ripple. Using this input current and applying the boundary conditions, the required input capacitance for the ZVS/ZVDS execution is determined at a specified input/output voltage, output power and load. The analysis shows that the ZVS/ZVDS can be achieved while the input capacitance is selected appropriately. A comparison between the analytical and simulation results is also formulated involving the proposed and other existing models. The simulation results that are provided at different duty ratios demonstrate that they are in a better agreement with the proposed analytical model regardless of the input inductance and the state of input ripple current. The analytical modeling is facilitated by using MAPLE®.
Keywords: Class E; Class EF2; Class E/F3; ZVS; Soft Switching Class E; Class EF2; Class E/F3; ZVS; Soft Switching
