Deformable Bowtie Antenna Realized by 4D Printing

Abstract

4D printing is utilized to fabricate of thermo-deformable bow-tie antenna to fulfill some special applications with limited space or changing antenna property. In this paper, 4D printing is used to manufacture nylon and carbon fiber laminated composite material. The bow-tie antenna is installed on the surface of the composite material, and the carbon fiber is energized and heated, which causes thermal deformation of the substrate to reconfigure the antenna feature. The deformation mechanism of the composite material is explained, the characteristics of the thermally deformed bow-tie antenna with power applied to carbon fiber are analyzed. The results show that the energized carbon fiber heats up, causing the structure to stretch to a flat, with a maximum gain of 2.37 dBi and the −10 dB bandwidth being 4.28–4.64 GHz and 5.16–5.52 GHz, and the half-power beamwidth is greater than 60°. The structure bends at a 30° angle with a maximum gain of 3.58 dBi in the absence of external power, delivering a −10 dB bandwidth range of 4.12–5.6 GHz and a half-power beamwidth close to 45°. The customization of antenna radiation patterns and antenna gain can be readily tuned with power control.

1. Introduction

3D printing has provided many conveniences for advanced manufacturing and structural design. However, structures designed by 3D printing are generally rigid and lack the potential for diverse uses. Fortunately, new technology has emerged, which is used to create structures using 3D printing while allowing controllable changes in the structures’ shape, performance, or function with time and space dimensions to meet specific requirements. The integration of 3D printing and intelligent materials led to a new concept known as 4D printing, where 3D printing produces a particular shape that can change over time in response to external stimuli (e.g., heat, solvents, and light) [1,2,3,4,5]. With the continuous development of printing materials, polymers with 600% stretchable deformation have been developed using novel UV-assisted ink, and the printed structures have shape memory and self-recovery functions [1]. Dongping Deng reported that under uniform heating conditions, polystyrene films coated with resin materials underwent bending deformation owing to the different contraction rates of polystyrene and resin [2]. Nylon materials and polylactic acid have thermal shape-memory properties. They combine to produce a temporary shape upon heat treatment and subsequently return to the initial condition [5].

Reversible deformation of antennas also enables some new functions (e.g., remotely controlled unfolding or contraction to enhance mechanical characteristics), while the ability to reconfigure the antenna beam-shape provides a way to tune its spectral response or sense external forces. Bendable antennas are also crucial for “smart antenna” applications, i.e., beam-forming antennas. These device functions are helpful in millimeter-wave applications (e.g., automotive radar, security and surveillance systems, and high-data-rate wireless communication systems). Utilizing the characteristics of deformation, mechanically scanned antennas, a portion of which is designed to bend out-of-plane, offer better control than phased arrays while being more cost-effective and more efficient [5,6,7,8,9]. Ju Hee So designed and fabricated reconfigurable, reversibly deformable, and mechanically tunable dipole antennas, their shape and function are reconfigurable, and the resonant frequency can be mechanically tuned [6]. J.C. Langer extended and enhanced the performance of conventional planar antenna arrays by applying a magnetic field to induce plastic deformation at the antenna’s edge where the antenna connects to the feed line [8]. However, adjusting the antenna length or using magnetic drive adjustment makes the structure too bulky and prone to practical problems of joint failure and has limitations in the adjustment ability.

Manufacturing highly flexible, stretchable, and reversible antennas can be applied to wearable devices. 5G communication applications are not limited to handheld devices. However, with the realization of the Internet of Everything as the ultimate vision, it is expected to provide a multi-functional and diversified network, in which device miniaturization, flexible implementation, lightweight, and cost-effectiveness are the key considering factors [9,10,11,12,13]. Flexible antennas have the potential to enhance the emerging field of flexible electronics, mainly due to the desire to integrate electronic products into flexible substrates (such as textiles, displays, and bandages). Liquid crystal polymer is a kind of low dielectric loss, low hygroscopicity, and chemical resistance, so it is considered to be attractive to high-frequency flexible antennas [9]. SF Jilani et al. used to switch and slotted patch antennas to achieve Ka-band antenna frequency reconstruction. The total bandwidth of the antenna in the four modes is 27.3 GHz–40 GHz, and it has a peak gain of 6.2 dBi, providing frequency selection, the frequency for MIMO applications, and multi-channel transmission [12]. However, in a rapidly changing wireless environment, for reducing antenna array space on portable devices while still ensuring a highly reliable data transmission rate, it is necessary to improve the existing MIMO technology. The use of low-cost 4D-printed deformable antennas can overcome these shortcomings. It can locally change the antenna structure through external stimuli and dynamically change its radiation characteristics according to changes in the wireless channel environment.

This paper uses low-cost 4D-printed substrates to achieve changes in antenna performance. It has the characteristics of adjusting the pattern and frequency and can achieve the maximum gain change within a specific range. The purpose is to adjust the radiation characteristics of the antenna in real-time according to the actual needs and increase the antenna’s flexibility in practical applications. We proposed the design of a deformable antenna via the combination of a 4D-printed substrate and antenna. The antenna substrate was composed of a nylon material laminated with a conductive carbon fiber material. The paper is organized as follows: in Section 2, the structure of the 4D-printed substrate is briefly discussed, followed by a demonstration of its deformable properties; in Section 3, the design and fabrication of a bow-tie antenna; in Section 4, the bending and stretching states of the substrate are compared and analyzed, and the radiation characteristics of the antenna are discussed for achieving the control of antenna gain and directionality. Finally, the conclusions are summarized.

2. Manufacturing of 4D-Printed Substrate

Nylon is a thermoplastic engineering material and is widely used in industries, including machinery manufacturing, construction, and electronics. High-performance carbon fiber has superior electrical and thermal conductivity and produces heat upon power. When continuous carbon fiber is embedded in composite material and energy is applied, the significant difference between the thermal expansion coefficients of the substrate and carbon fiber (resistivity ρ = 5 × 10⁻³ Ω·cm), thermotropic deformation of the composite material can be achieved. Such a deformation mechanism was used to fabricate printed nylon (dielectric constant ε_r = 3.1) material embedded with carbon fibers.

An improved 3D printer manufactures the composite substrate. The polymer material is fed into the 3D-print head through the motor and is heated to a molten state inside the print head. Under the thrust of the continuous feeding of the polymer material, the molten polymer enters the nozzle. At the same time, continuous carbon fiber filaments are also fed into the 3D-printing head, where they are wrapped by molten polymer at the nozzle to form a composite material, and then extruded from the nozzle, and rapidly cooled and solidified on the printing platform, so that the carbon fiber can continue from the nozzle is pulled out. Finally, the composite substrate is formed according to the XY axis of the printer according to the set program. We have used a method similar to [14] to manufacture the composite substrate. As shown in Figure 1, the controllable deformation of the composite material was realized by designing curved fiber paths.

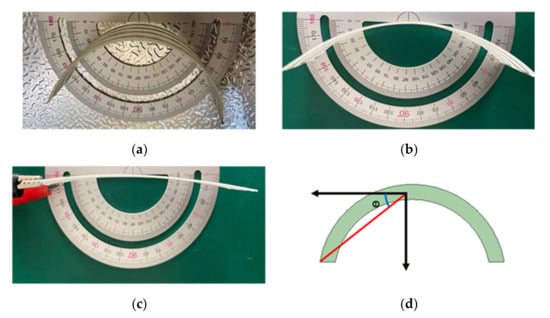

The deformation process of the substrate was measured. Figure 1a shows the bending state of the substrate at −20 °C. Because of the significant difference in the heat deformation performance between the carbon fiber bundle and the polymer matrix, this laminate structure underwent a considerable but controllable bending behavior within 1 min. As the temperature was gradually increased, the bending state weakened, and the substrate gradually stretched at room temperature (Figure 1b). Figure 1c shows that the substrate stretched when the carbon fiber energized. Figure 1d presents a schematic diagram of the angle measurement. There is a difference in thermal expansion coefficient between carbon fiber and nylon. The carbon fiber opening was connected to a power to measure the stretching and contraction processes of the substrate under power-on and power-off conditions, respectively (Figure 2).

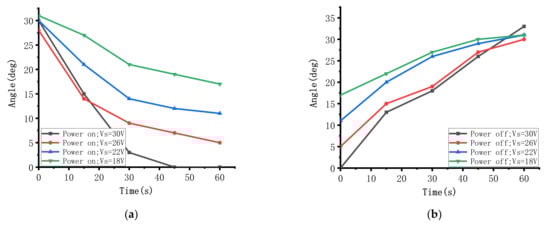

Figure 2a presents the deformation process of the substrate under carbon fiber energized at room temperature. Specifically, as the voltage at both ends of the carbon fiber increases, the heat released from the carbon fiber increases gradually, only requiring 45 s for the substrate to stretch completely at 30 V. It shows that as the power increases, the Joule heat released by the carbon fiber causes the substrate to deform rapidly. Figure 2b displays the contraction of the substrate upon power-off, where the contraction rate slowed gradually, reaching the initial bending degree at room temperature. Changes in ambient temperature will also affect structural deformation. Compared with the case of power supply at room temperature, the deformation process of the structure under the condition of −30 °C is more severe. It is because the lower the ambient temperature, the larger the bending angle of the structure.

The bending properties of nylon and carbon fiber materials are reproducible, i.e., the recovery and cycling properties of these materials in response to deformation are repeatable after multiple power-on/heating and power-off/cooling cycles. This is possible through the mismatch between the thermal stresses of the continuous carbon fiber and pure thermoplastic polymer [14].

3. Design and Analysis of Bowtie Antenna

The bowtie antenna was chosen for its design simplicity, enabling easy interpretation of the geometry changes during deformation. In addition, the bowtie antenna has the advantages of broad bandwidth, low cross-polarization, and high gain [15,16,17,18]. The design of broadband antennas should follow the principles of increasing the dependence on antenna angle [19,20]. The bowtie antenna in this study was designed on flexible copper clad laminate (FCCL) material (dielectric constant ε_r < 4) with a thickness of 0.1 mm. In addition, as a flexible material, FCCL is suitable for surface mounting of an antenna, and most importantly, FCCL can withstand high temperatures.

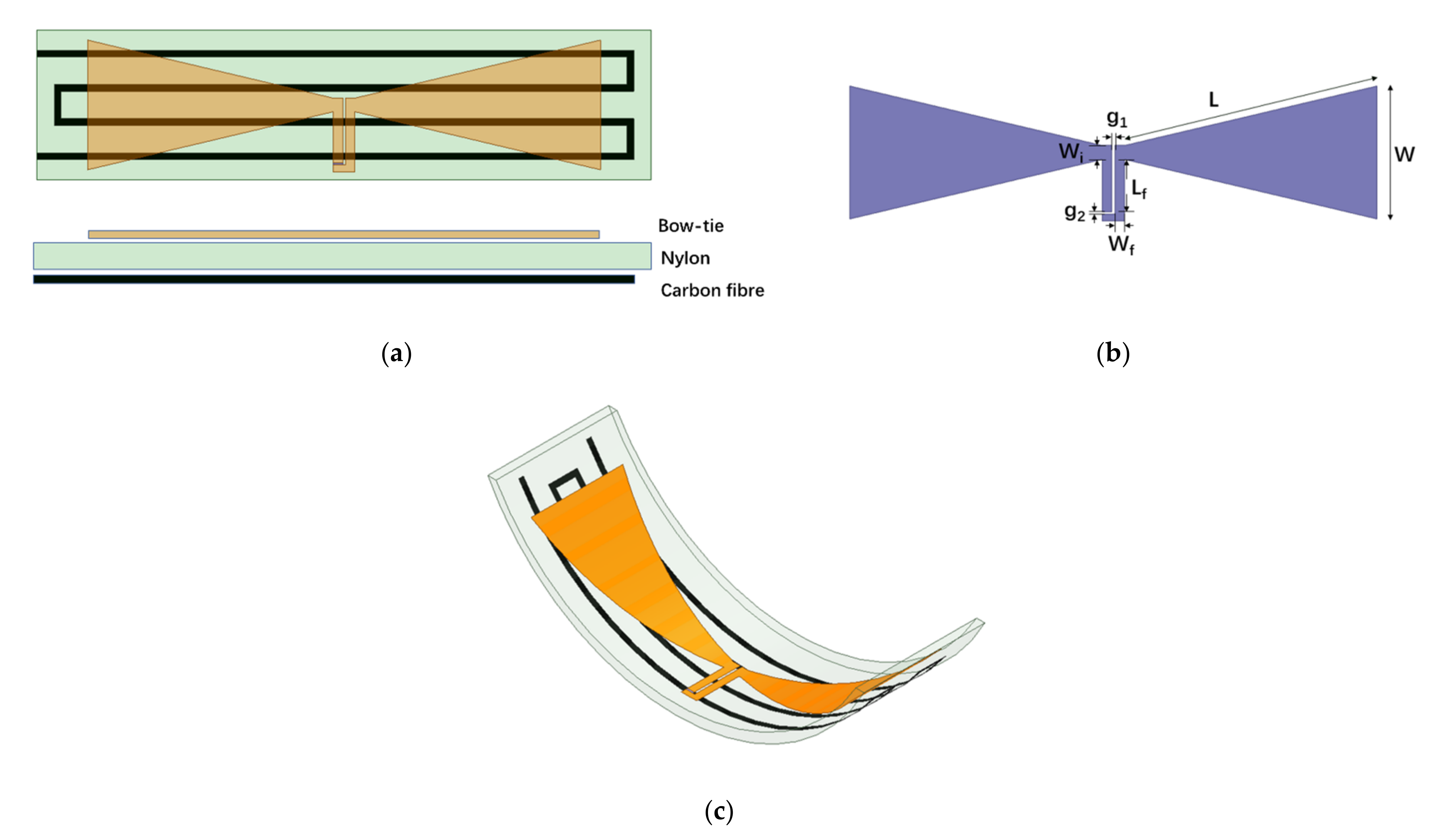

The primary antenna geometry is shown in Figure 3. Specifically, Figure 3a is the top view of the composite substrate. The bow-tie antenna is installed on the upper surface of the composite substrate. The lower surface of the composite substrate is S-shaped, regularly arranged carbon fiber material. The diameter of the carbon fiber is 1 mm, and the spacing between adjacent carbon fiber bands is 4.5 mm on the bottom surface of the composite substrate. Furthermore, Figure 3b shows the geometry of the bow-tie antenna. Figure 3c shows the composite substrate-bending model. The specific geometry dimensions of the antenna structure are listed in

Table 1. Dimensions of the bow-tie antenna.

Parameter	Value *
L	37
W	19
Wi	2
g1	0.4
g2	0.3
Wf	1.4
Lf	1.8

* The unit of value in mm.

.

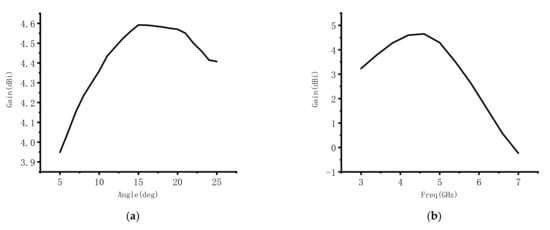

Figure 4 illustrates the HFSS simulation results of the relationship between the maximum gain of the antenna radiation and the bending angle or frequency. The maximum gain first increases gradually with the bending angle, reaching a maximum value near 15°, and then decays rapidly along with further bending. When the bending angle is smaller than 15°, the antenna tends to behave as a V-shaped dipole with increased power density in the end-fire direction. When the angle is greater than 25°, the coupling effect between the two arms of the bowtie antenna is enhanced, and the far-field power density decreases.

4. Simulation and Measurement Results

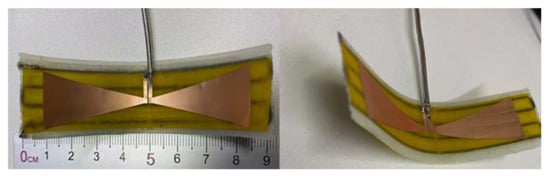

The photograph of the fabricated antenna element is shown in Figure 5. In the measurement, the reflection coefficient was measured with an Agilent E8363B PNA series Network Analyzer.

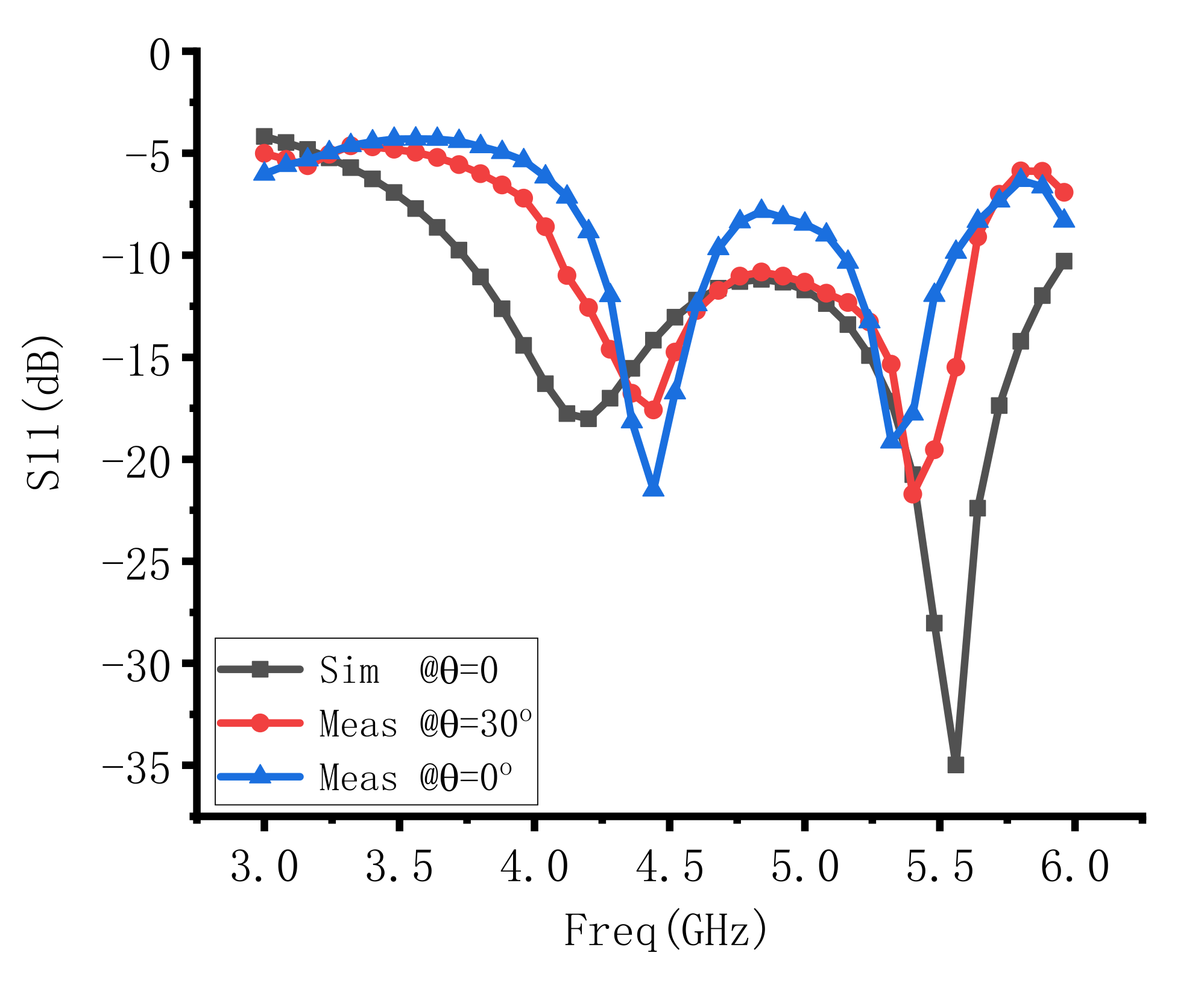

Energized carbon fiber-heating substrate, the substrate quickly stretched into flat, and the −10 dB bandwidth divided into two ranges of 4.28–4.64 GHz and 5.16–5.52 GHz for the test results. Figure 6 presents the simulation and test results of S11, where the simulated 10 dB bandwidth is from 3.7 GHz to 5.96 GHz. For the test results, the −10 dB bandwidth ranged from 4.12 GHz to 5.6 GHz at room temperature without carbon fiber heating, and the bending angle of the substrate was 30°. The factor causing this difference was the change in substrate parameters after the substrate was heated.

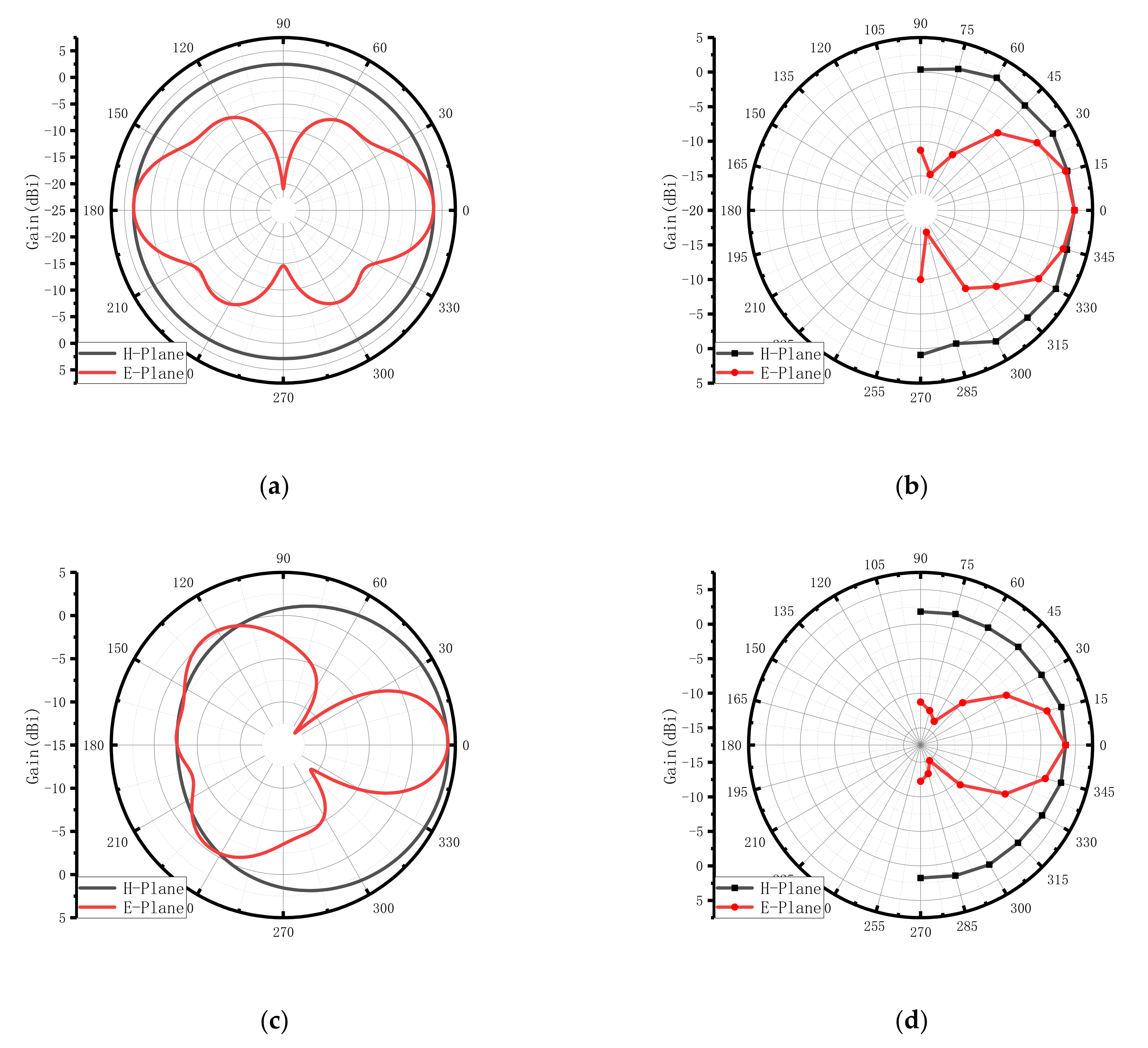

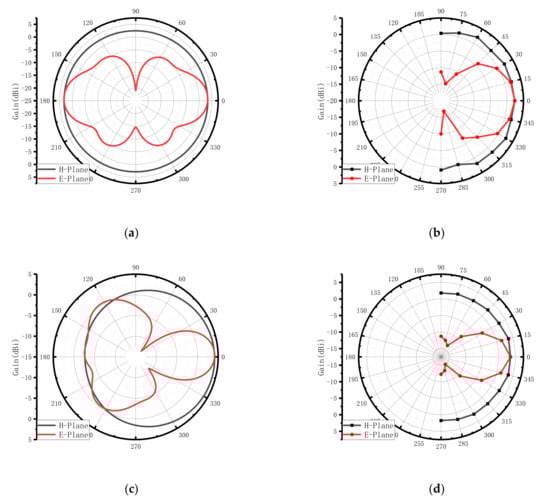

Figure 7 shows the simulation and test results under different scenarios. The radiation patterns of the antenna were observed in the E and H planes. Figure 7a shows the simulation radiation pattern in the E and H-plane at 4.5 GHz with a substrate heated by energized carbon fibers, while the measuring radiation pattern in the E and H-plane under identical conditions is displayed in Figure 7b. When the antenna was fully stretched out, the beamwidth became larger, the measured maximum gain was 2.37 dBi, and the half-power beamwidth was greater than 60°. Figure 7c presents the simulation radiation pattern in the E and H-plane at 4.5 GHz and room temperature without heating, while the measuring radiation pattern is shown in Figure 7d. Owing to substrate bending, the far-field power density is more accumulated, with a measured maximum gain of 3.58 dBi and an antenna half-power beamwidth close to 45°.

A performance comparison of the proposed work with antennas designed on the frequencies of interest is provided in

Table 2. Comparison of proposed work with recent antennas.

	Bandwidth (GHz)	Gain (dBi)	Flex./Conf.
6	1.91–1.99		Y	recon.
8	25.1–26.1		Y	recon.
9	26–40	8.76	Y	Two beams
11	around 7.24	2.6	Y	Single beam
14	3.1–10.6	4	N	Omnidir.
This work	4.28–4.46/5.16–5.52 Flat	2.37 Flat	Y	Tunable Freq. & Beamwidth & Gain
	4.12–5.6 Flexed	3.58 Flexed

. This shows that attaining high gain profiles usually restricts the bandwidth, while high bandwidth suffers gain trade-off [9]. Reconfigurable antennas need to be generated with the help of external fields or reconfiguration of the antenna length in [6,8]. Gain bandwidth optimization is usually performed by using auxiliary structures or increasing the area; for example, Ref. [14] reported directivity and sacrificial area planar structures. The comparison concluded that adding an antenna deformation reconstruction dimension can dynamically switch between different antenna performances, making the application of the antenna more flexible. The antenna structure is changed by external stimuli to dynamically obtain radiation characteristics, which can use 5G communications to adapt to complex wireless environments and be used in flexible electronics or wearable devices.

5. Conclusions

In this paper, a novel electrically controllable deformable antenna was designed and fabricated using a 4D-printed substrate combined with a bowtie antenna. This structure provides a wide frequency range and radiation characteristics and can be used in 5G communications, flexible electronics, and wearable devices. The control of antenna beamwidth and gain was achieved by implementing electrically controllable deformation of the 4D-printed substrate. Finally, the design was validated through simulation and measurement.
