1. Introduction
Cloud computing has become a widely valued commodity with constantly increasing popularity among large and small to mid-sized enterprises (SMEs), as well as public organizations. According to the report by Gartner, an 18.4% increase in total public cloud computing revenue is expected for 2021 compared to 2020, reaching 304.9 billion USD [
1]. Furthermore, the infrastructure-as-a-service segment of cloud computing is forecasted to experience the highest growth.
As more applications make use of the cloud and more cloud providers appear, “vendor lock-in” becomes an increasingly important issue. The lack of common standards and the heterogeneity of cloud provider solutions put at risk the portability of data and applications, as moving to a technology supported by a different provider may be associated with high costs [
2]. The need for a common and interoperable standard is further augmented due to the appearance of fog computing, which relies on edge devices to complement cloud resources. Fog computing has been gaining a firm foothold as a means to reduce cost, both in the form of networking and hosting expenditures. To handle the massive volume of IoT data with lower latency and to address privacy concerns (e.g., by ensuring that the processing of data is performed in the vicinity of its generation) [
3], fog computing requires advanced deployment capabilities. Therefore, an advanced common standard can not only contribute towards provider-agnostic orchestration, but can also fill gaps in the management of application assets in fog environments.
Based on the review by Bergmayr et al. [
4], one of the most prominent modeling languages for handling principally cloud deployments is TOSCA [
5], which is an Organization for the Advancement of Structured Information Standards (OASIS) standard that sets the tone for all other cloud modeling languages that try to be compatible with it. There are numerous [
6,
7,
8] implementations based on this standard that have been regularly maintained.
Notwithstanding the efforts towards its adoption, TOSCA orchestration is impeded by several limitations preventing its direct usage within a hybrid cloud and edge environment. Firstly, TOSCA lacks a native mechanism to track run time deployments and factor-in any reconfiguration decisions [
9]. For example, TOSCA’s most prominent implementations Alien4Cloud [
6], Cloudify [
7], and OpenTOSCA [
8] focus on the design of the application topology—the modification of the initial template requires the manual intervention of the DevOps or else risks a discrepancy between the model and the real deployment. Especially due to this first issue, the adoption of TOSCA to address the needs of cloud application deployments in production has been met by solutions such as HashiCorp’s Terraform (
https://www.terraform.io) and Red Hat’s Ansible (
https://www.ansible.com). Secondly, a TOSCA template created based on the approaches in [
6,
7,
8] is required to explicitly define the properties of the application and configure the usage of different cloud providers, along with the characteristics of the VMs that are needed. The need to specify this information limits the dynamicity in deployments using these platforms, which is a prerequisite in edge and fog environments. Finally, even when the application is manually reconfigured, optimization cannot be supported [
4]. Thus, it becomes difficult to maintain a model of a real-world application featuring a dynamic topology, which may not scale predictably. These last two issues are also evident in the Terraform and Ansible solutions. These open-source platforms use declarative and pre-defined run time configuration languages to state the desired final state of the cloud application deployment. As a consequence, this channels the responsibilities of Development and Operations (DevOps) engineers towards maintaining a cloud application topology that must address contradicting requirements, such as the cost and quality of service. Therefore, such solutions may be popular at the moment since they provide a straightforward way of deploying applications in several cloud vendors, however they still lack real and automatic cross-cloud optimization capabilities. Additionally, their ability to cope with new paradigms, such as edge computing and other distributed execution approaches, may rely on tedious procedures that will result in bespoke solutions that may endanger their portability.
The VM-based paradigm has lately been challenged by the newer serverless computing paradigm. A serverless computing platform is defined in [
10] as “a platform that hides server usage from developers and runs code on-demand, automatically scaled and billed only for the time the code is running”. Serverless computing has given rise to numerous function-as-a-service (FaaS) platforms, some of which have been successfully coupled with deployments on edge resources, e.g., OpenWhisk [
11] and OpenWhisk Lean [
12]. The available TOSCA specification [
5] is very extensible but also quite generic and lacking explicit modeling artefacts for fog applications, serverless approaches, or other distributed execution approaches—e.g., the Java Parallel Processing Framework (JPPF) [
13]. Thus, any custom solutions that are developed pose a barrier to wider adoption of a reference TOSCA-based methodology to handle basic concepts in these fields.
Based on our experience working on the PrEstoCloud framework [
14], we argue that in such dynamic environments there is an urgent need to shift some of the core responsibilities of DevOps to an appropriate middleware. This middleware will automatically support the separation of resources between the design time and run time and will provide appropriate error-free maintenance of dynamic topologies. Therefore, the DevOps should be able to model the deployment requirements as generically as possible, without having to make concrete decisions on the initial deployment, optimization, and reconfiguration of cross-clouds and fog computing applications. This is needed in modern organizations that need to make sure they optimally use their resources. To achieve this, we first provide elaborated extensions to TOSCA, which is the current cloud modeling standard, and secondly we present a proof-of-concept on the implementation of a middleware that can exploit the extended TOSCA. We decided to propose extensions to TOSCA, since they can be made a part of this standard, which then can be used to extend in a bespoke manner any other solution that is used now or in the future for cloud applications in production (e.g., Terraform, Ansible). Additionally, continuous cloud modeling support (through the use of standards and TOSCA specifically) has been argued before [
4] as desirable for aligning existing and potential cloud modeling languages, and therefore achieving interoperability. As such, in this article, the research questions we aim to answer are the following:
Which semantic enhancements should be made to TOSCA to describe and enact fog deployments?
What is the methodology that should be followed to model deployments featuring distributed execution paradigms?
How can the optimization aspects regarding the deployment be included in the modeling artefacts?
To address the above research questions, we propose a modeling approach for the definition of applications using TOSCA. We argue that TOSCA should support generic use-case patterns and deployments using serverless and other distributed execution paradigms by providing a set of relevant generic constructs. To this end, we propose a series of custom approaches, addressing deployments in hybrid clouds (i.e., combined use of private and public cloud resources), multi-clouds (i.e., combined use of public cloud resources from different vendors), edge-based applications, and FaaS-based applications, extending the base YAML Ain’t Markup Language (YAML) TOSCA implementation [
5]. To allow the optimization of the topology, we suggest that two versions of the TOSCA model should be used—initially an abstract version focusing on the structure of the topology and subsequently a more concrete version, which would include more specific details of the actual deployment. We validate our approach using a qualitative evaluation method based on a motivational scenario.
The remainder of the article is structured as follows. In
Section 2, we discuss the state-of-the-art related to our approach. In
Section 3, we introduce a motivating scenario, which is used to highlight the new additions.
Section 4 presents a model-driven approach to guide the definition of the TOSCA semantic enhancements and artefacts to address our research questions. In
Section 5, the extensions to TOSCA are detailed, while
Section 6 details the contributions for supporting FaaS and other distributed execution paradigms.
Section 7 includes details on the new TOSCA structures, which support optimization factors and placement constraints.
Section 8 includes an evaluation of our approach, which is compared with one of the most prominent commercial offerings. Finally, we present a discussion of the results of this work and conclude the paper.
2. Related Work
The OASIS TOSCA standard [
5] is based on the definition of a cloud application through the usage of templates or blueprints. There are several implementations (although none are officially endorsed), some of which support more features and are more actively maintained than others. Indicative examples include Alien4Cloud (also used by the Apache Brooklyn project) [
6], Cloudify [
7], and OpenTOSCA [
8]. All of these implementations allow the definition of new node types, the generation of TOSCA deployment templates, and the orchestration of the deployment. They are designed for single deployments of a cloud application and do not incorporate any optimization capabilities. Moreover, the high level of detail in these TOSCA templates provides a complete view of the application, however imposes difficulties in terms of the comprehension of its overall structure. Conversely, the description of the model of an application is difficult in these platforms, without first describing a complete proof-of-concept. For this reason, we introduce a clear distinction between an initial, modeling-oriented (and more abstract), “type-level” “flavor” and a final, “instance-level” flavor of TOSCA. Moreover, the blueprints that are generated by our type-level TOSCA generator are vendor-neutral and can be deployed on any (combination of) cloud(s) and edge resources. In doing so, we maintain consistency with the intent-based design, which is endorsed by TOSCA. This is an application design method combining the power of expression of policy-based approaches with the modeling power of steady-state approaches [
15]. Our approach emphasizes the maintenance of relationships between components by defining appropriate TOSCA relationships and capabilities.
In Reference [
16], Wurster et al. proposed an extension of OpenTOSCA to describe FaaS-based applications. In addition to purely FaaS-focused applications, their work is also valid for mixed architectures consisting of FaaS-based and VM-based solutions. Their modeling scheme is specifically applied on an Amazon Web Services (AWS)-Lambda-based application. Our solution can work alongside such a modeling approach, as it does not focus on the support of provider-specific components or services. The contribution of our work on FaaS support in TOSCA is a FaaS application abstraction based on general-purpose VMs and concretely defined relationships mainly targeted to the development of FaaS applications.
RADON [
17] is another approach that is based on TOSCA. RADON extensively uses TOSCA inheritance to define abstract and derived concrete, deployable entities. Overall, RADON is considered closer to our concept of instance-level TOSCA, as it contains detailed information related to deployment parameters of particular cloud application types and serverless functions. Similar to our approach, the modeling specification of RADON allows the definition of a custom FaaS architecture. VM deployment is mentioned in the RADON reference technologies [
18], however we did not find any reference for edge deployment. Without edge deployment support, the low cost and high data processing locality offered by edge nodes is impossible to exploit. Moreover, the appropriateness of particular edge nodes for particular fragments cannot be modeled.
CAMEL [
19,
20] is described as a domain-specific language (DSL), which enables dynamic and cross-cloud deployments. The authors support that while TOSCA and CAMEL are similar, the latter can also be used not only during design, but also at run time because it can specify the instances to be used. CAMEL relies on multiple specialized DSLs, each focusing on a particular aspect. It emphasizes the creation of UML-based metamodels, enriched with additional domain semantics. The models that are created are always synchronized with the actual topology that is deployed at the time. Both direct (manual) and programmatic access to these models is allowed, enabling self-adaptive cross-cloud applications. Furthermore, CAMEL has already been extended to support the specification of commercial FaaS services [
9]. While CAMEL provides some advanced features and can already manage cross-cloud deployment and adaptivity, we have found significant aspects requiring improvement. First, no language features specifically target edge devices (for example to account for the volatility of the devices or the migration of components from the cloud to the edge). Thus, the topology can only partially be optimized to consider the benefits of fog computing. Also, FaaS services are modeled from the perspective of a FaaS framework consumer (i.e., user of already-existing commercial offerings such as AWS Lambda), rather than a FaaS framework designer (i.e., creator of any FaaS service).
Another significant modeling effort is the Open Cloud Computing Interface (OCCI), which according to [
21] is a protocol and API for all kinds of management tasks. It is also stated that the main focus of OCCI is to create a remote management API for IaaS model-based services allowing for the development of interoperable tools for common tasks, including deployment, autonomic scaling, and monitoring. In Reference [
22], the authors support the idea that the focus of OCCI is to provide a standardized API and that it does not define concepts to handle reusability, composability, and scalability. Conversely, TOSCA offers means to express reusability, composability, and scalability. These advantages grant TOSCA a superiority in its modeling capabilities over OCCI. Moreover, TOSCA can be used alongside OCCI [
22,
23] to achieve full-standard-based deployments [
23].
Terraform is a popular declarative language oriented towards cloud deployments, also supporting FaaS services, backed by open-source implementation. Different plugins exist to instantiate nodes on different cloud providers and interact with external services providing content delivery network (CDN) and domain name service (DNS) facilities using a unified syntax. All of these features grant versatility and robustness to Terraform. Pulumi (
https://www.pulumi.com) is another open-source framework similar to Terraform, which provides the additional advantage of using programming languages to express cloud topologies rather than requiring the use of a specific cloud application language. As with Terraform, it is also capable of handling FaaS deployments. However, when considering model-driven deployments, Terraform and Pulumi present certain disadvantages compared to TOSCA. These disadvantages originate from the fact that while resources are properly declared, there are no language features offered that can be used to generalize the relationships among application components. Thus, no means are offered to (i) extract generic, reusable blueprints and (ii) optimize the deployment of components, taking into account any other dependent components. Additionally, the computing resources and their roles are very specific and detailed, which while providing a concrete view of the state of the deployment, also obstructs the higher-level understanding of the model of the cloud application. The use of edge devices is possible, but it requires manual configuration of the details of the topology, as we illustrate in
Section 8. TOSCA, on the other hand, excels in its capability for modeling and abstraction of an application, while also being capable of specifying concrete actions that should be considered when instantiating a topology (through its workflows feature). In this work, we enhance the modeling capabilities of TOSCA, suggesting a set of new constructs to assist the representation of hybrid clouds, multi-clouds, edge-, VM-, and FaaS-based applications.
In addition, proprietary software systems such as Amazon Cloud Development Kit (Amazon CDK) have been developed, providing capabilities traditionally offered by Cloud DSLs. Using Amazon CDK, a DevOps can model the application directly from the integrated development environment (IDE) used and specify the requirements of the application using a preferred programming language (TypeScript, JavaScript, Python, Java, and C#/.Net are currently available). Although such an offering allows deep integration with the existing Amazon constructs and offers a good abstraction over the Amazon services that are used, it is nevertheless difficult to introduce it without the prior expertise of the DevOps with the specific technology products offered by Amazon. Furthermore, services can only be developed in connection with the AWS cloud computing provider, leading to vendor lock-in.
The vendor lock-in problem also applies to other DSL-based solutions, such as Azure Resource Manager, Google Cloud Compute, OpenStack Heat, and CloudFormation AWS templates. Although Heat templates strive to maintain compatibility with CloudFormation templates, these templates are not recognized as a global standard. Moreover, all of the templates cited above contain too many technical details that are associated with the solution offered by a particular vendor. Our approach, on the other hand, strives to simplify the model of the application, providing two views: a model view before the deployment of the application featuring the least amount of technical details and an instance view after the instantiation of the topology (type-level and instance-level TOSCA, respectively).
Wurster et al. [
24] reviewed prominent deployment automation approaches to derive the essential deployment metamodel. The metamodel refers to a technology-independent baseline, containing the core parts of deployment automation technologies such as Chef, Puppet, Ansible, Kubernetes, and OpenStack Heat. The authors state in their work that the generated metamodel uses only a subset of the entities described in TOSCA. Approaches similar to the metamodel can further be used to introduce or map other technologies to the terminology of TOSCA, and vice versa.
Edge applications have attracted considerable research interest over recent years. Applications that use processing nodes at the edge of the network can attain considerably better performance for applications that are either response-time-sensitive or privacy-oriented or that aim to minimize energy consumption [
25]. Among the 384 studies related to fog or edge computing analyzed in [
3], we are aware of only three of these studies containing a proposal to model the handling of processing for fog resources. The study by van Lingen et al. [
26] extended the YANG language [
27] with support for fog nodes. We also follow a similar approach using TOSCA, which is directly aimed at cloud deployments and is already an OASIS standard. Noghabi et al. [
28] worked on Steel, a high-level abstraction for the development and deployment of edge–cloud applications. Their work emphasizes the ability to migrate services from the cloud to the edge, and the ability to optimize the placement of services while respecting constraints. Mortazavi et al. [
29] proposed CloudPath, a multitier computing framework, in which the location and rest path of a FaaS system running on fog resources were configured using web.xml Java deployment descriptors. Our semantic enhancements of the TOSCA standard can also support the definition of placement constraints, while we additionally allow the definition of conflicting optimization criteria. Since there are plenty of deployment automation tools built on top of it, extending TOSCA would make sense from the perspective of reusability, as the implied extensions to the TOSCA-based deployment tools should be manageable.
3. Motivating Scenario: Fog Surveillance Application
In this section, we introduce a motivating scenario to assist the reader in understanding our approach. Below, we describe an application deployment based on the need for a surveillance company to deploy a number of processing components in both the edge and the cloud. For our scenario, we assume that our test bench includes a number of Raspberry Pi devices equipped with cameras and connected to the Internet, ARM-based servers situated near the edge, and VM assets in public or private clouds, conforming to the budget allocation. The processing components—or “fragments”—that are considered in the scenario are described in
Table 1.
Hereafter, the term “processing component” will be used interchangeably with the term “fragment”, as we consider that the “whole” of an application consists of one or more fragments. Throughout this work, we assume that fragments are containerized, using the de facto standard for containerization, Docker.
For all fragments that can be executed on edge resources, we pursue the deployment on suitable edge hosts. However, if a fragment cannot be executed on edge resources (or none are available), we use deployment criteria to govern its deployment on one or more cloud providers. For the VideoStreamer and MultimediaManager fragments, the primary objective that should govern the cloud deployment is the reduction of latency. The secondary objective preferred is the usage of the AWS cloud provider, and finally the reduction of cost is considered an additional business goal. For the FaceDetector fragment, the first priority is the usage of the AWS provider, as a stringent agreement was reached with the particular provider on the handling of sensitive data.
Since the VideoTranscoder, FaceDetector, and PercussionDetector fragments are assumed to perform stateless operations, all of them can be attached to a common FaaS Proxy, which will balance and redirect incoming requests appropriately.
The operating system for all fragments is defined to be Ubuntu Linux. In addition, the Google Cloud Compute provider must be excluded. Moreover, the budget available for cloud deployments is set as equal to €1000 and the time-frame for which it will be available is set to 1 month (720 h). Fine-grained optimization criteria (cost, distance, friendliness—explained in detail in
Section 7.2) are set for the VideoStreamer, FaceDetector, and MultimediaManager fragments, according to the requirements of the fragments described. The overall optimization objective is cost reduction, through the reduction of fragment instances scheduled for execution in the cloud.

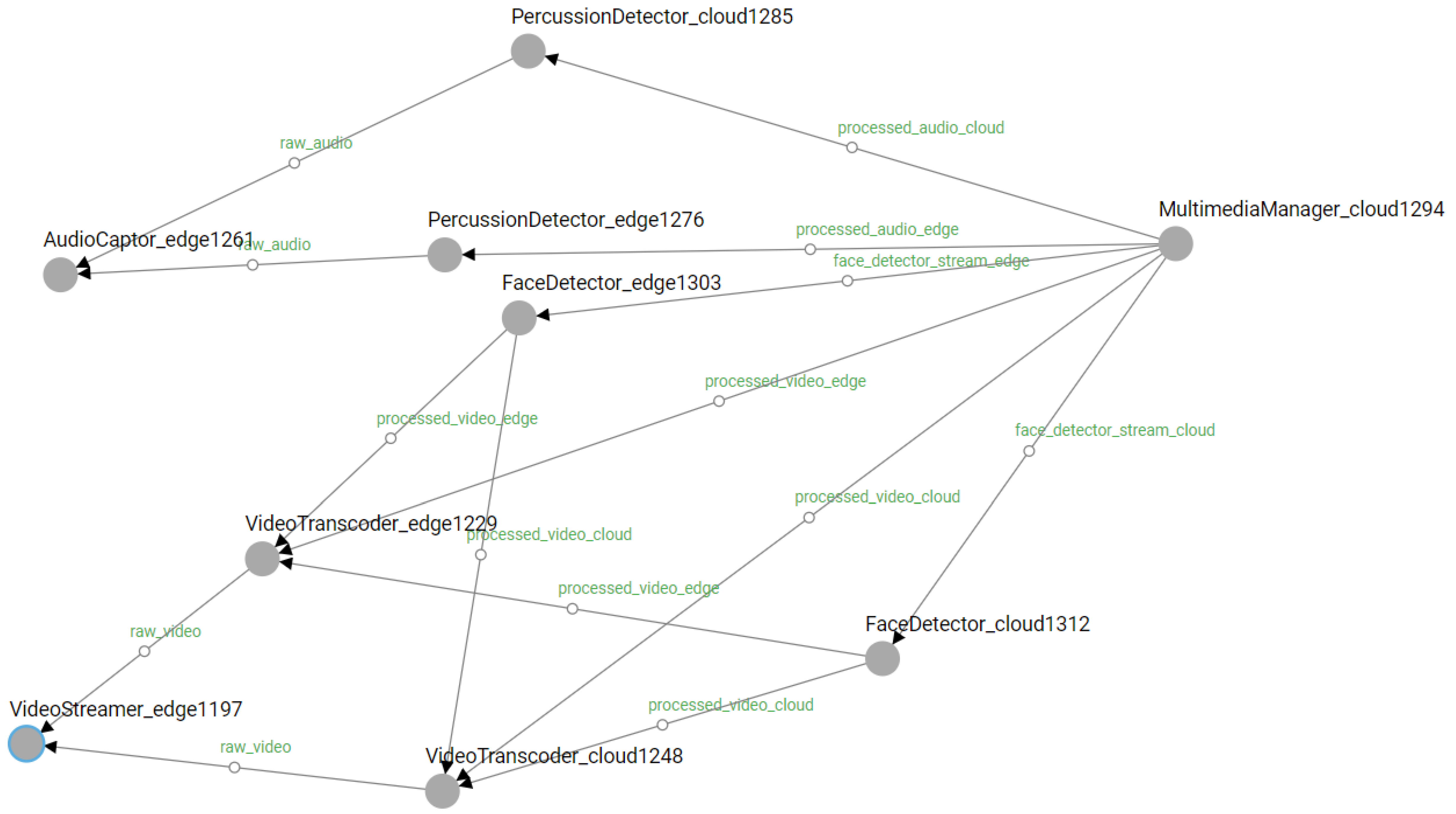

To illustrate the data flow dependencies, a deployment graph was created in a prototype UI, corresponding to a deployment using the above fragments. The application graph is shown in
Figure 1. The arrows indicate (from right to left) that the MultimediaManager fragment depends on data from the VideoTranscoder, FaceDetector, and PercussionDetector fragments, which in turn depend on data from the VideoStreamer, VideoTranscoder, and AudioCaptor fragments, respectively.
The requirements for each fragment are listed in
Table 2.
4. Model-Driven Application Specification Using Extended TOSCA
In accordance with most efforts analyzed in
Section 2, we follow a model-driven engineering approach because it offers portability and reusability, which are important considerations for cloud applications. Specifically, we propose an extension of the TOSCA modeling standard, adopting two views of the topology—type-level and instance-level TOSCA. Each of these is used to create a document reflecting the initial abstract view and the processed deployment view of the topology, respectively. We claim that the decoupling of the information contained in type-level TOSCA and instance-level TOSCA aids modeling and allows for the optimization of applications across the cloud computing continuum. These models are not bound to a specific provider, and given a TOSCA orchestrator can be used at any time.
Type-level TOSCA encapsulates the user’s requirements, preferences, and business goals and provides a high-level overview of the topology to be deployed. This model—which is the main contribution of this work—can subsequently be optimized, finalized with provider-specific characteristics (e.g., network parameters), and deployed. During this process, the final “instance-level” model of the application is created. External monitoring mechanisms, e.g., Prometheus (
https://prometheus.io), can be used to create an updated “type-level” deployment, which will trigger a reconfiguration of the platform. This workflow is in line with the challenges and research directions for cloud adaptations that were described in our previous paper [
30].

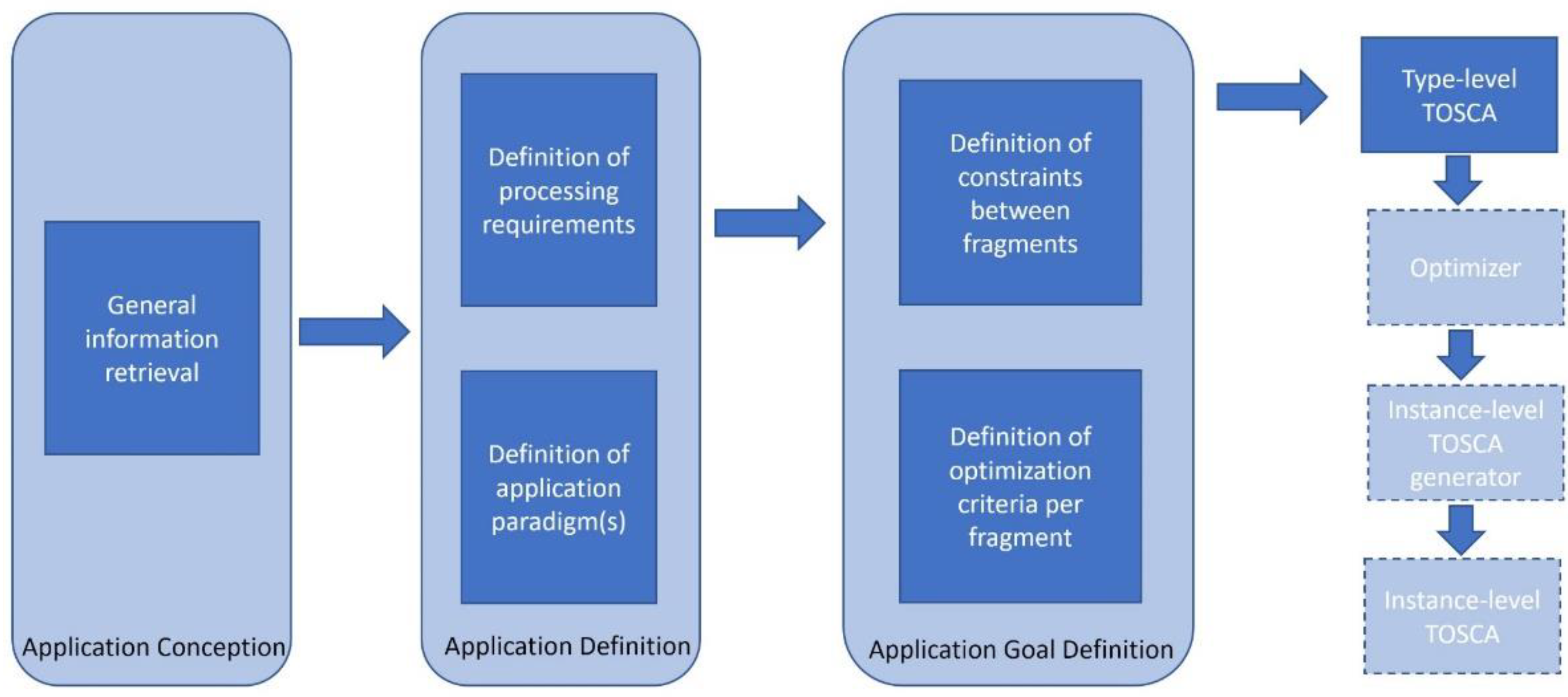

The definition of a fog application (e.g., similar to the one depicted in
Figure 1 can be seen in the steps presented in
Figure 2.
To facilitate the use of our modeling extensions, we provide a tool [
31] that aids in application definition and application goal definition as a proof-of-concept for our approach. Our tool was developed as part of the PrEstoCloud framework [
14], and is able to parse the input requirements, optimization criteria, and constraints, generating type-level TOSCA as its output. In the following subsections, we provide more details for each of the steps illustrated in
Figure 2.
4.1. Application Conception
In the application conception stage, the base for our modeling approach is established, as the DevOps structures the fragments that will comprise the application. Firstly, the architecture of the application is determined, as well as its input(s) and output(s) and the components that will be used in it. Following, the DevOps examines the fragments used in the application to determine whether there are common application paradigms that are used in it (e.g., load-balancing or functions-as-a-service) and the number of instances necessary for the processing of each fragment. In addition, generic information related to the fragments themselves (e.g., a known functional configuration, as well as the interfaces that are provided and the interfaces that are needed) should be collected. Then, the DevOps should determine for each fragment the Docker image and Docker registry that should be used, the respective environmental variables, their port mappings, and their application paradigm (if any—see
Section 6 for details). All of these attributes should later be mapped to the respective TOSCA constructs.
Finally, global constraints and preferences can be provided by the DevOps, specifying the providers that are preferred or should be excluded and the budget constraints that should be respected for this application.
4.2. Application Definition
During this step, the DevOps should enter more precise information describing the processing context of each of the fragments, as well as any application paradigm that is followed by the fragment. The information provided for the processing instances and the processing resources for each fragment are critical, as all further deployments and optimization steps will be primarily based on these factors. The DevOps is required to provide data for the fragment attributes, which are described in
Table 3.
The medium used to define these properties (as well as those mentioned in
Section 4.3) is agnostic to our approach. However, our tool [
31] supports both the usage of an external prototype UI, as well as code-level annotations coupled with a policy file. In the first case, informative application graphs similar to the one illustrated in
Figure 1 can be retrieved and the input is provided to our component through graphical forms in a machine-readable json format. In the second case, annotations can capture details concerning the deployment requirements of each fragment, while the policy file contains global constraints and preferences that guide the deployment of the topology. The handling and specification of annotations is an integral part of our TOSCA generator, allowing the software to be used without depending on an external component. The main advantage of using an annotation-driven deployment lies in the potential to combine annotations with code introspection techniques to influence the behavior of the application. In Reference [
32], information present in annotations was used to govern the addition of new workers and removal of existing workers or to modify their behavior.
An annotation is expected firstly to include information on the memory, CPU, and storage load that the particular application fragment will use, which is translated into a range of values using information from the policy file. The translation is currently performed using configurable static mappings (e.g., for CPU or memory, VERY_LOW = 1 core/1Gb of ram, LOW = 2 cores/2Gb of ram, MEDIUM = 4 cores/4Gb of ram, HIGH = 8 cores/8Gb of ram and VERY_HIGH = 16 cores/16Gb of ram). Each annotation on the workload of a particular resource reflects the least amount of resources required to carry out the processing needed by the particular fragment.
Then, information on the possible processing zone should be provided—whether the fragment is onloadable (i.e., can be deployed on edge devices), offloadable (i.e., can be deployed on cloud VMs), or both. Afterward, information on the Docker configuration (here using the edge_docker_registry and edge_docker_image fields) of the component should be provided. Additionally, the application paradigm followed by the particular fragment can be specified using the elasticity_mechanism annotation. It should be noted that each of the fragments can follow a different paradigm and multiple paradigms may co-exist in the same application.
Our annotations also enable us to provide the minimum and maximum numbers of instances that should be provided for a fragment. While one may argue that it is difficult to enforce a particular number of instances on a volatile edge topology, we include this capability as it is a business requirement that is very common and that provides to the DevOps the capability to precisely define the requirements of the topology. Further, we assume that the information that is input by the DevOps in a type-level TOSCA template is not static but subject to (automatic) updates based on the state of the processing topology, as illustrated in our previous work [
30].
Listing 1 contains an example annotation for a Java class representing the percussion detector fragment (it can either be a placeholder or its actual implementation), which is defined in the illustrative scenario. In the case of an annotation-driven deployment, one annotation needs to exist over each fragment that can be autonomously executed. As mentioned before, our tool can also accept input from a prototype user interface.
Listing 1. Annotations example for the PercussionDetector fragment of the illustrative scenario.
@PrestoFragmentation(
memoryLoad = PrestoFragmentation.MemoryLoad.LOW,
cpuLoad = PrestoFragmentation.CPULoad.VERY_LOW,
storageLoad = PrestoFragmentation.StorageLoad.LOW,
onloadable = true,
offloadable = true,
edge_docker_registry = “prestocloud.test.eu”,
edge_docker_image = “percussion_detector:latest”,
elasticity_mechanism = faas,
min_instances = 1,
max_instances = 5,
dependencyOn = {“imu_fragments.AudioCaptor”},
precededBy = {“imu_fragments.AudioCaptor”},
optimization_cost_weight = 1,
optimization_distance_weight = 1,
optimization_providerFriendliness_weights = {“aws”, “1”,
“gce”, “1”,
“azure”, “1”
}
)
public class PercussionDetector {
}
Listing 1 also contains (for completeness) certain annotations that are not mapped to the requirements, which should be set for each fragment at this stage—these are discussed in
Section 4.3.
4.3. Application Goal Definition
During this step—with the architecture of the application determined and the application components fully described—the DevOps can finally specify the application goals in terms of the optimization criteria that should be used for the deployment of the fragments, as well as any constraints that should be applied. The available fragment optimization criteria and constraints appear in
Table 4.
If no constraints are chosen, the application deployment will be guided only by the automatic device exclusion constraint(s) (see
Section 7.2), the optimization criteria specified for each fragment (where these exist), and the overall business goal that has been set for the application (e.g., the minimization of cost). If no optimization criteria are specified for one or more fragments, the application deployment will be performed based on the overall business goal, fulfilling any placement or precedence constraints. Naturally, the set of constraints and optimization values, which will be adopted for the fragments of the application, can lead to completely different deployments.
Using the example of the illustrative scenario, based on
Table 2 we can determine that a collocation constraint is required between the VideoStreamer and VideoTranscoder fragments and the PercussionDetector and AudioCaptor fragments. Moreover, the prevalent optimization criterion that will govern the processing zone (cloud or edge) and processing location (provider data center or edge device) of the VideoStreamer instances will be “distance” (for more details see
Section 7.2). For annotation-driven deployments (as in
Listing 1), the precedence constraints are indicated using the precededBy annotation, while the collocation constraints are indicated using the dependsOn annotation. Individual optimization criteria are indicated using the optimization_cost_weight, optimization_distance_weight, and optimization_providerFriendliness_weights annotations, respectively.
As soon as the requirements of the application have been provided, the initial type-level TOSCA model should be created. This procedure is undertaken by a TOSCA generator (e.g., [
31]) which receives the input gathered at the first stage of the processing and converts it to TOSCA format, producing a type-level model of the topology. We completed this process for the application described in
Section 3 and created the type-level TOSCA model corresponding to it using a prototypical, open-source TOSCA generator (the full type-level document is included in
Appendix A). This model file should then be sent to a TOSCA orchestrator—for example by uploading to a repository node, which will enable file artefacts to be communicated and stored.
4.4. Processing and Deployment of Requirements
During this step, the application requirements and structure that have been defined in the previous steps are received in the form of a type-level TOSCA template.
Then, a dedicated optimizer component (e.g., developed using Choco Solver [
33] or BtrPlace [
34]) is required to parse the received type-level TOSCA and solve the constraint programming problem associated with the optimization goals and placement constraints in it. The output of this process should include as a minimum the zone of the processing instances (cloud or edge), the provider(s) to be used, the optimal number of instances, and their flavor in a machine-readable format (e.g., json). Then, the network details can be specified and the Docker environmental variables can be updated. Finally, the instance-level TOSCA file reflecting the deployment can be generated. We consider that the optimization process and instance-level TOSCA generation process should be triggered automatically once a new type-level TOSCA document is published to provide a fully automated deployment process.
4.5. TOSCA Fog Application Definition Algorithm
To aid the comprehension of our approach, we provide in
Listing 2 the algorithmic steps that should be performed by a DevOps prior to the automatic generation of the TOSCA template.
Listing 2. Algorithmic steps necessary for the definition of a fog application in type-level TOSCA.
Input
F:Fragments
FPA:Fragment processing attributes//Defined in
Table 3FG:Fragment goals//Defined in
Table 4
Algorithm
//Application Concept Definition
AC ← determine_coarse_grained_application _constraints
F ← determine_application _fragments
for fragment in F
fragment.determine_application_paradigm
fragment.determine_interfaces
fragment.determine_environmental_variables
fragment.determine_docker_properties
fragment.determine_necessary_number_of_processing_instances
//Application Definition
for fragment in F
for processing_attribute in FPA
fragment.assign_value(processing_attribute,DevOps_value)
//Application Goal Definition
for fragment in F
for fragment_goal in FG
fragment.assign_value(fragment_goal,DevOps_value)
type_level_TOSCA_document ← TOSCAgenerator(AC,F)
return type_level_TOSCA_document
In the next sections, we will detail how each of the three research questions set in the introduction of our work was answered. First, we will discuss the type-level TOSCA semantic enhancements to support fog deployments, then we will elaborate on our approach to support additional distributed software paradigms, and thirdly we will detail the support provided for placement constraints and optimization criteria.
5. Type-Level TOSCA Semantic Enhancements
The official TOSCA specification [
5] provides sample configurations of processing nodes and cloud application topologies, however no reference is made to fog topologies, which commonly need processing nodes both on the edge and the cloud. While a fog topology could be implemented using TOSCA or any other DSL, an important issue that would not be solved would be the ability to use a different configuration for a fragment depending on its processing zone (cloud or edge), while still qualifying as the “same” fragment type for scaling purposes. A second challenge encountered when creating a service template is to accurately describe the model of the service while still allowing for its optimization.
To resolve the first issue and be able to seamlessly describe cloud-only, edge-only, and fog applications, we introduce a modeling schema, which decouples the software from the hardware it is installed on but still maintains their relationship. The second challenge is mainly tackled by the separation of concerns between type-level and instance-level TOSCA approaches.
Although the extensions of TOSCA involve numerous aspects of the deployment, the proposed changes to the language are non-intrusive and can be used within the original language features. This means that we do not modify the core logic of TOSCA templates and that our model maintains the traditional structure of a TOSCA application. A summary of these changes is presented in
Table 5.
An important consideration related to the implemented improvements is the small learning curve of the type-level TOSCA model, which allows a DevOps to quickly become familiar with and inspect the structure of a cloud application.
5.1. Fragment and Processing Host Decoupling
A crucial aspect of our approach is the introduction of optimization capabilities to the TOSCA template. Unfortunately, as most of the existing approaches follow an analytical approach by specifying the topology in detail (i.e., specifying the provider to be used at the time of model formulation and the exact VM details), there is little room left for optimization. However, using our approach, the optimizer determines the exact processing zone and processing location. Furthermore, the number of fragment instances can be easily changed from components external to those involved in the TOSCA generation process (e.g., a topology scaling director—see
Figure 2) without adding unnecessary complexity to our type-level model.

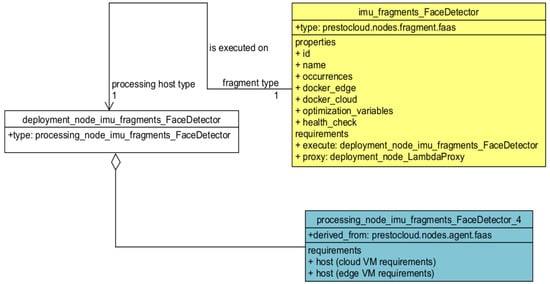

These advantages are only possible if a clear distinction between the software components of the application from the hardware that they are installed on is made using distinct TOSCA structures. Each application, therefore, consists of fragment nodes (reflecting the software components), which are each related to a processing node (reflecting the hosting hardware). Fragment nodes contain a description of a fragment, which will run independently within the context of the application, while the hardware and operating-system level requirements that are imposed by each fragment are modeled on so-called “processing nodes”. Each processing node defines a relevant TOSCA node type and each “fragment node” corresponds to an instance of a TOSCA node template. While processing nodes are generic (and could each be used by many fragments), fragment nodes are tightly coupled to the fragment that they describe—hence the naming of the nodes. Fragment nodes are mapped to processing nodes, using “mapping nodes” (minimal TOSCA node templates). The definitions of both processing and fragment nodes are based on the hosting requirements expressed either through the annotations mechanism or the UI. Processing, fragment, and mapping nodes themselves are each defined in a new TOSCA node type, respectively. An example of the relationships between processing, fragment, and mapping nodes is illustrated in
Figure 3.
An excerpt from the type-level TOSCA showing the sections related to the connection of application fragments (according to our motivation scenario of
Section 3) with their respective processing nodes is shown in
Listing 3.
Listing 3. The connection of fragments with processing nodes.
deployment_node_imu_fragments_FaceDetector:
type: processing_node_imu_fragments_FaceDetector_4
imu_fragments_FaceDetector:
type: prestocloud.nodes.fragment.faas
………………
requirements:
- execute: deployment_node_imu_fragments_FaceDetector
- proxy: deployment_node_LambdaProxy
In the example in
Listing 3, the “deployment_node_imu_fragments_FaceDetector” is the mapping node, while the “imu_fragments_FaceDetector” is the fragment node. The “proxy” field of the fragment node indicates the mapping node that will host the Lambda Proxy of the topology (this node is not part of
Listing 3—see
Section 6 for more details). When the TOSCA blueprint is parsed, the TOSCA orchestrator will deploy a Lambda Proxy, which will enable the deployment of the FaceDetector fragment as a serverless function.
The processing node defining the type of mapping node (processing_node_imu_fragments_FaceDetector_4) that will be used to deploy the above fragment (imu_fragments_FaceDetector) is specified in
Listing 4.
Listing 4. The description of a processing node.
processing_node_imu_fragments_FaceDetector_4:
description: A TOSCA representation of a processing node
derived_from: prestocloud.nodes.agent
requirements:
- host:
capability: tosca.capabilities.Container
node: prestocloud.nodes.compute
relationship: tosca.relationships.HostedOn
node_filter:
capabilities:
- host:
properties:
- num_cpus: { in_range: [1, 2] }
- mem_size: { in_range: [1024 MB, 2048 MB] }
- storage_size: { in_range: [4 GB, 32 GB] }
- os:
properties:
- architecture: { valid_values: [x86_64, i386] }
- type: { equal: linux }
- distribution: { equal: ubuntu }
resource:
properties:
- type: { equal: cloud }
- host:
capability: tosca.capabilities.Container
node: prestocloud.nodes.compute
relationship: tosca.relationships.HostedOn
node_filter: capabilities:
- host:
properties:
- num_cpus: { in_range: [1, 2] }
- mem_size: { in_range: [1024 MB, 2048 MB] }
- storage_size: { in_range: [4 GB, 32 GB] }
- os:
properties:
- architecture: { valid_values: [ arm64, armel, armhf ] }
- type: { equal: linux }
- distribution: { equal: raspbian }
- resource:
properties:
- type: { equal: edge }
As can be noted in
Listing 4, the processing node definition allows for different requirements for the cloud and the edge version of a fragment. This facility can be used to adjust the processing requirements on edge devices, to account for the disparity in performance between them and cloud instances.
Furthermore, in the case of fragments that should be only executed on edge devices, a further constraint can be specified to ensure that candidate devices possess the necessary sensors to acquire input. To represent this constraint, we introduced a sensors property on extended TOSCA compute node specification, which includes a list of all required sensors. Any device that does not possess one or more of these sensors is not eligible to host the particular fragment.
An example of the sensors property used to limit (using the TOSCA nodefilter structure) possible hosts to those possessing a microphone and camera is shown in
Listing 5.
Listing 5. Example of the “sensors” property.
- sensors:
properties:
- microphone: { equal: “/dev/snd/mic0” }
- camera: { equal: “/dev/video/camera0” }
5.2. TOSCA Specification of Fragment Nodes
Fragments are the central elements in our extended TOSCA document, as they contain the actual business logic that will be carried out by the cloud application. Fragments can represent software components that run on the edge, on the cloud, or both—using the same or a different set of properties. The connection of fragments with processing nodes and with their processing requirements is achieved using a new TOSCA relationship.
The definition of a fragment node begins with a declaration of the type to which it belongs. Immediately afterward follows the property segment, which begins with generic information on the id and the name of the fragment. This information is followed by the scalable and occurrences fields, which indicate if the fragment is scalable and the number of instances that are needed for it to operate, respectively. The specification of the number of occurrences at the fragment level drastically reduces the size of type-level TOSCA files (the alternative would be to copy large, identical specification blocks) and aids their comprehensibility. We consider that it is necessary to allow the DevOps to define the number of instances available to a fragment as a starting point to deploy the topology.
The major share of the fragment specification belongs to the definition of Docker properties, either for edge or cloud versions of the fragment, or both. These properties include the Docker image, the registry, the environmental variables, the specification of port forwarding within Docker, and a custom Docker command line that can be executed by the fragment (if needed). The ability to specify different properties on the cloud and edge versions of a fragment provides the means for applications to adapt their execution according to the resources of the host (generally inferior in an edge device compared to a cloud VM). This is exemplified in
Listing 6, where lower precision is used for the edge version of FaceDetection and for more iterations in order to diminish the probability of an edge device becoming overloaded (it is presumed here that the face detection algorithm can either iterate more times using a coarse model to detect faces in the image or fewer times by running calculations with higher precision). On the other hand, the cloud version can operate at full effectiveness, requiring a much lower number of iterations to verify the result. Further, it is important to mention that environmental variables may be dynamic, using the get_property function available to TOSCA. Thus, IP addresses that are unknown at the time of the deployment of the fragment may be denoted by a variable, which is later replaced in instance-level TOSCA by an appropriate IP address. Following the specification of Docker properties, the optimization variables section contains the weights for the cost and distance criteria, while the friendliness criterion accepts a list of providers and the weight that is assigned to each of them. The optimization criteria for each fragment of the motivating scenario are specified in
Table 2. For example, the DevOps has set for the VideoStreamer fragment a weight value of 8 for distance, a weight value of 2 for cost, a weight value of 1 for the friendliness of the “Azure” provider, and a weight value of 5 for the friendliness of the “AWS” provider (meaning that providers favoring low latency should be favored, then the AWS provider, then providers offering low cost, and then any provider—higher weights involve a higher preference for this criterion). This segment is concluded by the definition of a custom health check command line and an integer interval between two successive health check commands.
The last elements in the specification of a fragment are the mapping node that will execute the particular fragment and the coordinator node (in this case a Lambda proxy) that is related to the particular fragment. Coordinator nodes are discussed in depth in
Section 6.
Listing 6 provides the full specifications for an application fragment.
Listing 6. Full application fragment specifications for the FaceDetector fragment.
imu_fragments_FaceDetector:
type: prestocloud.nodes.fragment.faas
properties:
id: 3
name: imu_fragments.FaceDetector
scalable: trueoccurrences: 1
docker_edge:
image: “face_detector_edge:latest”
registry: “local.prestocloud.test.eu”
variables: { “PRECISION”: “50”, “ITERATIONS”: “10” }
docker_cloud:
image: “face_detector_cloud:latest”
registry: “prestocloud.test.eu”
variables: { “PRECISION”: “100”, “ITERATIONS”: “2” }
optimization_variables:
cost: 1
distance: 1
friendliness: { “aws”: “5”, “gce”: “0”, “azure”: “1” }
health_check:
interval: 1
cmd: “curl health.prestocloud.test.eu FaceDetector”
requirements:
- execute: deployment_node_imu_fragments_FaceDetector
- proxy: deployment_node_LambdaProxy
5.3. Description of Instance-Level TOSCA
Although our contribution emphasizes the modeling capabilities offered by the introduction of type-level TOSCA, instance-level TOSCA is also a major asset for the reconfiguration of the application topology. As the instance-level document contains the processing zone selected for each fragment, this information can be consumed by components external to the generation of TOSCA templates to understand the mixture of fragment instances that were deployed on edge devices and cloud VM’s and to improve the quality of the updated blueprint (e.g., by adding one more instance for a component that is chiefly deployed on edge devices, which typically have lower processing power).
The creation of the instance-level TOSCA document should be automatically triggered each time a new type-level document is produced. This involves as a first step the extraction of the information contained in the type-level TOSCA document by the optimizer. The cost constraints and the time interval included in type-level TOSCA are evaluated to create an average cost that is admissible for the topology. Then, the collocation and precedence constraints are evaluated, as well as the optimization preferences provided in each fragment, to determine the final deployment of the application (for more details on the optimization process see
Section 7.2). It is clear that the policies segment contained in type-level TOSCA is not necessary in instance-level TOSCA, as the constraints included there are taken into account during the allocation of resources. If the optimizer can produce a valid configuration satisfying the constraints of the topology described in the type-level document, this configuration is sent to the instance-level TOSCA generator, which produces the final instance-level TOSCA document.
The average cost of the suggested deployment is evaluated against the maximum admissible cost threshold of the DevOps. If it is lower, it is admitted and the deployment can be implemented. The processing resources, networking configuration details, as well as the cost of the VM or edge device used are then added for each fragment to new “node_type” definitions of the processing nodes that will host them. The TOSCA type of each processing node is different to represent different edge devices and cloud providers. Thus, provider-specific information can be abstracted in the definition of certain normative TOSCA “provider types”.
However, the instance-level TOSCA template shares with the type-level TOSCA template the definitions of fragments, as well as the relationships between fragment nodes and mapping nodes.
An example description of a processing node in instance-level TOSCA is described in
Listing 7.
Listing 7. Processing node specifications for instance-level TOSCA.
processing_node_fragments_FaceDetector_1:
type: prestocloud.nodes.compute.cloud.amazon
properties:
type: cloud
network:
network_id: s-gbdpnc4s
network_name: subnet1
addresses:
- 192.168.1.1
capabilities:
resource:
properties:
type: cloud
cloud:
cloud_name: amazon_public1
cloud_type: amazon
cloud_region: us-east-1
host:
properties:
num_cpus: 2
mem_size: 4.0 GB
disk_size: 50 GB
price: 0.120000
In instance-level processing nodes, information described in the form of constraints in type-level TOSCA should be concretized into specific details. The number of CPUs, the memory, and the disk size are all fixed values; the cloud provider and the cloud region are also chosen. These fixed values come from the solving process of the optimizer (see
Figure 2), which considers the available hosting candidates with respect to the pre-defined optimization goals, as detailed in
Section 7.2. Moreover, networking information is available for the particular instance. The information included in instance-level TOSCA processing nodes can also be customized by editing the relevant TOSCA type.
6. Support for FaaS and Other Coordinator-Based Paradigms
The new node types proposed for TOSCA both allow the representation of FaaS and other distributed software paradigms, in which there is a coordinator of execution that handles a number of workers. It is assumed that these distributed software paradigms are followed by one or more of the application components. We propose their definition here as a means to provide a reusable type of collection for certain common application patterns, which can also be exploited by other TOSCA applications.
FaaS-based applications are assumed to consist of a set of application fragments that are independent of other application components and have a self-contained execution flow. Fragments are assumed to be hosted inside Docker containers, which are in turn hosted inside VMs. Access to fragments is allowed through REST calls, which are managed by a publicly-facing load-balancer component. If more than one fragment type are managed by the load-balancer, the component is referred to as a Lambda Proxy, since it serves as a proxy for AWS-Lambda-like, serverless functions. Unlike some serverless platforms, which limit the processing time and the languages that can be used to develop functions, our approach supports all fragment types that can be dockerized, running for any desired amount of time.

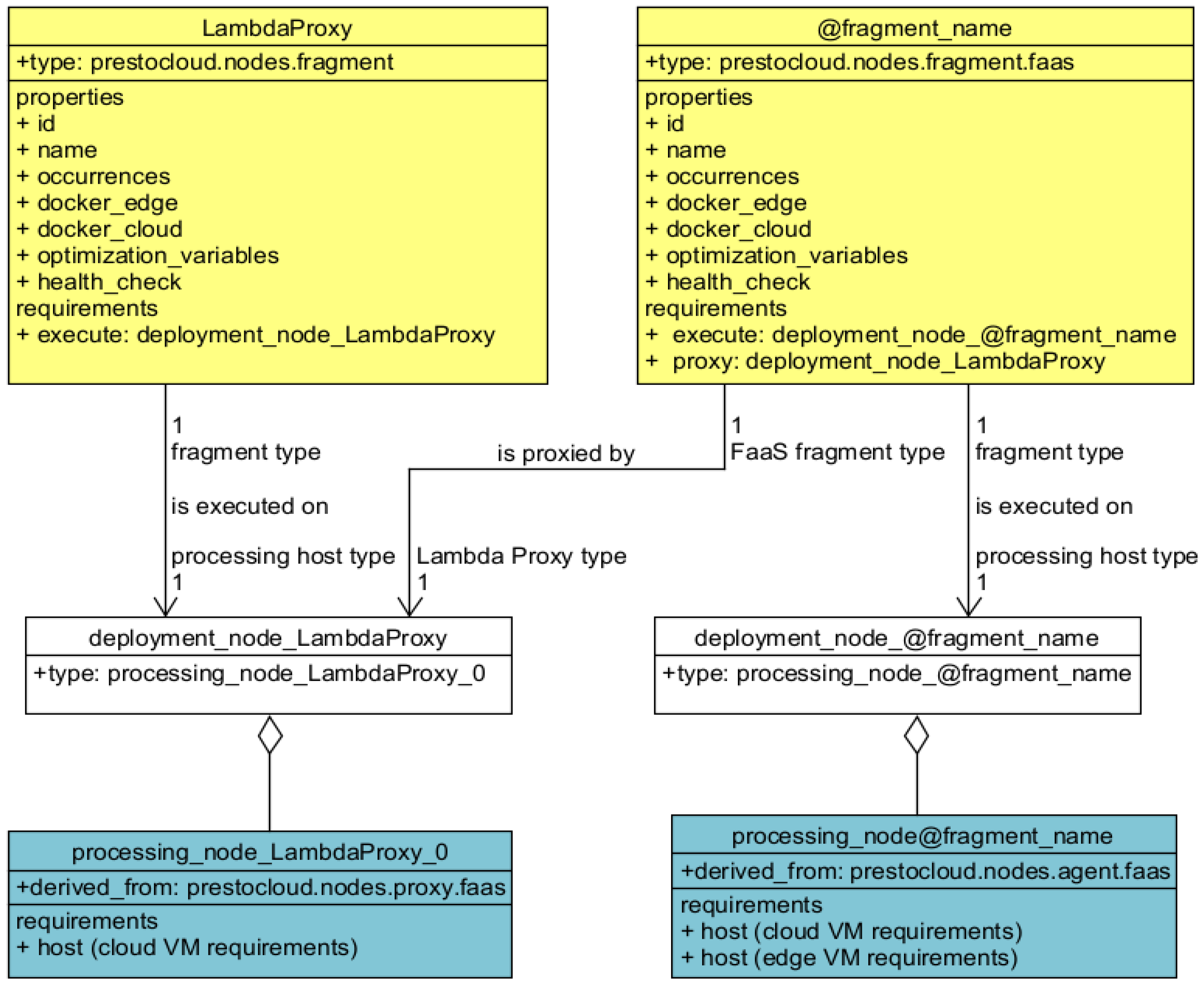

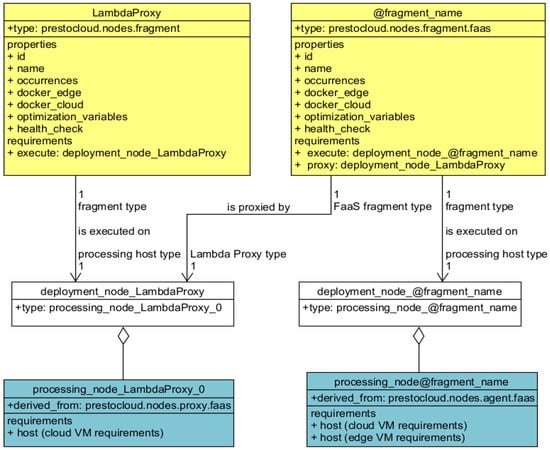

Fragments following the FaaS paradigm use the custom prestocloud.nodes.fragment.faas fragment type. The “proxy” field of the fragment type accepts the name of the Lambda Proxy mapping node that will manage requests to this fragment. FaaS fragments are installed on FaaS agents (workers), which are modeled using the prestocloud.nodes.agent.faas type. FaaS agents satisfy by definition the prestocloud.relationships.executedBy.faas relationship required by FaaS fragments. FaaS Lambda Proxies are modeled with the prestocloud.nodes.proxy.faas type and possess the prestocloud.capabilities.proxying.faas capability, which allows them to coordinate worker agents hosting a FaaS fragment. The relationships between FaaS fragments, their executing processing nodes, and the Lambda Proxy can be seen in
Figure 4.

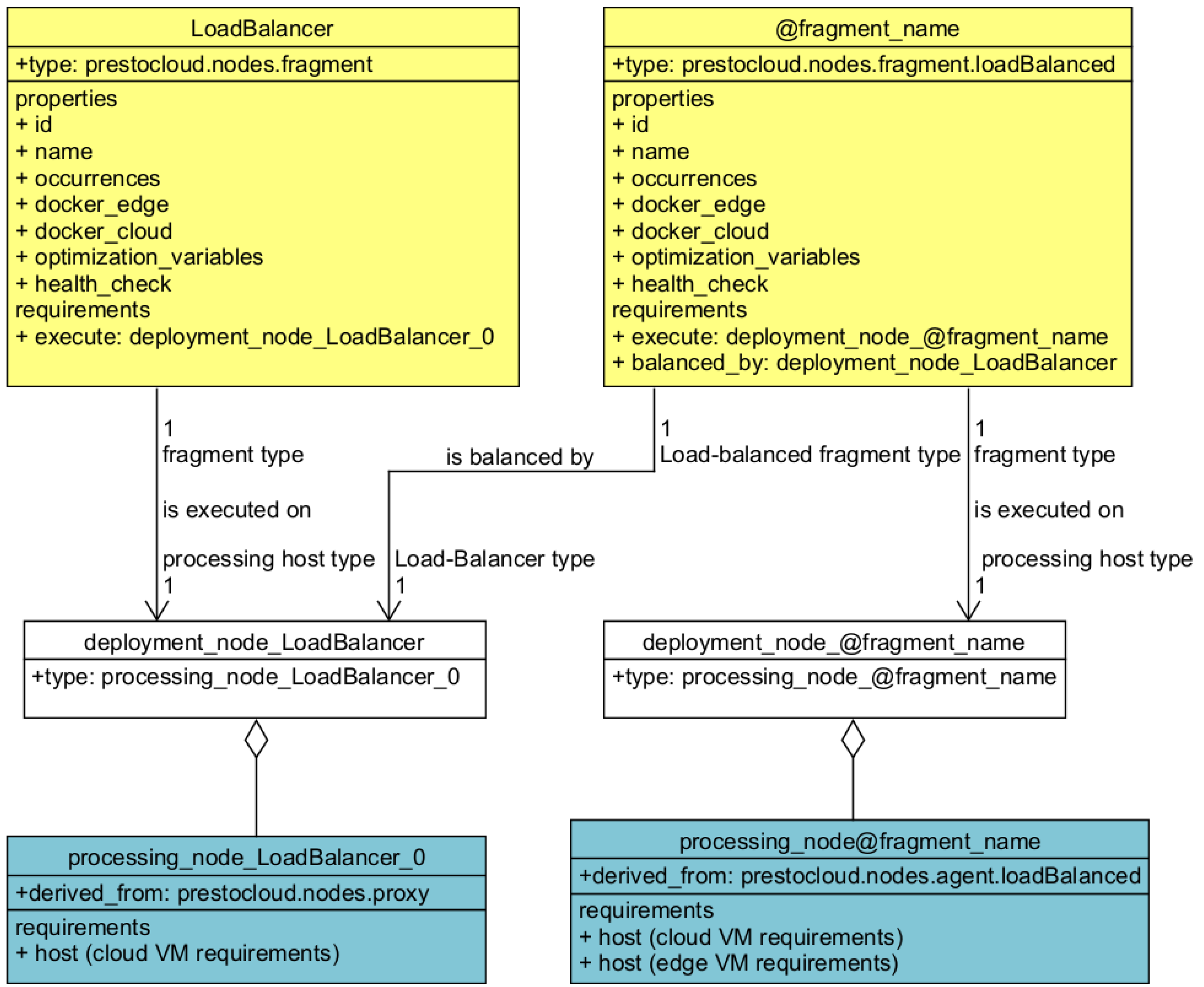

We also propose a similar modeling approach for applications using the load-balancing paradigm. In this paradigm, we consider that the application fragment can run in parallel on a number of workers, which each host an instance of the fragment and can handle a fraction of its workload. This is achieved with the help of a load-balancing node, which receives all incoming HTTP REST calls and invokes the correct worker. As is the case for FaaS-based applications, fragments are assumed to be deployed in Docker containers, while the container of each fragment is deployed on its own VM. The custom type that is created for load-balanced fragments is prestocloud.nodes.fragment.loadBalanced. Load-balanced fragments are installed on prestocloud.nodes.agent.loadBalanced agents (workers), which by definition satisfy the prestocloud.relationships.executedBy.faas relationship. Workers are load-balanced by the Load-Balancer component, which is modeled by the prestocloud.nodes.proxy and possesses the prestocloud.capabilities.proxying capability. The connection of a worker to its load-balancer is achieved with the help of the “proxy” field in the prestocloud.nodes.fragment.loadBalanced TOSCA. The relationships between load-balanced fragments, their executing processing nodes, and the Load-Balancer can be seen in
Figure 5 below.

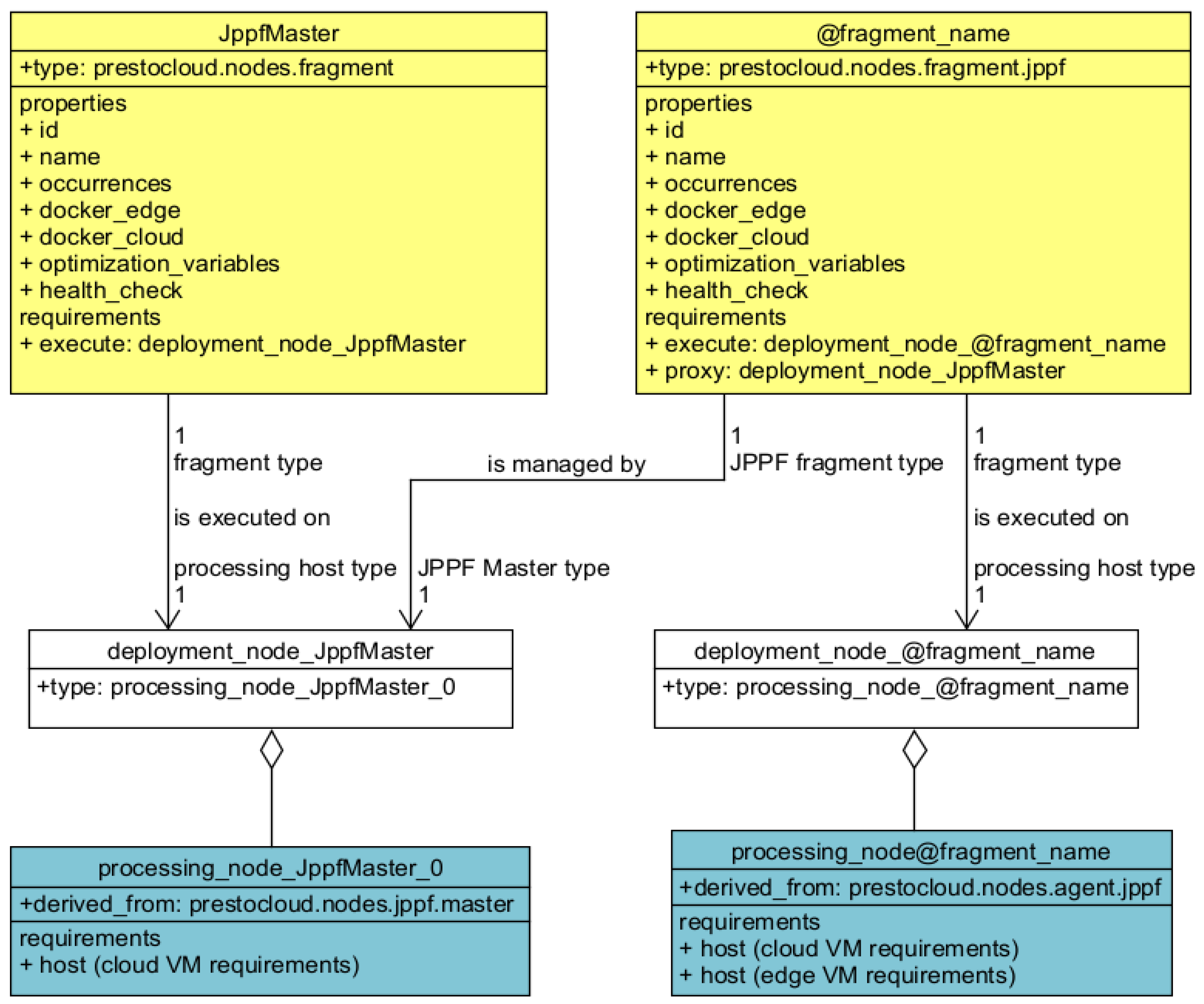

Specification of JPPF applications is also supported by our approach. JPPF allows a Client to offload a processing task to a JPPF Agent with the help of a suitable coordinator (JPPF Master) node. Any JPPF fragment can be modeled using the prestocloud.nodes.fragment.jppf type and is installed on a JPPF Agent that uses the prestocloud.nodes.agent.jppf type, which by definition satisfies the prestocloud.relationships.executedBy.jppf relationship required by JPPF fragments. JPPF Masters are modeled using the prestocloud.nodes.jppf.master type and have the prestocloud.capabilities.endpoint.jppf capability, which indicates that they provide an endpoint that JPPF Agents can connect to in order to retrieve processing tasks.
The relationships between the JPPF Clients, their executing processing nodes, and the JPPF Master can be seen in
Figure 6 below.

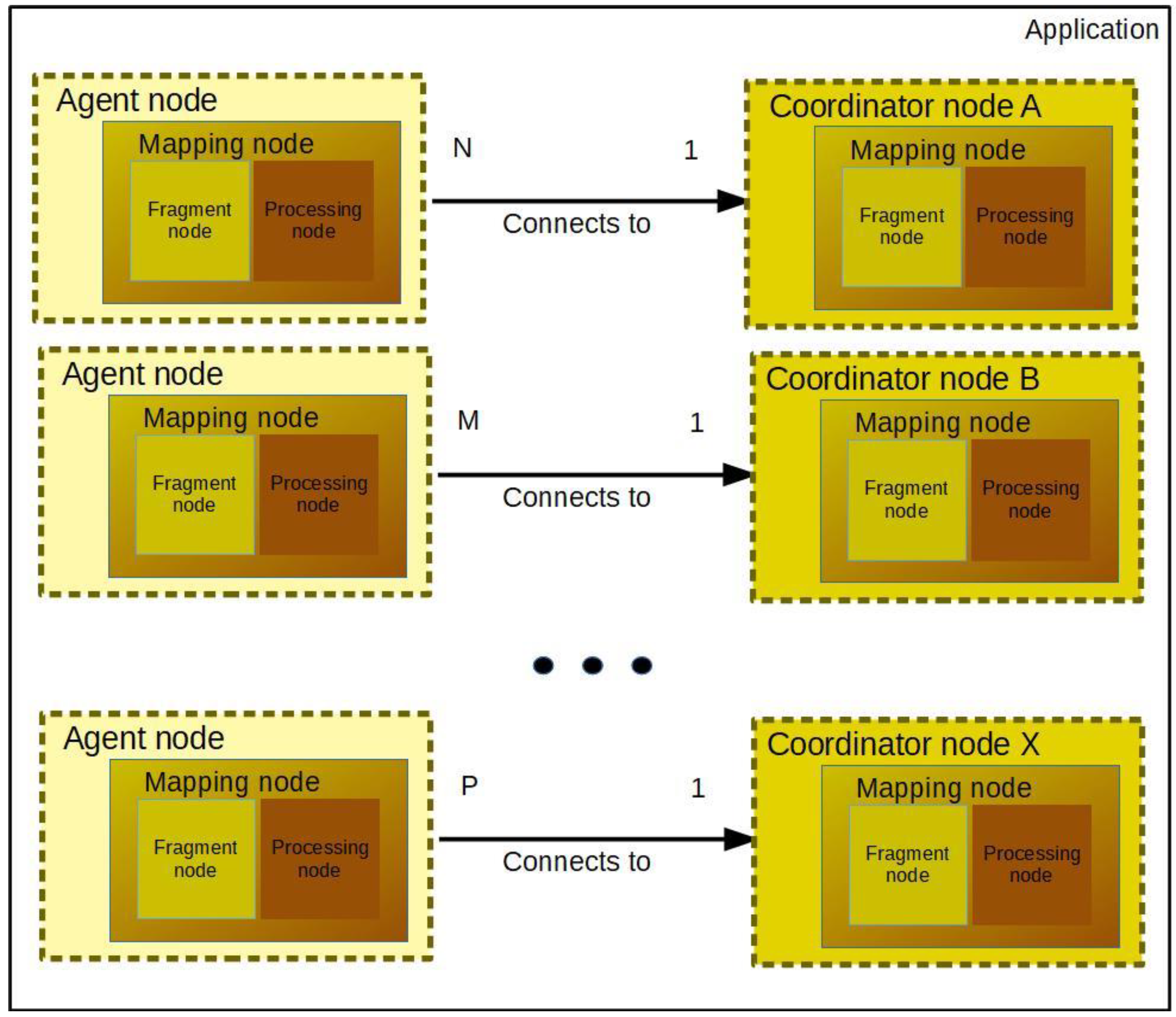

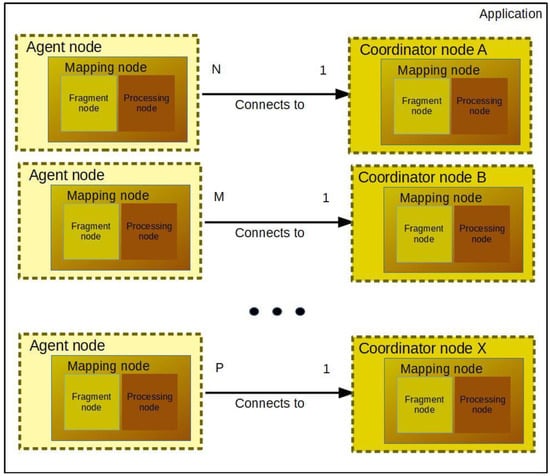

In our approach, more than one of these software paradigms can co-exist in the same application and each functions independently from the others. The relationships between coordinator, processing, and fragment nodes within an application topology are depicted in
Figure 7.
7. Optimization and Application Constraints
The TOSCA extensions that are introduced include support for the optimization of the deployment of fragments. Type-level TOSCA processing nodes specify ranges of satisfactory values for most of their attributes (e.g., cpu cores, available ram and disk space). This permits a reasonable number of alternative providers to be researched for the availability of similar VMs (in resources), while ensuring a minimum performance standard. The final selection of provider resources and edge devices should obey the coarse-grained and fine-grained constraints set for the application, as well as any placement policies set for one or more fragments.
7.1. Coarse-Grained Application Constraints
The vanilla TOSCA language specification [
5] already permits the definition of a metadata segment inside the TOSCA file. In our approach, this native construct is used to hold extended constraints and preferences of the application. Its key-value body contains: the data relevant to the business goals pursued by the application; the providers that are preferred or excluded; and the budget constraints that should be respected. These constraints can be used by the optimization engine to select the most appropriate flavor and locations for the processing nodes.
An example of the usage of metadata fields to denote some of the constraints outlined above is presented in
Listing 8:
Listing 8. Example of metadata fields used for application-level constraints.
metadata:
template_name: IMU generated types definition
template_author: IMU
template_version: 1.0.0-SNAPSHOT
CostThreshold: 1000
TimePeriod: 720
ProviderName_0: OpenStack_local
ProviderRequired_0: false
ProviderExcluded_0: true
MetricToMinimize: Cost
In the above example, aside from some generic informative fields concerning the particular template version, the name, and the author, definitions exist for the business goals, provider, and budget requirements related to the application as a whole. The budget available is set to 1000 monetary units (e.g., euros), which should be used over a time period of 720 h. The “OpenStack_local” provider is set to be excluded, and the primary objective to be minimized is set to “cost”.
7.2. Fine-Grained Constraints and Optimization Criteria
As mentioned in
Section 5.2, in each fragment definition, a number of optimization criteria are identified, namely the cost, distance, and friendliness. The cost optimization criterion reflects the monetary cost of choosing a particular hosting VM for a time period. The distance optimization criterion reflects the distance of the host of the fragment from the centroid of edge devices. The friendliness criterion reflects a preference towards a particular cloud provider (for any reason, e.g., data locality). While these criteria are modeled in a specific construct, more optimization criteria can of course be defined to supplement or replace the above. An example of the specification of optimization criteria appears in
Listing 6.
Additionally, these application constraints can be coupled with a set of tools that enables the DevOps to guide the deployment of fragments by considering their relationships. We suggest implementing these using a set of proper placement optimization policies. In the context of TOSCA, we introduce three different optimization policies: collocation policies, anti-affinity policies, and precedence policies. The formal definitions of these policies appear in
Listing 9.
Listing 9. Formal definitions of optimization policies.
Input
xi:Cloud providers
fi:Fragments
di:Devices
Provider: f → x Function mapping from fragments to providers
Hosting: d → f Function mapping from hosting (edge) devices to fragments
DeploymentTime: f → R+ Function mapping from fragments to the positive real numbers
Policy definitions
Collocated (fi,fj) → Provider (fi) = Provider (fj)
Collocated (fi,fj,fk,…,fn-1,fn) = Collocated (fi,fj) and Collocated (fi,fk) and … and Collocated (fi,fn)
and Collocated (fj,fk) and … and Collocated (fj,fn) and … and Collocated (fn-1,fn)
Antiaffinity (fi,fj)→Provider (fi) ≠ Provider(fj)
Antiaffinity (fi,fj,fk,…,fn-1,fn) = Antiaffinity (fi,fj) and Antiaffinity (fi,fk) and … and Antiaffinity (fi,fn) and Antiaffinity (fj,fk) and … and Antiaffinity (fj,fn) and … and Antiaffinity (fn-1,fn)
Precedence (fi,fj) → DeploymentTime (fi) < DeploymentTime (fj)
Precedence (fi,fj,…,fn) → DeploymentTime (fi) < DeploymentTime (fj) < … < DeploymentTime (fn)
Excluded (fi,(d1,d2,…,dn)) → not Hosting(d1,fi) and not Hosting(d2,fi) and … and not Hosting(dn,fi)
Our collocation policies indicate that a fragment should be collocated with other fragments (using the same cloud provider), unlike the collocation policies that are briefly mentioned in the TOSCA specifications, which imply the use of the same compute node. This allows low-latency communication and results in improved compatibility and communication between processing nodes. However, the optimization component cannot consider the option of using different cloud providers for the fragments to lower the total costs. In the motivating example, a collocation policy is needed for the VideoStreamer and VideoTranscoder fragments (
Table 2).
Our anti-affinity policies specify that a fragment should not be collocated with other fragments. This results in the placement of this fragment and all target fragments in different cloud providers (and is, thus, different from the anti-collocation policies briefly mentioned in the TOSCA specifications). Using this policy enhances the security of a critical information system that is communicating with a potentially vulnerable component, as it is easier to isolate systems in case of a breach. However, this also means that the optimization component cannot request instances from the same provider for the fragments, and as a result some of the lower-cost options might be lost. In the motivating example (
Table 2), an anti-affinity policy is needed for the AudioCaptor and PercussionDetector to ensure that (violent percussion) detection happens reliably and quickly (i.e., away from edge nodes on which AudioCaptor fragments are hosted).
Precedence policies describe that fragments should be instantiated and deployed in the order that is mentioned. An advantage of precedence policies is that all required interfaces—indicating data needed from a data flow for each component—are automatically satisfied by the time they are instantiated. Precedence policies guarantee the satisfaction of interfaces, however increased deployment time is required in return, as Docker containers should be spawned sequentially.
Device exclusion policies ensure that fragments are optimally scheduled for processing at the edge. They enhance the response of the system by marking a certain set of devices as unsuitable for deployment—therefore being excluded from the scheduling of instances of a particular fragment. The suitability of a device for a fragment depends on historical data processing results and the availability status, which can be detected and analyzed using machine learning techniques (for more details see [
35]). The details of such a component are not detailed here, since this is considered out of the scope of this article.
The placement policies are modeled at the level of TOSCA using the fragment nodes. They offer a significant benefit over the usage of native TOSCA relationships, in that they permit the easy visualization of the most important constraints associated with the deployment application. In addition, the implementation of their enforcement is much simpler than the resolution of TOSCA relationships between fragments.
An example of the four deployment policies based on the motivating example is included in
Listing 10.
Listing 10. Full example of the available deployment policies.
topology_template:
policies:
- collocation_policy_group_0:
type: prestocloud.placement.Gather
targets: [ imu_fragments_VideoStreamer, imu_fragments_VideoTranscoder ]
- anti_affinity_policy_group_0:
type: prestocloud.placement.Spread
targets: [ imu_fragments_PercussionDetector, imu_fragments_AudioCaptor ]
- precedence_policy_group_0:
type: prestocloud.placement.Precedence
targets:
[imu_fragments_VideoStreamer,imu_fragments_VideoTranscoder,imu_fragments_FaceDetector,imu_fragments_MultimediaManager,imu_fragments_AudioCaptor,imu_fragments_PercussionDetector ]
- exclude_fragment_from_devices_0:
type: prestocloud.placement.Ban
properties:
excluded_devices:
- “a6f2:d8bd:bf45a:de2a:d1e8:5f58:c256:0492”,
- “c2c1:def1:2c38:c83b:6b0d:b7bd:a0d2:95c2”,
- “b3ef:58d8:39d0:86ce:81d2:6e93:5f7d:23cd”,
- “b28e:9f32:2076:3599:39c3:6cc5:794a:5140”
targets: [ imu_fragments_VideoStreamer ]
7.3. Constraints and Optimization Handling
The enforcement of the optimization policies presented in this work is delegated to the optimization engine that consumes the type-level TOSCA. Additionally, in order to provide a clearer understanding of the effects of each optimization policy, we describe the necessary steps to be performed by any optimizer implementation process.
We consider that the optimizer first retrieves the available cloud provider VM types and edge devices that can be used for the deployment. Then, any device exclusion policies are applied and the excluded edge devices are removed from the candidate hosts. If there are not any contradictory policies (e.g., an anti-affinity policy and a collocation policy set for the same set of fragments, or cyclic precedence policies), a list of valid configurations that satisfy all collocation and anti-affinity policies is proposed; otherwise, the list of valid configurations is set as empty. In the creation of valid configurations, precedence is given to the assignment of fragment instances to edge processing hosts satisfying the requirements of a fragment. If the list of valid configurations is not empty, the configurations are sorted according to the optimization criteria that have been defined, and the best configuration that satisfies the global constraints should be chosen to be translated to instance-level TOSCA.
Otherwise, if no configuration is found to satisfy the constraints and deploy all fragment instances, the deployment fails and the DevOps should resubmit a new template. Finally, at deployment time, the containers of different fragments should be started according to the priority, which is set in one or more precedence policies.
The process described above appears in pseudocode in
Listing 11. Note that we intentionally do not proceed with optimization of the data structures and algorithmic logic, as we aim to provide an easy-to-follow overview of our proposal.
Listing 11. Optimization process pseudocode.
Input
X:Cloud providers
F:Fragments
D:Candidate Edge Devices
CLP:collocation policies
AAP:anti-affinity policies
PRP:precedence policies
DEP:device exclusion policies
Algorithm
for fragment in F
for collocation-policy in fragment_CLP
for anti-affinity policy in fragment_AAP
if collocation-policy contradicts anti-affinity-policy then return FAILED_DEPLOYMENT
for precedence-policy in fragment_PRP
for other-precedence-policy in fragment_PRP
if precedence-policy contradicts other-precedence-policy then return FAILED_DEPLOYMENT
for fragment in F
for device in fragment_DEP
D ← D-{device}//remove the device from the eligible hosts
Configurations ← find_eligible_configurations (F,D,X)
Configurations ← apply_coarse_grained_application_constraints (Configurations)
if Configurations is not Empty
maximum_utility ← −∞
best_configuration ← None
for configuration in Configurations
configuration.utility ← calculate_utility_from_optimization_criteria (configuration)
if configuration.utility > maximum_utility then
maximum_utility ← configuration.utility
best_configuration ← configuration
return best_configuration
else return FAILED_DEPLOYMENT
9. Results and Discussion
Following the approach that we introduced, a major advantage related to the installation of any cloud application is brought to the DevOps, as it is now possible to view an easily reviewable, provider-agnostic, standards-based model of the topology to be instantiated. The prototype type-level TOSCA generator we developed [
31] can handle both Java annotations and JSON inputs reflecting an application graph. How this topology will later be managed and revised is outside the scope of this work, however we have demonstrated above that type-level and instance-level TOSCA can cope with dynamic setups. The enhancement of TOSCA should be impossible to achieve without creating new node types and new policies. All new language structures use the existing TOSCA syntax and each one targets a specific enhanced behavior. The extended TOSCA specification enables the modeling of self-managed FaaS-based applications alongside more traditional VM-based applications. Moreover, our enhancements also deliver modeling support for the more traditional paradigm of load-balanced applications, as well as JPPF [
13], which is capable of creating dynamic processing infrastructures. All of these paradigms are “coordinator-driven”, using “coordinator” nodes for the deployment—either a FaaS Proxy, a load-balancer, or a JPPF master.
Applications comprised of coordinator-driven and more traditional architectures may coexist or can be completely separated. It is known [
39] that cloud functions as a part of a FaaS deployment enjoy much lower startup times and offer more fine-grained cost execution options. These advantages make FaaS-based deployments preferable to conventional VM-based deployments in certain use-case scenarios. In other cases, however, the stability and predictability of VMs are preferred over FaaS. Our improvements enable gradual migrations from VM-based deployments to FaaS-based deployments and vice versa, using the expressiveness of TOSCA.
In addition, the extensions in the TOSCA specification also target the correct modeling of edge devices. Both fog and edge-only deployments are targeted by our approach, supporting mobility from the edge to the cloud and inversely where this can be implemented. Naturally, fog architectures can be combined in modeling with FaaS-based applications to describe FaaS fog deployments.
Additionally, irrespective of the topology that is actually deployed, we introduced support for placement constraints and optimization factors at the level of each software component (fragment) or the whole of the topology. Using our illustrative scenario, example optimization factors are presented both at the topology and fragment levels, permitting the run time optimization of the topology as required.

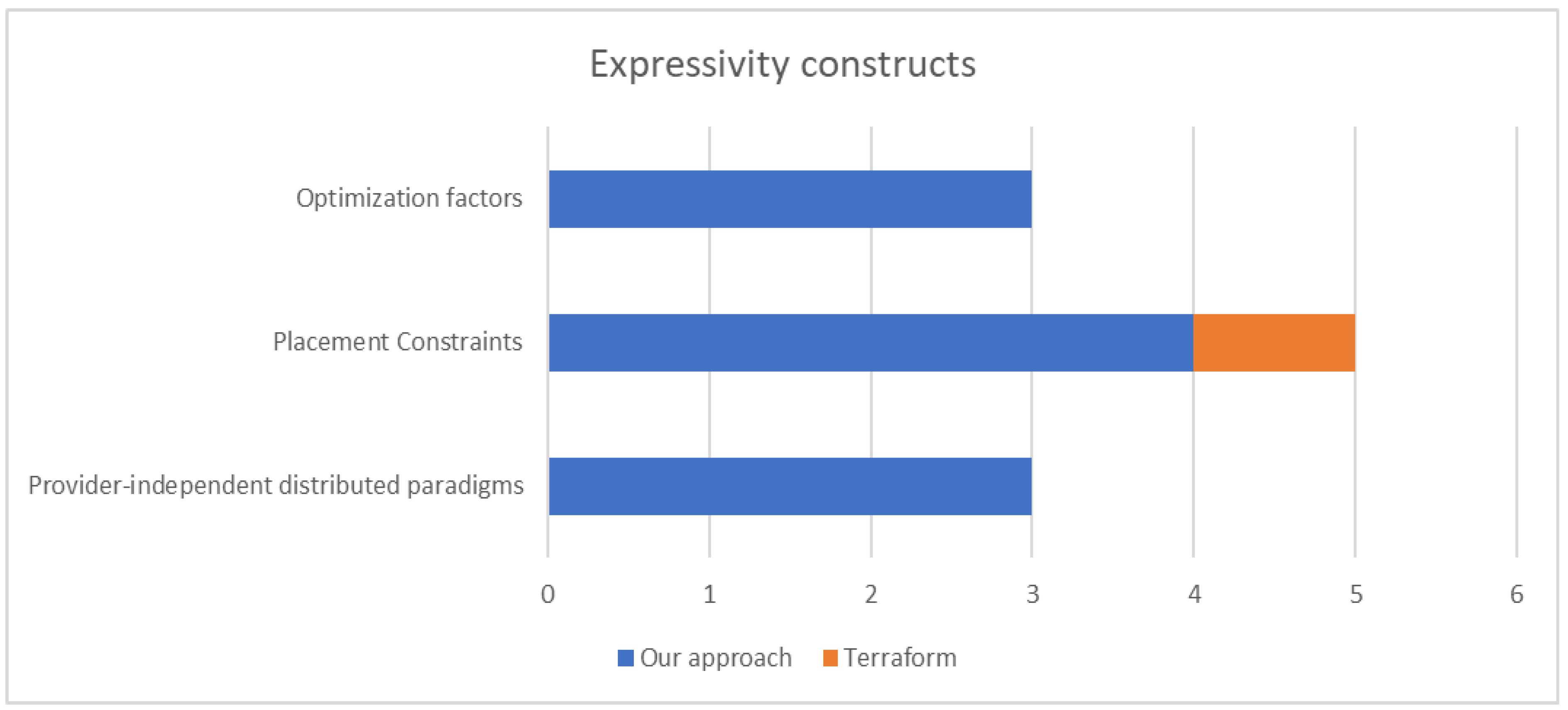

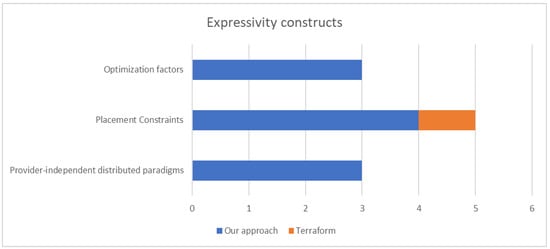

Regarding the relationship with existing solutions, in
Section 8 we chose to compare our work with one of the most successful current commercial solutions, Terraform. We showed that Terraform is unable to provide an abstract view of a processing topology, and is, therefore, unable to enforce cross-cloud optimization policies without significant manual intervention. Secondly, exact knowledge of the edge devices that are available, as well as the instance types that are offered by each provider, appears to be the only path that can be taken to optimize costs while retaining performance to an acceptable level for each application fragment. Additionally, Terraform and other vendor-specific, template-based approaches require the meticulous configuration of all fine-grained networking parameters on behalf of the DevOps.
In contrast, our approach isolates the specification of application components from their deployment, can handle both small-scale and large-scale applications, can provide for different optimization criteria, and is based on the open standard of TOSCA. Moreover, when coupled with a proper TOSCA interpreter and topology reconfiguration tools, such as those described in [
40], it provides a fully automated approach to application deployment and reconfiguration in a mixed edge–cloud infrastructure. Studies on improvements of TOSCA can readily be performed and will benefit companies requiring cross-cloud deployments on heterogeneous fog infrastructure, as TOSCA has the capacity to streamline and abstract the view of an application topology. Using type-level and instance-level TOSCA, the application description is not bound to any cloud provide, which allows the application to be preserved for long-term deployments.
For larger topologies, it is expected that the type-level TOSCA templates will become very lengthy. Even in this case, we believe that since the type and relative locations of nodes related to a particular fragment are known beforehand (processing, fragment, and mapping nodes), it will be easy to understand how a particular component is situated in the processing topology, provided that the structure of the application is based on the distributed software paradigms described in
Section 6. When more complex relationships are involved, additional software paradigms should be defined to streamline the understanding of the application topology.
As part of this work, we provided a prototype type-level TOSCA generator, which can be used to create type-level TOSCA for an application topology. We also provided a prototype type-level TOSCA interpreter able to suggest the processing resources that should be spawned. However, we showed that other components are needed, such as the optimizer and the instance-level TOSCA generator, along with a TOSCA orchestrator, in order to allow the full exploitation of our results. A definite future research direction involves the development of components that can create the required outputs and further extend the capabilities of the TOSCA ecosystem.
The creation, updating, and parsing processes for type-level TOSCA and instance-level TOSCA are currently the responsibility of platform components that are installed beforehand. Thus, a direction for future research could be the determination of the most appropriate way to express the deployment and operation of these components in TOSCA, without adding complexity to the topology template of the actual application. Additionally, a greater number of software architecture and application-specific structures can be modeled in TOSCA by any adopter choosing to customize the TOSCA generation procedure. Another interesting research line could involve the modeling and the optimization of services—complete topologies of microservices, as discussed in [
41]—as entities in TOSCA, which will be especially useful for organizations handling hundreds of microservices and tens of services.
While our approach provides for the modeling of edge and cloud CPU-based resources, we do not model the use of hardware accelerators such as field-programmable gate arrays (FPGAs) and graphics processing units (GPUs). However, FPGAs and GPUs are popular processing resources when increased performance, energy efficiency, and flexibility are desired in various application domains [
42]. Research on the modeling of accelerators and the further abstraction of application fragments could lead to application topologies concurrently featuring accelerator-based and CPU-based versions of a fragment. Coupled with the definition of appropriate constraints for accelerator-based fragments, this modeling effort will enable the automatic selection of the most appropriate processing form by a suitable TOSCA orchestrator.
Finally, applications that are defined using our methodology in TOSCA can easily profit from software components able to deploy and scale application topologies based on monitoring data. Using the suggested approach, scaling in and out or up and down is very easy to model and users can readily understand—even from a terminal window—the changes that the platform has undergone. This support can be further extended, by proposing specific modeling for scaling directives, e.g., using TOSCA policies [
5]. Based on the scaling directives, it is trivial to automatically create a new TOSCA template, which paves the way for a complete cloud adaptation approach, as described in [
30].
