4.1. Data Preparation
The UGR-16 dataset used in this paper contains 16.9 billion records. While the deep learning algorithms require high hardware resources, such as CPU, memory and GPU for data processing and training, a subset of data points that cover all types of normal and anomalous traffic from UGR’16 dataset was selected. The subset selection, which included all types of attacks, was conducted using specific measures to prevent imbalanced distributions and bias. The following measures were put in place:
Stratified sampling: The subset selection process employed stratified sampling techniques to ensure proportional representation of each type of attack. This approach helped maintain a balanced distribution of attacks in the subset.
Class balancing: Additional steps were taken to balance the representation of different attack types in the subset. This might include oversampling the minority classes or undersampling the majority classes to mitigate the imbalanced distribution.
Randomization: To minimize any potential bias, randomization techniques were applied during the subset selection process. This ensured that the selection was not influenced by any specific order or predetermined biases.
By implementing these measures, the subset selection aimed to create a representative subset of attacks that avoided imbalanced distributions and potential biases, enabling a more reliable analysis of the dataset.
This subset was then pre-processed, including cleaning it from the missing values and removing the duplicate instances. The details of the selected subset are shown in
Table 3.
Within the context of network security, normal traffic tends to occur more often than malicious traffic, leading to imbalanced class proportions and an imbalanced dataset [
22]. This poses a challenge for machine learning, as learning from imbalanced data is a common issue. In order to address this problem, one potential solution is to either undersample the majority class or oversample the minority classes.
In this paper, dataset records with class labels equal to the background are major. The other class labels are oversampled to obtain a balanced subset of the UGR’16 dataset. The original number of records and classes of the selected subset is given in
Table 3.
Since machine learning algorithms work with numerical data, some features in the dataset need to be encoded: protocol, source IP, destination IP and class label. One-hot encoded is used to convert these features. The dataset is then scaled using MinMaxScaler from the Scikit-learn library to scale the values to the interval [0,1].
Random forest classifier is used to explore the features importance based on mean decrease in impurity (MDI). The calculation for a given feature’s importance involves summing the number of splits that incorporate the feature across all trees, proportional to the number of samples that it splits.
Figure 1 shows the highest numerical features of the UGR’16 dataset based on MDI value. In the proposed model, all the features are included in the process, being the most important feature is the Source_IP.
4.2. Setup of Proposed Model
The generative adversarial network (GAN) is a machine learning-based deep learning method used to generate new data. It is an unsupervised learning task that involves learning from input data to produce new samples from the original dataset. GAN is used in the literature in many applications, such as computer vision [
23], time-series applications [
24], health [
25] and more, making significant advancement and outperformance in data generation. As many improvements and versions for the GAN are proposed, in order to fit it with the application domain and increase the performance and model accuracy [
26,

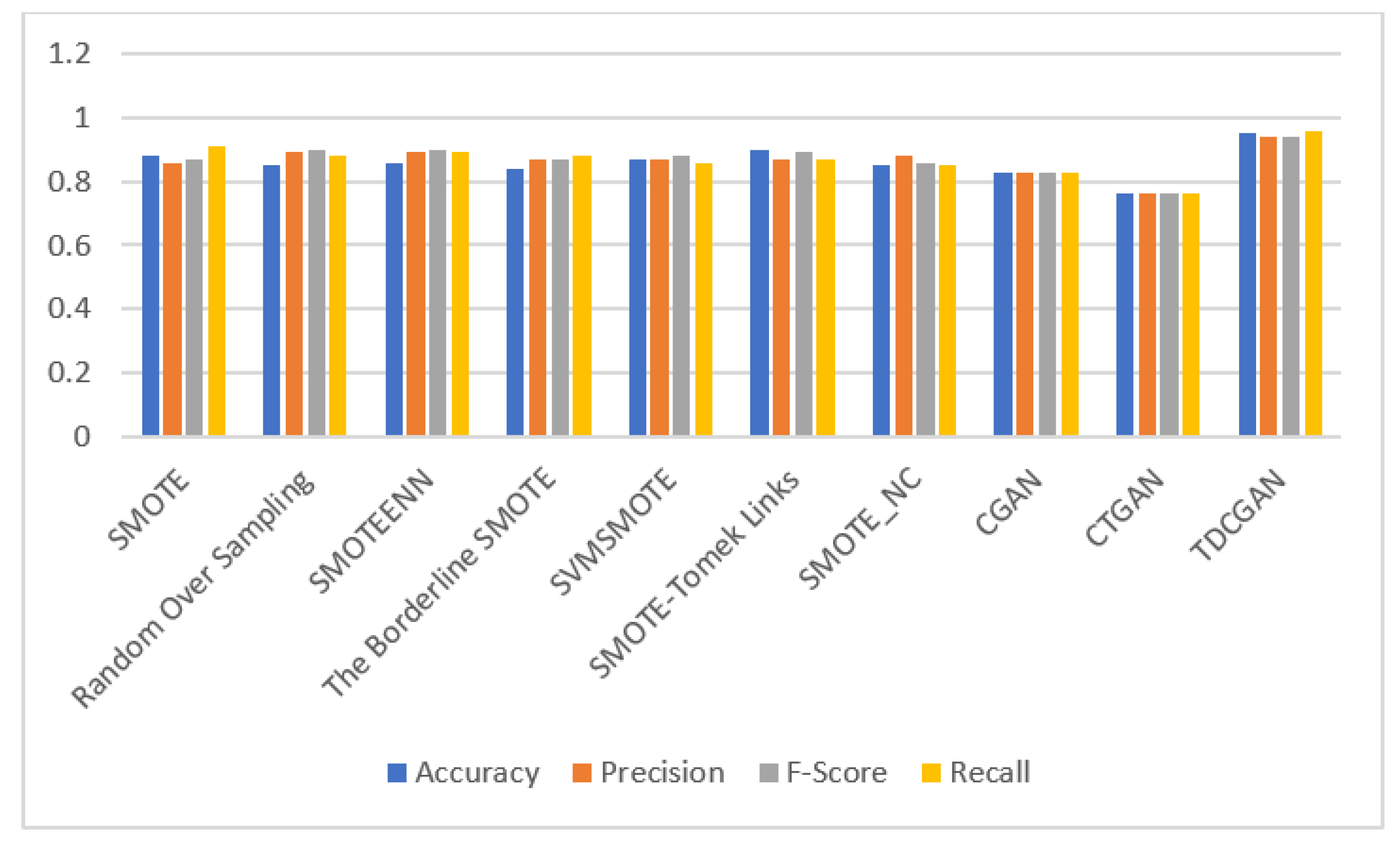

27], this paper proposes a new version of GAN called triple discriminator conditional generative adversarial networks (TDCGANs) as an augmentation tool to generate new data for the UGR’16 dataset with the aim to restore balance in the dataset by increasing minor attack classes.
In the TDCGAN, the architecture consists of one generator and three discriminators. The generator takes random noise from a latent space as input and generates raw data that closely resemble the real data, aiming to avoid detection by discriminators. Each discriminator is a deep neural network with different architecture and different parameter settings. Each discriminator’s role is to extract features from the output of the generator and classify the data with varying levels of accuracy for each them. An election layer is added to the end of TDCGAN architecture that obtains the output from the three discriminators and performs an election procedure to achieve the best result with the highest classification accuracy in a form of the ensemble method. The model aims to classify data into two groups: normal flows for the background traffic with 0 representation, and anomaly flows for the attack data with 1 representation. Additionally, in the case of anomaly flow, the model classifies it as its specific class type.
Figure 2 shows the workflow of the proposed TDCGAN model. The setting details of generator and each discriminator are given below.
The model of the generator is a deep multi-layer perceptron (MLP) composed of an input layer, output layer and four hidden layers. Initially, the generator takes a point from the latent space to generate new data. The latent space is a multi-dimensional hypersphere normal distributed points, where each variable is drawn from the distribution of the data in the dataset. An embedded layer in the generator creates a vector representation for the generated point. Through training, the generator learns to map points from the latent space into specific output data, which are different each time the model is trained. Taken a step further, new data are then generated using random points in the latent space. So, these points are used to generate specific data. The discriminator distinguishes the new data generated by the generator from the true data distribution.
GAN is an unsupervised learning method. Both the generator and discriminator models are trained simultaneously [
28]. The generator produces a batch of samples, which, along with real examples from the domain, are fed to the discriminator. The discriminator then classifies them as either real or fake. Subsequently, the discriminator undergoes updates to improve its ability to distinguish between real and fake samples in the subsequent round. Additionally, the generator receives updates based on its success or failure in deceiving the discriminator with its generated samples.
In this manner, the two models engage in a competitive relationship, exhibiting adversarial behavior in the context of game theory. In this scenario, the concept of zero-sum implies that when the discriminator effectively distinguishes between real and fake samples, it receives a reward, or no adjustments are made to its model parameters. Simultaneously, the generator is penalized with significant updates to its model parameters.
Alternatively, when the generator successfully deceives the discriminator, it receives a reward, or no modifications are made to its model parameters. Whereas, the discriminator is penalized. This is the generic GAN approach.
In the proposed TDCGAN model, the generator takes as input points from the latent space and produces data for the data distribution of the real data in the dataset. This is done through fully connected layers with four hidden layers, one input layer and one output layer. The discriminators try to classify the data into their corresponding class, which is done through a fully connected MLP network.
MLP has gained widespread popularity as a preferred choice among neural networks [
29,
30]. This is primarily attributed to its fast computational speed, straightforward implementation, and ability to achieve satisfactory performance with relatively smaller training datasets.
In this paper, the generator model learns how to generate new data similar to the minor class in the URG’16 dataset, while discriminators try to distinguish between real data from the dataset and the new one generated by generator. During the training process, both the generator and discriminator models are conditioned on the class label. This conditioning enables the generator model, when utilized independently, to generate minor class data within the domain that corresponds to a specific class label. The TGCGAN model can be formulated by integrating both the generator and three discriminators’ models into a single, larger model.
The discriminators undergo separate training, where each of the model weights are designated as non-trainable within the TDCGAN model. This ensures that solely the weights of the generator model are updated during the training process. This trainability modification specifically applies when training the TDCGAN model, not when training the discriminator independently. So, the TDCGAN model is employed to train the generator’s model weights by utilizing the output and error computed by the discriminator models.
Thus, a point in the latent space is provided as input to the TDCGAN model. The generator model creates the data based on this input, which is subsequently fed into the discriminator model. The discriminator then performs a classification, determining whether the data are real or fake, and in the case of fake data, the model classifies them to their corresponding type of attck.
The generator takes a batch of vectors (z), which are randomly drawn from the Gaussian distribution, and maps them to G(z), which has the same dimension as the dataset. The discriminators take the output from the generator and try to classify it. The loss is then evaluated between the observed data and the predicted data and is used to update the weights of the generator only to ensure that only generator weights are updated. The difference between the observed data and the predicted data is estimated using the cross-entropy loss function, which is expressed in the following equation:
where
is the true label (1 for malicious traffic and 0 for normal traffic) and
is the predicted probability of the observation (
i) calculated by the sigmoid activation function.
N is the number of observations in the batch.
The generator model has four hidden layers. The first one is composed of 256 neurons with a rectified linear unit (ReLU) activation function. An embedded layer is used between hidden layers to efficiently map input data from a high-dimension to lower-dimension space. This allows the neural network to learn the data relationship and process it efficiently. The second hidden layer consists of 128 neurons, the third has 64 neurons and the last one has 32 neurons, with the ReLU activation function used with them all, and a regularization dropout of 20% is added to avoid overfitting. The output layer is activated using the Softmax activation function with 14 neurons as the number of features in the dataset.
After defining the generator, we define the architecture of each discriminator in the proposed model. Each discriminator is a MLP model with a different number of hidden layers, different number of neurons and different dropout percentage. The first discriminator is composed of 3 hidden layers with 100 neurons for each and 10% dropout regularization. The second has five hidden layers with 64, 128, 256, 512, and 1024 neurons for each layer, respectively. The dropout percentage is 40%. The last discriminator has 4 hidden layers with 512, 256, 128, and 64 neurons for each layer and 20% dropout percentage. The LeakyReLU(alpha = 0.2) is used as an activation function for the hidden layers in the discriminators. Two output layers are used for each discriminator with the Softmax function as an activation function for one output layer and the Sigmoid activation function for the second output layer. The model is trained with two loss functions, binary cross entropy for the first output layer, and categorical cross-entropy loss for the second output layer. The output is extracted from each discriminator and is then fed to the last layer in the model, where the election is performed, to obtain the best result.
The TDCGAN model can be defined by combining both the generator model and the three discriminator models into one larger model. This large model is used to train the weights in the generator model, using the output and error calculated of the discriminators. The discriminators are trained separately by taking real input from the dataset.
The model is then trained for 1000 epochs with a batch size of 128. The optimizer is Adam with a learning rate equal to 0.0001. The proposed model allows the generator to train until it produces a new set of data samples that resembles the real distribution of the original dataset.
Nevertheless, this training strategy frequently fails to function effectively in various application scenarios. This is due to the necessity of preserving the relationships within the feature sets of the generated dataset by the generator, while the dataset used by the discriminator may differ from it. This disparity often leads to instability during the training of the generator.
In numerous instances, the discriminator quickly converges during the initial stages of training, thereby preventing the generator from reaching its optimal state. To tackle this challenge in network intrusion detection tasks, we adopt a modified training strategy, where three discriminators with different architectures are used. This approach helps preventing the early emergence of an optimal discriminator, ensuring a more balanced training process between the generator and discriminators.
