Brief Report

Use of a Partially Saturating Inductor in a Boost Converter with Model Predictive Control

by
Pietro Firpo
,
Alessandro Ravera
,
Alberto Oliveri
*,
Matteo Lodi
and
Marco Storace
Department of Electrical, Electronic, Telecommunications Engineering and Naval Architecture, University of Genoa, Via Opera Pia 11a, 16145 Genova, Italy
*
Author to whom correspondence should be addressed.
Electronics 2023, 12(14), 3013; https://doi.org/10.3390/electronics12143013
Submission received: 27 June 2023 / Revised: 6 July 2023 / Accepted: 7 July 2023 / Published: 9 July 2023
(This article belongs to the Special Issue Modeling and Control in Power Electronics and Electric Drives)
Browse Figures
Versions Notes

Abstract

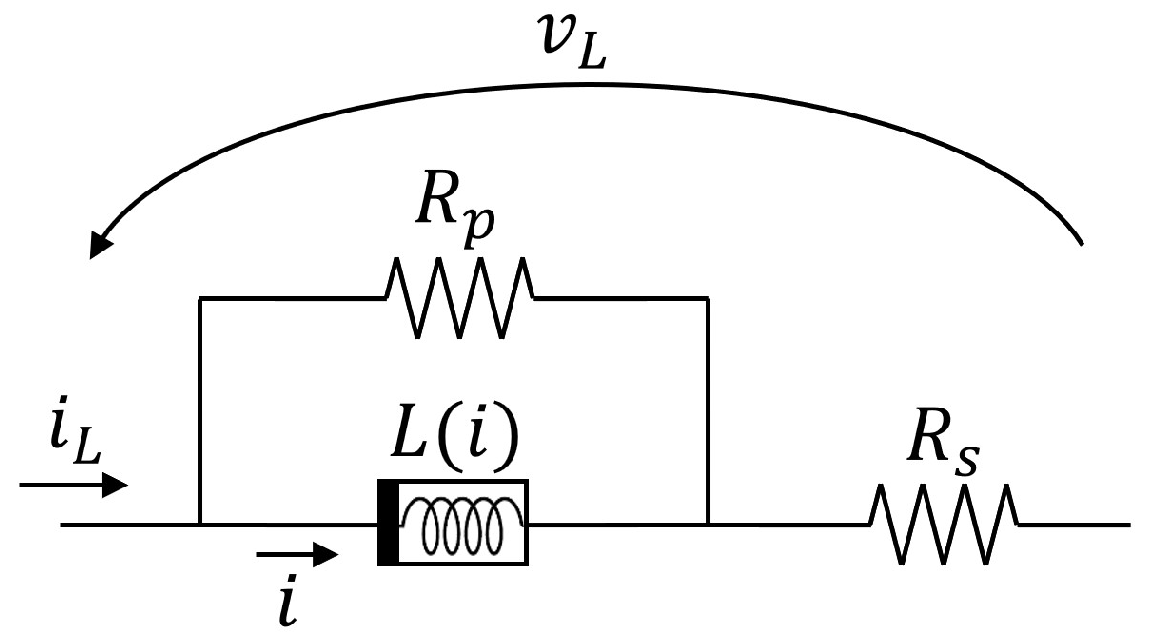

Increasing the power density in switched mode power supplies is one of the main goals in power electronics. This aim can be achieved by using smaller inductors operating at partial magnetic saturation. In this work, a partially saturating ferrite core inductor is exploited in a switching DC-DC boost converter, regulated through nonlinear model predictive control. A nonlinear behavioral inductor model, identified through experimental measurements, accounts for both magnetic saturation and losses. The simulation results show that the converter output voltage is correctly regulated and the imposed current constraints are fulfilled, even when partial magnetic saturation occurs. Comparisons with traditional control techniques are also presented.
Keywords: magnetic saturation; switched mode power supply; nonlinear model predictive control magnetic saturation; switched mode power supply; nonlinear model predictive control
