Application of A* Algorithm Based on Extended Neighborhood Priority Search in Multi-Scenario Maps
Abstract
:1. Introduction
- (1)
- We designed an ENMSA-A* algorithm that adaptively adjusts the search weight of the heuristic function based on the obstacle distribution of the scene map, which adopts the fitting priority search strategy and can update the movement direction in real time according to the search location, which is suitable for a variety of scene maps, and the comprehensive performance is better than the traditional A* algorithm.
- (2)
- We determined the distribution of obstacles in the scene map by segmentation and then fusion and designed a more robust heuristic function on this basis.
- (3)

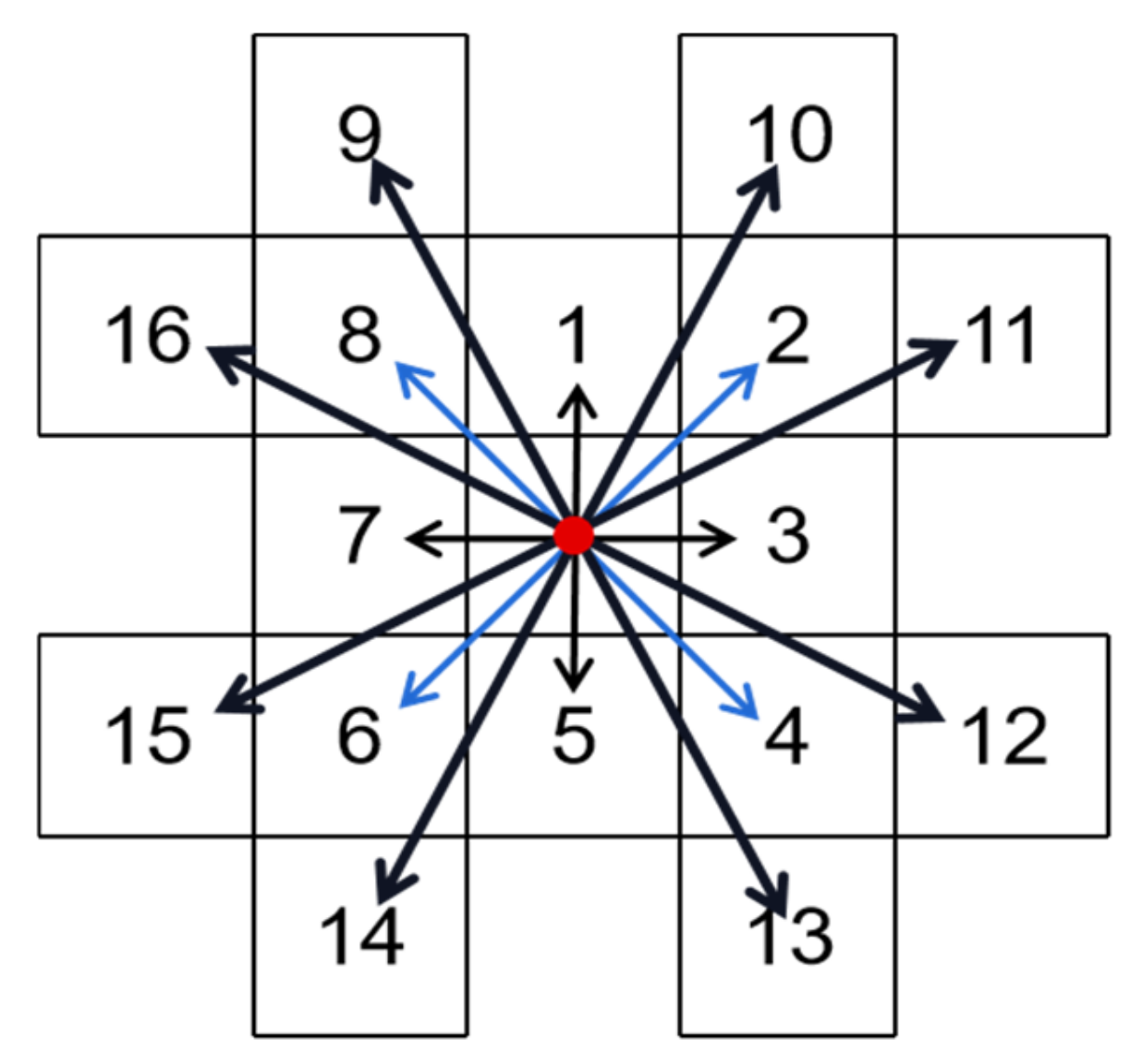

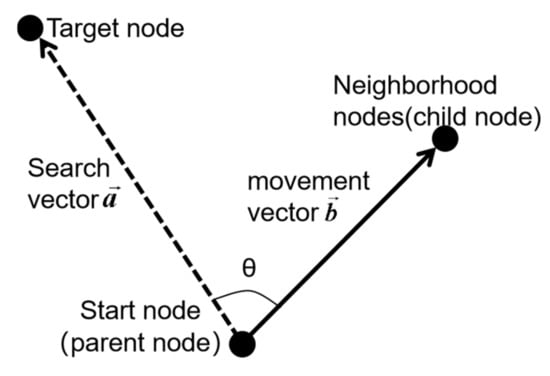

- According to the relative position relationship between vectors, we designed a new dynamic programming matrix and assigned priority in the extended 16 neighborhoods, so as to enhance the guidance and search speed of the ENMSA-A* algorithm.
- (4)
- By judging the distance and connectivity between each four turning points, a better route can be selected to obtain a relatively smooth path, which makes the ENMSA-A* algorithm more suitable for the daily work of mobile robots.

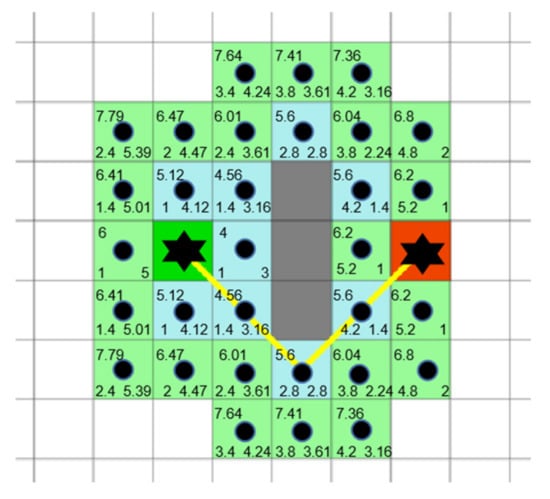

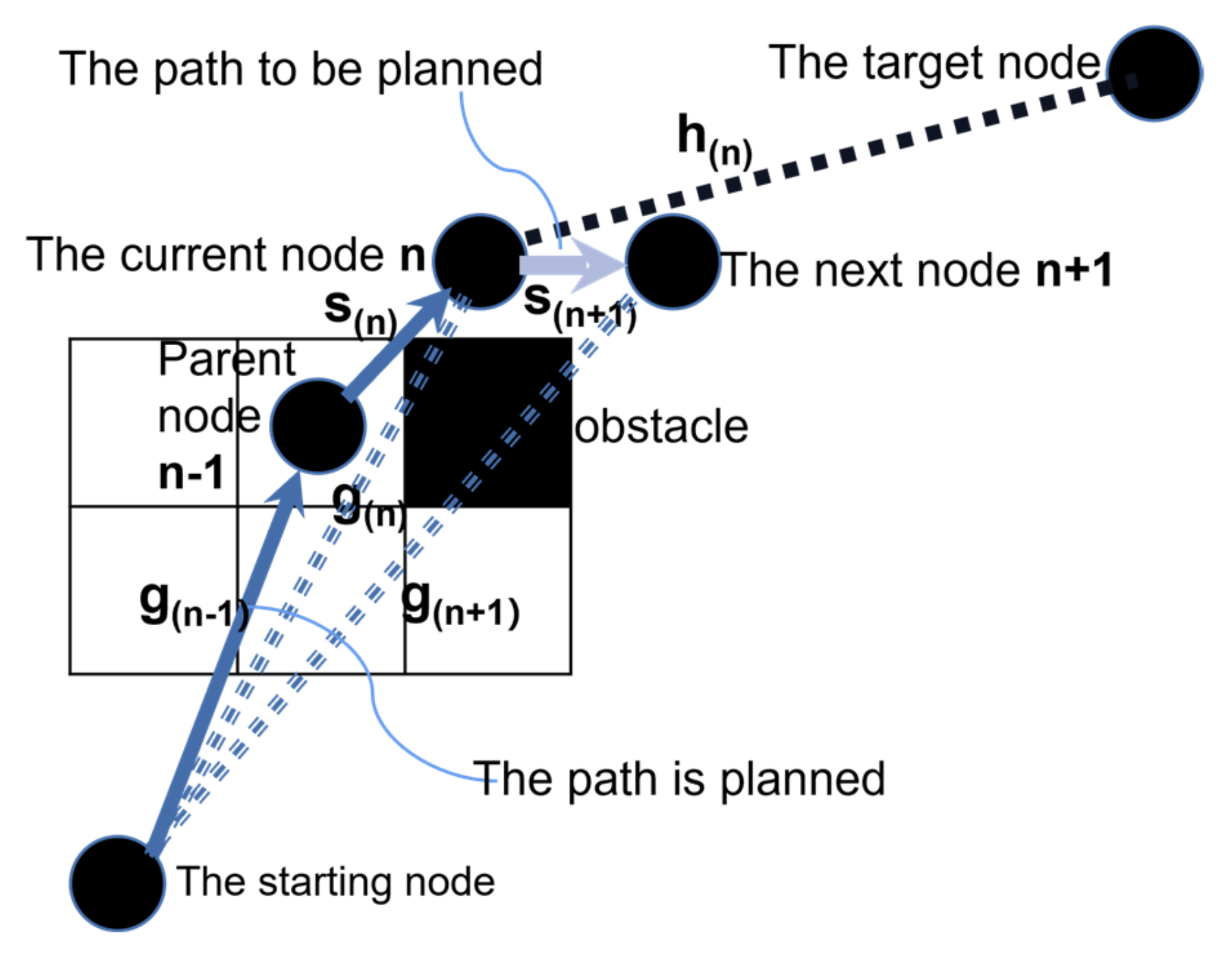

2. Traditional A* Algorithm
3. ENMSA-A* Algorithm

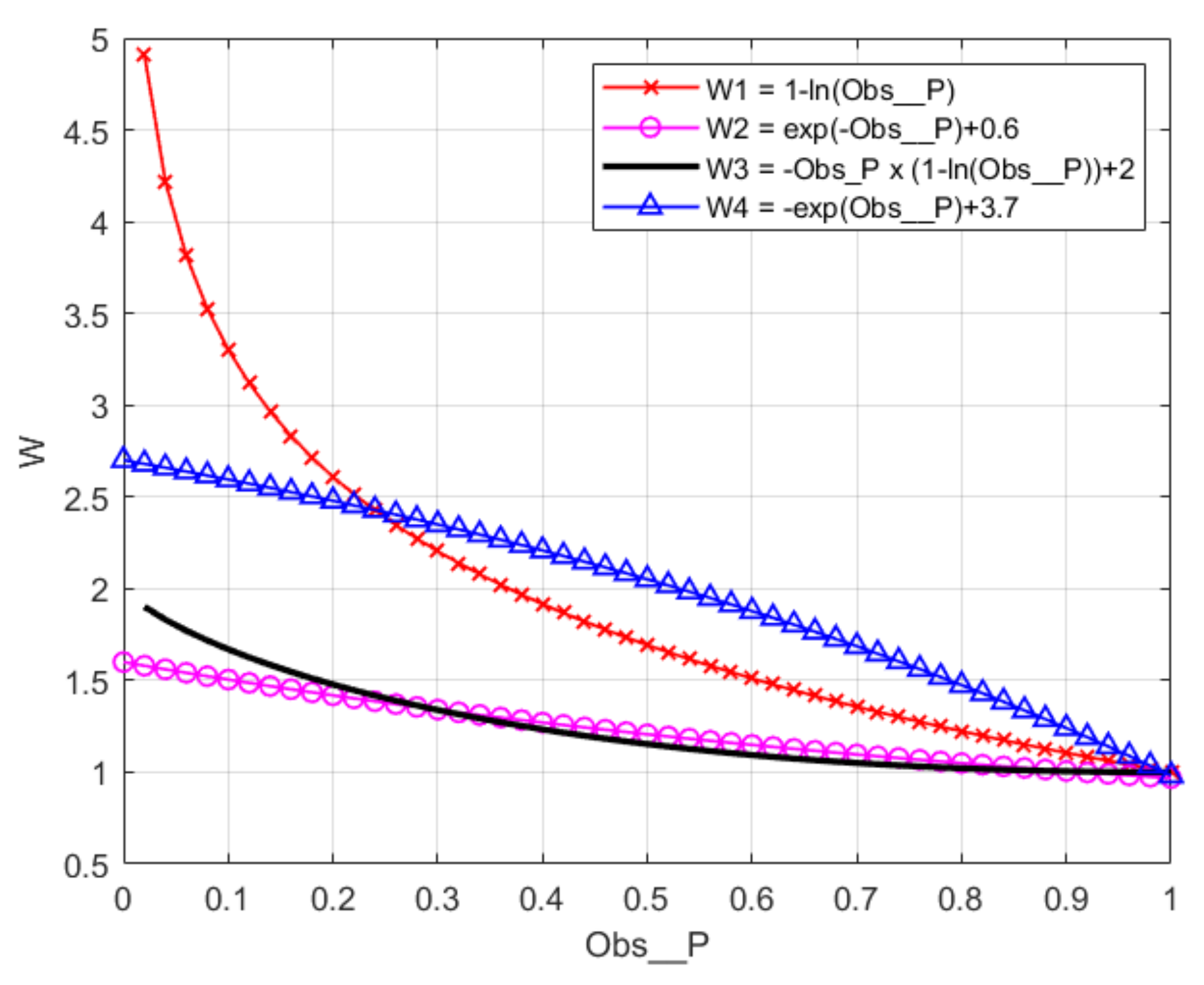

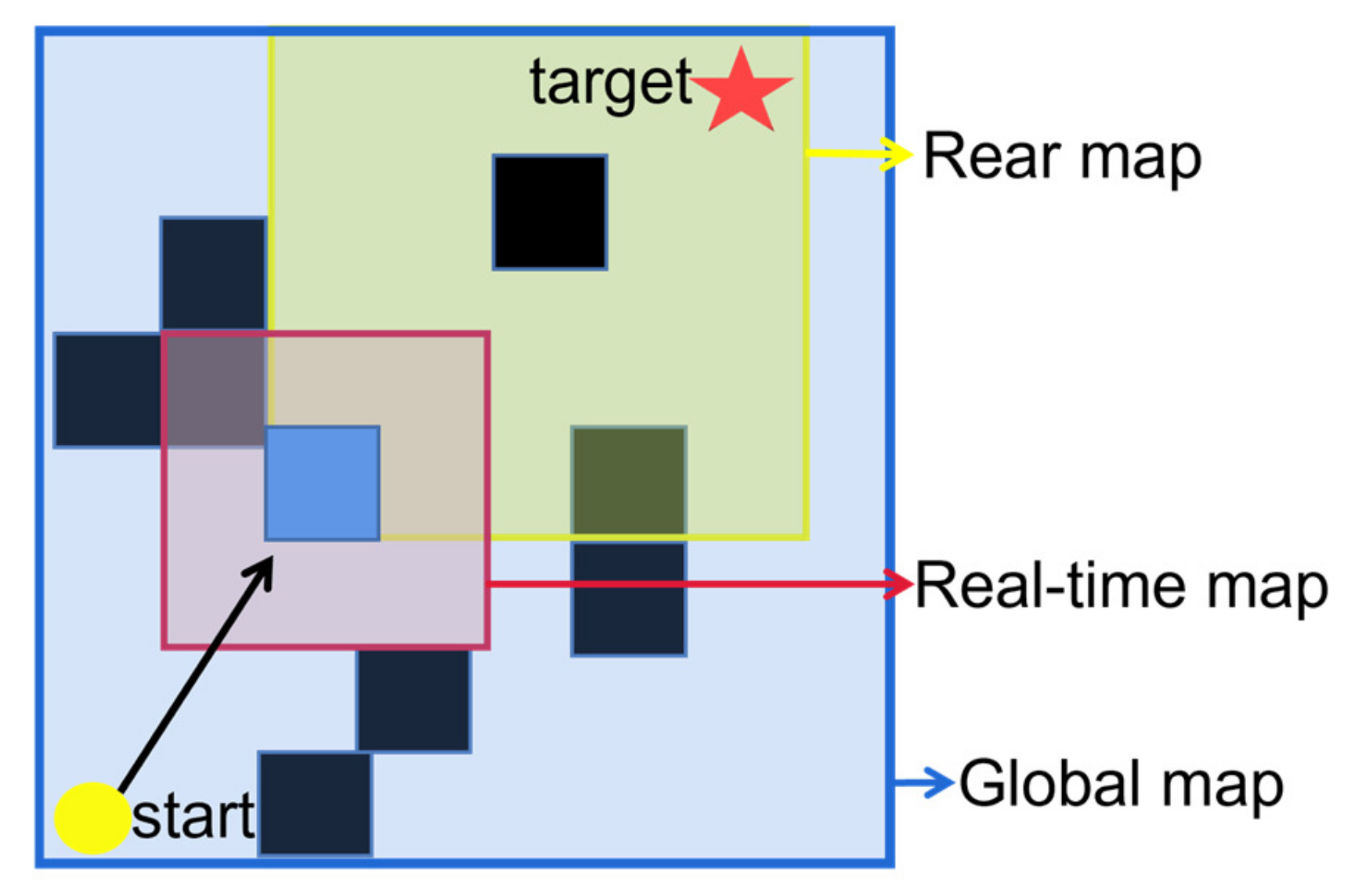

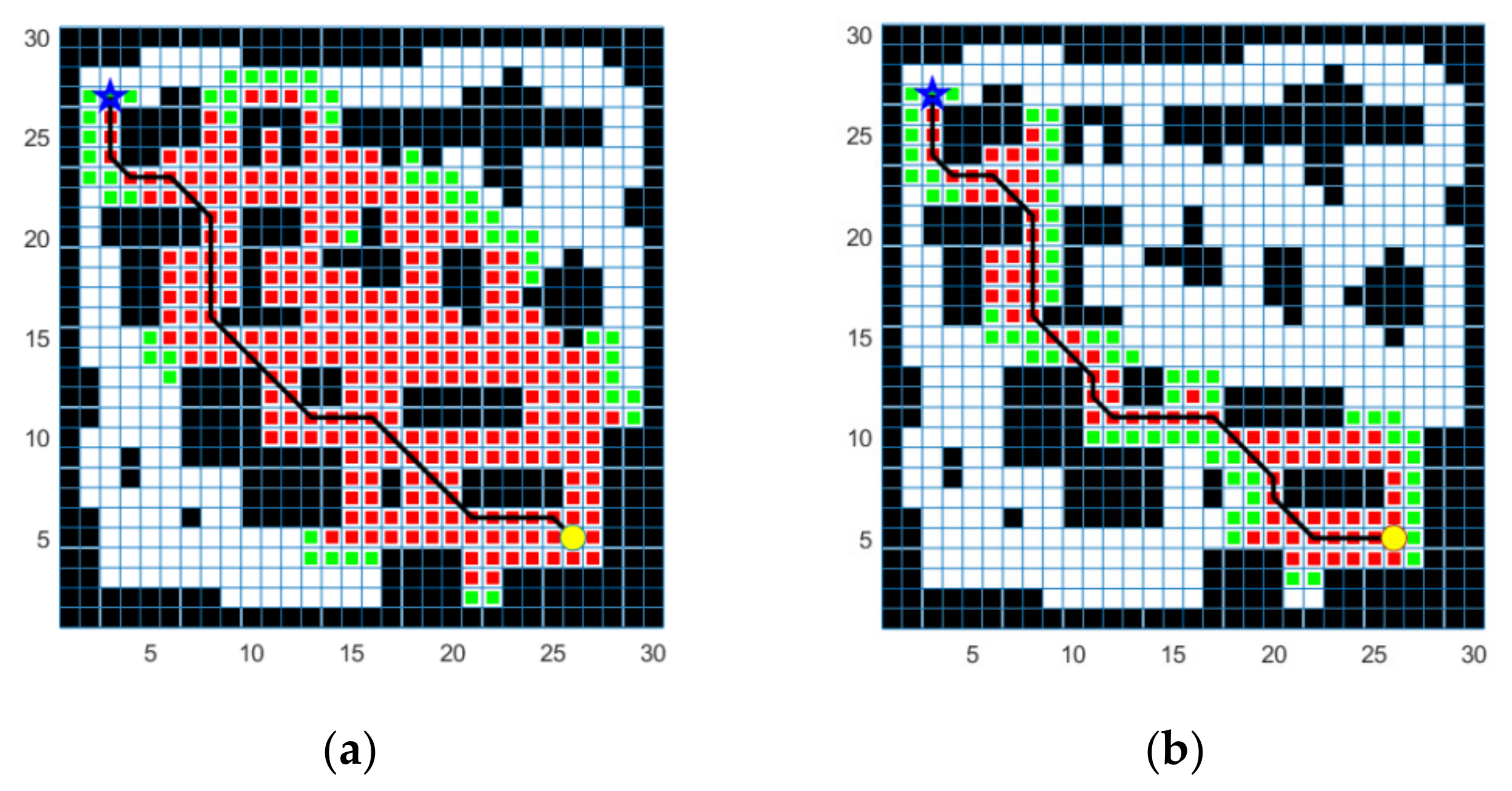

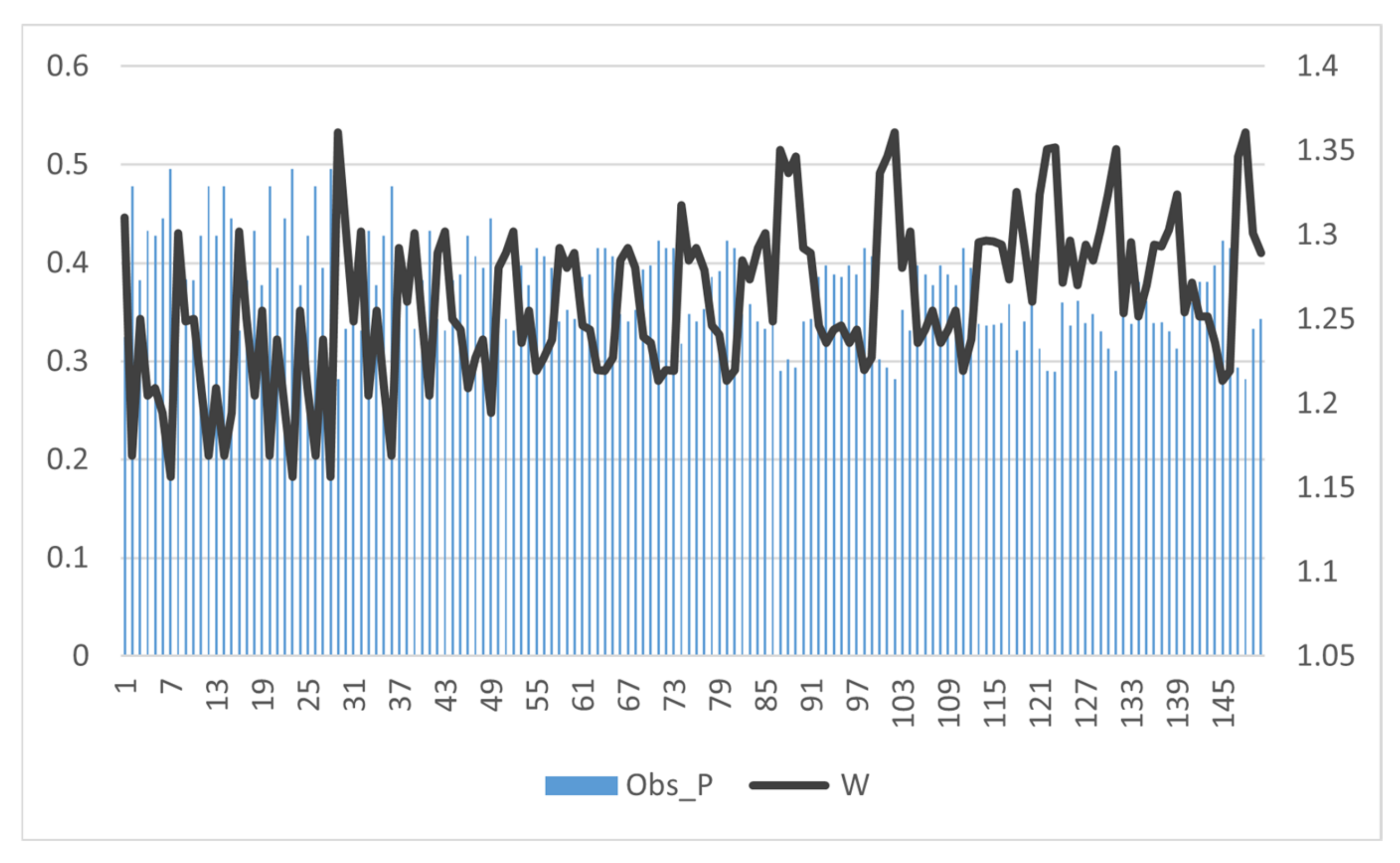

3.1. Adaptive Weight Strategy
3.2. Extend the Neighborhood Priority Search Strategy

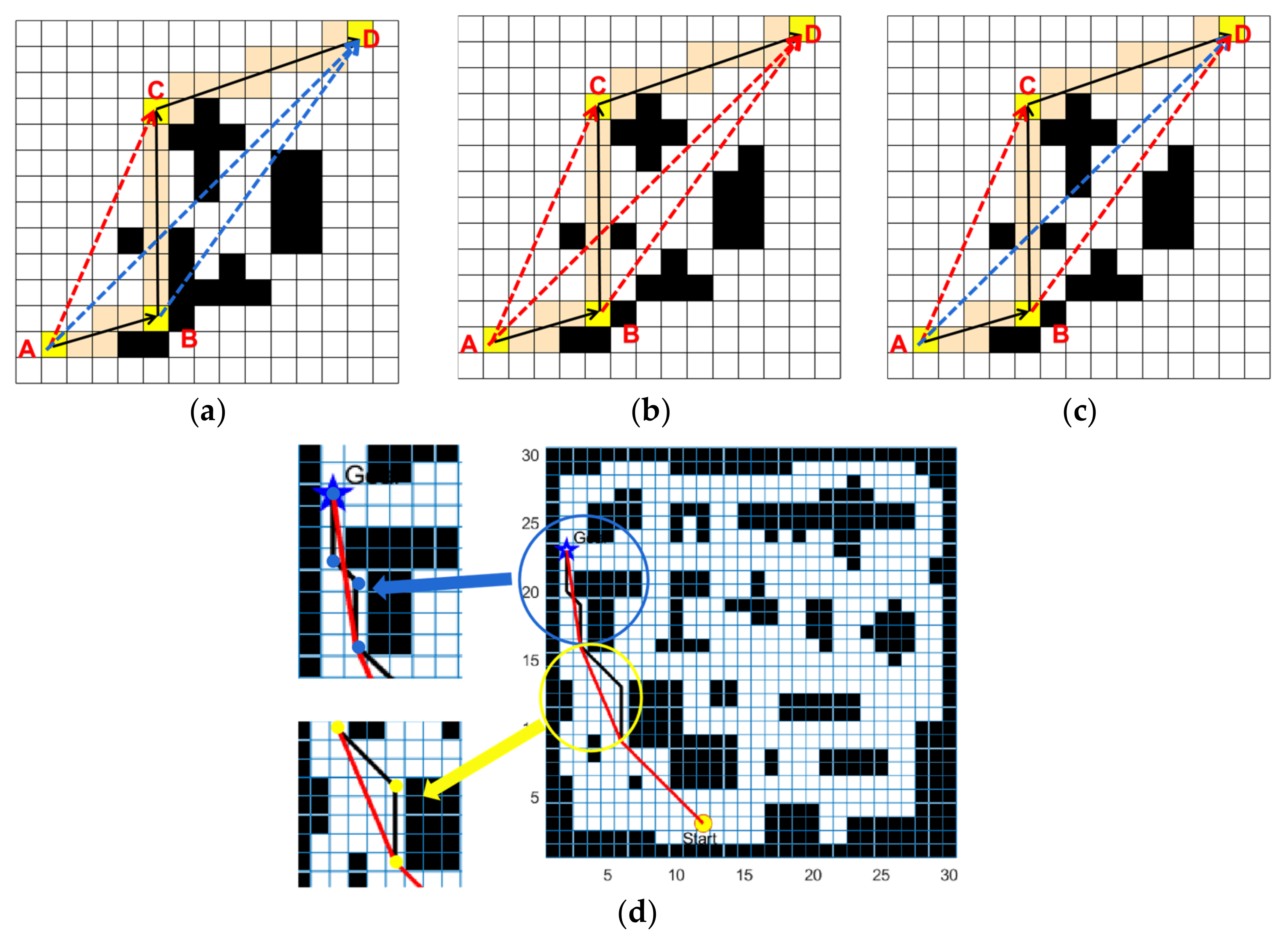

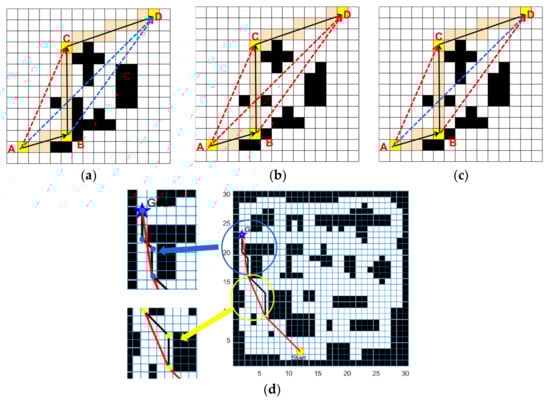

3.3. Redundant Node Deletion Strategy

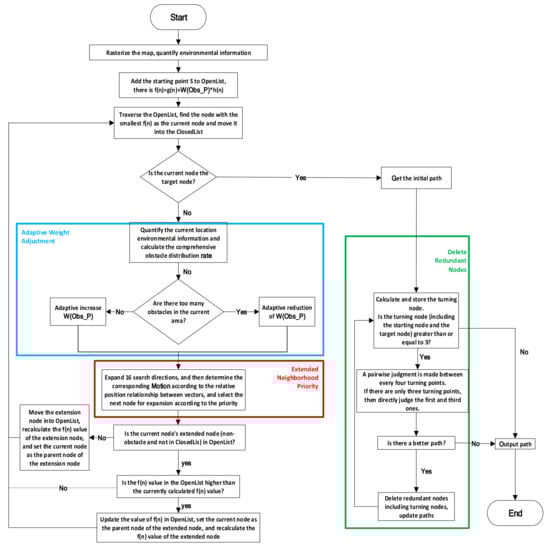

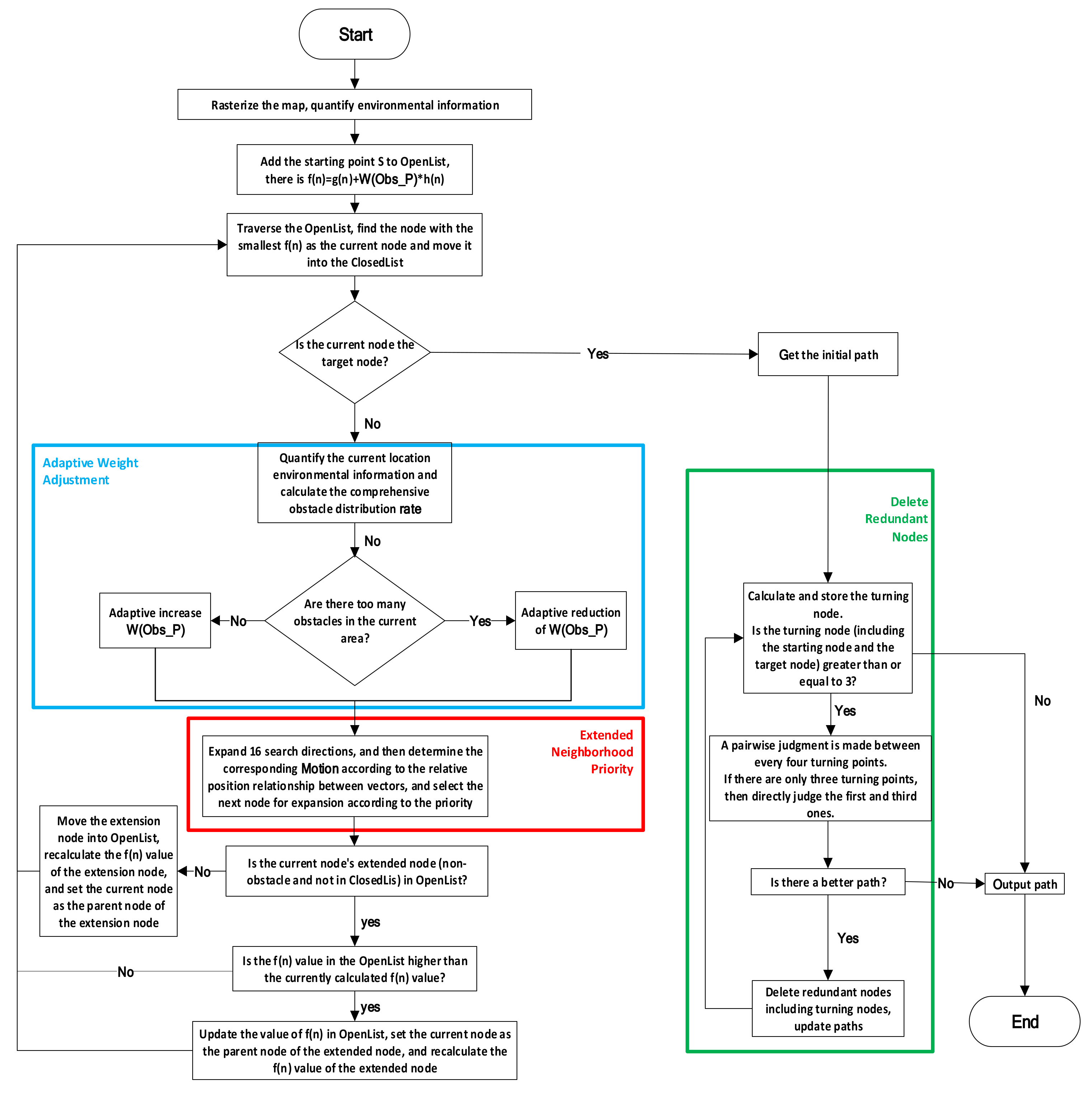

3.4. ENMSA-A* Algorithmic Process
3.5. Performance Robustness Evaluation Index Design of Algorithms

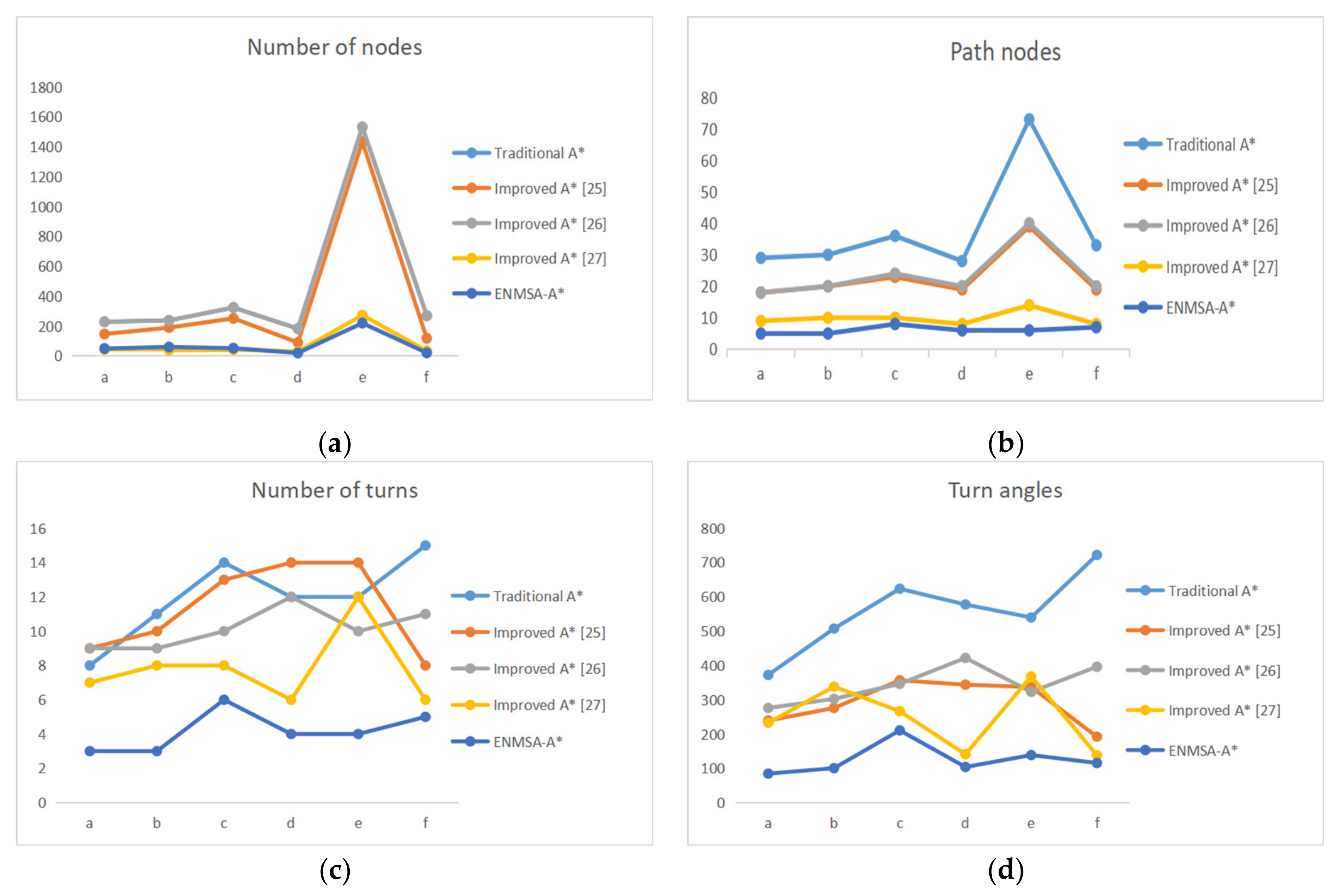

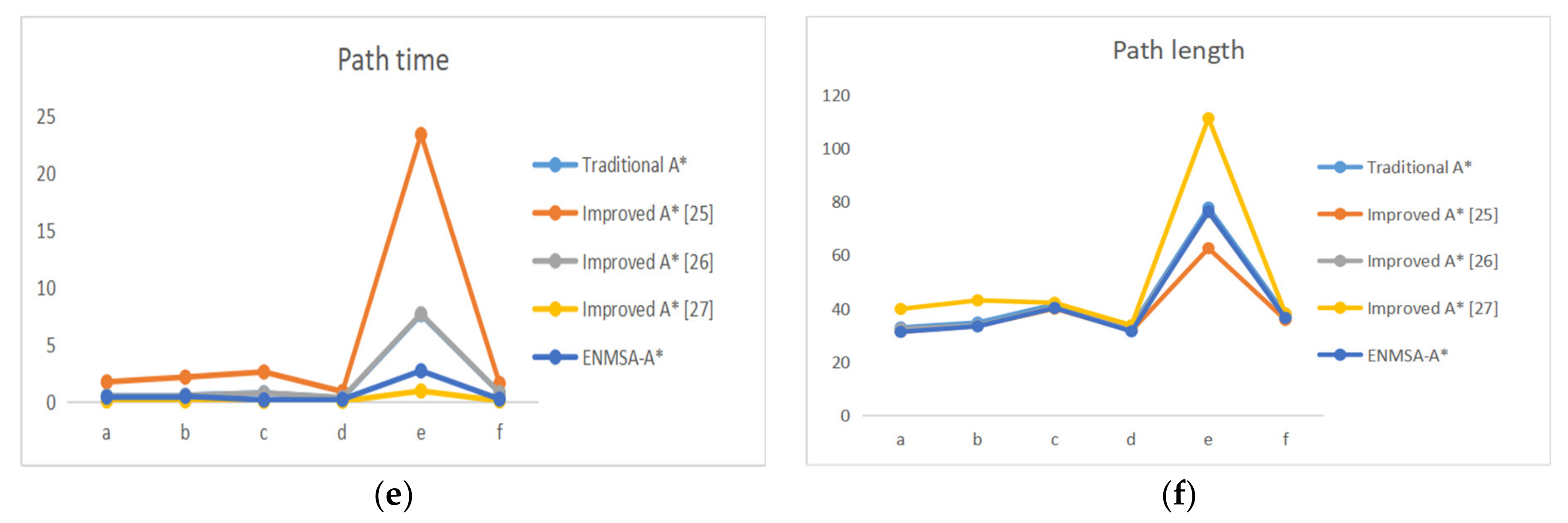

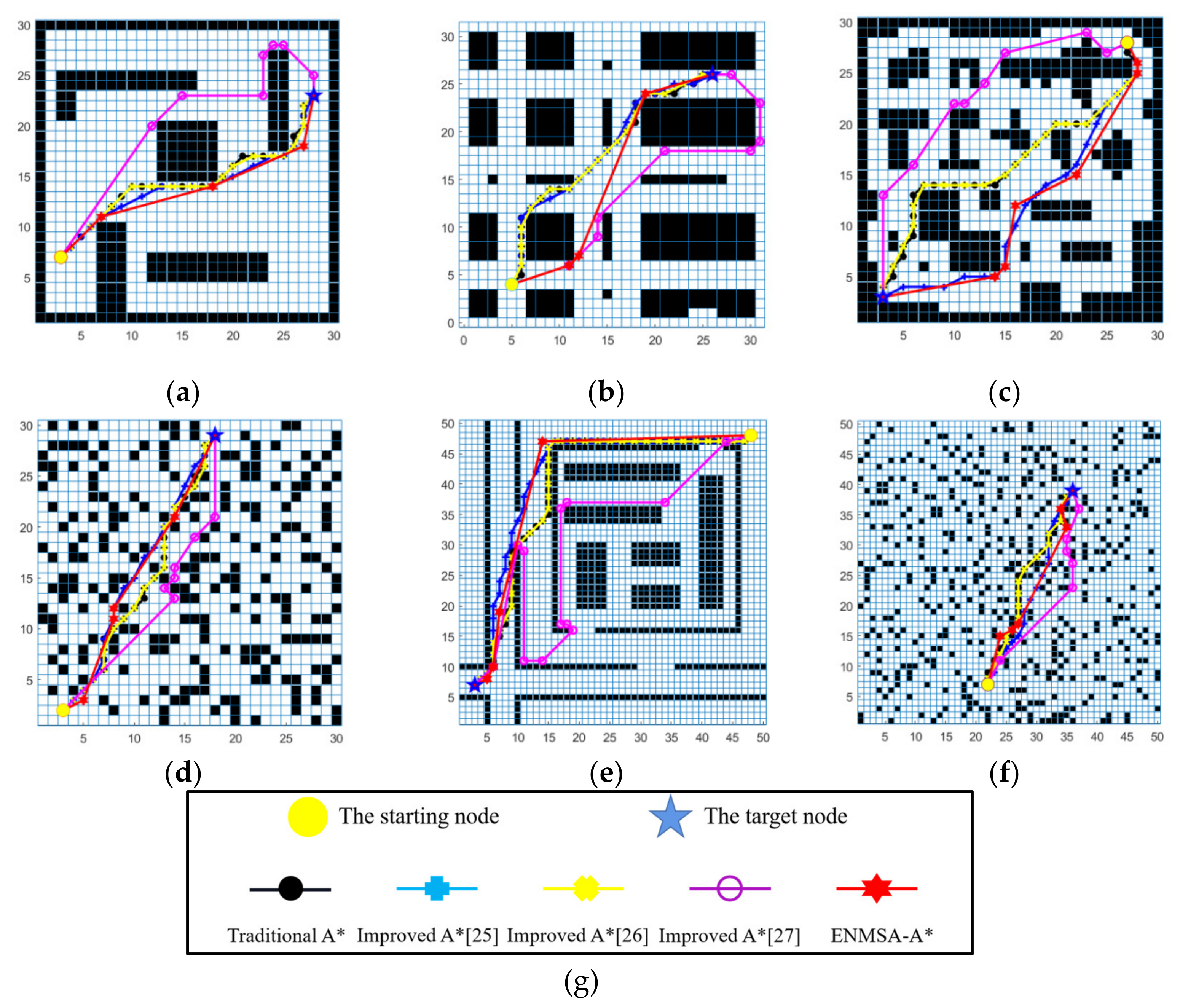

4. Comparative Analysis of ENMSA-A* Algorithm
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Zhu, D.Q.; Yan, M.Z. Survey on technology of mobile robot path planning. Control Decis. 2010, 25, 961–967. [Google Scholar]
- Bao, Q.Y.; Li, S.M.; Shen, H.; Men, X.H. Survey of local path planning of autonomous mobile robot. Transducer Microsyst. Technol. 2009, 28, 1–4. [Google Scholar]
- Lu, X.H.; Zhang, G.L. Summarization on indoor service robot navigation. Robot 2003, 25, 80–87. [Google Scholar]
- Liang, J.; Han, D.; Pan, Z.; Chen, L.; Chen, F.; Du, W. Review on Critical Technologies of Robot-based Intelligent Garages. J. Mech. Eng. 2022, 58, 1–20. [Google Scholar]
- Hernández, B.; Giraldo, E. A Review of Path Planning and Control for Autonomous Robots. In Proceedings of the 2018 IEEE 2nd Colombian Conference on Robotics and Automation (CCRA), Barranquilla, Colombia, 1–3 November 2018; pp. 1–6. [Google Scholar]
- DíazBayona, J.L.; GonzálezPilonieta, J.D.; MolinaLache, R.M.; Prada, S.R. Development of a control system for path following applications in an AGV using computer vision. In Proceedings of the 2020 IX International Congress of Mechatronics Engineering and Automation (CIIMA), Cartagena, Colombia, 4–6 November 2020; pp. 1–6. [Google Scholar]
- Hart, P.E.; Nilsson, N.J.; Raphael, B. A Formal Basis for the Heuristic Determination of Minimum Cost Paths. IEEE Trans. Syst. Sci. Cybern. 1968, 4, 100–107. [Google Scholar] [CrossRef]
- Wang, Z.; Hu, X.; Li, X.X.; Du, Z.Q. Overview of Global Path Planning Algorithms for Mobile Robots. Comput. Sci. 2021, 48, 19–29. [Google Scholar]
- Mac, T.T.; Copot, C.; Tran, D.T.; De Keyser, R. Heuristic approaches in robot path planning: A survey. Robot. Auton. Syst. 2016, 86, 13–28. [Google Scholar] [CrossRef]
- Shen, K.; You, Z.; Liu, Y.; Huang, T. Mobile robot planning based on improved A* algorithm. Appl. Res. Comput. 2023, 40, 75–79. [Google Scholar]
- Zhang, H.; Li, H.; Liu, H.; Xu, W.; Zou, Y. Path Planning for Logistics Unmanned Aerial Vehicle in Urban Area. J. Transp. Syst. Eng. Inf. Technol. 2020, 20, 22–29. [Google Scholar]
- Zhang, X.Y.; Zou, Y.S. Collision-free path planning for automated guided vehicles based on improved A* algorithm. Syst. Eng.-Theory Pract. 2021, 41, 240–246. [Google Scholar]
- Pang, L.; Cao, Z.; Yu, J. A pedestrian-aware collision-free following approach for mobile robots based on A* and TEB. Acta Aeronaut. Astronaut. Sin. 2021, 42, 524909. [Google Scholar]
- Qi, Z.G.; Huang, P.F.; Liu, Z.X.; Han, D. Research on Path Planning Method of Spatial Redundant Manipulator. Acta Autom. Sin. 2019, 45, 1103–1110. [Google Scholar]
- Zhang, W.; Zhang, Y.; Zhang, H. Path planning of coal mine rescue robot based on inproved A* algorithm. Coal Geol. Explor. 2022, 50, 185–193. [Google Scholar]
- Liu, G.; Ma, Y.; Qi, F.; Xu, Y. Flight path planning for urban logistics UAV based on improved A*-APF algorithm. Flight Dyn. 2022, 40, 16–23. [Google Scholar]
- Lian, Y.; Xie, W. Improved A* path planning algorithm for vision-guided multi-AGV system. Control Decis. 2021, 3, 1881–1890. [Google Scholar]
- Jiao, Q.; Chen, X.; Zheng, Z.; Bai, Y.; Liu, Y.; Zhang, Z.; Sun, L. Dynamic path planning of unmanned aerial vehicle based on crowd density prediction. Prog. Geogr. 2021, 40, 1516–1527. [Google Scholar] [CrossRef]
- Wang, H.; Yin, P.; Zheng, W.; Wang, H.; Zuo, J. Mobile Robot Path Planning Based on Improved A* Algorithm and Dynamic Window Method. Robot 2020, 42, 346–353. [Google Scholar]
- Yan, X.; Chang, T.; Guo, L. Research on path planning of unmanned vehicle in off-road battlefield environment. J. Ordnance Equip. Eng. 2022, 43, 288–293. [Google Scholar]
- Ouyang, M.; Ma, Y. Path planning for gravity aided navigation based on improved A* algorithm. Chin. J. Geophys. 2020, 63, 4361–4368. [Google Scholar]
- Zhang, D.; Sun, X.; Fu, S.; Zheng, B. Cooperative path planning in multi robots for intelligent warehouse. Comput. Integr. Manuf. Syst. 2018, 24, 410–418. [Google Scholar]
- Zhao, C.; Jiang, H.; Xu, M.; Man, W.; Yang, W.; Chen, F. Application of improved A algorithm in unmanned ship path planning. J. Zhejiang Univ. Technol. 2022, 50, 615–620. [Google Scholar]
- Ju, C.; Luo, Q.; Yan, X. Path Planning Using an Improved A-star Algorithm. In Proceedings of the 2020 11th International Conference on Prognostics and System Health Management (PHM-2020 Jinan), Jinan, China, 23–25 October 2020; pp. 23–26. [Google Scholar]
- Junwei, Y.; Jing, H.; Guang, C. Improved Safety-First A-Star Algorithm for Autonomous Vehicles. In Proceedings of the 2020 5th International Conference on Advanced Robotics and Mechatronics (ICARM), Shenzhen, China, 18–21 December 2020; pp. 706–710. [Google Scholar]
- Wang, Z.; Zeng, G.; Huang, B.; Fang, Z. Global optimal path planning for robots with improved A* algorithm. J. Comput. Appl. 2019, 9, 2517–2522. [Google Scholar]
- Liu, S.; Ma, Y.; Meng, S.; Sun, S. Improved A* algorithm for path planning of AGV. J. Comput. Appl. 2019, 39, 41–44. [Google Scholar]
- Zhang, H.; Zhang, Y.; Liang, R.; Yang, T. Energy-efficient pathplanning method for robots based on improved A* algorithm. Syst. Eng. Electron. 2023, 45, 513–520. [Google Scholar]
- Li, X.; Hu, X.; Wang, Z.; Du, Z. Path Planning Based on Combinaion of Improved A-STAR Algorithm and DWA Algorithm. In Proceedings of the 2020 2nd International Conference on Artificial Intelligence and Advanced Manufacture (AIAM), Manchester, UK, 15–17 October 2020; pp. 99–103. [Google Scholar]
- Gao, H.; Ma, Z.; Zhao, Y. A Fusion Approach for Mobile Robot Path Planning Based on Improved A* Algorithm and Adaptive Dynamic Window Approach. In Proceedings of the 2021 IEEE 4th International Conference on Electronics Technology (ICET), Chengdu, China, 7–10 May 2021; pp. 882–886. [Google Scholar]
- Yang, H.; Li, Y.; Sun, H.; Li, Z. Research on path planning of mobile robots with optimal path. J. Mach. Des. 2022, 39, 58–67. [Google Scholar]
- Zhong, X.; Tian, J.; Hu, H.; Peng, X. Hybrid Path Planning Based on Safe A* Algorithm and Adaptive Window Approach for Mobile Robot in Large-Scale Dynamic Environment. J. Intell. Robot. Syst. 2020, 99, 65–77. [Google Scholar] [CrossRef]

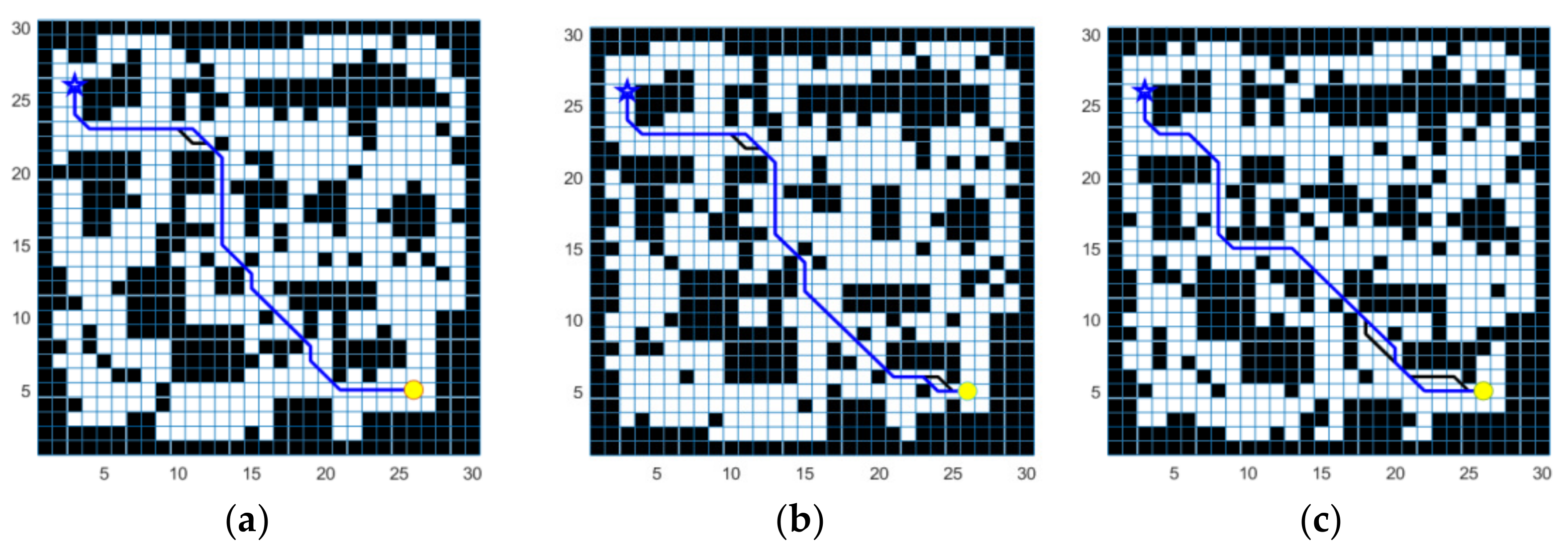

Algorithm | Robustness | Real-Time Adaptability | Search Efficiency | Path Optimization | Path Smoothness | |
---|---|---|---|---|---|---|
Stability | Performance Robustness | |||||
Improved A* [24] | moderate | weak | weak | weak | strong | moderate |
Improved A* [25] | strong | weak | moderate | weak | strong | strong |
Improved A* [26] | strong | weak | weak | moderate | weak | moderate |
Improved A* [27] | weak | weak | weak | weak | weak | weak |
Improved A* [28] | moderate | moderate | moderate | weak | weak | weak |
Improved A* [29,30,31,32] | moderate | moderate | strong | weak | moderate | strong |
Algorithm | Number of Nodes | Path Nodes | Number of Turns | Turn Angles (°) | Path Time (s) | Path Length (m) |
---|---|---|---|---|---|---|
Traditional A* | 280 | 32 | 9 | 405 | 0.702 | 36.7990 |
Adaptive weight strategy | 87 | 34 | 12 | 540 | 0.241 | 37.9706 |
Maps | Algorithm | Number of Nodes | Path Nodes | Number of Turns | Turn Angles (°) | Path Time (s) | Path Length (m) |
---|---|---|---|---|---|---|---|
(a) | Traditional A* | 242 | 32 | 12 | 540 | 0.673 | 37.5563 |
Adaptive weight strategy | 93 | 34 | 10 | 450 | 0.255 | 37.5563 | |
(b) | Traditional A* | 230 | 33 | 12 | 540 | 0.614 | 36.9706 |
Adaptive weight strategy | 78 | 33 | 10 | 450 | 0.231 | 36.9706 | |
(c) | Traditional A* | 163 | 32 | 12 | 540 | 0.412 | 36.3848 |
Adaptive weight strategy | 60 | 32 | 10 | 450 | 0.189 | 36.3848 |
Number of Nodes | Path Nodes | Number of Turns | Turn Angles (°) | Path Time (s) | Path Length (m) | ||
---|---|---|---|---|---|---|---|
Traditional A* algorithm | 8 search neighborhood | 280 | 32 | 9 | 405 | 0.709 | 36.7990 |
16 search neighborhood | 35 | 17 | 15 | 321.0588 | 0.394 | 41.0197 | |
Extend Neighborhood Priority Search Strategy | N = 1 | 35 | 21 | 13 | 386.3406 | 0.355 | 41.4274 |
N = 4 | 35 | 22 | 15 | 480.3623 | 0.331 | 41.6055 | |
N = 8 | 35 | 21 | 15 | 321.0588 | 0.302 | 41.0197 | |
N = 12 | 35 | 21 | 15 | 321.0588 | 0.302 | 41.0197 | |
N = 16 | 35 | 21 | 15 | 321.0588 | 0.302 | 41.0197 | |
N = 20 | 35 | 21 | 15 | 321.0588 | 0.302 | 41.0197 |
Traditional A* | Improved A* [25] | Improved A* [26] | Improved A* [27] | ENMSA-A* | |
---|---|---|---|---|---|
Number of nodes | 1 | 19.67 | 0 | 83.54 | 84.95 |
Path nodes | 1 | 39.74 | 38 | 74.24 | 83.84 |
Number of turns | 1 | 5.56 | 15.28 | 34.72 | 65.28 |
Turns angles | 1 | 47.78 | 38.16 | 55.54 | 77.38 |
Path time | 1 | −200.79 | −1.1 | 85.85 | 58.47 |
Path length | 1 | 8.92 | 2.28 | −19.47 | 3.36 |
V | 0 | 0.2827 | 1.2026 | 4.4438 | 5.5555 |
