1. Introduction
Industrial control systems include SCADA (supervisory control and data acquisition), DCSs (distributed control systems), and industrial sensing devices [
1]. With the development of information and communication, automation, and computer technologies, industrial facilities have gradually adopted TCP/IP as a communication system, but many industrial facilities still use bus networks as the underlying communication system [
2] including, for example, the fieldbus standard PROFIBUS-DP [
3] and the military standard MIL-STD-1553 for avionics bus network infrastructure [
4]. Considering the perspective of network security, bus networks have proven to be vulnerable to denial-of-service, replay, and injection attacks due to the lack of cryptographic authentication mechanisms in bus protocols [
5,
6,
7]. Consequently, the security issues and threats faced by ICS bus networks have received increasing attention.
To detect ICS attacks, statistical analysis [
6,
8,
9] based on a “five-tuple” (i.e., <packet length, port, response time, destination IP, and source IP>) of ICS protocols is effective for noisy attacks (e.g., probing scans and erroneous packets), but fails to detect advanced attackers using advanced semantic attacks, i.e., legitimate protocols and ICS parameters [
10]. As a result, semantic attacks can bypass this detection method and compromise the security of the physical world of the ICS. In general, existing ICS detection tools are circumvented by semantic attacks and are prone to false alarms due to the isolated analysis of traffic and sensor data, as they cannot relate their analysis to the attack execution context of the ICS [
10]. Detecting bus network attacks on ICSs is difficult because of the complex bus network structure, the large attack surface, and the fact that attackers use packets that differ from those conforming to the protocol specification. For example, a study [
11] of the avionics bus network infrastructure MIL-STD-1553 noted that all devices inside military warplanes are physically connected to the same wire and may suffer from denial-of-service and flooding attacks, and semantic attacks can have more serious consequences of cyber attacks.
We found that although these semantic attack behaviors of industrial bus networks are normal ICS activities, they are anomalous when executed in typical execution phases in an ICS. Therefore, in this work, instead of considering ICS bus network traffic behavior as a separate execution process, we specialized its behavior into unique execution phases, i.e., initialization and data exchange phases. We observed that to launch a semantic attack, the attacker must perform operations such as diagnostics, configuration, and parameter setting in the initialization phase, which do not occur in the data exchange phase but are necessary for a semantic attack. For example, to tamper with the point position of the DO module, the attacker needs to send the diagnostic, configuration, and parameter setting packets of the initialization phase, which is abnormal for the data exchange phase because no further initialization operations are required to enter the data exchange phase. These attacks are inconsistent with the behavior of an ICS in the data exchange phase and lead to incorrect state transitions. Therefore, if one identifies a limited set of legitimate data exchange phase behaviors, one can effectively monitor and detect malicious attacks in which the attacker violates these behaviors.
To overcome the limitations of existing solutions, we propose a novel attack detection scheme called DpGuard that detects fault injection and semantic attacks by correlating the specific behaviors of the ICS data exchange phases with the traffic context. DpGuard identifies the limited state transitions specific to each data exchange phase, which is possible because they are distinct from the attacker’s activity in those phases. Since industrial bus network traffic and protocols conform to the state machine model, there are strict state transition constraints. Therefore, DpGuard requires a finite-state machine model to identify disruptive control packets sent to the ICS. DpGuard automatically constructs a finite-state machine model of normal ICS behavior from a large amount of historical ICS traffic data, which contains information on normal behavior such as state events, state transitions, and state transition probabilities. In addition, DpGuard records the state of contextual packet execution and uses the real-time captured packets as the input for the model to determine whether the state events and state transfer probabilities conform to the finite-state machine model constraints, thus identifying legitimate normal ICS behavior.
DpGuard detects semantic attacks that are not detectable using existing tools. By correlating the initialization phase and data exchange phase through the characteristics of the ICS traffic, DpGuard provides contextual alerts to ICS operators in response to attacks on ICS devices through real-time attack detection and the detection of attackers entering abnormal initialization phases during typical data exchange phases. We evaluated DpGuard using a PROFIBUS-DP protocol communication system designed with Siemens S7-300 and ET200 PLCs. The experimental results showed that the solution could detect fault injection and semantic attacks accurately in real time without affecting the normal operation of industrial serial network systems. Compared with four other representative detection methods, our scheme presented an improved detection performance. In particular, the detection accuracy for semantic attacks reached 99.80%.
In short, our contribution:
- (1)
We proposed a new scheme, DpGuard, that uses the characteristics of ICS traffic to correlate the initialization phase and the data exchange phase to automatically build a finite-state machine model to detect fault injection and semantic attacks in real-time using industrial serial protocol messages;
- (2)
We developed a prototype system for attack detection based on a PROFIBUS-DP protocol communication system. Although the system was developed for a specific serial protocol, based on the idea it could be modified to extend and adapt it to other serial protocols such as CAN and MODBUS RTU;
- (3)

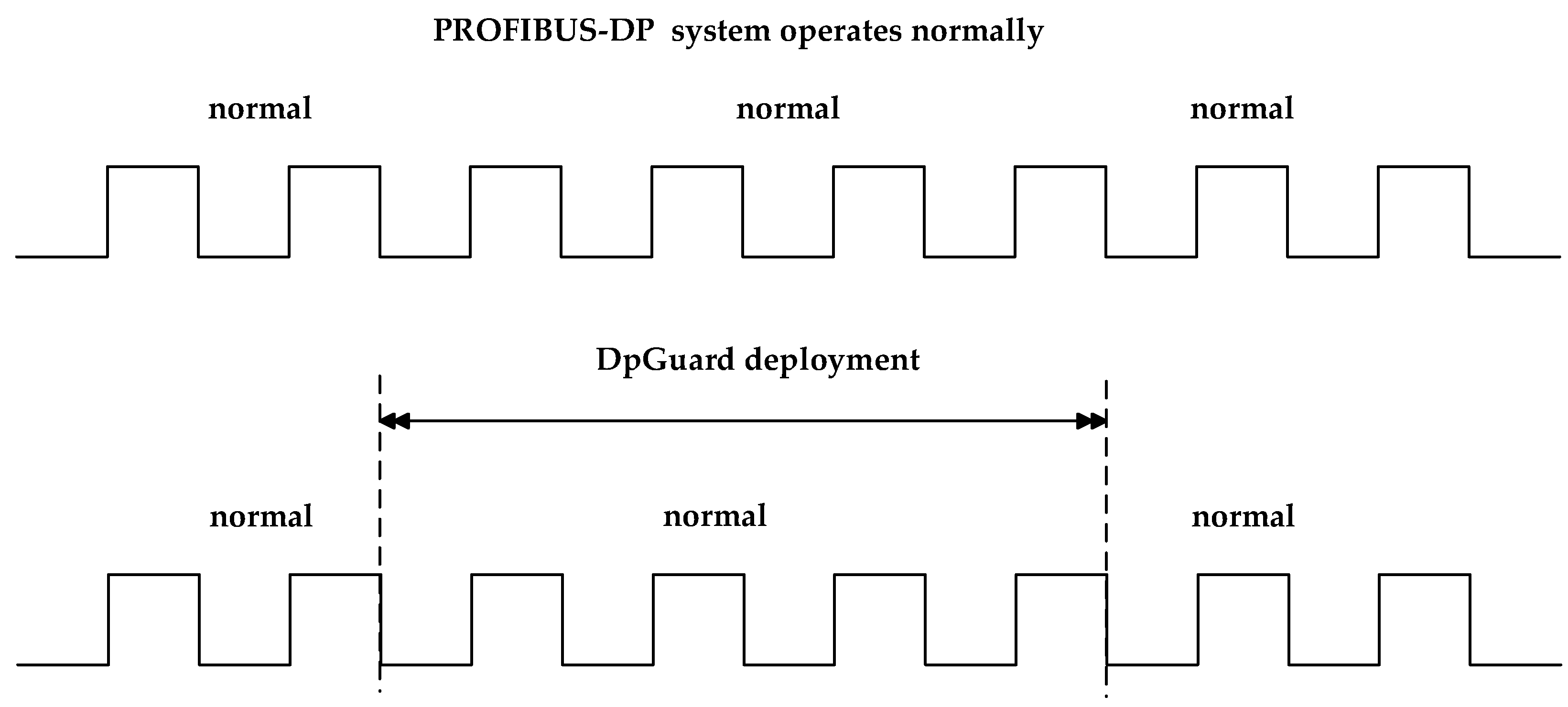

We evaluated the scheme using two Siemens PLCs deployed on a PROFIBUS-DP system. The experiments showed that the scheme could detect fault injection and semantic attacks accurately in real-time without affecting the normal operation of the industrial serial network system. Our scheme outperformed the four other representative detection methods in terms of detection accuracy.
We structured the remainder of this paper as follows.
Section 2 briefly introduces the technical background related to the bus protocol PROFIBUS, and
Section 3 presents the current work on bus network attack detection methods.
Section 4 presents the threat model and attack model.
Section 5 details our proposed detection scheme.
Section 6 details the experimental evaluation. Finally,
Section 7 summarizes our detection scheme.
3. Related Work
With the frequent occurrence of security incidents in industrial control systems, more and more people have studied intrusion detection solutions for industrial control systems—for example, the well-known open-source intrusion detection tools from Snort [
16] and Zeek [
17]. However, existing solutions [
9,
18] apply to industrial Ethernet networks, and these detection tools rely on network IP addresses. Industrial bus network devices do not have IP addresses and use link broadcast communication. This makes the traditional TCP/IP detection methods ineffective, and so there is an urgent need to study attack detection methods and tools for industrial bus networks. Several researchers have studied industrial bus network protection schemes. Their work has focused on the security protection offered by MODBUS RTU and CAN protocols.
MODBUS RTU: Thomas et al. [
7] discussed the need for such a system by describing four classes of intrusion vulnerabilities (denial of service, command injection, response injection, and system reconnaissance) that can be exploited in the MODBUS RTU/ASCII industry. H. Morris et al. [
19] introduced an intrusion detection system rule set in MODBUS/TCP and MODBUS serial line systems. However, this work lacked validation experiments and was not convincing. Tylman et al. [
8] proposed a new method for handling non-IP protocols in the Snort intrusion detection system based on the Snort data acquisition module (DAQ). This work did not require modifications to the Snort code, but without deep packet inspection PDUs (protocol data units), semantic attack packets on altered PDUs may bypass detection. Tomlin et al. [
14] proposed an unsupervised machine learning approach for implementing network IDS in power system applications. However, the non-IP industrial bus network attack detection problem was not considered.
CAN: Song et al. [
6] proposed a lightweight algorithm for in-vehicle network intrusion detection based on the analysis of CAN message intervals. This algorithm was unable to detect irregular messages. Cho et al. [
20] proposed a novel scheme that identified the attacker’s ECU by measuring and exploiting the voltage in the in-vehicle network. Rohit et al. [
21] proposed a lightweight defense called RAID, which enabled each ECU to make protocol-compatible modifications in its frame format in the VIDS retraining mode, thus generating a unique dialect (spoken by the ECU). Marcel et al. [
8] proposed Scission, an intrusion detection system (IDS) that used fingerprints extracted from CAN frames and could identify the sender’s ECU. In the above four works [
8,
21,
22,
23,
24], intrusion detection was performed for the CAN protocol and compatibility with the PROFIBUS- DP protocol was not considered.
The above mentioned literature mainly studied MODBUS RTU and CAN protocols. However, the PROFIBUS-DP protocol is widely used in many industrial control systems [
22,
23,
24] because is characterized by fast data transfer and high stability. Moura et al. [
2] proposed an expert system combining knowledge and unsupervised techniques to improve the protection of PROFIBUS-DP industrial bus networks. The limitations of this work were the use of data from simulators and the lack of testing and validation based on actual data collected in industrial networks. Furthermore, the authors did not consider whether the deployment of this test solution in the real world would affect the proper functioning of the system, and their research scheme could not be used to analyze the detection of semantic attacks. Because attackers launch semantic attacks and construct malicious packets that are protocol compliant, there is nothing wrong with the packets themselves. Therefore, developing a detection scheme for this type of attack is extremely challenging.
Our work solves the above challenges: first, DpGuard automatically constructs a finite-state machine model of normal ICS behavior from a large amount of historical ICS traffic data, which contains normal behavior information such as state events, state transfers, and state transfer probabilities. Secondly, DpGuard records the state of the contextual packet execution and uses the real-time captured packets as the input of the model to judge whether the state events and state transfer probabilities conform to the finite-state machine model constraints, thus identifying legitimate normal ICS behavior. Finally, our attack detection system, DpGuard, is lightweight and was deployed on a real PROFIBUS-DP system built with Siemens S7-300 and ET200 PLCs, having little impact on bus bandwidth constraints and bus network in real time. Hence, our work is more applicable to the network security protection of industrial bus networks.
4. Threat Model
We assumed a threat model similar to those in existing work on ICS attacks launched against bus networks [
4], wherein the attacker can establish communication with the bus system by means of physical access. In contrast to an industrial Ethernet attack, an attacker can launch an attack on all ICS devices on the bus network by simply accessing any node on the bus, which makes the attack less expensive. DpGuard learns in a trusted environment without attacks. We also assumed that DpGuard would not be attacked directly. There are limitations to this assumption, because advanced attackers may bypass our detection model, resulting in false positives. We made the following practical assumptions: we did not consider attacks originating from outside the ICS, such as those originating from side channels [
25,
26]. Existing work [
27,
28] and practice have addressed the PLC man-in-the-middle (MITM) problem via non-PLC diode gateways [
29], which are therefore out of the scope of this work. Moreover, DpGuard relies on the window host, and its own security was not considered in this work. Meanwhile, we assumed that the attacker’s intention may be to bypass the current mainstream industrial bus network IDS and implement an I/O register tampering semantic attack to accomplish the task of disconnecting relay closure and affecting the whole system operation. In addition, it was assumed that the attacker is fully aware of the slave’s configuration, including addresses, GSD files (which contain information about the basic capabilities of the slave device), and DO (digital output) modules. This does not require a substantial effort from the attacker, who can obtain information about these parameters from the industrial bus network messages through expert knowledge. Based on this knowledge, the attacker can carefully design and construct protocol-compliant messages to launch semantic attacks on the industrial bus network.
In our hypothetical attack model, as shown in
Table 1, the attacker launched two types of attacks, namely, fault injection and semantic attacks. Fault injection aims to cause failures in industrial bus networks by injecting attack traffic such as spoofing, DoS (denial of service), bus shutdown, and fuzzing attacks, which do not require an adversary to have much knowledge of the bus communication protocol. We assumed that the DoS attack could be launched by injecting two types of messages, i.e., messages that do not conform to the protocol specification and messages that do not conform to the correct protocol state transitions. If messages do not conform to the protocol specification, our proposed scheme detects them by analyzing the format of the message. If the attack messages conform to the protocol specification, the scheme identifies the attack messages by verifying whether they conform to the protocol state transitions. For example, by exploiting the fragile error-handling scheme of the PROFIBUS-DP bus, an adversary can inject specific messages to disconnect or reconnect slaves. An attacker can use a fault injection attack to sniff the packets that establish a connection between a master and a slave, relying on expert empirical knowledge as the basis for the next stage of implementing the semantic attack. Semantic attacks aim to cause abnormal system states such as I/O register failures, the loss of control of the master, and data tampering. Such attacks always require an adversary with extensive knowledge of the target protocol, as the attacker needs to inject special information into the industrial bus network to control both masters and slaves. For example, by hacking the local physical access bus network, an adversary can tamper with the slave I/O by injecting prepared information into the industrial bus network, making it impossible for the master to collect data from the slave. Compared to fault injection attacks, semantic attacks impact and harm the system more severely. DpGuard is tasked with detecting both types of attacks, especially semantic attacks.
5. Methods
Due to the excellent performance and scalability of finite-state machines, protocols are usually formally described and analyzed using finite-state machines. In particular, industrial bus network protocols follow the finite-state machine model and have strict state transition constraints. Attackers launch fault injection and semantic attacks that precisely violate the finite-state machine of industrial bus network protocols. Therefore, based on the concept of the finite-state machines, we proposed a new industrial bus network attack detection scheme, DpGuard, and applied it to attack detection in industrial bus networks. In this section, we introduce DpGuard in detail, providing the FSM definitions and presenting and describing the model training and detection algorithm.
5.1. FSM
Finite-state machines are widely used in the field of protocol description analysis and attack detection [
5,
30,
31]. The definitions related to the application of finite-state machine models for attack detection in industrial bus networks are provided below.
Definition 1. A finite-state machine M is defined as a five-tuple: M = (Q, S, θ, の, Y).
Q: a finite set of state events, containing all state events of the protocol.
S: node state, where S0 is the initial state with no predecessor state.
θ: state transfer probability, the probability of transferring the previous state Si to the next state
Sj: calculated by の.
の: state transfer function, which is Q × S, θ = の (Sj, Si, (Sj, Si) ∈ Q).
Y: the output result, containing the response to the appearance of the state machine.
In order to precisely and concisely portray the operation of M and detect attacks in real time, we converted the raw packets into events that could be recognized by a finite-state machine, such that the raw packet p at a certain moment is written as (pi, ti, Σ) and materialized in the form {(p0, t0), (p1, t1), (p2, t2),…,(pn, tn)}. Based on expert empirical knowledge, pi is converted into si to obtain (si, ti, Σ) as the input of M. Σ is the set of si and ti. Only if pi can be converted into si is si used as the input of M. In other words if pi → si cannot be completed, Y outputs fault injection attack alarms. If pi → si, M is input for state detection, when si is able to enter M, the following definition for detecting semantic attacks.
Definition 2. In the finite-state machine M = (Q, S, θ, の, Y), when Si is transferred to Sj, θij is computed after の (Si, Sj). θij represents the transfer probability of Si transfer to Sj, if θij < 1, then Y outputs a semantic attack alarm. Otherwise, Si transfers to Sj, belonging to the legitimate transfer state and then continues to detect the next Sj+1. The finite-state machine M is always in operation and processes S in real time.
5.2. Model Training
5.2.1. Definition
We use the finite-state machine model to model the normal traffic behavior of the industrial bus network. The state event set Q = {SD1, SD2, SD3, SD4, SC} of the finite-state machine determines the specific state according to the message text segment. Taking SD3 of the PROFIBUS-DP protocol as an example, the information in the message text segment was analyzed to obtain the message information <sd, da, sa, fc, du, fcs, ed>, and the content of this message information was used to determine the current state. Within this set of information, (1) st indicates the start of the frame definer; (2) da indicates the device destination address; (3) sa indicates the device source address; (4) fc indicates the protocol function code; (5) du indicates the protocol parameter data, including I/O, GSD file configuration, and rate; (6) checksum indicates the frame check data; and (7) ed indicates the end of the frame definer.
Regarding the message information, the state events mapped by the message sequence of PROFIBUS-DP are unique and ensure that the finite-state machine model M can work effectively. If the message sequence mapping state event fails, the message is a malicious fault injection frame. In addition, each state event is used to determine whether the state violates the state machine by calculating the state transfer probability through the state transfer function, thus detecting semantic attacks.
5.2.2. Building the FSM Model
We used historical messages from industrial bus networks to automate the construction of the finite-state machine model and generate a state transfer diagram. The following 11 packets are presented as an example to illustrate the construction process of the finite-state machine
M. For more information on the related constant values, refer to [
32,
33].
- (1)
sd = “DC”, da = “02”, sa = “02”
- (2)
sd = “10”, da = “08”, sa = “02”, fc = “49”, fcs = “53”, ed = “16”
- (3)
sd = “10”, da = “02”, sa = “08”, fc = “00”, fcs = “0A”, ed = “16”
- (4)
sd = “68”, ler = “05”, lers = “05”, sd = “68”, da = “88”, sa = “82”, fc = “6D”, du = “3C 3E”, fcs = “F1”, ed = “16”
- (5)
sd = “A2”, da = “82”, sa = “88”, fc = “08”, du = “3E 3C 00 04 00 FF 00 00”, fcs = “8F”, ed = “16”
- (6)
sd = “68”, ler = “10”, lers = “10”, sd = “68”, da = “88”, sa = “82”, fc = “5D”, du = “3D 3E B8 1E 01 00 42 24 01 40 01 00 42”, fcs = “A3”, ed = “16”
- (7)
sd = “E5”
- (8)
sd = “68”, ler = “09”, lers = “09”, sd = “68”, da = “88”, sa = “82”, fc = “7D”, du = “3E 3E 00 20 20 10”, fcs = “53”, ed = “16”
- (9)
sd = “E5”
- (10)
sd = “68”, ler = “05”, lers = “05”, sd = “68”, da = “02”, sa = “08”, fc = “08”, du = “01 00”, fcs = “AA”, ed = “16”
- (11)
sd = “68”, ler = “05”, lers = “05”, sd = “68”, da = “08”, sa = “02”, fc = “5D”, du = “00 01”, fcs = “79”, ed = “16”
These 11 packets represent a complete process, in which packets (1)–(9) are the initialization phase and packets (10) and (11) are the data exchange phase. These constant values are necessary for attackers to launch semantic attacks. The semantic attack packets listed in
Table 1 contain these constant values, such as the master address, slave address, function codes, and data values. The finite-state machine model used the above historical messages to construct two phases, i.e., the initialization and data exchange phases. In the initialization phase, packet (1) indicates that the current token frame belongs to the master with address 2, which controls the slaves on the bus network. Packet (2) indicates that the master with address 2 diagnoses whether the slave with address 8 is alive or not, and if the slave is alive, it replies with packet (3), informing the master that the current slave is active. Next, packet (4) queries the master regarding the slave’s relevant parameter configuration, such as its rate. Packet (5) indicates that the slave replies to the master with the configuration parameters. After the master confirms the configuration parameters, the communication interface configuration is entered and packet (6) indicates that the input and output formats specified by the master and slave are the same. If the slave confirms the same input and output as the master, it replies to master packet (7). When the previous state is completed, the master sends out a data packet (8) to perform a final check with the slave. The slave station replies to master packet (9) after confirming that there is no error, thus completing the initialization phase and generating a state transfer diagram, as shown in
Figure 3.
The data exchange phase can only be entered when the initialization phase is completed. Hence, if an attacker launches a semantic attack, he must complete the initialization phase, including state transfer (e.g., diagnosis, configuration parameter determination, and consistency checking). Additionally, there is no transfer to the initialization phase when the data exchange phase is in progress. For example, packet (10) activates the I/0 point position of the slave station and collects data from that point. The slave receives the packet (10) and communicates to the master that the current I/O position is in the active state packet (11). Next, the master and slave communicate in a cyclic manner, i.e., packets (10) and packets (11) appear periodically in the industrial bus network. The state transfer diagram of the data exchange phase is shown in

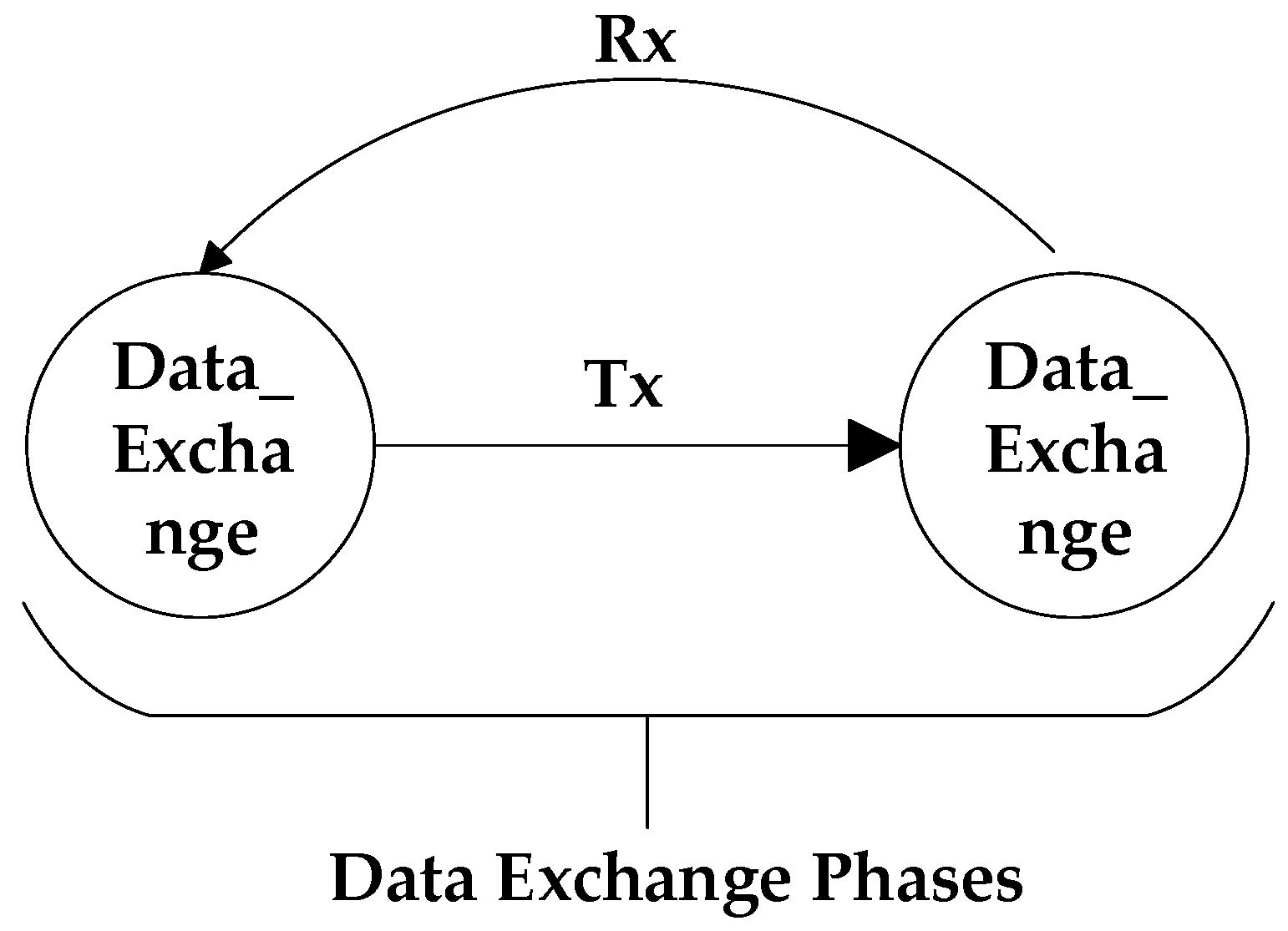

Figure 4.
5.3. Detection Algorithm and Its Description
Using the finite-state machine
M model constructed by automation, fault injection and semantic attacks can be detected in two stages, and the occurrence of illegal state events, i.e., fault injection attacks, can be detected based on the statical analysis of the message segment information. Specifically, considering the captured industrial bus network messages, if
s ∉ Q, then a fault injection attack is detected. To detect semantic attacks, one calculates the probability of the transfer of state
si to state
sj at a certain moment through the state transfer function
の using historical data, obtaining a stable value
θ with a certain amount of data training. If the industrial bus network message
s ∈ Q, there is no fault injection attack in the message. Therefore, the state transfer probability is next determined to detect whether there is a semantic attack in this message. The detection algorithm for the finite-state machine
M is shown below (Algorithm 1).
Algorithm 1 Finite-state Machine (M) Detection Attack Algorithm |
Input: real-time industrial bus network message serial (p0, p1, …, pn) |
Input: set of state events Q, state transfer function の, state transfer probability θ |
Output: fault injection and semantic attack alarm serial (p0, p1, …, pn) |
While:
|
|
if then:
|
Alert (“Fault Injection Attack”) |
else: |
RecoderState |
θ () = の (, ) |
if then:
|
Alert (“Semantic Attack”) |
else: |
Next (serial) |
endif |
endif |
END |
