An Integrated Motion Planning Scheme for Safe Autonomous Vehicles in Highly Dynamic Environments
Abstract
:1. Introduction

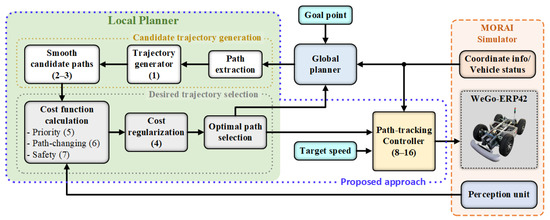

2. Proposed Approach
2.1. Local Planning
2.1.1. Candidate Trajectory Generation
2.1.2. Desired Trajectory Selection
2.2. Path-Tracking Approach
3. Simulation Validation

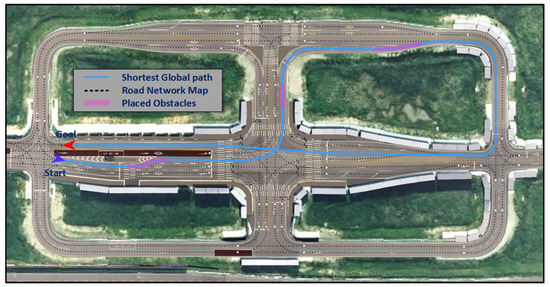

3.1. Environment Setup

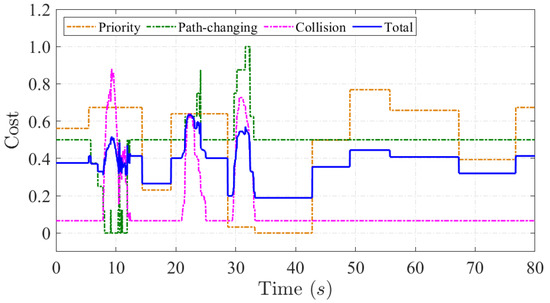

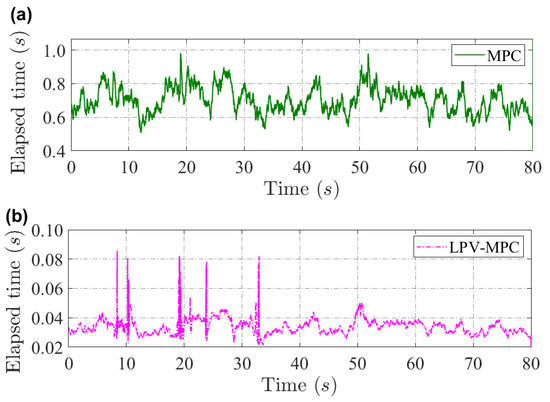

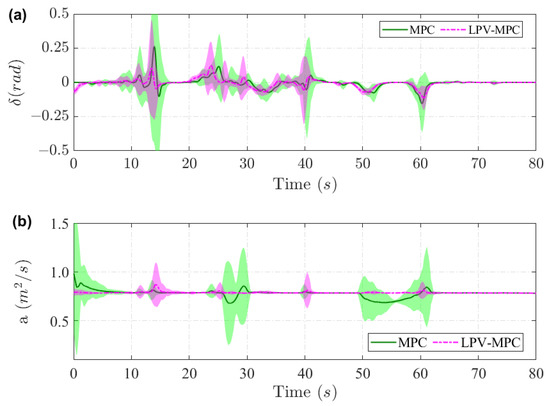

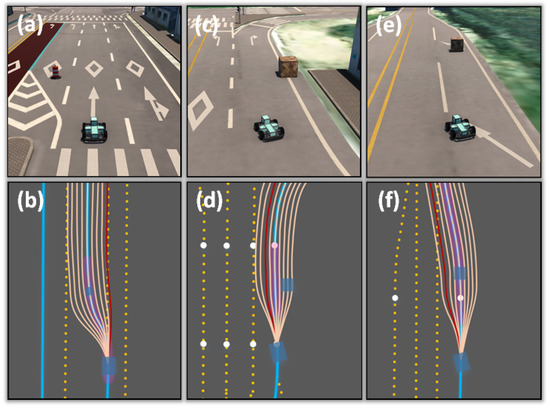

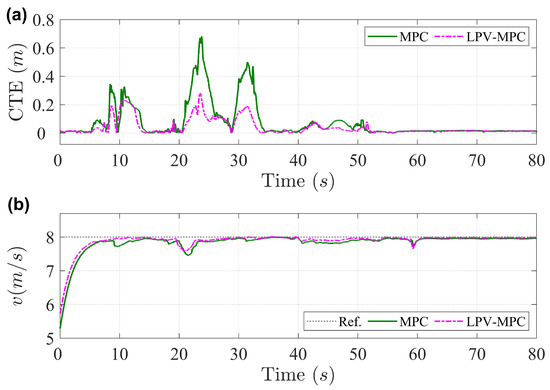

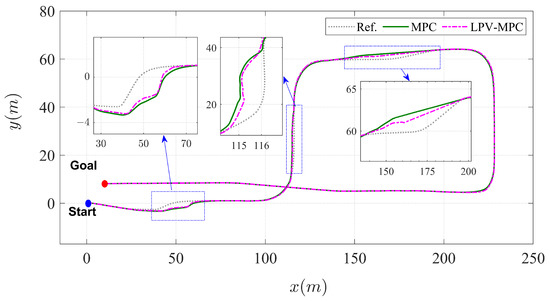

3.2. Results
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
Abbreviations
AV | Autonomous vehicle |
MPC | Model predictive control |
LPV-MPC | Linear parameter-varying model predictive control |
CTE | Cross-tracking error |
Appendix A. Candidate Trajectory Generation and Smoothness Optimization
Algorithm A1: Candidate Trajectory Generation |
|

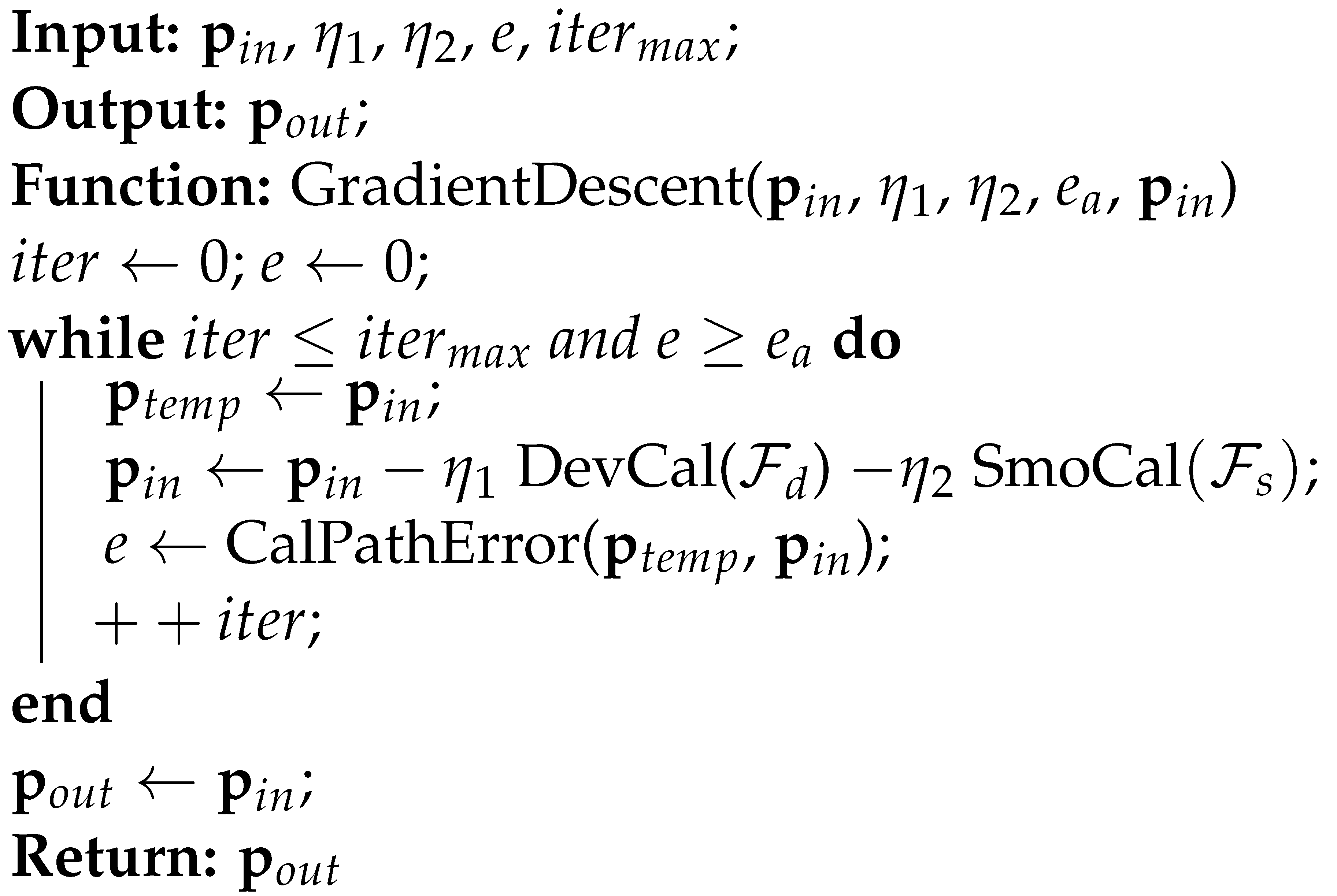

Algorithm A2: Smoothness Optimization of Candidate Path |
|
Appendix B. Mathematical Model
References
