1. Introduction
Progressing electrification in the transportation sector is nowadays incentivized by various policies to boost the penetration of Renewable Energy Sources (RESs) and minimize the use of fossil fuels [
1]. An increased capacity of Lithium-Ion (Li-ion) batteries is the necessary solution to the mismatch between the power load and generation from RESs [
2], which makes them an interesting topic to many researchers. However, apart from the development of batteries themselves, it is important to create a sophisticated and intelligent Battery Management System (BMS), as they play a critical role in enhancing energy efficiency and ensuring battery protection by dealing with tasks such as balancing the charge levels of cells, monitoring the temperature, and regulating the current and voltage.
BMSs should be able to estimate several important parameters, such as State of Charge (SoC), State of Health (SoH), and Remaining Useful Life (RUL), that cannot be measured directly through sensors [
3]. In particular, precise estimation of the SoC is crucial for providing accurate information about the energy level of the battery, preventing over/under charging, power failures, voltage imbalances, and thermal runaway, which can result in fire or explosion in batteries [
4,
5,
6,
7]. Thus, many thermal runaway prevention and mitigation strategies [
8] have been developed considering the battery’s SoC. Moreover, precise SoC control can enhance the battery life and generally improve the overall battery performance, as it mitigates additional stress on the batteries that leads to chemical reactions degrading the battery materials [
9].
The SoC is defined as a ratio of the available capacity of the battery to the maximum possible capacity, given a specific degradation state [
10]:
where
is the actual current battery capacity at a given point in the discharge cycle and the
is the maximum battery capacity in the studied discharge cycle. In contrast, the SoH is defined as a percentual ratio of the maximum available capacity of the battery in a specific degradation state to the maximum nominal capacity [
11]:
where
is the maximum available capacity of the battery in the discharge cycle and the
is the maximum nominal capacity at the beginning of the lifecycle. In relation to the SoH, the RUL can be defined as the remaining number of charge/discharge cycles until the battery falls under the SoH threshold that warrants a replacement. Taking electric vehicles (EVs) as an example, this threshold is usually defined at 80% of the SoH, under which battery degradation might cause unpredictable behavior and faster-than-expected discharging. In the field of BMSs designed for EVs, it is vital to accurately estimate all three parameters. In this way, a complete picture of the current degradation state of the battery can be obtained. Furthermore, the corresponding maximum driving range and the actual current driving range can be easily found and communicated to the user.
1.1. State-of-the-Art SoC Estimation
As described, the SoC has to be estimated based on other measurements, such as voltage (V), current (I), and temperature (T) [
12]. In

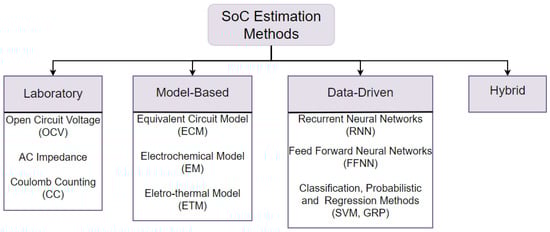

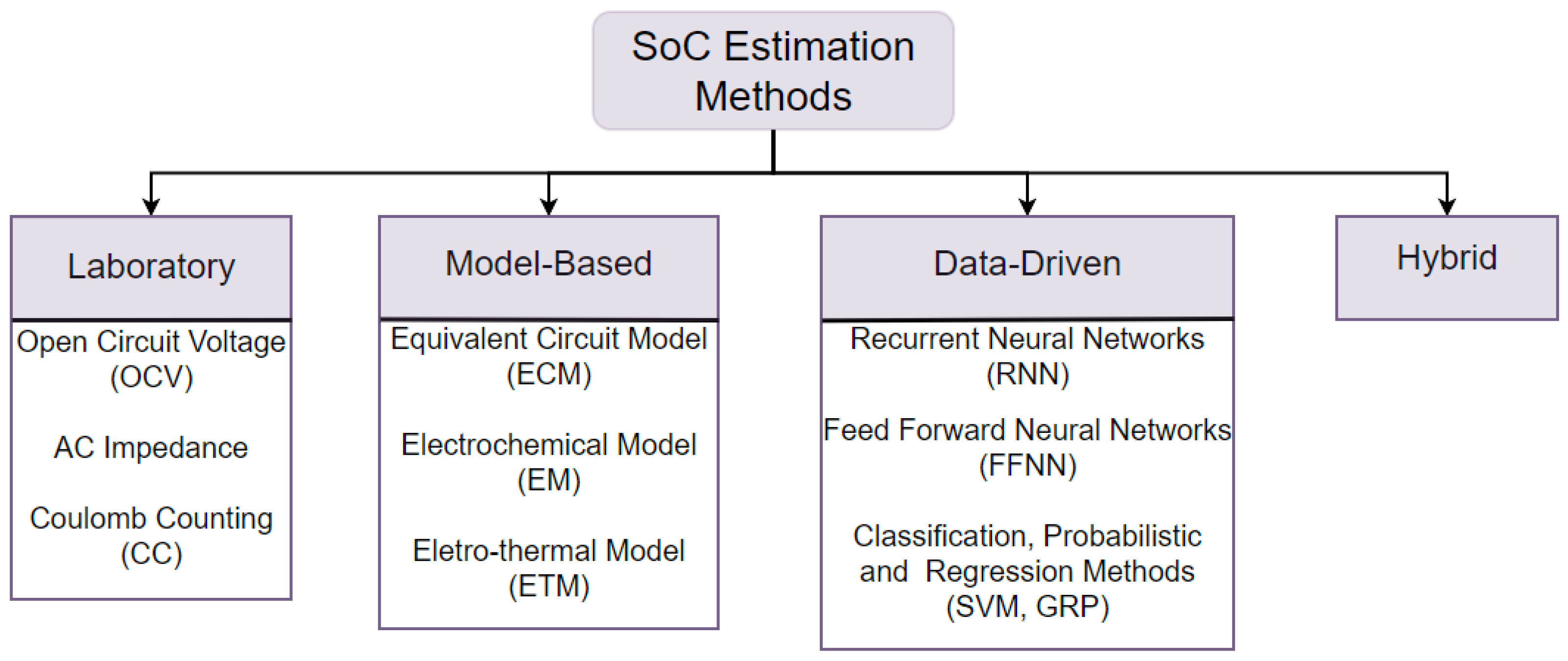

Figure 1, an overview of SoC estimation methods is presented, which are normally applied to accurately estimate the SoC. It should be emphasized that laboratory methods for estimating the SoC can only be effectively utilized under specific conditions and with knowledge of certain initial battery parameters to achieve satisfactory results [
13]. However, they are not feasible in real-time applications due to measurement offsets and a potentially noisy environment that could compromise measurement accuracy.
Various physical-model-based approaches have been used, such as electrochemical models [
14], equivalent circuit models [
15], and electro-thermal models [
16]. To achieve a satisfactory SoC estimation accuracy, these models rely on partial differential equations and/or complex electrical circuits for describing electrochemical reactions/phenomena, such as porous electrode theory, lithium diffusion, and polarization [
17]. Furthermore, the parameters of the elements in circuit models can change due to several external factors such as the battery temperature and degradation level, so an additional algorithm would have to be developed to update these parameters. For this reason, to improve the accuracy and robustness of these models, algorithms based on filters (Kalman, particle, H infinity) and observers (Luenberger) are also included [
18]. In [
19], the authors developed a model-based method for SoC estimation based on an improved adaptive particle swarm filter to enhance its accuracy and robustness, achieving an error of less than 1%. Moreover, they mitigate the error generated due to the initial SoC offset and battery aging. On the other hand, in [
20], an improved physics-based equivalent circuit model combined with an extended Kalman filter was developed for estimating the SoC. The pseudo-two-dimensional model was modified to improve the relationship between the electrochemical and the electrical parts and achieved an SoC estimation error of less than 1%. Overall, model-based methods achieve low errors when the parameters of the model and initial conditions are accurately calculated. This leads to a time-consuming procedure that requires excessive memory and computational requirements, making them inefficient for real-time applications [
21].
On the other hand, due to the advancement in computational power of the devices and increased availability of historical data, data-driven methods are more often chosen as a suitable solution for SoC estimation. The developed models can be used as a ‘black-box’ to perform SoC estimation with a low error and without the need to solve any PDE or create a complicated ECM. Numerous data-driven approaches have been tested up to date, with methodologies focusing both on Machine Learning (ML) techniques such as Gaussian Process Regression or Support Vector Machines, and Deep Learning (DL)-related Neural Networks (NNs) [
22]. Thorough reviews of the available methods paired with detailed performance analyses can be found in [
23,
24]. Examples of applications include [
25], where the authors developed a temporal convolutional network for SoC estimation, which is mainly based on stacked CNN layers and dilation, to control kernel spacing, capturing temporal dependencies and achieving an error of less than 1% and outperforming RNN models such as LSTM and GRUs. Moreover, in [
26], a bidirectional long short-term memory neural network was developed, where its parameters were optimized through the Bayesian optimization algorithm. The model achieved SoC estimation with an accuracy of around 1% for both MAE and RMSE metrics.
While data-driven methods offer ease of implementation and high performance for BMS applications, they are not universally suitable. In some scenarios, their deployment might be impractical. A key challenge of data-driven approaches lies in their potential for parameter explosion, particularly with Convolutional Neural Networks (CNNs). This significant parameter count restricts deployment to powerful computers or cloud-based solutions, limiting their applicability in resource-constrained environments. For instance, a BMS deployed on an EV would likely operate remotely without consistent high-bandwidth internet access, rendering cloud-based solutions infeasible. However, data-driven methods have the advantage of being adaptable to direct sensor readings (e.g., battery voltage or current) and require a minimal cell-specific configuration.
To address the limitations of data-driven methods in remote settings while leveraging their direct data usage capabilities, a solution exists: Tiny Machine Learning (TinyML). TinyML techniques can be applied to reduce the model size and memory footprint, enabling deployment on resource-constrained embedded devices suitable for remote locations. This process typically involves a trade-off between model size and performance, with a slight decrease in accuracy in exchange for significant memory savings.
1.2. TinyML for SoX Etimation
TinyML has been identified as one of the most promising frontiers in data-driven SoC estimation, with embedded edge sensor devices used to create smart battery packs that can conduct a real-life evaluation of the performance and states of the battery [
27]. The challenge of designing and optimizing an ML model on low-power Internet of Things (IoT) devices comes with a lot of benefits, including energy efficiency, low cost, low latency, and the ability to perform local data processing, avoiding unnecessary data transfers [
28]. Despite numerous advantages, there are some drawbacks as the devices often operate in uncontrolled environments with unpredictable surrounding conditions and energy supply [
29]. An additional challenge arises regarding the ML model. SoC estimation is a complex and multivariate task as the value heavily depends on the battery type, temperature, and current aging state. Moreover, there are severe limitations to the model and algorithms that can be implemented on IoT devices due to constraints on memory and computation power available [
30,
31]. Therefore, the task includes a process of optimization as the desired outcome is a TinyML model that is small enough to fit on low-power IoT devices and robust enough to handle the intricacies of SoC prediction for various test cases.
Generally, ML and DL models used for offline SoC prediction are well defined and achieve satisfactory results with a mean error within a range of 2% to 3% [
32,
33,
34]. However, the IoT implementations of the models are a relatively unexplored area and are gaining increasingly more popularity due to their high performance. However, some related studies that tackle the same problem from a different or similar perspective have been identified and will be briefly explored.
In a previous study [
12], the authors identify the CNN and Gated Recurrent Units (GRUs) as the most promising models in terms of quantization. A comparative study is performed with two different post-training quantization methods. The authors achieve splendid results, with the MAE below 2% for the CNN model. However, the training and test procedure is based on a single charge and discharge cycle. In [
35], the authors perform an estimation of the SoC based on real-life operation data from a BMWi3 electric vehicle (EV). Ten highly correlated features were selected after a sensitivity analysis with good results achieved for simple DL models. An inference time study was performed to estimate the necessary size of the computational unit post-quantization. In [
36], the authors perform a similar study but for the SoH prediction using recorded battery parameters (V, I, and T), with the best performance achieved for a hybrid CNN-GRU model. The models were tested both pre- and post-quantization and no significant changes to performance were observed. A qualitative comparison between the identified related studies that utilize TinyML for SoC and SoH (SoX) predictions and the one presented in this paper can be seen in
Table 1.
Considering the present study, the approach itself is most similar to the one presented in [
12] with a three-feature time series for SoC estimation. However, it is the first time that such a large and complete dataset has been utilized for the purpose of TinyML-based SoX evaluation. Moreover, the proposed models achieve lower drops in accuracy from the quantization procedure, indicating that the proposed architecture is better suited for TinyML applications.
1.3. Paper Objective
In this paper, a new battery dataset will be used to train and test two NN architectures, namely a CNN and an ANN. The models will be trained offline (on a desktop) and subsequently quantized and optimized to be tested on the target IoT device. The conversion process will be carried out using Infineon MTB-ML 2.0 software and the quantized model will be implemented on the PSoC6 (CY8CPROTO-062S3-4343W) target device. The new dataset allows for a test spanning a variety of charge and discharge cycles and helps to better evaluate the potential of robust IoT implementations of SoC predictions.
This paper is structured as follows: first, the used datasets and case study are described in
Section 2, and the used DL model and techniques are later described in
Section 3, followed by a discussion o details of the model desired deployment board in
Section 4. Preliminary results of the proposed model are presented in
Section 5 and final conclusions in
Section 6.
2. Dataset
SoC and SoH predictions are based on generally available open-source datasets such as the Center of Advanced Life Cycle Engineering (CALCE) [
38] or NASA Li-ion Battery Aging Dataset [
37]. In this case, a new online available dataset [
39] has been used to run the training and test. The dataset is composed of recordings of six cylindrical, LG 2.5 Ah 18650 NMC batteries recorded in various temperature ranges. The discharging profiles follow the UDDS, US06, and LA92 driving cycles and six random combinations of these (cycles Mixed1-Mixed6). These driving profiles were chosen due to the high variety of driving patterns they can simulate. For example, UDDS simulates an urban route with an average speed of 31 km/h, while LA92 and US06 simulate more aggressive driving profiles, reaching an average speed of 39.6 km/h and 77.9 km/h. This is crucial, as in [
40], the authors proved the importance of utilizing realistic diving profiles as they accelerate the degradation of the battery. This effect is not solely caused by the temperature, the depth of discharge, or calendar aging. Furthermore, for recharging the batteries, constant-current constant-voltage profiles were utilized. With a sampling rate of 10 Hz, the dataset is composed of over 7.5 million samples. The detailed parameters of the recorded data can be seen in
Table 2. Overall, the new open-access battery dataset examines several battery cells and contains increased historical information for several features such as the cell current, voltage, and temperature. Moreover, due to different temperature scenarios and complex driving profiles, the new dataset provides more holistic information compared to previously studied and open-access datasets, enhancing the complexity and robustness of the trained models.

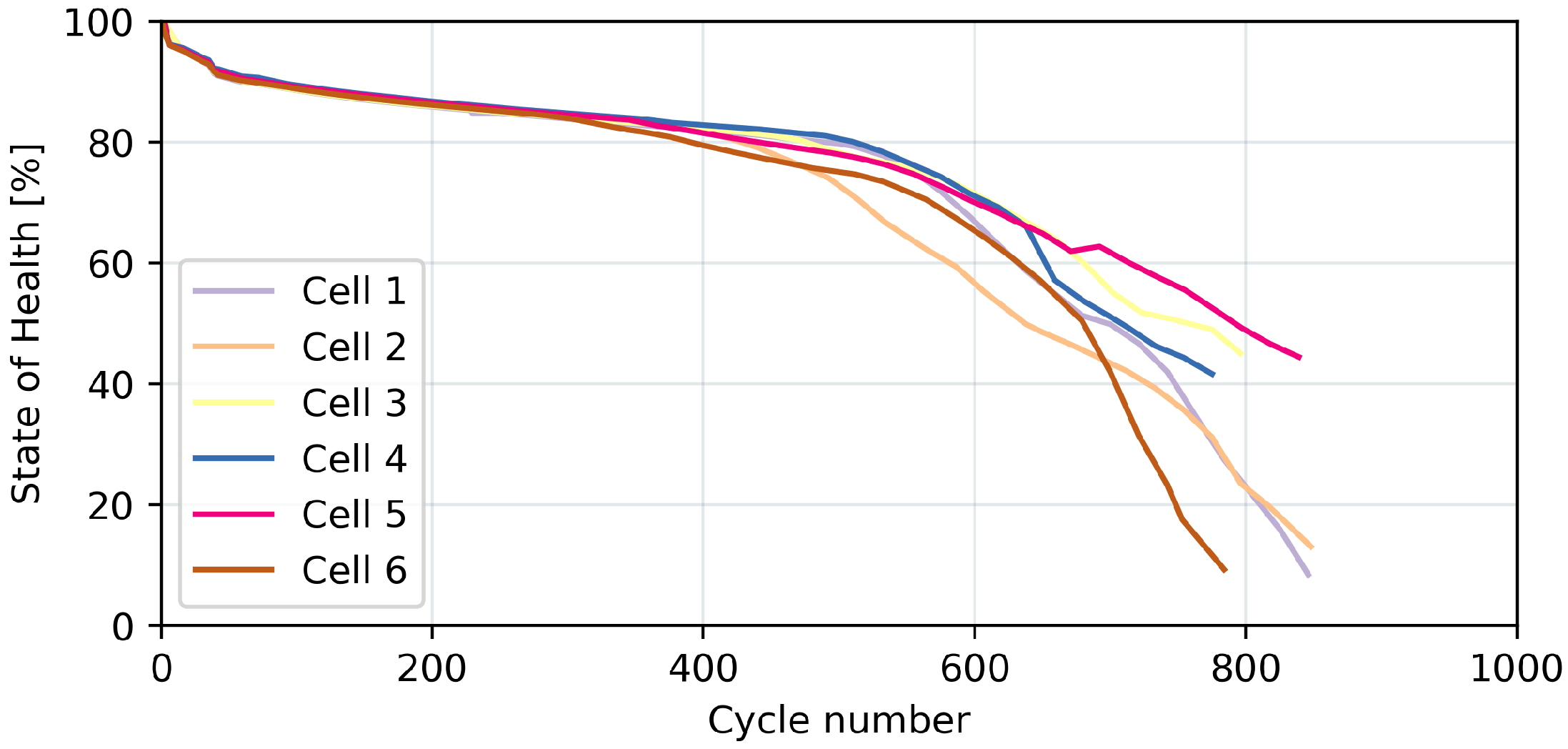

To reduce the training time and the computation load of the models, the datasets are resampled to a 1 s mean. The data from the first five cells are used solely for the training of the designed DL models, and the data from cell 6 are used for the test. As for the driving cycles, the recorded cycles vary from cell to cell, so the dataset is not fully consistent. For example, for cells 1–5 used in the training procedure, UDDS, US96, and Mixed1-Mixed4 profiles were utilized, while for cell 6, LA92 and Mixed5-Mixed6 were used.
For the case study, two driving profiles (1 and 2) were chosen out of the test dataset to compare the accuracy and the hardware requirements of the trained models based on the same driving cycle profile (LA92) but with different degradation states (around 100th and 400th cycles). In

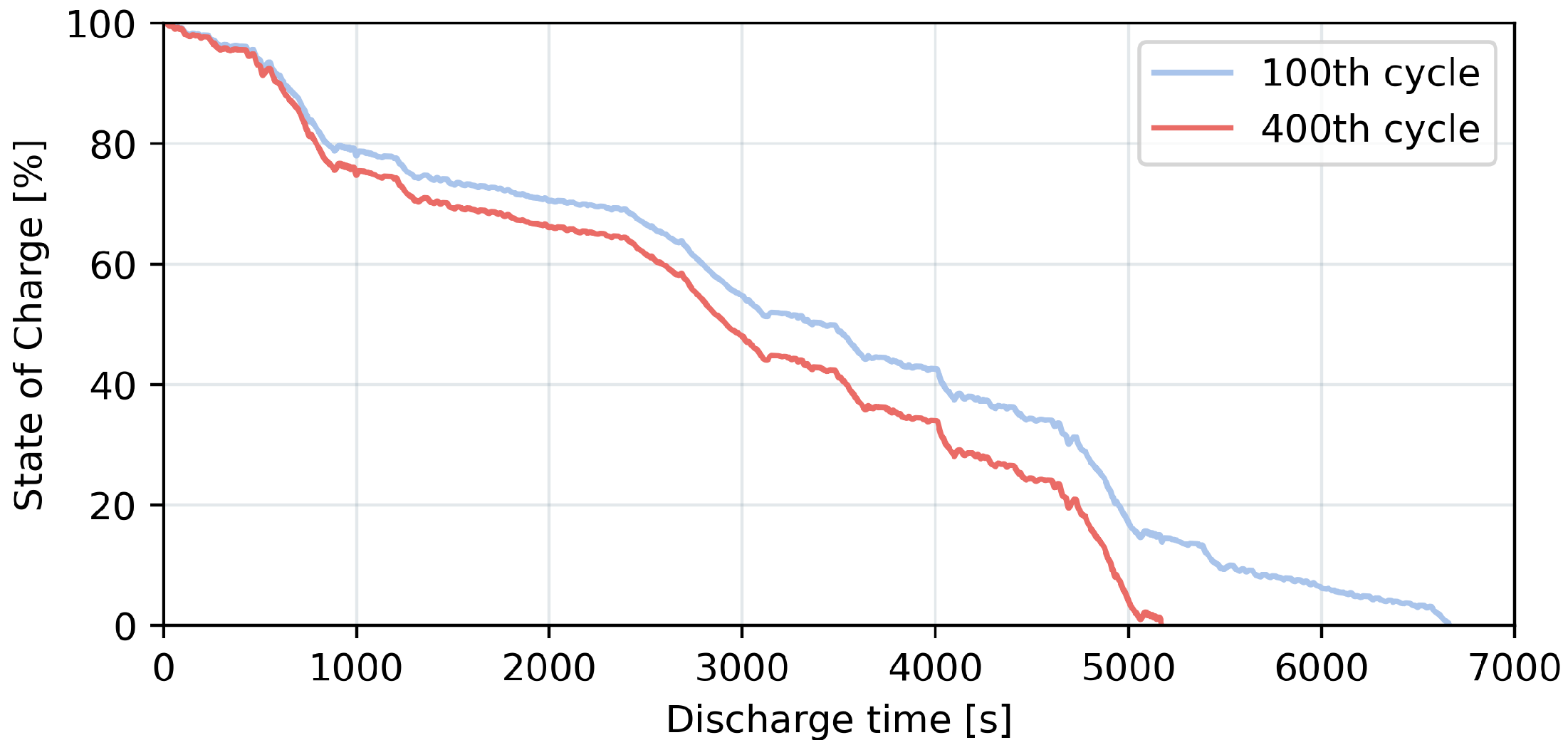

Figure 2, the SoC of the selected discharge profiles is depicted and the effect of the degradation is noticeable. Driving profile 1 (from here on called cycle 100) represents the main use scenario of the developed model before the second life of the battery should begin. In other words, for cycle 100, the SoH of the battery is far above the value of 80% when a replacement is usually warranted. In contrast, driving profile 2 (from here on called cycle 400) represents an edge case close to the necessary replacement of the battery, with SoH values close to 80% for most of the tested battery cells. However, the designed models are not informed on the stage of life of the battery (neither the SoH, the RUL nor the degradation state), as the designed approach is purely data-driven.
5. Results and Discussion
To validate the experiment, the models were tested both on the desktop and on the target device to measure their computational burden and performance. Initially, the pre-trained models had to be uploaded to the MTB-ML configurator 2.0 software, and their quantized versions were obtained. The achieved computational and memory requirements for the reduced models can be seen in
Table 5 based on discharge profile 1 (the results are the same for profile 2). It is well noticeable that the 16-bit operations are more computationally efficient, with the int16x16 quantized model boasting the lowest number of cycles for both the ANN and CNN. Regarding the memory requirements, as expected, utilizing 8-bit information for data representation significantly reduces the amount of memory needed both in terms of the solid flash memory (for model weight and bias matrices) and the temporary SRAM (scratch) for running inference. It is clearly visible that the ANN model uses around a quarter of the memory of the CNN, which is proportional to the number of trainable parameters of both models.
Considering the accuracy, in
Table 6, the detailed results for both tested cycles can be seen divided between different quantization types and models. Consistent with previous findings [
36], the models show no accuracy drop when used on the target device compared to the desktop validation prior to deployment. Therefore, only a single result is listed for each version. The models were validated both on the desktop and on the device, but only on-device results are presented. Generally, the reference model performance (not quantized) is significantly better considering the early life-cycle charging cycle 100, with errors not exceeding 3% in terms of the MAE. At that point of the lifecycle, the battery is still in the early cycles (linear phase) and has not degraded much; as a result, the behavior of the battery is more stable and can be accurately predicted based on the sensor measurements of V, I, and T. Cycle 400 is located close to the battery ’knee’ point (as can be seen in
Figure 7), where the behavior becomes unpredictable, which impedes accurate generalization for ML and DL models. In both cases, the ANN surpasses the CNN in terms of performance with a lower error in terms of both MAE and RMSE. For the quantized models, the best results are achieved by the ANN int16x16 with an MAE equal to 2.81% and an RMSE equal to 3.86%, which is around 0.5% better in comparison to the CNN at the same quantization. Moreover, considering cycle 100, which is the main use scenario, for the ANN, the differences between errors for different quantization bit precisions are significantly smaller than for the CNN. The difference does not surpass 0.2% in terms of the MAE, while for the CNN, the difference between int16x16 (best performing) and int8x8 (worst performing) exceeds 0.6%. The situation is inverted in the edge case (cycle 400) with an error difference of 1.5% for the ANN compared to 0.8% for the CNN.
For cycle 100, the quantized models behave as expected, with slight accuracy drops compared to the reference model at each further quantization step, which is particularly true for the CNN. However, in the case of cycle 400, a slight improvement in prediction accuracy over the reference model can be noted in some quantization options. This phenomenon can be further examined using graphs presented in

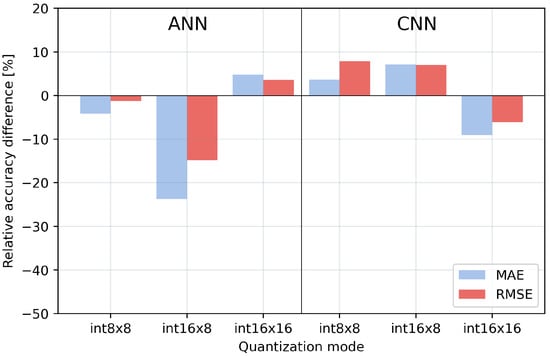

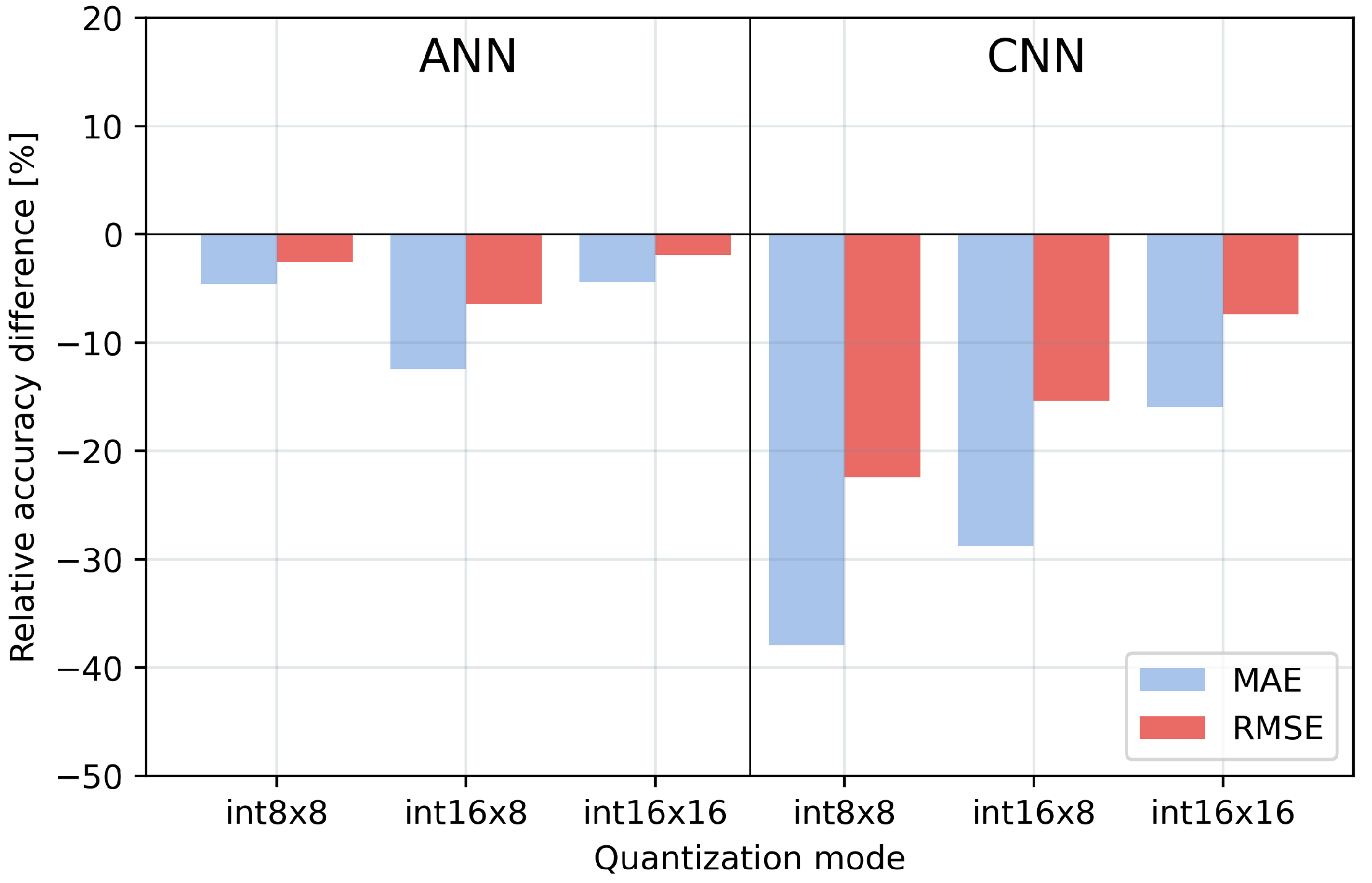

Figure 8 and
Figure 9, which present the test error variation between the reference non-quantized models and their quantized counterparts, defined as:
In the case of cycle 100, the model follows the expected pattern with the lowest accuracy drop achieved for int16x16 quantization, which is equal to 4% for the ANN in terms of the MAE and 16% for the CNN. Due to the model complexity being connected to a significantly higher number of parameters, the accuracy drop is naturally higher for the CNN model as the information loss due to a lower bit precision is relevantly more significant. The same cannot be said about cycle 400, as it can be observed that the model behavior is inconsistent with the information loss due to conversion. This can be justified again by the unpredictable behavior of batteries in the later life stages, which implausibly might converge well with the decreased generalization precision learned from the training dataset. Hence, this situation should be seen as an exception that is caused by an artifact present in the test data and should not be seen as the expected pattern of behavior.
The inconsistencies can be further studied by examining the quantization noise corresponding to each model and each quantization precision. In

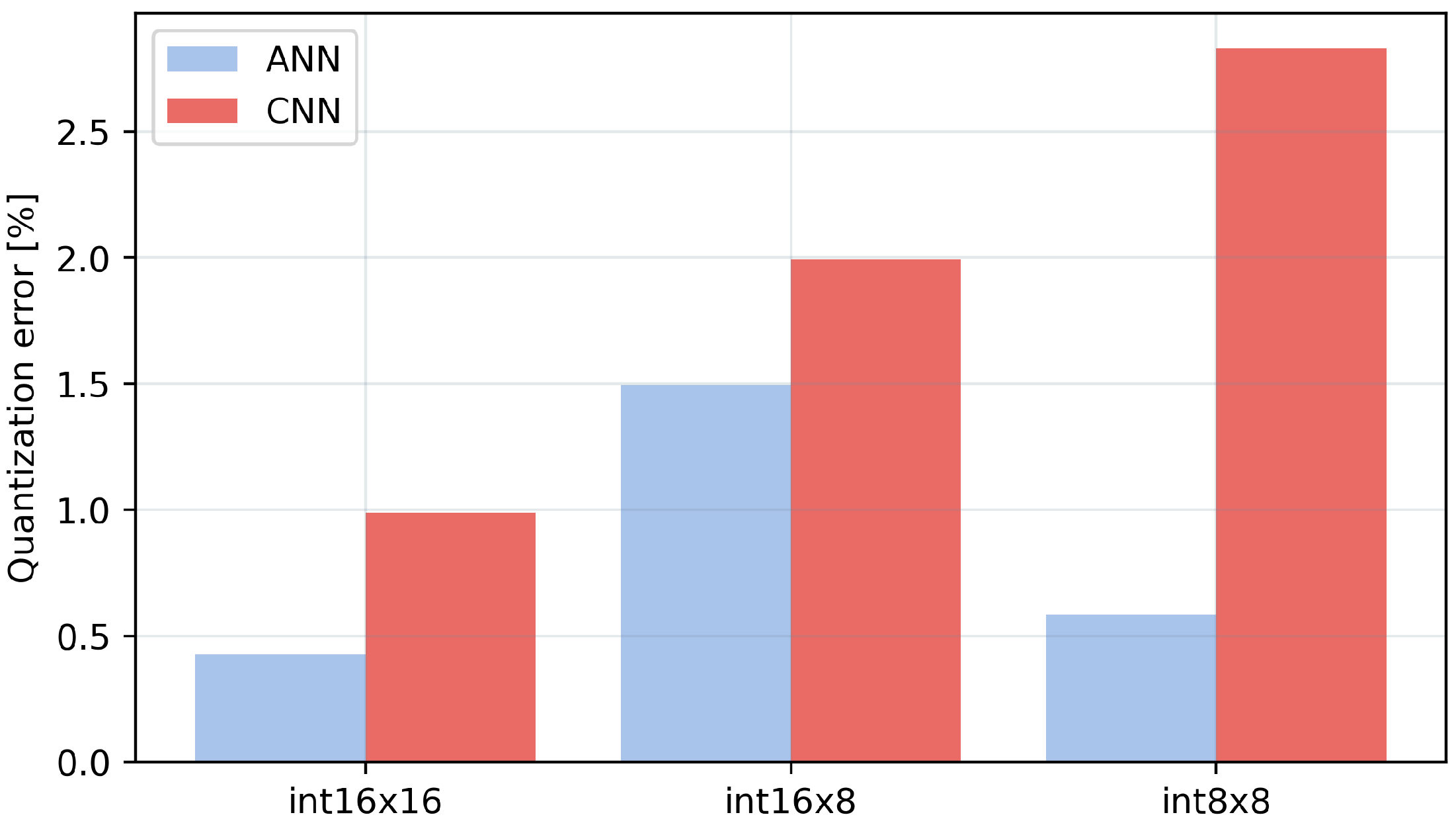

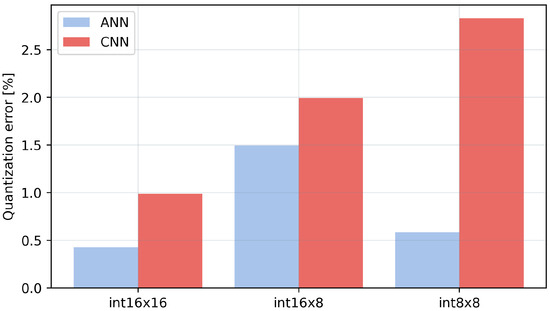

Figure 10, the model degradation due to quantization is studied by comparing the reference model prediction with quantized versions in terms of the MAE. It is easily visible that the int16x16 achieves a performance that is the most comparable to the original model trained and tested on a desktop with a quantization error not surpassing 0.5% in terms of the MAE. The error grows to 1.5% for the mixed quantization and to 0.6% for int8x8. This behavior is consistent with a higher bit precision and lower reductions in the model weights. Moreover, it is highly desirable, as with PTQ, most of the model training, validation, and hyperparameter tweaking is performed before quantization; therefore, any deviation may invalidate previous fine-tuning [
46].
Since the initial model design prioritized TinyML implementation, the pre-quantized model sizes are inherently small. This characteristic allows for less aggressive quantization, focusing on balancing memory efficiency with minimal performance degradation. In this case, int16x16 quantization reduces the model weight size by over 50% compared to the original precision (e.g., float32) for both the CNN and ANN models. This translates to a memory footprint of less than 10% for the CNN and less than 5% for the ANN on the flash memory of the target device. Furthermore, in
Figure 10, it can be seen that int16x16 quantization typically introduces a minimal accuracy loss, with errors not exceeding 0.5% compared to the pre-quantized model. This ensures that the model maintains its effectiveness in real-world applications.
Considering both memory efficiency and performance, the int16x16 ANN model emerges as the optimal choice for deployment and further study. Its compact size allows for efficient operation on resource-constrained IoT devices, while the minimal performance degradation ensures accurate battery SoC estimation. This selection prioritizes the key considerations for TinyML applications on resource-limited devices.
Regardless of the results, there is still an issue with a declining performance in the later stages of battery life. Despite the satisfactory results obtained by the tested models, a good prediction accuracy should be independent of the aging phase of the battery and the test device. Therefore, in future works, it is necessary to test other common architectures for time-series analysis, including models like CNN-LSTM or CNN-GRU. A robust selection procedure should be performed considering a trade-off between the accuracy and computational and memory requirements of the model.
6. Conclusions
TinyML presents a new and exciting frontier for the development of smart measuring devices that are capable of aggregating data and making decisions on the edge. This paper contributes to the state of the art by presenting a robust case study on IoT implementation of DL algorithms for SoC estimation. A new, very large open-access battery dataset published by TUB-PoliMi has been utilized to train the proposed models and test the developed methodology. The dataset is based on LG 2.5Ah 18650 batteries of NMC type and contains information on the voltage, current, and temperature of the cells. Various driving profiles are tested at different discharge temperatures ranging from −20 °C to 35 °C. These new data allow for a detailed comparison of battery behavior, as the models could be tested using a different battery cell and various driving cycles.

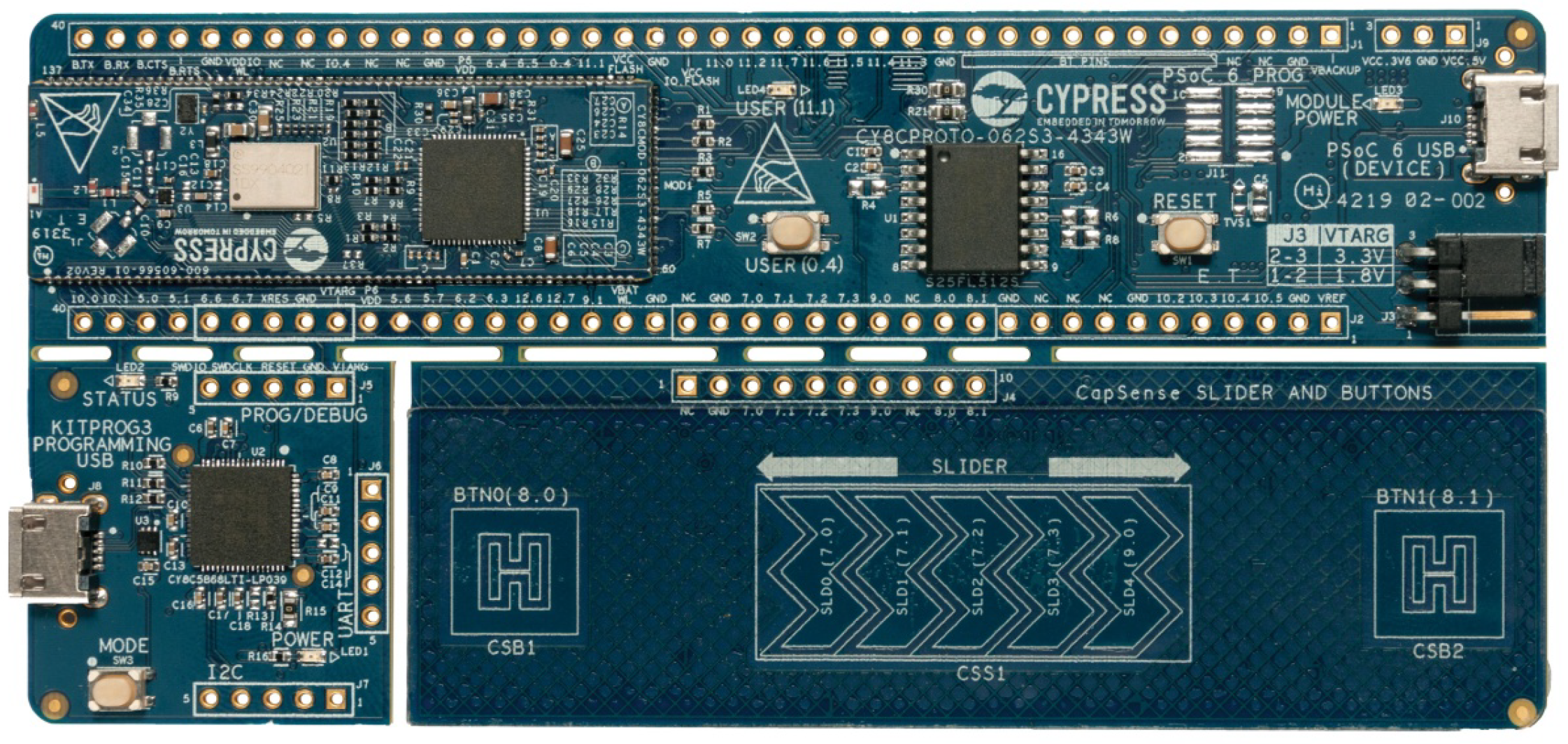

Provided with the dataset, two different DL models are trained, quantized through PTQ, and subsequently deployed on the CY8CPROTO-062S3-4343W PSoC 62S3 target device. The selected quantization infrastructure supports different quantization precision values. This allows for demonstrating the benefits of using a less destructive precision—int16x16 compared to the standard int8x8 supported by the majority of open-source frameworks such as TFLM or ONNX. With int16x16, the models suffer from less quantization noise, making them more comparable to the reference models trained and tested on the desktop before PTQ. Certainly, the price to pay is the increased on-device memory footprint of the deployed model. However, with models such as the demonstrated ANN, the memory occupied by the model weights is less than 3% of the total available flash memory. In the end, the best result in terms of the MAE was achieved by the ANN in the early cycles with a 2.81% error for an already quantized model.
In the tests, the ANN outperforms the more complex CNN in terms of both inference time and accuracy, which is in line with the previous findings in [
12,
35,
36], where often simpler models achieved comparable or better results than their more advanced counterparts. Moreover, the error achieved by the proposed ANN approach is lower compared to those found in related research papers. Despite the satisfactory results of the presented models, it would be necessary to evaluate other popular DL architectures that are regularly used for SoC prediction, such as LSTM, GRU, CNN-LSTM, and CNN-GRU, in future research. These advanced DL models for time-series analysis could deeply benefit from being paired with a more robust and detailed dataset from TUB-PoliMi [
39]. Moreover, in future works, research can be extended to add additional steps and secondary prediction models that could focus on tasks such as SoH estimation or RUL trajectory prediction, which are vital for prognostics, diagnostics, and general health management of batteries. Moreover, some further experimentation will be performed to enrich the training dataset, such as the implementation of time-series data augmentation techniques to address the inconsistencies in the late cycle.
