Domain Decomposition Hybrid Implicit–Explicit Algorithm with Higher-Order Perfectly Matched Layer Formulation for Electrical Performance Evaluation under Low-Pressure Discharge Phenomenon

Abstract

Low-pressure discharge events have a major impact on a satellite’s electrical performance. Most notably, a number of serious issues arise from the inability to directly modify satellite systems that operate in orbit. Accurate analysis of electrical performance is crucial for mitigating the issues arising from the low-pressure discharge phenomenon. Complex structures, such as intricate features and curved structures, are frequently used in satellite systems’ enormous microwave components. In this case, the finite-difference time-domain (FDTD) approach proposes the hybrid implicit–explicit (HIE) algorithm with a domain decomposition method to effectively simulate complex structures under the low-pressure discharge phenomenon. The bilinear transform method is adjusted in accordance with the implicit equations for the anisotropic magnetized plasma environment caused by the discharge. To end unbounded lattices, a higher-order perfectly matched layer is used at the boundary. An example of a microwave connector structure is used to show how well the algorithm performs electrically. According to the findings, the suggested algorithm behaves in a way that is consistent with both the traditional algorithm and the experiments. Furthermore, the phenomenon of low-pressure discharge has a notable impact on the electrical performance of microwave components.

1. Introduction

One of the most important possible concerns when working in space is the discharge phenomenon, which has a major impact on the satellite system [1]. When the discharge phenomenon occurs, the satellite system experiences disconnected, uncontrollable, or even catastrophic failure. Low-pressure discharge and multipactor discharge are two types of discharge phenomena [2]. In contrast to multipactor discharge, low-pressure discharge takes place at pressures ranging from 1.3 Pa to 1000 Pa. Up till now, the multipactor phenomenon and the discharge mechanism have received the majority of research attention [3,4,5]. Most studies mainly investigated the theoretical solution of the Paschen curve. Through the calculation of the Paschen curve, the reaction between material and air under high-power excitation and low pressure can be revealed. However, these investigations can only solve ideological problems, which has significant limitations in practical engineering. In order to resolve such conditions, the majority of research up to this point has looked at discharge thresholds and experimental techniques [6,7]. Practical engineering might greatly benefit from an effective way to quantitatively assess electrical performance in order to forecast the discharge occurrence and modify the system in space.

The extraordinarily high power ionizes the gas inside the discharge-sensitive area when the low-pressure discharge phenomenon occurs. A plasma environment is created as a result [3]. To effectively convey the microscopic features, the anisotropic magnetized plasma model is taken into consideration [8]. Magnetized plasma has a distinctive anisotropic behavior in the presence of an external magnetic field. The electrical performance is greatly altered when magnetized plasma forms [9]. Therefore, the two main issues are precisely simulating the plasma characteristics and electronic behavior. The full-wave simulation method can be immediately connected to the computational fluid dynamics (CFD) method to derive the plasma parameters [10]. As of right now, a few techniques for simulating anisotropic magnetized plasma have been established based on the finite-difference time-domain (FDTD) algorithm, which exhibits notable accuracy and efficiency [11,12,13,14].

One of the most vulnerable regions for low-pressure discharge is the connections between various components [15]. The efficiency of the conventional method is impacted by the large number of small features in the connector construction that cause a multiscale problem to arise. The smallest details determine the traditional algorithm’s correctness and efficacy. Stated differently, the mesh size needs to be selected with sufficient precision to guarantee the algorithm’s efficacy and precision. The reason is because the Courant–Friedrich–Levy (CFL) condition limits the stability of the time-explicit conventional FDTD algorithm [16]. Nevertheless, in multiscale issues, an unacceptably long simulation time is caused by an excessively tiny mesh size. The simulation results will become erroneous or perhaps fail if the mesh size increases to the point where the CFL condition is not satisfied. Unconditionally stable algorithms, such as split-step (SS), locally one-dimensional (LOD), alternative direction implicit (ADI), and others, are presented to alleviate such situations and preserve significant accuracy while overcoming the CFL condition [17,18,19]. While unconditionally stable algorithms are capable of preserving algorithmic stability in the absence of stability condition limitations, their efficiency is limited to specific details across all dimensions [20]. The hybrid implicit–explicit (HIE) technique is presented to solve fine details only along low dimensions in order to achieve a significant performance for low-dimensional fine details [21]. Time steps can be increased in accordance with the use of the HIE algorithm with a significant degree of accuracy by using the implicit updating procedure. The original HIE method performs degeneration of conformal structures with uniform mesh selection behaviors. The domain decomposition (DD) method is used to increase the computation accuracy in fine details with conformal structures [22]. Mesh size can be selected using the DD approach in accordance with the calculation requirements.

At the domain boundaries, absorbing boundary conditions have to be used in order to simulate open-area issues in limited space. One of the most effective absorbing boundary conditions is the perfectly matched layer (PML) formulation [23]. Six auxiliary variables based on the split-field method are added to the original PML formulation, which causes efficiency and absorption to degenerate. To help with this issue, unsplit-field techniques like stretch coordinate (SC) and complex frequency-shifted (CFS) schemes are introduced [24,25]. Reduced late-time reflections and the absorption of low-frequency evanescent waves are two benefits of unsplit-field systems [26]. Low-frequency propagation waves, however, cannot be effectively absorbed by these systems. When there are several low-frequency outgoing waves in a problem, this condition makes the computation erroneous. A higher-order PML formulation is used to address this issue, and it is accomplished by multiplying the stretched coordinate variables by one to create a single term [27]. The length and resource requirements of the simulation increase with the application of higher-order PML schemes. In order to mitigate this situation, a higher-order PML method that uses the unsplit-field formulation is used to lower the computing complexity of an algorithm that retains four auxiliary variables while updating each Maxwell’s equation [28]. Up to now, the HIE algorithm has changed to a higher-order formulation in response to various situations.

One of the most sensitive low-pressure discharge locations is the connector structure, which connects the microwave’s component parts. Despite the introduction of certain pertinent works utilizing the HIE algorithm for plasma simulation, these efforts remain insufficient in effectively assessing the electrical performance of microwave connector structures during low-pressure discharge events. The following is a description of the primary drawback: (1) One of the most significant components of huge microwave components are curve structures. Conventional structures cannot be solved effectively by using current methods. A significant impact on computation accuracy will result from directly using an existing algorithm. (2) Magnetized plasma with anisotropic characteristics that can effectively reflect the microscopic property is created when a discharge occurs. Large calculation errors will arise at the intersection of curves and boundaries when magnetized plasma is calculated directly using pre-existing techniques. As such, a different approach ought to be taken into account. (3) It should be noticed that the conventional FDTD algorithm is discretized based on the cubic Yee grid. Such a condition results in a large calculation error with curve structures. Meanwhile, in order to maintain the accuracy of the algorithm, the chosen mesh size must be fine enough, which results in significant decrements in efficiency. Thus, the DD method shows advantages in curve structures and extremely fine local structures.

In this paper, a domain decomposition HIE algorithm is proposed for the low-pressure discharge phenomenon. A microwave connector is employed as an example for demonstration. From the results, it can be concluded that the proposed algorithm can accurately analyze electrical performance with the low-pressure discharge phenomenon. The novelty of this paper can be summarized as follows: (1) For the anisotropic magnetized plasma, an alternative method for the implicit scheme is modified based on the HIE algorithm with considerable accuracy. (2) A higher-order perfectly matched layer formulation is employed for the termination of boundaries to absorb outgoing waves. (3) The domain decomposition method is modified to simulate conformal structures based on the HIE algorithm.

2. Formulation

In this section, the implementation of the domain decomposition HIE algorithm inside the plasma environment is demonstrated. At the sensitive area, anisotropic magnetized plasma is produced as a result of the low-pressure discharge phenomenon. As a result, an anisotropic magnetized plasma computational domain is used. The magnetized plasma’s Maxwell’s equations inside the PML areas are given by

$$j\omega {\epsilon }_0{\epsilon }_r\mathit{E}={\nabla }_s\times \mathit{H}-\mathit{J}$$

(1a)

$$j\omega {\mu }_0\mathit{H}=-{\nabla }_s\times \mathit{E}$$

(1b)

where $\mathit{J}$ represents the polarization current density of the magnetized plasma, $\omega$ is the frequency, and ${\epsilon }_0$ and ${\mu }_0$ are the relative permittivity and relative permeability. ${\nabla }_s$ is the Laplacian operator which can be given as

$${\nabla }_s=\widehat{x}\frac{1}{S_x}\frac{\partial }{\partial x}+\widehat{y}\frac{1}{S_y}\frac{\partial }{\partial y}+\widehat{z}\frac{1}{S_z}\frac{\partial }{\partial z}$$

(2a)

where $S_{\eta },\eta =x,y,z$ is the stretched coordinate variables with the higher-order scheme which can be given as

$$S_{\eta }=\left({\kappa }_{\eta 1}+\frac{{\sigma }_{\eta 1}}{{\alpha }_{\eta 1}+j\omega {\epsilon }_0}\right)\left({\kappa }_{\eta 2}+\frac{{\sigma }_{\eta 2}}{{\alpha }_{\eta 2}+j\omega {\epsilon }_0}\right)$$

(2b)

where ${\kappa }_{\eta n}\ge 1,n=1,2$, is assumed to be positive real, while ${\sigma }_{\eta n}$ and ${\alpha }_{\eta n}$ are assumed to be real. According to the partial fraction method, stretched coordinate variables can be given as

$$S_{\eta }^{-1}=\frac{1}{{\kappa }_{\eta }}\frac{j\omega +a_{\eta 1}}{j\omega +b_{\eta 1}}\frac{j\omega +a_{\eta 2}}{j\omega +b_{\eta 2}}$$

(2c)

where the coefficients are ${\kappa }_{\eta }=1/\left({\kappa }_{\eta 1}{\kappa }_{\eta 2}\right)$, $a_{\eta n}={\alpha }_{\eta n}/{\epsilon }_0$, and $b_{\eta n}=a_{\eta n}+a_{\eta n}/{\kappa }_{\eta n}$. In order to clearly demonstrate this, the proposed algorithm is divided into several parts in the following part.

2.1. Discretization in FDTD Domain

Similar methods can be used to determine the electric and magnetic components through the symmetry of the Maxwell’s equations. As a result, $D_x$, $E_x$, and $H_z$ components are used as examples throughout the demonstration. One can obtain Maxwell’s equations by utilizing the individual component’s form.

$$j\omega {\epsilon }_0{E}_x=\frac{1}{S_y}\frac{\partial H_z}{{\partial }_y}-\frac{1}{S_z}\frac{\partial H_y}{{\partial }_z}-J_x$$

(3a)

$$-j\omega {\mu }_0{H}_y=\frac{1}{S_z}\frac{\partial E_x}{{\partial }_z}-\frac{1}{S_x}\frac{\partial E_z}{{\partial }_x}.$$

(3b)

By substituting (2c) into (3a) and (3b), the results can be given after introducing auxiliary variables as

$$j\omega {\epsilon }_0{E}_x=\frac{\partial H_{xz}}{{\partial }_y}-\frac{\partial H_{xy}}{{\partial }_z}-J_x$$

(4a)

$$-j\omega {\mu }_0{H}_y=\frac{\partial E_{yx}}{{\partial }_z}-\frac{\partial E_{yz}}{{\partial }_x}$$

(4b)

where the introduced auxiliary variables can be given as, for example,

$$H_{xz}=\frac{1}{{\kappa }_y}\frac{j\omega +a_{y1}}{j\omega +b_{y1}}\frac{j\omega +a_{y2}}{j\omega +b_{y2}}{H}_z$$

(5a)

$$E_{yx}=\frac{1}{{\kappa }_z}\frac{j\omega +a_{z1}}{j\omega +b_{z1}}\frac{j\omega +a_{z2}}{j\omega +b_{z2}}{E}_x.$$

(5b)

By transforming (4a,b) into the time domain according to the Fourier transform, the results can be given as

$${\epsilon }_0\frac{\partial E_x}{{\partial }_t}=\frac{\partial H_{xz}}{{\partial }_y}-\frac{\partial H_{xy}}{{\partial }_z}-J_x$$

(6a)

$${\mu }_0\frac{\partial H_y}{{\partial }_t}=\frac{\partial E_{yz}}{{\partial }_x}-\frac{\partial E_{yx}}{{\partial }_z}.$$

(6b)

According to a similar approach, auxiliary variables can be given as

$${\partial }_t^2{H}_{xz}+\left(b_{y1}+b_{y2}\right){\partial }_t{H}_{xz}+b_{y1}{b}_{y2}{H}_{xz}=\frac{{\partial }_t^2{H}_z}{{\kappa }_y}+\frac{\left(a_{y1}+a_{y2}\right){\partial }_t{H}_z}{{\kappa }_y}+\frac{a_{y1}{a}_{y2}{H}_z}{{\kappa }_y}$$

(7a)

$${\partial }_t^2{E}_{yz}+\left(b_{x1}+b_{x2}\right){\partial }_t{E}_{yz}+b_{x1}{b}_{x2}{E}_{yz}=\frac{{\partial }_t^2{E}_z}{{\kappa }_x}+\frac{\left(a_{x1}+a_{x2}\right){\partial }_t{E}_z}{{\kappa }_x}+\frac{a_{x1}{a}_{x2}{E}_z}{{\kappa }_x}.$$

(7b)

2.2. Solution in the Higher-Order PML Regions

Assuming the existence of fine details along the y-direction, the components are explicitly calculated along that direction. Equations (6a,b), as a result of the stepping of the HIE algorithm, can be represented as

$$E_x^{n+1}=E_x^n+\frac{\Delta t}{{\epsilon }_0}{\delta }_y{H}_{xz}^{n+1}-\frac{\Delta t}{{\epsilon }_0}{\delta }_z{H}_{xy}^{n+1/2}-\frac{\Delta t}{2{\epsilon }_0}\left(J_x^{n+1}+J_x^n\right)$$

(8a)

$$H_y^{n+1/2}=H_y^n+\frac{\Delta t}{{\mu }_0}{\delta }_x{E}_{yz}^n-\frac{\Delta t}{{\mu }_0}{\delta }_z{E}_{yx}^n$$

(8b)

where ${\delta }_{\eta }$ is the first-order finite-difference form given as, for example,

$${\delta }_z{H}_{xy}^{n+1/2}=\left({\left.H_{xy}\right|}_{i+1/2,j,k+1/2}^{n+1/2}-{\left.H_{xy}\right|}_{i+1/2,j,k-1/2}^{n+1/2}\right)/\Delta z.$$

(8c)

The auxiliary variables are manipulated as

$$H_{xz}^{n+1}=p_{1y}{H}_{xz}^n-p_{2y}{H}_{xz}^{n-1}+p_{3y}{H}_z^{n+1}-p_{4y}{H}_z^n+p_{2y}{H}_z^{n-1}$$

(9a)

$$H_{xy}^{n+1/2}=p_{1y}{H}_{xy}^n-p_{2y}{H}_{xy}^{n-1/2}+p_{3y}{H}_y^{n+1/2}-p_{4y}{H}_y^n+p_{2y}{H}_y^{n-1/2}$$

(9b)

where the coefficients can be given as

$$p_{0\eta }=1+\Delta t\left(b_{\eta 1}+b_{\eta 2}\right)+\frac{\Delta t^2{b}_{\eta 1}{b}_{\eta 2}}{2},p_{1\eta }=\frac{2+\Delta t\left(b_{\eta 1}+b_{\eta 2}\right)-\frac{\Delta t^2{b}_{\eta 1}{b}_{\eta 2}}{2}}{p_{0\eta }},p_{2\eta }=\frac{1}{p_{0\eta }},$$

$$p_{3\eta }=\frac{1+\Delta t\left(a_{\eta 1}+a_{\eta 2}\right)+\frac{\Delta t^2{a}_{\eta 1}{a}_{\eta 2}}{2}}{{\kappa }_{\eta }{p}_{0\eta }},\mathrm{and}{p}_{4\eta }=\frac{2+\Delta t\left(a_{\eta 1}+a_{\eta 2}\right)-\frac{\Delta t^2{a}_{\eta 1}{a}_{\eta 2}}{2}}{{\kappa }_{\eta }{p}_{0\eta }}.$$

By substituting auxiliary variables (9a) and (9b) into (8a), the results can be given as

$$\begin{array}{l}{E}_x^{n+1}=E_x^n+p_{1ey}{\delta }_y{H}_{xz}^n-p_{2ey}{\delta }_y{H}_{xz}^{n-1}\\ -p_{4ey}{\delta }_y{H}_z^n+p_{2ey}{\delta }_y{H}_z^{n-1}-p_{1ey}{\delta }_z{H}_{xy}^n+p_{2ey}{\delta }_z{H}_{xy}^{n-1/2}+p_{4ey}{\delta }_z{H}_y^n-p_{2ey}{\delta }_z{H}_y^{n-1/2}\\ +p_{3ey}{\delta }_y{H}_z^{n+1}-p_{3ey}{\delta }_z{H}_y^{n+1/2}-p_{5ex}\left(J_x^{n+1}+J_x^n\right)\end{array}$$

(10)

where the coefficients are $p_{ne\eta }=\frac{\Delta t}{{\epsilon }_0}{p}_{n\eta },n=1,2,3,4$ and $p_{5e\eta }=\frac{\Delta t}{2{\epsilon }_0}$.

2.3. Employment of HIE Algorithm

It can be observed that the $E_x^{n+1}$ and $H_z^{n+1}$ components are coupled, so they cannot be updated directly. To alleviate such a condition, $H_z^{n+1}$ is substituted into $E_x^{n+1}$ for decoupling, given as

$$\begin{array}{l}\left(1-p_{3hy}{\delta }_y{\delta }_y\right)E_x^{n+1}=E_x^n+p_{1ey}{\delta }_y{H}_{xz}^n-p_{2ey}{\delta }_y{H}_{xz}^{n-1}\\ -p_{4ey}{\delta }_y{H}_z^n+p_{2ey}{\delta }_y{H}_z^{n-1}-p_{1ey}{\delta }_z{H}_{xy}^n+p_{2ey}{\delta }_z{H}_{xy}^{n-1/2}+p_{4ey}{\delta }_z{H}_y^n-p_{2ey}{\delta }_z{H}_y^{n-1/2}\\ -p_{3ey}{\delta }_z{H}_y^{n+1/2}+p_{3ey}{\delta }_y{H}_z^n+p_{1hy}{p}_{3ey}{\delta }_y{\delta }_y{E}_{zx}^n-p_{2hy}{p}_{3ey}{\delta }_y{\delta }_y{E}_{zx}^{n-1}-p_{4hy}{\delta }_y{E}_x^n\\ +p_{2hy}{\delta }_y{E}_x^{n-1}-p_{1hx}{p}_{3ey}{\delta }_y{\delta }_x{E}_{zy}^n+p_{2hx}{p}_{3ey}{\delta }_y{\delta }_x{E}_{zy}^{n-1/2}-p_{3hx}{p}_{3ey}{\delta }_y{\delta }_x{E}_y^{n+1/2}\\ +p_{4hx}{p}_{3ey}{\delta }_y{\delta }_x{E}_y^n-p_{2hx}{p}_{3ey}{\delta }_y{\delta }_x{E}_y^{n-1/2}-p_{5ex}\left(J_x^{n+1}+J_x^n\right)\end{array}.$$

(11)

A tridiagonal matrix that can be implicitly renovated is generated at the left side by (11). The field components are dissociated in accordance with the HIE algorithm, as can be seen from (11). The electric current density is still dissociated from the field components along the x-direction though. An alternate technique for calculating magnetized plasma is required to alleviate such a situation. For instance, the magnetized plasma’s constitutive relationship is given as

$${\partial }_t{J}_x={\epsilon }_0{\omega }_p^2{E}_x-\nu J_x-{\omega }_b{J}_y$$

(12)

where ${\omega }_p$, ${\omega }_b$, and $\nu$ represent the plasma frequency, electron gyrofrequency, and damping constant, respectively. It is observed that $J_y$ and $J_x$ are coupled, which results in non-updated equations. According to the auxiliary differential equation (ADE) method, Equation (12) is given as

$$J_x^{n+1/2}=J_x^n+\frac{{\epsilon }_0{\omega }_p^2}{2}\left(E_x^{n+1}+E_x^n\right)-\frac{\nu }{2}\left(J_x^{n+1}+J_x^n\right)-\frac{{\omega }_b}{2}\left(J_y^{n+1/2}+J_y^n\right).$$

(13)

Through (13), it can be observed that the equations are modified according to the HIE algorithm. By substituting $J_y^{n+1/2}$ into (13) to decouple the equations, the results are given as

$$J_x^{n+1}=m_1{J}_x^n-m_2{J}_y^n+m_3{E}_x^{n+1}+m_4{E}_x^n-m_5{E}_y^{n+1/2}-m_5{E}_y^n$$

(14)

where $m_1=1/\left(m_6^2+m_6^2{m}_7^2\right)$, $m_2=\left[1-{\left(\nu \Delta t/2\right)}^2-{\left(\Delta t{\omega }_b/2\right)}^2\right]/m_1$, $m_3=\Delta t{\omega }_b/m_1$, $m_4=\Delta t{m}_6{\epsilon }_0{\omega }_p^2/2m_1$, $m_5=\Delta t^2{\omega }_b{\epsilon }_0{\omega }_p^2/4m_6$, $m_6=1+\nu \Delta t/2$, and $m_7={\omega }_b\Delta t/\left(2m_6\right)$. At each time step, they should be updated simultaneously because the electric current density is connected. The simultaneous solution can be used to derive the whole algorithm by replacing (14) with (11), as follows:

$$\begin{array}{l}\left(1-p_{3hy}{\delta }_y{\delta }_y+m_3{p}_{5ex}\right)E_x^{n+1}=\left(1-p_{4hy}{\delta }_y{\delta }_y-m_4{p}_{5ex}\right)E_x^n+p_{1ey}{\delta }_y{H}_{xz}^n-p_{2ey}{\delta }_y{H}_{xz}^{n-1}\\ -p_{4ey}{\delta }_y{H}_z^n+p_{2ey}{\delta }_y{H}_z^{n-1}-p_{1ey}{\delta }_z{H}_{xy}^n+p_{2ey}{\delta }_z{H}_{xy}^{n-1/2}+p_{4ey}{\delta }_z{H}_y^n-p_{2ey}{\delta }_z{H}_y^{n-1/2}\\ -p_{3ey}{\delta }_z{H}_y^{n+1/2}+p_{3ey}{\delta }_y{H}_z^n+p_{1hy}{p}_{3ey}{\delta }_y{\delta }_y{E}_{zx}^n-p_{2hy}{p}_{3ey}{\delta }_y{\delta }_y{E}_{zx}^{n-1}\\ +p_{2hy}{\delta }_y{E}_x^{n-1}-p_{1hx}{p}_{3ey}{\delta }_y{\delta }_x{E}_{zy}^n+p_{2hx}{p}_{3ey}{\delta }_y{\delta }_x{E}_{zy}^{n-1/2}\\ -p_{3hx}{p}_{3ey}{\delta }_y{\delta }_x{E}_y^{n+1/2}+p_{4hx}{p}_{3ey}{\delta }_y{\delta }_x{E}_y^n-p_{2hx}{p}_{3ey}{\delta }_y{\delta }_x{E}_y^{n-1/2}\\ -\left(1+m_1\right)p_{5ex}{J}_x^n+m_2{p}_{5ex}{J}_y^n+m_5{p}_{5ex}{E}_y^{n+1/2}+m_5{p}_{5ex}{E}_y^n.\end{array}$$

(15)

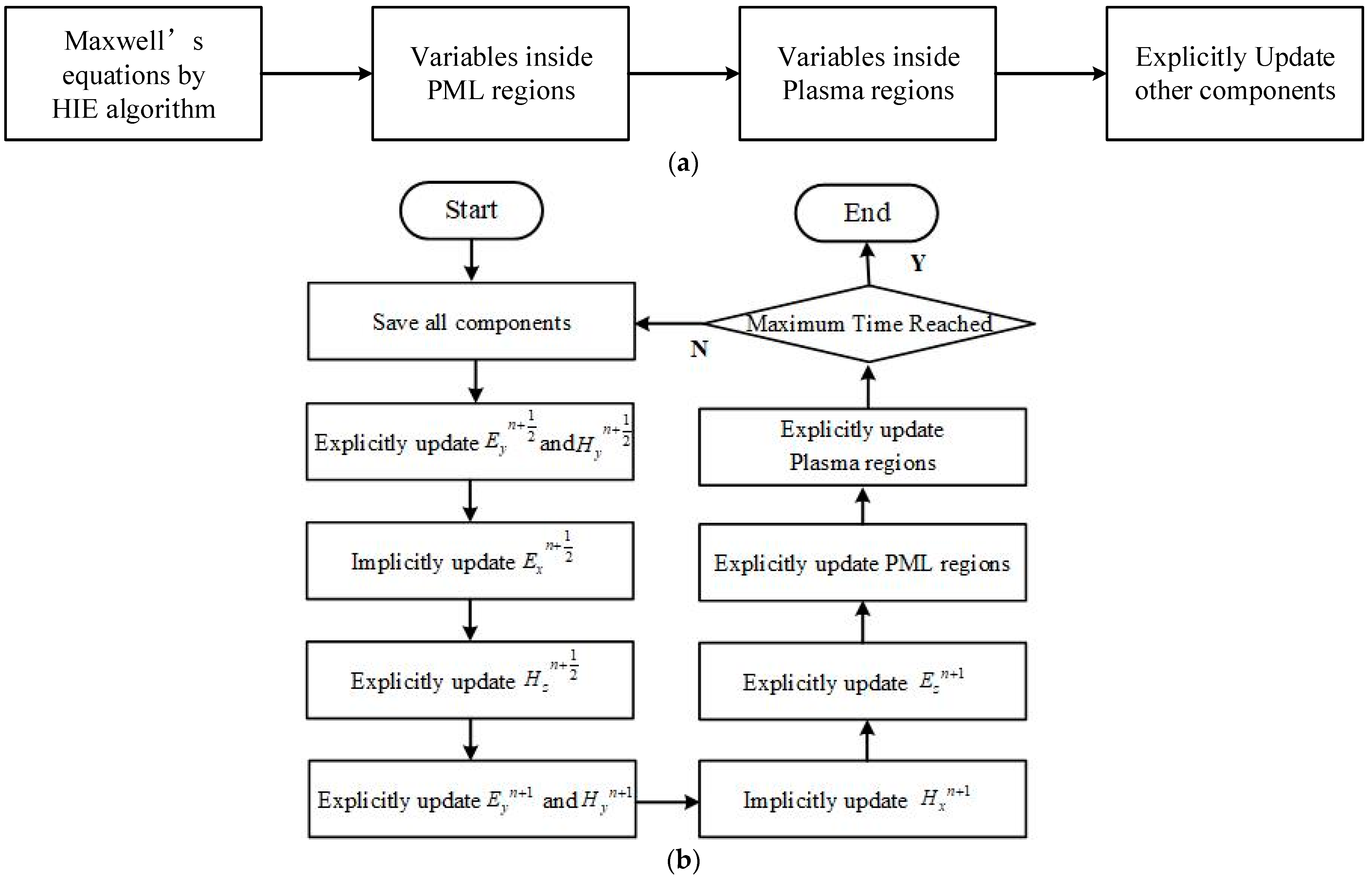

The solution of the entire algorithm can be summarized by the following procedure, as shown in Figure 1a, which includes (1) Maxwell’s equations in the FDTD domain by using the HIE algorithm; (2) updated variables inside the PML regions; (3) updated variables in the magnetized plasma; (4) explicitly updated variables and coefficients. The updating procedure of the individual components is shown in Figure 1b.

3. Solution of Domain Decomposition in Non-Uniform Domains

Conformal manipulation is required due to the local exceedingly small features and curve structures, which results in erroneous calculations. While choosing a finer mesh size will increase the accuracy of the calculation, the total cost of the calculation will increase significantly or may even become undesirable. The DD technique is brought into the FDTD domain to alleviate such a situation. Nevertheless, the simulation will be rendered invalid if the suggested technique is implemented using the current DD approach directly. As a result, an alternate DD technique for the suggested algorithm is proposed below.

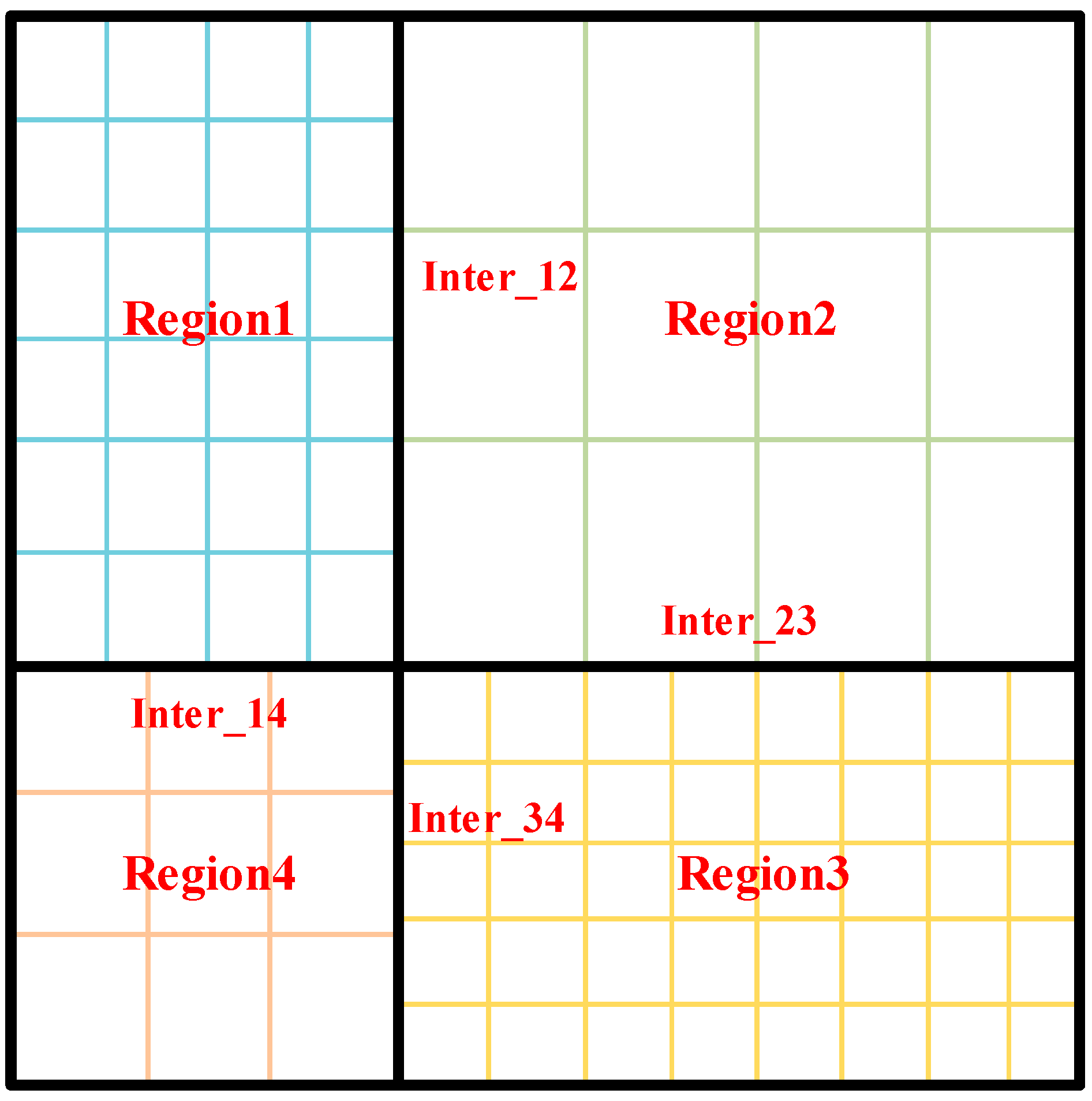

The four sub-regions of the uniform computational domain including regions 1, 2, 3, and 4 are depicted in Figure 2. Interfaces, such as Inter_12, Inter_14, Inter23, and Inter_34, connect various sub-regions. The original implicit equation in the HIE method, as per Equation (15), can be expressed as

$$\mathit{A}{\mathit{X}}^{n+1}={\mathit{b}}^n+{\mathit{c}}^{n-1/2}+{\mathit{d}}^{n-1}$$

(16)

where $\mathit{A}$ represents the matrix at the left side of (16), while $\mathit{b}$, $\mathit{c}$, and $\mathit{d}$ represent the components at a time step of n, n − ½, and n − 1. In the sub-regions, Equation (16) can be written as

$$\left[\begin{array}{ccccc}{\mathit{A}}_{11}& 0& 0& 0& {\mathit{A}}_{Inter\_1n}\\ 0& {\mathit{A}}_{22}& 0& 0& {\mathit{A}}_{Inter\_2n}\\ 0& 0& {\mathit{A}}_{33}& 0& {\mathit{A}}_{Inter\_3n}\\ 0& 0& 0& {\mathit{A}}_{44}& {\mathit{A}}_{Inter\_4n}\\ {\mathit{A}}_{Inter\_n1}& {\mathit{A}}_{Inter\_n2}& {\mathit{A}}_{Inter\_n3}& {\mathit{A}}_{Inter\_n4}& {\mathit{A}}_{Inter\_nn}\end{array}\right]\left[\begin{array}{c}{\mathit{X}}_1\\ {\mathit{X}}_2\\ {\mathit{X}}_3\\ {\mathit{X}}_4\\ {\mathit{X}}_{Inter}\end{array}\right]=\left[\begin{array}{c}{\mathit{b}}_1\\ {\mathit{b}}_2\\ {\mathit{b}}_3\\ {\mathit{b}}_4\\ {\mathit{b}}_{Inter}\end{array}\right]+\left[\begin{array}{c}{\mathit{c}}_1\\ {\mathit{c}}_2\\ {\mathit{c}}_3\\ {\mathit{c}}_4\\ {\mathit{c}}_{Inter}\end{array}\right]+\left[\begin{array}{c}{\mathit{d}}_1\\ {\mathit{d}}_2\\ {\mathit{d}}_3\\ {\mathit{d}}_4\\ {\mathit{d}}_{Inter}\end{array}\right].$$

(17)

The results can be obtained by expanding (18) into the form of individual components and replacing the components at the interfaces with those inside the sub-regions.

$$\left({\mathit{A}}_{Inter\_nn}-\sum _4^{i=1}{\mathit{A}}_{Inter\_in}^{\mathrm{T}}{\mathit{A}}_{ii}^{-1}{\mathit{A}}_{Inter\_in}^{\mathrm{T}}\right){\mathit{X}}_{Inter}={\mathit{b}}_{Inter}+{\mathit{c}}_{Inter}+{\mathit{d}}_{Inter}-\sum _4^{i=1}{\mathit{A}}_{Inter\_in}^{\mathrm{T}}{\mathit{A}}_{ii}^{-1}{\mathit{b}}_i{\mathit{c}}_i{\mathit{d}}_i$$

(18)

It is evident that the left side of (18) forms the Schur complement, which is explicitly solvable. By solving field components at the interfaces, one may correspondingly solve field components inside the sub-regions using Equation (17).

It should be noticed that the conventional FDTD algorithm is discretized based on the cubic Yee grid. Such a condition results in a large calculation error with curve structures. Meanwhile, in order to maintain the accuracy of the algorithm, the chosen mesh size must be fine enough, which results in significant decrements in efficiency. Thus, the DD method shows advantages in curve structures and extremely fine local structures.

4. Numerical Example

The effectiveness of the proposed algorithm is demonstrated through the microwave connector model. One of the most prominent space phenomena that has a big impact on system performance is the discharge. Additionally, under specific conditions, the discharge phenomenon frequently happens at the microwave connecting structure. As a result, the simulation of the structure of microwave connectors under discharge phenomena has significant implications for satellite systems. This section not only offers a different approach to the quantitative analysis of electric behavior during low-pressure discharge phenomena, but it also shows how successful the suggested algorithm is. It is mentioned that the microwave connector is composed of curves and fine local details. In such circumstances, the proposed DD method shows advantages in memory consumption and calculation efficiency.

4.1. Model Demonstration of Microwave Connector Structure

This section uses a microwave connector structure made of metal and dielectric material. It joins the coaxial cable and microstrip. The microstrip, coaxial cable, metal ribbon, and dielectric substrate make up the whole structure. The parameters of the dielectric substrate and outer coaxial cable are ${\epsilon }_r=9.9$ and ${\epsilon }_r=3.8$, respectively. The detailed parameters of the microwave connector structure are shown in

Table 1. The parameters of the microwave connector structure.

Parameter	Value	Parameter	Value
L1	40	L2	5.5
L3	5	L4	10.5
W1	40	W2	1.2
H1	1.2	H2	0.035
R1	5.1	R2	2
R3	2.5		Unit: mm

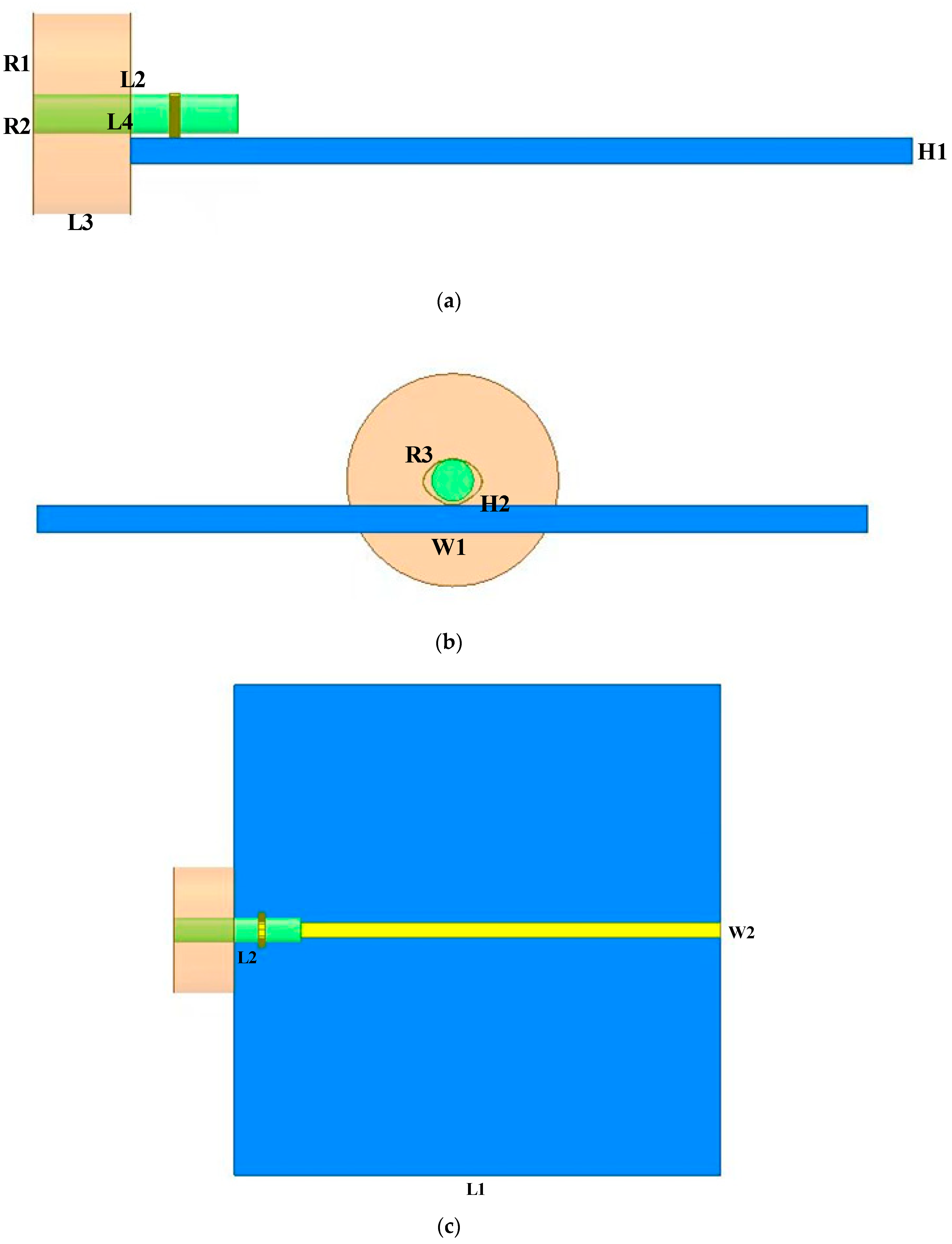

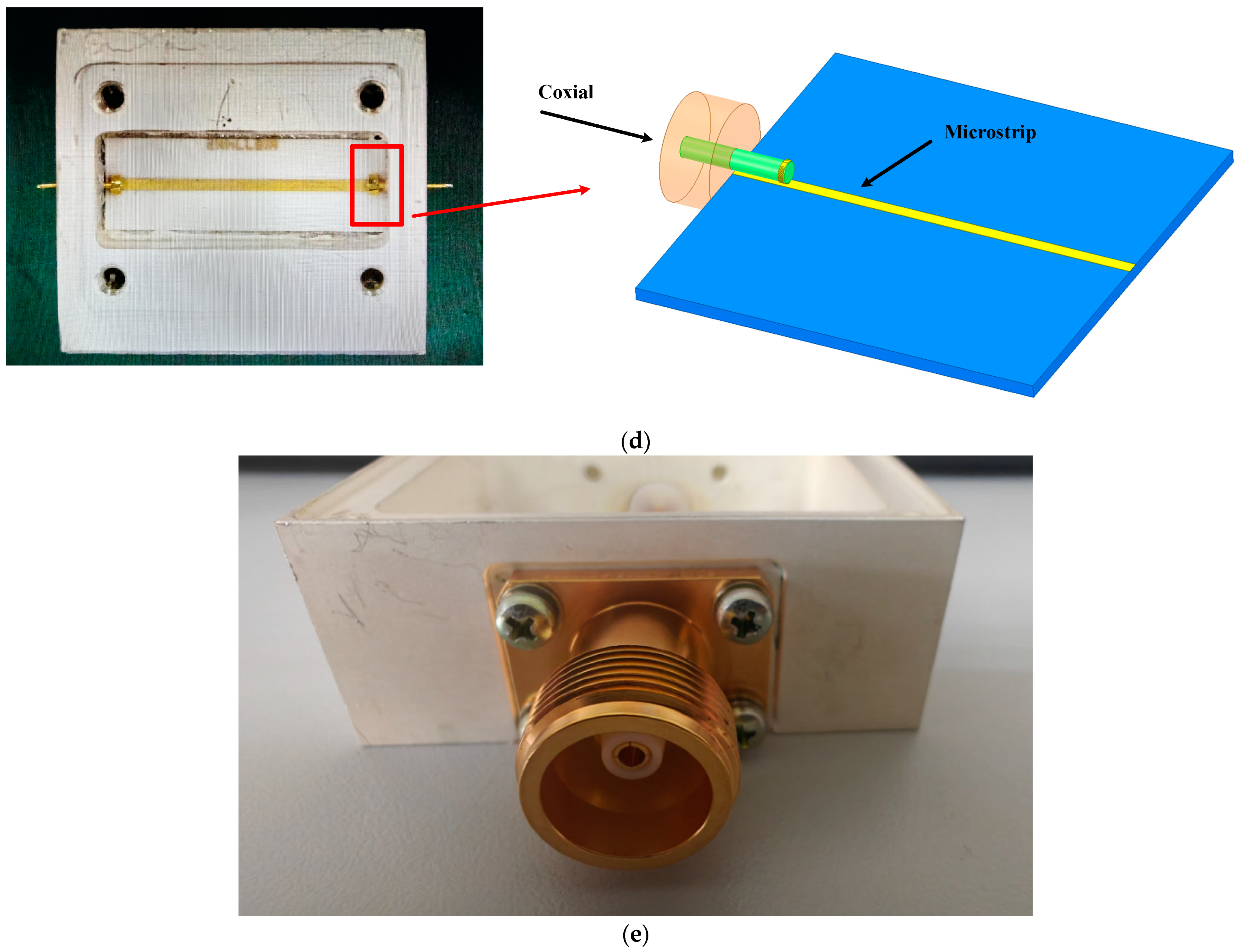

. The microwave connector structure’s front, side, and top views are displayed in Figure 3. Figure 3d also displays the physical photo of the microwave connector model. The simulation structure represents one of the ports.

4.2. Analyzation of Magnetized Plasma Occurring due to Low-Pressure Discharge Based on CFD Method

It can be observed that with the circumstance of 5 mbar, low-pressure discharge occurs with a power of 108 W. Such a circumstance can be regarded as the most significant working condition. Thus, the wave excitation of the model is selected as 108 W. The parameters of the anisotropic magnetized plasma are obtained under 5 mbar.

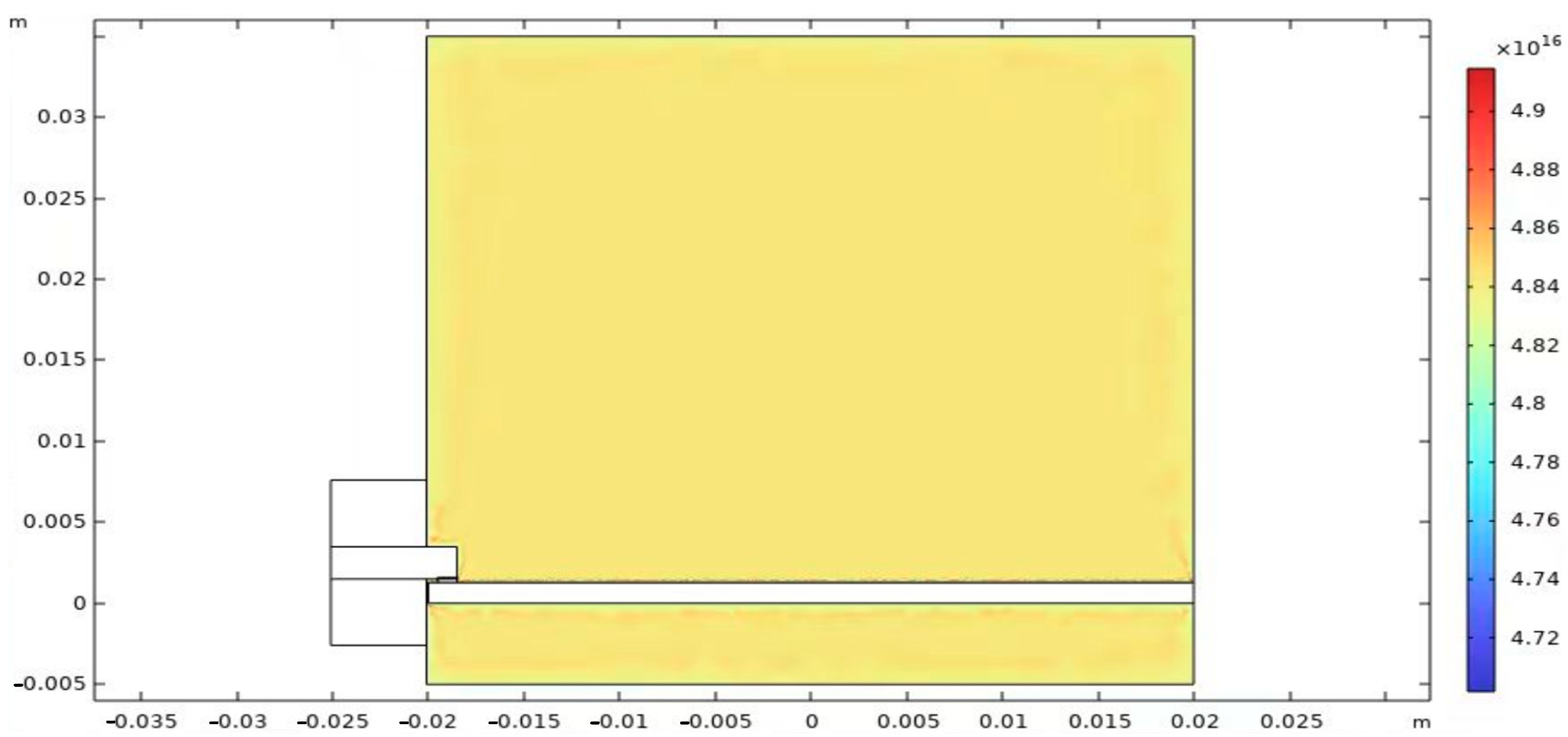

In such circumstances, the parameters and distribution of the anisotropic magnetized plasma and electric density can be obtained according to the CFD simulation, as shown in Figure 4a–d. Figure 5 shows the simulation results obtained by the CFL simulation. The results show that at a pressure of 5 mbar and an excitation of 108 W, the low-pressure discharge phenomenon occurs at the sensitive area. Anisotropic magnetized plasma is formed in the low-pressure discharge area in such circumstances, as shown in Figure 4. The parameters of the magnetized plasma can be obtained as ${\omega }_p=2\pi \times 2.8\times {10}^9$ rad/s, ${\omega }_b=1\times {10}^{11}$ rad/s, and $\nu =20\times {10}^9$ Hz. Furthermore, the proposed algorithm can still evaluate the microwave components without the discharge phenomenon, which can be implemented by filling the computational domain with a vacuum.

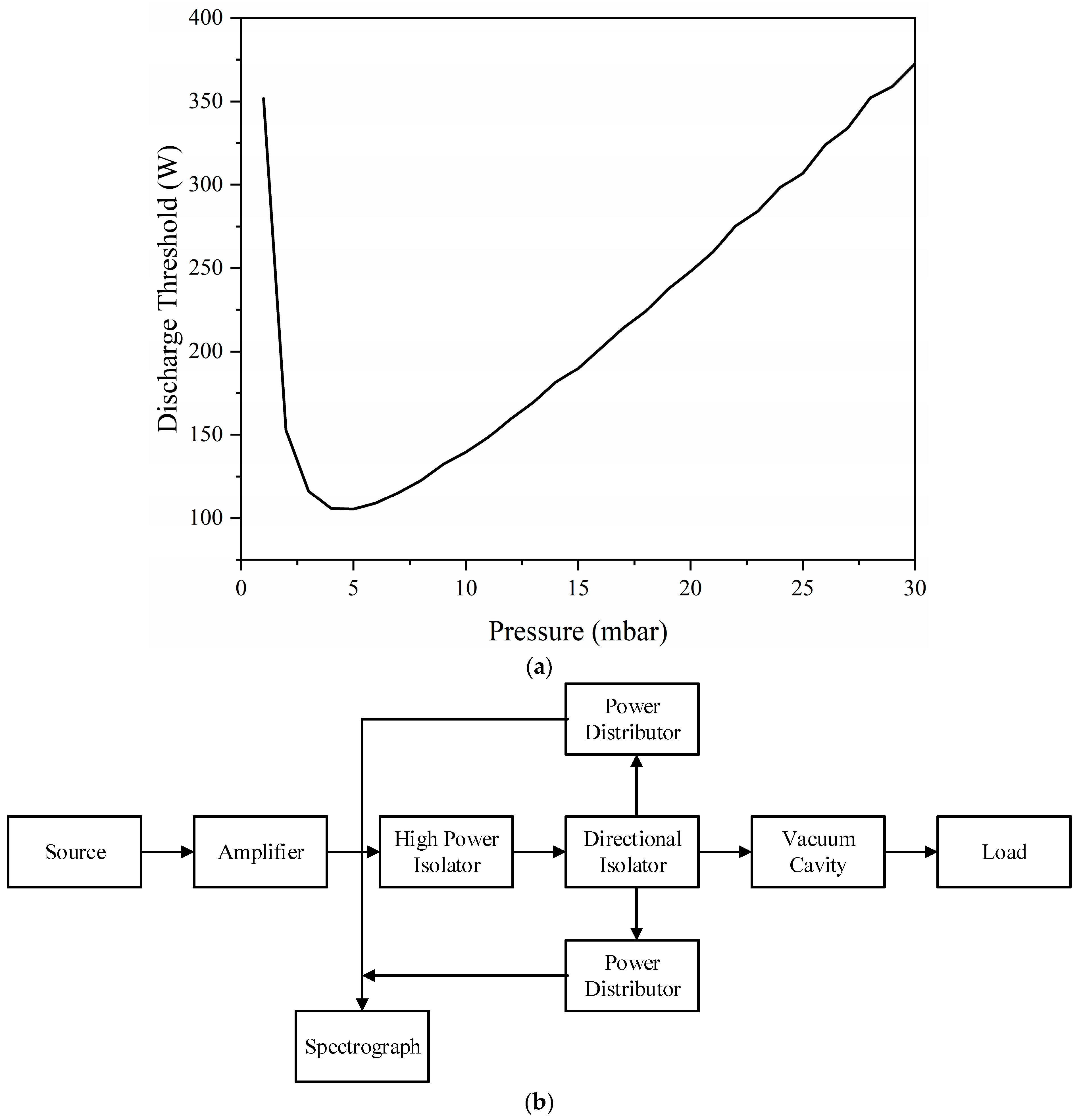

As shown in the experiment, the relationship between the pressure and discharge thresholds can be obtained from Figure 4a. The experimental environment is shown in Figure 4b. The excitation source of the microwave connector is shown in Figure 4c,d. The model is located inside the cavity and excited by the plane wave.

4.3. Demonstration of Proposed Algorithm including Higher-Order PML Scheme, HIE Procedure, and DD Method

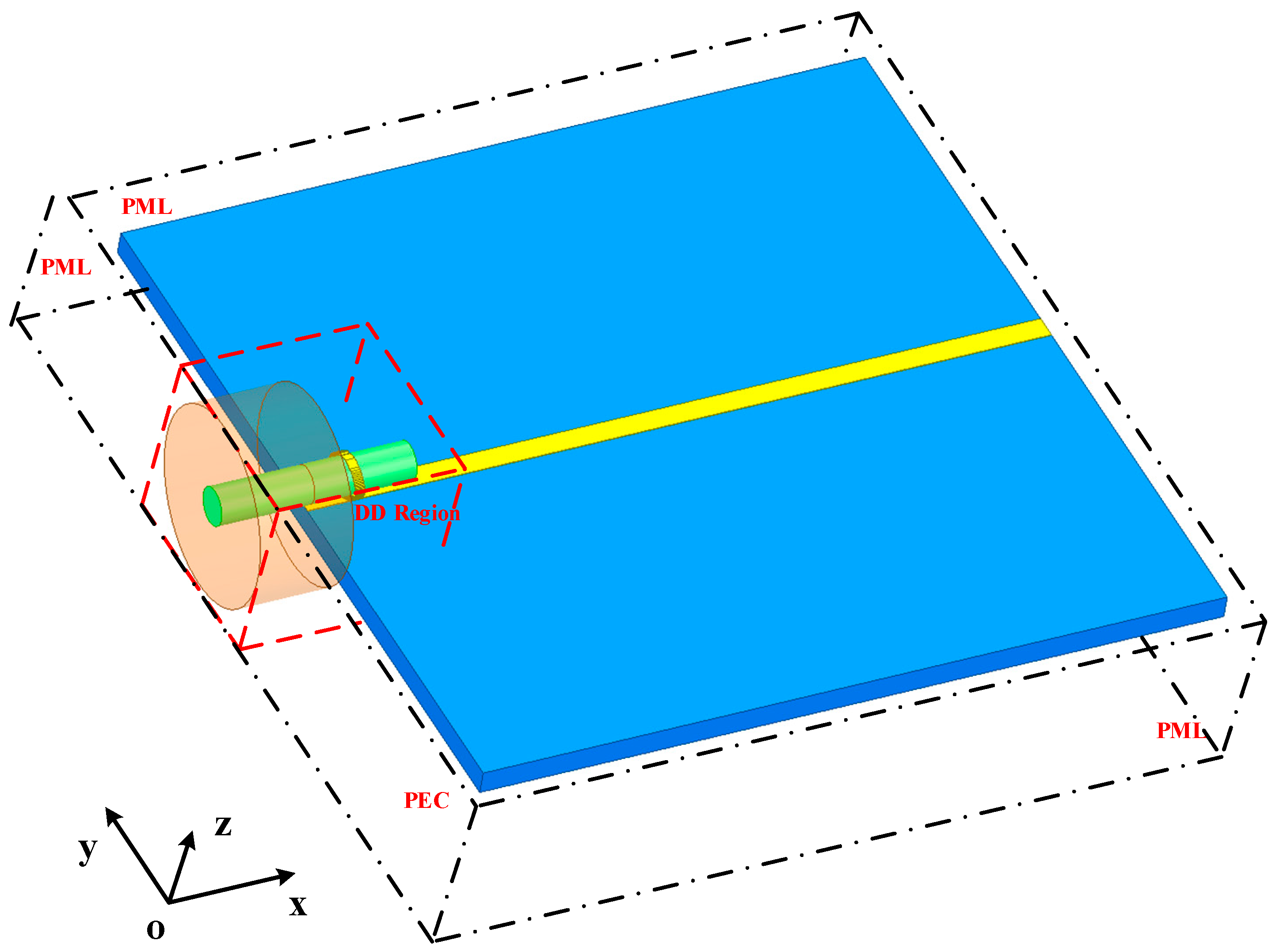

The computational domain is shown in Figure 6. The plane wave, which is the same as in the experiment above, propagates along the positive x-direction. The modulated Gaussian wave with a maximum frequency of 2 GHz and a center frequency of 1 GHz is the incidence wave. The perfect electronic conductor (PEC) ends at the left border. Ten-cell PML regions end at the remaining boundaries. The parameters are selected inside the PML zones to achieve the best results in the frequency and temporal domains.

The entire computational domain holds the dimensions of $45\times 40\times 10.4$ mm. The structure is located at the center of the domain. To improve the accuracy of the calculation, the DD region contains the entire coaxial region with the dimensions of $10.5\times 10.2\times 10.2$ mm. It can be observed that the entire structure holds extremely fine details along the vertical z-direction. Thus, the mesh size along the z-direction is chosen as $\Delta z=0.005$ mm. The mesh sizes of the x- and y-directions are $\Delta x=\Delta y=0.5$ mm. The mesh size in the DD region is $\Delta x=\Delta y=0.1$ mm.

The maximum time step of the conventional explicit algorithm can be obtained as $\Delta t_{\max }^{FDTD}=9.62$ fs. The maximum time step of the HIE algorithm can be obtained as $\Delta t_{\max }^{HIE}=33.3$ fs, whose maximum CFL number (CFLN) corresponds to 3.4. The CFLN is defined as $\Delta t/\Delta t_{\max }^{FDTD}$, where $\Delta t$ is the time step of the implicit algorithm.

In order to demonstrate the effectiveness of the algorithm, algorithms without the DD method are also introduced for the illustration which include the FDTD-PML in [29], the original HIE-PML in [30], and the proposed HIE-HPML. Meanwhile, the FDTD-PML with an extremely fine mesh size which holds $\Delta x=\Delta y=\Delta z=0.005$ mm is chosen for comparison, denoted as FM-FDTD-PML. To simplify the demonstration, the proposed algorithm with the DD method is denoted as DD-HIE-HPML. Thus, through comparisons between the different conventional algorithms and the proposed DD scheme, the effectiveness of the DD algorithm can be demonstrated.

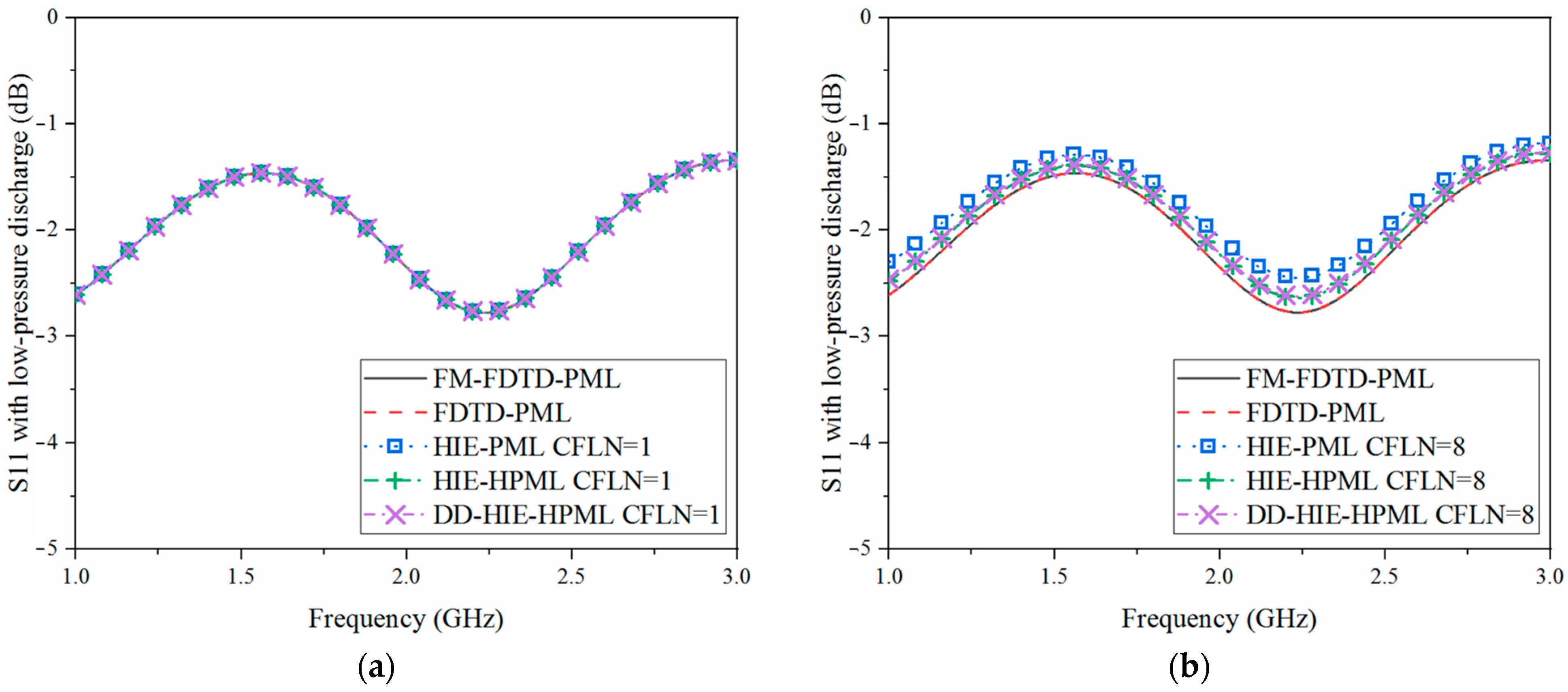

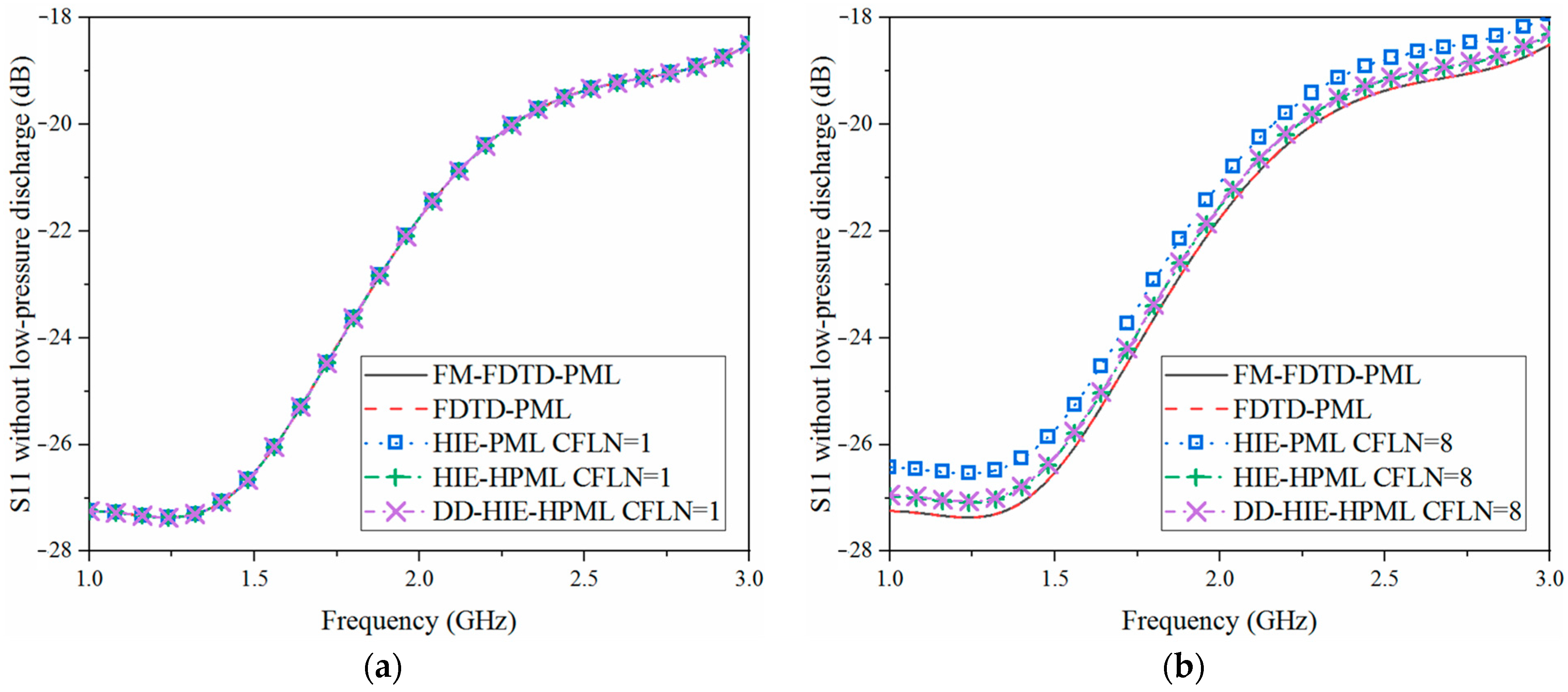

Figure 7 shows the return loss (S11) parameters obtained by using different PML algorithms with the low-pressure discharge phenomenon. Figure 8 displays the return loss (S11) obtained by using different PML algorithms without the low-pressure discharge phenomenon. As shown in Figure 7a and Figure 8a, it can be observed that the curves are overlapped. The reason is that all of these algorithms hold the same calculation accuracy with a lower time step. As shown in Figure 7b and Figure 8b, the curves show shifting compared with the results obtained by using a lower time step. The rationale is that an increase in the time step causes a corresponding increase in the numerical dispersion. The calculation accuracy deteriorates under such circumstances. The suggested approach has the highest accuracy among these implicit algorithms with the largest time step; this accuracy is nearly identical to that of the FM-FDTD-PML. Comparing the algorithm using the DD approach to the one without, the latter can achieve the same performance. This condition suggests that the suggested algorithm is accurate and efficient. As seen in

Table 2. Memory consumption, simulation duration, and time reduction by different algorithms and CFLNs.

Algorithm	CFLN	Steps	Memory (G)	Time (min)	Reduction (%)
FDTD-PML	1	32,768	21.5	39.6	-
FM-FDTD-PML	1	32,768	96.8	127.9	−222.9
HIE-PML	1	32,768	47.4	59.1	−49.24
HIE-HPML	1	32,768	50.2	69.6	−75.6
DD-HIE-HPML	1	32,768	33.7	35.9	9.3
HIE-PML	3.4	9638	47.4	30.5	22.9
HIE-HPML	3.4	9638	50.2	37.1	6.3
DD-HIE-HPML	3.4	9638	33.7	13.9	64.9

, the algorithm’s effectiveness can also be seen in memory usage, simulation duration, and time decrease with various CFLNs.

Because matrices are implicitly calculated for each time step, it is evident that implicit methods need more memory. The situation can be mitigated by augmenting the CFLNs, whose duration is markedly extended under such conditions. Even if the FDTD-PML and FM-FDTD-PML can achieve the same calculation accuracy, the increasing mesh numbers cause a large rise in memory usage and simulation length with extremely tiny mesh sizes. The suggested algorithm performs better than the other implicit algorithms in terms of efficiency and memory as a result of the DD technique. Such a requirement suggests that both the efficiency and memory consumption of the suggested algorithm are effective. It is evident from Figure 7 and Figure 8 that there are large differences in the return loss when there is a low-pressure discharge phenomenon. Such a circumstance suggests that the microwave device’s electrical performance is impacted by the presence of magnetized plasma during a low-pressure discharge event. A situation like this causes the system to malfunction or perhaps behave degenerately.

5. Conclusions

Here, the DD method and the HIE algorithm with a higher-order perfectly matched layer are suggested for evaluating the electrical performance of low-pressure discharges. The suggested algorithm exhibits benefits in relation to anisotropic magnetized plasma, curve shapes, and single-direction extremely fine details. Using a numerical example, the suggested methodology is shown to be in accord with the traditional explicit method as well as stable in the modeling of anisotropic magnetized plasma caused by the low-pressure discharge phenomenon. It has advantages over the original HIE approach in terms of accuracy, efficiency, and memory usage. By cutting down on the number of mesh sizes, the DD approach can dramatically reduce both the amount of memory used and the length of the simulation. Most notably, it can demonstrate how low pressure has a substantial impact on a microwave device’s electrical performance. Such a situation causes the system’s performance to deteriorate or maybe fail completely while in space.
