MSCFS-RP: A Colored-Petri-Net-Based Analysis Model for Master–Slave Cloud File Systems with Replication Pipelining

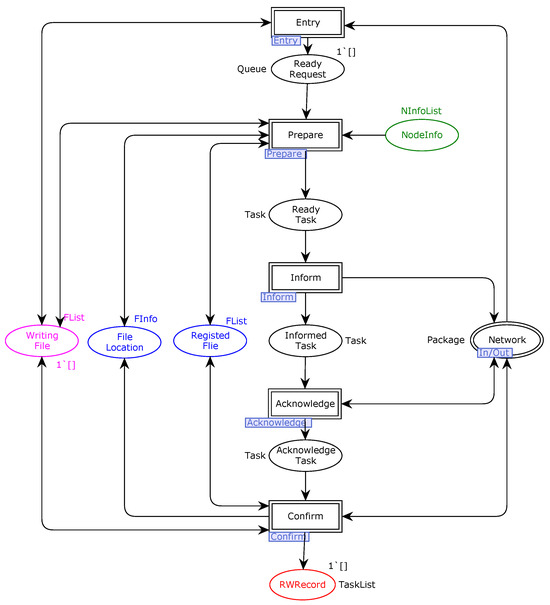

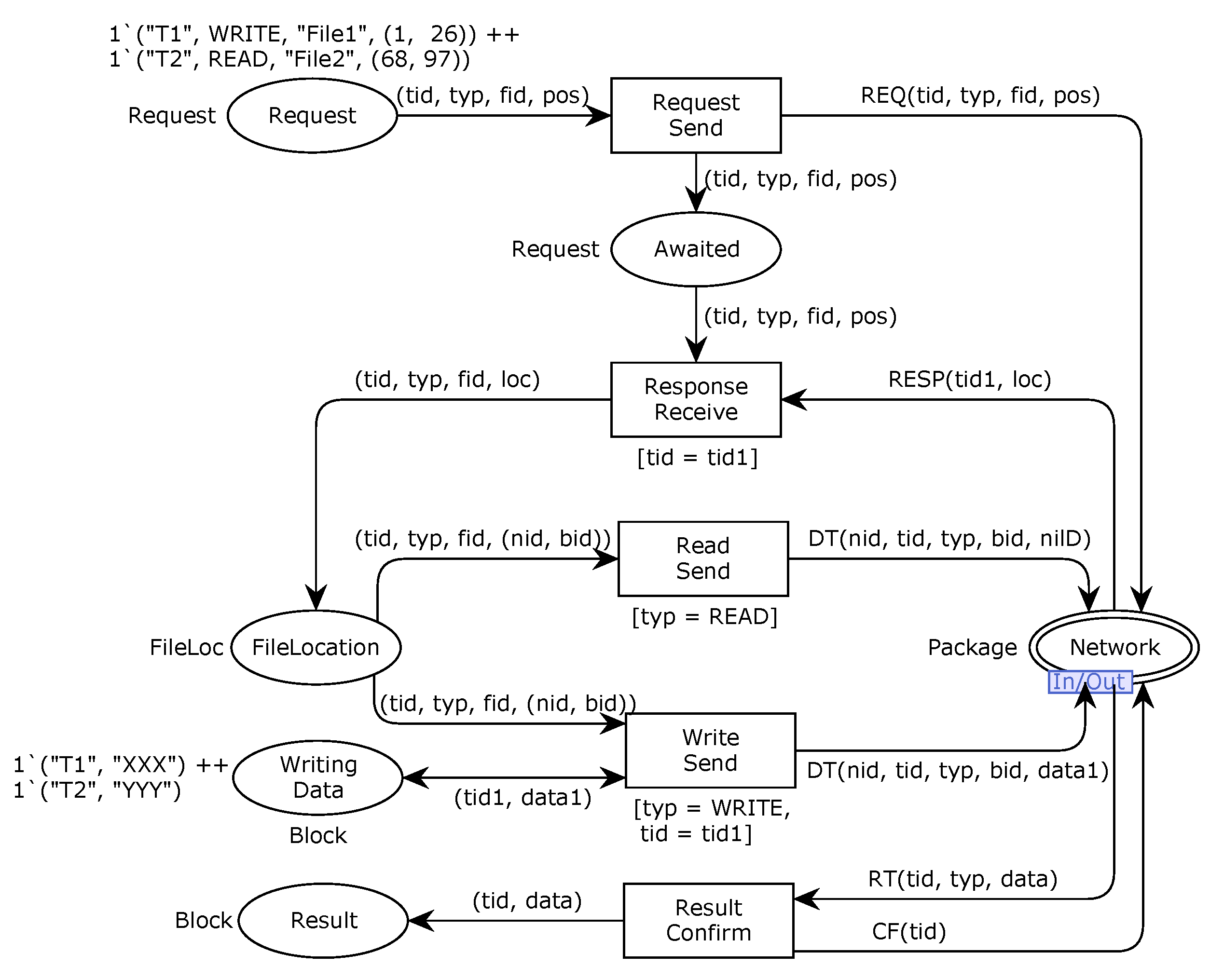

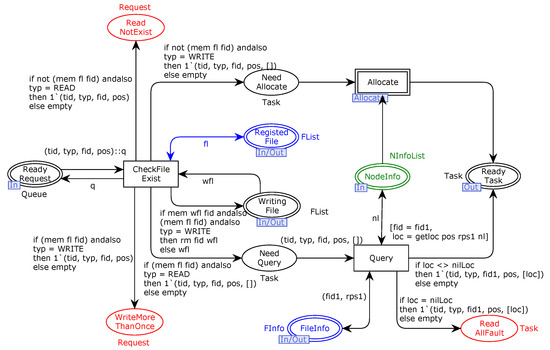

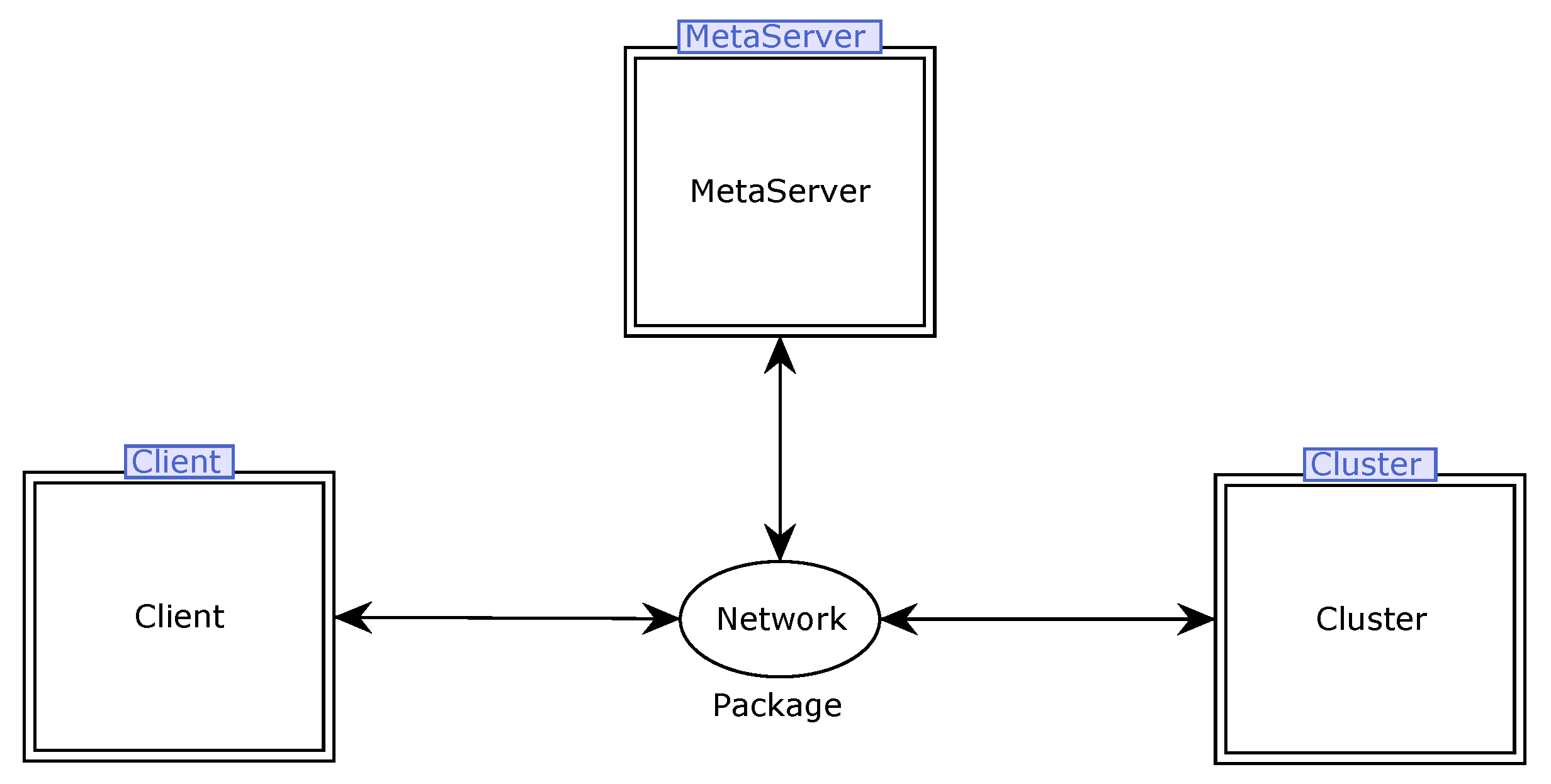

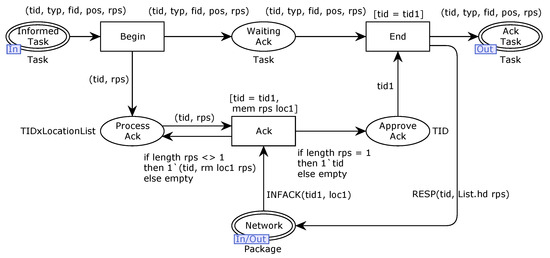

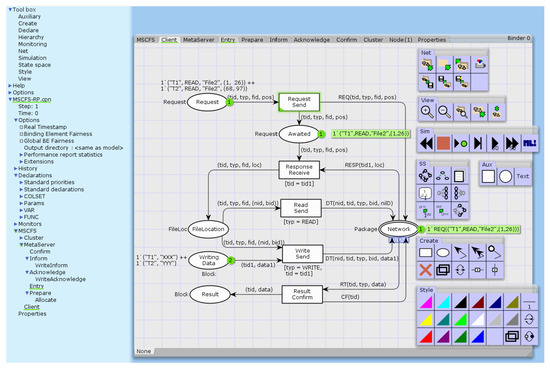

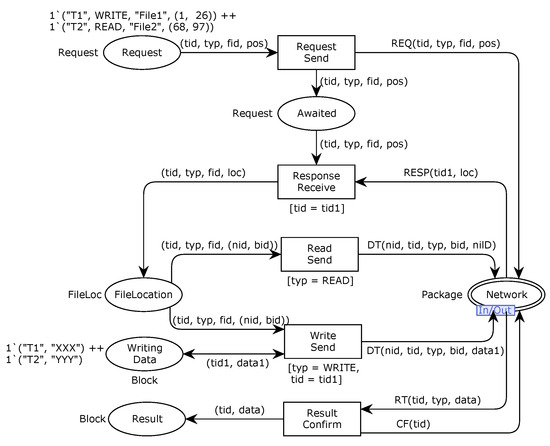

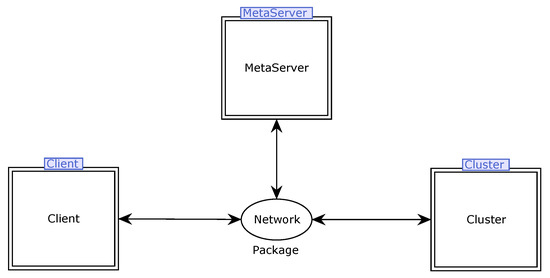

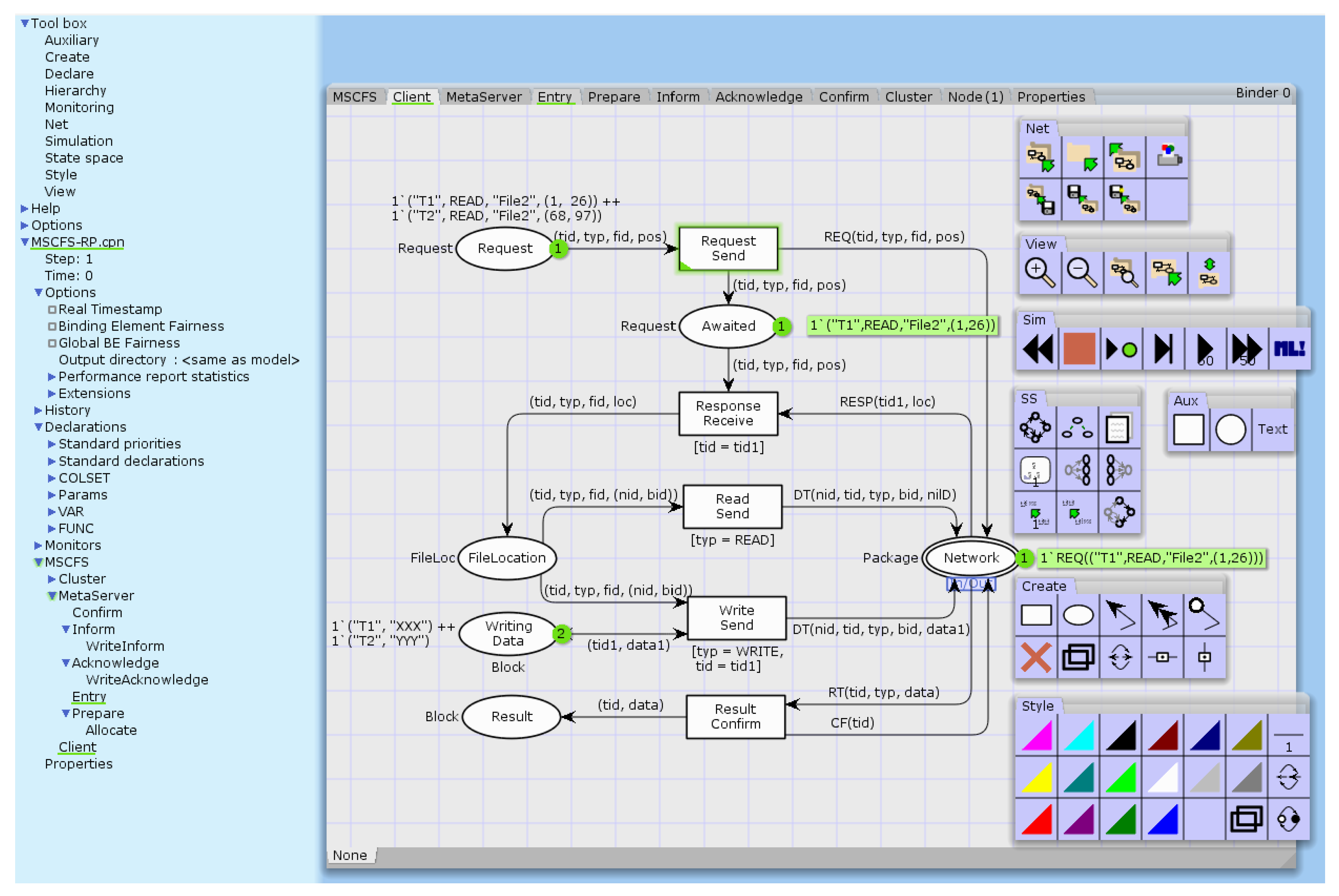

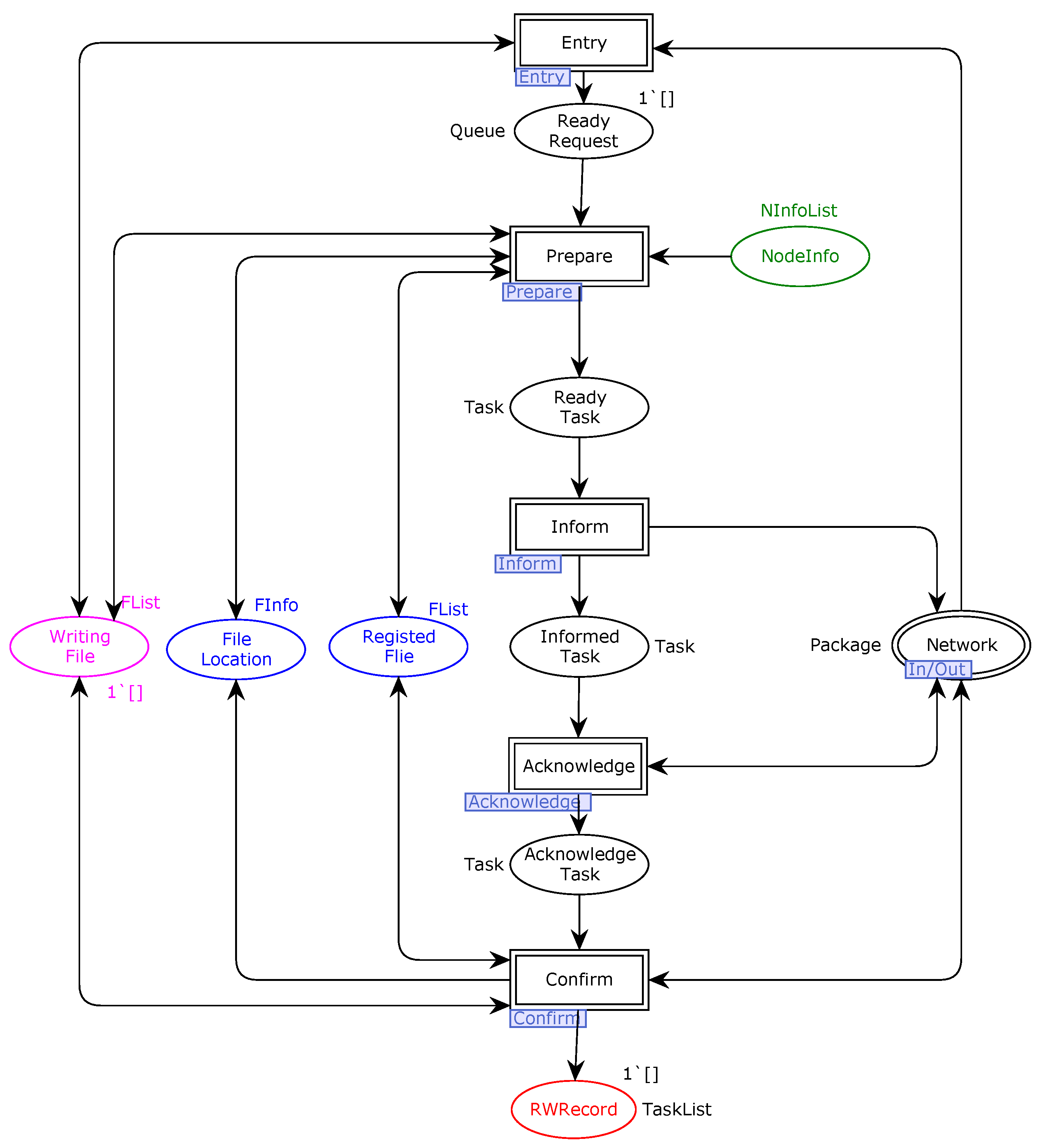

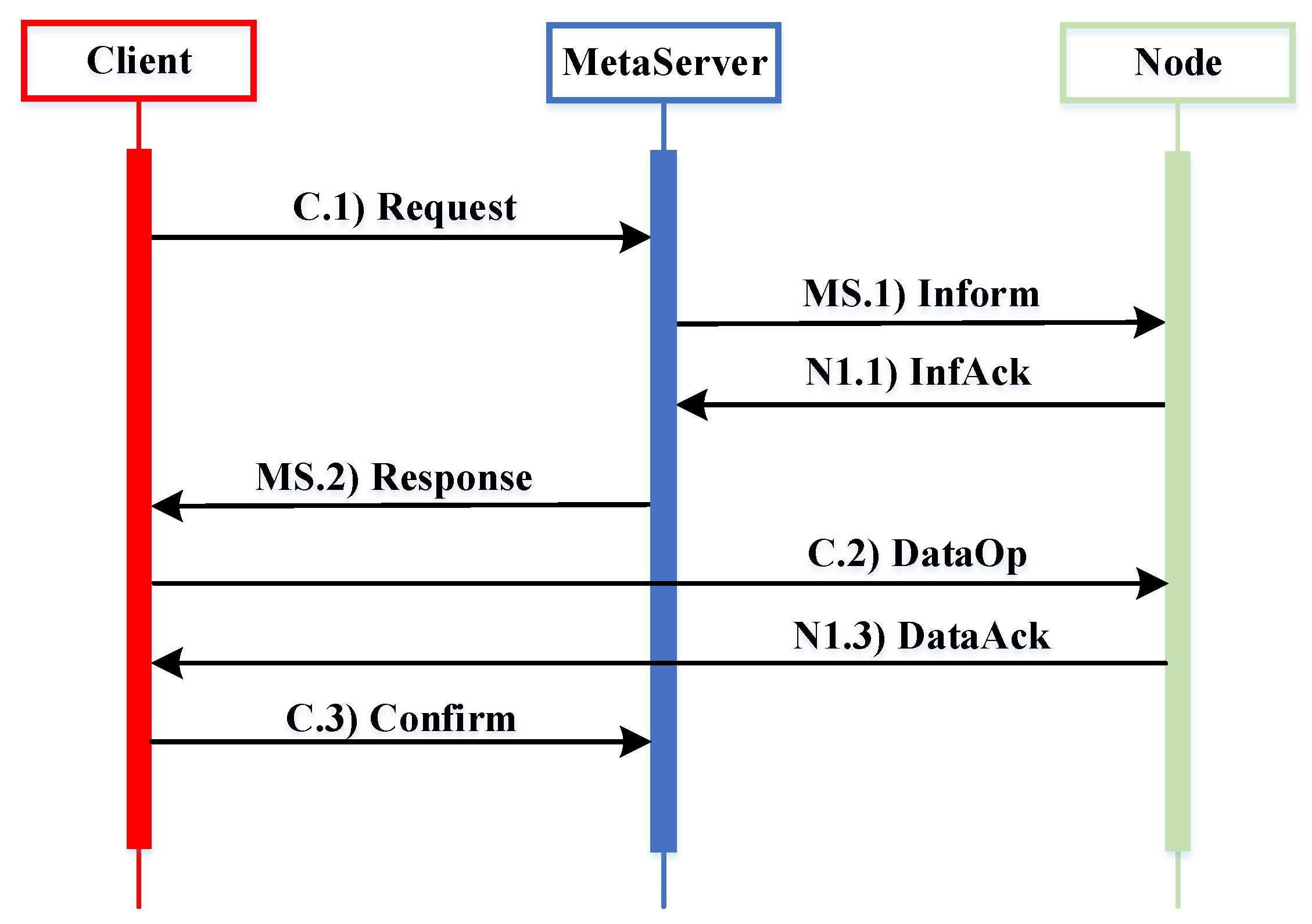

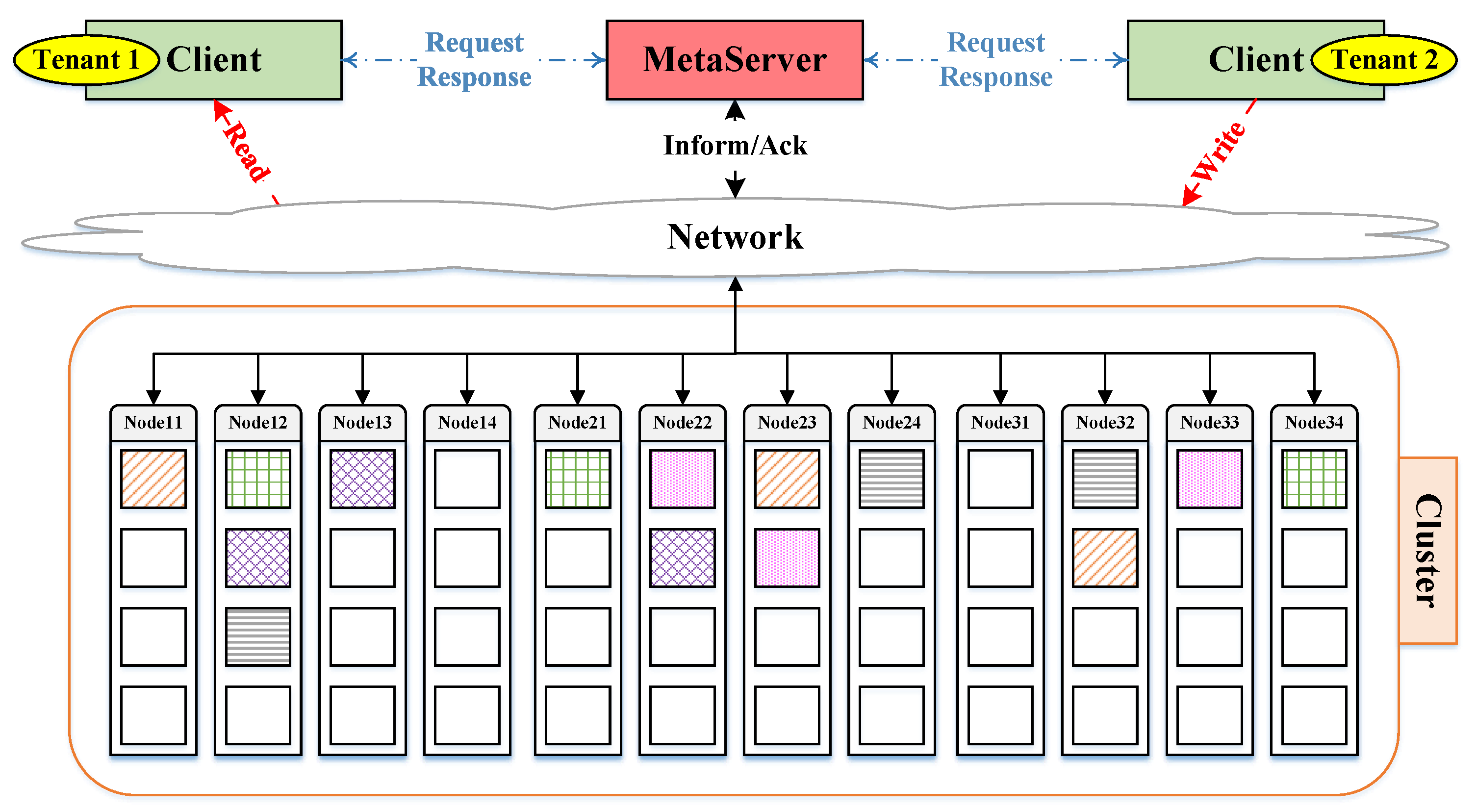

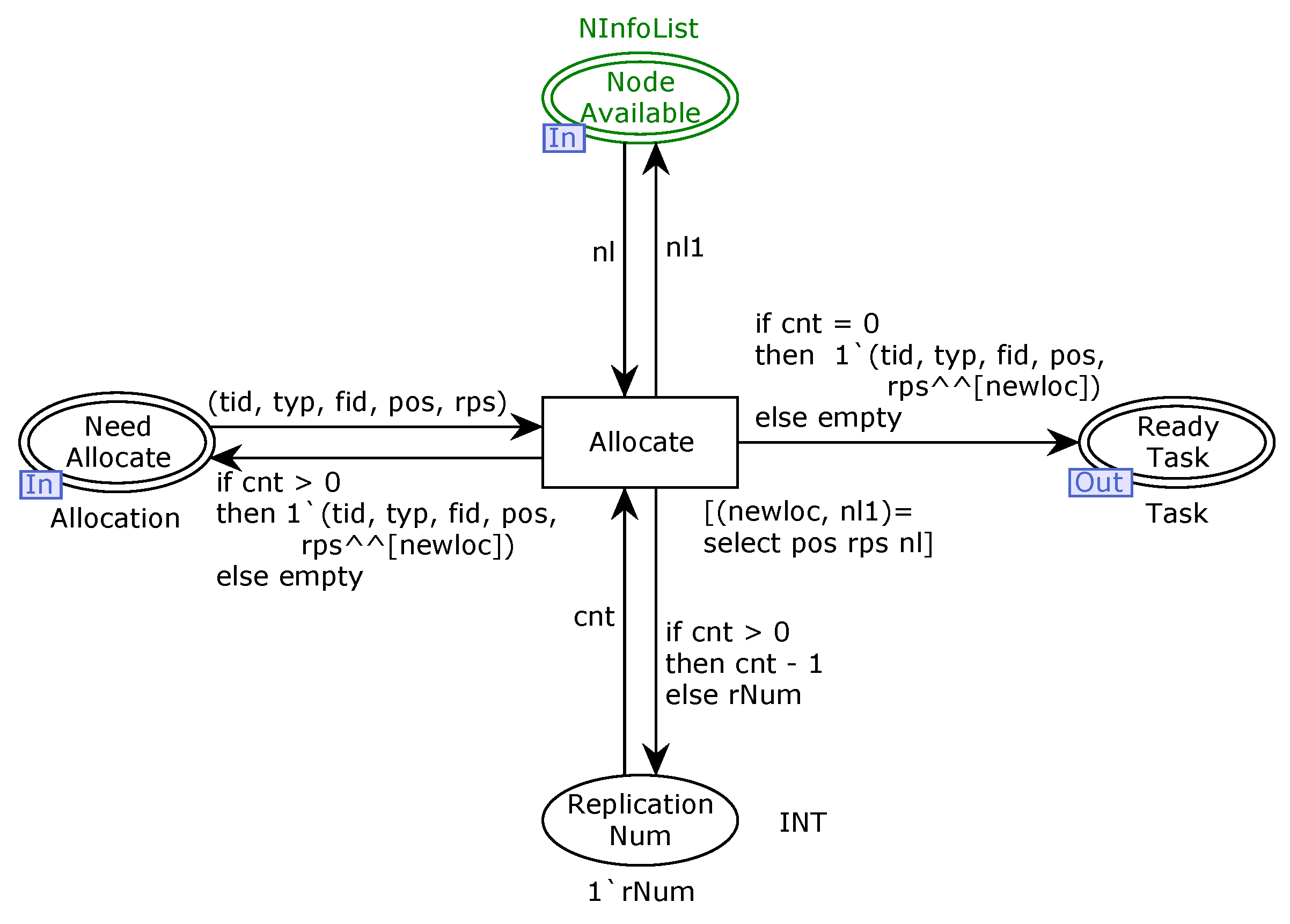

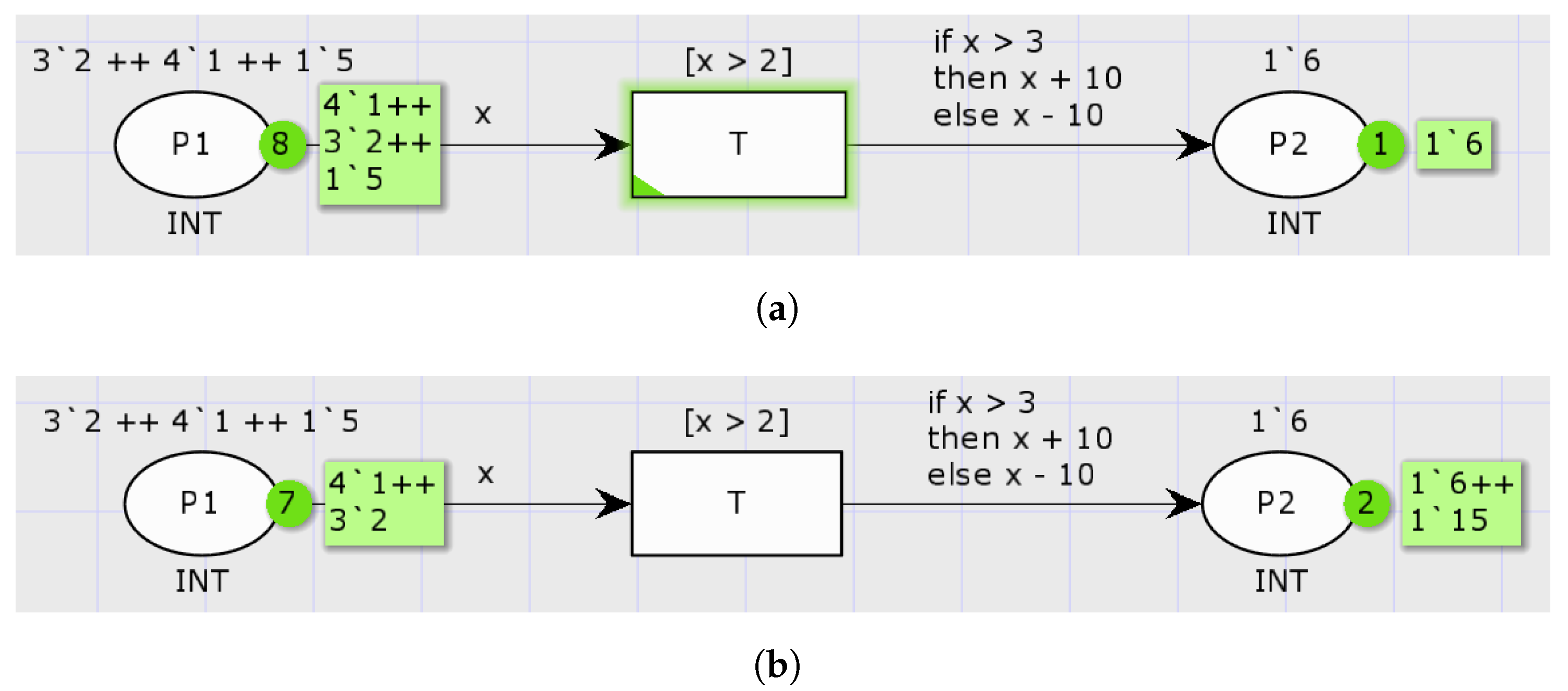

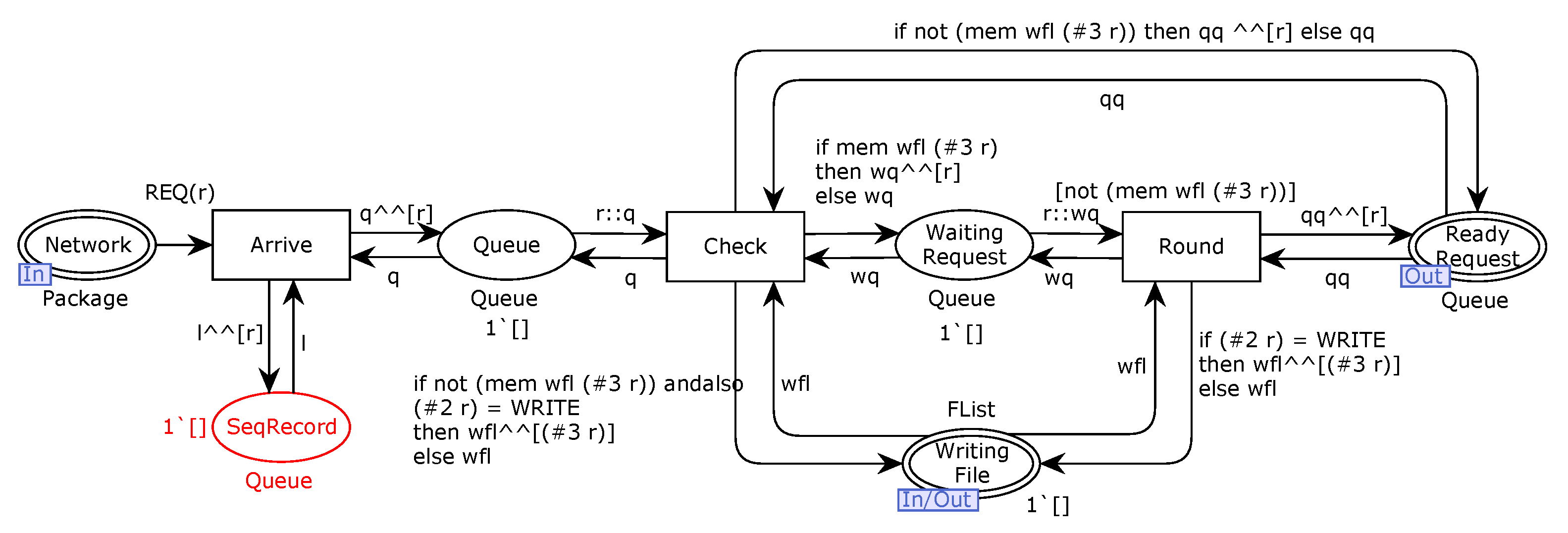

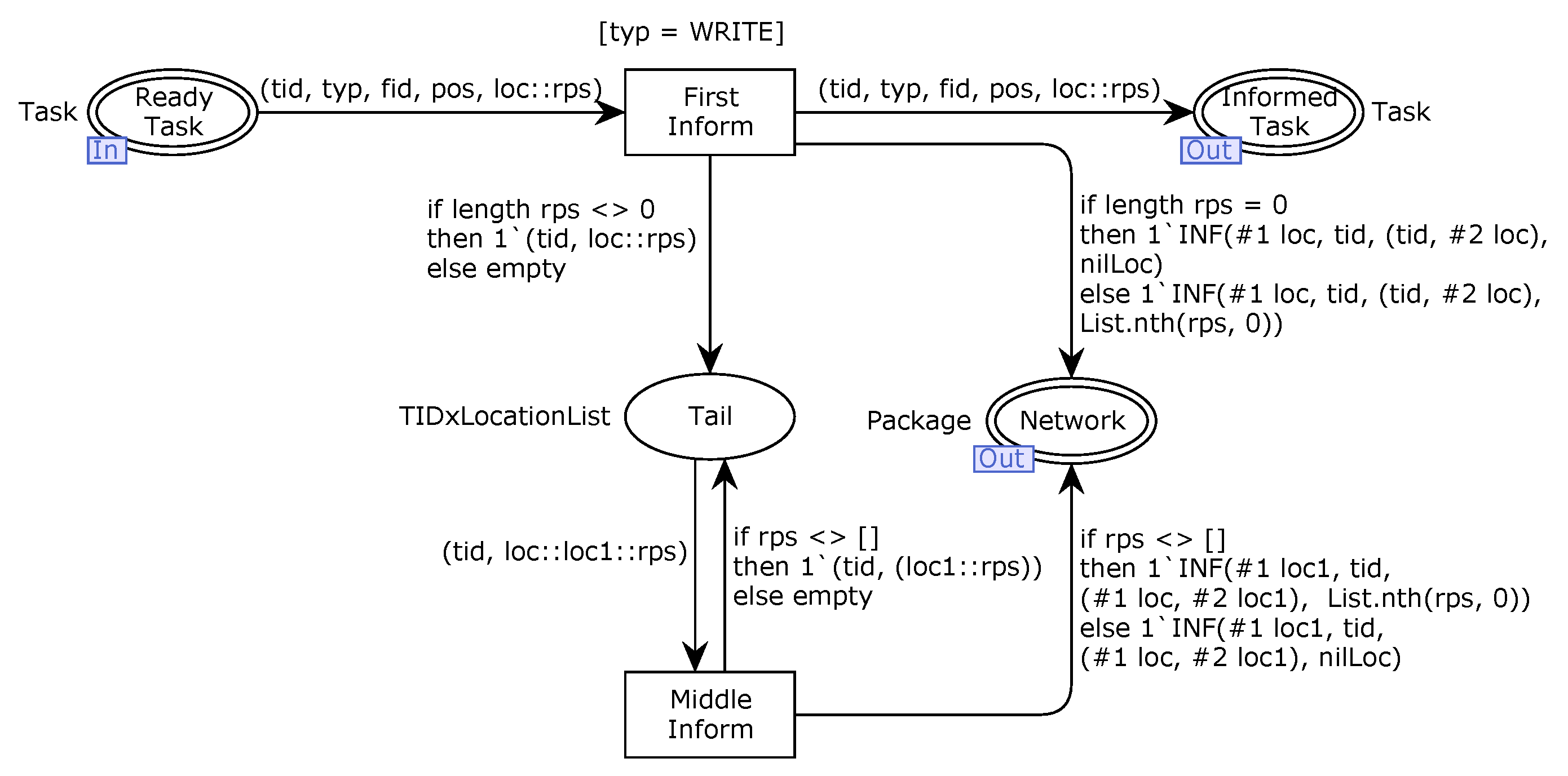

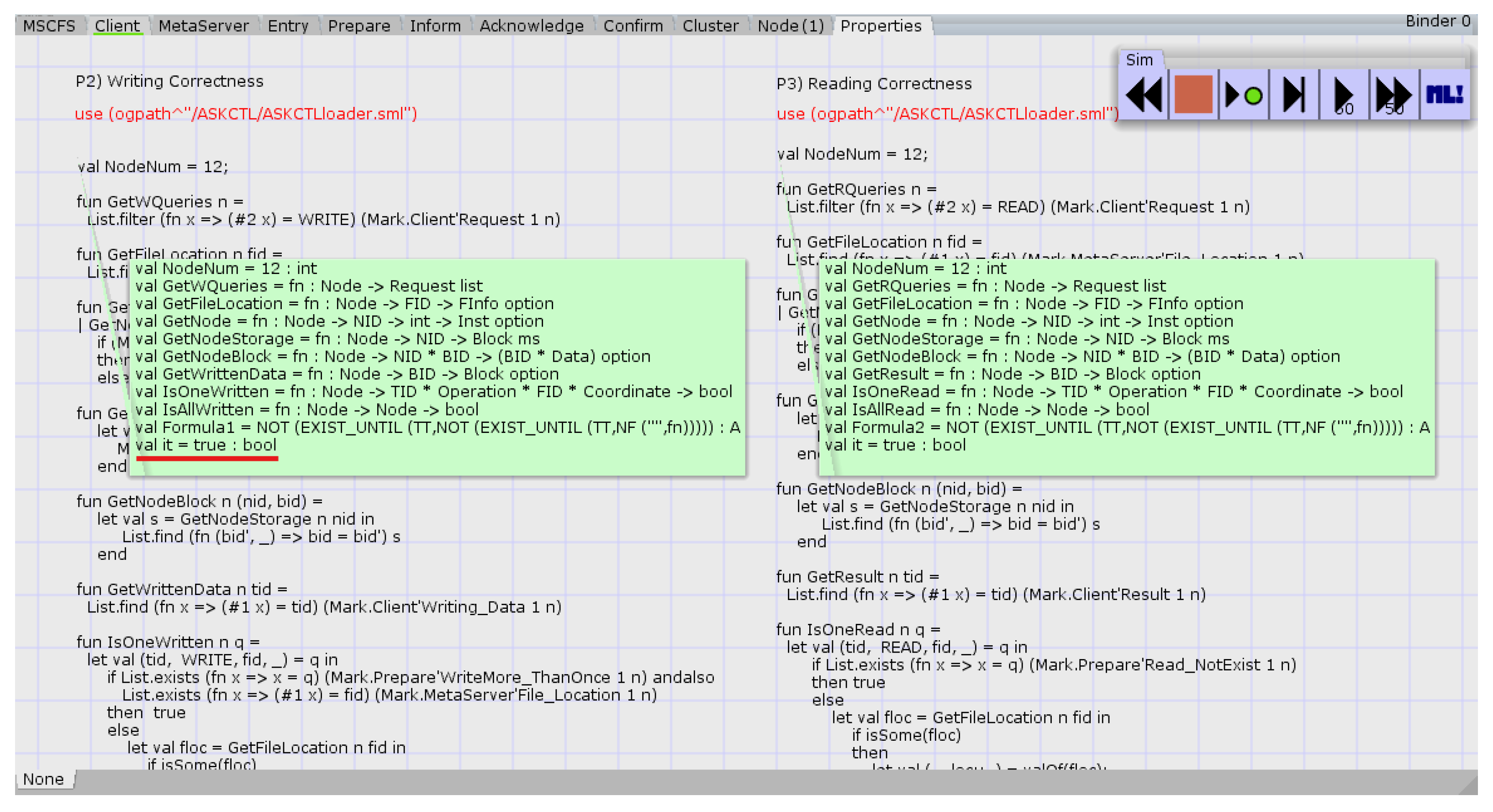

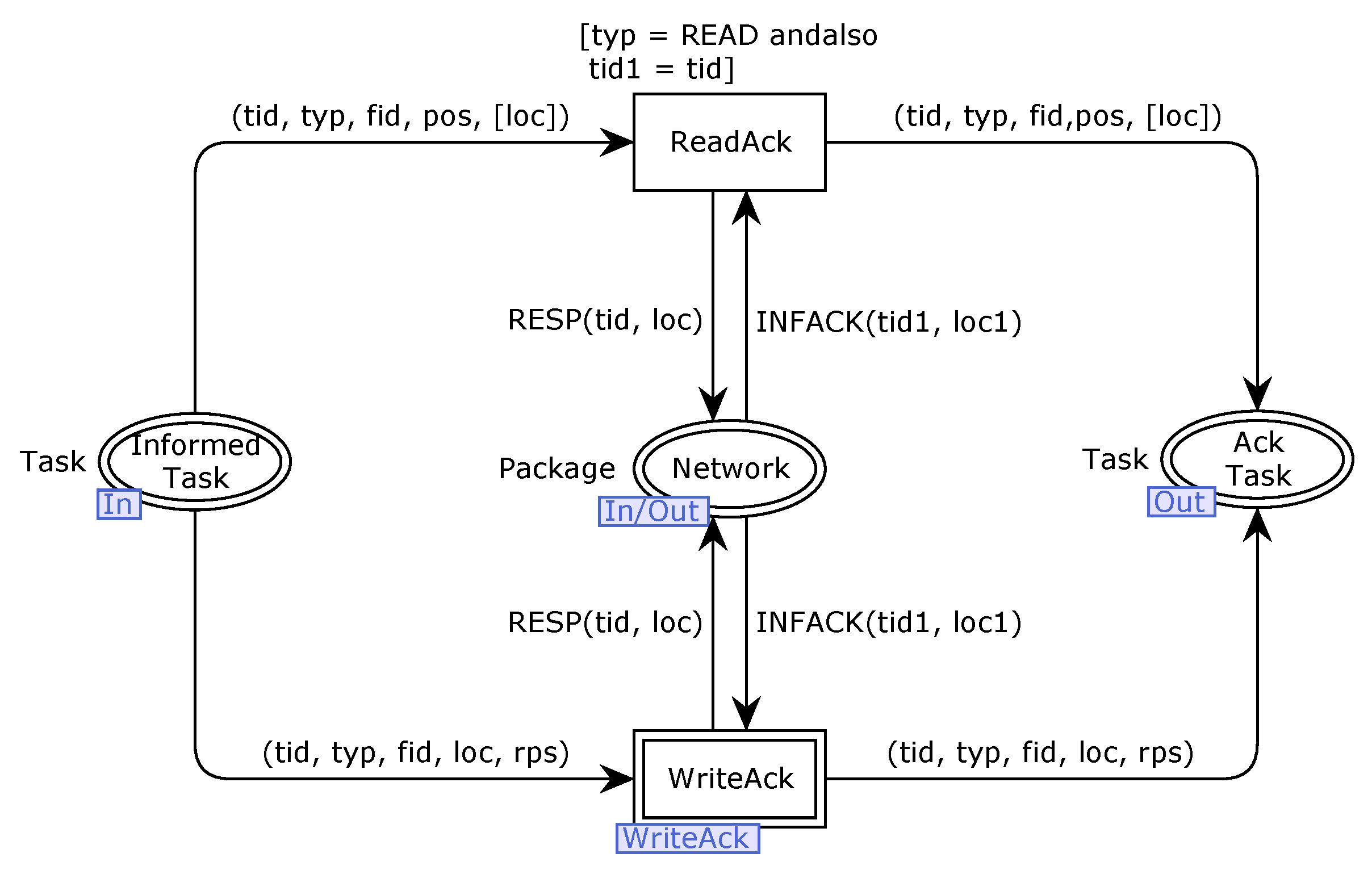

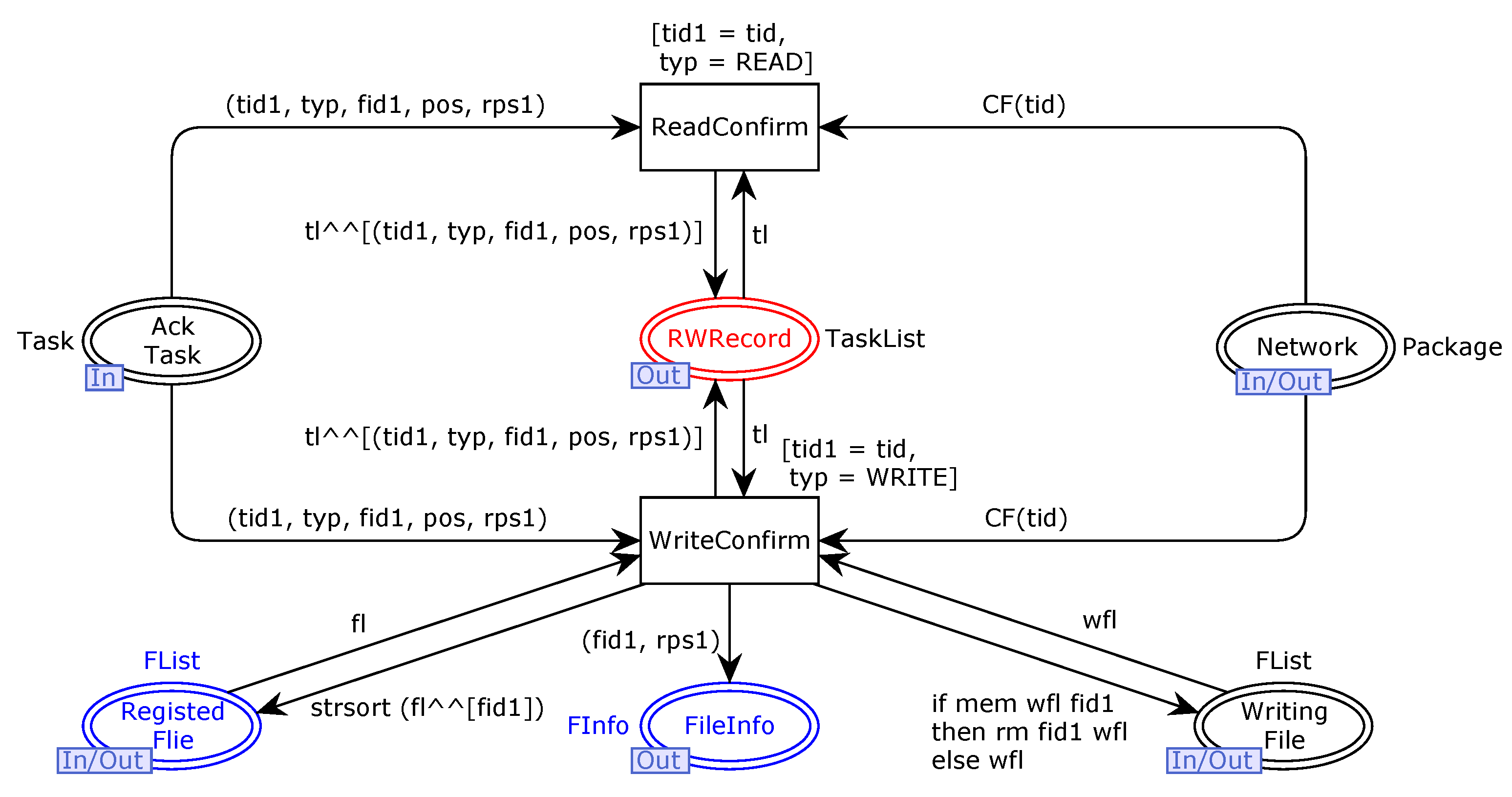

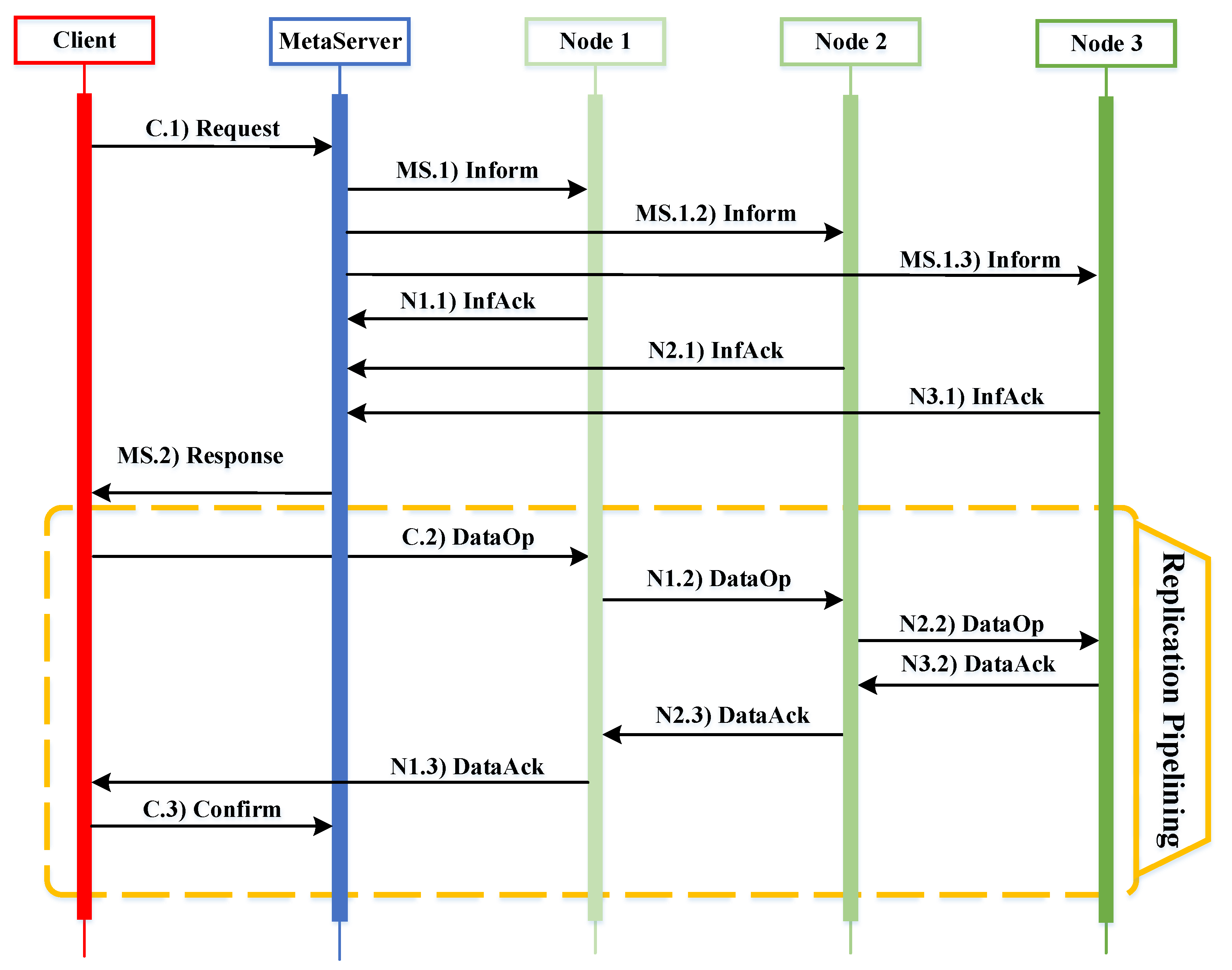

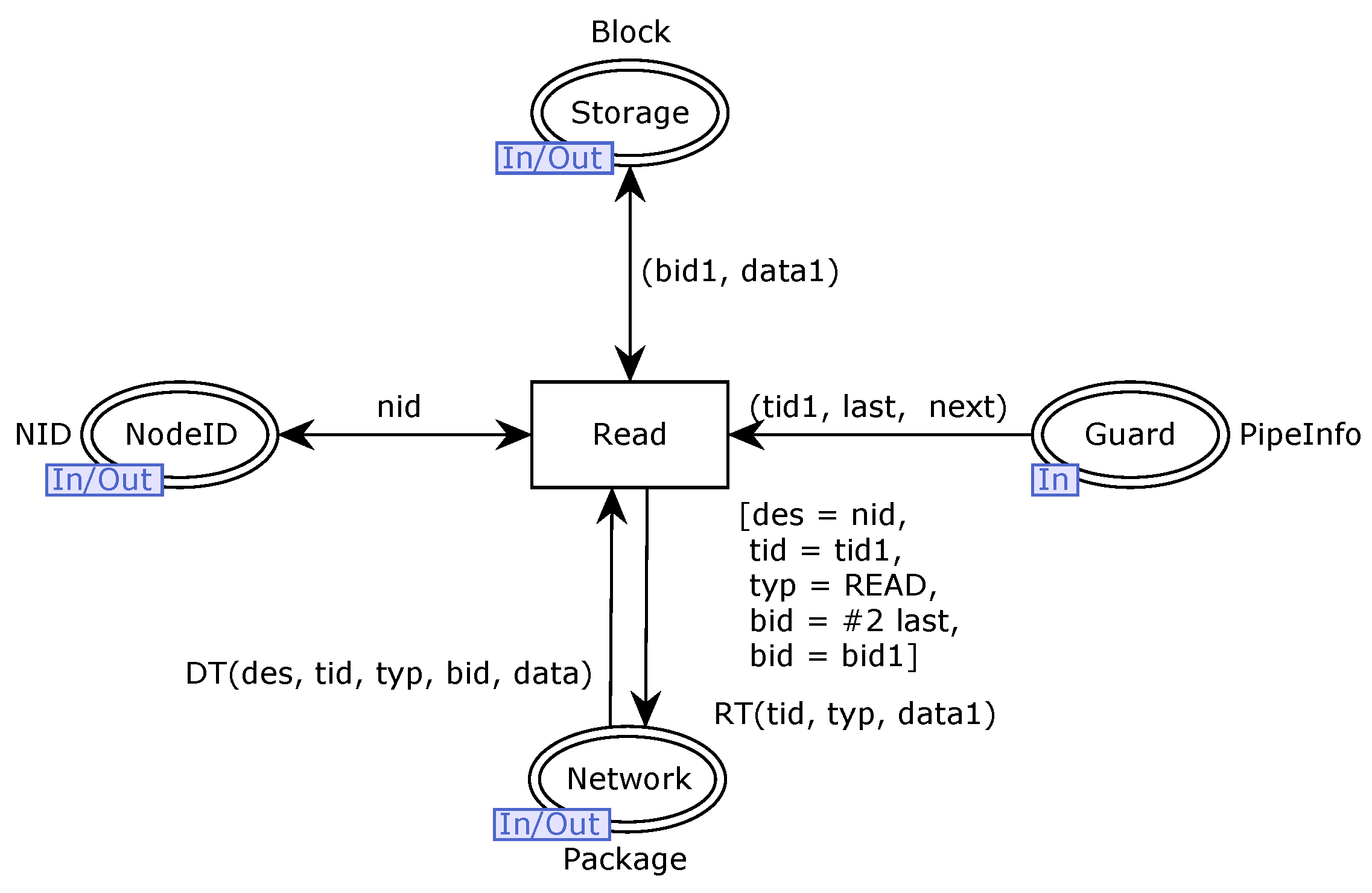

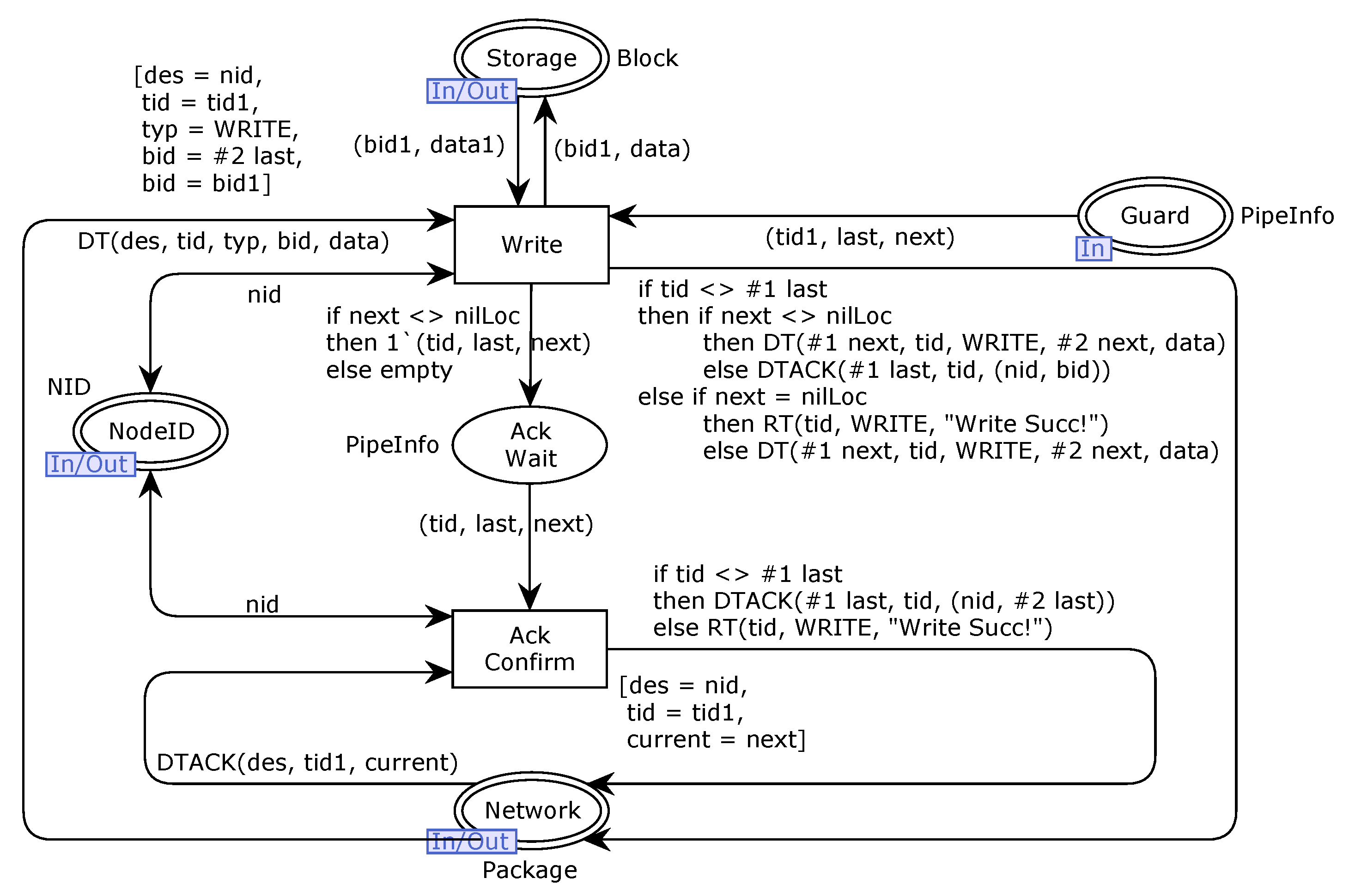

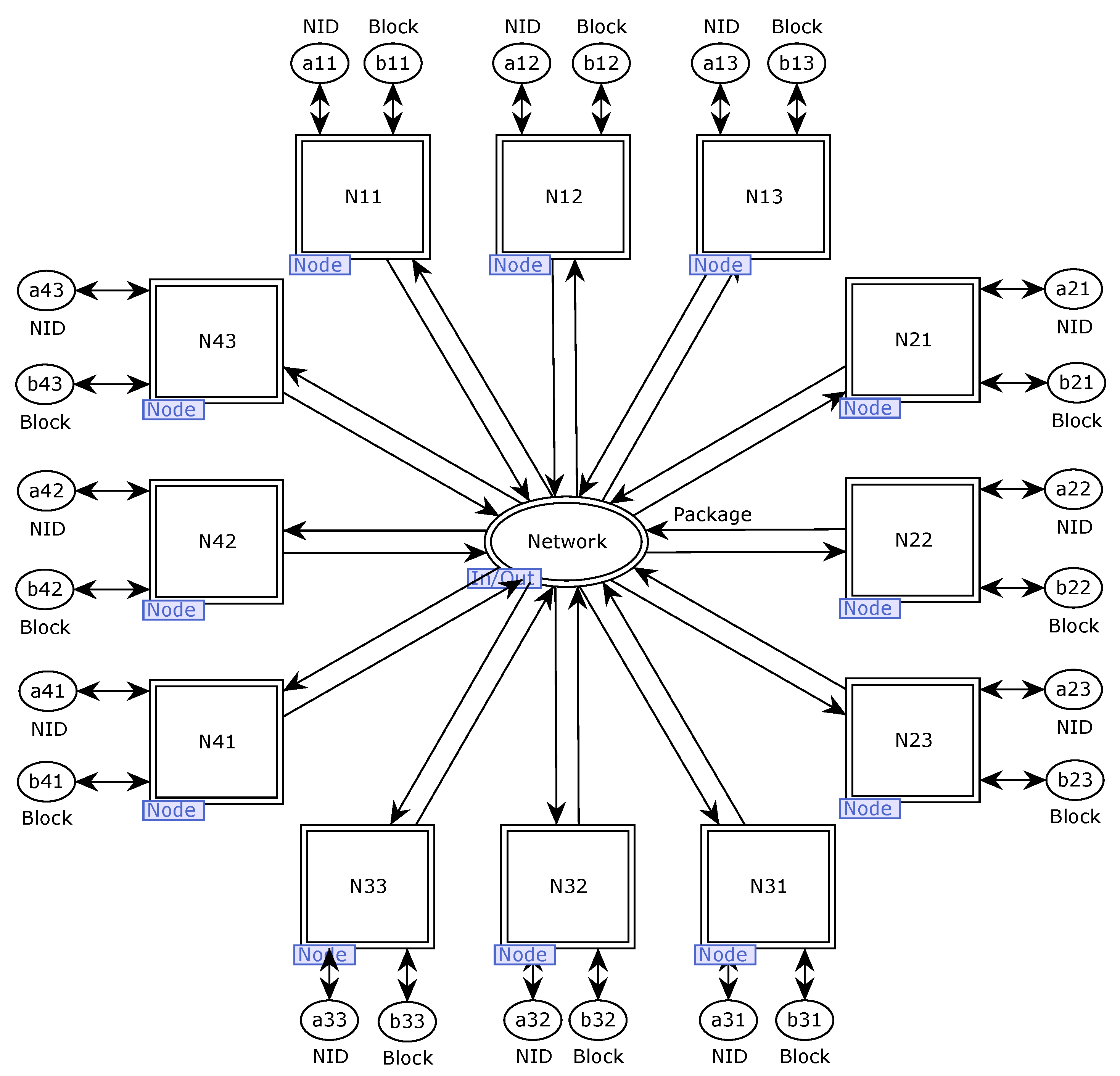

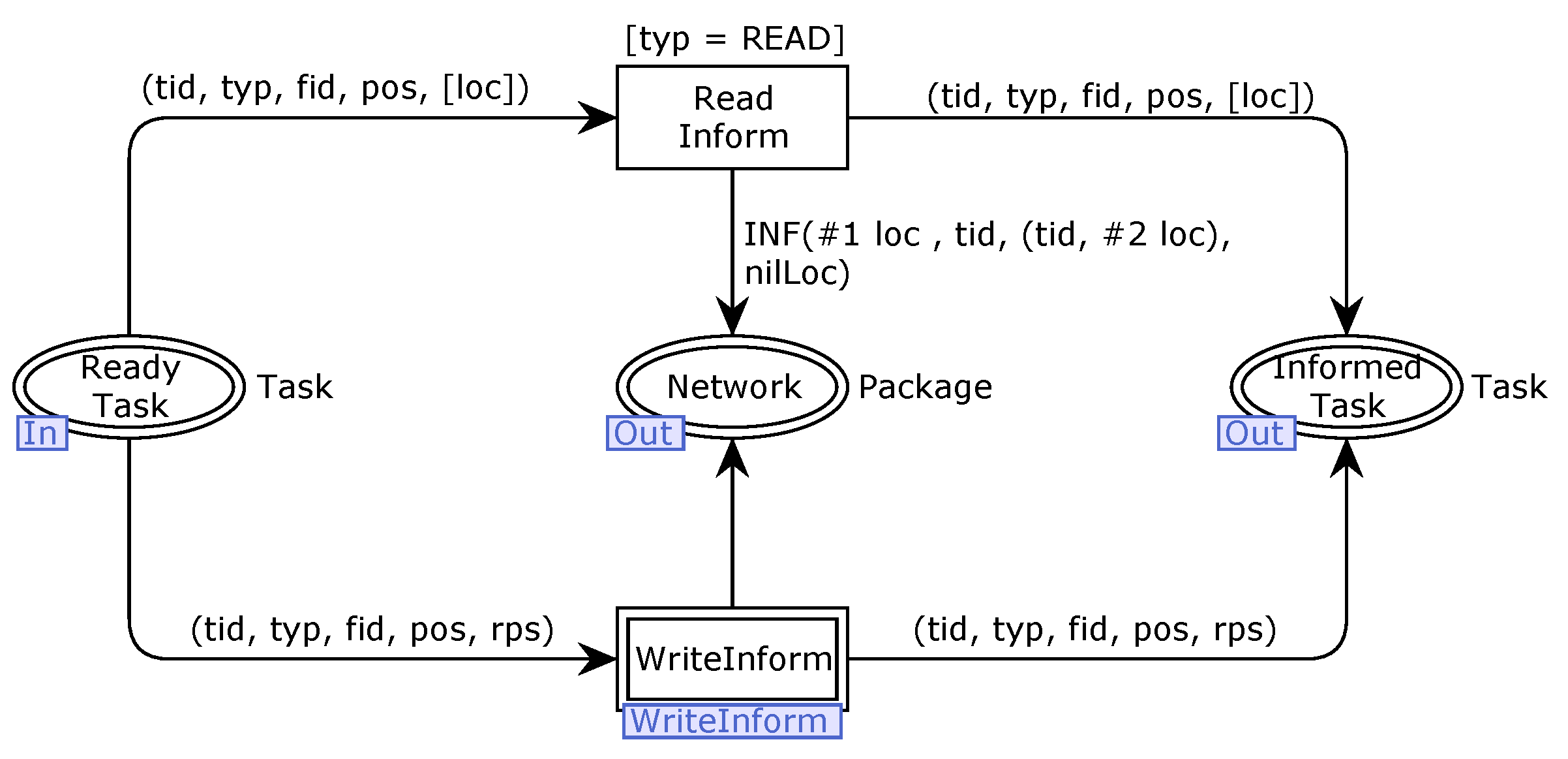

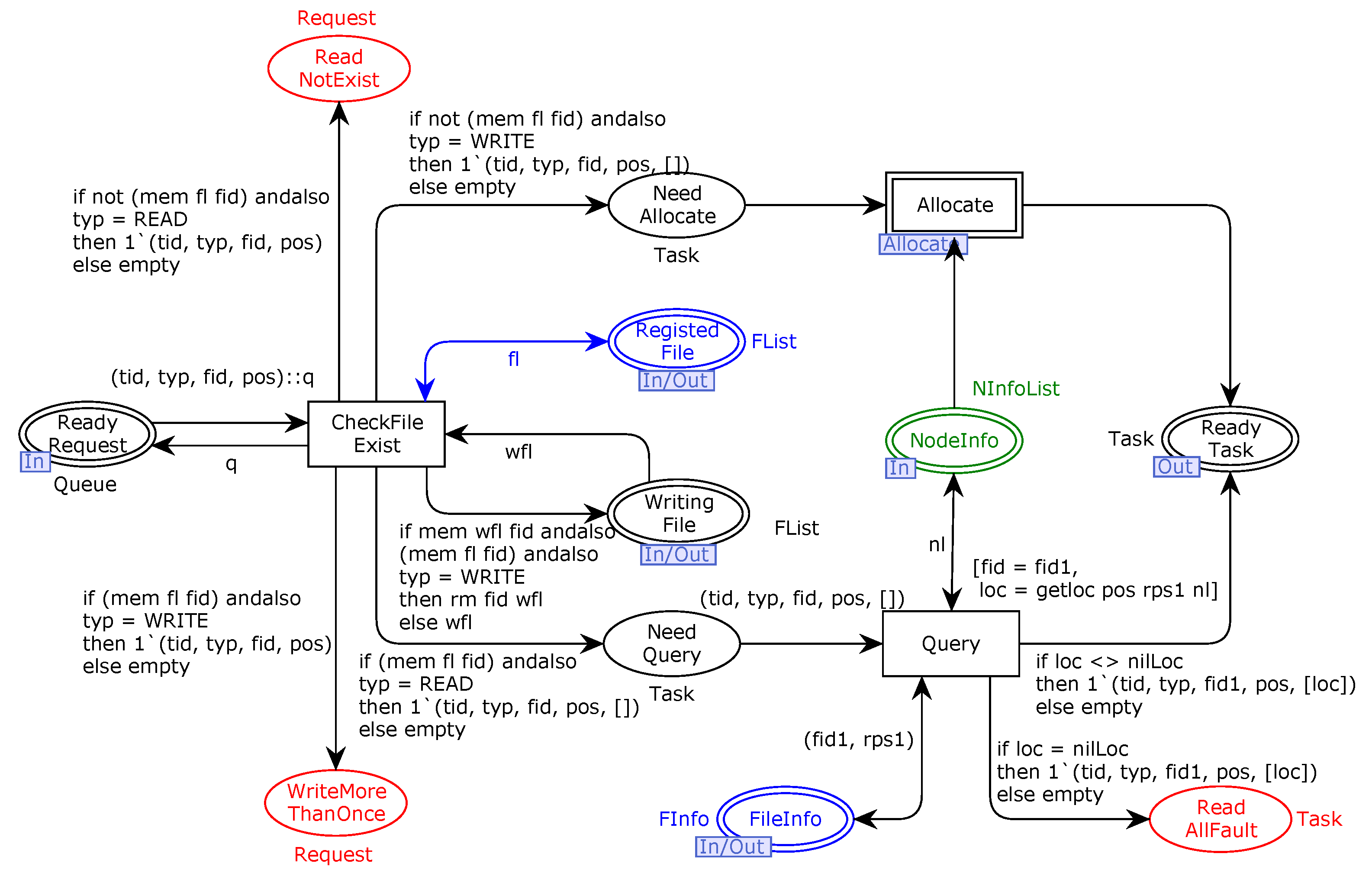

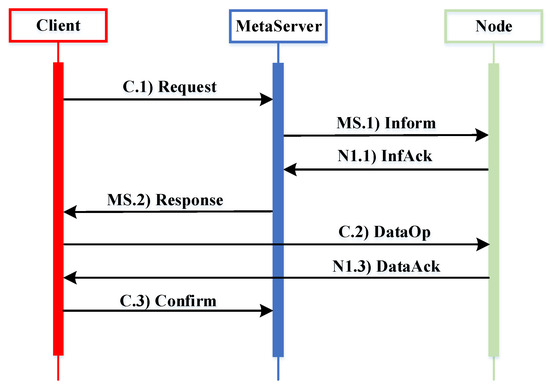

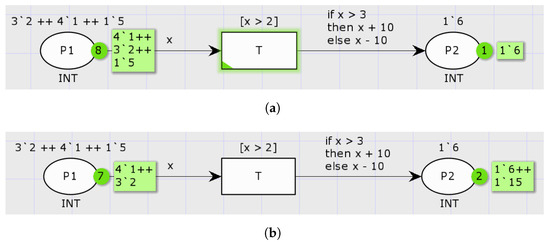

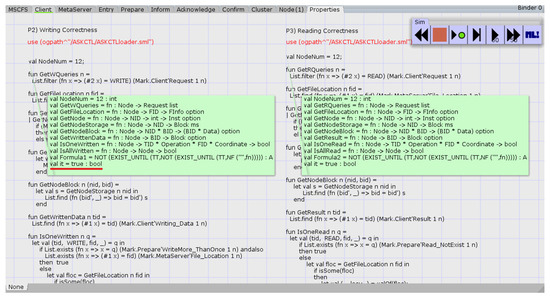

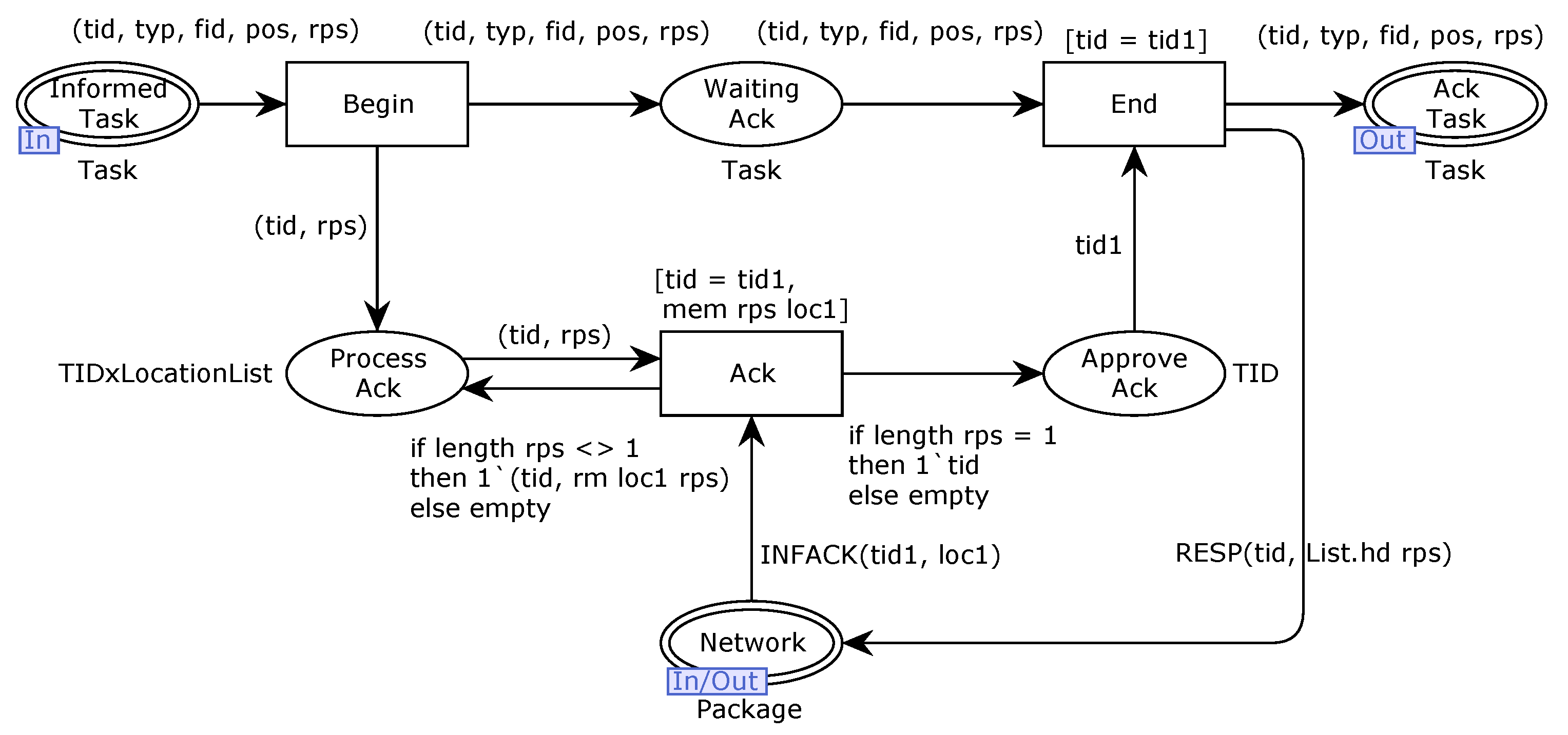

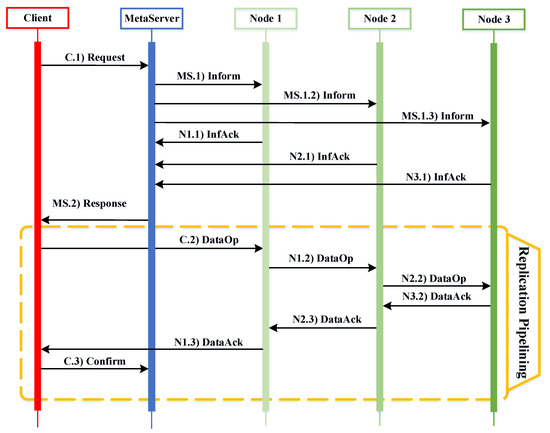

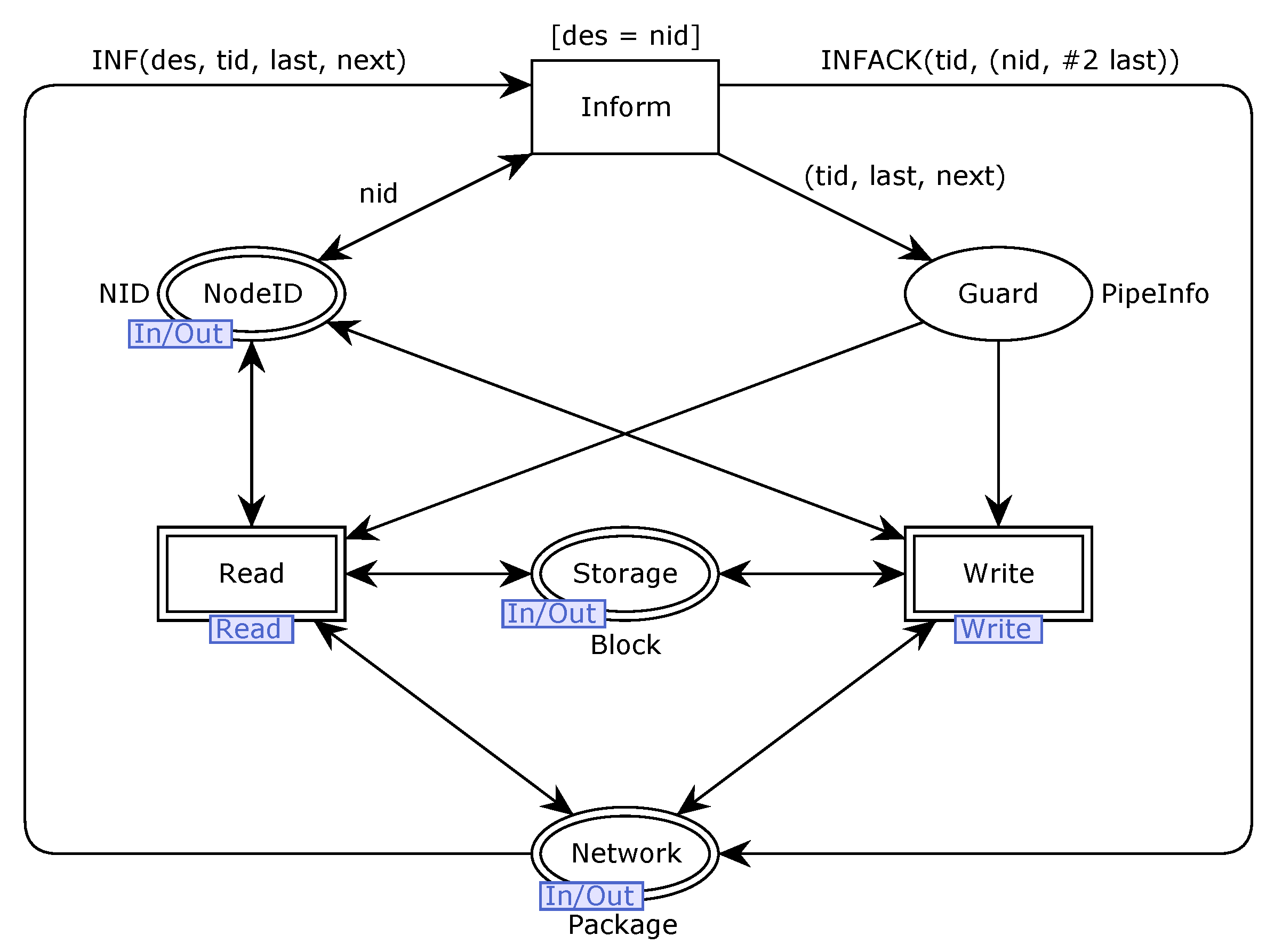

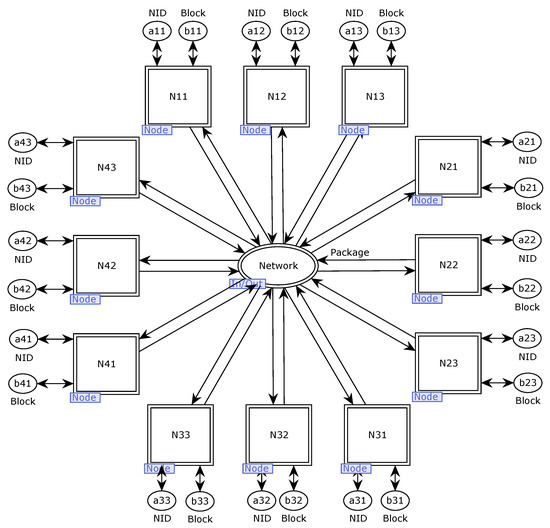

As a typical information system, a cloud file system enables the storage, retrieval, and management of data on remote servers or server clusters. The reliable design of such systems is critical to ensure the security of data and availability of services. However, designing correct-by-construction systems is challenging due to the complexity of and concurrency inherent in cloud file systems. Further, existing works on cloud file system analysis often focus on specific systems or lack formal modeling and verification, leading to potential design flaws and security vulnerabilities. To address these issues, we propose MSCFS-RP, which is a formal analysis model based on colored Petri nets. Leveraging the strengths of colored Petri nets in representing diverse information types with colored tokens and defining explicit rules for concurrent interactions, our model captures the writing and reading processes of clients, meta servers, and clusters. With strong formalism and support for verification using CPN Tools, we rigorously evaluate key properties such as replication consistency under various scenarios. The results demonstrate that MSCFS-RP satisfies these properties, validating its effectiveness and trustworthiness in managing information within cloud storage systems.
