Applications of Virtual Reality in Engineering and Product Design: Why, What, How, When and Where

Abstract

The research on the use of virtual reality (VR) in the design domain has been conducted in a fragmentary way so far, and some misalignments have emerged among scholars. In particular, the actual support of VR in early design phases and the diffusion of practices involving VR in creative design stages are argued. In the present paper, we reviewed VR applications in design and categorized each of the collected 86 sources into multiple classes. These range from supported design functions to employed VR technologies and the use of systems complementing VR. The identified design functions include not only design activities traditionally supported by VR, such as 3D modelling, virtual prototyping, and product evaluation, but also co-design and design education beyond the early design phases. The possibility to support early design phases by means of VR is mirrored by the attention on products that involve an emotional dimension beyond functional aspects, which are particularly focused on in virtual assemblies and prototypes. Relevant matches between VR technologies and specific design functions have been individuated, although a clear separation between VR devices and supported design tasks cannot be claimed.

1. Introduction

Virtual reality (VR) appeared for the first time in the second half of the last century, with Sutherland’s head-mounted three-dimensional display [1]. It is possible to individuate four distinct phases in the development of VR technology, based on the reference literature. The main aspects of these periods are summarized in

Table 1. Development phases of virtual reality (VR) technologies, along with characteristic advantages and limitations of the newly introduced versions.

Phase	Time	Illustrative System	Achievements	Scopes Served	Limitations
1	1960s–1980s	Damocles’ Sword	First computer-connected headsets	Engineering simulations	Limited movement freedom for the user
2	1990s	Cave automatic virtual environment (CAVE)	First immersive rooms	Extension to gaming	Bulky, costly, and uncomfortable hardware
3	2000s	SAS Cube (SAS3)	First PC-based cubic room; panoramic views	Experimental activities; Internet-based applications	Usability issues tackled in a period featured by wide exploration of the technology
4	2010s	HTC Vive, Oculus Rift	Improved ergonomics and significantly lowered costs	Diffusion and employment in many disciplines and fields of human activity	Time-consuming preparation of projects with acceptable graphics

, which offers an overview of the enhanced capabilities of VR technologies and, correspondingly, their actual benefit to industry and society.

• The birth of virtual reality technologies was in the late 1960s, where the developed devices were rudimentary and users enjoyed very limited freedom of movement. The first development steps targeted the creation of immersive experiences; however, the resulting scholarly debate about the chances offered by VR was extremely limited in the years that followed the launch of the technology.
• Major steps to reach technological maturity took place in approximately the 1990s when, simultaneously, several studies and reviews were carried out. In particular, advancements in computing technology and 3D software enabled the evolution of simple CAD models to three-dimensional models integrated in a virtual environment (VE). According to Berta [2], providing a more interactive and immersive visualization of the models boosted the development of VR software and hardware, with consequent increasing interest in this technology. Despite the amount of research, VR was not yet mature enough for extensive applications [3], which gave rise to scholars’ misalignments about its actual benefits. Indeed, Adam [4] and Lu et al. [5] claimed that “VR almost works”, implying that it was not ready to be implemented in real case studies because of it being too expensive for intensive industrial application. On the other hand, other studies revealed that VR and similar technologies were on the verge of larger adoption in industry to improve productivity and to reduce costs [6].
• After 2000, a more intense exploration phase began, albeit with limitations to large-scale adoption due to the cost and usability of the hardware. In fact, VR reached a sufficient level of maturity for applications in industry and in the engineering field, but its diffusion was still restricted to the experimental environment [7].
• The last phase is the expansion with full maturity of VR due to the reduction of costs [8,9] that happened after 2010. As a result, this technology not only started being used in the most predictable areas, such as gaming, but it also extensively spread to the medical, military [10], sport [11], educational [12], and astronomical [13] fields, among others.

It emerges that the evolution of VR from its first appearance to large-scale involvement in many different fields took place, to a considerable extent, thanks to the introduction of more usable and affordable systems. Companies particularly benefitted from the development and introduction of cheap and handy devices, which encouraged the spread of VR within the design process, too [14]. Nevertheless, the actual uptake and outreach of the use of VR in design-related applications and experiments is still vague, and studies in the field are fragmentary, as can be seen from the background illustrated in Section 2. In this context, the present paper strives to provide a structured landscape of the actual use of VR in design research and its most remarkable aspects.

2. Background and Objectives

When it comes to the application of VR in design, the contribution authored by Ottosson [7] can be considered a milestone, ascribable to the VR phase prior to large-scale development. It underlines the necessity to investigate how to implement this technology for real case studies, by outlining VR’s potential for supporting a great deal of design activities. In particular, the scholar saw the chance of VR’s supporting the initial design phases beside those that are “more naturally” juxtaposed to VR, namely, 3D modeling, virtual prototyping for simulation, and product evaluation.

VR’s actual capability of supporting different functions in design, starting from those individuated by Ottosson [7] at the dawn of the third phase, is the main issue dealt with in the present paper. Other contributions ascribable to the third and fourth phases highlight how different design activities can exploit VR’s capabilities advantageously.

Some scholars underlined the versatility of VR with respect to different design functions and stressed the importance of implementing VR systems in every phase of the process, using the right software and VR devices in the appropriate design stage [15,16]. On the contrary, others focused more on using VR for particular applications. For instance, Cecil and Kanchanapiboon [17] and Camburn et al. [18] underlined the importance of using VR in the early design phases, where design problems can be better detected through VR, with consequent improvement in the quality of the product and reductions in its development time and cost. Stark et al. [19] and Falcão and Soares [20] stressed the usefulness of VR systems for product evaluation due to the introduction of VR interfaces related to human interaction with virtual prototypes. Zignego and Gemelli [21] emphasized VR’s usefulness for simulations while casting doubts on its potential for aesthetic evaluation of the product.

In some of the analyzed articles, scholars considered also the degree of immersion and its use in combination with additional technologies and tools to provide a realistic sense of presence in the virtual design environment. As such, Stark [19] claimed that VR had matured enough to stimulate users’ sensory immersion, providing increasingly realistic interaction and experience with a virtual prototype. Conversely, other scholars considered this technology as a complementary tool only, since it needed to be integrated with physical objects and haptic systems to give an acceptable sense of immersion [18,22,23,24]. In particular, since the sense of touch is an important aspect to be considered when it comes to the VE, using a real object as tactile feedback could enable complete manipulation control in the immersive VE [25].

The above examples show that a comprehensive view of the advantages unlocked by VR in design is still lacking. In many cases, scholars focused on specific functions within design without providing an overall picture. A larger overview can help us to analyze how different design functions are supported by VR and how they can actually benefit from the different degrees of immersion and additional tools. Many of the most recent reviews provided in the literature where VR technology has been analyzed had a different focus or a different aim, as illustrated below.

Rebelo et al. [26] studied VR devices and their corresponding degrees of immersion, but when they analyzed how VR systems can be used in design, they limited their work to user-centered design. Jimeno and Puerta [27], whose contribution is relatively dated, studied VR to understand its importance, benefits, and developments only in combination with CAD and Computer-Aided Manufacturing technologies. Similarly, Berg and Vance [28] limited their attention to decision-making processes in order to empower industry innovation. Although Kovar et al. [29] extended the field of research to other design processes, this took place only in relation to VR’s contribution to Industry 4.0. Adenauer et al. [15] investigated more explicitly the potential of VR in design. However, in this paper, virtual prototyping was included in the early conceptual phases, which is questionable since a developed virtual model is usually considered a means for evaluation in other papers. Coburn et al. [30] showed a number of cases in which VR was used to support different design activities, but those were predefined and there was no claim of comprehensiveness.

Hence, a framework is lacking that systematically maps the functions VR actually supports in the design process. Markedly, while some functions and phases have been made explicit in a fragmentary way, no previous contribution has given an overall picture. This leads to the need for an overview of the applications of VR in the various design functions and activities, although those might be plausibly characterized by an uneven distribution. Likewise, an accurate relationship between VR devices and the design phases where they have been used has not been established.

Starting from this context, we aim to map the reasons for the use of VR in design and the activities supported, which will be grouped into VR functions. Along with the verification of the actual growth of VR applications in design pushed by VR’s maturity, the aspects that follow are of particular interest and worth investigating.

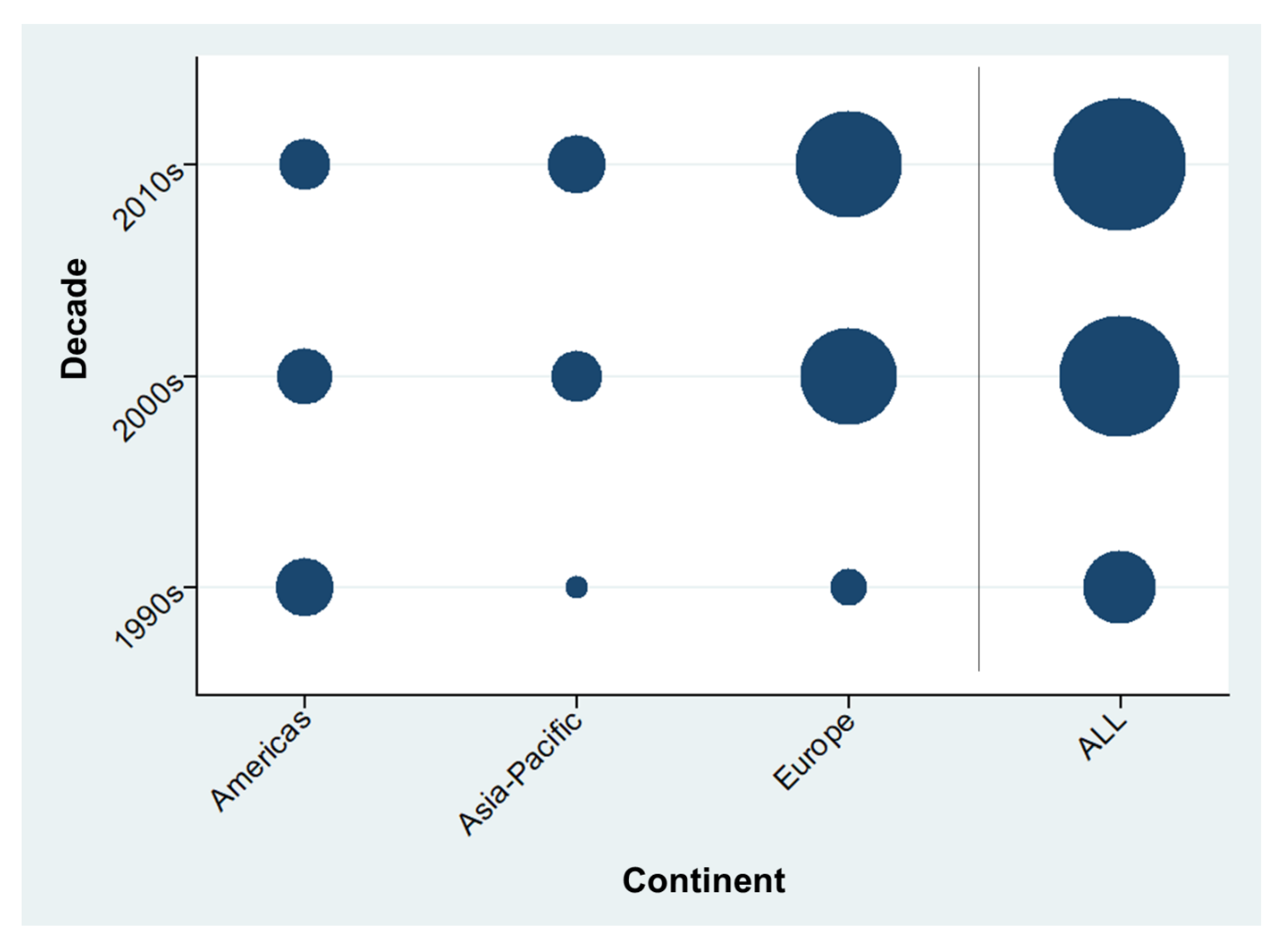

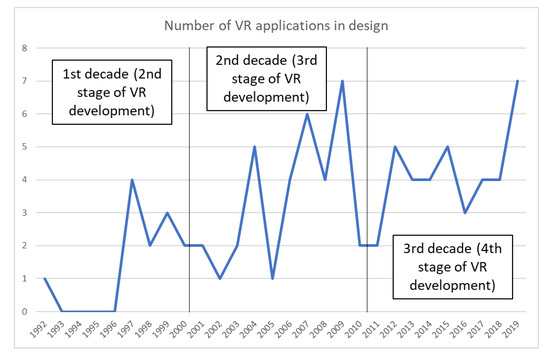

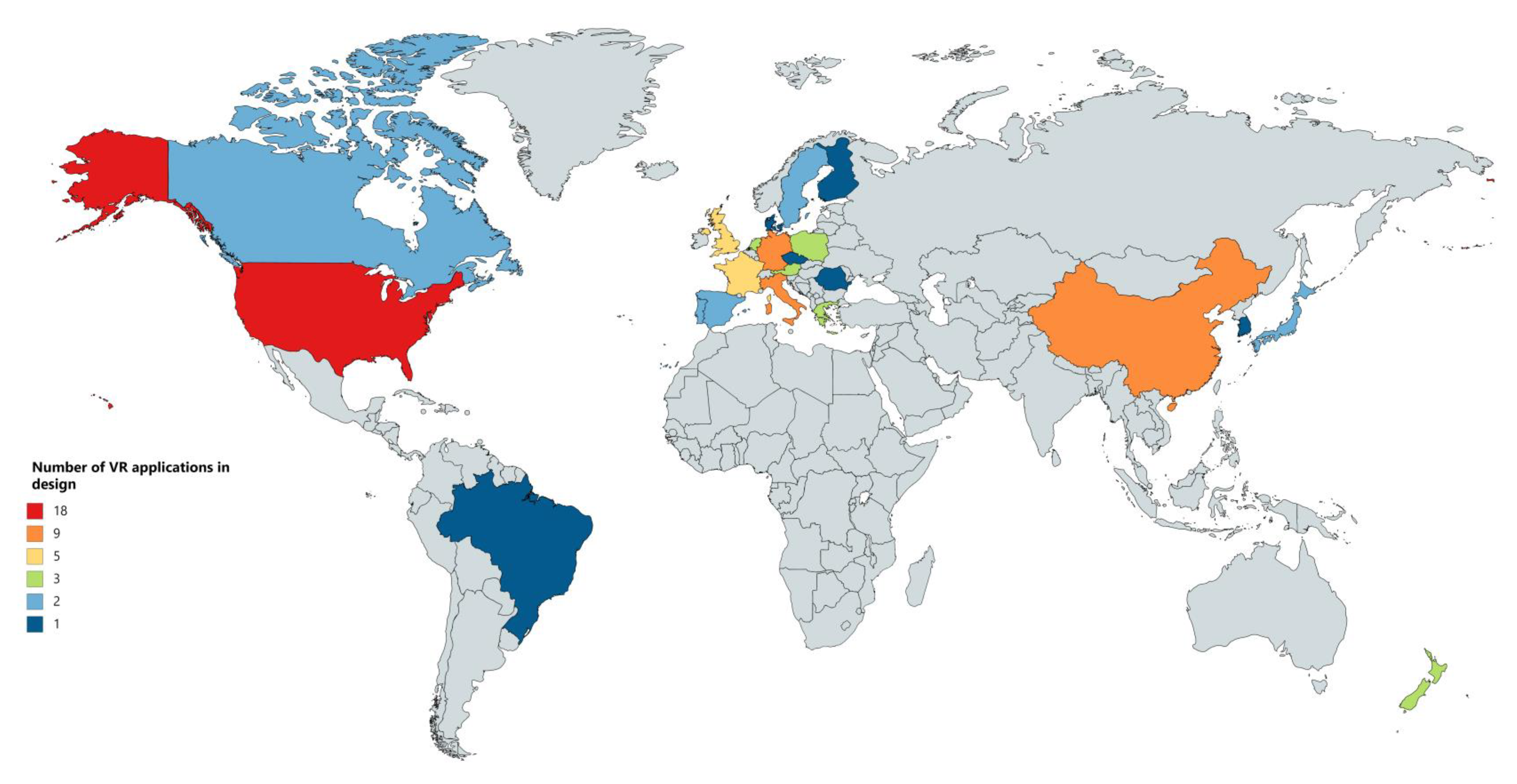

• The diffusion of VR in design research over the years and in relation to the phases of VR development outlined in Section 1.
• The distinguishable design functions supported by VR in the design process and, in particular, the extent to which VR is still underexploited in early design phases, as put forward by Coburn et al. [30]. In this respect, a larger number of contributions for a specific design function might indicate higher attention and major usefulness; as such, the degree of research intensity in various design areas will be considered a proxy of VR’s maturity, reliability, and benefits, in line with, e.g., [31].
• The existence of the hypothesized link between design tasks and corresponding VR systems (indicated by their different levels of immersiveness), as suggested in [15,16].
• The extent to which supporting tools are leveraged in conjunction with VR in design activities, which has been a main source of scholarly misalignment in the present section.

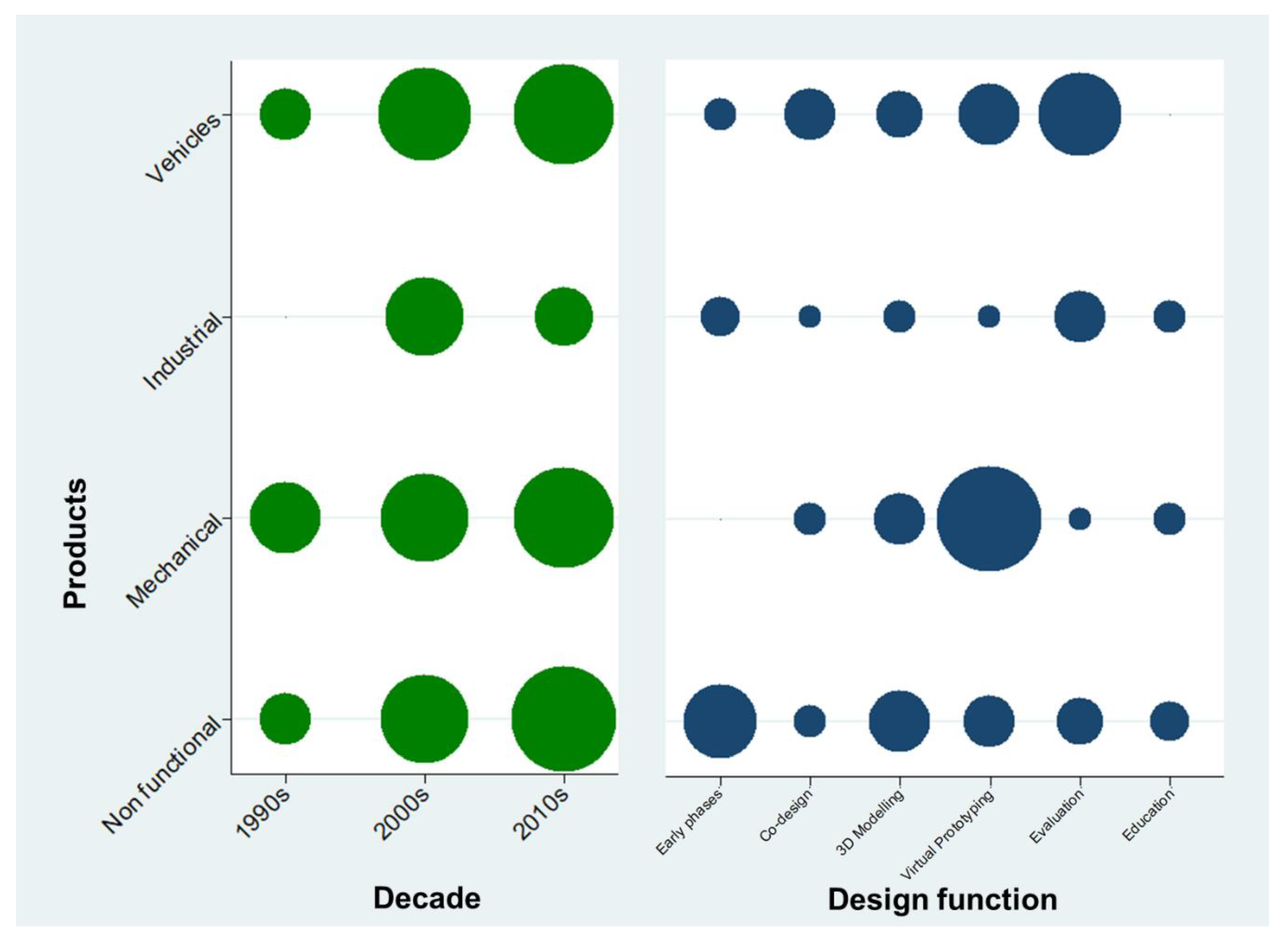

• The typology of products that are mostly designed when VR is involved, which, in the authors’ view, has been not sufficiently focused on in previous review works. This aspect might be relevant because of the opportunity to capture the variety of design and engineering domains in which VR has been applied, which, in line with Section 1, can be considered a proxy of VR’s maturity.

In order to address the above points, the methodology adopted by the authors was the gathering of relevant documents showing VR applications in design and the subsequent classification of these contributions according to multiple criteria.

The remainder of the paper is structured as follows. Section 3 describes how the search for documents showing VR applications in design has been carried out, along with selection criteria. Section 4 illustrates classification criteria and corresponding categories. Section 5 presents and discusses the main outcomes of the study in relation to the above bulleted list. Section 6 draws conclusions and indicates the limitations of the present paper.

3. Gathering of Relevant Sources Describing the Application of Virtual Reality in Design

According to the above literature gaps and research aims, the present paper is intended to define a comprehensive set of design functions supported by VR thanks to its immersive capabilities. As aforementioned, the investigation was carried out by means of a literature review focused on VR applications in design, which were subsequently characterized through bespoke taxonomies.

The first step was therefore to collect contributions describing the use of VR in the design process. The article search was conducted using Google Scholar between December 2019 and January 2020. Two groups of search terms (below) were used to search the full texts of scientific papers.

• A group of terms ascribable to virtual reality technology, e.g., “Virtual Reality”, “VR”, “immersive reality”, “immersive environment”, and “virtual prototyping”.
• A group of terms referring to the design domain, e.g., “design”, “product development”, and “user experience”.

At least one term from each group should be present in the papers’ text, as better inferable from the illustrative queries included in Figure 1, which shows the process leading to the selection of relevant sources. The consultation of documents emerging by means of each query was interrupted when the gain in terms of the number of new pertinent contributions was very low and additional efforts would have benefitted the present research to a limited extent. The sample was also extended through a snowballing process and with additional articles published after January 2020 thanks to the ongoing monitoring of the most relevant outlets for design research.

Relevant sources were considered those featuring the following characteristics.

• The documented and unambiguous use of VR technologies; for instance, studies that just cite or theoretically discuss the employment of VR were discarded. In addition, papers were excluded when they claimed to involve immersive VR but, after a careful analysis, the technology was determined to be not immersive.
• Their focus on design; here, the term “design” encompasses those product development activities described in established descriptions of design processes [32], along with their management and scientific/academic divulgation. Therefore, the mere use of VR in industry, e.g., the enhanced visualization of manufacturing facilities by means of VR, was not considered a sufficient inclusion criterion, as no design-related activity was actually supported. Markedly, this led us to select relevant contributions within the domain of engineering and product design, which represent the backbone of design fields according to the framework by Dykes et al. [33]. More specifically, the field of research was limited to what can be creatively designed and subsequently manufactured. For instance, while novel decorative architectural elements were considered relevant, this did not apply to the organization of environments, spaces, or the arrangement of standard furniture parts in rooms. These inclusion/exclusion criteria favored the subsequent classification of product typology undergoing design supported by VR.

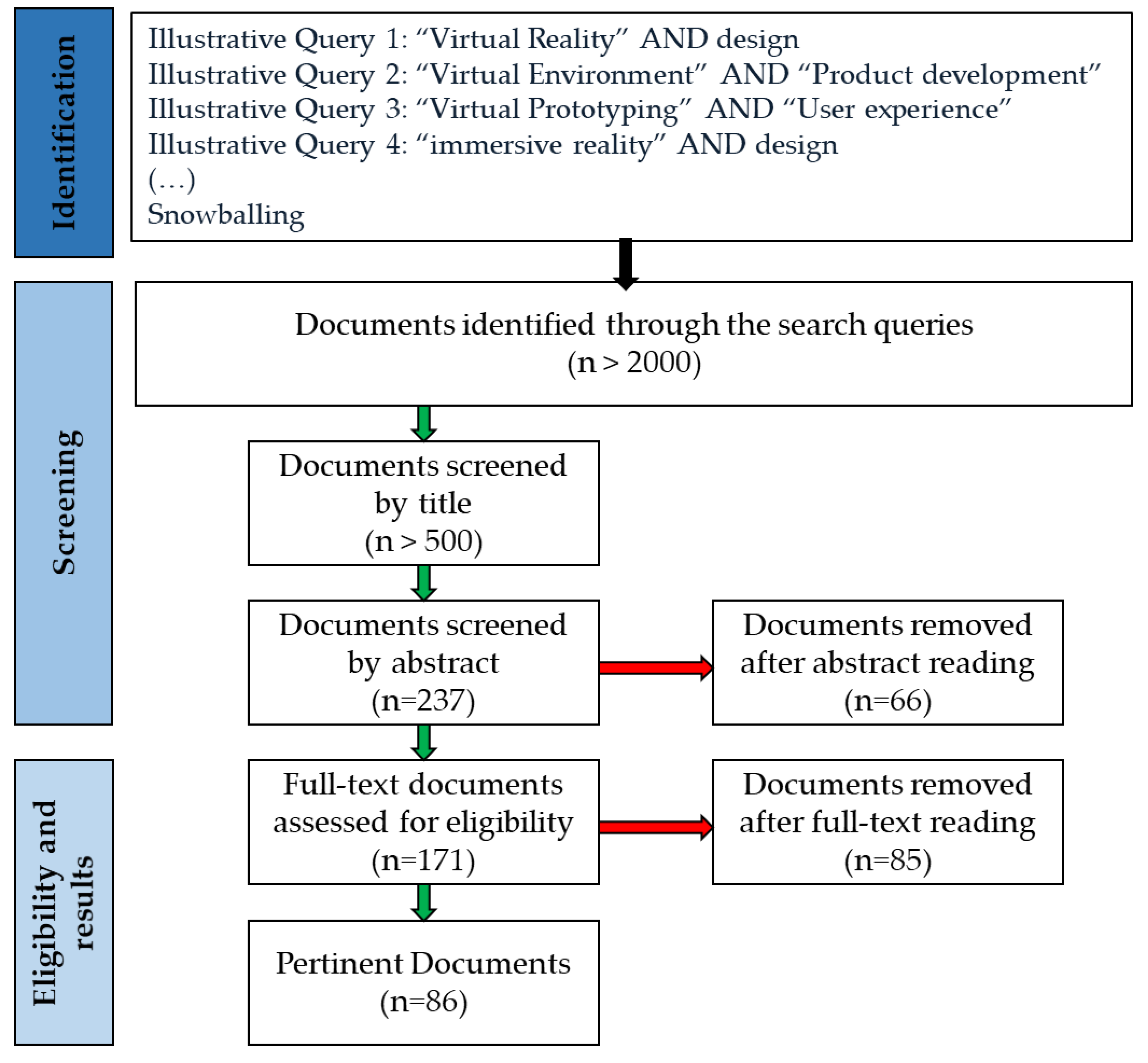

The final sample of relevant contributions consisted of 86 sources, as shown at the bottom of the PRISMA diagram in Figure 1. The gathered 86 documents represent the reference literature on which the subsequent steps of the study were articulated. The list of selected sources can be found in the next section along with a detailed description of the applied classifications.

4. Materials and Methods

We classified the selected contributions where VR was implemented for design purposes according to the following criteria, which will be described in detail in the following subsections.

• The design functions supported by VR technologies.
• The involved VR technologies.
• The presence of supporting tools or complementary technologies.
• The categories of people who use VR in the experiment.
• The typology of products designed in the experiments.
• Whether VR technology is compared to traditional design tools.

4.1. Design Functions Supported by VR Technologies

Section 2 highlighted inconsistencies concerning the role and the effectiveness of the use of VR in the design process. Many scholars focused on one phase or one specific aspect of the design process only. Indeed, some of them stress that VR has a higher impact in the early design phases [17], while others claim that this immersive technology is better used for product evaluation due to its immersive capabilities [20]. In order to have a whole picture of the potential of VR in design, we considered the design process as a whole and identified six design scopes and functions, designated macro-categories in

Table 2. Macro-categories of the functions supported by VR technologies.

Macro-Categories	Sub-Categories and Design Activities Included
1. Early phases	Creative design phases (mainly supported through virtual sketching), individual brainstorming, concept development
2. Co-design	Group brainstorming, collaboration in the simulations, assessment and re-design of a project, sharing models and data
3. 3D modelling	Virtual clay modeling, detailed/concept immersive sketching/geometric manipulation and visualization
4. Virtual assembly and prototyping, mechanical simulation, finite element method (FEM)	Control operations and simulations to verify whether the design and the assembly/disassembly of the parts work, finite element analysis, 3D human model simulations and ergonomic evaluations
5. Product Evaluation	Evaluation of the virtual prototype, gathering of users’ feedback (reactions and experience/preferences of product variants)
6. Educational purposes	Supporting the learning process of students dealing with design issues

. Table 2 includes a description of each macro-category in terms of the specific design activities or objectives that are targeted. The present classification was developed in an inductive way based on the contents of the gathered contributions; this, as opposed to predefined taxonomies, aims to better address the need for comprehensiveness of the classes in terms of the rationales behind the use of VR in design.

Here and in the following, text in italics in the tables indicates shortened versions of the classes’ names that are then used in Section 4.6 and Section 5 to name them. This measure aims to make subsequent tables and figures more compact and legible.

4.2. VR Technologies Involved

The necessity to map employed VR devices emerged in Section 2; here, the level of immersiveness featured by VR technologies might represent a critical factor to benefit design. More specifically, since VR technologies are very heterogeneous, their usability and the degree of the sense of immersion and presence could affect the user during the virtual experience. Therefore, it is likely that these factors could play a fundamental role in the effective application of this technology in the design process. As such, the gathered VR applications were classified according to categories of VR devices.

In this subsection, we refer only to those devices for the visualization of the VE. Any support tools for interaction with virtual prototypes are described in Section 4.3.

Markedly, three reference types of VR technologies have been identified and considered here for the selection and subsequent classification of VR applications, i.e., head-mounted displays (HMD), the CAVE system or similar devices, and Desktop VR with stereo glasses for 3D visualization. These technologies involve the use of different devices that enable immersion (although to different degrees), in line with Rebelo’s [26] taxonomy of VR systems, which we benefitted from.

Table 3. Categories of VR technologies involved.

Technology Used for Visualization	Devices
Head-mounted displays (HMD)	Oculus Rift, HTC Vive (Headset + controllers) or similar, TiciPrep/TiciView (Headset), Microsoft™ Hololens™
CAVE or similar	CAVE system and other technologies which involve a large field of view and 3D glasses for visualization, Cyviz (rear-projected wall display)
Desktop VR with stereo glasses	Desktop VR with stereoscopic glasses for a three-dimensional view
Unspecified VR system	Unknown/ unspecified VR system and adopted devices for mixed reality mock-ups
Other	OpenRT (Open Ray-Trace) techniques, AutoEval interface, two stereo, VirDe, stereoscopic screen with collocated motion parallax which renders the visual experience logical and realistic, V.R.A.D.U., WorldViz VR devices, Photographed VRs, Ramsis system, SATIN system

summarizes the three main technologies taken into account and indicated as macro-categories; each of them is accompanied by a description of the devices that are ascribable to the reference technologies. In some contributions, the used VR technology was not inferable (unspecified VR system), and other devices have been individuated that cannot be reconsidered within the three reference technologies.

4.3. Presence of Supporting Tools

Many papers integrated the visualization hardware with interaction hardware to allow the participants of the studies to interact with and modify the model in the VE. As aforementioned, these integrated devices are actually deemed crucial for VR’s effectiveness in design, as highlighted in several contributions [18,22,23,25]. We classified the supporting tools based on the senses that are stimulated and the level of interactivity provided. For instance, the sense of touch can be stimulated in different ways, but while the user can manipulate the virtual model in a more natural way with interaction gloves, haptics systems provide more conscious and precise interaction with the same model.

A specific class of supporting tools is that of biometric instruments, which are increasingly used in design research [34]. Actually, although they do not stimulate immersiveness and interaction in VR, the latter is monitored through unintended and inadvertent human reactions and behavior, and, as such, the experiments leveraging VR might provide more insightful data.

Table 4. Categories of VR supporting tools for interaction with a 3D model in the virtual environment.

Supporting Tools for Interaction	Devices
Hands controller	HTC Vive hands controllers, FlyStick (a 3D pen), Virtual pencil, Wii remote, pliers tool, two-handed Bezier tool, stylus, wand
Interaction gloves	CyberGlove, Pinch gloves, Mattel PowerGlove TM, Immersion CyberTouch
Sound inputs and/or outputs	Voice recognition, audio output, stereo speakers
Haptic systems (haptics)	Phantom haptic force devices, free force haptic systems, tactile feedback, haptic feedbacks in general, 3D mouse, spaceball mouse, real objects (e.g., chairs or steering wheels, pedals, vibrating elements in driver’s seat), VirtuoseTM6D35-45 haptic device
Motion tracking devices	Head motion tracker/hand motion tracker, head-repositioning device, leap motion
Traditional control devices	Keyboard, mouse, joysticks, gamepads, touch screens
Biometric instruments	Eye Tracking, Galvanic Skin Response, OptiTrack optical tracking system
None/unspecified	No supporter device was used
Other	Projector, spherical mirrors, spherical screen, digital tablet, and drawing support

summarizes all the main classes of supporting tools and indicates illustrative devices for each category.

4.4. Typology of Products Designed in the Experiments

As aforementioned, the research field was restricted to product, industrial, and engineering design. As these umbrella fields largely overlap and their distinction was not deemed viable in the present case, a bespoke classification was inductively developed to characterize products in terms of the main benefits they engender. Specifically, the functional or emotional orientation of products was considered. Markedly, the products undergoing VR experiments were divided into nonfunctional products and exhibits, industrial products, mechanical products, and vehicles. Although vehicles could be largely included in the mechanical products, they are considered separately here because of the large number of examples in this field and the non-negligible emotional dimension that features this domain. The purpose of this categorization was to investigate whether there are products where the use of VR in the design process plays a major role.

Table 5. Categories of designed products.

Products	What Was Included
Nonfunctional products and exhibits	Consumer goods with a predominant aesthetic dimension
Industrial products	Consumer goods with relevant aesthetic and functional dimensions
Mechanical products	Machines, mechanical systems, and functional products with negligible aesthetic dimensions
Vehicles	Vehicles and parts of vehicles

illustrates the criteria used to include the designed products in the corresponding classes.

4.5. Comparison of VR Technologies to Traditional Design Tools

To provide a comprehensive view of the effectiveness of VR in design, we indicated all those papers that described a comparison between traditional design tools and VR systems. This aspect is potentially useful for future studies where VR’s actual effectiveness in design will be verified beyond its uptake, but it is not analyzed further in the present paper.

4.6. List of Gathered Contributions and Classification Thereof

The complete list of gathered sources of VR applications in design is presented in

Table 6. Complete list of references illustrating VR applications in design.

Source	Year	Country	Design Function	VR Technology	Supporting Tools	Product Category	Comparison to Traditional Design Tools
Butterworth et al. [35]	1992	USA	3D Modelling	HMD	Traditional control	Nonfunctional
Kameyama [36]	1997	Japan	3D Modelling	Desktop VR	Haptics	Mechanical
Dani and Gadh [37]	1997	USA	3D Modelling	Desktop VR	Gloves & Sound	Nonfunctional
Jayaram et al. [38]	1997	USA	Virtual Prototyping	HMD	Motion tracking & Gloves & Haptics	Mechanical
Lehner and DeFanti [39]	1997	USA	Co-design & Virtual Prototyping	CAVE	Hands controller & Motion tracking	Vehicles
Yeh and Vance [40]	1998	USA	Virtual Prototyping	HMD	Gloves	Mechanical
Purschke et al. [41]	1998	Germany	3D Modelling & Virtual Prototyping	Other	None/unspecified	Vehicles
Evans et al. [42]	1999	USA	Evaluation	Desktop VR	Gloves	Mechanical	x
Jayaram et al. [43]	1999	USA	Virtual Prototyping	HMD	Motion tracking & Gloves & Haptics	Mechanical
De sa and Zachmann [44]	1999	Germany	Virtual Prototyping	HMD	Sound & Gloves	Vehicles
Achten et al. [45]	2000	The Netherlands	Education & 3D Modelling	Unspecified	None/unspecified	Nonfunctional
Ryken and Vance [46]	2000	USA	Virtual Prototyping	CAVE	Hands controller & Gloves	Mechanical
Impelluso and Metoyer-Guidry [47]	2001	USA	Education	Desktop VR	Traditional control	Mechanical
Kraal and Vance [48]	2001	USA	3D Modelling	HMD & Desktop VR	Traditional control & Gloves	Mechanical
Fiorentino et al. [49]	2002	Italy	Early phases	Desktop VR	None/unspecified	Vehicles
Wickman and Söderberg [50]	2003	Sweden	Co-design & Virtual Prototyping	Desktop VR	None/unspecified	Vehicles
Choi and Chan [51]	2003	China	Virtual Prototyping	Desktop VR	None/unspecified	Nonfunctional
Mäkelä et al. [52]	2004	Finland	Early phases	CAVE	Hands controller	Nonfunctional
Bochenek and Ragusa [53]	2004	USA	Co-design	CAVE	Motion tracking & Traditional control	Mechanical	x
Moreau et al. [54]	2004	France	Virtual Prototyping	HMD	Haptics	Vehicles
Choi and Chan [55]	2004	China	Virtual Prototyping	Desktop VR	None/unspecified	Nonfunctional
Krause et al. [56]	2004	Germany	Early phases & 3D Modelling	CAVE	Hands controller	Industrial
Söderman [57]	2005	Sweden	Evaluation	CAVE & HMD	Haptics	Vehicles
Ye et al. [58]	2006	UK	Early phases & 3D Modelling	Desktop VR	Haptics & Traditional control	Nonfunctional
Pappas et al. [59]	2006	Greece	Co-design & Virtual Prototyping	Unspecified	None/unspecified	Nonfunctional
Schilling et al. [60]	2006	Germany	Virtual Prototyping	HMD	Hands controller	Mechanical & Nonfunctional
Bordegoni et al. [61]	2006	Italy	Co-design & Evaluation	HMD	Haptics & Motion tracking	Industrial
Keefe et al. [62]	2007	USA	Early phases	Desktop VR	Haptics	Nonfunctional
Dorta [63]	2007	Canada	Early phases	Other	Other	Vehicles
Zhang et al. [64]	2007	USA	Co-design & 3D Modelling	CAVE	Haptics	Vehicles
Naef and Payne [65]	2007	UK	Evaluation	Other	Gloves & Sound	Industrial
Ye et al. [66]	2007	UK	Evaluation	Desktop VR	Haptics	Industrial
Mahdjoub et al. [67]	2007	France	Virtual Prototyping	Other	Motion tracking & Sound & Gloves	Mechanical
Choi and Cheung [68]	2008	China	Co-design	Desktop VR & CAVE	None/unspecified	Nonfunctional
Tideman et al. [69]	2008	The Netherlands	Evaluation	Unspecified	Haptics & Traditional control	Vehicles
Park et al. [70]	2008	Korea	Evaluation	HMD & Desktop VR	Sound	Industrial
Van Der Voort and Tideman [71]	2008	The Netherlands	Evaluation	Unspecified	Haptics & Traditional control	Vehicles
Israel et al. [72]	2009	Germany	Early phases	CAVE	Hands controller	Industrial
Ingrassia and Cappello [73]	2009	Italy	3D Modelling & Virtual Prototyping	Mechanical	Hands controller	Mechanical
Yan et al. [74]	2009	China	3D Modelling	Unspecified	Haptics	Vehicles
Sung et al. [75]	2009	UK	Virtual Prototyping	HMD	Gloves	Mechanical
Lanzotti et al. [76]	2009	Italy	Evaluation	Unspecified	None/unspecified	Vehicles
Raposo et al. [77]	2009	Brazil	Virtual Prototyping	Unspecified	None/unspecified	Mechanical
Bruno et al. [78]	2009	Italy	Virtual Prototyping	Unspecified	Traditional control	Mechanical
Chen et al. [79]	2010	China	3D Modelling	Unspecified	Haptics	Nonfunctional
Bordegoni et al. [80]	2010	Italy	3D Modelling	Other	Haptics	Industrial
Wang and Dumont [81]	2011	France	Virtual Prototyping	Unspecified	Haptics	Mechanical
Abulrub et al. [82]	2011	UK	Virtual Prototyping & Education	CAVE	None/unspecified	Mechanical
Noon et al. [83]	2012	USA	Co-design & 3D Modelling	CAVE	Sound & Traditional control	Vehicles
Toma et al. [84]	2012	Romania	3D Modelling & Virtual Prototyping	CAVE	Gloves & Biometric & Sound	Mechanical	x
Makris et al. [85]	2012	Greece	Co-design & Virtual Prototyping	Unspecified	None/unspecified	Vehicles
Lau [86]	2012	China	Early phases & Education	Unspecified	None/unspecified	Nonfunctional
De Araùjo [87]	2012	Portugal	Early phases & 3D Modelling	Unspecified	Motion tracking & Sound	Nonfunctional
Israel et al. [88]	2013	Germany	Early phases	CAVE	Hands controller	Nonfunctional
Grajewski et al. [89]	2013	Poland	Virtual Prototyping	CAVE	Haptics	Mechanical
Bordegoni and Ferrise [90]	2013	Italy	Evaluation	CAVE	Haptics & Sound	Industrial
De Araùjo [91]	2013	Portugal	Early phases & 3D Modelling	Unspecified	Motion tracking & Sound	Nonfunctional	x
Backhaus et al. [92]	2014	Germany	Evaluation	Unspecified	Haptics	Vehicles
Rentzos et al. [93]	2014	Greece	Evaluation	HMD	Gloves & Motion tracking	Vehicles
Villagrasa et al. [94]	2014	Spain	Education	HMD	None/unspecified	Nonfunctional
Marks et al. [95]	2014	New Zealand	Virtual Prototyping & Evaluation	HMD	Motion tracking & other	Vehicles	x
Grajewski et al. [96]	2015	Poland	Education	CAVE	None/unspecified	Industrial
Bharathi and Tucker [97]	2015	USA	Education	HMD & Desktop VR	Traditional control	Industrial
Rojas et al. [98]	2015	Spain	Evaluation	CAVE	Biometric	Nonfunctional
Zhang et al. [99]	2015	China	Evaluation	Unspecified	Motion tracking	Vehicles
Rieuf et al. [100]	2015	France	Early phases	Unspecified	Biometric & Motion tracking	Nonfunctional	x
Freeman et al. [101]	2016	USA	3D Modelling	Unspecified	None/unspecified	Mechanical
Górski et al. [102]	2016	Poland	Evaluation	HMD	Motion tracking & Traditional control	Vehicles
Kovar et al. [29]	2016	Czech Republic	Virtual Prototyping	CAVE	Haptics	Mechanical
Rieuf et al. [103]	2017	France	Early phases & Virtual Prototyping	Other	Hands controller & Biometric	Industrial
Wolfartsberger et al. [104]	2017	Austria	Virtual Prototyping	HMD	None/unspecified	Mechanical
Valencia-Romero and [105]	2017	USA	Evaluation	HMD	Traditional control	Nonfunctional
Berg and Vance [106]	2017	USA	Co-design & Virtual Prototyping	CAVE	Hands controller & Biometric	Mechanical
Eroglu et al. [107]	2018	Germany	Early phases	CAVE	Motion tracking & Hands controller & Traditional control	Nonfunctional
Guo et al. [108]	2018	China	Virtual Prototyping	CAVE	Motion tracking & Traditional control	Vehicles
Song et al. [109]	2018	New Zealand	Early phases	Unspecified	None/unspecified	Nonfunctional
Rogers et al. [110]	2018	Canada	Evaluation	Other	Hands controller	Vehicles
Elbert et al. [111]	2019	Germany	Evaluation	HMD	Hands controller	Nonfunctional	x
Kato [112]	2019	Japan	Evaluation	HMD & Other	Hands controller	Vehicles	x
Jayasekera and Xu [113]	2019	New Zealand	Virtual Prototyping	HMD	Motion tracking	Mechanical
Wolfartsberger [23]	2019	Austria	Virtual Prototyping	HMD	None/unspecified	Mechanical
Riegler et al. [114]	2019	Austria	Evaluation	HMD	Hands controller & Motion tracking & Haptics & Sound	Vehicles
Violante et al. [115]	2019	Italy	Evaluation	Unspecified	Haptics	Nonfunctional
De Crescenzio et al. [116]	2019	Italy	Evaluation	HMD	None/unspecified	Vehicles
Guo et al. [117]	2020	China	Virtual Prototyping	CAVE	Motion tracking & Traditional control	Mechanical	x
Lukačević et al. [118]	2020	Denmark	Virtual Prototyping	HMD	Hands controller	Mechanical & Nonfunctional

, along with the categories assigned with reference to the above classes. Unsurprisingly, each contribution might be associated with more entries in virtually any of the considered classes, e.g., an application in which more design activities are supported. All these cases include the sign “&” in the corresponding cell of Table 6. In addition to the classes described in Section 4.1, Section 4.2, Section 4.3, Section 4.4 and Section 4.5, we have indicated the publication periods of the gathered contributions, which is relevant for the research questions posed in Section 2.

In addition, the publication year of each contribution was used to individuate the reference decade ascribable to the VR application; in detail, the 1990s (1991–2000), 2000s (2001–2010), and 2010s (2011–2020) can be approximately linked to the second, third, and fourth phases of VR evolution, respectively. Finally, in order to provide information on the geographical areas in which research on VR-supported design applications took place, Table 6 includes a column named “Country”. The reported country matches the affiliation of the corresponding author of each contribution; in the case of multiple affiliations, the first one was considered. Figure 2 presents a world map that highlights the number of publications for each country. The geographic distribution of VR-supported design applications was subsequently organized into three different areas, namely, the Americas (USA, Canada and Brazil), Asia-Pacific (China, Japan, South Korea and New Zealand), and Europe (all the other countries exhibiting at least one contribution).

5. Results and Comments

The results presented in Table 6 were analyzed in order to gain insight into the issues that supposedly require investigation, as shown in the numbered list in Section 2. The subsections that follow are also organized based on this numbered list. Each subsection reports on the specific aspect that is taken into consideration.

5.1. Diffusion of Virtual Reality in Design-Related Applications

In Figure 3, the number of selected sources per publication year is shown (the year 2020 was not included, as these data could be largely misleading). Figure 3 includes the reference decades and VR development stages. As already mentioned, the intensity of research is considered here as an indicator of the extent of interest in and relevance of a specific topic. Among the 86 gathered sources, 12, 34, and 40 are ascribable to the second (1990s), third (2000s), and fourth (2010s) stages of VR development, respectively (see also Figure 4 on the right-hand side). Therefore, by also considering the anecdotal increase of scientific publications in the last few years, the level of maturity reached by VR in the 2000s can be considered the most critical one for unlocking widespread employment of VR in design research. The number of VR applications in design might also be affected by the simultaneous development and diffusion of competitive systems, e.g., mixed and augmented reality. Thus, a complete picture of the limited expansion of VR use in design might benefit from similar studies in neighboring fields. A different explanation is provided below.

Indeed, an interesting aspect that can be inferred from Figure 3 is the larger number of contributions found in the final halves of the three considered decades compared to the initial ones. It might be assumed that the technological advancements VR has exhibited have been exploited in design research with a few years’ delay. According to this key of reading, the actual number of applications benefitting from the fourth VR development stage should be assessed in the next four to five years.

The time distribution of the selected contributions across the three continent groups considered here is shown in Figure 4. Interestingly, while the number of contributions has steadily grown in Asia-Pacific and Europe, the interest in VR applications in design has progressively diminished in the Americas. Despite the USA being overall the most prolific country within the collected sources, the overwhelming majority of contributions came from Europe (50 out of 86) if the continental instead of national scale is considered.

5.2. Design Functions Supported by Virtual Reality

The indications from seminal and mature studies on the uptake of VR in design [7,30] have well addressed the main areas for the use of these technologies. Based on the design functions and scopes classified in Section 4.1, the distinguishable design stages that have shown support by VR technologies are actually early phases (15 identified applications), 3D modelling (18), virtual prototyping (32), and product evaluation (23). However, the sole indication of design phase overlooks the presence of scopes of VR employment that are disentangled from different stages of product development. In this respect, we individuated practices using VR as a facilitator of participatory design activities (co-design, 10 identified applications) and as a means to favor education in design (7).

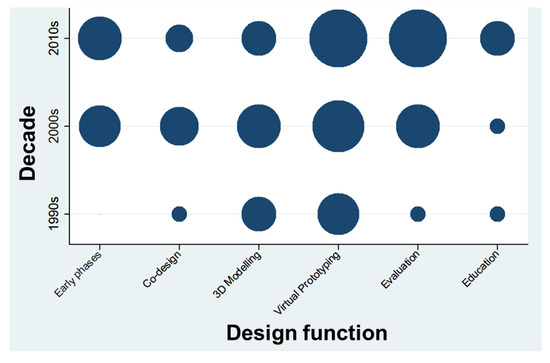

The distribution of sources dealing with the whole set of design functions across the different decades is illustrated in Figure 5, where the sizes of bubbles indicate the number of VR applications.

The figures show that 3D modelling and virtual prototyping, i.e., those design phases that follow conceptual stages, were actually the first areas of interest for VR applications in design. While the former has gradually lost its relevance over the years, the latter seems to gain traction increasingly. However, the design function that shows the steadiest growth in interest is seemingly product evaluation, which might have benefitted from enhanced interaction systems to the largest extent. While several contributions assert that the potential of VR support in early design phases has been largely overlooked, the data confirm this claim if just the first decade is considered. Indeed, the number of VR applications targeting initial and creative design activities is comparable with mainstream design functions from the 2000s onwards. As for the originally identified design functions supported by VR, while co-design seems to have attracted particular interest in just the 2000s, a non-negligible number of VR applications targeting educational purposes is observed in just the last decade.

5.3. Design Functions Supported by Specific Virtual Reality Devices

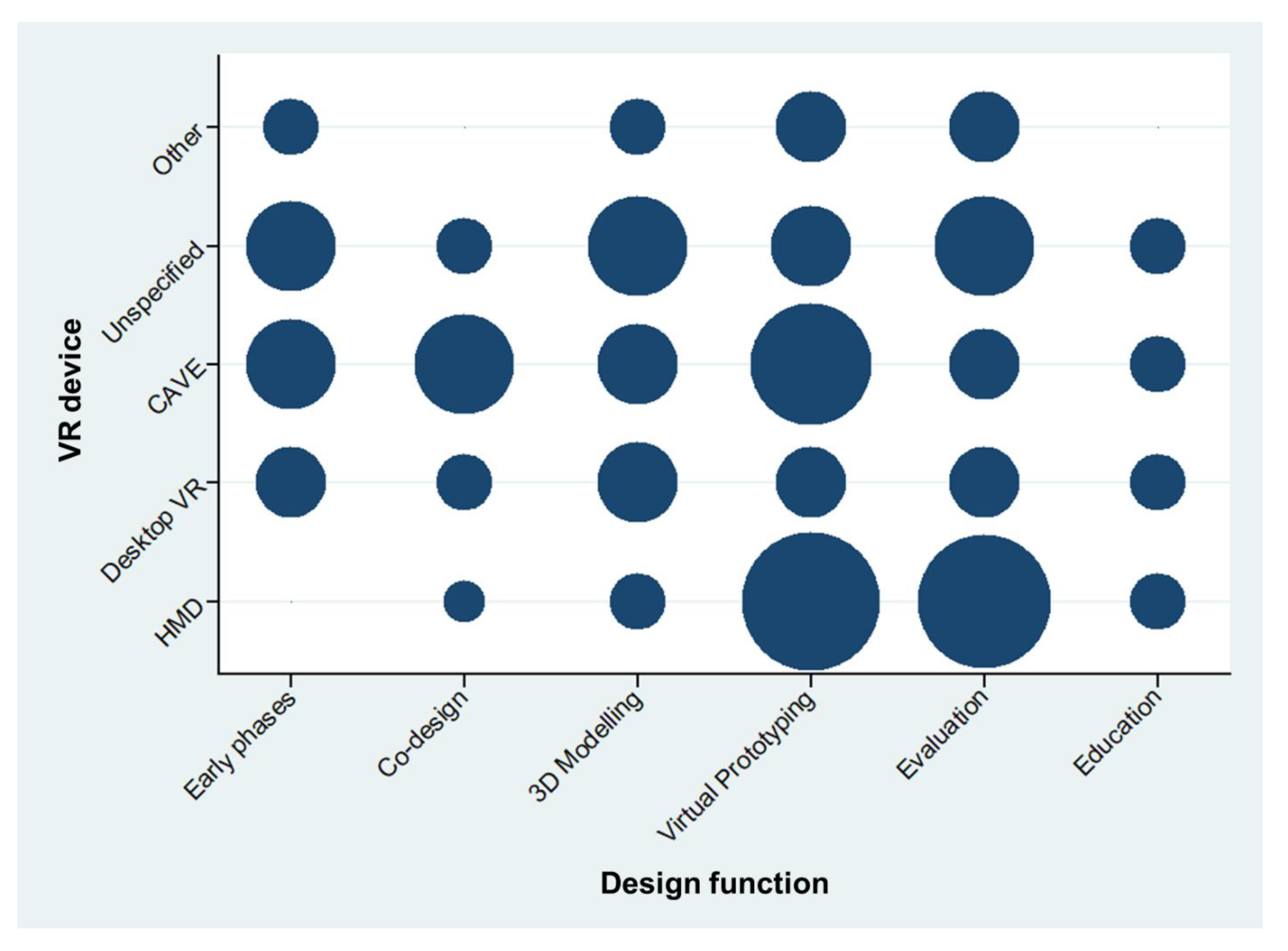

The specific VR technology used in design applications could not be determined from the text of the gathered sources in 20 cases out of 86. Differently, 8 sources showed the use of VR devices that cannot be ascribed to any of the three main technologies, i.e., HMD (26 applications), Desktop VR (15), and CAVE (22). Figure 6 shows how the utilization of VR devices was distributed across the previously discussed design functions.

The figure shows that HMD is seemingly unsuitable to support early design phases, as opposed to virtual prototyping and product evaluation. Early phases seem to have benefitted from the introduction of Desktop VR and systems involving the CAVE technology or alike. The latter proves to be particularly appropriate for co-design activities and virtual prototyping. 3D modelling and, even more markedly, design education tasks appear as those functions showing the most balanced distribution of the three mainstream technologies to support them. As these observations partially back up the relation between specific VR technologies and supported design functions, we tested the actual distribution against a random distribution (VR devices vs. design functions) through a χ² test. Applications where the employed VR technology was unspecified were excluded. The extracted p-value of the χ² test (0.130) does not allow ruling out that the distribution is random, and, as a result, the relation between design functions and VR technologies requires further investigation. This conclusion is based on the rule of thumb of setting a p-value of 0.05 as the threshold for significance, which was complied with here and in the following.

5.4. Supporting Tools Involved in VR Applications in Design

The number of examined studies in which supplementary tools did not emerge or were not present in the application of VR technologies in design is 20, which equals the quantity of cases in which specific VR devices could not be identified. This supports the stance of those scholars who claim the relevance of supporting tools and additional functionalities in the use of VR devices. The specific number of peculiar supplementary tools or exploited VR-integrated functionalities is reported in

Table 7. Number of design applications in which VR supporting tools were relevant for the specific case study.

Supporting Tools for Interaction	Number of VR Applications in Design
Hands controller	16
Interaction gloves	13
Sound inputs and/or outputs	11
Haptic systems (haptics)	22
Motion tracking devices	18
Traditional control devices	15
Biometric instruments	5
None/unspecified	20
Other	2

.

Although haptic systems show the largest number of application cases, they cannot be considered largely predominant because different supporting tools are exploited to similar extents to make the user experience more interactive or to achieve better control.

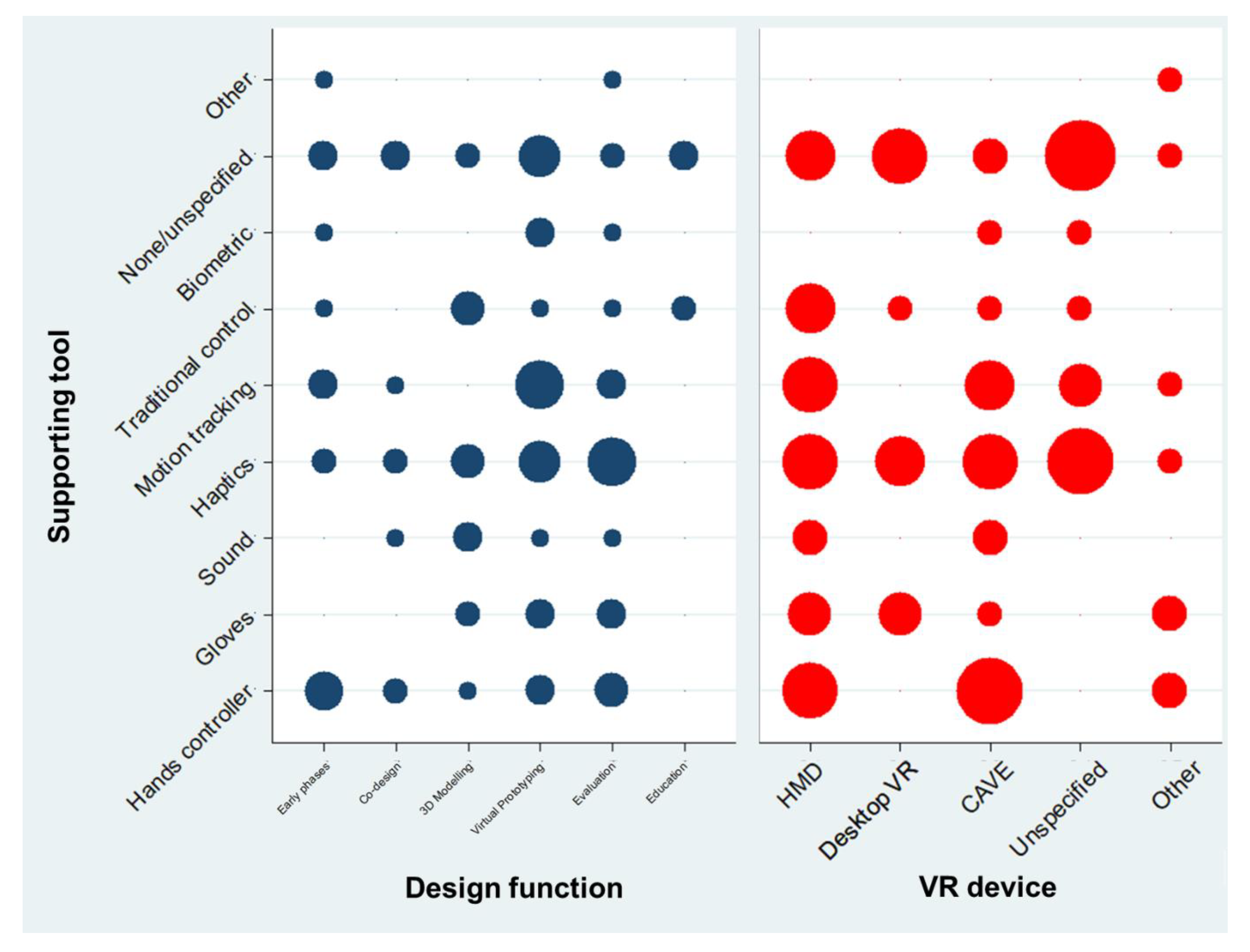

The distributions of supporting tools across design functions and reference VR technologies were extrapolated (see Figure 7).

The two distributions were tested against random distributions through χ² tests. While the randomness of the former cannot be excluded (p = 0.113), a solid relation was found between leveraged supporting tools and VR devices (p = 0.046). While many combinations of VR devices and supporting tools are possible and plausible, which is backed by the few missing bubbles in the right-hand side of Figure 7, it is worth investigating whether the emerging nonrandom relation can be considered to be of general validity or peculiar to design applications.

5.5. Product Categories Involved in VR Applications in Design

The study of the typology of products involved in design-related applications of VR laid bare a balance among nonfunctional (25 cases), mechanical (27), and vehicle items (25). Just those products ascribable to industrial design, i.e., those with relevant functional and emotional components in the present study, presented a considerably lower number of applications (11). In addition, this category is the only one that did not undergo any VR experiments before the 2000s, as inferable from Figure 8, on the left. As this aspect is shared by early design phases, we investigated the distribution of product categories across design functions as well (see Figure 8, on the right).

The χ² test of distribution randomness supports a significant match between product categories and involved design functions (p = 0.000), although the reasons above cannot be considered as the trigger for such a significant relation. As the reader can observe in Figure 8, early phases involved nonfunctional products to the largest extent, while industrial products underwent VR-supported evaluations in the majority of cases. Particularly relevant matches are also those between virtual prototyping and mechanical products and between product evaluation and vehicles. Also in this case, further investigations would be required to understand the phenomenon fully; more precisely, it is worth studying whether the above relation is peculiar to design overall or just to those applications that involve the use of VR.

Conversely, no significant relation is to be highlighted between product categories and VR development stages, as the p-value of the χ² test is 0.488.

6. Conclusions

In the present paper, we analyzed a considerable and representative number of sources reporting VR applications in design in order to address some research issues. Although some findings cannot be considered to be conclusive, the main points can be summarized as below.

• While VR was confirmed to be potentially useful in the whole design process, from early to detailed phases and subsequent product evaluation, the benefits of using VR as a tool favoring participatory design and design education have been not specifically focused on hitherto.
• Considerable growth of VR applications in design took place in the 2000s, when Europe superseded the Americas as the leading geographic area with regard to pertinent publications describing said applications.
• The claimed overlooking of the potential of VR in the early design phases can be considered overcome as the maturity of VR technologies has evolved over time.
• Specific VR technologies cannot be considered as being directly ascribable to definite design functions, as a large number of combinations of these two classes were identified. However, the preferential use of certain kinds of devices in specific design circumstances seems inferable from the figures, e.g., the intensive employment of HMD for virtual prototyping and product evaluation.
• Supporting tools have proven relevant for the effective use of VR in design. For instance, haptic systems can be considered established in design-related applications.
• The functional and emotional dimensions of products involved in VR applications in design were studied. Vehicles, which are inherently characterized by both dimensions, represent a relevant share of products in play in these applications, as opposed to other kinds of products traditionally referred to as industrial design. A significant relation was found between categories of products and design functions. However, such a relation could be of general scope and not restricted to VR-supported applications.

The limitations of the paper can be seen in the subjective nature and creation of some classifications, along with subjective exclusion and inclusion of sources describing VR applications in design. The extracted number of case studies, although possibly not comprehensive, is comparable to or exceeds the quantity of sources traditionally analyzed in reviews conducted in the design field or within VR research to infer or fill classifications, e.g., [30,34,119,120].

We based many observations on combinations of different classifications, which were chosen based on emerging issues and the search for some explanatory phenomena. However, not all possible combinations were tested; others can be deemed reasonable, and the presented data lend themselves to further investigations other scholars might be interested in.
