X-ray Redshifts for Obscured Active Galactic Nuclei with AXIS Deep and Intermediate Surveys

Abstract

This study presents the capabilities of the AXIS telescope in estimating redshifts from X-ray spectra alone (X-ray redshifts, XZs). Through extensive simulations, we establish that AXIS observations enable reliable XZ estimates for more than 5500 obscured active galactic nuclei (AGNs) up to redshift $z\sim 6$ in the proposed deep (7 Ms) and intermediate (375 ks) surveys. Notably, at least 1600 of them are expected to be in the Compton-thick regime ($log{N}_H/{\mathrm{cm}}^{-2}\ge 24$), underscoring the pivotal role of AXIS in sampling these elusive objects that continue to be poorly understood. XZs provide an efficient alternative for optical/infrared faint sources, overcoming the need for time-consuming spectroscopy, the potential limitations of photometric redshifts, and potential issues related to multi-band counterpart association. This approach will significantly enhance the accuracy of constraints on the X-ray luminosity function and obscured AGN fractions up to high redshifts. This white paper is part of a series commissioned for the AXIS Probe Concept Mission; additional AXIS white papers can be found at the AXIS website.

1. Introduction

Redshifts play a crucial role in the study of the properties and evolution of active galactic nuclei (AGNs). To determine the redshift of an AGN, most solid measurements can be obtained through the spectroscopic identification of optical/near-infrared (ONIR) emission lines. However, spectroscopic redshift (spec-z) quality relies on good signal-to-noise spectra, which can be resource-intensive in terms of exposure times, especially for faint and distant AGNs. An alternative to spec-zs is to compute photometric redshifts (photo-zs) through spectral energy distribution (SED) fitting. This is a more easily accessible method which relies on multi-wavelength observations by comparing object fluxes in different filters with synthetic models. However, accurate photometric redshifts may be challenging to obtain for AGNs because of the complex nature of their SEDs and the limited availability of filters needed to obtain reliable estimates. This challenge is further compounded by the potential dilution of the AGNs’ emissions by concurrent galaxy radiation (e.g., [1,2]).

In recent years, a relatively new technique based on X-ray spectra has been extensively explored to determine the redshifts of AGNs. These redshift estimates (X-ray redshifts, XZs) were successfully tested for an obscured AGN [3,4,5] which may be extremely faint at ONIR wavelengths due to gas and dust along the line of sight. On the contrary, X-ray photons can more easily escape heavy column densities ($log{N}_H/{\mathrm{cm}}^{-2}>23$, e.g., [6,7]), providing a valuable alternative to AGNs that are challenging to observe spectroscopically and photometrically. Therefore, XZs offer a complementary approach that does not require ONIR datasets and avoids the complexities associated with multi-band counterpart associations (e.g., [8,9,10]). However, as with other redshift methods, even XZs rely on the quality of data. Current X-ray observatories such as Chandra and XMM-Newton provide excellent spectra on-axis (i.e., in the center of their field of view), but as we move off-axis, the PSF broadens and distorts very quickly, drastically reducing the quality of the spectra and therefore negatively affecting the performance of the XZ method. In contrast, with a stable angular resolution across its entire field of view, the AXIS telescope can capture a large amount of high-quality spectra within a single pointing, more than ever before. This, coupled with its large effective area [11,12,13], makes it the ideal instrument for measuring XZs. In this white paper, we explore the capabilities of AXIS in deriving the XZs of obscured AGNs in the planned deep (7 Ms) and intermediate (375 ks) surveys [14,15,16], by focusing on the low-photon statistics regime to investigate the limits of this technique. For details on the expected surveys and observations, we refer to the main AXIS papers [13,14,15].

2. Materials and Methods

The methods presented in this section were carried out using a procedure similar to that in [4]. In brief, we simulated the expected AXIS spectra of obscured AGNs ($log{N}_H\ge 22$) in order to derive their redshifts through an analysis of X-ray spectra. All the simulations were conducted using PyXSPEC v2.1.1 (equivalent to XSPEC v12.13.0 [17]). We adopted a double-power-law model (zphabs × zpowerlw + zpowerlw in XSPEC) with a fixed intrinsic photon index $\mathsf{\Gamma }=1.9$ and a secondary power-law normalization free to vary up to 20% of the primary power-law normalization (as observed in X-ray surveys (e.g., [18,19])). The absorbing column density, $N_H$, was modeled to represent the total absorption due to cold (or neutral) gas along the line of sight, known as the predominant mechanism of absorption in AGNs and their host galaxies (e.g., [20,21,22], see also Appendix B). The Fe K$\alpha$ emission line was also modeled with a redshifted Gaussian line (zgauss) at 6.4 keV in the rest frame, with a width of $\sigma =10$ eV. Different line normalizations were used to obtain a canonical range of rest-frame equivalent widths between 10 eV and 2 keV as a function of $N_H$ (e.g., [23,24]). An additional absorption component (phabs) with a fixed value of $N_H=1.8\times {10}^{20}$ cm⁻², corresponding to the average Galactic absorption at a high latitude, was added. The free parameters were the two power-law normalizations, $N_H$, line normalization, and redshift. We discuss the effects of assuming different models in Appendix B.

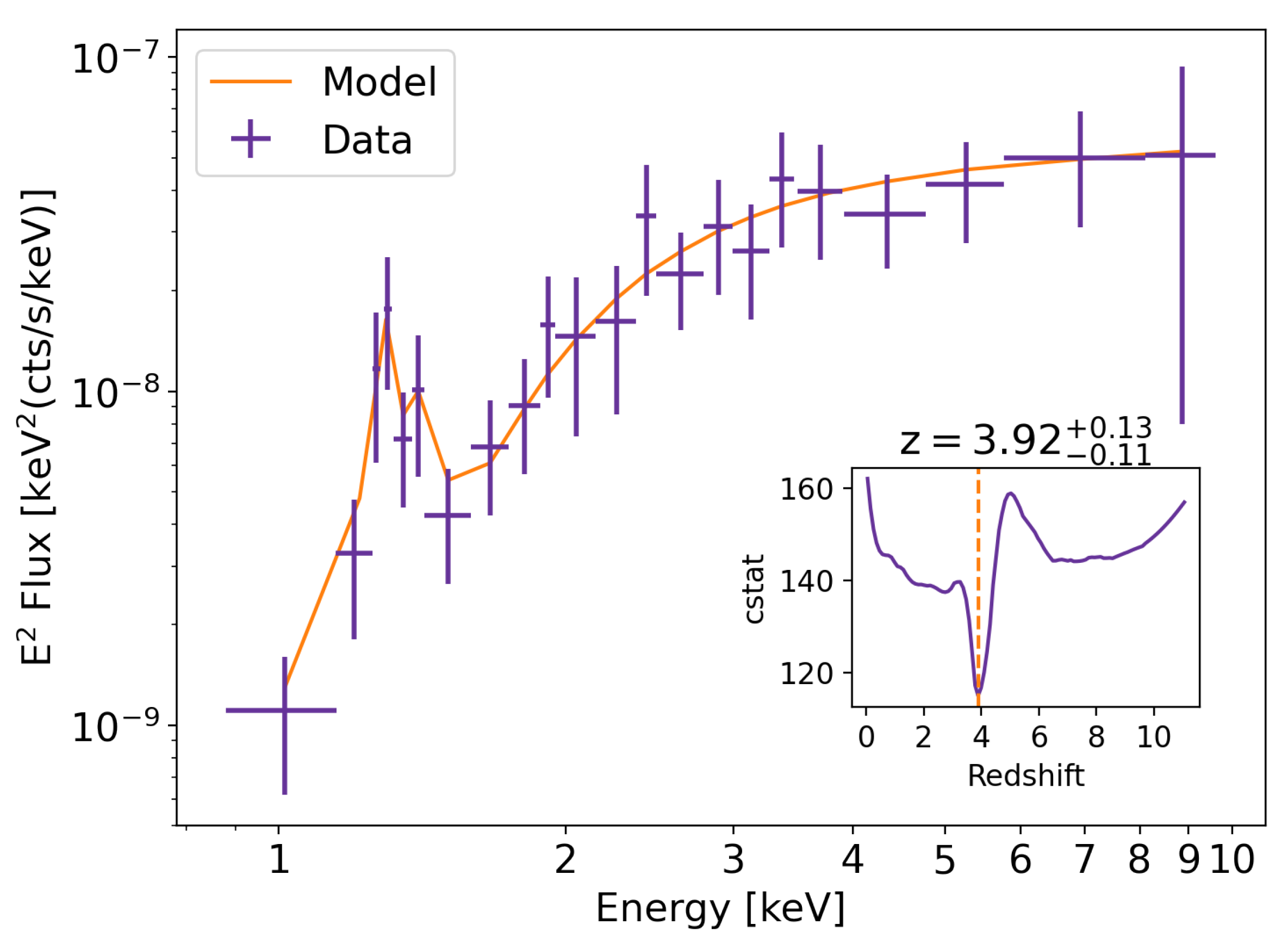

To reproduce what is observed in intermediate-to-deep X-ray surveys (e.g., [25,26]), we simulated column densities from $log{N}_H=22$ to 25 with a step of 0.5, redshifts up to 9 with a step of 0.5, and different power-law normalizations to obtain a number of net counts (0.5–10 keV band) of up to 150. For each parameter combination, we simulated 200 spectra. The simulations were also repeated by excluding the Fe K$\alpha$ emission line to mimic cases in which no line is detected. The expected background, which comprises both particle (non-X-ray) and astrophysical components, was properly modeled (see Appendix A for details) and associated with the simulated spectra. The most recent AXIS responses, ARF and RMF, were applied. The simulated spectra were binned to a minimum of 1 cts/bin to avoid empty channels, and Cash statistics [27] were applied. Following [4], after a first fit to assess the free parameters, the best-fit redshift estimates (XZs) were evaluated using the steppar command. This allowed for an evaluation of the possible best-fit solutions by running consecutive fits as a function of one or more parameters. We ran it as a function of z in the range [0–11], with a step of 0.01. The best-fit XZs were then determined to be the minimum value in the resulting statistical distributions. Finally, the model’s best-fit parameters were then compared to the simulated values as described in Section 3. An example of this procedure is shown in Figure 1.

3. Results

In this section, we show the main results of our simulations. We applied the method described in [4] to determine the feasibility of XZs with AXIS. This method provides the XZ success rate maps as functions of redshifts, the number of counts, and absorption column density ($N_H$). The success rate, or match percentage (MP), is defined as follows:

$$\mathrm{MP}(\mathrm{c}ts,z,N_{\mathrm{H}})=\frac{N(z\pm \mathsf{\Delta }z)}{N_{\mathrm{sim}}}$$

(1)

This quantity represents the percentage of simulated sources for which the spectral fitting successfully recovered a redshift that agrees, within the errors, with the simulated value (as well as for $N_H$ and power-law normalizations). In other words, the MP shows how well XZs can be estimated as functions of redshifts, counts, and $N_H$ by using X-ray spectra alone. It is worth mentioning that the MP is also a function of the photon index $\mathsf{\Gamma }$, but for commonly accepted values ($\mathsf{\Gamma }=1.9\pm 0.2$, e.g., [28,29]), the effect on the MP is negligible [4]. As a conservative approach [3,5], we rejected estimates where the derived XZ was consistent with the simulated one, within the errors, but where $\left|\mathsf{\Delta }z\right|>0.15(1+z_{sim})$. This also applies when XZ estimates were upper or lower limits.

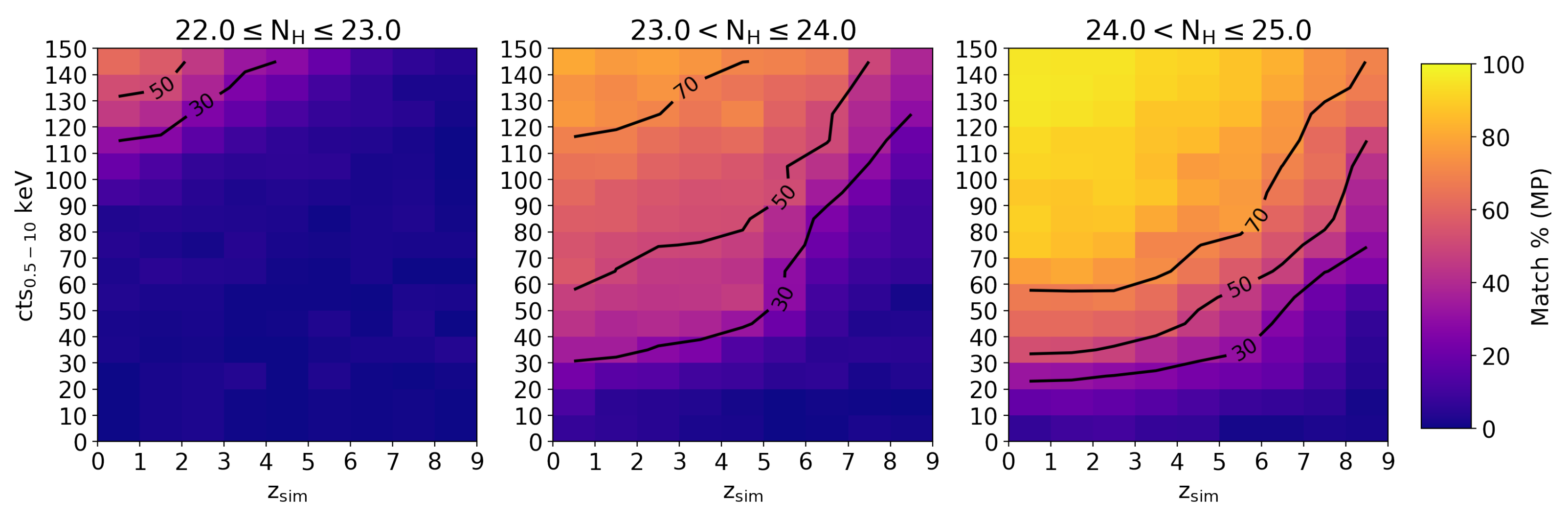

In Figure 2, we present the results obtained for a double-power-law model with $\mathsf{\Gamma }=1.9$, $log{N}_H/{\mathrm{cm}}^{-2}$ in the range 22–25, and where we included the 6.4 keV Fe K$\alpha$ emission line (see details in Section 2). From the three maps, it is clear how increasing the levels of absorption can provide more accurate XZ results. The reason is that the XZ estimates are driven by the 6.4 keV Fe K$\alpha$ emission line and the absorption features (the 7.1 keV Fe K$\alpha$ absorption edge and photoelectric absorption), which become more prominent with increasing absorption and therefore more easily identifiable via spectral fitting (e.g., [3,30]). In addition to highlighting the prominence of the main features in the X-ray spectrum when obscuration increases, these simulations provide valuable insight into the probability of accurately determining the redshift of these AGNs by analyzing their X-ray spectra alone. We chose an MP threshold ≥ of 50% as the likelihood of obtaining a reliable XZ estimate. Refs. [4,19] showed that this threshold is a fair compromise between having a large enough sample and spectral fit accuracy. In particular, our results show that it is possible to compute reliable XZs up to $z\sim 9$ for $log{N}_H/{\mathrm{cm}}^{-2}=25$ and a number of counts down to ∼20. These numbers are expected to change when other AGN models are used [4,19]. However, as assumed in other X-ray surveys (e.g., [24,26]), our chosen model is a good representation of the overall shape of an obscured AGN. For completeness, we discuss the effects of assuming other models in Appendix B.

4. Discussion

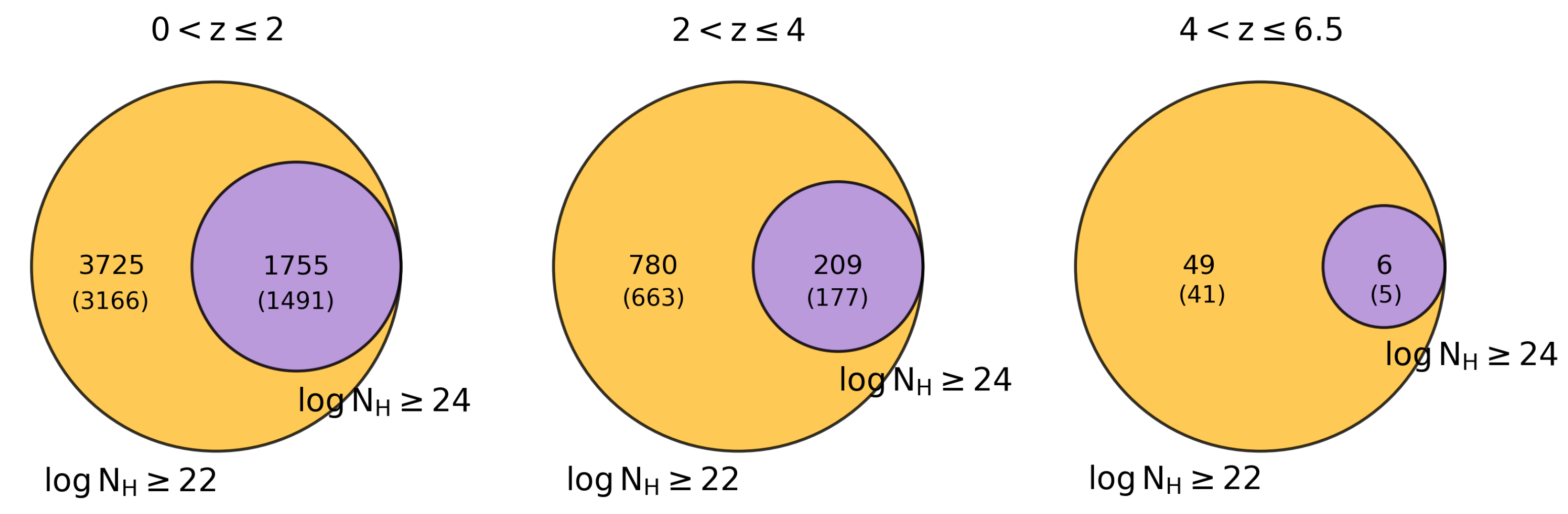

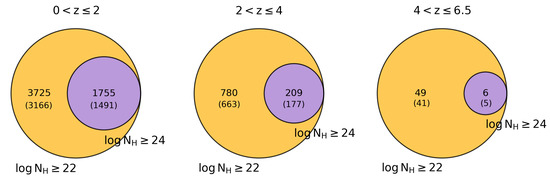

AXIS is expected to provide valuable X-ray redshift measurements, allowing for in-depth studies of X-ray-obscured AGN populations, especially for those in the Compton-thick ($log{N}_H/{\mathrm{cm}}^{-2}\ge 24$) regime. By using the most up-to-date simulations for the deep (7 Ms) and intermediate (375 ks) AXIS surveys [13,14], we can predict how many reliable XZs we will be able to estimate. Figure 3 shows our predictions for both cases in which the 6.4 keV K$\alpha$ emission line is included in the model or not. We can estimate reliable XZs for a number of obscured ($log{N}_H/{\mathrm{cm}}^{-2}>22$) AGNs between ∼5500 and 6500 and for Compton-thick AGNs between 1600 and 2000. Of these, around six Compton-thick AGNs are in the redshift bin 4 to 6.5. Furthermore, as shown by Figure 2, with additional observations, it will be possible to determine XZs even at higher redshifts as long as enough photons are detected. It is worth noting that our simulated mock datasets do not assume a redshift-dependent evolution of the $log{N}_H/{\mathrm{cm}}^{-2}>23$ population. However, numerous observations suggest that as we look at high redshifts, this population could make up as much as 90% (e.g., [18,31]), possibly due to the interstellar medium contribution to the overall absorption (e.g., [21,22,32]). As a result, the numbers we present, especially for $z>2$, should be considered conservative lower limits.

Our results offer an alternative solution for the redshift determination of X-ray sources. Notably, this approach circumvents the reliance on ONIR multi-band counterparts, which is becoming increasingly challenging with the advent of new data from instruments like the James Webb Space Telescope (JWST), which offers a superior angular resolution compared to X-rays. As a result, our method will substantially refine constraints on the X-ray luminosity function (XLF) and obscured AGN fractions up to redshift 6. In particular, we will be able to determine a solid Compton-thick fraction up to redshift 4 and place constraints up to z∼6. This holds particular importance because current work shows discrepancies in the Compton-thick fraction even in the local universe (e.g., [18,31,33,34]) and, ata high redshift ($z>4$), the use of extrapolations or XLFs characterized by notable uncertainties is common due to a lack of strong empirical support.

5. Conclusions

We showed in this work how AXIS is poised to make significant contributions to the study of AGN populations, especially obscured AGNs, through accurate X-ray redshift estimations. Our simulations suggest that AXIS can accurately estimate XZs for obscured AGNs up to redshift $z\sim 6$ in the planned deep and intermediate surveys. Specifically, AXIS will be able to obtain X-ray spectra with enough photons to make XZ estimates for more than 5500 obscured AGNs, of which at least ∼1600 are in the Compton-thick regime. Moreover, with additional observations, it would be possible to determine XZs even at higher redshifts as long as enough photons will be detected. This capability will substantially contribute to our understanding of the characteristics and evolution of heavily obscured and elusive AGNs, which bear critical importance in population studies. With the presented predictions, our approach will significantly improve the accuracy of XLFs and obscured AGN fractions up to redshift ∼6 and beyond. This advancement will address critical gaps in our understanding of obscured AGNs, both locally and at high redshifts (z ≳ 4), where current discrepancies may be explained by the lack of solid observational evidence that AXIS will instead provide.
