A Superfluid Perspective on Neutron Star Dynamics

Abstract

As mature neutron stars are cold (on the relevant temperature scale), one has to carefully consider the state of matter in their interior. The outer kilometre or so is expected to freeze to form an elastic crust of increasingly neutron-rich nuclei, coexisting with a superfluid neutron component, while the star’s fluid core contains a mixed superfluid/superconductor. The dynamics of the star depend heavily on the parameters associated with the different phases. The presence of superfluidity brings new degrees of freedom—in essence we are dealing with a complex multi-fluid system—and additional features: bulk rotation is supported by a dense array of quantised vortices, which introduce dissipation via mutual friction, and the motion of the superfluid is affected by the so-called entrainment effect. This brief survey provides an introduction to—along with a commentary on our current understanding of—these dynamical aspects, paying particular attention to the role of entrainment, and outlines the impact of superfluidity on neutron-star seismology.

1. Neutron Star Superfluidity

During its first moments of existence, just after the supernova core collapse, a newly born neutron star can be thought of as a hot, rotating “ball” of superdense nuclear material. Thermal aspects play a key role during the early stages of evolution, and it is essentially the loss of the associated pressure support (through the emission of neutrinos) that leads to the newly born object shrinking from a radius of about 20 km to the typical size of a “mature” neutron star, likely just over 10 km. Once the temperature drops below about ${10}^{10}$ K (or 1 MeV for anyone of a nuclear physics persuasion)—after the first 20–100 s [1]—the thermal contribution to the pressure may be ignored and we can meaningfully consider the object as a, now gradually evolving [2], neutron star. From the nuclear physics point of view, the object is cold. In fact, it so cold that we have to consider the precise state of matter.

Laboratory experiments tell us that two things may happen when we cool a fluid. It may freeze—as in the familiar winter-time example of water forming ice—or it may become superfluid—as in the case of low-temperature laboratory experiments on helium. The latter outcome is less common, as it requires quantum fluctuations to prevent the formation of a regular particle lattice. However, neutron stars—obviously, not hands-on laboratories!—are expected to manifest both phases. The outer kilometre or so forms the star’s crust, a lattice composed of increasingly neutron-rich nuclei [3]. The outer core of the star is expected to contain a mixture of superfluid neutrons—forming a condensate due to an analogue of Cooper pairing below a density-dependent critical temperature, see Figure 1—alongside a charge neutral conglomerate of protons and electrons (with muons also coming into play as the density increases). This may already seem a fairly complicated system, but we need (at least) two further features. First, beyond a density of about $4\times {10}^{11}$ g/cm${}^3$, neutrons start to drip out of crust nuclei, leading to a superfluid coexisting with the crust lattice. Second, the protons in the outer core are likely to form a superconductor. If we proceed to the very high densities of the deep neutron star core, we may have to consider the impact of hyperons and/or deconfined quarks [4,5]. These are also expected to become superfluid, but we will not consider the additional issues this gives rise to here.

The notion of neutron star superfluidity is firmly established theoretically, and—as our observations become more precise—the observational support for the idea is getting stronger. Presently, the observations relate to three distinct problems: (i) the transient cooling following phases on matter accretion onto the neutron star surface, for which the crust superfluid regulates the thermal relaxation timescale [7]; (ii) the apparent real-time cooling of the young neutron star in the Cassiopeia A supernova remnant, which (if confirmed) requires the recent onset of core superfludity [8,9]; and (iii) the enigmatic spin glitches seen in many young radio pulsars [10,11,12]. As the present focus is on dynamical aspects, we will only consider the last of these aspects here.

Even though the problem of neutron star superfluidity has been under scrutiny since the late 1960s (following the original suggestion of Migdal [13]), many relevant aspects remain unresolved (see [14,15,16] for recent reviews). These range from nuclear physics issues, like the pairing [17,18] and the critical temperature (with the neutron triplet pairing gap—roughly the binding energy of a Cooper pair—still uncertain) and the interaction between quantised neutron vortices and crust nuclei leading to vortex pinning [19,20,21,22,23,24,25,26], to large-scale dynamics and the impact on astrophysical observations, with the mechanism that triggers pulsar glitches remaining not well understood. This brief survey is intended to serve an introduction to dynamical aspects that come into play when we consider a superfluid neutron star. This involves additional degrees of freedom—we are dealing with a complex multi-fluid system—and new features like the dense array of quantised vortices that allow a superfluid to mimic bulk rotation and the associated mutual friction dissipation. In addition, new parameters need to be understood. Of particular importance in this respect is the so-called entrainment effect [27,28,29,30,31], the relevance of which will be a recurring motif throughout this discussion.

2. The Essence of the Two-Fluid Model

The effort to model the dynamics of superfluid neutron stars draws inspiration from laboratory systems. Historically, the thinking was based on Landau’s original two-fluid model for He${}^4$ [32] (see also [33,34,35]), with aspects relating to experiments on cold atom gases becoming increasingly relevant more recently. There are many conceptual similarities, see [36] for a detailed discussion, but the fineprint details are quite different. In the case of neutron stars, both neutrons and protons are expected to form Cooper-type pairs, which then form condensates that can be described by fluid equations. A key distinction from helium is that the two components no longer represent the “superfluid” and “normal” parts of a single particle species. Instead, the two degrees of freedom describe (in the simplest case, which we focus on here) the neutrons and a conglomerate of all charged components (which are expected to be electromagnetically coupled on a short timescale).

The dynamical equations for the system have to faithfully represent the degrees of freedom and the interaction between them. As we will see, there are different ways to do this. In essence, the models involve an element of choice (or perhaps, taste). The modern approaches to the problem reflect this choice, but they are all related in a fairly straightforward manner so one can translate the results from one paradigm to another [37] (we provide specific examples of this later). The ability to complete such translations is, of course, crucial. It should not be the case that the physics depend on our mathematical perspective.

The traditional approach was adopted in the seminal effort of Mendell [38,39], who extended the non-dissipative zero-temperature equations to account for the main dissipation mechanisms for neutron star cores. His work remains a guiding beacon for research in this area. The final set of equations include the mutual friction coupling due to electrons scattering off of rotational vortices in the condensates (see also [28,40]). As the mathematical framework was applied to the problem of unstable modes of oscillation in a spinning neutron star, it became clear that the mutual friction is crucial for an understanding of neutron star dynamics. The mechanism may, in fact, suppress (some) rotational instabilities entirely [41]. Mendell’s work also demonstrates how the model is complicated by the so-called entrainment effect [27,28,29,30,31], which accounts for the fact that the flow of one fluid may impart momentum in another. As the entrainment features prominently in discussions of superfluid neutron star dynamics, we will pay particular attention to its origin and interpretation in the following. In fact, this will be the main thread of the discussion.

2.1. The Equations of Motion

In order to provide an intuitive impression of the equations that govern superfluid neutron stars, we will focus on the Newtonian equations. It is well known that realistic neutron stars require general relativity for a detailed description, but the main features of the fluid dynamics do not change conceptually—the keen reader may confirm this by consulting the material in [37]—so we can introduce the ideas within the somewhat simpler Newtonian context. The starting point for our description is different from that of Mendell [38,39] in that we make a clear distinction between transport velocities and momenta for the different components of the system. One reason for doing this is that the relations we write down then follow as the low-velocity/weak-field limit of the corresponding relativistic model [37].

There are, in fact, several different ways to obtain these equations. Perhaps the most intuitive is to develop the relativistic theory and then work out the Newtonian limit [37]. Working entirely within Newtonian physics, it is possible to develop a variational framework (involving time-shifts to mimic the Lagrangian variations from the relativistic model) for deriving the equations [42]. There is also a hybrid approach, centred on the Milne spacetime structure and the Cartan connection (involving a degenerate metric) [43,44,45]. A final alternative is provided in [46]. One may also consider a general approach for adding dissipation to the system, drawing on Onsager’s celebrated symmetry principle [47].

Making use of a chemical label $\mathrm{x},\mathrm{y}$ (which does not follow the Einstein summation convention), the simplest relevant superfluid neutron star model involves two components, distinguishing the superfluid neutrons, with mass density ${\rho }_{\mathrm{n}}$ and velocity $v_{\mathrm{n}}^i$, from the “protons”, a conglomerate of all charged components, represented by ${\rho }_{\mathrm{p}}$ and $v_{\mathrm{p}}^i$. In absence of dissipation, each component is represented by a continuity equation (for mass conservation).

$${\partial }_t{\rho }_{\mathrm{x}}+{\nabla }_i\left({\rho }_{\mathrm{x}}{v}_{\mathrm{x}}^i\right)=0$$

(1)

where $\mathrm{x}=\mathrm{n}$ or $\mathrm{p}$. Here, and in the following, we express the equations in terms of components in a coordinate basis, which means that ${\nabla }_i$ should be viewed as the corresponding covariant derivative. Momentum conservation leads to

$$\left({\partial }_t+v_{\mathrm{x}}^j{\nabla }_j\right)\left(v_i^{\mathrm{x}}+{\epsilon }_{\mathrm{x}}{w}_i^{\mathrm{y}\mathrm{x}}\right)+{\nabla }_i(\Phi +{\tilde{\mu }}_{\mathrm{x}})+{\epsilon }_{\mathrm{x}}{w}_j^{\mathrm{y}\mathrm{x}}{\nabla }_i{v}_{\mathrm{x}}^j=0.$$

(2)

where $\mathrm{y}\ne \mathrm{x}$, and the relative velocity between the components—an essential part of the story—is defined as

$$w_i^{\mathrm{y}\mathrm{x}}=v_i^{\mathrm{y}}-v_i^{\mathrm{x}}.$$

(3)

In this description, the matter equation of state is represented by a Lagrangian (see [47] for details)

$$\mathcal{L}=\sum _{\mathrm{x}}\frac{m_{\mathrm{x}}}{2}{g}_{ij}{n}_{\mathrm{x}}^i{n}_{\mathrm{x}}^j-\mathcal{E}(n_{\mathrm{x}},n_{\mathrm{x}}^i)$$

(4)

where $n_{\mathrm{x}}^i=n_{\mathrm{x}}{v}_{\mathrm{x}}^i$, and the internal energy $\mathcal{E}$ notably depends not only on the matter densities, it must also involve the relative velocity. Assuming $\mathcal{E}=\mathcal{E}(n_{\mathrm{n}},n_{\mathrm{p}},w_{\mathrm{n}\mathrm{p}}^2)$, the chemical potential for each particle species is given by

$${\mu }_{\mathrm{x}}=m_{\mathrm{x}}{\tilde{\mu }}_{\mathrm{x}}={\left(\frac{\partial \mathcal{E}}{\partial n_{\mathrm{x}}}\right)}_{n_{\mathrm{y}},w_{\mathrm{n}\mathrm{p}}^2},$$

(5)

with $m_{\mathrm{x}}$ the mass of each particle. We also have the entrainment coefficients

$${\epsilon }_{\mathrm{x}}=\frac{2\alpha }{{\rho }_{\mathrm{x}}}\mathrm{where}\alpha ={\left(\frac{\partial \mathcal{E}}{\partial w_{\mathrm{n}\mathrm{p}}^2}\right)}_{n_{\mathrm{x}}}.$$

(6)

Finally, $\Phi$ represents the gravitational potential (as we want to model stars!).

In order to appreciate the impact of the entrainment, it is useful to note that the fluid momentum is given by

$$p_i^{\mathrm{x}}={\left(\frac{\partial \mathcal{L}}{\partial n_{\mathrm{x}}^i}\right)}_{n_{\mathrm{x}}}=m_{\mathrm{x}}\left(v_i^{\mathrm{x}}+{\epsilon }_{\mathrm{x}}{w}_i^{\mathrm{y}\mathrm{x}}\right),$$

(7)

This illustrates the key point: The momentum of each fluid need not be parallel with the fluid’s transport velocity. The expression for the momentum (7) suggests an intuitive way to think of this. We may define the effective proton mass in a frame moving with the neutrons (setting $v_{\mathrm{n}}^i=0$):

$$m_{\mathrm{p}}(1-{\epsilon }_{\mathrm{p}})v_{\mathrm{p}}^i\equiv m_{\mathrm{p}}^{*}{v}_{\mathrm{p}}^i$$

(8)

with a similar relation for the neutrons defining $m_{\mathrm{n}}^{*}$. We then have

$$2\alpha ={\rho }_{\mathrm{p}}{\epsilon }_{\mathrm{p}}=n_{\mathrm{p}}(m_{\mathrm{p}}-m_{\mathrm{p}}^{*})\equiv n_{\mathrm{p}}\delta m_{\mathrm{p}}^{*}.$$

(9)

Moreover, it is easy to see that the effective masses must be related by

$$m_{\mathrm{n}}-m_{\mathrm{n}}^{*}=\frac{n_{\mathrm{p}}}{n_{\mathrm{n}}}(m_{\mathrm{p}}-m_{\mathrm{p}}^{*}).$$

(10)

The notion of a dynamical effective mass is important as it encodes a key effect expected from nuclear physics. In a neutron star core, the strong force endows each neutron with a virtual cloud of protons (and vice versa). This affects the effective mass of the particle and, when it moves, alters the momentum. The mass of each neutron appears different from what it would be in isolation. It is important to stress that the dynamical effective masses are distinct from the static (Landau) effective masses in nuclear physics calculations. Having said that, the two sets are close for systems with small proton fractions (see the discussion in [3]). The upshot is that when we model neutron star cores we can, to good precision, ignore the somewhat technical point that explains the difference. This was, indeed, done in the analysis that led to the results shown in Figure 2.

An alternative description [43,44,45] introduces a symmetric “mobility matrix” ${\mathcal{K}}^{\mathrm{x}\mathrm{y}}$ such that

$$p_i^{\mathrm{x}}={\mathcal{K}}^{\mathrm{x}\mathrm{x}}{n}_i^{\mathrm{x}}+{\mathcal{K}}^{\mathrm{x}\mathrm{y}}{n}_i^{\mathrm{y}}.$$

(11)

It is easy to see that we then identify

$$m_{\mathrm{p}}^{*}=n_{\mathrm{p}}{\mathcal{K}}^{\mathrm{p}\mathrm{p}}$$

(12)

and

$$\alpha =\frac{1}{2}{n}_{\mathrm{n}}{n}_{\mathrm{p}}{\mathcal{K}}^{\mathrm{n}\mathrm{p}}.$$

(13)

This picture highlights the interpretation of the entrainment as a measure of how easy it is to induce a relative flux between the two fluids, in essence how mobile the superfluid neutrons are relative to the protons (and vice versa). At the end of the day, the two descriptions are (obviously) equivalent and point to a model that requires three equation of state parameters: the two number densities $n_{\mathrm{n}}$ and $n_{\mathrm{p}}$ along with a measure of the entrainment, such as $\alpha$, $m_{\mathrm{p}}^{*}$, or ${\mathcal{K}}^{\mathrm{n}\mathrm{p}}$.

2.2. The Crust and the Chemical Gauge

The equations we have considered so far apply in the fluid outer core of a neutron star (provided we ignore electromagnetism). In this region, the distinction between the two components is clear. We count, on the one hand, all the neutrons and, on the other hand, everything else. The inner crust region requires additional consideration—the problem is both similar and different. The similarity is obvious at a glance: At densities beyond neutron drip, some neutrons remain bound in nuclei, but there is also a “gas” of free neutrons. The assignation of neutrons to each component follows from the equation of state, once the nature of the ions in the lattice is established [3]. We are dealing with a two-component system that may exhibit a relative flow. However, if we take a closer look, we see that there are complicating aspects. In particular, it is not clear to what extent the neutrons that are “confined” to the crust nuclei are able to move [48]. This depends on how strongly bound they are, to what extent they can tunnel through the relevant interaction potentials, and so on.

An intuitive discussion of this problem introduces the notion of chemical “gauge” [48]. The chemical gauge involves the interpretation of the different quantities (number densities, etc), while the two-fluid model remains unchanged at the formal level. The idea is somewhat abstract, so let us focus on the situation in the inner crust. To make a distinction from the outer core setting, we refer to the two components in the crust as “free” neutrons, with density $n_{\mathrm{f}}$, and “confined” baryons, represented by $n_{\mathrm{c}}$ [48,49]. We also need to consider the number density of baryons associated with crust nuclei, $n_{\mathrm{N}}$ (representing all protons as well as the confined neutrons, making up the ions in the lattice). The point is that this set-up is distinct from one where we count all neutrons, $n_{\mathrm{n}}$. To make things clear(er) we need to consider the physical meaning of $n_{\mathrm{f}}$ and $n_{\mathrm{c}}$. We also need to explain why we make a distinction between the core and the crust. The answer is easy. In the crust, we have to consider the additional restoring force due to the elastic lattice. The elastic restoring force involves the nuclei, and hence the confined neutrons. The component that is free to move is represented by $n_{\mathrm{f}}$. Of course, the entrainment blurs the distinction. Still, the option to consider a two-fluid model based on $n_{\mathrm{n}}$ and $n_{\mathrm{p}}$ also in the crust is not very attractive, as one would then have to split the elastic contribution between the two momentum equations, and this would be (even more) confusing.

In essence, the chemical gauge relates to the neutrons that are considered “free”. The issue is subtle since, in a dynamical situation, the neutrons that are associated with the nuclei may be able to tunnel through the relevant interaction potential. This, in turn, makes concepts like the atomic number less precise. In general, one may introduce a new basis such that

$$n_{\mathrm{f}}^i=n_{\mathrm{n}}^i+(1-a_{\mathrm{N}})n_{\mathrm{p}}^i$$

(14)

where $a_{\mathrm{N}}$ (which we will take to be constant in the following; a good approximation at the level of the individual fluid elements [48]) accounts for the fact that some of the neutrons move with the (crust) protons. We also have

$$n_{\mathrm{N}}^i=a_{\mathrm{N}}{n}_{\mathrm{p}}^i$$

(15)

Given these relations, it is easy to show that the neutron momentum is independent of the chosen chemical gauge, represented by $a_{\mathrm{N}}$ [48]. This follows immediately from the definition of the momentum (7). We then have $p_i^{\mathrm{n}}=p_i^{\mathrm{f}}$ and ${\mu }_{\mathrm{n}}={\mu }_{\mathrm{f}}$. These are important identifications, but it is clear that we must in general have $v_{\mathrm{f}}^i\ne v_{\mathrm{n}}^i$ and ${\epsilon }_{\mathrm{f}}\ne {\epsilon }_{\mathrm{n}}$. In essence, we have to execute some care when we discuss the entrainment and the dynamics of the neutron star crust.

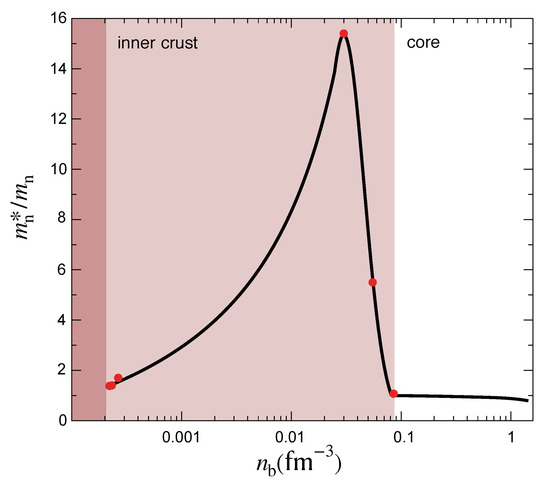

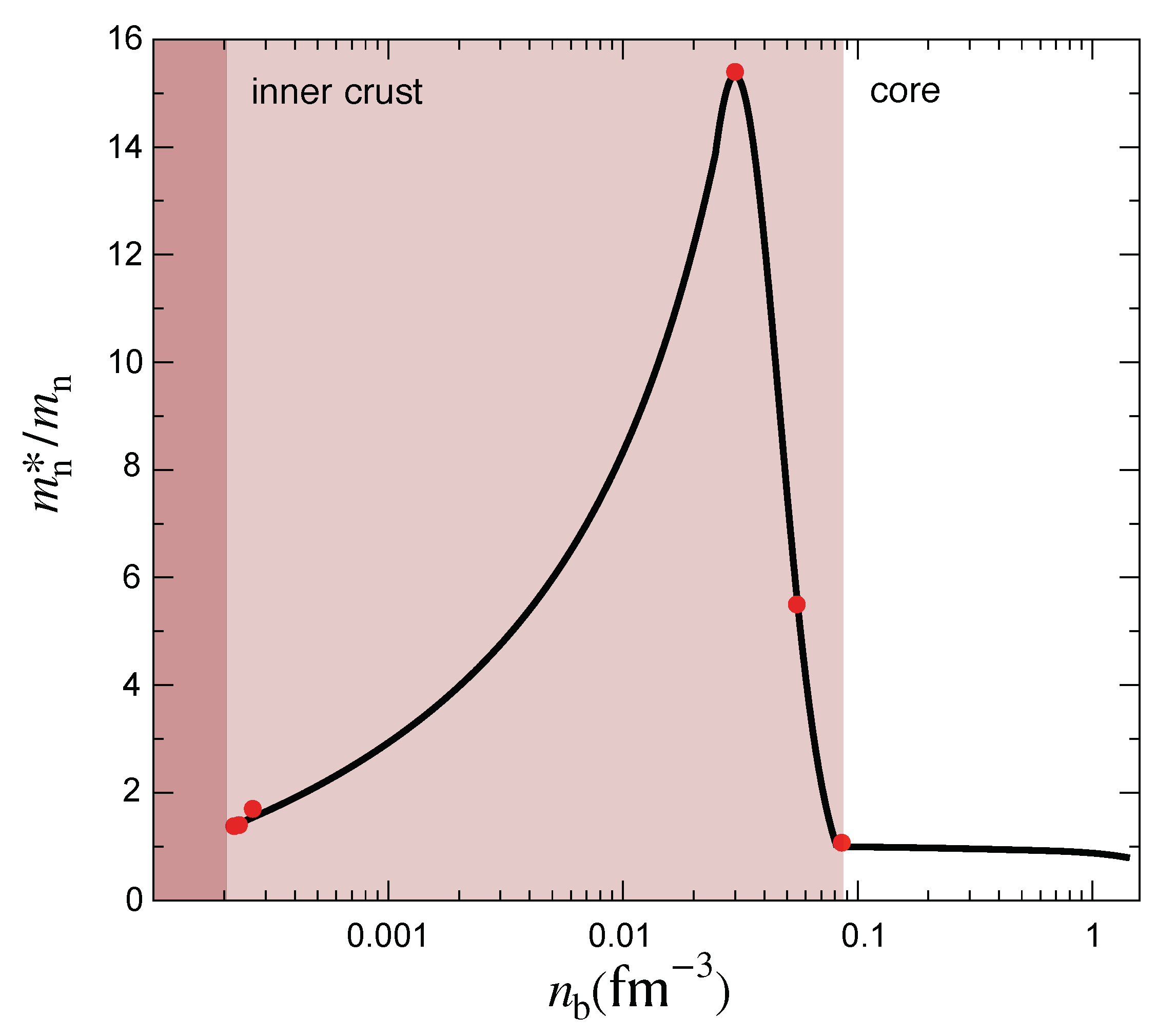

The discussion of chemical gauge is reflected by different models for crust dynamics discussed in the literature, see for example [49,53,54,55,56,57,58]. At first sight, various descriptions may appear to differ, but a close inspection shows that they have the same physics content. One of the key recent developments is the realisation that the superfluid neutrons in the crust may not be particularly mobile. Evidence suggests that the superfluid neutron component is strongly coupled to the crust lattice via Bragg scattering [50,51,52,59]. As a result, the effective neutron mass may be as much as an order of magnitude larger than the bare mass at some points in the crust, see the results shown in Figure 2. As we will argue later, this result—which continues to be debated [60,61,62,63]—could have significant impact on the dynamics of the system.

2.3. Thermal Excitations

Moving on, let us consider another complicating aspect. So far we have taken the view that neutron stars are cold and that our mission is to model superfluids well below the critical transition temperature. Locally, this makes sense, but we have to be a bit careful when we consider a global model. This is apparent from results for neutron star cooling, see the example provided in Figure 3 (adapted from [6]). The results show that for any given temperature there will always exist transition regions where the local temperature is close to the critical temperature. In these regions one would expect thermal effects to play an important role. They may, in fact, dictate the transition from multi-fluid to single-fluid dynamics.

Perhaps not surprisingly—although the idea may seem somewhat unorthodox—we can use the entrainment to account for the presence of thermal excitations. As the idea takes a lead from the two-fluid model for helium, it is instructive to first consider this case. The dynamics of superfluid helium is easy to understand if one starts from a system at zero temperature. Then the dynamics must be entirely due to the quantum condensate; we have a single quantum wavefunction, and the momentum of the flow follows directly from the gradient of its phase. This immediately implies that the flow is irrotational (we will address this later). At finite temperatures, we must account for thermal excitations (e.g., phonons). A second dynamical degree of freedom arises since the excitation gas may drift relative to the condensate. This motivates the two-fluid model—dating back to classic work of London and Tisza (see [34] for a nice discussion)—based on a distinction between a “normal” fluid component and a superfluid part [33,34,35].

The model we now advocate identifies the atoms (n) and treats the excitations (s) as a massless entropy component [42,64]. This is different from the traditional approach from, for example, [33,34,35], but it is easy to relate the two pictures. First of all, we identify the drift velocity of the quasiparticle excitations in the two models. This is the variable that introduces the “two-fluid” dynamics. Since it represents the part of the flow that is affected by viscosity, this component has a clear physical interpretation. In the standard model this velocity, $v_{\mathrm{N}}^i$, is taken to be associated with the “normal fluid” component. In the alternative framework, the excitations are associated with the entropy of the system, which flows with $v_{\mathrm{s}}^i$. The two quantities should be the same, so we identify

$$v_{\mathrm{N}}^i=v_{\mathrm{s}}^i.$$

(16)

The second fluid component—the “superfluid”—is commonly associated with a “velocity” $v_{\mathrm{S}}^i$, directly linked to the gradient of the phase of the superfluid condensate wave function. This is, in fact, a rescaled momentum, and (as discussed in [42]) we should identify

$$v_{\mathrm{S}}^i=\frac{p_{\mathrm{n}}^i}{m}.$$

(17)

where m is the atomic mass. Combining (7) with these identifications, we get

$$\rho v_{\mathrm{S}}^i=\rho \left[\left(1-\epsilon \right)v_{\mathrm{n}}^i+\epsilon v_{\mathrm{N}}^i\right],$$

(18)

where $\epsilon =2\alpha /\rho$, with $\rho$ the total mass density. The total mass current is then given by

$$\rho v_{\mathrm{n}}^i=\frac{\rho }{1-\epsilon }{v}_{\mathrm{S}}^i-\frac{\epsilon \rho }{1-\epsilon }{v}_{\mathrm{N}}^i,$$

(19)

and if we introduce the superfluid and normal fluid densities;

$${\rho }_{\mathrm{S}}=\frac{\rho }{1-\epsilon },\mathrm{and}{\rho }_{\mathrm{N}}=-\frac{\epsilon \rho }{1-\epsilon },$$

(20)

we arrive at the text-book result:

$$\rho v_{\mathrm{n}}^i={\rho }_{\mathrm{S}}{v}_{\mathrm{S}}^i+{\rho }_{\mathrm{N}}{v}_{\mathrm{N}}^i.$$

(21)

Obviously, it is also the case that $\rho ={\rho }_{\mathrm{S}}+{\rho }_{\mathrm{N}}$. This completes the translation.

The comparison shows that the variational approach identifies natural physical variables: the average drift velocity of the excitations and the total momentum flux. Since the system can be “weighed” the mass density $\rho$ also has a direct interpretation. Moreover, the variational derivation identifies the truly conserved fluxes, see (1). In contrast, the orthodox model uses quantities that only have statistical meaning [32]. The density ${\rho }_{\mathrm{N}}$ is inferred from the mean drift momentum of the excitations. There is no “group” of excitations that can be identified with this density. Since the superfluid density ${\rho }_{\mathrm{S}}$ is inferred from ${\rho }_{\mathrm{S}}=\rho -{\rho }_{\mathrm{N}}$, this is a statistical concept, as well. Furthermore, the two velocities, $v_{\mathrm{N}}^i$ and $v_{\mathrm{S}}^i$, are not individually associated with a conservation law. From a practical point of view, this is not a problem. The various quantities can be calculated from microscopic theory, and the results are known to compare well to experiments. At the end of the day, the two descriptions are (as far as applications are concerned) identical, and the preference of one over the other is very much a matter of convention.

The comparison between the two formulations highlights a new concept: the entrainment between entropy and matter, which represents the effective mass of the thermal component. Comparing to (7) we see that we have

$$\alpha =-\frac{{\rho }_{\mathrm{N}}}{2}{\left(1-\frac{{\rho }_{\mathrm{N}}}{\rho }\right)}^{-1}.$$

(22)

This suggests that the entrainment coefficient $\alpha$ diverges as the temperature increases towards the superfluid transition, as ${\rho }_{\mathrm{N}}\to \rho$. This may seem peculiar (as nature abhors singularities), but it is simply a manifestation of the fact that the two fluids must lock together as one passes through the phase transition. The key point is that the model remains non-singular as long as $v_i^{\mathrm{n}}\to v_i^{\mathrm{s}}$ sufficiently fast as the critical temperature is approached.

Returning to the neutron star problem, we may now add a third prescription for the entrainment to our arsenal. This approach involves a straight translation of (21) and the introduction of the superfluid velocity as the scaled momentum. We then have

$$V_{\mathrm{n}}^i=\frac{1}{m_{\mathrm{n}}}{p}_{\mathrm{n}}^i=\frac{1}{m_{\mathrm{n}}}{\nabla }^i\varphi$$

(23)

This has the advantage of being directly linked to the gradient of the phase of the wavefunction of the quantum condensate, $\varphi$. This leads to the mass-flux for each component

$${\rho }_{\mathrm{x}}{v}_{\mathrm{x}}^i={\rho }_{\mathrm{x}\mathrm{x}}{V}_{\mathrm{x}}^i+{\rho }_{\mathrm{x}\mathrm{y}}{V}_{\mathrm{y}}^i$$

(24)

introducing the (symmetric) mass density matrix, ${\rho }_{\mathrm{x}\mathrm{y}}$. This description was used in seminal work on superfluid neutron star dynamics [28,38]. Comparing to (7) it is easy to show that we must have

$$\begin{array}{ccc}\hfill {\rho }_{\mathrm{n}}& =& {\rho }_{\mathrm{n}\mathrm{n}}+{\rho }_{\mathrm{n}\mathrm{p}}\hfill \end{array}$$

(25)

$$\begin{array}{ccc}\hfill {\rho }_{\mathrm{p}}& =& {\rho }_{\mathrm{p}\mathrm{p}}+{\rho }_{\mathrm{p}\mathrm{n}}\hfill \end{array}$$

(26)

and it also follows that

$$\alpha =-\frac{1}{2}\frac{{\rho }_{\mathrm{n}}{\rho }_{\mathrm{p}}{\rho }_{\mathrm{p}\mathrm{n}}}{{\rho }_{\mathrm{n}\mathrm{n}}{\rho }_{\mathrm{p}\mathrm{p}}-{\rho }_{\mathrm{p}\mathrm{n}}^2}$$

(27)

The discussion of thermal excitations allows us to make progress on the discussion of the dynamics near the superfluid transition point. The problem has been considered by, in particular, Gusakov and collaborators [65,66,67,68] (see also [69]). Intuitively, it is clear what we need to do: we have to add thermal excitations to the model. The outer core of a neutron star would then require (at least) four distinct components: neutrons, protons, electrons, and the entropy (representing the thermal quasiparticle excitations). While it is straightforward to write down the equations for such a system, solving them would be messy so it makes sense to (at least as a start) ignore two of the relative degrees of freedom. First, we insist on charge neutrality (as before) by locking the protons and the electrons. Second, we ignore the relative heat flux by locking the quasiparticles to the “normal” component, represented by the electrons. This, again, leaves us with a two-fluid problem. To get an impression of how this works, consider the key contribution from Gusakov and Haensel [68], who expressed the finite temperature effects in terms of the mass density matrix. Labelling the thermal excitations by an index qp, the total non-relativistic fluxes can then be written

$$\begin{array}{ccc}\hfill {\rho }_{\mathrm{n}}{v}_{\mathrm{n}}^i& =& {\rho }_{\mathrm{nn}}{V}_{\mathrm{n}}^i+{\rho }_{\mathrm{np}}{V}_{\mathrm{p}}^i+({\rho }_{\mathrm{n}}-{\rho }_{\mathrm{nn}}-{\rho }_{\mathrm{np}})v_{\mathrm{qp}}^i,\hfill \end{array}$$

(28)

$$\begin{array}{ccc}\hfill {\rho }_{\mathrm{p}}{v}_{\mathrm{p}}^i& =& {\rho }_{\mathrm{pp}}{V}_{\mathrm{p}}^i+{\rho }_{\mathrm{pn}}{V}_{\mathrm{n}}^i+({\rho }_{\mathrm{p}}-{\rho }_{\mathrm{pp}}-{\rho }_{\mathrm{pn}})v_{\mathrm{qp}}^i,\hfill \end{array}$$

(29)

(here, it is worth noting that $v_{\mathrm{qp}}^i$ is a true transport velocity, in contrast to $V_{\mathrm{x}}^i$). The key points are (i) the components of the mass-density matrix are now temperature dependent, and (ii) the relations (25) and (26) only hold at $T=0$. As in the case of (27), the model can be translated to make contact with the variational derivation [70]. We then identify a“thermal effective mass” that diverges as we approach the critical temperature. The formal divergence may seem troubling, but an explicit example demonstrates that the model leads to the expected behaviour. Far below the critical temperature the system exhibits a second sound, but this degree of freedom is quenched as one approaches the edge of the superfluid region leaving only the familiar sound waves in the normal fluid region [70].

The impact of finite temperature effects on neutron star dynamics has not yet received the attention the issue deserves. The notable exception is a set of papers on the r-mode instability window [71,72,73], which demonstrates the importance of further work on the problem.

3. Vortex Dynamics

The fluid equations we have considered do not—at least not explicitly—bring out one of the defining features of a superfluid system. Because the superfluid “velocity” follows from the gradient of a scalar phase, it should be irrotational. The fluid equations do not reflect this. This is as it should be, as macroscopic superfluids mimic bulk rotation by forming a dense array of quantised vortices, and as long as we average over a large enough region, the equations we have written down should be appropriate. Of course, the presence of vortices adds features to the problem.

At the fluid dynamics level, we introduce the angular frequency in the usual way;

$$2{\Omega }_{\mathrm{x}}^i={ϵ}^{ijk}{\nabla }_j{v}_k^{\mathrm{x}},$$

(30)

As a result, on the macroscopic level we identify (assuming that the length scale considered is sufficiently small that we can treat ${\epsilon }_{\mathrm{n}}$ as constant)

$${ϵ}^{ijk}{\nabla }_j{p}_k^{\mathrm{n}}=2m_{\mathrm{n}}[{\Omega }_{\mathrm{n}}^i+{\epsilon }_{\mathrm{n}}({\Omega }_{\mathrm{p}}^i-{\Omega }_{\mathrm{n}}^i)].$$

(31)

Meanwhile, at a mesoscopic level (where vortices are resolved) the circulation of the neutron momentum is quantised. Representing the mesoscopic “momentum” by ${\overline{p}}_{\mathrm{n}}^k$, we have

$$\frac{1}{m_{\mathrm{n}}}{ϵ}_{ijk}{\nabla }^j{\overline{p}}_{\mathrm{n}}^k={\kappa }_i=\frac{h}{2m_{\mathrm{n}}}{\widehat{\kappa }}_i,$$

(32)

where

$$\kappa =h/2m_{\mathrm{n}}\approx 2\times {10}^{-3}{cm}^2/s.$$

(33)

and the vortices are aligned in the direction of ${\widehat{\kappa }}^i$. In practice, we expect to obtain (31) from (32). Denoting the involved averaging procedure by angular brackets we then have

$$\langle {ϵ}^{ijk}{\nabla }_j{\overline{p}}_k^{\mathrm{n}}\rangle ={\mathcal{N}}_{\mathrm{v}}{m}_{\mathrm{n}}{\kappa }^i={ϵ}^{ijk}{\nabla }_j{p}_k^{\mathrm{n}}$$

(34)

and we see that the vortex density (per unit area) is given by

$${\mathcal{N}}_{\mathrm{v}}\kappa =2[{\Omega }_{\mathrm{n}}+{\epsilon }_{\mathrm{n}}({\Omega }_{\mathrm{p}}-{\Omega }_{\mathrm{n}})].$$

(35)

Formally, the fluid equations represent a macroscopic average over a large number of individual fluid elements. This is a natural approach for neutron stars where the focus is on dynamics at length scales vastly larger than the inter-particle separation. Of course, in order to assign values to the various parameters (like the entrainment) one must resolve the problem at the microscopic level. This then raises issues concerning the averaging required to make contact with the macroscopic level. When we add issues related to the vortex dynamics, the situation is made even more complex. We have an intermediate “mesoscopic” level, sufficiently large that one can average over a large collection of particles (and discuss “fluid” dynamics in a sensible way) and yet small enough that one can resolve the individual vortices. The macroscopic equations follow from an averaging over a large set of vortices, leading to the smooth equations of motion (2). To get an idea of the scales involved, it is useful to relate the vortex density to a typical neutron star (bulk) rotation rate;

$${\mathcal{N}}_{\mathrm{v}}\approx 6\times {10}^5\left(\frac{10\mathrm{ms}}{P}\right){\mathrm{cm}}^{-2}$$

(36)

where P is the observed rotation period. This suggests that that the kind of averaging we have in mind would lead to fluid elements at the centimetre scale. It is also clear that the model we have outlined assumes that the vortices form an an aligned array. This is a debatable assumption, but it is a natural starting point.

3.1. Mutual Friction

The vortex dynamics, both collective and individual, impact on the large-scale behaviour of neutron star superfluids. From a conceptual point of view, we need to understand how different effects associated with the vortices enter the fluid equations and to what extent this affects observed phenomena. The so-called mutual friction is key to this discussion. The classic argument leading to the vortex mutual friction (due to seminal work by Hall and Vinen in the 1950s [74]) involves the scattering of thermal excitation (phonons) off of the normal fluid vortex cores in superfluid helium. Mathematically, the neutron star problem is solved using the same strategy, but the physics argument is very different [28,38,40].

At the mesoscopic level, the motion of a neutron vortex is affected by fluid flow past it (known as the Magnus “force”, see [40]). At the same time, the circulation associated with the vortex induces circular flow in the protons because of the entrainment. The typical scale for this induced flow is related to the coherence length of the superfluid condensate, of order 100 fm. In effect, the superfluid exhibits “fluid” behaviour on a much finer scale than one would expect above the superfluid transition temperature (where the size of a fluid element is dictated by the mean-free paths of the particles involved). The upshot of this is that a normal fluid component cannot “react” to the vortex circulation on the mesoscopic scale. This is essentially what happens in the helium problem. For neutron stars we have another option—indeed, expected from the physics, see Figure 1—associated with the fact that the protons in the star’s core will also form a condensate. This means that they can be dragged along with the neutron circulation (due to the entrainment), while the electrons cannot (at least not as a collective). The induced proton flow generates a magnetic field on the vortex, and the scattering of electrons off of this field acts resistively on the vortex motion [28]. The main friction mechanism in the star’s crust is (yet again) different as it involves excitations of Kelvin waves on the vortices due to interactions with the lattice nuclei [75,76,77].

In order to implement the mutual friction in the fluid equations, we first of all consider a resistive force proportional to the difference in velocity between the vortex (moving with $v_{\mathrm{v}}^i$) and the charged fluid flow. That is, we have

$$f_i^{\mathrm{e}}=\mathcal{R}(v_i^{\mathrm{p}}-v_i^{\mathrm{v}})$$

(37)

acting per unit length of the vortex. Neglecting the inertia of the vortex core, and balancing $f_i^{\mathrm{e}}$ to the Magnus “force”, we arrive at the mutual friction acting on the neutrons (per unit length of vortex) [39,40,74]

$$f_i^{\mathrm{mf}}={\mathcal{B}}^{\prime }{\rho }_{\mathrm{n}}{ϵ}_{ijk}{\kappa }^j{w}_{\mathrm{n}\mathrm{p}}^k+\mathcal{B}{\rho }_{\mathrm{n}}{ϵ}_{ijk}{ϵ}^{klm}{\widehat{\kappa }}^j{\kappa }_l{w}_m^{\mathrm{n}\mathrm{p}}.$$

(38)

An equal and opposite force affects the protons. Notably, the macroscopic force does not explicitly involve the vortex velocity. As discussed in [28,39,40] estimates for the (dimensionless) mutual friction coefficients lead to

$$\mathcal{B}=\frac{\mathcal{R}}{{\rho }_{\mathrm{n}}\kappa }\approx 4\times {10}^{-4}{\left(\frac{\delta m_{\mathrm{p}}^{*}}{m_{\mathrm{p}}}\right)}^2{\left(\frac{m_{\mathrm{p}}}{m_{\mathrm{p}}^{*}}\right)}^{1/2}{\left(\frac{x_{\mathrm{p}}}{0.05}\right)}^{7/6}{\left(\frac{\rho }{{10}^{14}\mathrm{g}/{\mathrm{cm}}^3}\right)}^{1/6},$$

(39)

along with, as the system is in the weak drag regime,

$${\mathcal{B}}^{\prime }\approx {\mathcal{B}}^2,$$

(40)

where $x_{\mathrm{p}}={\rho }_{\mathrm{p}}/\rho$ is the proton fraction. The direct dependence on the entrainment (via the effective proton mass) is clear. Without entrainment, the proposed mechanism would not lead to mutual friction. The relative importance of different proposed mutual friction mechanisms is discussed in [77,78].

In terms of completing the dissipative fluid equations, we note that the Magnus effect is already accounted for in the left-hand side of (2), so we only need to add the averaged version of the force (38) to the right-hand side. In the particular case of a straight vortex array, the required averaging is easy: we simply need to multiply (38) by the local number density of vortices per unit area, ${\mathcal{N}}_{\mathrm{v}}$, and we are done.

3.2. Pulsar Glitches

As a dynamical example of mutual friction in action, it is natural to turn to the pulsar glitch phenomenon. Mature neutron stars tend to be extremely stable rotators, but many young systems exhibit timing noise and (more or less) regular glitches, instances where the observed spin rate suddenly increases (see [79] for a review and [12] for a collection of glitch data). These sudden spin-up events are followed by a slow relaxation towards the original spin-down rate.

The archetypal glitching neutron star is the Vela pulsar, which has (since the first event in 1969) exhibited a sequence of similar size glitches. The general understanding is that these glitches are a manifestation of the superfluid neutron star interior [10]. The idea was first put forward by Anderson and Itoh [11] who explained a glitch as a tug-of-war between the tendency of the neutron superfluid to match the spindown rate of the rest of the star by expelling vortices and the impediment due to the vortices being “pinned” to crust nuclei. The vortex pinning prevents the neutron superfluid from spinning down, leading to the development of a spin lag with respect to the rest of the star (which is spun down electromagnetically). The increasing spin lag increases the Magnus force exerted on the vortices until—at some threshold limit—the vortices break free and the excess angular momentum is transferred to the crust. This transfer of angular momentum is observed as a spin-up of the crust component (to which the star’s magnetic field is locked).

The model makes sense at the “cartoon” level, but it is probably fair to say that we do not yet have a calculable model (see [80,81,82,83,84,85,86] for progress in this direction). This is not to say that there has not been progress. In particular, the relevant microphysics, especially concerning the interaction between neutron vortices and crust nuclei [19,20,21,22,23,24,25,26], is better understood, leading to a clearer idea of the location of the superfluid reservoir associated with the events. Observations support the notion that the vortices are (mainly) pinned in the crust, and hence the angular momentum available is that associated with the crust superfluid.

By considering the accumulated reversal in the spin down associated with glitches—an argument that requires regular events of (roughly) the same size—we may infer that we need a superfluid reservoir with moment of inertia $I_{\mathrm{n}}/I\sim 1\%$ where I and $I_{\mathrm{n}}$ are, respectively, the moments of inertia of the entire star and the superfluid component [87]. This agrees well with the estimated moment of inertia of the crust (which is dominated by the free neutrons in the inner crust, see Figure 1) for realistic equations of state [88]. However, if the effective neutron mass is large (as suggested by the results shown in Figure 2) this explanation runs into trouble [89,90]. As this is an important point, let us sketch the argument. First of all, we introduce a “body” averaged two-component model, including entrainment coupling. We then have

$$\left(I_{\mathrm{p}}-{\epsilon }_{\mathrm{n}}{I}_{\mathrm{n}}\right){\dot{\Omega }}_{\mathrm{p}}+{\epsilon }_{\mathrm{n}}{I}_{\mathrm{n}}{\dot{\Omega }}_{\mathrm{n}}=-a{\Omega }_{\mathrm{p}}^3-{\mathcal{N}}_{\mathrm{pin}}-{\mathcal{N}}_{\mathrm{mf}}$$

(41)

where the first term on the right-hand side represents the standard torque due to a magnetic dipole (the coefficient a depends on the moment of inertia, the magnetic field strength and orientation), and

$$\left(1-{\epsilon }_{\mathrm{n}}\right)I_{\mathrm{n}}{\dot{\Omega }}_{\mathrm{n}}+{\epsilon }_{\mathrm{n}}{I}_{\mathrm{n}}{\dot{\Omega }}_{\mathrm{p}}={\mathcal{N}}_{\mathrm{pin}}+{\mathcal{N}}_{\mathrm{mf}}.$$

(42)

We have added terms representing torques associated with vortex pinning (${\mathcal{N}}_{\mathrm{pin}}$) and dissipative mutual friction (${\mathcal{N}}_{\mathrm{mf}}$). Noting that the right-hand side of (42) vanishes for perfect pinning, we see that—as long as the vortices remain pinned— the crust spins down according to

$$\tilde{I}{\dot{\Omega }}_{\mathrm{p}}=-a{\Omega }_{\mathrm{p}}^3\mathrm{where}\tilde{I}=I_{\mathrm{p}}-\frac{{\epsilon }_{\mathrm{n}}}{1-{\epsilon }_{\mathrm{n}}}{I}_{\mathrm{n}}.$$

(43)

The entrainment changes the effective moment of inertia and, hence, the magnetic field inferred from the spin-down rate (neither of which are directly observed). Expressing the entrainment in terms of the (body averaged) effective neutron mass, we have

$${\epsilon }_{\mathrm{n}}=1-\frac{〈m_{\mathrm{n}}^{*}〉}{m_{\mathrm{n}}}⟹\tilde{I}=I-\frac{m_{\mathrm{n}}}{〈m_{\mathrm{n}}^{*}〉}{I}_{\mathrm{n}}.$$

(44)

If the effective mass is large, then the two components are essentially locked and the system spins down as one body ($\tilde{I}\to I$ in the limit where $\langle m_{\mathrm{n}}^{*}\rangle \gg m_{\mathrm{n}}$). Turning to the rotation of the superfluid, we note that ${\Omega }_{\mathrm{n}}$ changes even when vortices are pinned. From (42) we have

$${\dot{\Omega }}_{\mathrm{n}}=-\frac{{\epsilon }_{\mathrm{n}}}{1-{\epsilon }_{\mathrm{n}}}{\dot{\Omega }}_{\mathrm{p}}=\left(1-\frac{m_{\mathrm{n}}}{\langle m_{\mathrm{n}}^{*}\rangle }\right){\dot{\Omega }}_{\mathrm{p}}.$$

(45)

This impacts on the estimated glitch jumps because the spin-lag between the two components takes a longer time to develop if the effective neutron mass is large. Working out the accumulated lag and assuming perfect angular momentum conservation during the glitch, we have (assuming $I\approx I_{\mathrm{p}}$)

$$\frac{\Delta {\Omega }_{\mathrm{p}}}{{\Omega }_{\mathrm{p}}}\approx \frac{m_{\mathrm{n}}}{\langle m_{\mathrm{n}}^{*}\rangle }\left(\frac{I_{\mathrm{n}}}{I}\right)\frac{t_{\mathrm{glitch}}}{2{\tau }_c}$$

(46)

where ${\tau }_c$ is the characteristic age inferred from observations, and $t_{\mathrm{glitch}}$ is the time between glitches. Introducing the activity parameter A as in [87]—an argument that requires a system to exhibit regular glitches of roughly the same magnitude, as in the case of the Vela pulsar and the young x-ray pulsar J0537-6910 [91,92]—we have the constraint

$$\frac{I_{\mathrm{n}}}{I}\approx 2{\tau }_c\mathcal{A}\frac{\langle m_{\mathrm{n}}^{*}\rangle }{m_{\mathrm{n}}}$$

(47)

and we see that, if the (averaged) effective neutron mass is large the constraint on the moment of inertia inferred from observations will be more severe. For a set of realistic equations of state and suggested pairing gaps, one finds values for $\langle m_{\mathrm{n}}^{*}\rangle /m_{\mathrm{n}}$ in the range 4–6. This indicates that we cannot explain the observed glitches in terms of the crust superfluid [89,90] (although see [93]). This region does not have sufficient moment of inertia to explain what we see.

A plausible resolution to the problem is that some fraction of the core superfluid is also involved in the glitch, just enough to explain the observations. This could then allow us to use observed data to constrain the singlet pairing gap for the neutrons (see Figure 1), an interesting complement to the constraints on the superfluidity obtained from neutron star cooling [2]. Interestingly, we may also turn the question around. Suppose the pairing gaps were firmly established. Then the observations would—at least in principle—allow us to infer the star’s mass [94] (see also [95,96]). The superfluid would provide an internal weighing scale. This may seem somewhat far fetched, but it is a neat idea.

A precise understanding of glitch dynamics would involve both an explanation of statistical properties of a large set of events (an issue we have not considered here) and models able describe singular well-resolved events (pulse-by-pulse, to the extent that this will ever be possible). The latter would constrain the mutual friction parameters, as this is the mechanism that couples the two components in the system once vortices unpin. Until recently, the best resolved event was the so-called Christmas glitch in the Vela pulsar [97], limiting the glitch rise time to less than a minute or so. Such an evolution would accord with the theoretical understanding of mutual friction. The recent results from [98] is a potential game changer. Catching the Vela pulsar in the act of glitching, the new data suggest two features that must be explained by theory: a slight dip in the spin rate preceding the glitch and a short term over-shoot following it [77,99]. One possible explanation involves more than two components, but the discussion is only just beginning.

3.3. Superfluid Turbulence

So far we have assumed that the vortices are (at least locally) straight and that they form an aligned array. Laboratory experiments suggest that both assumptions are dubious. Turbulent behaviour, associated with vortex tangles, is common in superfluid systems, and there is no reason why neutron stars should be different [100,101,102].

If we want to model vortex tangles we, first of all, have to consider what happens when the vortices bend. The circulation of a curved vortex induces a flow that affects the motion of the vortex itself. The analysis proceeds as in the case of superfluid helium, although we now have to account for entrainment. As discussed in [102], the vortex curvature induces a contribution to the (mesoscopic) neutron momentum

$$\frac{{\overline{p}}_i^{\mathrm{ind}}}{m_{\mathrm{n}}}=\nu {ϵ}_{ijk}{s}^{\prime j}{s}^{\prime \prime k}$$

(48)

where

$$\nu =\frac{\kappa }{4\pi }log\left(\frac{b}{a_0}\right).$$

(49)

A typical value of the size of the vortex core would be $a_0\approx 100$ fm, while we can take b to be given by the inter-vortex spacing. We also have

$$s_i^{\prime }={\widehat{\kappa }}_i$$

(50)

$$s_i^{\prime \prime }={\widehat{\kappa }}^j{\nabla }_j{\widehat{\kappa }}_i,$$

(51)

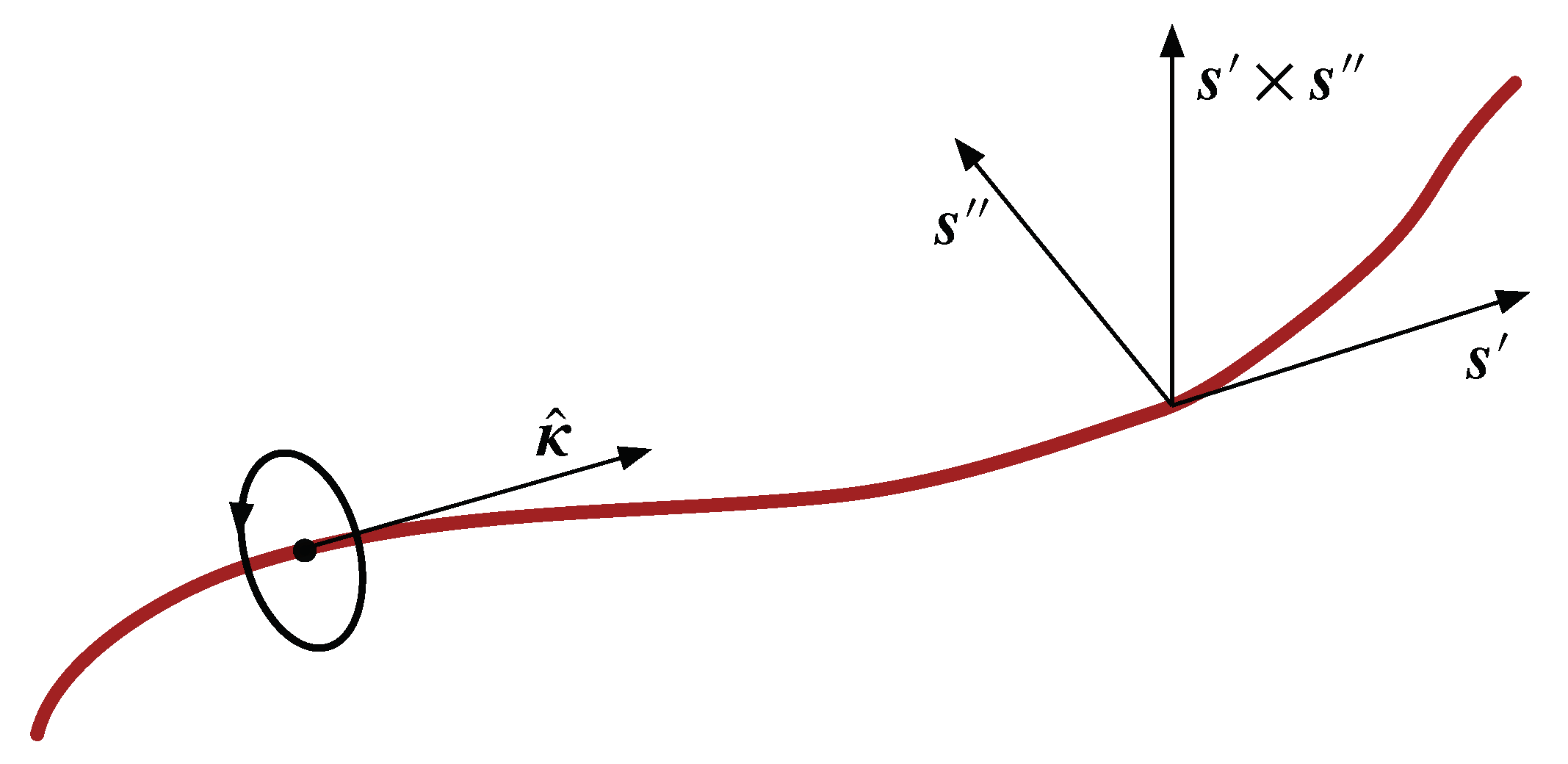

see Figure 4. Working out what this implies, we find that the difference between the two induced velocities is

$$v_i^{\mathrm{n}}-v_i^{\mathrm{p}}=\tilde{\nu }{ϵ}_{ijk}{s}^{\prime j}{s}^{\prime \prime k}$$

(52)

where

$$\tilde{\nu }=\frac{1}{1-{\epsilon }_{\mathrm{n}}-{\epsilon }_{\mathrm{p}}}\nu .$$

(53)

This then leads to additional contributions—that should be added to (38)—to the mutual friction

$$f_i^{\mathrm{ind}}=-{\rho }_{\mathrm{n}}\kappa \tilde{\nu }\left[{\mathcal{B}}^{\prime }{\widehat{\kappa }}^j{\nabla }_j{\widehat{\kappa }}_i+\mathcal{B}{ϵ}_{ijk}{\widehat{\kappa }}^j{\widehat{\kappa }}^l{\nabla }_l{\widehat{\kappa }}^k\right]$$

(54)

effectively representing the tension of the vortices.

The introduction of the vortex curvature is important. From the helium problem we know that there exists a critical relative flow above which oscillations are induced in the vortices rendering the array unstable [103], leading to a different form for the mutual friction [104] (see [105,106] for interesting numerical simulations). This leads to the formation of a vortex tangle and a state of turbulence. In order to trigger the instability that drives turbulence, we need a flow along the vortices [40,103,107]. This is easy to imagine in principle and fairly straightforward to arrange in the laboratory, but when would this happen in a neutron star? We need to induce a large-scale flow that involves a component along the vortices. Two plausible scenarios come to mind. The first involves free precession, where the precession motion induces circulation in the neutron star core. The results from [108,109] suggest that the vortex instability may prevent precession in systems where the vortices are strongly pinned. The second scenario relates to neutron star seismology, where the large-scale oscillations may trigger local turbulence. It is also intriguing to entertain the possibility that the vortex array becoming unstable may explain the onset of glitches [110]. These are interesting ideas—see [111,112,113,114] for further discussion—but many of the relevant details remain to be worked out.

4. Oscillations and Instabilities

The discussion has taken us to the point where we are ready to discuss how superfluidity affects the problem of neutron star seismology, the general idea being that one would like to combine observations with theory models for neutron star oscillations to probe the physics of the star’s interior. This is, inevitably, a challenging task, but as there are promising scenarios it is important to understand how superfluidity enters the discussion. There are different aspects to this.

First of all, we may ask how the additional superfluid degree(s) of freedom impact on the oscillation spectrum. In general, different classes of oscillation modes can be—more or less clearly—assigned to different aspects of neutron star physics. Hence it is not surprising that a superfluid star has a distinct set of oscillation modes that arise because of the existence of the second sound [115,116,117,118,119,120,121,122,123,124,125,126], and it makes sense to ask if one may (at some point in the future) be able to use observations, e.g., via gravitational waves [127], to constrain the physics.

The second obvious aspect relates to the mutual friction. How does the vortex-mediated friction impact on the mode oscillations? This turns out to be a crucial question in the context of the gravitational-wave driven (CFS) instability (see [128] for a review). In fact, in the case of the fundamental mode of the star, the evidence is that the mutual friction may completely suppress the instability [41,123]. The situation is slightly different for the inertial r-modes, for which the situation may be more subtle. Still, there has been progress towards an understanding of the nature of the r-modes in a superfluid neutron star [129,130,131,132,133,134]. The increasingly detailed effort to include finite temperature effects [71,72,73] is notable in this respect.

A third relevant issue relates to the possibility that superfluidity may bring new features. Particularly interesting in this respect is the demonstration that superfluid systems may exhibit a two-stream instability, once the relative flow exceeds a critical level [135,136,137,138,139]. The question of whether astrophysical systems are able to reach the critical level for the onset of this kind of instability remains open, but it is undoubtedly an interesting idea.

Decoupling the Degrees of Freedom

Considering the problem at the conceptual level, it is useful to discuss the equations that govern a perturbed system (and which one would have to solve in order to determine the frequencies of the different oscillation modes). This also involves assumptions about the background one is perturbing with respect to. In the present case, as we want to highlight how the mutual friction enters the discussion, it makes sense to consider rotating stars but (i) limit ourselves to first order in the slow-rotation approximation (leaving out the centrifugal deformation which enters at second order), and (ii) focus on a background configuration where the two fluids rotate together. The general problem, with the components rotating at different rates already in the background, is much more complicated (see for example [140]).

Perturbing the equations of motion and working in a frame rotating with the angular frequency of the unperturbed star, ${\Omega }^j$, we have

$${\partial }_t(\delta v_i^{\mathrm{x}}+{\epsilon }_{\mathrm{x}}\delta w_i^{\mathrm{y}\mathrm{x}})+{\nabla }_i(\delta {\tilde{\mu }}_{\mathrm{x}}+\delta \Phi )+2{ϵ}_{ijk}{\Omega }^j\delta v_{\mathrm{x}}^k=\delta (f_i^{\mathrm{x}}/{\rho }_{\mathrm{x}})$$

(55)

where where $\delta$ represents Eulerian variations, $f_i^{\mathrm{x}}$ represents the mutual friction, and

$${\partial }_t\delta {\rho }_{\mathrm{x}}+{\nabla }_j\left({\rho }_{\mathrm{x}}\delta v_{\mathrm{x}}^j\right)=0.$$

(56)

For the usual two-component system, we have two fluid degrees of freedom, and one might expect this to imply that the set of oscillation modes “doubles”, with each mode of a normal fluid star having a new “superfluid” counterpart. Detailed work [115,116,117,118,119,120,121,122,123,124,125,126] brings out this expectation (with some caveats that we will comment on later).

It is useful to ask what happens if we try to decouple the two degrees of freedom [119]. The first natural degree of freedom represents the total mass flux. Introducing the weighted sum

$$\rho \delta v^j={\rho }_{\mathrm{n}}\delta v_{\mathrm{n}}^j+{\rho }_{\mathrm{p}}\delta v_{\mathrm{p}}^j$$

(57)

and combining the two Euler equations accordingly, we find that

$${\partial }_t\delta v_i+{\nabla }_i\delta \Phi +\frac{1}{\rho }{\nabla }_i\delta p-\frac{1}{{\rho }^2}\delta \rho {\nabla }_{i}p+2{ϵ}_{ijk}{\Omega }^j\delta v^k=0$$

(58)

where $\rho ={\rho }_{\mathrm{n}}+{\rho }_{\mathrm{p}}$, and the pressure is obtained from

$${\nabla }_{i}p={\rho }_{\mathrm{n}}{\nabla }_i{\tilde{\mu }}_{\mathrm{n}}+{\rho }_{\mathrm{p}}{\nabla }_i{\tilde{\mu }}_{\mathrm{p}}.$$

(59)

In deriving (58) we have used

$${\rho }_{\mathrm{n}}{\nabla }_i\delta {\tilde{\mu }}_{\mathrm{n}}+{\rho }_{\mathrm{p}}{\nabla }_i\delta {\tilde{\mu }}_{\mathrm{p}}={\nabla }_i\delta p-\delta \rho {\nabla }_i\tilde{\mu }={\nabla }_i\delta p-\frac{1}{\rho }\delta \rho {\nabla }_{i}p$$

(60)

where it has been assumed that the two fluids are in chemical equilibrium in the background; ${\tilde{\mu }}_{\mathrm{n}}={\tilde{\mu }}_{\mathrm{p}}=\tilde{\mu }$. Note also that, in the general case where the background fluids are not co-rotating, there will be additional contributions to (60) associated with the differential rotation and the entrainment.

We also have the usual continuity equation

$${\partial }_t\delta \rho +{\nabla }_j\left(\rho \delta v^j\right)=0.$$

(61)

In effect, we have two equations which are identical to the perturbation equations for a single fluid body. In particular, we see that (58) does not contain the mutual friction. This suggests that the co-moving degree of freedom is only damped by this mechanism by virtue of the coupling to the second degree of freedom.

The other degree of freedom in naturally expressed in terms of the difference between the perturbed velocities:

$$\delta w^j=\delta v_{\mathrm{p}}^j-\delta v_{\mathrm{n}}^j.$$

(62)

Combining two Euler equations in the relevant way, we then have

$$(1-\overline{\epsilon }){\partial }_t\delta w_i+{\nabla }_i\delta \beta +2{\overline{\mathcal{B}}}^{\prime }{ϵ}_{ijk}{\Omega }^j\delta w^k-\overline{\mathcal{B}}{ϵ}_{ijk}{\widehat{\Omega }}^j{ϵ}^{klm}{\Omega }_l\delta w_m=0$$

(63)

where we have defined

$$\delta \beta =\delta {\tilde{\mu }}_{\mathrm{p}}-\delta {\tilde{\mu }}_{\mathrm{n}}$$

(64)

which represents the (local) deviation from chemical equilibrium induced by the perturbations. We have also introduced the simplifying notation

$$\overline{\epsilon }={\epsilon }_{\mathrm{n}}/x_{\mathrm{p}},{\overline{\mathcal{B}}}^{\prime }=1-{\mathcal{B}}^{\prime }/x_{\mathrm{p}},\overline{\mathcal{B}}=\mathcal{B}/x_{\mathrm{p}}$$

(65)

where $x_{\mathrm{p}}={\rho }_{\mathrm{p}}/\rho$ is the proton fraction (as before). Again, Equation (63) does not appear to couple the two degrees of freedom. The explicit coupling is entirely due to the second continuity equation. It is natural to use the proton fraction to complement the total density $\rho$. If we do this, then we find that

$${\partial }_t\delta x_{\mathrm{p}}+\frac{1}{\rho }{\nabla }_j\left[x_{\mathrm{p}}(1-x_{\mathrm{p}})\rho \delta w^j\right]+\delta v^j{\nabla }_j{x}_{\mathrm{p}}=0.$$

(66)

This equation shows that the two dynamical degrees of freedom are coupled unless the proton fraction is constant [120].

In order to complete the formulation of the mode problem for superfluid neutron stars, we need to discuss two further issues: the equation of state and the boundary conditions. Starting with the equation of state, we need additional relations to close the system of equations. This typically introduces a less direct coupling between the fluid degrees of freedom. Basically, we need to relate $[\delta p,\delta \beta ]$ to $[\delta \rho ,\delta x_{\mathrm{p}}]$ (or some other combination of these variables). For models where the two fluids co-rotate in the background we have (in the general case there will be terms depending on the relative rotation and the entrainment here)

$$\delta \rho ={\left(\frac{\partial \rho }{\partial p}\right)}_{\beta }\delta p+{\left(\frac{\partial \rho }{\partial \beta }\right)}_p\delta \beta$$

(67)

and

$$\delta x_{\mathrm{p}}={\left(\frac{\partial x_{\mathrm{p}}}{\partial p}\right)}_{\beta }\delta p+{\left(\frac{\partial x_{\mathrm{p}}}{\partial \beta }\right)}_p\delta \beta .$$

(68)

These relations give us an opportunity to discuss the impact of matter stratification on the star’s oscillation spectrum. Focus first of all on the first relation and a single-fluid problem described by (58). This problem has two intuitive limits [141]. In the first, a displaced fluid element immediately equilibrates to the composition of its surroundings in the sense that the motion maintains (with $\Delta$ representing a Lagrangian variation and ${\xi }^j$ the associated displacement vector)

$$\Delta \beta =\delta \beta +{\xi }^j{\nabla }_j\beta =0⟹\delta \beta =0$$

(69)

where the latter follows since the background is in equilibrium ($\beta =0$). In this limit the equation of state is effectively a barotrope, and a non-rotating star has the usual f- and p-modes, with inertial modes like the r-mode becoming non-trivial due to the Coriolis force in a rotating star. Another “simple” limit is that of very slow nuclear reactions, where a moving fluid element does not have time to adjust before it moves on. In this limit we have $\Delta x_{\mathrm{p}}=0$. This introduces buoyancy and leads to the presence of g-modes associated with composition gradients [141]. These arguments are standard. Now, superfluidity quenches the nuclear reactions so one might expect that the second argument would apply, but the answer turns out to be different as the variable $\delta \beta$ is dynamical. The logic that leads to the buoyancy breaks down and the (usual) g-modes disappear [117,119]. Intuitively, the two fluids move relative to one another, so a varying proton fraction does not lead to stratification (in the usual sense). We may, however, reintroduce a set of composition g-modes by considering the conditions beyond the density at which the muons first appear. We then have to consider a conglomerate of protons-electrons-muons, representing one of the two fluids, which will exhibit buoyancy due to the varying muon fraction [142,143].

The boundary conditions also involve elements of choice, reflected by the discussion in the literature (see [118,121,122]). The surface of the star is always identified by the vanishing of the Lagrangian variation of the pressure, $\Delta p=0$. This would also be the appropriate surface condition for a star with a superfluid interior since the superfluid is only present above the density of neutron drip. However, there are situations where one may conceivably have to consider a superfluid surface, say for quark stars. In that case, it may be sensible to assume that the two perturbed fluids move together (in the radial direction) at the surface. For neutron stars, we need to focus on the junction conditions at the edges of the superfluid region. As we have already discussed in the context of finite temperature excitations, the dynamics in such regions may be characterised by the two fluids locking together [70], so a natural option would be to introduce junction relations that facilitate this behaviour. There may, of course, be different physics arguments to consider. For example, at neutron drip the free neutron density vanishes, and this may automatically enforce the required behaviour. At the end of the day we should let the physics dictate what the mathematics has to do.

An oscillation problem of immediate relevance to observations involves the possible crust dynamics induced by the mechanism that leads to magnetar flares. Quasiperiodic oscillations seen in the x-ray tails from such events (see [144] for a review and further context) are naturally interpreted in terms of the torsional oscillations of the crust. This, in turn, involves (due to entrainment) the crust superfluid. Different aspects of this problem are considered in [145,146,147,148,149]. As in the case of crust-driven glitches, the potentially strong entrainment coupling has significant impact on the crust oscillations and hence the interpretation of the observations.

Another topical problem related to neutron star oscillations—with immediate relevance for gravitational-wave astronomy—involves the possible imprint of superfluidity on the dynamical tide in an inspiralling binary system. This problem has been explored in [150,151], with suggestive results, but further effort is required to make the models realistic.

5. Final Remarks

We have provided an introduction to different aspects that come to the forefront when we consider the dynamics of a superfluid system, paying particular attention to the implications of the two-fluid model and the role of entrainment for different problem settings. We have outlined the impact of superfluidity—and the associated vortex dynamics—on problems of immediate relevant for astrophysics, like pulsar glitches and neutron star seismology, adding references to the relevant literature that should help the interested reader dig deeper. Further effort would, indeed, be required to reach a precise understanding of specific technical aspects. The intention here was to provide a starting point rather than the final destination.

In order to reach the journey’s end (whatever this may be) we have quite a lot of work to do. This involves aspects we have touched upon, like the nuclear physics and the main microphysics parameters (e.g., pinning and entrainment) and the averaging involved in the fluid model (especially involving vortices and turbulence). There are also aspects we have not considered, like the transport of heat in a superfluid system (e.g., the link to superfluid phonons [152] and how this manifests itself in a fluid model) and features associated with the anticipated superconductivity of the protons in a neutron star core [153,154,155]. Finally, we need to be mindful of the fact that a truly quantitative model—making contact with realistic microphysics—must be formulated in the context of general relativity. We are, in many ways, far from this goal. The relevant multi-fluid framework exists [37], and a number of simplified scenarios have been considered, but the challenges of truly realistic model building remain formidable.
