Article

Relativistic B-Spline R-Matrix Calculations for Electron Scattering from Thallium Atoms

1
School of Physics, Harbin Institute of Technology, Harbin 150001, China
2
School of Energy Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
3
Department of Physics and Astronomy, Drake University, Des Moines, IA 50311, USA
*
Authors to whom correspondence should be addressed.
Deceased.
Atoms 2021, 9(4), 94; https://doi.org/10.3390/atoms9040094
Submission received: 15 October 2021 / Revised: 28 October 2021 / Accepted: 3 November 2021 / Published: 5 November 2021

Abstract

:
The Dirac B-spline R-matrix (DBSR) method is employed to treat low-energy electron collisions with thallium atoms. Special emphasis is placed on spin polarization phenomena that are investigated through calculations of the differential cross-section and the spin asymmetry function. Overall, good agreement between the present calculations and the available experimental measurements is found. The contributions of electron exchange to the spin asymmetry cannot be ignored at low impact energies, while the spin–orbit interaction plays an increasingly significant role as the impact energy rises.

1. Introduction

Spin polarization phenomena in electron–atom collisions have been of great interest for many years [1]. Compared to cross-sections alone, they provide a deeper insight into the importance of spin-dependent interactions in collision processes, such as spin–orbit and electron exchange effects. The left–right spin asymmetry function SA is a measure of the spin dependence of the differential cross-section (DCS) in collisions of spin-polarized electrons with a given target. It is a very sensitive parameter to test the quality of a theoretical approach to electron–atom collisions [2,3]. This is particularly true for excitation processes, and the difficulties increase significantly with the complexity of the target. For open-shell heavy targets, significant contributions can be attributed to both electron exchange via the so-called “fine-structure effect” [4] and the spin–orbit interaction of the continuum electron in the field of the target atom (Mott scattering). The competition between them makes SA extremely sensitive to the details of the theoretical approach.
Thallium (Tl) is a challenging target with a heavy nucleus (Z = 81). It has an open-shell 6s26p with nonvanishing orbital angular momentum as its ground-state configuration. Benchmark experimental data for e-Tl collisions at low energies were produced by the Münster group [5,6,7]. Kaussen et al. [5] investigated the spin polarization in elastic scattering of unpolarized electrons from several heavy atoms, including thallium, for selected incident-electron energies between 6 and 180 eV. Geesmann et al. [6] used a source of spin-polarized electrons, which were scattered elastically and inelastically from an ensemble of unpolarized thallium atoms, to study the spin asymmetry function for incident energies ranging from 3 to 14 eV and scattering angles in the range of 35° to 125°. Later, the measurements were extended to energies below 2 eV by Dümmler et al. [7].
On the theoretical side, Bartschat and collaborators [8,9,10,11,12] performed semi-relativistic Breit–Pauli R-matrix (BPRM) calculations for elastic and inelastic electron scattering from thallium atoms. Their results showed that both the fine-structure effect and Mott scattering could be important for an open-shell heavy atom such as Tl. A fully relativistic generalized density functional (GDF) was developed by Haberland and Fritsche [13] and Fritsche et al. [14]. They concluded that the fine-structure effect only has a small influence at low impact energies. Later, Bostock et al. [15] employed the relativistic convergent-close-coupling (RCCC) method to calculate the spin asymmetries for elastic and inelastic cases. They suggested that the spin asymmetries can be mediated by relativistic effects (spin–orbit interactions) in addition to exchange effects.
In the present paper, we aim to study the relative influence of Mott scattering and the fine-structure effect for both elastic and inelastic e-Tl scattering. We employ the fully relativistic Dirac B-spline R-matrix (DBSR) method developed by Zatsarinny to perform calculations in a 33-state close-coupling model. In addition to the spin asymmetry function SA, the angle-differential cross-sections (DSCs) are also presented below.
This manuscript is organized as follows. In Section 2, we briefly summarize the main aspects of our computational models. This is followed with results for energy levels and oscillator strengths in Section 3.1, the angle-DCS in Section 3.2, and the spin asymmetry function SA in Section 3.3. We finish with some conclusions in Section 4.

2. Computational Method

The present calculations employed the fully relativistic DBSR method. It is based on the close-coupling expansion for the total (e + Tl) wave function for the collision system. A write-up of the semi-relativistic version of the method and the associated computer program was published by Zatsarinny [16] and the extension to the fully relativistic framework was described in detail by Zatsarinny and Bartschat [17]. Examples of its application can be found in the review [18].
In the present DBSR calculations, we chose 33 discrete states of Tl in the close-coupling expansion, with dominant configurations 6s2nl (l = 3 for n = 5, l = 1–3 for n = 6, l = 0–3 for n = 7 and 8, l = 0–2 for n = 9 and 10) and 6s6p2, respectively. The number of physical states that we can generate in this method depends upon the size of the R-matrix box. The R-matrix radius was set to 60 a0 (a0 = 0.529 × 10−10 m, Bohr radius) and the target Hamiltonian was diagonalized in this box. This choice allowed us to obtain a sufficiently good description for the low-lying bound states of Tl up to 6s28f (see Table 1 in Section 3.1). All Dirac–Fock calculations for the core and the correlated orbitals were performed with the relativistic atomic structure packages GRASP2K [19] and DBSR_HF [20]. Different sets of correlated nl orbitals were optimized separately for the lowest state of each symmetry with total target electronic angular momentum and parity (nl)Jπ.
We employed 123 B-splines of orders 8 and 9 for the large and small components of the spinors, respectively. The different B-spline orders for the two components ensure the absence of spurious solutions [21]. The relatively large number of splines is due to the fact that we employed a finite-size nuclear model with a Fermi potential. Partial-wave contributions up to J = 50 were numerically calculated. This number of partial waves is sufficient for the present cases of interest. No top-up procedure to estimate contributions from higher partial waves was therefore needed. The present calculations included up to 146 coupled scattering channels, and interaction matrices with dimensions up to approximately 36,000 needed to be diagonalized for each partial wave. In order to perform these calculations, we employed the parallelized DBSR code and also used parallelized linear-algebra libraries such as SCALAPACK. The calculation in the external region was performed with the FARM program [22]. Finally, the scattering amplitudes, the DCS, and the spin asymmetry function SA were determined by using the formulas given, for example, in Refs. [3,23].
Specifically, SA is expressed as
σ left ( E , θ ) σ right ( E , θ ) σ left ( E , θ ) + σ right ( E , θ ) S A ( E , θ ) P ,
where P is the spin polarization component perpendicular to the scattering plane, σ is the DCS, θ is the scattering angle, E is the projectile energy, and left/right are determined with respect to the incident beam axis in the scattering plane defined by the initial and final projectile momenta, respectively. We employed the MJK program [24] to generate these observables from the transition matrix elements after ensuring the appropriate phase conventions of the spherical harmonics in the different programs. An approximate test for the importance of the fine-structure effect in spin polarization phenomena is the average value of the spin asymmetry function SA [12], which can be obtained as
< S A > = J 1 , J 0 ( 2 J 0 + 1 )   σ J 0 J 1 ( E , θ ) S A J 0 J 1 ( E , θ ) J 1 , J 0 ( 2 J 0 + 1 )   σ J 0 J 1 ( E , θ ) .
Here, J0 and J1 denote the total angular momenta of the target in its initial and final states, respectively, during the transitions. In the non-relativistic limit, electron exchange still has contributions to SA, while Mott scattering does not. Therefore, the pure fine-structure effect is considered as a non-relativistic approximation, in which the spin–orbit interaction is neglected. Then, the energy levels of a pair of fine-structure states are equal. As a result, the average values of spin asymmetry function SA will vanish. A detailed discussion of the fine-structure effect can be found in the review by Hanne [4].

3. Results and Discussion

3.1. Energy Levels and Oscillator Strengths

Table 1 shows the energy levels of Tl obtained in the present calculation. The excitation energies from the ground state are compared with those given in the NIST [25] tables. The overall agreement between the present results and the NIST tables is satisfactory, with the deviations in energy splitting being generally less than 0.1 eV for most states. The energies of the 6s6p2 4P1/2, 6s210d 2D3/2,5/2, and 6s28f 2F°1/2,3/2 states have somewhat larger discrepancies above 0.2 eV. However, the deviations do not exceed 5%.
Another assessment of the quality of target description in the present model can be made by comparing the results for the oscillator strengths of various transitions with available experimental data. Such a comparison is reported in Table 2 for selected excitations of Tl from the fine-structure levels 6s26p 2P°1/2 and 6s26p 2P°3/2. Specifically, we show our theoretical values obtained in the velocity (V) and length (L) forms of the electric dipole operator. The experimental values are from the data recommended by NIST [25], and references [26] (obtained with the optical-double-resonance technique, ODRT) and [27] (employing beam-foil technique, BFT). The present results are in good to moderate agreement with the experimental data. In some cases, deviations of up to 40% are seen, with the results obtained in the length gauge generally being larger than those obtained in the velocity gauge. The most likely reason for the deviations between the two sets as well as the recommended data is the computational necessity to limit the number of configurations in the target description in a way that makes the subsequent collision calculation possible.

3.2. Differentical Cross-Sections

The present DBSR predictions of the DCS are shown in Figure 1 for elastic electron collisions from Tl atoms in their ground state 6s26p 2P°1/2 for incident electron energies between 1 and 24 eV. No experimental data are available for comparison. The magnitudes of the DCS for all incident energies are close at scattering angles smaller than 5 degrees. A systematic move of the DCS minimum is found going from around 110 degrees at 1 eV to approximately 90 degrees at 11 eV. The DCS curves become broader and flatten out in their bottom region as the energy increases, and more minima appear when the energy is higher than 15 eV. Three significant minima appear at 20 and 24 eV. Their angular positions are around 40, 90, and 130 degrees, respectively. The curves for energies higher than 11 eV intersect near 145 degrees.
Table 1. Energy levels of Tl (in eV) relative to the ground state obtained in this work, compared with those in the NIST [25] tables (J denotes the total angular momentum quantum number).
Table 1. Energy levels of Tl (in eV) relative to the ground state obtained in this work, compared with those in the NIST [25] tables (J denotes the total angular momentum quantum number).
No.StateTermJNIST [25]This WorkDifference
16s26p2P°1/20.000000.000000.00000
26s26p2P°3/20.966170.93535−0.03082
36s27s2S1/23.282793.352980.07019
46s27p2P°1/24.235294.261490.02620
56s27p2P°3/24.359424.30594−0.05348
66s26d2D3/24.478054.47796−0.00009
76s26d2D5/24.488224.48293−0.00529
86s28s2S1/24.803884.810590.00671
96s28p2P°1/25.128995.12293−0.00606
106s28p2P°3/25.17525.15013−0.02507
116s27d2D3/25.208755.18402−0.02473
126s27d2D5/25.213415.17956−0.03385
136s25f2F°5/25.246815.22070−0.02611
146s25f2F°7/25.246815.22151−0.02530
156s29s2S1/25.351935.34096−0.01097
166s29p2P°1/25.502535.48915−0.01338
176s29p2P°3/25.525055.50476−0.02029
186s28d2D3/25.53875.51819−0.02051
196s28d2D5/25.541195.51857−0.02262
206s26f2F°5/25.557415.53341−0.02400
216s26f2F°7/25.557415.53366−0.02375
226s6p24P1/25.6075.32811−0.27889
236s210s2S1/25.616095.619450.00336
246s210p2P°1/25.695755.744200.04845
256s210p2P°3/25.708685.761810.05313
266s29d2D3/25.715495.757910.04242
276s29d2D5/25.716955.757810.04086
286s27f2F°5/25.726255.753030.02678
296s27f2F°7/25.726255.753130.02688
306s210d2D3/25.821056.058110.23706
316s210d2D5/25.822056.065820.24377
326s28f2F°5/25.827836.032910.20508
336s28f2F°7/25.827836.032900.20507
Table 2. Selected oscillator strengths for excitation of Tl from 6s26p to upper levels, as obtained in the velocity (V) and length (L) forms of the electric dipole operator. (The subscript number denotes the total electronic angular momentum quantum number).
Table 2. Selected oscillator strengths for excitation of Tl from 6s26p to upper levels, as obtained in the velocity (V) and length (L) forms of the electric dipole operator. (The subscript number denotes the total electronic angular momentum quantum number).
LowerUpper This Work
LevelLevelNIST [25]ODRT [26]BFT [27]VL
6s26p1/26s26d3/20.290.29 ± 0.0220.340.22710.3307
6s27s1/20.1340.133 ± 0.0070.130.12760.1399
6s27d3/20.0750.074 ± 0.0090.090.05550.0814
6s28s1/20.0180.0176 ± 0.0016 0.01690.0199
6s28d3/2 0.028 ± 0.004 0.02370.0331
6s29s1/2 0.0062 ± 0.0008 0.00500.0050
6s26p3/26s26d3/20.04110.04 ± 0.004 0.03490.0499
6s26d5/20.3460.346 ± 0.0350.370.31000.4273
6s27s1/20.1510.151 ± 0.0070.140.12950.1870
6s27d3/2 0.0091 ± 0.0009 0.00790.0109
6s27d5/20.080.081 ± 0.0090.080.06190.0858
6s28s1/20.01350.0136 ± 0.0014 0.01180.0172
6s28d3/2 0.004 ± 0.0004 0.00310.0043
6s28d5/2 0.028 ± 0.0030.030.02330.0316
6s29s1/2 0.0048 ± 0.0005 0.00270.0043
6s29d3/2 0.002 ± 0.0002 0.00250.0035
6s210s1/2 0.003 ± 0.0003 0.00230.0035
Figure 2 depicts the corresponding results for electron impact excitation of the 6s26p 2P°3/2 state from the ground state. It is not surprising that the DCSs for the inelastic transitions are generally much smaller than for the elastic case. Most of the curves exhibit peaks at scattering angles of around 7 degrees, where the values of the DCSs at different impact energies are very similar. Unlike for the elastic case, the minima in these curves show a systematic movement towards the direction of larger angles, and turn into a single deep valley near 90 degrees for incident energies higher than 15 eV.
The case for electron impact excitation of the 6s27s 2S1/2 state from the ground state exhibits a different dependence in the curves of DCSs compared to the former two cases, which is displayed in Figure 3. The DCSs decrease rapidly from 0 to 15 degrees, especially for the higher impact energies. Most curves intersect at scattering angles of around 15 degrees. There is still a systematic movement of the DCS minima towards smaller angles. The DCSs for excitation from the ground state to 6s27s 2S1/2 have generally a smaller magnitude than those for excitation from the ground state to 6s26p 2P°3/2. However, this is not the case near the forward direction at scattering angles smaller than 15 degrees. The deep valleys also emerge in Figure 3 near 90 and 130 degrees for incident energies higher than 17 eV.

3.3. Spin Asymmetries

Figure 4 exhibits the spin asymmetry function SA for elastic electron collisions from Tl atoms in the ground state 6s26p 2P°1/2 for incident electron energies between 1 and 24 eV. The present DBSR predictions are compared with the experimental data of the Münster group [5,6,7], along with the theoretical results of BPRM method by Bartschat [11] and Goerss et al. [12], GDF calculations by Haberland and Fritsche [13], as well as the RCCC predictions by Bostock et al. [15]. The present DBSR prediction results slightly overestimate the values of SA at scattering angles near 90 degrees for the cases of low impact energies displayed in Figure 4. However, it is clear that the present results are still in overall good agreement with the experimental data, especially for the cases at higher energies such as at 17 eV and 24 eV. One should note that there are three narrow peaks in the SA curve for 24 eV at scattering angles near 40, 90, and 135 degrees. These positions coincide with the three significant minima in the corresponding DCS curve for 24 eV, displayed in Figure 1. This is a typical characteristic of Mott scattering, where high values of |SA| are correlated with minima in the DCS. This suggests that the dominant contribution to the polarization mechanism is the spin–orbit interaction in this case. In contrast, such characteristic correlations between the DCS and SA are not so evident for the low incident energies below 6 eV shown in Figure 4. This indicates that electron exchange processes may also play an important role for the spin polarization in elastic e-Tl collisions at low energies.
Figure 5 and Figure 6 exhibit the DBSR results for the spin asymmetry function SA for electron impact excitation of Tl atoms from their ground state 6s26p 2P°1/2 to the 6s26p 2P°3/2 and 6s27s 2S1/2 states, respectively. We also show the experimental measurements of Geesmann et al. [6], along with RCCC calculations by Bostock et al. [15] and BPRM calculations by Goerss et al. [12]. The present calculations represent a clear improvement over the semi-relativistic BPRM results. This indicates that relativistic effects should be fully considered when studying electron scattering from heavy atoms such as thallium, especially for excitation. The agreement between the present DBSR results and the experimental measurements is generally good.
The average values of SA were calculated according to Equation (2) for the transitions between the fine-structure levels of the ground-state configuration 6s26p 2P° and the excited-state configurations 6s27s 2S, 6s27p 2P°, and 6s26d 2D, respectively. Figure 7 depicts the present DBSR predictions for incident electron energies of 5, 7.5, 10, 12.5, and 15 eV, along with the theoretical results of the BPRM method by Goerss et al. [12]. We also show SA for individual fine-structure transitions from the 6s26p 2P°1/2 and 6s26p 2P°3/2 states, respectively, to the 6s27s 2S1/2 state at 5 eV. The average SA values for transitions from 6s26p 2P° to 6s27s 2S are significantly smaller than the values for the individual fine-structure transitions. The situation is similar for the other two sets of transitions, in agreement with the findings of Goerss et al. [12]. This indicates that the fine-structure effect cannot be ignored for these cases. Especially for the 6s26p 2P° to 6s26d 2D transitions, the angular dependence of the average SA is almost flat, while significant contributions to the spin asymmetry by the fine-structure effect are possible in the fine-structure-resolved transitions. On the other hand, the average SA values for each set of transitions show a stronger angular dependence as the impact energy increases. This suggests that the spin–orbit interaction plays a more important role at higher energies.

4. Conclusions

In this paper, we have presented calculations of the differential cross-section and the spin asymmetry functions for elastic scattering and electron impact excitation to the 6s26p 2P°3/2 and 6s27s 2S1/2 states in thallium atoms. Our ab initio calculations are based on the fully relativistic Dirac B-spline R-matrix (DBSR) approach that Oleg Zatsarinny developed for years. The excellent agreement between theoretical predictions and experimental measurements indicates, once again, the reliability of the DBSR method to treat the process of electron–atom collisions. We also conclude that, at low energies, even for the open-shell heavy target thallium, the spin polarization in the electron scattering process can still be attributed to a significant extent to electron exchange effects, in addition to the spin–orbit interaction.

Author Contributions

Conceptualization, Y.W., X.-M.Z. and K.B.; methodology, O.Z. and K.B.; software, O.Z.; calculations Y.W. and H.-L.D.; data curation, H.-L.D.; writing—original draft preparation, Y.W., H.-L.D. and K.B.; writing—review and editing, Y.W. and K.B.; project administration, X.-M.Z.; funding acquisition, X.-M.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China under grant no. 11775063, and the Defense Industrial Technology Development Program under grant no. JCKY2018203B029. The work of O.Z. and K.B. was supported by the United States National Science Foundation under grants no. PHY-1903844, OAC-1834740, and PHY-2110023.

Data Availability Statement

Tabulated results of the cross-sections are available from the authors upon request.

Acknowledgments

We thank the HEPC Studio at the Physics School of the Harbin Institute of Technology for access to high-performance computing resources through [email protected].

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Kessler, J. Polarized Electrons, 2nd ed.; Springer: New York, NY, USA, 1985. [Google Scholar]
  2. Andersen, N.; Bartschat, K.; Broad, J.T.; Hertel, I.V. Collisional alignment and orientation of atomic outer shells: III. Spin-resolved excitation. Phys. Rep. 1997, 279, 251–396. [Google Scholar] [CrossRef]
  3. Andersen, N.; Bartschat, K. Polarization, Alignment, and Orientation in Atomic Collisions; Springer: New York, NY, USA, 2001. [Google Scholar]
  4. Hanne, G.F. Spin effects in inelastic electron–atom collisions. Phys. Rep. 1983, 95, 95–165. [Google Scholar] [CrossRef]
  5. Kaussen, F.; Geesmann, H.; Hanne, G.F.; Kessler, J. Study of spin polarisation in elastic scattering of electrons from Hg, Tl, Pb and Bi atoms. J. Phys. B At. Mol. Phys. 1987, 20, 151. [Google Scholar] [CrossRef]
  6. Geesmann, H.; Bartsch, M.; Hanne, G.F.; Kessler, J. Left–right asymmetry for scattering of polarized electrons from thallium and lead atoms. J. Phys. B At. Mol. Opt. Phys. 1991, 24, 2817. [Google Scholar] [CrossRef]
  7. Dummler, M.; Bartsch, M.; Geesmann, H.; Hanne, G.F.; Kessler, J. Low-energy data of the Sherman function of Hg, Tl and Pb. J. Phys. B At. Mol. Opt. Phys. 1992, 25, 4281. [Google Scholar] [CrossRef]
  8. Bartschat, K.; Scott, N.S. Resonances in the low-energy scattering of electrons by atomic thallium. J. Phys. B At. Mol. Phys. 1984, 17, 3787. [Google Scholar] [CrossRef]
  9. Bartschat, K.; Blum, K.; Burke, P.G.; Hanne, G.F.; Scott, N.S. The fine-structure effect in the low-energy scattering of electrons on Hg and Tl atoms. J. Phys. B At. Mol. Phys. 1984, 17, 3797. [Google Scholar] [CrossRef]
  10. Bartschat, K.; Goerss, H.-J.; Nordbeck, R.-P. Generalized STU-parameters for elastic electron scattering from thallium and lead atoms. Z. Phys. D-At. Mol. Clust. 1990, 17, 25–31. [Google Scholar] [CrossRef]
  11. Bartschat, K. Close-coupling calculations for low-energy elastic from thallium atoms. Z. Phys. D-At. Mol. Clust. 1994, 30, 85–90. [Google Scholar] [CrossRef]
  12. Goerss, H.-J.; Nordbeck, R.-P.; Bartschat, K. Generalized STU parameters for elastic and inelastic low-energy scattering of electrons from thallium atoms. J. Phys. B At. Mol. Opt. Phys. 1991, 24, 2833. [Google Scholar] [CrossRef]
  13. Haberland, R.; Fritsche, L. On the elastic scattering of low-energy electrons by Hg, Tl, Pb and Bi atoms. J Phys. B At. Mol. Phys. 1987, 20, 121. [Google Scholar] [CrossRef]
  14. Fritsche, L.; Kroner, C.; Reinert, T. A consistent relativistic theory of electron scattering by atoms. J. Phys. B At. Mol. Opt. Phys. 1992, 25, 4287. [Google Scholar] [CrossRef]
  15. Bostock, C.J.; Fursa, D.V.; Bray, I. Relativistic convergent close-coupling calculation of spin asymmetries for electron-thallium scattering. Phys. Rev. A 2012, 86, 062701. [Google Scholar] [CrossRef]
  16. Zatsarinny, O. BSR: B-spline atomic R-matrix codes. Comput. Phys. Commun. 2006, 174, 273–356. [Google Scholar] [CrossRef]
  17. Zatsarinny, O.; Bartschat, K. Relativistic B-spline R-matrix method for electron collisions with atoms and ions: Application to low-energy electron scattering from Cs. Phys. Rev. A 2008, 77, 062701. [Google Scholar] [CrossRef]
  18. Zatsarinny, O.; Bartschat, K. The B-spline R-matrix method for atomic processes: Application to atomic structure, electron collisions, and photoionization. J. Phys. B At. Mol. Opt. Phys. 2013, 46, 112001. [Google Scholar] [CrossRef]
  19. Jönsson, P.; He, X.; Fischer, C.F.; Grant, I.P. The grasp2K relativistic atomic structure package. Comput. Phys. Commun. 2007, 177, 597–622. [Google Scholar] [CrossRef]
  20. Zatsarinny, O.; Fischer, C.F. DBSR_HF: A B-spline Dirac–Hartree–Fock program. Comput. Phys. Commun. 2016, 202, 287–303. [Google Scholar] [CrossRef] [Green Version]
  21. Fischer, C.F.; Zatsarinny, O. A B-spline Galerkin method for the Dirac equation. Comput. Phys. Commun. 2009, 180, 879–886. [Google Scholar] [CrossRef] [Green Version]
  22. Burke, V.M.; Noble, C.J. Farm—A flexible asymptotic R-matrix package. Comput. Phys. Commun. 1995, 85, 471–500. [Google Scholar] [CrossRef]
  23. Bartschat, K. Excitation and ionization of atoms by interaction with electrons, positrons, protons and photons. Phys. Rep. 1989, 180, 1–81. [Google Scholar] [CrossRef]
  24. Grum-Grzhimailo, A.N. MJK: A program to calculate observable quantities in electron–atom collisions. Comput. Phys. Commun. 2003, 152, 101–119. [Google Scholar] [CrossRef]
  25. Kramida, A.; Ralchenko, Y.; Reader, J.; NIST ASD Team. NIST Atomic Spectra Database (Ver. 5.8). 2020. Available online: https://physics.nist.gov/asd (accessed on 29 September 2021).
  26. Gallagher, A.; Lurio, A. Thallium Oscillator Strengths and 6d2D3/2 State hfs. Phys. Rev. A 1964, 136, 87. [Google Scholar] [CrossRef]
  27. Andersen, T.; Sørensen, G. Systematic study of atomic lifetimes in gallium, indium, and thallium measured by the beam-foil technique. Phys. Rev. A 1972, 5, 2447. [Google Scholar] [CrossRef]

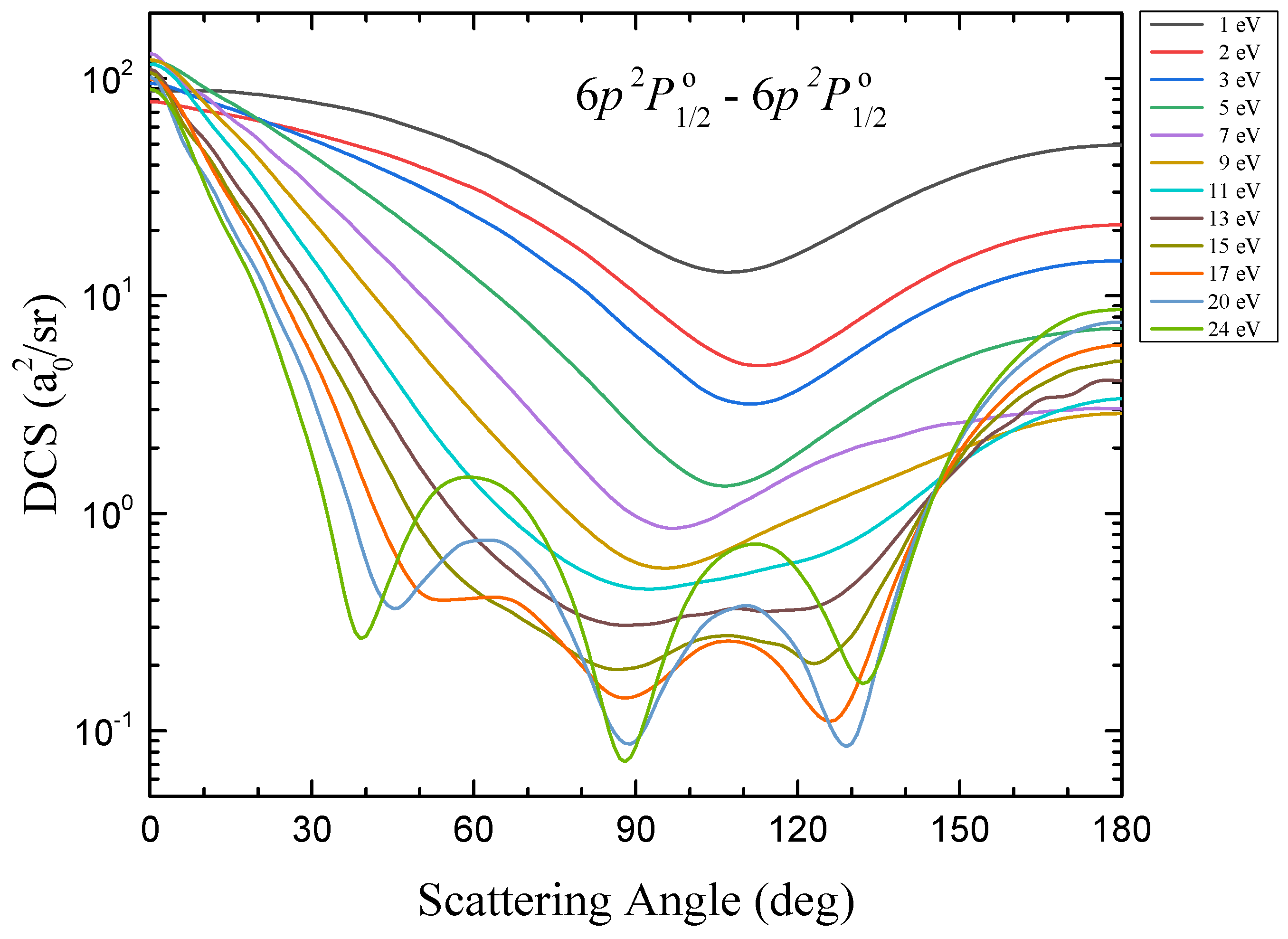

Figure 1. DCS for elastic electron collisions from Tl atoms in their 6s26p 2P°1/2 ground state for a variety of projectile energies.
Figure 1. DCS for elastic electron collisions from Tl atoms in their 6s26p 2P°1/2 ground state for a variety of projectile energies.
Atoms 09 00094 g001

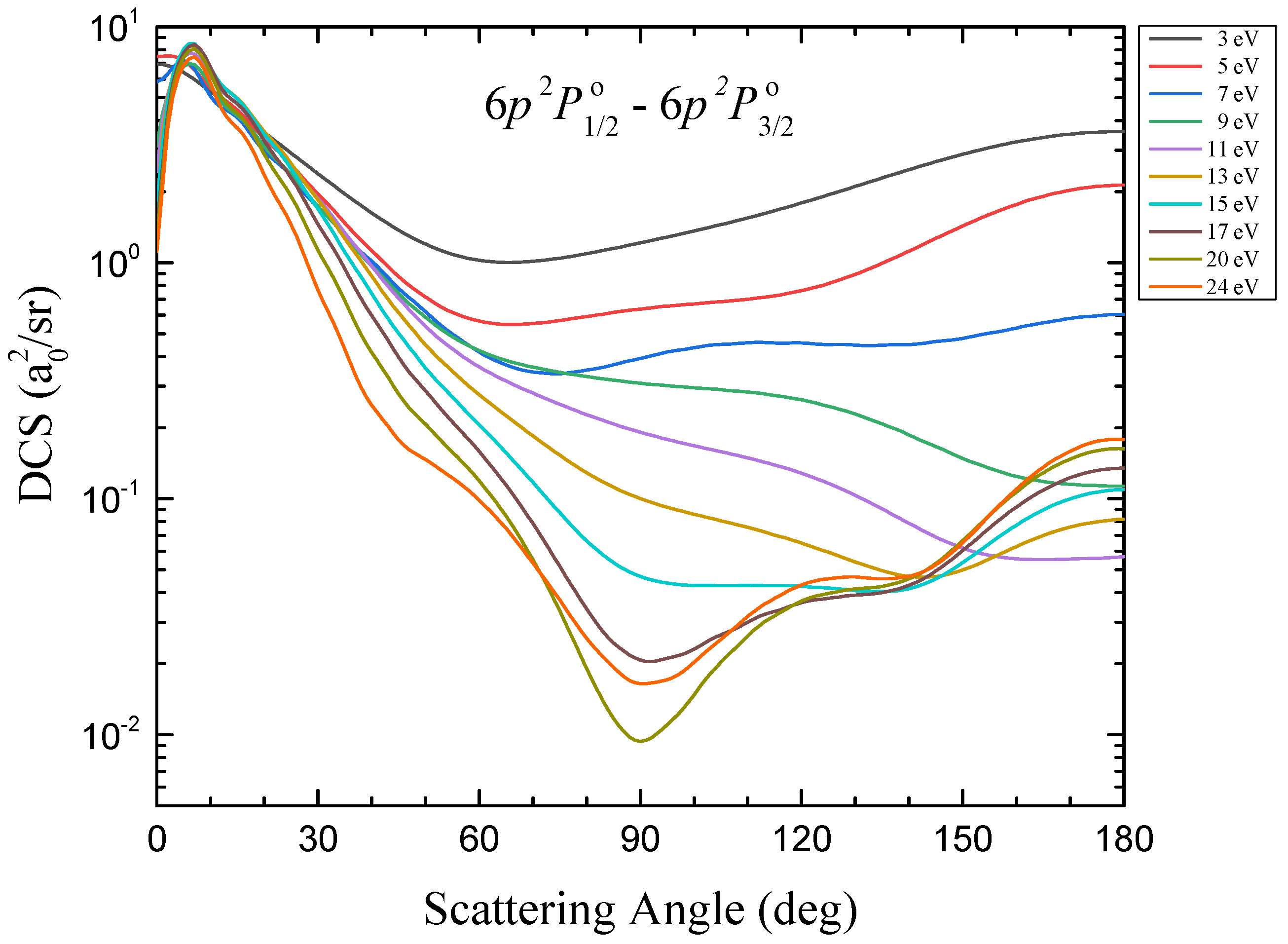

Figure 2. DCS for electron impact excitation of the 6s26p 2P°1/2 → 6s26p 2P°3/2 transition in Tl for a variety of projectile energies.
Figure 2. DCS for electron impact excitation of the 6s26p 2P°1/2 → 6s26p 2P°3/2 transition in Tl for a variety of projectile energies.
Atoms 09 00094 g002

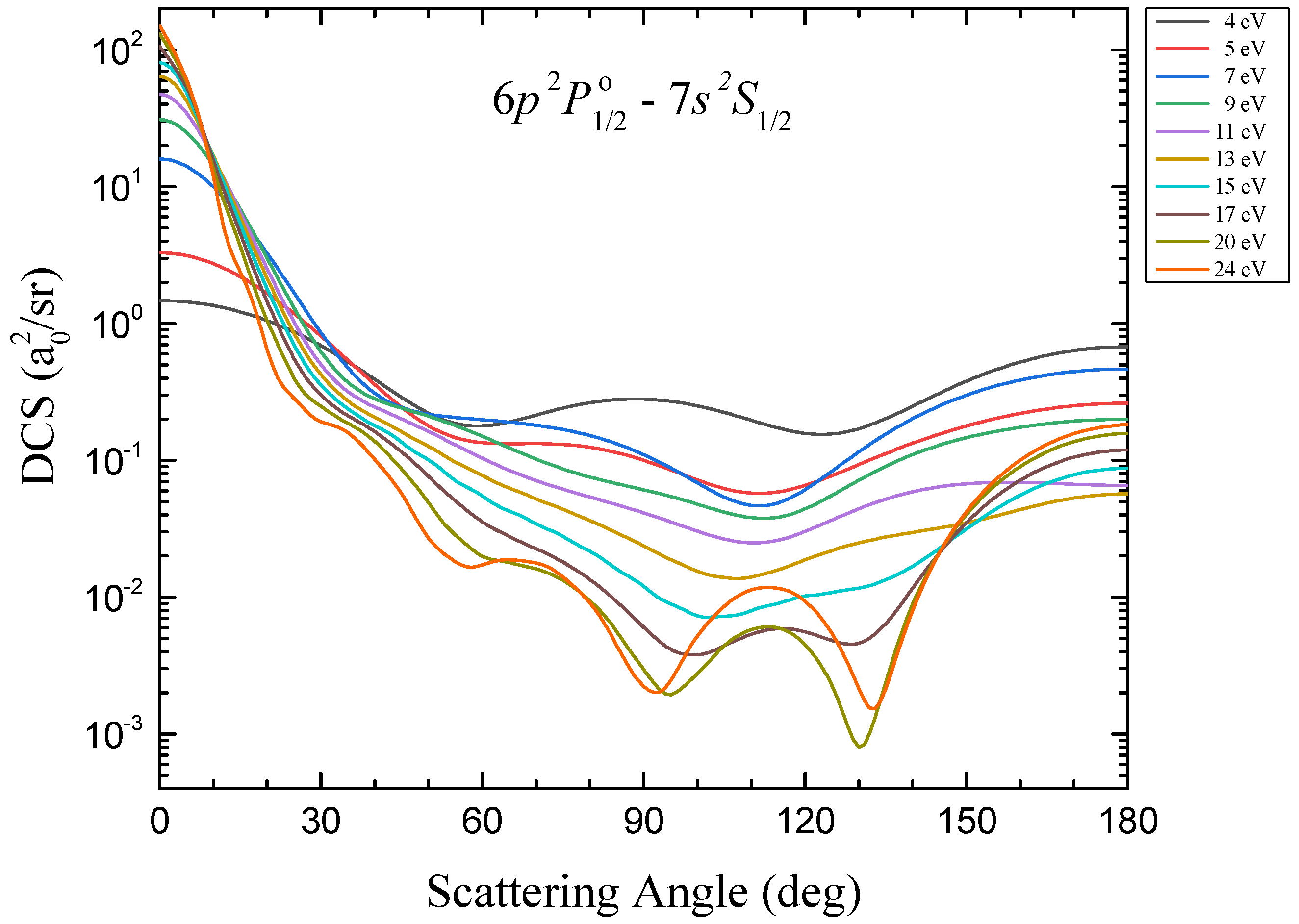

Figure 3. DCS for electron impact excitation of the 6s26p 2P°1/2 → 6s27s 2S1/2 transition in Tl for a variety of projectile energies.
Figure 3. DCS for electron impact excitation of the 6s26p 2P°1/2 → 6s27s 2S1/2 transition in Tl for a variety of projectile energies.
Atoms 09 00094 g003

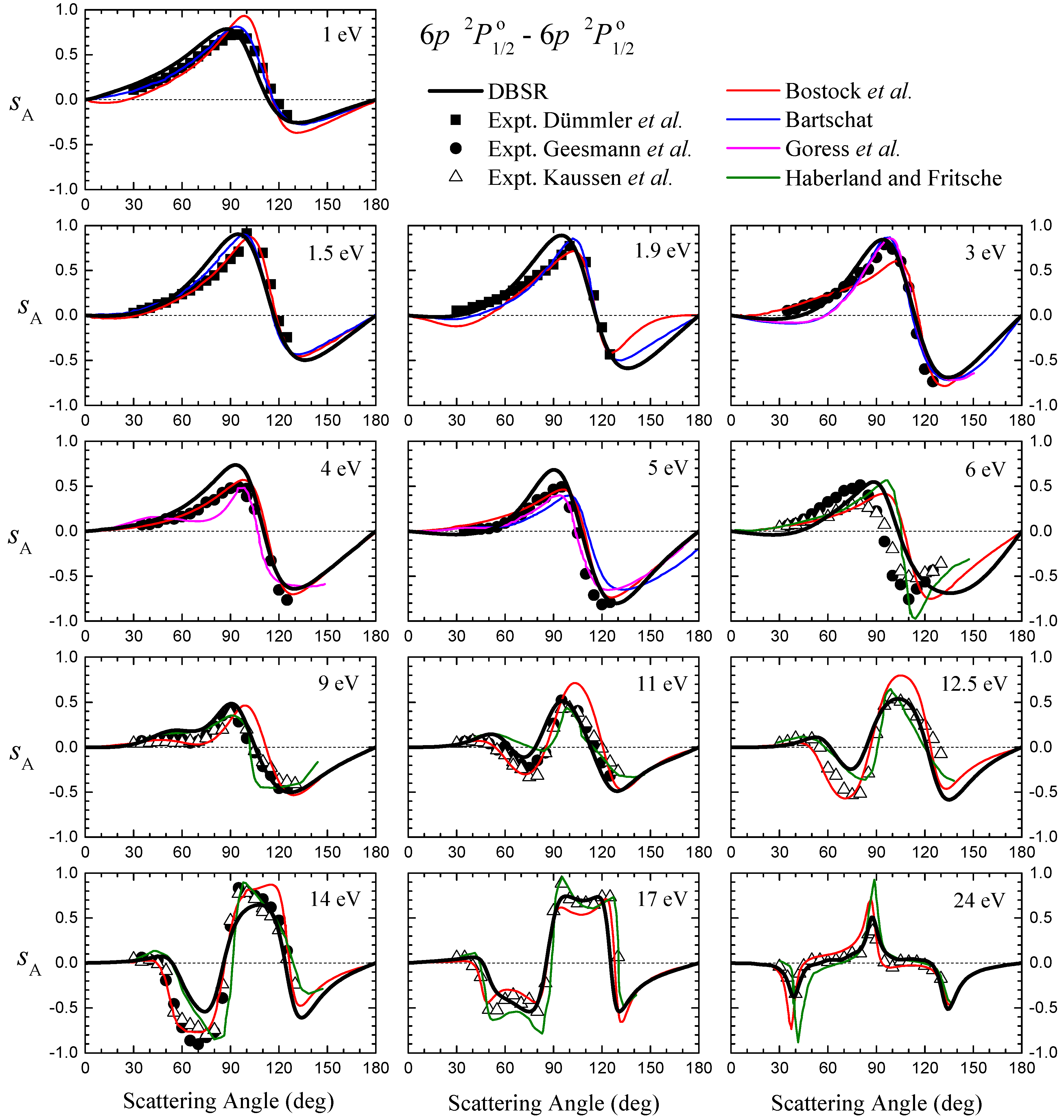

Figure 4. Spin asymmetry function SA for elastic electron collisions from Tl atoms in the ground state 6s26p 2P°1/2 for incident electron energies between 1 and 24 eV. The DBSR results are compared with the experimental data of Kaussen et al. [5], Geesmann et al. [6], and Dümmler et al. [7], along with the theoretical results of Bartschat [11], Goerss et al. [12], Haberland and Fritsche [13], and Bostock et al. [15].
Figure 4. Spin asymmetry function SA for elastic electron collisions from Tl atoms in the ground state 6s26p 2P°1/2 for incident electron energies between 1 and 24 eV. The DBSR results are compared with the experimental data of Kaussen et al. [5], Geesmann et al. [6], and Dümmler et al. [7], along with the theoretical results of Bartschat [11], Goerss et al. [12], Haberland and Fritsche [13], and Bostock et al. [15].
Atoms 09 00094 g004

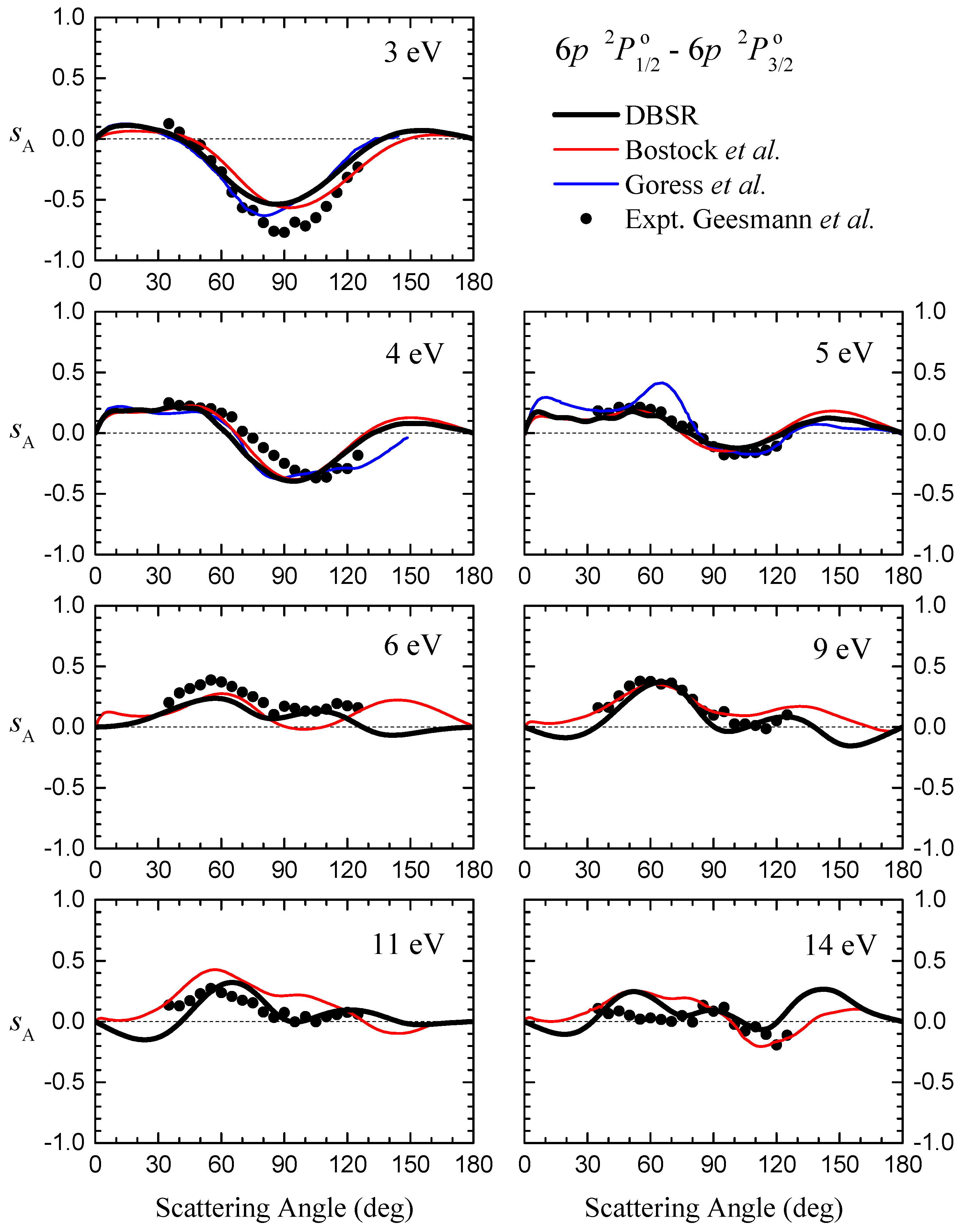

Figure 5. Spin asymmetry function SA for electron impact excitation of the 6s26p 2P°1/2 → 6s26p 2P°3/2 transition in Tl for incident energies between 3 and 14 eV. The DBSR results are compared with the experimental data of Geesmann et al. [6], along with the theoretical results of Goerss et al. [12] and Bostock et al. [15].
Figure 5. Spin asymmetry function SA for electron impact excitation of the 6s26p 2P°1/2 → 6s26p 2P°3/2 transition in Tl for incident energies between 3 and 14 eV. The DBSR results are compared with the experimental data of Geesmann et al. [6], along with the theoretical results of Goerss et al. [12] and Bostock et al. [15].
Atoms 09 00094 g005

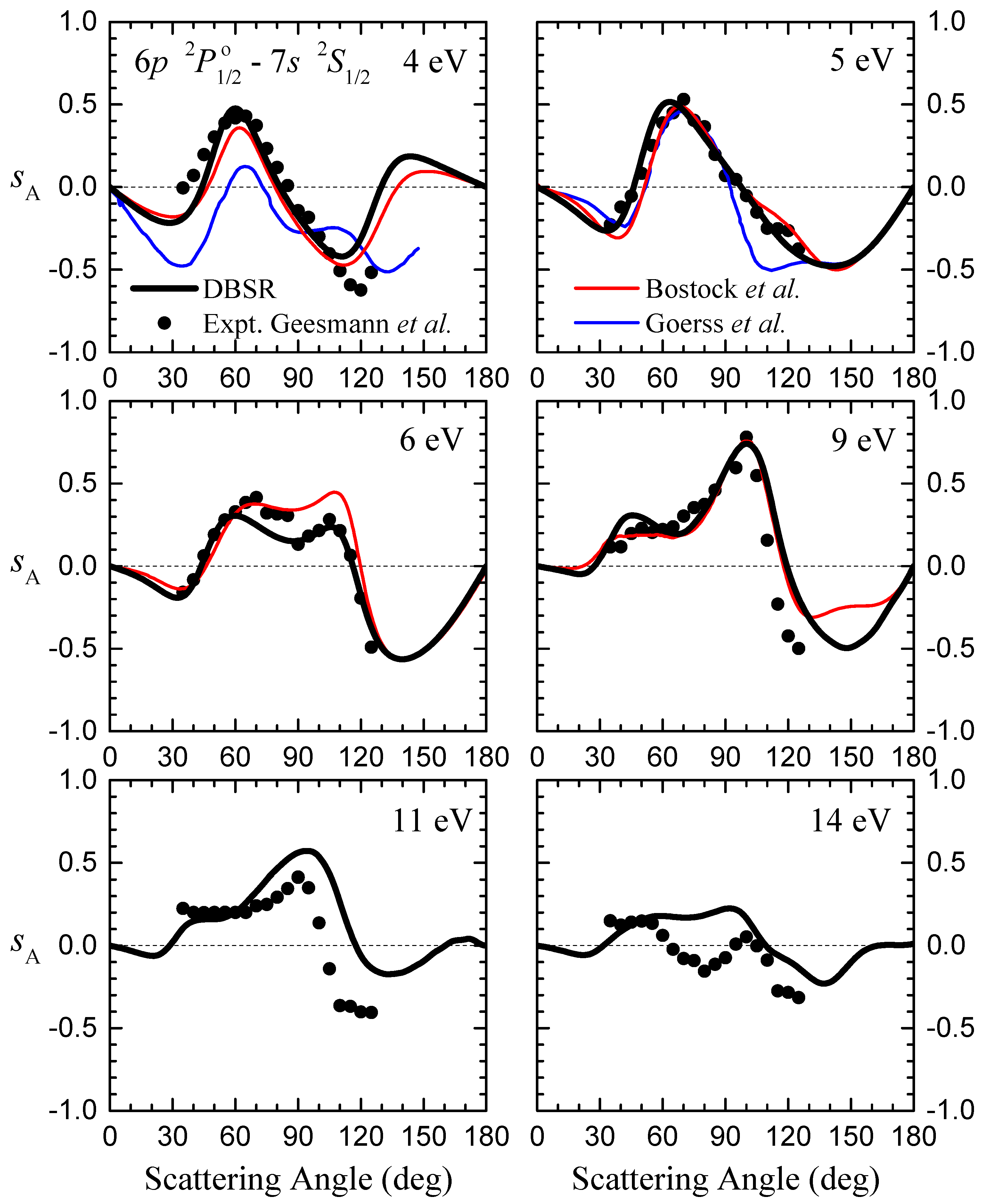

Figure 6. Spin asymmetry function SA for electron impact excitation of the 6s26p 2P°1/2 → 6s27s 2S1/2 transition in Tl for incident energies between 4 and 14 eV. The DBSR results are compared with the experimental data of Geesmann et al. [6], along with the theoretical results of Goerss et al. [12] and Bostock et al. [15].
Figure 6. Spin asymmetry function SA for electron impact excitation of the 6s26p 2P°1/2 → 6s27s 2S1/2 transition in Tl for incident energies between 4 and 14 eV. The DBSR results are compared with the experimental data of Geesmann et al. [6], along with the theoretical results of Goerss et al. [12] and Bostock et al. [15].
Atoms 09 00094 g006

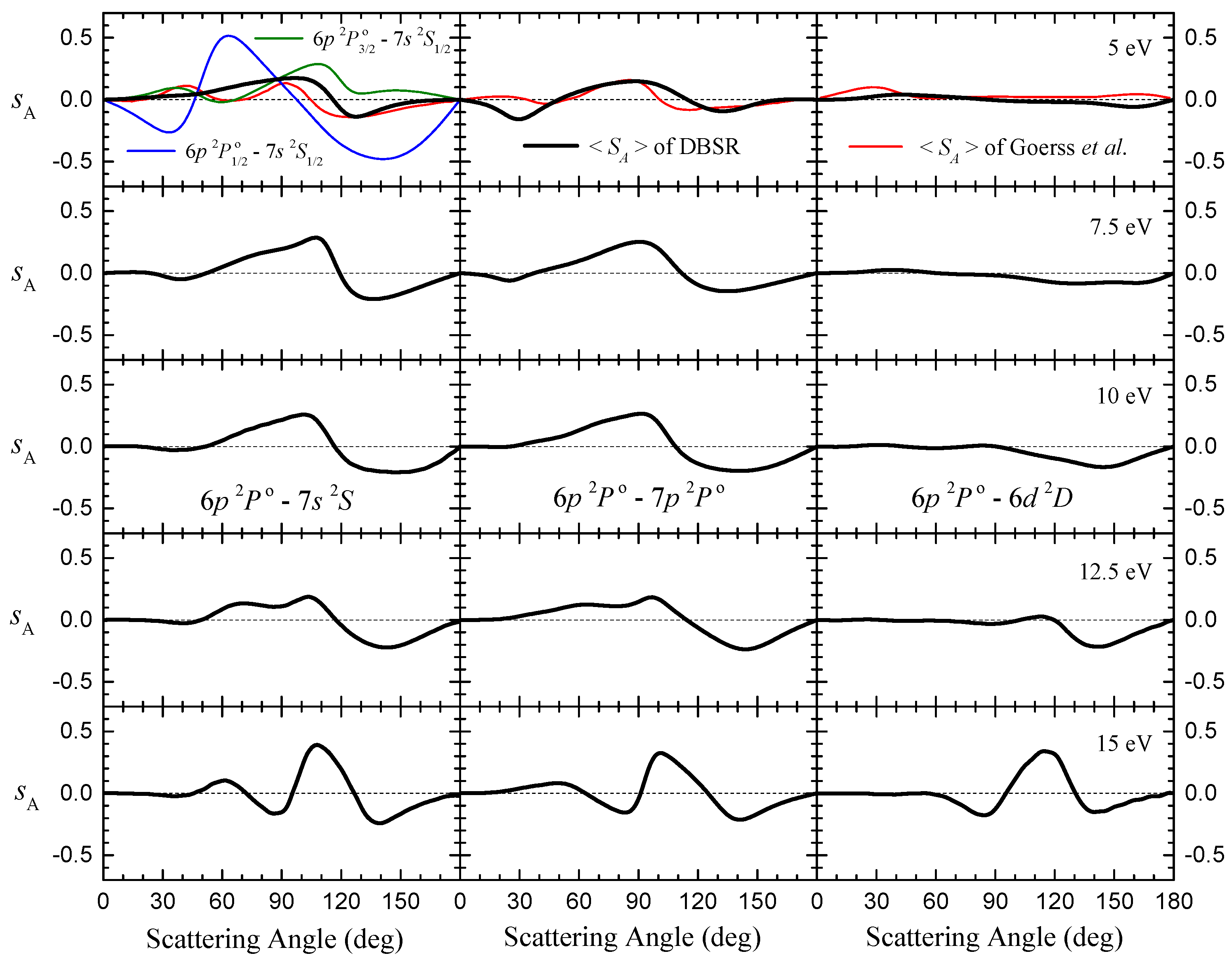

Figure 7. Average spin asymmetry function SA for electron impact excitation of the 6s26p 2P° → 6s27s 2S, 6s26p 2P° → 6s27p 2P° and 6s26p 2P° → 6s26d 2D transitions in Tl for incident energies between 5 and 15 eV. The DBSR results are compared with the theoretical results of Goerss et al. [12]. As one example for comparison, fine-structure-resolved predictions are shown in the top left panel.
Figure 7. Average spin asymmetry function SA for electron impact excitation of the 6s26p 2P° → 6s27s 2S, 6s26p 2P° → 6s27p 2P° and 6s26p 2P° → 6s26d 2D transitions in Tl for incident energies between 5 and 15 eV. The DBSR results are compared with the theoretical results of Goerss et al. [12]. As one example for comparison, fine-structure-resolved predictions are shown in the top left panel.
Atoms 09 00094 g007
