Article

How Quickly Do Proteins Fold and Unfold, and What Structural Parameters Correlate with These Values?

by
Anna V. Glyakina
1,2 and
Oxana V. Galzitskaya
1,3,*
1
Institute of Protein Research, Russian Academy of Sciences, Pushchino, Moscow Region 142290, Russia
2
Institute of Mathematical Problems of Biology, Russian Academy of Sciences, Keldysh Institute of Applied Mathematics, Russian Academy of Sciences, Pushchino, Moscow Region 142290, Russia
3
Institute of Theoretical and Experimental Biophysics, Russian Academy of Sciences, Pushchino, Moscow Region 142290, Russia
*
Author to whom correspondence should be addressed.
Biomolecules 2020, 10(2), 197; https://doi.org/10.3390/biom10020197
Submission received: 27 December 2019 / Revised: 22 January 2020 / Accepted: 26 January 2020 / Published: 29 January 2020

Abstract

:
The correlations between the logarithm of the unfolding rate of 108 proteins and their structural parameters were calculated. We showed that there is a good correlation between the logarithm of folding and unfolding rates (0.79) and protein stability and unfolding rate (0.79). Thus, the faster the protein folds, the faster it unfolds. Folding and unfolding rates are higher for the proteins with two-state kinetics, in comparison with the proteins with multi-state kinetics. At the same time, two-state bacterial proteins folds and unfolds two orders of magnitude faster than two-state eukaryotic proteins, and multi-state bacterial proteins folds and unfolds slower than multi-state eukaryotic proteins. Despite the fact that the folding rates of thermophilic and mesophilic proteins are close, the unfolding rates of thermophilic proteins is about two orders of magnitude lower than for mesophilic proteins. The correlation between unfolding rate and stability of thermophilic proteins is high (0.90). We also found that the unfolding rate correlates with such structural parameters as: size of the protein, radius of the cross-section, logarithm of absolute contact order, and radius of gyration. This information will be useful for engineering and designing new proteins with desired properties.

1. Introduction

The problem of predicting folding rates (kf) for proteins with two-state and multi-state kinetics is still important and extensively studied [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20]. Many articles are devoted to the study of protein folding rates and their correlation with various structural parameters [2,6,7,8,16]. In 1998, a relative contact order (rCO) parameter was suggested, which is the average distance along the sequence between all pairs of contacting residues, normalized to the size of the protein (number of amino acid residues, further protein length). This parameter reflects the topological complexity of the protein chain. It was shown that the rCO correlates well (correlation coefficient is 0.81) with the logarithm of the folding rate for 12 two-state proteins [2]. Subsequent studies have shown that there is no correlation between rCO and logarithm of the folding rate of proteins [6,7,16]. It turned out that only absolute contact order (AbsCO, contact order multiplied by protein length) correlated with the logarithm of the folding rate (the correlation coefficient is −0.77) [16]. It was found that the structural parameters, depending on the protein length (L), correlated well with the logarithm of the folding rate [16]. In the set of papers [13,15,16,21,22], the authors considered the different structural parameters of protein globule compactness: radius of gyration (Rg); normalized radius of gyration (Rg/Rg*, where Rg* is the radius of gyration of the ball with the uniform density and the same volume); compactness as the relationship between the solvent accessible surface area to the solvent accessible surface of sphere with the same volume (Sasa/S*); and the relationship between the solvent accessible volume to the solvent accessible surface (Vasa/Sasa). The solvent accessible volume (Vasa) is the volume surrounded by the solvent accessible surface (Sasa). The radius of the cross-section (Vasa/Sasa) is proportional but not equal to the radius of the smallest cross-section of the protein globule [16]. It was demonstrated that Vasa/Sasa correlates good with the logarithm of the folding rate (the correlation coefficient is 0.74) [16]. We have shown that the less compact the proteins, the faster they fold. Therefore, α-structural proteins are less compact and the most rapidly folding proteins, while α/β-structural proteins are the most compact and the most slowly folding proteins [15].
We have previously shown that bacterial proteins with two-state kinetics (further, bacterial two-state proteins) fold and unfold faster than two-state eukaryotic proteins [23]. It turned out that the multi-state eukaryotic proteins fold and unfold faster than bacterial ones.
It has been shown that there is a “golden triangle” that limits the possible range of the folding rates for single-domain globular proteins of different sizes and stability [24]. This triangle was based only on the biological and physical limitations.
In addition, knowledge of the protein unfolding rates is also necessary to estimate their stability. Much less work has been devoted to the study of the relationship between the unfolding rates and structural parameters. It has been shown that the logarithm of the unfolding and folding rates correlate strongly with the AbsCO and the long-range order (parameter defined by contacts between two residues that are close in space and far in the sequence) [3], with correlation coefficient values of 0.75 or higher. The logarithm of the unfolding rate correlated better with thermodynamic stability, in comparison with the folding rate [19].
Early, it has been shown that structural parameters L, ln(AbsCO), Vasa/Sasa, and Rg were in a good correlation with the logarithm of the protein folding rate [16].
The aim of the study was broader than the search for connections between protein unfolding rates and various structural parameters, such as L, ln(AbsCO), Vasa/Sasa, and Rg. We were trying to find out which parameters are most important for the prediction of the unfolding rates for proteins from different organisms.

2. Materials and Methods

In our study, three databases of proteins were examined. The first database consisted of 108 proteins. Among them, 38 proteins demonstrated multi-state kinetics, and 70 proteins showed two-state kinetics. The second database consisted of 42 bacterial (29 two-state and 13 multi-state) and 53 eukaryotic (32 two-state and 21 multi-state) proteins. The third database consisted of 42 bacterial proteins. Among them, there were 10 thermophilic (8 two-state and 2 multi-state) and 32 mesophilic (21 two-state and 11 multi-state) proteins.
Proteins that have experimentally measured folding and unfolding rates were taken into consideration. The database of such proteins has begun to be collected since 2003. At that time, there were only 57 proteins [7]. In 2009, there were already 84 proteins [16]. Now, this database consists of 108 proteins [19,24].
Data on folding and unfolding rates and structural parameters of the proteins (L—length of the protein, Vasa/Sasa, ln(AbsCO) and Rg) are in Supplementary Table S1.
Parameters Vasa and Sasa were calculated using YASARA program [25].
Parameter ln(AbsCO) was calculated as l n ( A b s C O ) = l n ( 1 N k = 1 N Δ L i j ) , where N is the number of contacts (within 6 Å) between nonhydrogen atoms in the protein and ∆Lij is the number of residues separating the interacting pair of nonhydrogen atoms (adjacent residues are assumed to be separated by one residue).
Parameter Rg was calculated as R g =   m i ( r i R C ) 2 M , where mi is the mass of the i-th atom, ri is its Cartesian coordinates, M is the mass of the protein, and RC is the coordinate vector of the mass center of the protein, calculated as follows:   m i ( r i R C ) = 0 .
Errors for data from Table 1, Table 3, Table 5, Figure 5 and Figure 9 were calculated as σ = i = 1 n ( x i x ¯ ) n ( n 1 ) , where x ¯ is the average value of a parameter and n is a number of proteins.

3. Results and Discussion

3.1. Unfolding Rates of 108 Proteins

The goal of this work was to find the relationship between protein unfolding rates and protein structural parameters. For three spectrin domains: R15, R16, and R17, we observed that the faster the protein folds, the faster it unfolds, and vice versa. Domain R15 folds and unfolds faster than its homologues, R16 and R17 (see Figure 1A). In the case of these spectrin repeats, the folding and unfolding rates may be associated with the mechanical stability of the proteins. Previously, it has been shown that domain R15 is less mechanically stable than domains R16 and R17 [26]. The discovered correlation between the unfolding and folding rates suggests that the statement that the faster the protein folds, the faster it unfolds, and vice versa, is also true for a dataset consisting of 108 proteins (Figure 1B).
The correlation between the logarithm of the unfolding and folding rates is 0.79 for all proteins. Moreover, this correlation is better for two-state (0.78) than for multi-state proteins (0.73). The separation of 108 proteins by structural classes (α, β, α/β and α + β) revealed that correlation between the logarithm of the folding and unfolding rates is better for proteins from α and β (0.78 and 0.75) classes, in comparison with the proteins from α/β and α + β classes (0.59 and 0.60). Moreover, two-state proteins make the largest contribution to this correlation (see Table 1).
The proteins from α class folds and unfolds faster, while proteins from α/β class folds and unfolds slowly, in comparison with proteins from other structural classes (average logarithm of folding rates: 8.49 ± 0.64 for α, 3.42 ± 0.63 for β, −0.02 ± 0.85 for α/β, and 4.71 ± 0.53 for α + β; average logarithm of unfolding rates: 2.03 ± 1.03 for α, −4.51 ± 1.12 for β, −8.34 ± 1.64 for α/β, and −4.76 ± 0.97 for α + β; see also Supplementary Table S2).
It was previously shown that L, ln(AbsCO), Vasa/Sasa, and Rg correlate well with the logarithm of the protein folding rate [16]. Thus, it can be assumed that if these parameters correlate well with the logarithm of the folding rate, then they will also correlate well with the logarithm of the unfolding rate. In this case, four parameters were examined: L is a number of amino acid residues in protein, ln(AbsCO) is the logarithm of the absolute contact order, Vasa/Sasa is a radius of cross-section, and Rg is a radius of gyration.
The values of structural parameters considered in this paper (L, ln(AbsCO), Vasa/Sasa and Rg) are lower for two-state proteins than for multi-state proteins: 78 ± 5 vs. 130 ± 8 for L, 3.14 ± 0.05 vs. 3.59 ± 0.06 for Vasa/Sasa, 6.91 ± 0.06 vs. 7.22 ± 0.06 for ln(AbsCO), and 12.1 ± 0.3 vs. 14.2 ± 0.3 for Rg (see Table 2). The logarithms of the folding and unfolding rates are higher for two-state proteins, in comparison with multi-state proteins: 6.08 ± 0.50 vs. 2.51 ± 0.59 for the folding rate and −1.51 ± 0.79 vs. −6.09 ± 1.03 for the unfolding rate, respectively (see Figure 1B).
For 108 proteins, the correlations between the logarithm of the unfolding rate (ln(ku)) and structural parameters such as L, Vasa/Sasa, ln(AbsCO), and Rg were calculated (Table 3 and Figure 2). Vasa/Sasa and ln(AbsCO) are better correlated with the logarithm of the unfolding rate of two-state proteins. For two-state proteins, these correlations are −0.79 and −0.87, in comparison with −0.63 and −0.69 for multi-state proteins. The correlation between Rg and the logarithm of the unfolding rate is almost the same for two-state and multi-state proteins (−0.61 vs. −0.60, respectively). Moreover, L is better correlated with the logarithm of the unfolding rate of multi-state proteins. Good correlation (0.79) between the protein stability (−(lnkf − lnku)) and the logarithm of the unfolding rate has been observed.
After the separation of 108 proteins by structural classes (α, β, α/β and α + β), we observed that correlations between the logarithm of the unfolding rate (ln(ku)) and L, Vasa/Sasa, ln(AbsCO), and Rg are better for proteins from α and β classes (see Table 4). These correlations are the highest for proteins from β class (higher than 0.8). The largest contribution to these correlations made two-state proteins (see Table 4). The exception is only for correlation between ln(ku) and L for proteins from β class. This correlation is higher for multi-state proteins (−0.86), in comparison with two-state proteins (−0.84).

3.2. Unfolding Rates of Bacterial and Eukaryotic Proteins

To find the dependence of the unfolding rates on the origin of the proteins, the 42 bacterial and 53 eukaryotic proteins from our database were separately studied. Two-state bacterial proteins fold and unfold faster than two-state eukaryotic proteins. For multi-state proteins, we observed that bacterial proteins fold and unfold slower than eukaryotic proteins (see Figure 3 and Figure 4). The same result was observed when the dataset consisted of 35 bacterial and 38 eukaryotic proteins [23]. The correlation between the logarithm of the unfolding and folding rates is 0.73 for bacterial and 0.75 for eukaryotic proteins. Moreover, for bacterial proteins, this correlation is better for two-state (0.69) than for multi-state proteins (0.45). For eukaryotic proteins, this correlation is better for multi-state (0.81) than for two-state proteins (0.72). Values Vasa/Sasa, ln(AbsCO), and Rg are slightly higher for the bacterial proteins, and this gap increases for multi-state proteins: 3.74 ± 0.07 vs. 3.47 ± 0.07 for Vasa/Sasa, 7.40 ± 0.07 vs. 7.14 ± 0.10 for ln(AbsCO), and 14.8 ± 0.5 vs. 13.9 ± 0.4 for Rg, respectively (Table 5).
Then, the correlations between the logarithm of the unfolding rate and structural parameters for bacterial and eukaryotic proteins were investigated. The correlations between the logarithm of the unfolding rate and L, Vasa/Sasa, and ln(AbsCO) are almost the same for all bacterial and eukaryotic proteins: −0.67 vs. −0.68 for L, −0.72 vs. −0.69 for Vasa/Sasa, and −0.80 vs. −0.79 for ln(AbsCO), respectively (Table 6 and Figure 4). The difference is observed only for Rg, which correlates better with the logarithm of the unfolding rate of bacterial proteins (−0.71). If we consider these correlations for two-state and multi-state bacterial and eukaryotic proteins separately, we get the following picture. For two-state proteins, the correlation between the logarithm of the unfolding rate and Vasa/Sasa is almost the same for bacterial and eukaryotic proteins (−0.75 vs. −0.77). Rg and ln(AbsCO) better correlate with the logarithm of the unfolding rate of two-state bacterial proteins than with eukaryotic proteins (−0.86 vs. −0.77 for ln(AbsCO) and −0.64 vs. −0.47 for Rg, respectively). L, on the contrary, correlates better with the logarithm of the unfolding rate of two-state eukaryotic proteins (−0.61 vs. −0.75). For multi-state proteins, we observed the same picture as for two-state proteins for correlations of L and Rg with the logarithm of the unfolding rate. Both Vasa/Sasa and ln(AbsCO) correlate better with the logarithm of the unfolding rate of multi-state eukaryotic proteins than with bacterial proteins: −0.11 vs. −0.69 for Vasa/Sasa and −0.22 vs. −0.81 for ln(AbsCO), respectively.
Amino acid composition of bacterial and eukaryotic proteins was analyzed (Figure 5). The bacterial proteins with two-state kinetics are enriched in Ala, Gly, Lys, and Asn, compared with eukaryotic proteins with two-state kinetics. The eukaryotic proteins with two-state kinetics contain more His, Leu, Pro, Arg, Ser, and Trp, compared to the bacterial proteins with two-state kinetics (see Figure 5).

3.3. Unfolding Rates of Proteins from Thermophilic and Mesophilic Organisms

Since a lot of attention was paid to the search for differences between thermophilic and mesophilic proteins — in particular, folding rates — we also decided to conduct our analysis for these proteins. All bacterial proteins were divided into thermophilic and mesophilic groups. Further in the text, we call proteins from thermophilic organisms as thermophilic proteins and proteins from mesophilic organisms as mesophilic proteins. The correlation between the logarithm of the unfolding and folding rates is better for mesophilic (0.76), in comparison with thermophilic (0.73) proteins. Moreover, for mesophilic proteins, this correlation is better for two-state (0.76) than for multi-state proteins (0.12). For thermophilic proteins, it is hard to say something, because there are only two proteins with multi-state kinetics. There is a correlation between stability and the logarithm of the unfolding rate for thermophilic (0.90) and mesophilic (0.73) proteins. The logarithm of the folding rate of thermophilic and mesophilic proteins are almost the same (4.75 ± 1.20 vs. 4.58 ± 0.79) (Figure 6 and Table 7). Still, mesophilic proteins unfold faster than thermophilic proteins (−5.63 ± 2.31 vs. −3.27 ± 1.12). The same picture is observed for two-state thermophilic and mesophilic proteins. Schematic “chevron” plots for thermophilic and mesophilic proteins are presented in Figure 7.
Finally, the correlations of the logarithm of the unfolding rate and structural parameters for thermophilic and mesophilic proteins were examined (Table 8 and Figure 8). L and Rg correlate better with the logarithm of the unfolding rate of all thermophilic proteins (−0.83 vs. −0.64 for L and −0.87 vs. −0.66 for Rg), and ln(AbsCO) correlates better with the logarithm of the unfolding rate of all mesophilic proteins (−0.74 vs. −0.83). Vasa/Sasa correlates with the logarithm of the unfolding rate practically the same for all thermophilic and mesophilic proteins (−0.77 vs. −0.75). For two-state thermophilic proteins, the correlation between all considered parameters (L, Vasa/Sasa, ln(AbsCO) and Rg) is better than for two-state mesophilic proteins: −0.92 vs. −0.60 for L, −0.92 vs. −0.78 for Vasa/Sasa, −0.93 vs. −0.85 for ln(AbsCO), and −0.88 vs. −0.60 for Rg.
The thermophilic proteins are enriched with Lys, Arg, and Val, in comparison with the mesophilic proteins, and enriched in Lys, Asp, Ala, and the mesophilic proteins contain more Asp, Asn, Ser, and Thr, in comparison with the thermophilic proteins (Figure 9). The same can be said about two-state thermophilic and mesophilic proteins. These data are also consistent with those that we obtained earlier in the study of 373 pairs of structurally similar thermophilic and mesophilic proteins [27].

4. Discussion

In this paper, we tried to find parameters that are important for predicting the protein unfolding rates. For this, the database consists of 108 proteins with known unfolding and folding rates, and such structural parameters as L, ln(AbsCO), Vasa/Sasa, and Rg were considered.
The good correlation (0.79) between the logarithm of the unfolding rate and protein stability was observed for 108 proteins.
First, we divided the proteins in our database into two-states and multi-states. On average, the logarithms of the folding and unfolding rates are higher for two-state proteins, in comparison with multi-state proteins. A good correlation (not lower than 0.70) for the logarithm of the folding and unfolding rates for two- and multi-state proteins was observed. It has been shown that the logarithm of the unfolding rate of two-state proteins correlate better with Vasa/Sasa (−0.79) and ln(AbsCO) (−0.87), and the logarithm of the unfolding rate of multi-state correlates better with L (−0.71).
Then, we separately studied bacterial and eukaryotic proteins from our database. It has been shown that two-state bacterial proteins fold and unfold faster than two-state eukaryotic proteins, and multi-state eukaryotic proteins fold and unfold faster than multi-state bacterial proteins. The logarithm of the unfolding rate of two-state bacterial proteins correlates better with ln(AbsCO) (−0.86) and Rg (−0.64), and eukaryotic proteins correlate better with L (−0.75). For multi-state proteins, the following picture is observed: the logarithm of the unfolding rate of bacterial proteins correlates better with Rg (−0.58), and eukaryotic proteins correlate better with L (−0.77), Vasa/Sasa (−0.69), and ln(AbsCO) (−0.81).
Finally, we separately studied the thermophilic and mesophilic bacterial proteins from our database. There is correlation of the logarithm of the unfolding rate with protein stability for thermophilic (0.90) and mesophilic proteins (0.73). It has been shown that the logarithm of the unfolding rates of thermophilic proteins are about two orders of magnitude lower than that of mesophilic proteins, but the logarithm of the folding rates of thermophilic and mesophilic proteins are almost the same. The logarithm of the unfolding rate of two- and multi-state thermophilic proteins correlate better with all considered structural parameters (L, Vasa/Sasa, ln(AbsCO) and Rg), in comparison with the mesophilic proteins.
We have tried to find out which parameters are most important for the prediction of the unfolding rates for proteins from different structural classes (α, β, α/β and α + β); proteins of different origins (bacterial and eukaryotic); and proteins from different organisms (thermophilic and mesophilic).

5. Conclusions

Thus, it has been shown that there is a good correlation between the logarithm of the unfolding and folding rates (0.79) and between the logarithm of the unfolding rate and proteins stabilities (0.79) for 108 proteins. The correlation between the unfolding and folding rates is better for: two-state (0.78), in comparison with multi-state (0.73) proteins; α and β proteins (0.78 and 0.75), in comparison with α/β and α + β protein (0.59 and 0.60) structural classes; eukaryotic (0.75), in comparison with bacterial (0.73) proteins; and mesophilic (0.76), in comparison with thermophilic (0.73) proteins. The structural parameter ln(AbsCO) better correlates with the logarithm of the unfolding rate for: all 108 proteins; proteins from α and β structural classes; and bacterial, eukaryotic, and mesophilic proteins, in comparison with other parameters (L, Vasa/Sasa and Rg).

Supplementary Materials

The following are available online: https://www.mdpi.com/2218-273X/10/2/197/s1. Table S1. Logarithm of folding and unfolding rates and some structural parameters for 108 proteins. Table S2. Average values of different parameters for four structural classes of proteins (α, β, α/β and α + β).

Author Contributions

Conceptualization and design of the experiments, O.V.G. and A.V.G.; software, A.V.G.; formal analysis, A.V.G. and O.V.G.; investigation, A.V.G. and O.V.G.; data curation, A.V.G. and O.V.G.; visualization, A.V.G.; writing—original draft preparation, A.V.G. and O.V.G.; funding acquisition, A.V.G.; supervision, O.V.G.; and validation, A.V.G. and O.V.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, grant number 19-74-10051.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

ln(kf)—logarithm of the folding rate, ln(ku)—logarithm of the unfolding rate, ln(kmt)—logarithm of the mid-transition folding/unfolding rate, L—length of the protein, rCO—relative contact order, ln(AbsCO)—logarithm of the absolute contact order, Vasa/Sasa—radius of cross-section, and Rg—radius of gyration.

References

  1. Jackson, S.E. How do small single-domain proteins fold? Fold. Des. 1998, 3, R81–R91. [Google Scholar] [CrossRef] [Green Version]
  2. Plaxco, K.W.; Simons, K.T.; Baker, D. Contact order, transition state placement and the refolding rates of single domain proteins. J. Mol. Biol. 1998, 277, 985–994. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Gromiha, M.M.; Selvaraj, S. Comparison between long-range interactions and contact order in determining the folding rate of two-state proteins: Application of long-range order to folding rate prediction. J. Mol. Biol. 2001, 310, 27–32. [Google Scholar] [CrossRef] [PubMed]
  4. Zhou, H.; Zhou, Y. Folding rate prediction using total contact distance. Biophys. J. 2002, 82, 458–463. [Google Scholar] [CrossRef] [Green Version]
  5. Gong, H.; Isom, D.G.; Srinivasan, R.; Rose, G.D. Local secondary structure content predicts folding rates for simple, two-state proteins. J. Mol. Biol. 2003, 327, 1149–1154. [Google Scholar] [CrossRef]
  6. Galzitskaya, O.V.; Garbuzynskiy, S.O.; Ivankov, D.N.; Finkelstein, A.V. Chain length is the main determinant of the folding rate for proteins with three-state folding kinetics. Proteins: Struct. Funct. Bioinform. 2003, 51, 162–166. [Google Scholar] [CrossRef]
  7. Ivankov, D.N.; Garbuzynskiy, S.O.; Alm, E.; Plaxco, K.W.; Baker, D.; Finkelstein, A.V. Contact order revisited: Influence of protein size on the folding rate. Protein Sci. 2003, 12, 2057–2062. [Google Scholar] [CrossRef] [Green Version]
  8. Kuznetsov, I.B.; Rackovsky, S. Class-specific correlations between protein folding rate, structure-derived, and sequence-derived descriptors. Proteins: Struct. Funct. Bioinform. 2004, 54, 333–341. [Google Scholar] [CrossRef]
  9. Prabhu, N.P.; Bhuyan, A.K. Prediction of folding rates of small proteins: Empirical relations based on length, secondary structure content, residue type, and stability. Biochemistry 2006, 45, 3805–3812. [Google Scholar] [CrossRef]
  10. Galzitskaya, O.V.; Garbuzynskiy, S.O. Entropy capacity determines protein folding. Proteins: Struct. Funct. Bioinform. 2006, 63, 144–154. [Google Scholar] [CrossRef]
  11. Gromiha, M.M.; Thangakani, A.M.; Selvaraj, S. FOLD-RATE: Prediction of protein folding rates from amino acid sequence. Nucleic Acids Res. 2006, 34, W70–W74. [Google Scholar] [CrossRef] [PubMed]
  12. Capriotti, E.; Casadio, R. K-Fold: A tool for the prediction of the protein folding kinetic order and rate. Bioinformatics. 2007, 23, 385–386. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Galzitskaya, O.V.; Reifsnyder, D.C.; Bogatyreva, N.S.; Ivankov, D.N.; Garbuzynskiy, S.O. More compact protein globules exhibit slower folding rates. Proteins: Strct. Funct. Bioinform. 2008, 70, 329–332. [Google Scholar] [CrossRef] [PubMed]
  14. Ouyang, Z.; Liang, J. Predicting protein folding rates from geometric contact and amino acid sequence. Protein Sci. 2008, 17, 1256–1263. [Google Scholar] [CrossRef]
  15. Galzitskaya, O.V.; Bogatyreva, N.S.; Ivankov, D.N. Compactness determines protein folding type. J. Bioinform. Comput. Biol. 2008, 6, 667–680. [Google Scholar] [CrossRef]
  16. Ivankov, D.N.; Bogatyreva, N.S.; Lobanov, M.Y.; Galzitskaya, O.V. Coupling between properties of the protein shape and the rate of protein folding. PLoS ONE 2009, 4, e6476. [Google Scholar] [CrossRef] [Green Version]
  17. Lin, G.N.; Wang, Z.; Xu, D.; Cheng, J. SeqRate: Sequence-based protein folding type classification and rates prediction. BMC Bioinform. 2010, 11 (Suppl. 3), S1. [Google Scholar] [CrossRef] [Green Version]
  18. Faísca, P.F.N.; Travasso, R.D.M.; Parisi, A.; Rey, A. Why do protein folding rates correlate with metrics of native topology? PLoS ONE 2012, 7, e35599. [Google Scholar] [CrossRef] [Green Version]
  19. Broom, A.; Gosavi, S.; Meiering, E.M. Protein unfolding rates correlate as strongly as folding rates with native structure. Protein Sci. 2015, 24, 580–587. [Google Scholar] [CrossRef] [Green Version]
  20. Baiesi, M.; Orlandini, E.; Seno, F.; Trovato, A. Exploring the correlation between the folding rates of proteins and the entanglement of their native states. J. Phys. Math. Theor. 2017, 50, 504001. [Google Scholar] [CrossRef] [Green Version]
  21. Richards, F.M. Areas, volumes, packing and protein structure. Annu. Rev. Biophys. Bioeng. 1977, 6, 151–176. [Google Scholar] [CrossRef] [PubMed]
  22. Zehfus, M.H.; Rose, G.D. Compact units in proteins. Biochemistry 1986, 25, 5759–5765. [Google Scholar] [CrossRef] [PubMed]
  23. Galzitskaya, O.V.; Bogatyreva, N.S.; Glyakina, A.V. Bacterial proteins fold faster than eukaryotic proteins with simple folding kinetics. Biochem. (Moscow) 2011, 76, 225–235. [Google Scholar] [CrossRef] [PubMed]
  24. Garbuzynskiy, S.O.; Ivankov, D.N.; Bogatyreva, N.S.; Finkelstein, A.V. Golden triangle for folding rates of globular proteins. Proc. Natl. Acad. Sci. USA 2013, 110, 147–150. [Google Scholar] [CrossRef] [Green Version]
  25. Krieger, E.; Koraimann, G.; Vriend, G. Increasing the precision of comparative models with YASARA NOVA--a self-parameterizing force field. Proteins: Struct. Funct. Bioinform. 2002, 47, 393–402. [Google Scholar] [CrossRef]
  26. Glyakina, A.V.; Likhachev, I.V.; Balabaev, N.K.; Galzitskaya, O.V. Comparative mechanical unfolding studies of spectrin domains R15, R16 and R17. J. Struct. Biol. 2018, 201, 162–170. [Google Scholar] [CrossRef]
  27. Glyakina, A.V.; Garbuzynskiy, S.O.; Lobanov, M.Y.; Galzitskaya, O.V. Different packing of external residues can explain differences in the thermostability of proteins from thermophilic and mesophilic organisms. Bioinformatics 2007, 23, 2231–2238. [Google Scholar] [CrossRef] [Green Version]

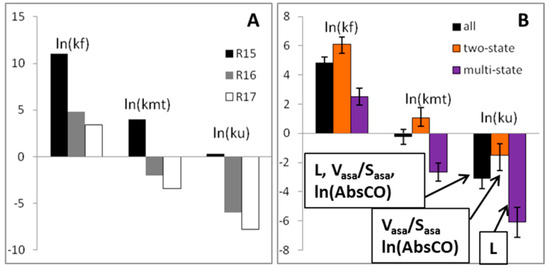

Figure 1. (A) Logarithm of the unfolding and folding rates for the three domains of chicken brain alpha-spectrin proteins. (B) The average values of the logarithm of the unfolding and folding rates for 108 proteins. Structural parameters that better correlate with the logarithm of the unfolding rates are outlined in a rectangle.
Figure 1. (A) Logarithm of the unfolding and folding rates for the three domains of chicken brain alpha-spectrin proteins. (B) The average values of the logarithm of the unfolding and folding rates for 108 proteins. Structural parameters that better correlate with the logarithm of the unfolding rates are outlined in a rectangle.
Biomolecules 10 00197 g001

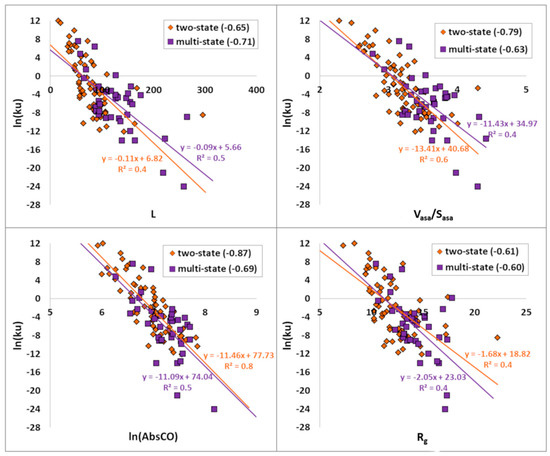

Figure 2. Correlations of the logarithm of the unfolding rates of 108 proteins with their structural parameters: L—length of the protein, Vasa/Sasa—radius of the cross-section, ln(AbsCO)— logarithm of the absolute contact order, and Rg (radius of gyration). There is a line approximation of points and its equation: orange line corresponds to two-state proteins and purple line to multi-state proteins. R2 is a linear approximation reliability.
Figure 2. Correlations of the logarithm of the unfolding rates of 108 proteins with their structural parameters: L—length of the protein, Vasa/Sasa—radius of the cross-section, ln(AbsCO)— logarithm of the absolute contact order, and Rg (radius of gyration). There is a line approximation of points and its equation: orange line corresponds to two-state proteins and purple line to multi-state proteins. R2 is a linear approximation reliability.
Biomolecules 10 00197 g002

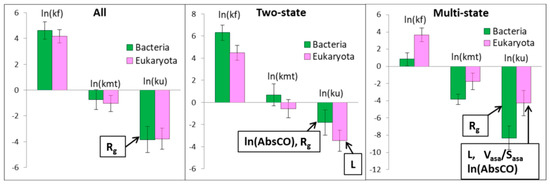

Figure 3. The average values of the logarithm of the unfolding and folding rates for bacterial and eukaryotic two- and multi-state proteins. Structural parameters that better correlate with the logarithm of the unfolding rate are outlined in a rectangle.
Figure 3. The average values of the logarithm of the unfolding and folding rates for bacterial and eukaryotic two- and multi-state proteins. Structural parameters that better correlate with the logarithm of the unfolding rate are outlined in a rectangle.
Biomolecules 10 00197 g003

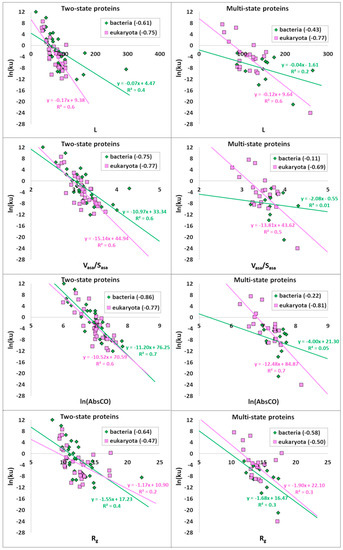

Figure 4. Correlations of the logarithm of the unfolding rate of the two- and multi-state bacterial and eukaryotic proteins with structural parameters: L, Vasa/Sasa, ln(AbsCO), and Rg. There is a line approximation of points and its equation: green line corresponds to bacterial proteins and pink line to eukaryotic proteins. R2 is a linear approximation reliability.
Figure 4. Correlations of the logarithm of the unfolding rate of the two- and multi-state bacterial and eukaryotic proteins with structural parameters: L, Vasa/Sasa, ln(AbsCO), and Rg. There is a line approximation of points and its equation: green line corresponds to bacterial proteins and pink line to eukaryotic proteins. R2 is a linear approximation reliability.
Biomolecules 10 00197 g004
Figure 5. Amino acid composition of the bacterial and eukaryotic proteins with two- and multi-state kinetics.
Figure 5. Amino acid composition of the bacterial and eukaryotic proteins with two- and multi-state kinetics.
Biomolecules 10 00197 g005

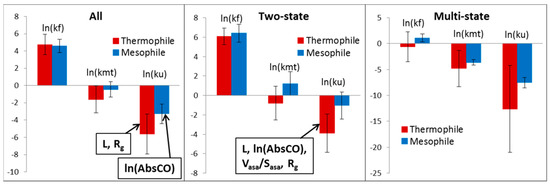

Figure 6. The average values of the logarithm of the unfolding and folding rates for thermophilic and mesophilic two- and multi-state proteins. Structural parameters that better correlate with the logarithm of the unfolding rate are outlined in a rectangle.
Figure 6. The average values of the logarithm of the unfolding and folding rates for thermophilic and mesophilic two- and multi-state proteins. Structural parameters that better correlate with the logarithm of the unfolding rate are outlined in a rectangle.
Biomolecules 10 00197 g006

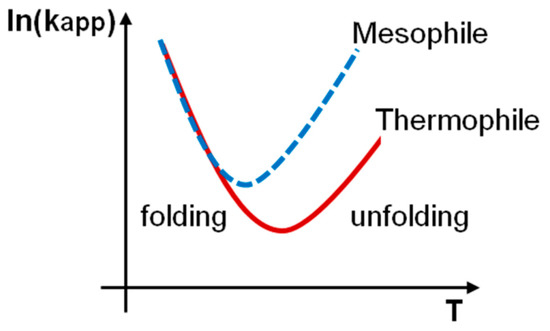

Figure 7. Schematic “chevron” plots of the constant of observed rate (kapp = kf + ku) versus temperature for thermophilic and mesophilic proteins.
Figure 7. Schematic “chevron” plots of the constant of observed rate (kapp = kf + ku) versus temperature for thermophilic and mesophilic proteins.
Biomolecules 10 00197 g007

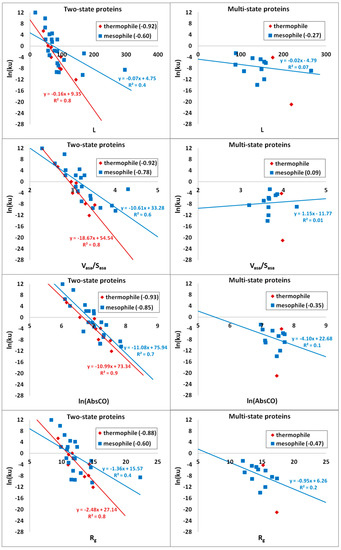

Figure 8. Correlations of the logarithm of the unfolding rate of the two- and multi-state thermophilic and mesophilic proteins with structural parameters: L (length of the protein), Vasa/Sasa, ln(AbsCO), and Rg. There is a line approximation of points and its equation: red line corresponds to thermophilic proteins and blue line to mesophilic proteins. R2 is a linear approximation reliability.
Figure 8. Correlations of the logarithm of the unfolding rate of the two- and multi-state thermophilic and mesophilic proteins with structural parameters: L (length of the protein), Vasa/Sasa, ln(AbsCO), and Rg. There is a line approximation of points and its equation: red line corresponds to thermophilic proteins and blue line to mesophilic proteins. R2 is a linear approximation reliability.
Biomolecules 10 00197 g008

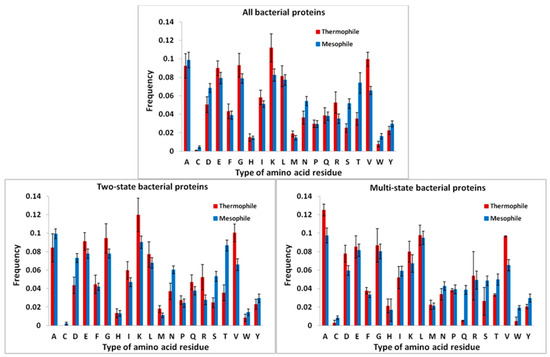

Figure 9. Amino acid composition of the bacterial thermophilic and mesophilic proteins with two- and multi-state kinetics.
Figure 9. Amino acid composition of the bacterial thermophilic and mesophilic proteins with two- and multi-state kinetics.
Biomolecules 10 00197 g009
Table 1. Correlations between logarithm of unfolding (ln(ku) and folding (ln(kf) rates for four structural classes of proteins α, β, α/β and α + β.
Table 1. Correlations between logarithm of unfolding (ln(ku) and folding (ln(kf) rates for four structural classes of proteins α, β, α/β and α + β.
Correlations with ln(ku)All (Two + Multi)Two-StateMulti-State
All0.79* (108) **0.78 (70) **0.73 (38) **
α0.78 (31)0.82 (23)0.79 (8)
β0.75 (37)0.74 (25)0.61 (12)
α/β0.59 (12)-0.55 (11)
α + β0.60 (28)0.63 (21)0.13 (7)
* Correlations above 0.75 are shown in bold. ** The number of proteins is indicated in parentheses.
Table 2. Average values of structural parameters for 108 proteins. Vasa/Sasa = radius of cross-section. Rg = radius of gyration. ln(AbsCO) = logarithm of the absolute contact order. L = length of the protein.
Table 2. Average values of structural parameters for 108 proteins. Vasa/Sasa = radius of cross-section. Rg = radius of gyration. ln(AbsCO) = logarithm of the absolute contact order. L = length of the protein.
Average ValueAll (Two + Multi)Two-StateMulti-State
Number of proteins1087038
<L>96 ± 578 ± 5130 ± 8
<Vasa/Sasa>3.30 ± 0.043.14 ± 0.053.59 ± 0.06
<ln(AbsCO)>7.02 ± 0.056.91 ± 0.067.22 ± 0.06
<Rg>12.8 ± 0.212.1 ± 0.314.2 ± 0.3
Table 3. Correlations logarithm of the unfolding rate (ln(ku)) with protein stability (−(lnkf − lnku)) and structural parameters (L, Vasa/Sasa, ln(AbsCO) and Rg) for 108 proteins.
Table 3. Correlations logarithm of the unfolding rate (ln(ku)) with protein stability (−(lnkf − lnku)) and structural parameters (L, Vasa/Sasa, ln(AbsCO) and Rg) for 108 proteins.
Correlations with ln(ku)All (Two + Multi)Two-StateMulti-State
Number of proteins1087038
Stability (−(lnkf − lnku))0.790.790.83
L−0.71−0.65−0.71
Vasa/Sasa−0.77−0.79−0.63
ln(AbsCO)−0.84−0.87−0.69
Rg−0.65−0.61−0.60
* Correlations above 0.75 are shown in bold.
Table 4. Correlations between the logarithm of the unfolding rate (ln(ku) and structural parameters (L, Vasa/Sasa, ln(AbsCO) and Rg) for four structural classes of proteins (α, β, α/β and α + β).
Table 4. Correlations between the logarithm of the unfolding rate (ln(ku) and structural parameters (L, Vasa/Sasa, ln(AbsCO) and Rg) for four structural classes of proteins (α, β, α/β and α + β).
Correlations with ln(ku)All (Two + Multi)Two-StateMulti-State
αβα/βα + βαβα/βα + βαβα/βα + β
Number of proteins313712282325121812117
L−0.71−0.84−0.50−0.60−0.72−0.84−0.77−0.61−0.86−0.53−0.20
Vasa/Sasa−0.78−0.82−0.11−0.78−0.84−0.83−0.83−0.60−0.66−0.28−0.54
ln(AbsCO)−0.80−0.89−0.30−0.73−0.85−0.90−0.83−0.48−0.77−0.29−0.34
Rg−0.73−0.83−0.69−0.50−0.79−0.84−0.57−0.41−0.74−0.69−0.11
* Correlations above 0.75 are shown in bold.
Table 5. Average values of structural parameters for two-state and multi-state bacterial and eukaryotic proteins.
Table 5. Average values of structural parameters for two-state and multi-state bacterial and eukaryotic proteins.
Average ValueAll (Two + Multi)Two-StateMulti-State
BacteriaEukaryotaBacteriaEukaryotaBacteriaEukaryota
Number of proteins425329321321
<L>107 ± 992 ± 587 ± 1077 ± 4152 ± 14115 ± 10
<Vasa/Sasa>3.37 ± 0.073.30 ± 0.043.21 ± 0.083.20 ± 0.053.74 ± 0.073.47 ± 0.07
<ln(AbsCO)>7.10 ± 0.077.08 ± 0.066.97 ± 0.097.04 ± 0.077.40 ± 0.077.14 ± 0.10
<Rg>13.1 ± 0.412.9 ± 0.312.3 ± 0.512.3 ± 0.414.8 ± 0.513.9 ± 0.4
Table 6. Correlations between the logarithm of the unfolding rate (ln(ku)) and structural parameters (L, Vasa/Sasa, ln(AbsCO) and Rg) for two-state and multi-state bacterial and eukaryotic proteins.
Table 6. Correlations between the logarithm of the unfolding rate (ln(ku)) and structural parameters (L, Vasa/Sasa, ln(AbsCO) and Rg) for two-state and multi-state bacterial and eukaryotic proteins.
Correlations with ln(ku)All (Two + Multi)Two-StateMulti-State
BacteriaEukaryotaBacteriaEukaryotaBacteriaEukaryota
Number of proteins425329321321
L−0.67−0.68−0.61−0.75−0.43−0.77
Vasa/Sasa−0.72−0.69−0.75−0.77−0.11−0.69
ln(AbsCO)−0.80−0.79−0.86−0.77−0.22−0.81
Rg−0.71−0.46−0.64−0.47−0.58−0.50
* Correlations above 0.75 are shown in bold.
Table 7. Average values of structural parameters for two-state and multi-state thermophilic and mesophilic proteins.
Table 7. Average values of structural parameters for two-state and multi-state thermophilic and mesophilic proteins.
Average ValueAll (Two + Multi)Two-StateMulti-State
ThermophileMesophileThermophileMesophileThermophileMesophile
Number of proteins1032821211
<L>105 ± 18108 ± 1182 ± 1189 ± 13197 ± 22144 ± 14
<Vasa/Sasa>3.30 ± 0.143.39 ± 0.083.13 ± 0.103.23 ± 0.103.97 ± 0.013.70 ± 0.08
<ln(AbsCO)>7.13 ± 0.157.09 ± 0.087.03 ± 0.176.95 ± 0.117.54 ± 0.077.38 ± 0.09
<Rg>13.3 ± 0.813.0 ± 0.512.5 ± 0.712.2 ± 0.616.2 ± 1.114.5 ± 0.5
Table 8. Correlations between the logarithm of the unfolding rate (ln(ku)) and structural parameters (L, Vasa/Sasa, ln(AbsCO) and Rg) for two-state and multi-state thermophilic and mesophilic proteins.
Table 8. Correlations between the logarithm of the unfolding rate (ln(ku)) and structural parameters (L, Vasa/Sasa, ln(AbsCO) and Rg) for two-state and multi-state thermophilic and mesophilic proteins.
Correlations with ln(ku)All (Two + Multi)Two-StateMulti-State
ThermophileMesophileThermophileMesophileThermophileMesophile
Number of proteins1032821211
L−0.83−0.64−0.92−0.60−0.27
Vasa/Sasa−0.77−0.75−0.92−0.78 0.09
ln(AbsCO)−0.74−0.83−0.93−0.85−0.35
Rg−0.87−0.66−0.88−0.60−0.47
* Correlations above 0.75 are shown in bold.

Share and Cite

MDPI and ACS Style

Glyakina, A.V.; Galzitskaya, O.V. How Quickly Do Proteins Fold and Unfold, and What Structural Parameters Correlate with These Values? Biomolecules 2020, 10, 197. https://doi.org/10.3390/biom10020197

AMA Style

Glyakina AV, Galzitskaya OV. How Quickly Do Proteins Fold and Unfold, and What Structural Parameters Correlate with These Values? Biomolecules. 2020; 10(2):197. https://doi.org/10.3390/biom10020197

Chicago/Turabian Style

Glyakina, Anna V., and Oxana V. Galzitskaya. 2020. "How Quickly Do Proteins Fold and Unfold, and What Structural Parameters Correlate with These Values?" Biomolecules 10, no. 2: 197. https://doi.org/10.3390/biom10020197

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
