A Novel Sweetpotato WRKY Transcription Factor, IbWRKY2, Positively Regulates Drought and Salt Tolerance in Transgenic Arabidopsis

1
Key Laboratory of Sweetpotato Biology and Biotechnology, Ministry of Agriculture and Rural Affairs/Beijing Key Laboratory of Crop Genetic Improvement/Laboratory of Crop Heterosis and Utilization, Ministry of Education, College of Agronomy & Biotechnology, China Agricultural University, Beijing 100193, China
2
College of Agronomy, Qingdao Agricultural University, Qingdao 266109, China
*
Author to whom correspondence should be addressed.
Biomolecules 2020, 10(4), 506; https://doi.org/10.3390/biom10040506
Submission received: 2 March 2020 / Revised: 22 March 2020 / Accepted: 25 March 2020 / Published: 27 March 2020
(This article belongs to the Section Molecular Biology)

Abstract

:
WRKYs play important roles in plant growth, defense regulation, and stress response. However, the mechanisms through which WRKYs are involved in drought and salt tolerance have been rarely characterized in sweetpotato [Ipomoea batatas (L.) Lam.]. In this study, we cloned a WRKY gene, IbWRKY2, from sweetpotato and its expression was induced with PEG6000, NaCl, and abscisic acid (ABA). The IbWRKY2 was localized in the nucleus. The full-length protein exhibited transactivation activity, and its active domain was located in the N-terminal region. IbWRKY2-overexpressing Arabidopsis showed enhanced drought and salt tolerance. After drought and salt treatments, the contents of ABA and proline as well as the activity of superoxide dismutase (SOD) were higher in transgenic plants, while the malondialdehyde (MDA) and H2O2 contents were lower. In addition, several genes related to the ABA signaling pathway, proline biosynthesis, and the reactive oxygen species (ROS)-scavenging system, were significantly up-regulated in transgenic lines. These results demonstrate that IbWRKY2 confers drought and salt tolerance in Arabidopsis. Furthermore, IbWRKY2 was able to interact with IbVQ4, and the expression of IbVQ4 was induced by drought and salt treatments. These results provide clues regarding the mechanism by which IbWRKY2 contributes to the regulation of abiotic stress tolerance.

1. Introduction

Ever-changing environmental stresses, such as drought, high salinity, and extreme temperature, have become increasingly major constraints for crop production [1,2]. Drought and soil salinity are two major devastating problems in agriculture and are becoming particularly widespread; therefore, the need to raise the levels of drought and salt tolerance in crops has become crucial [3,4,5]. To respond and adapt to these environmental stresses, plants activate a series of elaborate and sensitive defense mechanisms to promote their survival [5,6]. The mechanisms of stress tolerance are complex because they can be affected by not only the severity and duration of the stress event but also the plant developmental stage and morphology [7,8]. In plants, a change in the expression of genes, especially transcription factors (TFs), is generally the earliest response to stress conditions, and TFs often act as central regulators and molecular switches in stress signal transduction and adaptation networks [9,10,11]. A single TF can control the expression of several target genes by binding to a specific element present in their promoters [5]. To date, a large number of TF families, such as NAC, MYB, bHLH, and WRKY, have been demonstrated to participate in the regulation of stress responses and tolerance in plants [12].
Among the different TFs, the WRKY family, originally isolated from sweetpotato, is one of the largest families and has received increasing attention for its roles in plant defense [13,14]. The members of the WRKY TF family possess at least one conserved 60 aa WRKY domain containing a highly conserved WRKYGOK amino acid sequence motif [13]. According to the number of WRKY domains and the type of zinc finger motif, the WRKY family can be divided into three distinct groups [15]. Members containing two WRKY domains belong to group I, whereas only one WRKY domain exists in group II and III members, which are distinguished by their zinc finger motif [15]. The functions of several WRKY TFs have been demonstrated in many kinds of plants using genetic and molecular approaches. WRKY members can form complex regulatory networks that are involved in plant responses to various stresses as well as many developmental processes [16,17]. In Arabidopsis, several WRKY TFs, such as AtWRKY8, AtWRKY28, AtWRKY54, and AtWRKY70, have been shown to mediate abiotic stress tolerance [18,19,20]. OsWRKY11 and OsWRKY30 overexpression lines showed dramatically increased drought tolerance in rice [21,22]. Overexpression of TaWRKY2 and TaWRKY19 displayed enhanced salt and drought tolerance in Arabidopsis [23]. Recent studies have shown that several WRKY proteins physically interact with VQ proteins to mediate various physiological processes [24]. VQ proteins are named for their conserved VQ motif, and several members have been demonstrated to play crucial roles in plant development and stress responses [24,25,26,27].
Sweetpotato, Ipomoea batatas (L.) Lam., is a globally important food crop because of its numerous advantages, such as strong adaptability, abundant nutrient content, stability, high yield, low input requirements, and diverse uses [28]. Its productivity is often limited by drought and salinity stresses, but the mechanism of resistance to these stresses remains unclear. To date, few of the WRKY TF family members have been functionally verified in sweetpotato. In this study, a novel WRKY transcription factor gene named IbWRKY2, belonging to the group I WRKY TF family, was isolated from the drought-tolerant sweetpotato line ‘Xushu55-2’. Overexpression of this gene enhanced drought and salt tolerance in transgenic Arabidopsis. IbWRKY2 was able to interact with both IbVQ4 and AtVQ4. The expression level of IbVQ4 was induced by drought and salt treatments in sweetpotato. These results suggest that IbWRKY2, through its interaction with VQ4, may act as a positive regulator of abiotic stress tolerance, which provides key clues that further the current understanding of its roles in sweetpotato.

2. Materials and Methods

2.1. Plant Materials

The drought-tolerant sweetpotato line ‘Xushu55-2’ was employed to isolate the IbWRKY2 gene. The expression profile of IbWRKY2 was detected in ‘Xushu55-2’ treated with multiple abiotic stresses in this study. The plants were cultured on Murashige and Skoog (MS) medium for 4 weeks at 27 ± 1 °C under 13 h of daylight at 54 µmol m−2s−1. Arabidopsis thaliana (Columbia-0, WT) grown in a greenhouse (22 °C, 16/8 h day/night cycle) was used to characterize the function of IbWRKY2.

2.2. Cloning and Sequence Analysis of IbWRKY2 and Its Promoter

The total RNA of ‘Xushu55-2’ was extracted using the RNAprep Pure Plant Kit (Tiangen Biotech, Beijing, China), and first-strand cDNA synthesis was performed using PrimeScript™ II 1st Strand cDNA Synthesis Kit (TaKaRa, Beijing, China). According to the expressed sequence tag (EST) obtained from the drought transcriptome data of ‘Xushu55-2’, the rapid amplification of cDNA ends (RACE) method was used to obtain the full-length cDNA of IbWRKY2 with the specific primers IbWRKY2-5’RACE-OUTER/INNER (Table S1) [29]. The sequence of IbWRKY2 cDNA was analyzed by the NCBI (https://blast.ncbi.nlm.nih.gov/Blast.cgi). The open reading frame (ORF) of IbWRKY2 was predicted using ORF Finder (https://www.ncbi.nlm.nih.gov/orffinder/). Multiple protein sequence alignments of WRKY2 were conducted with the DNAMAN software (Lynnon Biosoft, Quebec, Canada). The molecular weight and theoretical isoelectric point (pI) of IbWRKY2 were determined using ExPASy (http://web.expasy.org/compute_pi/). A phylogenic tree was constructed using MEGA 10.0 software with the neighbor-joining method [30].
Genomic DNA extracted from ‘Xushu55-2’, grown in vitro, was used to amplify the genomic sequence and the promoter of IbWRKY2 [31]. The promoter region was cloned with Universal GenomeWalker 2.0 Kit (TaKaRa, Dalian, China) and the specific primers IbWRKY2-PROMOTER-1/2/3 (Table S1). The cis-acting regulatory elements in the promoter region of IbWRKY2 were screened with PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/).

2.3. Expression Analysis of IbWRKY2 in Sweetpotato

The transcript levels of IbWRKY2 in the leaves, stems, hair roots, fibrous roots, and storage roots were measured with untreated Xushu55-2 plants. To further determine the transcript levels of IbWRKY2 under different kinds of stresses, the roots of 4-week-old plants of Xushu55-2, grown in vitro, were soaked in Hoagland solution with 30% PEG6000, 200 mM NaCl, or 100 μM ABA and then sampled 0, 1, 3, 6, 12, and 24 h after treatment. The gene transcript levels were determined using quantitative real-time PCR (qPCR) with the primers IbWRKY2-qPCR-F/R displayed in Table S1, and Ibactin (AY905538) was employed as the internal control, as described by Liu et al. in 2014 (Table S1) [32]. The comparative CT method was used to calculate the relative expression level [33]. Three technical replications and three biological replications for each sample were used to analyze the expression of IbWRKY2.

2.4. Subcellular Localization of IbWRKY2

The coding region of IbWRKY2 was cloned and inserted into the PacI/AscI-digested pMDC83 expression vector containing the green fluorescent protein (GFP) gene (using the primers IbWRKY2-Loc-F/R) under the control of the CaMV35S promoter and nopaline synthase (NOS) terminator to generate the fusion protein IbWRKY2-GFP (Table S1). Both the fusion vector and the control vector were transformed into living onion epidermal cells by particle bombardment with a GeneGun (Biorad HeliosTM, Hercules, California, USA) according to the instruction manual [31]. The onion cells were monitored using confocal microscopy at 488 nm 24–36 h after infiltration (Olympus, Tokyo, Japan).

2.5. Transactivation Assay of IbWRKY2 in Yeast

The full-length IbWRKY2 coding sequence (CDS) was amplified by PCR using a pair of gene-specific primers (IbWRKY2-T7-F/R) and inserted into the NdeI/SalI-digested pGBKT7 vector to produce the fusion construct pGBKT7-IbWRKY2 (Table S1). The empty pGBKT7 vector was used as a negative control, and pGAL4 was used as a positive control. The fusion plasmid, negative control, and positive control were separately transformed into the yeast strain AH109. The transformed yeast was streaked on SD/−Trp and SD/−Trp/−His/X-α-Gal plates to observe yeast growth at 30 °C for 3–5 days.

2.6. Vector Construction and Arabidopsis Transformation

The full-length CDS of IbWRKY2 was amplified by PCR using a pair of gene-specific primers (IbWRKY2-OE-F/R) and ligated to the SacI/SalI-digested pCAMBIA1300 vector (Table S1). The recombinant vectors were transferred into Arabidopsis through the Agrobacterium tumefaciens strain GV3101 using the floral dipping method [34]. The first generation (T0) seeds of transgenic Arabidopsis were germinated on 1/2 MS medium with 50 mg L−1 hygromycin for screening. Transgenic Arabidopsis plantlets were identified by PCR amplification and expression was confirmed using qPCR. The third-generation T3 homozygous lines were collected for all further experiments.

2.7. Drought and Salt Stress Treatment of Transgenic Arabidopsis

IbWRKY2-overexpressing Arabidopsis and WT seedlings were cultivated on 1/2 MS medium with 300 mM mannitol or 125 mM NaCl at 22 °C under 16 h of daylight. After 15 days, the primary root length and fresh weight were investigated. Meanwhile, transgenic Arabidopsis and WT seedlings were sown in pots and regularly watered for 2 weeks. The plants were subsequently irrigated with 100 mL of 300 mM NaCl solution for 2 weeks or subjected to withholding of watering for 2 weeks followed by 2 days of recommenced watering.

2.8. Measurement of Phytohormones and Stress-Related Components Contents

The ABA content was quantified by indirect enzyme-linked immunosorbent assay (ELISA) as described by Yang et al. [35]. The contents of proline and malondialdehyde (MDA) and the activity of superoxide dismutase (SOD) were measured using specific assay kits (Comin Biotechnology Co., Ltd., Suzhou, China). The H2O2 content in leaves was determined by 3,3′-diaminobenzidine (DAB) staining [36].

2.9. Expression Analysis of Stress-Tolerance-Related Genes in Arabidopsis

IbWRKY2-overexpressing Arabidopsis and WT plantlets grown in pots with or without abiotic stress were collected to analyze the expression of stress-tolerance-related genes. Genes involved in ABA signaling pathways, proline biosynthesis, and the ROS-scavenging system were analyzed using qPCR protocols, as described above. Primers specific for Atactin were used as an internal control; the details of all used primers are listed in Table S1. Three technical replicates corresponding to three biological replicates for each sample were used to assay gene expression.

2.10. Yeast Two-Hybrid Assay

The full-length and truncated CDSs of IbWRKY2 were amplified by PCR using pairs of gene-specific primers (IbWRKY2-T7-F/F1/R/R1) and were ligated to the NdeI/SalI-digested pGBKT7 bait vector to produce a fusion construct (Table S1). The longest sequence without self-transcriptional activation activity in the bait plasmid and prey plasmid library was co-transformed into the yeast strain AH109. The full-length CDSs of IbVQ4 and AtVQ4 were amplified by PCR using pairs of gene-specific primers (IbVQ4-T7-F/R and AtVQ4-T7-F/R) (Table S1). The bait and prey plasmids were co-transformed into the yeast strain AH109. The transformed yeast was examined on SD/−Trp/−Leu and SD/−Trp/−His/−Leu/−Ade/X-α-Gal plates to test for protein–protein interactions at 30 °C for 3–5 days.

2.11. Bimolecular Fluorescence Complementation (BiFC) Assay

Bimolecular fluorescence complementation (BiFC) assays were performed as described by Hu and Yu in 2014 [37]. The full-length IbWRKY2 CDS was inserted into pSPYNE to form an in-frame fusion with the N-terminal region of YFP; meanwhile, the IbVQ4 and AtVQ4 CDSs were introduced into pSPYCE to generate an in-frame fusion with the C-terminal region of YFP. The plasmids were introduced into the A. tumefaciens strain AH105 and then injected into the leaves of Nicotiana benthamiana. The sequences of the specific primers IbWRKY2-nYFP-F/R, IbVQ4-cYFP-F/R, and AtVQ4-cYFP-F/R for vector construction are shown in Table S1. Infected leaves were analyzed 24–48 h after injection and monitored using confocal microscopy (Olympus, Tokyo, Japan). The two empty vectors were used as negative controls.

2.12. Expression Analysis of IbVQ4 in Sweetpotato

The transcript levels of IbVQ4 were analyzed using qPCR according to the method described above; the specific primers IbVQ4-qPCR-F/R are shown in Table S1. Four-week-old plants of Xushu55-2, grown in vitro, were treated in Hoagland solution with either 30% PEG6000 or 200 mM NaCl and were sampled 0, 1, 3, 6, 12, and 24 h after treatment. Three technical replications and three biological replications for each sample were used to analyze the IbVQ4 expression.

2.13. Statistical Analysis

All experiments were repeated three times, and the data are presented as the mean value ± SE. Statistical analysis was performed in Microsoft Excel 2010 with Student’s t-test (two-tailed analysis) at p < 0.05 (*) and p < 0.01 (**).

3. Results

3.1. Cloning and Sequence Analysis of IbWRKY2 and Its Promoter

RNA-seq analysis in our previous study revealed an EST that was highly induced by PEG6000 stress; thus, this EST was selected for further characterization [29]. To obtain the full length of the differentially expressed EST, RACE-PCR was performed using the drought-tolerant sweetpotato line Xushu55-2. The ORF of this WRKY gene is 2133 bp and encodes a predicted protein of 710 aa with a molecular weight of 76.38 kDa and a predicted pI of 5.84. A phylogenetic tree was constructed with the amino acid sequences of this WRKY protein and 71 WRKY proteins of Arabidopsis. The result showed that this protein shared the highest identity with AtWRKY2 and AtWRKY34, and the amino acid sequence of this protein shared 51.98% and 43.00% similarity to AtWRKY2 and AtWRKY34, respectively; for this reason, it was designated as IbWRKY2 (Figure 1a). Multiple protein sequence alignments among IbWRKY2 and homeotic WRKYs of other plants showed that IbWRKY2 possessed two highly conserved WRKY domains, both composed of 58 aa, belonging to WRKY TF family group I (Figure 1b). A 2381 bp fragment corresponding to the promoter of IbWRKY2 was isolated from Xushu55-2 genomic DNA using genome walking and was found to contain numerous types of cis-acting regulatory elements. Among these, several kinds of cis-acting regulatory elements involved in different biotic and abiotic stresses were identified, such as HSE, MBS, ERE, and GARE (Figure 2, Table S2). The presence of these stress-related cis-acting elements in the promoter regions indicates that the expression level of IbWRKY2 might be influenced by different kinds of stresses (Figure 2, Table S2).

3.2. The Expression of IbWRKY2 in Sweetpotato

To investigate the potential working site of IbWRKY2 in sweetpotato, we analyzed its expression level in different tissues of Xushu55-2, including the leaf, stem, hair root, fibrous root, and storage root. IbWRKY2 showed a significantly higher expression level in leaves than in other tissues (Figure S1), indicating its critical function in sweetpotato leaves. To further analyze its potential function in response to abiotic stresses, the expression of IbWRKY2 was checked using the whole plants of 4-week-old Xushu55-2, grown in vitro, that were treated with H2O, PEG6000, NaCl, or ABA for 0, 1, 3, 6, 12, and 24 h. After PEG6000 treatment, the expression level of IbWRKY2 was strongly induced at 1 and 6 h (Figure 3). Moreover, based on available RNA-seq data, we found that the expression of IbWRKY2 was induced by 25% PEG in sweetpotato (SRA data: SRX4522044, SRX4522043), similar to our result. Under NaCl stress, the expression of this gene was up-regulated at only 12 h (Figure 3). After ABA treatment, the expression of IbWRKY2 was induced at 12 and 24 h (Figure 3). These results indicate that IbWRKY2 might be involved in drought and salt signal response pathways.

3.3. IbWRKY2 is a Nuclear Protein with Transactivation Activity in Yeast

To study the subcellular localization of IbWRKY2, the CDS of IbWRKY2 was fused with GFP and transiently expressed in onion epidermal cells using the gene gun method. Confocal microscopic analysis showed that the IbWRKY2-GFP fusion protein specifically localized to nuclei, and the GFP fluorescence of the control was distributed throughout the whole cell (Figure 4). This result indicates that IbWRKY2 is a nuclear protein. To investigate the transactivation activity of IbWRKY2, the pGBKT7-IbWRKY2 fusion construct, the pGBKT7 empty vector (negative control) and pGAL4 (positive control) were also separately transformed into the yeast strain AH109. Yeast cells containing any of the three vectors grew well on SD/−Trp medium; meanwhile, yeast cells containing pGBKT7-IbWRKY2 and the positive control grew well on SD/−Trp/−His/X-α-Gal medium exhibiting α-galactosidase activity, while the ones containing the negative control did not grow (Figure 5). The full-length and truncated IbWRKY2 were tested for self-transcriptional activation activity (Figure 6a). The full-length IbWRKY2 and the truncated protein without the C-terminal region possessed self-transcriptional activation activity. After deleting 286 aa from the N-terminal region of this protein, the truncated IbWRKY2 lost its self-transcriptional activation activity (Figure 6b). These results indicate that IbWRKY2 acts as a transcription activator and that the self-transcriptional activation domain is located in the N-terminal region.

3.4. Overexpression of IbWRKY2 Enhanced Drought and Salt Tolerance in Transgenic Arabidopsis

To further evaluate the function of IbWRKY2, it was transformed into Arabidopsis to generate overexpression lines. A total of 9 transgenic lines were obtained and confirmed by PCR. We named these overexpression lines OE1–OE9 (Figure S2). The homozygous T2 plants that showed no segregation on the selective medium were selected to produce T3 homozygous lines for further experiments. Three positive transgenic lines OE1, OE2, and OE4 were found to show much higher expression levels of IbWRKY2 than wild type (WT) and other transgenic lines detected by qPCR, so these three lines were selected for further research (Figure S3).
Five-day-old transgenic plants and WT seedlings were used for stress treatment tests. The plants were grown on 1/2 MS medium with 300 mM mannitol or 125 mM NaCl for 15 days. The primary root length and fresh weight were measured as indicators of the stress tolerance of plants. No significant difference in growth was observed among the three overexpression lines and the WT when they were cultured on normal 1/2 MS medium (Figure 7a–c). After stress treatments, the primary root length and fresh weight decreased in both the WT and transgenic lines compared with the normal condition, but the degrees of reduction were different (Figure 7a). The primary root length of the overexpression lines was significantly longer than that of the WT, and the fresh weight of transgenic lines was also considerably greater than that of the WT under both mannitol and salt stress treatments (Figure 7b,c). Together, these results indicate that the transgenic lines had significantly better morphological growth (Figure 7a–c) corresponding to better stress tolerance.
To further verify whether IbWRKY2 contributes to the tolerance of drought and salt stresses, we performed pot experiments using the same transgenic lines and WT plants. After growing in pots for 2 weeks, the transgenic lines and WT were treated with 300 mM NaCl or drought stress. The transgenic lines and WT grew well and showed no significant difference under normal conditions (Figure 8a–f). Meanwhile, the WT plants exhibited increased sensitivity to abiotic stresses compared with the transgenic lines, as shown in Figure 8a. The content of ABA was considerably higher in the transgenic lines than in the WT (Figure 8b). The transgenic lines contained significantly lower MDA, higher proline, and higher SOD activity than the WT (Figure 8c–e). DAB staining indicated that the leaves of the transgenic plants accumulated less H2O2 than those of WT (Figure 8f). All these results indicate that overexpression of IbWRKY2 enhances drought and salt tolerance in Arabidopsis.

3.5. Overexpression of IbWRKY2 Activates the Expression of the Stress-Responsive Genes

To investigate the reason that IbWRKY2 affected drought and salt resistance in transgenic plants, we analyzed the expression of several genes involved in different pathways. Under normal conditions, most of the gene expression levels showed no obvious differences between the WT and transgenic plants, except for AtDHAR in OE2 (Figure 9). After drought or salt stress, the expression levels of the ABA signal transduction pathway–related genes zeaxanthin epoxidase (ZEP), 9-cis-epoxycarotenoid dioxygenase (NCED), and ABA-aldehydeoxidase (AAO) and the proline-biosynthetic-pathway gene pyrroline-5-carboxylate reductase (P5CR) significantly increased in transgenic lines compared with the WT (Figure 9). The ROS-scavenging genes that encode catalase (CAT) and ascorbate peroxidase (APX) also showed obvious up-regulation in transgenic lines after drought or salt treatment (Figure 9). Meanwhile, the ROS-scavenging genes peroxidase (POD), glutathione peroxidase (GPX), and dehydroascorbate reductase (DHAR) were up-regulated in only some transgenic lines after salt or drought treatment (Figure 9). These results indicate that overexpression of IbWRKY2 improves stress tolerance by activating the expression of genes involved in the ABA signal transduction pathway, proline biosynthetic pathway, and the ROS-scavenging system under drought and salt treatments.

3.6. IbWRKY2 Interacts with VQ4

To investigate the IbWRKY2 mechanisms involved in stress regulation, we screened the yeast two-hybrid library to find IbWRKY2 interaction proteins. Several candidate interaction proteins were obtained by the yeast two-hybrid assay between truncated IbWRKY2 and prey sweetpotato cDNA library. The novel protein IbVQ4, which contains a VQ motif, was selected and cloned for further analysis. The transformed yeast cells that contained both pGBKT7-IbWRKY2 and pGADT7-IbVQ4 showed good growth and exhibited α-galactosidase activity on SD/−Trp/−His/−Leu/−Ade/X-α-Gal medium, which demonstrated the interaction of these two proteins in yeast (Figure 10a). In the BiFC assay, YFP fluorescence could be detected in the cells of N. benthamiana leaves after they were injected with A. tumefaciens AH105 containing pSPYNE-IbWRKY2-nYFP and pSPYCE-IbVQ4-cYFP, which further indicated an interaction between these two proteins (Figure 10b). To study the functional mechanism of IbWRKY2 in transgenic Arabidopsis, an IbVQ4 homologous gene, AtVQ4, was also cloned into the pGADT7 and pSPYCE vectors. Both the yeast two-hybrid and BiFC assays confirmed that IbWRKY2 could interact with the AtVQ4 protein (Figure 10a, b). Further qPCR analysis of IbVQ4 before and after stress treatments showed that the expression level of this gene was also induced by drought and salt stresses, which indicates that IbVQ4 might be related to stress resistance in sweetpotato (Figure S4).

4. Discussion

4.1. Overexpression of IbWRKY2 Enhances Drought and Salt Stress Tolerance

TFs, as switches of gene transcription, have been reported to be necessary for many biological processes [38]. WRKY TF members are named according to the highly conserved WRKY domain and are divided into three groups depending on the number of WRKY domains and the type of zinc finger [15]. WRKY, representing one of the largest TF families specific to plants, has been reported to be involved in growth and development, defense regulation, and the stress response [13]. The first gene in this family was cloned from sweetpotato, after which numerous members were cloned in Arabidopsis, rice, soybean, tomato, and maize [39,40,41,42,43,44]. In recent years, several TFs have been confirmed to be involved in the regulation of drought or salt tolerance in different kinds of plants [17,45,46,47]. To date, several TFs have been confirmed to be involved in the regulation of drought or salt tolerance, but few WRKY family members have been studied in sweetpotato [48,49,50].
Here, we isolated a novel WRKY TF member according to the EST obtained from the transcriptome data of our previous study [29]. This protein contains two conserved WRKY domains belonging to group I and has a close relationship with AtWRKY2; thus, the novel protein was named IbWRKY2 (Figure 1). IbWRKY2 is located in the nucleus and possesses a transcriptional activation domain in its N-terminal region (Figure 4 and Figure 5). In further studies, IbWRKY2 was strongly induced by PEG, NaCl, and ABA treatments, and its overexpression enhanced drought and salt tolerance in transgenic Arabidopsis (Figure 3, Figure 7 and Figure 8). In previous studies, AtWRKY2 has been demonstrated to be necessary for pollen development, CsWRKY2 has been shown to be induced by drought and cold stress, and TaWRKY2 may enhance salt and drought tolerance. However, no further evidence has supported a relationship between IbWRKY2 and abiotic stress tolerance [4,23,24].

4.2. Overexpression of IbWRKY2 Activated the ABA Signaling Pathway

ABA plays a significant role in the response to abiotic stresses; it promotes the closure of stomata in guard cells to retain water and also regulates the expression of stress-tolerance-related genes [51,52]. A growing body of evidence has indicated that many WRKY TFs regulate stress tolerance through the ABA signal transduction pathway [5,47]. WRKY TFs can act as both positive and negative regulators of ABA-induced stomatal closure [53]. At the same time, they also appear to act both upstream and downstream in the ABA signal transduction pathway [54,55]. In the present study, we demonstrated that IbWRKY2 expression was significantly up-regulated by PEG, NaCl, and ABA treatments in sweetpotato, and in IbWRKY2 transgenic lines, the ABA content was higher than that in WT under drought and salt stress (Figure 3 and Figure 8b). Meanwhile, several genes related to ABA biosynthesis and the ABA signal transduction pathway were more dramatically up-regulated in transgenic lines than in WT (Figure 9). These results suggest that IbWRKY2 might act as a positive regulator in drought and salt tolerance in an ABA-dependent manner.

4.3. Overexpression of IbWRKY2 Results in Changes to the ROS-Scavenging System

ROS is important in the process of signal transduction that mediates tolerance to different stresses, but its excessive accumulation causes damage in plants [56]. Low level of ROS can activate the stress response while high levels of ROS will attack DNA, proteins, and carbohydrates [57]. Therefore, a certain level of ROS in plant cells is harmless and, in fact, critical for modulating the balance between ROS-producing and ROS-scavenging systems [58]. Increased proline content was shown to enhance salt and drought tolerance through the up-regulation of ROS-scavenging genes in transgenic sweetpotato [59]. In the present study, greater proline accumulation was found in IbWRKY2-overexpressing Arabidopsis after stress treatments (Figure 8c). As a result, ROS-scavenging genes were up-regulated in the transgenic plants under drought and salt treatments (Figure 9). The stimulated ROS-scavenging system led to lower MDA and H2O2 contents, which resulted in enhanced drought and salt tolerance (Figure 8e,f).

4.4. IbWRKY2 Improved Abiotic Stress Tolerance by Interacting with VQ4

In the last several years, it has been demonstrated that WRKY TFs physically interact with specific types of proteins. Different patterns have been discovered in the interactions between WRKY members and proteins, such as the WRKY-R model, WRKY-14-3-3 model, WRKY-WRKY model, WRKY-MAPK model, WRKY-chromatin model, and WRKY-VQ model [19,60,61,62,63,64]. VQ proteins are plant-specific proteins with a highly conserved VQ motif possessing the core sequence FxxhVQxhTG [65]. VQ proteins can specifically interact with the C-terminal WRKY domains of group I proteins and sole WRKY domains of group IIc proteins [26]. In Arabidopsis, several WRKYs that interact with VQ proteins have been identified to be involved in stress responses. For example, AtWRKY8 interacts with AtVQ10 to modulate defense against Botrytis cinerea, AtWRKY8 interacts with AtVQ9 to participate in salinity stress tolerance, and AtVQ16 and AtVQ23 can interact with WRKY33 to positively regulate plant defense [19,66,67]. Many VQ motif-containing proteins are considered to be involved in stress responses. For example, in poplar, the expression of numerous VQ genes, such as PtVQ1, PtVQ4, and PtVQ11, were induced by drought and salt stresses [68]. Nevertheless, no research on the interaction of VQ proteins in sweetpotato has been reported till now. In our present study, a protein containing a VQ motif was found to interact with IbWRKY2 through yeast two-hybrid. The protein was named IbVQ4 according to its close relationship with AtVQ4. Both the yeast two-hybrid and BiFC assays confirmed the interaction between IbWRKY2 and IbVQ4, which might reveal the functional mechanism of IbWRKY2 (Figure 10a,b). Further research on the relationship between IbWRKY2 and AtVQ4, the homologous protein of IbVQ4, also supported an interaction between these two proteins (Figure 10a,b). In addition, our results showed that the expression level of IbVQ4 was induced by PEG and NaCl treatments, which indicates that this gene is probably involved in drought and salt tolerance in sweetpotato (Figure S4). The discovery of this interaction protein offers insights into the potential molecular mechanism by which IbWRKY2 improves drought and salt tolerance in sweetpotato.

5. Conclusions

A sweetpotato group I WRKY gene, IbWRKY2, was isolated and characterized for the first time, and its characteristics were investigated in this study. IbWRKY2 was found to be nuclear-localized, consistent with functioning as a transcription factor and it was implicated in transcriptional activation. The self-transcriptional activation domain was located in the N-terminal region. IbWRKY2 was expressed with high abundance in leaves and induced by PEG6000, NaCl, and ABA stresses. Overexpression of IbWRKY2 in Arabidopsis increased the plant’s tolerance to drought and salt stress by interacting with VQ4 proteins and regulating the expression of genes related to the ABA signaling pathway, proline biosynthesis, and the ROS-scavenging system. The results of this study indicate the functioning of a novel gene in enhancing the tolerance to abiotic stress in sweetpotato. The precise functional mechanism of IbWRKY2 is worthy of further research.

Supplementary Materials

The following are available online at https://www.mdpi.com/2218-273X/10/4/506/s1, Figure S1: Expression level analysis of IbWRKY2 in different tissues of Xushu55-2. Data are presented as means ± SE (n = 3). HR, hair root; FR, fibrous root; SR, storage root. Figure S2: PCR identification of IbWRKY2-overexpressing Arabidopsis plants. M, marker; P, plasmid pCAMBIA3301-IbWRKY2 as a positive control; WT, negative control; OE1-OE9, transgenic plants. Figure S3: Relative expression level of IbWRKY2 in WT and transgenic lines. The Arabidopsis Atactin was used as an internal control. Data are presented as means ± SE (n = 3). Figure S4: Expression level analysis of IbVQ4 in Xushu55-2 before and after treatment with 30% PEG6000 and 200 mM NaCl. Data are presented as means ± SE (n = 3). Table S1: Primers used in this study. Table S2: The cis-acting motifs detected in the promoter region of the IbWRKY2 gene.

Author Contributions

Conceptualization, H.Z. (Hong Zhu) and Q.L.; validation, H.Z. (Hong Zhu), Y.Z. and Q.L.; formal analysis, H.Z. (Hong Zhu) and H.Z. (Hong Zhai); investigation, H.Z. (Hong Zhai) and S.H.; data curation, H.Z. (Hong Zhu) and N.Z.; writing—original draft preparation, H.Z. (Hong Zhu); writing—review and editing, H.Z. (Hong Zhu) and Q.L.; funding acquisition, Q.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key R&D Program of China (grant number 2019YFD1001303/2019YFD1001300), the China Agriculture Research System (grant number CARS-10, Sweetpotato) and the Shandong Agriculture Research System (grant number SDAIT-16-03, Sweetpotato).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Thao, N.P.; Tran LS, P. Potentials toward genetic engineering of drought-tolerant soybean. Crit. Rev. Biotechnol. 2012, 32, 349–362. [Google Scholar] [CrossRef] [PubMed]
  2. Liao, X.; Guo, X.; Wang, Q.; Wang, Y.T.; Zhao, D.; Yao, L.P.; Wang, S.; Liu, G.J.; Li, T.H. Overexpression of MsDREB6.2 results in cytokinin-deficient developmental phenotypes and enhances drought tolerance in transgenic apple plants. Plant J. 2017, 89, 510–526. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Berger, J.; Palta, J.; Vadez, V. Review: An integrated framework for crop adaptation to dry environments: Responses to transient and terminal drought. Plant Sci. 2016, 253, 58–67. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Wang, Y.; Shu, Z.; Wang, W.; Jiang, X.; Li, D.; Pan, J.; Li, X. CsWRKY2, a novel WRKY gene from Camellia sinensis, is involved in cold and drought stress responses. Biol. Plant. 2016, 60, 443–451. [Google Scholar] [CrossRef]
  5. Cai, R.H.; Dai, W.; Zhang, C.S.; Wang, Y.; Wu, M.; Zhao, Y. The maize WRKY transcription factor ZmWRKY17 negatively regulates salt stress tolerance in transgenic Arabidopsis plants. Planta 2017, 246, 1215–1231. [Google Scholar] [CrossRef]
  6. Nishiyama, R.; Watanabe, Y.; Leyva-Gonzalez, M.A.; Van, H.C.; Fujita, Y.; Tanaka, M.; Seki, M.; Yamaguchi-Shinozaki, K.; Shinozaki, K.; Herrera-Estrella, L. Arabidopsis AHP2, AHP3, and AHP5 histidine phosphotransfer proteins function as redundant negative regulators of drought stress response. Proc. Natl. Acad. Sci. USA 2013, 110, 4840–4845. [Google Scholar] [CrossRef] [Green Version]
  7. Rizhsky, L.; Liang, H.; Mittler, R. The combined effect of drought stress and heat shock on gene expression in tobacco. Plant Physiol. 2002, 30, 1143–1151. [Google Scholar] [CrossRef] [Green Version]
  8. Bartels, D.; Sunkar, R. Drought and salt tolerance in Plant. Crit. Rev. Biotechnol. 2005, 24, 23–58. [Google Scholar]
  9. Ouyang, S.Q.; Liu, Y.F.; Liu, P.; Lei, G.; He, S.J.; Ma, B.; Zhang, W.K.; Zhang, J.S.; Chen, S.Y. Receptor-like kinase OsSIK1 improves drought and salt stress tolerance in rice Oryza sativa plants. Plant J. 2010, 62, 316–329. [Google Scholar] [CrossRef]
  10. Zhang, H.; Jin, J.; Tang, L.; Zhao, Y.; Gu, X.C.; Gao, G.; Luo, J.C. Plant TFDB 2.0: Update and improvement of the comprehensive plant transcription factor database. Nucleic Acids Res. 2011, 39, 1114–1117. [Google Scholar] [CrossRef] [Green Version]
  11. Fang, Y.J.; Liao, K.F.; Du, H.; Xu, Y.; Song, H.Z.; Li, X.H.; Xiong, L.Z. A stress-responsive NAC transcription factor SNAC3 confers heat and drought tolerance through modulation of reactive oxygen species in rice. J. Exp. Bot. 2015, 66, 6803–6817. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Agarwal, P.K.; Jha, B. Transcription factors in plants and ABA dependent and independent abiotic stress signaling. Biol. Plant 2010, 54, 201–212. [Google Scholar] [CrossRef]
  13. Rushton, P.J.; Somssich, I.E.; Ringler, P.; Shen, Q.J. WRKY transcription factors. Trends Plant Sci. 2010, 15, 247–258. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, L.P.; Zhang, Z.Q.; Dong, J.L.; Wang, T. Overexpression of MtWRKY76 increases both salt and drought tolerance in Medicago truncatula. Environ. Exp. Bot. 2016, 123, 50–58. [Google Scholar] [CrossRef]
  15. Eulgem, T.; Rushton, P.J.; Robatzek, S.; Somssich, I.E. The WRKY superfamily of plant transcription factors. Trends Plant Sci. 2000, 5, 199–206. [Google Scholar] [CrossRef]
  16. Johnson, C.S.; Kolevski, B.; Smyth, D.R. TRANSPARENT TESTA GLABRA2, a trichome and seed coat development gene of Arabidopsis, encodes a WRKY transcription factor. Plant Cell 2002, 14, 1359–1375. [Google Scholar] [CrossRef] [Green Version]
  17. Ning, W.F.; Zhai, H.; Yu, J.Q.; Liang, S.; Yang, X.; Xing, X.Y.; Huo, J.L.; Pang, T.; Yang, Y.L.; Bai, X. Overexpression of Glycine soja WRKY20 enhances drought tolerance and improves plant yields under drought stress in transgenic soybean. Mol. Breed. 2017, 37, 19. [Google Scholar] [CrossRef]
  18. Babitha, K.C.; Ramu, S.V.; Pruthvi, V.; Mahesh, P.; Nataraja, K.N.; Udayakumar, M. Co-expression of AtbHLH17 and AtWRKY28 confers resistance to abiotic stress in Arabidopsis. Transgen Res. 2013, 22, 327–341. [Google Scholar] [CrossRef]
  19. Hu, Y.R.; Chen, L.G.; Wang, H.P.; Zhang, L.P.; Wang, F.; Yu, D.Q. Arabidopsis transcription factor WRKY8 functions antagonistically with its interacting partner VQ9 to modulate salinity stress tolerance. Plant J. 2013, 74, 730–745. [Google Scholar] [CrossRef]
  20. Li, J.; Besseau, S.; Toronen, P.; Sipari, N.; Kollist, H.; Holm, L.; Palva, E.T. Defense-related transcription factors WRKY70 and WRKY54 modulate osmotic stress tolerance by regulating stomatal aperture in Arabidopsis. New Phytol. 2013, 200, 457–472. [Google Scholar] [CrossRef] [Green Version]
  21. Wu, X.L.; Shiroto, Y.; Kishitani, S.; Ito, Y.; Toriyama, K. Enhanced heat and drought tolerance in transgenic rice seedlings overexpressing OsWRKY11 under the control of HSP101 promoter. Plant Cell Rep. 2009, 28, 21–30. [Google Scholar] [CrossRef] [PubMed]
  22. Shen, H.S.; Liu, C.T.; Zhang, Y.; Meng, X.P.; Zhou, X.; Chu, C.C.; Wang, X.P. OsWRKY30 is activated by MAP kinases to confer drought tolerance in rice. Plant Mol. Biol. 2012, 80, 241–253. [Google Scholar] [CrossRef] [PubMed]
  23. Niu, C.F.; Wei, W.; Zhou, Q.Y.; Tian, A.G.; Hao, Y.J.; Zhang, W.K.; Ma, B.; Lin, Q.; Zhang, Z.B.; Zhang, J.S.; et al. Wheat WRKY genes TaWRKY2 and TaWRKY19 regulate abiotic stress tolerance in transgenic Arabidopsis plants. Plant Cell Environ. 2012, 35, 1156–1170. [Google Scholar] [CrossRef] [PubMed]
  24. Lei, R.H.; Li, X.L.; Ma, Z.B.; Hu, Y.R.; Yu, D.Q. Arabidopsis WRKY2 and WRKY34 transcription factors interact with VQ20 protein to modulate pollen development and function. Plant J. 2017, 91, 962–976. [Google Scholar] [CrossRef] [Green Version]
  25. Xie, Y.D.; Li, W.; Guo, D.; Dong, J.; Zhang, Q.; Fu, Y.; Ren, D.; Peng, M.; Xia, Y. The Arabidopsis gene SIGMA FACTOR-BINDING PROTEIN 1 plays a role in the salicylate- and jasmonate-mediated defence responses. Plant Cell Environ. 2010, 33, 828–839. [Google Scholar]
  26. Cheng, Y.; Zhou, Y.; Yang, Y.; Chi, Y.J.; Zhou, J.; Chen, J.Y.; Wang, F.; Fan, B.F.; Shi, K.; Zhou, Y.H.; et al. Structural and functional analysis of VQ motif-containing proteins in Arabidopsis as interacting proteins of WRKY transcription factors. Plant Physiol. 2012, 159, 810–825. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Jing, Y.; Lin, R. The VQ motif-containing protein family of plant-specific transcriptional regulators. Plant Physiol. 2015, 169, 371–378. [Google Scholar] [CrossRef] [Green Version]
  28. Ahn, Y.O.; Kim, S.H.; Kim, C.Y.; Lee, J.S.; Kwak, S.S.; Lee, H.S. Exogenous sucrose utilization and starch biosynthesis among sweetpotato cultivars. Carbohyd. Res. 2010, 345, 55–60. [Google Scholar] [CrossRef]
  29. Zhu, H.; Zhou, Y.Y.; Zhai, H.; He, S.Z.; Zhao, N.; Liu, Q.C. Transcriptome profiling reveals insights into the molecular mechanism of drought tolerance in sweetpotato. J. Integr. Agric. 2019, 18, 9–23. [Google Scholar] [CrossRef]
  30. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  31. Wang, F.B.; Zhai, H.; An, Y.Y.; Si, Z.Z.; He, S.Z.; Liu, Q.C. Overexpression of IbMIPS1 gene enhances salt tolerance in transgenic sweetpotato. J. Integr. Agric. 2016, 15, 271–281. [Google Scholar] [CrossRef] [Green Version]
  32. Liu, D.G.; He, S.Z.; Zhai, H.; Wang, L.J.; Zhao, Y.; Wang, B.; Li, R.J.; Liu, Q.C. Overexpression of IbP5CR enhances salt tolerance in transgenic sweetpotato. Plant Cell Tiss Org. 2014, 117, 1–16. [Google Scholar] [CrossRef]
  33. Schmittgen, T.D.; Livak, K.J. Analyzing real-time PCR data by the comparative CT method. Nat. Protoc. 2008, 3, 1101–1108. [Google Scholar] [CrossRef]
  34. Clough, S.J.; Bent, A.F. Floral dip: A simplified method for Agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998, 16, 735–743. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Yang, J.C.; Zhang, J.H.; Wang, Z.Q.; Zhu, Q.S.; Wang, W. Hormonal changes in the grains of rice subjected to water stress during grain filling. Plant Physiol. 2001, 127, 315–323. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Maehly, A.; Chance, B. Catalases and peroxidases. Methods Biochem. Anal. 1954, 1, 357–424. [Google Scholar] [PubMed]
  37. Hu, Y.; Yu, D. BRASSINOSTEROID INSENSITIVE2 interacts with ABSCISIC ACID INSENSITIVE5 to mediate the antagonism of brassinosteroids to abscisic acid during seed germination in Arabidopsis. Plant Cell 2014, 26, 4394–4408. [Google Scholar] [CrossRef] [Green Version]
  38. Wang, Y.; Wang, Q.Q.; Liu, M.L.; Bo, C.; Wang, X.; Ma, Q.; Cheng, B.J.; Cai, R.H. Overexpression of a maize MYB48 gene confers drought tolerance in transgenic Arabidopsis plants. J. Plant Biol. 2017, 60, 612–621. [Google Scholar] [CrossRef]
  39. Ishiguro, S.; Nakamura, K. Characterization of a cDNA encoding a novel DNA-binding protein, SPF1, that recognizes SP8 sequences in the 5′ upstream regions of genes coding for sporamin and beta-amylase from sweet potato. Mol. Gen. Genet. 1994, 244, 563–571. [Google Scholar] [CrossRef]
  40. Ulker, B.; Somssich, I.E. WRKY transcription factors: From DNA binding towards biological function. Curr. Opin. Plant Biol. 2004, 7, 491–498. [Google Scholar] [CrossRef] [Green Version]
  41. Ross, C.A.; Liu, Y.; Shen, Q.X.J. The WRKY gene family in rice (Oryza sativa). J. Integr. Plant Biol. 2007, 49, 827–842. [Google Scholar] [CrossRef]
  42. Schmutz, J.; Cannon, S.B.; Schlueter, J.; Ma, J.X.; Mitros, T.; Nelson, W.; Hyten, D.L.; Song, Q.J.; Thelen, J.J.; Cheng, J.L.; et al. Genome sequence of the palaeopolyploid soybean. Nature 2010, 463, 178–183. [Google Scholar] [CrossRef] [Green Version]
  43. Huang, S.X.; Gao, Y.F.; Liu, J.K.; Peng, X.L.; Niu, X.L.; Fei, Z.J.; Cao, S.Q.; Liu, Y.S. Genome-wide analysis of WRKY transcription factors in Solanum lycopersicum. Mol. Genet. Genom. 2012, 287, 495–513. [Google Scholar] [CrossRef] [PubMed]
  44. Wei, K.F.; Chen, J.; Chen, Y.F.; Wu, L.J.; Xie, D.X. Molecular phylogenetic and expression analysis of the complete WRKY transcription factor family in maize. DNA Res. 2012, 19, 153–164. [Google Scholar] [CrossRef] [Green Version]
  45. Gong, X.Q.; Zhang, J.Y.; Hu, J.B.; Wang, W.; Wu, H.; Zhang, Q.H.; Liu, J.H. FcWRKY70, a WRKY protein of Fortunella crassifolia, functions in drought tolerance and modulates putrescine synthesis by regulating arginine decarboxylase gene. Plant Cell Environ. 2015, 38, 2248–2262. [Google Scholar] [CrossRef] [PubMed]
  46. Yan, Y.; Jia, H.H.; Wang, F.; Wang, C.; Liu, S.C.; Guo, X.Q. Overexpression of GhWRKY27a reduces tolerance to drought stress and resistance to Rhizoctonia solani infection in transgenic Nicotiana benthamiana. Front. Phy. 2015, 6, 25. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Ma, J.H.; Gao, X.L.; Liu, Q.; Shao, Y.; Zhang, D.J.; Jiang, L.; Li, C.X. Overexpression of TaWRKY146 increases drought tolerance through inducing stomatal closure in Arabidopsis thaliana. Front. Plant Sci. 2017, 8, 2036. [Google Scholar] [CrossRef] [PubMed]
  48. Li, Y.; Zhang, H.; Zhang, Q.; Liu, Q.C.; Zhai, H.; Zhao, N.; He, S.Z. An AP2/ERF gene, IbRAP2-12, from sweetpotato is involved in salt and drought tolerance in transgenic Arabidopsis. Plant Sci. 2019, 281, 19–30. [Google Scholar] [CrossRef]
  49. Zhang, H.; Gao, X.R.; Zhi, Y.H.; Li, X.; Zhang, Q.; Niu, J.; Wang, J.; Zhai, H.; Zhao, N.; Liu, Q.C.; et al. A non-tandem CCCH-type zinc-finger protein, IbC3H18, functions as a nuclear transcriptional activator and enhances abiotic stress tolerance in sweet potato. New Phytol. 2019, 223, 1918–1936. [Google Scholar] [CrossRef]
  50. Zhou, Y.Y.; Zhu, H.; He, S.Z.; Zhai, H.; Zhao, N.; Xing, S.H.; Wei, Z.H.; Liu, Q.C. A novel sweetpotato transcription factor gene IbMYB116 enhances drought tolerance in transgenic Arabidopsis. Front. Plant Sci. 2019, 10, 1025. [Google Scholar] [CrossRef] [Green Version]
  51. Finkelstein, R.R.; Gampala, S.S.; Rock, C.D. Abscisic acid signaling in seeds and seedlings. Plant Cell 2002, 14, S15–S45. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Yamaguchi-Shinozaki, K.; Shinozaki, K. Transcriptional regulatory networks in cellular responses and tolerance to dehydration and cold stresses. Annu. Rev. Plant Biol. 2006, 57, 781–803. [Google Scholar] [CrossRef] [Green Version]
  53. Bakshi, M.; Oelmüller, R. WRKY transcription factors: Jack of many trades in plants. Plant Signal. Behav. 2014, 9, e27700. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Ren, X.Z.; Chen, Z.Z.; Liu, Y.; Zhang, H.R.; Zhang, M.; Liu, Q.A.; Hong, X.H.; Zhu, J.K.; Gong, Z.Z. ABO3, a WRKY transcription factor, mediates plant responses to abscisic acid and drought tolerance in Arabidopsis. Plant J. 2010, 63, 417–429. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Shang, Y.; Yan, L.; Liu, Z.Q.; Cao, Z.; Mei, C.; Xin, Q.; Wu, F.Q.; Wang, X.F.; Du, S.Y.; Jiang, T.; et al. The Mg-chelatase H subunit of Arabidopsis antagonizes a group of WRKY transcription repressors to relieve ABA-responsive genes of inhibition. Plant Cell 2010, 22, 1909–1935. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Bhattacharjee, S. Reactive oxygen species and oxidative burst: Roles in stress, senescence and signal transduction in plants. Curr. Sci. 2005, 89, 1113–1121. [Google Scholar]
  57. Mittler, G.; Suzuki, N.; Ciftci-Yilmaz, S.; Mittler, R. Reactive oxygen species homeostasis and signalling during drought and salinity stresses. Plant Cell Environ. 2010, 33, 453–467. [Google Scholar]
  58. Abbasi, A.R.; Hajirezaei, M.; Hofius, D.; Sonnewald, U.; Voll, L.M. Specific roles of alpha- and gamma-tocopherol in abiotic stress responses of transgenic tobacco. Plant Physiol. 2007, 143, 1720–1738. [Google Scholar] [CrossRef] [Green Version]
  59. Zhai, H.; Wang, F.B.; Si, Z.Z.; Huo, J.X.; Xing, L.; An, Y.Y.; He, S.Z.; Liu, Q.C. A myo-inositol-1-phosphate synthase gene, IbMIPS1, enhances salt and drought tolerance and stem nematode resistance in transgenic sweet potato. Plant Biotechnol. J. 2016, 14, 592–602. [Google Scholar] [CrossRef]
  60. Shen, Q.H.; Saijo, Y.; Mauch, S.; Biskup, C.; Bieri, S.; Keller, B.; Seki, H.; Ulker, B.; Somssich, I.E.; Schulze-Lefert, P. Nuclear activity of MLA immune receptors links isolate-specific and basal disease-resistance responses. Science 2007, 315, 1098–1103. [Google Scholar] [CrossRef] [Green Version]
  61. Chang, I.F.; Curran, A.; Woolsey, R.; Quilici, D.; Cushman, J.C.; Mittler, R.; Harmon, A.; Harper, J.F. Proteomic profiling of tandem affinity purified 14-3-3 protein complexes in Arabidopsis thaliana. Proteomics 2009, 9, 2967–2985. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Chen, Y.F.; Li, L.Q.; Xu, Q.; Kong, Y.H.; Wang, H.; Wu, W.H. The WRKY6 transcription factor modulates PHOSPHATE1 expression in response to low Pi stress in Arabidopsis. Plant Cell 2009, 21, 3554–3566. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Pitzschke, A.; Schikora, A.; Hirt, H. MAPK cascade signalling networks in plant defence. Curr. Opin. Plant Biol. 2009, 12, 421–426. [Google Scholar] [CrossRef] [PubMed]
  64. Zhu, Z.H.; Xu, F.; Zhang, Y.X.; Cheng, Y.T.; Wiermer, M.; Li, X.; Zhang, Y.L. Arabidopsis resistance protein SNC1 activates immune responses through association with a transcriptional corepressor. Proc. Natl. Acad. Sci. USA 2010, 107, 13960–13965. [Google Scholar] [CrossRef] [Green Version]
  65. Pascal, P.; Eschen-Lippold, L.; Herklotz, S.; Kuhle, K.; Naumann, K.; Bethke, G.; Uhrig, J.; Weyhe, M.; Scheel, D.; Lee, J. The Arabidopsis thaliana mitogen-activated protein kinases MPK3 and MPK6 target a subclass of ‘VQ-motif’-containing proteins to regulate immune responses. New Phytol. 2014, 203, 592–606. [Google Scholar]
  66. Chen, J.; Wang, H.; Li, Y.; Pan, J.; Hu, Y.; Yu, D. Arabidopsis VQ10 interacts with WRKY8 to modulate basal defense against Botrytis cinerea. J. Integr. Plant Biol. 2018, 60, 956–969. [Google Scholar] [CrossRef]
  67. Lai, Z.; Li, Y.; Wang, F.; Cheng, Y.; Fan, B.; Yu, J.Q.; Chen, Z. Arabidopsis sigma factor binding proteins are activators of the WRKY33 transcription factor in plant defense. Plant Cell 2011, 23, 3824–3841. [Google Scholar] [CrossRef] [Green Version]
  68. Chu, W.Y.; Liu, B.; Wang, Y.J.; Pan, F.; Chen, Z.; Yan, H.W.; Xiang, Y. Genome-wide analysis of poplar VQ gene family and expression profiling under PEG, NaCl, and SA treatments. Tree Genet. Genom. 2016, 12, 124. [Google Scholar] [CrossRef]

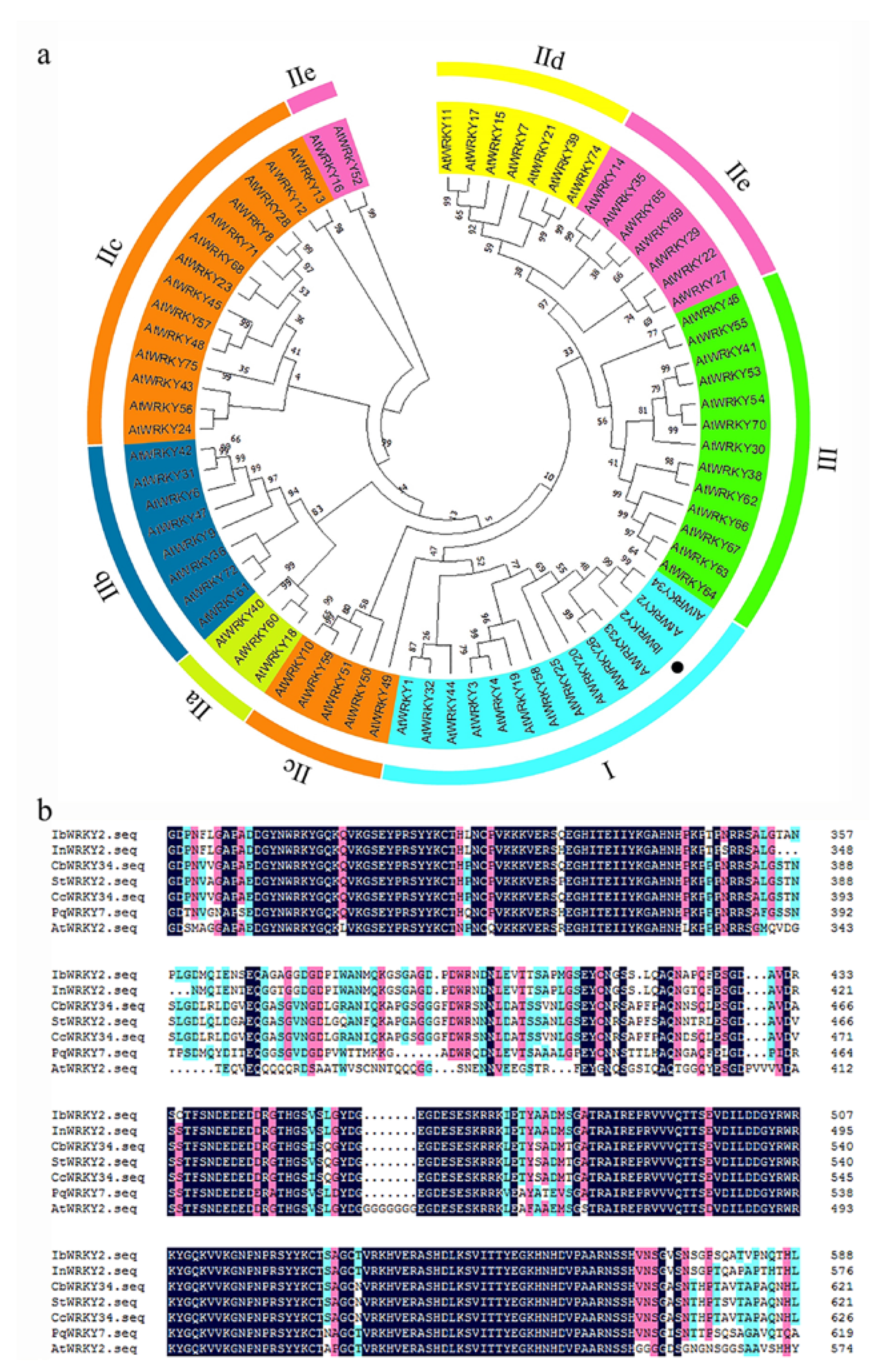

Figure 1. Phylogenetic relationship and conserved domain analysis of IbWRKY2. (a) Phylogenetic analysis of IbWRKY2 and 71 WRKY transcription factors from Arabidopsis. Roman numerals indicate different subfamilies of WRKY proteins and the black dot in the phylogenetic tree indicates IbWRKY2. (b) Amino acid sequence alignment of IbWRKY2 with homologs from NCBI. The conserved WRKY domains are marked by black lines.
Figure 1. Phylogenetic relationship and conserved domain analysis of IbWRKY2. (a) Phylogenetic analysis of IbWRKY2 and 71 WRKY transcription factors from Arabidopsis. Roman numerals indicate different subfamilies of WRKY proteins and the black dot in the phylogenetic tree indicates IbWRKY2. (b) Amino acid sequence alignment of IbWRKY2 with homologs from NCBI. The conserved WRKY domains are marked by black lines.
Biomolecules 10 00506 g001

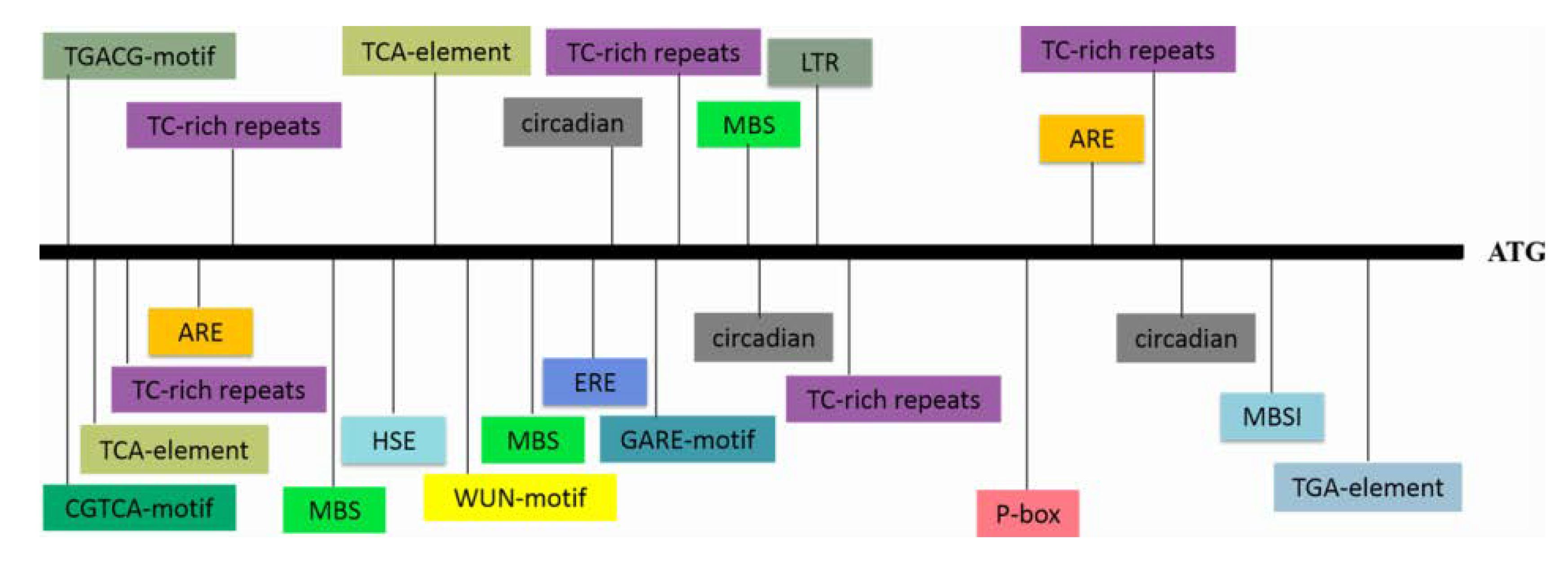

Figure 2. The types and locations of cis-acting elements present in the IbWRKY2 promoter region. The promoter region, which is 2381 bp upstream of the initiation codon, was used for the analysis. Differently colored boxes represent different cis-acting elements. ATG indicates the start codon of IbWRKY2.
Figure 2. The types and locations of cis-acting elements present in the IbWRKY2 promoter region. The promoter region, which is 2381 bp upstream of the initiation codon, was used for the analysis. Differently colored boxes represent different cis-acting elements. ATG indicates the start codon of IbWRKY2.
Biomolecules 10 00506 g002

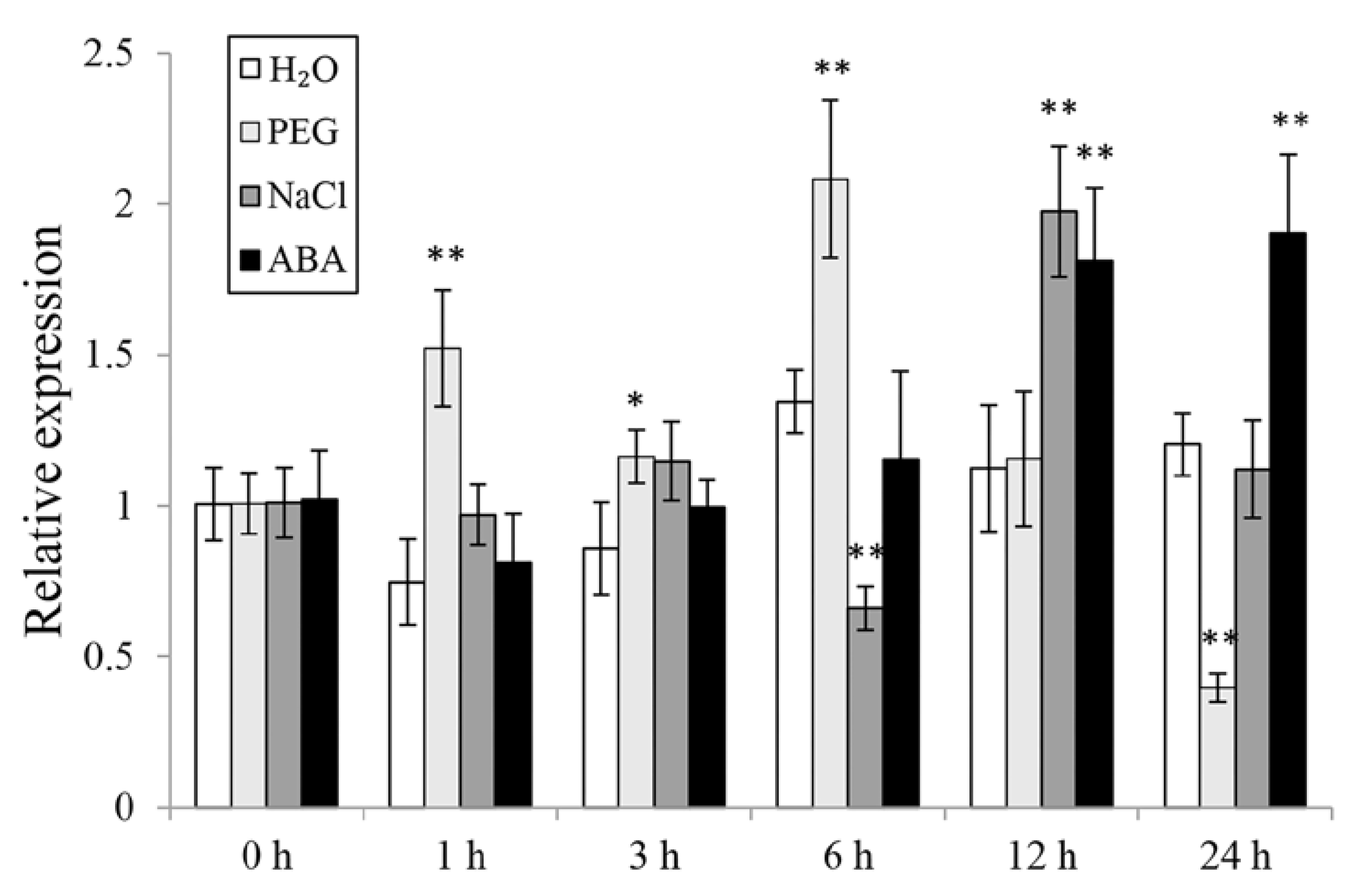

Figure 3. Expression level analysis of IbWRKY2 in Xushu55-2 before and after H2O, 30% PEG6000, 200 mM NaCl, and 100 μM ABA treatments. Data are presented as means ± SE (n = 3). The time points 0, 1, 3, 6, 12, and 24 h indicate the time after the related treatment; * and ** indicate a significant difference at p < 0.05 and p < 0.01 compared with the related H2O control, respectively.
Figure 3. Expression level analysis of IbWRKY2 in Xushu55-2 before and after H2O, 30% PEG6000, 200 mM NaCl, and 100 μM ABA treatments. Data are presented as means ± SE (n = 3). The time points 0, 1, 3, 6, 12, and 24 h indicate the time after the related treatment; * and ** indicate a significant difference at p < 0.05 and p < 0.01 compared with the related H2O control, respectively.
Biomolecules 10 00506 g003
Figure 4. Subcellular localization of IbWRKY2 in onion epidermal cells. Confocal scanning microscopic images show that the IbWRKY2-GFP fusion protein localized to the nuclei (in the right column) vs. GFP as the control (in the left column).
Figure 4. Subcellular localization of IbWRKY2 in onion epidermal cells. Confocal scanning microscopic images show that the IbWRKY2-GFP fusion protein localized to the nuclei (in the right column) vs. GFP as the control (in the left column).
Biomolecules 10 00506 g004

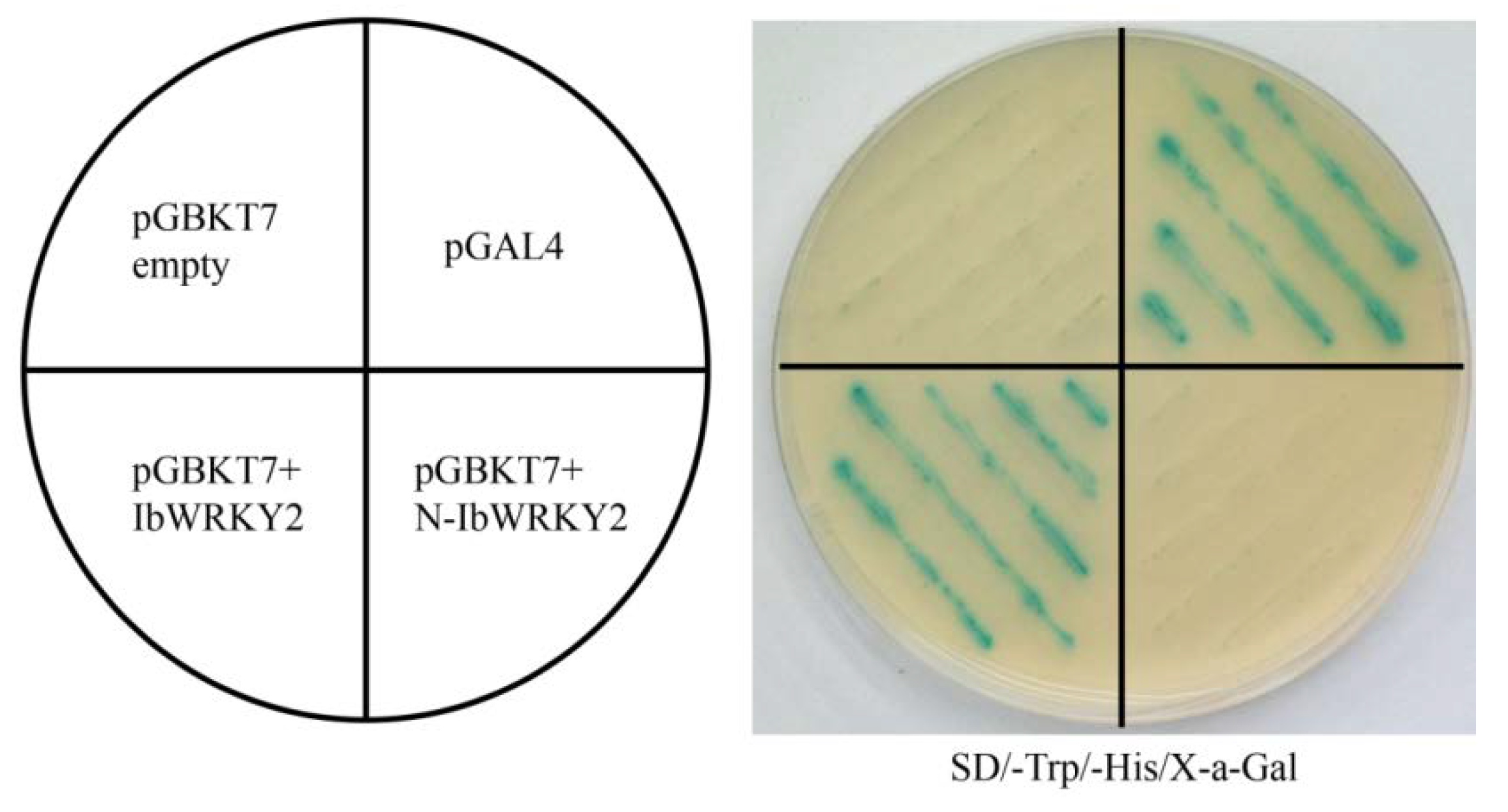

Figure 5. Transactivation activity assay of full-length and truncated IbWRKY2 in yeast. pGBK7+IbWRKY2, representing the full-length IbWRKY2, and pGBK7+N-IbWRKY2, representing IbWRKY2 with 246 aa removed from the N-terminal region, were transformed into the yeast strain AH109 and examined on SD/−Trp/−His selection medium with X-α-Gal. The pGBKT7 empty vector and pGAL4 were used as negative and positive controls, respectively.
Figure 5. Transactivation activity assay of full-length and truncated IbWRKY2 in yeast. pGBK7+IbWRKY2, representing the full-length IbWRKY2, and pGBK7+N-IbWRKY2, representing IbWRKY2 with 246 aa removed from the N-terminal region, were transformed into the yeast strain AH109 and examined on SD/−Trp/−His selection medium with X-α-Gal. The pGBKT7 empty vector and pGAL4 were used as negative and positive controls, respectively.
Biomolecules 10 00506 g005

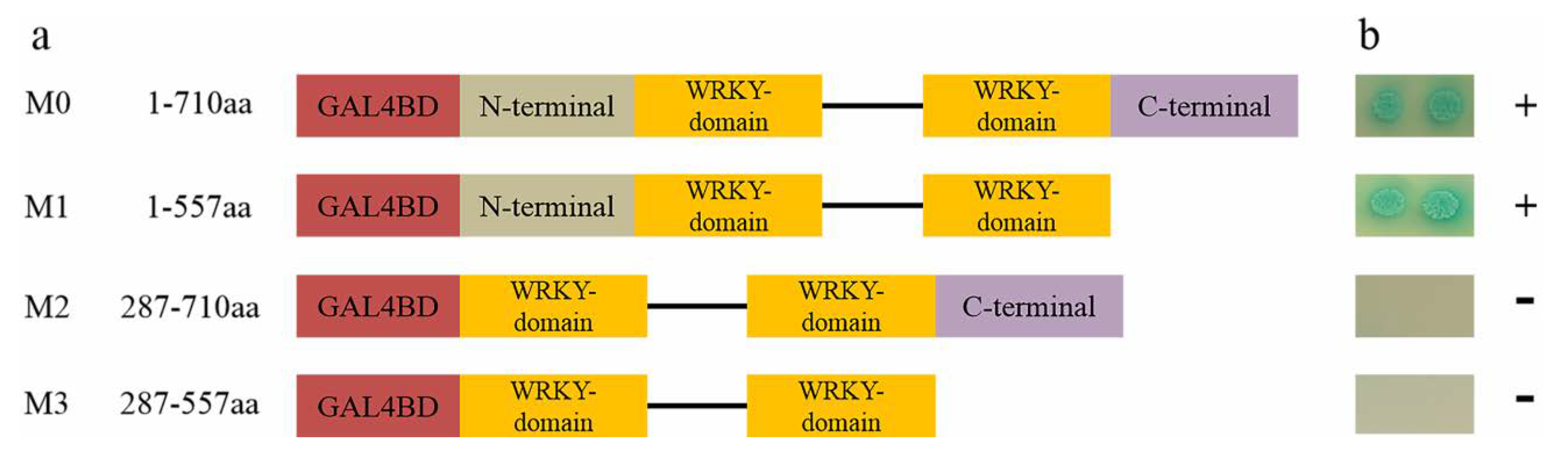

Figure 6. Diagram illustrating the region of IbWRKY2 involved in self-transcriptional activation activity and assay. (a) Schematic diagrams represent the IbWRKY2 fragments encoding different parts of IbWRKY2 that were cloned into the pGBKT7 vector. M1 is a C-terminal deletion mutant, M2 is an N-terminal deletion mutant, and M3 has both the C- and N-terminal regions deleted. The numbers denote IbWRKY2 amino acid positions. (b) Transactivation assay of IbWRKY2 and its deletion mutants. The transactivation activity is shown on the right (plus sign is positive and minus sign is negative).
Figure 6. Diagram illustrating the region of IbWRKY2 involved in self-transcriptional activation activity and assay. (a) Schematic diagrams represent the IbWRKY2 fragments encoding different parts of IbWRKY2 that were cloned into the pGBKT7 vector. M1 is a C-terminal deletion mutant, M2 is an N-terminal deletion mutant, and M3 has both the C- and N-terminal regions deleted. The numbers denote IbWRKY2 amino acid positions. (b) Transactivation assay of IbWRKY2 and its deletion mutants. The transactivation activity is shown on the right (plus sign is positive and minus sign is negative).
Biomolecules 10 00506 g006

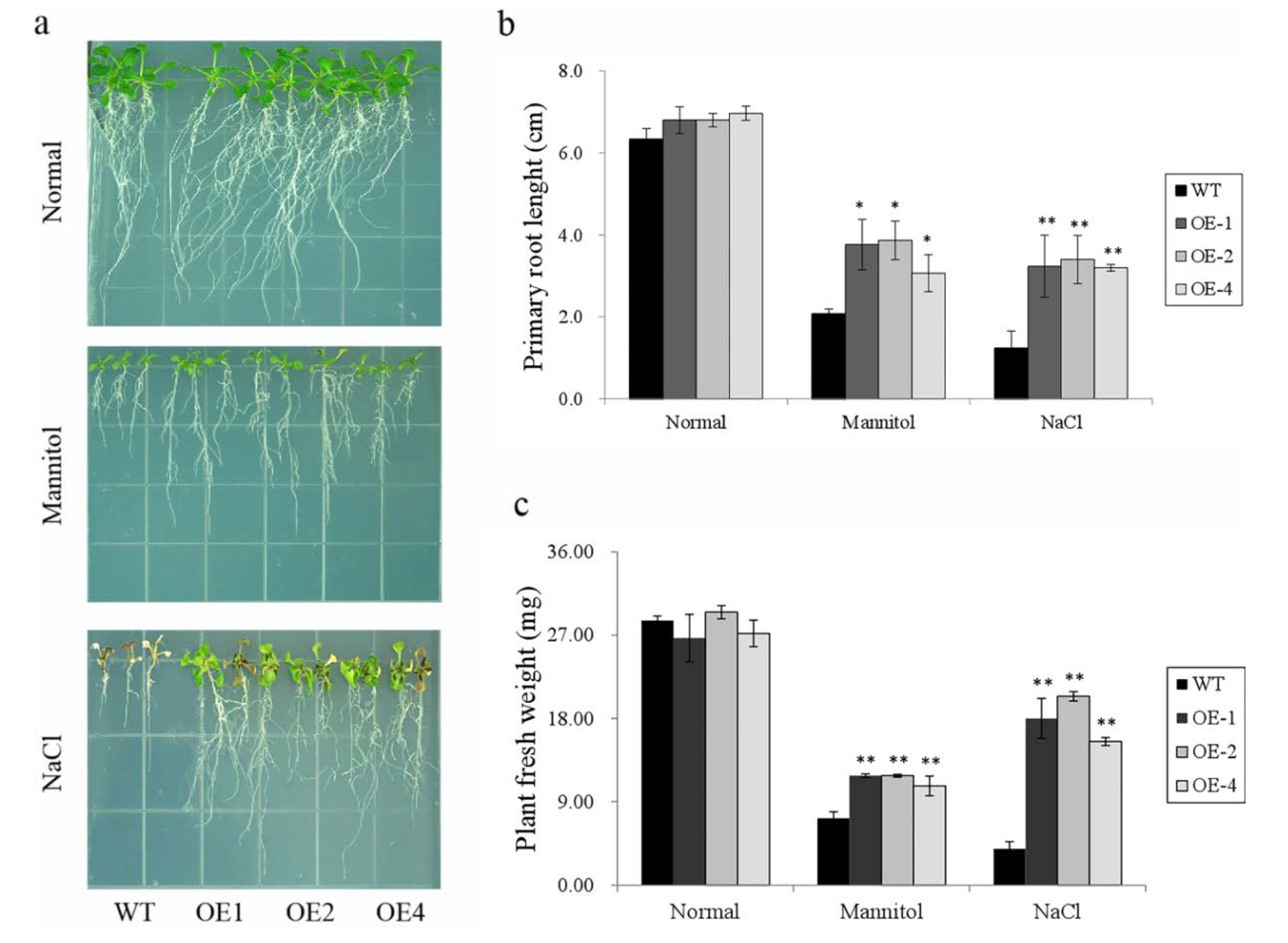

Figure 7. Responses of the transgenic Arabidopsis and WT seedlings cultured on MS medium with no stress, 300 mM mannitol, or 125 mM NaCl for 15 days. (a) Phenotype of WT and transgenic lines grown under different stresses; (b) primary root length of the WT and transgenic lines shown in (a); and (c) fresh weight of the WT and transgenic lines shown in (a). Data are presented as means ± SE (n = 3); * indicates a significant difference at p < 0.05, and ** means a significant difference at p < 0.01.
Figure 7. Responses of the transgenic Arabidopsis and WT seedlings cultured on MS medium with no stress, 300 mM mannitol, or 125 mM NaCl for 15 days. (a) Phenotype of WT and transgenic lines grown under different stresses; (b) primary root length of the WT and transgenic lines shown in (a); and (c) fresh weight of the WT and transgenic lines shown in (a). Data are presented as means ± SE (n = 3); * indicates a significant difference at p < 0.05, and ** means a significant difference at p < 0.01.
Biomolecules 10 00506 g007

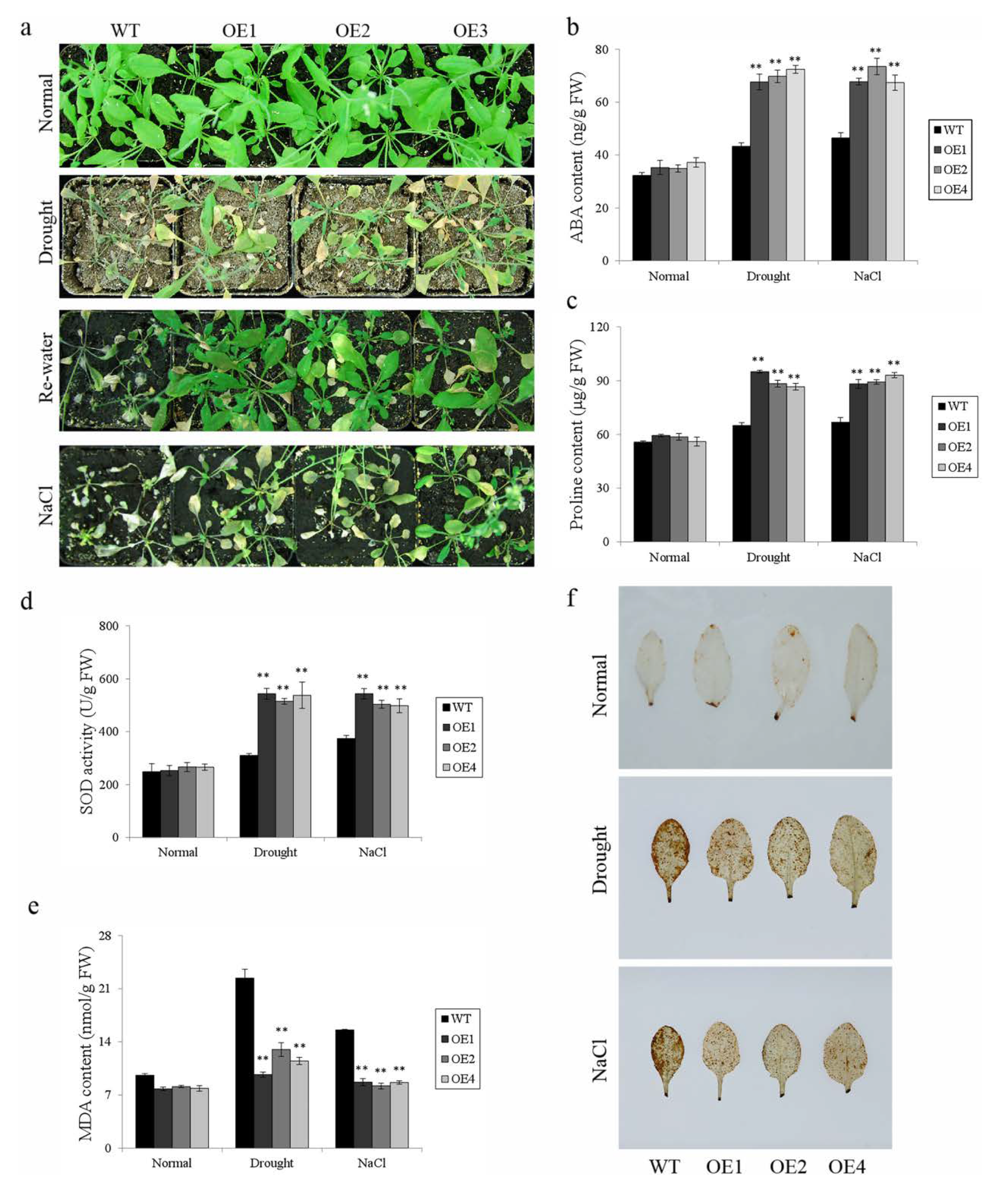

Figure 8. Responses of transgenic Arabidopsis and WT plants grown in pots under drought and salt stresses. (a) Phenotypes of transgenic lines and WT grown for 4 weeks under normal condition, 2 weeks under normal condition, and 2 weeks under 300 mM NaCl treatment or 2 weeks under normal conditions and 2 weeks under drought stress followed by 2 days of re-watering; (b) ABA content in transgenic lines and WT under the normal or stress condition shown in (a); (c) proline content in transgenic lines and WT under the normal or stress condition shown in (a); (d) SOD activity in transgenic lines and WT under the normal or stress condition shown in (a); (e) MDA content in transgenic lines and WT under the normal or stress condition shown in (a); and (f) H2O2 content indicated by DAB staining in transgenic lines and WT under the normal or stress condition. Data are presented as means ± SE (n = 3); ** indicate a significant difference at p < 0.01.
Figure 8. Responses of transgenic Arabidopsis and WT plants grown in pots under drought and salt stresses. (a) Phenotypes of transgenic lines and WT grown for 4 weeks under normal condition, 2 weeks under normal condition, and 2 weeks under 300 mM NaCl treatment or 2 weeks under normal conditions and 2 weeks under drought stress followed by 2 days of re-watering; (b) ABA content in transgenic lines and WT under the normal or stress condition shown in (a); (c) proline content in transgenic lines and WT under the normal or stress condition shown in (a); (d) SOD activity in transgenic lines and WT under the normal or stress condition shown in (a); (e) MDA content in transgenic lines and WT under the normal or stress condition shown in (a); and (f) H2O2 content indicated by DAB staining in transgenic lines and WT under the normal or stress condition. Data are presented as means ± SE (n = 3); ** indicate a significant difference at p < 0.01.
Biomolecules 10 00506 g008

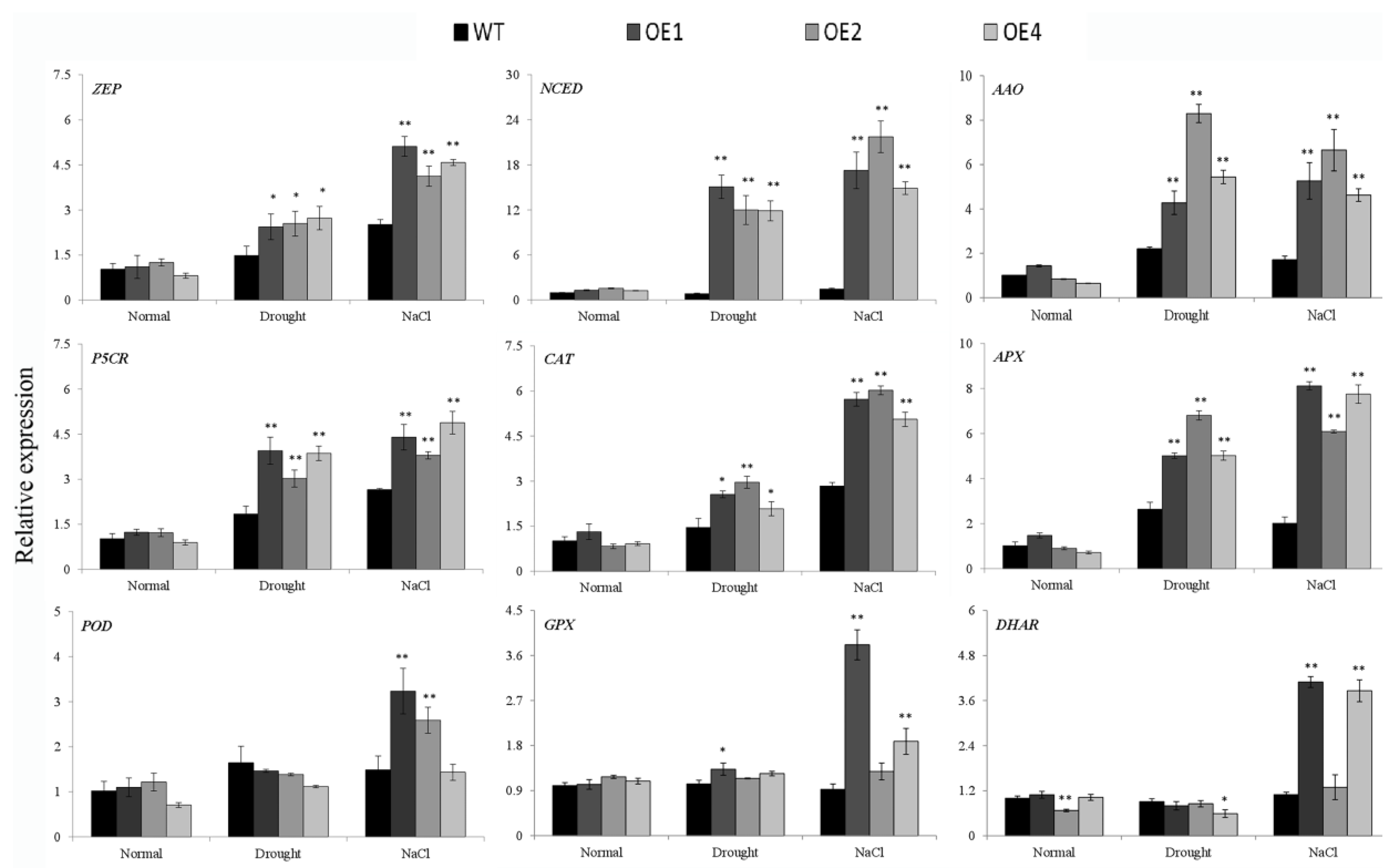

Figure 9. Transcript levels of drought- and salt-responsive genes in transgenic Arabidopsis and WT plants. The plants were grown under normal conditions for two weeks and then used for normal, NaCl, and drought stress treatments. After one week of treatment, the leaves of transgenic lines and WT were sampled for analysis. Data are presented as means ± SE (n = 3); * and ** indicate a significant difference at p < 0.05 and p < 0.01, respectively. The gene expression in WT under normal conditions was set to 1, and the expression in the other samples was adjusted accordingly.
Figure 9. Transcript levels of drought- and salt-responsive genes in transgenic Arabidopsis and WT plants. The plants were grown under normal conditions for two weeks and then used for normal, NaCl, and drought stress treatments. After one week of treatment, the leaves of transgenic lines and WT were sampled for analysis. Data are presented as means ± SE (n = 3); * and ** indicate a significant difference at p < 0.05 and p < 0.01, respectively. The gene expression in WT under normal conditions was set to 1, and the expression in the other samples was adjusted accordingly.
Biomolecules 10 00506 g009
Figure 10. Protein interaction assays between IbWRKY2 and VQ4. (a) Yeast two-hybrid assay showing the interaction between IbWRKY2 and VQ4 proteins from sweetpotato and Arabidopsis; pGBKT7 and pGADT7 plasmids served as negative controls. (b) BiFC visualization of the interaction between IbWRKY2 and VQ4 proteins from sweetpotato and Arabidopsis in tobacco leaves.
Figure 10. Protein interaction assays between IbWRKY2 and VQ4. (a) Yeast two-hybrid assay showing the interaction between IbWRKY2 and VQ4 proteins from sweetpotato and Arabidopsis; pGBKT7 and pGADT7 plasmids served as negative controls. (b) BiFC visualization of the interaction between IbWRKY2 and VQ4 proteins from sweetpotato and Arabidopsis in tobacco leaves.
Biomolecules 10 00506 g010

Share and Cite

MDPI and ACS Style

Zhu, H.; Zhou, Y.; Zhai, H.; He, S.; Zhao, N.; Liu, Q. A Novel Sweetpotato WRKY Transcription Factor, IbWRKY2, Positively Regulates Drought and Salt Tolerance in Transgenic Arabidopsis. Biomolecules 2020, 10, 506. https://doi.org/10.3390/biom10040506

AMA Style

Zhu H, Zhou Y, Zhai H, He S, Zhao N, Liu Q. A Novel Sweetpotato WRKY Transcription Factor, IbWRKY2, Positively Regulates Drought and Salt Tolerance in Transgenic Arabidopsis. Biomolecules. 2020; 10(4):506. https://doi.org/10.3390/biom10040506

Chicago/Turabian Style

Zhu, Hong, Yuanyuan Zhou, Hong Zhai, Shaozhen He, Ning Zhao, and Qingchang Liu. 2020. "A Novel Sweetpotato WRKY Transcription Factor, IbWRKY2, Positively Regulates Drought and Salt Tolerance in Transgenic Arabidopsis" Biomolecules 10, no. 4: 506. https://doi.org/10.3390/biom10040506

APA Style

Zhu, H., Zhou, Y., Zhai, H., He, S., Zhao, N., & Liu, Q. (2020). A Novel Sweetpotato WRKY Transcription Factor, IbWRKY2, Positively Regulates Drought and Salt Tolerance in Transgenic Arabidopsis. Biomolecules, 10(4), 506. https://doi.org/10.3390/biom10040506

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
