How Streptococcus mutans Affects the Surface Topography and Electrochemical Behavior of Nanostructured Bulk Ti

by
Agata Sotniczuk
1,*,
Agnieszka Jastrzębska
1,
Adrian Chlanda
2,
Agnieszka Kwiatek
3 and
Halina Garbacz
1
1
Faculty of Materials Science and Engineering, Warsaw University of Technology, 02-507 Warsaw, Poland
2
Łukasiewicz Research Network—Institute of Microelectronics and Photonics, 01-919 Warsaw, Poland
3
Institute of Microbiology, Faculty of Biology, University of Warsaw, 02-096 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Biomolecules 2022, 12(10), 1515; https://doi.org/10.3390/biom12101515
Submission received: 4 September 2022 / Revised: 7 October 2022 / Accepted: 15 October 2022 / Published: 19 October 2022
(This article belongs to the Special Issue Interface of Aging and Biomaterials)
Browse Figures
Review Reports Versions Notes

Abstract

:
The metabolization of carbohydrates by Streptococcus mutans leads to the formation of lactic acid in the oral cavity, which can consequently accelerate the degradation of dental implants fabricated from commercially available microcrystalline Ti. Microstructure influences surface topography and hence interaction between bacteria cells and Ti surfaces. This work offers the first description of the effect of S. mutans on the surface topography and properties of nanostructured bulk Ti, which is a promising candidate for modern narrow dental implants owing to its superior mechanical strength. It was found that S. mutans incubation resulted in the slight, unexpected decrease of surface nanoroughness, which was previously developed owing to privileged oxidation in areas of closely spaced boundaries. However, despite the changes in nanoscale surface topography, bacteria incubation did not reduce the high level of protection afforded by the oxide layer formed on the nanostructured Ti surface. The results highlight the need–hitherto ignored–to consider Ti microstructure when analyzing its behavior in the presence of carbohydrate-metabolizing bacteria.

1. Introduction

The global dental market is growing, and it is expected to exceed $13 billion by 2023 [1]. This is a consequence of aging demographics, which inevitably boost demand for dental implants. Currently, pure Ti is one of the most commonly used materials in commercial dental solutions proposed by leading implant manufacturers, such as StraumanTM and Nobel BiocareTM [2]. This popularity is due to its biocompatibility and high corrosion resistance combined with relatively low stiffness [3,4,5,6]. The success of dental procedures is governed not only by the biomaterial selected but also by the quality of bone tissue at the implantation site [7]. Standard dental implants of 3.7–4.1 mm in diameter create difficulties in patients with atrophic alveolar bone and require special bone augmentation treatments which enhance the risk of complications [8]. Moreover, bone augmentation increases treatment costs and prolongs the healing time after implantation [7,8]. Apart from the quality of bone tissue, difficulties with the installation of implants with a standard diameter can also occur in the case of patients with limited space in the oral cavity [9,10]. Insufficient distance between replacement and adjacent teeth increases the risk of bone resorption after implantation [11]. One response to these issues is to fabricate narrow dental implants (diameter < 3.5 mm) [9]. However, clinical studies have revealed that commercially available pure Ti is not a good option for narrow dental implants, owing to the possibility of fractures occurring over the long term [9,12]. This is associated with insufficient mechanical strength [13], which can be enhanced by grain refinement to the nanoscale using large plastic deformation techniques [14,15,16,17]. Nanostructuring allows not only the reduction of the diameter of the Ti implant, but it also allows its immediate loading, which has been confirmed by in vivo trials [10,18]. Nevertheless, long-lasting dental materials must simultaneously demonstrate advantageous mechanical and surface properties in the complex oral environment, which contains a variety of inorganic (e.g., fluoride ions [19,20,21]) and organic species (e.g., proteins [22,23] and bacteria [24,25,26,27]). Carbohydrate-metabolizing bacteria, such as Streptococcus mutans (S. mutans), merit special attention. S. mutans produces lactic acid, thereby lowering pH, which was found to reduce Ti corrosion resistance [28]. Atomic force microscopy (AFM) examination revealed an increase in Ti surface roughness after immersion in artificial saliva enriched with lactic acid, which confirms the possibility of Ti degradation in an acidified environment created by S. mutans [29]. The following conclusions are valid for commercially used microcrystalline pure Ti and require verification for its nanostructured counterpart. Literature data show that Ti nanostructuring usually enhances corrosion resistance in simulated physiological solutions, which is associated with a high number of structural defects which, in turn, promote passivation [30,31,32,33,34]. However, the increased reactivity of nanocrystalline material can also lead to accelerated corrosion processes in more aggressive conditions [15,35]. Although nanostructured Ti for dental applications has been extensively studied in regard to fabrication methods [15,36], properties characterization [37,38,39], and commercialization [18], little is known about its behavior in the presence of oral bacteria [40,41]. Hence, this study seeks to shed light on the effect of S. mutans on the surface morphology and electrochemical properties of nanostructured bulk Ti. To the knowledge of the authors, this manuscript provides the first description of the effect of S. mutans on the surface morphology and properties of nanostructured bulk Ti and highlights the need—hitherto ignored—to consider the level of Ti defectiveness when analyzing surface–bacteria interactions.

2. Materials and Methods

2.1. Fabrication of Nanostructured Ti

To refine Ti grains to a nanometric size, microcrystalline Ti (rod diameter = 50 mm) was subjected to multistage hydrostatic extrusion (HE) with an equivalent strain of 3.7. This large plastic deformation process reduced the Ti rod diameter to 8 mm, which is sufficient for the fabrication of dental replacements [3,42]. The methodology of HE was optimized at the Institute of High Pressure Physics of the Polish Academy of Sciences, and a detailed description of it is provided in [43]. For the purpose of studying adhesion of S. mutans, disks from nanostructured Ti (8 mm diameter, 1 mm thickness) were ground to #2400 and polished with a 0.04 μm silica suspension. Subsequently, the disks were ultrasonically cleaned in a 70% ethanol solution.

2.2. Bacterial Growth and Adhesion to Nanostructured Ti Surface

S. mutans (ATCC® 25175TM, Thermo Scientific, Waltham, MA, USA) was provided by the Faculty of Biology at the University of Warsaw. Bacterial cells were cultivated on tryptic soy agar (TSA) for 48 h at 37 °C on glass Petri dishes. Then, S. mutans cells were harvested from the solid medium and resuspended in PBS with 10 g/L glucose [44] to obtain the required optical density OD600 = 0.627, as measured by a spectrometer (UV–Vis Evolution 210, Thermo Scientific, Waltham, MA, USA). To test for the presence of bacteria, 1 mL of the suspension was applied to a copper mesh, which was then sputtered with a gold layer (thickness 8 nm) and subjected to scanning electron microscopy (SEM) observations (HITACHI SEM/STEM 5500N, Texas Materials Institute, Austin, TX, USA). After successful microscopic evaluation, the nanostructured Ti disks were placed in 24-well plates and immersed in a bacteria suspension (2 mL for each sample). The samples were incubated at 37 °C for 24 h and 48 h. For each incubation period, six nanostructured Ti disks were subjected to immersion in the bacteria suspension, and one additional disk was placed in a pure PBS solution enriched with glucose (control group). The time of incubation was selected in light of studies related to microcrystalline Ti, which state that S. mutans biofilm growth stabilizes after 48 h of immersion in a bacteria-rich environment [28]. After the end of bacteria growth, the suspensions were transferred to a sterile 24-well plate to measure their pH values. Nanostructured Ti disks were then washed three times with PBS and immersed in a glutaraldehyde solution for 10 min. The fixed disks were washed with PBS and dehydrated with an ethanol solution.

2.3. Surface Characterization

A scanning electron microscope (HITACHI SEM SU-70) was used to evaluate the process of bacteria adhesion to the nanostructured Ti surface. Disks for SEM examination were sputtered with a gold layer (thickness 8 nm). The number of bacteria was calculated using the Micrometer program [45,46]. An atomic force microscope (Dimension Icon Bruker AFM) was used to provide a quantitative description of the effect of bacteria adhesion and its metabolization products on surface morphology. The AFM was connected to a NanoScope V controller. A silicon ACT series probe (App Nano) with a nominal spring constant of ca. 37 N/m and a nominal radius of ca. 6 nm was selected for topographical investigation of the surface of the Ti disks. To ensure examination conditions with minimal impact from the external environment, the microscope was encased in a chamber supplied by the microscope’s producer. Prior to imaging, the drive frequency of the scanning probe (ca. 260 kHz) was adjusted with the built-in auto-tune function. Topographical information was recorded using standard tapping mode (TM) in air, in ambient conditions (18 °C and relative air humidity of ca. 28%). Subsequently, the topographical images were used for roughness analysis via the freeware Gwyddion (ver. 2.56). AFM examination was performed initially on the nanostructured Ti disks with a mirror-like, polished surface, which were subsequently immersed in an S. mutans suspension. The evaluation was repeated after the biofilm was removed from the nanostructured Ti surface by ultrasonication in ethanol and then in ultrapure water. Additionally, AFM analysis was carried out on the material prior to large plastic deformation (microcrystalline Ti with a mirror-like, polished surface). This verified whether the surface nanotopography of Ti is governed, not only by the surface preparation methodology, but also by the microstructure of the material. Data related to the number of bacteria, pH, and surface topography were statistically analyzed using one-way analysis of variance (ANOVA) and post-hoc Tukey tests. Significant statistical differences were identified for p < 0.05. The analysis of the changes in the nanostructured Ti surface morphology induced by bacteria incubation was supplemented by electrochemical evaluation of passive-layer protectiveness. Electrochemical measurements (electrochemical impedance spectroscopy (EIS) and potentiodynamic polarization (PD)) were performed in an artificial saliva solution (using Fusayama’s recipe [19]) for nanostructured Ti in the polished state and after removal of the S. mutans biofilm. All of the electrochemical tests were carried out with a three-electrode system: working electrode–Ti sample (WE), counter electrode–platinum (CE) and reference electrode–saturated Ag/AgCl (RE), connected to a potentiostat (Autolab PGSTAT 302N). EIS tests were performed at open circuit potential (OCP) from 10,000 Hz to 0.05 Hz (amplitude ±10 mV). PD measurements were conducted from −0.2 V to 2.5 V vs. OCP (scan rate 0.002 V/s). EIS measurements were performed after OCP stabilization (1 h after immersion). PD curves were recorded immediately after the EIS tests (ca. 2 h after immersion). A detailed description of the tested samples is provided in Table 1.

3. Results and Discussion

3.1. Microstructure and Surface Topography of Nanostructured Ti

Figure 1 shows the microscopic evaluation of the microstructure and surface topography of the nanostructured Ti fabricated by large plastic deformation. It can be noticed that the multiple-pass HE process resulted in the formation of well-defined nanometric grains with a high dislocation density in their interiors (Figure 1). Although the nano Ti surface was polished to a mirror-like state, AFM examination showed that surface roughness had developed at the nanoscale (Figure 1). This could be associated with the refinement of its microstructure (Figure 1) by introducing a high number of grain boundaries during the multistage HE process [47]. Grain boundaries demonstrate enhanced reactivity compared to grain interiors; hence, they could act as privileged oxidation sites. Consequently, the closely spaced grain boundaries in nano Ti could be responsible for its developed surface topography at the nanoscale. This hypothesis was confirmed by the less-developed surface nanotopography reported for the microcrystalline Ti (the initial material for the large plastic deformation, Figure 2), which demonstrates a markedly less defective microstructure. It is widely known that surface nanotopography can moderate the adhesion of pathogenic (bacteria) cells [48,49,50,51]. Hence, our results highlight the importance of carrying out a separate analysis of the attachment of S. mutans to nano Ti substrates.

3.2. Bacterial Adhesion to the Nanostructured Ti Surface

The microscopic characteristics of nano Ti immersed in the S. mutans suspension are shown in Figure 3. Only single bacteria cells were visible in the case of the shorter incubation time (24 h). The number of attached bacteria cells increased significantly when the incubation period was extended to 48 h (Figure 3 and Figure 4, Table 2). The significant growth in the number of adhered S. mutans cells observed after the 48 h incubation period corresponds to a slight decline in the pH value of the growth medium (from pH = 7.8 to pH = 5.8—Figure 4, Table 2). This is associated with the formation of lactic acid owing to the metabolization of carbohydrates by S. mutans during biofilm formation [28]. Lowering pH, induced by the presence of lactic acid, accelerates microcrystalline Ti degradation, as confirmed by surface analysis [29] and ion-release measurements [52]. Corrosion of microcrystalline Ti in lactic acid was observed in the pH range from 1.0 to 8.5, and only slight differences in the extent of degradation were found in solutions with different pH values [52]. Thus, it can be assumed that 48 h incubation of S. mutans could induce surface degradation of nano Ti, despite only a slight decrease in pH. Moreover, it must be added that the pH value was measured in the bacteria suspension, whereas the real conditions existing directly between the biofilm layer and the nano Ti surface could be much more acidic [28].

3.3. Effect of Bacterial Exposure on the Surface Topography of Nanostructured Ti

Changes in nano Ti surface topography were evaluated both qualitatively (SEM) and quantitatively (AFM). SEM evaluation did not reveal any signs of degradation, such as local corrosion damage or microscale heterogeneities (Figure 3). However, slight changes in the nanotopography after 48 h of bacterial incubation were reported by AFM. It was found that immersing nano Ti in S. mutans suspension resulted in the slight smoothening of its surface at the nanoscale (Figure 5, Table 3). This could be associated with the huge number of grain boundaries, which privilege Ti dissolution in more aggressive conditions, such as that caused by lactic acid. Preferred degradation in the area of grain boundaries can result from their enhanced reactivity compared to the grain interiors. Selective dissolution within the more reactive grain boundaries could be responsible for nano Ti smoothening.

3.4. Effect of Bacterial Exposure on the Electrochemical Response of Nanostructured Ti

Changes in nanoscale surface topography can induce differences in functional properties, such as corrosion behavior. Since corrosion performance is of particular importance for long-term dental applications, it was necessary to investigate the protectiveness of the nano Ti oxide layer after the biofilm was removed. Electrochemical measurements performed under steady-state conditions (EIS tests) did not reveal significant changes in nano Ti corrosion behavior induced by S. mutans incubation (Figure 6). The flattened course of the phase-angle portion of the Bode plots indicates that a tight oxide layer, which was homogenous in structure, formed on the tested samples. For this reason, an electrical circuit with a single time constant (Figure 6) was selected to analyze the EIS results. The electrical circuit contained two resistors, Rs and Rp, which corresponded to solution- and passive-layer resistance, respectively, and one constant phase element (CPE). The parameters of the CPEs (Qin and n) were exploited to calculate effective capacitance (Ceff) according to the Hsu–Mansweld equation [53]. This approach to designating capacitance values from a CPE was demonstrated as accurate in the case of analyzing the protective properties of passive films [54,55]. For both states, calculated Ceff values were in the range of 10−5 F × cm−2 (Figure 6), similar to those reported for nano Ti tested in physiological saline [33]. Calculated values of passive-layer resistance (Rp) exceeded 107 Ω × cm2, which confirmed the high level of protection provided by passive layers formed on nano Ti in the polished state, as well as after bacteria removal. As compared to the literature data, the Rp values designated for nano Ti were about an order of magnitude higher than those reported for conventional microcrystalline Ti as tested in Fusayama’s artificial saliva [19,56]. This can be associated with following factors: (i) the higher protectiveness of the Ti oxide layer governed by nanostructure [33]; (ii) a differential surface preparation procedure and thereby surface morphology, (iii) a differential time range between surface preparation and electrochemical testing, which significantly affects the properties of the native passive layers [23].
Slight differences in corrosion behavior were detected during polarization measurements (PD tests—Figure 7). It was found that the corrosion potential (Ecorr) was ca. 250 mV higher for nano Ti subjected to the bacteria environment. Generally, higher Ecorr values denote better corrosion resistance. However, in the case of metals in the passive state, it is possible that the faster passivation, and hence inhibition, of the oxygen reduction reaction might be responsible for more negative Ecorr values being recorded [47,57]. Hence, we claim that the accelerated oxidation of the polished nano Ti after its immersion in artificial saliva is the reason for the lower Ecorr value compared to the nano Ti surface which was previously immersed in the S. mutans suspension. For both states, current density in the passive state (ipass) remained stable during polarization up to ca. 1.4 V (Figure 7). After exceeding ca. 1.4 V, a slight increase in the ipass value was observed for the nano Ti after S. mutans incubation. According to the literature, the ipass increase could result from the thickening of the passive layer, which does not balance the potential difference across the surface [58]. This indicates that the oxide layer formed on nanostructured Ti after bacteria removal demonstrates a greater tendency to further growth during anodic polarization. However, in further studies, this conclusion needs to be supported by additional surface analysis using spectroscopic techniques.

4. Future Outlook

This study found that titanium surface nanotopography can be affected not only by the surface preparation procedure, but also by the material’s microstructure, e.g., grain refinement to the nanoscale (Figure 2). Therefore, it is essential to provide a comparison of the effect of bacteria on surface morphology and the properties for dental Ti with different microstructures (e.g., grain sizes) with surfaces prepared using the same methodology. Moreover, owing to the long-term character of dental implants, it is necessary to replicate S. mutans incubation on nano Ti surfaces that were previously exposed to bacteria suspension. Considering the fact that the level and character of surface roughness at the nanoscale can moderate antibacterial properties [59], a smoother nano Ti surface after S. mutans incubation could behave differently after repeated bacteria exposure. Finally, future works must provide an overall comparison of materials proposed for use in narrow dental implants. A comprehensive analysis could allow the indication of products that offer the most promising combination of mechanical performance and functional properties, such as corrosion resistance, in the complex environment of the oral cavity.

5. Conclusions

This work offers the first description of the effect of carbohydrate-metabolizing bacteria (S. mutans) on the surface morphology and properties of bulk nanostructured Ti, which is a promising material for use in commercial narrow dental implants. The results can be summarized as follows:
  • Significant coverage of nano Ti surface by S. mutans was observed after 48 h of incubation in a bacteria suspension enriched with glucose. Bacteria adhesion and the beginning of biofilm formation were combined with a slight decline in pH, which could be associated with lactic acid formation owing to glucose metabolization.
  • S. mutans incubation resulted in an unexpected, slight reduction in nanoscale surface roughness. Preferential nano Ti dissolution in the closely spaced grain boundaries induced by the pH shift to more negative values could be the reason for the observed phenomenon.
  • Differences in surface nanotopography induced by S. mutans incubation provided virtually no changes in the protectiveness of the passive layer formed on the nanostructured Ti surface in the artificial saliva. This confirms the high application potential of bulk nanostructured Ti in the area of dental implantology.

Author Contributions

A.S.: conceptualization, methodology investigation, formal analysis, and writing—original draft preparation; A.J.: conceptualization, methodology, investigation, resources, and writing—review and editing, visualization; A.C.: investigation, visualization, and writing—review and editing; A.K.: investigation; H.G.: conceptualization, writing—review and editing, resources, supervision, project administration, and funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by statutory funds provided by the Faculty of Materials Science and Engineering, Warsaw University of Technology.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to offer special thanks to Ewa Kijeńska-Gawrońska, Emilia Choińska, and Żaneta Górecka for their help with sample sputtering.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alghamdi, H.S.; Jansen, J.A. The development and future of dental implants. Dent. Mater. J. 2020, 39, 167–172. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Hotchkiss, K.M.; Sowers, K.T.; Olivares-Navarrete, R. Novel in vitro comparative model of osteogenic and inflammatory cell response to dental implants. Dent. Mater. 2019, 35, 176–184. [Google Scholar] [CrossRef] [PubMed]
  3. Luo, H.; Wu, Y.; Diao, X.; Shi, W.; Feng, F.; Qian, F.; Umeda, J.; Kondoh, K.; Xin, H.; Shen, J. Mechanical properties and biocompatibility of titanium with a high oxygen concentration for dental implants. Mater. Sci. Eng. C 2020, 117, 111306. [Google Scholar] [CrossRef]
  4. Chen, M.; Zhang, Y.; Fu, S.; Yang, L.; Wang, X.; Wang, Q.; Qin, G.; Chen, D.; Zhang, E. Effect of fluorination/oxidation level of nano-structured titanium on the behaviors of bacteria and osteoblasts. Appl. Surf. Sci. 2020, 502, 144077. [Google Scholar] [CrossRef]
  5. Sevostyanov, M.A.; Kolmakov, A.G.; Sergiyenko, K.V.; Kaplan, M.A.; Baikin, A.S.; Gudkov, S.V. Mechanical, physical–chemical and biological properties of the new Ti–30Nb–13Ta–5Zr alloy. J. Mater. Sci. 2020, 55, 14516–14529. [Google Scholar] [CrossRef]
  6. Duraccio, D.; Mussano, F.; Faga, M.G. Biomaterials for dental implants: Current and future trends. J. Mater. Sci. 2015, 50, 4779–4812. [Google Scholar] [CrossRef]
  7. Papaspyridakos, P.; De Souza, A.; Vazouras, K.; Gholami, H.; Pagni, S.; Weber, H. Survival rates of short dental implants (≤6 mm) compared with implants longer than 6 mm in posterior jaw areas: A meta-analysis. Clin. Oral Implants Res. 2018, 29, 8–20. [Google Scholar] [CrossRef] [PubMed]
  8. Yang, G.; Chen, L.; Gao, Y.; Liu, H.; Dong, H.; Mou, Y. Risk factors and reoperative survival rate of failed narrow-diameter implants in the maxillary anterior region. Clin. Implant Dent. Relat. Res. 2020, 22, 29–41. [Google Scholar] [CrossRef]
  9. Zweers, J.; van Doornik, A.; Hogendorf, E.A.H.; Quirynen, M.; Van der Weijden, G.A. Clinical and radiographic evaluation of narrow-vs. regular-diameter dental implants: A 3-year follow-up. A retrospective study. Clin. Oral Implants Res. 2015, 26, 149–156. [Google Scholar] [CrossRef]
  10. Mishnaevsky, L.; Levashov, E.; Valiev, R.Z.; Segurado, J.; Sabirov, I.; Enikeev, N.; Prokoshkin, S.; Solov’yov, A.V.; Korotitskiy, A.; Gutmanas, E.; et al. Nanostructured titanium-based materials for medical implants: Modeling and development. Mater. Sci. Eng. R Rep. 2014, 81, 1–19. [Google Scholar] [CrossRef]
  11. Ioannidis, A.; Gallucci, G.O.; Jung, R.E.; Borzangy, S.; Hämmerle, C.H.F.; Benic, G.I. Titanium-zirconium narrow-diameter versus titanium regular-diameter implants for anterior and premolar single crowns: 3-year results of a randomized controlled clinical study. J. Clin. Periodontol. 2015, 42, 1060–1070. [Google Scholar] [CrossRef]
  12. Zinsli, B.; Sägesser, T.; Mericske, E.; Mericske-Stern, R. Clinical evaluation of small-diameter ITI implants: A prospective study. Int. J. Oral Maxillofac. Implants 2004, 19, 92–99. [Google Scholar]
  13. Albrektsson, T.; Wennerberg, A. On osseointegration in relation to implant surfaces. Clin. Implant Dent. Relat. Res. 2019, 21, 4–7. [Google Scholar] [CrossRef] [Green Version]
  14. Medvedev, A.E.; Neumann, A.; Ng, H.P.; Lapovok, R.; Kasper, C.; Lowe, T.C.; Anumalasetty, V.N.; Estrin, Y. Combined effect of grain refinement and surface modification of pure titanium on the attachment of mesenchymal stem cells and osteoblast-like SaOS-2 cells. Mater. Sci. Eng. C 2017, 71, 483–497. [Google Scholar] [CrossRef]
  15. Sotniczuk, A.; Garbacz, H. Nanostructured Bulk Titanium with Enhanced Properties–Strategies and Prospects for Dental Applications. Adv. Eng. Mater. 2021, 23, 2000909. [Google Scholar] [CrossRef]
  16. Topolski, K.; Adamczyk-Cieślak, B.; Garbacz, H. High-strength ultrafine-grained titanium 99.99 manufactured by large strain plastic working. J. Mater. Sci. 2019, 55, 4910–4925. [Google Scholar] [CrossRef]
  17. Khodabakhshi, F.; Mohammadi, M.; Gerlich, A.P. Stability of ultra-fine and nano-grains after severe plastic deformation: A critical review. J. Mater. Sci. 2021, 56, 15513–15537. [Google Scholar] [CrossRef]
  18. Lowe, T.C.; Valiev, R.Z.; Li, X.; Ewing, B.R. Commercialization of bulk nanostructured metals and alloys. MRS Bull. 2021, 46, 265–272. [Google Scholar] [CrossRef]
  19. Souza, J.C.M.; Barbosa, S.L.; Ariza, E.A.; Henriques, M.; Teughels, W.; Ponthiaux, P.; Celis, J.-P.; Rocha, L.A. How do titanium and Ti6Al4V corrode in fluoridated medium as found in the oral cavity? An in vitro study. Mater. Sci. Eng. C 2015, 47, 384–393. [Google Scholar] [CrossRef] [Green Version]
  20. Revathi, A.; Borrás, A.D.; Muñoz, A.I.; Richard, C.; Manivasagam, G. Degradation mechanisms and future challenges of titanium and its alloys for dental implant applications in oral environment. Mater. Sci. Eng. C 2017, 76, 1354–1368. [Google Scholar] [CrossRef]
  21. Zhang, H.; Man, C.; Wang, L.; Dong, C.; Wang, L.; Kong, D.; Wang, X. Different corrosion behaviors between α and β phases of Ti6Al4V in fluoride-containing solutions: Influence of alloying element Al. Corros. Sci. 2020, 169, 108605. [Google Scholar] [CrossRef]
  22. Chowdhury, N.D.; Ghosh, K.S. Electrochemical behaviour of dental amalgam in natural, artificial saliva and in 0.90 wt.% NaCl solution. Corros. Sci. 2018, 133, 217–230. [Google Scholar] [CrossRef]
  23. Hedberg, Y.S.; Gamna, F.; Padoan, G.; Ferraris, S.; Cazzola, M.; Herting, G.; Atapour, M.; Spriano, S.; Wallinder, I.O. Surface modified Ti6Al4V for enhanced bone bonding ability—Effects of silver and corrosivity at simulated physiological conditions from a corrosion and metal release perspective. Corros. Sci. 2020, 168, 108566. [Google Scholar] [CrossRef]
  24. Trolic, I.M.; Serdarevic, N.L.; Todoric, Z.; Budimir, A.; Spalj, S.; Curkovic, H.O. Corrosion of orthodontic archwires in artificial saliva in the presence of Lactobacillus reuteri. Surf. Coat. Technol. 2019, 370, 44–52. [Google Scholar] [CrossRef]
  25. Eduok, U.; Szpunar, J. In vitro corrosion studies of stainless-steel dental substrates during Porphyromonas gingivalis biofilm growth in artificial saliva solutions: Providing insights into the role of resident oral bacterium. RSC Adv. 2020, 10, 31280–31294. [Google Scholar] [CrossRef]
  26. Xavier, J.G.; Geremias, T.C.; Montero, J.F.D.; Vahey, B.R.; Benfatti, C.A.M.; Souza, J.C.M.; Magini, R.S.; Pimenta, A.L. Lactam inhibiting Streptococcus mutans growth on titanium. Mater. Sci. Eng. C 2016, 68, 837–841. [Google Scholar] [CrossRef]
  27. Yang, Y.; Masoumeh, M.; Zhou, E.; Liu, D.; Song, Y.; Xu, D.; Wang, F.; Smith, J.A. Streptococcus mutans biofilms induce metabolite-mediated corrosion of 316 L stainless steel in a simulated oral environment. Corros. Sci. 2021, 182, 109286. [Google Scholar] [CrossRef]
  28. Souza, J.C.M.; Ponthiaux, P.; Henriques, M.; Oliveira, R.; Teughels, W.; Celis, J.P.; Rocha, L.A. Corrosion behaviour of titanium in the presence of Streptococcus mutans. J. Dent. 2013, 41, 528–534. [Google Scholar] [CrossRef] [Green Version]
  29. Mabilleau, G.; Bourdon, S.; Joly-Guillou, M.L.; Filmon, R.; Baslé, M.F.; Chappard, D. Influence of fluoride, hydrogen peroxide and lactic acid on the corrosion resistance of commercially pure titanium. Acta Biomater. 2006, 2, 121–129. [Google Scholar] [CrossRef]
  30. Miyamoto, H. Corrosion of Ultrafine Grained Materials by Severe Plastic Deformation, an Overview. Mater. Trans. 2016, 575, 559–572. [Google Scholar] [CrossRef] [Green Version]
  31. Lu, J.; Zhang, Y.; Huo, W.; Zhang, W.; Zhao, Y.; Zhang, Y. Electrochemical corrosion characteristics and biocompatibility of nanostructured titanium for implants. Appl. Surf. Sci. 2018, 434, 63–72. [Google Scholar] [CrossRef]
  32. Kubacka, D.; Yamamoto, A.; Wiecinski, P.; Garbacz, H. Biological behavior of titanium processed by severe plastic deformation. Appl. Surf. Sci. 2019, 472, 54–63. [Google Scholar] [CrossRef]
  33. Sotniczuk, A.; Kuczyńska-Zemła, D.; Królikowski, A.; Garbacz, H. Enhancement of the corrosion resistance and mechanical properties of nanocrystalline titanium by low-temperature annealing. Corros. Sci. 2019, 147, 342–349. [Google Scholar] [CrossRef]
  34. Wang, C.T.; Fox, A.G.; Langdon, T.G. Microstructural evolution in ultrafine-grained titanium processed by high-pressure torsion under different pressures. J. Mater. Sci. 2014, 49, 6558–6564. [Google Scholar] [CrossRef]
  35. Ralston, K.D.; Birbilis, N.; Davies, C.H.J. Revealing the relationship between grain size and corrosion rate of metals. Scr. Mater. 2010, 63, 1201–1204. [Google Scholar] [CrossRef]
  36. Ebrahimi, M.; Attarilar, S. Grain Refinement Affected Machinability in Commercial Pure Titanium. Metall. Mater. Trans. A 2021, 52, 1282–1292. [Google Scholar] [CrossRef]
  37. Semenova, I.P.; Polyakova, V.V.; Dyakonov, G.S.; Polyakov, A.V. Ultrafine-Grained Titanium-Based Alloys: Structure and Service Properties for Engineering Applications. Adv. Eng. Mater. 2020, 22, 1900651. [Google Scholar] [CrossRef]
  38. Wojtas, D.; Wierzbanowski, K.; Chulist, R.; Pachla, W.; Bieda-Niemiec, M.; Jarzębska, A.; Maj, Ł.; Kawałko, J.; Marciszko-Wiąckowska, M.; Wroński, M. Microstructure-strength relationship of ultrafine-grained titanium manufactured by unconventional severe plastic deformation process. J. Alloys Compd. 2020, 837, 155576. [Google Scholar] [CrossRef]
  39. Ostrovska, L.; Vistejnova, L.; Dzugan, J.; Slama, P.; Kubina, T.; Ukraintsev, E.; Kubies, D.; Kralickova, M.; Hubalek Kalbacova, M. Biological evaluation of ultra-fine titanium with improved mechanical strength for dental implant engineering. J. Mater. Sci. 2016, 51, 3097–3110. [Google Scholar] [CrossRef]
  40. Sandeep Kranthi Kiran, A.; Sireesha, M.; Ramalingam, R.; Kizhakeyil, A.; Verma, N.K.; Lakshminarayanan, R.; Sampath Kumar, T.S.; Doble, M.; Ramakrishna, S. Modulation of biological properties by grain refinement and surface modification on titanium surfaces for implant-related infections. J. Mater. Sci. 2019, 54, 13265–13282. [Google Scholar] [CrossRef]
  41. Truong, V.K.; Rundell, S.; Lapovok, R.; Estrin, Y.; Wang, J.Y.; Berndt, C.C.; Barnes, D.G.; Fluke, C.J.; Crawford, R.J.; Ivanova, E.P. Effect of ultrafine-grained titanium surfaces on adhesion of bacteria. Appl. Microbiol. Biotechnol. 2009, 83, 925–937. [Google Scholar] [CrossRef]
  42. Elias, C.N.; Fernandes, D.J.; de Souza, F.M.; Monteiro, E.D.S.; Biasi, R.S. De Mechanical and clinical properties of titanium and titanium-based alloys (Ti G2, Ti G4 cold worked nanostructured and Ti G5) for biomedical applications. J. Mater. Res. Technol. 2019, 8, 1060–1069. [Google Scholar] [CrossRef]
  43. Garbacz, H.; Topolski, K.; Motyka, M. Hydrostatic extrusion. In Nanocrystalline Titanium; Elsevier: Amsterdam, The Netherlands, 2018; pp. 37–53. [Google Scholar]
  44. Giordano, C.; Saino, E.; Rimondini, L.; Pedeferri, M.P.; Visai, L.; Cigada, A.; Chiesa, R. Electrochemically induced anatase inhibits bacterial colonization on Titanium Grade 2 and Ti6Al4V alloy for dental and orthopedic devices. Colloids Surf. B Biointerfaces 2011, 88, 648–655. [Google Scholar] [CrossRef]
  45. Wejrzanowski, T.; Kurzydlowski, K.J. Stereology of grains in nano-crystals. In Solid State Phenomena; Trans Tech Publications Ltd.: Bäch, Switzerland, 2003; pp. 221–228. [Google Scholar]
  46. Wejrzanowski, T.; Lewandowska, M.; Kurzydłowski, K.J. Stereology of nano-materials. Image Anal. Stereol. 2010, 29, 1–12. [Google Scholar] [CrossRef] [Green Version]
  47. Sotniczuk, A.; Kuczyńska-Zemła, D.; Kwaśniak, P.; Thomas, M.; Garbacz, H. Corrosion behavior of Ti-29Nb-13Ta-4.6Zr and commercially pure Ti under simulated inflammatory conditions—Comparative effect of grain refinement and non-toxic β phase stabilizers. Electrochim. Acta 2019, 312, 369–379. [Google Scholar] [CrossRef]
  48. Ferraris, S.; Vitale, A.; Bertone, E.; Guastella, S.; Cassinelli, C.; Pan, J.; Spriano, S. Multifunctional commercially pure titanium for the improvement of bone integration: Multiscale topography, wettability, corrosion resistance and biological functionalization. Mater. Sci. Eng. C 2016, 60, 384–393. [Google Scholar] [CrossRef] [PubMed]
  49. Ferraris, S.; Perero, S.; Costa, P.; di Confiengo, G.G.; Cochis, A.; Rimondini, L.; Renaux, F.; Vernè, E.; Ferraris, M.; Spriano, S. Antibacterial inorganic coatings on metallic surfaces for temporary fixation devices. Appl. Surf. Sci. 2020, 508, 144707. [Google Scholar] [CrossRef]
  50. Rajab, F.H.; Tayf Tariq, A.S.; Al-Jumaily, A.K.; AlShaer, A.W.; Li, L.; Whitehead, K.A. The influence of picosecond laser generated periodic structures on bacterial behaviour. Appl. Surf. Sci. 2021, 540, 148292. [Google Scholar] [CrossRef]
  51. Bazaka, O.; Bazaka, K.; Truong, V.K.; Levchenko, I.; Jacob, M.V.; Estrin, Y.; Lapovok, R.; Chichkov, B.; Fadeeva, E.; Kingshott, P. Effect of titanium surface topography on plasma deposition of antibacterial polymer coatings. Appl. Surf. Sci. 2020, 521, 146375. [Google Scholar] [CrossRef]
  52. Koike, M.; Fujii, H. The corrosion resistance of pure titanium in organic acids. Biomaterials 2001, 22, 2931–2936. [Google Scholar] [CrossRef]
  53. Hsu, C.H.; Mansfeld, F. Concerning the conversion of the constant phase element parameter Y0 into a capacitance. Corrosion 2001, 57, 747–748. [Google Scholar] [CrossRef]
  54. Hirschorn, B.; Orazem, M.E.; Tribollet, B.; Vivier, V.; Frateur, I.; Musiani, M. Determination of effective capacitance and film thickness from constant-phase-element parameters. Electrochim. Acta 2010, 55, 6218–6227. [Google Scholar] [CrossRef]
  55. Hirschorn, B.; Orazem, M.E.; Tribollet, B.; Vivier, V.; Frateur, I.; Musiani, M. Constant-phase-element behavior caused by resistivity distributions in films II. Applications. J. Electrochem. Soc. 2010, 157, C458–C463. [Google Scholar] [CrossRef]
  56. Li, Y.; Xu, J. Is niobium more corrosion-resistant than commercially pure titanium in fluoride-containing artificial saliva? Electrochim. Acta 2017, 233, 151–166. [Google Scholar] [CrossRef]
  57. Gurao, N.P.; Manivasagam, G.; Govindaraj, P.; Asokamani, R.; Suwas, S. Effect of texture and grain size on bio-corrosion response of ultrafine-grained titanium. In Metallurgical and Materials Transactions A: Physical Metallurgy and Materials Science; Springer: Berlin/Heidelberg, Germany, 2013; pp. 5602–5610. [Google Scholar]
  58. Cvijović-Alagić, I.; Cvijović, Z.; Bajat, J.; Rakin, M. Composition and processing effects on the electrochemical characteristics of biomedical titanium alloys. Corros. Sci. 2014, 83, 245–254. [Google Scholar] [CrossRef]
  59. Lee, S.W.; Phillips, K.S.; Gu, H.; Kazemzadeh-Narbat, M.; Ren, D. How microbes read the map: Effects of implant topography on bacterial adhesion and biofilm formation. Biomaterials 2020, 268, 120595. [Google Scholar] [CrossRef]
Biomolecules 12 01515 g001 550

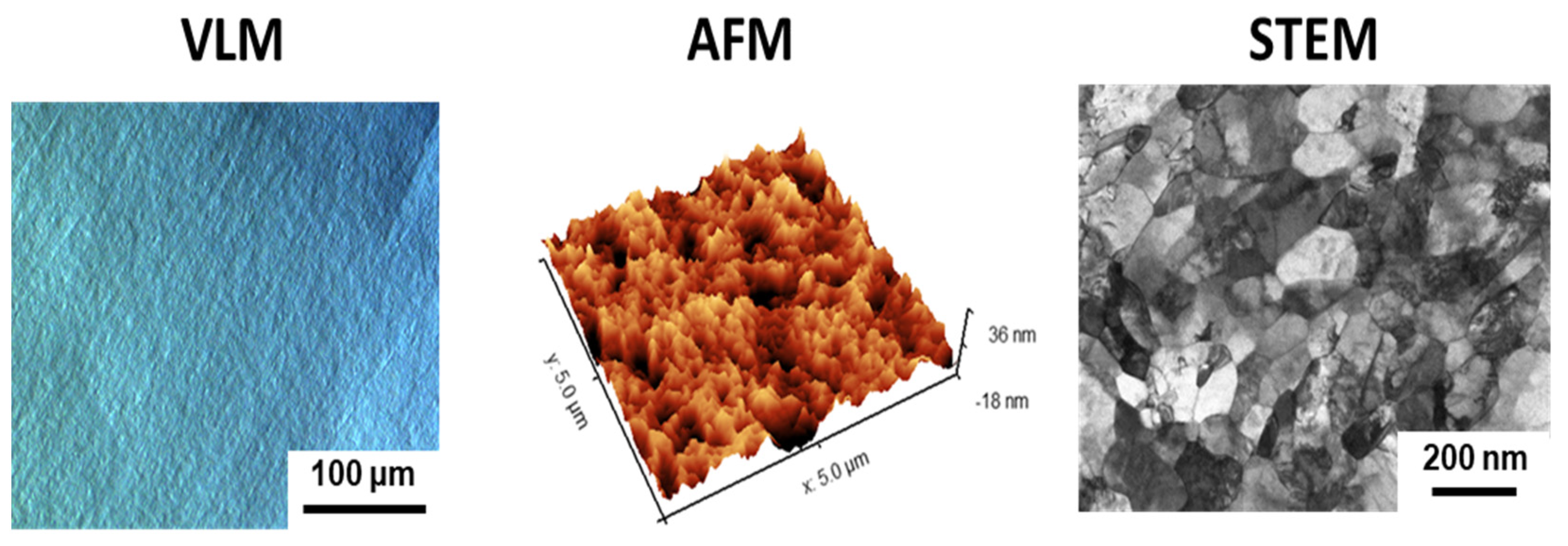

Figure 1. Evaluation of nanostructured Ti surface topography (VLM micrograph and AFM map) origins from its refined microstructure (STEM image).
Figure 1. Evaluation of nanostructured Ti surface topography (VLM micrograph and AFM map) origins from its refined microstructure (STEM image).
Biomolecules 12 01515 g001
Biomolecules 12 01515 g002 550

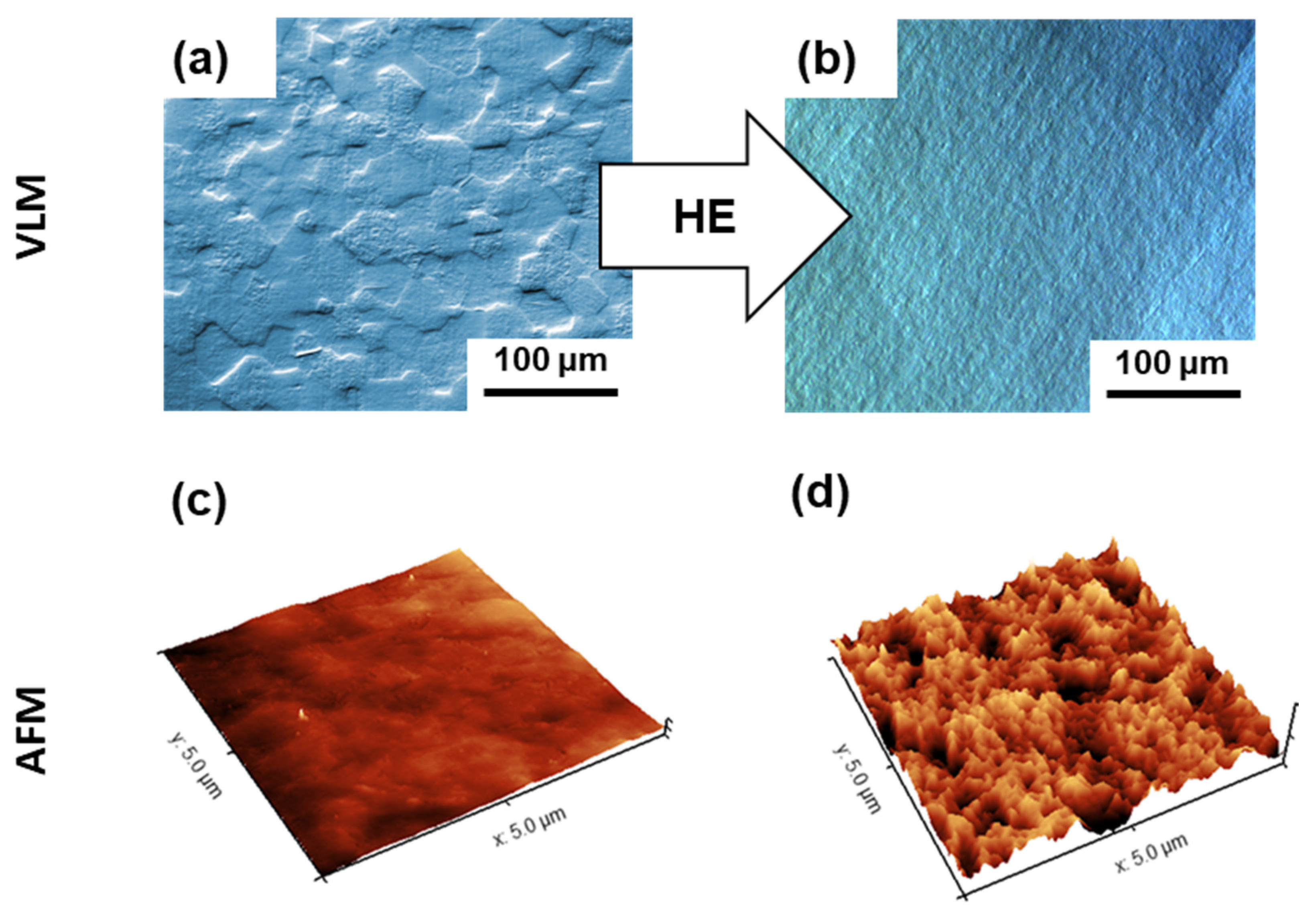

Figure 2. Microstructure of the (a) microcrystalline Ti and (b) nanostructured Ti (VLM micrographs with DIC contrast), (c) microcrystalline Ti, and (d) nanostructured Ti (AFM images).
Figure 2. Microstructure of the (a) microcrystalline Ti and (b) nanostructured Ti (VLM micrographs with DIC contrast), (c) microcrystalline Ti, and (d) nanostructured Ti (AFM images).
Biomolecules 12 01515 g002
Biomolecules 12 01515 g003 550

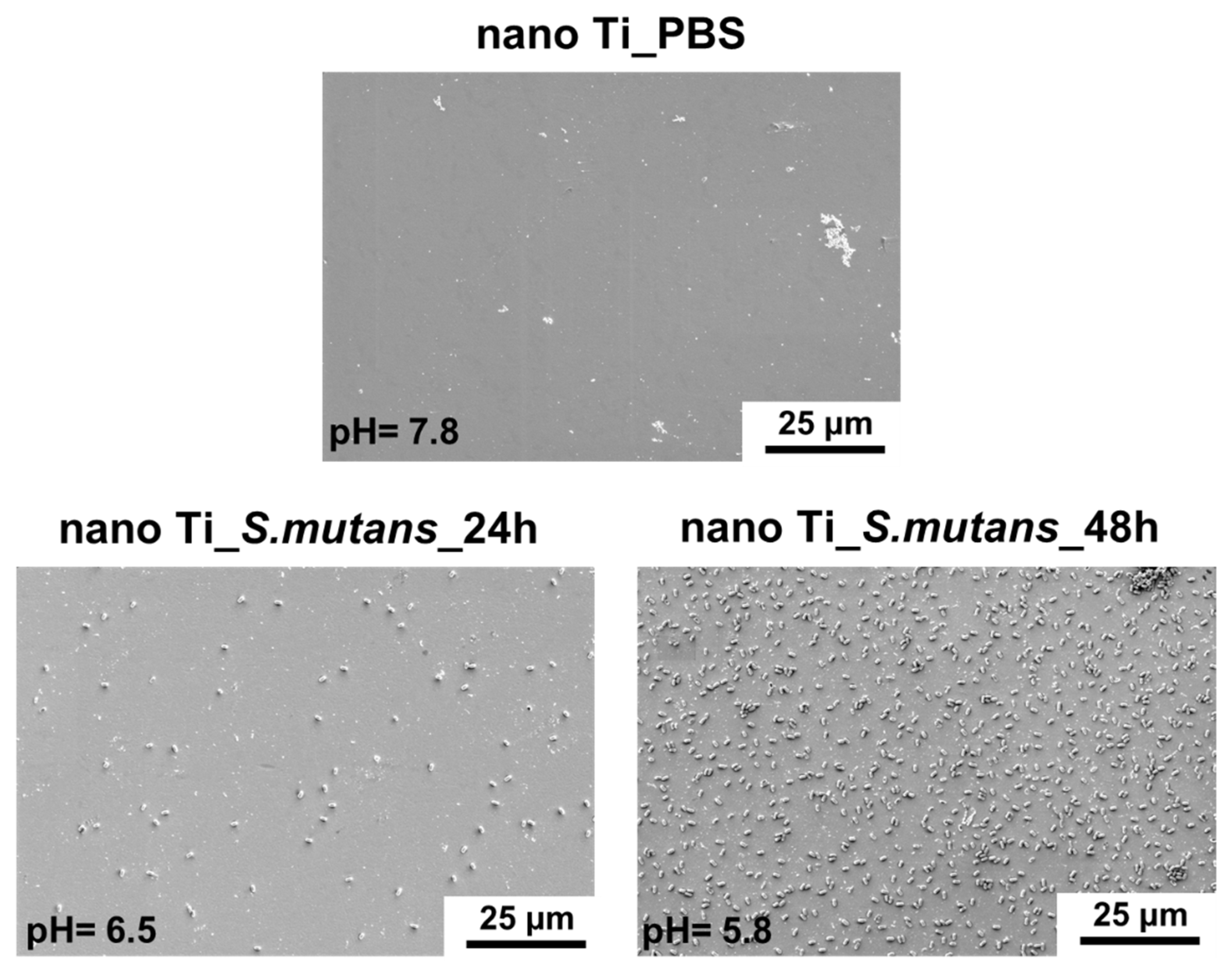

Figure 3. Streptococcus mutans adhesion to the nanostructured Ti surface (SEM micrographs).
Figure 3. Streptococcus mutans adhesion to the nanostructured Ti surface (SEM micrographs).
Biomolecules 12 01515 g003
Biomolecules 12 01515 g004 550

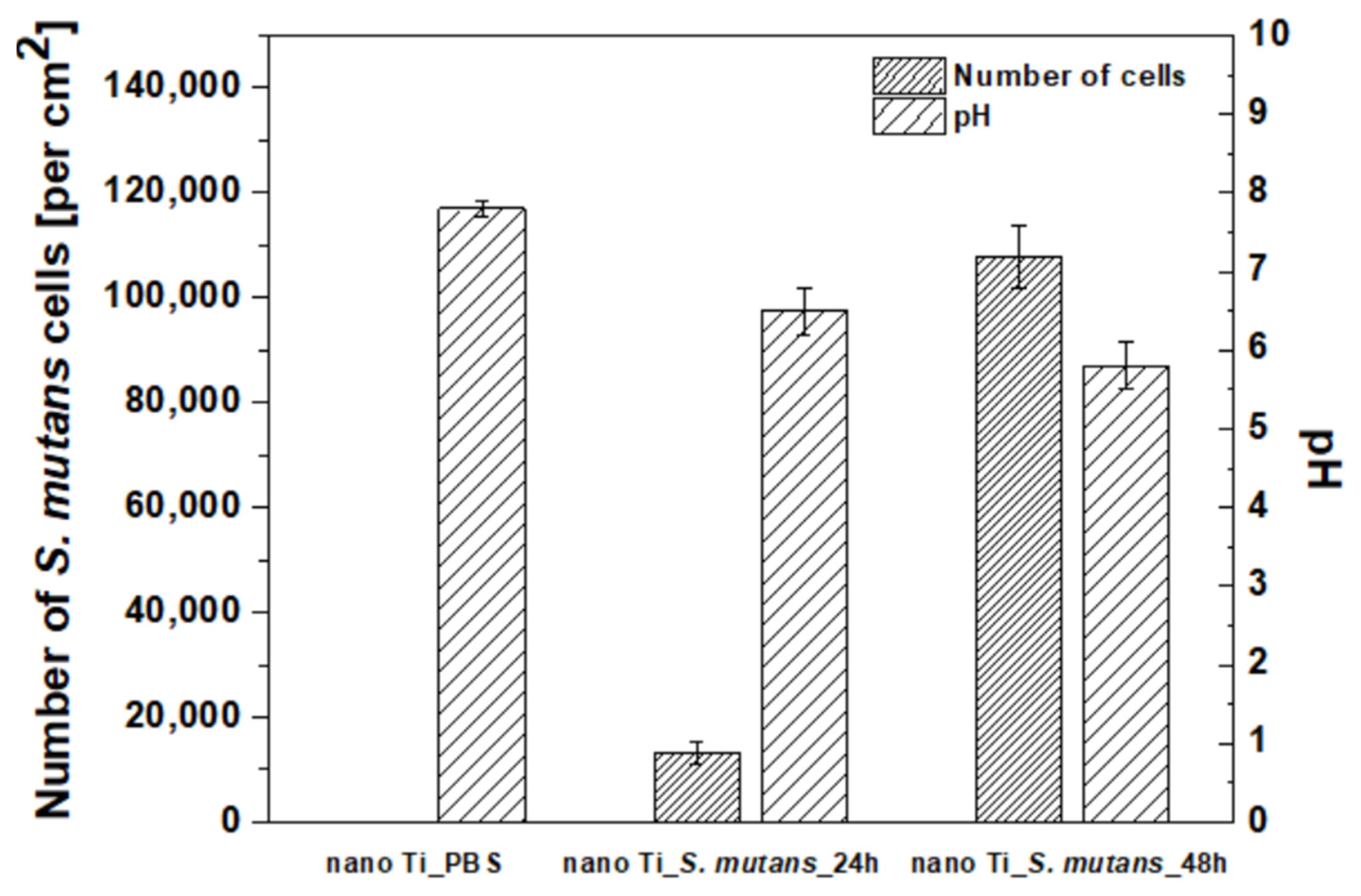

Figure 4. Calculated number of S. mutans cells per 1 cm2 of nanostructured Ti surface and pH value of the suspension measured after bacterial incubation.
Figure 4. Calculated number of S. mutans cells per 1 cm2 of nanostructured Ti surface and pH value of the suspension measured after bacterial incubation.
Biomolecules 12 01515 g004
Biomolecules 12 01515 g005 550

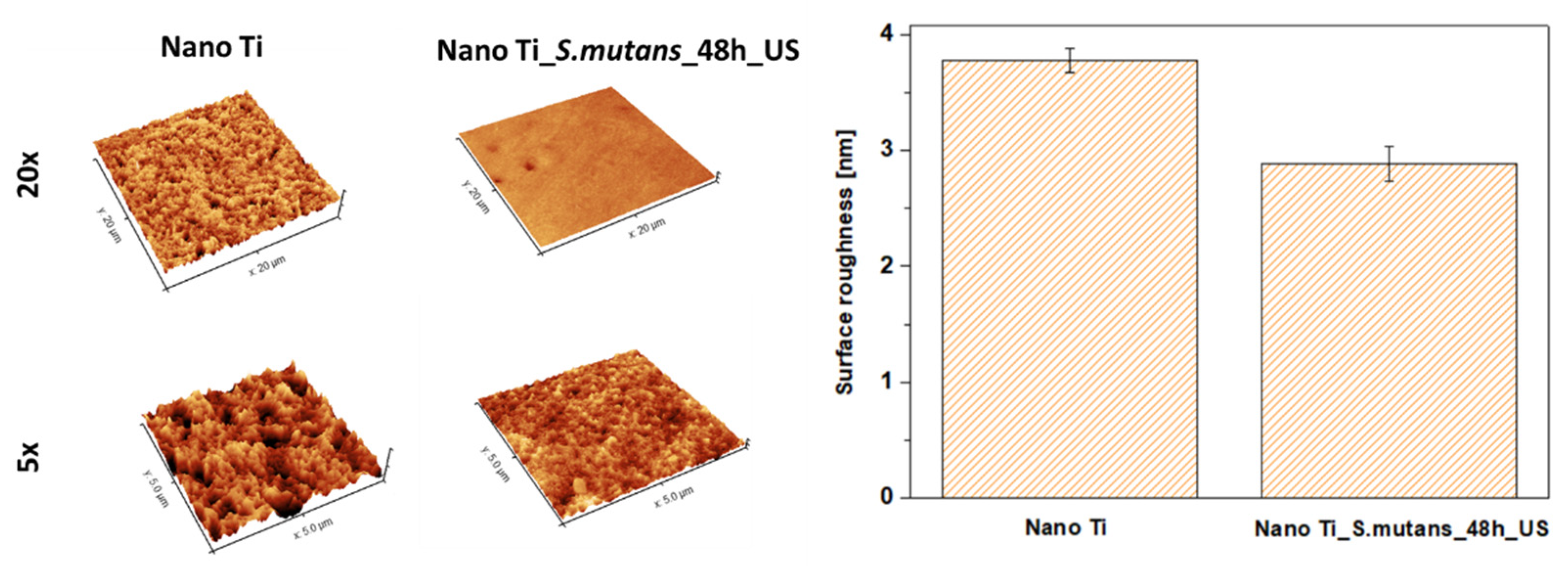

Figure 5. Surface roughness of nanostructured Ti in the polished state and after bacteria removal (AFM studies).
Figure 5. Surface roughness of nanostructured Ti in the polished state and after bacteria removal (AFM studies).
Biomolecules 12 01515 g005
Biomolecules 12 01515 g006 550
Figure 6. Corrosion resistance of nanostructured Ti in the polished state and after bacteria removal (electrochemical evaluation, EIS tests).
Figure 6. Corrosion resistance of nanostructured Ti in the polished state and after bacteria removal (electrochemical evaluation, EIS tests).
Biomolecules 12 01515 g006
Biomolecules 12 01515 g007 550
Figure 7. Corrosion resistance of nanostructured Ti in the polished state and after bacteria removal (electrochemical evaluation, PD tests).
Figure 7. Corrosion resistance of nanostructured Ti in the polished state and after bacteria removal (electrochemical evaluation, PD tests).
Biomolecules 12 01515 g007
Table
Table 1. Description of tested samples.
Table 1. Description of tested samples.
SampleSurface
Preparation		ExposureSurface Preparation after ExposureNumber of Samples
Nano TiPolishing--3
nano Ti_PBS (control)Polishing48 h of exposure in PBSSputtering with gold layer–SEM1
nano Ti_S. mutans_24 hPolishing24 h of exposure in S. mutans suspensionSputtering with gold layer–SEM6
nano Ti_S. mutans_48 hPolishing48 h of exposure in S. mutans suspensionSputtering with gold layer–SEM3
nano Ti_S. mutans_48 h_USPolishing48 h of exposure in S. mutans suspensionUltrasonication (bacteria removal)–AFM and corrosion 3
Table
Table 2. Number of bacteria cells and pH value of the bacteria and control suspensions. Statistical significance of differences between values designated for different samples were confirmed by one-way ANOVA test (p < 0.05).
Table 2. Number of bacteria cells and pH value of the bacteria and control suspensions. Statistical significance of differences between values designated for different samples were confirmed by one-way ANOVA test (p < 0.05).
Nano Ti_PBS (Control)Nano Ti_
S. mutans_24 h		Nano Ti_
S. mutans_48 h
Number of S. mutans cells [per cm2]013 176 ± 2 260107 764 ± 5 808
pH7.8 ± 0.16.5 ± 0.35.8 ± 0.3
Table
Table 3. Values of arithmetic roughness (Ra) designated for the nano Ti in a polished state and after 48 h of incubation in S. mutans and subsequent bacteria removal. Statistical significance of difference between values designated for different samples was confirmed by one-way ANOVA test (p < 0.05).
Table 3. Values of arithmetic roughness (Ra) designated for the nano Ti in a polished state and after 48 h of incubation in S. mutans and subsequent bacteria removal. Statistical significance of difference between values designated for different samples was confirmed by one-way ANOVA test (p < 0.05).
Nano TiNano Ti_S. mutans_48 h_US
Ra [nm]3.78 ± 0.102.89 ± 0.15
