New Frontiers in Potato Breeding: Tinkering with Reproductive Genes and Apomixis

Abstract

Potato is the most important non-cereal crop worldwide, and, yet, genetic gains in potato have been traditionally delayed by the crop’s biology, mostly the genetic heterozygosity of autotetraploid cultivars and the intricacies of the reproductive system. Novel site-directed genetic modification techniques provide opportunities for designing climate-smart cultivars, but they also pose new possibilities (and challenges) for breeding potato. As potato species show a remarkable reproductive diversity, and their ovules have a propensity to develop apomixis-like phenotypes, tinkering with reproductive genes in potato is opening new frontiers in potato breeding. Developing diploid varieties instead of tetraploid ones has been proposed as an alternative way to fill the gap in genetic gain, that is being achieved by using gene-edited self-compatible genotypes and inbred lines to exploit hybrid seed technology. In a similar way, modulating the formation of unreduced gametes and synthesizing apomixis in diploid or tetraploid potatoes may help to reinforce the transition to a diploid hybrid crop or enhance introgression schemes and fix highly heterozygous genotypes in tetraploid varieties. In any case, the induction of apomixis-like phenotypes will shorten the time and costs of developing new varieties by allowing the multi-generational propagation through true seeds. In this review, we summarize the current knowledge on potato reproductive phenotypes and underlying genes, discuss the advantages and disadvantages of using potato’s natural variability to modulate reproductive steps during seed formation, and consider strategies to synthesize apomixis. However, before we can fully modulate the reproductive phenotypes, we need to understand the genetic basis of such diversity. Finally, we visualize an active, central role for genebanks in this endeavor by phenotyping properly genotyped genebank accessions and new introductions to provide scientists and breeders with reliable data and resources for developing innovations to exploit market opportunities.

1. Introduction

One of the challenges facing humanity is to maintain or improve crop yields and cropping systems while climate conditions become less predictable and more extreme. Therefore, there is a continuing need for climate-smart and disease-resistant varieties for all major crops.

Solanum L. is a genus with over 1500 species, including several horticultural crops. S. tuberosum, the potato, is the most important commercialized non-cereal crop in the world [1]. The rich history of the domestication, breeding, and transition of the potato to become one of the world’s major food crops has been considered in several studies, such as the recent book by Bradshaw [2].

Potato has a perfect multiplication system for cultivar development (sexual reproduction combined with vegetative propagation) and a long history of breeding and germplasm collection. While potato breeding has become faster and more efficient since the 1990s, linked to the development of new molecular markers and more powerful analytical tools, the genetic yield progress in potato has been very slow compared to cereal crops [2,3,4]. A consequence of this is that century-old potato varieties like ‘Russet Burbank’ and ‘Bintje’ are still cultivated. Furthermore, there is also a lack of adequate levels of disease resistance in many commercial varieties even though resistant genotypes are available in potato germplasm [3].

There are three main reasons for such a slow genetic yield gain. The first one stems from the heterozygosity of the tetraploid potato genome (AAAA, 2n = 4x = 48), sterility barriers, and inbreeding depression as a consequence of traditional breeding and selection over thousands of years. Until now, breeding for quantitative traits in potato has been carried out by sexual reproduction and intensive phenotypic selection in the resulting clonal populations, representing genotypes with unique allelic combinations. Therefore, unfavorable alleles, which have remained masked in the tetraploid genome, manifest themselves and delay genetic gain at each breeding cycle. Moreover, genetic markers associated with quantitative genes are commonly absent [5]. The second reason is related to the conservatism of potato consumers who like old familiar varieties for use as vegetables and for processing [2]. The last reason is associated with the current gaps between actual and potential yields around the globe. As potatoes were taken to different countries and selected to tuber in different climates, they reached potential yield plateaus [2]. The potential yield is the estimated yield that the crop would produce when none of the abiotic factors that define production is limited during growth [6,7]. However, despite farmers’ efforts, the actual yields in most countries lag behind the potential yields. Hence, in the short term, reducing this yield gap appears easier than increasing the yield potential.

While the consumer´s choice is influenced by economic and societal factors, the other two reasons for the slow genetic yield gain could be modulated through breeding. Until recently, inducing specific genetic changes in a target plant was difficult using conventional breeding and traditional methods of genetic modification (such as mutation breeding; [8]). However, new technologies that allow site-directed genetic modifications offer an enormous potential to bridge this gap between potential and actual yields. These techniques provide an incremental improvement, enabling genetic gains in established varieties. For example, the generation of single or multiple gene-edited genotypes tailored to consumer or industry standards could produce a ‘Russet Burbank’ resistant to late blight and viruses and a ‘Bintje’ resistant to late blight and common scab, and, thus, drive yield progress.

Particularly interesting to breeders are genes that modify reproductive phenotypes, as they expand the available breeding units or genotypes and provide new alternatives for exploiting the diversity found in germplasm in the wild and in ex situ collections. Traditionally, the use of natural or mutant plants exhibiting alternative reproductive phenotypes for targeted gene transfer or base broadening [9] have played an important role in potato breeding. For instance, the exploitation of unreduced (2n) gametes has been central in plant breeding for transferring genetic diversity to cultivated forms in many crops, including potatoes [10]. Ploidy manipulations (mostly through 2n gametes) have been used to overcome barriers to hybridization in interploidy crosses and to transfer genes from wild potatoes to the cultivated tetraploid gene pool [11,12,13]. These approaches rely on species that naturally display the exploited trait (e.g., 2n gametes) rather than genotypes genetically engineered to develop a target phenotype. Although outcrossing schemes based on ploidy bridging can be designed between species that naturally produce 2n gametes [13], heterozygosity transmitted to offspring is usually less than 100% [14] and outcrossing barriers often leave out many species or invoke time and resource constraints, without necessarily improving yields. For example, the introgression of genes for resistance to bacterial wilt (Ralstonia solanacearum) from the wild relative S. commersonii Poir. into commercial potato varieties has produced progenies with a wide range of resistance, aneuploid number of chromosomes, and lower yields among third-level backcross (BC3) individuals compared to the female parent [15]. Other examples of reproductive phenotypes exploited for breeding purposes, despite little knowledge about their genetic basis, are meiotic mutants, male sterile plants, and self-compatible cytotypes (see, for example, [8,14]). In most (or all) cases, the use of these reproductive alternatives has relied on plant genotypes naturally displaying these traits.

With the new genetic modification technologies, genome resources, and analytical tools [16,17], mining into the sequences of genes underlying specific reproductive phenotypes for targeted breeding is a flourishing research area in potato. This is shifting traditional breeding schemes from being based on species naturally carrying a particular trait of interest to schemes targeting any species of interest for de novo trait induction. A good example of the deployment of such technology and resources is the manipulation of genes determining self-incompatibility in diploid potatoes. The identification [18,19], cloning [20,21], and use of the S-locus inhibitor (Sli) gene allowed the breakdown of self-incompatibility and the selection of inbred lines for producing and trialing F₁ hybrids. Similar case studies involving alleles from the two S-locus genes, the S-locus RNase gene expressed in the style and the S-locus SLF (S-locus F-box) gene expressed in the pollen [22,23], show that gene-editing technologies (particularly the CRISPR−Cas9 system) can knock-out S-RNase alleles and overcome self-incompatibility in diploid potatoes.

A still unexplored but appealing topic of research in potato plant reproductive biology uses multiple mutants to induce a phenotype able to mimic apomixis, i.e., the formation of clonal botanical seeds. Because plant breeding seeks to maximize genetic gain and exploit non-additive as well as additive genetic variance to improve yield [10], heterozygosity is likely to play an important role in all crops (including highly heterozygous tetraploid potato plants). Hence, maintaining heterozygosity levels in potatoes is crucial for a healthy crop and to prevent yield losses through inbreeding depression [24]. Even though sexual reproduction is a much-needed tool in breeding, it also uncouples high-yielding gene combinations and increases homozygosity, which poses challenges to all breeding programs and to the maintenance of the required phenotypic homogeneity in any cultivar, whether a diploid F₁ hybrid or tetraploid cultivar. Hence, the use of apomixis, to freeze the genetic make-up of the plant in a clonal (botanical) seed, is a breeding technology of enormous advantages [25] and definitively a topic underexplored in potato.

About 1500 natural species exploit the complex process of apomixis [26]. It involves changes in reproductive genes at multiple stages and affects several reproductive traits. Ovules of apomictic plants can develop extra somatic embryos which replace the zygotic embryo in the seed (sporophytic apomixis) or a gametophyte bypassing meiosis (apomeiosis) and fertilization (parthenogenesis) can create seeds carrying clonal embryos (gametophytic apomixis) [27]. Apomeiosis includes alternative, species–specific developmental pathways, which, in all cases, converge in the formation of unreduced female gametophytes, whose egg-cells develop by parthenogenesis (without fertilization), but the central cell may or may not require fertilization to develop the endosperm and, consequently, an intact seed. Moreover, apomixis in plants occurs almost exclusively in polyploids, and its emergence triggers the breakdown of self-incompatibility systems [28]. Although it depends on the species, apomixis usually shows variable expressivity between individuals, and complete penetrance in natural populations [29,30]. While much is known about developmental pathways and reproductive changes, the mechanism underlying the emergence of apomixis is complex and still unknown, but is expected to involve several genes that integrate biological pathways and networks [31]. Genes underlying apomixis have only recently been found [32,33], but reproductive genes from sexual model plants that generate apomixis-like mutant phenotypes (see Section 5) have been known for a while (reviewed in [34]).

Mimicking apomixis in potato would provide multiple benefits (see below), including an alternative to sexuality for seed production, that would avoid costly hand-pollinations during the formation of diploid F₁ hybrids for propagation through true potato seeds (TPS), and would make tetraploid propagation by TPS feasible without losing high-yield gene combinations.

Tinkering with reproductive genes to create potato genotypes with new phenotypic traits that modify biological pathways towards the induction of synthetic apomixis will provide novel plant phenotypes useful for breeding. For instance, phenotypes that bypass meiotic segregation and produce fully non-recombinant 2n gametes, or that blur developmental constraints imposed by the endosperm balance number (EBN), or the interploidy blockade, could allow us to open a menu à la carte of distinct potato wild species and landraces to be targeted in breeding programs. This article provides an overview of challenges imposed by the reproductive biology of potato species for the exploitation of potato diversity, current technological advances, and advantages concerning its reproductive manipulation. Possible target genes and available resources required for the induction of synthetic apomixis in potato are discussed, pointing out conceivable spin-off mutant phenotypes that could serve to expand breeding tools, as well as existing potato genetic resources. We showcase new frontiers of the reproductive manipulation of potato that go beyond sexual barriers towards the use of true botanical seeds.

2. The Needs: True (Clonal) Seeds and a Reproductively More Flexible Potato Crop

In principle, the plant material to produce potato tubers can be of various sources. Commercially and traditionally most relevant is the propagation via sprouting normal-sized (ca. 50 g) seed tubers. Alternatively, plants may develop from mini-tubers (ca. 15 g) derived from micro-plants through in vitro axillary bud proliferation or from botanical seeds, either produced by normal sexual reproduction or, in future, by apomixis. Thus, the planting material traces back to either a micro-plant or a botanical seed. The closer the planting material is, in clonal generations, to the micro-plant or botanical seed, the more likely it is to be free of disease. Which planting material is best for farmers is still an open question. However, while there is no clear answer to this question, and preferences may manifest depending on local conditions, farmer economics, and technological facilities, propagators should focus on securing and delivering cost-effective, clean (‘disease-free’) planting material to farmers [24]. For the propagation from seed tubers, this is best achieved through statutory seed certification schemes operating in areas where potatoes are grown only for seed. However, potato growing in low-income countries is characterized by informal seed systems with little use of certified seed [35], and in these circumstances propagation from botanical seed (TPS) is an attractive proposition.

The disadvantages of propagation from seed tubers are those related to the higher costs of handling large amounts of planting material (in terms of weight and size), including micro-plants (lab-produced) and mini-tubers (nursery) [36], and, in the case of new varieties, the time required to generate enough propagules for planting. Furthermore, tubers are more likely to be infected by, and to transfer, tuber-borne diseases; and their physiological age and condition determine the planting time [2]. Such challenges can easily be overcome using propagation by TPS. Potatoes develop desiccation-tolerant botanical seeds that are easily transported and stored. Seeds of wild potato species are long-lived with >96% germination after 26 years of cold storage [37], whereas seeds of cultivated species are predicted to have a medium-term storage period with 50% germination after 22 years [38] and a higher dormancy level [39]. With a few exceptions, TPS do not carry viral, fungal or bacterial pathogens, and planting time is flexible. In practice, TPS are established and particularly useful for small-scale farmers in many tropical and subtropical lowland regions around the world [40,41].

The disadvantages of TPS propagation for tetraploid potatoes, and the reason it is not adopted by large-scale farmers, agribusinesses, and the industry, is the lack of genetic uniformity in the ripening time and tuber traits that affect the yield and quality, and, in some cases, the insufficient amounts of well-developed seeds. This is because TPS varieties come from crossing heterozygous parent plants where the segregation and recombination of genes creates variation. When TPS are produced via diploid parents, including the induction of tetraploid F₁ hybrids, lower yields might be expected compared to tetraploid potatoes that have been traditionally selected for tuber yield [3]. An alternative for the future is the use of informed crossing strategies implementing genome-wide SNP and structural variant data for the targeted development of complementary heterotic pools. The concept of “heterotic haplotypes” was first described by Snowdon et al. [42], and its potential to quickly generate effective, genetically distinct heterotic pools from non-differentiated gene pools was demonstrated in winter oilseed rape by Krenzer et al. [43]. In combination with early genomic selection, such methods could help generate effective heterotic pools, maintain and even improve the exploitation of heterosis, and develop high-performing hybrids in tetraploid potatoes.

The production of diploid inbred lines, through several generations of self-pollination, that have sufficient levels of homozygosity, vigor, and fertility for F₁ hybrid breeding, could solve the problem of genetically uniform cultivars from TPS [24,36]. However, self-pollination is often hindered by the self-incompatibility in diploid species. Furthermore, the advantages would be limited to the first TPS generation. This increases the interest of potato breeders who can make a higher profit, but farmers would need to purchase new seeds every season, as in maize and other hybrid crops.

Avoiding the genetic consequences of sexual reproduction during seed formation by inducing synthetic apomixis in potato flowers would overcome the current challenges: (1) of using TPS for propagating highly heterozygous tetraploid varieties, and (2) of hybrid breeding, such as inbreeding, self-incompatibilities, and the development and maintenance of inbred parental lines. Moreover, synthetic apomictic potato plants producing true clonal seeds might reduce the time for the commercialization of new varieties to 1–2 years, if molecular markers were used to select genotypes with fixed beneficial alleles (or lacking large-effect deleterious alleles), compared with more than a decade through classical potato breeding or the expected 3–6 years using diploid hybrid potato technology [44]. Thus far, attempts to induce apomixis in other crops such as rice have shown steady progress, and apomictic plant genotypes with a high-enough trait penetrance for commercialization are already available (see, for example, [45]). In potato, however, experimental studies to synthesize apomixis have not yet started. The induction of apomixis was seriously considered a long time ago by Hermsen ([46], p. 604) who identified the ‘elements of apomixis’ frequently present in potatoes and those missing. However, back then, very little was known about the molecular control of the trait, and the technological tools for DNA analysis were just beginning to be developed. Other researchers have experimented with, and laterally discussed the implications of, such apomictic elements (i.e., 2n eggs or parthenogenesis) in breeding and for the induction of apomixis [47,48].

From a genetic and ecological viewpoint, potatoes show wide plasticity, with more than 4000 varieties catalogued [49]. They grow in a wide range of climates and geographic regions [50] and can rapidly be selected for adaptation to new local environmental conditions. However, in the past, the development of adapted cultivars was not rapid. There is now a need for new varieties with a resistance to pests and diseases, that tolerate the adverse effects of temperatures and drought on tuberization, and use water and minerals more efficiently, to provide environmental benefits, as well as meet consumer demands [5]. The production of such varieties can be difficult due to reproductive barriers and the impossibility of combining the available variants into a suitable genomic background. Hence, there is a need for a reproductively more flexible potato crop, free from pollen–pistil incompatibility barriers and restraints to endosperm development.

The prospect of manipulating reproductive genes to enhance inbreeding tolerance or facilitate targeted introgression looks promising. Turning potato into a reproductively more flexible crop can be an alternative way to enhance genetic gains from existing natural variability. Different studies have shown the occurrence of variation in the reproductive steps for gamete and seed formation among potato species [51,52], and such a natural variation has already been exploited in breeding programs with some success. This suggests that these reproductive alternatives are suitable for direct genetic manipulation if the target genes can be identified, or confirmed, to provide a stable, inducible phenotype. The use of gene editing based on CRISPR−Cas9 to break down self-incompatibility or increase the frequency of unreduced gametes, among other reproductive features, can support the pre-breeding and introgression of favorable alleles into elite domesticated potato lines. Pre-breeding in crops like wheat, with relatively fewer wild relatives, are successful examples in accelerating genetic gain through field selection, genotyping, and marker-assisted breeding [53]. Gene editing targeting reproductive functions among wild potato species (like self-compatibility and the Sli gene; see Section 4.1) may unlock hidden genetic reservoirs for pre-breeding and trait transfer to intermediate plant materials that breeders can use in breeding to develop new varieties and to achieve a faster genetic gain.

3. The Genome: Sequences of Opportunities

The release of the first potato genome sequence [16] marked the advent of more powerful genome analyses. Scientists’ innovative thinking combined with the use of a unique genetic stock have allowed haplotype-resolved assemblies of diploid [54] and tetraploid potato varieties reporting a monoploid genome size of 0.775 GB and 38,214 genes [55]. Phased chromosome-scale assemblies of tetraploid cultivars are revealing the complexity of the potato genome, holding extensive allelic diversity, preferential allele expression, and structural variation with evidence of ancestral introgressions and the retention of dysfunctional and deleterious alleles [17]. On this basis, relevant aspects of the demographic and adaptive history of modern potato [56], as well as agronomically important genes [57] and gene families [58], were identified, and site-directed mutants were generated to assign functions to predicted genes [59].

In the meantime, the genome sequencing and genotyping of hundreds of wild and cultivated accessions are becoming standard strategies for the genome-wide genetic variation analysis of genetic diversity, e.g., for disease resistance genes; for the identification of genes under selection, particularly during potato domestication (e.g., those involved in tuberization or the loss of bitterness in tubers); for the shared genomic regions and loss of synteny relevant for hybrid breeding; and to provide robust phylogenetic trees to understand the evolution and expansion of potatoes [57,58,60]. These studies have permitted segregation between the entire set of genes within a species (i.e., the so-called pan-genome) and those genes shared between all individuals (i.e., genes of the core genome). Pan-genomes are most relevant to capturing the complete genetic diversity (and reducing genetic bias in single-genome analysis), as well as to discovering the linkage relationships and functional effects of variants. In potatoes, the analysis of pan-genomes is assisting with the discovery of many dispensable genes associated with stress tolerance or pathogen resistance [61], and important biomolecules for disease control [62,63], as well as understanding disease outbreaks in potato [64].

Thus, as expected, access to the information of genomic variability present in potato has fostered functional genetic analyses, and newly discovered traits are being incorporated into breeding programs [65]. In addition, genome editing using CRISPR−Cas technology is already being used in potato to improve the food crop while enabling fundamental research and industrial applications [66]. These new technological advances come at a critical time, when potato breeders and technologists are required to create a range of environmentally resilient varieties adapted to vast agro-ecological zones and regions in which potatoes are produced to feed a growing population [2,24]. In this context, the modification of genes involved in reproductive development is relevant to overcoming biological barriers and enhancing and accelerating breeding progress.

4. The Genes: The Search for Key Changes in Reproductive Modules

Reproduction is a highly regulated process that starts with the induction of flowering in a plant, and then goes through different developmental stages within the flower (Figure 1). These are the commitment of mother cells in ovules and anthers to generate haploid recombinant spores, the development of female and male gametophytes, the delivery of male gametes (sperm cells) to the female ones (egg cell and central cell), and, finally, the fusion of the haploid egg and sperm cells, marking the formation of a zygote together with a maternal-to-zygotic transition in gene regulation and the initiation of the embryonic tissues of the seed. All of the processes are highly regulated and involve many genes [67,68]. The search for genes, and, hence, the genetic material, with crucial roles in development and reproduction that could improve how the variability is reshuffled and exploited, is at the center of any breeding program.

In potato, despite a great variety of phenotypes and the identification of several genes with reproductive roles in pollen–pistil interactions, haploid development, and 2n gamete formation (

Table 1. Reproductive phenotypes and associated genes in potato.

Mutant	Mechanism Involved	Phenotype	Gene(s) 1	References 2
ps	Spindle orientation	FDR, 2n gametes, avr. 80% parental heterozygosity transmission	Parallel Spindles Like loci (PSL1-3)?	[69]
pc/os	Cell division progression	SDR, 2n gametes, avr. 40% parental heterozygosity transmission	unknown	[70,71]
Sy-1/4	Chromosome pairing	Asynapsis, reduced fertility, 2n gametes	unknown	[72]
Ds-1	Chromosome pairing	Desynapsis, reduced fertility, 2n gametes	unknown	[73]
DMC1	Crossing over	Asynapsis, reduced pollen viability	StDMC1	[74]
MSH4	Crossing over	Desynapsis, sterility, 2n gametes	StMSH4	[75]
Hi3	Pseudogametic parthenogenesis	Haploid induction	unknown	[76,77]
Ms	Plasmon factors	Male sterility 4	unknown	[78]
Rf	Inhibits expression of Ms genes	Male fertility restorer	RFL-PPR	[79,80]
S-locus	Gametophytic self-incompatibility system	Self-incompatibility breakdown	S-RNase5, SLF6 (and HT modifier genes)	[22,23]
Sli	Self-incompatibility inhibition	Self-compatible plants	S-locus inhibitor	[18,19]
EBN	Genome dosage	Aberrant endosperm development	unknown	[81]

FDR: first division restitution; SDR: second division restitution; ¹ with an identified sequence; ² only representative references are listed; ³ a mutant name for this phenotype in potato has not been defined—here, we arbitrarily took the first initials of the phenotype (Hi); ⁴ indehiscence, shrivelled microspores, sporad formation, anther-style fusion, ventral-styled anthers, and thin anthers; ⁵ for female specificity; ⁶ for male specificity.

), very little is known about their genetic background and molecular functions compared to other major crops, i.e., maize (Zea mays L.), rice (Oryza sativa L.), and wheat (Triticum aestivum L.). The main reason for this is that potato is an autotetraploid in which functional genetic studies are difficult due to tetrasomic inheritance and, therefore, studies have mainly focused on identifying nutritional or pathogenic functions of more direct use in marketing [24]. Now, however, the links between the reproductive phenotypes of interest and their genetic basis are being studied. New technological advances have provided genome-level sequence data which are unmasking an extraordinary number of genes [55]. Furthermore, the possibility to manipulate individual genes is now leading to new advances in molecular biology and potato breeding.

4.1. Genes Modifying Pollen–Pistil Interaction

A gametophytic self-incompatibility (GSI) system prevents successful self-pollination in most diploid potatoes which comprise potato wild relatives, cultivated landraces, and dihaploids derived from tetraploid cultivars [82,83]. It is controlled by a multiallelic S-locus on chromosome 1 [84,85]. Genetically, pollen is rejected when there is a match between the single S-haplotype in the haploid pollen and either of the two S-haplotypes in the diploid pistil which are both expressed. Thus, the cross S₁S₂ × S₃S₄ produces S₁S₃, S₁S₄, S₂S₃, and S₂S₄ offspring, whereas the cross S₁S₂ × S₁S₃ produces just S₁S₃ and S₂S₃ offspring and the cross (or self) S₁S₂ × S₁S₂ produces no offspring (self-incompatible). By 2011, it was known that the S-locus in Solanaceae, Rosaceae, and Plantaginaceae comprised at least two tightly linked loci [86]. S-RNase encodes S-RNases (ribonucleases with RNA degradation activity) that determine the specificity of pollen rejection in the pistil (style) and SLF/SFB encodes S-locus F-box proteins that fulfil this function in pollen. At the molecular level, self-incompatibility (SI) occurs when the S-RNases inhibit (self) pollen tube growth in the style [87,88], whereas pollen compatibility requires the S-RNases to be targeted for ubiquitination through the action of F-box proteins [89,90,91,92]. In simplistic terms, a plant with genotype S₁S₂ will produce S₁- and S₂-RNase in the style that can inhibit the pollen tube growth of S₁ and S₂ pollen, respectively, but not pollen with other S alleles, of which there are many. These are able to produce F-box proteins that stop S₁- and S₂-RNase activity [21,90,93]. In short, functional S-RNase alleles are required in the style to inhibit the growth of incompatible pollen tubes, by targeting their RNA, and, hence, prevent fertilization. Failure to secure the berry and seed set can be due to additional fertility problems. We now know that S-RNases are helped by other components such as HT proteins [94,95,96]. The GSI system breaks down in autotetraploids, at least when two different alleles are present in the pollen [97,98]. As a result, the pollen contains two different SLF/SFB genes which results in mutual weakening or competitive interaction and the degradation of all S-RNases [90]. Hence, tetraploid S. tuberosum can be self-pollinated.

The advent of diploid F₁ hybrid breeding stimulated interest in self-compatibility (SC) in potato [3]. Two different ways have been used to achieve SC in potatoes, one based on the S-RNase gene and the other on the S-locus inhibitor (Sli) gene, as reviewed by Kardile et al. [99]. The first way either introduces dysfunctional S-RNase alleles from wild species or produces them from functional alleles by gene editing [22,23]. Ye et al. [22], for example, created self-compatible diploid potatoes by using the CRISPR−Cas9 system to knock out conserved regions of the S-RNase gene (loss-of-function) in a S. tuberosum Group Phureja clone. They were also able to produce selfed families containing self-compatible plants that lacked the Cas9 cassette and, hence, any exogenous DNA. The second way of achieving self-compatibility (SC) uses the Sli gene which was first discovered in self-fertile plants of the wild diploid (EBN = 2) potato species Solanum chacoense Bitt. [100], and, subsequently, mapped to the distal end of chromosome 12 [18,19,21]. A further understanding of the SC is emerging now that the candidate gene for Sli has been found, shown to be specifically expressed in the pollen, and to have a 533 bp transposon inserted at its promoter [20,21]. Furthermore, it has been shown that Sli functions like SLF to produce an F-box protein, PP2-B10, that destroys S-RNases during pollen tube development [21]. Hence, a name change to non-S-locus F-box protein (NSF) has been suggested [21]. Kardile et al. [99] mention in their review that SC could be achieved by the addition to SI genotypes of an extra SLF gene that can degrade all S-RNases.

The GSI system is also associated with the prevention of interspecific pollinations [94,101]. The growth of both self and interspecific pollen tubes is inhibited in the style, thus preventing fertilization. Consequently, interspecific crosses often display unilateral incompatibility (UI) in which a female SI parent prevents both self-pollination and cross-pollination by a self-compatible (SC) species, whereas a female SC parent allows cross-pollination by a SI species as well as self-pollination. Fertilization in SC × SI but not in SI × SC hybridizations was a rule proposed by Lewis and Crowe [102] that has proven to be an oversimplification because genetic differences can occur in the gene presence and function between SC species [96]. Three examples where SC is primarily the result of dysfunctional S-RNase alleles are as follows: the domesticated tomato (S. lycopersicum L.), which is a self-compatible diploid but has wild relatives which are self-incompatible [103]; the potato wild relative S. verrucosum Schlechtendal, which is unusual in being a self-compatible diploid 2EBN species; and cultivated diploid potatoes, in which the S-RNase gene is dysfunctional as a result of gene editing.

Hermsen, back in 1977, reported that S. verrucosum could be successfully crossed as the female parent with three SI species, diploid S. tuberosum Phureja Group (2EBN), S. pinnatisectum Dunal (1EBN), and S. bulbocastanum Dunal (1EBN), but not when it was the male parent [104]. It was, therefore, seen to be of value as a bridging species for the introgression of genes for disease and pest resistance from the self-incompatible diploid 1EBN species. Much more recently, Behling and Douches [96] have pointed out that, while S. verrucosum lacks a functional S-RNase protein, it is not known if the alleles of the S-RNase gene are missing, non-functional, or inhibited in some way, or if other genes such as HT are involved. They investigated the crosses between S. verrucosum as the female parent and four 1EBN species as the male parent, S. bulbocastanum, S. commersonii, S. jamesii Torr., and S. pinnatisectum. They did not observe any significant stylar barriers to pollen tube growth, and hybrid progeny was secured with S. bulbocastanum and S. commersonii. They then repeated the experiment with independent and dual CRISPR−Cas9 knockouts of the genes S-RNase and HT-B in a diploid S. tuberosum clone (DRH195). The results were variable but the pollen tubes of the S-RNase knockouts of S. bulbocastanum and S. pinnatisectum grew further down the styles than the controls, unlike the knockouts of HT-B alone. However, the overall interpretation of the results was complicated because HT-A had not been knocked out and was functional and active in the style, and possibly providing some inhibition of the pollen tube growth. Some of these complexities may be resolved now that the genomes of both S. commersonii and S. verrucosum have been sequenced [105,106].

4.2. Genes Modifying the Formation of Gametes and Associated Apomixis Traits

Most potato species develop a normal male gametophyte and a female gametophyte of the Polygonum type [48], which is present in about 70% of angiosperms. Such gametophytes are genetically reduced (haploid) and recombinant (Figure 1), and they fuse during the formation of sexual potato seeds. Some potato species can develop genetically unreduced (diploid) and recombinant gametes, which has a relevant role in breeding [107,108].

The ability to induce the de novo formation of unreduced (2n) gametes in potato species that lack this capacity, or, alternatively, to increase the rates of 2n gamete formation in potato species displaying such an ability (most diploid species), will increase the number of wild species and resources available for breeding. As the 2n gamete formation shows an incomplete penetrance and variable expressivity among genotypes [14], its rate could be modulated by modifying the underlying meiotic genes. The gene-directed production of potato species producing 2n gametes will enhance the current use of breeding schemes and ploidy manipulation strategies (e.g., [12]). This requires both gaining novel information and exploiting the current knowledge on the molecular control of 2n gamete formation.

Two approaches can be envisioned here: first, targeting potato genes, either newly identified and functionally characterized, underlying mutant phenotypes or known to have a relevant role during meiosis and 2n gamete formation (see details in Table 1); and, second, targeting potato homologs of reproductive genes functionally described in other plant systems, and identified using a sequence-homology-based strategy. A blend of these two approaches could help breeders obtain a better understanding of the molecular basis and distribution of a certain gene variant among potatoes, and then to engineer desired phenotypes in potato species lacking 2n gametes or increase their expressivity in species producing 2n gametes.

In the first case, phenotypes, such as parallel spindle (ps) and premature cytokinesis/omission second division (pc/os), responsible for the segregation of non-sister chromatids or sister chromatids to the same nuclei during 2n gametes formation (FDR- and SDR-like mechanisms, respectively) have been identified. Despite these phenotypes being known for a long time [70,109] and used in potato to introgress beneficial traits into commercial varieties, it is only recently that their molecular mechanisms have started to be uncovered. Cigliano et al. [69] identified three Parallel Spindles Like (PSL1-3) loci in diploid potato based on sequence homology to the Arabidopsis thaliana gene Parallel Spindle1 (AtPS1), known to control the spindle orientation in the second meiotic division and whose defect induces 2n pollen. Yet, the functional characterization of PSL genes in potato is awaited (but see [110]).

Less is known about the molecular control of the premature cytokinesis/omission second division phenotype in potato. In Arabidopsis, at least two essential genes for cell cycle progression show mutant phenotypes that are like those in potatoes. The genes TARDY ASYNCHRONOUS MEIOSIS (TAM, also known as CYCA1;2) and OMISSION OF SECOND DIVISION (OSD1) are involved in the prophase/meiosis I transition and the meiosis I/meiosis II transition, and their failure leads to the production of unreduced spores and gametes due to a premature exit from meiosis, either after prophase I or after meiosis I [111]. TAML or OSDL genes in potato have not yet been identified.

The identification and in silico analysis of potato genes involved in ovule and seed developments is now much easier and focused on available bioinformatic tools. Strategies used in other crops or in potato for certain gene families (like the YABBY family; [112]), can be implemented for recognizing reproductive genes in potato. They retrieve sequences from different databases and use genomic and gene analyses tools for gene identification (e.g., Phytozome, the PLAZA genome database, Uniprot).

Besides the unusual spindle orientation and defects in cytokinesis and cell cycle progression, the molecular mechanism and cytology of FDR and SDR also involve changes in chromatid cohesion, meiotic recombination, and abnormal chromosomal segregation [113,114]. From a breeder´s view, the most interesting mutants in plants are those that interfere with the process of pairing and genetic recombination during the development of 2n gametes (Figure 1). The more recombination is suppressed, the more heterozygosity is fixed and transmitted unaltered to the offspring. Most diploid potato clones produce 2n eggs through SDR (by omission of the second division) or 2n sperms through FDR (by parallel spindles) and transmit about 40% or 80% parental heterozygosity, respectively [72,115,116]. Therefore, breeders may prefer inducing FDR as they transmit more heterozygosity to the offspring, and clonal families derived from FDR crosses outyield those from SDR and tetrasomic inheritance [117]. Yet, compared to apomixis, these phenotypes show partial effects on the levels of meiotic recombination (see below).

Apomixis and genes producing apomeiosis-like phenotypes are already known in potato and its family. Six species within Solanaceae are recorded as apomictic [26]. Most have a type of apomixis that develops extra somatic embryos in the growing ovules, and, in one Solanum species, S. nigrum L., diplospory has been recorded [118]. Diplospory is a specific type of apomixis in which meiosis progresses through a restitutional first division in the strict sense (strict FDR; [119]), meaning that homologous chromosomes fail to pair and form the synaptonemal complex (asynapsis), thus preventing recombination (Figure 1). Unlike in apomicts, in most sexual species including Solanum, the mechanisms of FDR usually go through variable degrees of asynapsis (broad FDR) or desynapsis (in which homologous chromosomes pair but fail to maintain pairing), and a low proportion of crossing-overs is expected [12,120]. The main consequences of these meiotic abnormalities are a shift in the levels of transmission of parental heterozygosity to the offspring. While heterozygous diploid parents cannot transmit heterozygosity by standard n gametes, they transmit about 80% of their heterozygosity by (broad) FDR 2n gametes and 40% by SDR 2n gametes during the formation of tetraploid offspring [14]. In apomictic species, apomeiotic (strict) FDR 2n gametes can transmit 100% of the parental heterozygosity [119].

With the discovery of synaptic and desynaptic mutant phenotypes, potato researchers have tried to develop genotypes that maximize the transfer of heterozygosity from parental diploids to the tetraploid offspring [121]. The combination of synaptic 3 mutant with ‘parallel spindles’ (sy-3, ps) was used with relative success to produce FDR 2n gametes without crossing over (FDR-NCO) and transmitting 100% heterozygosity [122]. Because of the lack of pairing during diplotene and pachytene, the chromosomal segregation in the mutant was irregular and euploid, and balanced dyads were partially recovered by the parallel spindle mechanism [122]. In a similar way, the desynaptic 1 mutant (ds-1) reduces substantially the frequency of chiasma which destabilizes the balanced segregation of chromosomes, and the few viable 2n gametes may transfer ca. 95% of the parental heterozygosity [73,120].

Recent studies have disclosed both asynapsis and desynapsis genes in potato. The meiotic gene DMC1 plays a central role in DNA recombination through crossing over and transformants using an RNAi construct were able to knock down StDMC1 and substantially reduce pollen viability, plausibly through asynapsis [74]. The gene StMSH4 is an essential component of the class I crossover pathway that causes desynapsis in potato and its mutant allele leads to either highly uniform unreduced pollen or sterility [75]. The level of transmitted heterozygosity in species forming 2n gametes will depend upon the rates of functional crossovers during the restitution division.

A concept for fixing and transmitting the genetic makeup of parents to offspring for TPS production using unreduced desynaptic gametes was explored many years ago by Jongedijk et al. [73], but it is only now that gene-editing technologies are making their ideas feasible. While the relevance of 2n gametes is already known for Solanum breeding programs, it may become important for the transmission of full heterozygosity and for fixing genotypes of interest through the development of synthetic apomixis.

5. Breeding Strategies and Challenges to Using Apomixis in Potato

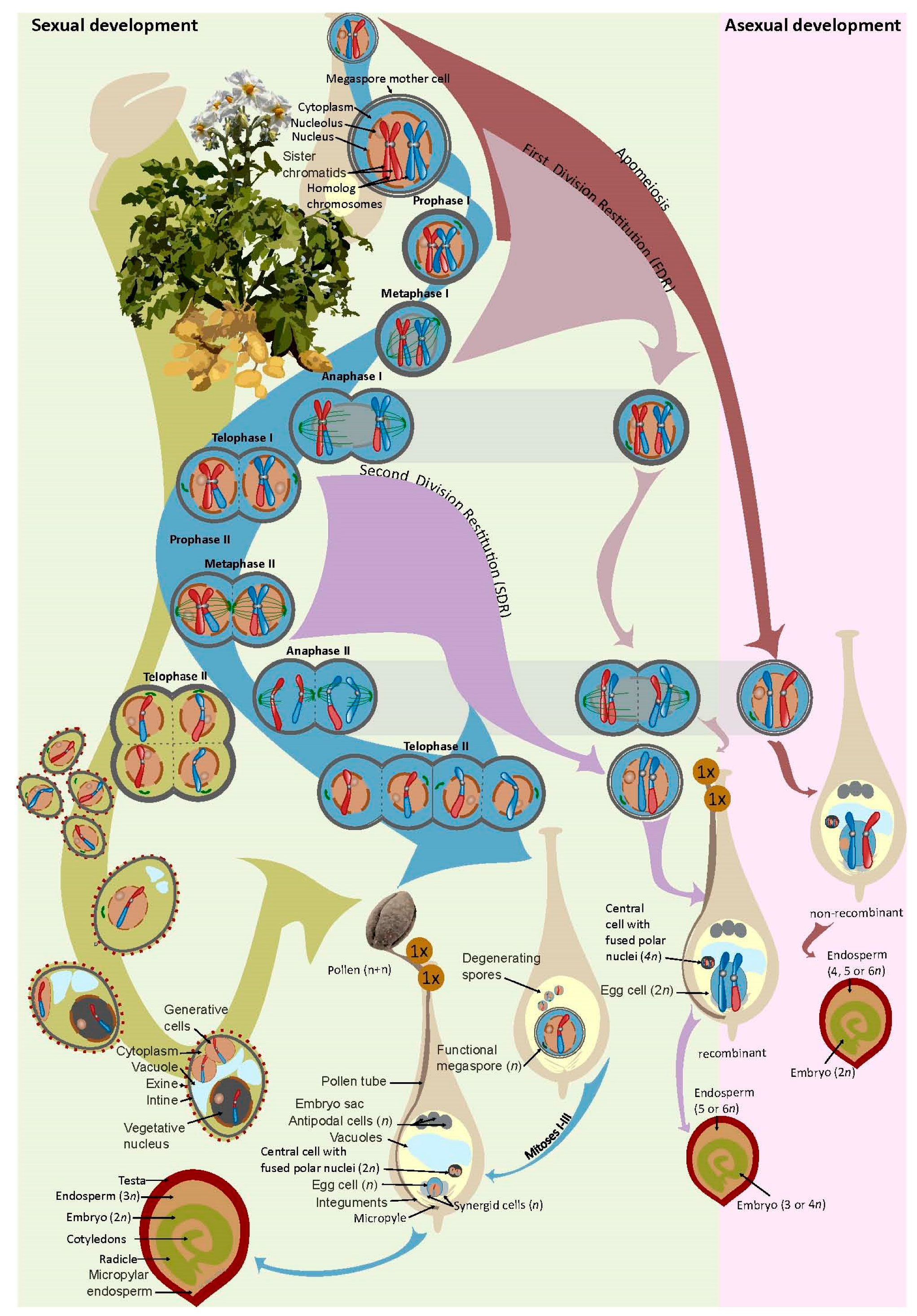

Apomictic plants skip chromosome pairing and recombination through apomeiosis to produce unreduced gametes, and create seeds carrying clonal embryos through parthenogenesis and endosperm development. Inducing apomixis in potato, or any other clonal or hybrid crop, would be a groundbreaking technology and a major boost in breeding. The fact that potato species already show evidence of the occurrence of two major components required for apomictic reproduction, i.e., apomeiotic-like unreduced gamete formation and parthenogenesis, clearly represents an advantage. Understanding the molecular basis and control of these two mechanisms that alter sexual reproduction in potatoes will then be fundamental, and their possible manipulation would be a breakthrough, which would have substantial implications for potato breeding, genetic improvement, and innovation.

5.1. Synthetic Apomixis

In addition, genes responsible for meiosis progression and fertilization in model plants have been used for mimicking apomixis in sexual plants, including crops (see details below), and could be targeted in potato. Synthetic apomixis is now being induced in different crops like rice, lettuce (Lactuca sativa L.), and tomato (Solanum lycopersicum), through the combination of multiple mutants using gene-editing technologies [34]. Yet, a recurrent problem with many of these mutants is that fertility is inevitably compromised and restoring fertility to a level comparable to that of sexual/wild type plants that can be used commercially is an important issue. Despite the predicted challenges for trait penetrance and expressivity in natural (neoapomicts) and synthetic apomicts [123], substantial improvements have recently been obtained [45,124] for trait deployment in crops. The strategies used so far focus on annulling key meiotic steps to produce gametes with a somatic number of non-recombinant chromosomes (mimicking apomeiosis), and then to develop the unreduced egg cell without male fertilization (mimicking parthenogenesis). Knocking out multiple genes simultaneously using CRISPR−Cas9 has produced site-specific mutant phenotypes in different plant species without side effects, both by exploiting reproductive-cell- or tissue-specific features [125,126], and by generating specific reproductive plant phenotypes such as a male-sterile Eucalyptus [127] or a hybrid rice producing clonal seeds [128]. In potato, the prospect for using similar approaches to create specific reproductive phenotypes is promising.

5.1.1. Mimicking Apomeiosis

Despite the progress in understanding the genetics underlying apomixis in plants, apomeiotic genes responsible for clonal gametes have not yet been identified [31,129]. Thus, the focus is on manipulating meiotic genes to engineer apomeiosis de novo in sexual species. Researchers have been using alternative mutants and combinations of genes that abolish sister chromatid cohesion and the recombination and segregation of homologous chromosomes during meiosis to produce unreduced spores able to develop into a gametophyte. Genes which can be mutated to generate unreduced clonal gametes include SWITCH1/DYAD (SWI1) in Arabidopsis, AMEIOTIC in maize responsible for maintaining cohesion complexes during the meiotic prophase [130,131], and the nonreduction in female4 (nrf4) mutant of maize [132], a gene that leads to both FDR and SDR 2n gametes and about 30% of gametes generated through a mitosis-like division [133]. Mutants for ARGONAUTE proteins (e.g., AGO9 and AGO104) and DNA methyltransferases (e.g., DMT102 and DMT103) involved in siRNAs biogenesis, chromatin condensation, and silencing have been found to produce phenotypes resembling apomeiotic pathways (reviewed in [31]).

Alternatively, a combination of different genes has been used to create unreduced clonal gametes (reviewed in [31,134]). For example, a triple mutant Spo11–1 + Rec8 + Osd1 has been used to build the so-called MiMe phenotype that turns meiosis into mitosis [134]. Spo11-1 is a gene required for the initiation of meiotic recombination through double-strand brake formation (a critical step in meiosis responsible for recombination) [135]. Rec8 encodes a component of the cohesion complex essential in plants for sister chromatids cohesion during meiosis and its failure disrupts homologous pairing and allows sister chromatid segregation [136]. OSD1 regulates the anaphase-promoting complex/cyclosome (APC/C) and osd1 mutants show a premature exit from meiosis that skips meiosis II [111]. Thus, the MiMe mutant abolishes the meiotic recombination during meiosis I while the separation of sister chromatids and the exit from meiosis after the first division creates a mitosis-like division resulting in cells carrying a clonal nucleus. MiMe-like mutants can be designed for any species by targeting a combination of ortholog genes with similar functions, such as spo11-2, prd1, prd2, prd3/pair1, DFO, mTOPVIB for meiotic recombination, or TAM1/Cyclin CYCA1;2 for meiosis exit; see, for example, [134,137].

Meiosis genes are evolutionarily conserved at the sequence level among distant eucaryotes [138] and several of these genes have been identified and their conserved function has been evaluated in genera of divergent families (in particular, Brassicaceae and Poaceae) other than Solanaceae. Implementing such a strategy in potato would require evaluating the most suitable combination of genes, including allelic variants and paralogs, independently of the level of conservatism, and considering available genus-specific alternatives. For instance, the development of dihaploids by pseudogametic parthenogenesis after interspecific 4x × 2x crosses [14,76], or after a post-meiotic restitution mechanism that produces 2n-eggs [77,139], points to alternative mechanisms and genes worth exploring in the gene pool of potatoes.

5.1.2. Mimicking Parthenogenesis

The identification and use of genes for parthenogenesis show a high potential for application in plant breeding methods [140]. For initiating the development of the embryo in an egg-cell without fertilization and egg-sperm fusion, two genes recently identified in apomictic plants are being used to induce parthenogenesis in sexual targets. The first one, in the grass Cenchrus squamulatus (Fresen.) Morrone (sub Pennisetum squamulatum), is the APOSPORY SPECIFIC GENOMIC REGION–BABY BOOM–LIKE (PsASGR-BBML) gene [32]. This gene is an ortholog of the BBM gene in the clade APETALA 2 of highly conserved transcription factors whose ectopic expression induces embryo formation in Brassica and Arabidopsis [141]. The regulatory element in PsASGR-BBML is still to be proven, although it triggers parthenogenesis at a low frequency in tetraploid tobacco, but not in diploid Arabidopsis [142,143].

The second one, in the dicot Taraxacum officinale, sensu lato, is the PARTHENOGENSIS (PAR) gene. PAR encodes a K2-2 zinc finger–EAR domain protein, with the predicted DNA-binding and transcriptional repressor activity [33]. Using CRISPR−Cas9-mediated mutagenesis, these candidate genes were knocked-out and the LOSS OF PARTHENOGENESIS (LOP) mutants, identified from an earlier deletion mapping study, were resynthesized [144]. LOP mutants can produce viable seed only if pollinated. A PAR construct carrying an Arabidopsis egg-cell-specific promoter (EC1.1::PAR) was tested in the related sexual species Lactuca sativa and its expression induced embryo-like structures without fertilization [33].

In addition, as apomixis involves the formation of a seed carrying a clonal embryo, irrespective of the developmental origin of such embryo, two other alternatives to parthenogenesis are possible. One implies targeting genes that are involved in the development of extra (adventitious) embryos in the ovule. Somatic embryogenesis can be induced in different plant tissues by reprogramming cells to an embryogenic pathway by stimuli (heat, hormones, and epigenetic factors) and by the modulation of transcriptional regulators such as BBM, LEAFY COTYLEDON, or somatic embryogenesis-related genes [145]. The recent identification of an RWP gene, carrying a miniature inverted-repeat transposable element (MITE) inserted into the promoter region controlling sporophytic apomixis in citrus (citRWP) [145], makes it a suitable target for gene modulation using CRISPR. The RWP-RK domain-containing (RKD) family is plant-specific and its genes are responsible for maintaining the egg-cell identity [146]. The ectopic expression of RWP genes promotes somatic embryogenesis [147].

The other alternative implies the use of haploid inducer genes that provoke the elimination of paternal chromosomes after egg-cell fertilization. Chromosome elimination can be induced by altered centromere-specific histone 3 (CENH3) [148]. Using cenh3 mutants as a male parent in crosses to MiMe plants results in significant sterility due to aneuploidy, but also in a small proportion of clonal seeds [149]. Another mutant enabling haploid induction is the phospholipase A gene MATRILINEAL (MTL) identified in maize (also known as NOT LIKE DAD or PHOSPHOLIPASE A1; [150,151,152]). Likewise, MTL rice and wheat orthologs were shown to induce haploid seeds [153,154]. By knocking out MiMe and MTL genes simultaneously in rice, scientists were able to obtain low levels of clonal seeds and synthesize de novo apomixis, but not without a substantial reduction in fertility [128]. Fertility gains and improvements in clonal seed efficiency have been obtained by applying a similar MiMe + MTL approach to a panel of different rice varieties [45].

5.2. Endosperm Formation

Another crucial step in the formation of a viable seed is the endosperm. The exploitation of 2n gametes has already produced good results in potato breeding and will continue to provide breeders alternatives to cope with market demands. However, 2n gametes are not the only challenge to consider in introgressive hybridization. The endosperm balance number (EBN) is also a critical, but not limiting, factor during homoploid or interploid interspecific crosses. The EBN is a dosage system used to predict endosperm function in crosses between Solanum species and cytotypes [81]. Each species holds an EBN defined on crossability [155], and a 2:1 maternal to paternal genome dosage is needed for normal endosperm development. While such a 2:1 genome dosage is ubiquitous for almost all sexual plants and associated with the ploidy, in Solanum spp., Avena spp., and Ipomoea spp. [156], the dosage is independent of the plant ploidy.

In apomictic plants, the endosperm may develop autonomously (without fertilization) or by pseudogamy after the fertilization of the central cell without the restrictions of the 2:1 parental dosage observed in sexual plants [157,158]. A recently identified ORIGIN OF RECOGNITION COMPLEX 3 (ORC3) gene, with differentially expressed isogenic forms in an apomictic grass, seems to be behind the tolerance of the maternal excess genome ratio during seed development in interploidy crosses [159]. In model sexual species such as Arabidopsis, the loss-of-function mutants of the Polycomb group complex 2 (PRC2), whose wild-type alleles repress endosperm formation and seed development in the absence of fertilization, cause apomixis-like phenotypes [160]. While much information has been gathered about the EBN of each Solanum species due to its relevance for a proper germplasm transfer during introgressive hybridization breeding approaches [161,162], much less is known about the molecular basis.

The EBN in Solanum species is controlled by a few major genes with additive effects and many minor genes [163,164]. Introgressive hybridization breeding schemes often produce few or no hybrids as a result of differences in EBN, and the few generated are difficult or need several generations of backcrossing for the elimination of aneuploids. Nevertheless, potato breeders have found ways to manipulate EBN in hybridizations between S. tuberosum and its wild relatives. Hybridization barriers can be overcome by manipulating ploidies and halving EBN through haploidization or doubling it with colchicine or through 2n gametes, and using special techniques such as embryo rescue [2,12,165,166,167,168]. Despite the huge potential of manipulating and converting 1EBN genomes of wild potatoes to parity with a target species (e.g., cultivated S. tuberosum), and of avoiding seed size variation and developmental problems in crosses where EBN are dissimilar, breeders lack genetic-level data. Recent studies indicate the existence of complex, genome-wide genetic mechanisms that govern the effective ploidy between species within an EBN category, but, thus far, attempts to identify genetic variation for effective ploidy in intra-EBN interspecific crosses have been unsuccessful [169]. Whether ORC3-like orthologs occur in Solanum is unknown. Perhaps more challenging from a breeding perspective are reproductive problems such as male (or female) sterility associated with cytoplasm types and specific nuclear genes [170]. Diploid potato landraces (e.g., S. tuberosum Phureja group) and their wild relatives are not yet as well-characterized reproductively as in other major crops (see for example, [171]), offering enormous potential for better understanding the remaining conundrums of potato reproductive biology and their exploitation in biotechnological applications. Future analyses and studies focusing on evaluating the molecular basis of this dosage system, and its probable links to genomic imprinting mechanisms, will pave the way to overcoming breeding barriers in potato improvement caused by endosperm malfunction and aberrant seed development.

6. Genebanks—An Active, Central Role in Next-Generation Breeding

In every crop, wild species have a central role in the formation and shaping of new cultivars and landraces. In potatoes, gene flow occurs in the Andes between native landrace varieties and surrounding wild Solanum species, both through pollen exchange and accidental collection of tubers from wild species [12,172]. Hence, potatoes are regarded as a large, plastic gene pool [173] and the potato genome as a reservoir of genetic variability to be exploited with targeted gene editing.

Genebanks are central to the next-generation breeding revolution, not only as direct providers of genetic resources, genetic variants, and novel collections, but also as active partners by producing data on collections and pre-breeding tests. Worldwide, 89 national and 4 international/regional centers, located in 59 countries, hold a collection of 82,293 potato accessions [174]. About 20% and 23% of the collections are wild species and Andean landraces, respectively, often classified into the 235 species in the taxonomy of Hawkes [175], despite the existence of a newer taxonomy [176]. Genebanks that maintain large collections of Andean landraces and wild potato species include the International Potato Center in Peru (CIP; 2596 accessions of wild species; 4468 Andean landraces), the US Potato Genebank of the US Department of Agriculture (USDA; 4044 accessions of wild species; 1177 landraces), the N.I. Vavilov All-Russian Institute of Plant Genetic Resources in Russia (VIR; 1990 accessions of wild species; 3200 landraces), the Leibniz Institute of Plant Genetics and Crop Plant Research in Germany (IPK; 1357 accessions of wild species; 2270 landraces), and the Centre for Genetic Resource, the Netherlands (CGN; 1302 accessions of wild species; 298 landraces). Most genebanks maintain accessions of wild species as TPS and store duplicates at 4 °C, 50–65% relative humidity in the short to medium term, and at −10 to −20 °C in the long term [174]. Under these conditions, TPS are considered viable for long storage periods, i.e., 92% of the S. demissum Lindl. seeds, 100% of S. hjertingii Hawkes seeds, and >96% of S. tuberosum groups Andigenum and Phureja seeds germinated after more than 26 years [37]. Due to the better availability of propagules and lower phytosanitary risks, TPS can often be distributed more easily than clonal plant material.

Genebanks can provide materials for prospection analyses and the continuation of earlier studies [177]. For example, the frequency and distribution of FDR and SDR 2n gametes can continue to be mapped, for the former in species such as S. tuberosum, S. spegazzini Bitter, and S. infundibuliforme Phil. [120,178], and for the latter in species such as S. tuberosum, S. chacoense, S. kurtzianum Bitt. et Witt., S. phureja Juz. et Buk., and S. tarijense Hawkes [72,179]. Furthermore, Hermsen [46] suggested the creation of a polyploid complex of intermating diploid and tetraploid Solanum species, previously treated by mutagens, as the starting material for the large-scale testing of apomixis. Genebanks can provide information on important reproductive traits and accessions (i.e., biologic materials) to create such an experimental polyploid complex. These species might include the well-tuberizing clones from (self-incompatible) diploid cultivated species such as S. phureja Juz. & Bukasov, S. stenotomum Juz. & Bukasov, S. ajanhuiri Juz. & Bukasov, dihaploids from complex tetraploid hybrids, and wild species such as S. chacoense, S. vernei Bitter & Wittm., and S. microdontum Bitter. Among the tetraploids, Hermsen [46] suggested including known genotypes of Andigena, Neotuberosum (long-day-adapted Andigena), and Tuberosum potatoes, and selected allotetraploid wild species like S. sucrense Hawkes. While this germplasm could still be useful, there are other genetic resources available that are well-suited to investigating and exploiting reproductive features and might prove easier for reproductive modulation and the induction of apomixis-like phenotypes.

Globally, only 37% of wild species and 43% of the landraces are accessible and provided by large genebanks such as the CIP, USDA, IPK, and CGN. The limitations in accessibility are due to not enough or poor-quality seeds/plants, inadequate plant health status, insufficient procedures for propagation and distribution, and the lack of phytosanitary certificates or required documents. In addition, some species are present in genebanks with a limited number of accessions and represent a gap in the collection; e.g., only 98 accessions of the diploid Solanum ajanhuiri Juz. & Bukasov are known to be stored in a few of the 89 centers, in most genebanks with <10 accessions (

Table 2. Availability of selected wild potato species and taxonomic classification of species present in all 89 genebanks listed at Nagel et al. [174]. For the largest genebanks, the International Potato Center (CIP) in Peru, the US Potato Genebank of the US Department of Agriculture (USDA), the N.I. Vavilov All-Russian Institute of Plant Genetic Resources (VIR) in Russia, the Leibniz Institute of Plant Genetics and Crop Plant Research (IPK) in Germany, and the Centre for Genetic Resource, the Netherlands (CGN), numbers are provided separately. EBN, endosperm balance number.

Species Sensu Hawkes [175]	Taxonomy Accepted by Spooner et al. [176]	Ploidy	CIP	USDA	VIR	IPK	CGN	All Genebanks
S. ajanhuiri	Solanum ajanhuiri Juz. & Bukasov	2x (2EBN)	14	1	9	8		98
S. chacoense	Solanum chacoense Bitter	2x (2EBN), 3x	18	167	212	111	72	717
S. infundibuliforme	Solanum infundibuliforme Phil.	2x (2EBN)	9	127	60	4	41	262
S. kurtzianum	Solanum kurtzianum Bitter & Wittm.	2x (2EBN)	3	94	117	13	34	290
S. microdontum	Solanum microdontum Bitter	2x (2EBN), 3x	14	114	34	44	41	307
S. phureja	S. tuberosum ‘Andigenum group’ diploids	2x (2EBN)	197		88		1	350
S. spegazzini	Solanum brevicaule Bitter	2x (2EBN), 4x (4EBN), 6x (4EBN)	3	n.a.	74	57	40	195
S. stenotomum	S. tuberosum ‘Andigenum group’ diploids	2x (2EBN)	110	n.a.	108	14		454
S. sucrense	Solanum brevicaule Bitter	2x (2EBN), 4x (4EBN), 6x (4EBN)	13	n.a.	26	10	41	101
S. tarijense	Solanum berthaultii Hawkes	2x (2EBN)	18	n.a.	95	19	27	186
S. vernei	Solanum vernei Bitter & Wittm.	2x (2EBN)	10	35	36	24	22	192

n.a.: not available.

). More accessions would require collecting missions that are often challenged by the financial and political situation in South American countries. Other species are represented with a higher number of accessions, but identification may be hampered by the different taxonomic systems used in the potato community. Although the classification in genebanks often follows Hawkes [175], valuable morphological descriptions are also provided by Correll [180] and Dodds [181]. However, the most recent but also most debated classification follows Spooner et al. [176]. To resolve this issue, genome sequences and genetic marker information could provide a powerful tool, as well as for selection and molecular breeding. However, thus far, genetic information about accessions is hardly available. Although some collections have been intensively genotyped, the data are not systematically provided. Nevertheless, genotyping efforts by different institutions have been summarized by Ellis et al. [182], and others are findable in the database Spud DB (http://spuddb.uga.edu/) and have proven useful for resolving phylogenetic discrepancies. A forthcoming project by the CIP genebank, aimed at genotyping a substantial number of wild and cultivated potato accessions [182], will also provide useful data for identifying duplicates, misclassified accessions, and a more consistent taxonomy among potatoes.

The current genotyping gap among genebank accessions is also associated with a much larger gap in phenotyping, including reproductive phenotypes of interest for breeding, and for the induction of apomixis or apomixis-like phenotypes. Reproductive phenotyping requires skilled scientists able to identify meiotic steps and categorize abnormalities, and, therefore, has been restricted to specific studies and plant materials. Targeting the collection of phenotypic data associated with available genebank accessions or new introductions that incorporate variability is a desirable strategy to provide breeders with reliable data to plan breeding schemes and develop innovations to exploit market opportunities.

Overall, the identification of apomixis-like phenotypes poses some difficulties that will need to be resolved, to provide breeders with phylogenetically relevant information and assistance, when deciding on alternative approaches and technologies to induce and exploit 2n gametes or induce a more complex reproductive phenotype such as apomixis in a target species.

7. The Technology: Advances and Applications

As mentioned above, tetraploid potato varieties are based on a unique, highly heterozygous combination of alleles with a very low probability of replication again by crossing parental genotypes. Thus, modern potato breeding relies on the crossing of parental lines based on their phenotypic characteristics, and the production of several thousands of F₁ plants, followed by subsequent selection processes. The improvement of established varieties (incremental breeding) was not feasible until the advent of genetic-engineering technologies such as trans/cis genesis and, more recently, genome-editing techniques.

Potato was one of the first crops for which transgenic plants were developed. There is a variety of methods for potato genome modification via genetic transformation. While many involve integrating genes of interest into the nuclear genome, plastid transformation protocols are also available [183]. The delivery and integration of genes can be achieved by particle bombardment, protoplast transfection with polyethylene glycol, and microinjection. However, the Agrobacterium-mediated transformation is the most widely utilized approach. The use of genetic-engineering approaches has allowed the successful transfer of numerous transgenes into elite potato cultivars including pest and disease resistances, abiotic stress resistance, quality attributes for improved processing, nutrition, and appearance, and novel products for biopharming [184]. Although successful developments have been obtained for a wide range of phenotypic traits, only a few genetically modified (GM) potato varieties are commercially available. These are Innate^TM potatoes in the US, with a resistance to black spot bruise and lower levels of asparagine and reducing sugars (low acrylamide), and a PVY-resistant variety in Argentina. The reason for this paucity of varieties could stem from a combination of factors, such as public perception and the significant costs associated with the regulatory frameworks required to obtain GM approval [185,186].

Genome-editing technologies offer promising capabilities in genetic engineering, enabling precise modifications of targeted sequences. This technology possesses immense potential to tackle numerous concerns related to cost, time, and complex biosafety issues commonly associated with traditional transgenic strategies. Additionally, the continuously evolving CRISPR−Cas toolbox has enabled multiple applications in plants, including the knockout and knock-in of target genes, modulation of gene expression (i.e., inhibition or activation), genome base editing, and many others [187,188]. Of the several methods described for potato genome editing [186], the transfection of protoplast using ribonucleoproteins (RNPs) composed of guide RNAs and the Cas nuclease is one of the most promising tools to achieve this goal, producing a high number of edited plants without the integration of foreign DNA, a major methodical problem for trait stability, off-target mutagenesis, and governmental regulations [189].

In potatoes, substantial advancements have been realized through genome editing [190], particularly in enhancing traits related to tuber quality. Notable achievements encompass the modification of starch content [191], increased resistance to bruising (resulting in reduced enzymatic browning) [189], and enhanced tolerance to cold storage achieved through the targeted knockout of the Vacuolar Invertase gene (VInv) [192].

Today, genome editing offers a range of methodologies tailored to the nature of the genetic modification and complexity of the targeted trait. While knocking out individual genes to provide a beneficial phenotype is simple, engineering complex traits is more challenging. For instance, knockout mutants of susceptibility genes (S-genes) for Phytophthora infestans such as StDMR6-1 and StCHL1, or for Potato Virus Y (PVY) such as viral factors P3, CI, Nib, and CP, have proven to be effective in eliciting resistance and robust tolerance responses [193,194]. In contrast, the engineering of potatoes resilient to extreme temperatures and tolerant to drought and soil salinity remains somewhat limited, as the genetic bases of these traits are complex and not all genes involved have been identified [66].

Synthesizing an apomixis-like phenotype in a sexual plant requires the concurrent use of distinct gene-editing methodologies. At least three meiotic genes must be knocked out to generate the MiMe phenotype. Then, depending upon the strategy selected to mimic parthenogenesis and trigger endospermogenesis, tissue-specific promoters, and targeted gene replacement for a gene such as BBM, plus the use of Cas9 to recruit demethylases that erase genomic imprinting on repressed female genes and trigger autonomous endosperm, are also required [123].

In recent years, significant advances in gene-editing technology have expanded the possibilities for editing multiple genes simultaneously, whether targeting a single complex trait or multiple distinct traits. For instance, a study by Ly et al. [192] successfully edited the VInv and Asparagine Synthetase 1 (AS1) genes associated with acrylamide production. Massa et al. [195] simultaneously knocked out Polyphenol Oxidases (StPPOs) and VInv genes in cultivars Spunta and Atlantic to enhance industrial and nutritional potato quality. Similarly, Zögön et al. [196] demonstrated the simultaneous editing of six genes, resulting in conspicuous phenotype alterations for a tomato de novo domestication assay. These studies lay the foundation for exploring multiple combinations of edited genes that could yield complex phenotypes, such as apomixis in potato.

In all the above described applications, a critical bottleneck is the regeneration of edited plants, which is genotype-dependent. This can restrict the strategies available to introduce apomixis in a certain specific potato variety or to break down the pollen–pistil incompatibility between species. Hence, preliminary protoplast extraction and regeneration assays are recommended in order to identify a specific genotype or genotypes for genome-editing applications. Recent findings of genetic factors that enhance the regeneration rates of transgenic plants [197] may provide a biotechnological alternative to overcome genotype regeneration constraints, and pave the way for the development of genotype-independent gene-edited products.

8. Concluding Remarks

Even though classic breeding will continue to be a major tool in potato development, the modulation of reproductive genes through new technologies enables new breeding schemes and can provide alternatives to time-consuming and resource-intensive crossings and backcrossings. The advent of diploid F₁ hybrids allows the production of genetically uniform cultivars for propagation by true potato seed (TPS). Combining this technology with new ones focused on editing genes of interest can allow breeders to quickly improve on existing varieties, thereby increasing the rate of genetic gain.

Synthesizing apomixis in potato may help underpin and reinforce the transition to a diploid hybrid crop with the multi-generational propagation through true seeds. Alternatively, it can help breeders to capture a highly heterozygous, genetically designed background through TPS without losing heterosis. Having an apomictic potato able to fix the genomic attributes in a seed will reduce production costs and protect the varieties from pathogens. The identification of potato genes or orthologs with known functions during meiosis and embryo development is a suitable strategy to induce changes like those observed in natural apomicts. Gene editing has been successful in inducing changes in potato reproductive traits, and novel methodologies that allow simultaneous changes in multiple genes provide an excellent framework for inducing complex traits such as apomixis. In addition, potato species show a remarkable reproductive diversity, and their ovules have a propensity to develop apomixis-like phenotypes which could be further exploited to build in an apomixis phenotype. Future efforts to understand the genetic basis of this diversity will help scientists to induce and modulate such phenotypes. Detailed phenotypic analyses of reproductive stages and cellular changes are required to identify associated genes in genomic screens that could be targeted for site-directed mutagenesis. The collection of such phenotypic data must be allied to genebanks in two ways, first, as providers of accessions to be screened for reproductive variability, and, later, as repositories of well-characterized genotypes to make them available for scientists or breeders seeking innovation and market opportunities.
