Pulsed Dipolar EPR for Self-Limited Complexes of Oligonucleotides Studies

by
Alexey S. Chubarov
1,*,
Burkhard Endeward
2,
Maria A. Kanarskaya
1,
Yuliya F. Polienko
3,
Thomas F. Prisner
2 and
Alexander A. Lomzov
1,*
1
Institute of Chemical Biology and Fundamental Medicine SB RAS, 630090 Novosibirsk, Russia
2
Institute of Physical and Theoretical Chemistry, Goethe University Frankfurt, Max-von-Laue-Str. 7, 60438 Frankfurt am Main, Germany
3
N.N. Vorozhtsov Institute of Organic Chemistry SB RAS, 630090 Novosibirsk, Russia
*
Authors to whom correspondence should be addressed.
Biomolecules 2024, 14(8), 887; https://doi.org/10.3390/biom14080887
Submission received: 31 May 2024 / Revised: 16 July 2024 / Accepted: 18 July 2024 / Published: 23 July 2024
(This article belongs to the Section Molecular Structure and Dynamics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Pulsed electron–electron double resonance (PELDOR) spectroscopy is a powerful method for determining nucleic acid (NA) structure and conformational dynamics. PELDOR with molecular dynamics (MD) simulations opens up unique possibilities for defining the conformational ensembles of flexible, three-dimensional, self-assembled complexes of NA. Understanding the diversity and structure of these complexes is vital for uncovering matrix and regulative biological processes in the human body and artificially influencing them for therapeutic purposes. To explore the reliability of PELDOR and MD simulations, we site-specifically attached nitroxide spin labels to oligonucleotides, which form self-assembled complexes between NA chains and exhibit significant conformational flexibility. The DNA complexes assembled from a pair of oligonucleotides with different linker sizes showed excellent agreement between the distance distributions obtained from PELDOR and calculated from MD simulations, both for the mean inter-spin distance and the distance distribution width. These results prove that PELDOR with MD simulations has significant potential for studying the structure and dynamics of conformational flexible complexes of NA.

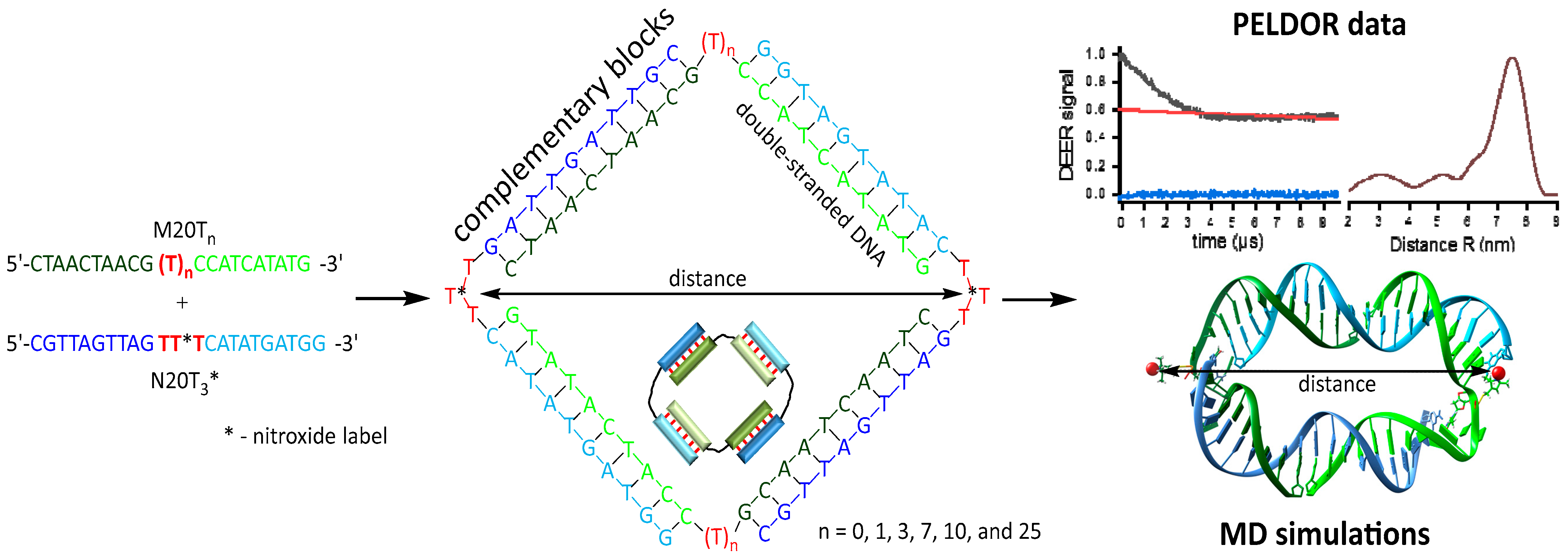

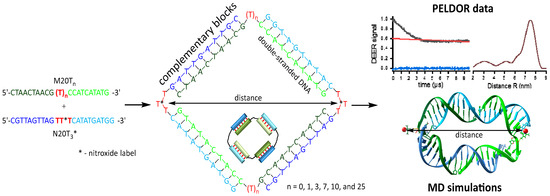

Graphical Abstract

1. Introduction

Nucleic acids (NAs) play a vital role in biological events involving the storage of genetic information and transmission into proteins. NAs can fold into various secondary structures, which allow for the fine regulation of numerous processes in the body. Furthermore, self-assemblies of NAs can happen through the classical mechanism and non-canonic interaction between nucleobases, displaying several conformations and topologies with unique properties [1,2,3,4,5,6,7,8]. Such structures are found in genomic DNA, small RNA, and free-floating RNAs and affect catalytic processes, riboswitches, gene regulation, etc. [1,3,4,5,6,8,9,10,11,12]. The ability of NA to form supramolecular assemblies opens up new frontiers in NA-based artificial systems for diagnostics, therapy, nanorobotics, sensor development, and fundamental biological process investigations. For example, DNA-based nanoconstructions, especially DNA origami technology and aptamers, have been useful in the recognition of biological targets, drug delivery, bioimaging, etc. [13,14,15,16]. Many approaches are used to construct three-dimensional NA-based nanostructures with desired size, geometry, shape, and surface groups [13,17,18,19,20,21,22]. Therefore, NA structure, dynamics, and conformational distribution may give insight into its functions and interactions with ligands, proteins, and cell systems. Information on biological and synthetic DNA structures, conformational dynamics, and interactions is a powerful tool for the programmed self-assembly of NA, leading NA-based nanopharmaceuticals and biomimetics production. However, the study of NA self-assembly is challenging as spontaneous complexation makes the interpretation of conformations and topologies more complex [4,19,23]. Structural characterization of NA requires methods with sufficient resolution to catch changes.
Pulsed electron–electron double resonance (PELDOR) or double electron–electron resonance (DEER) spectroscopy allow for nanometer-distance measurements between paramagnetic tags attached to the specific sites of biomolecules [11,24,25,26,27,28]. PELDOR may be used for highly dynamic systems, providing distance distributions connected with conformational flexibility, which cannot be obtained by traditional methods [9,29,30]. PELDOR is suitable for NA transformation studies by measuring distances between spin labels at the 1.5–8 nm range [11,31]. Long-distance measurement was shown to range up to 10–16 nm for perdeuterated protein and RNA, which is a complicated procedure [9,32]. Angular, structural, and dynamic information can be estimated from these experiments. The combination of a powerful technique such as PELDOR with molecular modeling opens up unique possibilities for understanding the three-dimensional structure and dynamics of NA complexes.
Nitroxyl radicals are used for PELDOR studies for complexes of NAs due to their small size, easy chemical variations of functional group design for further bioconjugation, and high stability in vitro [11,33,34]. For the spin labeling of NAs, we have used the commonly known phosphorothioate oligonucleotide modification [35], which was introduced at any desired inter-nucleotide phosphate (Figure 1A). It opens up the possibility of attaching the nitroxide in any place of the oligonucleotide chain [31,36,37]. Furthermore, spin labeling with nitroxide without an extended linker results in narrow size distributions (Figure 1A) [31,36,37]. To demonstrate the feasibility of this approach, using the PELDOR method, we studied nitroxide-labeled oligonucleotide with phosphorothioate modification, which forms a telomeric G-quadruplex oligonucleotide complex [31]. Previously, we analyzed the formation of self-limited complexes of oligonucleotides by gel electrophoresis, atomic force microscopy, and molecular dynamics (MD) simulations and found a variety of three-dimensional structures that were formed by a pair of oligonucleotides [23].
Here, we used the PELDOR method and MD simulations to study the formation of nitroxide-labeled, three-dimensional, self-assembled complexes of oligodeoxyribonucleotides. Several oligonucleotides with flexible linker groups of varying lengths Tn (n = 0, 1, 3, 7, 10, 25) were utilized to demonstrate the feasibility of investigating such dynamical systems (Figure 1B). Unlike complexes with short linkers, oligonucleotides with long-sized linkers (n = 10 and 25) may “breathe”, forming either a straight or a loop-like structure and changing the distances between its primary chains (Figure 1D). The dynamics of complexes were estimated by size distribution in the PELDOR experiment, which is in excellent agreement with the results of MD simulations. Furthermore, the decrease in the EPR signal modulation depth of the samples with increasing linker length can give insights into the flexibility of complexes of NAs, leading to a loss of interaction between nitroxide tags. The results prove that the combination of PELDOR with MD has great potential for the study of highly polymorphic structures of NAs.

2. Materials and Methods

2.1. Materials

2,5-Dihydro-3-iodomethyl-2,2,5,5-tetramethyl-1H-pyrrol-1-oxyl was synthesized according to the literature procedure [38]. Sodium perchlorate, 99% (Acros Organics, MA, USA, cat. no. 197120010), 2-(N-Morpholino)-ethanesulfonic acid hydrate (MES, 99.5%, Sigma-Aldrich, Waltham, MA, USA, cat. no. 85H5735), and acetonitrile HPLC grade (≥99.93%, Sigma-Aldrich) were used. All solvents and other reagents, unless stated differently, were purchased from Sigma at the highest available grade and used without purification. Milli-Q water was used for the procedures. All oligonucleotides were purchased from the synthetic biology laboratory ICBFM SB RAS, Novosibirsk, Russia. Oligonucleotides with phosphorothioate modification were synthesized using standard solid-phase chemical synthesis and purified by RP-HPLC using a standard protocol.

2.2. Oligonucleotide Spin Labeling

The spin-labeled oligonucleotide was synthesized using nitroxyl radical derivative according to the procedure previously published by our group [31], adapted from Qin P.Z. et al. [36,37]. Briefly, 105 µL of 0.24 mM oligonucleotide with phosphorothioate modification, 15 µL of 1 M MES buffer solution (pH 5.8), and 30 µL of 0.1 M acetonitrile solution of 2,5-dihydro-3-iodomethyl-2,2,5,5-tetramethyl-1H-pyrrol-1-oxyl were mixed under stirring (800 rpm). The reaction mixture was incubated in the dark (wrapped with aluminum foil) at 25 °C for 24 h under stirring (600 rpm). Afterward, the reaction mixture in tubes was evaporated in vacuo in a SpeedVac centrifuge for 35 min for acetonitrile evaporation. Oligonucleotides were precipitated with 2% LiClO4 in acetone, washed using pure acetone, and desiccated under a vacuum. The oligonucleotides were dissolved in water and stored at −20 °C. The concentration of oligonucleotides was determined by UV spectroscopy on a UV-1500 spectrometer (Shimadzu, Kyoto, Japan). The oligonucleotide concentration was estimated using its absorbance at 260 nm and extinction coefficient ε = 220,300 M−1 cm−1 for M-T3* (5′-CTAACTAACGTT[PS]TCCATCATATG-3′) and ε = 227,100 M−1 cm−1 for N-T3* (5′-CGTTAGTTAGTT[PS]TCATATGATGG-3′). The oligonucleotide yield was 90%. The labeling efficiency of the oligonucleotide was estimated by CW EPR (par. 2.6) and was determined to be ~93%.

2.3. Gel Electrophoresis

Oligonucleotides were analyzed by polyacrylamide gel electrophoresis using 15% polyacrylamide gel (acrylamide/N,N′-methylenebisacrylamide ratio 39:1) in tris(hydroxymethyl) aminomethane–borate buffer (89 mM tris and 89 mM boric acid, pH 8.3) and 15 mM magnesium acetate at a voltage of 17 V/cm during thermostating in a water bath at 5 °C (LKB Bromma 2219 Multitemp II, Bromma, Sweden). A double-stranded DNA ladder of 50–1000 bp (SibEnzyme, Novosibirsk, Russia) was used to determine the mobility of complexes. Stains-all dye (Sigma-Aldrich, Waltha, MO, USA) was used for gel staining.

2.4. Oligonucleotide Complexes Melting Analysis

Thermal denaturation experiments were carried out in 0.2 cm quartz cells using a Cary 300 Bio spectrophotometer (Varian, Melbourne, Australia). Melting curves were registered at the wavelengths 260, 270, and 330 nm in the 5–95 °C range. The absorbance at 330 nm was chosen as a baseline. The temperature was changed at a 0.5 °C/min rate. The maximum of the melting curve derivative was calculated as a melting temperature (Tm). A 10 µM equimolar mixture of oligonucleotides with M and N sequences in 10 mM sodium cacodylate (pH 7.2), 100 mM NaCl, and 10 mM MgCl2 was used for the thermal denaturation analysis.

2.5. EPR Sample Preparation

To form an oligonucleotide complex, a spin-labeled oligonucleotide (M-T3* or N-T3*) was mixed with non-spin-labeled oligonucleotides (M-Tn or N-Tn) at a ratio of 1:1 according to Table 1. Each oligonucleotide was prepared at a 25 µM concentration in deuterated PBS buffer (10 mM phosphate buffer, pH 7.4, 100 mM NaCl, 10 mM MgCl2) containing 20% V:V ethylene glycol-d6 as a glass-forming agent. After adding cryoprotectant, 10 μL of the samples were transferred into 1.6 mm outer-diameter quartz EPR tubes (Suprasil, Wilmad LabGlass, Vineland, NJ, USA) and flash-frozen in liquid nitrogen.

2.6. CW EPR

A sample for continuous-wave (CW) X-band EPR spectroscopy for spin concentration determination was prepared in a 20 µL BLAUBRAND® intraMark micropipette (BRAND, Wertheim, Germany). The X-band CW EPR (9.9 GHz) spectra were recorded at room temperature on a Bruker E580 spectrometer (Bruker, Karlsruhe, Germany). Experimental settings were as follows: microwave power 0.9464 mW, time constant 81.92 ms, conversion time 81.92 ms, modulation frequency 100 kHz, modulation amplitude 0.1 mT, number of scans 5.

2.7. PELDOR Measurements

PELDOR experiments were performed at Q-band (33.8 GHz) and 50 K on a Bruker Elexsys E580 spectrometer equipped with an EN 5107D2 resonator, a 150 W TWT microwave amplifier (187 Ka, Applied Systems Engineering Inc., Fort Worth, TX, USA), an Oxford CF935 cryostat and an Oxford ITC503 temperature controller (Oxford Instruments, Oxford, UK). PELDOR experiments were performed using the standard four-pulse sequence with pulse lengths of 32 ns for the probe pulses (π/2 and π) and 12 ns for the pump pulse (π) [39,40]. The pump position was applied at the maximum of the EPR spectrum. The pump frequency was set 40 MHz below the cavity maximum (center frequency), and the detection was set 40 MHz above the cavity center frequency. All obtained data were processed by Tikhonov regularization and the DEERNet network using DeerAnalysis2022 [41,42].

2.8. Molecular Dynamics

Molecular dynamics (MD) simulations for oligonucleotide complexes were similar to those previously described by our research group [23]. Briefly, oligonucleotide complexes were constructed as a B-form DNA double helix and manually changed through UCSF Chimera software v. 1.15 [43]. The nitroxide spin label was generated using XLEaP software (AmberTools 17 software package) [44] with subsequent geometry optimization by the Hartree–Fock method based on quantum mechanical calculation in the 6-31G++ basis in Gaussian 09 software. The atoms’ charges were calculated by the RESP method [45]. AMBER force field parmbsc1 [46] and gaff were used for DNA and nitroxide, respectively. The missing force field parameters for the nitroxide label were generated using the parmchk module of AmberTools20. The MD simulations were performed in the explicit water shell (TIP3P model) in a cuboid box (12 Å from each atom of protein) using ionsjc_tip3p parameters [47] for ions via the pmemd.CUDA module of AMBER20 [44]. The oligonucleotide complexes were neutralized by sodium ions. An equilibrium trajectory of 100 ns was obtained and then analyzed using the cpptraj tool of AmberTools20 [44]. A hierarchical cluster analysis was used to determine the most represented structure in the trajectory. Molecular visualization was performed via UCSF Chimera software.

3. Results and Discussion

3.1. Oligonucleotide Synthesis

The sequences of DNA oligonucleotides are displayed in Figure 1B. The native and phosphorothioate-modified oligonucleotides were prepared via solid-phase synthesis and purified by reverse-phase high-performance liquid chromatography (RP-HPLC) using a standard protocol [48]. The oligonucleotides with the different sequence chains M and N have two complementary blocks, which form a double-stranded DNA (Figure 2).
The oligonucleotides sequence was previously designed, and sequences were selected to avoid the formation of intramolecular hairpins or self-complementary complexes and efficiently form complexes of various structures [23]. The nucleotide linkers with varying length Tn (n = 0, 1, 3, 7, 10, and 25) between DNA blocks were selected. The self-assembled DNA complexes that formed from the different pairs of oligonucleotides with M and N sequences (Table 1) have different conformation, topology, and flexibility (Figure 1C,D) [23]. Nitroxide was attached to the phosphorothioate modification according to the previously published procedure using 2,5-dihydro-3-iodomethyl-2,2,5,5-tetramethyl-1H-pyrrol-1-oxyl (Figure 1A) [31]. The spin labeling efficiency was estimated from CW EPR (Figure S1) and was determined to be ~0.93 ± 0.05 spins per oligonucleotide. We introduced the spin label at the center of the linker T3 to minimize the influence of the nitroxide on complementary interactions between chains of oligonucleotides (Figure 1B–D). To compare the difference between the nitroxide label position in the chains M or N, we synthesized M-T3* and N-T3* oligonucleotides (Figure 1B) and performed additional T3*_T0, T3*_T3, and T3*_T25 experiments (Table 1).

3.2. Electrophoretic and Thermal Denaturation Analysis of Self-Assembled Complexes of Oligonucleotides

Previous research by our group has established that M-Tn and N-Tn pairs of oligonucleotides can form dimer, tetra-, hexa-, and higher-order complexes, which highly depend on the linker size [23]. To form an oligonucleotide complex, a spin-labeled oligonucleotide was mixed with a non-spin-labeled oligonucleotide at a ratio of 1:1, according to Table 1. Before examining the oligonucleotide assembly using a PELDOR analysis, we confirmed the presence in the sample of the required complexes. The mixtures were analyzed by gel electrophoresis and thermal denaturation experiments (Figures S2–S4). The high-mobility bands in the electrophoresis image (~30–100 base pairs (bp)) are single-stranded oligonucleotides or dimers (Figure S2). The presence of well-pronounced bands with average mobility (~200 bp) is associated with tetramers [23]. The low-mobility bands (>300 bp), in most cases, have low intensity and are related to higher-order complexes. Moreover, the large complexes are very flexible and thus make it possible for the presence of several conformations, leading to bands broadening (Figure S2, e.g., T25_T3*). The type of complexes (dimer, tetramer, etc.) is in good correlation with previously published data (Table 1) [23].
Measuring the thermodynamic stability of complexes was performed by a thermal denaturation analysis, known as a melting curve analysis. The samples were heated through a 5–95 °C range of temperatures, while UV absorbance at 260, 270, and 330 nm was collected. Typical melting curves and their first derivative are presented in Figures S3 and S4. A melting temperature (Tm), defined as the maximum of a melting curve derivative (Figure S4), was calculated for all studied mixtures (Table 1). The complex stability slightly increased as the linker size increased, which resulted in a rise in Tm from 38 °C to 43 °C for T1_T3* and T25_T3*, respectively. Interestingly, T0_T3* and T3*_T0 samples had a high Tm of 43 °C due to the slightly different structure of the complex, provided by the presence of additional stacking interactions between the base pairs at the junction of two T3* oligonucleotides (Figure 1C). Complexes with one or two nitroxide labels (T3_T3*, T3*_T3, and T3*_T3*) indicated the same Tm of 39 °C. In the sample without nitroxides (T3_T3), a Tm of 38 ± 1 °C was obtained, which corresponds to no significant influence of the spin label into complexation. These results are in line with those obtained in the gel electrophoresis experiment. The similar bands and their intensity can be seen in the electrophoresis image for T3_T3*, T3*_T3, and T3*_T3* samples (Figure S2). The complexes with different flexibility and nitroxide–nitroxide distance were specially selected to estimate the PELDOR method’s capabilities. The typical structures are dimers and tetramers for NA complexes synthesized in this work (Table 1). Unlike tetramers (Figure 1), the dimer cannot be visualized by the PELDOR method due to only one spin label. A low amount of higher-order complexes (e.g., hexamers) was obtained (Figure S2, Table 1). Hexamers have high distances between labels and cannot be detected by the PELDOR.

3.3. Distance Measurements by PELDOR

PELDOR experiments were performed for the oligonucleotide complexes in Table 1 to obtain information regarding the nitroxide–nitroxide distance and the distance distribution. Initially, we obtained intramolecular distances in Tn_T3* samples with n = 0, 1, and 3 (Figure 3). To compare the possible differences in nitroxide labels in the opposite oligonucleotide chain, T3*_Tn complexes were analyzed (Figure 3). The distance distributions from PELDOR signals were calculated using Tikhonov regularization [49] and using the DEERNet network [50]. In most cases, we found only slight differences between both methods (cf. Figure 3 and Figure S5). However, the Tikhonov regularization provides more reliable data in our case. Following this analysis, a maximum distance probability of 7.5 nm was found for the T0_T3* sample, which matches well with the value of 7.6 nm obtained for the T3*_T0 sample (Figure 3).
Because the conversion from the time domain PELDOR time trace to the distance distribution is an ill-posed mathematical problem, there are some uncertainties in the obtained distance distribution function P(R) shown in the DEERNet results as shaded regions (Figure S5). Therefore, the minor distance peaks of 3–5 nm are comparable with the experimental uncertainty (cf. Figure 3 and Figure S5). Another important finding is that the width of the distance peak broadening at 7.6 nm exceeds the width expected from the rotamers of the covalently attached spin label. Because of an expected large mean distance of ~7.5 nm and a broad distance distribution, a long dipolar evolution time window of 9 µs and a low spin concentration were chosen to reduce contributions from the intermolecular background functions. With this time window, the mean distance could be reliably extracted [51], whereas the exact width and shape of the distance distribution are already beyond the means of an accurate determination. The absence of a linker in the nitroxide tag ensures low conformational flexibility of the label itself, leading to precise distance determination by PELDOR [31]. Thus, the distance distribution width can be related to the flexibility and the distribution between several conformations of complexes.
The PELDOR data obtained for the T1_T3* sample displayed a broad distribution, with an intensive peak at 7.3 nm (Figure 3). T1_T3* showed smeared traces in the gel electrophoresis image (Figure S2). It corresponds to several conformations of tetramer complexes that lead to a broad distance distribution. It is not surprising that the peak at 7.3 nm has a large width again, ranging from 5.5 to 8.5 nm. Similar results were obtained for the T3_T3* and T3*_T3 samples (Figure 3). We performed the PELDOR experiment for the T3*_T3* sample to gain additional insights. For T3*_T3*, a short distance of 4.3 nm between two labels was obtained (Figure 3). Comparing the two results for T3_T3* and T3*_T3*, it can be seen that the distance distribution of the T3*_T3* PELDOR signal is narrower, with a peak at about 4 nm and a width of ~1.5 nm.
The information gained from PELDOR can be used to assess the percentage of spin pairs relative to the total amount of spins in the sample. The number of spin pairs can be deduced from the signal drop from the beginning to the end of the time trace after removal of the intramolecular signal decay, called modulation depth (Δ). DeerAnalysis software was used to obtain the intermolecular background decay and modulation depth (Figure S5, background traces and modulation depth by intercept of this curve with y-axis). The modulation depth for the different constructs is summarized in Table S1. A modulation depth of ~0.4 was observed for T0_T3* and T3*_T0, corresponding to the expected modulation depth for two coupled spins. A systematic decrease in the modulation depth for samples with increasing linker length was observed (Table S1). The experimental modulation depth values of T7_T3* and T10_T3* were 0.092 and 0.093, four times lower than for T0_T3*. These differences could be attributed to a reduced formation of tetramers and the presence of dimers with a single spin tag or other complexes with high distances between nitroxides (Figure S2, Table 1). This lower modulation depth for the T25_T3* and T3*_T25 samples is striking. Despite a significant amount of tetramers being observed through electrophoresis (Figure S2), the modulation depths for these two samples were only 0.068 and 0.047. These lower modulation depths might result from a broad and unstructured distance distribution. In this case, it is difficult to accurately determine the intermolecular background decay, which might result in an incorrect modulation depth. Modulation depth calculations have essential information for NA complexes conformation and stability studies along with distance distribution. The small modulation depths and noisier PELDOR signals (Figure S6) for the samples with the longer linker (T7, T10, and T25) result in less reliable distance distributions and a loss of structural information. Therefore, distance distributions P(R) should be taken qualitatively only for these samples (Figures S6 and S10).

3.4. Molecular Dynamics Simulations

A series of 100 ns MD simulations in an explicit solvent shell were performed to optimally explore the conformational space of self-assembled complexes of oligonucleotides and generate the distance distribution between nitroxide labels. We built the MD library files for the phosphorothioate-modified thymidine labeled by nitroxide residue to perform MD simulations. A phosphorothioate linkage leads to a new chiral center at the P-atom [52]. Indeed, the separation of phosphorothioated oligonucleotide diastereomers with one modification is a difficult task. We did not separate diastereomers and performed an MD analysis using both S- and R-isomers (labeled as Sp and Rp). For the tetramer complex (Figure 2), two phosphorothioated oligonucleotides form four possible variants of tetramers’ stereoisomers (Sp-Sp, Sp-Rp, Rp-Sp, Rp-Rp). Instead of four isomers, MD calculations of the two most different isomers (Sp-Sp and Rp-Rp) were used. To characterize the structural stability of the complexes, we analyzed the root-mean-square deviation (RMSD), root-mean-square fluctuation (RMSF), and interspin distances along MD trajectories (Figures S7 and S8). The distance values for T3*_T0 and T3*_T3* samples have a deviation of less than 1 nm and plateaued after 20–30 ns. Further analysis showed that increasing linker length results in interspin distance fluctuations of 2–6 nm (Figure S7), and high RMSD changes along the trajectories indicate the enlarged conformational flexibility of oligonucleotide complexes. This is in agreement with RMSF per residue values for the entire complex that is below 6 Å for complexes with the T0 linker, up to 10 Å for complexes with the T1 or T3 linkers, and not higher than 15 Å for complexes with 7–25 nt linkers (Figure S8). At the same time, for the 10 bp duplex blocks in the complexes, per-residue RMSF values are typically below 1.5 Å and have higher values only for the terminal base pairs (RMSF < 6 Å), corresponding to fraying.
Comparing distance values averaged over Sp and Rp isomers, all samples exhibited a similar behavior of interspin distance values (Figure S7). The cluster analysis of the MD trajectories allows us to distinguish several conformations for each tetramer complex. The most represented structures in the trajectory, which shows the most dominant whole structure of complexes, are performed in Figure S9. Comparing T25_T3* and T3*_T25 complexes with others, all other samples provide neat symmetrical structures with some perturbations in the linker site, which is in good correlation with interspin distance data.
To verify the interspin distances measured by the PELDOR analysis, the nitroxide–nitroxide distance distribution calculation was performed during the whole MD trajectory for each sample. The distance distributions by MD and PELDOR (Figure 4) analyses show excellent agreement for T0_T3*, T3*_T0, and T3*_T3*. For T3_T3*, T3*_T3 samples, the MD distance distribution covers the area of the most intense distribution obtained by PELDOR. Most striking was the substantial similarity of the maximum distribution values and whole distance distribution for the samples by MD and PELDOR. Moreover, we expected that Sp-Rp and Rp-Sp distances should be between the distances for the extreme structures as Sp-Sp and Rp-Rp, which improves data convergence. The most surprising aspect of the data for T0_T3*, T3*_T0, T3_T3*, T3*_T3, and T3*_T3* is the promising agreement with the nitroxide–nitroxide distance for the most represented structures in the MD trajectory (Table 2, Figure S9) and the maximum of the major peak of the PELDOR distance distribution. Nevertheless, these results require further verification through additional research. Further analysis shows that sample T7_T3* indicates a low correlation between PELDOR and MD data (Figure S10). The data for T7_T3* is not surprising as almost no tetramers were found according to gel electrophoresis (Figure S2). Moreover, MD distribution extends from 4 to 9.5 nm with a maximum of 7.5 and 8.5 nm for Rp-Rp and Sp-Sp isomers, respectively. In this way, Figure S10 shows the problem when the PELDOR time trace of 9 µs is not long enough. The T7_T3* just barely ‘covers’ the smallest distances from the MD calculations. For the T10_T3*, T25_T3*, and T3*_T25 samples, MD distributions were stated to range from ~7 nm to 10–15 nm (Figure S10). However, the time traces by PELDOR were only 9 µs, which is not long enough to cover 10 to 15 nm long distances [9]. Therefore, distances for T10_T3*, T25_T3*, and T3*_T25 samples are probably artifacts from the limited dipolar evolution time window and cannot be interpreted (Figure S10).

4. Conclusions

In summary, the tandem of PELDOR experiments and MD simulations has significant potential as a valuable tool for examining three-dimensional self-assembled complexes of NA. Conversely, our comparison shows that the presented methods have powerful abilities to quantitatively determine the structures and conformational dynamics of such flexible complexes. MD simulations enrich the interpretation of sparse PELDOR distance measurements, helping to answer biological and biophysical questions and providing an ensemble of conformations, the most representative structures, structural diversity, and some stability data for studying nucleic acid systems. The experimental results of the gel electrophoresis and melting analysis are in good agreement with PELDOR and MD data and reveal additional insights into the interpretation of oligonucleotide systems. The approach used has length limits, which originated on the one hand from the limits of PELDOR measurements (typically 2–10 Å) and on the other hand from the size of the molecular system in MD simulation (up to 106 atoms including solvent molecules) for reliable simulation. We wonder if these findings could be helpful for the further investigation of natural systems with highly polymorphic structures, such as I-motifs, DNA hairpins, loops, G-quadruplexes, etc., and their conformational changes upon interactions with ligands, drugs, and changes in environmental factors [31]. The proposed tandem of the methods has the potential for studying three-dimensional structures such as DNA origami or other supramolecular DNA complexes. Moreover, the data can be applied for synthetic NA agents and complexes for various fields of medicine, diagnostics, and bionanotechnology.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biom14080887/s1, Figure S1: X-band CW EPR spectra of spin-labeled oligonucleotide M20T3* and N20T3* samples were measured at room temperature (For parameters, see Section 2.6 of the paper); Figure S2: Gel shift assay of oligonucleotide complexes in a ratio of 1:1; Figure S3: Normalized UV-melting curves for DNA complexes were obtained at 260 nm; Figure S4: The first derivative of the UV-melting curves, obtained at 260 nm, for DNA complexes; Figure S5: Q-band PELDOR measurements of T0_T3*, T3*_T0, T1_T3*, T3_T3*, T3*_T3, and T3*_T3*; Figure S6: Q-band PELDOR measurements of T7_T3*, T10_T3*, T3*_T25, and T25_T3*; Figure S7: Interspin distances and interspin distance distributions along the molecular dynamics (MD) trajectories for oligonucleotide complexes are on the top. The RMSD values along the MD trajectories are at the bottom for each sample; Figure S8: RMSF per residue values for the complex and duplexes in the complex are indicated at the top and bottom for each sample, respectively; Figure S9: Comparison of the most representative structures in MD trajectories obtained by cluster analysis for oligonucleotide complexes for Sp-Sp and Rp-Rp stereoisomers; Figure S10: Spin−spin distance distributions for T7_T3*, T10_T3*, T25_T3*, and T3*_T25 complexes from Tikhonov regularization of PELDOR time traces and MD trajectory analysis; Table S1: Modulation depth extracted by DeerAnalysis software for self-assembled oligonucleotide complexes.

Author Contributions

Conceptualization, A.S.C., A.A.L. and T.F.P.; investigation, A.S.C., B.E., M.A.K. and A.A.L.; resources, Y.F.P.; writing—original draft preparation, A.S.C.; writing—review and editing, B.E., Y.F.P., A.A.L. and T.F.P.; project administration, A.S.C.; funding acquisition, A.S.C. and A.A.L. All authors have read and agreed to the published version of the manuscript.

Funding

The oligonucleotide synthesis, electrophoresis, UV-melting, and MD simulation and analysis were funded by the Ministry of Science and Higher Education of the Russian Federation (No. 075-15-2022-263). The EPR studies were supported by a grant from the German Academic Exchange Service (DAAD) within the program “Mikhail Lomonosov”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be made available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Varshney, D.; Spiegel, J.; Zyner, K.; Tannahill, D.; Balasubramanian, S. The regulation and functions of DNA and RNA G-quadruplexes. Nat. Rev. Mol. Cell Biol. 2020, 21, 459–474. [Google Scholar] [CrossRef] [PubMed]
  2. Pavlova, I.; Barinov, N.; Novikov, R.; Severov, V.; Iudin, M.; Vedekhina, T.; Larin, A.; Babenko, V.; Aralov, A.; Gnuchikh, E.; et al. Modeling G4s in chromatin context confirms partial nucleosome exclusion and reveals nucleosome-disrupting effects of the least selective G4 ligands. Biochimie 2023, 204, 8–21. [Google Scholar] [CrossRef] [PubMed]
  3. Nikitin, M.P. Non-complementary strand commutation as a fundamental alternative for information processing by DNA and gene regulation. Nat. Chem. 2023, 15, 70–82. [Google Scholar] [CrossRef] [PubMed]
  4. Pavc, D.; Sebastian, N.; Spindler, L.; Drevenšek-Olenik, I.; Podboršek, G.K.; Plavec, J.; Šket, P. Understanding self-assembly at molecular level enables controlled design of DNA G-wires of different properties. Nat. Commun. 2022, 13, 1062. [Google Scholar] [CrossRef] [PubMed]
  5. Kim, J.; Narayana, A.; Patel, S.; Sahay, G. Advances in intracellular delivery through supramolecular self-assembly of oligonucleotides and peptides. Theranostics 2019, 9, 3191–3212. [Google Scholar] [CrossRef] [PubMed]
  6. Largy, E.; König, A.; Ghosh, A.; Ghosh, D.; Benabou, S.; Rosu, F.; Gabelica, V. Mass Spectrometry of Nucleic Acid Noncovalent Complexes. Chem. Rev. 2022, 122, 7720–7839. [Google Scholar] [CrossRef]
  7. Liu, K.; Zheng, L.; Ma, C.; Göstl, R.; Herrmann, A. DNA-surfactant complexes: Self-assembly properties and applications. Chem. Soc. Rev. 2017, 46, 5147–5172. [Google Scholar] [CrossRef] [PubMed]
  8. Zeraati, M.; Langley, D.B.; Schofield, P.; Moye, A.L.; Rouet, R.; Hughes, W.E.; Bryan, T.M.; Dinger, M.E.; Christ, D. I-motif DNA structures are formed in the nuclei of human cells. Nat. Chem. 2018, 10, 631–637. [Google Scholar] [CrossRef]
  9. Endeward, B.; Hu, Y.; Bai, G.; Liu, G.; Prisner, T.F.; Fang, X. Long-range distance determination in fully deuterated RNA with pulsed EPR spectroscopy. Biophys. J. 2022, 121, 37–43. [Google Scholar] [CrossRef]
  10. Spitale, R.C.; Incarnato, D. Probing the dynamic RNA structurome and its functions. Nat. Rev. Genet. 2023, 24, 178–196. [Google Scholar] [CrossRef]
  11. Collauto, A.; von Bülow, S.; Gophane, D.B.; Saha, S.; Stelzl, L.S.; Hummer, G.; Sigurdsson, S.T.; Prisner, T.F. Compaction of RNA Duplexes in the Cell. Angew. Chemie Int. Ed. 2020, 59, 23025–23029. [Google Scholar] [CrossRef] [PubMed]
  12. Kristoffersen, E.L.; Coletta, A.; Lund, L.M.; Schiøtt, B.; Birkedal, V. Inhibited complete folding of consecutive human telomeric G-quadruplexes. Nucleic Acids Res. 2023, 51, 1571–1582. [Google Scholar] [CrossRef] [PubMed]
  13. Dey, S.; Fan, C.; Gothelf, K.V.; Li, J.; Lin, C.; Liu, L.; Liu, N.; Nijenhuis, M.A.D.; Saccà, B.; Simmel, F.C.; et al. DNA origami. Nat. Rev. Methods Prim. 2021, 1, 13. [Google Scholar] [CrossRef]
  14. Pan, Q.; Nie, C.; Hu, Y.; Yi, J.; Liu, C.; Zhang, J.; He, M.; He, M.; Chen, T.; Chu, X. Aptamer-Functionalized DNA Origami for Targeted Codelivery of Antisense Oligonucleotides and Doxorubicin to Enhance Therapy in Drug-Resistant Cancer Cells. ACS Appl. Mater. Interfaces 2020, 12, 400–409. [Google Scholar] [CrossRef]
  15. Ryu, Y.; Hong, C.A.; Song, Y.; Beak, J.; Seo, B.A.; Lee, J.J.; Kim, H.S. Modular protein-DNA hybrid nanostructures as a drug delivery platform. Nanoscale 2020, 12, 4975–4981. [Google Scholar] [CrossRef]
  16. Vázquez-gonzález, M.; Willner, I. Aptamer-functionalized hybrid nanostructures for sensing, drug delivery, catalysis and mechanical applications. Int. J. Mol. Sci. 2021, 22, 1803. [Google Scholar] [CrossRef]
  17. Li, M.; Zheng, M.; Wu, S.; Tian, C.; Liu, D.; Weizmann, Y.; Jiang, W.; Wang, G.; Mao, C. In vivo production of RNA nanostructures via programmed folding of single-stranded RNAs. Nat. Commun. 2018, 9, 2196. [Google Scholar] [CrossRef] [PubMed]
  18. Qu, N.; Ying, Y.; Qin, J.; Chen, A.K. Rational design of self-assembled RNA nanostructures for HIV-1 virus assembly blockade. Nucleic Acids Res. 2022, 50, E44. [Google Scholar] [CrossRef]
  19. van Dyck, J.F.; Burns, J.R.; Le Huray, K.I.P.; Konijnenberg, A.; Howorka, S.; Sobott, F. Sizing up DNA nanostructure assembly with native mass spectrometry and ion mobility. Nat. Commun. 2022, 13, 3610. [Google Scholar] [CrossRef]
  20. Shi, X.; Pumm, A.; Maffeo, C.; Kohler, F.; Feigl, E.; Zhao, W.; Verschueren, D.; Golestanian, R.; Aksimentiev, A.; Dietz, H.; et al. A DNA turbine powered by a transmembrane potential across a nanopore. Nat. Nanotechnol. 2023, 19, 338–344. [Google Scholar] [CrossRef]
  21. Rothenbühler, S.; Iacovache, I.; Langenegger, S.M.; Zuber, B.; Häner, R. Complex DNA Architectonics─Self-Assembly of Amphiphilic Oligonucleotides into Ribbons, Vesicles, and Asterosomes. Bioconjug. Chem. 2023, 34, 70–77. [Google Scholar] [CrossRef] [PubMed]
  22. Sontakke, V.A.; Yokobayashi, Y. Programmable Macroscopic Self-Assembly of DNA-Decorated Hydrogels. J. Am. Chem. Soc. 2022, 144, 2149–2155. [Google Scholar] [CrossRef]
  23. Zamoskovtseva, A.A.; Golyshev, V.M.; Kizilova, V.A.; Shevelev, G.Y.; Pyshnyi, D.V.; Lomzov, A.A. Pairing nanoarchitectonics of oligodeoxyribonucleotides with complex diversity: Concatemers and self-limited complexes. RSC Adv. 2022, 12, 6416–6431. [Google Scholar] [CrossRef] [PubMed]
  24. Stelzl, L.S.; Erlenbach, N.; Heinz, M.; Prisner, T.F.; Hummer, G. Resolving the Conformational Dynamics of DNA with Ångstrom Resolution by Pulsed Electron-Electron Double Resonance and Molecular Dynamics. J. Am. Chem. Soc. 2017, 139, 11674–11677. [Google Scholar] [CrossRef]
  25. Ketter, S.; Joseph, B. Gd3+-Trityl-Nitroxide Triple Labeling and Distance Measurements in the Heterooligomeric Cobalamin Transport Complex in the Native Lipid Bilayers. J. Am. Chem. Soc. 2023, 145, 960–966. [Google Scholar] [CrossRef]
  26. Krumkacheva, O.A.; Timofeev, I.O.; Politanskaya, L.V.; Polienko, Y.F.; Tretyakov, E.V.; Rogozhnikova, O.Y.; Trukhin, D.V.; Tormyshev, V.M.; Chubarov, A.S.; Bagryanskaya, E.G.; et al. Triplet Fullerenes as Prospective Spin Labels for Nanoscale Distance Measurements by Pulsed Dipolar EPR. Angew. Chemie Int. Ed. 2019, 58, 13271–13275. [Google Scholar] [CrossRef] [PubMed]
  27. Ketter, S.; Dajka, M.; Rogozhnikova, O.; Dobrynin, S.A.; Tormyshev, V.M.; Bagryanskaya, E.G.; Joseph, B. In situ distance measurements in a membrane transporter using maleimide functionalized orthogonal spin labels and 5-pulse electron double resonance spectroscopy. bioRxiv 2022. [Google Scholar] [CrossRef]
  28. Bulygin, K.N.; Timofeev, I.O.; Malygin, A.A.; Graifer, D.M.; Meschaninova, M.I.; Venyaminova, A.G.; Krumkacheva, O.A.; Fedin, M.V.; Frolova, Y.L.; Karpova, G.G.; et al. Two alternative conformations of mRNA in the human ribosome during elongation and termination of translation as revealed by EPR spectroscopy. Comput. Struct. Biotechnol. J. 2021, 19, 4702–4710. [Google Scholar] [CrossRef]
  29. Peter, M.F.; Gebhardt, C.; Mächtel, R.; Muñoz, G.G.M.; Glaenzer, J.; Narducci, A.; Thomas, G.H.; Cordes, T.; Hagelueken, G. Cross-validation of distance measurements in proteins by PELDOR/DEER and single-molecule FRET. Nat. Commun. 2022, 13, 4396. [Google Scholar] [CrossRef]
  30. Gopinath, A.; Joseph, B. Conformational Flexibility of the Protein Insertase BamA in the Native Asymmetric Bilayer Elucidated by ESR Spectroscopy. Angew. Chem. Int. Ed. 2022, 61, e202113448. [Google Scholar] [CrossRef]
  31. Sannikova, N.E.; Kolokolov, M.I.; Khlynova, T.A.; Chubarov, A.S.; Polienko, Y.F.; Fedin, M.V.; Krumkacheva, O.A. Revealing Light-Induced Structural Shifts in G-Quadruplex-Porphyrin Complexes: A Pulsed Dipolar EPR Study. Phys. Chem. Chem. Phys. 2023, 25, 22455–22466. [Google Scholar] [CrossRef] [PubMed]
  32. Jeschke, G. DEER Distance Measurements on Proteins. Annu. Rev. Phys. Chem. 2012, 63, 419–446. [Google Scholar] [CrossRef] [PubMed]
  33. Depmeier, H.; Hoffmann, E.; Bornewasser, L.; Kath-Schorr, S. Strategies for Covalent Labeling of Long RNAs. ChemBioChem 2021, 22, 2826–2847. [Google Scholar] [CrossRef] [PubMed]
  34. Torricella, F.; Pierro, A.; Mileo, E.; Belle, V.; Bonucci, A. Nitroxide spin labels and EPR spectroscopy: A powerful association for protein dynamics studies. Biochim. Biophys. Acta-Proteins Proteom. 2021, 1869, 140653. [Google Scholar] [CrossRef] [PubMed]
  35. Saran, R.; Huang, Z.; Liu, J. Phosphorothioate nucleic acids for probing metal binding, biosensing and nanotechnology. Coord. Chem. Rev. 2021, 428, 213624. [Google Scholar] [CrossRef]
  36. Qin, P.Z.; Haworth, I.S.; Cai, Q.; Kusnetzow, A.K.; Grant, G.P.; Price, E.A.; Sowa, G.Z.; Popova, A.; Herreros, B.; He, H. Measuring nanometer distances in nucleic acids using a sequence-independent nitroxide probe. Nat. Protoc. 2007, 2, 2354–2365. [Google Scholar] [CrossRef] [PubMed]
  37. Zhang, X.; Xu, C.X.; Di Felice, R.; Sponer, J.; Islam, B.; Stadlbauer, P.; Ding, Y.; Mao, L.; Mao, Z.W.; Qin, P.Z. Conformations of Human Telomeric G-Quadruplex Studied Using a Nucleotide-Independent Nitroxide Label. Biochemistry 2016, 55, 360–372. [Google Scholar] [CrossRef] [PubMed]
  38. Hankovszky, H.O.; Hideg, K.; Lex, L. Nitroxyls; VII1. Synthesis and Reactions of Highly Reactive 1-Oxyl-2,2,5,5-tetramethyl-2,5-dihydropyrrole-3-ylmethyl Sulfonates. Synthesis 1980, 1980, 914–916. [Google Scholar] [CrossRef]
  39. Pannier, M.; Veit, S.; Godt, A.; Jeschke, G.; Spiess, H.W. Dead-Time Free Measurement of Dipole—Dipole Interactions between Electron Spins. J. Magn. Reson. 2000, 142, 331–340. [Google Scholar] [CrossRef]
  40. Schmidt, R.R.; Martin, R.E.; Pannier, M.; Diederich, F.; Gramlich, V. Determination of End-to-End Distances in a Series of TEMPO Diradicals of up to 2.8 nm Length with a New Four-Pulse Double Electron Electron Resonance Experiment. Angew. Chemie Int. Ed. 1998, 37, 2833–2837. [Google Scholar]
  41. Jeschke, G.; Chechik, V.; Ionita, P.; Godt, A.; Zimmermann, H.; Banham, J.; Timmel, C.R.; Hilger, D.; Jung, H. DeerAnalysis2006—A comprehensive software package for analyzing pulsed ELDOR data. Appl. Magn. Reson. 2006, 30, 473–498. [Google Scholar] [CrossRef]
  42. Russell, H.; Cura, R.; Lovett, J.E. DEER Data Analysis Software: A Comparative Guide. Front. Mol. Biosci. 2022, 9, 915167. [Google Scholar] [CrossRef] [PubMed]
  43. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF Chimera—A visualization system for exploratory research and analysis. J. Comput. Chem. 2004, 25, 1605–1612. [Google Scholar] [CrossRef] [PubMed]
  44. Case, D.A.; Cerutti, D.S.; Cheatham, T.E.; Darden, T.A.; Duke, R.E.; Giese, T.J.; Gohlke, H.; Goetz, A.W.; Greene, D.; Homeyer, N.; et al. AMBER 14; University of California: San Francisco, CA, USA, 2014. [Google Scholar]
  45. Dupradeau, F.-Y.; Pigache, A.; Zaffran, T.; Savineau, C.; Lelong, R.; Grivel, N.; Lelong, D.; Rosanski, W.; Cieplak, C. The R.E.D. tools: Advances in RESP and ESP charge derivation and force field library building. Phys. Chem. Chem. Phys. 2010, 77, 114–122. [Google Scholar] [CrossRef] [PubMed]
  46. Ivani, I.; Dans, P.D.; Noy, A.; Pérez, A.; Faustino, I.; Hospital, A.; Walther, J.; Andrio, P.; Goñi, R.; Balaceanu, A.; et al. Parmbsc1: A refined force field for DNA simulations. Nat. Methods 2016, 13, 55–58. [Google Scholar] [CrossRef] [PubMed]
  47. Joung, I.S.; Cheatham, T.E. Determination of alkali and halide monovalent ion parameters for use in explicitly solvated biomolecular simulations. J. Phys. Chem. B 2008, 112, 9020–9041. [Google Scholar] [CrossRef] [PubMed]
  48. Chubarov, A.S.; Oscorbin, I.P.; Filipenko, M.L.; Lomzov, A.A.; Pyshnyi, D.V. Allele-specific PCR for KRAS mutation detection using phosphoryl guanidine modified primers. Diagnostics 2020, 10, 872. [Google Scholar] [CrossRef] [PubMed]
  49. Hett, T.; Zbik, T.; Mukherjee, S.; Matsuoka, H.; Bönigk, W.; Klose, D.; Rouillon, C.; Brenner, N.; Peuker, S.; Klement, R.; et al. Spatiotemporal Resolution of Conformational Changes in Biomolecules by Combining Pulsed Electron-Electron Double Resonance Spectroscopy with Microsecond Freeze-Hyperquenching. J. Am. Chem. Soc. 2021, 143, 6981–6989. [Google Scholar] [CrossRef] [PubMed]
  50. Worswick, S.G.; Spencer, J.A.; Jeschke, G.; Kuprov, I. Deep neural network processing of DEER data. Sci. Adv. 2018, 4, eaat5218. [Google Scholar] [CrossRef]
  51. Schiemann, O.; Heubach, C.A.; Abdullin, D.; Ackermann, K.; Azarkh, M.; Bagryanskaya, E.G.; Drescher, M.; Endeward, B.; Freed, J.H.; Galazzo, L.; et al. Benchmark Test and Guidelines for DEER/PELDOR Experiments on Nitroxide-Labeled Biomolecules. J. Am. Chem. Soc. 2021, 143, 17875–17890. [Google Scholar] [CrossRef]
  52. Islam, M.A.; Fujisaka, A.; Kawakami, J.; Yamaguchi, T.; Obika, S. Different reactivity of Sp and Rp isomers of phosphorothioate-modified oligonucleotides in a duplex structure. Bioorganic Med. Chem. Lett. 2020, 30, 127166. [Google Scholar] [CrossRef] [PubMed]
Biomolecules 14 00887 g001

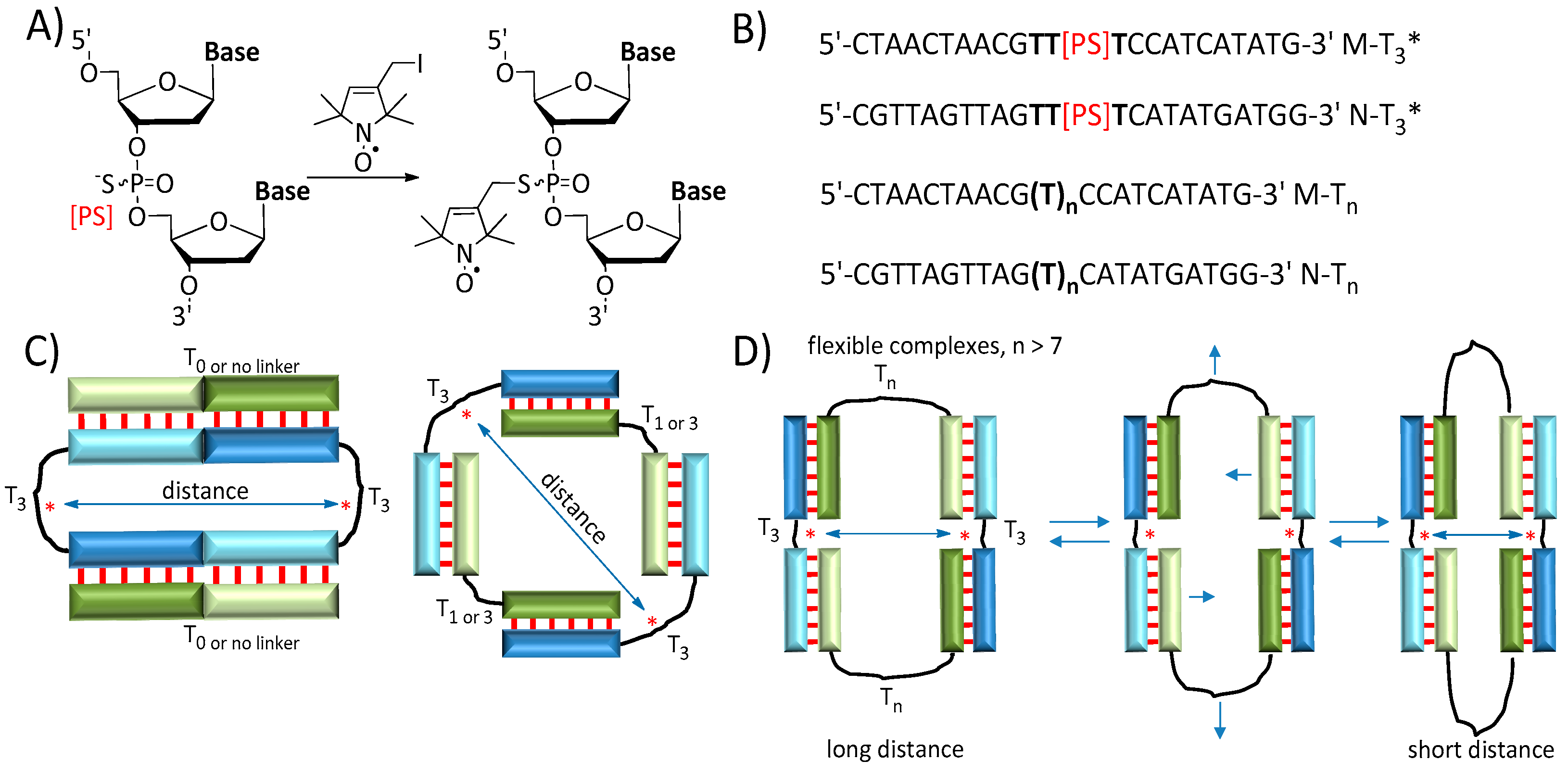

Figure 1. (A) Schematic representation of oligonucleotide spin labeling. [PS]—Phosphorothioate group. (B) Sequences of oligonucleotides. (C) Schematic representation of NA complexes with a short linker (T0, T1, T3) in one chain and a T3 linker with nitroxide. The spin labels are marked as a red star (*). (D) Schematic representation of flexible complexes with long linkers (T7, T10, T25).
Figure 1. (A) Schematic representation of oligonucleotide spin labeling. [PS]—Phosphorothioate group. (B) Sequences of oligonucleotides. (C) Schematic representation of NA complexes with a short linker (T0, T1, T3) in one chain and a T3 linker with nitroxide. The spin labels are marked as a red star (*). (D) Schematic representation of flexible complexes with long linkers (T7, T10, T25).
Biomolecules 14 00887 g001
Biomolecules 14 00887 g002
Figure 2. Schematic representation of a tetramer complex formed by a pair of oligonucleotides. Typical results of Q-band DEER measurements with the modulation depth cutoff, distance distribution profile, and three-dimensional structure as obtained by MD simulations.
Figure 2. Schematic representation of a tetramer complex formed by a pair of oligonucleotides. Typical results of Q-band DEER measurements with the modulation depth cutoff, distance distribution profile, and three-dimensional structure as obtained by MD simulations.
Biomolecules 14 00887 g002
Biomolecules 14 00887 g003

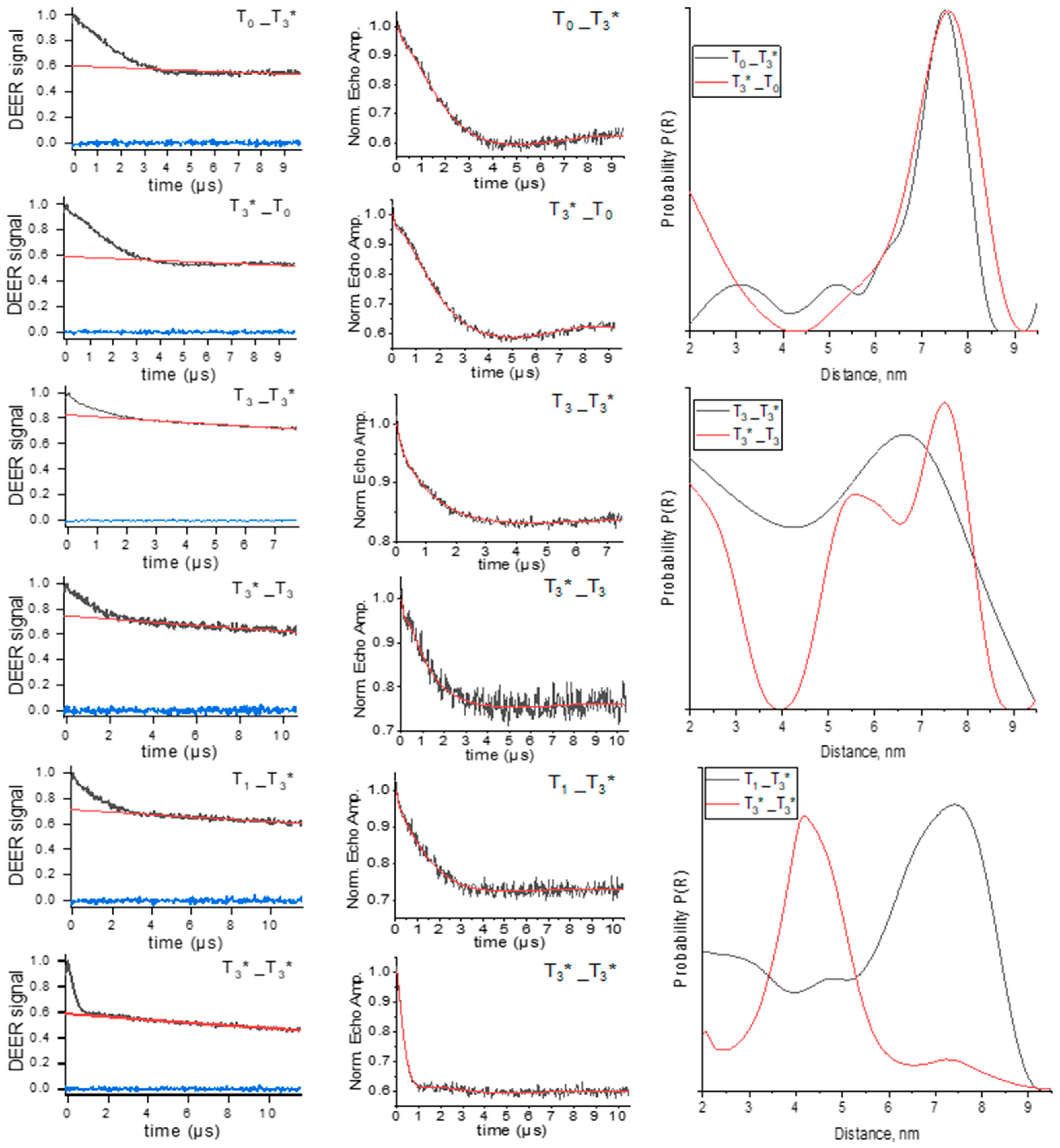

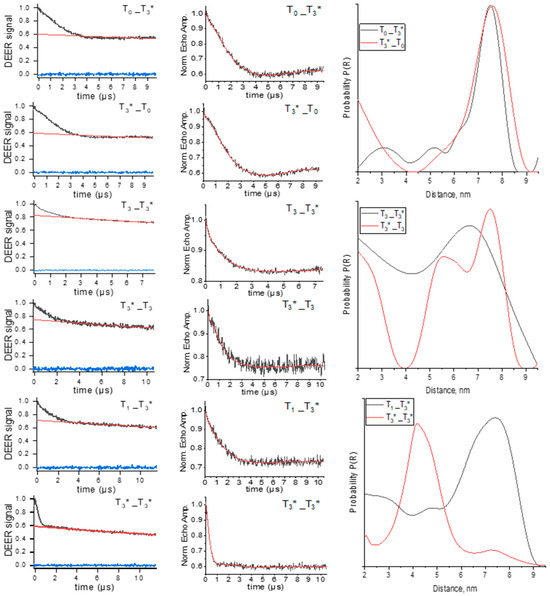

Figure 3. Q-band PELDOR results for T0_T3*, T3*_T0, T1_T3*, T3_T3*, T3*_T3, and T3*_T3*. * means spin-labeled oligonucleotide. Left: PELDOR time traces (black) with the background fits (red) and an imaginary part of the signal (blue). Middle: Background-corrected PELDOR time trace (black) and Tikhonov fit (red). Right: The normalized distance distributions P(R) are obtained by Tikhonov regularization. For comparison, the data assessed by the DEERNet network using DeerAnalysis2022 software with uncertainty of distance are presented in Figure S5.
Figure 3. Q-band PELDOR results for T0_T3*, T3*_T0, T1_T3*, T3_T3*, T3*_T3, and T3*_T3*. * means spin-labeled oligonucleotide. Left: PELDOR time traces (black) with the background fits (red) and an imaginary part of the signal (blue). Middle: Background-corrected PELDOR time trace (black) and Tikhonov fit (red). Right: The normalized distance distributions P(R) are obtained by Tikhonov regularization. For comparison, the data assessed by the DEERNet network using DeerAnalysis2022 software with uncertainty of distance are presented in Figure S5.
Biomolecules 14 00887 g003
Biomolecules 14 00887 g004

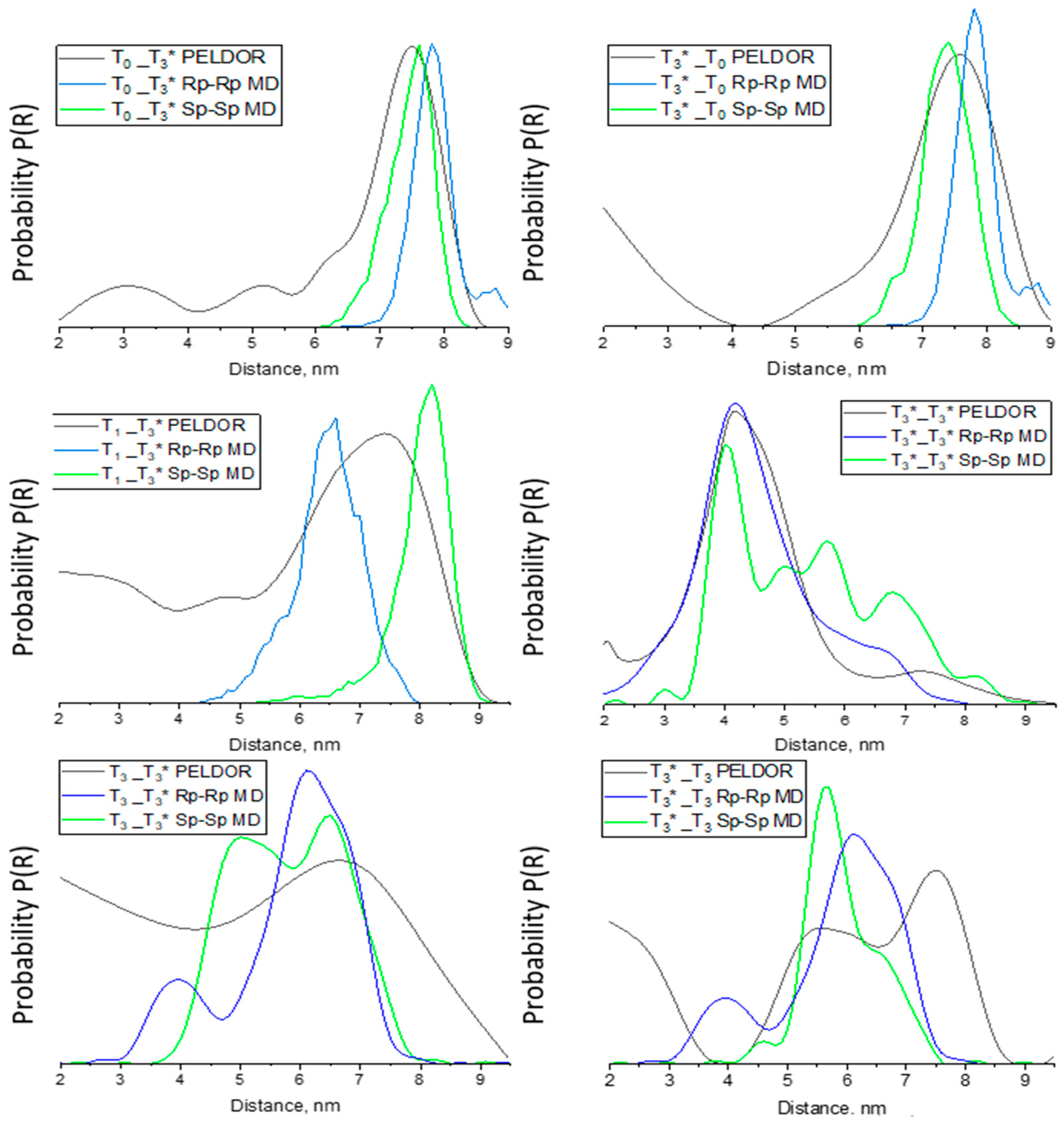

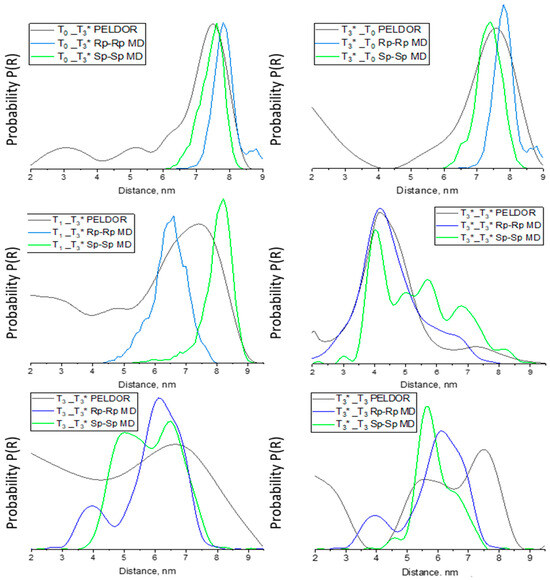

Figure 4. Spin–Spin distance distributions for T0_T3*, T3*_T0, T1_T3*, T3_T3*, T3*_T3, and T3*_T3* from the Tikhonov regularization of PELDOR time traces and MD data analysis. * means spin-labeled oligonucleotide.
Figure 4. Spin–Spin distance distributions for T0_T3*, T3*_T0, T1_T3*, T3_T3*, T3*_T3, and T3*_T3* from the Tikhonov regularization of PELDOR time traces and MD data analysis. * means spin-labeled oligonucleotide.
Biomolecules 14 00887 g004
Table 1. Tested mixtures of oligonucleotides, type of complexes, and melting temperature.
Table 1. Tested mixtures of oligonucleotides, type of complexes, and melting temperature.
Oligonucleotide 1AbbreviationComplex Type 2Melting Temperature Tm (°C)
No 1No 2
MN-T3*T0_T3*t, h43.0 ± 0.6
M-T1N-T3*T1_T3*t, (h)38.5 ± 1.2
M-T3N-T3*T3_T3*d, t39.2 ± 0.8
M-T7N-T3*T7_T3*d, (t)41.0 ± 0.7
M-T10N-T3*T10_T3*d, (t)42.5 ± 0.8
M-T25N-T3*T25_T3*d, t43.0 ± 0.8
M-T3*N-T3*T3*_T3*d, t39.0 ± 1.0
M-T3*NT3*_T0t, h42.7 ± 0.6
M-T3*N-T3T3*_T3d, t39.0 ± 1.0
M-T3*N-T25T3*_T25d, t43.5 ± 0.8
1 The oligonucleotide sequences are 5′-CTAACTAACG(T)nCCATCATATG-3′ (M-Tn) and 5′-CGTTAGTTAG(T)nCATATGATGG-3′ (N-Tn); * means spin-labeled oligonucleotide. 2 Minor species in a sample are presented in brackets. d—dimer, t—tetramer, h—higher-order complexes (e.g., hexamer, etc.).
Table 2. The distances between nitroxides for the most representative structures in MD trajectories were obtained by cluster analysis for oligonucleotide complexes for Sp-Sp and Rp-Rp stereoisomers and the PELDOR distance peak maximum (Tikhonov regularization). * means spin-labeled oligonucleotide.
Table 2. The distances between nitroxides for the most representative structures in MD trajectories were obtained by cluster analysis for oligonucleotide complexes for Sp-Sp and Rp-Rp stereoisomers and the PELDOR distance peak maximum (Tikhonov regularization). * means spin-labeled oligonucleotide.
SampleDistance MD, nm PELDOR Distance, nm
Sp-SpRp-Rp
T0_T3*7.28.07.5
T3*_T07.37.47.5
T1_T3*8.36.57.4
T3_T3*4.25.16.5–6.8
T3*_T35.96.45.6, 7.7
T3*_T3*4.0, 5.3, 5.5, 5.7, 6.9, 7.43.4, 3.8, 3.9, 4.1, 5.0, 5.64.3
T7_T3*8.58.0-
T10_T3*8.09.4-
T25_T3*10.18.6-
T3*_T2513.313.0-
