1. Introduction
Drug design is a multidisciplinary field that merges knowledge from chemistry, biology, bioinformatics, and pharmacology to develop more effective and specific therapeutic agents. While traditional drug discovery relied heavily on the empirical screening of large compound libraries to find candidates with therapeutic potential, modern approaches have shifted towards precision and specificity. Techniques such as structure-based and ligand-based design now enable the identification and optimization of compounds that interact with well-defined biological targets. This evolution has markedly reduced the time and cost of drug development, making the process more efficient and streamlined [
1].
A central technique in contemporary drug design is molecular modeling, which utilizes computational tools to simulate and predict the interactions of drugs with biological targets. These simulations allow for the identification and optimization of promising candidate molecules before experimental validation, thus enhancing the efficiency of the design process [
2]. Furthermore, advancements in artificial intelligence (AI) and machine learning (ML) are accelerating the identification of novel molecular structures with therapeutic potential and predicting their pharmacokinetic and pharmacodynamic properties [
3]. This convergence of technologies has markedly increased productivity in the pharmaceutical sector [
4].
Numerous studies underscore the success of computational strategies in identifying molecules with specific desired effects [
5]. Such is the case with the inhibition of enzymes crucial for the survival of helminth parasites such as
Taenia solium, in which glutathione S-transferases (GSTs) constitute their main detoxification system, catalyzing conjugation reactions between glutathione and a variety of endo- and exo-electrophilic substrates, which increase its solubility for subsequent excretion. To date, four GSTs have been identified in the cytoplasm of
T. solium, the Ts26GST variant being the most abundant. All of them present the same thioredoxin-like fold with two structural domains. The N-terminal domain contains the site where the substrate GSH binds, called the G site (shown in
Figure 1) and the C-terminal domain contains the binding site for electrophilic substrates, commonly hydrophobic, which is known as the H site. This is located next to the G site, allowing the formation of the conjugated molecule.
A study by García-Gutiérrez et al. (2020) identified a non-competitive inhibitor, termed
i7, through virtual screening, targeting the 26 kDa glutathione S-transferase (Ts26GST) of
Taenia solium [
6]. This inhibitor interacts non-competitively with glutathione (GSH) and exhibits a mixed competitive mechanism with the universal electrophilic substrate 1-chloro-2,4-dinitrobenzene (CDNB), making it a promising candidate for antiparasitic drug development [
6,
7].
Ts26GST, an alpha/mu-class enzyme, is the major detoxifying enzyme of the four cytosolic GSTs in
T. solium. The three additional GSTs are a 25.5 kDa mu class GST (Ts25GST), a 24.5 kDa sigma class GST, and a 27 kDa omega class GST (Ts27GST). All of them must be considered in the design of effective treatments [
8,
9,
10]. While each GST variant plays a critical role in parasite detoxification systems [
11,
12], they may contribute to other essential functions, including the modulation of the host immune response (Ts24GST), management of oxidative stress (Ts25GST), or signaling (Ts27GST) [
12,
13,
14,
15,
16]. This study presents the identification of two new selective inhibitors for the 25.5 kDa mu-class GST from
T. solium with a low inhibitory activity towards its human homolog, the mu-class GST isoform M1 (HGSTM1). These inhibitors were identified and characterized through a combination of computational techniques, including homology modeling, molecular docking, and molecular dynamics, which facilitated the screening of 50,000 compounds from Chembridge’s DiverSet Express Pick library. The identified compounds offer a promising foundation for the development of a novel antiparasitic agent aimed at inhibiting Ts25GST, potentially advancing treatment strategies against
T. solium.
2. Materials and Methods
2.1. Homology Modeling
A three-dimensional (3D) dimeric model of the 25.5 kDa mu-class glutathione S-transferase (Ts25GST) from
T. solium was constructed using the UniProt sequence Q8MWS0. A homologous structure of the mu-class GST from
Gallus gallus (PDB-ID 1GSU) [
17], sharing 46.33% of the sequence identity and with a resolution of 1.94 Å, was identified in the Protein Data Bank. Using AlphaFold2 [
18,
19], five independent models were generated, from which the most reliable model was selected. Glutathione (GSH) was incorporated into the model through its alignment with homologous mu-class GST structures complexed with GSH (PDB-IDs 1XW5, 1XW6, and 2FHE), which exhibit sequence identities between 40% and 45%. The final model incorporates GSH within the binding site, constructed using the 1XW5.PDB file which has the best resolution (1.8 Å).
2.2. All-Atom Molecular Dynamics Simulations
Molecular dynamics (MD) simulations were conducted to explore the behavior of the Ts25GST-GSH complex in the solution. The simulations utilized the Amber99sb* force field, TIP4P-Ewald water model, and protonation states adjusted to pH 7.4 using PropKa. The atomic charges for the ligands, including GSH, were calculated using Acpype and Gaussian. The system was simulated in triplicate, each with different initial seeds, under NVT conditions at 310.15 K for 1.0 nanoseconds using the V-rescale thermostat. Pressure equilibration was achieved at 1 bar using the Parrinello–Rahman barostat for an additional 1.0 nanosecond. Production runs of 1.0 μs were performed and analyzed using GROMACS and TTclust in Python [
20].
2.3. SILCS-Based Site Identification
To select the region for virtual screening, the SILCS (Site-Identification by Ligand Competitive Saturation) method [
21,
22,
23,
24] was employed. This involved three all-atom MD simulations of Ts25GST bound to GSH in co-solvent, using the OPLS-A force field with isopropanol as a probe (~0.2 M). Charges were adjusted for the TIP4P-ε water model. The simulations were conducted at 310.15 K for 100 ns with a 2.0 fs timestep. Three additional reference simulations in co-solvent without the protein were also performed. Results were analyzed using the volmap and voltool modules in VMD 1.94 [
24].
2.4. Virtual Screening
An ensemble docking approach [
25,
26,
27] was performed using structures generated by TTclust. Docking simulations were carried out with VinaMPI [
28,
29,
30] and GOLD 2022.2 [
31,
32]. Protein and ligand preparations were performed using MOE v2014 [
33], AutoDock Tools [
34], and OpenBabel [
35]. For ligand selection, energy cutoffs of −9.0 kcal/mol in Vina and Chem PLP scores above 75 were applied, based on re-docking studies of mu-class GSTs co-crystallized with inhibitors. The Diver-Set EXPRESS-PICK library from ChemBridge, containing 50,000 compounds, was screened in three stages as follows: low-exhaustiveness (Vina = 8, 10 GA runs), exhaustive screening (Vina = 32, 100 GA runs), and final docking against human mu-class GST (HGSTM; 1GTU, 1XW5, 1XW6, 3GTU, 4GTU) to identify selective inhibitors.
2.5. Expression and Purification of Recombinant Ts25GST
Ts25GST production was carried out following the protocol of Roldán et al. [
9].
E. coli JM105 cells were transformed with the pTRc99A plasmid containing the Ts25GST gene. A pre-culture was grown in LB medium containing 100 μg/mL ampicillin at 37 °C. The culture was scaled up to 500 mL, and growth was monitored by measuring optical density at 600 nm (OD600) until it reached ~0.6. Overexpression of Ts25GST was induced with 2.0 mM IPTG and incubated for an additional 5 h. Protein was purified by affinity chromatography on a GSH-Sepharose 4B column according to the methods described by Torres-Rivera et al. (2008) and Vivanco-Pérez et al. (2002) [
7,
9]. The protein concentration was determined by the Bradford method, and the purity was confirmed by SDS-PAGE.
2.6. Enzyme Kinetics
Glutathione S-transferase activity was assessed in 100 mM Tris-HCl buffer, pH 7.4, with 20% DMSO, using a modified version of the Habig method [
6,
7,
8,
9,
10,
11,
12]. Bi-substrate kinetics were evaluated by conducting two series of experiments as follows: in the first series, GSH was kept at 5.0 mM while CDNB concentrations ranged from 0 to 12 mM; in the second series, CDNB was held constant at 7.0 mM while GSH varied from 0 to 9.0 mM. Reactions were incubated at 37 °C for 30 min, and absorbance at 340 nm was monitored using the double-beam spectrophotometer Shimadzu UV-1800. A reaction without protein served as the blank. Initial reaction rates were calculated from the first 20 s of the kinetic curve using QtiPlot and fitted to the Hill model (Equation (2) for CDNB) [
36,
37] and the Michaelis–Menten model (Equation (3) for GSH) [
38].
Equation (1),
V0 calculation
where
Equation (2), Michaelis–Menten model
where
Vmax: maximum velocity [mmol⋅min−1⋅mg−1];
KM: Michaelis–Menten constant [mM];
S: substrate concentration [mM].
Equation (3), Hill model
where
2.7. In Vitro Activity Assays
In vitro inhibition assays were performed according to the protocol presented by García et al. [
6], with minor modifications. Reactions were conducted in 100 mM Tris-HCl buffer, pH 7.4, containing 5.0 mM GSH and 20% DMSO. Recombinant Ts25GST at a concentration of 1.0 μg/mL was incubated at 37 °C for 30 min with 40 μM inhibitor, and the reaction was initiated by adding 8.0 mM CDNB. The reaction was monitored at 340 nm, and the specific activity was calculated within the first 20 s. Inhibition and residual activity were determined relative to the controls. Selectivity tests were performed using human (
Homo sapiens) mu class M1 GST from Oxford Biomedical Research (GS65) under the same conditions as those for Ts25GST.
Equation (4), residual activity
2.8. Characterization of Inhibitory Effects
IC50 values for the selected inhibitors were determined using the conditions of the in vitro assays, varying the inhibitor concentration from 10 to 70 μM. A dose–response curve was generated by plotting the logarithm of the inhibitor concentration against the inhibition percentage, and the data were fitted to Equation (6) to calculate the IC50. Enzyme kinetics were then performed with GSH fixed at 5.0 mM and varying CDNB concentrations from 0 to 12 mM, in the presence of inhibitors from 10 to 30 μM. The Hill equation was used to fit the data, and kinetic parameters were compared between the control and inhibitor-treated conditions.
Equation (6), dose–response
where
y: percentage of inhibition;
A1: minimum value;
A2: maximum value;
x0: inflection point (IC50);
p: slope of the curve;
x: logarithm of the inhibitor concentration (Log [inhibitor]).
3. Results
3.1. Structural Modeling of Ts25GST
3.1.1. Homology Modeling
Due to the lack of experimentally resolved 3D structures for Ts25GST, a structural model was generated using AlphaFold. The resulting model (

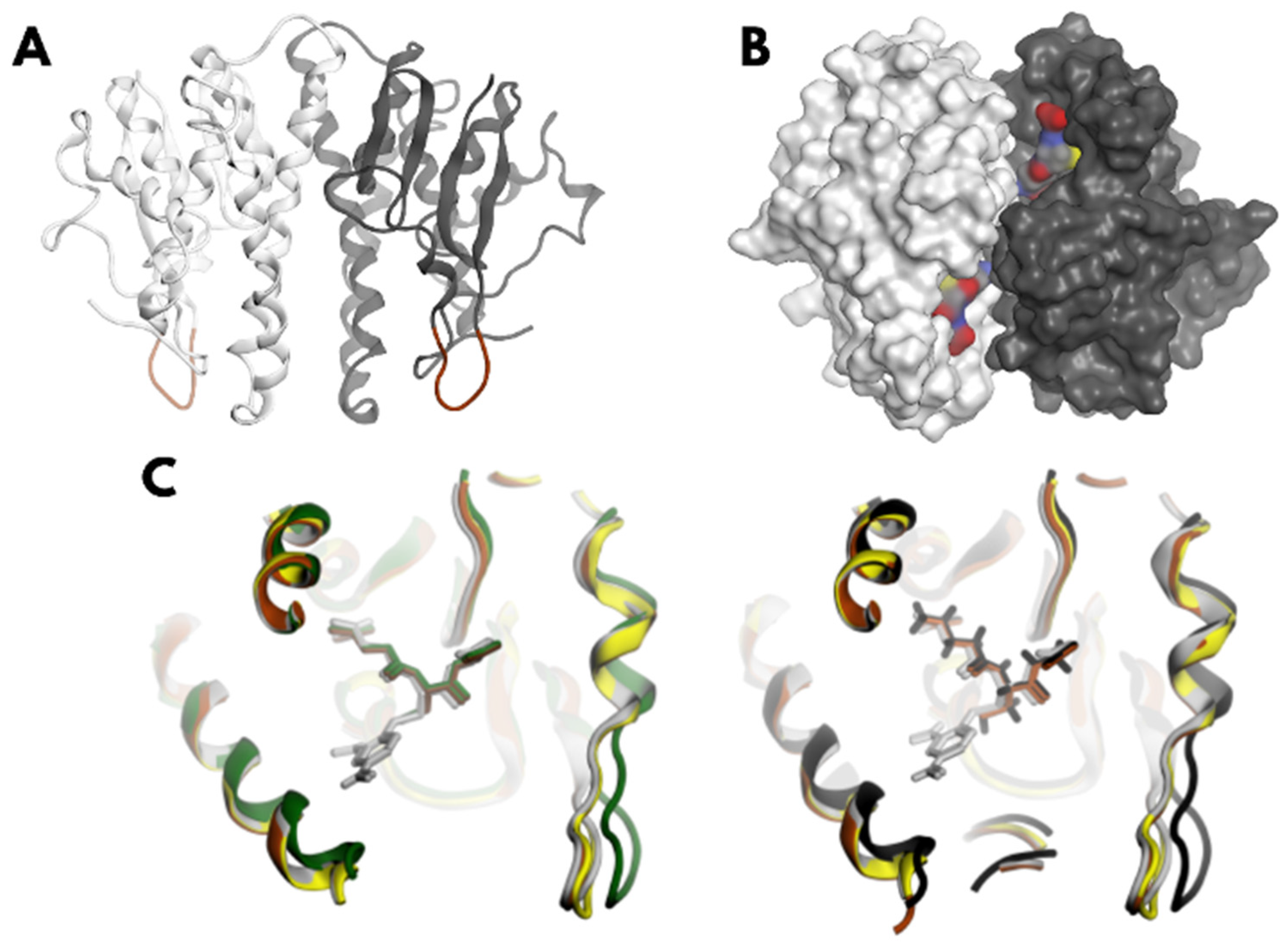

Figure 1A) exhibits the typical thioredoxin-like fold of GSTs [
13,
14], with an N-terminal region containing the GSH-binding site and a C-terminal region comprising five alpha helices and loops where the xenobiotic binding site is located [
9,
10,
11,
12,
13,
14].
Analysis of the GSH-binding site revealed a high degree of conservation; of the 15 residues in the G site, only 4 showed variability in other mu-class GSTs, consistent with the known structural features of this enzyme family [
13,
14]. The structural superposition of Ts25GST with homologous mu-class GSTs complexed with GSH (
Figure 1C) allowed us to position this substrate in our model. The 2D interaction diagrams are shown in the
Supplementary Material (
Figure S1), highlighting the key interactions. Tyrosine 7 aligns with tyrosines from homologous GSTs known to activate GSH, suggesting a similar role is assumed by Tyr7 in Ts25GST [
9,
10,
14].
The model was validated via SAVES 6.1 (
https://saves.mbi.ucla.edu/, URL accessed on 1 June 2022) with favorable metrics—ERRAT (93.4%) [
39], Verify3D (91.2%) [
40], and PROVE (2.3%) [
41]—and no residues in the disallowed regions on the Ramachandran plot [
42]. Additionally, a conserved mu loop was identified between alpha helix 2 and beta sheet 2 in the N-terminal domain [
14].
Structural alignments with the unbound, GSH-bound, and HGSTM1-conjugated forms (
Figure 1C) suggest a more open catalytic site for Ts25GST.
3.1.2. All-Atom Molecular Dynamics Simulations of the Model
MD simulations showed consistent behaviors across trajectories; the Root Mean Square Deviations (RMSD) values ranged from 0.18 to 0.25 nm relative to the initial structure (
Supplementary Material Figure S2A), the radii of gyration from 2.16 to 2.22 nm (
Figure S2B), and with similar Root Mean Square Fluctuations (RMSF) profiles (
Figure S2C,D). Principal Component Analysis (PCA) [
43,
44,
45,
46] indicated non-linearity in eigenvector 5 across replicates (

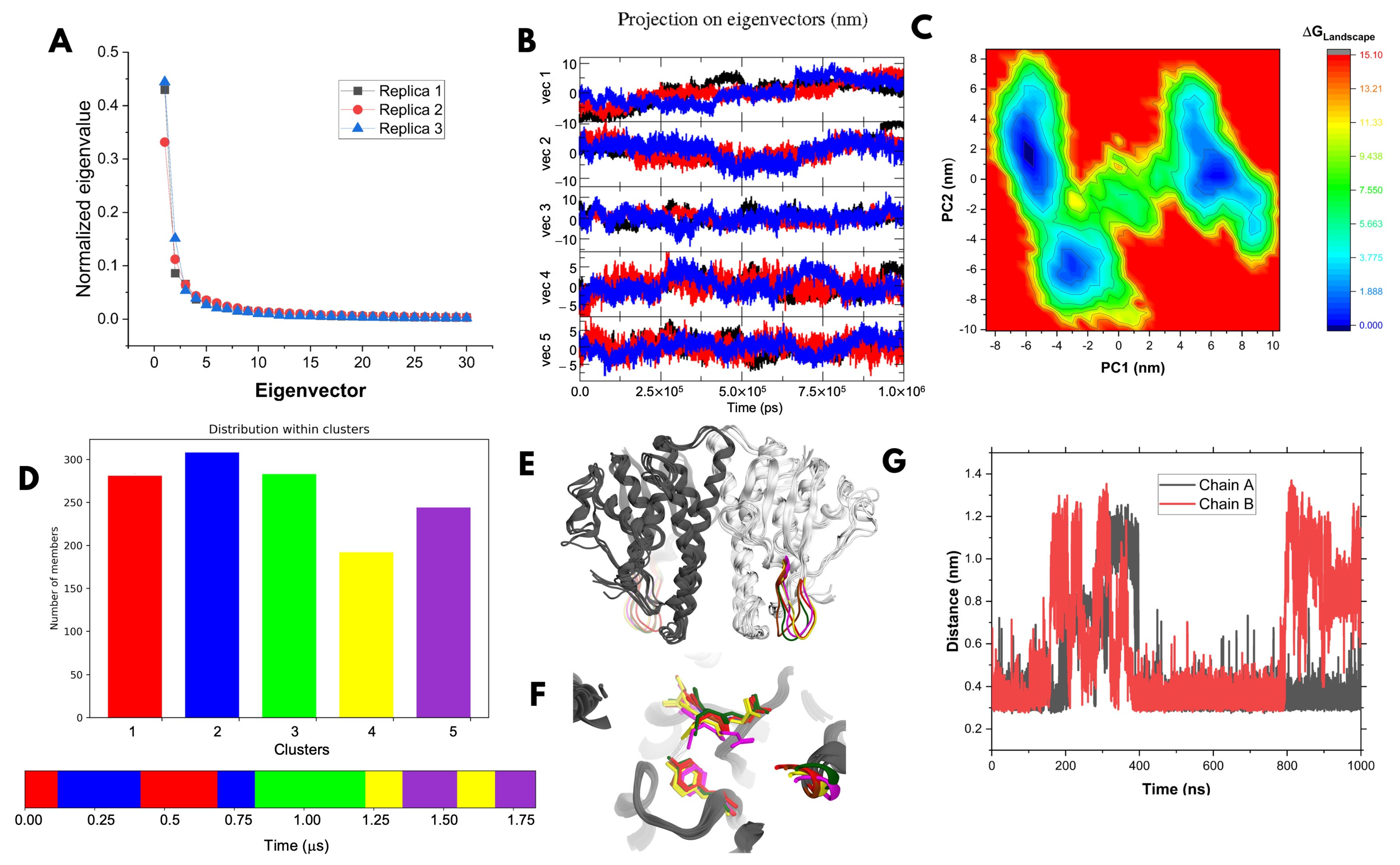

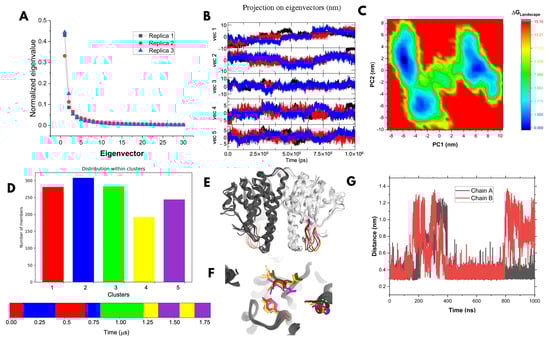

Figure 2A), with the first five components explaining 54.2%, 53.4%, and 51.1% of the variance in replicates 1, 2, and 3, respectively. The temporal projection of eigenvalues (
Figure 2B) revealed a dynamic convergence across trajectories.
Free energy landscape analysis using concatenated simulations of the first two PCA components (
Figure 2C) identified a global minimum and two local minima. Trajectories within these minima were extracted and clustered yielding five clusters (
Figure 2D) with intergroup RMSDs of 1.8–2.1 Å. The superposition of representative structures (
Figure 2E) revealed significant variability in the mu loop, consistent with its known role in GST classification and catalytic function. The deletion of this loop in previous studies reduced substrate affinity without affecting structural stability or reaction rate in mammalian GSTs [
14].
Analysis of GSH binding in representative structures (
Figure 2F,G) indicated a stable interaction between GSH and Tyr7 in chain A, consistent with previous studies [
6,
7,
8,
9,
10,
11,
12]. In this chain A, GSH adopted an extended conformation, like that observed in co-crystallized GST structures. In contrast, chain B displayed atypical GSH conformations in some trajectories. In 60% of the simulations, the distance between the sulfur atom of GSH and the hydroxyl oxygen of Tyr7 remained below 4.5 Å, suggesting frequent and stable interaction. GSH was stabilized in the G site within 2 ns, remaining within ~0.4 nm in chain A; chain B showed a similar stabilization. Occasionally, the thiol group temporally moved away from Tyr7 between 130 and 380 ns in both chains and again between 800 and 1000 ns in chain B. Despite these fluctuations, the interactions remained predominantly stable across the simulation.
3.1.3. Site Identification
The SILCS methodology was used to identify and evaluate potential binding sites in Ts25GST, incorporating residue flexibility and solubility-based site accessibility. Analysis of the Ts25GST-GSH complex in a water/isopropanol (0.2 M) co-solvent system using VMD produced FragMaps with high-density isopropanol regions on the protein surface (

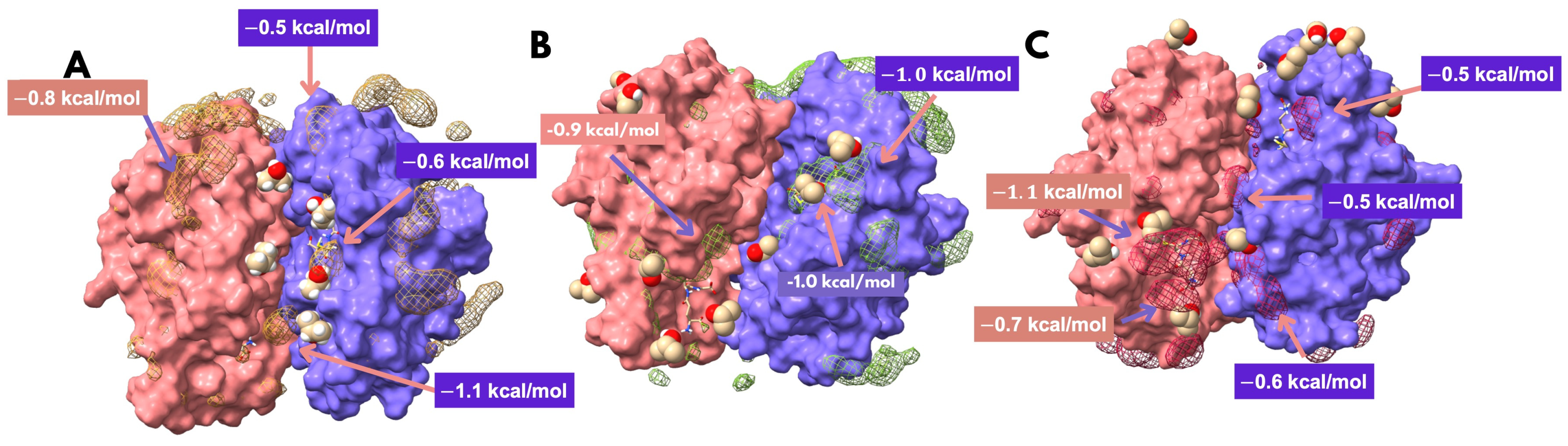

Figure 3). These density maps identified high-density regions in the access groove to the catalytic site, filtered to values exceeding 0.02 ± 0.001 atoms/Å
3 (bulk solvent density).
Free energy values were computed for each high-density region by substituting central cell occupancy values into Equation (7), using bulk solvent occupancy as the baseline (N0). Subsequently, critical points were designated where ΔGgrid < 0.5 kcal/mol. A site was defined by the presence of at least three probe molecules.
Equation (7), free energy grid
where
ΔGgrid: free energy of interaction in the central hotspot cell calculated using the inverse Boltzmann relation;
Ni: occupancy density of probe atoms in the central cell of each identified hotspot;
N0: reference occupancy density calculated from probe simulations (isopropanol) in a co-solvent system with water and in the absence of protein;
R: ideal gas constant;
T: simulation temperature in Kelvin (K).
Three potential sites were identified, with theoretical dissociation constants (
KD) calculated with Equation (8) and the percentage of identical amino acids relative to human mu-class GSTs (Conservation) shown in
Table 1. Site 1, located in the groove leading to the catalytic site, showed the lowest
KD (12.1 ± 6.6 mM) with a sequence identity of less than 60%. Probes interacted with residues Tyr116, Thr112, Asn209, and Gly210 while avoiding G-site residues due to the presence of GSH.
Equation (8), theoretical
KD
where
3.2. Discovering Process
3.2.1. Virtual Screening
To simulate receptor flexibility, we performed ensemble docking using conformations derived from homology models and MD simulations [
25,
26,
27]. Five Ts25GST-GSH complex trajectories representing chain A and SILCS-identified sites were selected.

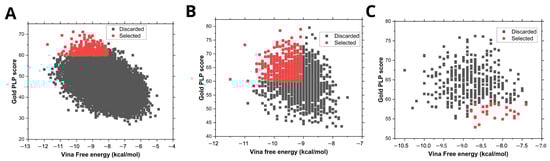

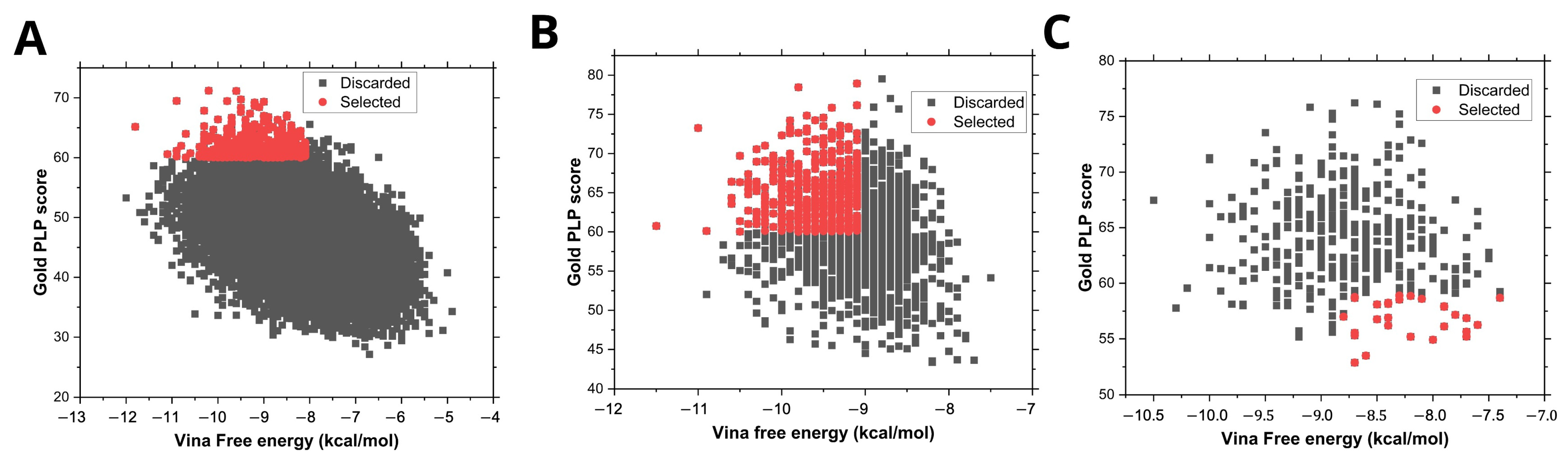

Figure 4 outlines the three-stage filtering process, comparing scoring metrics from Vina and CHEMPLP. This approach identified 28 compounds with Vina binding energies ranging from −10.0 to −11.5 kcal/mol and CHEMPLP scores between 75 and 80. These compounds exhibited lower affinity for human mu-class GSTs with free energies between −7.0 and −8.5 kcal/mol and scores of 50 to 62. Re-docking to human GSTs resulted in only 10% of ligand scores being below −9.0 kcal/mol and GOLD scores of 70, aligning with a typical virtual screening success rate of 5–15%.
3.2.2. Production and Kinetic Parameters of Recombinant Ts25GST

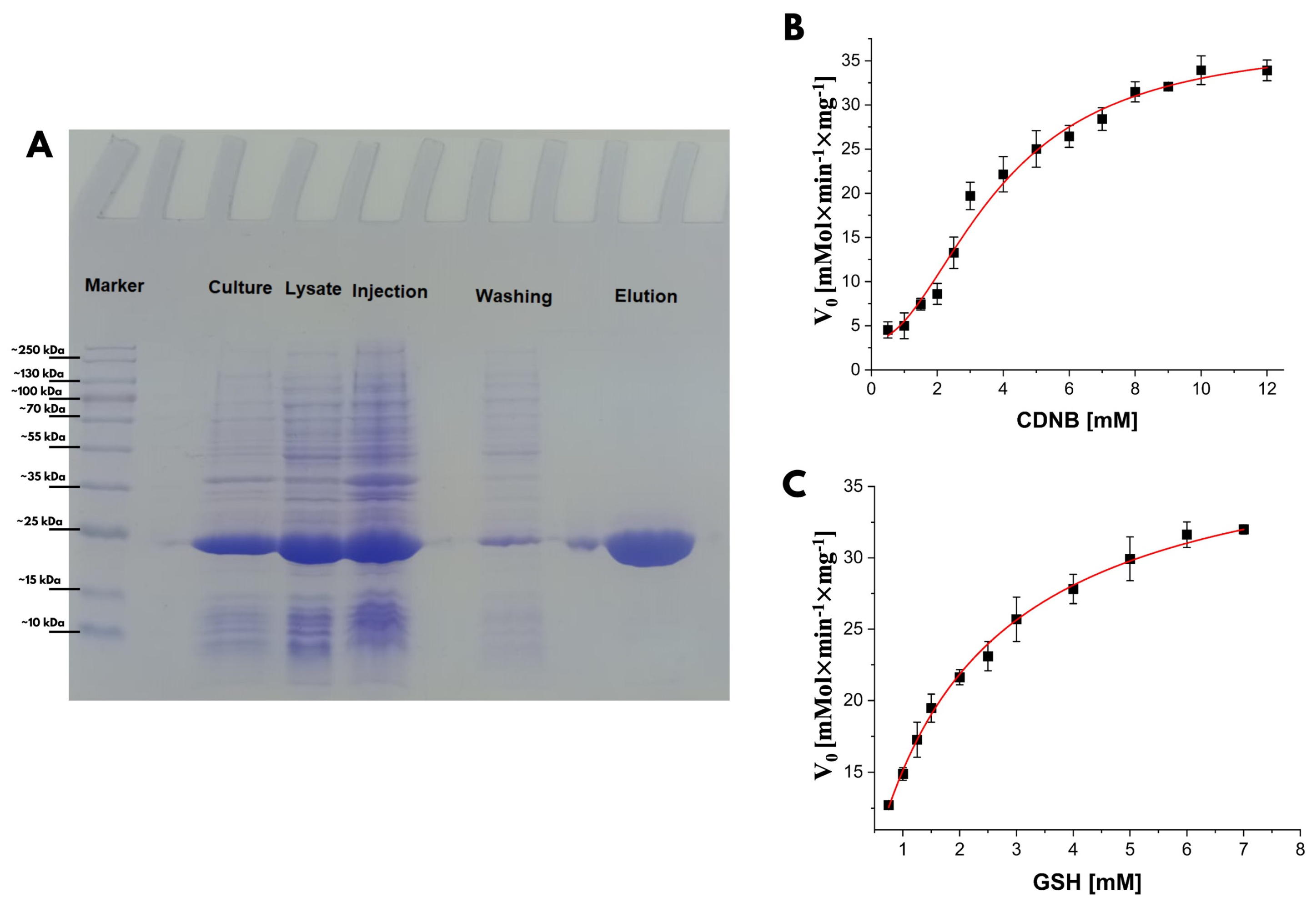

An active recombinant form of Ts25GST was successfully purified. SDS-PAGE analysis revealed a prominent band at approximately 25.0 kDa in the 20.0 mM GSH elution lane, with 12.0 µg of total protein per fraction, except the wash lane, which contained 3.0 µg due to a lower protein concentration (
Figure 5A). Kinetic studies using CDNB as a substrate (
Figure 5B) displayed sigmoidal behavior, in agreement with the findings of Miranda-Blancas et al. [
12] for sigma-class GSTs in the same organism. Fitting these data to the Hill equation suggested positive cooperativity, with a Hill coefficient, n > 1.0, suggesting that CDNB binding at one site enhances affinity at an additional binding site.
For GSH, the kinetic behavior followed a hyperbolic Michaelis–Menten model, showing similar
Vmax values for both substrates but a lower
Km for GSH, indicating higher affinity. Positive cooperativity, commonly observed in multimeric or allosteric proteins, was further supported by a Hill coefficient near 2. This value suggests the presence of two potential CDNB binding sites per enzyme dimer. This cooperative binding implies that CDNB binding at one subunit could enhance binding at the other subunit, indicating an allosteric regulation mechanism potentially involving a non-catalytic CDNB binding site.
Table 2 shows the kinetic parameters determined for Ts25GST.
3.2.3. In Vitro Activity Assays
The enzyme activity was evaluated in the presence of 5.0 mM GSH and 8.0 mM CDNB, under optimal conditions established from previous kinetic studies. The screening of the 28 compounds (

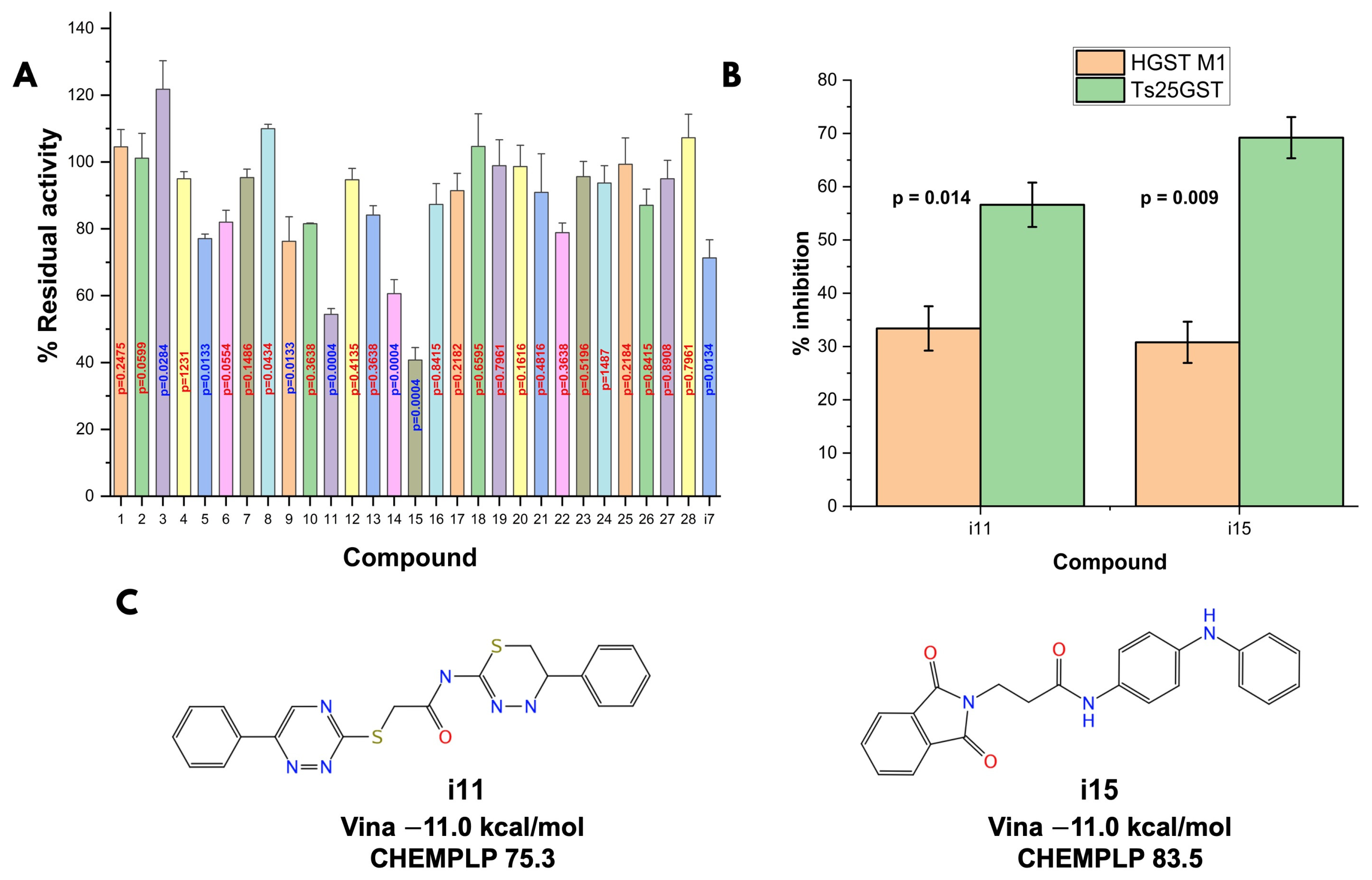

Figure 6A) revealed that 7 demonstrated enhanced enzymatic activity, 15 had minimal effects, and 6 inhibited activity by 20–70%. Compounds 11 and 15 showed the highest levels of inhibition, with reductions of 57.8 ± 3.3% and 68.3 ± 3.4%, respectively. When tested against HGSTM1, these two compounds showed lower inhibition percentages equivalent to 33.4 ± 2.2 and 30.8 ± 1.9 (
Figure 6B), indicating greater specificity towards parasitic GST.
Structural alignment of Ts25GST with five human mu-class GST isoforms revealed over 90% sequence identity, particularly at the screening site. This high degree of conservation suggests that inhibition effects observed for HGSTM1 could potentially extend to other HGSTM isoforms if this site acts as the primary interaction target.
3.3. Inhibition Characterization
3.3.1. IC50 and Inhibitor Effects
The half-maximal inhibitory concentrations (IC
50) for selective inhibitors
i11 and

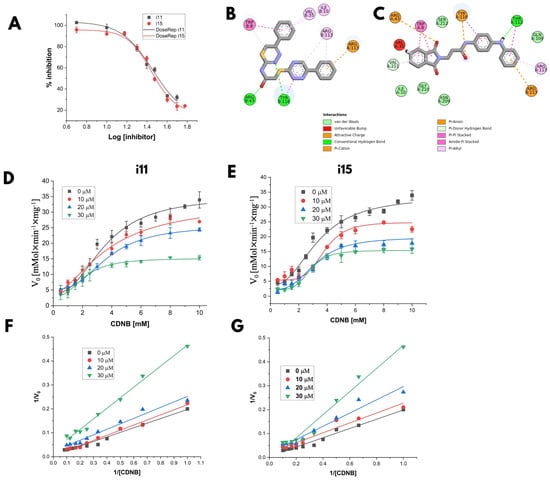

i15 were determined from the dose–response curves (
Figure 7) and are summarized in
Table 3. Inhibitor
i15 had a lower IC
50 (25.7 ± 1.1 µM) than
i11 (28.8 ± 1.2 µM), indicating stronger inhibition. The two-dimensional interaction diagrams (
Figure 7B,C) illustrate the binding of both inhibitors to residues in the H site, with
i11 primarily interacting with Thr112 and Tyr116, while
i15 interacts with all four residues, suggesting a potentially competitive mechanism against xenobiotics. Additional kinetic assays with varying inhibitor concentrations were conducted to refine these insights.
Kinetic data with 5.0 mM GSH and different CDNB concentrations (
Figure 7D,E;
Table 4 and
Table 5) revealed distinct inhibition mechanisms. Inhibitor
i15 reduced
Vmax without significantly affecting
Km, while maintaining a Hill coefficient close to 2, indicating a non-competitive inhibition relative to CDNB. Conversely,
i11 increased
Km without affecting
Vmax at lower concentrations, suggesting competitive inhibition with CDNB, though results became inconsistent at 30 µM concentration. The competitive inhibition of an enzyme involves a non-substrate molecule blocking the active site. However, this approach is less desirable for pharmacological purposes, as the inhibitor’s effectiveness depends on the substrate concentration. Under physiological conditions, substrate concentrations are often high enough to reduce the inhibitor’s effectiveness.
Interestingly, the docking poses did not fully match the observed kinetic behaviors. Although both inhibitors involve site H residues, only i11 demonstrated competitive inhibition with CDNB. Molecular dynamics (MD) simulations were conducted with complexes containing two molecules of each inhibitor to explore these discrepancies.
3.3.2. Interaction Modeling

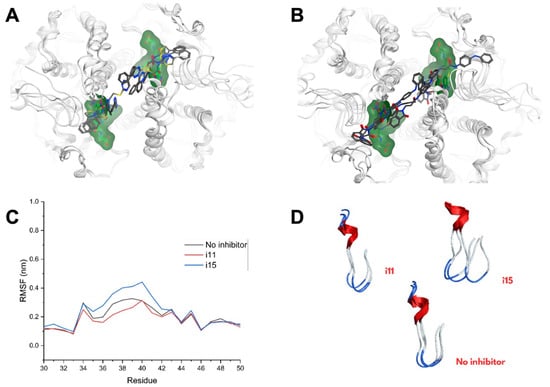

Figure 8A shows the three lowest-energy conformations for the ternary complex Ts25GST−GSH−
i11, where the inhibitor alternates between extended and folded conformations within the active site cleft. Interaction diagrams (
Supplementary Material Figure S3) reveal that all four residues of the H site are in proximity, with
i11 interacting in three structures across the H site region, and with mu loop residues (Val35, Phe41, and Arg 43). In contrast, the corresponding lowest-energy conformations from the simulations of the ternary complex with
i15 (
Figure 8B), reveal distinct ligand dynamics between chains, with
i15 in chain A showing more mobility as it adopts various conformations, while in chain B it remained in an extended conformation. Only in minimal-energy conformations did
i15 interact with the mu loop residues (Val35 and Arg43).
Differences in mu loop flexibility and GSH displacement between i11 and i15 were also observed. Notably, i11 decreased the mu loop RMSF by approximately 10% compared to the Ts25GST-GSH complex, while i15 increased RMSF by 12%, suggesting that i11 stabilizes the mu loop. In the presence of i11, GSH remained stable in the G site; however, i15 interaction displaced GSH by engaging residues like Trp8, Asp9, and Leu13.
4. Discussion
The AlphaFold2 model yielded robust validation metrics, with an ERRAT score exceeding 80%, indicating reliable non-bonded interactions [
39], and with a Verify3D rating of 91.2%, which confirms its high residue compatibility with the expected physicochemical properties [
40]. Additionally, the Ramachandran plots showed no residues with torsion angles in the disallowed regions [
42]. The conservation analysis of the G site revealed that GSH maintained its typical orientation in GST-GSH complex structures, positioning the thiol group toward the activating tyrosine [
13,
14], a feature faithfully reproduced in our model. However, the active site appeared more open than anticipated, likely due to the template used (PDB ID: 1GSU), which was co-crystallized with S-hexylglutathione—a larger conjugate than GS-DNB—resulting in an expanded active site. To refine the structure and simulate the conformational variability of the target protein for the subsequent rigid docking of potential inhibitors, we conducted three MD simulations of the Ts25GST-GSH complex in explicit solvent. Using PCA, followed by structural clustering [
43], we identified five representative conformations (
Figure 2) for virtual screening. During the simulations, glutathione maintained an extended conformation, consistently orienting its thiol group toward the hydroxyl group of Tyr7, with intergroup distances conducive to stable interactions, a hallmark of GST-GSH complexes [
9,
10,
11,
12,
13,
14].
Using the SILCS method we identified potential small-molecule binding sites on the Ts25GST surface. The site with the highest affinity for the isopropanol probe shares 58.3% identity with the analogous residues in HGSTM1. This site is in a cleft near the catalytic region and is composed of eight hydrophobic residues, five uncharged polar residues, four positively charged residues, and three negatively charged residues. Its proximity to the catalytic region suggests there is potential for it to enhance inhibition, although it may also introduce competition with the H site, as probe interactions were observed with three H site residues.
The discovery process led to the identification of two selective inhibitors for Ts25GST, designated as i11 and i15. Among them, i15 showed superior performance in all assays, exhibiting over 10% greater in vitro inhibition compared to i11, as well as a lower IC50 (25.7 µM for i15 versus 28.8 µM for i11), indicating a stronger binding affinity. Kinetic assays revealed that i11 exhibited competitive inhibition with CDNB, suggesting it targets the same binding site or closely interacts with the active site residues associated with CDNB binding. In contrast, i15 displayed non-competitive inhibition, binding at an alternate site without directly competing with CDNB. MD simulations supported these findings; i11 was observed partially occupying the H site, forming stable interactions with several residues in the mu loop, a behavior consistent with competitive binding. Conversely, i15 only occasionally interacted with residues at the edge of the H site and displaced GSH from the G site, corroborating its non-competitive inhibition against CDNB.
5. Conclusions
This study successfully identified two selective inhibitors, i11 and i15, for the mu-class Ts25GST through an integrated approach combining computational and in vitro methods. These inhibitors demonstrated significant inhibitory activity, with percentages of 57.8 ± 3.3 for i11 and 68.3 ± 3.4 for i15 at a concentration of 40 µM. In contrast, their activity against HGSTM1 was significantly reduced, with inhibition percentages of 33.4 ± 2.2 for i11 and 30.8 ± 1.9 for i15. The IC50 values were comparable, with i11 at 28.84 ± 1.17 µM and i15 at 25.70 ± 1.1 µM. The kinetic analysis revealed that i11 behaves as a competitive inhibitor with CDNB, while i15 exhibited non-competitive inhibition.
MD simulations suggested that i11 stabilizes the mu loop, an essential region for xenobiotic binding, while i15 displaces GSH from the G site, influencing binding interactions. The ChemBridge DiverSet library, along with other chemical diversity libraries used for hit discovery, is designed to cover a broad chemical space. This implies the existence of two distinct families of compounds related to i11 and i15, within which more potent and selective analogues against Ts25GST can be found, while trying to improve their chemical stability and permeability properties to reach their target in the parasite. These findings lay the groundwork for the further optimization of selective inhibitors targeting Ts25GST, with potential therapeutic implications.
Supplementary Materials
The following are available online at
https://www.mdpi.com/article/10.3390/biom15010007/s1, Figure S1: Diagram of GSH−Ts25GST interactions identified by alignment to crystallographic structures of GST class mu complexes with glutathione; Figure S2: Results of classical calculations from Molecular Dynamics simulations of the Ts25GST−GSH complex; Figure S3: 2D diagrams of interaction between
i11 and
i15 with the Ts25GST−GSH complex, in the lowest energy conformations obtained from Molecular Dynamics; Table S1: Kinetic data with variable CDNB and fixed GSH at 5 mM; Table S2: Kinetic data with variable GSH and fixed CDNB at 7 mM; Table S3: Compounds screened through ensemble docking in the discovering process; Figure S4: 2D structures of the compounds obtained through virtual screening (part I); S4: 2D structures of the compounds obtained through virtual screening (part II); Figure S5: Results of the evaluation of the effect of DMSO on the protein activity.
Author Contributions
Methodology design, research, formal analysis, and writing: C.S.-J.; conceptualization, formal analysis, writing, editing, and supervision: R.A.Z.; review, conceptualization, writing, and editing: P.G.-G.; support in experimental development, R.F.-L. and L.d.C.S.-P.; design of the expression and purification strategy for recombinant Ts25GST: L.J. and A.L. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by the Consejo Nacional de Humanidades, Ciencia y Tecnología (CONAHCYT- Frontier Science CF19-7397). The authors thank CONAHCYT for the scholarship granted for the execution of the LlCSP postdoctoral stay (CVU 467703) and the doctoral scholarships awarded to CSJ (CVU 937683) and RFL (CVU 763380). This paper is part of the studies performed for the doctoral degree of CSJ and RFL at Posgrado en Química of UAM-Iztapalapa and the Posgrado en Ciencias Biológicas, UNAM, respectively. We also thank the facilities provided by the Laboratorio de Supercómputo y Visualización en Paralelo at the Universidad Autónoma Metropolita-na-Iztapalapa.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The original contributions presented in this study are included in the
Supplementary Material. Further inquiries can be directed to the corresponding authors.
Acknowledgments
We thank Alicia Ochoa Sanchez for the technical help in Ts25GST purification.
Conflicts of Interest
The authors declare no conflicts of interest.
References
- Sliwoski, G.; Kothiwale, S.; Meiler, J.; Lowe, E.W. Computational methods in drug discovery. Pharmacol. Rev. 2014, 66, 334–395. [Google Scholar] [CrossRef]
- Lionta, E.; Spyrou, G.; Vassilatis, D.K.; Cournia, Z. Structure-based virtual screening for drug discovery: Principles, applications and recent advances. Curr. Top. Med. Chem. 2014, 14, 1923–1938. [Google Scholar] [CrossRef] [PubMed]
- Chen, H.; Engkvist, O.; Wang, Y.; Olivecrona, M.; Blaschke, T. The rise of deep learning in drug discovery. Drug Discov. Today 2018, 23, 1241–1250. [Google Scholar] [CrossRef]
- Paul, S.M.; Mytelka, D.S.; Dunwiddie, C.T.; Persinger, C.C.; Munos, B.H.; Lindborg, S.R.; Schacht, A.L. How to improve R&D productivity: The pharmaceutical industry’s grand challenge. Nat. Rev. Drug Discov. 2010, 9, 203–214. [Google Scholar]
- Vamathevan, J.; Clark, D.; Czodrowski, P.; Dunham, I.; Ferran, E.; Lee, G.; Li, B.; Madabhushi, A.; Shah, P.; Spitzer, M.; et al. Applications of machine learning in drug discovery and development. Nat. Rev. Drug Discov. 2019, 18, 463–477. [Google Scholar] [CrossRef]
- García-Gutiérrez, P.; Zubillaga, R.A.; Téllez-Plancarte, A.; Flores-López, R.; Camarillo-Cadena, M.; Landa, A. Discovery of a new non-substrate inhibitor of the 26.5 kDa glutathione S-transferase from Taenia solium by virtual screening. J. Mol. Graph. Model. 2020, 100, 107707. [Google Scholar] [CrossRef]
- Vibanco-Perez, N.; Jimenez, L.; Merchant, M.T.; Landa, A. Characterization of glutathione S-transferase of Taenia solium. J. Parasitol. 1999, 85, 448–453. [Google Scholar] [CrossRef]
- Torres-Rivera, A.; Landa, A. Cooperative kinetics of the recombinant glutathione S-transferase of Taenia solium and characterization of the enzyme. Arch. Biochem. Biophys. 2008, 477, 372–378. [Google Scholar] [CrossRef] [PubMed]
- Vibanco-Pérez, N.; Jimenez, L.; Mendoza-Hernandez, G.; Landa, A. Characterization of a recombinant mu-class glutathione S-transferase from Taenia solium. Parasitol. Res. 2002, 88, 398–404. [Google Scholar] [PubMed]
- Roldan, A.; Torres-Rivera, A.; Landa, A. Structural and biochemical studies of a recombinant 25.5 kDa glutathione S-transferase of Taenia solium metacestode (rTs25GST1-1). Parasitol. Res. 2013, 112, 3865–3872. [Google Scholar] [CrossRef]
- Nguyen, H.A.; Bae, Y.A.; Lee, E.G.; Kim, S.H.; Diaz-Camacho, S.P.; Nawa, Y.; Kang, I.; Kong, Y. A novel sigma-like glutathione S-transferase of Taenia solium metacestode. Int. J. Parasitol. 2010, 40, 1097–1106. [Google Scholar] [CrossRef]
- Miranda-Blancas, R.; Rodríguez-Lima, O.; García-Gutiérrez, P.; Flores-López, R.; Jiménez, L.; Zubillaga, R.; Rudiño-Piñera, E.; Landa, A. Biochemical characterization and gene structure analysis of the 24-k D a glutathione S-transferase sigma from Taenia solium. FEBS Open Bio. 2024, 14, 726–739. [Google Scholar] [CrossRef] [PubMed]
- Hayes, J.D.; Flanagan, J.U.; Jowsey, I.R. Glutathione transferases. Annu. Rev. Pharmacol. Toxicol. 2005, 45, 51–88. [Google Scholar] [CrossRef] [PubMed]
- Hearne, J.L.; Colman, R.F. Contribution of the mu loop to the structure and function of rat glutathione S-transferase M1-1. Protein Sci. 2006, 15, 1277–1289. [Google Scholar] [CrossRef]
- Flanagan, J.U.; Smythe, M.L. Sigma-class glutathione transferases. Drug Metab. Rev. 2011, 43, 194–214. [Google Scholar] [CrossRef]
- Sánchez Pérez, L.D.C.; Zubillaga, R.A.; García-Gutiérrez, P.; Landa, A. Sigma-class glutathione transferases (GSTσ): A new target with potential for helminth control. Trop. Med. Infect. Dis. 2024, 9, 85. [Google Scholar] [CrossRef] [PubMed]
- Sun, Y.J.; Kuan, I.C.; Tam, M.F.; Hsiao, C.D. The three-dimensional structure of an avian class-mu glutathione S-transferase, cGSTM1-1 at 1.94 Å resolution. J. Mol. Biol. 1998, 278, 239–252. [Google Scholar] [CrossRef]
- Borkakoti, N.; Thornton, J.M. AlphaFold2 protein structure prediction: Implications for drug discovery. Curr. Opin. Struct. Biol. 2023, 78, 102526.8. [Google Scholar] [CrossRef]
- Bertoline, L.M.; Lima, A.N.; Krieger, J.E.; Teixeira, S.K. Before and after AlphaFold2: An overview of protein structure prediction. Front. Bioinform. 2023, 3, 1120370. [Google Scholar] [CrossRef] [PubMed]
- Tubiana, T.; Carvaillo, J.C.; Boulard, Y.; Bressanelli, S. TTClust: A versatile molecular simulation trajectory clustering program with graphical summaries. J. Chem. Inf. Model. 2018, 58, 2178–2182. [Google Scholar] [CrossRef]
- Ustach, V.D.; Lakkaraju, S.K.; Jo, S.; Yu, W.; Jiang, W.; MacKerell, A.D., Jr. Optimization and evaluation of site-identification by ligand competitive saturation (SILCS) as a tool for target-based ligand optimization. J. Chem. Inf. Model. 2019, 59, 3018–3035. [Google Scholar] [CrossRef] [PubMed]
- Raman, E.P.; Yu, W.; Guvench, O.; MacKerell, A.D., Jr. Reproducing crystal binding modes of ligand functional groups using Site-Identification by Ligand Competitive Saturation (SILCS) simulations. J. Chem. Inf. Model. 2011, 51, 877–896. [Google Scholar] [CrossRef]
- Prakash, P.; Hancock, J.F.; Gorfe, A.A. Binding hotspots on K-ras: Consensus ligand binding sites and other reactive regions from probe-based molecular dynamics analysis. Proteins Struct. Funct. Bioinform. 2015, 83, 898–909. [Google Scholar] [CrossRef]
- Raman, E.P.; Yu, W.; Lakkaraju, S.K.; MacKerell, A.D., Jr. Inclusion of multiple fragment types in the site identification by ligand competitive saturation (SILCS) approach. J. Chem. Inf. Model. 2013, 53, 3384–3398. [Google Scholar] [CrossRef]
- Amaro, R.E.; Baudry, J.; Chodera, J.; Demir, Ö.; McCammon, J.A.; Miao, Y.; Smith, J.C. Ensemble docking in drug discovery. Biophys. J. 2018, 114, 2271–2278. [Google Scholar] [CrossRef]
- Huang, S.Y.; Zou, X. Ensemble docking of multiple protein structures: Considering protein structural variations in molecular docking. Proteins Struct. Funct. Bioinform. 2007, 66, 399–421. [Google Scholar] [CrossRef]
- Wong, C.F. Flexible receptor docking for drug discovery. Expert Opin. Drug Discov. 2015, 10, 1189–1200. [Google Scholar] [CrossRef] [PubMed]
- Eberhardt, J.; Santos-Martins, D.; Tillack, A.F.; Forli, S. AutoDock Vina 1.2. 0: New docking methods, expanded force field, and python bindings. J. Chem. Inf. Model. 2021, 61, 3891–3898. [Google Scholar] [CrossRef]
- Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef]
- Ellingson, S.R.; Smith, J.C.; Baudry, J. VinaMPI: Facilitating multiple receptor high-throughput virtual docking on high-performance computers. J. Comput. Chem. 2013, 34, 2212–2221. [Google Scholar] [CrossRef] [PubMed]
- Jones, G.; Willett, P.; Glen, R.C.; Leach, A.R.; Taylor, R. Development and validation of a genetic algorithm for flexible docking. J. Mol. Biol. 1997, 267, 727–748. [Google Scholar] [CrossRef] [PubMed]
- Jones, G.; Willett, P.; Glen, R.C. Molecular recognition of receptor sites using a genetic algorithm with a description of desolvation. J. Mol. Biol. 1995, 245, 43–53. [Google Scholar] [CrossRef] [PubMed]
- Chemical Computing Group ULC. Molecular Operating Environment (MOE), version 2024.0601; 910-1010 Sherbrooke St. W.: Montreal, QC, Canada, 2024. [Google Scholar]
- Forli, S.; Huey, R.; Pique, M.E.; Sanner, M.F.; Goodsell, D.S.; Olson, A.J. Computational protein-ligand docking and virtual drug screening with the AutoDock suite. Nat. Protoc. 2016, 11, 905–919. [Google Scholar] [CrossRef]
- O’Boyle, N.M.; Banck, M.; James, C.A.; Morley, C.; Vandermeersch, T.; Hutchison, G.R. Open Babel: An open chemical toolbox. J. Cheminformatics 2011, 3, 33. [Google Scholar] [CrossRef] [PubMed]
- Hofmeyr, J.H.S.; Cornish-Bowden, H. The reversible Hill equation: How to incorporate cooperative enzymes into metabolic models. Bioinformatics 1997, 13, 377–385. [Google Scholar] [CrossRef]
- Hill, C.M.; Waightm, R.D.; Bardsley, W.G. Does any enzyme follow the Michaelis—Menten equation? Mol. Cell. Biochem. 1977, 15, 173–178. [Google Scholar] [CrossRef] [PubMed]
- Deichmann, U.; Schuster, S.; Mazat, J.P.; Cornish-Bowden, A. Commemorating the 1913 Michaelis-Menten paper Die Kinetik der Invertinwirkung: Three perspectives. FEBS J. 2014, 281, 435–463. [Google Scholar] [CrossRef] [PubMed]
- Colovos, C.; Yeates, T.O. Verification of protein structures: Patterns of nonbonded atomic interactions. Protein Sci. 1993, 2, 1511–1519. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
- Bowie, J.U.; Lüthy, R.; Eisenberg, D. A method to identify protein sequences that fold into a known three-dimensional structure. Science 1991, 253, 164–170. [Google Scholar] [CrossRef] [PubMed]
- Pontius, J.; Richelle, J.; Wodak, S.J. Deviations from standard atomic volumes as a quality measure for protein crystal structures. J. Mol. Biol. 1996, 264, 121–136. [Google Scholar] [CrossRef]
- Laskowski, R.A.; Furnham, N.; Thornton, J.M. The Ramachandran plot and protein structure validation. In Biomolecular Forms and Functions: A Celebration of 50 Years of the Ramachandran Map; Bansal, M., Srinivasan, N., Eds.; World Scientific Publishing Company: Singapore, Singapore, 2013; pp. 62–75. [Google Scholar]
- Papaleo, E.; Mereghetti, P.; Fantucci, P.; Grandori, R.; De Gioia, L. Free-energy landscape, principal component analysis, and structural clustering to identify representative conformations from molecular dynamics simulations: The myoglobin case. J. Mol. Graph. Model. 2009, 27, 889–899. [Google Scholar] [CrossRef] [PubMed]
- Post, M.; Wolf, S.; Stock, G. Principal component analysis of nonequilibrium molecular dynamics simulations. J. Chem. Phys. 2019, 150, 204110. [Google Scholar] [CrossRef]
- Moradi, S.; Nowroozi, A.; Nezhad, M.A.; Jalali, P.; Khosravi, R.; Shahlaei, M. A review on description dynamics and conformational changes of proteins using combination of principal component analysis and molecular dynamics simulation. Comput. Biol. Med. 2024, 183, 109245. [Google Scholar] [CrossRef] [PubMed]
- Reddy, A.S.; Pati, S.P.; Kumar, P.P.; Pradeep, H.N.; Sastry, G.N. Virtual screening in drug discovery-a computational perspective. Curr. Protein Pept. Sci. 2007, 8, 329–351. [Google Scholar] [CrossRef]
- Pascovici, D.; Handler, D.C.; Wu, J.X.; Haynes, P.A. Multiple testing corrections in quantitative proteomics: A useful but blunt tool. Proteomics 2016, 16, 2448–2453. [Google Scholar] [CrossRef]
Figure 1.
Homology model of Ts25GST built using AlphaFold2 and template PDB-ID 1GSU. (A) Front view of the Ts25GST model, highlighting the mu-loops in brown. Chain A is shown in light gray, and Chain B in gray. (B) Molecular surface representation of Ts25GST, illustrating the GSH molecules bound at the G sites. (C) Comparative analysis of the mu-loop from Ts25GST chain A (green) and chain B (black) with three human class Mu M1 GST structures as follows: without GSH (yellow, PDB-ID 1GTU); with GSH bound (brown, PDB-ID 1XW6); and with a GSH-CDNB conjugate (light gray, PDB-ID 1XWK).
Figure 1.
Homology model of Ts25GST built using AlphaFold2 and template PDB-ID 1GSU. (A) Front view of the Ts25GST model, highlighting the mu-loops in brown. Chain A is shown in light gray, and Chain B in gray. (B) Molecular surface representation of Ts25GST, illustrating the GSH molecules bound at the G sites. (C) Comparative analysis of the mu-loop from Ts25GST chain A (green) and chain B (black) with three human class Mu M1 GST structures as follows: without GSH (yellow, PDB-ID 1GTU); with GSH bound (brown, PDB-ID 1XW6); and with a GSH-CDNB conjugate (light gray, PDB-ID 1XWK).
Figure 2.
Molecular dynamics results of Ts25GST-GSH. (A) Normalized PCA; (B) 1D projection of the first five components; (C) free energy landscape projection on the first two components; (D) clustering on energy minima; (E) superposition of the five representative cluster structures; (F) close-up of the G site in the superposition of the 5 conformers; and (G) distance variation between the oxygen of the OH group in Tyr7 and the sulfur of the thiol in GSH.
Figure 2.
Molecular dynamics results of Ts25GST-GSH. (A) Normalized PCA; (B) 1D projection of the first five components; (C) free energy landscape projection on the first two components; (D) clustering on energy minima; (E) superposition of the five representative cluster structures; (F) close-up of the G site in the superposition of the 5 conformers; and (G) distance variation between the oxygen of the OH group in Tyr7 and the sulfur of the thiol in GSH.
Figure 3.
SILCS results from the three replicas (A–C) performed with the solvated model in a mixed solvent of 0.2 M isopropanol/H2O. The regions with the highest occupation density of the probe and the estimation of the free energy grid of the points classified as critical according to our methodology are shown.
Figure 3.
SILCS results from the three replicas (A–C) performed with the solvated model in a mixed solvent of 0.2 M isopropanol/H2O. The regions with the highest occupation density of the probe and the estimation of the free energy grid of the points classified as critical according to our methodology are shown.
Figure 4.
Virtual screening process. (A) Relaxed screening of the complete compound library; (B) exhaustive screening of the top results; and (C) screening on human mu-class GST structures (HGSTM).
Figure 4.
Virtual screening process. (A) Relaxed screening of the complete compound library; (B) exhaustive screening of the top results; and (C) screening on human mu-class GST structures (HGSTM).
Figure 5.
Results of the purification and enzymatic activity of recombinant Ts25GST. (A) PAGE-SDS of the recombinant protein. (B) Enzyme kinetics with variable CDNB. (C) Enzyme kinetics with variable GSH.
Figure 5.
Results of the purification and enzymatic activity of recombinant Ts25GST. (A) PAGE-SDS of the recombinant protein. (B) Enzyme kinetics with variable CDNB. (C) Enzyme kinetics with variable GSH.
Figure 6.
Results of the in vitro inhibitory activity assays (
A); significance values adjusted by FDR-corrected
T-tests [
47], selectivity (
B); and comparison of the 2D structure and docking results of the two identified inhibitors (
C).
Figure 6.
Results of the in vitro inhibitory activity assays (
A); significance values adjusted by FDR-corrected
T-tests [
47], selectivity (
B); and comparison of the 2D structure and docking results of the two identified inhibitors (
C).
Figure 7.
Experimental results of inhibitor characterization. (A) Dose–response curve for IC50 calculation. (B,C) Two-dimensional diagrams of the interaction between i11 and i15 with chain A of the Ts25GST model, respectively. Effect of the concentration of inhibitors i11 (D) and i15 (E) on the kinetic parameters of recombinant Ts25GST for CDNB variation. Double reciprocal plots for the reaction rates with different concentrations of CDNB and in the presence of different concentrations of inhibitors i11 (F) and i15 (G).
Figure 7.
Experimental results of inhibitor characterization. (A) Dose–response curve for IC50 calculation. (B,C) Two-dimensional diagrams of the interaction between i11 and i15 with chain A of the Ts25GST model, respectively. Effect of the concentration of inhibitors i11 (D) and i15 (E) on the kinetic parameters of recombinant Ts25GST for CDNB variation. Double reciprocal plots for the reaction rates with different concentrations of CDNB and in the presence of different concentrations of inhibitors i11 (F) and i15 (G).
Figure 8.
Superposition of conformations of the energy minima from the Ts25GST-GSH simulations in complex with 2 molecules of i11 (A) and i15 (B). Results of RMSF calculations (C). Analysis of the effect of the inhibitors on the mobility of the mu loop (D).
Figure 8.
Superposition of conformations of the energy minima from the Ts25GST-GSH simulations in complex with 2 molecules of i11 (A) and i15 (B). Results of RMSF calculations (C). Analysis of the effect of the inhibitors on the mobility of the mu loop (D).
Table 1.
Results of the theoretical KD calculation with SILCS and conservation relative to human mu-class GST structures for each site.
Table 1.
Results of the theoretical KD calculation with SILCS and conservation relative to human mu-class GST structures for each site.
Site | KD (µM−1) | Conservation (%) |
---|
1 | 12.1 ± 6.6 | 58.3% |
2 | 2127 ± 1252 | 60.0% |
3 | 56.3 ± 21.9 | 47.5% |
Table 2.
Kinetic parameters of recombinant Ts25GST.
Table 2.
Kinetic parameters of recombinant Ts25GST.
Kinetic Parameter | CDNB | GSH |
---|
KM | 3.5 ± 0.3 mM−1 | 1.60 ± 0.1 mM−1 |
Vmax | 39.4 ± 2.0 | 39.3 ± 0.3 |
n | 2.4 ± 0.3 | - |
R2 | 0.99 | 0.99 |
Fitting model | Hill | Michaelis–Menten |
Table 3.
IC50 calculation for i11 and i15.
Table 3.
IC50 calculation for i11 and i15.
Compound | IC50 [µM] | R2 |
---|
i11 | 28.8 ± 1.2 | 0.98 |
i15 | 25.7 ± 1.1 | 0.99 |
Table 4.
Effect of i11 concentration on the kinetic parameters of recombinant Ts25GST.
Table 4.
Effect of i11 concentration on the kinetic parameters of recombinant Ts25GST.
Kinetic Parameter | 0 µM | 10 µM | 20 µM | 30 µM |
---|
KM | 3.5 ± 0.1 | 4.5 ± 0.7 | 6.4 ± 0.2 | 2.4 ± 0.2 |
Vmax | 39.4 ± 2.0 | 40.7 ± 0.4 | 40.6 ± 0.4 | 17.5 ± 1.3 |
n | 2.3 ± 0.3 | 1.8 ± 0.4 | 2.7 ± 0.2 | 2.6 ± 0.3 |
R2 | 0.99 | 0.98 | 0.98 | 0.96 |
Table 5.
Effect of i15 concentration on the kinetic parameters of recombinant Ts25GST.
Table 5.
Effect of i15 concentration on the kinetic parameters of recombinant Ts25GST.
Kinetic Parameter | 0 µM | 10 µM | 20 µM | 30 µM |
---|
KM | 3.5 ± 0.3 | 3.4 + 0.5 | 3.3 + 0.4 | 3.3 + 0.7 |
Vmax | 39.4 ± 2.0 | 32.9 + 1.8 | 25.8 + 2.3 | 15.3 + 2.1 |
n | 2.3 ± 0.3 | 1.8 + 0.4 | 1.7 + 0.3 | 2.8 + 0.6 |
R^2 | 0.99 | 0.99 | 0.99 | 0.98 |
| Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
