A Tidal Flat Wetlands Delineation and Classification Method for High-Resolution Imagery

Abstract

As an important part of coastal wetlands, tidal flat wetlands provide various significant ecological functions. Due to offshore pollution and unreasonable utilization, tidal flats have been increasingly threatened and degraded. Therefore, it is necessary to protect and restore this important wetland by monitoring its distribution. Considering the multiple sizes of research objects, remote sensing images with high resolutions have unique resolution advantages to support the extraction of tidal flat wetlands for subsequent monitoring. The purpose of this study is to propose and evaluate a tidal flat wetland delineation and classification method from high-resolution images. First, remote sensing features and geographical buffers are used to establish a decision tree for initial classification. Next, a natural shoreline prediction algorithm is designed to refine the range of the tidal flat wetland. Then, a range and standard deviation descriptor is constructed to extract the rock marine shore, a category of tidal flat wetlands. A geographical analysis method is considered to distinguish the other two categories of tidal flat wetlands. Finally, a tidal correction strategy is introduced to regulate the borderline of tidal flat wetlands to conform to the actual situation. The performance of each step was evaluated, and the results of the proposed method were compared with existing available methods. The results show that the overall accuracy of the proposed method mostly exceeded 92% (all higher than 88%). Due to the integration and the performance superiority compared to existing available methods, the proposed method is applicable in practice and has already been applied during the construction project of Hengqin Island in China.

1. Introduction

As a transition zone between terrestrial and marine ecosystems, coastal wetlands play an important role in resisting coastal erosion, avoiding sea level rise, preserving shorelines, and so on [1,2,3]. As a significant component of coastal wetlands, tidal flat wetlands contribute a lot to their ecological functions. Due to the acceleration of urbanization and the intensification of human activities, however, some unreasonable coastal utilization and offshore pollution have emerged, which have accelerated the erosion and deterioration of tidal flat wetlands and seriously threatened the coastal ecosystem [4]. Therefore, the monitoring and delineation of tidal flat wetland degradation is an urgent task, an important part of which comprises extracting tidal flat wetlands [5]. Tidal flat wetlands are distributed in intertidal zones [6], with three main categories: rocky marine shore (RMS), sand marine shore (SMS), and mud marine shore (MMS).

Areas of tidal flats vary greatly between different regions, resulting in inconsistent extraction target sizes, while the research targets are all essential no matter their size. Therefore, the resolution of remote sensing images should be adequately high to satisfy the extraction demands. On the other hand, it is no longer a problem to obtain high-resolution images such as WorldView-2 (WV-2) with the development of aerospace remote sensing technology [7,8], which guarantees the effective resolution of the data source. After comprehensive consideration, it is significant to propose a method for tidal flat wetland extraction from high-resolution images [9].

Although there are no specific remote sensing methodologies for tidal flat wetland extraction, numerous extraction methods have been applied to convert remote sensing data into other land cover maps. A general method comprises combining mathematical statistics with manual interpretation. However, it is inefficient, with low accuracy, intensive labor, and dependence on human analysis. Multiple intelligent methods have been recommended in image extraction, such as multisource information fusion technology used in remote sensing mapping. Synthesis of spectral features [10,11] can distinguish targets by different brightness levels between image bands, classification by the fusion of different texture information [12] can take both the macroscopic nature and the detailed structure of targets into account, normalized difference index information [13,14] contributes to eliminating the influence of the difference in topography, and the combination of expert knowledge [15] is conducive to comprehensive interpretation and decision analysis of remote sensing images. The composition technology of multisource information has achieved specific results; however, depending on multisource information exclusively is not enough to extract the research targets accurately. Therefore, the proposed method is a combination of multisource information composition and multiclassification technologies.

Traditional remote sensing image classification technology has been divided into unsupervised classification and supervised classification [16]. In unsupervised classification, statistical distance is typically used to measure the similarity, and the category intervals are maximized by distinguishing targets based on a specific algorithm [17,18]. When a specific set of targets is desired, supervised classification is more appropriate. The sample set of each category is selected first, a classification algorithm can be trained using the samples, and, finally, the remaining pixels are classified. The maximum likelihood classification (MLC) [19,20] method is a generally used supervised classification algorithm that establishes a nonlinear discriminant function set according to the Bayesian information criterion (BIC) [21]. The support vector machine (SVM) [22,23,24] method is a widely used classification method in remote sensing images based on the structural risk minimization principle. The decision tree (DT) [25,26] algorithm is also a supervised classification method based on spatial data mining and knowledge discovery. Prior knowledge can be used in supervised classification to select training samples, and the classification accuracies can be improved by repeatedly testing training samples. However, supervised classification methods depend on the quality of training samples excessively, which makes it inefficient to select samples with more human capital and time. Moreover, supervised classification can only identify specific categories, which is not conducive to the classification of complex targets.

In recent years, deep learning [27] methods have also been employed in the research of remote sensing information extraction. An algorithm named deep belief network (DBN) [28] has unleashed the characteristics of unsupervised learning with the identification of remote sensing features. However, the selection of network parameters requires the intervention of prior knowledge, which makes it difficult to determine the appropriate parameters. The generally used convolutional neural network (CNN) [29,30] algorithm in the deep learning method has obvious advantages in processing high-dimensional images, but the scanty samples of remote sensing images have limited the generalization ability of the CNN algorithm. Another deep learning algorithm, autoencoder (AE) [31,32], still needs to be combined with other classifiers to achieve appropriate results. Compared with traditional machine learning methods, deep learning methods have stronger fitting capabilities, and they can learn beneficial features from numerous data. However, they similarly rely on training samples excessively. Researchers have to spend a lot of time and energy collecting appropriate samples. Additionally, deep learning methods require high-performance computers to achieve fast computing and have time-consuming training procedures, so they are not suitable for the extraction of small targets with limited samples such as shore targets. Therefore, it is necessary to design a comprehensive and complete extraction method for shores considering the inadequacy of existing methods.

The aim of this study is to propose a method specifically for tidal flat wetland delineation and classification from high-resolution images and evaluate the method. First, remote sensing features and geographical buffers are used to establish a decision tree for initial classification. Next, a natural shoreline prediction algorithm is designed to refine the range of the tidal flat wetland. Then, a range and standard deviation descriptor is constructed to extract the rock marine shore, a category of tidal flat wetlands. A geographical analysis method is considered to distinguish the other two categories of tidal flat wetlands. Finally, a tidal correction strategy is used to regulate the borderline of tidal flat wetlands to conform to the actual situation. The performance of each step is evaluated, and the results of this method were compared with existing available methods to illustrate the effectiveness and practicability of the proposed method. As a first application, this method is demonstrated in Hengqin Island (an island in China facing directly to the South China Sea). A better understanding of the distribution of shores in Hengqin Island is critical to wetland protection and construction planning.

2. Methods

2.1. Overall Processes

The proposed method originates from the perspective of logical layering. According to the definition of tidal flat wetlands, it belongs to natural wetlands, and there are three categories, including rocky marine shore (RMS), mud marine shore (MMS), and sand marine shore (SMS). On the first logical level, the approximate range of the tidal flat wetland was extracted, which is regarded as the initial classification. Then, the range was refined on the second logical level by predicting the natural shore edges. Finally, the target objects were reclassified on the third logical level to obtain the three wetland categories. The classification system and the logical structure are shown in Figure 1. The overall flowchart is shown in Figure 2, and the procedures are summarized as follows.

2.1.1. Preprocessing

Radiation calibration, geometric correction, data fusion, and segmentation are included in this step. In order to minimize the local differences of image objects and make the remote sensing features of each category prominent, multiresolution segmentation achieved by the fractal net evolution approach (FNEA) was conducted on the research images before classification via the software eCognition Developer 9.0. After repeated experiments, three segmentation parameters of FNEA were arranged: the scale parameter was 200, the shape index was 0.1, and the compactness was 0.5. The categories involved in this study could be distinguished optimally with the parameters above.

2.1.2. Initial Classification

The purpose of this step is to perform initial classification on the high-resolution images to extract the shore area roughly, i.e., accomplish Logic Layer 1 in Figure 1. There is both water and vegetation in the targets to be classified; therefore, it is important for the remote sensing features to be sensitive to water and vegetation. Normalized difference indexes are often used in the classification of remote sensing images because they are easy to compare, for which reason we chose the commonly used NDWI and NDVI to distinguish water and vegetation. Considering the adjacent distance between shore and sea, we divided the water into seawater and non-seawater according to the acreage of water targets, and the buffer zone of seawater targets was constructed to restrict the distribution of targets. The features explored in this study and their descriptions are shown in

Table 1. Summary of the features explored in this study and their descriptions.

Name	Description
NDWI	(RGREEN-RNIR)/(RGREEN + RNIR) [33]
NDVI	(RNIR-RRED)/(RNIR + RRED) [34]
Area	Pixel numbers of target object multiply area of every single pixel
Buffer	Whether the target object is within the buffer area

Where RGREEN, RNIR, and RRED are the reflectance values in the green (Band 2), NIR (Band 4) and red (Band 3) bands, respectively.

.

First, we sampled the categories to be classified, and then we calculated the NDWI of each sample. In this study, the sample number of each category is 200, and the NDWI value lines are shown in Figure 3a. $T_W$ represents the optimal threshold, which maximizes the distinction between water and nonwater. It can be observed that water and nonwater objects can be distinguished when $T_W$ ranges from 0 to 0.5. To obtain the specific value, we calculated the classification deviations (the total deviation of the misclassified samples in the target category and the nearest nontarget category) in this range, as shown in Figure 3b. The minimum deviation exists when the NDWI equals 0.11. Similarly, $T_V$ represents the optimal threshold, which maximizes the distinction between vegetation and nonvegetation objects, and the value of $T_V$ can be determined as 0.65, as shown in Figure 4. In addition, $S_{max}$ represents the merged water object with the largest area. The decision tree was established, as shown in Figure 5, and the classification was executed based on the rules. In order to improve the initial classification results, it was necessary to merge the connected objects and remove the small patches. Then, the rough scope of shore areas could be obtained.

2.1.3. Classification Refinement

The purpose of this step is to refine the range of tidal flat wetlands. The rough scopes of shore areas obtained in the initial classification contained both natural boundaries and artificial ones, while the latter did not belong to tidal flat wetlands. To predict the natural boundaries to refine the tidal flat wetlands, an algorithm based on the slope change of target edges was designed and is explained in Section 2.2 in detail.

2.1.4. Reclassification

In this step, reclassification was conducted to extract the RMS, MMS, and SMS. First, a new feature descriptor based on the range and standard deviation was designed to extract the RMS. Then, a geographical analysis method was utilized to classify the MMS and SMS. Finally, a tidal correction method was applied to predict the low tide beach line of tidal flat wetlands in order to obtain the complete wetland targets. The range/standard deviation description method and the tidal correction method will be described in detail from Section 2.3 to Section 2.4. The geographical analysis method applied to distinguish the MMS and SMS will be explained in this section.

The composition of the SMS is similar to the MMS, and their slight differences lie in the sizes of sand or mud particles, which are usually distinguished by manual exertion. Limited by resolution, it is still a problem to distinguish them by remote sensing features, even in high-resolution images. Fortunately, the SMS and MMS have obvious discriminations according to their causes and distributions. The SMS is generally formed of stones being sharpened into small particles by waves, so they are mostly distributed in the shore areas directly towards the ocean with strong wave effects. The MMS is formed by sediments of mud. They are distributed in areas with slow currents and weak wave effects, such as lagoons and estuaries. Therefore, the geographical analysis method is proposed to distinguish the SMS and MMS.

Hengqin Island, to which the study area belongs, is an island towards lands from the north, west, and east sides, but only the south side points directly towards the South China Sea. In Image 1, the SMS and MMS are distributed around an obvious lagoon and the south shore area with strong wave effects. According to the geographical causes and definitions above, we could scope the distribution range of the two shore wetlands. The SMS was distributed around the lagoon, and the MMS was distributed in the south shore area. As a result, the shore wetlands were distinguished, as shown in Figure 6a. In Image 2, natural shores are all distributed in the south areas towards the ocean, which means there are no appropriate circumstances for the MMS. Therefore, the natural shores in Image 2 were all classified into SMS instead of RMS, as shown in Figure 6b.

2.2. Natural Shoreline Prediction

Artificial shorelines are often difficult to distinguish from natural ones because of their similar spectral or texture features. Considering that edges of artificial shores are usually regular and the natural shores are not, a natural shoreline prediction (NSP) algorithm based on the slope change rate of edges was designed.

For the rough shore area extracted in the initial classification, the shore polygon edge adjacent to the sea water was defined as a line vector named L, and L was equally divided into n sections from $l_1$ to $l_n$. Then, the slope of each l as $K_i$ was calculated

$$K_i=\frac{y_e-y_s}{x_e-x_s}$$

(1)

where $(x_s,y_s)$ and $(x_e,y_e)$ represent the start point and the end point of each section, respectively.

The serial number of l is selected as the abscissa, and the slope of l is selected as the ordinate to obtain a slope change curve $y=f\left(k\right)$. The change rate of $K_i$ as $K_i^{\prime }$ was calculated, after which the slope change rate curve could be obtained. In order to distinguish the stable section and the fluctuation section of the curve, a threshold T was set (T, defined as one-twentieth of the difference between the max and the minimal $K_i^{\prime }$), and when $K_i^{\prime }\notin [-T,T]$, l was predicted as a natural shoreline. The steps of the proposed NSP algorithm are summarized in Algorithm 1.

Algorithm 1: Natural Shoreline Prediction.

1. Define the shore polygon edge as a line vector L.   2. Divide L equally into n sections from $l_1$ to $l_n$.   3. Calculate the slope of each l as $K_i$, and obtain the slope change curve.   4. Calculate the change rate of $K_i$ as $K_i^{\prime }$, and obtain the slope change rate curve.   5. Set a threshold T and when $K_i^{\prime }\notin [-T,T]$, l is predicted as a natural shoreline.

2.3. Range and Standard Deviation Description

In order to minimize the difference of image objects, the previous steps were based on object-oriented segmentation. However, there were two problems. On the one hand, the rock targets had different particle sizes compared to the other two targets, which means they had different textural features, and it was hard to keep the texture differences on the same scale. In this way, appropriate segmentation scales to preserve the textural features of both the RMS and other targets were difficult to select. On the other hand, the spectral features of the RMS, SMS, and MMS were similar, which made it troublesome to distinguish any of them, even at an object-oriented level. Considering the problems above, a pixel-based extraction method was designed and is presented in this part.

Observing the characteristics of the three shore wetlands, we found that the RMS has a more complex texture than the others, resulting in discrete gray values in a window with a certain scale. Hence, the range and standard deviation, which reflect the tightness and dispersion of the data, were selected to design a new feature description—the range and standard deviation (RSD) descriptor. Despite that high-resolution images with four bands contain plenty of information, the quantity of redundant information exists when they are employed to extract the RMS, as shown in Figure 7a. Therefore, two bands with less relevance were selected for feature description, as shown in Figure 7b. The specific steps of this method are described as follows.

(1)

Clip the high-resolution images by polygons of the refined tidal flat wetlands, and reserve the blue band and the near-infrared band.

(2)

Traverse each band by a window of $5\times 5$, and calculate the standard deviation of each window as $\sigma$ and the range of each window as R. Then, assign the standard deviation and range value to all pixels in the window so that we can get four dispersion measurement images.

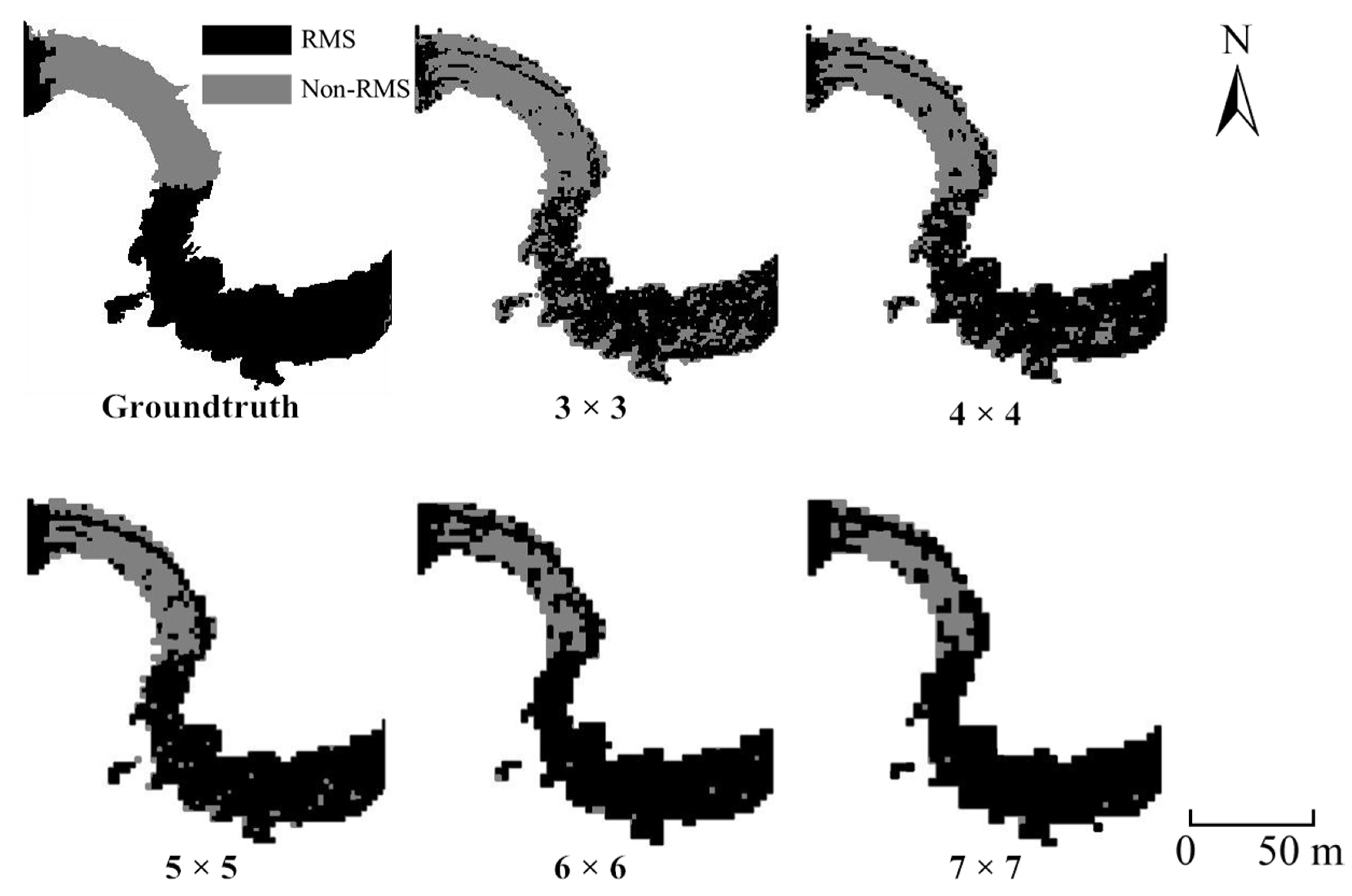

It is worth mentioning that the $5\times 5$ window in this step is the optimal traversal window selected by repeated experiments. The experimental results of the other windows are shown in Figure 8 and

Table 2. Extraction accuracies of the RMS when using windows with different sizes.

Size	$3\times 3$	$4\times 4$	$5\times 5$	$6\times 6$	$7\times 7$
OA (%)	77.04	80.22	83.53	80.37	80.90

.

(3)

The four images were added together by influence weights to obtain the final measures of the dispersion image. In order to evaluate the contribution of each dispersion measurement image, the information entropy was estimated as

$$E=\sum _{i=0}^{255}{p}_{i}log{p}_i$$

(2)

where $p_i$ is the probability of gray value i.

Then, the weights were calculated as

$$W_k=\frac{E_k}{{\sum }_{k=1}^4{E}_k}.$$

(3)

(4)

The Marr edge detection operator was used in the final measures of the dispersion image to determine the RMS edge so that the RMS was extracted.

2.4. Tidal Correction

Influenced by tidal actions, tidal flat wetlands emerge differently in images at different moments of the same day. Thus, it was necessary to determine the low tide location for a more accurate extraction of tidal flat wetlands in actual demands. In order to predict the low tidal flat line of tidal flat wetlands, the slope of the tidal flat was calculated first according to the tidal height difference and the instant waterlines of one place at a different time. Then, the low tidal flat line of the wetlands was corrected to the low tide line.

The principle of tidal correction is shown in Figure 9, and the implication of each character is explained below the figure. By computing the tidal height difference between different time and the average distance of the instantaneous waterlines of two phases, the angle of the tidal flat slope $\theta$ is calculated as

$$\theta =arctan\frac{\Delta H}{\Delta L}.$$

(4)

According to the average low tide height $H_{low}$, the correction distance $L_{low}$, i.e., the low tide line is computed as

$$L_{low}=\frac{h-H_{low}}{tan\theta }$$

(5)

where h represents the tide height in the satellite transit time. After tidal correction, the results of the complete tidal flat wetlands could be obtained.

The tidal correction method is based on the assumption that the tidal flat slope is a gentle slope formed under the action of waves. The bottom matrix of the rocky coast is relatively hard, and the muddy beaches are mostly distributed around the lagoon. Therefore, these two types of tidal flat wetlands are less affected by the waves. The boundary of the low tide beach is to extract the water edge, so the tide level correction method in this study was mainly applied to the low tide beach boundary correction of sandy beaches. The key to the effectiveness of this method is whether the tidal flat slope is a gentle slope with a stable slope. In order to verify the correctness of this hypothesis, we first calculated the slope angle of the tidal flat based on the above principle, and then we obtained a high-resolution image of the third time phase of the same area and calculated the instantaneous waterline of that phase based on the slope angle and the imaging time of the third time phase image. We compared the actual extracted instantaneous water edge. If the two were similar, it indicated that the tidal flat slope angle remained unchanged; that is, the tide level correction method was effective.

To specifically evaluate the performance of tidal correction, the tidal flat slope was first calculated according to the information from Time 1 and Time 2. Then, the predicting instant waterline of the third time could be obtained on the basis of the tidal flat slope and the instant tide height, while the actual instant waterline could be acquired from the three previous extraction steps. Then, m sample points were chosen from the predicting instant waterline and the actual one. The root mean square error (RMSE), the mean absolute error (MAE), and the standard deviation (SD) between the two waterlines were calculated to evaluate their deviation quantitatively, expressed as

$$RMSE=\sqrt{\frac{1}{m}\sum _{i=1}^m{d_i}^2}$$

(6)

$$MAE=\frac{1}{m}\sum _{i=1}^m{d}_i$$

(7)

$$SD=\sqrt{\frac{1}{m}\sum _{i=1}^m{(d_i-d_u)}^2}$$

(8)

where m represents the number of sample points, $d_i$ represents the Euclidean distance of point i between two lines, and $d_u$ is the average value of $d_i$.

3. Results and Discussions

3.1. Research Data

Six WorldView-2 images (Figure 10), located in Hengqin Island, Guangdong Province, China, respectively, acquired on 21 October 2015, 1 November 2017, and 15 January 2018, were utilized in this study. The Gram–Schmidt spectral sharpening method was used to fuse the multispectral bands and the panchromatic band, and then the cubic convolution method was used to resample the fusion images to an identical resolution. Detailed parameters of the used data are described in

Table 3. Detailed parameters of the used data.

Name	Parameters
Satellite	WorldView-2 (including multispectral and panchromatic sensors)
The regression period	1.1 days
	Wavelength (nm)	450–1040 (panchromatic), 450–510 (blue), 510–580 (green),
		630–690 (red), and 770–895 (NIR)
Original resolutions		2015.10.21 — 1.891 (multispectral) and 0.473 (panchromatic)
	Spatial resolution (nm)	2017.11.01 — 1.321 (multispectral) and 0.330 (panchromatic)
		2018.01.15 — 1.332 (multispectral) and 0.333 (panchromatic)
Fusion method	Gram–Schmidt spectral sharpening method
Resampling method	Cubic convolution method

. Fusion images were finally used, containing red, green, blue, and near-infrared bands with a resolution of 0.5 m. The sizes of Image 1 and Image 2 are $\mathrm{11,176}\times 7466$ and $7446\times 5631$ pixels, respectively.

3.2. Performance of NSP

According to the NSP algorithm, slope change rate curves of different shore polygon edges were calculated, and the results are shown in Figure 11. There is a shoreline with both natural features and artificial features in the test area in Figure 11a. It can be seen from the slope change rate curve that the slope fluctuates at the beginning and then becomes steady from a certain point. According to the different fluctuant characteristics of the slope change rates, it is clear that the left part of the curve comes from the natural excerpt, and the right part comes from the artificial one. Figure 11b,c demonstrates the slope change rate curve of an artificial shoreline and a natural shoreline, which express the same fluctuations as in Figure 11a.

The NSP algorithm was executed on two images from 2015. The results are shown in Figure 12, and the evaluating data are listed in

Table 4. Extraction accuracies and the kappa coefficient after NSP.

	PA (%)	UA (%)	OA (%)	$\mathit{\kappa }$
Image1	94.25	89.70	99.64	0.9161
Image2	88.00	93.53	99.41	0.9050

. When the extraction results of Image 1 were compared with the ground truth, it can be seen from Figure 12a that most of the natural shores were extracted correctly, with only a small number of misextractions around the shore edges. Extraction accuracies and the kappa coefficient in Table 4 justify the analysis above. The extraction results of Image 2 in Figure 12b are approximately correct, with a producer’s accuracy of 88.00% and a user’s accuracy of 93.53%. However, it can be seen from Figure 12a that an unnatural shore on the far north side of Image 1 was mistakenly extracted as a natural shore due to its irregular edge. In Image 2, there are also some misextractions at the junction of the two shore types on the middle east side. The misextractions illustrate the limitations of the NSP algorithm in that it is excessively dependent on the shape of shore edges. In this condition, manual corrections will be needed according to practical applications. Despite some defects in these particular situations, the algorithm in this step performed well in the general prediction of natural shorelines.

3.3. Effectiveness of Tidal Correction

In this study, images from 2015 and 2018 were, respectively, selected as the first and second time to calculate the tide flat slope, and images from 2017 were selected for evaluation. According to the method in Section 2.4, the instant waterline prediction results of the four typical experimental areas are illustrated in Figure 13, and the corresponding accuracy indexes are shown in

Table 5. Tidal correction evaluation results.

	RMSE	MAE	SD
Area 1	1.98	1.70	2.41
Area 2	1.08	0.97	0.38
Area 3	1.28	1.14	0.58
Area 4	1.88	1.81	0.58

.

In Figure 13, blue lines represent the actual extracted instant waterlines, and red lines represent the predicted ones according to the tidal correction method. In Area 1, most of the actual waterline and the predicted waterline coincide, but only small sections around the right endpoint deviate from each other. Observed from the image, we can see that there are rocks located in the sand marine shore, which could have prevented the sand shore from forming a gentle slope. Therefore, the terrain of the right shore does not conform to the hypothetical topography, resulting in a mistake. As shown in Area 2, Area 3, and Area 4, the real waterlines coincide well with the predicted ones, and the accuracy indexes in Table 5 also confirm the consequent RMSE and MAE of less than 2 and the SD less than 0.6, which verifies the performance of the tidal correction. When the tidal correction is conducted, each nonadjacent tidal flat wetland has to be processed independently, which means that low efficiency could be a defect of this method. Thus, we may consider parallel processing in future attempts.

3.4. Comparison with Other Methods

In this section, the proposed method is applied to six experimental images from three years, and Figure 14 presents the results. It can be seen that the proposed method is able to delineate and classify most of the tidal flat wetlands and provide satisfactory results.

In order to fully verify the advantages of the proposed method, both classical machine learning methods and deep learning methods were considered as comparison methods. In terms of classical machine learning methods, no methods were specifically used for tidal flat wetland extraction; therefore, the support vector machine (SVM) method [24] and the random forest (RF) method [35], which performed better than the others in the situation of this research through experiments, were selected as comparison methods. In terms of deep learning methods, considering the suitable classification methods and the hash rate of our computers comprehensively, the ResNet34 model [36] was selected as the third comparison method.

In order to guarantee the same training samples, FNEA segmentation was conducted on the research images from October 21, 2015, at first, sharing the same parameters of FNEA with the proposed method (detailed values are clarified in Section 2.1.1). Samples of each tidal flat wetland category (in the form of objects) were obtained by manual interpretation and treated as the training samples of ResNet34. Then, the object-based samples were transformed into pixel-based ones, which were considered as the training samples of the SVM and RF. Finally, 63 objects in Image 1 and 77 objects in Image 2 were selected as training samples. Moreover, all the comparison methods were conducted from the perspective of logical layering (the same initial classification and geographical analysis), which guaranteed a fair comparison. To quantify the performance values, the overall accuracy (OA) and kappa (k) were selected to evaluate the four methods. There are 400 and 350 verification points in Image 1 and Image 2, respectively, for the experimental data from each year.

Figure 15a–f provides a visual comparison of the different methods, and the corresponding statistical results are listed in

Table 6. Comparison of the accuracy of the four wetland classification methods.

		SVM		RF		ResNet		Proposed
	Time	OA (%)	$\mathit{\kappa }$	OA (%)	$\mathit{\kappa }$	OA (%)	$\mathit{\kappa }$	OA (%)	$\mathit{\kappa }$
Image 1	2015	51.25	0.34	66.50	0.51	53.25	0.37	88.50	0.84
	2017	53.00	0.10	69.25	0.46	75.00	0.46	92.75	0.84
	2018	53.75	0.28	64.75	0.33	76.00	0.55	93.50	0.87
Image 2	2015	71.43	0.49	44.86	0.24	57.71	0.37	96.29	0.93
	2017	72.29	0.52	63.14	0.44	57.43	0.35	95.71	0.92
	2018	76.57	0.58	73.14	0.56	48.00	0.24	92.86	0.87

. For the SVM method, land and sea are separated in Image 1 from all three years, which mainly depends on the results of the initial classification in this study. There are still misclassifications when observing the details: the RMS and the SMS on the south coast are not distinguished, the RMS and the MMS around the lagoon are mixed, and the white waves in the sea are also misclassified into tidal flat wetlands due to their similar spectral features. The results of the SVM in Image 2 are a little more reliable than those in Image 1 when noticing the OA, which are caused by fewer tidal flat wetland categories, but it still shows a large number of misclassifications from the visual results. Moreover, the SVM method cannot distinguish between the artificial boundaries and the natural boundaries; for example, the artificial roads in the northeast corner of Image 2 are misclassified as natural targets. The extraction results of the RF method contain too much “salt-and-pepper noise" just as the SVM, despite the fact that it performs better than the SVM in accuracies, which are caused by their pixel-based classification modus. The ResNet34 model is conducted in an object-based way, just as the proposed one, which can solve the noise problems. Observing the visual results, we can clearly notice that the last two object-based methods perform well in achieving the purity of results. For ResNet34, there are also misclassifications between artificial boundaries and natural boundaries: the artificial roads in the northwest corner and the artificial coast on the west are mistaken for tidal flat wetlands in Image 1 from all three years. Additionally, ResNet34 performs poorly when distinguishing the RMS from the other two kinds. Large sample quantity reliance is the main limitation of deep learning methods, although there are only a small number of samples in this study that caused unsatisfying results when ResNet34 was unable to learn enough features of tidal flat wetlands. It can be concluded that the ResNet34 model has limitations when extracting tidal flat wetlands from high-resolution images when there are not enough samples. With the same samples, the proposed method performs well when solving misclassification problems, which can be seen from the results. The proposed NSP algorithm distinguishes the misclassifications of artificial objects from natural objects, and the RSD feature descriptor can easily extract the RMS when it has similar spectral characteristics with the surroundings. It can be seen from Table 6 that the OA of the proposed method are all above 88%, exceeding the three compared methods.

Concluding the comparison results, the pixel-based SVM and RF methods cause “salt-and-pepper noise” and misclassifications when extracting tidal flat wetlands. The deep learning model solves the noise problem, while it still shows unsatisfying results with insufficient samples. The proposed method performs well in these aspects despite its lower processing speed. Additionally, there is no other efficient method with similar accuracy to the proposed one, which means an excellent extraction consequence is more significant, despite the fact that there are complex steps in the proposed method. Therefore, the proposed method has particular advantages in the extraction of tidal flat wetlands from high-resolution images.

4. Conclusions

In this study, a comprehensive method for tidal flat wetland extraction from high-resolution images was proposed. First, the decision tree method based on remote sensing features and geographical buffers was constructed for the initial classification. Next, an NSP algorithm based on the slope change rate was designed to refine the range of the tidal flat wetland. Then, a range and standard deviation descriptor was constructed to extract the RMS, and a geographical analysis method was considered to distinguish the SMS and MMS. Finally, a tidal correction strategy was introduced to regulate the borderline of tidal flat wetlands. The results showed that the proposed method can achieve good performance for the extraction of tidal flat wetlands from high-resolution images. By the delineation and classification method, the distribution of tidal flat wetlands can be investigated easily, consequently contributing to wetland protection.

A defect still comes from the strong correlation between the multiple steps, which means that the results of the previous step will affect the results of the following step directly. Therefore, emphasis will be placed on optimizing the accuracy in each step in the future. In addition, we will try to expand this method to more complex shore situations in order to increase the versatility.
