Characterizing the Full Climate Impact of Individual Real-World Flights Using a Linear Temperature Response Model

Abstract

Aviation’s non-CO₂ effects account for approximately 66% of the sector’s Effective Radiative Forcing (ERF). However, non-CO₂ emissions and their climate effects are particularly challenging to assess due to the number of variables involved. This research provides a framework for characterizing the full climate impact of individual real-world flights in terms of global surface temperature change (ΔT) with the aid of a validated CFM56-7B26/3 engine model and spatially and temporally resolved meteorological data. Different modelling methods were used to evaluate NO_x and soot emissions and the relative differences between them were quantified, while a contrail formation model was implemented to quantify the distances travelled where persistent contrails were formed. The ΔT was evaluated over 77 years using a Linear Temperature Response Model (LTR). The results show that NO_x-induced effects such as the increase in short-term ozone had the highest impact on ΔT in the first year of emissions, while CO₂ was more detrimental to ΔT in the long term. Unlike the mid and long-range flights examined, the climb segment of the short-range flight had a more significant impact on ΔT than the cruise segment. ΔT sensitivity studies for different emission modelling methods showed differences up to 13% for NO_x and 14% for soot.

1. Introduction

The importance of the aviation sector in the 21st century is undeniable, whether it be regarding travel, the economy, tourism, research, etc. In February 2024, air traffic reached and surpassed the pre-pandemic levels and forecasted an additional four billion passengers by 2043 compared to 2023 due to the expected 3.8% yearly rise in passengers over the next 20 years [1]. With the expected rise in air traffic, there are consequences for adverse climate and environmental impacts such as global warming resulting from aviation Carbon Dioxide (CO₂) emissions. Aviation does not contribute to global anthropogenic CO₂ emissions as much as other sectors, as it accounted for about 2% of emissions in 2022 [2]; however, since it is one of the most difficult sectors to decarbonize, alongside the fact that air traffic and the decarbonization of other sectors is rising, this percentage is expected to increase [3]. Technological improvements have shown a positive impact on fuel burn, but this fuel efficiency is still behind the International Civil Aviation Organization’s (ICAO) aspirational 2% increase in efficiency per annum goal [4], and the fact that the passenger demand is outpacing the technological improvements means aviation’s CO₂ emissions will keep rising.

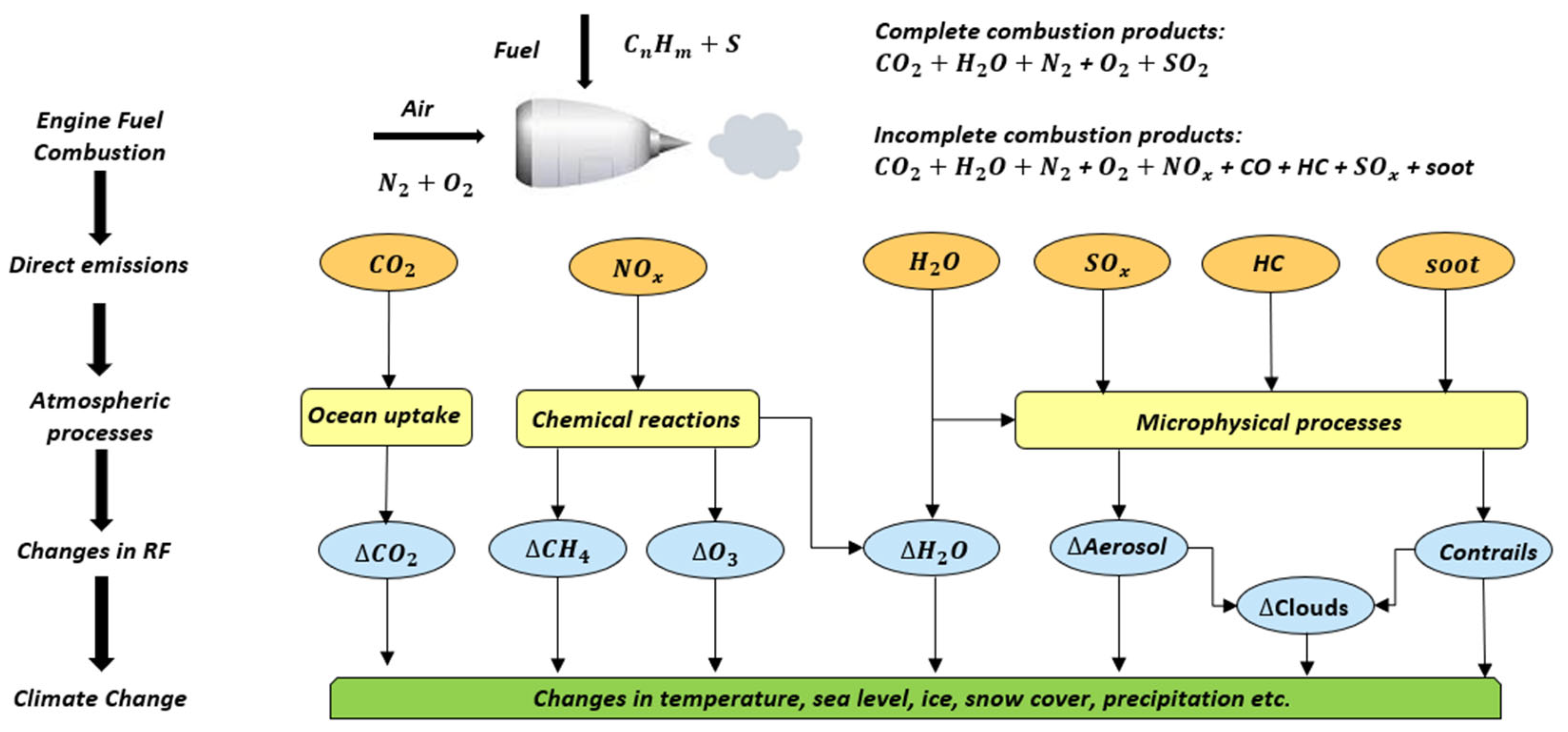

To evaluate the full climate impact of aviation based on the sector’s CO₂ emissions only is not sufficient, since this Greenhouse Gas (GHG) is not the only emission from aircraft engines with adverse climate effects. Figure 1 illustrates the direct non-CO₂ emissions that are exhausted from the engines, they are Nitrogen Oxides (NO_x), soot, water vapour (H₂O), and Sulfur Oxides (SO_x). These emissions perturb the earth’s radiative energy balance, causing radiative forcing (RF) changes in the atmosphere, which results in either a warming or cooling effect on the climate [5]. NO_x emissions undergo complex chemical reactions in the atmosphere, which result in GHG concentration changes like an increase in the formation of short-term tropospheric ozone (O_3S) and the depletion of methane (CH₄), which have a warming and cooling effect on the climate, respectively. Updated studies have found that the CH₄ depletion caused by NO_x emissions also results in a long-term reduction in background O₃ and stratospheric water vapour (SWV) reduction [6,7], where both result in a cooling effect. H₂O emitted directly from an aircraft engine is a GHG that enhances the warming effect on the climate [6]. SO_x emissions due to the fuel sulfur content and soot emissions are precursors to aerosol formation, where sulphate (SO₄) and soot aerosols have a minor cooling and warming effect on the climate, respectively [8]. The larger contribution to climate forcing comes from the indirect effects of H₂O emissions and SO₄ and soot aerosols due to their role in the formation of contrails, as they prove to be efficient ice nucleation particles, where emitted water vapour droplets condense over the particles, leaving behind linear contrails [9], which can produce a warming or cooling effect depending on the time of day, with the nighttime exclusively resulting in a warming effect. A study performed by Lee et al. [6] for the contribution of global aviation to anthropogenic climate impact in 2018 shows that non-CO₂ emissions have a contribution of about 66% of the total aviation Effective Radiative Forcing (ERF); however, this number is associated with a large uncertainty due to the complexity and limited understanding of the non-CO₂ effects, with the largest uncertainty coming from contrail cirrus. These non-CO₂ emissions and their effects have much shorter lifetimes than CO₂, where they can last in the atmosphere from seconds to a number of weeks compared to CO₂ lifetime, which can last for up to centuries due to its accumulative nature, which means that mitigating these short-lived emissions can have an immediate impact on change in climate surface temperatures [10].

The Paris Agreement to stop global temperature rise well below 2 °C or to 1.5 °C relative to pre-industrial levels does not formally include international aviation emissions, only domestic aviation CO₂ emissions [6]. This led several international organizations to start implementing regulations, policies, and roadmaps that will help align with the Paris Agreement such as the European Union’s (EU) Emissions Trading System (ETS), which introduces a limit on the amount of GHG emissions and assigns a financial cost for CO₂ production, which is around 80 EUR per tonne of CO₂ at present time [12], and ICAO’s Carbon Offsetting and Reduction Scheme for International Aviation (CORSIA), which promotes a carbon-neutral aviation sector by offsetting any CO₂ emissions growth above 2020 levels, which will be aided by the implementation of alternative fuels, technological improvements, or operational measures [4]. Policies and roadmaps are often targeted towards CO₂ emissions and over-look their non-CO₂ counterparts, where the European Commission stated that the introduction of policies to target the reduction of non-CO₂ emissions from aviation requires further research due to the absence of internationally recognized methodology to estimate these emissions at cruise and climate impact metric which introduces additional complexity and uncertainties [13]. Furthermore, much-needed trade-off studies between CO₂ and non-CO₂ emissions introduce additional complexities, where a case study by Freeman et al. [14] found that a 20% reduction in NO_x emissions resulted in a 2% CO₂ penalty, hence increasing the total RF. Contrail avoidance strategies such as flight level changes or flying around Ice Supersaturated Regions (ISSRs) have also been proposed; however, such strategies would also lead to CO₂ penalties due to increased flight time or fuel burn. However, targeting the smaller percentage of persistent contrails only rather than their non-persistent counterparts could result in positive climate effects since they have similar sky coverage. A case study by Teoh et al. [15] for such avoidance strategies showed a total climate impact mitigation of 50.1% and 35.6% for a CO₂ penalty of 0.014% on a 20-year and 100-year time horizon, respectively.

Estimating the NO_x and soot emissions for a flight is not as straightforward as CO₂, H₂O, and SO₄ since they are not dependent only on fuel composition. There are several variables involved in estimating NO_x and soot emissions such as the engine power settings, ambient conditions, and engine design [16]. The ICAO Emissions Databank (EDB) provides NO_x and soot emission indices for a wide variety of engines measured at Sea-level-Static (SLS) conditions for the four power settings of the Landing and Takeoff (LTO) cycle [17]; however, there are no measurements for these emissions available at altitude for other flight segments such as Climb, Cruise, and Descent (CCD), which is why several methodologies have been developed to estimate emissions at those segments. Assessing the non-CO₂ effects in the atmosphere is also particularly challenging, since unlike CO₂, their effects depend on the location of emissions where NO_x emissions have greater effects on O₃ and CH₄ changes in the atmosphere at higher altitudes [18] and contrail coverage increases significantly at higher altitudes due to the colder temperatures which allow contrails to persist [19]. Due to the low ambient relative humidity there, the H₂O direct climate effects are higher at stratospheric altitudes, where supersonic flights are more prominent [20]. All these different factors highlight the multidisciplinary nature of this work and emphasize the necessity of developing multi-disciplinary frameworks to comprehensively evaluate the full climate impact of aviation.

Recently, more aviation climate impact studies started to adopt such multi-disciplinary frameworks. The work of Saluja et al. [21] studied the effect of engine design parameters such as operating pressure ratio and turbine inlet temperature for different combustor technologies (rich burn and twin annular premixed swirler) on the climate impact of aircraft. The framework used in the study included a simple aircraft performance model and an engine model developed using the Gas Turbine Simulation Program (GSP), which were used to obtain parameters such as fuel consumption and engine thermodynamic data for flights between 60 city pairs, to be used as inputs for the different emission models, with the ambient relative humidity kept at 60% along all flight paths. Finally, the climate impact for the cruise segment of the flights was evaluated in terms of Average Temperature Response (ATR) using the AirClim tool [22].

Dallara et al. [23] discusses the effects of future aircraft climate mitigation strategies such as shifting cruise altitudes, operational contrail avoidance, low-NO_x combustors, alternative fuels, etc., on the climate and operating costs. The framework applied encompasses the conceptional design tool Program for Aircraft Synthesis Studies (PASS) for aircraft design and performance analysis, which consists of modules from different disciplines such as aerodynamics, propulsion, aircraft performance, noise, economics, etc., that facilitate quick exploration of the design space. The PASS tool was used to produce the parameters required as inputs for emission modelling, where an analytical expression was used to evaluate NO_x emissions with relative humidity kept at 60%, and the soot emission index was taken as a constant for all flight segments. A Linear Temperature Response Model (LTR) was utilized to evaluate the climate impact in terms of ATR of a hypothetical fleet of narrow-body aircraft; however, a contrail formation model was not applied as contrails were assumed to be formed along all flight distances covered, hence overestimating their climate impacts. Proesmans et al. [24] also utilizes a multi-disciplinary approach involving aircraft design and performance analysis, emission modelling, and climate impact assessment to perform aircraft design optimization for minimum global warming impact by changing wing, engine, and mission design variables. The study applies a similar climate impact assessment methodology to the one used by Dallara et al. [23]; however, it was improved upon by evaluating the points along the mission profile where contrails are formed.

The main objective of this study was to develop a multi-disciplinary framework to characterize the climate impact of individual real-world flights in terms of CO₂ and non-CO₂ effects. In this case, the use of real-world flight data provides a key novel aspect to this study, which aided with the development, calibration, and validation of aircraft performance and propulsion system models. The models were utilized alongside temporally and spatially resolved meteorological data to provide accurate inputs for different emission models and a contrail formation model to accurately characterize the full climate impact of simulated real-world flights, with varying routes and ranges, in terms of global surface temperature change (ΔT) using an LTR model. Furthermore, this paper presents the different emissions and their resulting climate impacts on a per-flight and per-flight segment basis to highlight the effects of varying flight routes, ranges, and segments that are often overlooked in aviation climate impact studies; moreover, it also quantifies the relative errors between the different emission modelling methods.

2. Methodology

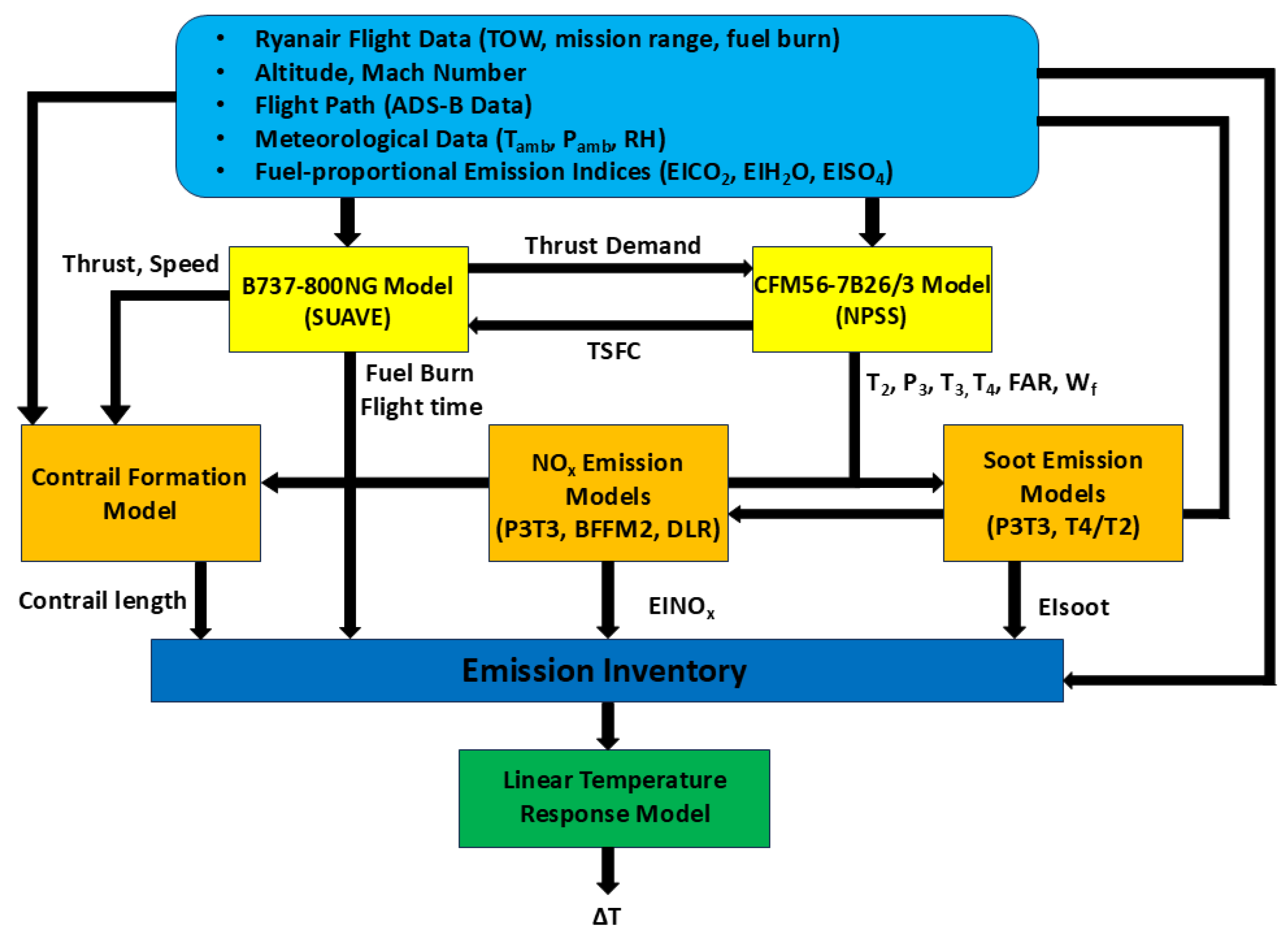

An overview of the methodology that was implemented in this study is illustrated in Figure 2. This study involves a multidisciplinary modelling chain, where real-world flight data and spatially and temporally resolved meteorological conditions (represented in light blue) are used as inputs to simulate individual real-world operations by relying on aircraft and engine performance models (represented in yellow). The emissions of the flights and contrail lengths are evaluated using the contrail formation model and the NO_x and soot emission models (represented in orange) with the aid of meteorological conditions and parameters provided by the aircraft and engine models at flight conditions such as thrust, fuel flow, combustor temperatures, and pressures, etc. The NO_x emissions are modelled using the P3T3 method [25], the Boeing Fuel Flow Method 2 (BFFM2) [26], and the DLR method [27], whereas the soot emissions are modelled using the P3T3 method [28] and the T4/T2 method [29,30]. The emission inventory (represented in dark blue) facilitates a database for storing important parameters for individual flights such as emissions, fuel burn, and contrail lengths to be used as inputs for the LTR model (represented in green), which can be used to evaluate their climate impact in terms of global surface temperature change. Evaluating the full climate impact of aviation requires capturing complex interactions between flight and engine operation, emissions, meteorological conditions, and atmospheric science. Therefore, the use of such a multidisciplinary modelling chain that involves validated aircraft and engine models would allow us to capture the different interdependencies accurately and rapidly without the need for higher fidelity approaches.

2.1. Real-World Flight Data

An extensive flight database of approximately 3000 flights was provided by Ryanair for this study through their partnership with Trinity College Dublin. Ryanair is Europe’s largest airline group as it operates a fleet of 594 aircraft, 335 of them being B737-800NG aircraft [31]. The flight database provided includes data for individual flights’ real-world operations such as Take-off Weight (TOW), mission range, and actual fuel burn, which aided in the development and validation of the engine and aircraft models and full-mission simulations for this study. The use of such data provides an opportunity to accurately evaluate engine-out emissions for real-world flights prior to computing their resultant climate impact.

2.2. NPSS Engine Performance Model

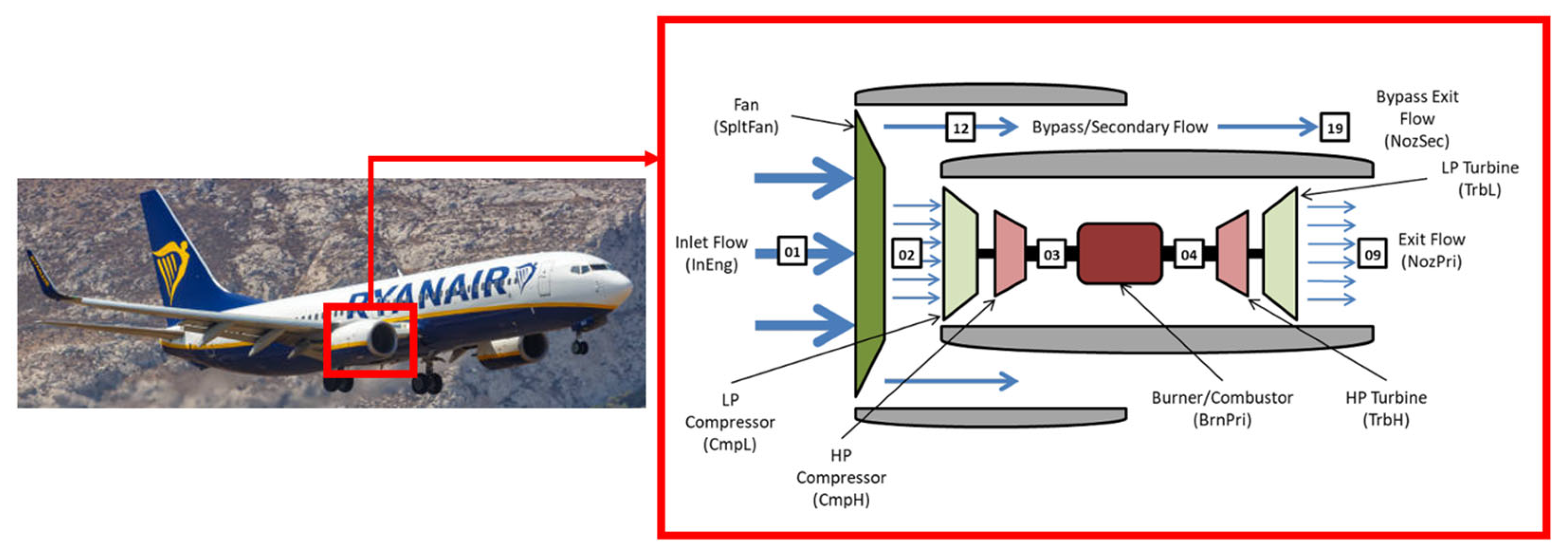

Numerical Propulsion System Simulation (NPSS) is a software originally developed by NASA in 1995. It is used for the modelling and analysis of propulsion systems by the aerospace industry [32]. Prior to this work, an NPSS model for a CFM56-7B26/3 turbofan engine representative of a Boeing 737-800NG aircraft’s engine as illustrated in Figure 3 was developed in the work of Gallagher et al. [33]. This is a physics-based propulsion model which was validated for thrust and Thrust Specific Fuel Consumption (TSFC), as seen in

Table 1. Validation results for the NPSS CFM56-7B26/3 model [33].

Operating Point	Thrust (lbf)	NPSS TSFC (lbm/hr.lbm)	ICAO/NASA TSFC (lbm/hr.lbm)	Error
TOC	5960	0.635	0.650	−2.31%
RTO (+15 °C)	20,954	0.473	0.474	−0.21%
SLS—100%	26,300	0.369	0.366	+0.82%
SLS—85%	22,355	0.352	0.350	+0.57%
SLS—30%	7890	0.314	0.333	−5.71%
SLS—7%	1841	0.464	0.466	−0.43%

. For on-design analysis, the model was calibrated to match the SLS operating points provided by the ICAO EDB [17] for the same engine and the Top-Of-Climb (TOC) and Rolling-Take-Off (RTO) operating points from a NASA study [34], where the model outputs were varied by using the component design variables. Generalized component performance maps were used for accurate off-design analysis. This model would be useful to characterize engine performance accurately and rapidly without having to use higher fidelity approaches that require massive amounts of computational time, and it would be used to provide internal engine parameters, which will aid with the evaluation of an aircraft’s emissions along its flight path such as fuel flow (W_f), Fuel–Air ratio (FAR), and combustor, compressor, and turbine inlet temperatures and pressures.

2.3. SUAVE-NPSS Model

The design tool Stanford University Aerospace Vehicle Environment (SUAVE) was used to develop a B737-800NG aircraft model. SUAVE is a physics-based conceptional aircraft design tool which also allows coupling with external propulsion surrogates and the simulation of full-flight missions [35]. The NPSS model was integrated within the SUAVE B737-800NG model and calibrated and validated using real-world flight data. The calibrated SUAVE-NPSS model validation for a full 500 Nautical Mile (NM) mission in Figure 4 shows exceptional accuracy with respect to actual fuel burn data for different flight segments, culminating in a block fuel error of 2.1% relative to the real-world data. Further validation of the combined SUAVE-NPSS model across a wide range of mission range and takeoff weights demonstrated an average total fuel flow error of 5%, which illustrates the strong generalization capabilities of the calibrated low-fidelity modelling tool [33]. For a more detailed description of the development, calibration, and validation of the SUAVE-NPSS model, the reader is referred to the work of Gallagher et al. [33].

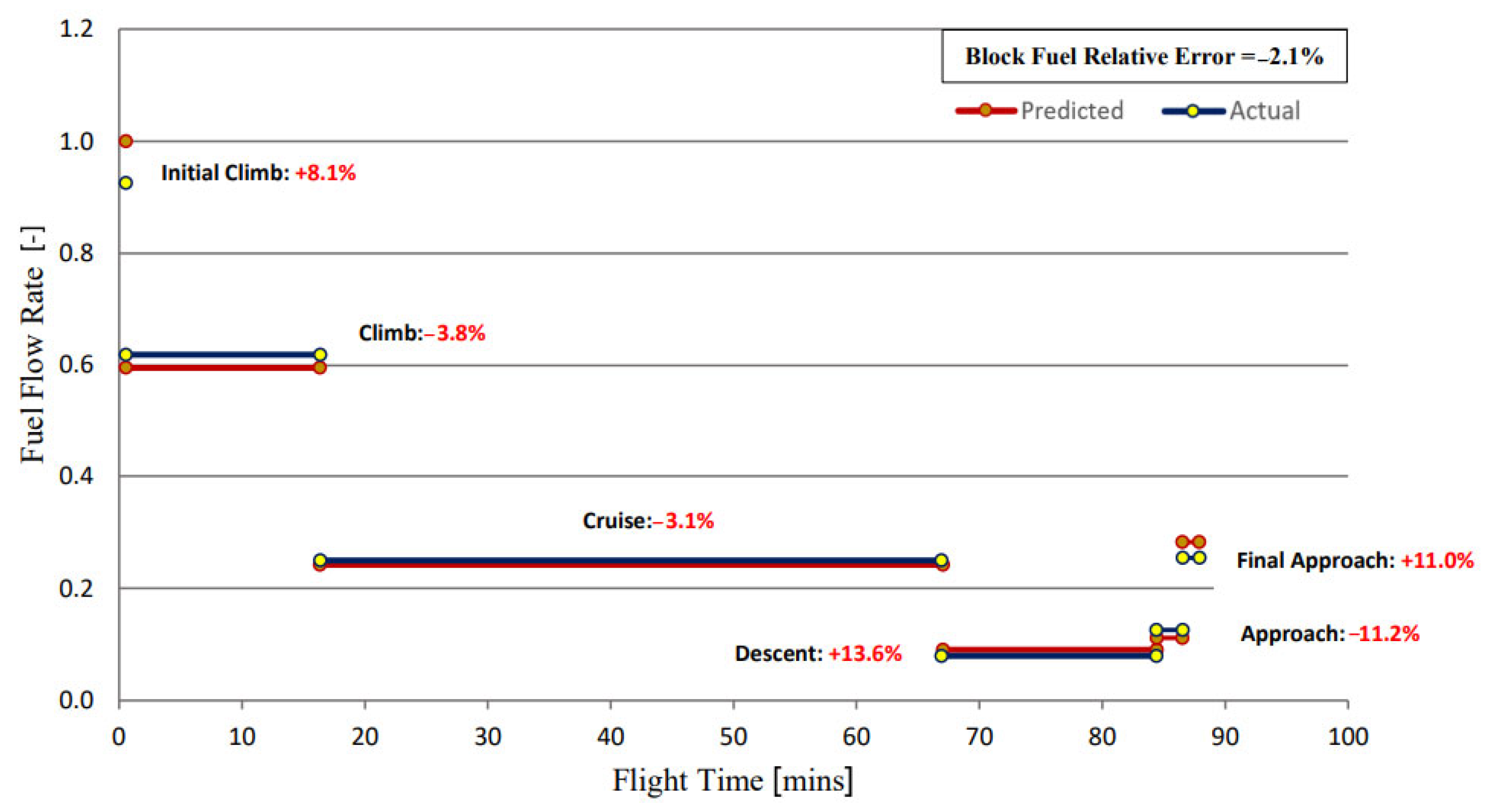

2.4. Full Mission Simulation

For the scope of this study, three real-world Ryanair missions with varying routes and ranges were simulated, referred to herein as a short-range, a medium-range, and a long-range flight as seen in

Table 2. Simulated flights for this study.

Flight	Classification	Range (NM)
1	Short-range	216
2	Medium-range	863
3	Long-range	1205

. This is carried out to account for the different ambient atmospheric and engine operating conditions along the different routes and ranges.

2.5. Meteorological Data

To model the emissions and potential contrail formation points for the three flights, ambient temperature, pressure, and relative humidity with respect to water (RH_w) data along the flight trajectories were required as inputs. The temperature and pressure along the flight trajectories were modelled according to the International Standard Atmosphere model [36], while the RH_w data to be used in this study were sourced from the Modern-Era Retrospective analysis for Research and Applications version-2 (MERRA-2) [37]. This dataset was developed by the NASA Global Modeling and Assimilation Office, where data assimilation models that combine numerical simulations with atmospheric observations were used. The dataset contains geophysical variables like RH_w with respect to water at a temporal resolution of 3 h, a spatial resolution of 0.625° × 0.5° in longitude and latitude, and a vertical resolution of 42 pressure levels from 1000 hPa to 0.1 hPa. The use of such temporally and spatially resolved data facilitates accurate capturing of the variations of contrail formation thresholds and the impact of NO_x emissions due to varying atmospheric conditions over a wide range of routes and altitudes.

2.6. Fuel-Proportional Emissions

This emission index (EI) for each of the CO₂, H₂O, and SO₄ emissions is assumed constant in this study throughout all the flight phases, which makes the emissions of each species very simple to model due to them being directly proportional to the fuel burned in a mission. The emission indices used for modelling the emissions of the flights are EICO₂ = 3.16 kg/kg fuel, EIH₂O = 1.26 kg/kg fuel, and EISO₄ = 0.0002 kg/kg fuel [38]. The emission index of SO₄ was taken in reference to a 50% conversion factor from average fuel sulfur content to optically active SO₄ [39].

2.7. NO_x Emissions

2.7.1. P3T3 Method

The P3T3 method is the most preferred method to use to estimate NO_x emissions by engine manufacturers since it provides the most accurate results. The P3T3 method is implemented in this study as described in [25]. The main limitation of using this method is the required knowledge of internal engine parameters which are considered proprietary information by engine manufacturers, this limits the potential use of this method for research without access to this information. For this study, however, the availability of the validated NPSS model described removes this limitation since the model can provide accurate insights into the required internal engine parameters.

As a first step, the ground test data for the CFM56-7B26/3 engine EINO_x at the four LTO operating points are obtained from the ICAO EDB [17], and the combustor inlet temperature T₃, pressure P₃, and FAR at the four LTO points at SLS conditions are obtained from the NPSS model. Then, the four EINO_x, P₃, and FAR points are plotted against T₃ to produce three second-order polynomial curve fits. To evaluate the EINO_x at a specific point along the flight path, T₃ at that point is used to obtain the reference EINO_x, P₃, and FAR from the polynomial fits by interpolation, where the EINO_x at altitude is computed using Equation (1) by applying a humidity correction and an altitude correction to the combustor parameters:

$${{\mathit{EINO}}_x}_{\mathit{Alt}}={{\mathit{EINO}}_x}_{\mathit{Ref}} \times {\left({\displaystyle \frac{{P_3}_{\mathit{Alt}}}{{P_3}_{\mathit{Ref}}}}\right)}^y\times {\mathrm{e}}^H \times {\left({\displaystyle \frac{{\mathit{FAR}}_{\mathit{Alt}}}{{\mathit{FAR}}_{\mathit{Ref}}}}\right)}^z$$

(1)

The exponents y and z are engine–combustor combination dependent, where they are taken as 0.5 and 0, respectively, as suggested by the literature, which cancels out the FAR term [26]. The humidity term is computed as described in [40] with Equations (2)–(4):

$$H=19\times (0.00634-\omega )$$

(2)

$$\omega ={\displaystyle \frac{(0.62197058 \times {\mathit{RH}}_w \times P_{\mathit{sat}})}{\left(P_{\mathit{sat}} \times 68.9473\right)-({\mathit{RH}}_w \times P_{\mathit{sat}})}}$$

(3)

$$P_{\mathit{sat}}=\left[6.107 \times {10}^{\left({\displaystyle \frac{7.5 \times T_{\mathit{ambc}}}{237.3-T_{\mathit{ambc}}}}\right)}\right] \times 68.9476$$

(4)

where ω represents the humidity ratio in g/kg dry air, P_sat represents the saturation vapour pressure in hPa, and T_ambc is the ambient temperature in °C.

2.7.2. Boeing Fuel Flow Method 2

The BFFM2 [26] is a simplified NO_x prediction method that was developed to work around the need for proprietary engine data, as it only requires the input of publicly available data such as EINO_x and fuel flows at SLS conditions and shows EINO_x estimates with an error of approximately ±10% relative to the P3T3 method. As a first step, the ground test data for the CFM56-7B26/3 EINO_x and W_f are obtained from the ICAO EDB [17], where the W_f at the four LTO cycle operating points is adjusted for airframe installation effects using the correction factors SLS-7% = 1.1, SLS-30% = 1.02, SLS-85% = 1.013, and SLS-100% = 1.01 [26], then the EINO_x values are fitted against the corrected W_f values on a log–log plot. In the next step, the W_f at a specific point at altitude along the flight path is obtained from the NPSS model and corrected to reference conditions considering the ambient conditions at altitude and flight speed with Equations (5)–(7):

$${W_f}_{\mathit{Ref}}={W_f}_{\mathit{Alt}} \times {\displaystyle \frac{{\theta }_{\mathit{amb}}^{3.8}}{{\delta }_{\mathit{amb}}}} \times {\mathrm{e}}^{{0.2M}^2}$$

(5)

$${\theta }_{\mathit{amb}}={\displaystyle \frac{T_{\mathit{amb}}}{288.15}}$$

(6)

$${\delta }_{\mathit{amb}}={\displaystyle \frac{P_{\mathit{amb}}}{\mathrm{101,325}}}$$

(7)

where M is the Mach number, and T_amb and P_amb are the ambient temperature and pressure in Kelvin and Pascals, respectively. Finally, the reference W_f is used to obtain the reference EINO_x from the log–log plot by interpolation, which is then corrected to evaluate the EINO_x at the specified point at altitude along the flight path with Equation (8):

$${{\mathit{EINO}}_x}_{\mathit{Alt}}={{\mathit{EINO}}_x}_{\mathit{Ref}} \times {\left({\displaystyle \frac{{\delta }_{\mathit{amb}}^{1.02}}{{\theta }_{\mathit{amb}}^{3.3}}}\right)}^{0.5}\times {\mathrm{e}}^H$$

(8)

2.7.3. DLR Method

The DLR method is another fuel flow correlation method developed by DLR researchers and, in several ways, is very similar to BFFM2. It requires the same inputs as BFFM2 and applies similar corrections but with slightly different formulations. It is implemented in this study as described in [27], where the ICAO EINO_x and W_f are fitted on with a second-order polynomial instead of a log–log plot, and the corrections to obtain the reference W_f and the EINO_x at altitude are shown in Equations (9)–(13):

$${W_f}_{\mathit{Ref}}={\displaystyle \frac{{W_f}_{\mathit{Alt}}}{{\delta }_{\mathit{total}}\sqrt{{\theta }_{\mathit{total}}}}}$$

(9)

$${\delta }_{\mathit{Total}}={\displaystyle \frac{P_{\mathit{total}}}{101325}}$$

(10)

$$P_{\mathit{total}}=P_{\mathit{amb}}\times {(1+0.2 \times M^2)}^{3.5}$$

(11)

$$T_{\mathit{total}}=T_{\mathit{amb}}\times (1+0.2 \times M^2)$$

(12)

$${{\mathit{EINO}}_x}_{\mathit{Alt}}={{\mathit{EINO}}_x}_{\mathit{Ref}} \times {\delta }_{\mathit{total}}^{0.4}\times {\theta }_{\mathit{total}}^3 \times {\mathrm{e}}^H$$

(13)

2.8. Soot Emissions

2.8.1. P3T3 Method

The first method used to evaluate the mass of soot emissions in this study is the P3T3 method, which is implemented as described by the work of Durdina et al. [28]. It is similar to the NO_x P3T3 method where the reference P₃, FAR, and EIsoot (or EInvPM) from the ICAO EDB [17] are taken as functions of T₃, which are then used to evaluate the EIsoot at altitude with the Döpelheuer and Lecht correlation [41] given in Equation (14):

$${\mathit{EIsoot}}_{\mathit{Alt}}={\mathit{EIsoot}}_{\mathit{Ref}}\times {\left({\displaystyle \frac{{P_3}_{\mathit{Alt}}}{{P_3}_{\mathit{Ref}}}}\right)}^{1.35}\times {\left({\displaystyle \frac{{\mathit{FAR}}_{\mathit{Alt}}}{{\mathit{FAR}}_{\mathit{Ref}}}}\right)}^{2.5}$$

(14)

2.8.2. T4/T2 Method

The T4/T2 method is used to evaluate the EIsoot by mass in this study as described in the work of Teoh et al. [29,30]. In this method, the ICAO EIsoot values are plotted against the ratio of the turbine inlet temperature and compressor inlet temperature (T₄/T₂) at the four LTO cycle SLS operating points, assuming a linear fit between each adjacent point; however, the T₄/T₂ ratio is obtained from the NPSS model instead of using the thermodynamic equations provided in the work of Teoh et al. Finally, T₄/T₂ at a specific point along the flight path is used to evaluate the EIsoot at that point by interpolation.

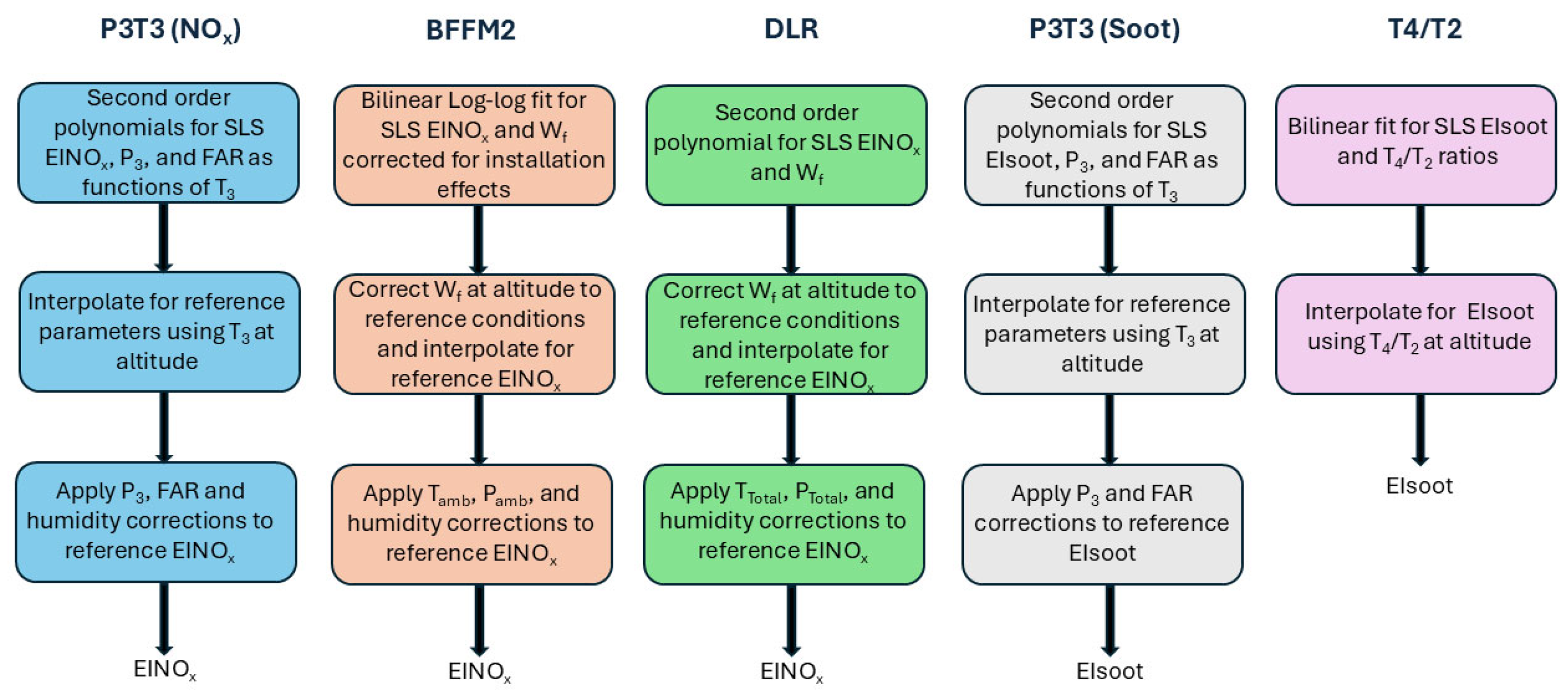

A simplified summary of all the non-fuel proportional emission models implemented in this study is illustrated in Figure 5.

2.9. Contrail Formation Model

2.9.1. Schmidt–Appleman Criterion

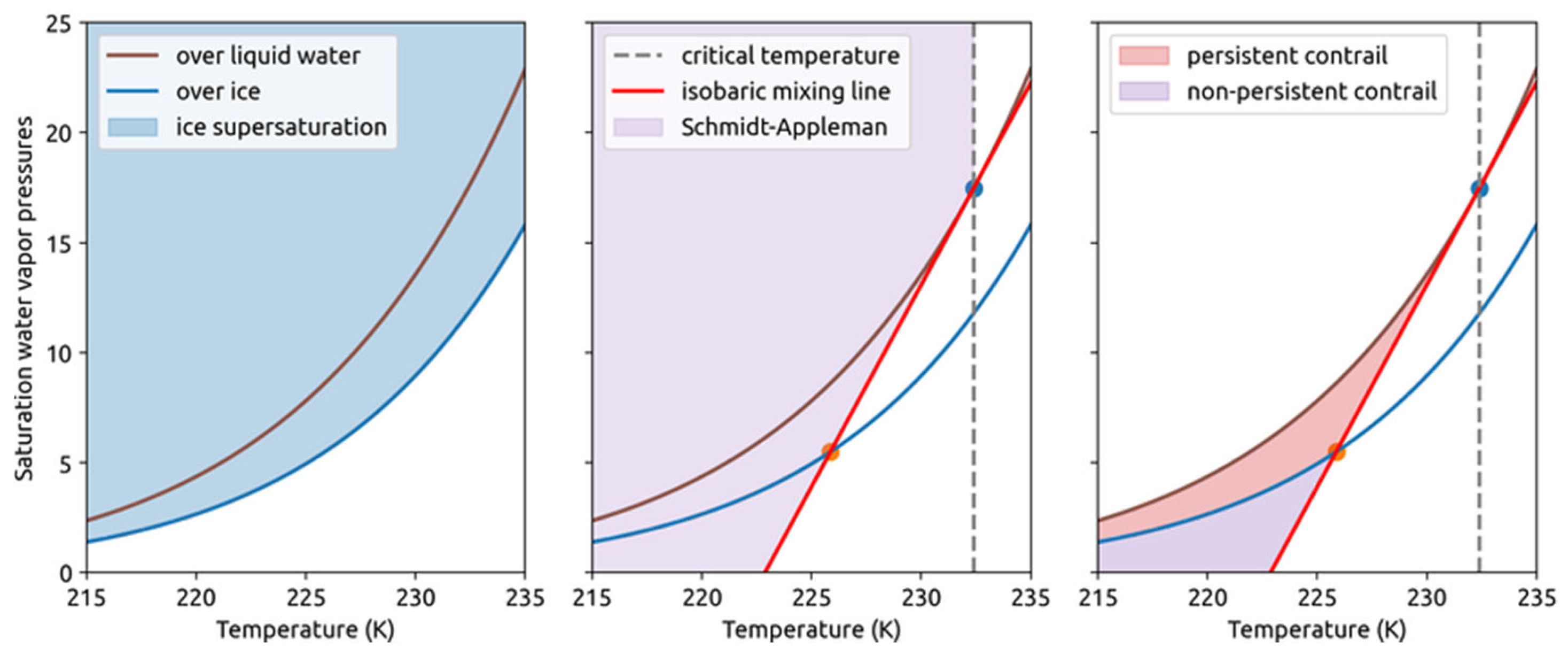

To predict potential contrail formation areas in the wake of an aircraft, the Schmidt–Appleman Criterion must be satisfied. The SAC specifies that when the engine exhaust and air mixture in the plume reaches water saturation, a contrail will form. This is illustrated in Figure 6, where the exhaust–air mixing line is tangential to the vapour saturation curve with respect to water or crosses it, which allows the formation of water droplets on the particles emitted from the exhaust such as soot [42]. The SAC has been applied in a number of recent studies [24,43,44] as it offers a rapid option for evaluating contrail formation points along flight paths without the need for higher-fidelity approaches that require massive amounts of computational time.

The first step taken to predict contrail formation is to calculate the slope of the mixing line G for each point along the flight’s trajectory using Equation (15), which is dependent on the water vapour emissions index, the ambient pressure, the molar mass ratio of water vapour and air, the overall propulsion efficiency η of the aircraft, and the fuel properties. The η of the engine along each point on the trajectory is computed using Equation (16) [42], where T is the thrust in Newtons and V is the flight speed in m/s. The values of the constant parameters used for calculating the slope of the mixing line and the overall propulsion efficiency are Isobaric Heat Capacity, C_p = 1005 J/kgK, the molar mass ratio of H₂O and air, ε = 0.622, and specific combustion heat, Q = 43 × 10⁶ J/kg.

$$G={\displaystyle \frac{\mathit{EI}{H}_{2}O \times C_P \times P_{\mathit{amb}}}{\epsilon \times Q \times (1-\eta )}}$$

(15)

$$\eta ={\displaystyle \frac{T \times V}{W_f \times Q}}$$

(16)

The slope G is then used to compute the maximum temperature T_M in Kelvin at which contrails may form. This is the temperature at the point where the mixing line is tangent to the liquid saturation vapour pressure curve, and it is calculated using Equation (17) [42].

$$T_M=-46.46+9.43\ln \left(G-0.053\right)+0.72{\left[\ln \left(G-0.053\right)\right]}^2+273.15$$

(17)

The next step would be to calculate the critical or threshold temperature T_C for contrail formation as seen in Equation (18). This temperature is calculated using Newton’s iteration method as suggested in [42].

$$T_C=T_M-{\displaystyle \frac{e_{\mathit{sat},\mathit{liq}}\left(T_M\right)-{\mathit{RH}}_w\times e_{\mathit{sat},\mathit{liq}}\left(T_C\right)}{G}}$$

(18)

e_sat,liq represents the liquid saturation vapour partial pressure, which is calculated as function of temperature in Equation (19) [45]. The coefficients used in the calculation of e_sat,liq are C₁ = −6096.9385, C₂ = 16.635794, C₃ = −0.02711193, C₄ = 1.6735794 × 10⁻⁵, and C₅ = 2.433502.

$$\ln e_{\mathit{sat},\mathit{liq}}=\left[{\displaystyle \frac{{\mathrm{C}}_1}{T_{\mathit{amb}}}}+{\mathrm{C}}_2+{\mathrm{C}}_3{T}_{\mathit{amb}}+{\mathrm{C}}_4{T_{\mathit{amb}}}^2+{\mathrm{C}}_5\ln \left(T_{\mathit{amb}}\right)\right]\times 100$$

(19)

The criterion for the formation of contrails is dependent upon the critical temperature, where if the ambient temperature is less than the critical temperature, the SAC is considered satisfied, which theoretically means contrails can be formed.

2.9.2. Persistent Contrails

The previous section described the SAC, which, if satisfied, causes contrails to form; however, most contrails dissipate within a matter of seconds or minutes and have a negligible climate impact. Therefore, for contrails to form and persist for longer than a few minutes and potentially form contrail cirrus, the aircraft must fly through Ice Super-Saturated Regions (ISSRs), where the relative humidity with respect to ice exceeds 100% [46]. These colder ambient conditions allow for ice crystal formations that can last for longer times than water droplets. To model the ISSRs in the atmosphere along the flight path, the relative humidity with respect to ice RH_i and ice saturation vapour partial pressure e_sat,ice is calculated with Equations (20) and (21) [45], where the coefficients used are C₆ = 9.550426, C₇ = −5723.265, C₈ = 3.53068, and C₉ = −0.00728332.

$${\mathit{RH}}_i={\mathit{RH}}_w \times {\displaystyle \frac{e_{\mathit{sat},\mathit{liq}}\left(T_{\mathit{amb}}\right)}{e_{\mathit{sat},\mathit{ice}}\left(T_{\mathit{amb}}\right)}}$$

(20)

$$\ln e_{\mathit{sat},\mathit{ice}}={\mathrm{C}}_6+{\displaystyle \frac{{\mathrm{C}}_7}{T_{\mathit{amb}}}}+{\mathrm{C}}_8\ln (T_{\mathit{amb}}) + {\mathrm{C}}_9{T}_{\mathit{amb}}$$

(21)

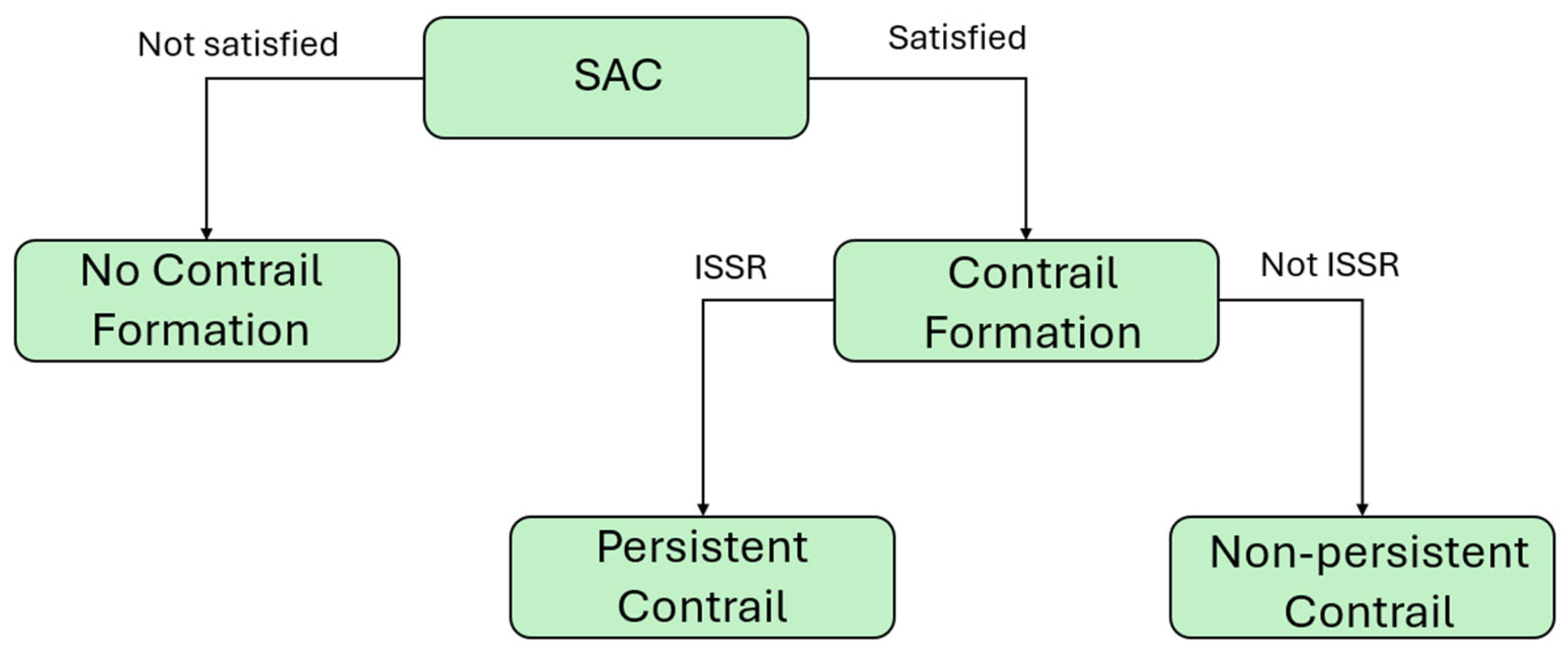

Figure 7 provides a summary of the process employed to model contrail formation, which shows that if the SAC is not satisfied, contrails will not form. If the SAC is satisfied, contrails will form, which leads to checking if the aircraft is flying in ISSR or not, where if the former is true, the contrails are persistent, and if the latter is true, the contrails dissipate quickly.

2.10. Linear Temperature Response Model

2.10.1. Radiative Forcing

Forcing Factor

Since non-CO₂ effects vary significantly with altitude [19,47], a forcing factor s is introduced as a function of altitude h and applied to the LTR as described in the work of Dallara et al. [23]. Figure 8 shows the contrail and NO_x-induced forcing agents forcing factors used in this model.

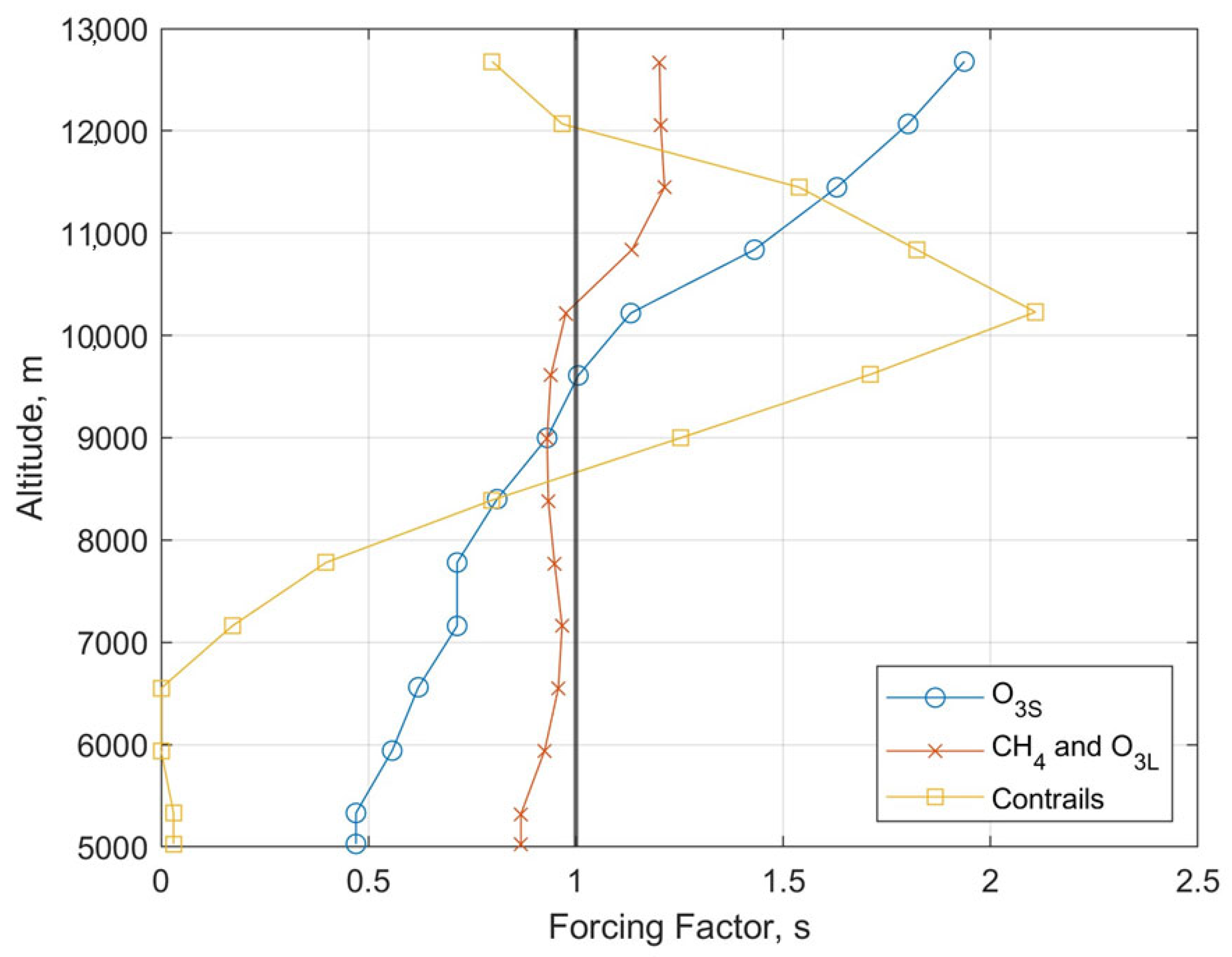

The forcing factor to be used in the LTR is obtained from Figure 8, depending on the altitude at which the aircraft is flying. For flight phases with constantly varying altitudes like climb and descent, the forcing factor at the average flight altitude at that phase is used. At altitudes lower than 5000 meters, the forcing factor at h = 5000 m is used.

Short-Lived Species

Forcing agents O_3S, H₂O, soot, SO₄, and contrails have very short atmospheric lifetimes, which means the RF changes they cause in the atmosphere are short-lived. Therefore, the RF can be modelled from these forcing agents as directly proportional to RF caused per emission from a reference year from previous climate impact studies as seen in Equation (22)–(24) [24].

$${\mathit{RF}}_{O_{3S}}\left(t,h\right)=s_{O_{3S}}\left(h\right)\times {\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{E_{\mathit{ref}}}}\right)}_{O_{3S}}\times E_{{\mathit{NO}}_x}\left(t\right)$$

(22)

$${\mathit{RF}}_{O_{3S}}\left(t,h\right)=s_{O_{3S}}\left(h\right)\times {\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{E_{\mathit{ref}}}}\right)}_{O_{3S}}\times E_{{\mathit{NO}}_x}\left(t\right)$$

(23)

$${\mathit{RF}}_{\mathit{contrails}}\left(t,h\right)=s_{\mathit{contrails}}\left(h\right)\times {\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{L_{\mathit{ref}}}}\right)}_{\mathit{contrails}}\times L\left(t\right)$$

(24)

E_i represents a particular species’ emissions from the flight in Tg, while L represents the distance travelled by a flight in kilometres where persistent contrails were formed. The distance is obtained from the contrail formation model as the total distance between each two adjacent points where persistent contrails are formed. The reference RF per emission or distance values are given in

Table 3. Reference RF per emission or distance values.

Parameter	Value	Unit	Reference
${\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{E_{\mathit{ref}}}}\right)}_{O_{3S}}$	1.011 × 10−2	Wm−2/TgNOx	[24]
${\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{E_{\mathit{ref}}}}\right)}_{H_{2}O}$	7.43 × 10−6	Wm−2/TgH2O	[23]
${\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{E_{\mathit{ref}}}}\right)}_{\mathit{soot}}$	5.0 × 10−1	Wm−2/Tgsoot	[23]
${\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{E_{\mathit{ref}}}}\right)}_{{\mathit{SO}}_4}$	−1.0 × 10−1	Wm−2/TgSO4	[23]
${\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{E_{\mathit{ref}}}}\right)}_{\mathit{cont}.}$	1.82 × 10−12	Wm−2/km	[24]

.

Long-Lived Species

Forcing agents CO₂, CH₄, and O_3L have much longer atmospheric lifetimes and cause RF for longer times after they are emitted, and this results in more complex RF modelling methods. To model the RF caused by CO₂ emissions, the change in CO₂ concentration, ΔC_CO2, in parts per million by volume, ppmv, caused by the aircraft is first computed using the impulse response function in Equations (25) and (26) as described in the work of Sausen and Schumann [48], the coefficients α_j and τ_j represent the different CO₂ concentrations per emission, α_j, and lifetimes, τ_j, at different modes, j, as listed in

Table 4. Coefficients for CO₂ concentration impulse response function [48].

j	1	2	3	4	5
αj (ppbv/TgCO2)	0.067	0.1135	0.152	0.097	0.041
τj (Years)	∞	313.8	79.8	18.8	1.7

, and E_CO2 represents the aircraft CO₂ emissions in Teragrams.

$${\Delta C}_{{CO}_2}\left(t\right)={\int }_{t_0}^t{G}_{{CO}_2}({\mathit{t-t}}^{\prime }) \times E_{{\mathit{CO}}_2}\left(t^{\prime }\right)\mathrm{d}{t}^{\prime }$$

(25)

$$G_{{\mathit{CO}}_2}\left(t\right)=\sum _{\mathrm{j}=1}^5{\alpha }_j\times {\mathrm{e}}^{{\displaystyle \frac{-t}{{\tau }_j}}}$$

(26)

Then, the RF caused by the change in atmospheric CO₂ concentration is computed using the Intergovernmental Panel on Climate Change (IPCC) simplified expression in Equation (27) [49], where C_total,_CO2 represents the total anthropogenic CO₂ concentration in the atmosphere from all sources. Historical and predicted future CO₂ concentration data were used based on the IS92a scenario [50].

$${\mathit{RF}}_{{\mathit{CO}}_2}\left(t\right)=5.35\ln {\displaystyle \frac{C_{\mathit{total}{, \mathit{CO}}_2}\left(t\right)}{C_{\mathit{total}{, \mathit{CO}}_2}\left(t\right)-\Delta C_{{\mathit{CO}}_2}\left(t\right)}}$$

(27)

Aircraft NO_x emissions result in the depletion of CH₄ and O_3L in the long term, which results in an RF that has a cooling effect on the climate system. The RF resulting from NO_x emissions is modelled with Equations (28) and (29) according to the work of Proesmans et al. [24]. The reference RF per emission and lifetime, τ, are represented in

Table 5. Reference RF per emission values and forcing agent’s lifetime [24].

Parameter	Value	Unit
${\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{E_{\mathit{ref}}}}\right)}_{{\mathit{CH}}_4}$	−5.16 × 10−4	Wm−2/TgNox
${\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{E_{\mathit{ref}}}}\right)}_{O_{3L}}$	−1.21 × 10−4	Wm−2/TgNox
τ	12	Years

.

$${\mathit{RF}}_i\left(t,h\right)=s_i\left(h\right)\times {\int }_{t_0}^t{G}_i\left(t-t^{\prime }\right)\times E_{{\mathit{NO}}_x}\left(t^{\prime }\right)\mathrm{d}{t}^{\prime } \mathrm{for} \mathrm{i}={\mathrm{CH}}_4, {\mathrm{O}}_{\mathrm{3}\mathrm{L}}$$

(28)

$$G_i\left(t\right)={\left({\displaystyle \frac{{\mathit{RF}}_{\mathit{ref}}}{E_{\mathit{ref}}}}\right)}_{\mathrm{i}}\times {\mathrm{e}}^{{\displaystyle \frac{-t}{\tau }}}$$

(29)

2.10.2. Global Surface Temperature Change

The RF caused by the different aircraft emissions and forcing agents results in a climate response in the form of ΔT. To model this ΔT, the normalized radiative forcing, RF*, for all radiative species is first computed according to Equation (30) [24]. The RF* refers to the RF caused by a species normalized by the RF that would cause a doubling in atmospheric CO₂ concentrations, RF_2XCO2, and the value used for this parameter is 3.70 Wm⁻² [51]. The efficacy, r, is calculated as the ratio of parameters of climate sensitivity of a forcing agent and CO₂, which are obtained from Global Climate Model simulation runs [52]. The efficacy values used in this study are given in

Table 6. Efficacies of different forcing agents [24].

Species	CO2	CH4	O3	H2O	Contrails	SO4	Soot
Efficacy	1	1.18	1.37	1.14	0.59	0.9	0.7

.

$${\mathit{RF}}^{*}\left(t\right)=\sum _{\mathrm{i}}^{\mathrm{all} \mathrm{species}}{\mathit{RF}}_i^{*}\left(t\right)=\sum _{\mathrm{i}}^{\mathrm{all} \mathrm{species}}\left[r_i\times {\displaystyle \frac{{\mathit{RF}}_i\left(t\right)}{{\mathit{RF}}_{{2\times \mathit{CO}}_2}}}\right] \mathrm{for} \mathrm{i}=\mathrm{all} \mathrm{species}$$

(30)

After computing the RF* for all species as the sum of each individual RF*, ΔT, in Kelvin is calculated using Equations (31) and (32), which make use of Green’s impulse response function, G_T, as described in the work of Sausen and Schumann [48]. The chosen time horizon for this study is 77 years from 2023 until 2100, which will facilitate the visualization of the differences between long and short-term forcing agents.

$$\Delta T\left(t\right)={\int }_{t_0}^t{G}_T(t-t^{\prime }) \times {\mathit{RF}}^{*}\left(t^{\prime }\right)\mathrm{d}{t}^{\prime }$$

(31)

$$G_T\left(t\right)={\displaystyle \frac{2.246}{36.8}}{\mathrm{e}}^{{\displaystyle \frac{-t}{36.8}}}$$

(32)

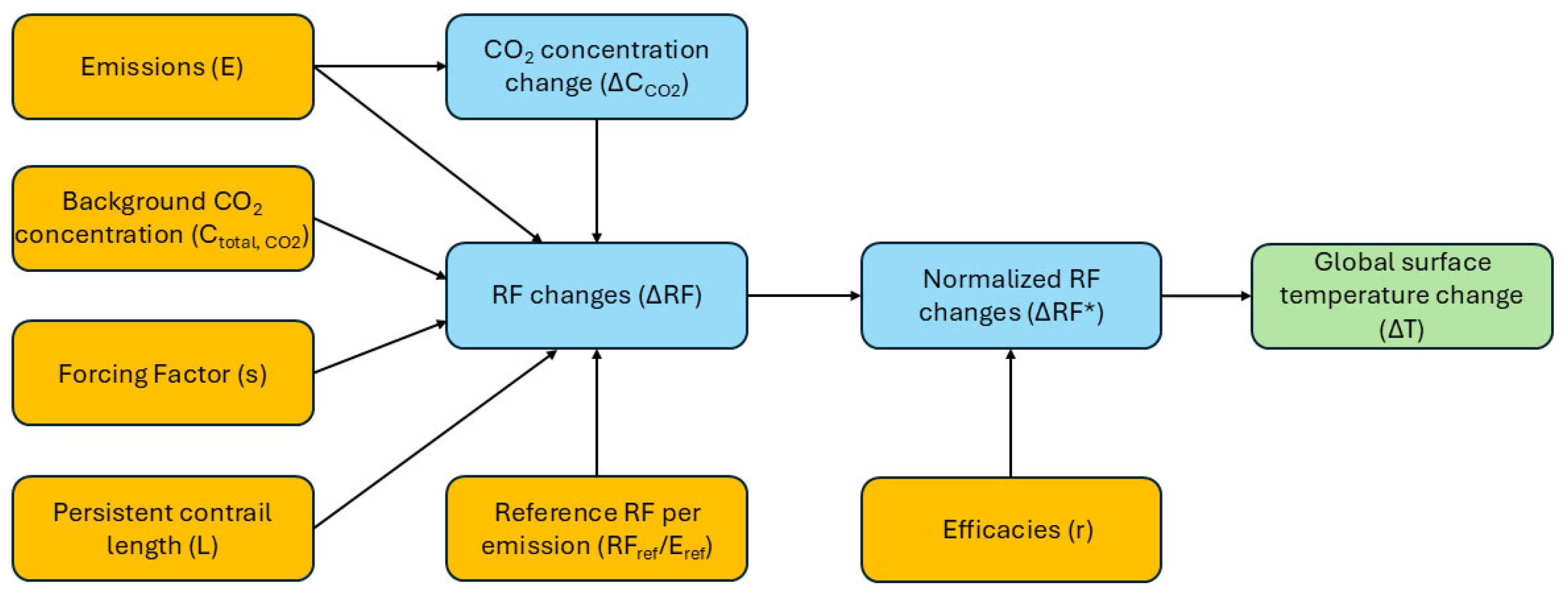

Figure 9 provides a general overview of the methodology applied to evaluate the ΔT, where the main inputs are represented in orange, the calculations performed using the LTR model are represented in blue, and the output is represented in green.

2.11. Modelling Limitations and Uncertainties

There are several limitations when it comes to modelling non-fuel proportional emissions. One of the main ones is the presence of only four ICAO data points, which limits the accuracy of the curve fits that can be produced and introduces uncertainties due to interpolation between each adjacent point. Another one is that all these methods do not account for fuel composition, where these methods will not provide accurate results if investigating alternative fuels for the same engine. Combustor design changes also provide limitations to the P3T3 models, where the pressure and FAR exponents are derived for engine–combustor-specific combinations only [16]. The LTR model used in this study computes the ΔT caused by globally averaged radiative forcing from each species, which can affect short-lived responses like O_3S that only affect the atmosphere in the regions where they are emitted, unlike CO₂, which is well-mixed in the atmosphere and varies temperature globally. This model also does not directly include the effects of soot and other aerosols on the formation of contrails or their cloud interactions, since the SAC applied in this study only considers the thresholds for contrail formation using meteorological data. Furthermore, the SAC provides a binary output for persistent contrail formation, without which means certain properties of persistent contrails such as their actual lifetime and optical and geometrical properties are not taken into consideration. Other effects were also not accounted for in the model like the reduction in SWV due to methane reduction in the atmosphere, or the effects of aircraft-induced cirrus, which may lead to RF values greater than CO₂ but with a large uncertainty still associated which requires further research. The cooling effects of contrails depending on the time of day were also not accounted for in this model [6]. There are also large uncertainties present within the parameters used in the LTR model such as the reference RF per emission values and the efficacies since they are best estimates [23,24,51]. This opens the door for future work where uncertainty analysis studies can be conducted by applying Monte Carlo simulation within each sub-model. The rigorous approach applied in this study with validated input data and modelling methods serves to minimize the effects of uncertainty as much as possible.

3. Results and Discussion

3.1. NO_x Emission Indices

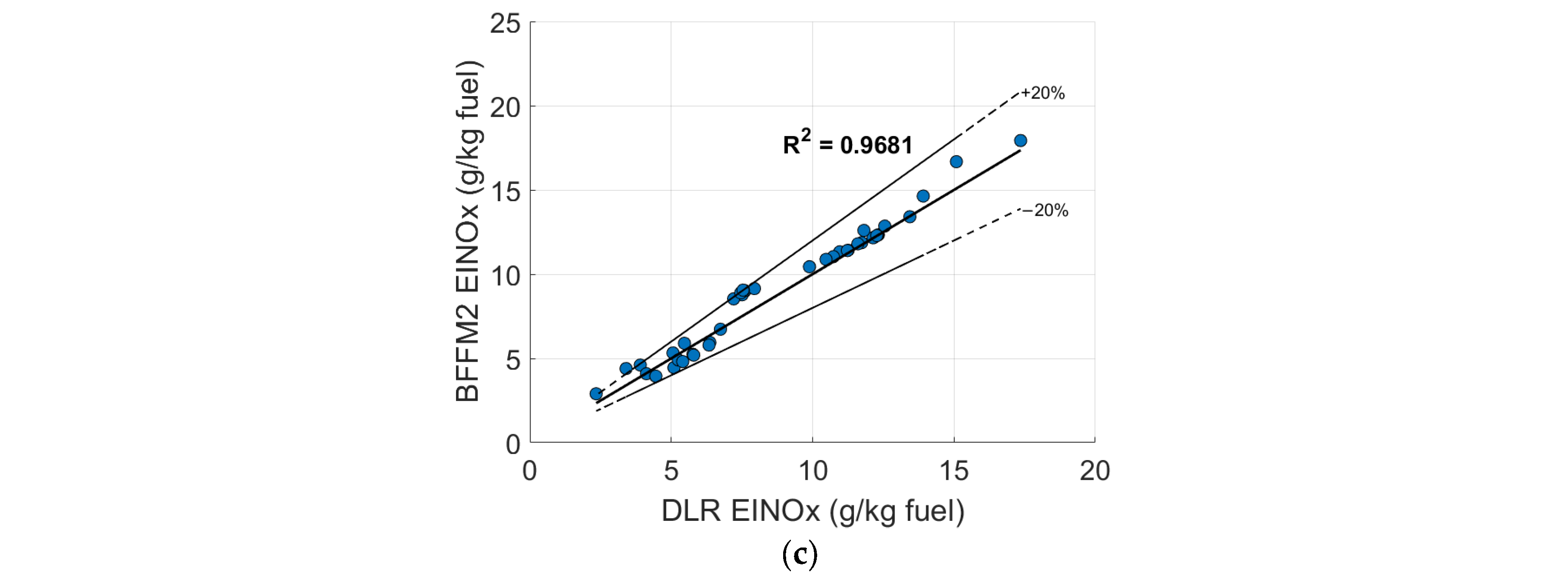

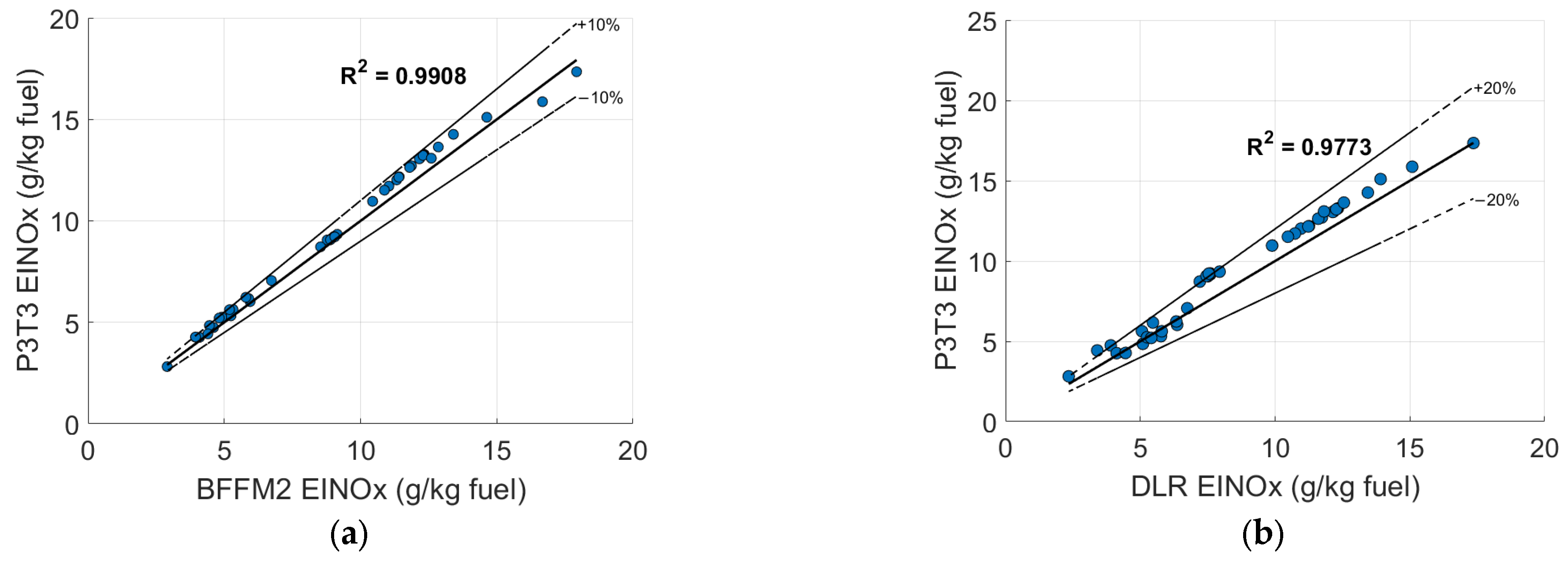

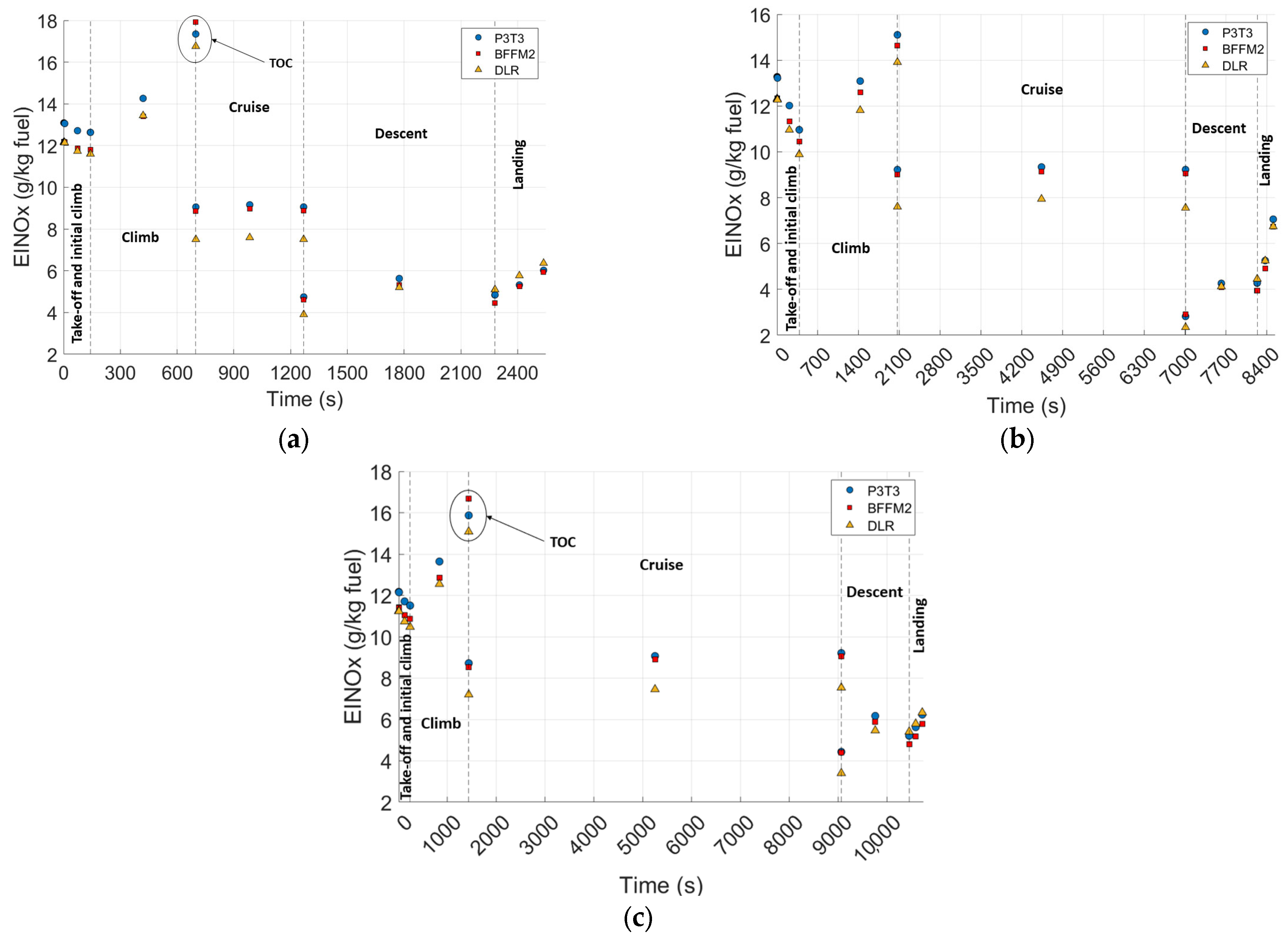

The NO_x emissions indices for the three flights modelled using the three different correlation methods are presented in Figure 10. The EINO_x was modelled along the three different flight paths for the different flight segments. In the take-off and initial climb segment, the lowest average EINO_x is observed for flight 3. This is attributed to lower take-off thrust, which leads to lower fuel flows and combustor temperatures and pressures. The EINO_x sees significant increases in the climb segments for all three flights of approximately 27–31%, where it reaches its maximum point at the TOC segment for all three flights. The high thrusts required at this segment due to differences in drag and the lower ambient temperatures and pressures at higher altitudes result in this increased EINO_x. When the aircrafts reach cruise altitudes, the EINO_x experiences a significant drop of 39–55% due to the drop in thrusts and fuel flows, and these parameters have negligible variations in the cruise segment, which leads to fairly constant EINO_x values. The EINO_x reaches its minimum value for all three flights in the descent and landing segments, where the engine usually reaches idle power settings, resulting in the lowest thrusts and fuel flow along the flight path. The trends between the EINO_x values of the three different methods are consistent along the majority of the flight path, where the P3T3 method always produces the highest EINO_x values and the DLR method produces the lowest. The only exceptions are seen in the descent and landing segments of all three flights and the TOC point of flights 1 and 3. This is a result of the engine requiring very high thrusts or reaching idle conditions, which results in very high or low fuel flows and combustor temperatures and pressures that lead to inconsistencies due to reference parameters being extrapolated from SLS curve fits, which is why extra care should be taken when estimating emissions in those segments.

It is also noteworthy to point out that the P3T3 method and the BFFM2 show better agreement between the EINO_x values than with DLR values along the majority of the paths of all three flights. To further confirm this, the relative errors between all three methods were quantified for the modelled EINO_x of the flights as shown in Figure 11. All the EINO_x values for the P3T3 and BFFM2 show errors of less than ±10% between them which falls between the error bands suggested in the literature [26], while the values between these methods and the DLR method mostly fall between ±20% error bands.

3.2. Soot Emission Indices

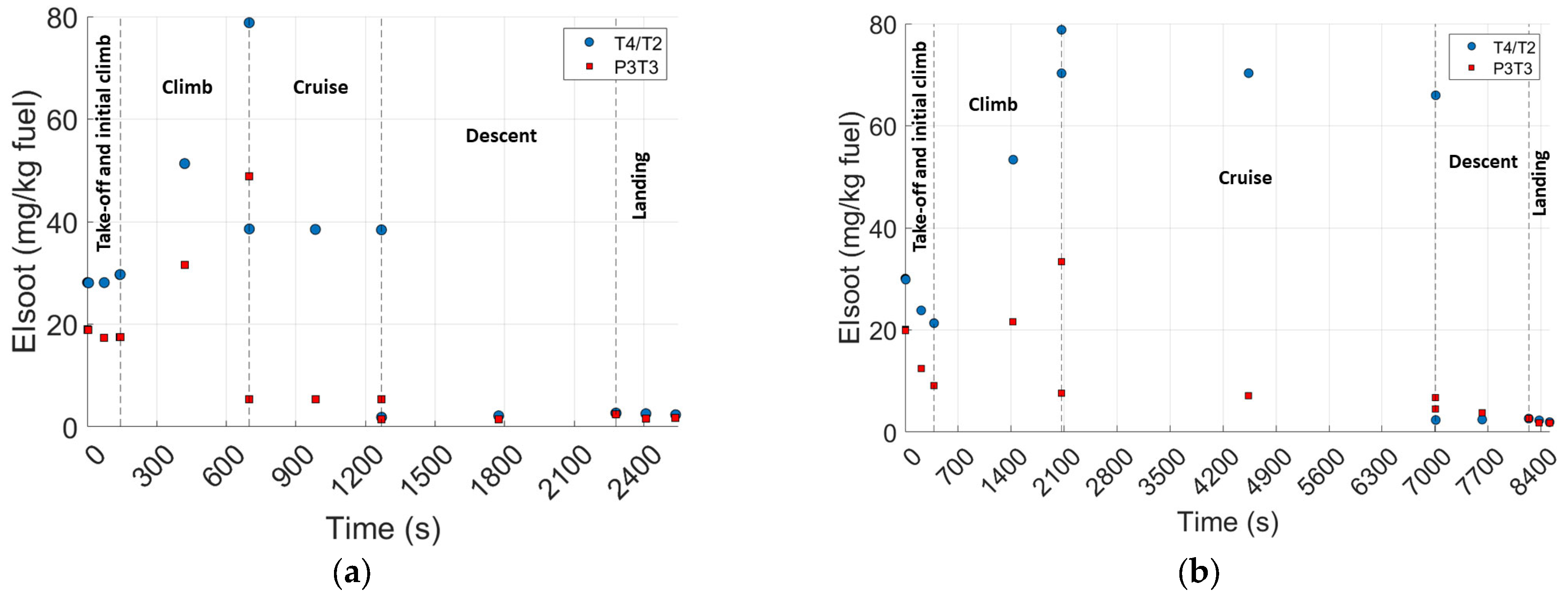

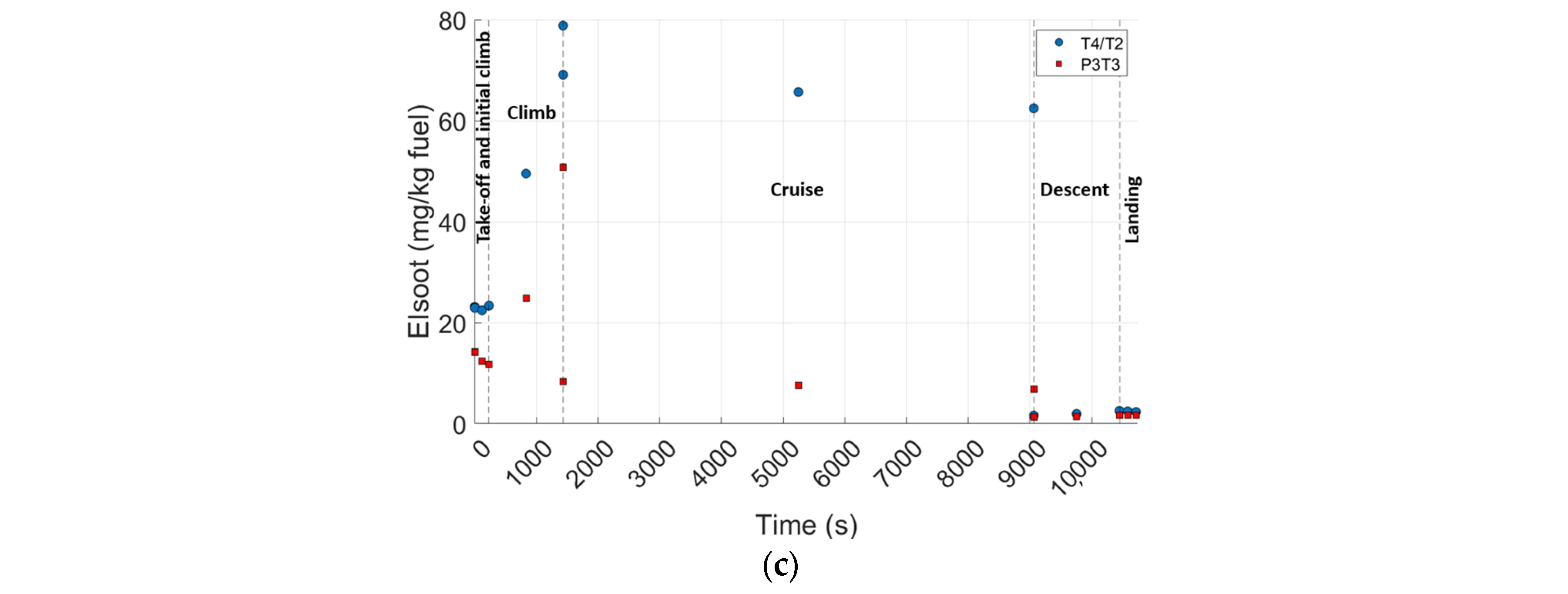

The soot emissions indices for the three Ryanair flights modelled using the three different correlation methods are presented in Figure 12. The EIsoot values show similar trends to the EINO_x along the paths of the three flights, where the lowest average EIsoot values for the take-off and initial climb segment were observed for flight 3. The EIsoot values also similarly keep increasing in the climb segment till they reach a maximum at the TOC section of the flight due to the high thrust requirements, where the P3T3 EIsoot for all flights then drops significantly; however, the T4/T2 EIsoot value remains higher for flights 2 and 3, but they both see very slight variations during the cruise segment. The EIsoot values finally reach their minimum values at the descent and approach segments due to idle engine settings. The differences between the results of the two modelling methods, however, are very significant where the values reach errors of about 90%. The errors appear to be smaller in the descent and approach segments; however, this is due to minimum reference EIsoot values taken from SLS curve fits to avoid extrapolation, which results in negative EIsoot values. These massive errors present the difficulty of modelling soot emissions for different engines, which further confirms the need for more accurate soot modelling methods to mitigate the uncertainties in emission and climate modelling studies.

3.3. Total Flight Emissions

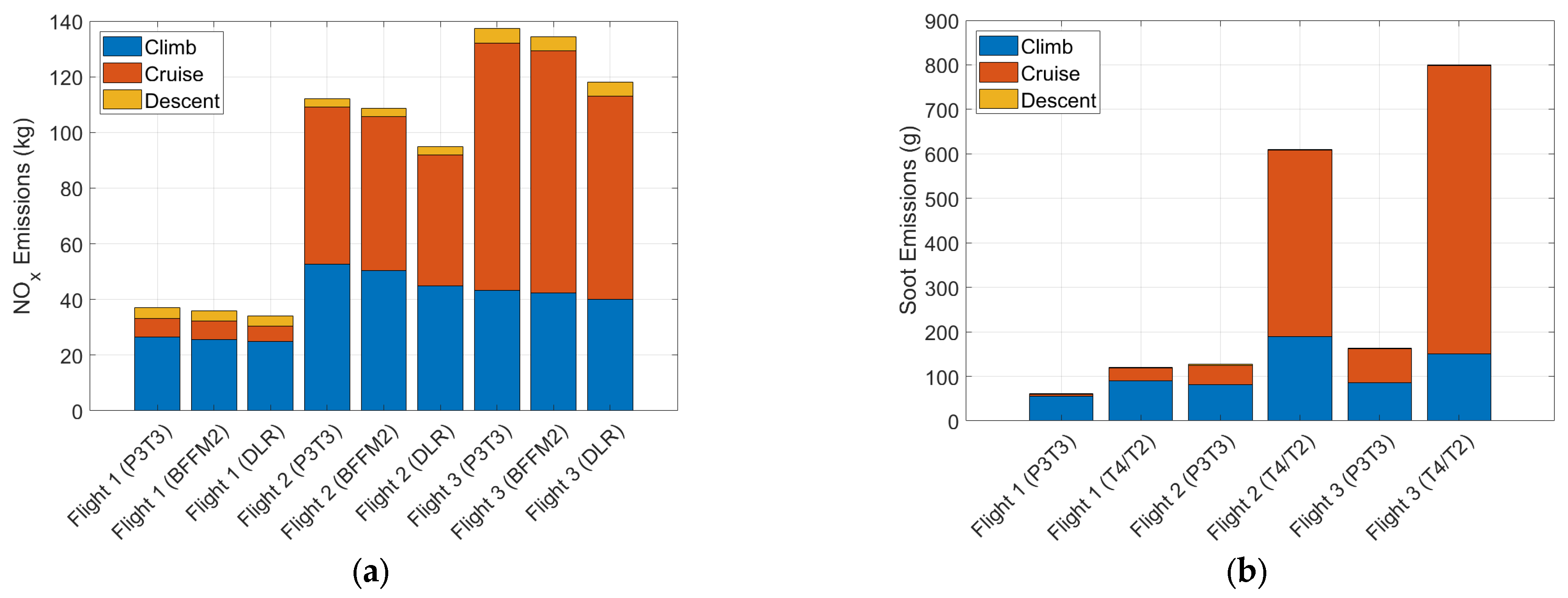

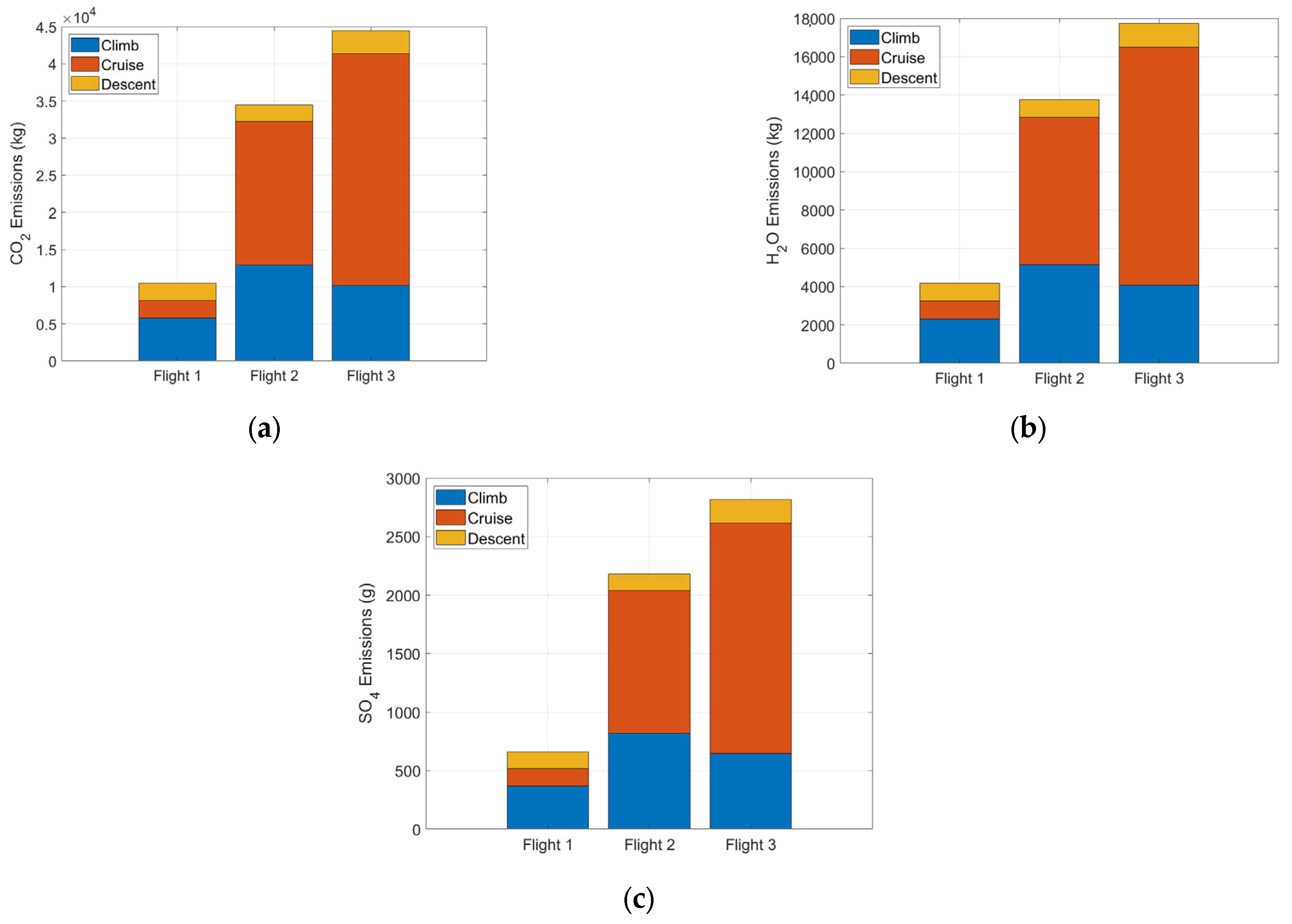

The modelled total fuel-proportional emissions are illustrated in Figure 13, while the modelled non-fuel-proportional emissions using the different correlation methods are shown in Figure 14. The climb emissions illustrated in the figures include the takeoff and initial climb segments, while the descent emissions include the landing segment. As anticipated, flight 3 produces the highest quantity of emissions, since it is the flight with the longest range, while flight 1 emits the least quantity of pollutants. The fuel-proportionality aspect can be seen in the CO₂, H₂O, and SO₄ emissions, where the same percentage of emissions for one pollutant can be seen in the same flight segments. This is different for NO_x and soot emissions, which are not only dependent on fuel burn but also internal engine parameters and ambient conditions. The climb segments for all three flights show significantly higher fuel burn rates than the cruise segments, where the cruise fuel burn rates are 51.5%, 37.2%, and 56.4% less than their corresponding cruise segments for flights 1, 2, and 3, respectively. This shows that the emissions rate at the climb segment will also be higher at climb than at cruise; however, flights 2 and 3 spend significantly more time at cruise altitudes than in the climb segment, which leads to more fuel being burned at cruise, and, hence, a higher total amount of emissions, where the cruise segments of flights 2 and 3 represent 56% and 70% of the total amount of emissions produced. However, that is not the case for flight 1: since it is a short-haul flight lasting less than an hour, the time spent on cruise is much shorter, where, in this case, it is almost the same amount of time at climb, where the emissions rate is much higher, resulting in more emissions associated with the climb segment, which accounts for 55.2% of the total emissions produced compared to the cruise segment’s 22.2%. The descent emissions are the lowest for all three flights due to the low emissions rate at descent, where the engine is usually at idle settings and the small fraction of time spent there compared to other segments. The importance of characterizing the emissions based on flight segments comes from the effect of emissions at various altitudes on climate impact, where emissions at cruise altitudes will have the highest adverse climate impacts and aircraft at cruise altitudes usually produce the highest amounts of cumulative emissions even though the rate of emissions there is much lower than the climb segment.

Similarly, for the non-fuel-proportional emissions, the EINO_x and EIsoot are significantly higher at the climb segment than at cruise; however, the emissions for flights 2 and 3 at cruise are much higher due to the amount of time spent in the mode. The P3T3 soot method, however, shows that all three flights’ climb emissions are the highest, and this is attributed to the very low EIsoot modelled in the cruise segments. The modelled total NO_x emissions using the three correlation methods shown in Figure 14 justify that the three modelling methods used can accurately predict NO_x emissions and with good agreement, with the lowest errors seen between the NO_x P3T3 method and the BFFM2.

3.4. Contrail Formation

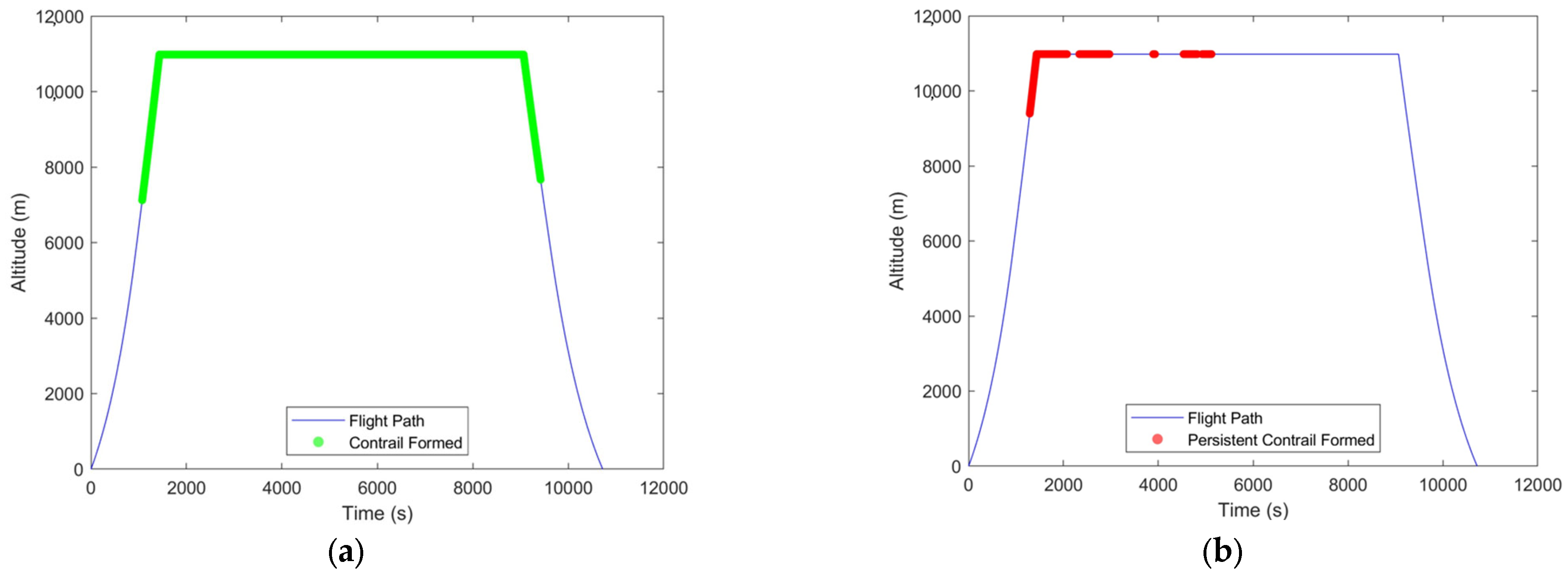

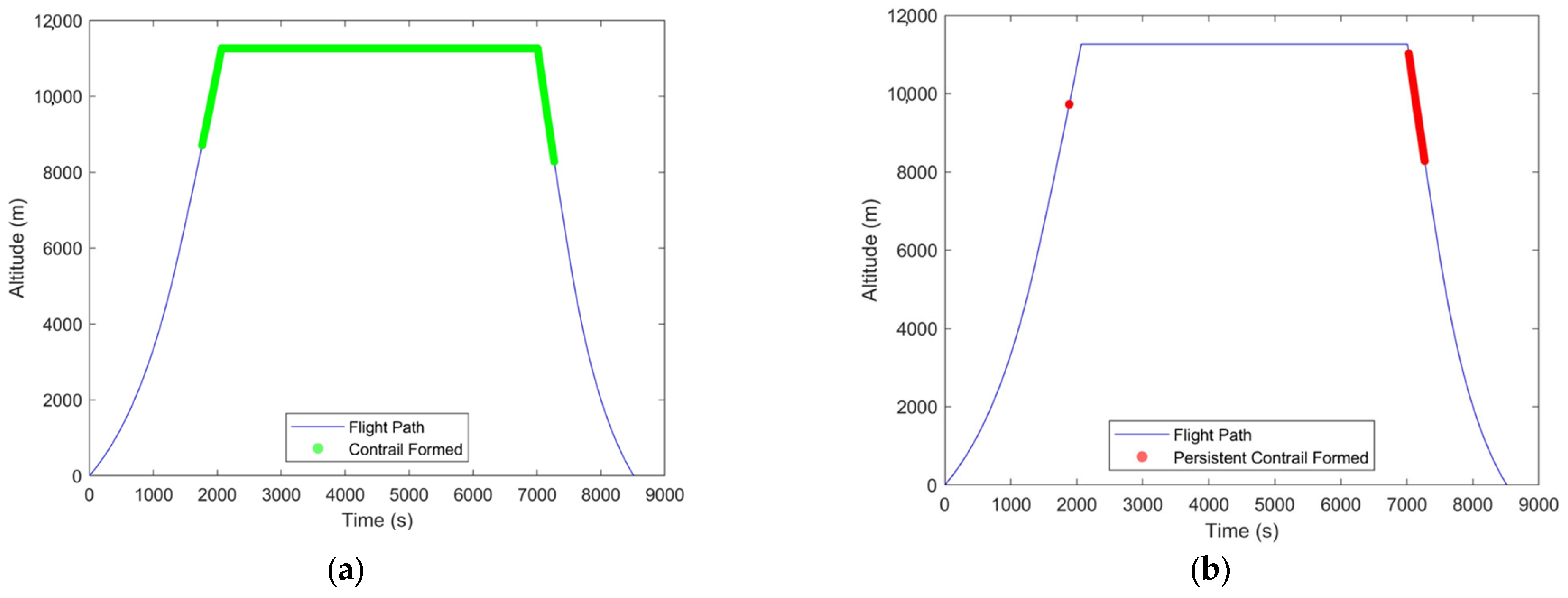

To study the effects of aircraft-induced contrails on the climate impact, the contrail formation model described in Section 2.9 was used to predict the points where contrails will form along a flight path. Figure 15 shows the formation of contrails due to flight 2 and Figure 16 for flight 3. The results show that both flights were flying through conditions that satisfy the SAC throughout the whole cruise segment and parts of the climb and descent segments. These contrail forming conditions are mostly found at higher altitudes where the ambient temperature is cold enough.

The results also show the formation of persistent contrails by flights 2 and 3, which come as a result of flying through ISSRs. Flight 2 travelled through most ISSRs at altitudes of 8000–11,000 m, whereas flight 3 travelled through ISSRs at altitudes of about 9500–11,000 m, where contrails can have significant climate impacts due to the high forcing factors at those altitudes. Flight 2 produced a total persistent contrail length of 52.3 km (Climb = 1.3%, Descent = 98.7%), while flight 3 produced a total persistent contrail length of 445.6 km (Climb = 7.3%, Cruise = 92.7%). The results show the unpredictability of ISSRs at high altitudes, and since there is no straightforward method to predict where they occur, applying aircraft re-routing measures to mitigate contrail formation by avoiding ISSRs with any degree of confidence may prove to be very challenging at the moment. Flight 1 did not result in any contrail formation points, this could be attributed to the low cruise altitude of about 8000 m of the aircraft, where warmer temperatures at those altitudes make contrail formation less likely. This is where trade-off studies for reducing aviation’s full climate impact by flying lower to mitigate contrail formation are key.

3.5. Climate Impact

3.5.1. Full Climate Impact

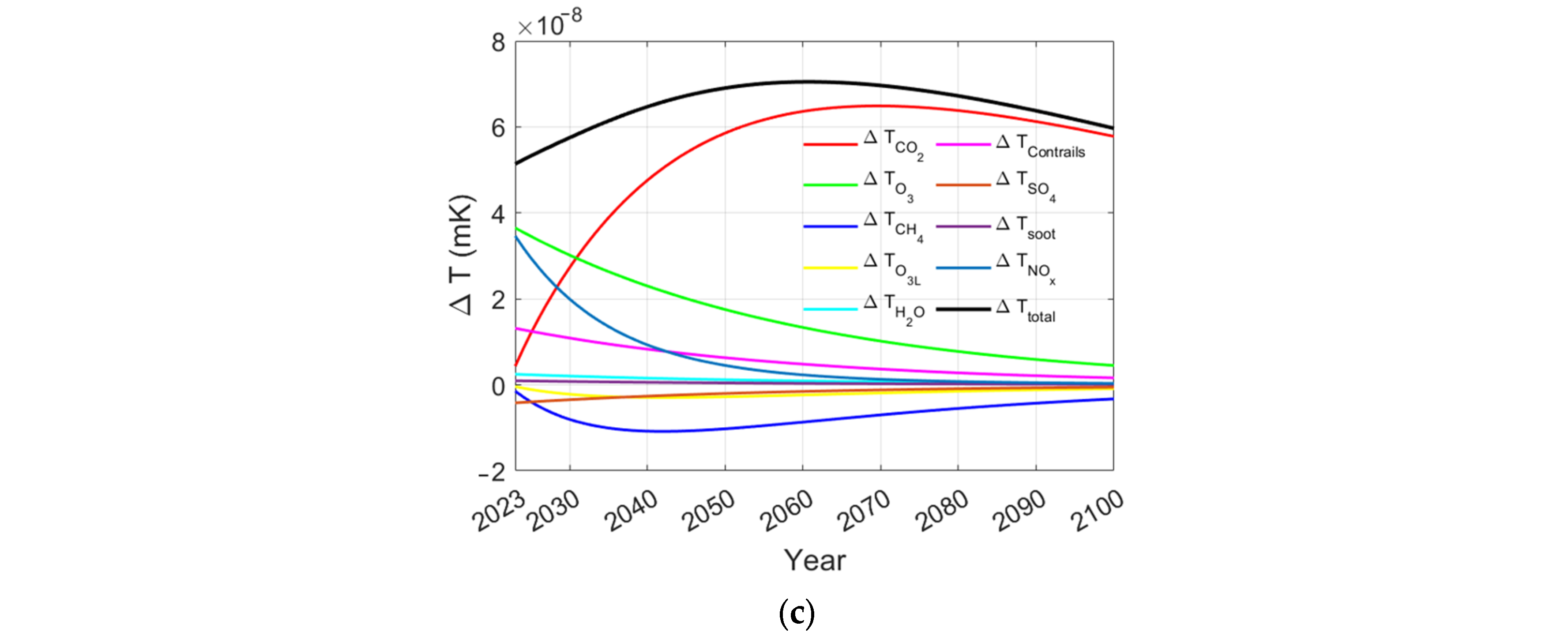

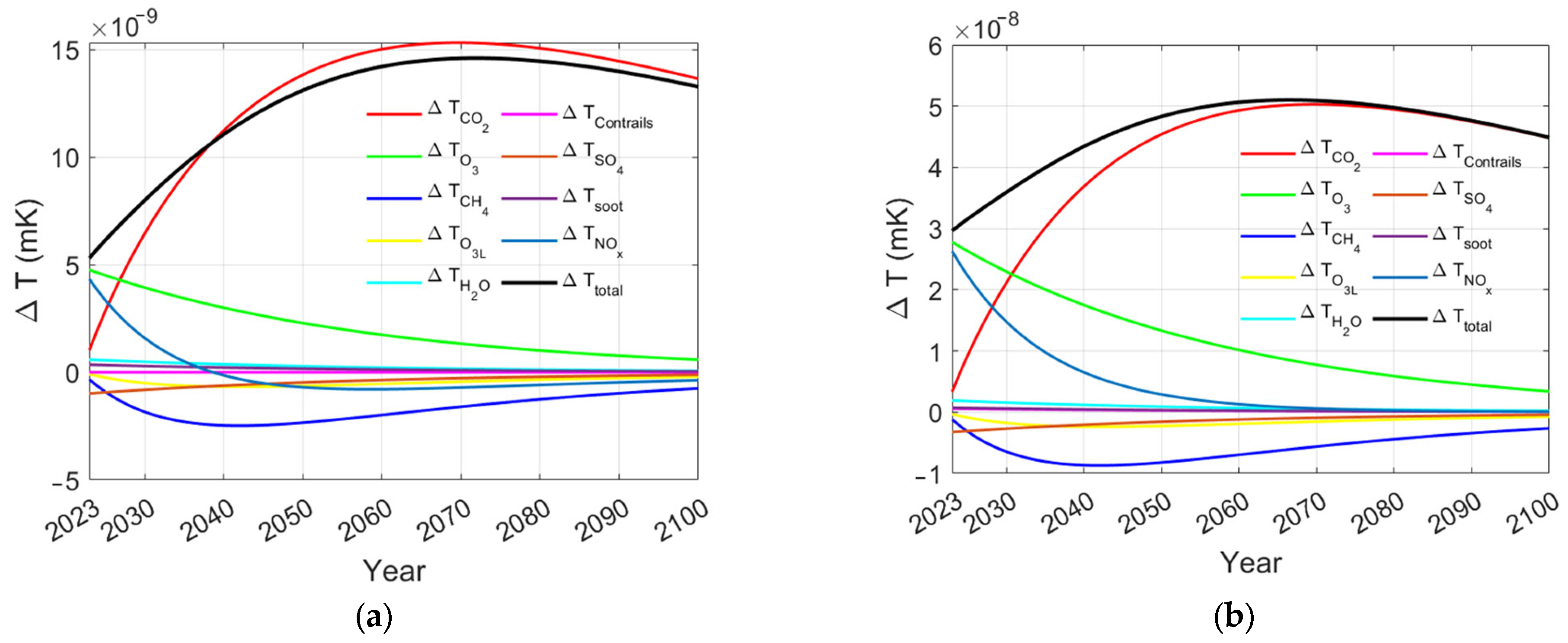

This section describes the results of the LTR model applied to evaluate the impact of the three flights resulting from the engine exhaust emissions and contrails on climate change. The climate impact of the NO_x and soot emissions in this section was evaluated using the P3T3 model emissions, while the climate impact of contrails was evaluated using only the persistent contrail lengths. Figure 17 illustrates the surface temperature change caused by the three flights. The chosen time horizon of 2023 to 2100 allows the effects of long-lived climate forcers vs. short-lived ones to be captured, where 2023 is considered the year of the flight’s emissions. The forcing agent resulting in the biggest ΔT in the year of emissions is the short-term ozone, O_3S, where the ΔT caused by CO₂ emissions is negligible when compared to it, and even H₂O and soot emissions can be compared to the ΔT caused by CO₂ emissions in 2023. Linear contrails also cause slight changes in RF that raise the surface temperature in the year of emissions. On the other side, SO₄ aerosols, CH₄, and O_3L result in negative RFs which cause a cooling effect that reduces surface temperature slightly in the year of emissions. The NO_x induced ΔT is the net resultant ΔT caused due to RF changes by forcing agents CH₄, O_3L, and O_3S, where the NO_x-induced ΔT, being slightly lower than the O_3S, is attributed to the negative forcings caused by methane and ozone. When looking on a longer time scale, however, the ΔT caused by short-lived forcing agents are always at their maximum values at the year of emissions (2023), unlike long-lived climate forcers with much longer atmosphere lifetimes, CO₂, CH₄, and O_3L, which have caused rising in the ΔT for several years since 2023. Moreover, by the end of the time horizon, the CO₂ emissions almost become the sole factor for ΔT.

Flight 1 clearly shows the lowest impact on ΔT with about one order of magnitude less than the other two flights. This can be attributed to its lower emissions, lower fuel burn, absence of contrail formation, and lower flight altitude, where forcing factors can be lower. Flights 2 and 3 show very similar trends, where the major difference is found in the ΔT caused by contrails. Flight 3 travelled much larger distances where contrails were formed, and most of its persistent contrails were formed at a cruise altitude of 11,000 m, leading to the highest forcing factors.

3.5.2. Global Surface Temperature Change Sensitivity to NO_x Modelling Methods

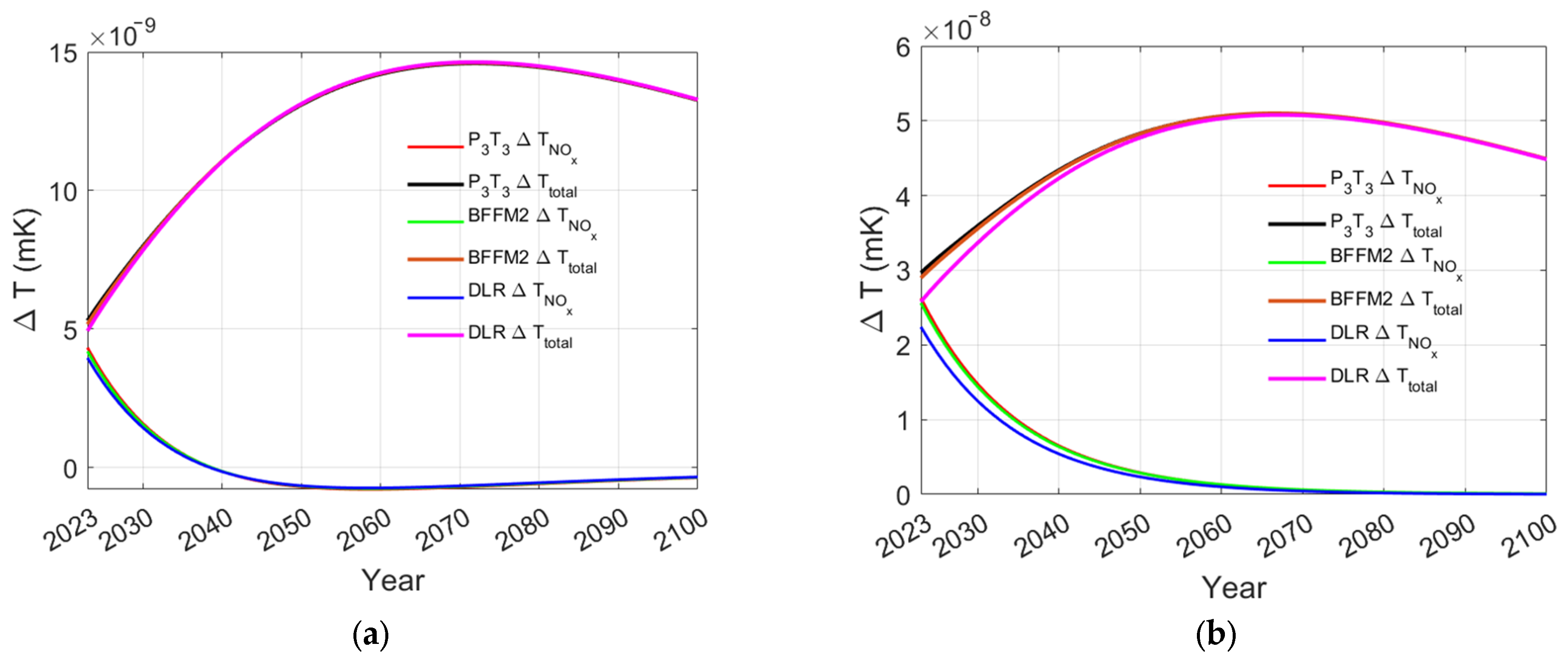

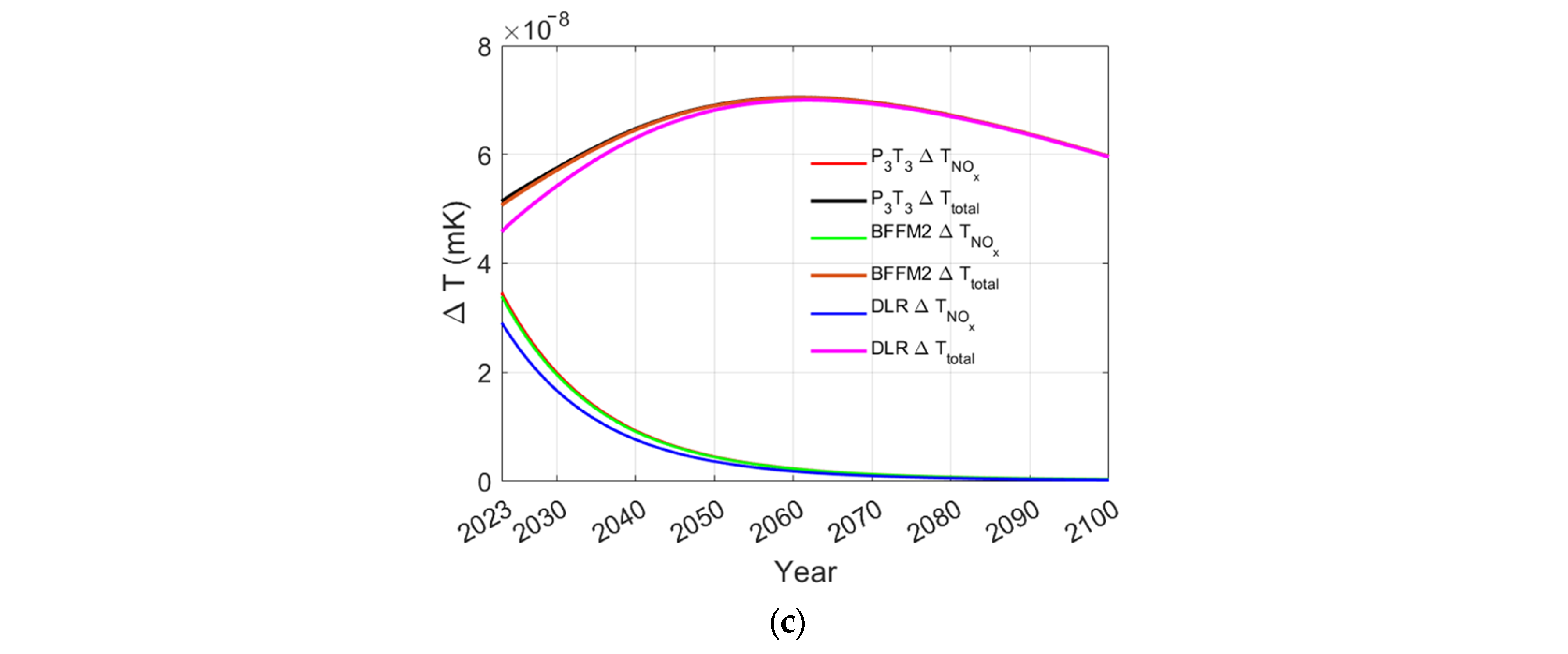

Figure 18 shows sensitivities of the NO_x-induced and total ΔT to the different NOx modelling methods. For flight 1, the three methods show very good agreement due to the flight having the least error for NO_x modelled using different methods. For flights 2 and 3, the P3T3 method and BFFM2 show very good agreement, and the largest error was observed at the year of emission for flight 2 of approximately 13% between the P3T3 and DLR methods. This shows that the different NO_x modelling methods can be used to accurately predict ΔT with minimal relative errors.

3.5.3. Global Surface Temperature Change Sensitivity to Soot Modelling Methods

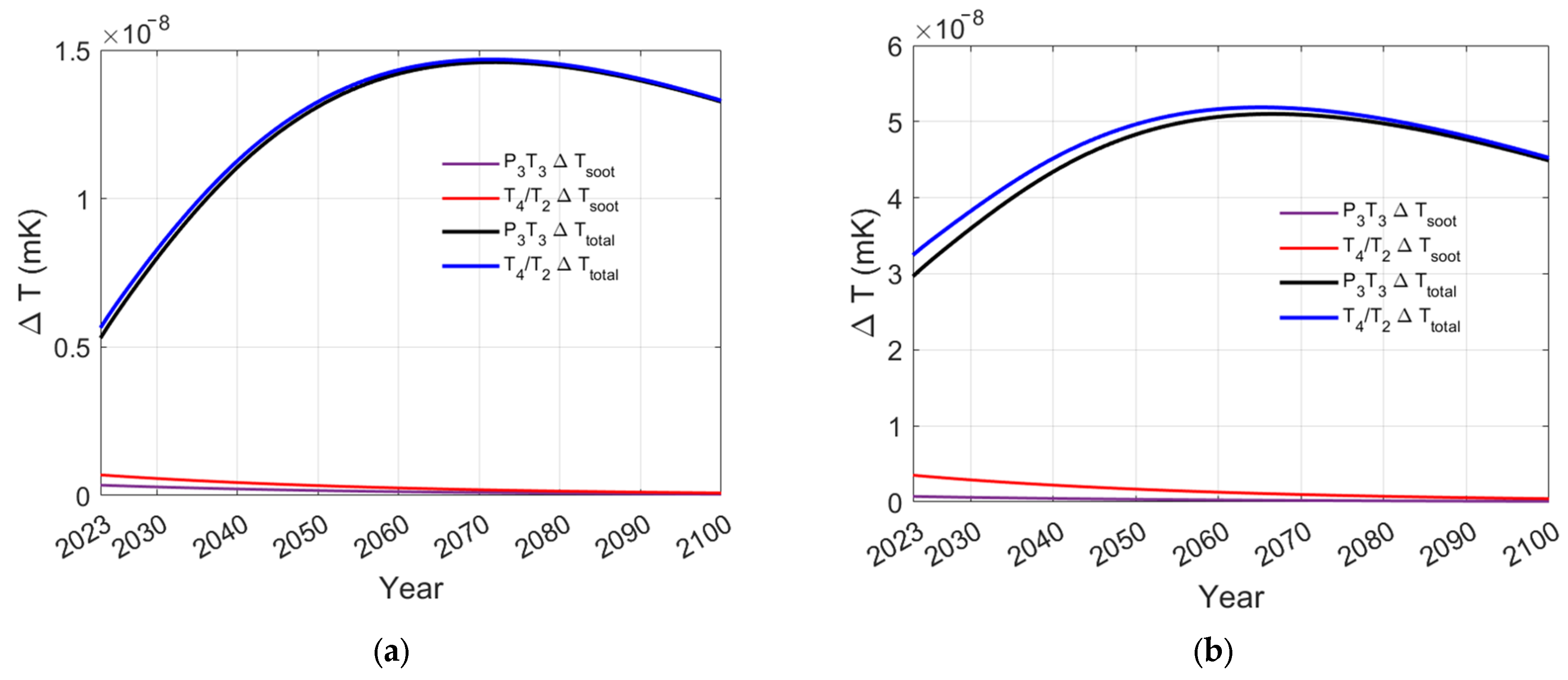

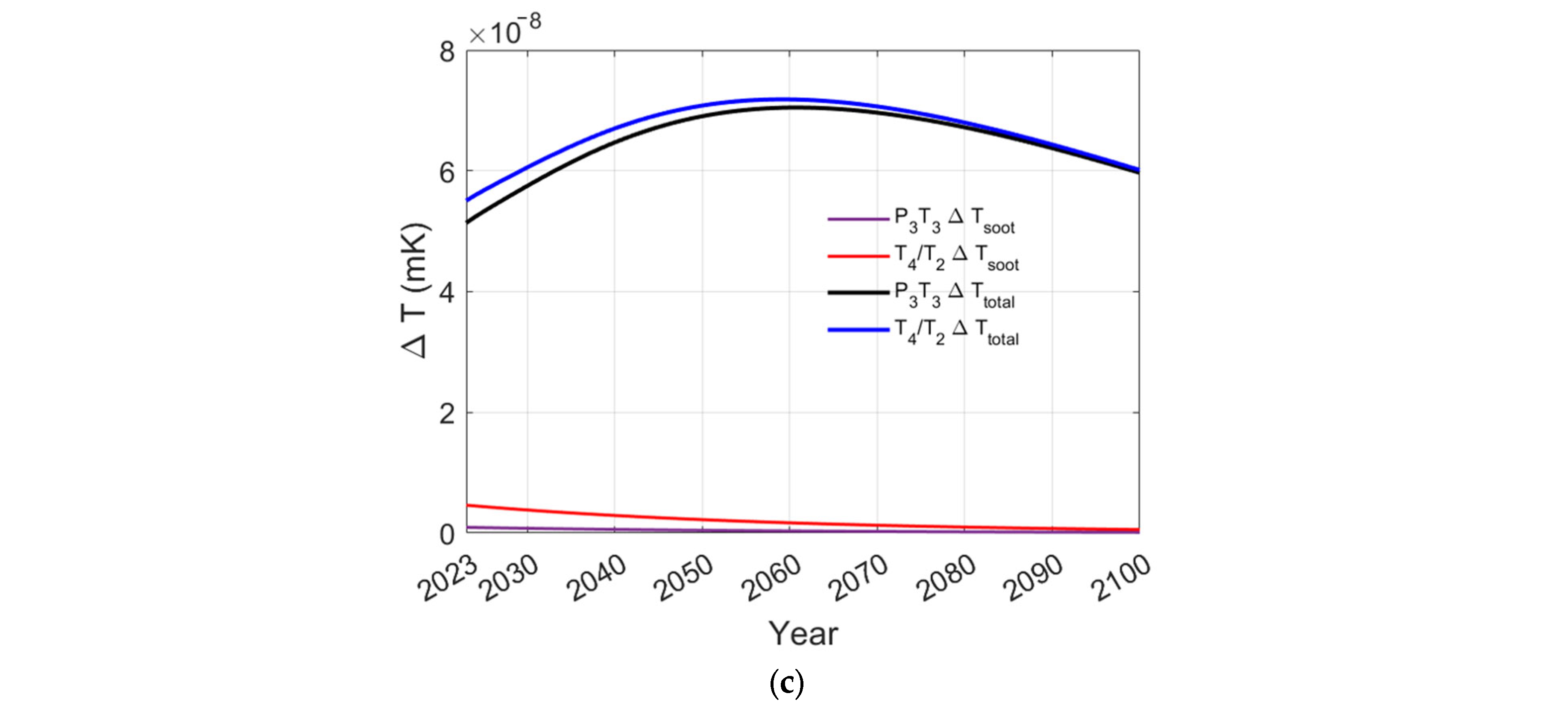

Figure 19 illustrates the sensitivities of soot-induced and total ΔT to the different soot modelling methods. Flight 1 shows good agreement for the ΔT using both methods with relative errors of approximately 8% between the two methods, where this can be attributed to the flight having the least difference in modelled emissions between the two methods. Flights 2 and 3 see a slight increase in differences where the highest relative error for ΔT is observed at the year of emissions for flight 3 with approximately 14.2%. This shows that even with the very high relative errors of modelled EIsoot seen in Figure 10 reaching 80%, its effect on ΔT is not as large, where the relative errors are almost similar to the NO_x-induced ΔT relative errors.

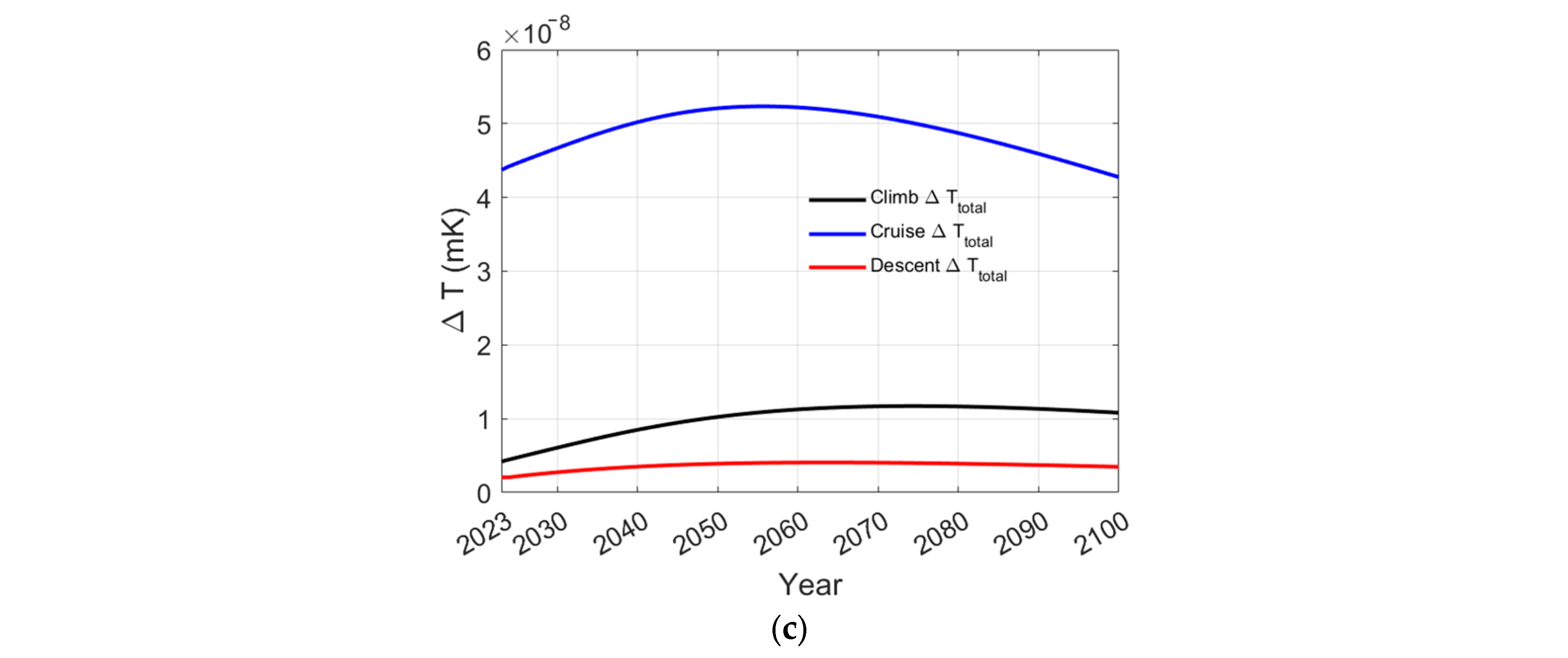

3.5.4. Global Surface Temperature Change Sensitivity to Flight-Segment

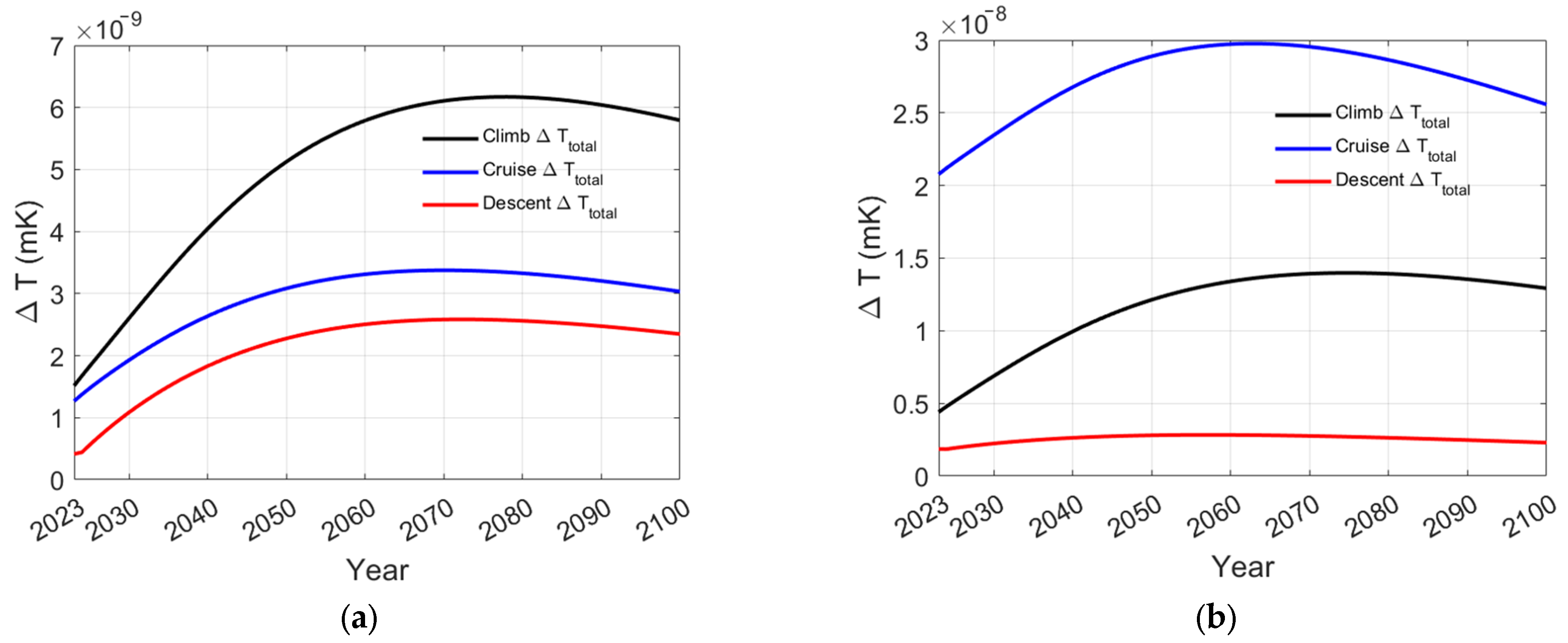

The importance of flight segments was highlighted in the emissions modelling results; therefore, the climate impact of different flight segments for the three flights was analyzed in Figure 20. All three flights share the common factor, where decent segments result in the lowest ΔT due to the engine being at idle conditions, resulting in lower fuel burn and emission indices. Flight 1 shows that the climb segment causes higher ΔT than cruise due to the segment accounting for 55.2% of the total fuel consumption, which led to a higher emissions rate and higher total emissions. At the year of emissions for flight 1, the ΔT of climb and cruise are significantly close, and this can be attributed to the low forcing caused by non-CO₂ emissions due to the aircraft flying at lower altitudes; however, the significant increase in the climb segment ΔT to 6 × 10⁻⁹ mK by 2070 is due to the higher percentage of CO₂ emissions produced within that segment and the very long atmospheric lifetime of CO₂.

Flights 2 and 3 show very similar trends, where the cruise segment has the highest ΔT due to it accounting for 56% and 70% of the total fuel consumption for flights 2 and 3, respectively, leading to higher total emissions, where flight 3 is the longest in range, meaning it spends more time at the cruise segment than flight 2, resulting in higher ΔT. The climb segment climate impact at the year of emissions for flights 2 and 3 is very similar; this can be attributed to the higher climb total emissions contributed by flight 2, which causes similar ΔT to flight 3, which produces fewer total emissions but more persistent contrails within that segment. The higher total climb emissions for flight 2 also result in greater ΔT decades later due to the impact of CO₂. This shows that different segments cause different climate impacts depending on the flight, where more research is required to focus on reducing emissions for different segments depending on the flight range. The difference in results of the three flights and the different flight segments highlights the value of evaluating the climate impact on a per-flight or per-flight-segment basis instead of on an averaged global or fleetwide basis, which misses a lot of the important details.

4. Conclusions

This study presented a rigorous approach to evaluating the full climate impact of real-world flights with varying routes and ranges in terms of global surface temperature change through the application of validated aircraft and engine performance models, different emission modelling methods, a contrail formation model, and an LTR model. The results of this study show that:

• The short-term ΔT was dominated by ozone formation, where the effects of CO₂ and other emissions are almost negligible. The long-term ΔT is dominated by CO₂ accumulation, and the CH₄ and O_3L depletion in the atmosphere also showed long-term cooling effects.
• The short-range flight climb segment had a more significant effect on ΔT than cruise due to the higher total emissions there, while the cruise segment for the mid and long-range flights had a higher effect on ΔT due to having the highest total emissions at cruise.
• The NO_x P3T3 and BFFM2 showed the best agreement with all EINO_x values falling between error bands of ±10% while the soot P3T3 and T4/T2 methods resulted in very large relative errors of up to 80%. This showed the difficulty associated with modelling soot emissions for different engines and the need for further research to accurately evaluate aviation soot emissions.
• Persistent contrails were absent for the short-range flight due to the low cruise altitude. The mid and long-range flights formed persistent contrails at altitudes of 8000–11,000 m at random points along the mission profile. The random nature of ISSRs highlights the challenges faced with reducing aviation contrails by aircraft re-routing or flying at lower altitudes.
• The NO_x modelling method’s effect on ΔT showed relative differences of up to 13%, while the soot modelling method showed relative differences of up to 14%. This highlights the fact that different emissions modelling methods can produce fairly accurate climate impact results and that the massive relative errors between EIsoot values are not as significant when evaluating the climate impact of aviation.

The findings of this study emphasize the need to communicate the effects of non-CO₂ effects which are often overlooked by policymakers and the general public to ensure their consideration of emission reduction strategies since reducing these effects can have an immediate positive impact on the climate. Furthermore, the framework and findings presented in this paper can act as a key enabler for future research in areas such as aircraft design, alternative fuel use, flight path optimization, etc., and they support the development of energy-efficient technologies in aviation that can optimize energy usage across flight operations and reduce emissions.

In terms of future work to improve upon the framework applied in this study, developing emission models that consider fuel composition and different combustor designs would prove to be useful for aircraft design and alternative fuel climate impact studies. Additionally, further research for more accurate soot modelling methods is essential, where engine-specific empirical models would be useful. Regarding the climate impact assessment methodology, implementing certain novel aspects such as a regional variation would be useful to account for the short-term effects more accurately since they are not as well-mixed in the atmosphere as CO₂. Other climate effects that can be implemented into the modelling chain are the effects of soot number emissions on the formation of contrails and their interaction with clouds, the effects of aircraft-induced cirrus, the cooling effects of the reduction in SWV due to the depletion of CH₄, and the different effects of contrails during different times of day. Incorporating all these additional aspects into the evaluation of the ΔT will allow for a more accurate characterization of aviation’s full climate impact.
