McArdle Disease: Clinical, Biochemical, Histological and Molecular Genetic Analysis of 60 Patients
1
Department of Neurology, Martin-Luther-University Halle-Wittenberg, 06120 Halle (Saale), Germany
2
Department of Neurology, School of Medicine, Technical University Munich, 81675 Munich, Germany
*
Author to whom correspondence should be addressed.
Biomedicines 2020, 8(2), 33; https://doi.org/10.3390/biomedicines8020033
Submission received: 16 December 2019
/
Revised: 11 February 2020
/
Accepted: 12 February 2020
/
Published: 15 February 2020
(This article belongs to the Section Gene and Cell Therapy)
Abstract
:A clinical, biochemical, histological and molecular genetic analysis of 60 McArdle patients (33 males and 27 females; mean age at diagnosis: 37 years) was performed. The objective of this study was to identify a possible genotype–phenotype correlation in McArdle disease. All patients complained of exercise-induced myalgia and fatigue; permanent weakness was present in 47% of the patients. Five percent of patients conveyed of masticatory muscle weakness. Age of onset was <15 years in 92% patients. Serum creatine kinase was elevated 5 to13-fold. Forearm ischemic test showed decreased lactate production but excessively increased ammonia upon exercise (n = 16). Muscle biopsies revealed highly reduced or missing myophosphorylase activity (n = 20) (mean: 0.17 ± 0.35 U/g tissue; normal: 12–61) and histologically, sub-sarcolemmal glycogen accumulation (n = 9). Molecular genetic analysis revealed the common p.Arg50Ter mutation in 68% of the patients. Other rather frequent mutations were p.Arg270Ter (allele frequency: 5%) followed by c.2262delA and p.Met1Val (allele frequencies: 3%). Twenty-four other rare mutations were also identified. No genotype–phenotype correlation was observed. The analysis highlights that testing of the p.Arg50Ter mutation could be performed first in molecular genetic testing of patients with exercise intolerance possibly due to McArdle disease. However, there is enormous mutation heterogeneity in McArdle disease thus sequencing of the myophosphorylase gene is needed in patients highly suspicious of McArdle disease.
1. Introduction
McArdle disease (Glycogen storage disease type V; GSD5; MIM #232600) is one of the most common metabolic myopathies that is caused due to lack of the enzyme myophosphorylase (skeletal muscle isoform of glycogen phosphorylase). Clinically, the disease is characterized by exercise-induced myalgia, cramps, myoglobinuria and also permanent weakness after longer disease duration [1,2,3,4]. Molecular genetically, a common truncating mutation p.Arg50Ter (previously denoted as p.Arg49Ter) in the myophosphorylase gene (PYGM) is associated with more than 50% of the mutant alleles in Caucasian patients [1,2,3,4,5,6,7]. Additionally, more than 150 rare mutations have been reported according to the Human Gene Mutation Database [8]. Mode of inheritance of McArdle disease is autosomal recessive. A clear genotype–phenotype correlation based on various mutations in McArdle disease has not been established [2,3,7,9].
Despite being one of the most frequent glycogen storage diseases [10], there are only few large cohort studies (>50 patients) on McArdle diseases [3,11,12,13]. In these studies, which were conducted with patients mainly from Spanish and French origin, molecular genetic and clinical features of the patients are elaborately described. However, the biochemical and histological aspects are only marginally mentioned. In the present study, clinical, biochemical, histological and molecular genetic analysis of 60 McArdle patients (47 German patients) was performed to analyse whether the clinical and biochemical phenotypes are influenced by the underlying genotypes.
2. Material and Methods
2.1. Patients
Clinical, biochemical and molecular genetic data of 60 patients with McArdle disease were analysed. Clinical and molecular genetic data of 56 patients are previously described [2]. However, forearm lactate ischemic test, biochemical and histological data were not included in that study. All patients were of Caucasian origin with majority of patients being Germans (n = 47). The other 13 patients were from UK (n = 5), Norway (n = 2), Turkey (n = 2), Italy (n = 1), Austria (n = 1), Lebanon (n = 1) and Syria (n = 1). Two patients had consanguinity in the family. Thirty-three patients were males and 27 patients were females. The mean age at the time of diagnosis was 37 years (range: 13 to 76 years).
The study was performed retrospectively by gathering the data of patients that were diagnosed in our department since 1994. All patients and the legal guardian of minors have given written consent that their results can be anonymously published for scientific and academic purposes. The study has been performed in accordance with the ethical standards laid down in the 1964 Helsinki declaration.
2.2. Clinical Characterisation
The clinical data of patients were collected retrospectively either by personally interviewing the patients in our department or through clinical reports of referring physicians. During the interview, the patients were asked the question based on their diseased status such as age of onset, family history, presence/absence of permanent weakness, presence of other symptoms (exercise intolerance, myalgia and fatigue) and ability to resume exercise after a short period of reduced work load intensity (second-wind phenomenon).
2.3. Laboratory Studies
Serum creatine kinase (CK) levels were extracted from the archived clinical files of patients (n = 33). In addition, levels of lactate and ammonia upon exercise were measured in 16 available patients according to the established forearm ischemic exercise test protocol [14,15]. The results were compared with those of 21 healthy controls (14 males, 7 females; mean age: 38 years).
2.4. Biochemical and Histological Analysis of Muscle Biopsies
Muscle tissues of 20 patients were obtained in open biopsy in our department and stored in liquid nitrogen for further analysis. The activity of myophosphorylase in muscle homogenate of patients and healthy controls (n = 20, 11 males, 9 females; mean age: 38 years) was then photometrically accessed following the modified method described by Bergmeyer [16].
In 9 available biopsies, Periodic acid–Schiff (PAS) staining was performed to analyze glycogen content by sequentially incubating the sections with Periodic acid and Schiff’s reagents following previously described staining protocol [17]. A histochemical analysis of myophospharylase activity in muscle biopsy was done by performing myophosphorylase staining using previously described method [18]. The results were compared with those of healthy controls (n = 20, 11 males, 9 females; mean age: 38 years).
2.5. Molecular Genetic Analysis
Genomic DNA was extracted from the muscle or blood of all patients using standard protocol. The p.Arg50Ter mutation was screened in all patients using previously described restriction fragment length (RFLP) method [5]. In patients who were heterozygous or were negative for this frequent mutation, coding regions of the PYGM gene including exon–intron boundaries were sequenced [19]. Sequences were compared with the genomic structure of the PYGM gene [17].
2.6. Genotype-Phenotype Correlation
Genotype–phenotype correlation was analyzed between two groups: (i) patients with homozygous p.Arg50Ter mutation (n = 27) and patients with heterozygous p.Arg50Ter mutation (n = 14) and (ii) patients with p.Arg50Ter mutation on at least one allele (n = 41) and patients without p.Arg50Ter mutation on both alleles (n = 19). A chi-square test was performed to compare the groups.
3. Results
3.1. Clinical Features
All patients complained of exercise-induced myalgia and almost half of the patients (47%) suffered from permanent weakness. Five percent patients suffered from masticatory muscle weakness and 7% patients had cramps (Table 1).
Despite early onset (<15 years) in majority of patients (87%), the mean age at diagnosis was 37 (±14) years in our cohort. Fifteen patients (25%) conveyed of positive family history of McArdle disease. ‘Second-wind’ phenomenon was reported in more than half of patients (56%). Table 2 illustrates detailed clinical features in our cohort that are compared with clinical features of McArdle patients in previously published reports [20,21].
3.2. Laboratory Tests
Serum creatine kinase was elevated 5 to 18-fold the upper reference range limit in all available patients (n = 33). In forearm lactate ischemic test, the delta lactate in sixteen tested patients (mean: 0.5 mmol/L) was significantly lower (p < 0.001) than that of controls (mean: 3.60 mmol/L). On the other hand, delta ammonia was almost seven times more in patients (mean: 300.9 μmol/L) than in controls (mean: 45.5 μmol/L) with a significance level of p < 0.001 (Figure 1).
3.3. Biochemical Features
The activity of enzyme myophosphorylase was extremely reduced in muscle homogenates of all 20 patients whose muscle biopsies were available for biochemical analysis (mean: 0.17 ± 0.35 U/g tissue; median: 0.0; normal: 12–61). In 12 patients, there was complete loss of enzyme activity.
3.4. Histological Findings
The histological investigation showed marked sub-sarcolemmal glycogen deposition in Periodic acid-Schiff (PAS) staining in all tested muscle biopsies (n = 9) (Figure 2A). Similarly, hiostochemical staining of enzyme myophosphorylase showed no or minimal enzyme activity in all tested biopsies in comparison to healthy controls (Figure 2B,C).
3.5. Molecular Genetic Features
Molecular genetic analysis identified the p.Arg50Ter mutation in 41 patients (68%) in at least one allele with an allele frequency of 0.57. Forty-five percent patients were homozygous for this common mutation. Other rather frequent mutations were p.Arg270Ter (allele frequency: 5%) followed by c.2262delA, p.Met1Val (allele frequencies: 3%) and Gly686Arg (allele frequency: 2%). Apart from these 5 mutations, 23 other rare mutations were also identified: 2 mutations (Arg94Trp and Glu349Lys) each in two unrelated patients and 21 mutations in single cases. A detailed genetic overview of the patients is illustrated in Table 3.
3.6. Genotype–Phenotype Correlation
A significant statistical correlation was not identified in the frequency of permanent weakness patients with p.Arg50Ter mutation on both alleles (14/27 patients) and the p.Arg50Ter mutation on only one allele (5/14 patients) as well as patients with p.Arg50Ter mutation on at least one allele (19/41 patients) and patients with other than the p.Arg50Ter mutation on both alleles (11/19 patients). In both these genotype groups, significant differences were not identified in terms of age of onset, laboratoty tests and biochemical and histological outcomes.
4. Discussion
4.1. Clinical Features
Exercise intolerance has been unanimously identified as the classical symptom associated with McArdle disease. This has been confirmed by the fact that all our patients complained of exercised-induced myalgia and fatigue. In the present cohort, 56% patients conveyed that they were able to resume exercise after a short period of reduced work-load intensity at the first appearance of fatigue. This emphasizes that ‘second-wind’ phenomenon is frequently observed in McArdle patients [3,19].
A striking 47% patients in our cohort reported permanent weakness in comparison to only 28% in the meta-analysis of other previous studies [20,21] (Table 2). All eight patients who had late onset (three patients: later than 50 years) had permanent weakness. This is consistent with other findings with permanent muscle weakness identified frequently after especially 40 years [17,18,19]. In all patients with permanent weakness, this was localized in limbs (entire arm and leg regions, shoulders, hands, thighs, calves). Four patients (7%) complained of cramps (17%) (Table 1). Cramps have also been previously reported in 87% McArdle patients [10,22,23]. Three patients conveyed masticatory muscle weakness especially during chewing (5%). These findings show that cramps and masticatory muscle weakness are not that rare in metabolic myopathies as we had recently reported these clinical features also in patients with CPT II deficiency [24].
The onset of the disease was seen more frequently in early life (<15 years), although five late-onset patients were also identified. This is in line with other reports on McArdle diseases [20,21]. Despite the early emergence of muscle symptoms in our patients, the mean age at diagnosis was 37 years (range 13–76 years). After emergence of the first symptoms (mean: 9 years, range: 1–63 years), it took an average of 28 years (range: 0–71 years) to have a diagnosis of McArdle disease. Hence, it can be assumed that a lot of McArdle patients are underdiagnosed or misdiagnosed. This point is strengthened by the fact that most of the McArdle patients do not have evidence of severe muscular involvement such as atrophies or other abnormalities. Hence, at least seven of our patients conveyed that their disabilities had initially been misdiagnosed as psychosomatic disorders. This reflects the diagnostic impediment associated with neuromuscular disorders [24]. McArdle disease is one of the most common metabolic myopathies with an estimated prevalence of ~1/100,000 in European population. However, a recent study based on next-generation sequencing of PYGM in subjects with no primary muscle disease suggested that this prevalence is an underestimate and the actual prevalence would be more than twice as high in this population [10].
The mode of inheritance of McArdle disease is autosomal-recessive. However, rarely pseudo-dominantly inherited patients are also reported [25,26]. Only 26% patients in our study conveyed of positive family history in contrast to 53% in meta-analysis of other studies that contained mainly patients from USA, Spain and France (Table 1). An explanation for this discrepancy could be that 78% patients in our cohort were Germans and generally, German families are comparatively smaller than families in other countries like Spain and France (https://www.oecd.org).
4.2. Laboratory Findings
Usually, a CK elevation above 4-fold the upper limit of normal range is considered to be pathogenic in muscle disorders [27]. All the patients in our study had elevated levels of CK clearly above 5-fold the normal range, showing that the elevated levels of CK should be considered as one of the preliminary diagnostic criteria in diagnosis of McArdle disease, if the patients have clear clinical symptoms that are in line with McArdle disease.
In line with our forearm ischemic test outcome, previous studies on McArdle patients also reported an excessive increase of ammonia upon physical exercise in serum [28,29,30,31]. Recently, we had postulated that the increased ammonia production upon exercise in McArdle patients is not due to enzyme induction but could be due to kinetic regulation of the enzyme AMP deaminase (AMPD) which is based on hyperbolic response of enzyme activity to substrate concentration as described by the Michaelis Menten kinetics [32]. Lactate forearm ischemic test is one of the efficient diagnostic tools in different myopathies [15] and hence lacking lactate increase and excessively increased ammonia in patients with glycogenosis gives a clear hint of McArdle diseases.
4.3. Biochemical Features
Irrespectively of the underlying mutations, extremely reduced myophosphorylase activity was detected in muscle homogenates of patients. It has been assumed that in McArdle disease, the mutated alleles are either not transcribed or not translated to protein [33]. This confirms that unlike in other metabolic myopathies such as CPT II deficiency (that occurs due to abnormal regulation of the enzyme) [23], McArdle disease presents with almost complete lack of enzyme myophosphorylase. However, rare symptomatic heterozygote patients with intermediate myophosphorylase have also been sporadically reported [25].
4.4. Myohistological and Histochemical Features
Sub-sarcolemmal glycogen accumulation has been established as the myohistological diagnostic feature and reduced or no activity of enzyme myophosphorylase in muscle biopsy as histochemical diagnostic feature in McArdle disease [9,18,21]. Myohistological and histochemical findings revealing subsarcolemmal glycogen accumulation and lack of myophosphorylase activity in muscle biopsies of our patients further strengthen these notions.
4.5. Molecular Genetic Features
A total of 28 different mutations spreading throughout the PYGM gene were identified, although the ‘common’ p.Arg50Ter mutation was identified in at least one allele in more than two-third patients (Table 3). Our results are in line with previous findings as this mutation was reported frequently (allele frequency: 0.31–0.81) in patients of European origin [5,6,7,11,34]. The patients reported in these studies are mainly of Spanish, French, Dutch, UK and Italian origin. Apart from European patients, this mutation has also been identified in about 60% US American [5,34] and 50% Brazilian patients [35]. This mutation has never been identified in Japanese patients [36]. In our cohort, this mutation was also not identified in two non-European patients (Syrian: p.Ser450Leu homozygous and Lebanese: p.Met1Val homozygous). Neither was this mutation identified in our two Turkish patients. This strengthens the strong ‘ethnic’ European origin of the p.Arg50Ter mutation considering the European ancestry of US American and Brazilian patients. Five other mutations were reported in more than one family. Three mutations were present in single cases but were also identified in other studies. This shows that most of the McArdle mutations identified in our cohort are not private mutations.
4.6. Genotype–Phenotype Correlation
Higher peak workload and oxidative capacity in patients with the p.Arg.50Ter and p.Gly205Ser mutations compared to patient with splice-site mutations (c.425-26A>G and c.856-601G>A) were reported, suggesting a possible genotype–phenotype correlation [37]. In line with this report only one patient with homozygous splice-site mutation (c.772-2A>T) in our cohort also had severe permanent shoulder weakness. These findings hint towards the severity of homozygous splice-site mutations over other mutations as the other two patients with heterozygous splice-site mutation (both compound heterozygous for p.Arg50Ter and c.1239+1G>A) had milder symptoms. However, large cohort studies including broad spectrum of PYGM mutations show the lack of distinct genotype-phenotype correlation [2,3,12,38]. In the present study, a clear genotype–phenotype correlation could not be established either as so many different genotypes were observed and all our patients presented with typical signs of exercise intolerance. Patients with permanent weakness also had broad mutation spectrum. In addition, genotype–phenotype correlations based on laboratory tests, biochemical and histological outcomes were also not identified.
5. Conclusions
McArdle disease is one of the most common glycogen storage disease that presents with exercise intolerance and less frequently permanent weakness. The first symptoms are experienced almost exclusively in childhood or early adulthood. However, rare late onset patients presenting the symptoms as late as in sixth decade are also known. The peculiar laboratory test feature associated with McArdle diseases is no or minimal production of lactate but excessive production of ammonia upon exercise. McArdle patients have almost total lack of enzyme myophosphorylase in skeletal muscle. A clear genotype–phenotype correlation is not seen as McArdle disease has an enormous mutation spectrum. A p.Arg50Ter mutation is; however, frequent in European patients. Hence, the screening of this mutation has been suggested as the first line of diagnosis in European patients, especially in patients with exercise intolerance. If the patients have clear suspicion of McArdle disease, sequencing of the whole PYGM gene is recommended.
Author Contributions
Conceptualization, P.R.J.; methodology, P.R.J. and M.D.; formal analysis, P.R.J.; investigation, writing—original draft preparation, P.R.J.; writing—review and editing, P.R.J., M.D. and S.Z.; supervision, S.Z. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding
Acknowledgments
We acknowledge the financial support within the funding programme Open Access Publishing by the German Research Foundation (DFG). We are grateful to all the clinicians for referring the patients to our department and/or sending us the data of external patients.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
References
- Dimauro, S.; Andreu, A.L.; Bruno, C.; Hadjigeorgiou, G.M. Myophosphorylase deficiency (glycogenosis type V.; McArdle disease). Curr. Mol. Med. 2002, 2, 189–196. [Google Scholar] [CrossRef] [PubMed]
- Deschauer, M.; Morgenroth, A.; Joshi, P.R.; Gläser, D.; Chinnery, P.F.; Aasly, J.; Schreiber, H.; Knape, M.; Zierz, S.; Vorgerd, M. Analysis of spectrum and frequencies of mutations in McArdle disease. Identification of 13 novel mutations. J. Neurol. 2007, 254, 797–802. [Google Scholar] [CrossRef] [PubMed]
- Santalla, A.; Nogales-Gadea, G.; Encinar, A.B.; Vieitez, I.; González-Quintana, A.; Serrano-Lorenzo, P.; Consuegra, I.G.; Asensio, S.; Ballester-Lopez, A.; Pintos-Morell, G.; et al. Genotypic and phenotypic features of all Spanish patients with McArdle disease: A 2016 update. BMC Genom. 2017, 18, 819. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Nogales-Gadea, G.; Brull, A.; Santalla, A.; Andreu, A.L.; Arenas, J.; Martín, M.A.; Lucia, A.; de Luna, N.; Pinós, T. McArdle Disease: Update of Reported Mutations and Polymorphisms in the PYGM Gene. Hum. Mutat. 2015, 36, 669–678. [Google Scholar] [CrossRef]
- Tsujino, S.; Shanske, S.; DiMauro, S. Molecular genetic heterogeneity of myophosphorylase deficiency (McArdle’s disease). N. Engl. J. Med. 1993, 329, 241–245. [Google Scholar] [CrossRef]
- Martín, M.A.; Rubio, J.C.; Wevers, R.A.; Van Engelen, B.G.M.; Steenbergen, G.C.H.; Van Diggelen, O.P.; De Visser, M.; De Die-Smulders, C.; Blázquez, A.; Andreu, A.L.; et al. Molecular analysis of myophosphorylase deficiency in Dutch patients with McArdle’s disease. Ann. Hum. Genet. 2004, 68, 17–22. [Google Scholar] [CrossRef]
- Martinuzzi, A.; Tsujino, S.; Vergani, L.; Schievano, G.; Cadaldini, M.; Bartoloni, L.; Fanin, M.; Siciliano, G.; Shanske, S.; DiMauro, S.; et al. Molecular characterization of myophosphorylase deficiency in a group of patients from northern Italy. J. Neurol. Sci. 1996, 137, 14–19. [Google Scholar] [CrossRef]
- Krawczak, M.; Ball, E.V.; Fenton, I.; Stenson, P.D.; Abeysinghe, S.; Thomas, N.; Cooper, D.N. Human gene mutation database-a biomedical information and research resource. Hum. Mutat. 2000, 15, 45–51. [Google Scholar] [CrossRef]
- Quinlivan, R.; Buckley, J.; James, M.; Twist, A.; Ball, S.; Duno, M.; Vissing, J.; Bruno, C.; Cassandrini, D.; Roberts, M.; et al. McArdle disease: A clinical review. J. Neurol. Neurosurg. Psychiatry 2010, 81, 1182–1188. [Google Scholar] [CrossRef]
- De Castro, M.; Johnston, J.; Biesecker, L. Determining the prevalence of McArdle disease from gene frequency by analysis of next-generation sequencing data. Genet. Med. 2015, 17, 1002–1006. [Google Scholar] [CrossRef] [Green Version]
- Lucia, A.; Ruiz, J.R.; Santalla, A.; Nogales-Gadea, G.; Rubio, J.C.; García-Consuegra, I.; Cabello, A.; Pérez, M.; Teijeira, S.; Vieitez, I.; et al. Genotypic and phenotypic features of McArdle disease: Insights from the Spanish national registry. J. Neurol. Neurosurg. Psychiatry 2012, 83, 322–328. [Google Scholar] [CrossRef] [PubMed]
- Bruno, C.; Cassandrini, D.; Martinuzzi, A.; Toscano, A.; Moggio, M.; Morandi, L.; Servidei, S.; Mongini, T.; Angelini, C.; Musumeci, O.; et al. McArdle disease: The mutation spectrum of PYGM in a large Italian cohort. Hum. Mutat. 2006, 27, 718. [Google Scholar] [CrossRef] [PubMed]
- Vieitez, I.; Teijeira, S.; Fernandez, J.M.; San Millan, B.; Miranda, S.; Ortolano, S.; Louis, S.; Laforet, P.; Navarro, C. Molecular and clinical study of McArdle’s disease in a cohort of 123 European patients. Identification of 20 novel mutations. Neuromuscul. Disord. 2011, 21, 817–823. [Google Scholar] [CrossRef] [PubMed]
- Zierz, S.; Meessen, S.; Jerusalem, F. Lactate and pyruvate blood levels in the diagnosis of mitochondrial myopathies. Nervenarzt 1989, 60, 545–548. [Google Scholar] [PubMed]
- Hanisch, F.; Eger, K.; Bork, S.; Lehnich, H.; Deschauer, M.; Zierz, S. Lactate production upon short-term non-ischemic forearm exercise in mitochondrial disorders and other myopathies. J. Neurol. 2006, 253, 735–740. [Google Scholar] [CrossRef] [PubMed]
- Bergmeyer, H.U. Phosphorylase a. In Methods of Enzymatic Analysis; Bergmeyer, H.U., Ed.; Elsevier: Amsterdam, The Netherlands, 1974; ISBN 978-0-12-091304-6. [Google Scholar]
- Brull, A.; de Luna, N.; Blanco-Grau, A.; Lucia, A.; Martin, M.A.; Arenas, J.; Martí, R.; Andreu, A.L.; Pinós, T. Phenotype consequences of myophosphorylase dysfunction: Insights from the McArdle mouse model. J. Physiol. 2015, 593, 2693–2706. [Google Scholar] [CrossRef] [Green Version]
- Wokke, J.H.J.; van Doorn, P.A.; Hoogendijk, J.E.; de Visser, M. Neuromuscular Disease: A Case-Based Approach; Cambridge University Press: Cambridge, UK, 2013; ISBN 978-0-511-73590-5. [Google Scholar]
- Kubisch, C.; Wicklein, E.M.; Jentsch, T.J. Molecular diagnosis of McArdle disease: Revised genomic structure of the myophosphorylase gene and identification of a novel mutation. Hum. Mutat. 1998, 12, 27–32. [Google Scholar] [CrossRef]
- Martín, M.A.; Rubio, J.C.; Buchbinder, J.; Fernández-Hojas, R.; del Hoyo, P.; Teijeira, S.; Gámez, J.; Navarro, C.; Fernández, J.M.; Cabello, A.; et al. Molecular heterogeneity of myophosphorylase deficiency (McArdle’s disease): A genotype-phenotype correlation study. Ann. Neurol. 2001, 50, 574–581. [Google Scholar] [CrossRef]
- Di Mauro, S.; Tsujino, S. Nonlysosomal glycogenoses. In Myology, 2nd ed.; Engel, A.G., Franzini-Armstrong, C., Eds.; McGraw-Hill: New York, NY, USA, 1994. [Google Scholar]
- Nadaj-Pakleza, A.A.; Vincitorio, C.M.; Laforêt, P.; Eymard, B.; Dion, E.; Teijeira, S.; Vietez, I.; Jeanpierre, M.; Navarro, C.; Stojkovic, T. Permanent muscle weakness in McArdle disease. Muscle Nerve 2009, 40, 350–357. [Google Scholar] [CrossRef]
- Rommel, O.; Kley, R.A.; Dekomien, G.; Epplen, J.T.; Vorgerd, M.; Hasenbring, M. Muscle pain in myophosphorylase deficiency (McArdle’s disease): The role of gender, genotype, and pain-related coping. Pain 2006, 124, 295–304. [Google Scholar] [CrossRef]
- Joshi, P.R.; Deschauer, M.; Zierz, S. Phenotype of carnitine palmitoyltransferase II (CPT II) deficiency: A questionnaire-based survey. J. Clin. Neurosci. 2019, 59, 32–36. [Google Scholar] [CrossRef] [PubMed]
- Petrou, P.; Pantzaris, M.; Dionysiou, M.; Drousiotou, A.; Kyriakides, T. Minimally symptomatic Mcardle disease, expanding the genotype-phenotype spectrum: Minimally Symptomatic McArdle Disease. Muscle Nerve 2015, 52, 891–895. [Google Scholar] [CrossRef] [PubMed]
- Isackson, P.J.; Tarnopolsky, M.; Vladutiu, G.D. A novel mutation in the PYGM gene in a family with pseudo-dominant transmission of McArdle disease. Mol. Genet. Metab. 2005, 85, 239–242. [Google Scholar] [CrossRef] [PubMed]
- Renard, D. Serum CK as a guide to the diagnosis of muscle disease. Pract. Neurol. 2015, 15, 121. [Google Scholar] [CrossRef] [PubMed]
- Rumpf, K.W.; Wagner, H.; Kaiser, H.; Meinck, H.M.; Goebel, H.H.; Scheler, F. Increased ammonia production during forearm ischemic work test in McArdle’s disease. Klin. Wochenschr. 1981, 59, 1319–1320. [Google Scholar] [CrossRef] [PubMed]
- Mineo, I.; Kono, N.; Shimizu, T.; Hara, N.; Yamada, Y.; Sumi, S.; Nonaka, K.; Tarui, S. Excess purine degradation in exercising muscles of patients with glycogen storage disease types V and VII. J. Clin. Invest. 1985, 76, 556–560. [Google Scholar] [CrossRef]
- Coleman, R.A.; Stajich, J.M.; Pact, V.W.; Pericak-Vance, M.A. The ischemic exercise test in normal adults and in patients with weakness and cramps. Muscle Nerve 1986, 9, 216–221. [Google Scholar] [CrossRef]
- Kazemi-Esfarjani, P.; Skomorowska, E.; Jensen, T.D.; Haller, R.G.; Vissing, J. A nonischemic forearm exercise test for McArdle disease. Ann. Neurol. 2002, 52, 153–159. [Google Scholar] [CrossRef]
- Joshi, P.R.; Apitz, T.; Zierz, S. Normal activities of AMP-deaminase and adenylate kinase in patients with McArdle disease. Neurol. Res. 2016, 38, 1052–1055. [Google Scholar] [CrossRef]
- Andersen, S.T.; Dunø, M.; Schwartz, M.; Vissing, J. Do carriers of PYGM mutations have symptoms of McArdle disease? Neurology 2006, 67, 716–718. [Google Scholar] [CrossRef]
- Bartram, C.; Edwards, R.H.; Clague, J.; Beynon, R.J. McArdle’s disease: A nonsense mutation in exon 1 of the muscle glycogen phosphorylase gene explains some but not all cases. Hum. Mol. Genet. 1993, 2, 1291–1293. [Google Scholar] [CrossRef] [PubMed]
- Gurgel-Giannetti, J.; Nogales-Gadea, G.; van der Linden, H.; Bellard, T.M.R.; Brasileiro Filho, G.; Giannetti, A.V.; de Castro Concentino, E.L.; Vainzof, M. Clinical and molecular characterization of McArdle’s disease in Brazilian patients. Neuromolecular Med. 2013, 15, 470–475. [Google Scholar] [CrossRef] [PubMed]
- Sugie, H.; Sugie, Y.; Ito, M.; Fukuda, T.; Nonaka, I.; Igarashi, Y. Genetic analysis of Japanese patients with myophosphorylase deficiency (McArdle’s disease): Single-codon deletion in exon 17 is the predominant mutation. Clin. Chim. Acta Int. J. Clin. Chem. 1995, 236, 81–86. [Google Scholar] [CrossRef]
- Vissing, J.; Duno, M.; Schwartz, M.; Haller, R.G. Splice mutations preserve myophosphorylase activity that ameliorates the phenotype in McArdle disease. Brain J. Neurol. 2009, 132, 1545–1552. [Google Scholar] [CrossRef] [PubMed]
- García-Consuegra, I.; Asensio-Peña, S.; Ballester-Lopez, A.; Francisco-Velilla, R.; Pinos, T.; Pintos-Morell, G.; Coll-Cantí, J.; González-Quintana, A.; Andreu, A.L.; Arenas, J.; et al. Missense mutations have unexpected consequences: The McArdle disease paradigm. Hum. Mutat. 2018, 39, 1338–1343. [Google Scholar] [CrossRef] [PubMed]

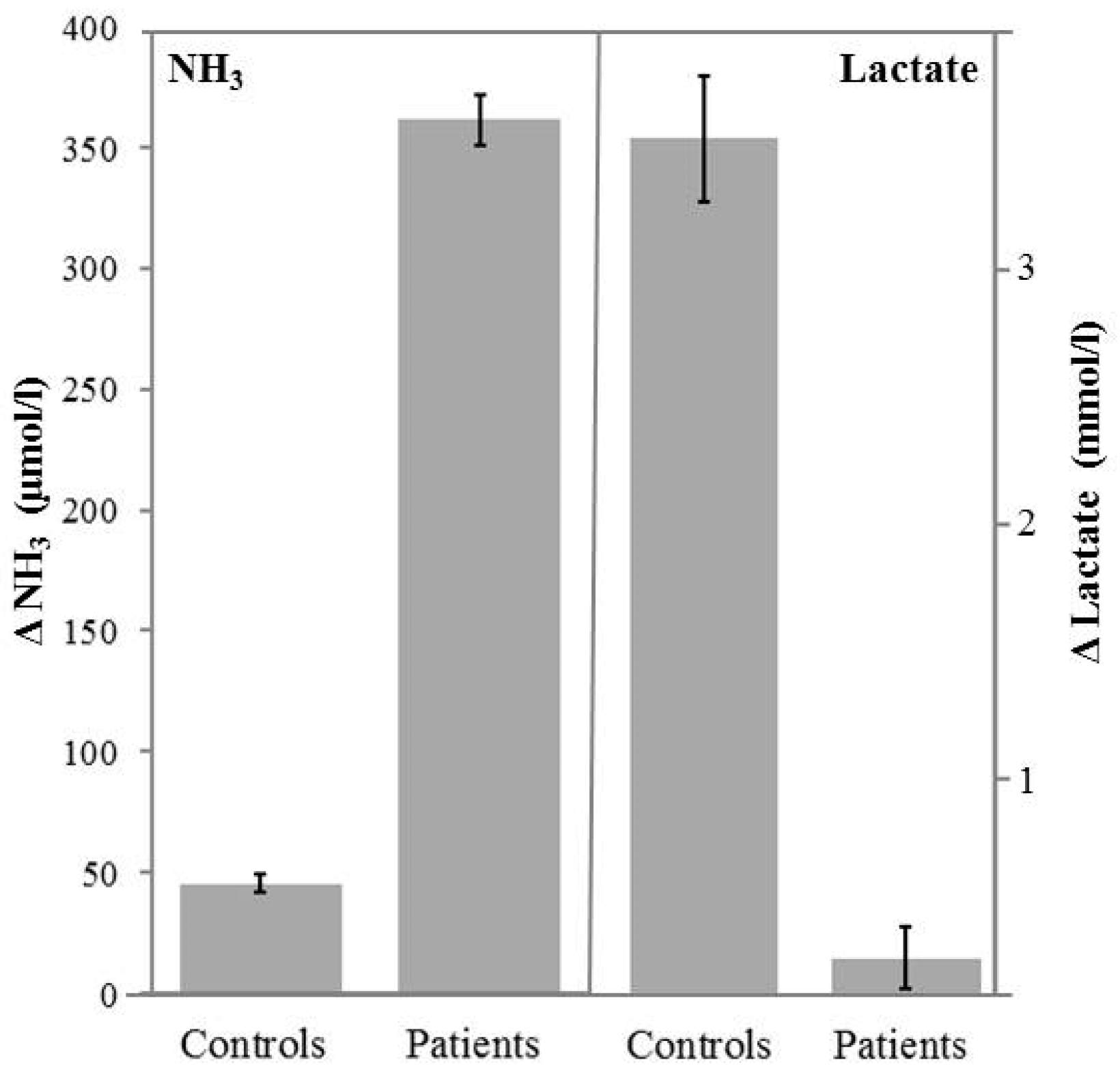

Figure 1.
Forearm lactate ischemic test showing significantly higher (p < 0.001) ammonia production but significantly lower (p < 0.001) lactate production upon exercise in patients with McArdle disease (n = 16) compared to healthy controls (n = 21). The bar charts represent mean values of delta ammonia and delta lactate in patients and healthy controls respectively. The error bars represent standard errors.
Figure 1.
Forearm lactate ischemic test showing significantly higher (p < 0.001) ammonia production but significantly lower (p < 0.001) lactate production upon exercise in patients with McArdle disease (n = 16) compared to healthy controls (n = 21). The bar charts represent mean values of delta ammonia and delta lactate in patients and healthy controls respectively. The error bars represent standard errors.
Figure 2.
Myohistological and histochemical features of the muscle biopsy (200× magnification) of a patient with p.Arg50Ter mutation in homozygous state showing (A) subsarcolemmal glycogen accumulation (white arrows), (B) complete loss of myophosphorylase activity in patient’s muscle biopsy (although phosphorylase on the smooth muscle cells of blood vessel is stained; shown by an arrow) in comparison to (C) positive myophosphorylase reaction in muscle biopsy of healthy control.
Figure 2.
Myohistological and histochemical features of the muscle biopsy (200× magnification) of a patient with p.Arg50Ter mutation in homozygous state showing (A) subsarcolemmal glycogen accumulation (white arrows), (B) complete loss of myophosphorylase activity in patient’s muscle biopsy (although phosphorylase on the smooth muscle cells of blood vessel is stained; shown by an arrow) in comparison to (C) positive myophosphorylase reaction in muscle biopsy of healthy control.
Table 1.
Genotype and clinical data of patients with permanent weakness.
| Patient (Gender) | Genotype | Onset | Family History | Permanent Weakness | Cramps | Masticatory Muscle Involvement |
|---|---|---|---|---|---|---|
| 1 (M) | p.Arg50Ter/p.Arg50Ter | Childhood | − | Thighs | − | − |
| 2 (M) | p.Arg50Ter/p.Arg50Ter | Childhood | − | Arms, legs | + | − |
| 3 (F) | p.Arg50Ter/p.Arg50Ter | Childhood | − | Thighs | − | − |
| 4 (M) | p.Arg50Ter/p.Arg50Ter | Childhood | Brother | Thighs, Arms | − | − |
| 5 (F) | p.Arg50Ter/p.Arg50Ter | Childhood | − | Legs | − | − |
| 6 (M) | p.Arg50Ter/p.Arg50Ter | Childhood | − | Arms, legs | − | − |
| 7 (M) | p.Arg50Ter/p.Arg50Ter | Adolescence | − | Arms, legs | − | − |
| 8 (M) | p.Arg50Ter/p.Arg50Ter | Late (50 Yrs.) | Cousin | Shoulder, arm | − | − |
| 9 (M) | p.Arg50Ter/p.Arg50Ter | Late (50 Yrs.) | − | Arms, legs | − | − |
| 10 (M) | p.Arg50Ter/p.Arg50Ter | Childhood | − | n.a. | − | − |
| 11 (F) | p.Arg50Ter/p.Arg50Ter | Childhood | Father | n.a. | − | − |
| 12 (F) | p.Arg50Ter/p.Arg50Ter | Childhood | − | n.a. | − | − |
| 13 (F) | p.Arg50Ter/p.Arg50Ter | Childhood | − | n.a. | − | − |
| 14 (F) | p.Arg50Ter/p.Arg50Ter | Childhood | − | n.a. | − | − |
| 15 (M) | p.Arg50Ter/p.Asp129His | Childhood | − | Thighs, calves | − | − |
| 16 (F) | p.Arg50Ter/p.Arg139Trp | Childhood | − | Arms, legs, | − | + |
| 17 (M) | p.Arg50Ter/p.Glu655Lys | Childhood | − | Arms, legs, back | − | − |
| 18 (F) | p.Arg50Ter/p.Gly686Arg | Childhood | Sister | Arms, legs | − | − |
| 19 (F) | p.Arg50Ter/p.Gly686Arg | Youth | − | Arms, legs | − | − |
| 20 (M) | p.Met1Val/p.Met1Val | Adolescence | Several | Shoulders | − | − |
| 21 (F) | p.Met1Val/p.Met1Val | Youth | − | Arms, legs | − | − |
| 22 (M) | c.25delG/c.25delG | Youth | Several | Arms, legs | − | − |
| 23 (F) | p.Tyr85Ter/p.Arg94Trp | Childhood | − | Arms, legs | + | + |
| 24 (F) | p.Arg94Trp/p.Arg94Trp | Late (63 Yrs.) | − | Thighs, Toe | + | − |
| 25 (F) | p.Arg270Ter/p.Arg270Ter | Childhood | Brother | Arms, legs | + | − |
| 26 (M) | IVS6-2A>T/IVS6-2A>T | Childhood | Sister | Shoulders | − | − |
| 27 (F) | p.Gln337Arg/p.Gln337Arg | Childhood | − | Arms, legs, back | − | − |
| 28 (F) | p.Tyr574Ter/c.1948delC | Childhood | − | Arms, legs, | − | + |
| 29 (M) | p.Met680Val/c.2262delA | Childhood | Several | Shoulders | − | − |
M: male, F: female, +: presence of cramps and/or masticatory muscle involvement, -: negative family history or absence of cramps and/or masticatory muscle involvement, Several: Several family members affected, n.a.: not available, Childhood: 1–12 years, Adolescence: 13–18 years, Youth: >19 years.
Table 2.
Clinical features of McArdle patients in present cohort compared to meta-analysis of previous studies.
Table 2.
Clinical features of McArdle patients in present cohort compared to meta-analysis of previous studies.
| Clinical features | Present Study (n = 60) | Other Studies [20,21] (n = 166) | |
|---|---|---|---|
| n (%) | n (%) | p | |
| Exercise intolerance | 60 (100) | 146/166 (89) | n.s. |
| Permanent weakness | 28 (47) | 46/166 (28) | 0.02 |
| Age at onset (Years) | |||
| <15 | 52 (87) | 94/112 (85) | n.s. |
| 15–30 | 5 (8) | 10/112 (9) | n.s. |
| >30 | 3 (5) | 6/112 (6) | n.s |
| Age at diagnosis (Years) | |||
| <10 | 0 (0) | 5/112 (4) | n.s. |
| 10–30 | 19 (32) | 55/112 (50) | 0.028 |
| 30–50 | 32 (53) | 30/112 (27) | <0.001 |
| >50 | 9 (15) | 21/112 (19) | n.s. |
| Positive family history | 15 (25) | 51/112 (53) | 0.026 |
| CK elevation | 33/33 (100) | 54/54 (100) | n.s. |
| Second wind | 19/34 (56) | n.a. | - |
p: two tailed probability coefficient (chi-square test) with level of significance set to ≤ 0.05, n.a.: data not available, statistically significant p value are marked by bold cases, n.s.: not significant, mean age of onset in our study: 9 (±14) years, mean age at diagnosis in our study 37 (±14) years.
Table 3.
Genotype and ethnic origin characterization of patients (splice-site mutations are marked by asterisk).
Table 3.
Genotype and ethnic origin characterization of patients (splice-site mutations are marked by asterisk).
| No. of Patients | Allele 1 | Allele 2 | Ethnic Origin |
|---|---|---|---|
| 27 | p.Arg50Ter | p.Arg50Ter | Germany (n = 23), UK (n = 4) |
| 4 | p.Arg50Ter | p.Arg270Ter | Germany (n = 4) |
| 2 | p.Arg50Ter | p.Gly486Asp | Both Norway |
| 2 | p.Arg50Ter | p.Gly686Arg | Both Germany |
| 2 | p.Arg50Ter | c.1239+1G>A* | Both Germany |
| 2 | p.Met1Val | p.Met1Val | Turkey (n = 1), Lebanon (n = 1) |
| 1 | p.Arg50Ter | p.Asp129His | Germany |
| 1 | p.Arg50Ter | p.Arg139Trp | Germany |
| 1 | p.Arg50Ter | p.Glu655Lys | Germany |
| 1 | p.Arg50Ter | c2262delA | Germany |
| 1 | c.25delG | c.25delG | Germany |
| 1 | c.78_79delTG | c.78_79delTG | Germany |
| 1 | p.Tyr85Ter | p.Arg94Trp | Germany |
| 1 | p.Arg94Trp | p.Arg94Trp | UK |
| 1 | p.Gly157Val | p.Glu349Lys | Germany |
| 1 | p.Gly205Ser | p. Arg576Ter | Germany |
| 1 | p.Arg270Ter | p.Glu349Lys | Germany |
| 1 | p.Arg270Ter | p.Arg270Ter | Italy |
| 1 | c.772-2A>T* | c.772-2A>T* | Germany |
| 1 | p.Gln337Arg | p.Gln337Arg | Germany |
| 1 | p.Glu384Lys | c.1155_1156delGG | Germany |
| 1 | p.Ser450Leu | p.Ser450Leu | Syria |
| 1 | p.Leu397Pro | c2262delA | Germany |
| 1 | p.Arg570Trp | p.Gly686Arg | Austria |
| 1 | p.Tyr574Ter | c.1948delC | Germany |
| 1 | p.Gln666Glu | c.2262delA | Germany |
| 1 | p.Met680Val | c2262delA | Turkey |
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Joshi, P.R.; Deschauer, M.; Zierz, S. McArdle Disease: Clinical, Biochemical, Histological and Molecular Genetic Analysis of 60 Patients. Biomedicines 2020, 8, 33. https://doi.org/10.3390/biomedicines8020033
AMA Style
Joshi PR, Deschauer M, Zierz S. McArdle Disease: Clinical, Biochemical, Histological and Molecular Genetic Analysis of 60 Patients. Biomedicines. 2020; 8(2):33. https://doi.org/10.3390/biomedicines8020033
Chicago/Turabian StyleJoshi, Pushpa Raj, Marcus Deschauer, and Stephan Zierz. 2020. "McArdle Disease: Clinical, Biochemical, Histological and Molecular Genetic Analysis of 60 Patients" Biomedicines 8, no. 2: 33. https://doi.org/10.3390/biomedicines8020033
APA StyleJoshi, P. R., Deschauer, M., & Zierz, S. (2020). McArdle Disease: Clinical, Biochemical, Histological and Molecular Genetic Analysis of 60 Patients. Biomedicines, 8(2), 33. https://doi.org/10.3390/biomedicines8020033
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
