Article

Dynamics of Pressure Variation in Closed Vessel Explosions of Diluted Fuel/Oxidant Mixtures

“Ilie Murgulescu” Institute of Physical Chemistry, Romanian Academy, 202 Spl., Independentei, 060021 Bucharest, Romania
*
Author to whom correspondence should be addressed.
Processes 2022, 10(12), 2726; https://doi.org/10.3390/pr10122726
Submission received: 23 November 2022 / Revised: 9 December 2022 / Accepted: 15 December 2022 / Published: 16 December 2022

Abstract

:
Nitrous oxide is widely used as oxidizer or nitriding agent in numerous industrial activities such as production of adipic acid and caprolactam and even for production of some semiconductors. Further, it is used as an additive in order to increase the power output of engines, and as an oxidizer in propulsion systems of rockets, because it has a large heat of formation (+81.6 kJ mol−1). N2O is highly exothermic, and during its decomposition a supplementary heat amount is released, so it needs special handling conditions. The combustion of fuels in nitrous oxide atmosphere can lead to high unstable and turbulent deflagrations that speedily self-accelerate and therefore a deflagration can change to a detonation. The peak explosion pressure and the maximum rate of pressure rise of explosions in confined spaces are key safety parameters to evaluate the hazard of processes running in closed vessels and for design of enclosures able to withstand explosions or of their vents used as relief devices. The present study reports some major explosion parameters such as the maximum (peak) explosion pressures pmax, explosion times θmax, maximum rates of pressure rise (dp/dt)max and severity factors KG for ethylene-nitrous oxide mixtures (lean and stoichiometric) diluted with various amounts of N2, at various initial pressures (p0 = 0.50–1.50 bar), in experiments performed in a spherical vessel centrally ignited by inductive-capacitive electric sparks. The influence of the initial pressure and composition on pmax, θmax and (dp/dt)max is discussed. The data are compared with similar values referring to ethylene-air mixtures measured in the same initial conditions. It was found that at identical C/O ratios with ethylene-air, ethylene-N2O-N2 mixtures develop higher explosion pressures and higher rates of pressure rise, due to the exothermic dissociation of N2O under flame conditions.

1. Introduction

Combustion is the major energy production process, so the study of flammability features of gaseous combustible mixtures at various initial conditions still represents a major challenge for researchers. Fuel–air combustion has been intensively studied, but in recent years an important concern has been raised: not only to find alternative fuels to substitute the conventional fuels, but also to find alternative oxidizers to replace oxygen. Nitrous oxide (N2O, also known as laughing gas) is a strong oxidizing agent, roughly equivalent to hydrogen peroxide, and much stronger than oxygen gas. It was used as oxidizer in the semiconductors industry and as a rocket propulsion system [1,2,3]. On the other hand, N2O is highly exothermic and during its decomposition a supplementary heat amount is released, so its handling is critical.
As an oxidizer, N2O can easily decompose to oxygen and nitrogen at elevated pressures and temperatures [2,4]. Numerous studies were published on fuel-N2O mixtures in terms of flammability parameters such as flammability limits, ignition energy, flame speeds, etc. The explosion ignition and propagation in H2-CH4-NH3-N2O-O2-N2 mixtures was studied by Pfahl et al. [5]. They reported flammability limits, ignition energies and flame speeds in combustion vessels at initial pressure of 1 bar and initial temperature of 295 K. Some investigations on N2O flames focused on the flammability domain of different fuel-N2O mixtures (flammability limits) in the presence of inert gases [6,7].
The explosion parameters of toluene/N2O at initial pressure of 1 or 6 bar and initial temperature of 343 K from measurements in an 8 L spherical vessel were reported by Vandebroek et al. [6]. The explosion features of volatile organic vapours, such as n-pentane, diethyl ether and diethyl amine, and of C1-C8 n-alkanes in N2O atmosphere in a cylindrical explosion vessel were studied by Koshiba et al. [2,8] and compared with those of mixtures containing O2.
Vandooren et al. [9] conducted a study on the flame structure of stoichiometric methane-N2O-Ar and methane-O2-Ar by means of the molecular beam sampling and mass spectroscopy methods. The propagation parameters and laminar burning velocities of CH4-N2O in the presence of various inert gases (e.g., He, Ar, N2 and CO2) obtained from experiments in a 0.52 L spherical vessel, at initial pressures from 0.3 to 1.8 bar were recently investigated by Razus et al. [10,11]. The authors reported that the maximum explosion pressure as well as the maximum rates of pressure rise present a linear dependence on the initial pressure. The additive efficiency on the explosion parameters decreased starting with CO2, followed by N2, Ar and He. The overall activation energy of methane oxidation by N2O, which is lower than the overall activation energy when O2 from air is used as an oxidant, can be due to N2O dissociation.
Ethylene-N2O flame was less studied despite the safety concerns raised from handling and storage of nuclear waste, where these mixtures can form, as well as due to their use in aerospace applications. Ethylene is a high-reactivity fuel used in the chemical industry, but previous investigations focused on explosion of ethylene-air (oxygen) mixtures [12,13,14,15,16]. However, ethylene–N2O mixtures have recently been proposed as a promising propellant for hydrazine replacement [17,18] due to their advantages: similar vapor pressures, which allow a good miscibility, and high vapor pressure, which allows a self-pressurizing without an external pressure supply. Additionally, ethylene–N2O mixtures are not carcinogenic, have a relatively low cost and a low toxicity and after their combustion, no ammonia results in comparison with hydrazine. Therefore, ethylene–N2O mixtures represent a green propellant and thus, the studies related to these mixtures are always necessary.
Shen et al. [19] experimentally investigated the explosion dynamics of inert-diluted C2H4-N2O explosions in a standard 20-L spherical vessel at sub-atmospheric pressure (inerts: N2 and CO2). For inert concentrations lower than 30% they found a correspondence between the maximum explosion pressure experimentally measured and the corresponding Chapman–Jouguet (CJ) detonation pressure, meaning the activation of a DDT (Deflagration-to-Detonation) mechanism during the explosion process, also demonstrated by Bane et al. [20] for nitrogen-diluted hydrogen–nitrous oxide flames. The explosion characteristics of C2H4-N2O-N2 mixtures measured in various cylinders (0.17 L, 1.18 L and 2.0 L), at different initial pressures, were reported by Movileanu et al. [21]. They found a linear dependence of the maximum explosion pressure (as well as of the maximum rise of pressure rise) on the initial pressure, similar to that reported for fuel-air mixtures [16]. In smaller volume explosion vessels, no DDT occurred. The DDT in long tubes, the explosion limits, and the ignition delay times of explosions in C2H4-N2O and C2H4-O2 mixtures were also investigated in the previous studies [22,23,24,25,26].
From the above literature review it can be concluded that researchers have focused their interest mostly on studying the explosion characteristics of other fuel–N2O flames rather than that of ethylene-N2O flames. Therefore, these latter flames must be studied in detail to cover the gap that exists regarding them in literature.
In the present study, the dynamics of closed-vessel explosion of nitrogen-diluted C2H4/N2O mixtures is examined by means of the maximum (peak) explosion pressures, explosion times, maximum rate of pressure rise and severity factors. Lean and stoichiometric C2H4/N2O mixtures diluted with various nitrogen amounts were examined using a 0.52 L vessel with spherical aspect and central ignition at different initial pressures. The nitrogen was chosen as diluent because it is frequently used as an inert gas in the case of explosion inhibition. The data and conclusions from the present research could contribute to a better understanding of explosions occurring in N2O atmosphere, providing new insights of these processes.

2. Materials and Methods

The experimental system consists of a 0.52 L stainless steel spherical vessel, the ignition device, the data acquisition system and a vacuum line. A schematic representation of the experimental set-up is presented in Figure 1.
The explosion vessel has several ports for the gas feed/evacuation valve, pressure transducers, ionization probes, and ignition electrodes. The explosion vessel was tested for static pressures of minimum 40 bar. The ignition, centrally located inside the vessel, was done using inductive-capacitive sparks of high voltage. A piezoelectric pressure transducer (Kistler 601A), in line with a Charge Amplifier Kistler 5001 SN is used for monitoring the pressure evolution. The signals provided by the ionization probe and pressure transducer were acquired using a Tektronix digital oscilloscope type TDS 2014B connected to a PC, usually at 2500 signals/channel and maximum 1 GS/s sampling rate. Details regarding the experimental setup and procedure can be found in other published works [16,27,28]. Before each experiment, the experimental vessel was evacuated to a pressure down to 5 × 10−4 bar, then the explosive mixture was admitted and allowed 3 min. to become quiescent. After that, the gaseous mixture was ignited and then evacuated.
The C2H4–N2O–N2 gaseous mixtures were prepared in a metallic cylinder using the partial pressure method at a total pressure of 4 bar. Each investigated mixture was used 24 h after mixing their components. For every examined mixture, the equivalence ratio of the C2H4–N2O mixture was given, together with the added nitrogen amount, as the volumetric N2 concentration in the end mixture (C2H4 + N2O + N2).
Ethylene (99.99% from SIAD, Bergamo, Italy), N2O and N2 (both 99.999% from SIAD, Bergamo, Italy) were used, without any purification. Ethylene–N2O mixtures having equivalence ratios from 0.8 to 1.0, diluted by 40–60% N2, were studied. For concerns of laboratory operation safety, C2H4–N2O–N2 explosions were examined at total initial pressures from 0.5 to 1.50 bar. For each initial condition of the explosive mixture, a minimum of 3 experiments were performed (using fresh C2H4–N2O–N2 mixture each time) to minimize the operational errors. At the end, the obtained results were averaged.

3. Computing Programs and Data Evaluation

The 0-D COSILAB package [29] allowed the calculation of the adiabatic explosion pressures and adiabatic flame temperatures. This program is based on an algorithm that allows the calculation of the equilibrium composition of the products of a fuel–oxidizer gaseous mixture according to the thermodynamic criterion of chemical equilibrium: the minimum of Gibbs energy (keeping constant the temperature and pressure) or minimum of Helmholtz energy (keeping constant the temperature and volume). As combustion products we considered a total of fifty-three compounds. The runs were performed for lean and stoichiometric ethylene-N2O mixtures, various nitrogen concentrations (40 to 60 vol.%), at ambient initial temperature and at different initial pressures (0.50–1.50 bar).
The p(t) curves were smoothed by Savitzky–Golay method in order to obtain the rates of pressure rise. Utilisation of the Savitzky–Golay method means the analysis of a number of points (e.g., 500–700 points) registered from the ignition to the time necessary to reach the maximum explosion pressure and provide a smoothed first derivative without filtering the data. This method implies the least squares quartic polynomial fitting across a moving window within the data. A 10% smoothing level was used for each curve, since a higher value of smoothing level (e.g., 20%) leads to a reduction of the noise and to a signal distortion.

4. Results

An example of pressure-time record for stoichiometric C2H4-N2O-N2 mixture explosion in spherical vessel with central ignition at 1 bar initial pressure and ambient initial temperature is presented in Figure 2 and compared with that obtained for stoichiometric C2H4-air explosion registered under the same initial conditions [30]. The comparison can be performed since the examined mixtures have close flame temperatures.
It can be observed that for equivalent initial conditions the use of N2O for replacing O2 as oxidizer entails the increase of the maximum explosion pressure and the decrease of the explosion time. This shows us that the fuel–N2O mixtures are more reactive when compared with the mixtures with air with the same flame temperature. This behaviour is due to the additional heat amount released from the exothermal decomposition of N2O when N2O is used as oxidizer instead of air (O2).
For all pressure–time trajectories, the pressure first increases progressively, and then decreases once the maximum values are reached, this fact indicating that a complete combustion has taken place.
The pressure evolutions of C2H4-N2O-N2 explosions at initial pressure of 1 bar and various amounts of nitrogen are presented in Figure 3 as examples. The comparison presented in this figure shows that, for the same initial pressure, temperature and fuel:oxidizer ratio, the explosion pressure decreases when the inert concentration increases. It can be seen that, starting with 40 vol.% dilution, the pressure inside the explosion vessel rises up smoothly after mixture ignition. This behaviour has been widely reported by other researchers [16,31,32].
The initial pressure is one of the parameters that influence the maximum (peak) explosion pressure. An example of maximum (peak) explosion pressures’ variation against initial pressures for stoichiometric C2H4-N2O-N2 mixtures is presented in Figure 4 for various N2 dilution ratios and ambient initial temperature. Such variations were also observed for lean C2H4-N2O-N2 mixtures. As expected, the maximum explosion pressure during the explosion of C2H4-N2O-N2 mixtures increases as the initial pressure increases.
Due to the lack of experimental data reported in literature for explosions of C2H4-N2O-N2 mixtures in spherical vessels at initial pressures p0 ≥ 1 bar, we can only compare our data with those reported at sub-atmospheric pressures. Our data registered at p0 = 0.5 bar are: pmax = 6.50 bar for stoichiometric C2H4-N2O mixture diluted with 40 vol.% N2 and pmax = 5.70 bar for stoichiometric C2H4-N2O mixture diluted with 50 vol.% N2. These results are higher than those reported by Shen et al. [19] for mixtures with the same composition and initial pressure obtained from experiments in a 20 L spherical vessel (pmax = 5.70 bar for the stoichiometric C2H4-N2O mixture diluted with 40 vol.% N2 and pmax = 5.00 bar for stoichiometric C2H4-N2O mixture diluted with 50 vol.% N2). These discrepancies might be due to the differences in vessel volumes, which can affect the heat losses and through them, the explosion pressures.
Linear correlations of maximum explosion pressures with initial pressures of the mixture were found for all examined systems. The correlation could be described using the following equation:
p m a x = a + b · p 0
The coefficients a and b from Equation (1) are necessary to find the unknown values of the explosion pressures at a certain value of the initial pressure in the studied pressure range without experimental measurements, as long as the combustion is propagating as a deflagration. They depend on a series of parameters such as: initial temperature, nature of the mixture, vessel shape, and aspect ratio. The coefficients of linear regressions for stoichiometric and lean C2H4-N2O-N2 mixtures are presented in Table 1.
Such linear correlations between explosion pressures and initial pressures were observed not only for fuel–air mixtures [16], but also when other fuel–N2O inert mixtures were examined [10].
Besides the initial pressure, the shape and size of the explosion vessel influence the explosion pressure. Thus, in cylindrical vessels, the explosion pressures are smaller in comparison with those registered in spherical vessels due to higher heat losses that occur in these cylindrical enclosures. On the other hand, the higher vessel size is, the smaller the explosion pressure is. The influence of the size and aspect of the explosion vessels on this parameter can be observed from Table 2, where data referring to stoichiometric C2H4-N2O-N2 diluted with 60 vol.% N2 measured in a cylinder with L/D = 1.0 and in a cylinder with L/D = 1.5 measured at initial pressures between 0.50 and 1.50 bar collected from [21] are given along with the present data. All data from Table 2 refer to experiments with central ignition.
The presence of an inert diluent affects the maximum explosion pressures as can be seen in Figure 5, where data referring to both studied mixtures (lean and stoichiometric) at ambient initial conditions are given. As expected, the higher the nitrogen amount is, the smaller the explosion pressure is. Adding an inert (such as nitrogen) to a gaseous flammable mixture leads to an alteration of both thermodynamics and kinetics of the combustion process, so that a higher inert concentration leads to a small explosion pressure.
The kinetic effect due to N2 addition on C2H4-N2O mixtures can be assigned mainly to N2 participation in the following reaction:
O + N2 (+M) → N2O (+M)
The study undertaken by Shen et al. [19] pointed out that, at high initial pressures, nitrogen acts as both as a reactant and a third body, and thus reaction (R1) becomes important. Therefore, although the N2O undergoes an energetic decomposition through the reaction (R2) written below, nitrogen can effectively inhibit N2O decomposition, as described in [19].
N2O (+M) → N2 + O (+M)
Furthermore, the nitrogen addition can lead to a decrease in the branching ratio of the following reaction (R3) over reaction (R1), by its third-body collisional effect [19]:
H + O2 → O + OH
Besides the kinetic effect, nitrogen addition contributes to the reduction of the flame temperature and flame speed, acting as a heat sink.
For all studied mixtures, a linear dependency of explosion pressure on inert concentration was observed. This dependency can be described using a correlation proposed by Oancea et al. [33,34] based on heat balance of the isochoric combustion of a fuel–air mixture in non-adiabatic conditions:
p m a x = p 0 ( ξ + r l ν l · Δ c U C e , V ¯ T 0 ) q t r · γ e 1 V 0
where pmax represents the maximum explosion pressure attained at pressure p0; ξ = ne/n0 is the ratio between the final (ne) and initial (n0) mole numbers; rl= nl/n0 represents the ratio between the number of moles corresponding to the limiting component of the mixture and the total initial number of moles; νl represents the stoichiometric coefficient of the limiting component in the mixture; ΔcU’ represents the heat of combustion (at temperature T0 and constant volume) corrected by taking into account the accompanying secondary reactions; C e , V ¯ represents the molar heat capacity of the end gaseous mixture, averaged for the end components and for the temperature range T0 to Te,V; qtr represents the amount of heat transferred by the gas to the vessel before the end of combustion; and γe represents the adiabatic coefficient of the burned gas, at the end of combustion.
For the isochoric combustion of a gaseous fuel-oxidizer mixture, Equation (2) holds as long as it is assumed that the studied gas behaves like an ideal gas and that pmax is approximately equal to the pressure at the combustion end. However, in the real cases, the gaseous fuels are made up from polyatomic molecules, having many degrees of freedom, and their heat capacities are high and depend on temperature, which leads to explosion pressures which differ from those obtained with this equation. Keeping constant the initial temperature, the maximum explosion pressures of N2-diluted C2H4-N2O mixtures depend on initial pressures (influencing the molar heat capacity of the end gaseous mixture and the adiabatic coefficient of the burned gas, at the end of combustion) and on the amount of heat transferred by the gas to the vessel before the end of combustion. Therefore, we can observe that N2 addition to C2H4-N2O mixtures influences both the slope and intercepts of pmax versus p0 plots.
Over a well-defined initial pressure domain, we can assume that ξ, ΔcU’and C e , V ¯ do not depend on p0 (or that their variations compensate each other) and therefore, the amount of heat transferred from the burned gas to the explosion vessel before the combustion ends, can be obtained using the intercepts of the linear correlations pmax vs. p0, whose values are presented in Table 1. Representative results regarding the amount of heat transferred by the stoichiometric and lean ethylene-N2O-N2 flames to the vessel’s walls are presented in Table 3. In the present case, qtr was calculated following [16], as:
q t r = a · V 0 γ e 1
From Table 3 it is seen that an increase of the nitrogen concentration leads to larger amounts of heat being lost to the vessel’s wall due to the longer explosion times and lower propagation speeds for both lean and stoichiometric ethylene-N2O-N2 mixtures.
Another important parameter that describes the heat transferred during explosions in closed vessels is the fraction (F) of the heat transferred (lost) from the total released heat. This property depends, on one hand, on the corrected heat of combustion and the average heat capacity of burned gas (factors influenced by the composition of fuel and oxidizer) and, on the other hand, on the initial pressure of the studied mixture. In this study, the fractions F of transferred heat were calculated using the following equation [35], derived also from Equation (2):
F = a p 0 ( b 1 )
Their values calculated at p0 = 1 bar are also presented in Table 3. At constant inert composition, lower F values were obtained for the stoichiometric C2H4-N2O flames compared to the lean flames. This is due to the fact that the stoichiometric mixtures have shorter explosion times and higher burning velocities when compared to the lean mixtures.
When a certain amount of inert (molar fraction: xi) is added to a fuel-air mixture, it is expected that the heat transferred from the burned gas to the vessel, before the combustion ends, to be a function of mixture composition. Therefore, the term qtr from Equation (2) becomes q t r * = f(rl, xi) and Equation (2) is rewritten as:
p m a x = [ p 0 ( ξ + r l ν l · Δ c U C e , V ¯ · T 0 ) q t r * · γ e V 0 ] ( p 0 r l ν l · Δ c U C e , V ¯ · T 0 ) · x i = m n · x i
When the composition of fuel-oxidizer mixture as well as the initial pressure p0 are constant, we can assume that the coefficients m and n (characterized by ξ, rl and νl) are constant. This is true only for a restricted domain of inert gas concentrations. Only when these conditions are fulfilled, the explosion pressure present a linearly dependence on the molar fraction of added inert gas. In this case, a linear dependence of explosion pressure on the molar fraction of added inert gas is observed, as shown by the data from Figure 5.
Even if explosions occur in a spherical vessel, where the explosion is considered to propagate as close as possible to the ideal case, the differences between experimental and ideal adiabatic explosion pressures are significant, as it can be seen from Figure 5. This behaviour shows once more that in the real case, the heat transferred (by convection, conduction or radiation) from the flame front to the vessel walls influences the explosion’s propagation. In the present research, the flame was monitored by means of an ionization probe. The ionization probe signal, reaching its peak value at the same time with the peak of the pressure rise rate, can be seen in Figure 6. The observed differences between the experimental and adiabatic values of the explosion pressures can be attributed not only to the heat losses during experiments, but also to the aspect and volume of the explosion vessel, the position of the ignition source or the appearance of turbulences in the gaseous mixture before ignition, which may lead to a decrease in explosion pressure. In the case of an adiabatic process when there are no heat losses, the explosion pressures are influenced only by the initial pressure and temperature and by the composition and the nature of the studied mixture. The differences between the experimental and calculated (adiabatic) explosion pressure are useful to obtain with approximation the amount of lost energy in the course of the combustion process. This was already noted by Kunz in his study on combustion characteristics of H2- and hydrocarbon–air mixtures in closed vessels [36]. Kunz concluded that the larger the differences between the calculated and experimental explosion pressures are, the higher the thermal losses are that occur during the explosion.
The adiabatic explosion pressures have the same behaviour as the experimental explosion pressures does. At a constant amount of nitrogen, higher values of the adiabatic explosion pressures were observed for stoichiometric C2H4-N2O mixture compared to lean C2H4-N2O mixture. Keeping the equivalence ratio constant, the adiabatic explosion pressures decreased with an increase in initial pressure.
Set as the zero point (0 s) on an X-axis the moment of ignition. Considering this, the explosion time, θmax, which represents another important combustion parameter, is defined as the explosion duration between the ignition and the moment when the maximum explosion pressure is reached. Adding an inert to a gaseous fuel–oxidizer mixture influences not only the maximum explosion pressure, but also the explosion times. Obviously, with increasing N2 dilution, the explosion duration θmax increases, as it can be observed from Table 4.
It was found that for stoichiometric ethylene-air mixture at p0 = 1 bar, the maximum time to reach pmax is θmax = 14.6 ms, higher that for an ethylene-N2O-N2 mixture with the same flame temperature (θmax = 10.7 ms). Lower values of characteristic parameters θmax were obtained for a stoichiometric C2H4-N2O-N2 mixture compared to the lean mixture. This behaviour is in accordance with their burning velocities.
The maximum rate of pressure rise represents a safety parameter important for assessing the hazard of a process and, together with the explosion pressure, is used for design of enclosures able to withstand explosions, or of vents used as relief devices for these vessels to avoid the damages caused by explosions occurring in the gaseous phase [37,38,39]. For explosions of nitrogen-diluted ethylene-N2O mixtures linear dependences of the form:
( d p / d t ) m a x = α + β · p 0
were obtained from the graphic representation of the maximum rates of pressure rise versus initial pressures, as can be observed in Figure 7a,b. The coefficients α and β depend, on one hand, on the equivalence ratio of studied mixture, and, on the other hand, on the nature and of amount of inert added to the gaseous mixture.
Similar dependences as those given in Figure 7 were reported earlier for fuel–air mixtures such as propane–air [40], LPG–air [41] or propylene–air [42] and for fuel–air–diluent mixtures (e.g., H2–air–steam [43,44], CH4–air–N2, CH4–air–CO2 [45], natural gas–air–CO2 [46]) obtained at sub-atmospheric initial pressures or at initial pressures above 1 bar (with the obvious limitation to deflagrative combustions).
Such diagrams as those depicted in Figure 7 are useful to calculate the maximum rates of pressure rises at any initial pressures different from the ambient one, but within the studied pressure range. This is valid only as long as the explosion propagates as deflagration.
At p0 = 0.5 bar and stoichiometric equivalence ratio of C2H4-N2O-N2 mixtures, Shen et al. [19] reported (dp/dt)max = 20 bar/s for a nitrogen amount of 40 vol.% and (dp/dt)max = 10 bar/s for a nitrogen amount of 50 vol.%. As a comparison, the present data are: (dp/dt)max = 21.0 bar/s for a nitrogen amount of 40 vol.% and (dp/dt)max = 14.8 bar/s for a nitrogen amount of 50 vol.%.
As shown by the above data, the presence of an inert influences the rates of pressure rise. From Figure 7 it is observed that, for constant equivalence ratio, the higher the amount of inert added is, the lower the pressure rise rates are, for both lean and stoichiometric ethylene-N2O flames. When the amount of N2 is kept constant, it is noticed that the pressure rise rates of lean ethylene-N2O mixtures are lower compared to the pressure rise rates of stoichiometric mixture. This behaviour was already reported for CH4-N2O-N2 flames [10].
The severity factor is an efficient scaling parameter able to predict the failure effect of enclosures where an explosion occurs. In this study, the severity factors (KG) of C2H4-N2O-N2 flames were determined by means of the rates of pressure rise obtained from measurements in the spherical vessel with central ignition and are given in Figure 8 versus the initial pressure. The greater the amount of inert is, the lower the severity factors are, a fact observed for both stoichiometric and lean C2H4-N2O mixtures when the equivalence ratio is kept constant. As expected, when the inert concentration is kept constant, the higher values of the severity factors are observed for the stoichiometric C2H4-N2O mixture compared to lean C2H4-N2O mixture.
As already reported for CH4-air mixture [47], and as seen from Figure 8, the severity factors are strongly affected by the initial pressure. As expected, the severity factors present the same linear dependence on the initial pressure as previously observed for the maximum explosion pressures and the rates of pressure rise.
Therefore, the severity of an explosion in fuel–oxidizer mixtures can be reduced by using inert additives which have the role of taking over some of the heat released from the combustion reaction and thereby lowering the temperature in the flame front. The decrease of the flame temperature has as a major effect the decrease of the explosion pressure, accompanied by the decrease of the reaction rate resulting in the decrease of maximum rates of pressure rise and thus of the severity factors.
The maximum explosion pressures and maximum rates of pressure rise of stoichiometric C2H4-N2O mixtures diluted with various amounts of N2 or CO2 were studied at various initial pressures using a standard-volume vessel [19]. The authors of this paper concluded that, in the case of the aerospace applications where the dilution degree is small, a N2 dilution contributes better to safety and power efficiency when compared to CO2. On the other hand, in the case of nuclear or other hazardous waste which contains N2O, the nitrogen presents almost the same dilution effect as CO2 due to its presence in large quantities. Therefore, for a better use of these mixtures that present a high explosive risk, specialized scientific studies are always necessary.

5. Conclusions

The present paper presents the characteristic parameters of confined explosions (pmax, θmax and (dp/dt)max) in a spherical vessel with central ignition for lean and stoichiometric C2H4-N2O mixtures diluted with various amounts of nitrogen between 40–60 vol.%. The results are examined in correlation with the composition and initial pressure of these flammable mixtures.
The explosion pressures and rates of pressure rise are higher and the times to achieve peak explosion pressures are shorter for nitrogen-diluted C2H4-N2O mixtures in comparison to C2H4-air mixtures with the same flame temperature. The exothermal dissociation of nitrous oxide in C2H4-N2O-N2 flames is the reason of that behaviour, due to the supplementary heat amount released in fuel–N2O flames compared to fuel–air flames.
The computed adiabatic explosion pressures are higher in comparison with the measured peak explosion pressures for all flammable mixtures due to the heat losses which take place during the late period of flame propagation.
For all studied flammable mixtures, it was observed that the peak explosion pressures depend linearly on the initial pressures of these mixtures and that the slope as well as the intercept of such dependencies are influenced by the composition of the flammable mixtures.
Linear correlations of the maximum rates of pressure rise and severity factors against the initial pressures were also obtained for all studied C2H4-N2O-N2 mixtures.
At constant equivalence ratio, the severity factors decrease when the nitrogen amount is increased. At a constant nitrogen amount, the severity factors of stoichiometric C2H4-N2O-N2 mixture are higher compared to those of lean C2H4-N2O-N2 mixture.

Author Contributions

Conceptualization, V.G., D.R. and C.M.; methodology, C.M. and V.G.; software, D.R.; validation, V.G., M.M., D.R. and C.M.; formal analysis, V.G.; investigation, C.M. and V.G.; resources, C.M. and M.M.; data curation, V.G., M.M., D.R. and C.M.; writing—original draft preparation, C.M. and V.G.; writing—review and editing, V.G., M.M., D.R. and C.M.; visualization, D.R. and C.M; supervision, M.M and D.R..; project administration, C.M.; funding acquisition, C.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a grant of the Ministry of Research, Innovation and Digitization, CNCS-UEFISCDI, project number PN-III-P4-PCE-2021-0369 within PNCDI III, project number PCE 38/2022.

Data Availability Statement

Not applicable.

Acknowledgments

This work was partially supported by the Romanian Academy under research project “Dynamics of fast oxidation and decomposition reactions in homogeneous systems” of “Ilie Murgulescu” Institute of Physical Chemistry and by a grant of the Ministry of Research, Innovation and Digitization, CNCS-UEFISCDI, project number PN-III-P4-PCE-2021-0369 within PNCDI III, project number PCE 38/2022.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mével, R.; Davidenko, D.; Lafosse, F.; Chaumeix, N.; Dupré, G.; Paillard, C.-É.; Shepherd, J.E. Detonation in hydrogen–nitrous oxide–diluent mixtures: An experimental and numerical study. Combust. Flame 2015, 162, 1638–1649. [Google Scholar] [CrossRef] [Green Version]
  2. Koshiba, Y.; Takigawa, T.; Matsuoka, Y.; Ohtani, H. Explosion characteristics of flammable organic vapors in nitrous oxide atmosphere. J. Hazard. Mater. 2010, 183, 746–753. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Powell, O.A.; Papas, P.; Dreyer, C.B. Flame structure measurements of NO in premixed hydrogen–nitrous oxide flames. Proc. Combust. Inst. 2011, 33, 1053–1062. [Google Scholar] [CrossRef]
  4. Javoy, S.; Mével, R.; Paillard, C.E. A study of N2O decomposition rate constant at high temperature: Application to the reduction of nitrous oxide by hydrogen. Int. J. Chem. Kinet. 2009, 41, 357–375. [Google Scholar] [CrossRef]
  5. Pfahl, U.J.; Ross, M.C.; Shepherd, J.E.; Pasamehmetoglu, K.O.; Unal, C. Flammability limits, ignition energy, and flame speeds in H2–CH4–NH3–N2O–O2–N2 mixtures. Combust. Flame 2000, 123, 140–158. [Google Scholar] [CrossRef]
  6. Vandebroek, L.; Van den Schoor, F.; Verplaetsen, F.; Berghmans, J.; Winter, H.; van’t Oost, E.J. Flammability limits and explosion characteristics of toluene–nitrous oxide mixtures. Hazard. Mater. 2005, 120, 57–65. [Google Scholar] [CrossRef]
  7. Shebeko, Y.N.; Korol’chenko, A.Y.; Il’in, A.B.; Malkin, V.L. Concentration limits for flame propagation in fuel-dilutent-nitrous oxide mixtures. Combust., Explos. Shock. Waves 1988, 24, 306–309. [Google Scholar] [CrossRef]
  8. Koshiba, Y.; Nishida, T.; Morita, N.; Ohtani, H. Explosion behavior of n-alkane/nitrous oxide mixtures. Process Saf. Environ. Prot. 2015, 98, 11–15. [Google Scholar] [CrossRef] [Green Version]
  9. Vandooren, J.; Branch, M.C.; Van Tiggelen, P.J. Comparisons of the structure of stoichiometric CH4-N2O-Ar and CH4-O2-Ar flames by molecular beam sampling and mass spectrometric analysis. Combust. Flame 1992, 90, 247–258. [Google Scholar] [CrossRef]
  10. Razus, D.; Mitu, M.; Giurcan, V.; Oancea, D. Propagation indices of methane-nitrous oxide flames in the presence of inert additives. J. Loss Prev. Process Ind. 2017, 49, 418–426. [Google Scholar] [CrossRef]
  11. Razus, D.; Mitu, M.; Giurcan, V.; Movileanu, C.; Oancea, D. Methane-unconventional oxidant flames. Laminar burning velocities of nitrogen-diluted methane–N2O mixtures. Process Saf. Environ. Prot. 2018, 114, 240–250. [Google Scholar] [CrossRef]
  12. Amyotte, P.R.; Patil, S.; Pegg, M.J. Confined and vented ethylene/air deflagrations at initially elevated pressures and turbulence levels. Process Saf. Environ. Prot. 2002, 80, 71–77. [Google Scholar] [CrossRef]
  13. Phylaktou, H.N.; Andrews, G.E.; Herath, P. Fast flame speeds and rates of pressure rise in the initial period of gas explosions in large L/D cylindrical enclosures. J. Loss Prev. Process Ind. 1990, 3, 355–364. [Google Scholar] [CrossRef]
  14. Crescitelli, S.; Russo, G.; Tufano, V. Flame propagation in closed vessels and flammability limits. Combust. Sci. Technol. 1977, 15, 201–212. [Google Scholar] [CrossRef]
  15. Movileanu, C.; Gosa, V.; Razus, D. Propagation of ethylene–air flames in closed cylindrical vessels with asymmetrical ignition. Process Saf. Environ. Prot. 2015, 96, 167–176. [Google Scholar] [CrossRef]
  16. Movileanu, C.; Gosa, V.; Razus, D. Explosion of gaseous ethylene–air mixtures in closed cylindrical vessels with central ignition. J. Hazard. Mater. 2012, 235–236, 108–115. [Google Scholar] [CrossRef] [PubMed]
  17. Perakis, N.; Hochheimer, B.; Werling, L.; Gernoth, A.; Schlechtriem, S. Development of an experimental demonstrator unit using Nitrous Oxide/Ethylene Premixed Bipropellant for satellite applications. In Proceedings of the Meet the Space Conference, Kraków, Poland, 27–28 November 2014; Volume 2, pp. 1–6. [Google Scholar]
  18. Yang, M.; Yang, Y.; Liao, C.; Tang, C.; Zhou, C.W.; Huang, Z. The auto-ignition boundary of ethylene/nitrous oxide as a promising monopropellant. Combust. Flame 2020, 221, 64–73. [Google Scholar] [CrossRef]
  19. Shen, X.; Zhang, N.; Shi, X.; Cheng, X. Experimental studies on pressure dynamics of C2H4/N2O mixtures explosion with dilution. Appl. Therm. Eng. 2019, 147, 74–80. [Google Scholar] [CrossRef]
  20. Bane, S.P.M.; Mével, R.; Coronel, S.A.; Shepherd, J.E. Flame burning speeds and combustion characteristics of undiluted and nitrogen-diluted hydrogen–nitrous oxide mixtures. Int. J. Hydrog. Energy 2011, 36, 10107–10116. [Google Scholar] [CrossRef]
  21. Movileanu, C.; Mitu, M.; Razus, D.; Giurcan, V.; Oancea, D. Propagation indexes of C2H4-N2O-N2 deflagrations in elongated closed vessels deflagrations in elongated closed vessels. Rev. Roum. Chim. 2017, 62, 357–363. [Google Scholar]
  22. Destriau, M. On the explosion limits of various combustible gases using nitrous oxide as oxidizer. Combust. Flame 1962, 6, 347–350. [Google Scholar] [CrossRef]
  23. Craven, A.D.; Foster, M.G. The limits of flammability of ethylene in oxygen, air and air-nitrogen mixtures at elevated temperatures and pressures. Combust. Flame 1966, 10, 95–100. [Google Scholar] [CrossRef]
  24. Pekalski, A.A.; Terli, E.; Zevenbergen, J.F.; Lemkowitz, S.M.; Pasman, H.J. Influence of the ignition delay time on the explosion parameters of hydrocarbon–air–oxygen mixtures at elevated pressure and temperature. Proc. Combust. Inst. 2005, 30, 1933–1939. [Google Scholar] [CrossRef]
  25. Wu, M.H.; Kuo, W.C. Accelerative expansion and DDT of stoichiometric ethylene/oxygen flame rings in micro-gaps. Proc. Combust. Inst. 2013, 34, 2017–2024. [Google Scholar] [CrossRef]
  26. Bangalore Venkatesh, P.; Graziano, T.; Bane, S.P.; Meyer, S.E.; Grubelich, M.C. Deflagration-to-Detonation transition in nitrous oxide-ethylene mixtures and its application to pulsed propulsion systems. In Proceedings of the 55th AIAA Aerospace Sciences Meeting., Grapevine, TX, USA, 9–13 January 2017; p. 0372. [Google Scholar]
  27. Movileanu, C.; Razus, D.; Oancea, D. Additive effects on the rate of pressure rise for ethylene-air deflagrations in closed vessels. Fuel 2013, 111, 194–200. [Google Scholar] [CrossRef]
  28. Movileanu, C.; Razus, D.; Oancea, D. Additive effects on the burning velocity of ethylene-air mixtures. Energy Fuels 2011, 25, 2444–2451. [Google Scholar] [CrossRef]
  29. Cosilab, version 4.3.3; Rotexo-Softpredict GmbH & Co KG: Bad Zwischenhahn, Germany, 2022.
  30. Movileanu, C.; Razus, D.; Oancea, D. Additive effects on explosion pressure and flame temperature of stoichiometric ethylene-air mixture in closed vessels. Rev. Roum. Chim. 2011, 56, 11–17. [Google Scholar]
  31. Ma, Q.; Zhang, Q.; Chen, J.; Huang, Y.; Shi, Y. Effects of hydrogen on combustion characteristics of methane in air. Int. J. Hydrog. Energy 2014, 39, 11291–11298. [Google Scholar] [CrossRef]
  32. Zhang, B.; Xiu, G.; Bai, C. Explosion characteristics of argon/nitrogen diluted natural gas–air mixtures. Fuel 2014, 124, 125–132. [Google Scholar] [CrossRef]
  33. Oancea, D.; Gosa, V.; Ionescu, N.I.; Popescu, D. An experimental method for the measurement of adiabatic maximum pressure during an explosive gaseous combustion. Rev. Roum. Chim. 1985, 30, 767–776. [Google Scholar]
  34. Giurcan, V.; Mitu, M.; Movileanu, C.; Razus, D.; Oancea, D. Influence of inert additives on small-scale closed vessel explosions of propane-air mixtures. Fire Safety Journal 2020, 111, 102939. [Google Scholar] [CrossRef]
  35. Mitu, M.; Giurcan, V.; Razus, D.; Prodan, M.; Oancea, D. Propagation indices of methane-air explosions in closed vessels. J. Loss Prev. Process Ind. 2017, 47, 110–119. [Google Scholar] [CrossRef]
  36. Kunz, O. Combustion Characteristics of Hydrogen-and Hydrocarbon-Air Mixtures in Closed Vessels: Explosion Dynamics Laboratory Report FM. Diploma Thesis, University of Stuttgart, Stuttgart, Germany, 1998; pp. 94–98. [Google Scholar]
  37. Bartknecht, W.; Zwahlen, G.G. Explosionsschutz, Grundlagen und Anwendung; Springer: Berlin, Germany, 1993. [Google Scholar]
  38. National Fire Protection Association. NFPA 68, Guide for Venting Deflagrations, 1998 ed.; National Fire Protection Association: Quincy, MA, USA, 1998. [Google Scholar]
  39. Mashuga, C.; Crowl, D. Application of the flammability diagram for evaluation of fire and explosion hazards of flammable vapors. Process Saf. Prog. 1998, 17, 176–183. [Google Scholar] [CrossRef]
  40. Razus, D.; Brinzea, V.; Mitu, M.; Oancea, D. Temperature and pressure influence on explosion pressures of closed vessel propane–air deflagrations. J. Hazard. Mater. 2010, 174, 548–555. [Google Scholar] [CrossRef]
  41. Razus, D.; Brinzea, V.; Mitu, M.; Oancea, D. Explosion characteristics of LPG–air mixtures in closed vessels. J. Hazard. Mater. 2009, 165, 1248–1252. [Google Scholar] [CrossRef]
  42. Razus, D.; Movileanu, C.; Brinzea, V.; Oancea, D. Explosion pressures of hydrocarbon-air mixtures in closed vessels. J. Hazard. Mater. 2006, 135, 58–65. [Google Scholar] [CrossRef]
  43. Ural, E.; Zalosh, R. A mathematical model for lean hydrogen–air–steam mixture combustion in closed vessels. Proc. Combust. Inst. 1984, 20, 1727. [Google Scholar] [CrossRef]
  44. Seiser, R.; Seshadri, K. The influence of water on extinction and ignition of hydrogen and methane flames. Proc. Combust. Inst. 2005, 30, 407. [Google Scholar] [CrossRef]
  45. Bade Shrestha, S.O.; Karim, G.A. Predicting the effects of the presence of diluents with methane on spark ignition engine performance. Appl. Therm. Eng. 2001, 21, 331–342. [Google Scholar] [CrossRef]
  46. Dlugogorski, B.Z.; Hichens, R.K.; Kennedy, E.M.; Bozzelli, J.W. Water vapour as an inerting agent. In Proceedings of the Halon Options Technical Working Conference, Albuquerque, NM, USA, 6–8 May 1997; p. 7. [Google Scholar]
  47. Mitu, M.; Giurcan, V.; Razus, D.; Oancea, D. Influence of Initial Pressure and Vessel’s Geometry on Deflagration of Stoichiometric Methane–Air Mixture in Small-Scale Closed Vessels. Energy Fuels 2020, 34, 3828–3835. [Google Scholar] [CrossRef]

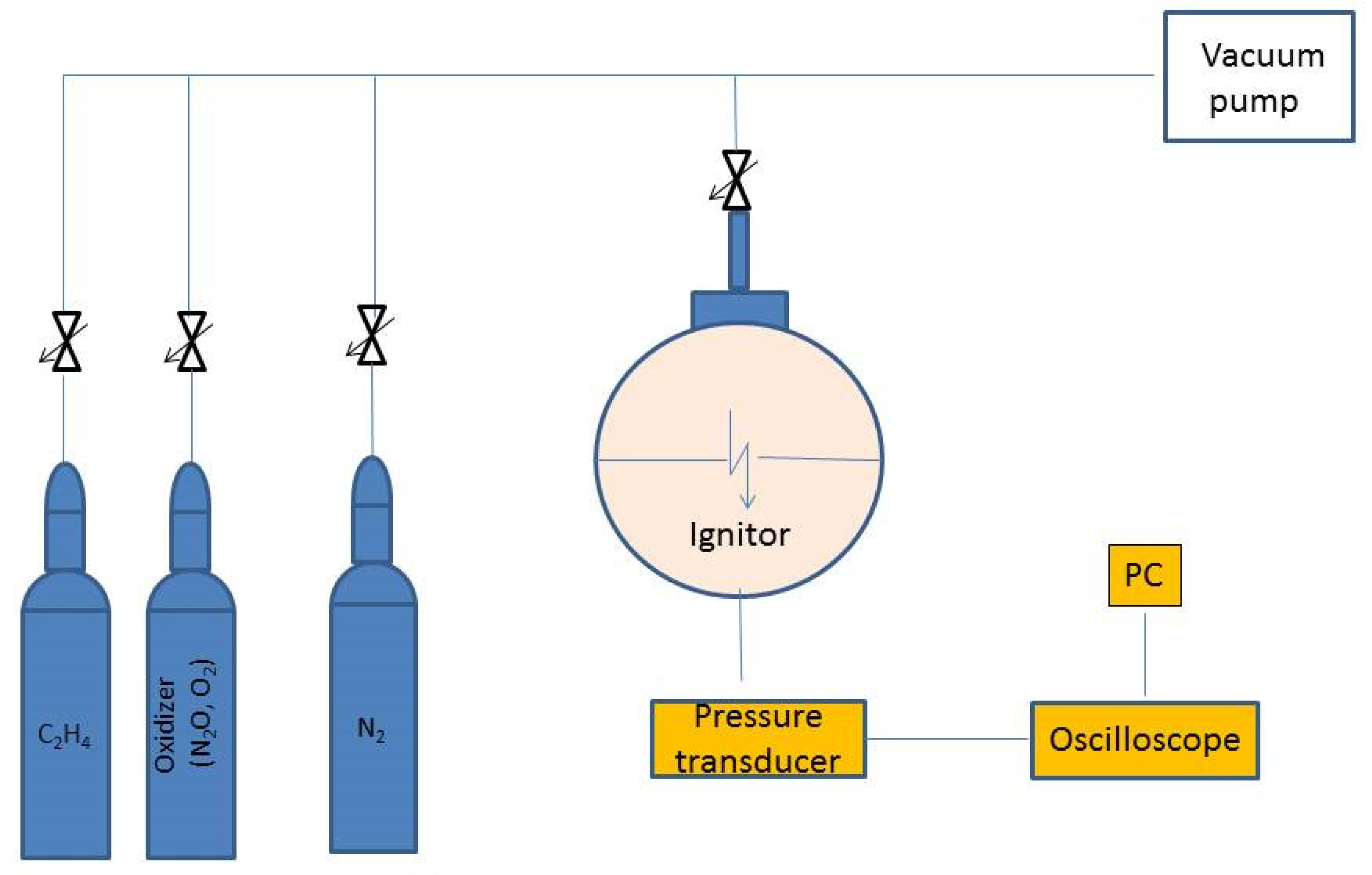

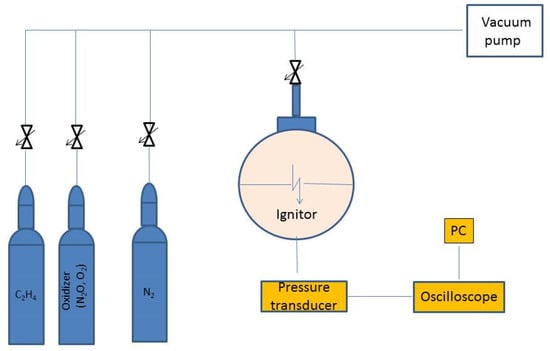

Figure 1. Experimental system.
Figure 1. Experimental system.
Processes 10 02726 g001

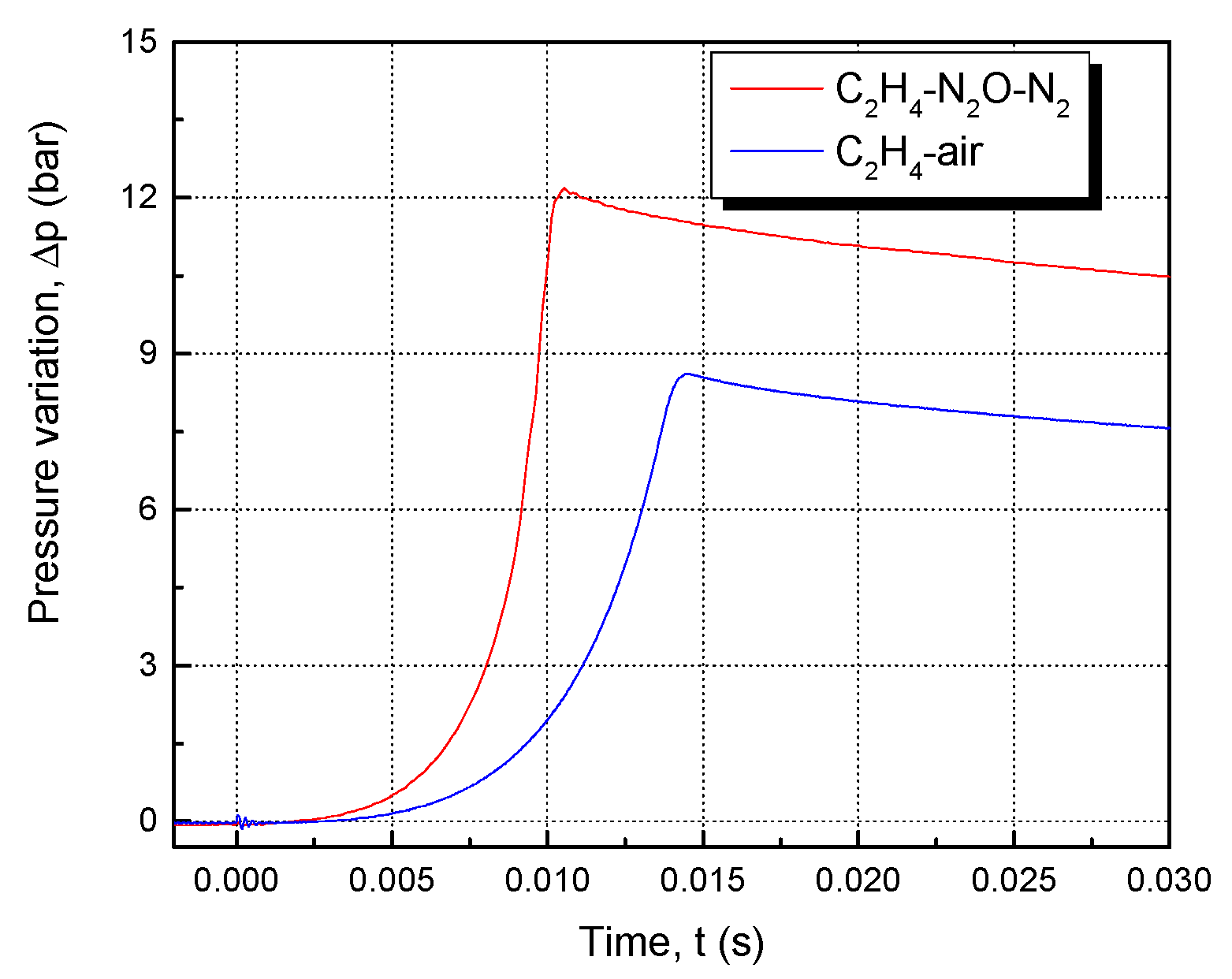

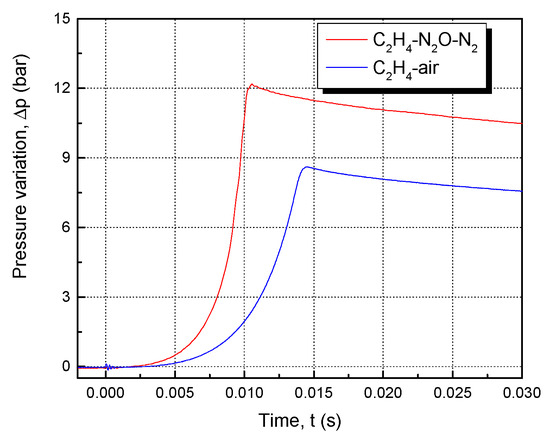

Figure 2. Comparison of pressure-time records for stoichiometric C2H4-N2O-N2 (60 vol.% N2) and stoichiometric C2H4-air [30] explosions in a spherical vessel having central ignition at p0 = 1 bar and T0 = 298 K.
Figure 2. Comparison of pressure-time records for stoichiometric C2H4-N2O-N2 (60 vol.% N2) and stoichiometric C2H4-air [30] explosions in a spherical vessel having central ignition at p0 = 1 bar and T0 = 298 K.
Processes 10 02726 g002

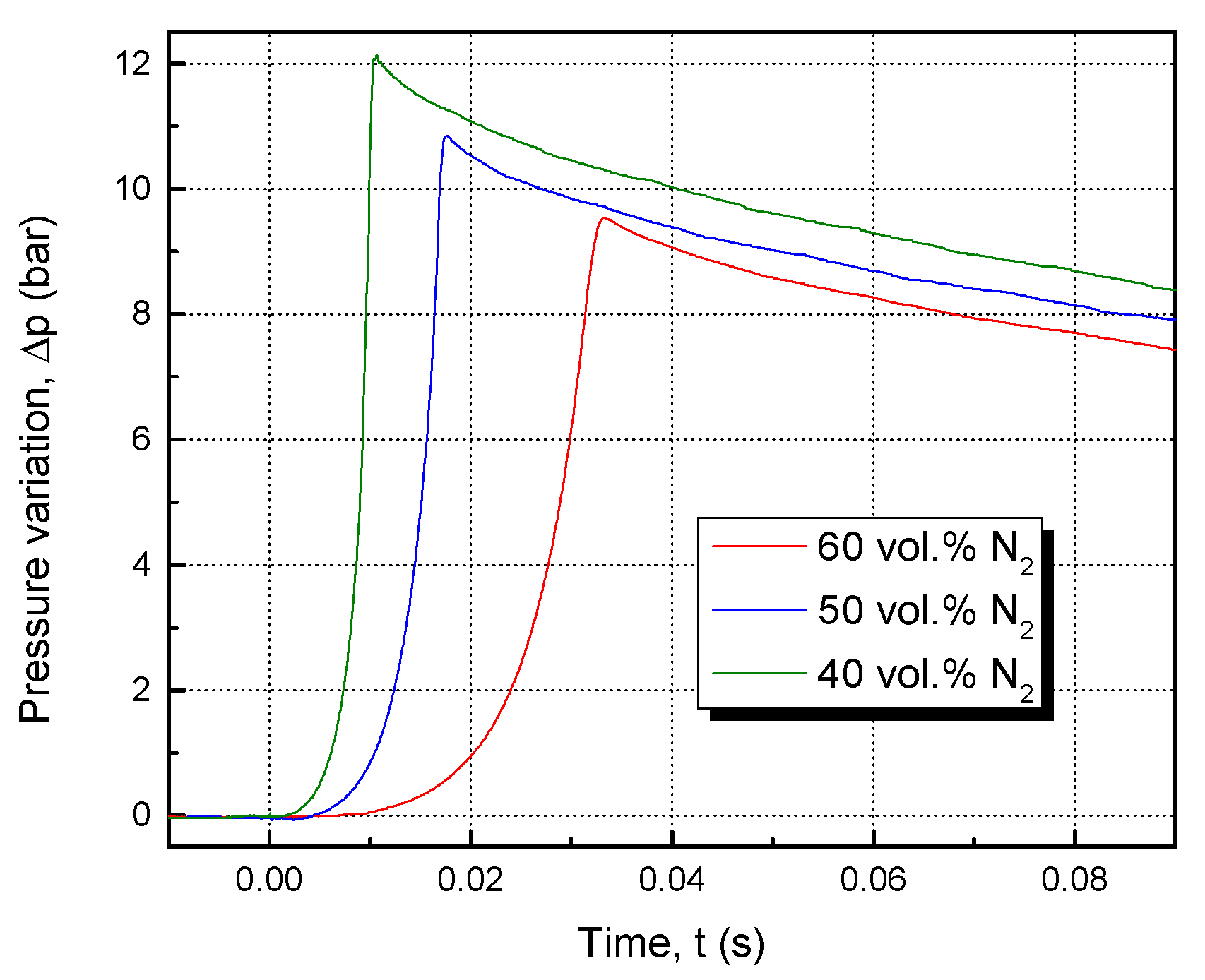

Figure 3. Pressure trajectories of stoichiometric C2H4/N2O/N2 mixtures at p0 = 1 bar.
Figure 3. Pressure trajectories of stoichiometric C2H4/N2O/N2 mixtures at p0 = 1 bar.
Processes 10 02726 g003

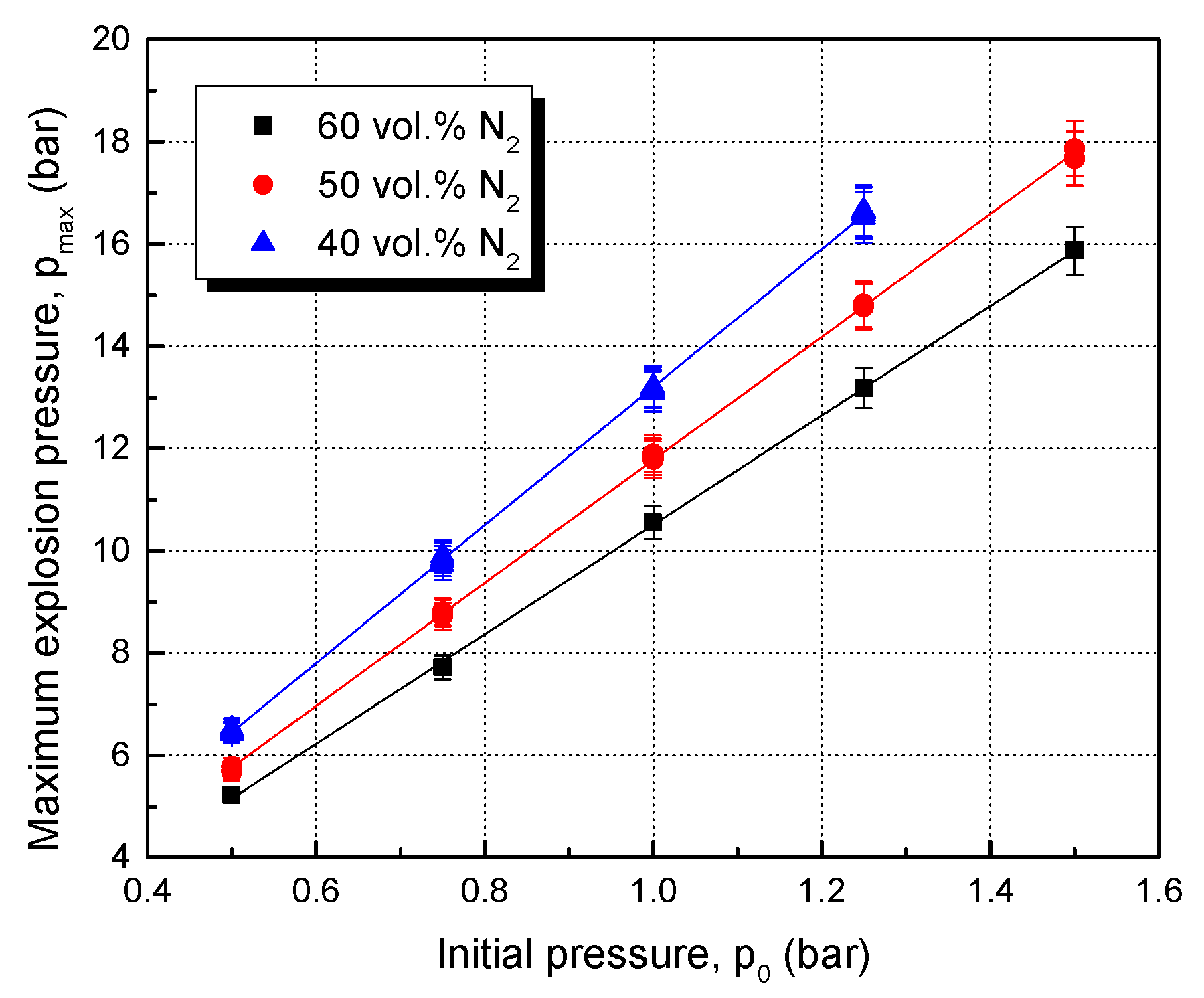

Figure 4. Maximum explosion pressures of stoichiometric C2H4-N2O-N2 at various initial pressures.
Figure 4. Maximum explosion pressures of stoichiometric C2H4-N2O-N2 at various initial pressures.
Processes 10 02726 g004

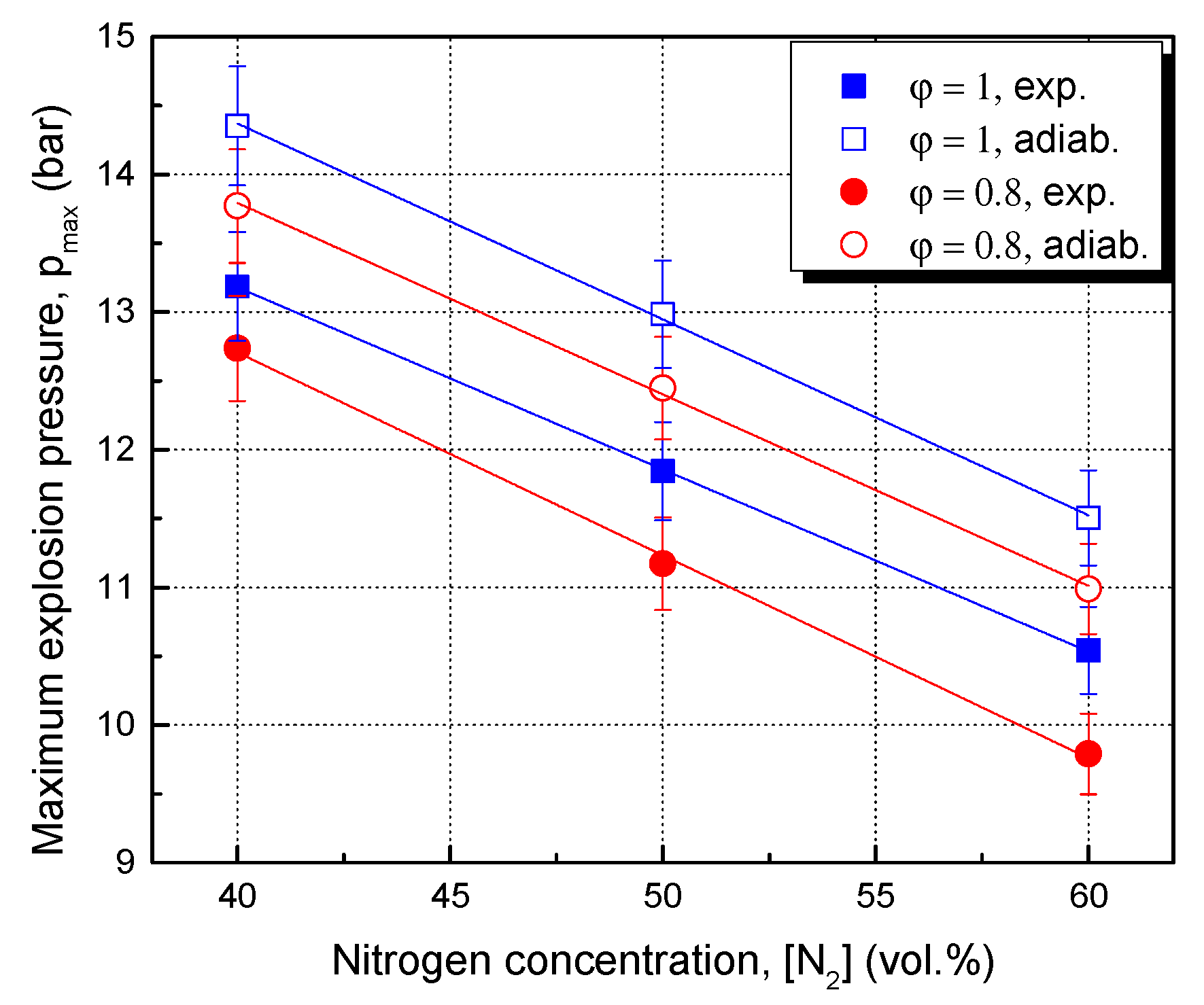

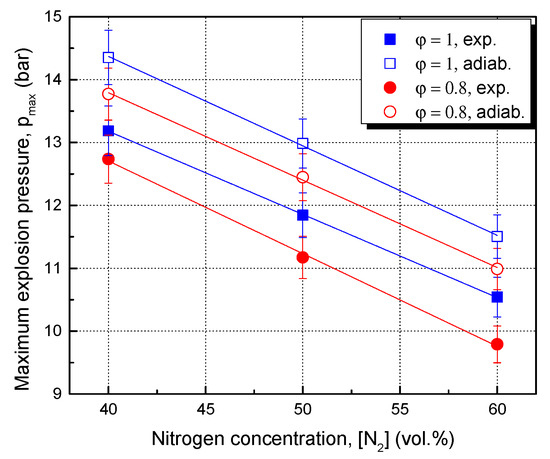

Figure 5. Maximum explosion pressure as a function of inert concentrations at ambient initial temperature and pressure.
Figure 5. Maximum explosion pressure as a function of inert concentrations at ambient initial temperature and pressure.
Processes 10 02726 g005

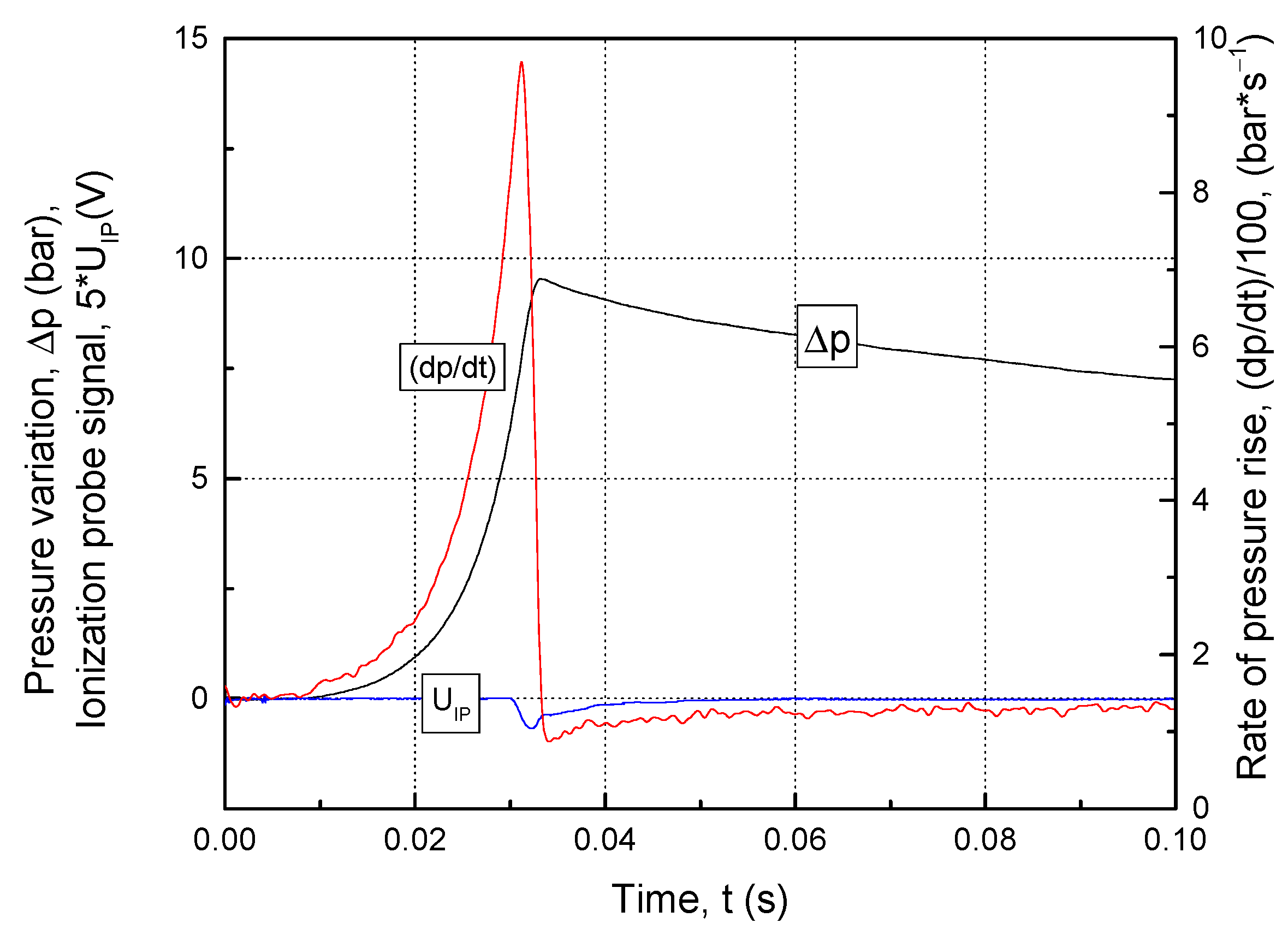

Figure 6. Pressure evolution for deflagration of stoichiometric C2H4-N2O-N2 with 60 vol.% N2, at ambient initial conditions.
Figure 6. Pressure evolution for deflagration of stoichiometric C2H4-N2O-N2 with 60 vol.% N2, at ambient initial conditions.
Processes 10 02726 g006

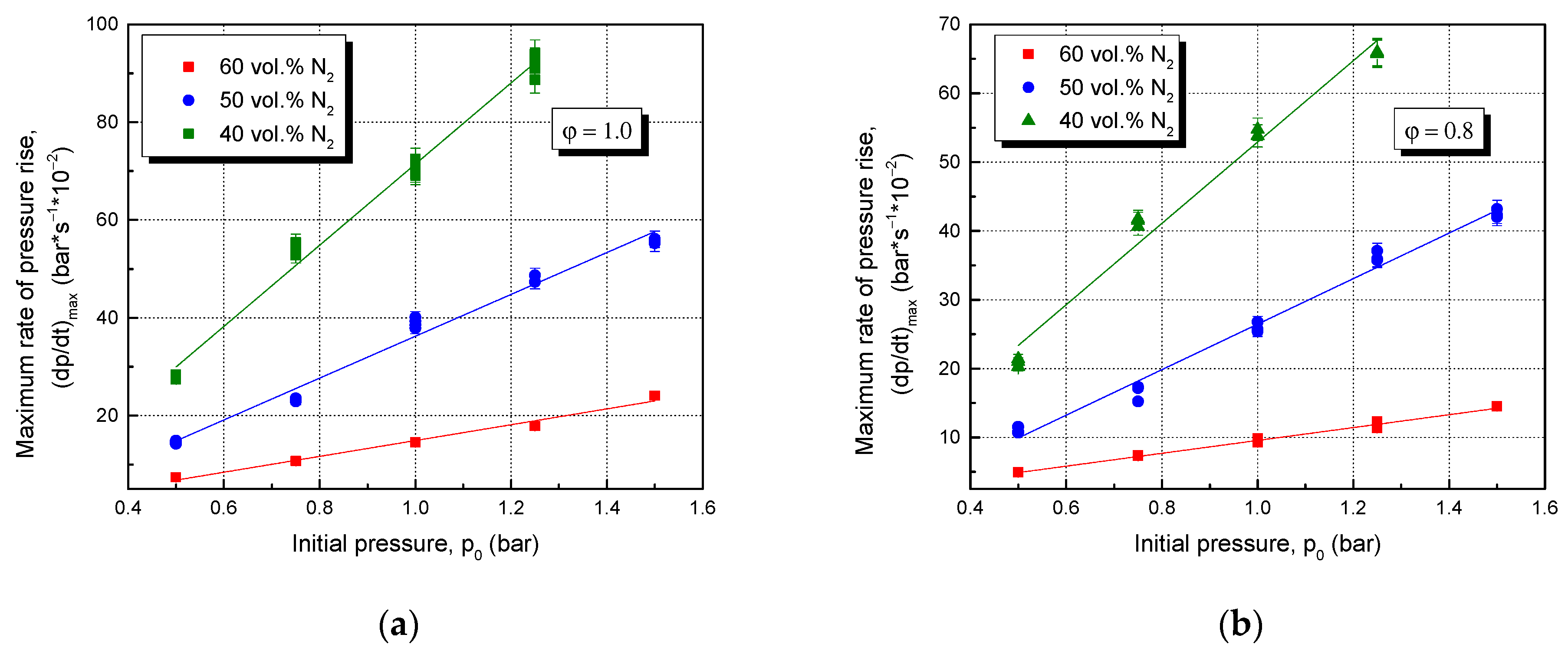

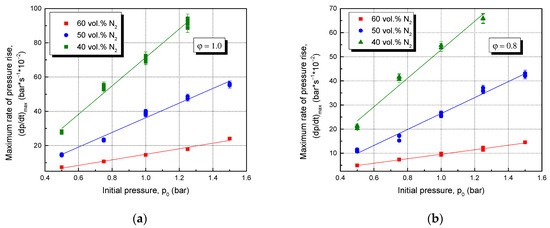

Figure 7. Maximum rates of pressure rise for stoichiometric (a) and lean (b) C2H4-N2O-N2 mixtures with various amount of N2.
Figure 7. Maximum rates of pressure rise for stoichiometric (a) and lean (b) C2H4-N2O-N2 mixtures with various amount of N2.
Processes 10 02726 g007

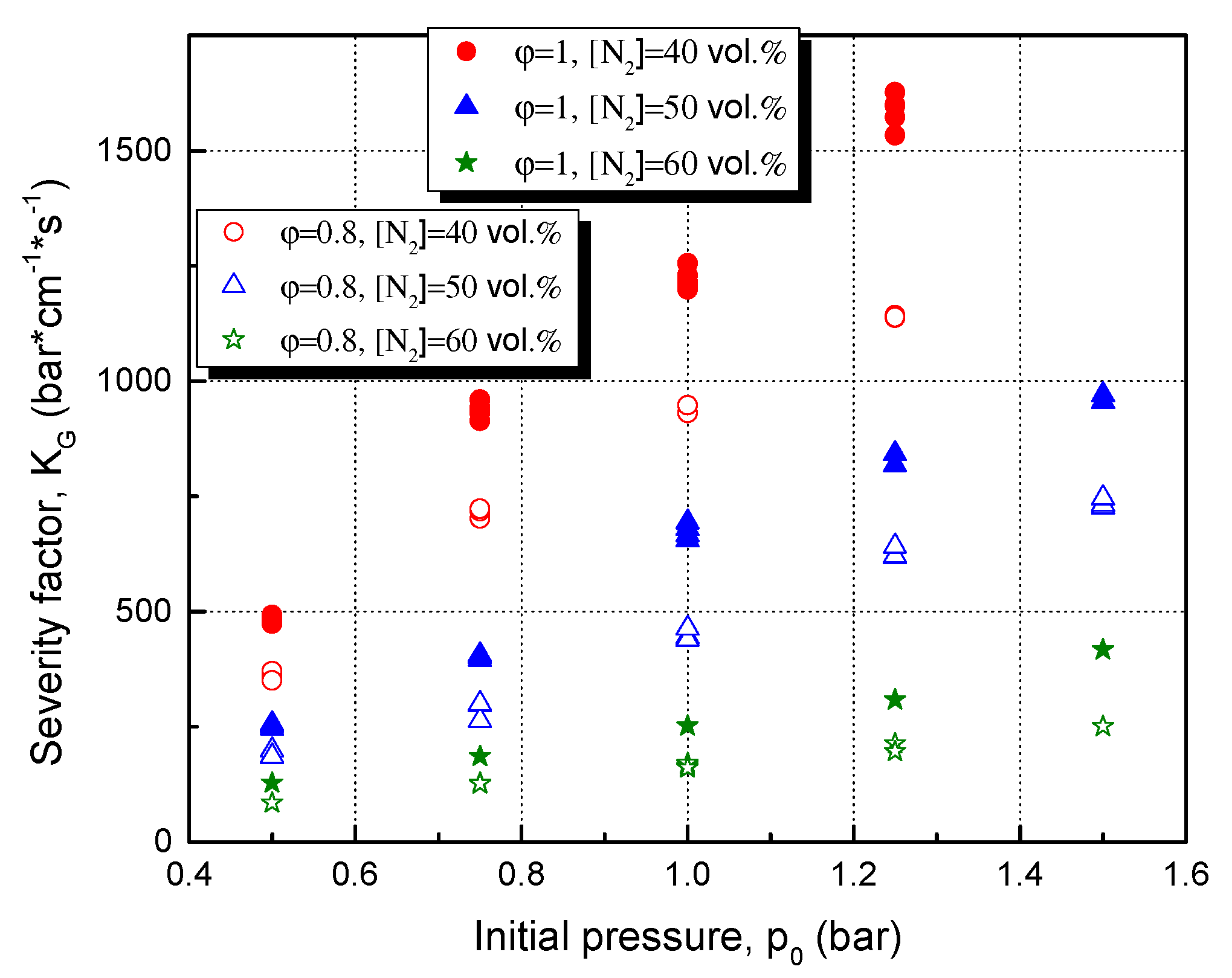

Figure 8. Severity factors for N2 diluted lean and stoichiometric C2H4-N2O-N2 mixtures.
Figure 8. Severity factors for N2 diluted lean and stoichiometric C2H4-N2O-N2 mixtures.
Processes 10 02726 g008
Table 1. Slope and intercept of pmax vs. p0 linear regressions.
Table 1. Slope and intercept of pmax vs. p0 linear regressions.
φ[N2] (vol.%)a (bar)brn
1.0600.198 ± 0.10310.70 ± 0.090.999
500.252 ± 0.05512.03 ± 0.050.999
400.298 ± 0.04013.50 ± 0.040.999
0.8600.332 ± 0.06510.11 ± 0.060.999
500.334 ± 0.12511.52 ± 0.120.999
400.342 ± 0.06612.98 ± 0.070.999
Table 2. Influence of vessel shape and size on the maximum explosion pressures of C2H4-N2O mixtures diluted with 60% N2.
Table 2. Influence of vessel shape and size on the maximum explosion pressures of C2H4-N2O mixtures diluted with 60% N2.
VesselVolume (L)p0 (bar)pmax (bar)Reference
Spherical 0.520.505.22Present data
0.757.72
1.0010.54
1.2513.18
1.5015.87
Cylindrical L/D = 1.00.170.503.94[21]
0.754.51
1.006.36
1.258.10
1.50-
Cylindrical L/D = 1.51.180.50-[21]
0.755.00
1.006.84
1.258.89
1.5010.75
Table 3. Transferred heat amount, qtr, and fraction of heat lost, F, by stoichiometric and lean ethylene-N2O-N2 flames to vessel’s walls.
Table 3. Transferred heat amount, qtr, and fraction of heat lost, F, by stoichiometric and lean ethylene-N2O-N2 flames to vessel’s walls.
N2 (vol.%)γeqtr (J)F
φ = 1.0φ = 0.8φ = 1.0φ = 0.8φ = 1.0φ = 0.8
401.30971.31390.3330.5500.0200.036
501.30781.31190.4260.5570.0230.032
601.30801.31210.5030.5700.0240.029
Table 4. Time to reach the maximum explosion pressures, θmax (ms), for ethylene-N2O-N2 mixtures in spherical vessel.
Table 4. Time to reach the maximum explosion pressures, θmax (ms), for ethylene-N2O-N2 mixtures in spherical vessel.
φ1.00.8
[N2] (vol.%)405060405060
p0 (bar)
1.5 -17.133.3-21.743.4
1.25 10.617.632.813.222.243.6
1 10.71833.213.722.544.6
0.75 11.118.234.213.622.846
0.5 11.418.434.913.923.351.4
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Giurcan, V.; Razus, D.; Mitu, M.; Movileanu, C. Dynamics of Pressure Variation in Closed Vessel Explosions of Diluted Fuel/Oxidant Mixtures. Processes 2022, 10, 2726. https://doi.org/10.3390/pr10122726

AMA Style

Giurcan V, Razus D, Mitu M, Movileanu C. Dynamics of Pressure Variation in Closed Vessel Explosions of Diluted Fuel/Oxidant Mixtures. Processes. 2022; 10(12):2726. https://doi.org/10.3390/pr10122726

Chicago/Turabian Style

Giurcan, Venera, Domnina Razus, Maria Mitu, and Codina Movileanu. 2022. "Dynamics of Pressure Variation in Closed Vessel Explosions of Diluted Fuel/Oxidant Mixtures" Processes 10, no. 12: 2726. https://doi.org/10.3390/pr10122726

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
