Review

Environmental Aspects of the Combined Cooling, Heating, and Power (CCHP) Systems: A Review

by
Mohsen Salimi
1,
Morteza Hosseinpour
1,2,*,
Shabnam Mansouri
2 and
Tohid N.Borhani
3,*
1
Renewable Energy Research Department, Niroo Research Institute (NRI), Tehran 14665/517, Iran
2
HVAC&R Management Research Centre, Niroo Research Institute (NRI), Tehran 14665/517, Iran
3
Center for Engineering Innovation and Research, School of Engineering, Computing and Mathematical Sciences, University of Wolverhampton, Wolverhampton WV1 1LY, UK
*
Authors to whom correspondence should be addressed.
Processes 2022, 10(4), 711; https://doi.org/10.3390/pr10040711
Submission received: 14 February 2022 / Revised: 29 March 2022 / Accepted: 29 March 2022 / Published: 6 April 2022
(This article belongs to the Special Issue Recent Advances in Environmental Pollution Control and Coal Combustion)
Browse Figures
Versions Notes

Abstract

:
Expanding cities means increasing the need for energy in the residential sector. The supply of this energy must be in environmentally friendly ways; one method of meeting demand in the residential sector is the use of combined cooling, heating, and power (CCHP) systems. The current review paper shows that due to the high cost of gas and electricity, CCHP can be used in various sectors, such as hospitals and airports, to reduce energy consumption with lower environmental impacts by using renewable energy systems as the main driver. While CCHP systems are not feasible in tropical regions with high cooling demand, a solar hybrid system is a superior candidate for regions with sufficient radiation. CCHP can also be used in sectors such as wastewater treatment units, desalination systems, and hydrogen production units to improve performance and increase productivity. The carbon and water footprints of CCHP systems are discussed in detail. The main drivers for reducing carbon and water footprints are improving system components such as the combustion engine and increasing productivity by expanding the system to multi-generation systems. Finally, the carbon tax index can help reduce carbon emissions if properly used in the right context. Based on our best knowledge, there is no extensive review of the environmental aspects of CCHP systems in the literature.

1. Introduction

1.1. Background

In recent years, three combined cooling, heating, and power (CCHP) systems, also known as trigeneration systems, have received more attention due to their lower greenhouse gas emissions and high energy efficiency [1,2,3,4,5,6]. CCHP systems are the same as combined heating and power (CHP) systems (also known as cogeneration systems) with an added unit for cold water production. Cold water can be used in refrigeration and air conditioning [7]. Figure 1 shows the capability of the CCHP system compared to a traditional power plant with the same fuel consumption. In a traditional power plant, approximately 30% of the input fuel can be used to generate electricity, while the excess energy is dissipated into the environment as waste heat. For a CCHP system, however, produced heat is recovered, and the efficiency of the system can reach about 90% [8,9,10]. Many commercial and industrial sectors can benefit significantly from the installation of a CCHP system.

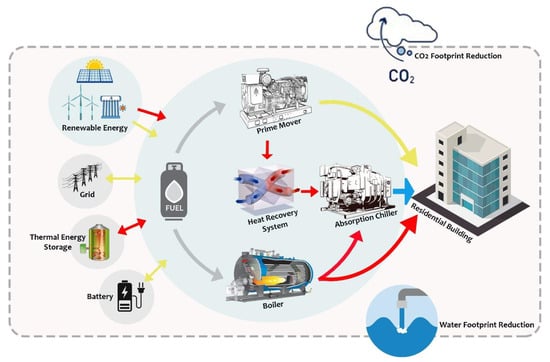

As can be seen in Figure 1, the CCHP system generally includes the prime mover/driver (power generation unit), the heat-recovery system, the cold-production system, the heating system, and the management and control system. The most common prime movers utilised in CCHP systems are gas or steam turbines, internal combustion or Stirling engines, and high-temperature fuel cells, such as solid-oxide fuel cells (SOFC) [7]. The most common heating unit is the boiler. The most common cold-production system is the absorption chiller [11]. Details about different parts/units of CCHP systems are presented in Section 2. The main advantages of CCHP systems can be summarised as:
  • It uses one fuel source to generate three energy outputs (electricity, heat, and cooling).
  • A higher level of energy security is achieved through the generation of all energy onsite.
  • Trigeneration can improve the overall efficiency of CHP systems by utilising heat that would otherwise be rejected to serve absorption chillers to generate cooling.
  • There is limited noise pollution as absorption chillers produce no noise compared to the traditional chiller plants.
  • Flexible solutions that are customised to meet individual needs and maximise efficiencies.
  • It has lower CO2 production compared to electricity produced from coal, whilst delivering the same amount of energy.
  • It can be used as a backup power system.
The main disadvantages of CCHP systems are their high up-front capital costs, the required space for CCHP installation, and administration costs. CCHP systems are suitable for end-users where power, heating, and cooling are essential for them. Moreover, CCHP systems are not quite sustainable when the main driver is based on fossil fuel.

1.2. Motivation of This Study

Several review papers and books have been published about CCHP systems, but the focus of them was on the system configuration, management, and optimisation [2,5,11,12,13,14]. None of these papers’ focus was on the environmental aspects of CCHP systems. Cho et al. [2], Shi et al. [13], and Ebrahimi and Keshavarz [14] reviewed the modelling, performance improvement, and optimisation of CCHP systems. Meanwhile, Liu et al. [5], Roman et al. [11], and Wu and Wang [12] presented a more general review, considering other aspects such as economic parameters. In addition to the technical and operational aspects of CCHP systems, attention should be paid to environmental aspects and the impact of these systems. Therefore, in this review study, the authors would like to review and discuss environmental aspects of CCHP systems, such as their life cycle assessment, CO2 footprint, and water footprint. In addition, the integration of CCHP systems with different types of renewable energy sources is being reviewed to improve the environmental performance of CCHP systems.

1.3. Research Method in the Current Study

The search for related papers about environmental aspects of the CCHP system was performed using keywords utilised in the titles of the papers, their abstracts, and keywords of published journal articles, such as carbon footprint, water footprint, solar, and renewable energy with CCHP. Table 1 shows the structure of the relevant literature search.

1.4. Outline of the Paper

After the introduction, in Section 2, different parts of CCHP systems will be explained. The main parts are prime movers/main driver and cooling system. Integration of CCHP with a different type of renewable energy is discussed in Section 3. Life cycle assessment (LCA) performed for CCHP systems are reviewed in Section 4. In Section 5, the carbon footprint of these systems is covered. The water footprint is explained in Section 6. In Section 7 is the role of carbon taxation in CCHP development. The important points of this study are concluded in Section 8.

2. Different Components of CCHP Systems

In CCHP systems, there are numerous types of equipment, and there is a coupling relationship between the equipment. The equipment that are used in the CCHP system determine the total efficiency of the system and have a direct impact on the economic and environmental aspects of the system. In addition to the type of equipment, their configuration also has high importance [15]. It can be said that the economic benefits of CCHP systems are greatly reduced due to the mismatch of installed capacity [16]. It should be noted that the atmospheric and seasonal conditions also have significant effects on the performance of CCHP systems. Wang et al. [17] examined a CCHP system for a commercial building in China in different seasons based on the priority of power supply or heat demand. The efficiency of the system is directly related to the consumer’s need for electricity, cooling, and heating. The results showed that in summer when more cooling is needed, the CCHP system does not work well, and the most optimal state of the system occurs in summer when the power supply is a priority. The design and operation of CCHP systems depend on the atmospheric conditions. Wang et al. [18] also evaluated the performance of these systems in five different climatic zones based on Thermal Demand management (TDM) and Electrical Demand Management (EDM). Based on the results, the CCHP system in the TDM mode performed better than separate systems and in the cold zone, which requires a higher heating load. Moreover, the EDM model is suitable for temperate regions with stable heating requirements. As main drivers/prime movers and cooling systems are the main and important parts of CCHP systems, they are discussed and explained in more detail in the following subsections.

2.1. Main Drivers/Prime Mover

CCHP systems have different main drivers such as steam and gas turbines [19,20], micro-turbines [21,22,23], internal combustion engines (ICEs) [24], Rankine cycle [25], Sterling engines [26], and fuel cells [27,28]. Between technologies, fuel cells can have a special place in terms of fewer emissions, higher electrical efficiency, and maintaining efficiency in low-capacity systems [29]. In the paper [30], gas turbines and diesel and gas engines for a CCHP system are compared based on energy, exergy, and economic indicators. The results demonstrated that exergy efficiency and the power supply of the CCHP system raised by 10% by integrating two drivers at the same time compared with one driver. Moreover, the integration of gas and diesel engines is recognised as the best scenario due to its energy efficiency of 87%, exergy efficiency of 62.8%, and lower operating costs of about 80%.
ICEs are another suitable main driver that, due to high electrical efficiency and low investment cost, work better than similar options [31]. These engines save 16.7% more energy than the conventional CHPs. The study [26] investigated a system with a gas turbine as the main driver. The system includes an air compressor, combustion chamber, gas turbine, heat recovery steam generator (HRSG), and absorption chiller. By examining the effects of various features such as turbine inlet temperature, pinch point temperature in HRSG, and steam generator inlet pressure on fuel consumption, cost, and energy generation, it is shown that the integration of gas turbine with HRSG and absorption chiller increase efficiency.
This is because the flue gas from the turbine can be used as a heat source for steam required for the absorption chiller and the process. In the study [32], diesel engines, gas engines, gas turbines with recuperators, and combined gas turbine cycle (CGTC) were investigated. According to the results, the diesel engine has the lowest energy consumption and carbon emission. The gas engine is selected as the best case based on energy consumption and system simplicity. The research [33] examined the primary drivers for a residential building micro-CCHP system under five different climatic conditions. The paper compared four scenarios of separate production (SP), ICE, gas micro-turbine, and Sterling engine based on the technical, economic, environmental, and social evaluation. The results for all weather conditions indicated that the ICE is more suitable than the other options, followed by Sterling engine, SP, and gas micro-turbines.
In a steam driven CCHP system, high-pressure steam is drawn from the steam turbine and then used for heating or as an absorption chiller inlet. Due to the high loss of heat transfer, CCHP systems are mainly located near large cities or industrial areas [34,35,36,37,38]. Recovering and reusing waste heat causes significant savings in energy use as the fuel is used for multiple purposes. The amount of savings varies between different buildings since each CCHP system is unique and sustainable, but overall, a reduction in energy consumption of up to 25% has been reported [39]. Therefore, the CCHP system significantly reduces the carbon footprint of facilities. In addition to saving energy, the CCHP system gives the building reliability and integrated flexibility [40,41,42,43,44]. Further, air conditioning is always available when the waste heat of CCHP is used alongside absorption chillers, which is very crucial in moments of adverse weather disasters, such as hurricanes. Consequently, CCHP provides backup generation services with day-to-day services and is always in service [45].

2.2. Cooling Technologies

Several different types of cooling technologies such as absorption chillers, adsorption chillers, and Desiccant dehumidifiers [5] can be used in CCHP systems, but in most cases, absorption systems are selected. The most commonly known cooling systems are absorption systems, adsorption systems, and ejector refrigerators. These systems generate less noise and emissions than conventional compression systems that use electricity but are more expensive and less efficient. The coefficient of performance (COP) in these systems, i.e., the ratio of cooling to energy consumption, is lower than in compression systems (COP = 2.5–5). In absorption systems, different combinations of refrigerants are used. For example, an ammonia-water refrigerant with a low COP (0.2–0.65) is suitable for medium-or large-scale applications (industrial applications up to several megawatts) at temperatures below 5 °C. Lithium bromide-water refrigerant is used for air conditioning (temperatures greater than 5 °C) of buildings and has a higher COP (0.7–1.7). There are different absorption systems, and the choice of an appropriate technology depends on the criteria of investors, especially in terms of cost and efficiency (Table 2).
In adsorption systems, refrigerants such as silica gel-water are used, which can supply cold water up to 3 °C. It has a higher COP at low hot water temperatures (65–85 °C) than single-stage lithium bromide absorption systems. New technologies such as vapour ejector refrigeration [46] or desiccant cooling [47] are also being developed and used. A compression system can be combined with the refrigeration system to balance the generation and demand for cooling. The CCP or CCHP system, in this case, usually ensures the base demand and the compression system covers the peak demand times [48].
Liu et al. [49] showed that the performance of a CCHP system depends on the system structure, operation strategy, and facility capacity. They designed a CCHP system with a hybrid chiller, a combination of absorption and electric chillers, in which the ratio of electrical cooling to cooling load changes hourly based on the thermal and electrical load. After obtaining the optimal performance algorithm and conducting a case study of a hypothetical hotel, the study shows that the designed system is more efficient than conventional SP systems and the annual costs were reduced by about 50%. Li and Wu [50] investigated a micro CCHP system based on a silica gel-water absorption chiller. The analysis of the simulated results of this research shows that the COP of the chiller and cooling capacity are directly affected by the mean and rate of change of electric load and the mean amount of cooling load. Moreover, the water tank has a significant impact on the performance of the chiller and is best used when the electric charge is low. A cold accumulator can also be used for better performance and higher safety.
Li and Wu [51] investigated the performance of absorption chillers in conjunction with ground source heat pumps (GSHP), electric chillers, and gas-fired absorption chillers (GFC). The authors determined the optimal state of the systems using a genetic algorithm based on the priority of electricity or heat supply. They have selected carbon dioxide emission reduction rate (CDERR), primary fossil energy-saving rate (PFESR), and annual total cost savings rate (ATCSR) as the criteria which were used to compare the mentioned systems with SP systems. The results of a case study on a commercial building in Shanghai demonstrated that a combination of the CCHP system and GSHP with a priority on power supply had the best performance among all options. In addition, the absorption cooling system and the electric compression refrigeration system in terms of energy efficiency and exergy are compared. According to the results, the distance between the cooling centre and the power plant, i.e., the distance that the steam must travel, affects the performance of the absorption cooling system. While absorption cooling is suitable for distances of less than 5 km, the electric compression system is a better option for distances of more than 9.3 km [52].

3. Combining CCHP System and Renewable Energy

One way to increase energy efficiency with fewer environmental effects is to combine CCHP systems with renewable energy sources such as solar [53,54], wind [41], Stirling engine [55], biomass [56,57], geothermal [58], and fuel cell [59]. Table 3 shows methods used in the literature to analyse, evaluate, and optimise the integration of different renewable energy sources with CCHP systems. Moreover, in this table, integrated energy renewable energy sources, the country or region, and the sector details of each study are demonstrated. Among the various renewable sources that have been considered for use in cogeneration systems (such as solar panels, wind generators, biomass, or a combination thereof), solar energy and biomass have attracted the attention of academics due to their availability and low destructive environmental effects [60]. As one of the main benefits of biomass, it can be used steadily, and changes in environmental conditions (e.g., the absence of the sun at night) do not affect the energy supply. For this reason, it is a proper option for use in hybrid energy supply systems. In the following subsections, some important studies about the integration of the CCHP system with different renewable energies are reviewed. China is one of the successful countries in CCHP systems implementation. Cogeneration was highlighted in the 13th Five Year Plan of China [61]. For example, technical regulation for the development of CCHP systems was issued by the government of China [62]. Mobasseri et al. [63] studied multi-energy microgrids. In this study, the uncertainties of renewable energy supply and unpredictable demand were evaluated. A hybrid energy management tool was presented in this study for multi-energy microgrids.

3.1. Integration of CCHP with Biomass

In recent years, many researchers have worked on the integration of biomass as an important renewable and sustainable feedstock and CCHP systems. Wang et al. [78] analysed the energy and exergy of a CCHP system combined with biomass gasification. Biomass in the gasification sector is converted to gas, which is used as a fuel in the CCHP system for electricity generation, heating, and cooling. Based on the results of this study, energy efficiency for a CCHP system and gasification in summer is at its highest (37% for the case study). This rate decreased in autumn and spring due to increased heat output (16%), and the annual energy efficiency was reported as 28% [78]. The annual performance also showed that the biomass-fired CCHP system reduced biomass consumption by 4% compared to the case without heat recovery. Wegener et al. [79] developed an innovative modelling approach to design the biomass-based, solar-assisted CCHP and heat pump (HP) systems for various climate scenarios. They used this dynamic model to evaluate the economic, energy, and ecological performance of biomass-based CCHP/HP systems of various sizes compared to an individual HP system. Based on their case study, the authors mentioned that climate change will have small impacts not just on the energy demand of the building but also on the operation strategies and efficiencies of HP and CCHP systems. The case study’s findings show that the model can be used to determine at what scale a small-scale CCHP system can be a viable choice for a more renewable and autonomous energy system for culture, tourist, and accommodation parts. Jalili et al. [80] studied a combined biomass/natural gas-fed CCHP system from exergetic and thermo-economic standpoints. The authors investigated the effects of the gas turbine inlet temperature pressure, the gas mass ratio, and the split ratio on the performance of this system. They reported the optimum operating conditions of the system.

3.2. Integration of CCHP with Solar Energy

Photovoltaic panels can be used to supply electricity and solar collectors to provide heating [81,82]. To increase the advantages of CCHP systems, they can be used in conjunction with solar systems. Ebrahimi and Keshavarz [83] examined a solar-assisted CCHP in different cities of Iran. The authors showed that the size of CCHP is significantly larger for cities with higher cooling loads and therefore requires higher investment costs. As a result, the use of CCHP systems in the tropics is not efficient and economically justified, and these systems are efficient for areas with temperate climates. The operation mode of the CCHP system determines its economic, environmental, and energetic performance.
Yamano [24] reported that biomass systems have better performance than solar systems in terms of energy and exergy. Moreover, the increase in output power causes a linear increase in output cooling, a slight increase in COP, and an improvement in exergy and energy efficiency. High radiation intensity will also increase the cooling output. In this case, due to the share of heating in the absorption chiller increasing simultaneously, the COP and, consequently, the exergy and energy efficiency of the system will also decrease.
In general, a high percentage of biomass energy consumption and a decrease in the percentage of solar energy increase energy efficiency. In addition, at high biomass consumption rates, increasing the percentage of solar energy increases the exergy efficiency. This will be the opposite at low biomass energy consumption rates. Different indicators must be considered when comparing CCHP systems combined with renewable sources and conventional systems. Wang et al. [54] examined a solar-assisted hybrid system from the aspects of energy, exergy, exergoeconomic, and environment. According to the findings, the energy efficiency and exergy efficiency of the system are, respectively, 66 and 25.7% in heating mode and 83.6 and 24.9% in cooling mode. Compared to a system without solar energy, carbon emissions were reduced by 41% per unit of energy generated.
It should be noted that, if the system is only examined in terms of energy and exergy, the effect of solar energy on the system cannot be determined. In addition to solar-assisted CCHP systems, there are photovoltaic hybrid systems (PV-T) that are more efficient than conventional solar systems and can meet the needs of the household. In these systems, the overall efficiency can exceed 70%, and the electrical and thermal efficiencies can reach up to 20 and 50%, respectively. Ramos et al. [84] studied PV-T systems in several European cities. According to the results, this system can meet 60% of the heating needs for hot water and ambient heating and almost 100% of the cooling needs of houses. Moreover, the energy cost of the PV-T system is about 30–40% lower than the PV system. To achieve the desired result, these systems can be coupled with heat pumps and absorption refrigerators.

3.3. Integration of CCHP with Geothermal Energy

Mohsenipour et al. [85] performed the optimisation of a geothermal-assisted CCHP system using the genetic algorithm (GA). The efficiency of this system, water consumption, and CO2 emissions were reported as 46.4%, 688,151.21 L, and 13,439 CO2 kg eq, respectively. The results also demonstrated that the highest water consumption belongs to the construction sector and the highest CO2 emissions are emitted from the steam generator.
To calculate the CCHP-GSHP hybrid system’s actual working conditions, Zeng et al. [86] presented an optimal model concerning carbon taxation. The power generation unit capacity and the monthly energy ratios of the system are the variables, and 3E analysis is performed. Compared to the E-GSHP, the results demonstrated that the CCHP-GSHP hybrid system has an annual energy saving ratio of 31.79%. The annual reduction in carbon dioxide emissions was 51.34%, the annual total cost decrease was 25.64%, and the optimisation rate was 36.26%.

3.4. Integration of CCHP with Wind Energy

Regarding the intermittent nature of renewable energies, utilisation of energy storage systems is inevitable. For this purpose, wind energy together with compressed air energy storage systems in combination with CCHP systems was studied [87]. The system included a gas turbine, a Rankine cycle, and an absorption chiller. The results demonstrated that this system could supply 33.67 kWh of electricity, 2.56 kW of cooling load, and 1.82 tons of hot water per day and has an energy efficiency of 53.94%. Exergy analysis also indicated that wind turbines, combustion chambers, and compressed air storage systems have the highest rate of exergy destruction, respectively. Lastly, the sensitivity analysis demonstrated that the performance of the system strongly depends on the gas turbine parameters.
Table 4 demonstrates the advantages and disadvantages of integrated CCHP systems with different renewable energy resources.

4. LCA and CCHP System Optimisation

Life cycle assessment (LCA) is a method to predict the total impact of a product or process by considering all stages of the life cycle, from the extraction of raw materials during production, transportation, consumption, until waste disposal [105]. This method is sometimes called “cradle-to-grave” analysis. The results of these analyses can be used in decision making. Using this analysis, processes or products can be compared and evaluated to see which one is more efficient. It can also be used to design new products and materials or to improve the environmental performance of existing products. This technique is used as a method for environmental management and does not consider the economic aspects of a product and it is a useful tool for predicting the potential impact of a system on the environment. This method is simple but sometimes depends a lot on the assumptions made for the process. For example, in the CCHP system of a coal-fired power plant in China [106], the combustion process has the greatest impact on the environment (92%). This process, due to the high emission of carbon dioxide, plays an important role in global warming as well as biological pollution (terrestrial and water) caused by elements such as copper.
In addition to coal combustion, mining (5%) and transportation (3%) also affect the environment. The main GHG from this plant is CO2 (43.5%), followed by NOx (23.7%) and SOx (19.3%), and the rest are methane emissions (in the extraction process) and trace elements (in the combustion process) [106]. A CCHP system comparison with a stand-alone coal-fired system demonstrates that the CCHP system is not only more efficient but also more environmentally friendly. Using a CCHP system instead of a stand-alone system can reduce coal consumption, resulting in an 11% reduction in environmental damage.

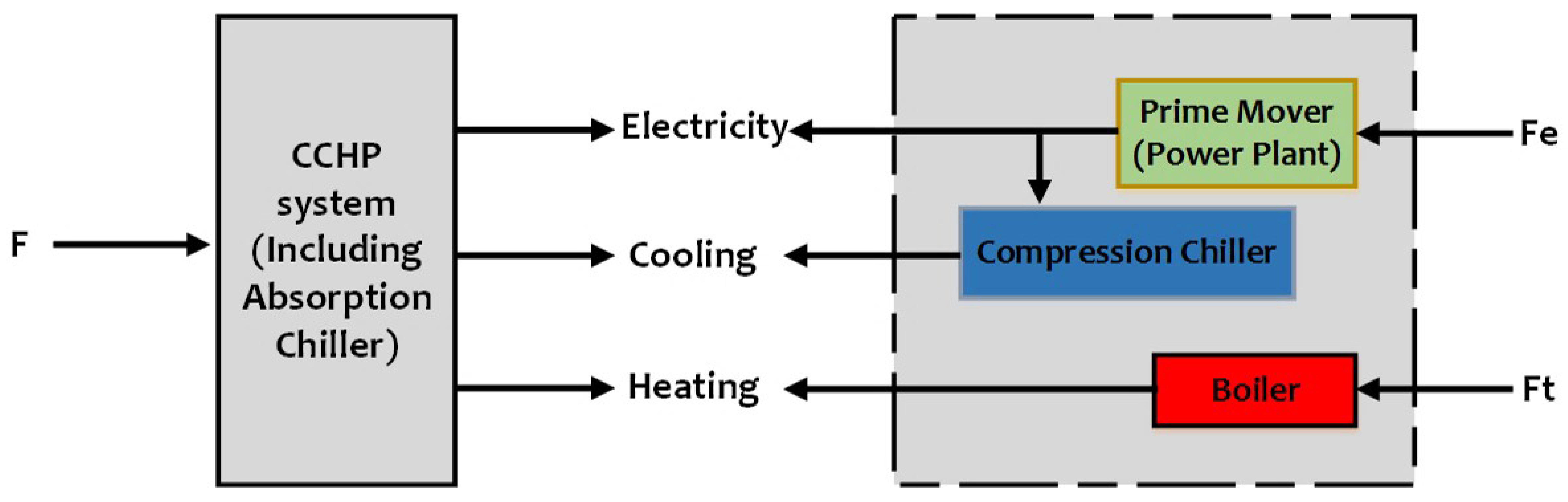

Figure 2 shows the difference between two stand-alone and CCHP systems. Coal (F) feeds the CCHP system for electricity generation, cooling, and heating, and in the stand-alone system, coal (Ft) enters the boiler as heating fuel for heating and Fe enters the power plant as fuel for electricity generation. De Felice et al. [107] examined the integration of the two approaches of LCA and multi-criteria decision analysis (MCDA). The first allows researchers to analyse the system’s environmental impact, and the second is used to select the best path for progress. The main purpose of this research was to develop a systematic and easy method to achieve useful and practical results. To this end, existing methods were reviewed with a new approach and for continuous improvement.
In a recent study, Chaiyat et al. [108] studied the LCA of the cascade geothermal-based CCHP system, which uses the ORC, absorption cooling, and centralised drying systems. They presented a novel microscale CCHP unit and performed a life cycle impact assessment (LCIA) to realise the environmental burdens, human health impacts, and resource impacts. Their system’s LCA values were lower than those of combined cycle gas turbine and coal power plants. The authors advised that the hot fluid and hot water loops be combined into a single cycle for future research to improve net electrical power, system efficiency, and environmental impacts.

5. Carbon Footprint

The use of CCHP systems usually emits fewer greenhouse gases than conventional systems because fewer primary resources are consumed. In addition, a CCHP system can be considered a multi-product generation system because it regularly generates electricity, heating, and cooling concurrently. Carbon footprint can be used to evaluate the systems [109]. Carbon footprint assessment is an approach for all carbon life cycle processes with a comprehensive assessment of total greenhouse gas emissions. There is a set of international regulations and standards that help users to better calculate the carbon footprint and thus make progress in reducing carbon emissions [110,111]. It should be noted that, in multi-product systems, applying total GHG emissions as an evaluation indicator cannot help recognising the contribution of each product of the emissions. For a comprehensive evaluation of a system, source allocation of carbon emissions by different products seems necessary. ISO 14067 states that output and input data may be divided between the common products of a system corresponding to the products’ economic value. In CCHP systems, common products, namely electricity, cooling, and heating, have dissimilar energy levels, so assignment principles must be observed in assessing the CCHP systems’ carbon footprint. However, no information is available on compliance with ISO 14067 for the allocations [5,12,112,113,114]. Chicco and Mancarella [115] proposed an indicator named trigeneration CO2 emission reduction to quantify GHG emission reduction by CCHP system with respect to separate production. The case studies showed that the CCHP system can bring considerable benefit to countries with fossil fuel-based power generation systems [116].
Jiang et al. [117] utilised the Multi-Product Carbon Footprint (MPCF) technique to evaluate the carbon dioxide emission of a CCHP system. The capacity of the system is 1183 kW, and the natural gas consumption rate is 303.85 m3/h. The MPCF is calculated and analysed for the mentioned CCHP system, and a potential approach is presented to reduce MPCF by optimising the system. Results indicate that the optimised CCHP system’s MPCF decreases by 7.5% compared with the initial system. Table 5 lists the values of the factors utilised in their study.
Su et al. [118] studied the integration of a biogas steam reforming unit and solar energy with a CCHP system. The proposed approach reduces the separate system’s direct carbon footprint by more than 18%. Kishor Johar et al. [119] carried out a comparative study about CHP systems, CHP systems with thermal energy storage, and CCHP systems with thermal energy storage. The internal combustion engine was the prime mover of the system. The carbon footprint of the CCHP system with thermal energy storage was more than 54% lower than the single generation system. Wang et al. [120] studied the performance of biomass powered CCHP systems for 100 m2 isolated houses in China. It showed the thermal efficiency of the system can reach 55.26% which results in low GHG emissions and lower costs. Chen et al. [121] compared the performance of a full load small scale gas turbine-based CCHP system with the same system with a 30% load. The GHG emissions of the full load system were more than 66% lower than the 30% load system. Wu et al. [122] carried out a multi-criteria assessment of CCHP systems in Japan. It was demonstrated that in mild climates, the CCHP systems have a lower potential for energy saving and GHG emission reduction than other climate zones.
The study [123] deals with the optimisation of CCHP systems through carbon regulatory policies. This paper defines a nonlinear optimisation model based on operating costs taking into account variable carbon tax. Experimental results show that appropriate carbon tax policies can effectively reduce emissions. In the following, the topic of the carbon tax is addressed specifically. The research [124] studied the CO2 emissions of gas-fired CHP systems. Conventional energy-saving models were developed. Equivalent efficiencies have also been defined to assess CO2 emissions and used in the development of the PCO2ER (Poly-generation CO2 Emission Reduction) index, which is specifically developed to assess environmental impacts.
Mago and Hueffed [37] studied the incorporation of tax credits to demonstrate how carbon credits can result in carbon footprint reduction. The authors showed, in the case study, that the CCHP system can reduce carbon footprint by more than 40% in comparison to conventional technologies. Lu et al. [125] performed a 3E analysis for CCHP systems located on a remote island in the South China sea. Two different kinds of absorption chillers were analysed for the proposed CCHP system. The double effect absorption chiller had lower carbon dioxide and economic performance than a single one. Zhao et al. [126] carried out a 4E analysis for the PEM fuel cell-based CCHP system. The results demonstrate that high inlet pressure and an increase in mass flow of chilled water can lower GHG emissions of the system. On the other hand, high cooling water mass flow increases the GHG emission of the system. Chang et al. [127] studied a PEMFC and solar energy-based CCHP system. The addition of solar energy to the PEMFC-based CCHP system can decrease GHG emissions by 8.4–23.5%. Li et al. [128] studied natural gas-fuelled CCHP systems in China. It demonstrated that CCHP systems with a gas engine as a prime mover have better performance than CCHP systems with a gas turbine. It also showed that the CCHP systems operation lower GHG emission for all the case studies.
Ahn et al. [129] studied the operation of CCHP systems in cooling and heating seasons. It was demonstrated that CCHP systems have better performance in lowering GHG emissions in the cooling season than in the heating season. According to the results, the more heat used to supply the cooling load, the higher the energy consumption and CO2 emissions. Co-production of multiple products by CCHP increases the challenge of allocating carbon footprint to each energy stream, especially when these products are sold to different customers. Ubando et al. [130] introduced a fuzzy fractional programming model to design a CHP system and identify carbon footprints in each energy stream. The model determines the minimum amount of carbon footprint for each stream so that it also provides the specified amount of energy. Table 6 demonstrates common methods used in the literature to analyse, evaluate, and optimise different environmental aspects of CCHP systems. Moreover, in this table, the country or region and the sector details of each paper are shown.
Zhang et al. [140] compared the performance of the CCHP system with the solar assisted CCHP system. The presented system components were a chemically recuperated gas turbine, absorption chiller, and heat exchange. The integration of solar heat reduced GHG emissions by 33%.

6. Water Footprint

Water footprint indicates the amount of water utilised to produce each of the goods and services we make use of [141]. There are two direct and indirect ways to trace the water footprint of a process, product, or department, which include water consumption and water pollution during the generation life cycle from the supply chain to final consumption.
The following is a case study of water use in CCHP systems in Georgia [142]. The water consumption of a system represents the direct water footprint of that system or process. Safari et al. [143] performed water footprint optimisation of CCHP systems. In this study, water and energy footprint was considered to achieve an optimum design. In a three-objective scenario, the energy, environmental, and economic indicators were considered as three objective functions. Besides these objective functions, water footprint was added as the fourth objective function. Optimisation in a four-objective scenario provides better results than a three-objective scenario. The optimum economic and energy objectives were improved by more than 30 and 12 percent in the four-objective scenario. Mohsenipour et al. [85] studied the water footprint of a geothermal based CCHP system. Energy analysis and optimisation are performed. Among the different components of the proposed system, the vapour generator has the highest water footprint.

6.1. A Case Study on Water Footprint

The CCHP system in this case study includes an air turbine micro-turbine for cooling and an absorption chiller for cooling and heating a building. Here, the CCHP system is designed as an FTL model. The reasons for choosing this model were (1) more input FTL (heat-based design) than following electric load (FEL) (power-based design), which increases the optimisation capability of the model in line with environmental concerns, and (2) no need to separately receive heat by burning extra fuel. In the research [142], five scenarios were tested to see which one had the greatest reduction in NOx pollution and CO2 emissions and the water need for energy generation.

6.2. Water Consumption to Meet Energy Demand and Greenhouse Gas Emissions

The mean CO2 and NOx emissions per kilowatt-hour of power generation in Atlanta in 2012–2013 are shown in Table 7. Water employed for cooling in power generation includes the water that releases in watersheds and the water that evaporates (e.g., in systems where the cooling water cycle is not closed, i.e., once-through cooling systems). Water demand (evaporation loss) for energy generation was computed utilising the mean demand coefficient for the Georgia grid (1.65 gal·(kWh)−1). The secondary analysis compares CCHP scenarios with cases in which the energy needed by the grid is supplied by a gas-fired combined cycle power plant utilising the factor (average water consumption coefficient) of 0.2 gal·(kWh)−1.

6.3. Savings in Water Consumption for Energy Demand Supply

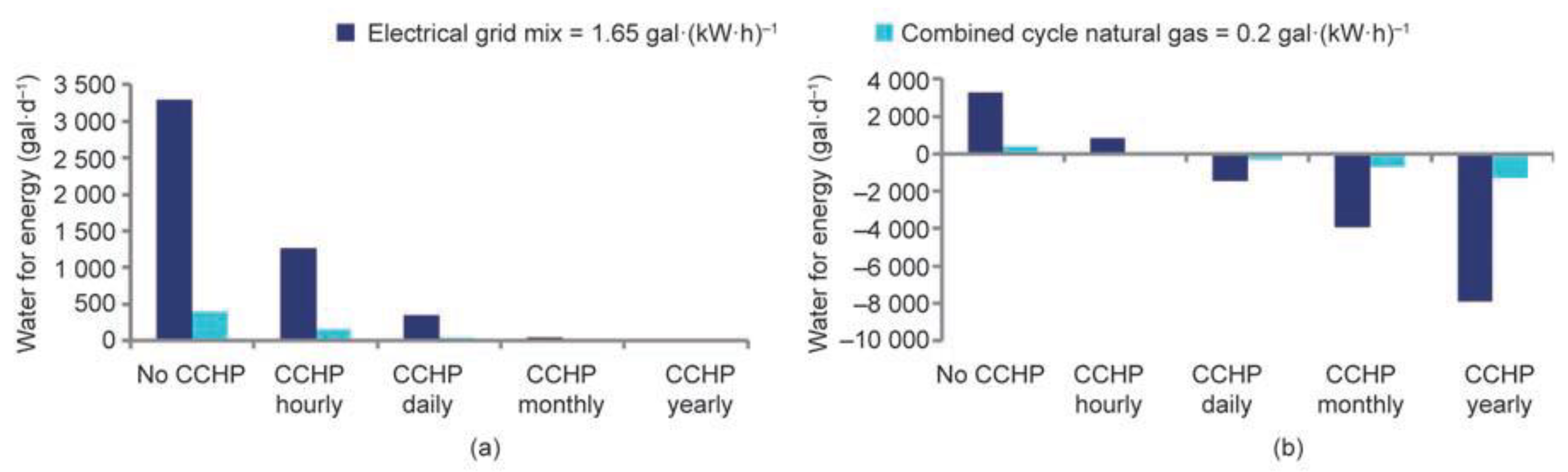

Figure 3 shows the water consumption of energy generation for an average-size office building under all defined scenarios (FTL), assuming: (1) mean water demand for Georgia electricity generation and (2) all grid energy is supplied employing a combined-cycle power plant. The water used to meet energy demand is lessened to almost zero in the scenarios of monthly operating and the maximum annual heat demand. This was an anticipated result because CCHP generates extra heat while generating more electricity, without the need to receive power from the grid. As mentioned, not consuming the grid electricity means no water use to meet energy demand. For other buildings, the results of water consumption for energy generation were similar (Table 7). Water demand for energy supply in all buildings and CCHP-based scenarios is below the scenario of using the national grid and is zero in all cases where the CCHP system is used to fulfil maximum annual heat demand.

7. Role of Carbon Taxation in CCHP Policymaking

Increasing global awareness of global warming and the effects of pollutant emissions has led to a reduction in greenhouse gas emissions. Emissions should have been reduced by 40 to 45% from 2005 to 2020 [144]. CCHP systems are one of the most effective ways to help reduce emissions and increase energy efficiency [145]. Therefore, policies designed to reduce greenhouse gas emissions, such as carbon taxes, can play an important role in the development of these systems.
Chu et al. [123] analysed the performance of the CCHP system under the hybrid electric-thermal load (FHL) operational strategy (a hybrid of the two FTL and FEL approaches) based on costs (including operating costs) and different levels of carbon taxation. To analyse the impact of carbon taxation on the CCHP system, they examined the impact of carbon taxation from USD 1 to 20 per kilowatt-hour using simulation. Figure 4 shows the effect of variable carbon taxes on carbon and energy costs. As the carbon tax increases linearly, so does the overall cost. With the linear increase in carbon taxes, the overall cost also increases. The cost of energy will increase when the carbon tax is between USD 9–11 and 15–17 per kilowatt-hour.

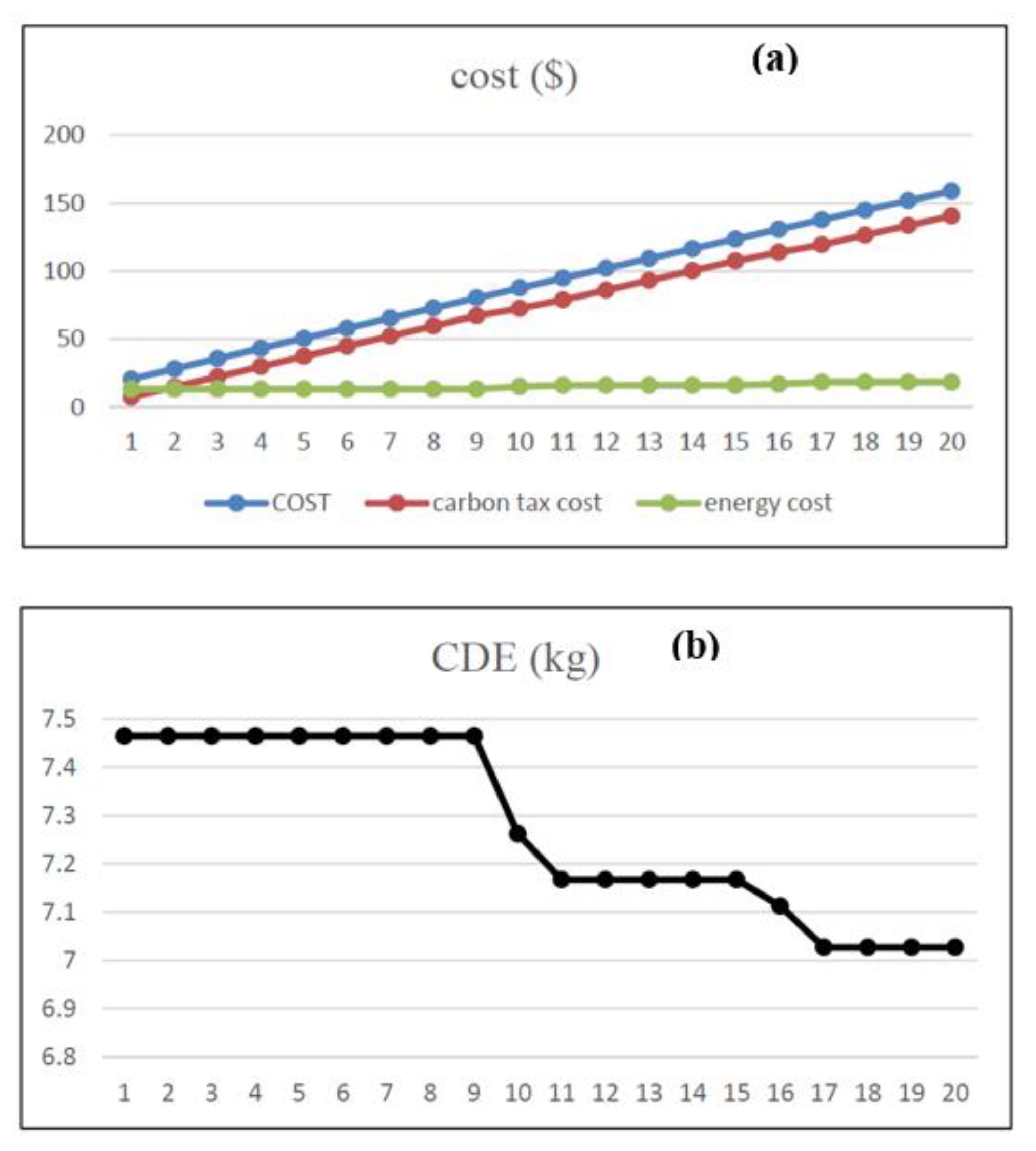

Figure 4 shows that changing the carbon tax from USD 1–9, 11–15, and 17–20 per kilowatt-hour does not change the CDE (carbon dioxide emission), but the reduction will occur when the carbon tax changes from USD 9–11 to 15–17 per kilowatt-hour. Therefore, Chu et al. showed that the optimal carbon tax is USD 10 per kilowatt-hour. The authors also mentioned that the carbon monitoring mechanism is suitable for capturing the total carbon emission in the CCHP system for the establishment in a specific area. The parameters assigned in the experiments will vary, but the models in their study [123] for carbon emission estimations can be used in other areas.

8. Conclusions and Prospective

This paper examines the CCHP system in various contexts, such as technical, geographical, political, environmental, and the approach of some countries in dealing with this system. In each section, related conclusions are given, but in general, a summary of these conclusions is as follows:
  • In general, to meet the same demand, CCHP systems have less greenhouse gas emissions than conventional systems due to less consumption of primary energy sources.
  • A comparison of a CCHP system with a stand-alone coal combustion system shows that the CCHP is not only more efficient but also more environmentally friendly. Using the CCHP system instead of the stand-alone system can reduce coal consumption, resulting in an 11% reduction in environmental damage.
  • Two general approaches can be used to reduce the carbon footprint in a CCHP system. The first approach is to reduce the carbon emissions of the system. This can be achieved by improving the efficiency of components such as the combustion engine. In this case, less initial energy will be needed to produce the same force. The second is to increase the production of the products with a lower impact factor in calculating the overall carbon footprint of a multi-product system. This product in CCHPs is usually “cooling”. This approach can be adopted where high cooling is required.
  • In addition to emitting fewer greenhouse gases, CCHP systems use less water than conventional systems. However, attention should be paid to the difference between water consumption and water use. Contrary to the second approach where water is not lost after use, in the first case, water is not reused and, for example, is evaporated by cooling towers and dispersed in the environment.
  • Exitance of energy storage tanks for cooling, heating, and energy generation can be among the strategies to optimise the performance of CCHP systems. As a result, energy shortages can be avoided at peak times and more energy can be saved.
  • By integrating CCHP and renewable energy, the environmental impacts can greatly be mitigated. In combining the system with solar energy, it should be noted that the more tropical the region, the more radiation and consequently the higher the efficiency of solar panels. However, CCHP systems do not work well in the tropics due to high cooling demand and low heating demand. As a result, this combination can be used in temperate regions.
  • This system can also be combined with hydrogen production units [146] and wastewater treatment and desalination plants. In this way, while improving the performance of both parts, the wasted energy can be used to produce more products.
  • Cooling technologies used in CCHP systems can directly affect their efficiency and performance. The choice of this equipment depends on various parameters such as the amount of “capital” and “cooling” required. In general, the integration of absorption and electric chillers will improve the performance coefficient of CCHP systems. The use of a water tank can also improve the performance of the chiller. The distance between the power plant and the cooling centre, i.e., the distance that the current must travel, is another condition that affects the performance of the system. Absorption chillers are suitable for distances of less than 5 km, while at distances of more than 9.3 km, electric compression systems are a better option.
  • CCHP systems can be used in a variety of industries and buildings to reduce energy consumption. Because of gas tariffs and government subsidies, it can be used in airports and hospitals, as well as in the food industry and supermarkets.
  • The development of CCHP systems in various countries is largely dictated by government policy. In France, for example, where the focus is on nuclear power generation, the expansion of CCHP systems is very low, but countries such as Denmark, The Netherlands, Finland, and Austria are among the leaders in expanding these systems in Europe. The expansion of CCHP systems has also been addressed in the development plans of China and the USA. CCHP systems are not suitable in countries and regions with high gas prices and low electricity prices and may increase running costs.

Author Contributions

M.S.: Writing—original draft preparation, Investigation, Methodology; M.H.: Supervision, writing and draft preparation; S.M.: Review and Editing; T.N.: Review, Editing, Commenting and Improvement of the paper. All authors have read and agreed to the published version of the manuscript.

Funding

Not applicable.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Authors thank and recognise the Niroo Research Institute (NRI) as the scientific supporter of this publication.

Conflicts of Interest

The authors declare that they have no known competing financial interest or personal relationship that could have appeared to influence the work reported in this paper.

Nomenclature

ATCSRAnnual Total Cost Savings Rate IRRInternal Rate of Return
CCHPCombined Cooling Heating and Power ISOInternational Organization for Standardization
CDECarbon Dioxide Emission LCALife Cycle Assessment
CDERRCarbon Dioxide Emission Reduction Rate LCIALife Cycle Impact Assessment
CHPCombined Heating and Power PCO2ERPoly-generation CO2 Emission Reduction
CGTCCombined Gas Turbine CyclePEMFCProton Exchange Membrane Fuel Cell
COPCoefficient PerformancePFESRPrimary Fossil Energy Saving Rate
EDMElectrical Demand Management MCDAMulti-Criteria Decision Analysis
FELFollowing Electric Load MPCFMulti-Product Carbon Footprint
FHLFollowing Hybrid Electric-Thermal Load MINLPMixed-Integer Nonlinear Programming
FTLFollowing Thermal Load NPVNet Present Value
GFCGas-Fired Absorption Chiller CC-MOPSOCo-Constrained-Multi-Objective Particle Swarm Optimisation
GHGGreenhouse GasPVPhotovoltaic
GSHPGround Source Heat Pump PV-TPhotovoltaic Thermal
HRSGHeat Recovery Steam Generator TDMThermal Demand Management
HPHeat PumpSOFCSolid Oxide Fuel Cell
ICEInternal Combustion Engine SPSeparate Production
IGDTInformation Gap Decision Theory

References

  1. Wang, J.; Han, Z.; Guan, Z. Hybrid solar-assisted combined cooling, heating, and power systems: A review. Renew. Sustain. Energy Rev. 2020, 133, 110256. [Google Scholar] [CrossRef]
  2. Cho, H.; Smith, A.; Mago, P. Combined cooling, heating and power: A review of performance improvement and optimization. Appl. Energy 2014, 136, 168–185. [Google Scholar] [CrossRef]
  3. Wegener, M.; Malmquist, A.; Isalgué, A.; Martin, A. Biomass-fired combined cooling, heating and power for small scale applications—A review. Renew. Sustain. Energy Rev. 2018, 96, 392–410. [Google Scholar] [CrossRef] [Green Version]
  4. Han, J.; Ouyang, L.; Xu, Y.; Zeng, R.; Kang, S.; Zhang, G. Current status of distributed energy system in China. Renew. Sustain. Energy Rev. 2016, 55, 288–297. [Google Scholar] [CrossRef]
  5. Liu, M.; Shi, Y.; Fang, F. Combined cooling, heating and power systems: A survey. Renew. Sustain. Energy Rev. 2014, 35, 1–22. [Google Scholar] [CrossRef]
  6. Deng, J.; Wang, R.; Han, G. A review of thermally activated cooling technologies for combined cooling, heating and power systems. Prog. Energy Combust. Sci. 2011, 37, 172–203. [Google Scholar] [CrossRef]
  7. Matuszny, K.; Borhani, T.N.; A Nabavi, S.; Hanak, D.P. Integration of solid-oxide fuel cells and absorption refrigeration for efficient combined cooling, heat and power production. Clean Energy 2020, 4, 328–348. [Google Scholar] [CrossRef]
  8. Nguyen, H.; Shabani, B. Proton exchange membrane fuel cells heat recovery opportunities for combined heating/cooling and power applications. Energy Convers. Manag. 2020, 204, 112328. [Google Scholar] [CrossRef]
  9. Feng, P.; Zhao, B.; Wang, R. Thermophysical heat storage for cooling, heating, and power generation: A review. Appl. Therm. Eng. 2020, 166, 114728. [Google Scholar] [CrossRef]
  10. Rajabi, M.; Mehrpooya, M.; Haibo, Z.; Huang, Z. Chemical looping technology in CHP (combined heat and power) and CCHP (combined cooling heating and power) systems: A critical review. Appl. Energy 2019, 253, 113544. [Google Scholar] [CrossRef]
  11. Roman, K.K.; Hasan, M.; Azam, H. CCHP System Performance Based on Economic Analysis, Energy Conservation, and Emission Analysis. In Energy Systems and Environment; IntechOpen: London, UK, 2018. [Google Scholar] [CrossRef] [Green Version]
  12. Wu, D.W.; Wang, R.Z. Combined cooling, heating and power: A review. Prog. Energy Combust. Sci. 2006, 32, 459–495. [Google Scholar] [CrossRef]
  13. Shi, Y.; Liu, M.; Fang, F. Combined Cooling, Heating, and Power Systems: Modeling, Optimization, and Operation; Wiley: Hoboken, NJ, USA, 2017. [Google Scholar]
  14. Ebrahimi, M.; Keshavarz, A. Combined Cooling, Heating and Power: Decision-Making, Design and Optimization; Elsevier: Amsterdam, The Netherlands, 2014. [Google Scholar]
  15. Liu, Z.; Gao, W.; Qian, F.; Zhang, L.; Kuroki, S. Potential Analysis and Optimization of Combined Cooling, Heating, and Power (CCHP) Systems for Eco-Campus Design Based on Comprehensive Performance Assessment. Front. Energy Res. 2021, 9, 781634. [Google Scholar] [CrossRef]
  16. Lin, H.; Yang, C.; Xu, X. A new optimization model of CCHP system based on genetic algorithm. Sustain. Cities Soc. 2020, 52, 101811. [Google Scholar] [CrossRef]
  17. Wang, J.-J.; Jing, Y.-Y.; Zhang, C.-F.; Zhai, Z. Performance comparison of combined cooling heating and power system in different operation modes. Appl. Energy 2011, 88, 4621–4631. [Google Scholar] [CrossRef]
  18. Jiang-Jiang, W.; Chun-Fa, Z.; You-Yin, J. Multi-criteria analysis of combined cooling, heating and power systems in different climate zones in China. Appl. Energy 2010, 87, 1247–1259. [Google Scholar] [CrossRef]
  19. Huang, Z.; Yang, C.; Yang, H.; Ma, X. Off-design heating/power flexibility for steam injected gas turbine based CCHP considering variable geometry operation. Energy 2018, 165, 1048–1060. [Google Scholar] [CrossRef]
  20. Zhang, C.; Wang, X.; Yang, C.; Yang, Z. Control Strategies of Steam-injected Gas Turbine in CCHP System. Energy Procedia 2017, 105, 1520–1525. [Google Scholar] [CrossRef]
  21. Mirzaee, M.; Zare, R.; Sadeghzadeh, M.; Maddah, H.; Ahmadi, M.H.; Acıkkalp, E.; Chen, L. Thermodynamic analyses of different scenarios in a CCHP system with micro turbine–Absorption chiller, and heat exchanger. Energy Convers. Manag. 2019, 198, 111919. [Google Scholar] [CrossRef]
  22. Zhang, H.; Chen, R.; Wang, F.; Wang, H.; Wang, Y. Multi-objective Optimization for Operational Parameters of A Micro-turbine CCHP System Based on Genetic Algorithm. Procedia Eng. 2017, 205, 1807–1814. [Google Scholar] [CrossRef]
  23. Wang, L.; Lu, J.; Wang, W.; Ding, J. Feasibility Analysis of CCHP System with Thermal Energy Storage Driven by Micro Turbine. Energy Procedia 2017, 105, 2396–2402. [Google Scholar] [CrossRef]
  24. Yamano, S.; Nakaya, T.; Ikegami, T.; Nakayama, M.; Akisawa, A. Optimization modeling of mixed gas engine types with different maintenance spans and costs: Case study OF CCHP to evaluate optimal gas engine operations and combination of the types. Energy 2021, 222, 119823. [Google Scholar] [CrossRef]
  25. Zeng, R.; Guo, B.; Zhang, X.; Li, H.; Zhang, G. Study on thermodynamic performance of SOFC-CCHP system integrating ORC and double-effect ARC. Energy Convers. Manag. 2021, 242, 114326. [Google Scholar] [CrossRef]
  26. Ghaebi, H.; Amidpour, M.; Karimkashi, S.; Rezayan, O. Energy, exergy and thermoeconomic analysis of a combined cooling, heating and power (CCHP) system with gas turbine prime mover. Int. J. Energy Res. 2011, 35, 697–709. [Google Scholar] [CrossRef]
  27. Jing, R.; Wang, M.; Brandon, N.; Zhao, Y. Multi-criteria evaluation of solid oxide fuel cell based combined cooling heating and power (SOFC-CCHP) applications for public buildings in China. Energy 2017, 141, 273–289. [Google Scholar] [CrossRef]
  28. Yuan, X.; Liu, Y.; Bucknall, R. Optimised MOPSO with the grey relationship analysis for the multi-criteria objective energy dispatch of a novel SOFC-solar hybrid CCHP residential system in the UK. Energy Convers. Manag. 2021, 243, 114406. [Google Scholar] [CrossRef]
  29. Mehr, A.; MosayebNezhad, M.; Lanzini, A.; Yari, M.; Mahmoudi, S.; Santarelli, M. Thermodynamic assessment of a novel SOFC based CCHP system in a wastewater treatment plant. Energy 2018, 150, 299–309. [Google Scholar] [CrossRef]
  30. Abbasi, M.; Chahartaghi, M.; Hashemian, S.M. Energy, exergy, and economic evaluations of a CCHP system by using the internal combustion engines and gas turbine as prime movers. Energy Convers. Manag. 2018, 173, 359–374. [Google Scholar] [CrossRef]
  31. Brandoni, C.; Renzi, M. Optimal sizing of hybrid solar micro-CHP systems for the household sector. Appl. Therm. Eng. 2015, 75, 896–907. [Google Scholar] [CrossRef]
  32. Fong, K.F.; Lee, C.K. Dynamic performances of trigeneration systems using different prime movers for high-rise building application: A comparative study. Build. Simul. 2017, 10, 509–523. [Google Scholar] [CrossRef]
  33. Ebrahimi, M.; Keshavarz, A. Prime mover selection for a residential micro-CCHP by using two multi-criteria decision-making methods. Energy Build. 2012, 55, 322–331. [Google Scholar] [CrossRef]
  34. Ghersi, D.E.; Amoura, M.; Loubar, K.; Desideri, U.; Tazerout, M. Multi-objective optimization of CCHP system with hybrid chiller under new electric load following operation strategy. Energy 2021, 219, 119574. [Google Scholar] [CrossRef]
  35. Feng, L.; Dai, X.; Mo, J.; Ma, Y.; Shi, L. Analysis of energy matching performance between CCHP systems and users based on different operation strategies. Energy Convers. Manag. 2019, 182, 60–71. [Google Scholar] [CrossRef]
  36. Jiang, J.; Gao, W.; Gao, Y.; Wei, X.; Kuroki, S. Performance Analysis of CCHP System for University Campus in North China. Procedia-Soc. Behav. Sci. 2016, 216, 361–372. [Google Scholar] [CrossRef] [Green Version]
  37. Mago, P.J.; Hueffed, A.K. Evaluation of a turbine driven CCHP system for large office buildings under different operating strategies. Energy Build. 2010, 42, 1628–1636. [Google Scholar] [CrossRef]
  38. Bartolini, A.; Mazzoni, S.; Comodi, G.; Romagnoli, A. Impact of carbon pricing on distributed energy systems planning. Appl. Energy 2021, 301, 117324. [Google Scholar] [CrossRef]
  39. Kerr, J. Introduction to Energy and Climate; CRC Press: New York, NY, USA, 2017. [Google Scholar] [CrossRef]
  40. Ren, F.; Wei, Z.; Zhai, X. Multi-objective optimization and evaluation of hybrid CCHP systems for different building types. Energy 2021, 215, 119096. [Google Scholar] [CrossRef]
  41. Qian, J.; Wu, J.; Yao, L.; Mahmut, S.; Zhang, Q. Comprehensive performance evaluation of Wind-Solar-CCHP system based on emergy analysis and multi-objective decision method. Energy 2021, 230, 120779. [Google Scholar] [CrossRef]
  42. Zhu, X.Y.; Zhan, X.Y.; Liang, H.; Zheng, X.Y.; Qiu, Y.W.; Lin, J.; Chen, J.C.; Meng, C.; Zhao, Y.R. The optimal design and operation strategy of renewable energy-CCHP coupled system applied in five building objects. Renew. Energy 2020, 146, 2700–2715. [Google Scholar] [CrossRef]
  43. Jiang, Y.; Xu, J.; Sun, Y.; Wei, C.; Wang, J.; Liao, S.; Ke, D.; Li, X.; Yang, J.; Peng, X. Coordinated operation of gas-electricity integrated distribution system with multi-CCHP and distributed renewable energy sources. Appl. Energy 2017, 211, 237–248. [Google Scholar] [CrossRef]
  44. Gu, W.; Lu, S.; Wu, Z.; Zhang, X.; Zhou, J.; Zhao, B.; Wang, J. Residential CCHP microgrid with load aggregator: Operation mode, pricing strategy, and optimal dispatch. Appl. Energy 2017, 205, 173–186. [Google Scholar] [CrossRef]
  45. Nami, H.; Anvari-Moghaddam, A.; Arabkoohsar, A. Application of CCHPs in a centralized domestic heating, cooling and power network—Thermodynamic and economic implications. Sustain. Cities Soc. 2020, 60, 102151. [Google Scholar] [CrossRef]
  46. Šarevski, M.N.; Šarevski, V.N. Water (R718) Turbo Compressor and Ejector Refrigeration/Heat Pump Technology; Butterworth-Heinemann: Oxford, UK, 2016; pp. 1–294. [Google Scholar] [CrossRef]
  47. Prado, R.T.A.; Sowmy, D.S. Advances in Solar Heating and Cooling; Woodhead Publishing: Cambridge, UK, 2016; pp. 117–150. [Google Scholar]
  48. Coulomb, D.; Dupont, J.L.; Pichard, A. The Role of Refrigeration in the Global Economy—29 Informatory Note on Refrigeration Technologies. Int. Inst. Refrig. 2015, 51, INIS-FR--20-0281. [Google Scholar]
  49. Liu, M.; Shi, Y.; Fang, F. A new operation strategy for CCHP systems with hybrid chillers. Appl. Energy 2012, 95, 164–173. [Google Scholar] [CrossRef]
  50. Li, S.; Wu, J.Y. Theoretical research of a silica gel-water adsorption chiller in a micro combined cooling, heating and power (CCHP) system. Appl. Energy 2009, 86, 958–967. [Google Scholar] [CrossRef]
  51. Zhang, J.; Cao, S.; Yu, L.; Zhou, Y. Comparison of combined cooling, heating and power (CCHP) systems with different cooling modes based on energetic, environmental and economic criteria. Energy Convers. Manag. 2018, 160, 60–73. [Google Scholar] [CrossRef]
  52. Nikbakhti, R.; Wang, X.; Hussein, A.K.; Iranmanesh, A. Absorption cooling systems–Review of various techniques for energy performance enhancement. Alex. Eng. J. 2020, 59, 707–738. [Google Scholar] [CrossRef]
  53. Wang, J.; Chen, Y.; Lior, N.; Li, W. Energy, exergy and environmental analysis of a hybrid combined cooling heating and power system integrated with compound parabolic concentrated-photovoltaic thermal solar collectors. Energy 2019, 185, 463–476. [Google Scholar] [CrossRef]
  54. Wang, J.; Lu, Z.; Li, M.; Lior, N.; Li, W. Energy, exergy, exergoeconomic and environmental (4E) analysis of a distributed generation solar-assisted CCHP (combined cooling, heating and power) gas turbine system. Energy 2019, 175, 1246–1258. [Google Scholar] [CrossRef]
  55. Chahartaghi, M.; Sheykhi, M. Energy, environmental and economic evaluations of a CCHP system driven by Stirling engine with helium and hydrogen as working gases. Energy 2019, 174, 1251–1266. [Google Scholar] [CrossRef]
  56. Li, C.; Wu, J.; Shen, Y.; Kan, X.; Dai, Y.; Wang, C.-H. Evaluation of a combined cooling, heating, and power system based on biomass gasification in different climate zones in the U.S. Energy 2018, 144, 326–340. [Google Scholar] [CrossRef]
  57. Li, X.; Kan, X.; Sun, X.; Zhao, Y.; Ge, T.; Dai, Y.; Wang, C.H. Performance analysis of a biomass gasification-based CCHP system integrated with variable-effect LiBr-H2O absorption cooling and desiccant dehumidification. Energy 2019, 176, 961–979. [Google Scholar] [CrossRef]
  58. Boyaghchi, F.A.; Chavoshi, M.; Sabeti, V. Optimization of a novel combined cooling, heating and power cycle driven by geothermal and solar energies using the water/CuO (copper oxide) nanofluid. Energy 2015, 91, 685–699. [Google Scholar] [CrossRef]
  59. Fragiacomo, P.; Lucarelli, G.; Genovese, M.; Florio, G. Multi-objective optimization model for fuel cell-based poly-generation energy systems. Energy 2021, 237, 121823. [Google Scholar] [CrossRef]
  60. Sayed, E.T.; Wilberforce, T.; Elsaid, K.; Rabaia, M.K.H.; Abdelkareem, M.A.; Chae, K.-J.; Olabi, A. A critical review on environmental impacts of renewable energy systems and mitigation strategies: Wind, hydro, biomass and geothermal. Sci. Total Environ. 2021, 766, 144505. [Google Scholar] [CrossRef]
  61. Wang, Z.; Xue, Q. To fully exert the important role of natural gas in building a modern energy security system in China: An understanding of China’s National l3th Five-Year Plan for Natural Gas Development. Nat. Gas Ind. B 2017, 4, 270–277. [Google Scholar] [CrossRef]
  62. Xu, Y.; Li, W.; Yuan, J. Economical Efficiency of Combined Cooling Heating and Power Systems Based on an Enthalpy Method. Energies 2017, 10, 1821. [Google Scholar] [CrossRef] [Green Version]
  63. Mobasseri, A.; Tostado-Véliz, M.; Ghadimi, A.A.; Miveh, M.R.; Jurado, F. Multi-energy microgrid optimal operation with integrated power to gas technology considering uncertainties. J. Clean. Prod. 2022, 333, 130174. [Google Scholar] [CrossRef]
  64. Chen, P.; Lan, Y.; Wang, D.; Wang, W.; Liu, W.; Chong, Z.; Wang, X. Optimal Planning and Operation of CCHP System Considering Renewable Energy Integration and Seawater Desalination. Energy Procedia 2019, 158, 6490–6495. [Google Scholar] [CrossRef]
  65. Nojavan, S.; Saberi, K.; Zare, K. Risk-based performance of combined cooling, heating and power (CCHP)integrated with renewable energies using information gap decision theory. Appl. Therm. Eng. 2019, 159, 113875. [Google Scholar] [CrossRef]
  66. Zhang, L.; Zhang, L.; Sun, B.; Zhang, C.; Li, F. Nested optimization design for combined cooling, heating, and power system coupled with solar and biomass energy. Int. J. Electr. Power Energy Syst. 2020, 123, 106236. [Google Scholar] [CrossRef]
  67. Zarei, A.; Akhavan, S.; Rabiee, M.B.; Elahi, S. Energy, exergy and economic analysis of a novel solar driven CCHP system powered by organic Rankine cycle and photovoltaic thermal collector. Appl. Therm. Eng. 2021, 194, 117091. [Google Scholar] [CrossRef]
  68. Soheyli, S.; Mayam, M.H.S.; Mehrjoo, M. Modeling a novel CCHP system including solar and wind renewable energy resources and sizing by a CC-MOPSO algorithm. Appl. Energy 2016, 184, 375–395. [Google Scholar] [CrossRef]
  69. Zhang, X.; Zeng, R.; Mu, K.; Liu, X.; Sun, X.; Li, H. Exergetic and exergoeconomic evaluation of co-firing biomass gas with natural gas in CCHP system integrated with ground source heat pump. Energy Convers. Manag. 2019, 180, 622–640. [Google Scholar] [CrossRef]
  70. Su, B.; Han, W.; Chen, Y.; Wang, Z.; Qu, W.; Jin, H. Performance optimization of a solar assisted CCHP based on biogas reforming. Energy Convers. Manag. 2018, 171, 604–617. [Google Scholar] [CrossRef]
  71. Wang, X.; Xu, Y.; Bao, Z.; Li, W.; Liu, F.; Jiang, Y. Operation optimization of a solar hybrid CCHP system for adaptation to climate change. Energy Convers. Manag. 2020, 220, 113010. [Google Scholar] [CrossRef]
  72. Stanek, W.; Gazda, W.; Kostowski, W. Thermo-ecological assessment of CCHP (combined cold-heat-and-power) plant supported with renewable energy. Energy 2015, 92, 279–289. [Google Scholar] [CrossRef]
  73. Zare, V.; Takleh, H.R. Novel geothermal driven CCHP systems integrating ejector transcritical CO2 and Rankine cycles: Thermodynamic modeling and parametric study. Energy Convers. Manag. 2020, 205, 112396. [Google Scholar] [CrossRef]
  74. Wang, X.; Yang, C.; Huang, M.; Ma, X. Multi-objective optimization of a gas turbine-based CCHP combined with solar and compressed air energy storage system. Energy Convers. Manag. 2018, 164, 93–101. [Google Scholar] [CrossRef]
  75. Zhang, X.; Liu, X.; Sun, X.; Jiang, C.; Li, H.; Song, Q.; Zeng, J.; Zhang, G. Thermodynamic and economic assessment of a novel CCHP integrated system taking biomass, natural gas and geothermal energy as co-feeds. Energy Convers. Manag. 2018, 172, 105–118. [Google Scholar] [CrossRef]
  76. Li, B.; Hu, P.; Zhu, N.; Lei, F.; Xing, L. Performance analysis and optimization of a CCHP-GSHP coupling system based on quantum genetic algorithm. Sustain. Cities Soc. 2019, 46, 101408. [Google Scholar] [CrossRef]
  77. Yan, J.; Broesicke, O.A.; Wang, D.; Li, D.; Crittenden, J.C. Parametric life cycle assessment for distributed combined cooling, heating and power integrated with solar energy and energy storage. J. Clean. Prod. 2020, 250, 119483. [Google Scholar] [CrossRef]
  78. Wang, J.-J.; Yang, K.; Xu, Z.-L.; Fu, C. Energy and exergy analyses of an integrated CCHP system with biomass air gasification. Appl. Energy 2015, 142, 317–327. [Google Scholar] [CrossRef]
  79. Wegener, M.; Malmquist, A.; Isalgue, A.; Martin, A.; Arranz, P.; Camara, O.; Velo, E. A techno-economic optimization model of a biomass-based CCHP/heat pump system under evolving climate conditions. Energy Convers. Manag. 2020, 223, 113256. [Google Scholar] [CrossRef]
  80. Jalili, M.; Ghasempour, R.; Ahmadi, M.H.; Chitsaz, A.; Holagh, S.G. An integrated CCHP system based on biomass and natural gas co-firing: Exergetic and thermo-economic assessments in the framework of energy nexus. Energy Nexus 2022, 5, 100016. [Google Scholar] [CrossRef]
  81. Collie, R.L. Passive Solar Design. An Extensive Bibliography; AIA Research Corporation: Washington, DC, USA, 1978; pp. 1–4. [Google Scholar] [CrossRef]
  82. Luo, X.; Zhu, Y.; Liu, J.; Liu, Y. Design and analysis of a combined desalination and standalone CCHP (combined cooling heating and power) system integrating solar energy based on a bi-level optimization model. Sustain. Cities Soc. 2018, 43, 166–175. [Google Scholar] [CrossRef]
  83. Ebrahimi, M.; Keshavarz, A. Designing an optimal solar collector (orientation, type and size) for a hybrid-CCHP system in different climates. Energy Build. 2015, 108, 10–22. [Google Scholar] [CrossRef]
  84. Ramos, A.; Chatzopoulou, M.A.; Guarracino, I.; Freeman, J.; Markides, C. Hybrid photovoltaic-thermal solar systems for combined heating, cooling and power provision in the urban environment. Energy Convers. Manag. 2017, 150, 838–850. [Google Scholar] [CrossRef]
  85. Mohsenipour, M.; Ahmadi, F.; Mohammadi, A.; Ebadollahi, M.; Amidpour, M. Investigation of a Geothermal-Based CCHP System from Energetic, Water Usage and CO2 Emission Viewpoints. Gas Processing J. 2019, 7, 41–52. [Google Scholar] [CrossRef]
  86. Zeng, R.; Zhang, X.; Deng, Y.; Li, H.; Zhang, G. An off-design model to optimize CCHP-GSHP system considering carbon tax. Energy Convers. Manag. 2019, 189, 105–117. [Google Scholar] [CrossRef]
  87. Mohammadi, A.; Ahmadi, M.H.; Bidi, M.; Joda, F.; Valero, A.; Usón, S. Exergy analysis of a Combined Cooling, Heating and Power system integrated with wind turbine and compressed air energy storage system. Energy Convers. Manag. 2017, 131, 69–78. [Google Scholar] [CrossRef]
  88. Bansal, R.C.; Zobaa, A.F. Handbook of Renewable Energy Technology & Systems; World Scientific Publishing Co. Pte Ltd.: Singapore, 2021. [Google Scholar] [CrossRef]
  89. Tora, E.A.; El-Halwagi, M.M. Integrated conceptual design of solar-assisted trigeneration systems. Comput. Chem. Eng. 2011, 35, 1807–1814. [Google Scholar] [CrossRef]
  90. Buck, R.; Friedmann, S. Solar-assisted small solar tower trigeneration systems. J. Sol. Energy Eng. Trans. ASME 2007, 129, 349–354. [Google Scholar] [CrossRef]
  91. Wang, J.; Zhao, P.; Niu, X.; Dai, Y. Parametric analysis of a new combined cooling, heating and power system with transcritical CO2 driven by solar energy. Appl. Energy 2012, 94, 58–64. [Google Scholar] [CrossRef]
  92. Al-Sulaiman, F.A.; Hamdullahpur, F.; Dincer, I. Performance assessment of a novel system using parabolic trough solar collectors for combined cooling, heating, and power production. Renew. Energy 2012, 48, 161–172. [Google Scholar] [CrossRef]
  93. Boyaghchi, F.A.; Heidarnejad, P. Thermoeconomic assessment and multi objective optimization of a solar micro CCHP based on Organic Rankine Cycle for domestic application. Energy Convers. Manag. 2015, 97, 224–234. [Google Scholar] [CrossRef]
  94. Nosrat, A.; Pearce, J.M. Dispatch strategy and model for hybrid photovoltaic and trigeneration power systems. Appl. Energy 2011, 88, 3270–3276. [Google Scholar] [CrossRef] [Green Version]
  95. Sanaye, S.; Sarrafi, A. Optimization of combined cooling, heating and power generation by a solar system. Renew. Energy 2015, 80, 699–712. [Google Scholar] [CrossRef]
  96. Lian, Z.; Chua, K.; Chou, S. A thermoeconomic analysis of biomass energy for trigeneration. Appl. Energy 2010, 87, 84–95. [Google Scholar] [CrossRef]
  97. Uris, M.; Linares, J.I.; Arenas, E. Techno-economic feasibility assessment of a biomass cogeneration plant based on an Organic Rankine Cycle. Renew. Energy 2014, 66, 707–713. [Google Scholar] [CrossRef]
  98. Huang, Y.; Wang, Y.; Rezvani, S.; McIlveen-Wright, D.; Anderson, M.; Mondol, J.; Zacharopolous, A.; Hewitt, N. A techno-economic assessment of biomass fuelled trigeneration system integrated with organic Rankine cycle. Appl. Therm. Eng. 2013, 53, 325–331. [Google Scholar] [CrossRef]
  99. Salomón, M.; Savola, T.; Martin, A.; Fogelholm, C.-J.; Fransson, T. Small-scale biomass CHP plants in Sweden and Finland. Renew. Sustain. Energy Rev. 2011, 15, 4451–4465. [Google Scholar] [CrossRef]
  100. Dong, L.; Liu, H.; Riffat, S. Development of small-scale and micro-scale biomass-fuelled CHP systems—A literature review. Appl. Therm. Eng. 2009, 29, 2119–2126. [Google Scholar] [CrossRef] [Green Version]
  101. Gholamian, E.; Zare, V.; Mousavi, S. Integration of biomass gasification with a solid oxide fuel cell in a combined cooling, heating and power system: A thermodynamic and environmental analysis. Int. J. Hydrogen Energy 2016, 41, 20396–20406. [Google Scholar] [CrossRef]
  102. Wang, J.L.; Wu, J.Y.; Zheng, C.Y. Design and Operation of a Hybrid CCHP System Including PV-Wind Devices. In Proceedings of the ASME 2013 International Mechanical Engineering Congress and Exposition, San Diego, CA, USA, 15–21 November 2013. [Google Scholar] [CrossRef]
  103. Zare, V. A comparative thermodynamic analysis of two tri-generation systems utilizing low-grade geothermal energy. Energy Convers. Manag. 2016, 118, 264–274. [Google Scholar] [CrossRef]
  104. Zheng, C.; Yang, G. Integration of CCHP with renewable energy. In Handbook of Energy Systems in Green Buildings; Springer: Berlin/Heidelberg, Germany, 2018; pp. 1449–1484. [Google Scholar] [CrossRef]
  105. Muralikrishna, I.V.; Manickam, V. Environmental Management: Science and Engineering for Industry; Elsevier Science: New Delhi, India, 2017; pp. 1–639. [Google Scholar]
  106. Degezelle, G.-J. LCA and Optimization of CCHP System in Qingpu Power. Master’s Thesis, Ghent University, Gent, Belgium, 2014. [Google Scholar]
  107. De Felice, F.; Campagiorni, F.; Petrillo, A. Economic and Environmental Evaluation Via an Integrated Method based on LCA and MCDA. Procedia-Soc. Behav. Sci. 2013, 99, 1–10. [Google Scholar] [CrossRef]
  108. Chaiyat, N.; Lerdjaturanon, W.; Ondokmai, P. Life cycle assessment of a combined cooling heating and power generation system. Case Stud. Chem. Environ. Eng. 2021, 4, 100134. [Google Scholar] [CrossRef]
  109. Loyarte-López, E.; Barral, M.; Morla, J.C. Methodology for Carbon Footprint Calculation Towards Sustainable Innovation in Intangible Assets. Sustainability 2020, 12, 1629. [Google Scholar] [CrossRef] [Green Version]
  110. Wiedmann, T.; Minx, J. A definition of “carbon footprint”. In Ecological Economics Research Trends; Pertsova, C.C., Ed.; Nova Science Publisher: Hauppauge, NY, USA, 2008; Chapter 1; pp. 1–11. [Google Scholar]
  111. Solomon, S. On Climate Change IP, on Climate Change. Working Group I. IP. In Climate Change 2007: The Physical Science Basis: Part of the Working Group I Contribution to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change; IPCC: Geneva, Switzerland, 2007. [Google Scholar]
  112. ISO 14067:2013. Greenhouse Gases—Carbon Footprint of Products—Requirements and Guidelines for Quantification and Communication. International Organization for Standardization. 2018, p. 64. Available online: https://www.iso.org/obp/ui/#iso:std:iso:14067:ed-1:v1:en (accessed on 14 February 2022).
  113. Açıkkalp, E.; Aras, H.; Hepbasli, A. Advanced exergy analysis of an electricity-generating facility using natural gas. Energy Convers. Manag. 2014, 82, 146–153. [Google Scholar] [CrossRef]
  114. Lior, N.; Zhang, N. Energy, exergy, and second law performance criteria. Energy 2007, 32, 281–296. [Google Scholar] [CrossRef]
  115. Chicco, G.; Mancarella, P. Assessment of the greenhouse gas emissions from cogeneration and trigeneration systems. Part I: Models and indicators. Energy 2008, 33, 410–417. [Google Scholar] [CrossRef]
  116. Mancarella, P.; Chicco, G. Assessment of the greenhouse gas emissions from cogeneration and trigeneration systems. Part II: Analysis techniques and application cases. Energy 2008, 33, 418–430. [Google Scholar] [CrossRef]
  117. Jiang, X.Z.; Zheng, D.; Mi, Y. Carbon footprint analysis of a combined cooling heating and power system. Energy Convers. Manag. 2015, 103, 36–42. [Google Scholar] [CrossRef]
  118. Su, B.; Han, W.; Jin, H. Proposal and assessment of a novel integrated CCHP system with biogas steam reforming using solar energy. Appl. Energy 2017, 206, 1–11. [Google Scholar] [CrossRef]
  119. Johar, D.K.; Sharma, D.; Soni, S.L. Comparative studies on micro cogeneration, micro cogeneration with thermal energy storage and micro trigeneration with thermal energy storage system using same power plant. Energy Convers. Manag. 2020, 220, 113082. [Google Scholar] [CrossRef]
  120. Wang, Z.; Li, H.; Zhang, X.; Wang, L.; Du, S.; Fang, C. Performance analysis on a novel micro-scale combined cooling, heating and power (CCHP) system for domestic utilization driven by biomass energy. Renew. Energy 2020, 156, 1215–1232. [Google Scholar] [CrossRef]
  121. Chen, Q.; Han, W.; Zheng, J.-J.; Sui, J.; Jin, H.-G. The exergy and energy level analysis of a combined cooling, heating and power system driven by a small scale gas turbine at off design condition. Appl. Therm. Eng. 2014, 66, 590–602. [Google Scholar] [CrossRef]
  122. Wu, Q.; Ren, H.; Gao, W.; Ren, J. Multi-criteria assessment of combined cooling, heating and power systems located in different regions in Japan. Appl. Therm. Eng. 2014, 73, 660–670. [Google Scholar] [CrossRef]
  123. Chu, X.; Yang, D.; Li, X.; Zhou, R. Evaluation of CCHP system performance based on operational cost considering carbon tax. Energy Procedia 2017, 142, 2930–2935. [Google Scholar] [CrossRef]
  124. Chicco, G.; Mancarella, P. A unified model for energy and environmental performance assessment of natural gas-fueled poly-generation systems. Energy Convers. Manag. 2008, 49, 2069–2077. [Google Scholar] [CrossRef]
  125. Wang, L.; Lu, J.; Wang, W.; Ding, J. Energy, environmental and economic evaluation of the CCHP systems for a remote island in south of China. Appl. Energy 2016, 183, 874–883. [Google Scholar] [CrossRef]
  126. Zhao, J.; Cai, S.; Huang, X.; Luo, X.; Tu, Z. 4E analysis and multiobjective optimization of a PEMFC-based CCHP system with dehumidification. Energy Convers. Manag. 2021, 248, 114789. [Google Scholar] [CrossRef]
  127. Chang, H.; Duan, C.; Xu, X.; Pei, H.; Shu, S.; Tu, Z. Technical performance analysis of a micro-combined cooling, heating and power system based on solar energy and high temperature PEMFC. Int. J. Hydrogen Energy 2019, 44, 21080–21089. [Google Scholar] [CrossRef]
  128. Li, M.; Mu, H.; Li, N.; Ma, B. Optimal design and operation strategy for integrated evaluation of CCHP (combined cooling heating and power) system. Energy 2016, 99, 202–220. [Google Scholar] [CrossRef]
  129. Ahn, H.; Rim, D.; Freihaut, J.D. Performance assessment of hybrid chiller systems for combined cooling, heating and power production. Appl. Energy 2018, 225, 501–512. [Google Scholar] [CrossRef]
  130. Ubando, A.T.; Culaba, A.B.; Aviso, K.B.; Tan, R.R. Simultaneous carbon footprint allocation and design of trigeneration plants using fuzzy fractional programming. Clean Technol. Environ. Policy 2013, 15, 823–832. [Google Scholar] [CrossRef]
  131. Guo, Q.; Nojavan, S.; Lei, S.; Liang, X. Economic-environmental evaluation of industrial energy parks integrated with CCHP units under a hybrid IGDT-stochastic optimization approach. J. Clean. Prod. 2021, 317, 128364. [Google Scholar] [CrossRef]
  132. Cao, Y.; Wang, Q.; Du, J.; Nojavan, S.; Jermsittiparsert, K.; Ghadimi, N. Optimal operation of CCHP and renewable generation-based energy hub considering environmental perspective: An epsilon constraint and fuzzy methods. Sustain. Energy Grids Netw. 2019, 20, 100274. [Google Scholar] [CrossRef]
  133. Razmi, A.; Soltani, M.; Torabi, M. Investigation of an efficient and environmentally-friendly CCHP system based on CAES, ORC and compression-absorption refrigeration cycle: Energy and exergy analysis. Energy Convers. Manag. 2019, 195, 1199–1211. [Google Scholar] [CrossRef]
  134. Xu, D.; Qu, M. Energy, environmental, and economic evaluation of a CCHP system for a data center based on operational data. Energy Build. 2013, 67, 176–186. [Google Scholar] [CrossRef]
  135. Deymi-Dashtebayaz, M.; Norani, M. Sustainability assessment and emergy analysis of employing the CCHP system under two different scenarios in a data center. Renew. Sustain. Energy Rev. 2021, 150, 111511. [Google Scholar] [CrossRef]
  136. Mohammadkhani, N.; Sedighizadeh, M.; Esmaili, M. Energy and emission management of CCHPs with electric and thermal energy storage and electric vehicle. Therm. Sci. Eng. Prog. 2018, 8, 494–508. [Google Scholar] [CrossRef]
  137. Chen, J.; Li, X.; Dai, Y.; Wang, C.-H. Energetic, economic, and environmental assessment of a Stirling engine based gasification CCHP system. Appl. Energy 2021, 281, 116067. [Google Scholar] [CrossRef]
  138. Yang, G.; Zheng, C.; Zhai, X. Influence analysis of building energy demands on the optimal design and performance of CCHP system by using statistical analysis. Energy Build. 2017, 153, 297–316. [Google Scholar] [CrossRef]
  139. Saberi, K.; Pashaei-Didani, H.; Nourollahi, R.; Zare, K.; Nojavan, S. Optimal performance of CCHP based microgrid considering environmental issue in the presence of real time demand response. Sustain. Cities Soc. 2019, 45, 596–606. [Google Scholar] [CrossRef]
  140. Zhang, N.; Wang, Z.; Han, W. Analysis of A Solar Assisted Combined Cooling, Heating and Power (SCCHP) System. Energy Procedia 2017, 142, 55–62. [Google Scholar] [CrossRef]
  141. Water Footprint Network, Water Footprint. 2021. Available online: https://waterfootprint.org/en/about-us/ (accessed on 9 November 2021).
  142. James, J.-A.; Thomas, V.M.; Pandit, A.; Li, D.; Crittenden, J.C. Water, Air Emissions, and Cost Impacts of Air-Cooled Microturbines for Combined Cooling, Heating, and Power Systems: A Case Study in the Atlanta Region. Engineering 2016, 2, 470–480. [Google Scholar] [CrossRef]
  143. Safari, M.; Sohani, A.; Sayyaadi, H. A higher performance optimum design for a tri-generation system by taking the advantage of water-energy nexus. J. Clean. Prod. 2021, 284, 124704. [Google Scholar] [CrossRef]
  144. The Climate Change Secretariat of Sri Lanka. The National Climate Change Policy of Sri Lanka. Ministry of Environment; 2014; pp. 1–7. Available online: climatechange.lk (accessed on 14 February 2022).
  145. Wang, J.; Sui, J.; Jin, H. An improved operation strategy of combined cooling heating and power system following electrical load. Energy 2015, 85, 654–666. [Google Scholar] [CrossRef]
  146. Mansour-Saatloo, A.; Mirzaei, M.A.; Mohammadi-Ivatloo, B.; Zare, K. A Risk-Averse Hybrid Approach for Optimal Participation of Power-to-Hydrogen Technology-Based Multi-Energy Microgrid in Multi-Energy Markets. Sustain. Cities Soc. 2020, 63, 102421. [Google Scholar] [CrossRef]
Processes 10 00711 g001 550
Figure 1. Multi-functional CCHP with application in the residential sector.
Figure 1. Multi-functional CCHP with application in the residential sector.
Processes 10 00711 g001
Processes 10 00711 g002 550
Figure 2. Comparison of conventional and CCHP power systems [106].
Figure 2. Comparison of conventional and CCHP power systems [106].
Processes 10 00711 g002
Processes 10 00711 g003 550
Figure 3. Water demand for the energy supply of a medium-sized office building, a comparison on the consumption coefficient of Georgia grid, a natural gas combined cycle power plant. (a) Water consumption for energy generation in mid-size office buildings with CCHP system and without net metering; (b) water consumption for energy supply in mid-size office buildings with CCHP system and net metering [142].
Figure 3. Water demand for the energy supply of a medium-sized office building, a comparison on the consumption coefficient of Georgia grid, a natural gas combined cycle power plant. (a) Water consumption for energy generation in mid-size office buildings with CCHP system and without net metering; (b) water consumption for energy supply in mid-size office buildings with CCHP system and net metering [142].
Processes 10 00711 g003
Processes 10 00711 g004 550
Figure 4. Impact of different carbon taxes on (a) total costs and (b) carbon taxes on CDE [123].
Figure 4. Impact of different carbon taxes on (a) total costs and (b) carbon taxes on CDE [123].
Processes 10 00711 g004
Table
Table 1. Literature search categories, reviewed papers’ count, and keywords of the search.
Table 1. Literature search categories, reviewed papers’ count, and keywords of the search.
Search CategoriesReviewed Papers’ CountKeywords of the Search
Main drivers of CCHP systems and cooling technologies43CCHP, drivers, absorption chiller, COP, steam turbine, gas turbines, micro-turbines, internal combustion engines, Rankine cycle, Sterling engine, fuel cells
Environmental impacts of CCHP and solar energy hybrid systems33CCHP, solar, PV, photovoltaic, thermal solar, PV-T, parabolic hybrid system, environmental impacts
Environmental impacts of CCHP and renewable energy hybrid systems44CCHP, solar, wind turbine, hybrid system, environmental impacts, geothermal, biomass, Stirling engine
GHG emissions of CCHP systems30CCHP, GHG emission, greenhouse gas, emissions, carbon footprint, LCA
Water consumption of CCHP systems3CCHP, water consumption, water footprint, LCA
Table
Table 2. Characteristics of refrigerants used in absorption systems.
Table 2. Characteristics of refrigerants used in absorption systems.
Refrigerant Absorption SystemCOPTemperatureApplication
Ammonia-water0.2–0.65<5 °CIndustrial and large applications
Lithium bromide-water0.7–1.7>5 °CAir conditioning in the building
Table
Table 3. Methods, geographical locations, renewable energy types, and sector details of studies related to CCHP systems.
Table 3. Methods, geographical locations, renewable energy types, and sector details of studies related to CCHP systems.
Method UsedIntegrated Renewable
Energy		Country/
Region		SectorRef.
IndustrialResidentialCommercial
NPV optimisation, MINLP model, IRR optimisationWind turbine, PVShanghai ✓✓[42]
Optimal planning and operation strategiesWind turbine, PVChina ✓ [64]
Information gap decision theoryWind turbine, PVIran✓✓ [65]
Nested optimisation design, genetic algorithm, and nonlinear programming algorithmSolar and biomass energyJinan City, China ✓ [66]
Energy, exergy, and economic analysisPhotovoltaic thermal and parabolic trough collectorsIran ✓ [67]
CC-MOPSO algorithmPhotovoltaic module, Wind turbine, solid oxide fuel cellKermanshah, Iran A hypothetical hotel[68]
Exergetic and exergoeconomic evaluationBiomass gas and ground source heat pumpChina ✓ [69]
Genetic algorithmBiogas and solar Dish/Sterling power systemLhasa Tibet, China✓ [70]
Operational optimisation model (nonlinear optimisation model)Solar thermal collector and
photovoltaic		Shanghai, China A five-star hotel[71]
Exergy-ecological analysisPV and biogasPoland✓ [72]
Exergy analysisGeothermal energyIran✓ [73]
Multi-objection optimisation (non-dominated sorting genetic algorithm-II)Solar collectorChina✓ [74]
The thermodynamic and economic analysisBiomass and ground source heat pump (GSHP)Rural China ✓ [75]
Optimisation based on quantum genetic algorithmGround source heat pump (GSHP)China ✓ [76]
Parametric life cycle assessmentSolar PVs arraysAtlanta, USA A medium office[77]
Energy and exergy analysisGeothermalIran ✓ [45]
Table
Table 4. Comparative table about the integration of the CCHP systems with different renewable energy sources.
Table 4. Comparative table about the integration of the CCHP systems with different renewable energy sources.
Integration of Different Renewable Energy Sources with the CCHP SystemAdvantagesDisadvantages
High-temperature solar thermal systems integrated with CCHP systems based on Rankine cycle
(1. Parabolic trough, 2. Linear Fresnel, and 3. Central receiver tower) [88,89]
  • Rankine cycle is a mature technology
  • High energy efficiency
  • High CO2 reduction
  • Suitable for district energy supply
  • Solar energy is clean, free, abundant, and widespread
  • Large space occupation
  • A large number of components
  • High maintenance costs
  • Slow ROI
  • Not suitable for small-scale projects
High-temperature solar thermal systems integrated with CCHP systems based on gas turbine [90]
  • Low technical risks
  • Low economic risks
  • Solar energy is clean, free, abundant, and widespread
  • No experimental studies
  • Large space occupation
CCHP systems based on Supercritical CO2 Brayton Cycle integrated with solar thermal cycle [91]
  • Few movable parts
  • Low installation costs
  • Low operating and maintenance costs
  • Solar energy is clean, free, abundant, and widespread
  • Early commercial stage
  • High investment and technical risks
CCHP systems based on ORC integrated with solar thermal cycle [92,93]
  • Low working fluid temperature
  • Efficient for small-scale utilisation
  • Low operating and maintenance costs
  • Zero CO2 emission
  • Solar energy is clean, free, abundant, and widespread
  • A low number of experimental studies
CCHP systems integrated with PV panels [94]
  • Acceptable supply–demand correlation
  • High CCHP fuel efficiency
  • Low maintenance costs
  • Fuel consumption reduction
  • Government subsidies in many countries
  • Solar energy is clean, free, abundant, and widespread
  • Larger invertor size
CCHP systems integrated with PV-T [95]
  • Lower emissions
  • Energy saving
  • Solar energy is clean, free, abundant, and widespread
  • Low ROI
CCHP systems based on Rankine cycle using biomass [96]
  • Proper for district energy supply
  • CO2 reduction
  • Not proper for small-scale CCHP systems
CCHP systems based on ORC using biomass [97,98]
  • Operating in lower temperatures
  • Proper for small-scale CCHP systems
  • Low up-front capital costs
  • Low maintenance costs
  • Good partial efficiency
  • Flammable working fluid
  • Higher safety needs
  • Still in the research and development stage
CCHP systems based on the steam engine using biomass [99]
  • It is possible to use solid biomass
  • Loud noise of the system
CCHP systems based on gas turbines using biomass [99]
  • High efficiency
  • Low costs
  • Easy operation
  • High availability
  • Small size
  • Sensitive ambient condition
  • Loud noise
  • Fuel quality issues
CCHP systems based on externally fired gas turbines using biomass [99]
  • Low fuel quality issues
  • Atmospheric combustion
CCHP systems based on the internal combustion engine and gasifier using biomass [78]
  • Commercially available
  • Proper for a small-scale operation
  • High exergy loss in the gasifier
CCHP systems based on Stirling engine using biogas [100]
  • High efficiency
  • Low pollution
  • Less noise
  • Low maintenance costs
  • Reliable operation
  • A low number of Stirling engines suppliers
  • High capital costs
CCHP systems based on fuel cells using biomass [101]
  • High efficiency
  • Low pollution
  • Low noise level
  • Clean
  • Quiet
  • High investment costs
  • High maintenance costs
  • Low fuel availability
Wind energy source integrated with CCHP systems [102]
  • Clean
  • Free
  • Low maintenance costs
  • No fuel costs
  • Size flexibility
  • Commercial availability
  • Inexpensive
  • Operate with the wind at low speeds
  • High initial investment costs
  • Unstable output
  • High dependency on wind speed and weather conditions
  • In many countries, the proper sites are not abundant
Geothermal energy source integrated with CCHP systems (1. ORC, and 2. Kalina cycle) [103,104]
  • Low level of air pollutants
  • Not impacted by weather conditions
  • Availability in particular regions
Table
Table 5. Factors used in calculating greenhouse gas emissions by Jiang et al. [117].
Table 5. Factors used in calculating greenhouse gas emissions by Jiang et al. [117].
ProcedureItemUnitEmission Factor
Energy producingMethanekg CO2/m316.5
UtilitiesElectricitykg CO2/kWh0.8
Table
Table 6. Methods, demographic, and sector details of studies related to environmental aspects of CCHP systems.
Table 6. Methods, demographic, and sector details of studies related to environmental aspects of CCHP systems.
Method UsedCountry/
Region		SectorRef.
IndustrialResidentialCommercial
Hybrid IGDT-stochastic optimisation approachChina✓ [131]
Epsilon constraint and fuzzy methodsChina✓✓ [132]
Energy and exergy analysisIran ✓ [133]
Exergoeconomic analysis methodChina ✓ [54]
TRNSYS thermal modelsChina✓ [134]
TRNSYS thermal modelsRemote island in the south of China ✓ [125]
Energy analysisIran✓ [135]
Genetic algorithmChina ✓[51]
Multi-objective optimisation algorithmIran ✓ [136]
3E analysisSingapore and Shanghai ✓[137]
Multivariate regression, multivariate statistical analysis7 climate zones in the U.S. ✓[138]
Weighted sum technique and max-min fuzzy techniqueIran✓ [139]
Table
Table 7. Greenhouse gas emissions and water consumption for different sectors of energy generation [142].
Table 7. Greenhouse gas emissions and water consumption for different sectors of energy generation [142].
CO2 Emissions
(kg·(kWh)−1)		NOx Emissions
(g·(kWh)−1)		Water Demand for Energy Generation (gal·(kWh)−1)
Micro-turbine0.7680.290-
Conventional electrical grid0.5700.4081.65
Furnace0.2270.425-
Combined cycle natural gas plant0.5150.3000.20
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Salimi, M.; Hosseinpour, M.; Mansouri, S.; N.Borhani, T. Environmental Aspects of the Combined Cooling, Heating, and Power (CCHP) Systems: A Review. Processes 2022, 10, 711. https://doi.org/10.3390/pr10040711

AMA Style

Salimi M, Hosseinpour M, Mansouri S, N.Borhani T. Environmental Aspects of the Combined Cooling, Heating, and Power (CCHP) Systems: A Review. Processes. 2022; 10(4):711. https://doi.org/10.3390/pr10040711

Chicago/Turabian Style

Salimi, Mohsen, Morteza Hosseinpour, Shabnam Mansouri, and Tohid N.Borhani. 2022. "Environmental Aspects of the Combined Cooling, Heating, and Power (CCHP) Systems: A Review" Processes 10, no. 4: 711. https://doi.org/10.3390/pr10040711

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
