Investigating the Enhancement in Biogas Production by Hydrothermal Carbonization of Organic Solid Waste and Digestate in an Inter-Stage Treatment Configuration

by
Roberta Ferrentino
1,
Michela Langone
2,
Davide Mattioli
3,
Luca Fiori
1 and
Gianni Andreottola
1,*
1
Department of Civil, Environmental and Mechanical Engineering, University of Trento, Via Mesiano, 38123 Trento, Italy
2
Laboratory Technologies for the Efficient Use and Management of Water and Wastewater, Italian National Agency for New Technologies, Energy and Sustainable Economic Development (ENEA), Via Anguillarese, 00123 Roma, Italy
3
Laboratory Technologies for the Efficient Use and Management of Water and Wastewater, Italian National Agency for New Technologies, Energy and Sustainable Economic Development (ENEA), Via M.M. Sole 4, 40129 Bologna, Italy
*
Author to whom correspondence should be addressed.
Processes 2022, 10(4), 777; https://doi.org/10.3390/pr10040777
Submission received: 15 March 2022 / Revised: 11 April 2022 / Accepted: 13 April 2022 / Published: 15 April 2022
(This article belongs to the Special Issue Green Conversion and Biorefinery Processes of Waste and Biomass Materials)
Browse Figures
Versions Notes

Abstract

:
In recent years, sewage sludge (SS) and bio-waste management have attracted increasing environmental attention. In this study, hydrothermal carbonization (HTC) technology is investigated in the framework of a co-treatment of sewage sludge digestate (SSD) and an organic fraction of municipal solid waste (OW). The proposed configuration integrates HTC with anaerobic digestion (AD) in an inter-stage configuration (AD1 + HTC + AD2). The effects of different percentages of OW added to SSD in the HTC treatment are evaluated in terms of characteristics and methane yield of the produced HTC liquor (HTCL) and HTC slurry (i.e., the mixture hydrochar-HTCL), as well as dewaterability of the HTC slurry. Results show that, with the increase in the percentage of OW in the OW-SSD mixture fed to the HTC process, production of biogas and biomethane of both HTC slurry and HTCL increases. The highest biogas production is achieved when a mixture consisting of half SSD and half OW is used, reaching 160 ± 10 and 240 ± 15 mL biogas g−1 CODadded, respectively, for HTCL and HTC slurry. Furthermore, sludge dewaterability is significantly improved by the combined AD1-HTC-AD2 process. Finally, an energy assessment allows estimating that the co-treatment of OW with SSD in HTC can cover up to 100% of the energy consumption of the system.

1. Introduction

The production and handling of municipal sewage sludge (SS) and bio-waste represent a problem worldwide. Although SS, a sludge-like waste resulting from municipal wastewater treatment plants (WWTP), was recently estimated to reach an annual sludge production in the EU-28 of 9.0–9.5 million tons of dried solid (d.s) (2017 data) [1], bio-waste—mainly food and garden wastes—accounts for more than 34% of municipal solid waste (MSW) generated, amounting to 86 million tons in 2017 in the EU-28 [2]. Dealing with these waste feedstocks in an environmentally friendly way can help achieve a few of the Sustainable Development Goals (SDGs) recently adopted by the United Nations (UN). The SDG’s aims are to develop renewable energy sources and improve efficiency in the use of resources, to increase the global economy’s sustainability, and to implement the circular economy’s principles, thus limiting the amount of waste [3]. According to European Parliament Directive 2006/12/EC on waste, ‘‘the use of waste as a source of energy’’ should be encouraged by the Member States as a good practice to avoid landfilling and prevent pollution [4].
In recent years, different technologies or combinations of different processes have been developed for the reduction [5,6], treatment, and reuse [7] of both SS and bio-waste while looking at environmental and energy sustainability options. Among these, the anaerobic digestion (AD) process is, to date, the most widely used technology, producing (i) biogas, a gas rich in methane (typically 55–70% v/v) and carbon dioxide (30–45% v/v), which can be used to generate renewable energy, and (ii) digestate, a by-product of the process which, depending on its properties, can be employed as it is or after post-treatment as a soil fertilizer due to its NPK (Nitrogen, Phosphorus, and Potassium) content and carbon residue.
A recent analysis [8] has shown that around 46 million tons of digestate are produced from the organic fraction of mixed MSW (mechanical biological treatment—MBT) in the EU-28 per year, of which at least 7 million tons are from source-separated bio-waste, and smaller quantities (ca. 1.7 million tons each) are from SS and agro/food industry by-products. In addition, 120 million tons of digestate are produced in the EU from a mixture of manure and energy crops [8]. The majority of digestate is used directly as fertilizer.
Nevertheless, concerning bio-waste, AD is not always technically feasible, for example, for high shares of garden waste, or for the presence of undesired materials such as glass, metals, or plastic. Furthermore, although AD is a mature technology from a technical and management point of view, it requires long processing times and, consequently, large treatment volumes, especially when bio-wastes are treated. Indeed, the limiting factor of AD is the hydrolysis step, i.e., the conversion of complex organic compounds (i.e., proteins, long-chain fatty acids, and complex carbohydrates) into simpler compounds (such as monosaccharides, amino acids, and volatile fatty acids) that can be easily metabolized by anaerobic bacteria.
Finally, the use of digestate in agriculture obtained from both SS and bio-waste is not acceptable in many cases, as feedstock is often not suitable in terms of content in heavy metals (Cd, Ni, Pb, Cu, Zn, Hg, As, Cr), polycyclic aromatic hydrocarbons (PAH16), polybrominated diphenyl ethers (PBDE), di-isononyl-phthalate (DINP), di(2-ethylhexyl)phthalate (DEHP), short- and long-chain perfluorinated surfactants (PFAS), hexabromocyclododecane (HBCD), dioxins, furans and dioxin-like PCB’s, bisphenol A, pesticides, hormones, siloxanes, drugs and pharma, and microplastics [8]. Therefore, other disposal routes are chosen, such as incineration and landfilling. Interestingly, digestate has a high residual content of non-biodegradable organic compounds that can be further energetically valorized.
If either AD is not (technically) feasible or land application of digestate is not allowed, other system configurations for the treatment of SS and bio-waste should be explored, also including a co-treatment of these wastes.
Hydrothermal treatments, in particular hydrothermal carbonization (HTC), have gained increasing attention in recent years for treatment of biomasses with high moisture content [9], including SS [10,11,12], the organic fraction of MSW (OFMSW) [13,14], and digestate [15]. HTC is a promising process to exploit the potential of biomass for cleaner production, in line with the strategy for a circular economy-based society implemented by the European Union [9,16]. It is a thermo-chemical process that can convert organic feedstocks with high-moisture content into a slurry consisting of a carbonaceous product, called hydrochar, and a liquid (HTCL) with a high load of organic and inorganic compounds. Hydrochar is characterized by higher carbon content and lower hydrogen and oxygen to carbon ratios than the initial substrate [17,18], with surface functionalization patterns that permit hydrochar utilization in numerous end-use applications [19], such as solid fuel [17], microbial carriers in soil [20] and AD [21], adsorbent for pollutants [22,23], and soil amendment [22]. HTCL is characterized by high concentrations of organic matter, and a promising recovery route is AD [24] or recycling in the activated sludge process [25]. In HTC, biomass is treated in the presence of liquid water under saturated pressure at temperatures between 180 and 250 °C for a residence time of several minutes to several hours.
Due to HTC by-product characteristics, the coupling of HTC and AD is being investigated for different waste biomasses, including SS and OFMSW, as recently reviewed by Ischia and Fiori [26]. The coupling of HTC and AD has some advantages, as it allows one to reduce sludge production, improve sludge dewaterability, and increase energy and material recovery. Although HTC is a process that requires an energy source, the recovery of energy from AD of the HTC by-products can possibly enable an energy self-sustaining process [16].
Different system configurations have been proposed, including pre-treatment of biomass by HTC before AD (HTC-AD) [27] or post-treatment of digestate by HTC and recycling HTCL to AD (AD + HTC) [28]. However, some studies confirm the potential of an inter-stage treatment configuration with thermal [29] and hydrothermal [30] treatment between two anaerobic digesters (the first being fed with untreated biomass) in terms of overall biogas increase and volatile solid destruction. The scope of the inter-stage treatment configuration is that the first AD (AD1) mainly converts most of the bioavailable and readily biodegradable organic matter into biomethane, leaving the poorly biodegradable organic matter mainly unaltered. Some of the poorly biodegradable organic matter can then be solubilized by the inter-stage HTC treatment and possibly converted to biomethane by the second AD (AD2).
To the best of the authors’ knowledge, no study has yet been conducted to investigate both the treatment of digestate from SS (SSD) and OFMSW using HTC in an inter-stage treatment configuration (i.e., AD1-HTC-AD2) (Figure 1), with the aim of increasing biogas production.
Given this background, this study aims to investigate the effects of different percentages of OFMSW added to SSD in the HTC treatment in terms of characteristics and methane yields of both HTC slurry and the HTCL produced, as well as the dewaterability of HTC slurry. At the same time, the research focuses on the evaluation of energy recovery resulting from the combined treatment of SSD and OFMSW in an inter-stage HTC configuration.

2. Materials and Methods

2.1. Feedstocks Characterization

The experimental study was conducted using two different biomasses as feedstock for the HTC reactor: anaerobic sewage sludge digestate (SSD) from a municipal WWTP and the organic fraction of municipal solid waste (OFMSW). SSD used in this study was a mixture of the sludge leaving the anaerobic digester (digestate), with a dry matter content of 2.8 ± 0.1%, and the same digestate after the addition of polyelectrolyte and passage in a centrifuge (dewatered sludge), with a dry matter content of 21.1 ± 0.2%, collected from the municipal WWTP of Trento, Italy. Both digestate and dewatered sludge were mixed to obtain the first feedstock for the HTC reactor with a dry matter content of 10.2 ± 0.3%, which could be easily pumped into an industrial-scale HTC reactor [28]. The use of SSD as feedstock for the HTC tests allowed the AD1-HTC step of the AD1-HTC-AD2 inter-stage configuration to be simulated.
The OFMSW used in this study, called OW (organic waste), was collected from the storage tank of the OFMSW treatment plant located in Lana (Bolzano, Italy), after a shredding pretreatment.
Different percentages of OW were mixed with SSD to obtain three different feedstocks for the HTC reactor: designated 90SSD + 10OW, 80SSD + 20OW, and 50SSD + 50OW, corresponding, respectively, to 10%, 20%, and 50% of OW addition to the total mass of the inlet feedstock to the HTC reactor.
The characteristics of SSD, OW, and the mixed raw materials used in the HTC tests are listed in Table 1.

2.2. Hydrothermal Carbonization Tests

Hydrothermal carbonization tests were carried out in duplicate in a 2 L batch reactor at a temperature of 190 °C and with a 1 h treatment time. The HTC reactor was loaded with (i) 1.20 ± 0.10 kg SSD with a TS concentration of 10.2 ± 0.3%; (ii) 1.08 ± 0.10 kg SSD and 0.12 ± 0.01 kg OW for testing 90SSD + 10OW to obtain a mixture with a TS content equal to 10.8 ± 0.2%; (iii) 0.96 ± 0.10 kg SSD and 0.24 ± 0.01 kg OW for testing 80SSD + 20OW to obtain a mixture with a TS content of 11.2 ± 0.1%; and (iv) 0.60 ± 0.10 kg SSD and 0.60 ± 0.10 kg OW for testing 50D + 50OW to obtain a mixture with a TS content of 11.8 ± 0.1%.
The procedure for the HTC tests has already been described in detail [31]. At the end of the HTC reaction, part of the slurry, consisting of liquid and solid (hydrochar) fractions, was collected and kept at 4 °C for further analyses, and another part was filtered with a qualitative filter paper to separately obtain the liquid fraction (HTCL). The solid yield was calculated as the ratio between the mass of hydrochar after the HTC process and the mass of the feedstock before the treatment, both expressed on a dry basis. Gas yield was calculated as the mass of gas produced, consisting only of CO2, per unit of mass of the initial feedstock, both expressed on a dry basis. The liquid yield was determined by difference.

2.3. Anaerobic Digestion Tests

Anaerobic digestion tests were carried out to assess the biochemical methane potential (BMP) of the SS, HTC slurry, and HTCL generated by the HTC tests. The tests were conducted under mesophilic conditions over a period of 30 days using serum bottles with a volume of 135 mL inoculated with anaerobic digested sludge from Trento WWTP, Italy. The main characteristics of the inoculum were: TS 2.8 ± 0.1%, vs. 77 ± 0.3%, COD 35 ± 2 g COD L−1, sCOD 20 ± 1 g sCOD L−1, TKN 2.5 ± 0.1 g TKN L−1, NH4-N 0.5 ± 0.1 g NH4-N L−1, PO4-P 210 ± 7 mg PO4-P L−1, TP 740 ± 40 mg TP L−1, and a pH of 7.5. The inoculum was pre-incubated at 35 ± 0.1 °C for 14 days to completely biodegrade any organic substance eventually present in the digestate. The anaerobic digestion tests were carried out in triplicate, using a feeding/inoculum ratio (F/I) of 0.5 g CODsubstrate g−1 CODinoculum, as suggested by Angelidaki et al. [32], with a serum bottle filling volume fixed at 90 mL. Biogas and biomethane production were measured according to the procedure described by Ferrentino et al. [33]. The collected data allowed the determination of specific biogas production (SBP) and specific methane production (SMP), which are expressed as mLbiogas g−1 CODadded and mL CH4 g−1 CODadded, respectively.

2.4. Dewaterability Tests

To measure the filterability of the HTC slurry compared to untreated samples, capillary suction time (CST) tests were performed in triplicate. CST is the time required for water separated from sludge to travel a certain distance through a filtration paper (Whatman No. 17). The test was carried out using a capillary suction timer type 304B manufactured by Triton Electronics Ltd. CST tests were performed according to Standard Methods [34] on 10 mL of distilled water and HTC slurry. The CST value of the distilled water (6.4 s) was subtracted from each measured value, and these CST values were normalized to the initial TS concentration of the sample.

2.5. Analytical Methods

Chemical analyses were carried out in triplicate on the untreated SSD, OW, and their mixtures before HTC treatment. Characterization of the HTC slurries and HTCLs was also carried out after all HTC treatments. Volatile solids (VS), total solids (TS), total chemical oxygen demand (TCOD), soluble COD (sCOD), ammonium nitrogen (NH4-N), total Kjeldahl nitrogen (TKN), total phosphorus (TP), and soluble phosphorus (PO4-P) concentrations were quantified according to Standard Methods [34]. sCOD, NH4-N, and PO4-P were measured after filtration of the samples on a 0.45 µm paper filter.

3. Results and Discussion

3.1. Yields of the HTC Tests

Figure 2 shows the yield of solid, liquid, and gas assessed for each feedstock used, resulting from the HTC tests.
The results show that the solid yield for the SSD sample was 84 ± 1%, the same as that of the 90SSD + 10OW sample, also accounting for 84 ± 1%, which indicates that the addition of 10% OW to the total mass of feedstock did not cause any significant difference from the SSD test. On the other hand, when the percentage of OW added to the SSD was increased, the solid yield decreased to 80 ± 1% and 76 ± 1% for the 80SSD + 20OW and 50SSD + 50OW samples, respectively. The gas yield was 3.0 ± 0.3% for the SSD, 90SSD + 10OW, and 80SSD + 20OW samples, whereas a slight increase of 5.0 ± 0.7% was observed for the 50SSD + 50OW sample. As is apparent, the latter showed the highest liquid yield, equal to 19 ± 1%, among all the feedstock tested, corresponding to the sample that showed the highest volume reduction in the solid phase and, thus, the lowest amount of solid waste to be disposed of. These data are consistent with those reported in the literature for SS but contrast those of OFSMW, which have a lower solid yield. Liu et al. [35] in their review reported an average solid yield of 60.2% for HTC from SS, varying from 22.6% and 84.9% for all studies considered. High variability in solid yield was attributed to different severities of the HTC reaction in terms of temperature and treatment time, which had a major impact on the performance of the HTC process [35]. Recently, Lucian et al. [14] reported that the yield of the hydrochar, the HTCL, and the gas for the HTC of OFMSW, performed at a reaction time of 1 h and with a temperature of 180 °C, were 67%, 32%, and 1%, respectively.

3.2. Slurry and HTCL Samples Characterization

After the HTC reaction, the HTCL and HTC slurry was characterized by chemical analyses (Table 2).
The TCOD concentrations of both the HTCL and the HTC slurries confirmed that the HTC treatment hydrolyzed the feedstock, transferring low-weight molecular organic compounds from the biomass to the liquid phase. Therefore, the TCOD concentration of the HTC slurries remained unchanged compared to that of the initial biomass, whereas the TCOD concentration of the HTCL, which corresponds to the soluble fraction of the COD of the HTC slurry, increased compared to the untreated samples. Specifically, the ratio between TCODHTCL and TCODSLURRY of the untreated feedstocks was 13%, 22%, 24%, and 23% for the SSD, 90SSD + 10OW, 80SSD + 20OW, and 50SSD + 50OW samples, respectively. On the other hand, the TCODHTCL and TCODSLURRY ratio, after the HTC process, increased up to 43% for the SSD and 90SSD + 10OW samples, up to 48% for the 80SSD + 20OW sample, and up to 62% for the 50SSD + 50OW sample. This shows that the TCOD solubilization increased with the increase in the OW fraction added to the initial feedstock. Considering the nitrogen compounds, both the TKN and the NH4-N concentrations slightly decreased after HTC treatment compared to the initial feedstocks in all tests, which can be attributed to some loss of ammonia in a gaseous form. Regarding TP, it accumulated in the solid phase, i.e., in the hydrochar, as reported in numerous literature studies [36]. For this reason, the concentration of TP in the HTCLs was very low and similar to the concentration of PO4- P, whereas all TP present in the untreated feedstocks was found in the HTC slurries, confirming that P segregated into the solid phase (hydrochar). Finally, an analysis of the TS concentration confirmed that the HTC process also allowed for a reduction in sludge amount, variable from 16% (for SSD and 90SSD + 10OW samples) up to 24% (for 50SSD + 50OW sample).

3.3. Biogas and Biomethane Production

Anaerobic digestion tests were conducted to evaluate potential biogas and biomethane production (BMP) of the SS, HTCL, and HTC slurry of each feedstock. Considering the AD1-HTC-AD2 inter-stage configuration, the tests conducted with the SS samples simulated biogas production in AD1, whereas the tests conducted with the HTCL and HTC slurry simulated the AD2 stage.
At the beginning of the test, each sample of SS, HTCL, and HTC slurry was mixed with the inoculum. The pH of the mixture ranged from 7.0 to 7.5 for all BMP tests, which are optimal values for the establishment of the anaerobic digestion process. Figure 3 depicts the trend of specific biogas production of SS and HTCL of the SSD, 90SSD + 10OW, 80SSD + 20OW, and 50SSD + 50OW samples.
The specific biogas production deriving from the anaerobic digestion of HTCL was 120 ± 12, 124 ± 10, 136 ±, 15 and 160 ± 10 mL biogas g−1 CODadded for SSD, 90SSD + 10OW, 80SSD + 20OW, and 50SSD + 50OW, respectively. The specific biogas production of the untreated SS, when used as feed of the AD process, was 80 ± 8 mL biogas g−1 CODadded. Thus, compared to the specific biogas productions of SS, the results show that the HTCL derived from the HTC of SSD had 50% higher biogas production. This result is in agreement with that of Aragón-briceño et al. [37]. They found that HTCL from SSD at low HTC temperatures (160–220 °C) had a specific biogas production of 260–277 mLCH4 g−1 CODadded, which is higher than that of the untreated samples.
Moreover, biogas production increased when the percentage of OW added to the total volume of the feedstock increased. More specifically, the HTCL obtained from the addition of 10% OW to 90% of the digestate did not significantly increase biogas production compared to the test using only HTCL from SSD. However, increasing the mass of OW by 20% (compared to the total mass of HTC feedstock) resulted in a 70% increase in biogas production compared to SS and a 13% increase compared to HTCL from SSD. The best result was obtained when the AD test was conducted with HTCL from HTC feedstock consisting of half OW and half SSD. In this case, a 100% increase in specific biogas production was observed compared to SS. The advantages of pre-treated OFMSW with the HTC process were recently reported by Lucian et al. [14]. The authors showed that the SMP of HTCL increased by about 37% (at 180 °C, 1 h) compared to the SMP of untreated OFMSW, which accounted for 149 mlCH4 g−1 CODadded. Recently, experimental studies have shown that the presence of hydrochar can affect biogas production. In fact, controversial results have been reported. Aragon-Briceno et al. [37] reported that hydrochar did not significantly affect the anaerobic process. On the other hand, several researchers proved that hydrochar can contribute to improvements in SBP [28,38,39] due to the possible presence of slow biodegradable compounds or due to increases in the specific surface area where biomass can grow. Therefore, in this study, HTC slurry (i.e., the mixture of HTCL and hydrochar) was also tested as a substrate for anaerobic digestion tests. The trends of the SBP obtained are shown in Figure 4.
Specific biogas production deriving from AD of HTC slurry was 160 ± 8, 176 ± 10, 192 ± 13, and 240 ± 15 mL biogas g−1 CODadded for SSD, 90SSD + 10OW, 80SSD + 20OW, and 50SSD + 50OW samples, respectively. Regarding the HTCLs, all samples in which HTC slurry was used as substrate had an SBP higher than the SS sample. In addition, biogas production resulting from the AD of HTC slurry was higher than that observed in AD tests in which only HTCL was used as substrate. Considering the SSD sample, the HTC slurry contributed to a 33% increase in biogas production compared to that observed with HTCL. The increase in biogas production associated with HTC slurry was 42%, 41%, and 50% for the 90SSD + 10OW, 80SSD + 20OW, and 50SSD + 50OW samples, respectively, compared to the relevant AD tests with HTCL alone. Even in the case of HTC slurry, the highest biogas production was for sample 50SSD + 50OW, which allowed 200% higher biogas production than that observed when only SS was fed to the AD unit.
The AD tests also allow the determination of SMP for the different substrates used. The results, reported in Table 3, show methane ranging from 56 to 63% of the total biogas produced. For both HTCL and HTC slurry, the highest SMPs were achieved for tests with the 50SSD + 50OW sample.

3.4. Dewaterability Improvement

To assess the dewaterability of the HTC treated samples, measurements of CST were performed and compared with those of the untreated feedstock. The results are reported in Figure 5.
As expected, the results show that the CST values decreased with increasing the percentage of OW added to the SSD both in the untreated samples and in the HTC slurries. However, in all slurries obtained after HTC treatment, there was a significant decrease in the CST value by up to 98%. Since the HTC slurries had a different concentration of TS than the untreated samples, the CST value was also reported in relation to TS to neutralize the effect of the total solid concentration. A slight decrease of 0.58 ± 0.08 s g−1 L in the CST/TS value was observed for the HTC slurry corresponding to the SSD sample, up to 0.53 ± 0.12, 0.45 ± 0.06, and 0.27 ± 0.05 s g−1 L for the HTC slurries of the 90SSD + 10OW, 80SSD + 20OW, and 50SSD + 50OW samples, respectively. The results of the CST measurements are reported in Table 4.
In general, the results in Table 4 confirm that HTC treatment at 190 °C with a reaction time of 1 h significantly improves the dewaterability of the treated biomass, thus contributing to reductions in volume of solid sludge to be disposed. Furthermore, these results confirm that HTC treatment leads to the breaking of sludge flocks and thus to increases in free water. Thus, the HTC process is able to convert water chemically bound to the particles and the stored water in free water, thus improving dewaterability [40]. These results are consistent with other literature studies. Kim et al. [41], who treated SSD with the HTC process at 180, 220 and 250 °C for 30 min, confirmed a reduction in the CST value from 72 s (raw sludge) to 15.3, 10.9, and 10.1 at 180, 220, and 250 °C, respectively. Furthermore, Ahmed et al. [42], found an increase in dewaterability by a factor of seven for HTC of SSD at 190 °C and a reaction time of 1 h.

3.5. Energy Evaluation

This paragraph reports the energy assessment of an HTC system coupled with AD in an inter-stage treatment configuration (i.e., AD1-HTC-AD2).
In the AD1-HTC-AD2HTCL scenario (Figure 6a), the HTCL derived from HTC of SSD is used as feedstock for an AD2 process, and the hydrochar can be recovered and used for further applications. Conversely, in the AD1-HTC-AD2S scenario (Figure 6b), all the slurry derived from the HTC of SSD is fed to the AD2 unit. The mass and energy balances are performed based on the experimental HTC yields obtained in this study and are based on 100 m3 SS at 2.8%TS treated per day in AD1. SS is characterized by a concentration of 13 g sCOD L−1 with an SMP of 45 mL g−1 COD. The energy demand for the AD process can be estimated to be 25% of the energy recovered from the biogas produced [43]. Therefore, the treatment of 100 m3 of SS in AD1 results in methane production of 59 m3 CH4, which corresponds to 590 kWh considering that 1 m3 CH4 can provide 10 kWh [44]. According to the proposed schemes (Figure 6), the digestate is dewatered or thickened to obtain a 10% TS slurry and then treated by HTC at 190 °C for 1 h. The energy demand for solid/liquid separation with a screw press can be estimated at 10 to 30 kWh per ton of treated sludge [45]. Assuming an average power consumption of 20 kWh per ton of treated sludge, the energy requirement for treating 100 m3 of SSD with a screw press is 2000 kWh.
After HTC treatment, hydrochar is dewatered to produce 3.1 m3 of wet hydrochar with 60%TS [12] and 18.2 m3 of HTCL with 1.7% TS per day. HTCL is characterized by a concentration of 41 g COD L−1 with an SMP of 67 mL CH4 g−1 COD. Thus, treating the HTCL in AD2HTCL leads to methane production of 50 m3 CH4 corresponding to 500 kWh. The thermal and electrical energy demands for the HTC process are estimated to be about 100 and 15 kWh per ton of sludge treated, respectively [12,42]. In this analysis, the energy input for the combined AD1-HTC-AD2HTCL process is 4800 kWh, whereas the energy output, due to the enhancement of CH4 from the SS and HTCL fed to AD1 and AD2, respectively, is 1090 kWh. The energy ratio, defined as the ratio between energy output and energy input, is thus 23%. Hence, feeding HTCL from the SSD to the AD2 unit can only cover 23% of the energy required for the combined process. Ahmed et al. [42], considering an HTC-AD configuration, reported that the AD of HTCL can only cover one quarter of HTC’s energy needs.
In the AD1-HTC-AD2S scenario, the amount of energy generated by treating 100 m3 SS in AD1 is 590 kWh, whereas the solid/liquid separation energy requirement is 2000 kWh, as in the previous scenario. Afterward, the 10% thickened sludge is fed into the HTC reactor at 190 °C for 1 h. All the derived slurry, 22 m3 at 9% TS, is fed to the AD2 unit, resulting in an increase in the production of 186 m3 of CH4, corresponding to 1860 kWh. In this case, energy input for the combined AD1-HTC-AD2S is 5150 kWh, whereas energy output, due to the enhancement of CH4 derived from the SS and whole HTC slurry feeding to AD1 and AD2, respectively, is 2450 kWh. Thus, the inter-stage configuration AD1-HTC-AD2S enables up to 48% of the energy needs of the combined process to be met.
Then, the contribution of OFMSW to energy balance is considered. Similarly, in the AD1-HTCSSD+OW-AD2HTCL (Figure 7a) and AD1-HTCSSD+OW-AD2S (Figure 7b) scenarios, the HTCL and the slurry, derived from HTC of 90% SSD and 10% OW, are fed into the AD2.
Table 5 summarizes the data for the energy and mass balances of each scenario. Feeding HTCL back to AD2 only partially contributes to covering the energy required for the inter-stage AD1-HTC-AD2 process. Conversely, feeding HTC slurry into the AD2 compartment allows for a significant increase in biogas production, and, in the case of feeding the mixture of 50SSD + 50OW, it can completely cover the internal energy consumption of the AD1-HTC-AD2 treatment. In the case of feeding the slurry from the 50SSD + 50OW sample, not only can the entire energy consumption be covered, but also energy can be recovered to be used within the WWTP.
The use of OFMSW alone in AD can result in considerable biogas production and thus energy recovery. Treating 100 m3 OFMSW per day with an sCOD concentration equal to 32 g sCOD L−1 and an SMP concentration of 149 mL CH4 g−1 COD [14] in AD can lead to energy recovery of 3500 kWh. These data confirm the high suitability of OFMSW as a booster for the AD process of substrates with lower SMP values. However, OFMSW lacks certain characteristics that may limit its efficacy as such a resource, and bio-resources such as sewage sludge and animal wastes can be used as co-substrates [46].

4. Conclusions

This study shows the experimental results of co-treatment of digestate from SS and OFMSW using HTC in an inter-stage treatment configuration (i.e., AD1-HTC-AD2). Four different feedstocks were used as the feedstock for the HTC tests: digestate and three different mixtures of SSD and OFMSW. The performances of the combined AD1-HTC-AD2 process were assessed in terms of increases in biogas and methane production and in terms of increases in dewaterability and thus reduction in wastes to be disposed. The data show an increase in biogas and biomethane production as the percentage of OFMSW added to the digestate increases. When a mixture consisting of half SSD and half OFMSW was fed to the HTC process, the highest biogas production was achieved, reaching 160 ± 10 and 240 ± 15 mL biogas g−1 CODadded, corresponding to the treatment of HTCL and HTC slurry in AD, respectively. These configurations can allow significant energy recovery, which, in the case of feeding only HTCL to AD2, was about 70% of the energy consumption of the combined AD1-HTC-AD2 process. Furthermore, in the case of feeding all the slurry produced by the HTC process (hydrochar and HTCL) to AD, the produced biogas can cover 100% of energy consumption and have an energy surplus (11%) that can be used for other energy needs within the WWTP. Moreover, the addition of a percentage of OFMSW to the digestate, when both are used as feedstock for the HTC process, was found to be beneficial also in terms of drastically improving the dewaterability of the biomass mixture.
Future research should focus on improved integration processes aimed at combining environmental and economic sustainable development in the management of sewage sludge and organic waste. In particular, the integration of HTC with other technologies, beyond AD, can be of interest to improve the overall performance of organic sludge waste treatment while looking at material and energy recovery from the HTC products.

Author Contributions

Conceptualization, R.F. and G.A.; methodology, R.F. and G.A.; formal analysis, R.F.; investigation, R.F.; resources, G.A. and L.F.; data curation, R.F. and M.L.; writing—original draft preparation, R.F. and M.L.; writing—review and editing, R.F., M.L., D.M., G.A. and L.F.; supervision, G.A.; project administration, R.F. and G.A.; funding acquisition, G.A., M.L. and D.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Project “Energy efficiency of industrial products and processes” Research program, “Piano Triennale della Ricerca del Sistema Elettrico Nazionale 2019–2021”, funded by the Italian Ministry of Economic Development.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Eurostat Data Brower Sewage Sludge Production and Disposal from Urban Wastewater (in Dry Substance (d.s)). Available online: https://ec.europa.eu/eurostat/web/products-datasets/-/ten00030 (accessed on 15 February 2022).
  2. EEA. Bio-Waste in Europeturning Challenges into Opportunities; (Issue 04); Publications Office of the European Union: Luxembourg, 2020; ISBN 9789294802231. [Google Scholar]
  3. Valverde, J.M.; Avilés-Palacios, C. Circular economy as a catalyst for progress towards the sustainable development goals: A positive relationship between two self-sufficient variables. Sustainability 2021, 13, 12652. [Google Scholar] [CrossRef]
  4. European Parliament Directive. 2006/12/EC of the European Parliament and of the Council of 5 April 2006 on waste. Off. J. Eur. Union 2006, 16, 45–57, April, L 114/9-21. [Google Scholar]
  5. Ferrentino, R.; Langone, M.; Andreottola, G.; Rada, E.C. An anaerobic side-stream reactor in wastewater treatment: A review. WIT Trans. Ecol. Environ. 2014, 191, 1435–1446. [Google Scholar]
  6. Wang, Q.; Wei, W.; Gong, Y.; Yu, Q.; Li, Q.; Sun, J.; Yuan, Z. Technologies for reducing sludge production in wastewater treatment plants: State of the art. Sci. Total Environ. 2017, 587-588, 510–521. [Google Scholar] [CrossRef] [PubMed]
  7. Raheem, A.; Sikarwar, V.S.; He, J.; Dastyar, W.; Dionysiou, D.D.; Wang, W.; Zhao, M. Opportunities and challenges in sustainable treatment and resource reuse of sewage sludge: A review. Chem. Eng. J. 2018, 337, 616–641. [Google Scholar] [CrossRef]
  8. Corden, C.; Bougas, K.; Cunningham, E.; Tyrer, D.; Kreißig, J.; Zetti, E.; Gamero, E.; Wildey, R.; Crookes, M. Digestate and Compost as Fertilisers: Risk Assessment and Risk Management Options; Wood Environment & Infrastructure Solutions UK Limited: London, UK, 2019; pp. 1–463. [Google Scholar]
  9. Heidari, M.; Dutta, A.; Acharya, B.; Mahmud, S. A review of the current knowledge and challenges of hydrothermal carbonization for biomass conversion. J. Energy Inst. 2019, 92, 1779–1799. [Google Scholar] [CrossRef]
  10. Silva, R.D.V.K.; Lei, Z.; Shimizu, K.; Zhang, Z. Hydrothermal treatment of sewage sludge to produce solid biofuel: Focus on fuel characteristics. Bioresour. Technol. Rep. 2020, 11, 100453. [Google Scholar] [CrossRef]
  11. Knötig, P.; Etzold, H.; Wirth, B. Article model-based evaluation of hydrothermal treatment for the energy efficient dewatering and drying of sewage sludge. Processes 2021, 9, 1346. [Google Scholar] [CrossRef]
  12. Merzari, F.; Langone, M.; Andreottola, G.; Fiori, L. Methane production from process water of sewage sludge hydrothermal carbonization. A review. Valorising sludge through hydrothermal carbonization. Crit. Rev. Environ. Sci. Technol. 2019, 49, 947–988. [Google Scholar] [CrossRef]
  13. Gupta, D.; Mahajani, S.M.; Garg, A. Opportunities for Resource Recovery after Hydrothermal Pretreatment of Biodegradable Municipal Solid Waste: A Mini-Review; Springer: Singapore, 2020; ISBN 9789811516207. [Google Scholar]
  14. Lucian, M.; Volpe, M.; Merzari, F.; Wüst, D.; Kruse, A.; Andreottola, G.; Fiori, L. Hydrothermal carbonization coupled with anaerobic digestion for the valorization of the organic fraction of municipal solid waste. Bioresour. Technol. 2020, 314, 123734. [Google Scholar] [CrossRef]
  15. Marin-Batista, J.D.; Mohedano, A.F.; Rodríguez, J.J.; de la Rubia, M.A. Energy and phosphorous recovery through hydrothermal carbonization of digested sewage sludge. Waste Manag. 2020, 105, 566–574. [Google Scholar] [CrossRef] [PubMed]
  16. González-Arias, J.; Sánchez, M.E.; Cara-Jiménez, J.; Baena-Moreno, F.M.; Zhang, Z. Hydrothermal carbonization of biomass and waste: A review. Environ. Chem. Lett. 2021, 20, 211–221. [Google Scholar] [CrossRef]
  17. He, C.; Giannis, A.; Wang, J.Y. Conversion of sewage sludge to clean solid fuel using hydrothermal carbonization: Hydrochar fuel characteristics and combustion behavior. Appl. Energy 2013, 111, 257–266. [Google Scholar] [CrossRef]
  18. Ramke, H.-G.; Blöhse, D.; Lehmann, H.-J.; Fettig, J.; Höxter, S.T. Hydrothermal Carbonization of Organic Waste. In Sardinia 2009: Twelfth International Waste Management and Landfill Symposium; International Waste Working Group: Cagliari, Italy, 2009; pp. 1–16. [Google Scholar]
  19. Sharma, R.; Jasrotia, K.; Singh, N.; Ghosh, P.; Srivastava, S.; Sharma, N.R.; Singh, J.; Kanwar, R.; Kumar, A. A Comprehensive Review on Hydrothermal Carbonization of Biomass and its Applications. Chem. Afr. 2020, 3, 1–19. [Google Scholar] [CrossRef] [Green Version]
  20. Thunshirn, P.; Wenzel, W.W.; Pfeifer, C. Pore characteristics of hydrochars and their role as a vector for soil bacteria: A critical review of engineering options. Crit. Rev. Environ. Sci. Technol. 2021, 1–25. [Google Scholar] [CrossRef]
  21. Ayodele, O.O.; Adekunle, A.E.; Alagbe, O.A.; Anguruwa, G.T.; Ademola, A.A.; Odega, C.A.; Dornack, C. Application of biomass-derived hydrochar in process stability of anaerobic digestion. Bioresour. Technol. Rep. 2022, 17, 100903. [Google Scholar] [CrossRef]
  22. Kimbi Yaah, V.B.; Zbair, M.; Botelho de Oliveira, S.; Ojala, S. Hydrochar-derived adsorbent for the removal of diclofenac from aqueous solution. Nanotechnol. Environ. Eng. 2021, 6, 3. [Google Scholar] [CrossRef]
  23. Ferrentino, R.; Ceccato, R.; Marchetti, V.; Andreottola, G.; Fiori, L. Sewage Sludge Hydrochar: An Option for Removal of Methylene Blue from Wastewater. Appl. Sci. 2020, 10, 3445. [Google Scholar] [CrossRef]
  24. Langone, M.; Basso, D. Process Waters from Hydrothermal Carbonization of Sludge: Characteristics and Possible Valorization Pathways. Int. J. Environ. Res. Public Health 2020, 17, 6618. [Google Scholar] [CrossRef]
  25. Ferrentino, R.; Merzari, F.; Grigolini, E.; Fiori, L.; Andreottola, G. Hydrothermal carbonization liquor as external carbon supplement to improve biological denitrification in wastewater treatment. J. Water Process Eng. 2021, 44, 102360. [Google Scholar] [CrossRef]
  26. Ischia, G.; Fiori, L. Hydrothermal Carbonization of Organic Waste and Biomass: A Review on Process, Reactor, and Plant Modeling. Waste Biomass Valorization 2021, 12, 2797–2824. [Google Scholar] [CrossRef]
  27. Kim, D.; Lee, K.; Park, K.Y. Enhancement of biogas production from anaerobic digestion of waste activated sludge by hydrothermal pre-treatment. Int. Biodeterior. Biodegrad. 2015, 101, 42–46. [Google Scholar] [CrossRef]
  28. Ferrentino, R.; Merzari, F.; Fiori, L.; Andreottola, G. Coupling hydrothermal carbonization with anaerobic digestion for sewage sludge treatment: Influence of HTC liquor and hydrochar on biomethane production. Energies 2020, 13, 6262. [Google Scholar] [CrossRef]
  29. Romio, C.; Kofoed, M.V.W.; Møller, H.B. Digestate post-treatment strategies for additional biogas recovery: A review. Sustainability 2021, 13, 9295. [Google Scholar] [CrossRef]
  30. Zhang, C.; Liu, X.; Wang, Q.; Tang, Y.; Pavlostathis, S.G. Comparative assessment of pre- and inter-stage hydrothermal treatment of municipal sludge for increased methane production. Water Environ. Res. 2021, 93, 1126–1137. [Google Scholar] [CrossRef]
  31. Merzari, F.; Lucian, M.; Volpe, M.; Andreottola, G.; Fiori, L. Hydrothermal carbonization of biomass: Design of a bench-Scale reactor for evaluating the heat of reaction. Chem. Eng. Trans. 2018, 65, 43–48. [Google Scholar]
  32. Angelidaki, I.; Alves, M.; Bolzonella, D.; Borzacconi, L.; Campos, J.L.; Guwy, A.J.; Kalyuzhnyi, S.; Jenicek, P.; van Lier, J.B. Defining the biomethane potential (BMP) of solid organic wastes and energy crops: A proposed protocol for batch assays. Water Sci. Technol. 2009, 59, 927. [Google Scholar] [CrossRef] [Green Version]
  33. Ferrentino, R.; Merzari, F.; Fiori, L.; Andreottola, G. Biochemical Methane Potential Tests to Evaluate Anaerobic Digestion Enhancement by Thermal Hydrolysis Pretreatment. BioEnergy Res. 2019, 12, 722–732. [Google Scholar] [CrossRef]
  34. American Public Health Association. APHA Standard Methods for the Examination of Water and Wastewater, 22nd ed.; American Public Health Association: Washington, DC, USA, 2012. [Google Scholar]
  35. Liu, H.; Basar, I.A.; Nzihou, A.; Eskicioglu, C. Hydrochar derived from municipal sludge through hydrothermal processing: A critical review on its formation, characterization, and valorization. Water Res. 2021, 199, 117186. [Google Scholar] [CrossRef]
  36. Shi, Y.; Luo, G.; Rao, Y.; Chen, H.; Zhang, S. Hydrothermal conversion of dewatered sewage sludge: Focusing on the transformation mechanism and recovery of phosphorus. Chemosphere 2019, 228, 619–628. [Google Scholar] [CrossRef]
  37. Aragón-Briceño, C.; Ross, A.B.; Camargo-Valero, M.A. Evaluation and comparison of product yields and bio-methane potential in sewage digestate following hydrothermal treatment. Appl. Energy 2017, 208, 1357–1369. [Google Scholar] [CrossRef]
  38. Usman, M.; Shi, Z.; Ji, M.; Ren, S.; Luo, G.; Zhang, S. Microbial insights towards understanding the role of hydrochar in alleviating ammonia inhibition during anaerobic digestion. Chem. Eng. J. 2021, 419, 129541. [Google Scholar] [CrossRef]
  39. Ren, S.; Usman, M.; Tsang, D.C.W.; O-Thong, S.; Angelidaki, I.; Zhu, X.; Zhang, S.; Luo, G. Hydrochar-Facilitated Anaerobic Digestion: Evidence for Direct Interspecies Electron Transfer Mediated through Surface Oxygen-Containing Functional Groups. Environ. Sci. Technol. 2020, 54, 5755–5766. [Google Scholar] [CrossRef]
  40. Wang, L.; Chang, Y.; Li, A. Hydrothermal carbonization for energy-efficient processing of sewage sludge: A review. Renew. Sustain. Energy Rev. 2019, 108, 423–440. [Google Scholar] [CrossRef]
  41. Kim, D.; Lee, K.; Park, K.Y. Hydrothermal carbonization of anaerobically digested sludge for solid fuel production and energy recovery. Fuel 2014, 130, 120–125. [Google Scholar] [CrossRef]
  42. Ahmed, M.; Andreottola, G.; Elagroudy, S.; Negm, M.S.; Fiori, L. Coupling hydrothermal carbonization and anaerobic digestion for sewage digestate management: Influence of hydrothermal treatment time on dewaterability and bio-methane production. J. Environ. Manag. 2021, 281, 111910. [Google Scholar] [CrossRef] [PubMed]
  43. Gerin, P.A.; Vliegen, F.; Jossart, J.M. Energy and CO2 balance of maize and grass as energy crops for anaerobic digestion. Bioresour. Technol. 2008, 99, 2620–2627. [Google Scholar] [CrossRef] [PubMed]
  44. Amon, T.; Amon, B.; Kryvoruchko, V.; Machmüller, A.; Hopfner-Sixt, K.; Bodiroza, V.; Hrbek, R.; Friedel, J.; Pötsch, E.; Wagentristl, H.; et al. Methane production through anaerobic digestion of various energy crops grown in sustainable crop rotations. Bioresour. Technol. 2007, 98, 3204–3212. [Google Scholar] [CrossRef]
  45. Huber Technology. Available online: https://www.hubertec.it/ (accessed on 11 April 2022).
  46. Tyagi, V.K.; Fdez-Güelfo, L.A.; Zhou, Y.; Álvarez-Gallego, C.J.; Garcia, L.I.R.; Ng, W.J. Anaerobic co-digestion of organic fraction of municipal solid waste (OFMSW): Progress and challenges. Renew. Sustain. Energy Rev. 2018, 93, 380–399. [Google Scholar] [CrossRef]
Processes 10 00777 g001 550

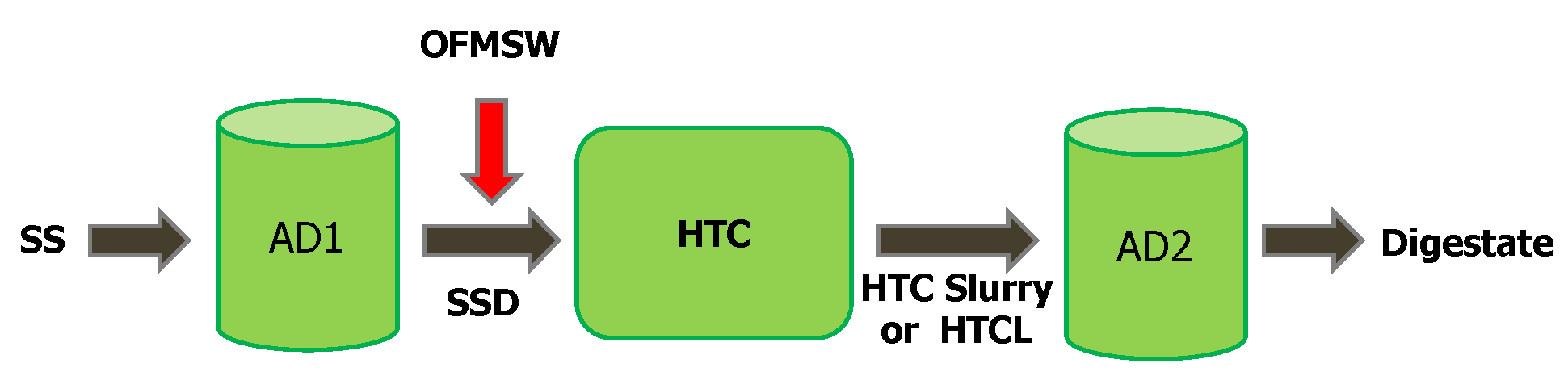

Figure 1. System configuration integrating the HTC of SS digestate and OFMSW with a post-treatment with AD in an inter-stage HTC configuration.
Figure 1. System configuration integrating the HTC of SS digestate and OFMSW with a post-treatment with AD in an inter-stage HTC configuration.
Processes 10 00777 g001
Processes 10 00777 g002 550

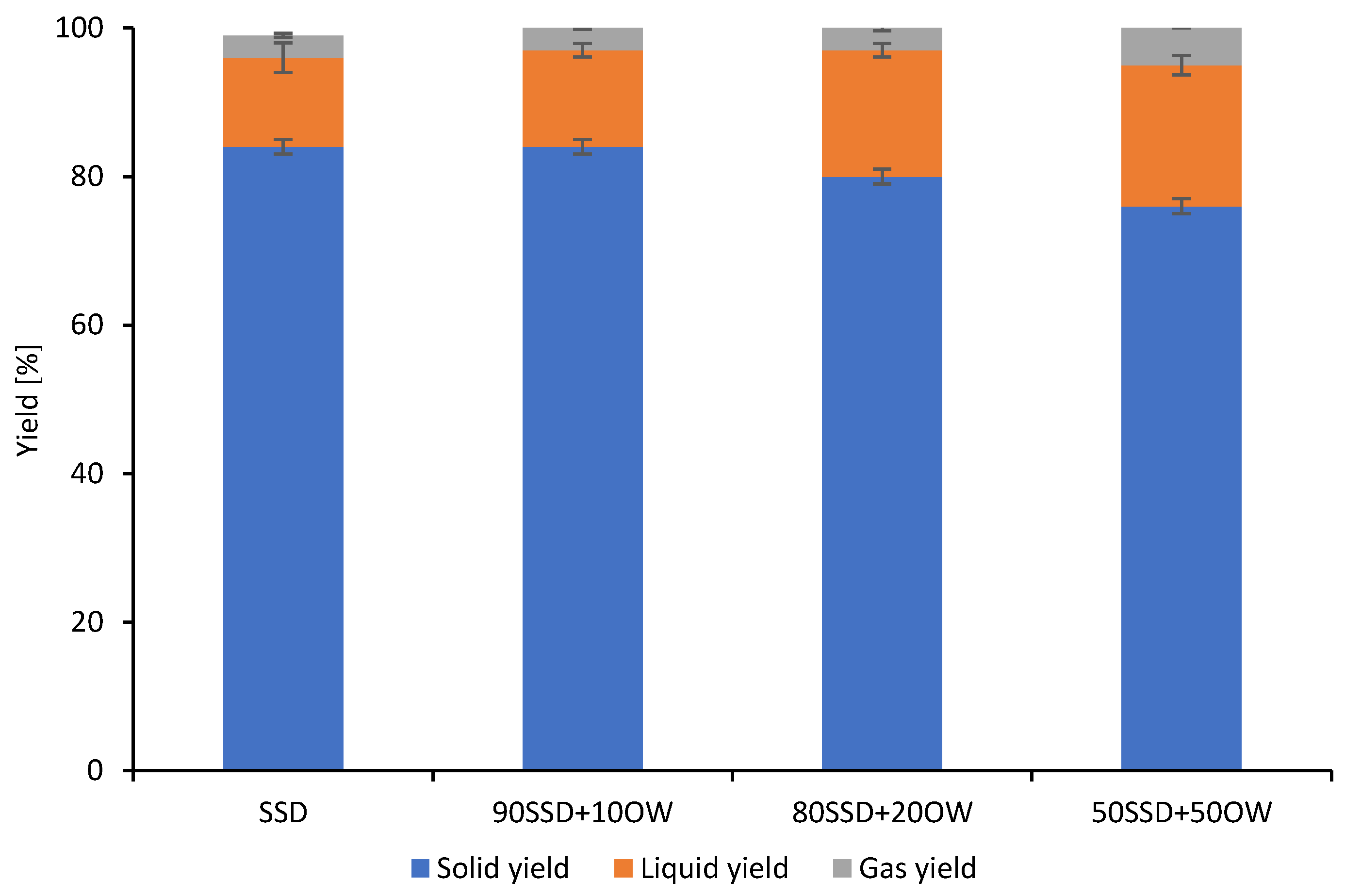

Figure 2. Solid, liquid, and gas yields.
Figure 2. Solid, liquid, and gas yields.
Processes 10 00777 g002
Processes 10 00777 g003 550

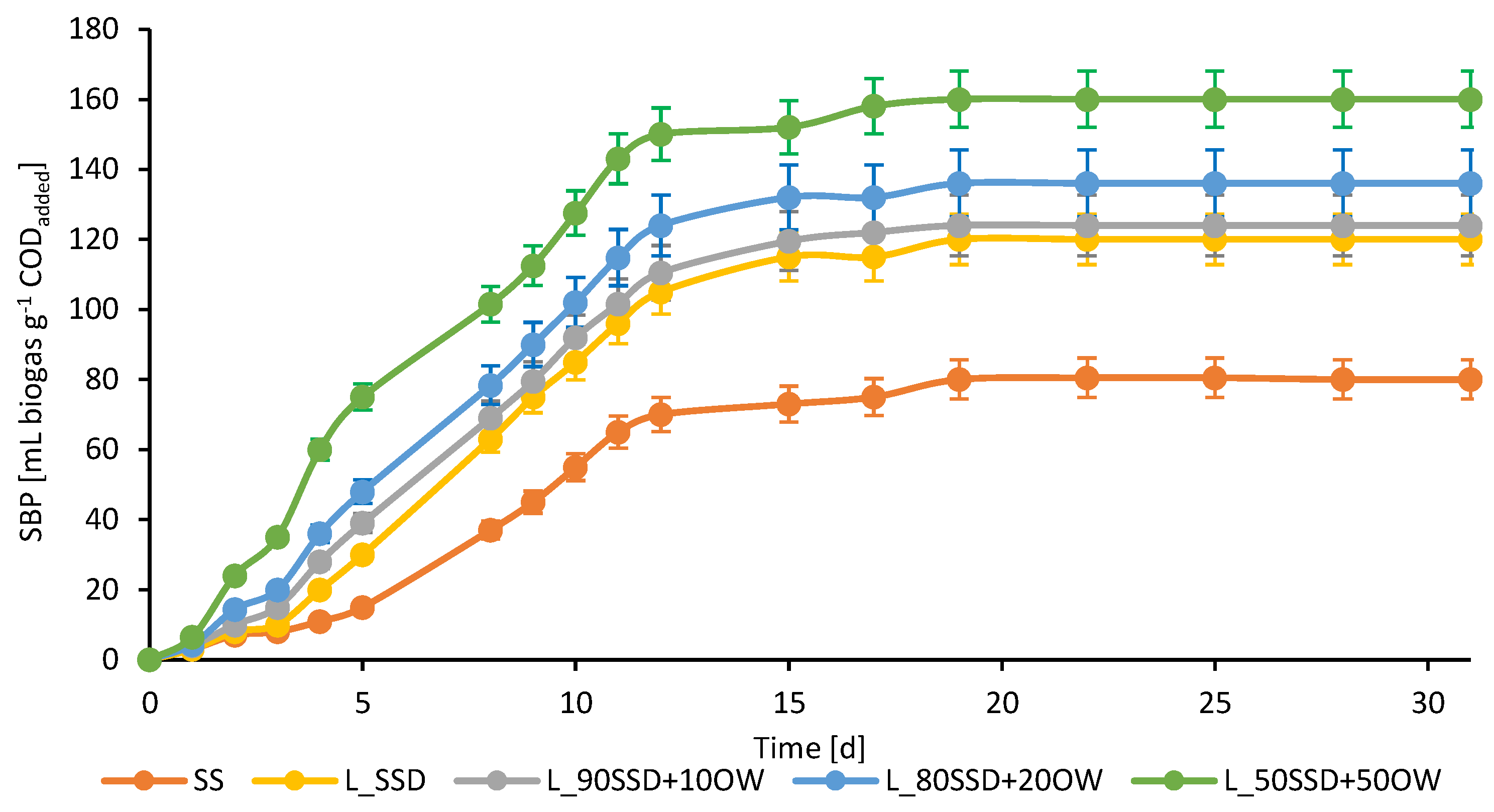

Figure 3. Specific biogas production of SS and HTCL of each HTC feedstock.
Figure 3. Specific biogas production of SS and HTCL of each HTC feedstock.
Processes 10 00777 g003
Processes 10 00777 g004 550

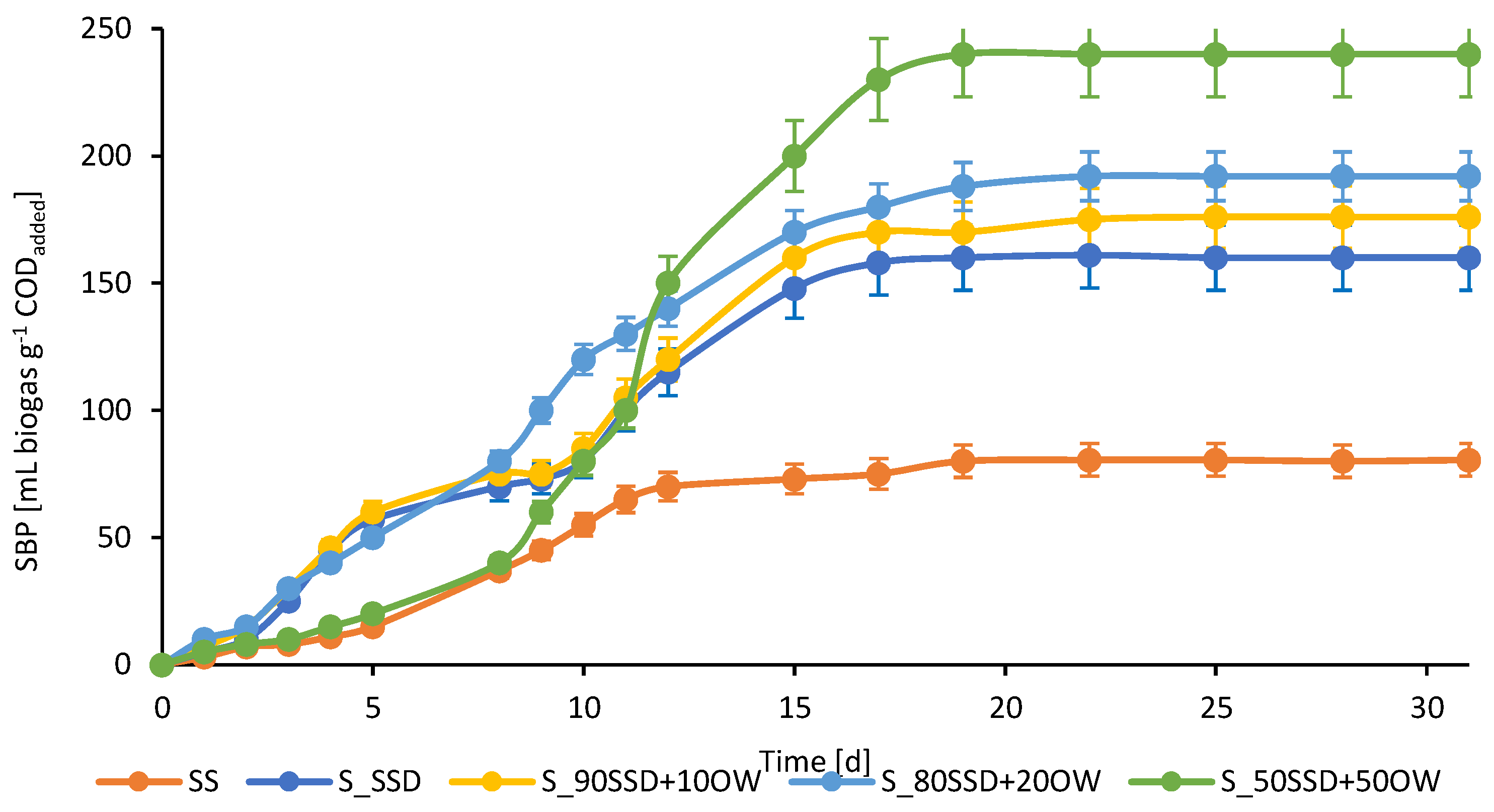

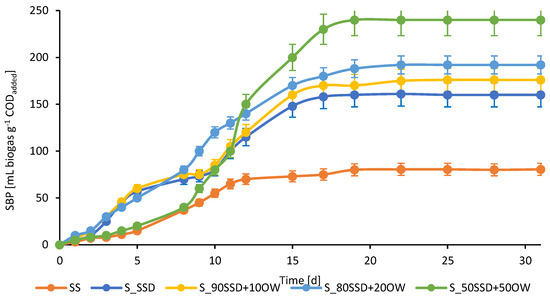

Figure 4. Specific biogas production of SS and HTC slurry of each tested feedstock.
Figure 4. Specific biogas production of SS and HTC slurry of each tested feedstock.
Processes 10 00777 g004
Processes 10 00777 g005 550

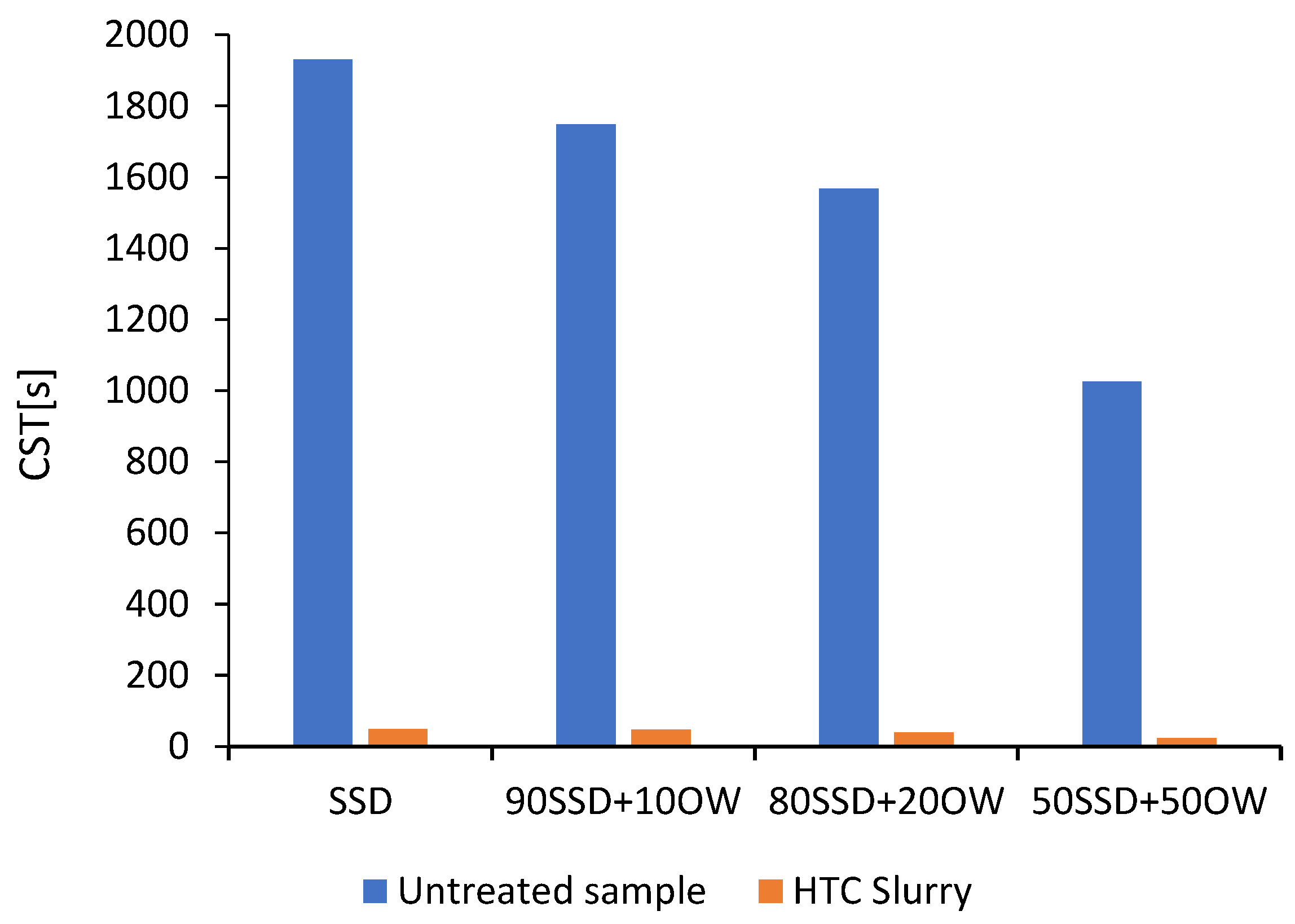

Figure 5. The trend of CST measurements for untreated and HTC treated samples.
Figure 5. The trend of CST measurements for untreated and HTC treated samples.
Processes 10 00777 g005
Processes 10 00777 g006 550

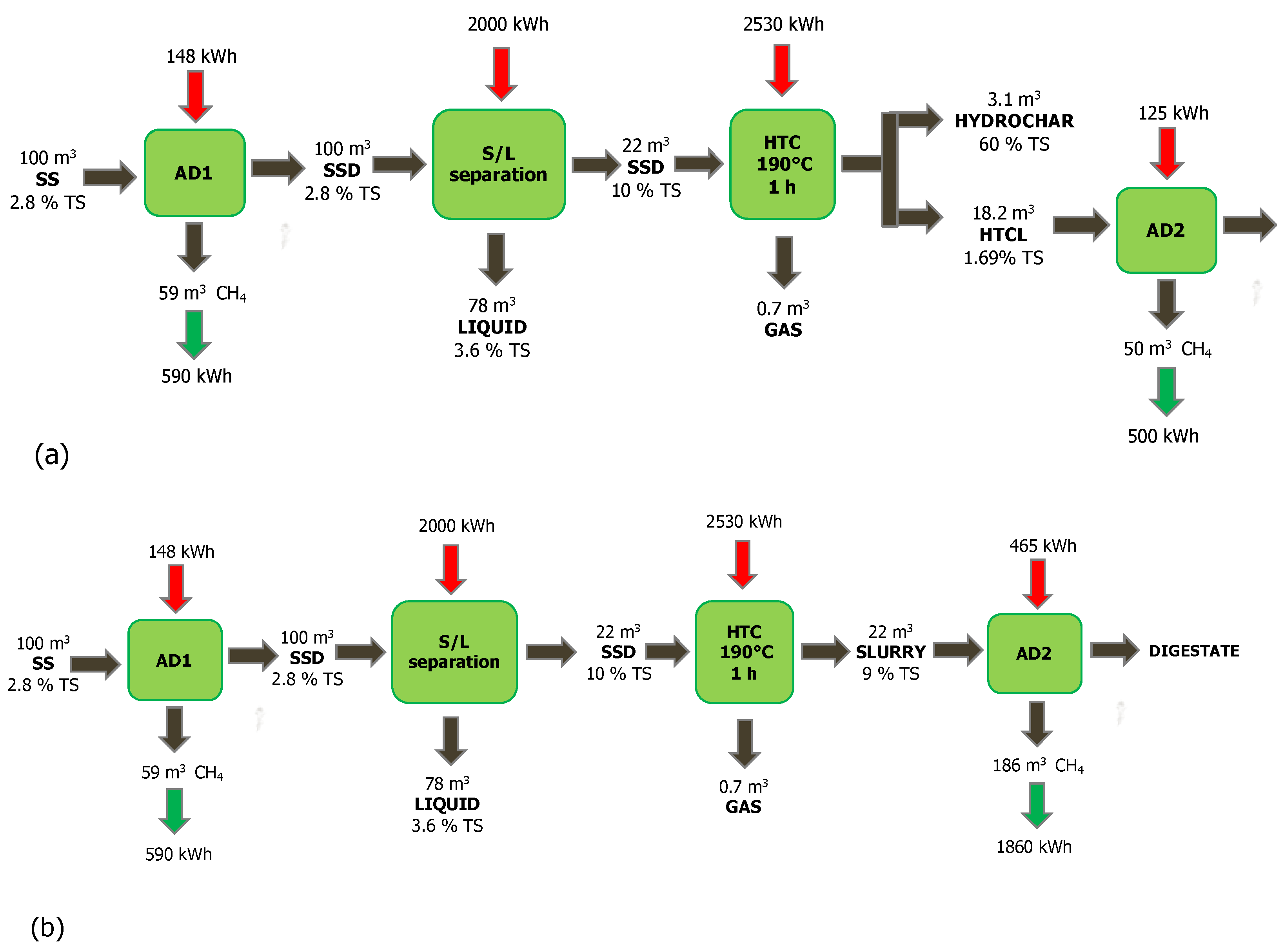

Figure 6. Energy and mass balances of (a) AD1-HTC-AD2HTCL and (b) AD1-HTC-AD2S scenarios.
Figure 6. Energy and mass balances of (a) AD1-HTC-AD2HTCL and (b) AD1-HTC-AD2S scenarios.
Processes 10 00777 g006
Processes 10 00777 g007 550

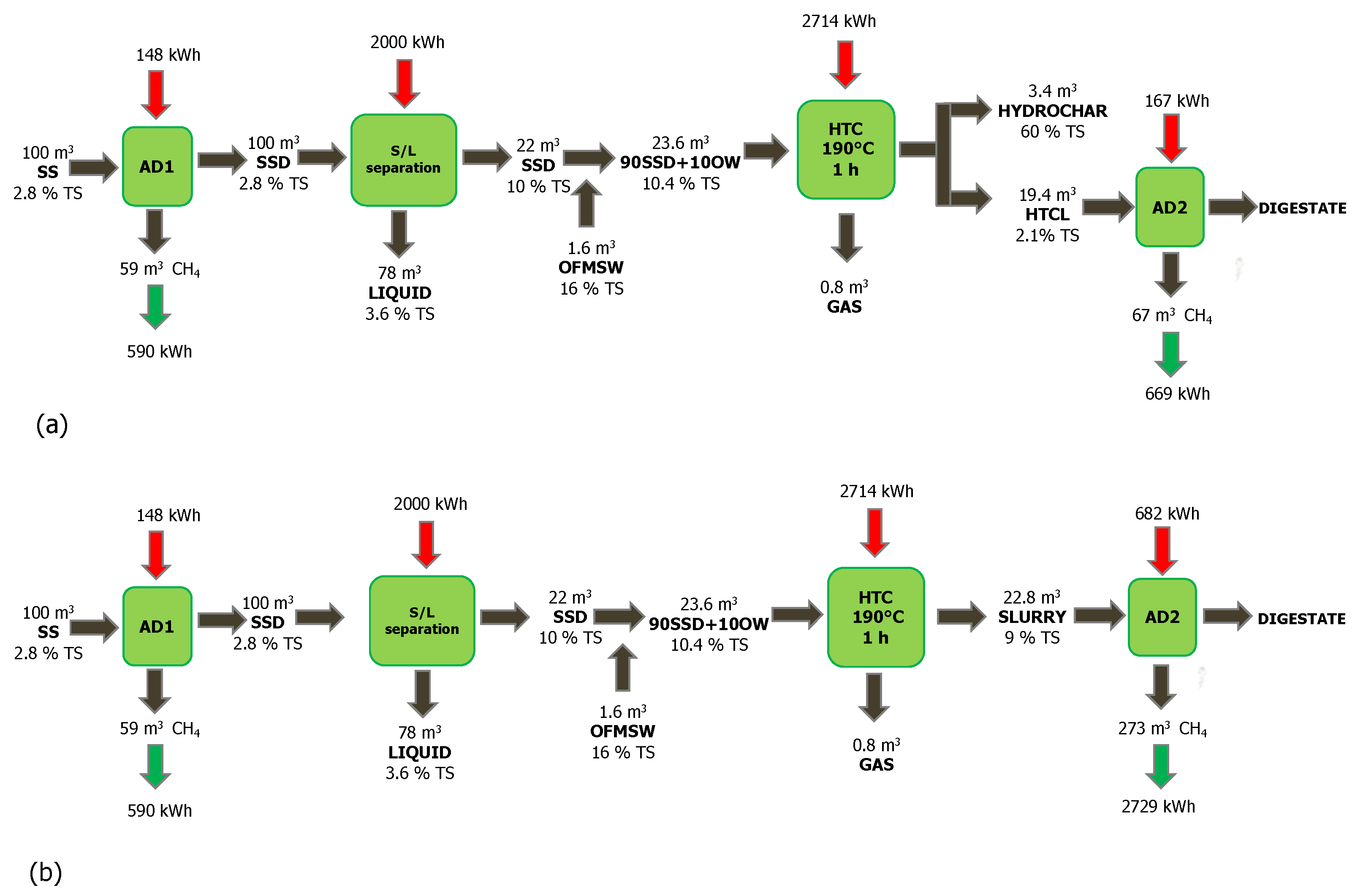

Figure 7. Energy and mass balances of (a) AD1-HTCDIG+OW-AD2HTCL- and (b) AD1-HTCDIG+OW-AD2S-scenarios.
Figure 7. Energy and mass balances of (a) AD1-HTCDIG+OW-AD2HTCL- and (b) AD1-HTCDIG+OW-AD2S-scenarios.
Processes 10 00777 g007
Table
Table 1. Characteristics of DIG, OFMSW, 90SSD + 10OW, 80SSD + 20OW, and 50SSD + 50OW.
Table 1. Characteristics of DIG, OFMSW, 90SSD + 10OW, 80SSD + 20OW, and 50SSD + 50OW.
ParameterSSDOW90SSD + 10OW80SSD + 20OW50SSD + 50OW
TS [%]10.2 ± 0.316.4 ± 0.610.8 ± 0.511.2 ± 0.111.8 ± 0.3
TKN [g TKN L−1]7.4 ± 2.55.5 ± 2.26.8 ± 2.56.6 ± 0.56.4 ± 1.0
NH4-N
[mg NH4-N L−1]		2.0 ± 0.50.7 ± 0.31.6 ± 0.51.5 ± 0.31.3 ± 0.4
PO4-P
[mg PO4-P L−1]		700 ± 10120 ± 7600 ± 6480 ± 5350 ± 5
TP [g TP L−1]3.5 ± 0.30.8 ± 0.22.7 ± 0.42.4 ± 0.22.1 ± 0.4
sCOD
[g sCOD L−1]		13 ± 278 ± 927 ± 532 ± 340 ± 5
COD [g COD L−1]116 ± 15227 ± 12120 ± 12134 ± 10175 ± 17
TS: total solid; TKN: total Kjeldahl nitrogen; NH4-N: ammonium nitrogen; PO4-P: soluble phosphorus; TP: total phosphorus; sCOD: soluble chemical oxygen demand; COD: total chemical oxygen demand.
Table
Table 2. Chemical characterization of HTCLs (L) and HTC slurries (S).
Table 2. Chemical characterization of HTCLs (L) and HTC slurries (S).
ParameterL_SSDL_90SSD + 10OWL_80 SSD + 20OWL_50 SSD + 50OWS_ SSDS_90SSD + 10OWS_80SSD + 20OWS_50SSD + 50OW
TCOD [g TCOD L−1]41 ± 350 ± 772 ± 5105± 396 ± 10115 ± 7125 ± 15170 ± 10
TKN [g TKN L−1]5.8 ± 0.1 6.1 ± 0.26.0 ± 0.56.0 ± 0.14.8 ± 0.35.7 ± 0.25.8 ± 0.26.2 ± 0.2
NH4-N [g NH4-N L−1]1.4 ± 0.21.4 ± 0.21.3 ± 0.30.9 ± 0.31.4 ± 0.21.4 ± 0.21.3 ± 0.30.9 ± 0.3
TP [g TP L−1]0.15 ± 0.010.18 ± 0.010.13 ± 0.010.25 ± 0.013.4 ± 0.32.4 ± 0.22.2 ± 0.12.3 ± 0.3
PO4-P [g PO4-P L−1]0.14 ± 0.010.16 ± 0.010.15 ± 0.010.22 ± 0.010.14 ± 0.010.16 ± 0.010.15 ± 0.010.22 ± 0.01
TS [%]3.1 ± 0.13.4 ± 0.5 3.5 ± 0.2 4.1 ± 0.18.6 ± 0.19.0 ± 0.1 9.0 ± 0.18.9 ± 0.2
VS [% d.b.]78.5 ± 0.587.1 ± 0.186.7 ± 0.288.7 ± 0.570.1 ± 1.974.3 ± 1.277.6 ± 1.886.0 ± 1.1
Table
Table 3. Specific methane potential of SS, HTCLs, and HTC slurries used as a substrate for AD.
Table 3. Specific methane potential of SS, HTCLs, and HTC slurries used as a substrate for AD.
SampleSMP [mL CH4 g−1 CODadded]CH4 [%]
SS45 ± 556
L_SSD67 ± 856
L_90SSD + 10OW69 ± 1056
L_80SSD + 20OW79 ± 1358
L_50SSD + 50OW98 ± 961
S_SSD91 ± 1057
S_90SSD + 10OW104 ± 659
S_80SSD + 20OW119 ± 462
S_50SSD + 50OW151 ± 863
Table
Table 4. Results of Capillary Suction Time (CST) measurements referring to TS concentration.
Table 4. Results of Capillary Suction Time (CST) measurements referring to TS concentration.
SampleCST [s]TS [g L]CST/TS [s g−1 L]
Untreated sampleSSD1930 ± 1510218.92 ± 0.15
90SSD + 10OW1750 ± 1010816.16 ± 0.21
80SSD + 20OW1570 ± 2011214.00 ± 0.16
50SSD + 50OW1030 ± 101188.69 ± 0.11
HTC slurrySSD50 ± 4860.58 ± 0.08
90SSD + 10OW48 ± 4900.53 ± 0.12
80SSD + 20OW41 ± 4900.45 ± 0.06
50SSD + 50OW24 ± 5890.27 ± 0.05
Table
Table 5. Energy and mass balance data considering, for each scenario, (a) HTCL fed to the AD2, and (b) HTC slurry fed to AD2.
Table 5. Energy and mass balance data considering, for each scenario, (a) HTCL fed to the AD2, and (b) HTC slurry fed to AD2.
SSD90SSD + 10OW80SSD + 20OW50SSD + 50OW
(a) HTCL(b) Slurry(a) HTCL(b) Slurry(a) HTCL(b) Slurry(a) HTCL(b) Slurry
Flow rate to AD1 [m3 d−1]100100100100100100100100
Biogas production from AD1 [m3]5959595959595959
Flow rate to AD2 [m3 d−1]18.22219.422.82124.628.334.3
Biogas production from AD2 [m3]501866727399366291880
Energy input for AD1 [kWh]148148148148148148148148
Energy input for S/L separation [kWh]20002000200020002000200020002000
Energy input for HTC [kWh]25302530271427142921292141404140
Energy input for AD2 [kWh]1254651676822489167292200
Total energy output (from biogas) [kWh]10902450126033201580425035009400
Output/Input Ratio23%48%25%60%30%71%50%111%
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ferrentino, R.; Langone, M.; Mattioli, D.; Fiori, L.; Andreottola, G. Investigating the Enhancement in Biogas Production by Hydrothermal Carbonization of Organic Solid Waste and Digestate in an Inter-Stage Treatment Configuration. Processes 2022, 10, 777. https://doi.org/10.3390/pr10040777

AMA Style

Ferrentino R, Langone M, Mattioli D, Fiori L, Andreottola G. Investigating the Enhancement in Biogas Production by Hydrothermal Carbonization of Organic Solid Waste and Digestate in an Inter-Stage Treatment Configuration. Processes. 2022; 10(4):777. https://doi.org/10.3390/pr10040777

Chicago/Turabian Style

Ferrentino, Roberta, Michela Langone, Davide Mattioli, Luca Fiori, and Gianni Andreottola. 2022. "Investigating the Enhancement in Biogas Production by Hydrothermal Carbonization of Organic Solid Waste and Digestate in an Inter-Stage Treatment Configuration" Processes 10, no. 4: 777. https://doi.org/10.3390/pr10040777

APA Style

Ferrentino, R., Langone, M., Mattioli, D., Fiori, L., & Andreottola, G. (2022). Investigating the Enhancement in Biogas Production by Hydrothermal Carbonization of Organic Solid Waste and Digestate in an Inter-Stage Treatment Configuration. Processes, 10(4), 777. https://doi.org/10.3390/pr10040777

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
