High-Efficient Anionic Dyes Removal from Water by Cationic Polymer Brush Functionalized Magnetic Mesoporous Silica Nanoparticles

Abstract

High efficiency removal of methyl orange (MO) and bromothymol blue (BT) dyes from contaminated water has been reported using magnetic mesoporous nanoparticles modified with cationic polymer brush (poly(2-methacryloyloxy)ethyl] trimethylammonium chloride solution) (Fe₃O₄-MSNs-PMETAC). Atom transfer radical polymerization (ATRP) was utilized to grow the polymer chains on the magnetic mesoporous silica nanoparticles. The chemical surface modifications were confirmed using IR, TGA, SEM and TEM. The results show that the obtained Fe₃O₄-MSNs-PMETAC materials were nearly spherical in shape with approximately 30 nm magnetic core, and silica shell thicknesses ranged from 135 to 250 nm. The adsorption performance of the material was found to be unaffected by the pH (3-9) of the media, with a removal efficiency of 100% for both dyes. The adsorption of BT and MO on the surface of Fe₃O₄-MSNs-PMETAC was found to follow Freundlich and Langmuir models, respectively. Since the synthesized nanocomposite materials exhibit an enhanced properties such as large maximum adsorption capacity, rapid synthesis process, and easy separation from solution, it could be an effective sorbent for the removal of other pollutants such as potentially toxic anionic elements (e.g., arsenate and chromate ions) from water and wastewater.

1. Introduction

The increase in population density leads to an increase economic activities and manufacturing. Consequently, organic pollutants introduced into water sources increase in types and quantity [1,2]. Some of these contaminants are poorly or not biodegradable [3,4]. Continuous exposure to such pollutants has harmful effects on humans [5,6]. Most common industries today such as textiles, plastics and paper depend on dyes, which are one of the most common pollutants [7,8,9,10]. Organic dyes have a complex molecular structure, high toxicity, stability and poor biodegradability, and they can associate with metal ions to form complex pollutants [11,12,13]. Many technologies have been used to remove the organic pollutants from wastewaters such as photocatalysis [14], sedimentation, reverse osmosis, ion-exchange [15], ozonolysis, electrolysis, membrane processes [16], and adsorption [17,18,19]. Adsorption is one of the premier and important technologies that have been utilized for dye removal because it is an effective, economically acceptable procedure, with the ability to regenerate and high retention efficiency without producing secondary contamination [20,21,22]. There are many traditional materials used as adsorbents for removing dyes from aqueous solutions such as activated carbon [23,24], metal–organic framework (MOFs) [25], graphene-based nanocomposites [26], and natural clay [27]. However, most of these materials have limitations due to difficult preparation and disposal, poor selectivity, and cost. In recent years, magnetic nanoparticles (MNPs) have received significant attention for wastewater treatment [28,29,30], due to their magnetic properties that enable them to be removed easily from systems [31,32]. MNPs include nickel, cobalt, iron and their oxides. They have high surface energy, leading to their agglomeration, which affects their adsorption capacity [33,34]. Shen et al. synthesized iron nanoparticles for water treatment to remove metal ions [34]. They found that the removal efficiency of such nanoparticles was high, even though they were chemically unstable. To improve the chemical stability (rust) and prevent aggregation, MNPs may coated with a protective layer [35,36]. The protective layer can be organic (self-assembled monolayer and polymer) or inorganic (e.g., silica shell) [37,38,39]. Mesoporous silica nanoparticles (MSNs) are one of the most used adsorbent nanomaterials in water treatment, due to their stability, affordability, resistance to different environments, low toxicity, high surface area, large pore size, and pore volume [40,41,42,43]. Coating MNPs with mesoporous silica shells could prevent their aggregation, protect them from rust, and enhance the selectivity for contaminants and adsorption capacity [44]. Elmobarak et al. prepared MNPs covered with different thickness of silica shell (5, 8, 10 and 15 nm) to recover oil from oil-in-water emulsion [45]. They found that the best result was obtained when the thickness of the silica layer was 5 nm. Huang et al. synthesized magnetic silica nanoparticles coated with chitosan modified with diethylenetriamine pentaacetate (DTPA) to increase selective adsorption of Pb (II) and methylene blue dye (MB) from multi-metal wastewater based on anion-synergism [46]. The adsorbed amount of Pb (II) in the presence of MB increased from 111.71 to 268.01 mg g⁻¹ and the efficiency of MB removal was increased in the presence of lead as a synergistic effect. Alotaibi et al. have recently reported the preparation of magnetic mesoporous silica nanoparticles coated with poly (2-diethyl aminoethyl methacrylate) (PDEAEMA) brushes. Tertiary amines present in polymer chains were quaternized using 2-iodoethanol to remove anionic dyes effectively [47]. The adsorption efficiency increased after the quaternization process, comparing to the non-quaternized polymer.

To the best of our knowledge, the number of studies using polymer brushes coated magnetic mesoporous nanoparticles as adsorbent is very few. This work shows the synthesis of magnetic mesoporous nanoparticles modified with cationic polymer brush (poly(2-(methacryloyloxy)ethyl] trimethylammonium chloride solution) using atom transfer radical polymerization (ATRP) for removing anionic dyes. The adsorption efficiency of the prepared materials in removing anionic dyes methyl orange (MO) and bromothymol blue (BT) from an aqueous solution has been studied. Adsorption isotherms (Langmuir and Freundlich) and kinetic models (first and second order) were used to fit the experimental data. The nanosystem prepared was characterized by numerous techniques such as FTIR, SEM and TEM.

2. Materials and Methods

2.1. Materials

Ferrous chloride (FeCl₂, 99%,) and ferric chloride (FeCl₃, 99%) were acquired from Loba Chemie (Mumbai, India). Deionized water was obtained from Elga Pure Nanopore system. Ammonium hydroxide (NH₄OH, 28 wt.%), ammonium nitrate (NH₄NO₃, 99%), 3-aminopropyltriethoxysilane (APTES, >98%), 2-bromo-2-methylpropionyl bromide (BIBB, 98%), N-2,2′-bipyridyl (Bipy, 99%), cetyltrimethylammonium bromide (CTAB, 98%), copper(II) bromide (CuBr₂, 99.9%), copper(I) chloride (CuCl, 99.9%), dichloromethane (DCM, HPLC grade), ethanol (HPLC grade), methanol (HPLC grade), hexane (HPLC grade), isopropanol (HPLC grade), tetraethylorthosilicate (TEOS, 98%) and [2-(methacryloyloxy)ethyl]trimethylammonium chloride solution (METAC, 75 wt.% in H₂O) were acquired from Sigma-Aldrich (United States). Triethylamine (TEA, 99%) was obtained from Nexgen chemicals (India). Hydrochloric acid (HCl, 36%) was purchased from Fisher Scientific (United States). Sodium hydroxide was obtained from BDH chemicals (United Kingdom). All chemicals were used as received.

2.2. Preparation of the Nanoadsorbent

2.2.1. Synthesis of Magnetic Nanoparticles (Fe₃O₄)

Magnetic nanoparticles (Fe₃O₄) were prepared by co-precipitation method. Two separate aqueous solutions of ferrous chloride (FeCl₂) and ferric chloride (FeCl₃) were prepared with a concentration of 0.1 M in 50 mL. The two solutions were mixed, then 25 mL of ammonium hydroxide (NH₄OH) was added under nitrogen atmosphere under stirring at 70 °C for 20 min. The magnetic nanoparticles were collected by filtration, and washed three times with water followed by ethanol.

2.2.2. Magnetic Nanoparticles Embedded with Mesoporous Silica (Fe₃O₄-MSNs)

Magnetic nanoparticles (0.5 g) were suspended in 180 mL of DI water. To the suspension, 1.0 g of CTAB (C₁₉H₄₂NBr) was added followed by the addition 9 mL of ammonia water (NH₄OH) under stirring at 40 °C. A mixture solution of 16 mL n-hexane (C₆H₁₄)/4 mL TEOS (Si(OC₂H₅)₄) was added dropwise to the suspension. After stirring for 12 h, the solid product was obtained by filtration, then washed three times with water and ethanol. For the removal template, the solid product was dispersed in a solution of ammonium nitrate (NH₄NO₃)/ethanol (10 mg/mL) under stirring at 80 °C for 12 h. Fe₃O₄-MSNs were collected by centrifugation and washed with ethanol three times.

2.2.3. Amino Modified Magnetic Mesoporous Silica (Fe₃O₄-MSNs-NH₂)

Fe₃O₄-MSNs (2.0 g) were suspended in a mixture of APTES (H₂N(CH₂)₃Si(OC₂H₅)₃)/methanol (0.5 mL/45 mL) at 80 °C for 17 h. Fe₃O₄-MSNs-NH₂ was collected by centrifugation and washed five times with ethanol.

2.2.4. ATRP Initiator Modified Magnetic Mesoporous Silica (Fe₃O₄-MSNs-Br)

Fe₃O₄-MSN-NH₂ (2.0 g) was dispersed in a mixture of DCM(CH₂Cl₂)/triethylamine (23 mL/1.5 mL), which was followed by adding a mixture of 2-bromo-2-methylprpionyl bromide((CH₃)₂CBrCOBr)/DCM (0.5 mL/5 mL) dropwise to the mixture and stirring for 18 h at room temperature. The solid was collected by centrifugation and washed three times with DCM and ethanol.

2.2.5. Polyelectrolyte [2-(methacryloyloxy)ethyl] Trimethylammonium Chloride Brushes Coated Magnetic Mesoporous Silica (Fe₃O₄-MSNs-PMETAC)

The ATRP initiated nanoparticles (0.5 g) were suspended in a solution of isopropanol (16 mL) and deionized water (4 mL). 2-(Methacryloyloxy)ethyl]trimethylammonium chloride (H₂C=C(CH₃)CO₂CH₂CH₂N(CH₃)₃Cl, METAC, 13.8 g), CuBr₂ (0.011 g), and of 2,2 bipy (C₁₀H₈N₂, 0.382 g) were added to the suspension and degassed for 20 min. CuCl (0.1 g) was added to the polymerization mixture and stirred for 3 h under nitrogen atmosphere. The solid was washed three times with DI water.

2.3. Measurement and Characterization

The magnetic nanoparticles were imaged by using SEM (JEOL JSM-6380 LA) and TEM (JEOL JEM-1230). Prior to imaging, the sample was suspended in ethanol (HPLC grade), then one or two drops of the suspension were placed into copper mesh (on a carbon film and dried in an oven at 80 °C overnight. The chemical functional group of the synthesized materials was studied in the region of 4000–400 cm⁻¹ by FTIR Spectroscopy (Thermo Scientific Nicolet IS10). To acquire the IR spectrum of the sample, pellets were prepared by mixing 2 mg of the sample with potassium bromide (KBr), with approximately 0.1 to 1.0%. TGA analyzer (SII TGA 6300) was used to study the thermal stability of the magnetic nanoparticles at heating rate 10 °C/min. UV–vis spectrophotometer (Shimadzu UV-2600) was used to estimate the concentrations of MB and BT before and after adsorption at room temperature.

2.4. Adsorption Studies

By varying the starting dyes concentrations, contact time, and pH, the adsorption capability of anionic dyes onto the surface of Fe₃O₄-MSNs-PMETAC was investigated. Fe₃O₄-MSNs-PMETAC (10 mg) was suspended in 10 mL of dye solution of various concentrations and stirred at 25 °C at 200 rpm. UV—vis spectrophotometry at maximum absorbance was used to determine the concentration of dyes after centrifugation. The following expression was used to compute the adsorption capacity:

$${\mathrm{q}}_{\mathrm{e}}=\frac{\left({\mathrm{C}}_0-{\mathrm{C}}_{\mathrm{e}}\right)\mathrm{V}}{\mathrm{m}}$$

(1)

where V and m denote the volume of contaminant solution in L and the amount of Fe₃O₄-MSNs-PMETAC in g, respectively. q_e denotes the adsorption capacity at equilibrium in mg/g, while C₀ and C_e represent the initial concentration of anionic dye in mg/L and dye concentration at time t in mg/L, respectively.

2.4.1. Adsorption Isotherms

Two isotherm models, Langmuir and Freundlich, were used to investigate the dyes’ adsorption behavior on nanomaterials.

The isotherm of the Langmuir model is defined by the Equation (2):

$$\frac{{\mathrm{C}}_{\mathrm{e}}}{{\mathrm{q}}_{\mathrm{e}}}=\frac{1}{{\mathrm{q}}_{\mathrm{m}}{\mathrm{K}}_{\mathrm{L}}}+\frac{{\mathrm{C}}_{\mathrm{e}}}{{\mathrm{q}}_{\mathrm{m}}}$$

(2)

where C_e and q_e are the pollutant concentration (mg/L) and equilibrium adsorption capacity (mg/g), respectively. The maximal contaminant adsorption capacity onto nanomaterials (mg/g) is described by q_m. The Langmuir constant (L/mg) is represented by K_L.

The isotherm of the Freundlich model is defined by the Equation (3):

$${\log \mathrm{q}}_{\mathrm{e}}=\frac{1}{\mathrm{n}}{ \log \mathrm{C}}_{\mathrm{e}}+{\log \mathrm{K}}_{\mathrm{F}}$$

(3)

K_F is the Freundlich adsorption constant ((mg/g)/(mg/L)^1/n), and 1/n defined as the adsorption intensity and surface heterogeneity.

2.4.2. Adsorption Kinetics

Using pseudo-first-order (4) and pseudo-second-order (5) equations, the dyes’ adsorption kinetics onto Fe₃O₄-MSNs-PMETAC were calculated.

$$\log \left({\mathrm{q}}_{\mathrm{e}}-{ \mathrm{q}}_{\mathrm{t}}\right)=\log \left({\mathrm{q}}_{\mathrm{e}}\right)-\frac{{\mathrm{K}}_1}{2.303} \mathrm{t}$$

(4)

$$\frac{\mathrm{t}}{{\mathrm{q}}_{\mathrm{t}}}=\frac{1}{{\mathrm{K}}_2{\mathrm{q}}_{\mathrm{e}}{}^2}+\frac{1}{{\mathrm{q}}_{\mathrm{e}}} \mathrm{t}$$

(5)

where q_t is the adsorption capacity in mg/g at time t. The rate coefficients of pseudo first-order and pseudo second-order, respectively, are K₁ (L/min) and K₂ (g/mg·min).

3. Results and Discussion

3.1. General Synthesis Method

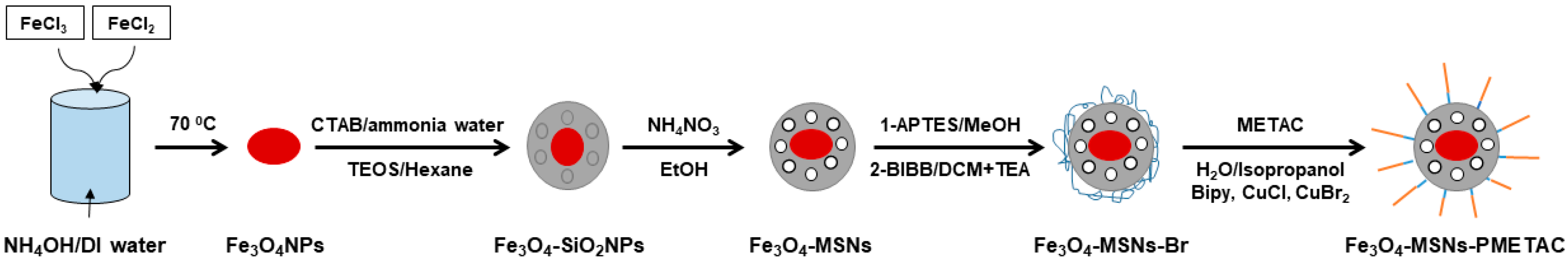

Iron oxide nanoparticles (Fe₃O₄ NPs) were fabricated by mixing ferrous and ferric salts in basic media. The mixture was heated to 70 °C for 20 min to complete the reduction reaction. The Fe₃O₄ NPs were then coated with mesoporous silica shell using the Stöber method in the presence of expander agent (hexane) to increase the pore size. After removing the template using an ionic exchange method, Fe₃O₄-MSNs had been coated with thin layer of organic molecules terminated amine group (APTES). BIBB molecules have been used to react with amine groups, producing Fe₃O₄-MSNs capped with ATRP initiator. Magnetic mesoporous nanoparticles were modified with cationic polymer brush (poly(2-(methacryloyloxy)ethyl] trimethylammonium chloride solution) using ATRP technique, as shown in Scheme 1.

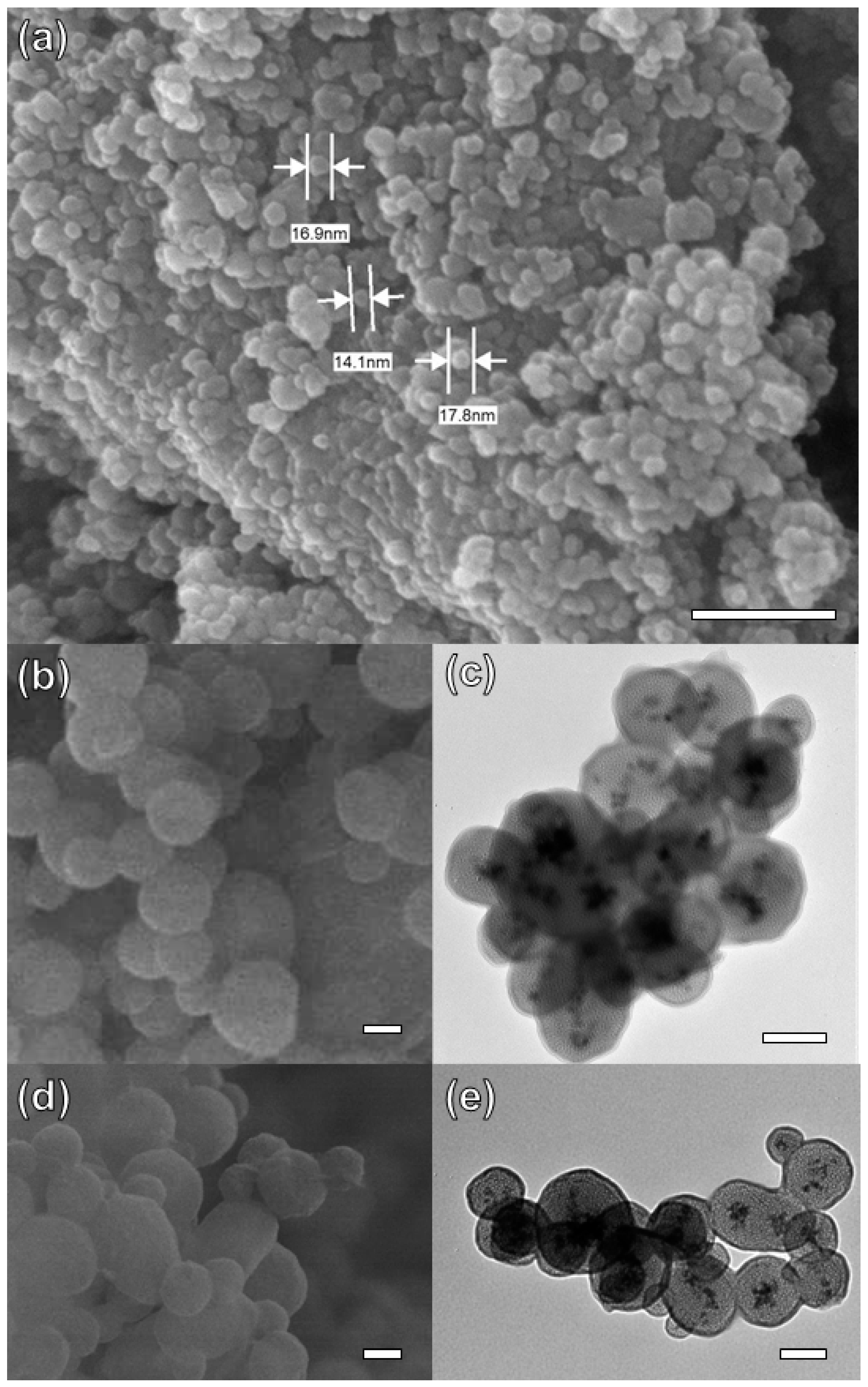

The morphological structure of Fe₃O₄ NPs and Fe₃O₄-MSNs-PMETAC was characterized by SEM and TEM. As shown in Figure 1a, the SEM images of Fe₃O₄ NPs present almost a spherical shape, and size distribution approximately equal to 18 nm. Moreover, it was observed that the iron oxide nanoparticles were aggregated. After covering the Fe₃O₄ core with a layer of silica, a decrease in the aggregation, and an increase in the particle size was observed. The size of Fe₃O₄-MSNs was found to be between 120 and 280 nm, as shown in Figure 1b. The TEM image of Fe₃O₄-MSNs presents a magnetic core of 18 nm and silica shell thicknesses ranged from 135 to 250 nm, (Figure 1c). Moreover, Fe₃O₄-MSNs exhibited mesoporous structure, with an average pore size of ca. 5 nm. No significant difference has been noticed in SEM images between Fe₃O₄-MSNs and Fe₃O₄-MSNs-PMETAC (Figure 1b,d). However, a shell around the core of magnetic nanoparticles was observed in the TEM image (Figure 1e) proving successful capping of PMETAC over the Fe₃O₄-MSNs.

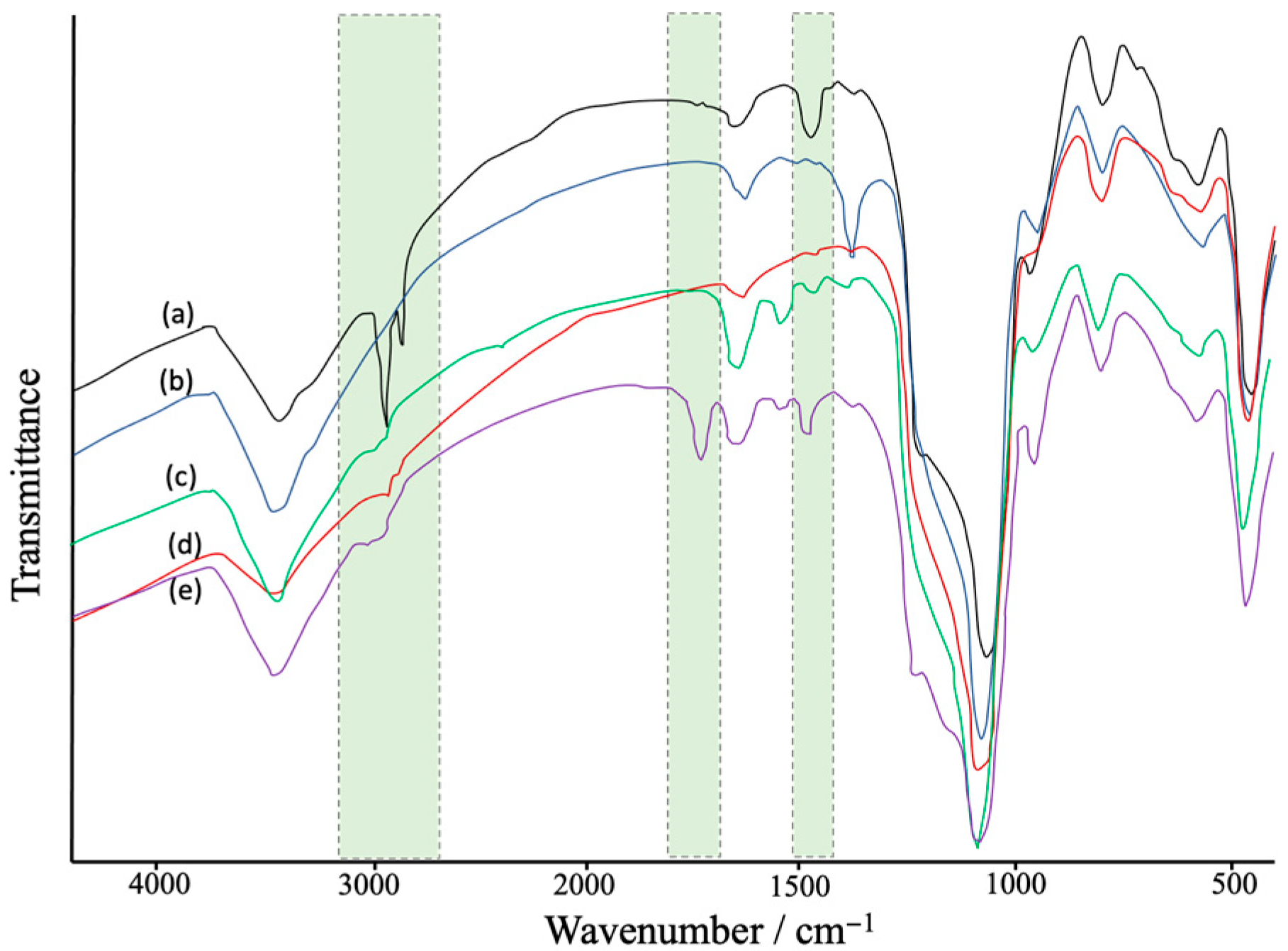

FTIR characterization showed the modification steps of Fe₃O₄-MSNs (Figure 2). The obtained results show a broad peaks at 1250–1050 cm⁻¹ and 810 cm⁻¹ that were assigned to Si–O band stretching of the silica network [48]. Peaks at ~2900 cm⁻¹ and ~1430 cm⁻¹ were assigned to C-H stretching mode of APTES-BIBB. After the polymerization process, a new peak appeared at ~1750 cm⁻¹, which could be attributed to carbonyl group stretches of the polymer segments [49].

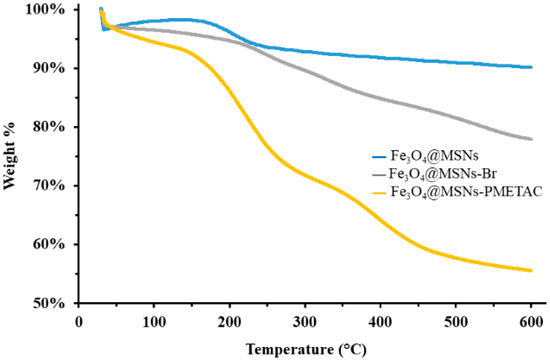

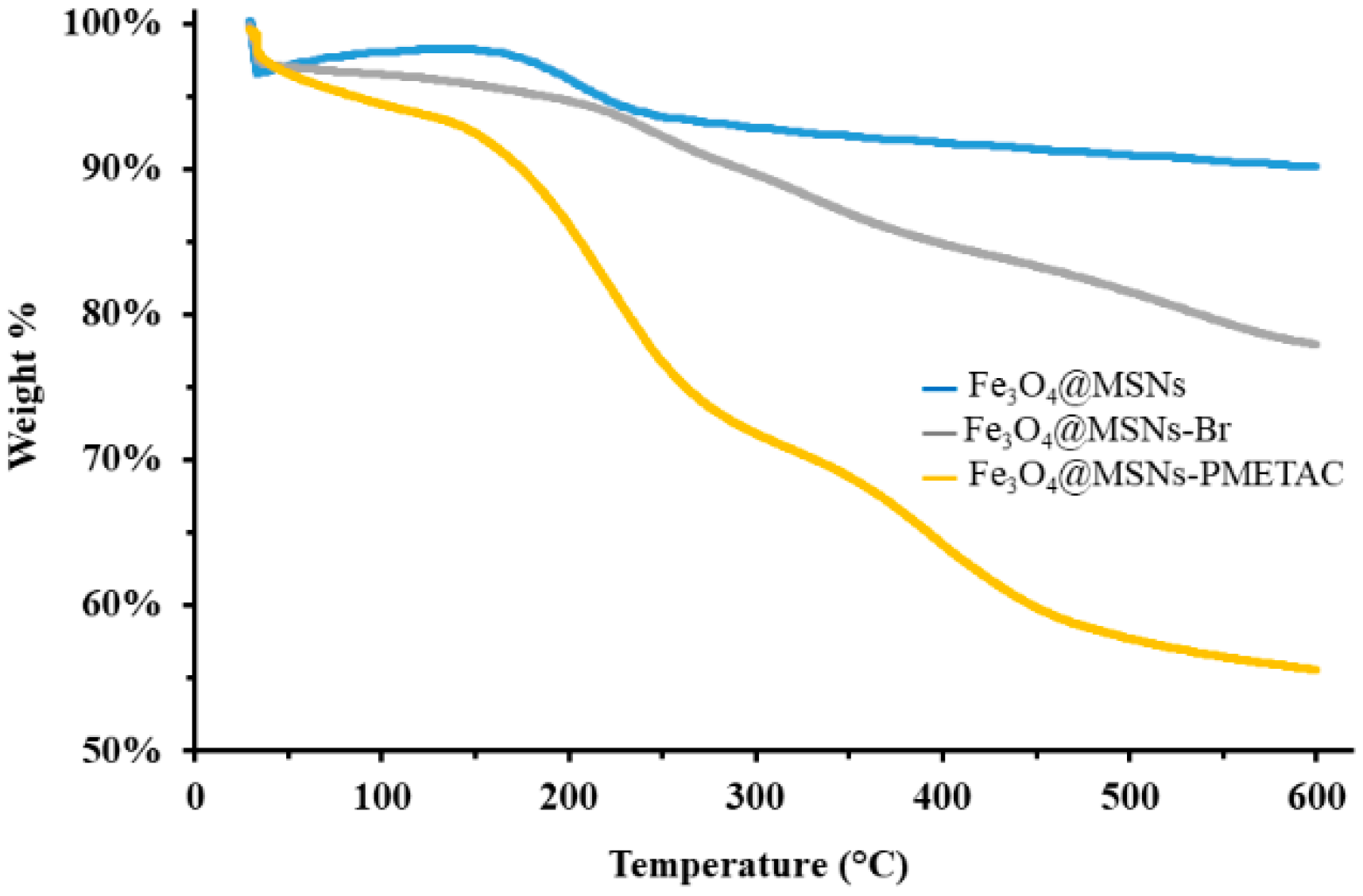

TGA analysis has been conducted to study the thermal stability and weight loss of the functionalized materials. CTAB-free Fe₃O₄-MSNs showed negligible weight loss with less than 5% at 600 °C, indicating the complete extraction of the template. The ATRP-initiator anchored on the Fe₃O₄-MSNs shows weight loss of around 20%; whereas the Fe₃O₄-MSNs-PMETAC shows weight loss of 45%, as demonstrated in Figure 3. The gradual weight increase confirms the successful synthesis of Fe₃O₄-MSNs-PMETAC.

3.2. Adsorption Studies

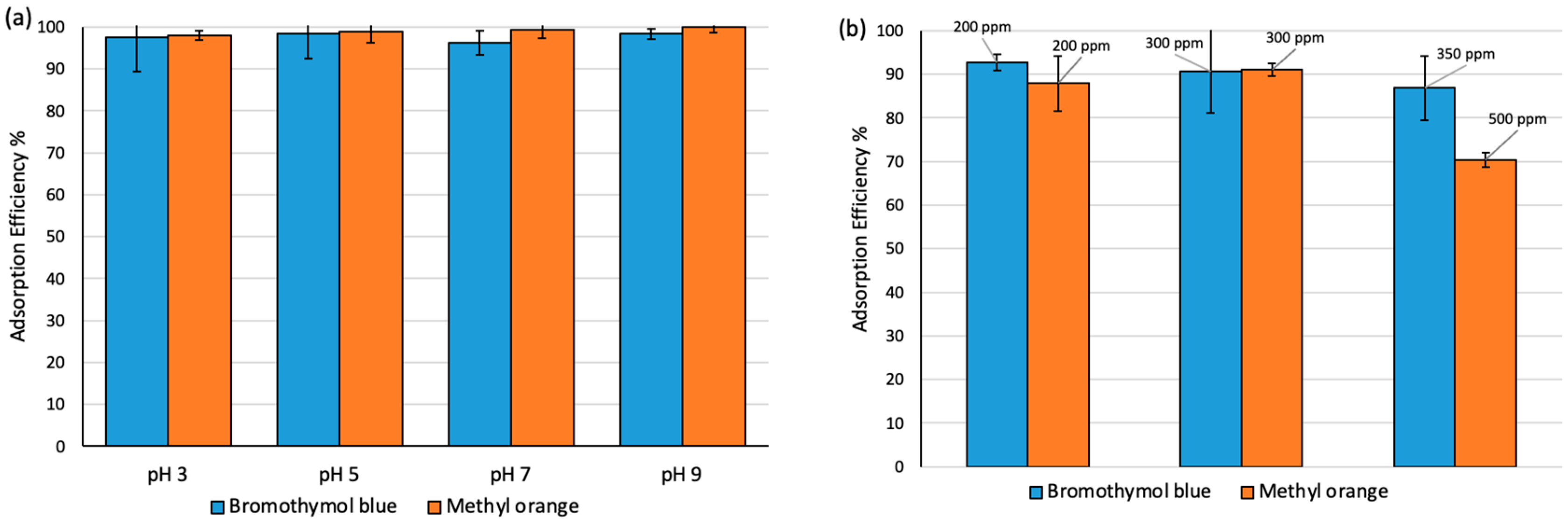

The effect of pH on the extraction efficiency of MO and BT at 350 ppm waw studied at different pH values between 3 to 9. The dosage of adsorbent was (10 mg/10 mL) with 3 h contact time at 25 °C. As shown in Figure 4a, the extraction efficiency of both dyes on Fe₃O₄-MSNs-PMETAC was observed to be ca. 100% at all studied pH levels. Furthermore, the effect of analytes concentration on the performance of Fe₃O₄-MSNs-PMETAC was studied using different dye concentrations (200, 300, and 500 ppm) at 25 °C and pH 7. As presented in Figure 4b, the amount of MO uptake by Fe₃O₄-MSNs-PMETAC decreased gradually as the concentration of dye increased from 300 to 500 ppm. On the other hand, a slight reduction on the extraction efficiency of the material for removal of BT has been observed.

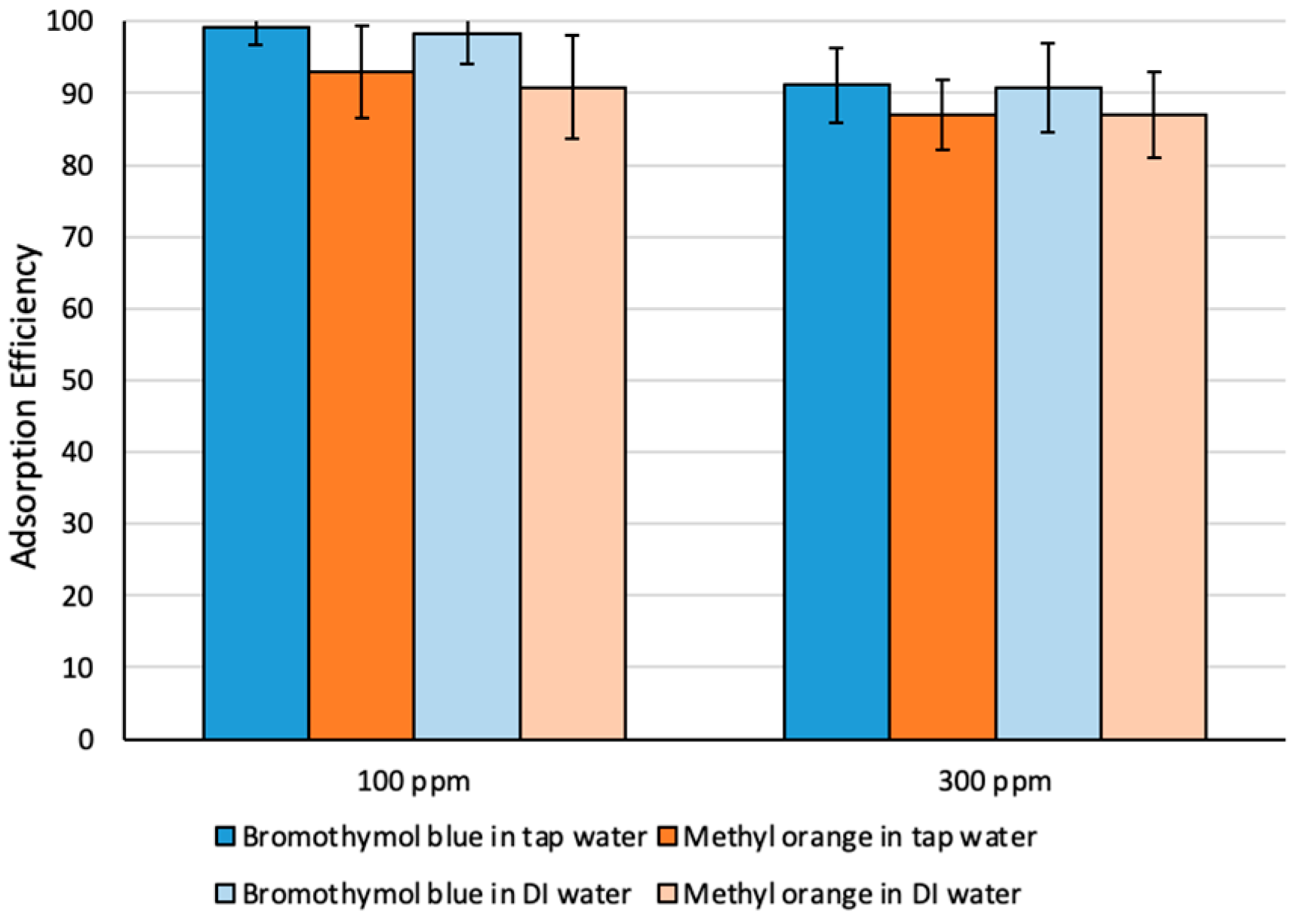

Adsorption efficiency has also been investigated using tap water spiked with different dye concentrations (Figure 5). More than 95% extraction efficiency was achieved, indicating that performance of Fe₃O₄-MSNs-PMETAC was not affected by the presence of the competitive ions.

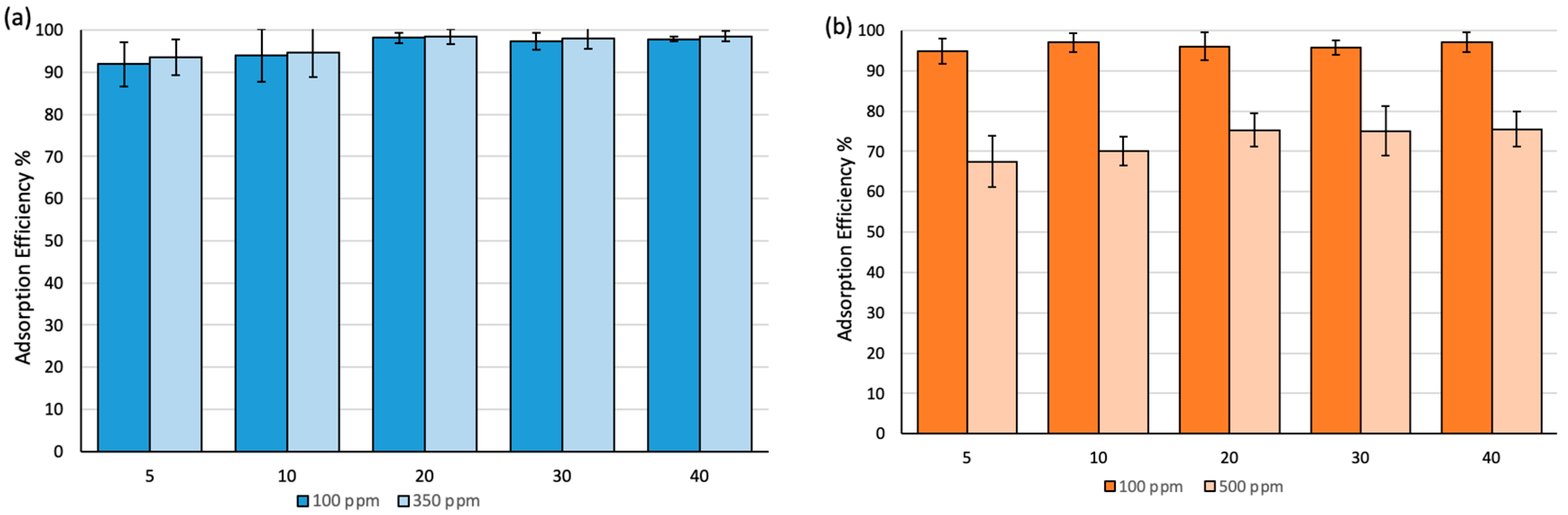

The effect of time variation on the adsorption efficiency has been studied over a 40 min time frame at different concentrations, as shown in Figure 6. The efficiency was ca. 90% in 5 min after exposure time at 100 ppm and 350 ppm of BT and reached equilibrium after 20 min of exposure time with almost 98% removal efficiency. Similar behavior was observed when MO was used (Figure 6b). However, the removal efficiency decreased to ~70% at 500 ppm.

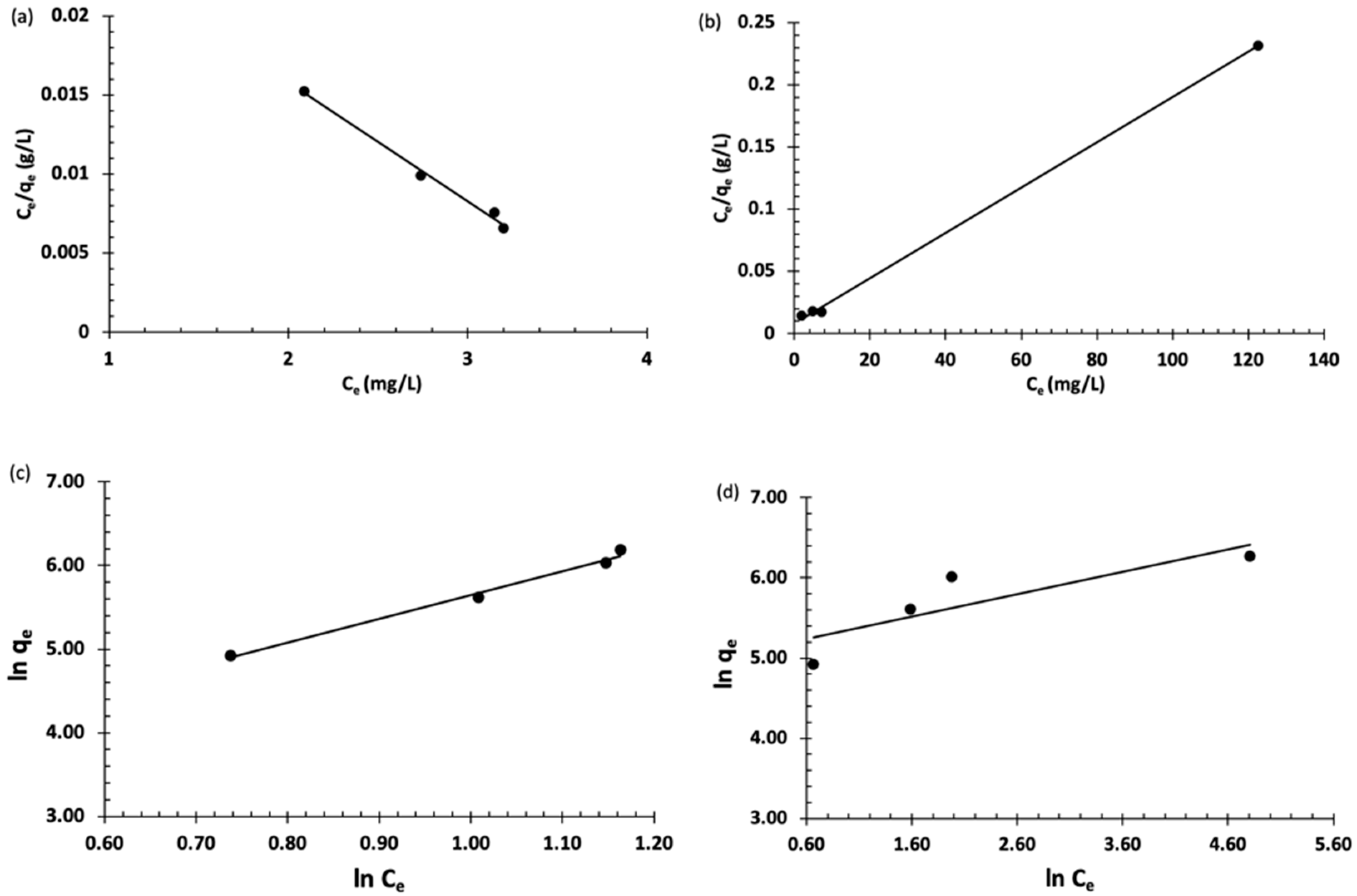

Langmuir and Freundlich’s isotherms are the most commonly used for modeling adsorption data. The Langmuir isotherm is used to describe a monolayer adsorption of the analyte on a homogeneous site, whereas Freundlich is applied to describe a multilayer adsorption on heterogeneous sites. These models were used to explain the distribution of the organic dyes between the adsorbent (Fe₃O₄-MSNs-PMETAC) and liquid phases (Figure 7). The adsorption of BT on the surface of Fe₃O₄-MSNs-PMETAC was found to follow the Freundlich model better than Langmuir’s model as indicated by the linear regression coefficient (R²) value. On the other hand, the adsorption data of MO was found to fit well with the Langmuir model with maximum adsorption capacity of 547.89 mg/g.

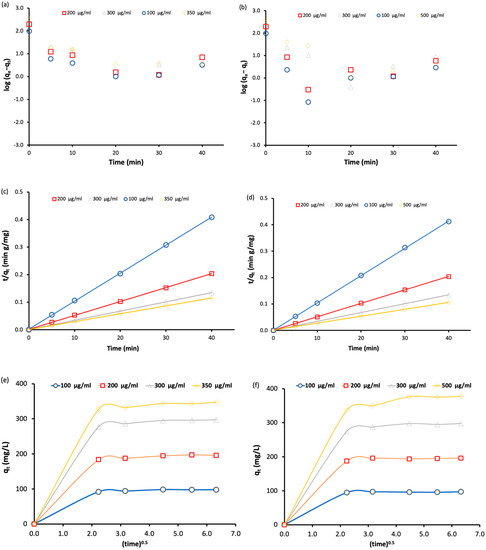

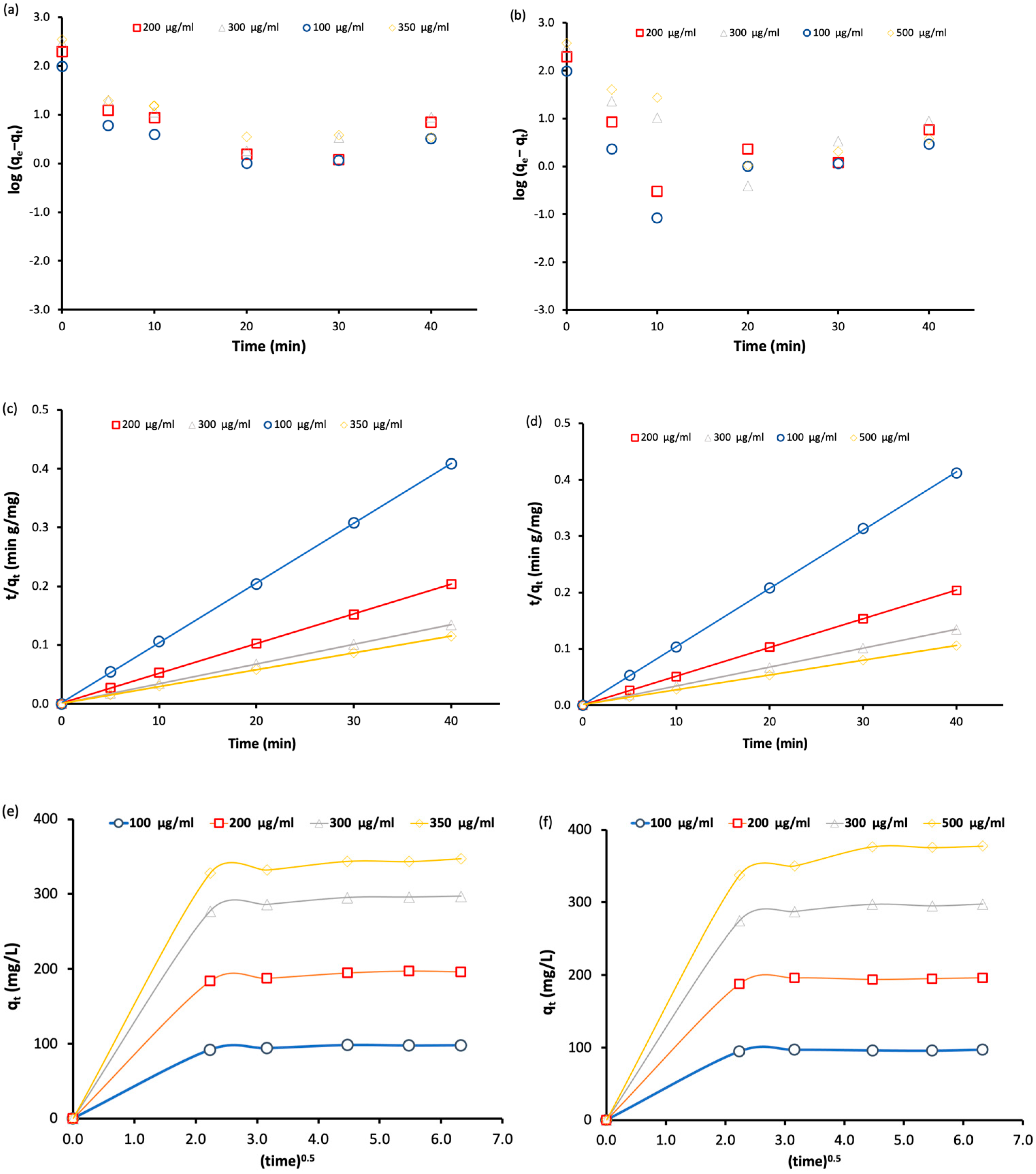

To determine the adsorption mechanism of BT and MO by Fe₃O₄-MSNs-PMETAC, three kinetic models were used: pseudo first-order, pseudo second-order and intraparticle diffusion model. Figure 8 shows the plot curves of the adsorption data of BT and MO fitted with three different models at different dyes’ concentration. In all cases, the adsorption data fitted well with pseudo second-order model at all dye concentrations as indicated by the correlation coefficients. When the intraparticle diffusion model was applied, the adsorption of both dyes (BT and MO) onto the surface of the adsorbent generally involved one fast step adsorption mechanism.

A variety of materials have been developed to remove the MO and BT dyes from water. Fe₃O₄-MSNs-PMETAC performance in comparison to various adsorbents is shown in

Table 1. Comparison of the amount of methyl orange (MO) and bromothymol blue (BT) adsorbed on different materials.

MO Dye			BT Dye
Materials	qe (mg·g−1)	Ref.	Materials	qe (mg·g−1)	Ref.
Alkali Lignin (from Rice Husk)	1.23	[50]	Alkali Lignin (from Rice Husk)	1.57	[50]
Tetraethylammonium modified kaolinite clay	40	[51]	Latvian Sphagnum Peat Moss	9	[52]
Chitosan/tannin/montmorillonite (Cs/Tn/MMT) films	58	[53]	Zeolites (S-1)	17	[54]
NiO nanoparticles	98	[55]	Oxidized multiwalled carbon nanotubes (MWCNTs-COOH)	55	[56]
ZrFeOX particles	139	[57]	Gold nanoparticle loaded on activated carbon	95	[58]
Fe3O4-MSNs-PMETAC	547	In this study	Fe3O4-MSNs-PMETAC	344	In this study

. As can be shown, Fe₃O₄-MSNs-PMETAC has greater adsorption capabilities than many other adsorbents employed in earlier investigations. Fe₃O₄-MSNs-PMETAC could be a promising candidate for efficient removal of anionic dyes, due to easy production and strong adsorption capability.

4. Conclusions

In the present work, magnetic mesoporous nanoparticles were synthesized and modified with cationic polymer brush (poly(2-(methacryloyloxy)ethyl] trimethylammonium chloride solution). The performance of the prepared material was then evaluated for the removal of two types of ionic dyes (MO and BT). The impact of different parameters such as analyte dosage, contact time and pH level were studied. The results confirm the ability of Fe₃O₄-MSNs-PMETAC to remove MB and BT ions from contaminated water samples with 100% extraction efficiency. The linear regression coefficient value for the studied isotherms suggested that the adsorption behavior of BT by Fe₃O₄-MSNs-PMETAC is better approximated by the Freundlich isotherm, whereas in the case of MO, it follows the Langmuir isotherm. The kinetic behavior of both dyes was found to be a second-order process. These results indicate that the prepared material could introduce a new direction of producing molecularly designed adsorbents that involve the combination of magnetic mesoporous nanoparticles with the highly resourceful field of polymer brushes with tunable properties for the removal of pollutants from aqueous solutions.
