Effects of Aluminium Oxide Content on the Regenerated Magnesia-Calcium Bricks for Cement Rotary Kiln

by
Gui-Bo Qiu
1,2,3,4,
Yi-Dang Hao
1,2,3,5,
Jia Hou
1,2,3,4,
Hui-Gang Wang
1,3,4,5,
Xuan-Hao Zhang
1,2,3,4,
Ben Peng
1,5,* and
Mei Zhang
3,4,6,*
1
Central Research Institute of Building and Construction Co., Ltd., MCC Group, Beijing 100088, China
2
Zhanjiang Environmental Protection Operation Management Co., Ltd., MCC Group, Zhanjiang 524000, China
3
Guangdong Iron and Steel Smelting Resource Comprehensive Utilization Engineering Technology Research Center, Zhanjiang 524000, China
4
Zhanjiang Key Laboratory of Environmental Protection for Metallurgical Industry, Zhanjiang 524000, China
5
Energy Conservation and Environment Protection Co., Ltd., MCC Group, Beijing 100088, China
6
School of Metallurgical and Ecological Engineering, University of Science and Technology Beijing, Beijing 100083, China
*
Authors to whom correspondence should be addressed.
Processes 2023, 11(10), 3018; https://doi.org/10.3390/pr11103018
Submission received: 12 September 2023 / Revised: 17 October 2023 / Accepted: 18 October 2023 / Published: 20 October 2023
Browse Figures
Review Reports Versions Notes

Abstract

:
Regenerated magnesia-calcium brick samples with different aluminium oxide (Al2O3) contents were prepared using spent magnesia-calcium bricks and fused magnesia as the main raw materials and Al2O3 powders as the additive. The phase compositions, microstructures, room temperature, hot flexural strength, and kiln coating adherence of the regenerated samples were investigated. This indicates that the Al2O3 content increased, mainly resulting in the content of tetracalcium aluminoferrite (C4AF) and tricalcium aluminate (C3A) increasing in the regenerated samples. The bulk density, room temperature flexural strength, and kiln coating adherence all increased, whereas the hot flexural strength and corrosion resistance to cement clinker both deteriorated with an increase in the Al2O3 content. This was because, on the one hand, the low melting point phases of C4AF and C3A improved the sinterability of the regenerated samples during the burning stage, and on the other hand, they melted or existed in the liquid phase at the experimental temperature, which degraded the hot flexural strength and corrosion resistance but enhanced the kiln coating adherence as the wettability of the liquid phase. The content of Al2O3 in the regenerated magnesia-calcium brick should not be higher than 1.1 wt.%, considering its comprehensive performance for cement rotary kiln.

1. Introduction

Currently, magnesite-chrome bricks are widely used in the cement rotary kiln in China [1]. This has led to serious environmental problems because Cr(III) is easily oxidized into toxic Cr(VI) in magnesite-chrome bricks under natural conditions [2], and spent magnesite-chrome bricks have not been reasonably handled. Therefore, it is urgently needed to develop free chrome refractory bricks as substitutes for magnesite-chrome bricks in cement rotary kiln [3,4,5].
Magnesia-calcium bricks have been widely used as lining materials in ferrous metallurgy to produce clean steel such as in refining furnaces [6] because of their excellent performance [7]. However, there are amounts of spent magnesia-calcium bricks not being reused effectively [8] because impurity elements such as Si, Fe, and Al from molten steel and slag remain in spent magnesia-calcium bricks, and these impurities can damage the usability of regenerated products [9,10,11]. These spent magnesia-calcium bricks have not been reused, as they not only occupy large amounts of land and cause environmental harm but also cause a waste of resources such as magnesia and calcium oxide in the spent bricks. At present, there are very few studies on the utilization of spent magnesia-calcium bricks [8,12].
Magnesia-calcium bricks are also regarded as a substitute for magnesite-chrome bricks for the cement rotary kiln [13] because they have similar operational performances, such as high-temperature resistance, corrosion resistance, and good coating adherence [14,15]. However, the application of magnesia-calcium bricks in the cement rotary kiln has been restricted since they have poor hydration resistance, which can result in serious structural damage [16]. Related studies have shown that aluminium oxide (Al2O3) can enhance the hydration resistance of magnesia-calcium bricks [17,18].
In a previous work [19,20], a kind of regenerated magnesia-calcium brick with high-hydration resistance was prepared based on spent magnesia-calcium bricks, without removing impurities from spent magnesia-calcium bricks. The maximum utilization rate of the spent magnesia-calcium brick was 67 wt.%. This not only leads to the high reutilization rate of spent magnesia-calcium bricks but also provides the possibility for the application of regenerated magnesia-calcium bricks in the cement rotary kiln to substitute for magnesite-chrome bricks due to the improved hydration resistance. Nevertheless, the content of Al2O3 impurities in different spent magnesia-calcium bricks was fluctuant in previous experiments; moreover, high-temperature performances, such as high-temperature strength and refractoriness, can be degraded because of excessive impurity content, particularly the content of Al2O3 [21,22]. Therefore, the content of Al2O3 impurity in the regenerated magnesia-calcium bricks might have a remarkable influence on the performance of the cement rotary kiln.
In this work, the effects of Al2O3 content on regenerated magnesia-calcium bricks for the cement rotary kiln were studied in detail by investigating the regenerated magnesia-calcium bricks with different mass ratios of Al2O3 additive to the main materials.

2. Materials and Methods

2.1. Raw Materials of the Regenerated Magnesia-Calcium Bricks

The raw materials of the regenerated magnesia-calcium bricks were divided into main materials and additives, of which the main raw materials were spent magnesia-calcium bricks and fused magnesia, and the additive was Al2O3 powders. The spent magnesia-calcium bricks were obtained from a refining furnace in the ferrous industry, the fused magnesia was obtained from a refractory materials plant, and the Al2O3 powder additive was a kind of analytical reagent with a particle size of less than 0.088 mm purchased from Sinopharm Chemical Reagent Co., Ltd. of China (Shanghai, China). The chemical compositions of the main raw materials were determined by measuring their powders with a particle size of less than 0.088 mm using an 1800 X-ray fluorescence spectrometer (XRF) with a test error of less than 0.05%, and the results are shown in Table 1.

2.2. Preparation of the Regenerated Magnesia-Calcium Bricks

Figure 1 shows the synthetic process of the regenerated magnesia-calcium bricks, which was an improvement of the previous work [19,20]. Spent magnesia-calcium bricks and fused magnesia were crushed and screened into powders (particle size < 0.088 mm), among which spent magnesia-calcium bricks powders were calcinated at 1173 K for 2 h and fused magnesia powders were dried at 383 K for 2 h in order to remove the hydration factor from the main raw materials. The mixture of the regenerated magnesia-calcium brick green body was prepared by mixing spent magnesia-calcium bricks and fused magnesia powders, Al2O3 powder additive, and melted paraffin (purchased from Sinopharm Chemical Reagent Co., Ltd. of China) as the binder. The green body was prepared by pressing the mixture at 100 MPa to form a rectangle with dimensions of 60 mm × 8 mm × 8 mm subsequently. The regenerated magnesia-calcium brick samples (regenerated samples) were obtained by firing the green bodies in a silicon-molybdenum bar heating furnace, heating to 1873 K at a rate of 5 K/min, and maintaining for 2 h under an air atmosphere finally.
In a previous work, the content of Al2O3 impurity in a regenerated sample containing 70 wt.% MgO was from 1.10 wt.% to 3.34 wt.% [13]. In order to study the effects of Al2O3 content on the regenerated samples for cement rotary kiln, in this work, three kinds of regenerated samples were prepared, among which the mass ratios of the spent magnesia-calcium bricks to the fused magnesia were all 67.15:32.85, and the mass ratios of the Al2O3 powder additive to the main materials were 0:100, 1.5:100, and 3.0:100; that is, the Al2O3 addition was 0 wt.%, 1.5 wt.%, and 3.0 wt.%, respectively. Their compositions are shown in Table 2, and their corresponding fired samples are marked as samples A0, A1.5, and A3.0. It can be seen that the Al2O3 impurity content in samples A0, A1.5, and A3.0 was from 1.10 wt.% to 3.94 wt.% (as shown in Table 2), it could cover the fluctuation range of the Al2O3 content in regenerated samples prepared in the previous work.

2.3. Methods of Investigation

2.3.1. Phase Compositions

To determine the phase compositions of the regenerated samples, their powders (<0.088 mm) were identified via MXP21VAHF X-ray powder diffractometry (XRD) analysis. The formation reactions of the impurity phases were calculated using thermodynamics.

2.3.2. Microstructures and Elements Distribution

To explore the microstructures of the regenerated samples, their surfaces and fractures were investigated using an MLA 250-FEI Quanta scanning electron microscope (SEM), and the element distribution of the microstructures was investigated using an energy dispersive spectrometer (EDS). In addition, the bulk density of each kind of regenerated sample was measured using the Archimedes method to characterize the compactness of the regenerated samples.

2.3.3. Room Temperature and Hot Flexural Strength

The three-point bending test method was used to measure the room-temperature flexural strength of the regenerated samples. The maximum force to break each regenerated sample was carried out using a WDW-10E microcomputer-controlled electronic universal testing machine.
The hot flexural strength of the regenerated samples was determined using the three-point bending test method. Each regenerated sample was placed into a CMT 5204 temperature-mechanical load coupling testing machine and heated to 1573 K at a rate of 5 K/min. The maximum force required to break each kind of regenerated sample was determined after maintaining 1573 K for 30 min.

2.3.4. Kiln Coating Adherence

Kiln coating adherence refers to the ability of the refractory lining to react with cement to form a protective layer during the formation of cement. Suitable kiln coating adherence can protect refractories, inhibit their further erosion, and extend their service life. Therefore, kiln coating adherence is one of the most important properties of cement rotary refractories.
Two identical regenerated samples of each batch, A0, A1.5, and A3.0, were bonded with 5 mm thick cement clinker grout that contained 90.48 wt.% cement clinker, 4.76 wt.% K2SO4, and 4.76 wt.% glycerol to make the test sample, as shown in Figure 2a, among which the cement clinker was a kind of 425 Portland cement clinker from a cement plant, and K2SO4 and glycerol were both kinds of analytical reagents. These test samples were named bonded samples BA0, BA1.5, and BA3.0, and they were placed in a silicon-molybdenum bar heating furnace, heated to 1823 K at a rate of 5 K/min, and kept at 1823 K for 3 h. After cooling to room temperature, the maximum breaking force of each test sample was determined using the three-point bending test method with a WDW-10E microcomputer-controlled electronic universal testing machine, as shown in Figure 2b. The flexural strengths of the bonded samples were determined using the three-point bending test method, which was used to characterize the kiln coating adherence of the regenerated sample; that is, the higher the flexural strengths of the bonded sample, the better the kiln coating adherence of the regenerated sample. In addition, to explore the reaction mechanism between kiln coating and regenerated samples, the microstructure and element distributions of the bonded samples after the kiln coating adherence experiment were investigated using an MLA 250-FEI Quanta SEM and an EDS.

3. Results

3.1. Phase Compositions of the Regenerated Magnesia-Calcium Bricks

Figure 3a shows the XRD patterns of samples A0, A1.5, and A3.0. The results indicate that the main phase compositions of the samples A0 and A1.5 were identical to those of magnesia (MgO), free calcium oxide (f-CaO), tricalcium silicate (Ca3SiO5, C3S), and tetracalcium aluminoferrite (Ca2FeAlO5 and C4AF), whereas the main phase compositions of the sample A3.0 were MgO, f-CaO, C3S, C4AF, and tricalcium aluminate (Ca3Al2O6, C3A). This shows that a new C3A phase was generated and other phases did not change according to the increase in Al2O3 content in the regenerated samples.
Figure 3b shows that the intensity of the characteristic diffraction peaks of f-CaO [ICaO(200)] and MgO [IMgO(111)] were the two highest peaks in the range of 28–42° and varied significantly. The relative intensities of ICaO(200)/IMgO(111) decreased observably along with an increase in Al2O3 content in the regenerated magnesia-calcium bricks, as shown in Figure 4. It also indicates that the content of f-CaO decreased along with an increase in Al2O3 content in the regenerated samples because the phase of MgO was exclusive and stable in the regenerated samples, as shown in Figure 3.
Figure 3 shows that the element Fe in the regenerated samples existed only in the C4AF phase, and the element Al in the regenerated samples existed in both the C4AF and C3A phases. The standard Gibbs energy of reactions between Fe2O3, Al2O3, and f-CaO which generate C4AF and C3A, are shown in Figure 5 of lines a and c [23]. This shows that the phase of C4AF generates preferentially when the impurity elements of Fe and Al exist concurrently, and the phase of C3A generates when there is excess Al element impurity (the mole ratio of Fe2O3 to Al2O3 < 1). In addition, a preliminary study proved that the phase of dicalcium ferrite (Ca2Fe2O5, C2F) is generated when the mole ratio of Fe2O3 to Al2O3 is >1 [20], and the standard Gibbs energy of the reaction between Fe2O3 and f-CaO for generating C2F is shown in Figure 5 of line b [23].
The theoretical content of the C3S, C4AF C2F, C3A, and f-CaO phases (calcium-based phases) in the regenerated samples can be calculated using Equations (1)–(7) [24]. The results (as shown in Table 3) indicate that with an increase in Al2O3 content in the regenerated samples, the form of the element impurity of Fe in the regenerated samples changed from the phase of C2F to C4AF, whereas the form of the element impurity of Al in the regenerated samples changed from the phase of C4AF to C4AF and C3A. The theoretical content of the phase C2F in sample A0 and the phase C3A in sample A1.5 were both less than 5 wt.%; therefore, their character diffraction peaks are not observed in Figure 3.
w(C3S) = 3.80w(SiO2)
w(C4AF) = 4.77w(Al2O3) (mole ratio of Fe2O3 to Al2O3 > 1)
w(C4AF) = 3.04w(Fe2O3) (mole ratio of Fe2O3 to Al2O3 < 1)
w(C2F) = 1.70[w(Fe2O3) − 1.57w(Al2O3)]
w(C3A) = 2.65[w(Al2O3) − 0.64w(Fe2O3)]
w(f-CaO) = w(CaO) − 1.10w(Al2O3) − 0.70w(Fe2O3) − 2.80w(SiO2) (mole ratio of Fe2O3 to Al2O3 > 1)
w(f-CaO) = w(CaO) − 1.65w(Al2O3) − 0.35w(Fe2O3) − 2.80w(SiO2) (mole ratio of Fe2O3 to Al2O3 < 1)
  • w(C3S), w(C4AF), w(C2F), w(C3A), and w(f-CaO)—the mass fraction of the calcium-based phases in the regenerated samples, wt.%;
  • w(SiO2), w(Al2O3), w(Fe2O3), and w(CaO)—the mass fraction of the regenerated samples’ composition, wt.%.

3.2. Microstructures and Elements Distribution of the Regenerated Magnesia-Calcium Bricks

Figure 6a,c,e show the SEM images of the regenerated samples’ surfaces, and Figure 6b,d,f show the element distribution of the regenerated samples’ surfaces. It shows that the white phases shown in the selected areas 1, 2, and 3 in Figure 6a,c,e are f-CaO, C4AF or C4AF-C3A, and C3S phases, respectively, whereas the dark phases shown in Figure 6a,c,e are all MgO phases based on the element distribution shown in Figure 6b,d,f, and these calcium-based phases became more and more continuous along with an increase in Al2O3 content in the regenerated samples. Moreover, it indicates that the phases of C4AF and C3A showed a tendency of aggregation in samples A1.5 and A3.0. This is because the elements of Fe and Al existed in the form of a liquid phase at the firing temperature (1873 K), and the C3A phase (melting point of 1808 K [23]) and C4AF phase (melting point of 1688 K [25]) successively crystallized from the liquid phases and sintered together during the furnace cooling process.
Figure 7a–c show the SEM images of the regenerated samples’ fractures, and Figure 7d shows the bulk density of the regenerated samples. It can be seen that the compactness of the regenerated samples was enhanced along with an increase in Al2O3 content in the regenerated samples. This is because the content of the liquid phase in the regenerated samples at the firing temperature increased along with an increase in Al2O3 content in the regenerated samples, and it improved the sinterability of the regenerated samples.

3.3. Room Temperature and Hot Flexural Strength of the Regenerated Magnesia-Calcium Bricks

Figure 8 shows the results of the room temperature and the hot (1573 K) flexural strength of samples A0, A1.5, and A3.0. This indicates that the room-temperature flexural strength of the regenerated samples increased, and the hot flexural strength of the regenerated samples reduced with Al2O3 content increasing. This is because, with an increase in Al2O3 content in the regenerated samples, the density of the regenerated sample increased on the one hand, as shown in Figure 7d, leading to an increase in its room-temperature flexural strength, and on the other hand, the regenerated sample generated more low-melting-point phases (such as C4AF and C3A), as shown in Table 3, resulting in a decrease in its hot flexural strength.

3.4. Kiln Coating Adherence of the Regenerated Magnesia-Calcium Bricks

The flexural strengths of the bonded samples BA0, BA1.5, and BA 3.0 are shown in Figure 9a. It shows that the flexural strengths of the bonded samples were enhanced along with an increase in Al2O3 content in the regenerated samples; that is, there was an increasing tendency of the kiln coating adherence as Al2O3 content in the regenerated samples increased.
The SEM images of the cross-section of the bonded samples BA0, BA1.5, and BA3.0 after the kiln coating adherence experiment are shown in Figure 9b–d. It can be seen that the cement clinker corroded the regenerated samples along the calcium-based phases, and the corrosion was more serious in bonded samples BA1.5 and BA3.0 than in bonded sample BA0. This is because the low-melting-point phases in the calcium-based phases of the regenerated samples existed in the form of a liquid phase at the experimental temperature (1823 K), which improved the wettability of the regenerated samples, and thus, the melting cement clinker was much easier to corrode the regenerated samples along the areas of these low-melting-point phases (indicated by red arrows in Figure 9b–d). Therefore, more cement clinker corroded the regenerated sample along with an increase in Al2O3 content in the regenerated samples as the content of the low-melting-point phases increased, and it also increased the reaction areas between the cement clinker and regenerated samples, which enhanced the kiln coating adherence, as shown in Figure 9a.
Moreover, the reaction between the cement clinker and the phase of MgO, which was the major phase of the regenerated sample, was carried out by an element distribution scanning analysis across their contact areas, as shown in Figure 10a. This indicates that a reaction layer containing Ca, Sim, and Mg existed on the interfacial surface of these contact areas. The thickness d of the reaction layer gradually became larger with increasing Al2O3 content in the regenerated samples, as shown in Figure 10b, which also indicates aggravating corrosion of the cement clinker to the phase of MgO.
Generally, the increase in Al2O3 content in the regenerated samples led to an increase in the content of the low-melting-point phases of C4AF and C3A, and it had a positive effect on the bulk density, room-temperature flexural strength, and kiln coating adherence of the regenerated samples; on the contrary, it had an adverse effect on the hot flexural strength and the corrosion resistance of the cement clinker.
The performances of chromium-free refractories used in the cement rotary kiln as reported in [26,27] were compared with the corresponding performances of the regenerated samples, and the results are shown in Table 4. It shows that the bulk density, room-temperature flexural strength of the samples A0, A1.5, and A3.0, and the flexural strengths of the bonded samples BA0, BA1.5, and BA 3.0 were all higher than those reported in the literature; however, only the hot flexural strength of sample A0 was higher than that reported in the literature. Therefore, sample A0 behaved the best comprehensive performances; that is, the content of Al2O3 in the regenerated magnesia-calcium brick should not be higher than 1.1 wt.%.

4. Conclusions

In this work, the effects of Al2O3 content on regenerated magnesia-calcium bricks for the cement rotary kiln were systematically researched. The regenerated magnesia-calcium brick samples were prepared using spent magnesia-calcium brick, fused magnesia, and Al2O3 powder additive as the raw materials, liquid paraffin as the binder, and firing at 1873 K for 2 h under an air atmosphere. The phase composition of the regenerated magnesia-calcium bricks with different Al2O3 contents indicated that the main phases of samples A0 and A1.5 were magnesia (MgO), free calcium oxide (f-CaO), tricalcium silicate (C3S), and tetracalcium aluminoferrite (C4AF). In sample A3.0, a new phase of tricalcium aluminate (C3A) was observed besides MgO, f-CaO, C3S, and C4AF. The increase in Al2O3 content in the regenerated samples mainly led to an increase in the content of the C4AF and C3A phases in the regenerated samples according to the theoretical calculation. The content of Al2O3 in the regenerated samples has a significant impact on the performance of cement rotary kiln applications. Specifically, as the content of Al2O3 increased, the content of the low-melting-point phases of C4AF and C3A increased, which improved the sinterability of the regenerated sample, leading to an increase in the bulk density, room-temperature flexural strength, and the kiln coating adherence of the regenerated sample. The high-temperature performances of the regenerated samples, such as the hot flexural strength (1573 K) and the corrosion resistance to cement clinker, deteriorated along with an increase in Al2O3 content because the melting points of the C4AF and C3A phases were close to the experimental temperature. Furthermore, C4AF and C3A were in the liquid phase form at 1823 K, which wetted the regenerated sample to enhance the reaction between the cement clinker and the regenerated samples, resulting in increasing the kiln coating adherence. Based on the performance and application scenarios of the regenerated magnesium-calcium brick, the total content of Al2O3 in the regenerated magnesia-calcium brick should be no more than 1.1 wt.% compared to the main performances with other chromium-free refractories for cement rotary kiln. Moreover, sample A0 can be considered the most suitable regenerated sample for the cement rotary kiln because of its excellent comprehensive performance with a bulk density of 2.95 g/cm3, room temperature and hot flexural strength of 68.58MPa and 9.65 MPa, bonded sample flexural strength of 7.89 MPa, and good corrosion resistance to cement clinker. This may provide a reference for the replacement of hazardous magnesite-chrome bricks in the cement rotary kiln with the regenerated magnesia-calcium bricks.

Author Contributions

Conceptualization, G.-B.Q. and M.Z.; methodology, G.-B.Q., Y.-D.H. and M.Z.; software, G.-B.Q. and H.-G.W.; validation, J.H. and X.-H.Z.; formal analysis, G.-B.Q. and J.H.; investigation, G.-B.Q., Y.-D.H. and B.P.; resources, J.H. and B.P.; data curation, G.-B.Q., H.-G.W. and X.-H.Z.; writing—original draft preparation, G.-B.Q.; writing—review and editing, M.Z., Y.-D.H. and H.-G.W.; visualization, G.-B.Q., J.H. and X.-H.Z.; supervision, B.P. and M.Z.; project administration, G.-B.Q. and B.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the 2023 Zhanjiang Ocean Young Talent Innovation Project of China (2023E0009) and the National Natural Science Foundation Outstanding Youth Science Fund project of China (52322806).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nievoll, J.; Guo, Z.Q.; Shi, S. Performance of magnesia hercynite bricks in large Chinese cement rotary kilns. RHI Bull. 2006, 3, 15–17. [Google Scholar]
  2. Schacht, C. Refractories Handbook; CRC Press: Boca Raton, FL, USA, 2004; p. 607. [Google Scholar]
  3. Driscoll, M.O. Price temper steel market promise. Ind. Miner. 1994, 324, 35–49. [Google Scholar]
  4. Guo, M.; Jones, P.T.; Parada, S.; Boydens, E.; Dyck, J.V.; Blanpain, B.; Wollants, P. Degradation mechanisms of magnesia-chromite refractories by high-alumina stainless steel slags under vacuum conditions. J. Eur. Ceram. Soc. 2006, 26, 3831–3843. [Google Scholar] [CrossRef]
  5. Gómez-Rodríguez, C.; Antonio-Zárate, Y.; Revuelta-Acosta, J.; Verdeja, L.F.; Fernández-González, D.; López-Perales, J.F.; Rodríguez-Castellanos, E.A.; García-Quiñonez, L.V.; Castillo-Rodríguez, G.A. Research and development of novel refractory of MgO doped with ZrO2 nanoparticles for copper slag resistance. Materials 2021, 14, 2277. [Google Scholar] [CrossRef] [PubMed]
  6. Zhu, B.Q.; Fang, B.X.; Zhang, W.J.; Li, X.C.; Wan, H.B. Corrosion mechanism of ladle furnace refining slag to fired MgO–CaO bricks. China’s Refract. 2010, 19, 1–4. [Google Scholar]
  7. Wei, Y.W.; Li, N. Refractories for clean steel making. Am. Ceram. Soc. Bull. 2002, 81, 32–35. [Google Scholar]
  8. Liang, Y.B.; Shen, X.L. Effects of spent MgO–CaO bricks additive amount on the properties of baking MgO–CaO bricks. Refractories 2008, 42, 392–393. [Google Scholar]
  9. Arup, G.; Tapas, K.B.; Barundeb, M.; Tripathi, H.S.; Das, S.K. Effect of Fe2O3 on the densification and properties of lime. Ceram-Silikaty 2003, 47, 70–74. [Google Scholar]
  10. Shi, Y.Y.; Messing, G.L.; Bradt, R.C. Reactive-Phase Calsintering of Calcium-Carbonate-Derived Lime. J. Am. Ceram. Soc. 1984, 67, C-109. [Google Scholar] [CrossRef]
  11. Nadachowski, F. Lime refractories. Keram. Z. 1975, 24, 42–45. [Google Scholar]
  12. Zhang, W.; Shi, G.; Wei, F.C.; Wang, C.Y. Preparation of magnesia–calcia dry mix from used MgO–CaO bricks. Refractories 2012, 46, 126–128. [Google Scholar]
  13. Qiu, G.B.; Peng, B.; Guo, M.; Zhang, M. Regeneration utilization of spent MgO–CaO bricks for argon oxygen decarburization furnace. J. Chin. Ceram. Soc. 2013, 41, 1284–1289. [Google Scholar]
  14. Soltanieh, M.; Payandeh, Y. Relationship between oxygen chemical potential and steel cleanliness. J. Iron Steel Res. Int. 2005, 12, 28–33+62. [Google Scholar]
  15. Rabah, M.; Ewais, E.M.M. Multi–impregnating pitch–bonded Egyptian dolomite refractory brick for application in ladle furnaces. Ceram. Int. 2009, 35, 813–819. [Google Scholar] [CrossRef]
  16. Chen, S.J.; Tian, L.; Li, G.H.; Tian, F.R. MgO–CaO Refractories; Song, L., Ed.; Metallurgical Industry Press: Beijing, China, 2012; pp. 25, 52–57. [Google Scholar]
  17. Yu, J.K.; Dai, W.B. Influence of fine α–Al2O3 powder on the properties of the magnesia-calcia refractories. J. Northeast. Univ. (Nat. Sci.) 2003, 24, 1068–1070. [Google Scholar]
  18. Shahraki, A.; Ghasemi-Kahrizsangi, S.; Nemati, A. Performance improvement of MgO-CaO refractories by the addition of nano-sized Al2O3. Mater. Chem. Phys. 2017, 198, 354–359. [Google Scholar] [CrossRef]
  19. Qiu, G.B.; Peng, B.; Li, X.; Guo, M.; Zhang, M. Hydration resistance and mechanism of regenerated MgO–CaO bricks. J. Ceram. Soc. Jpn. 2015, 123, 1–6. [Google Scholar] [CrossRef]
  20. Qiu, G.B.; Peng, B.; Yue, C.S.; Guo, M.; Zhang, M. Properties of regenerated MgO–CaO refractory bricks: Impurity of iron oxide. Ceram. Int. 2016, 42, 2933–2940. [Google Scholar] [CrossRef]
  21. Yang, W.Z.; Chen, S.J.; Wei, Z.L.; Zhang, F.Q. Effect of Al2O3 additions on characteristic of burned magnesia–calcia brick. J. Anshan Univ. Sci. Technol. 2003, 26, 425–428. [Google Scholar]
  22. Cheng, X.; Liu, L.; Xiao, L.H.; Huo, X.T.; Guo, M.; Zhang, M. Effect of MgO on corrosion mechanism under LF refining slag for MgAlON–MgO composites synthesized from spent MgO–C brick: Wetting behaviour, reaction process and infiltration mechanism. J. Alloys Compd. 2023, 963, 171278. [Google Scholar] [CrossRef]
  23. Zhu, Z.P.; Jiang, T.; Li, G.H.; Guo, Y.F.; Yang, Y.B. Thermodynamics of reactions among Al2O3, CaO, SiO2 and Fe2O3 during roasting processe. In Thermodynamics–Interaction Studies–Solids, Liquids and Gases; Chapter 30; Moreno-Pirajan, J.C., Ed.; InTech: Houston, TX, USA, 2011; pp. 825–838. [Google Scholar]
  24. Sun, Y.F.; Wang, X.M.; Wang, C.X.; Sun, P.Q. Magnesia and Magnesium Matrix Composite Refractories; Metallurgical Industry Press: Beijing, China, 2010; pp. 25–32. [Google Scholar]
  25. Taschler, T. Refractory materials for the copper and lead industry. In Proceedings of the Tehran International Conference on Refractories, Tehran, Iran, 4–6 May 2004; China’s Refract. pp. 302–320. [Google Scholar]
  26. Wang, Z.F.; Chen, J.; Wang, X.T.; Zhang, B.G.; Liu, H. Effects of rare earth oxides on physical properties and coating adhering performance of magnesia refractories. J. Wuhan Univ. Sci. Technol. 2010, 33, 595–598. [Google Scholar]
  27. Zhang, B.X. Research on Non-Chromium Refractory for Rotary Cement Kiln in Burning Zone. Master’s Thesis, University of Science and Technology Liaoning, Anshan, China, 2008. [Google Scholar]
Processes 11 03018 g001

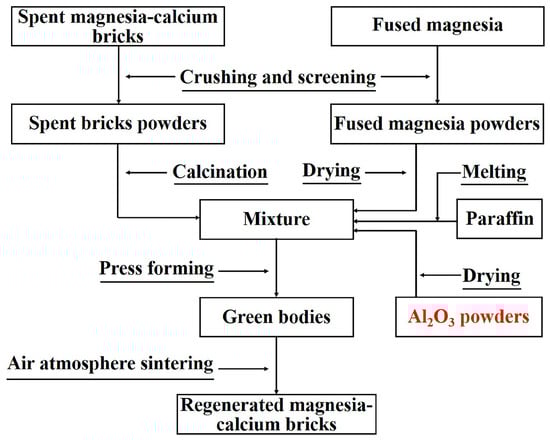

Figure 1. The synthetic process flow chart of regenerated magnesia-calcium bricks with Al2O3 powder addition.
Figure 1. The synthetic process flow chart of regenerated magnesia-calcium bricks with Al2O3 powder addition.
Processes 11 03018 g001
Processes 11 03018 g002

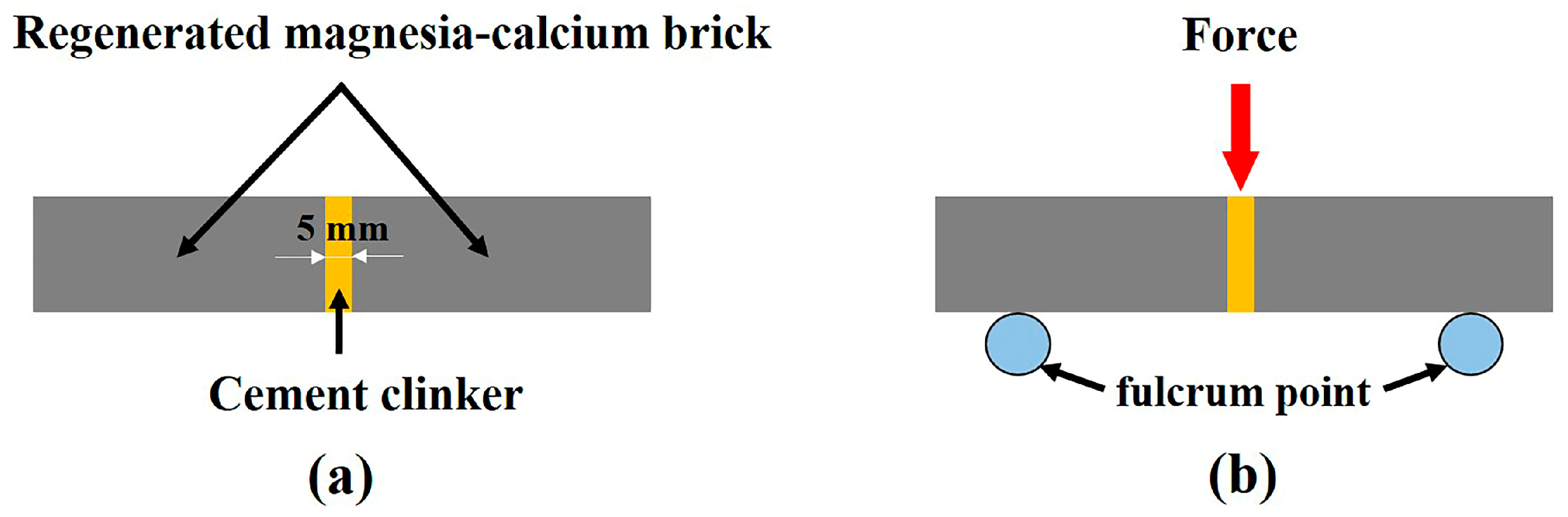

Figure 2. (a) Preparation diagram of the bonded sample for the kiln coating adherence test; (b) flexural strength diagram of the bonded sample for the kiln coating adherence test.
Figure 2. (a) Preparation diagram of the bonded sample for the kiln coating adherence test; (b) flexural strength diagram of the bonded sample for the kiln coating adherence test.
Processes 11 03018 g002
Processes 11 03018 g003

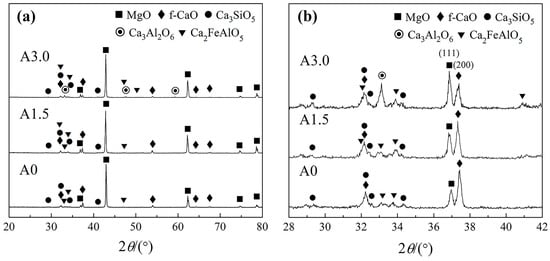

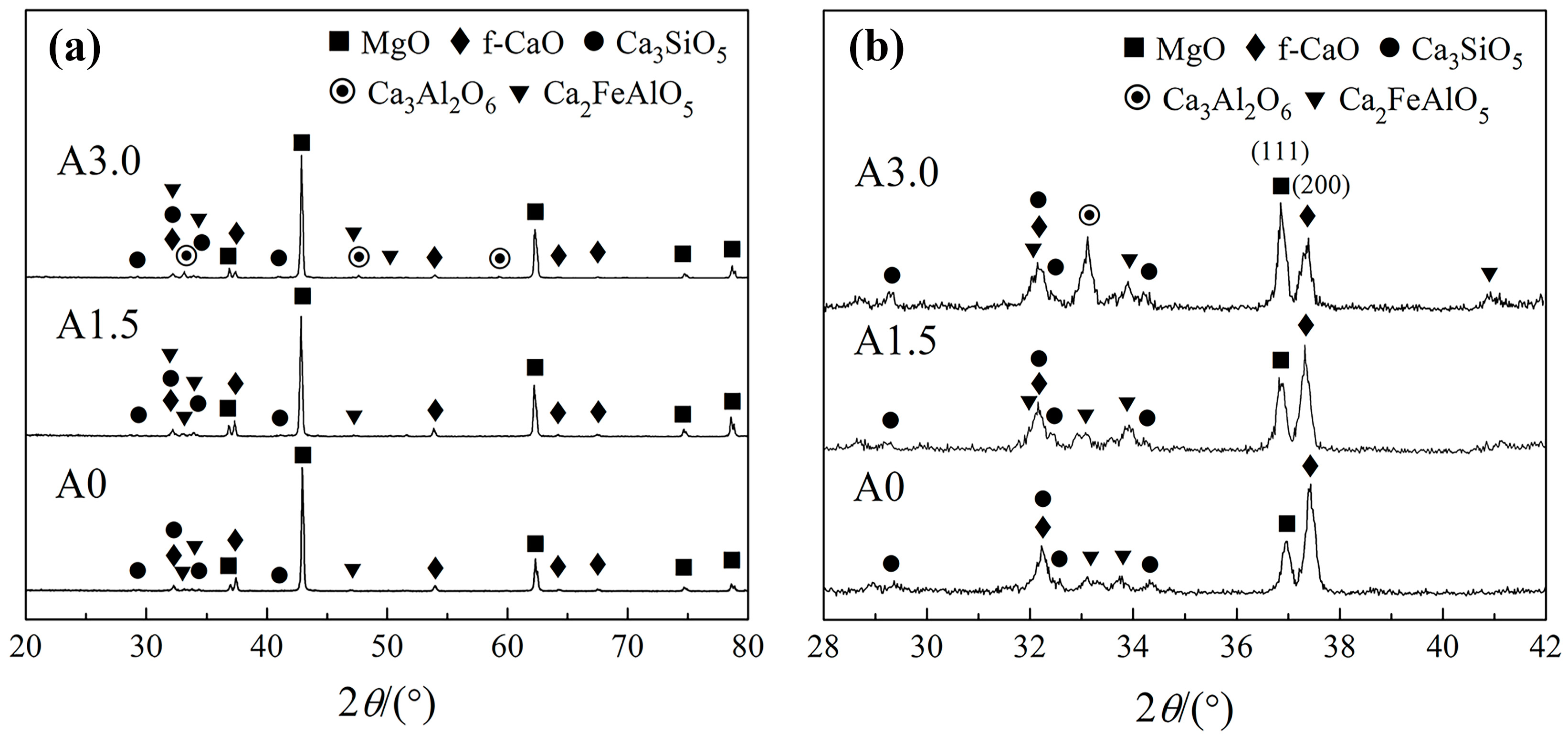

Figure 3. XRD patterns of samples A0, A1.5, and A3.0: (a) the range of 20–80°; (b) the range of 28–42°.
Figure 3. XRD patterns of samples A0, A1.5, and A3.0: (a) the range of 20–80°; (b) the range of 28–42°.
Processes 11 03018 g003
Processes 11 03018 g004

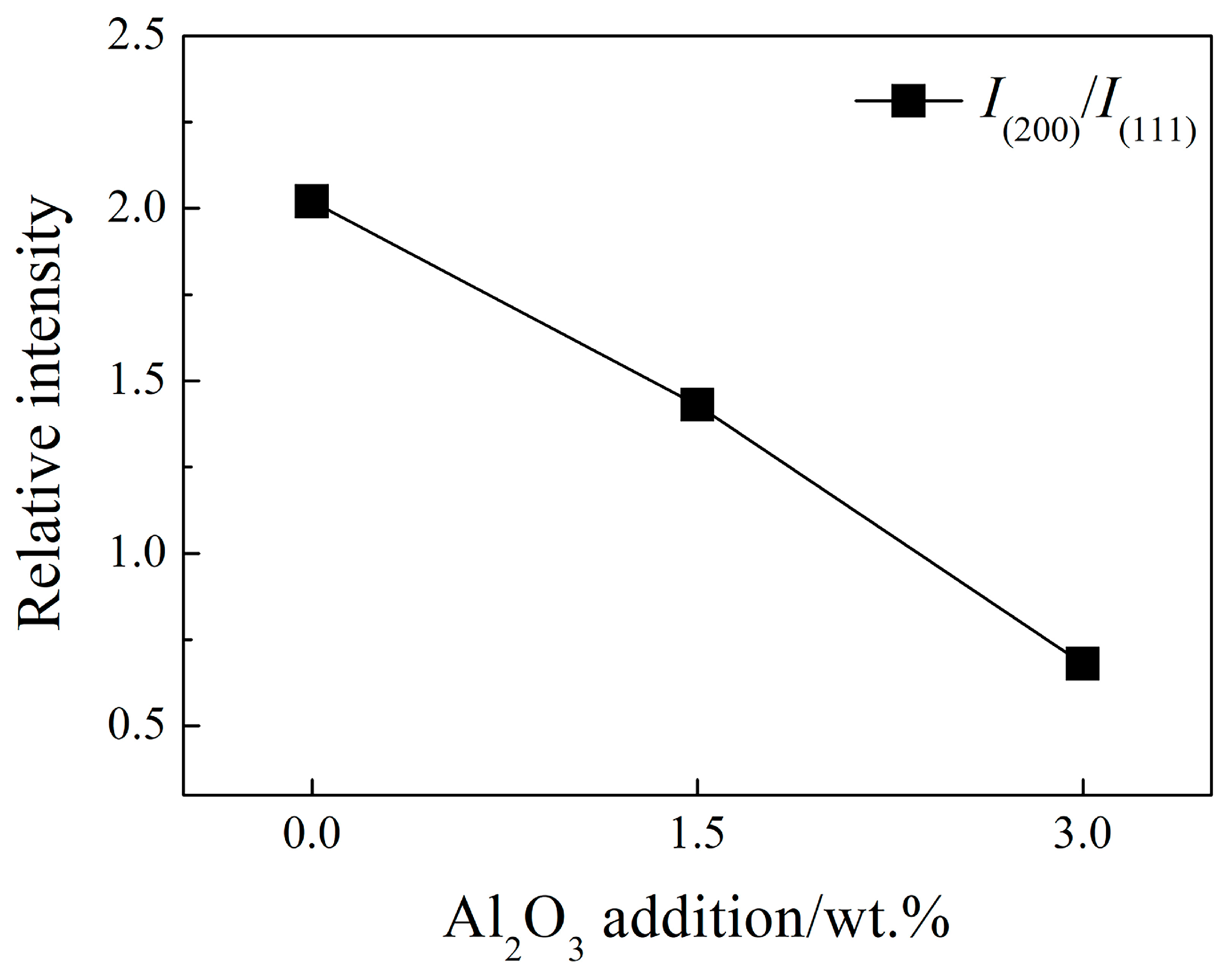

Figure 4. Relative intensities of ICaO(200)/IMgO(111) of the samples A0, A1.5, and A3.0.
Figure 4. Relative intensities of ICaO(200)/IMgO(111) of the samples A0, A1.5, and A3.0.
Processes 11 03018 g004
Processes 11 03018 g005

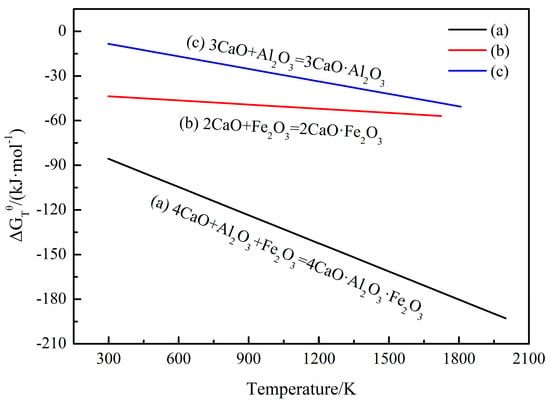

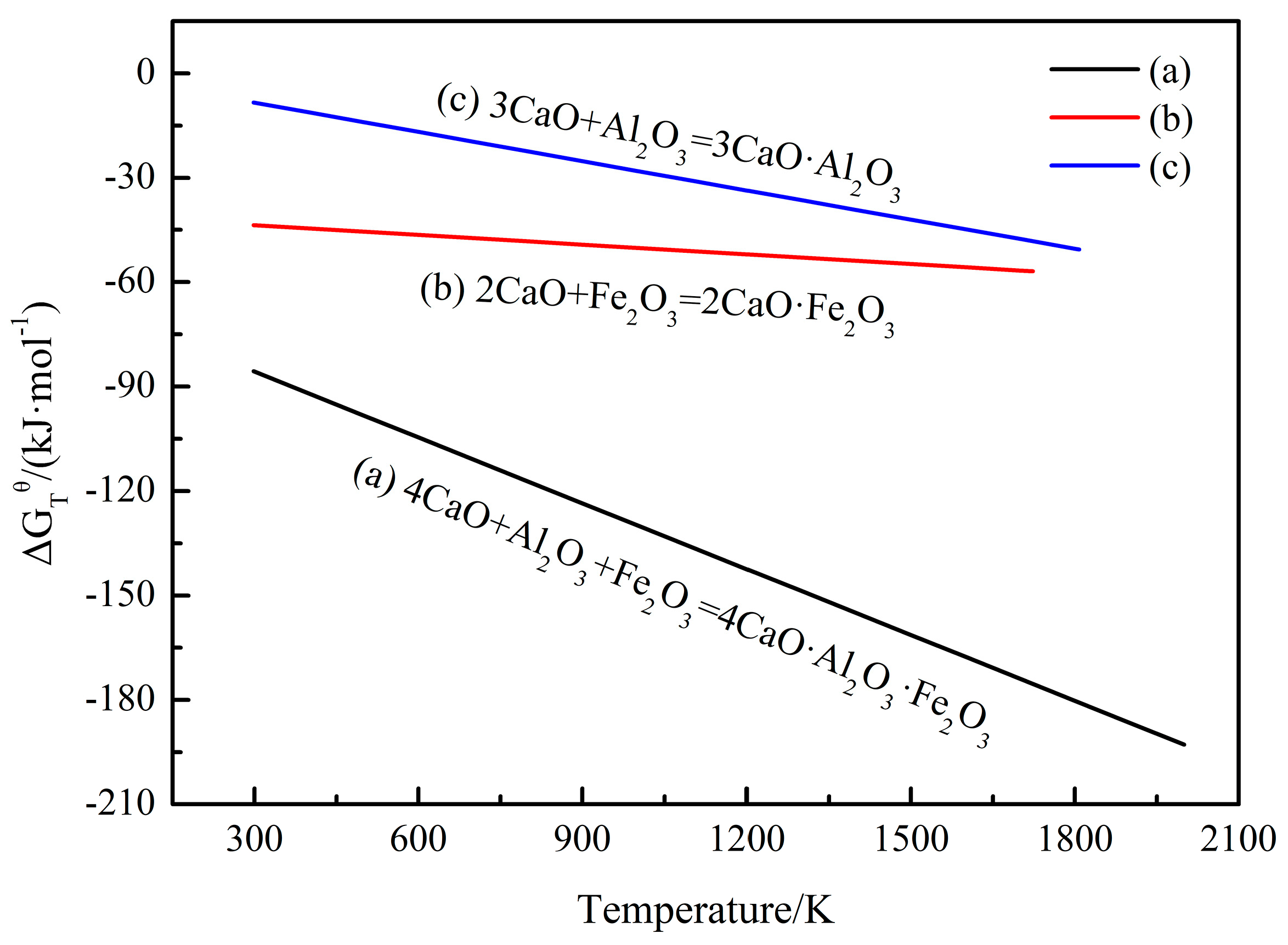

Figure 5. Standard Gibbs energy of the reactions between Fe2O3, Al2O3, and f-CaO vs. temperature in the regenerated samples.
Figure 5. Standard Gibbs energy of the reactions between Fe2O3, Al2O3, and f-CaO vs. temperature in the regenerated samples.
Processes 11 03018 g005
Processes 11 03018 g006

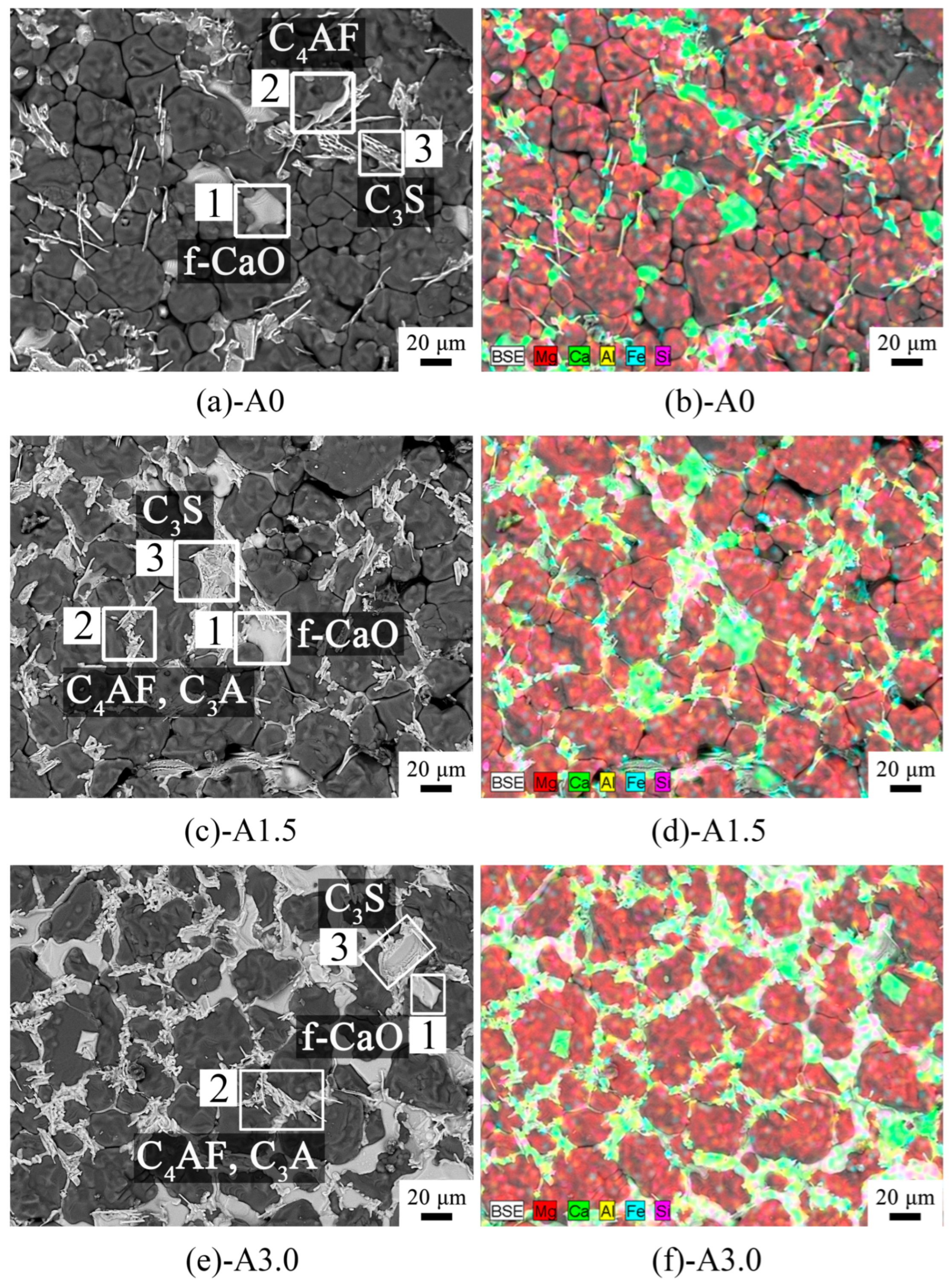

Figure 6. (a,c,e) SEM images of the regenerated samples’ surfaces; (b,d,f) elements distribution of the regenerated samples’ surfaces.
Figure 6. (a,c,e) SEM images of the regenerated samples’ surfaces; (b,d,f) elements distribution of the regenerated samples’ surfaces.
Processes 11 03018 g006
Processes 11 03018 g007

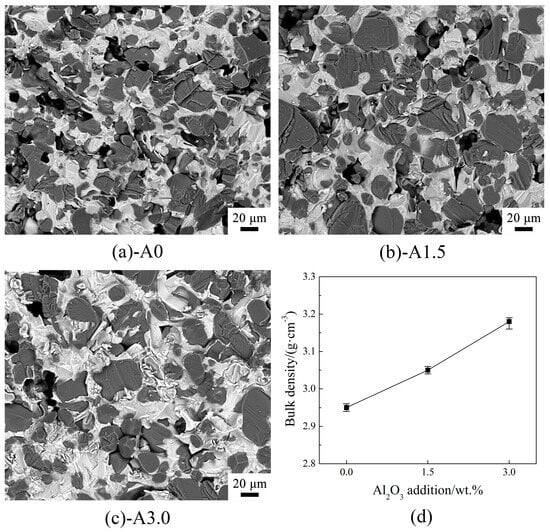

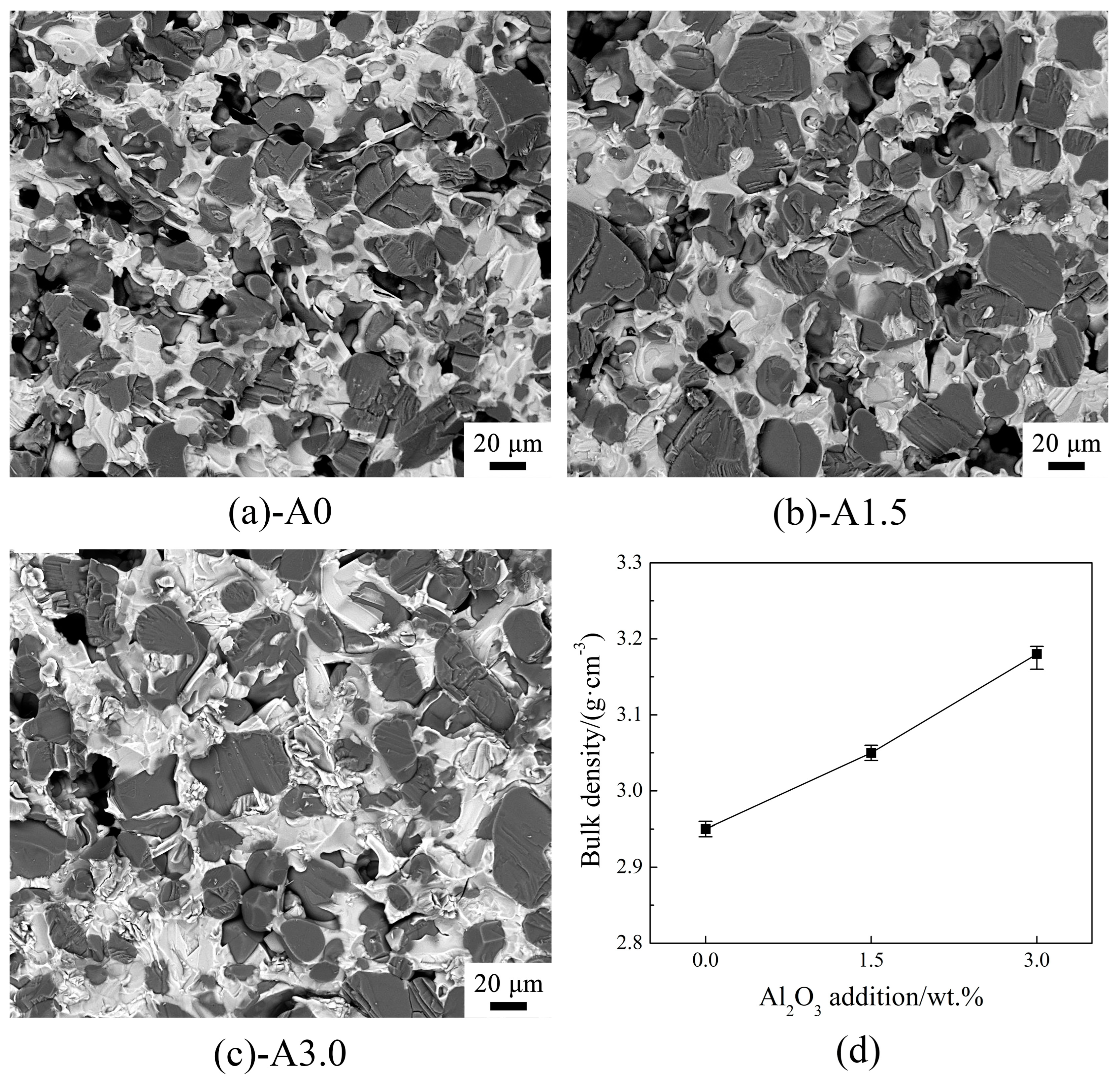

Figure 7. (a–c) SEM images of the regenerated samples’ fractures; (d) bulk density of the regenerated samples.
Figure 7. (a–c) SEM images of the regenerated samples’ fractures; (d) bulk density of the regenerated samples.
Processes 11 03018 g007
Processes 11 03018 g008

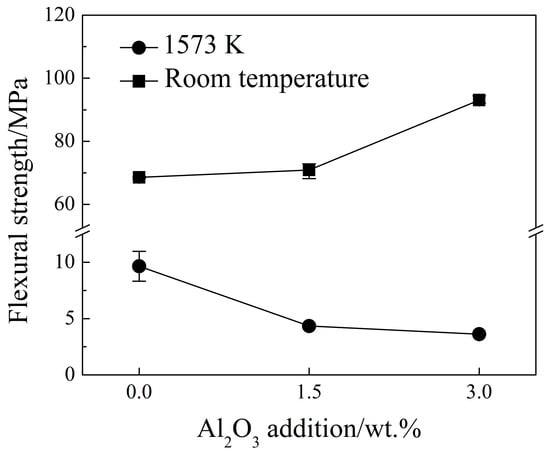

Figure 8. Room temperature and hot flexural strength of the samples A0, A1.5, and A3.0.
Figure 8. Room temperature and hot flexural strength of the samples A0, A1.5, and A3.0.
Processes 11 03018 g008
Processes 11 03018 g009

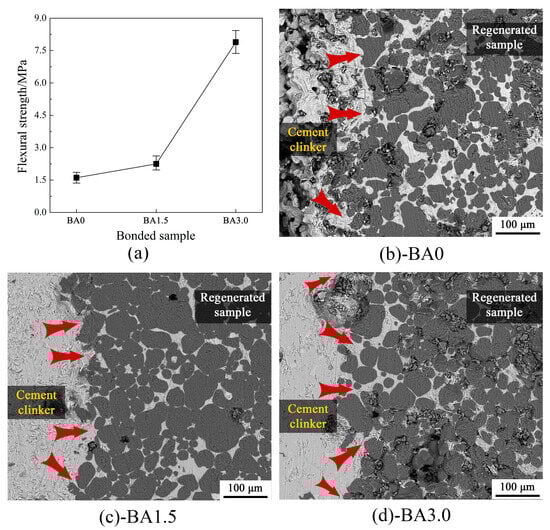

Figure 9. (a) Flexural strength of the bonded samples; (b–d) SEM images of the cross-section of the bonded samples after the kiln coating adherence experiment.
Figure 9. (a) Flexural strength of the bonded samples; (b–d) SEM images of the cross-section of the bonded samples after the kiln coating adherence experiment.
Processes 11 03018 g009
Processes 11 03018 g010

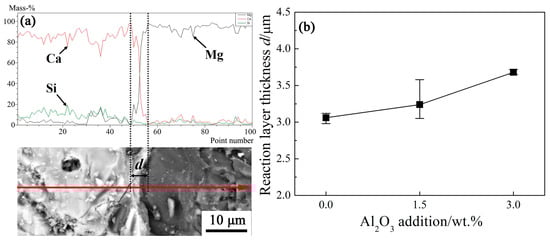

Figure 10. (a) The element distribution scanning analysis across the contact area of the cement clinker and the MgO phase; (b) reaction layer thickness d of samples A0, A1.5, and A3.0.
Figure 10. (a) The element distribution scanning analysis across the contact area of the cement clinker and the MgO phase; (b) reaction layer thickness d of samples A0, A1.5, and A3.0.
Processes 11 03018 g010
Table 1. Compositions of the raw materials of the regenerated magnesia-calcium bricks (wt.%).
Table 1. Compositions of the raw materials of the regenerated magnesia-calcium bricks (wt.%).
ConstituentsMgOCaOSiO2Fe2O3Al2O3
Spent magnesia-calcium bricks58.1833.922.812.681.51
Fused magnesia94.161.632.641.000.27
Al2O3 powders--0.300.0398.75
Table 2. Compositions of the regenerated magnesia-calcium bricks’ green bodies (wt.%).
Table 2. Compositions of the regenerated magnesia-calcium bricks’ green bodies (wt.%).
SampleMgOCaOSiO2Fe2O3Al2O3
A070.0023.312.662.211.10
A1.568.9722.972.632.182.54
A3.067.9622.632.592.153.94
Table 3. Theoretical contents of each calcium-based phase in the regenerated samples (wt.%).
Table 3. Theoretical contents of each calcium-based phase in the regenerated samples (wt.%).
Calcium-Based PhasesA0A1.5A3.0
C3S10.119.989.85
C4AF5.256.626.53
C2F0.820.000.00
C3A0.003.056.81
f-CaO13.1110.668.12
Table 4. Comparison of the performances between chromium-free refractories and the regenerated samples.
Table 4. Comparison of the performances between chromium-free refractories and the regenerated samples.
PerformancesSample A0/BA0Sample A1.5/BA1.5Sample A3.0/BA3.0Literature
Bulk density
(g/cm3)		2.953.053.182.93
Room-temperature
flexural strength
(MPa)		68.5870.9193.1121.60
Hot flexural strength
(MPa)		9.654.343.625.40
Bonded sample
Room-temperature
flexural strength
(MPa)		1.61
(BA0)		2.25
(BA1.5)		7.89
(BA3.0)		0.52
